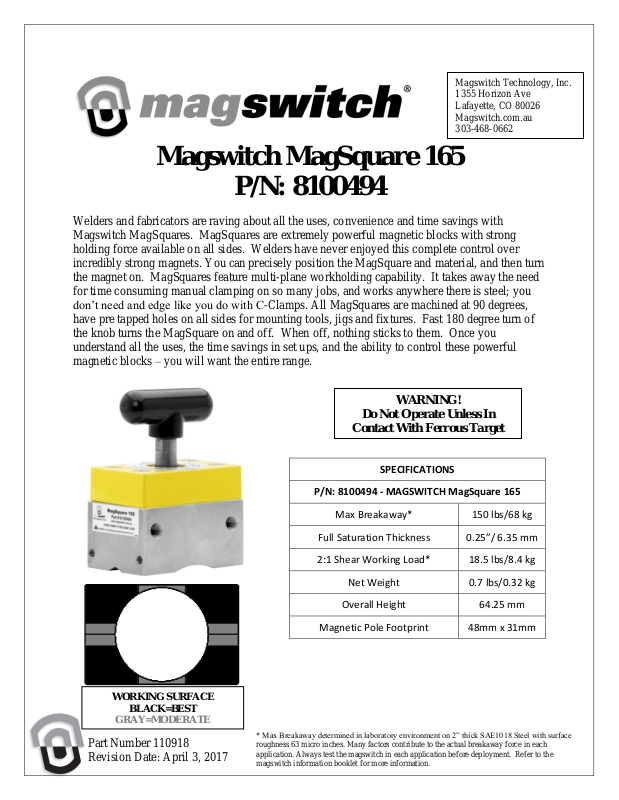

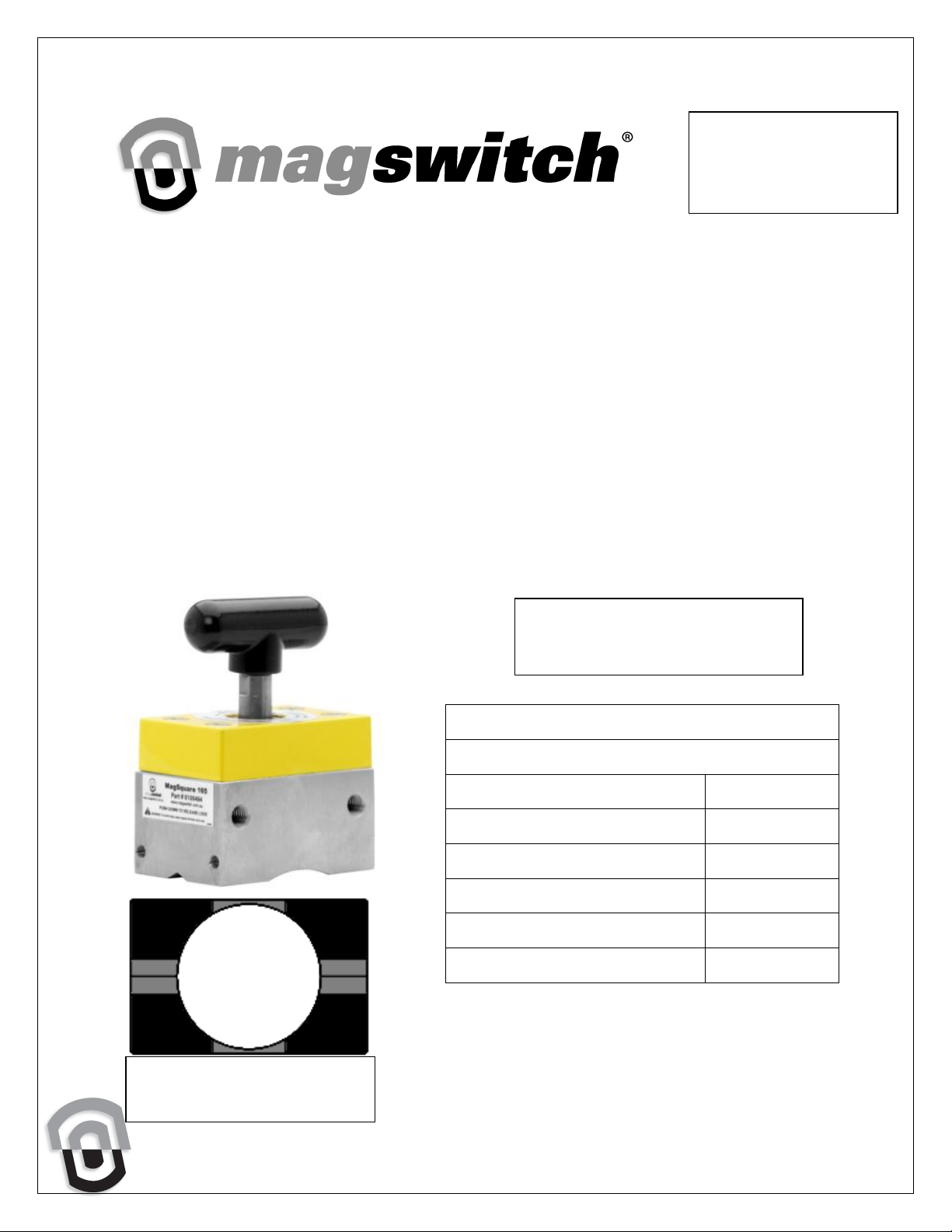

Page 1
* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface
roughness 63 micro inches. Many factors contribute to the actual breakaway force in each
application. Always test the magswitch in each application before deployment. Refer to the
magswitch information booklet for more information.
SPECIFICATIONS
P/N: 8100494 - MAGSWITCH MagSquare 165
Max Breakaway*
150 lbs/68 kg
Full Saturation Thickness
0.25”/ 6.35 mm
2:1 Shear Working Load*
18.5 lbs/8.4 kg
Net Weight
0.7 lbs/0.32 kg
Overall Height
64.25 mm
Magnetic Pole Footprint
48mm x 31mm
WARNING!
Do Not Operate Unless In
Contact With Ferrous Target
Magswitch Technology, Inc.
1355 Horizon Ave
Lafayette, CO 80026
Magswitch.com.au
303-468-0662
WORKING SURFACE
BLACK=BEST
GRAY=MODERATE
Magswitch MagSquare 165
P/N: 8100494
Welders and fabricators are raving about all the uses, convenience and time savings with
Magswitch MagSquares. MagSquares are extremely powerful magnetic blocks with strong
holding force available on all sides. Welders have never enjoyed this complete control over
incredibly strong magnets. You can precisely position the MagSquare and material, and then turn
the magnet on. MagSquares feature multi-plane workholding capability. It takes away the need
for time consuming manual clamping on so many jobs, and works anywhere there is steel; you
don’t need and edge like you do with C-Clamps. All MagSquares are machined at 90 degrees,
have pre tapped holes on all sides for mounting tools, jigs and fixtures. Fast 180 degree turn of
the knob turns the MagSquare on and off. When off, nothing sticks to them. Once you
understand all the uses, the time savings in set ups, and the ability to control these powerful
magnetic blocks – you will want the entire range.
Part Number 110918
Revision Date: April 3, 2017
Page 2
0
20
40
60
80
100
120
140
160
0
10
20
30
40
50
60
70
80
22ga
0.794mm
20ga
0.953mm
18ga
1.27mm
16ga
1.59mm
12ga
2.78mm
1/4"
6.35mm
1/2"
12.7mm1"25.4mm2"50.4mm
Max Holding Force in LBS
Max Holding Force in KG
Material Thickness

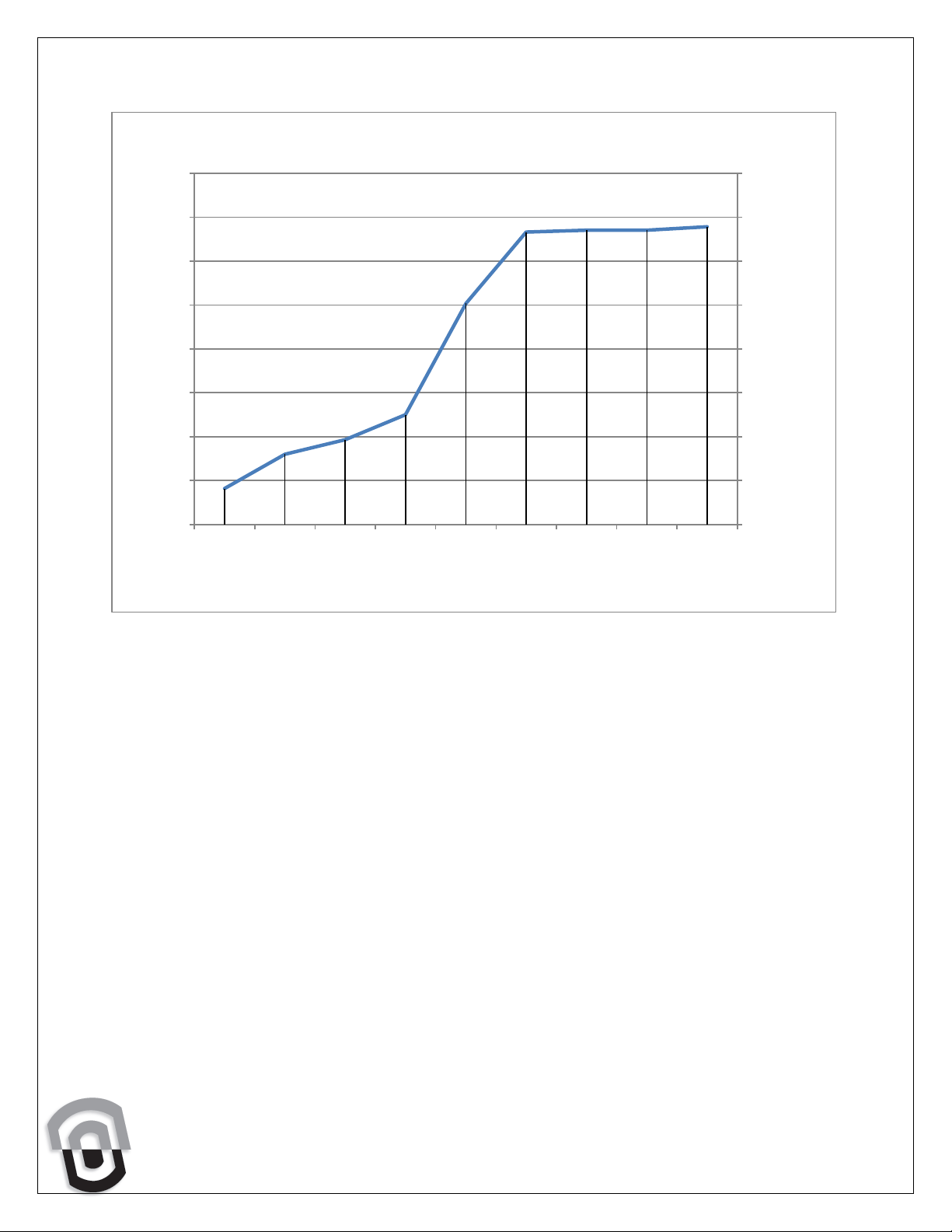

Magswitch MagSquare 165 Breakaway vs. Thickness
Part Number 110918
Revision Date: April 3, 2017

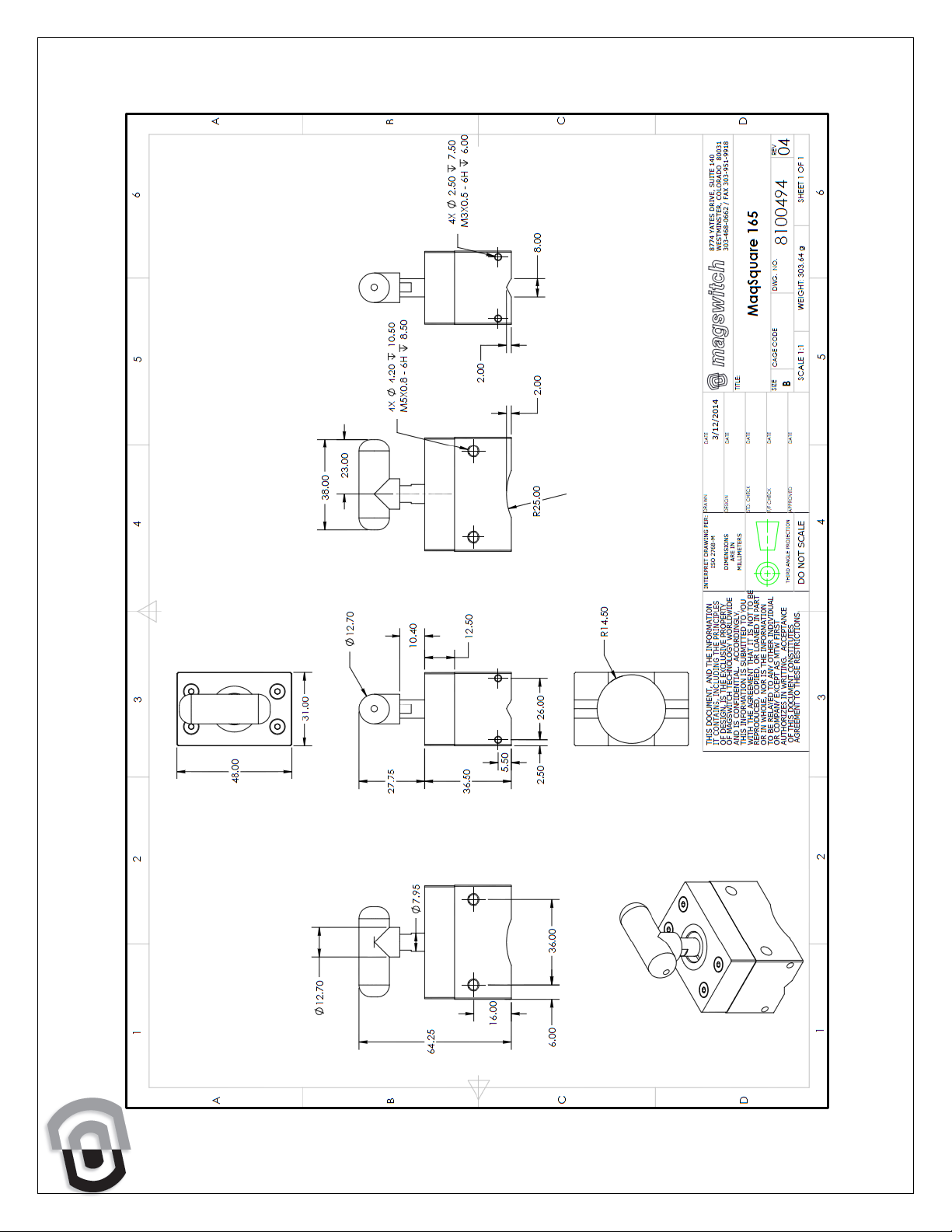

Page 3
Part Number 110918
Revision Date: April 3, 2017
