Page 1
* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface
roughness 63 micro inches. Many factors contribute to the actual breakaway force in each
application. Always test the magswitch in each application before deployment. Refer to the
magswitch information booklet for more information.
d
SPECIFICATIONS
P/N: 8100367 - MAGSWITCH Pivot Angle 200
Max Breakaway*
200 lbs/90 kg
Full Saturation Thickness
3/16” /4.75 mm
Max Safe Shear*
48.4 lbs/22 kg
Net Weight
3.5 lbs/1.6 kg
Overall Height
90 mm
Magnetic Pole Footprint
41.25mm x 56mm
WARNING!
Do Not Operate Unless In
Contact With Ferrous Target
Magswitch Technology, Inc.
8774 Yates Dr. Suite 140
Westminster, CO 80031
Magswitch.com.au
303-468-0662

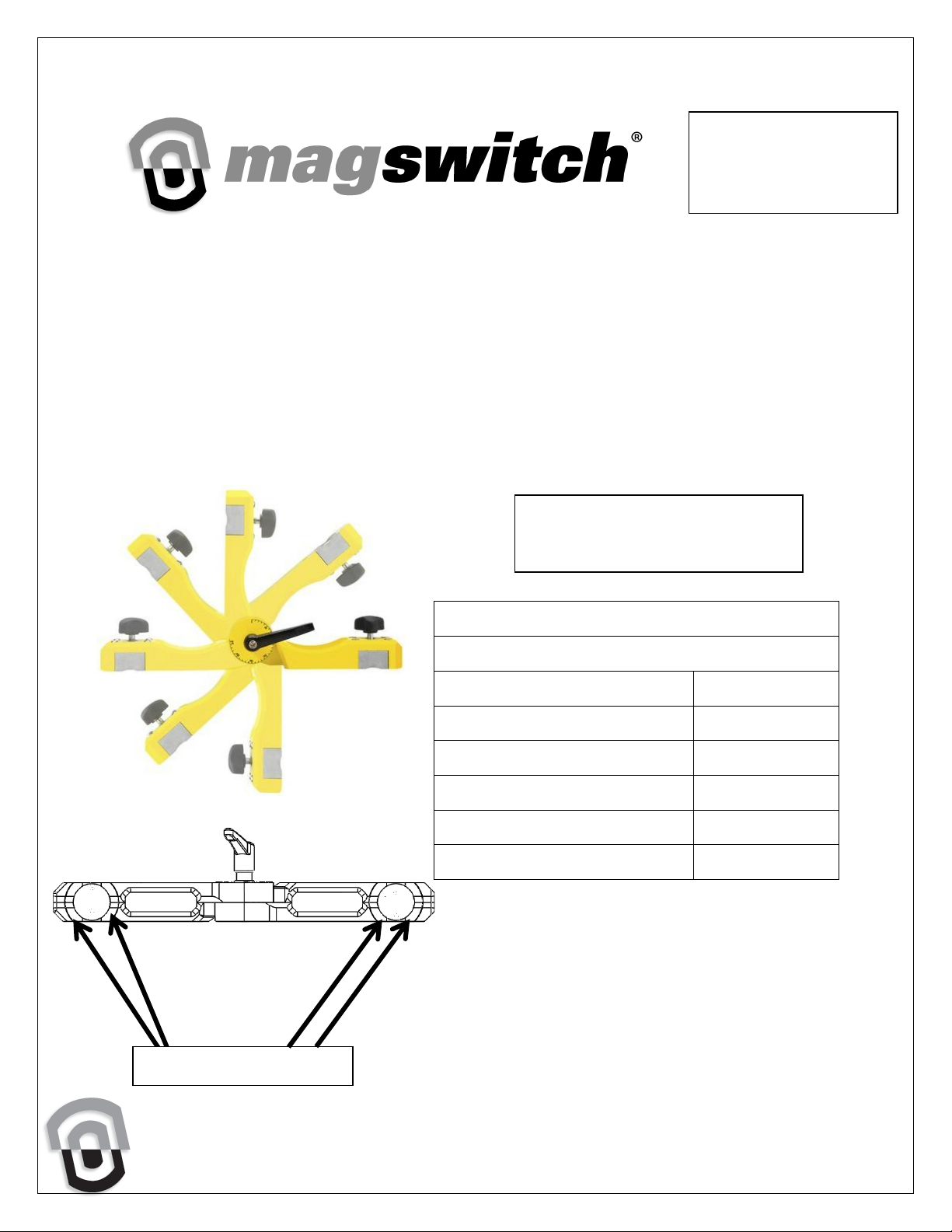

WORKING SURFACE

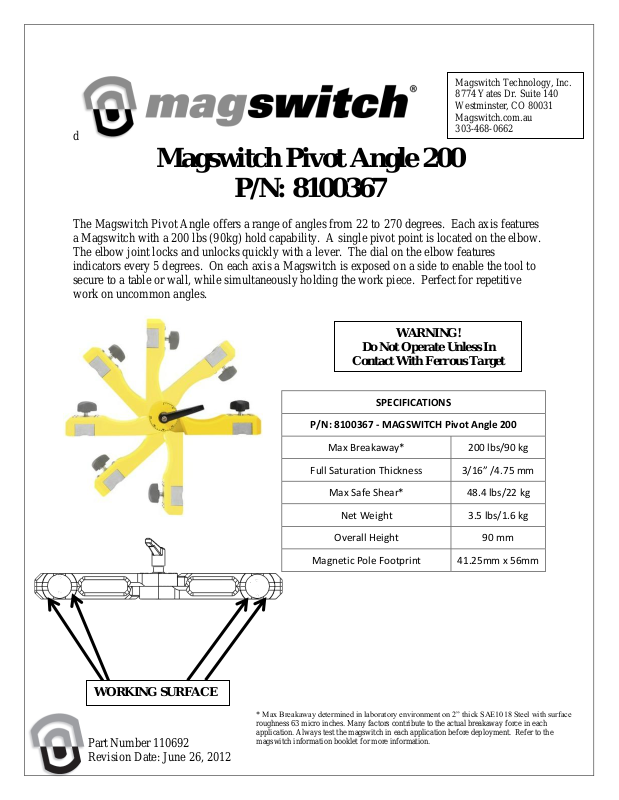

Magswitch Pivot Angle 200
P/N: 8100367
The Magswitch Pivot Angle offers a range of angles from 22 to 270 degrees. Each axis features
a Magswitch with a 200 lbs (90kg) hold capability. A single pivot point is located on the elbow.
The elbow joint locks and unlocks quickly with a lever. The dial on the elbow features
indicators every 5 degrees. On each axis a Magswitch is exposed on a side to enable the tool to
secure to a table or wall, while simultaneously holding the work piece. Perfect for repetitive
work on uncommon angles.
Part Number 110692
Revision Date: June 26, 2012
Page 2
0
20
40
60
80
100
120
0
50
100
150
200
250
20g
1mm
16g
1.52mm
14g
1.9mm
12g
2.67mm
10g
3.43mm
3/16"
4.75 mm
Max Holding Foce in KG*
Max Holding Force in LBS*
Material Thickness

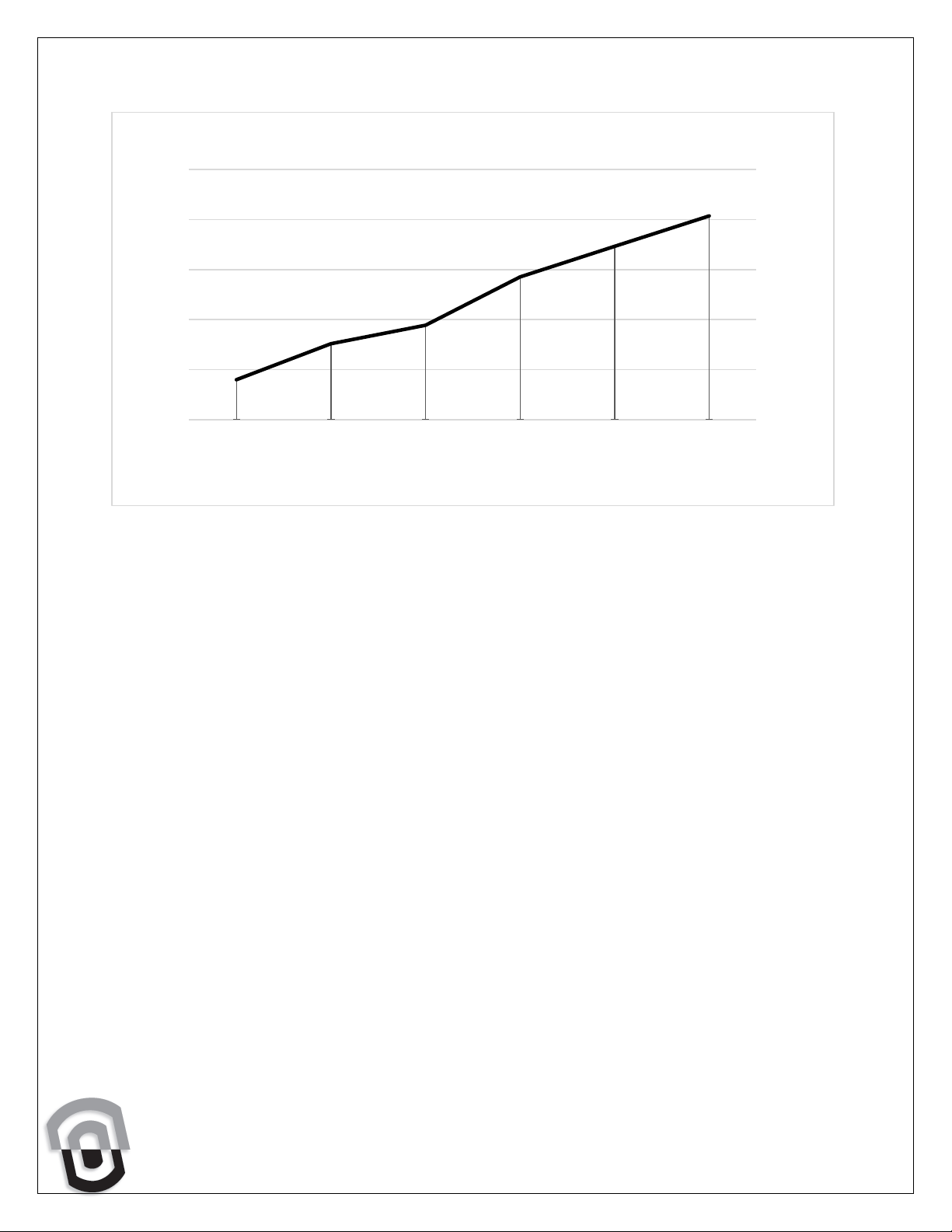

Magswitch Pivot Angle 200 Breakaway Data vs. Thickness
Part Number 110692
Revision Date: June 26, 2012
Page 3

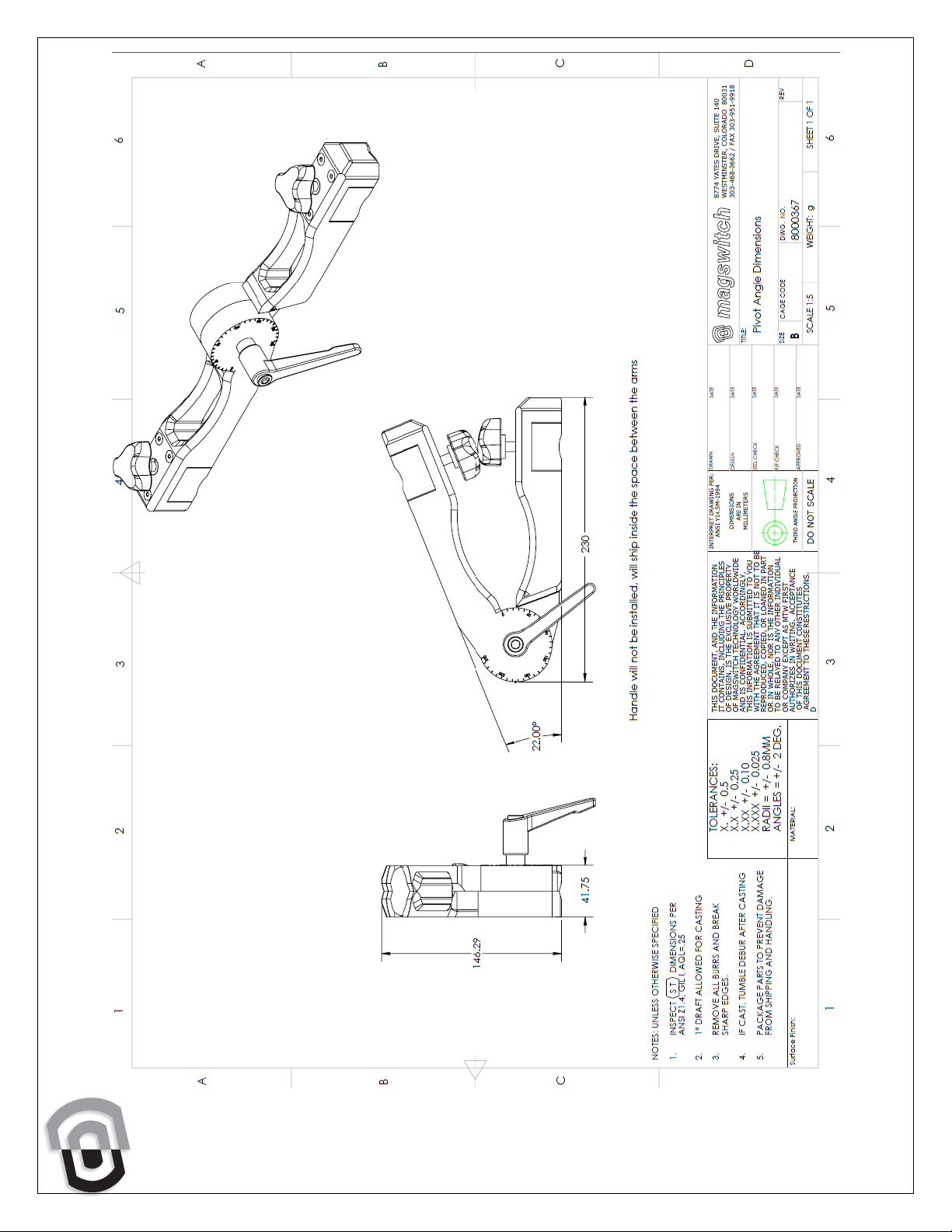

Part Number 110692
Revision Date: June 26, 2012
