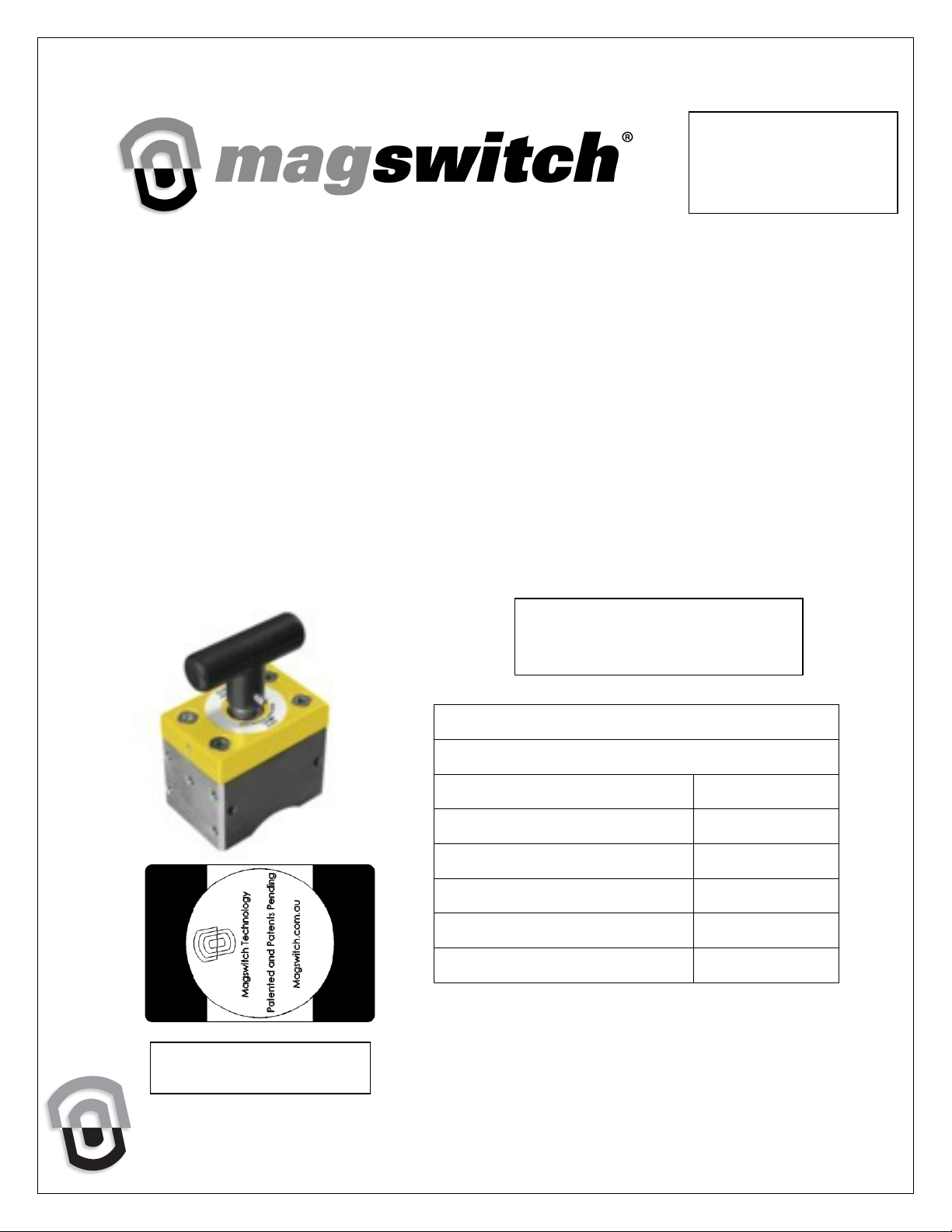

* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface
roughness 63 micro inches. Many factors contribute to the actual breakaway force in each
application. Always test the magswitch in each application before deployment. Refer to the
magswitch information booklet for more information.
SPECIFICATIONS

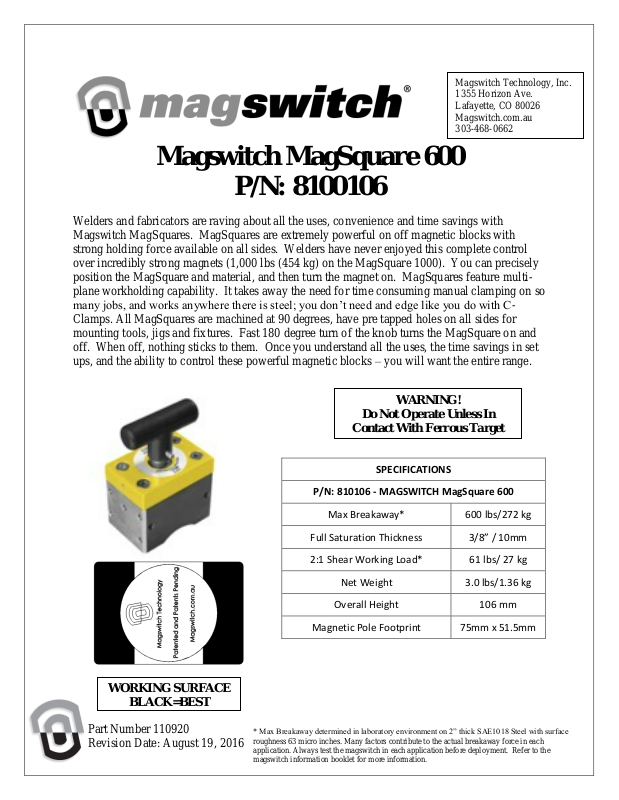

P/N: 810106 - MAGSWITCH MagSquare 600
Max Breakaway*
600 lbs/272 kg
Full Saturation Thickness
3/8” / 10mm
2:1 Shear Working Load*
61 lbs/ 27 kg
Net Weight
3.0 lbs/1.36 kg
Overall Height
106 mm
Magnetic Pole Footprint
75mm x 51.5mm
WARNING!
Do Not Operate Unless In
Contact With Ferrous Target
Magswitch Technology, Inc.
1355 Horizon Ave.
Lafayette, CO 80026
Magswitch.com.au
303-468-0662
WORKING SURFACE
BLACK=BEST
Magswitch MagSquare 600
P/N: 8100106
Welders and fabricators are raving about all the uses, convenience and time savings with
Magswitch MagSquares. MagSquares are extremely powerful on off magnetic blocks with
strong holding force available on all sides. Welders have never enjoyed this complete control
over incredibly strong magnets (1,000 lbs (454 kg) on the MagSquare 1000). You can precisely
position the MagSquare and material, and then turn the magnet on. MagSquares feature multiplane workholding capability. It takes away the need for time consuming manual clamping on so
many jobs, and works anywhere there is steel; you don’t need and edge like you do with CClamps. All MagSquares are machined at 90 degrees, have pre tapped holes on all sides for
mounting tools, jigs and fixtures. Fast 180 degree turn of the knob turns the MagSquare on and
off. When off, nothing sticks to them. Once you understand all the uses, the time savings in set
ups, and the ability to control these powerful magnetic blocks – you will want the entire range.
Part Number 110920
Revision Date: August 19, 2016
Page 2
* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface
roughness 63 micro inches. Many factors contribute to the actual breakaway force in each
application. Always test the magswitch in each application before deployment. Refer to the
magswitch information booklet for more information.
0
50
100
150
200
250
300
0
110
220
330
440
550
660
1/4"
6mm
3/8"
10mm
1/2"
13mm
3/4"
19mm1"25mm
1.25"
32mm
1.5"
38mm2"50.8mm
Max Holding Force in KG*
Max Holding Force in LBS*
Material Thickness

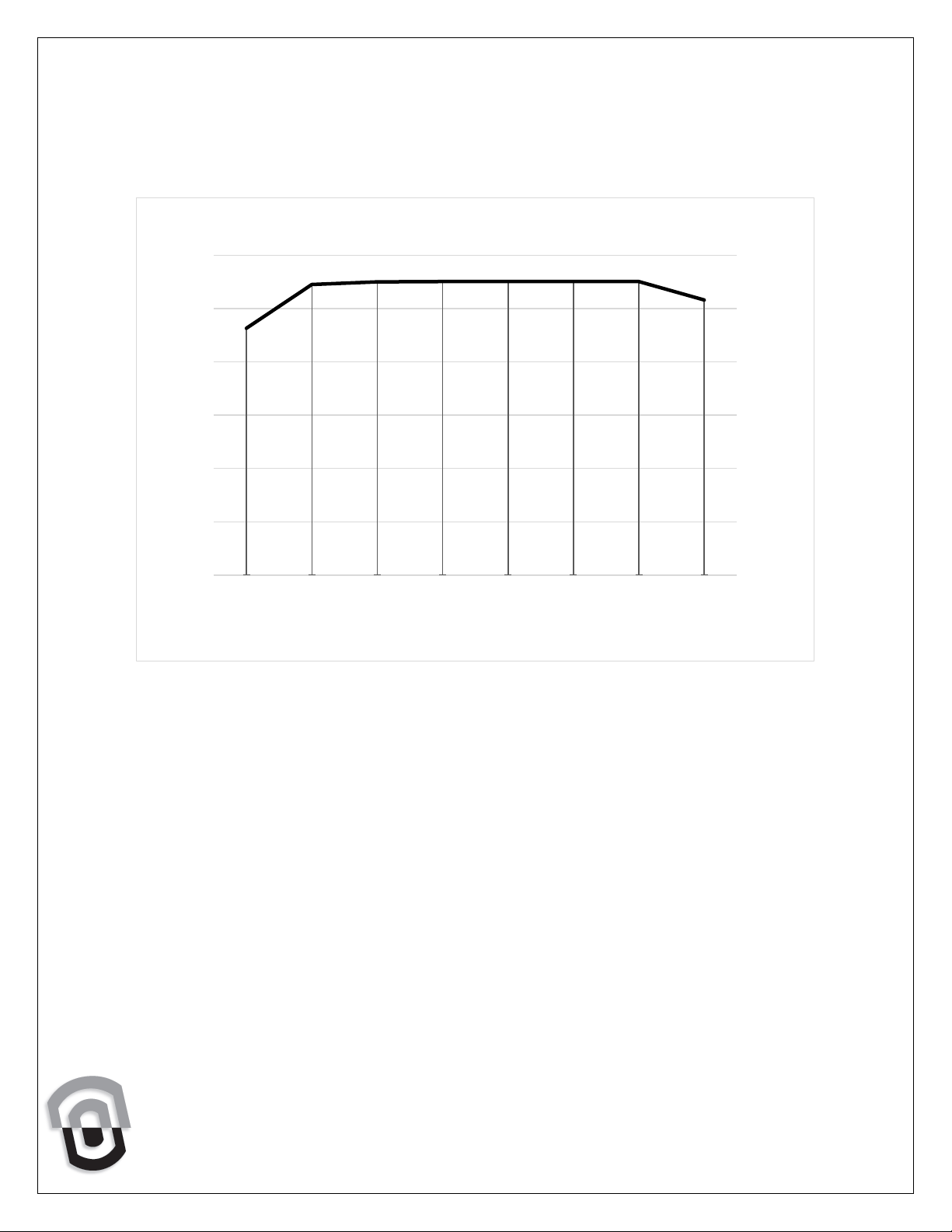

Magswitch MagSquare 600 Breakaway Data vs. Thickness
Part Number 110920
Revision Date: August 19, 2016
Page 3

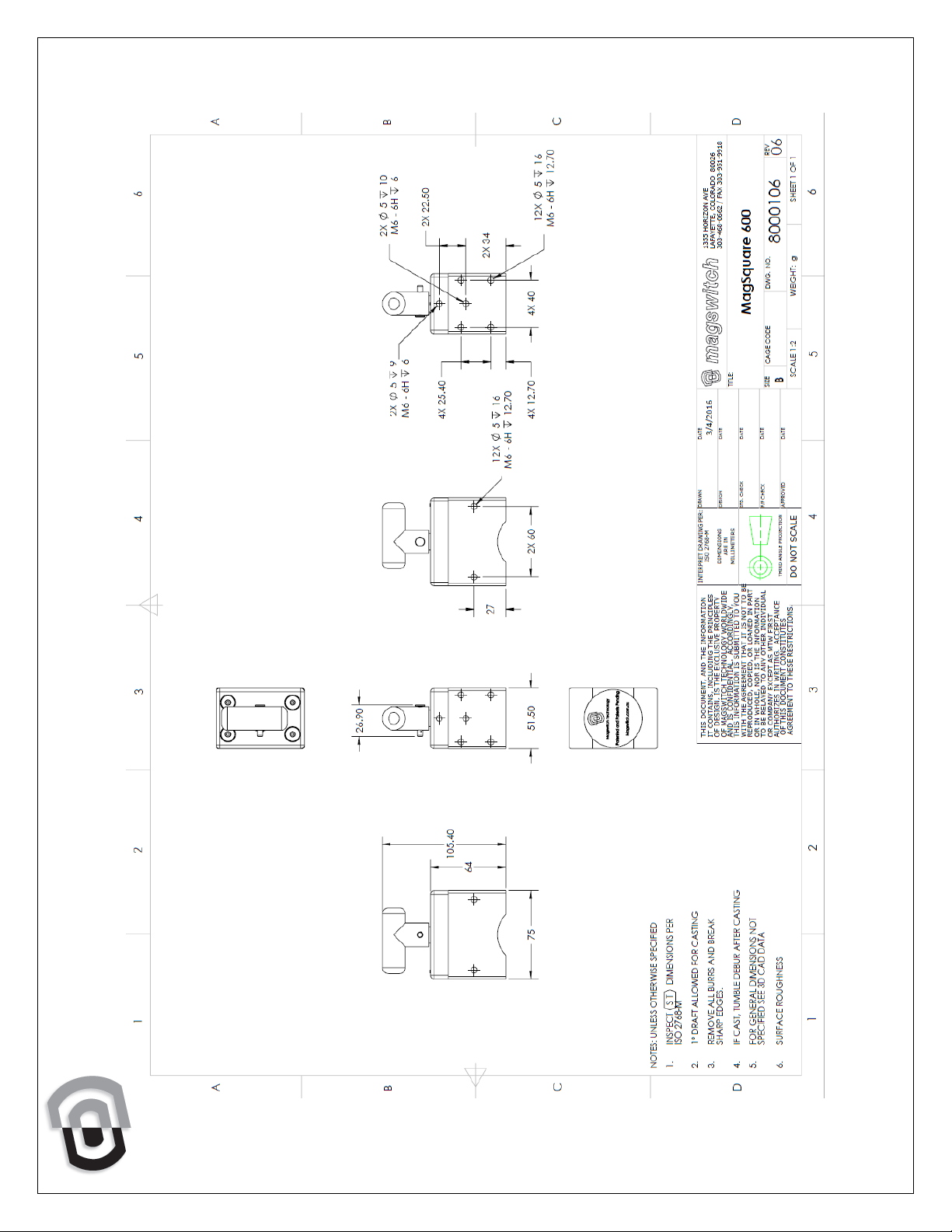

Part Number 110920
Revision Date: August 19, 2016
