Magnum Venus Plastech CPC-CPG-CPW-CPP User Manual

Classic Pro Gun
Manual
CPC / CPG / CPW / CPP
Rev. 08/2013
CORPORATE HEADQUARTERS and MANUFACTURING
11692 56th Court * Clearwater, FL 33760 * Tel 727-573-2955 * Fax 727-571-3636
TECHNOLOGY CENTER and MANUFACTURING
1862 Ives Ave. * Kent, WA 98032 * Tel 253-854-2660 * Fax 253-854-1666
MVP Plastech UK
Chilsworthy Beam, Gunnislake, Cornwall, PL18 9AT UK, * Tel: +44 (0) 1822 832621
Fax: +44 (0) 1822 833999
www.mvpind.com
Rev. 08/2012 Page | 2
Table of Contents
SECTION: Page
TERMS & CONDITIONS OF SALE 4 SAFETY & WARNINGS 6
INTRODUCTION 15 GUN BLOCK DISASSEMBLY 19 GUN BLOCK ASSEMBLY 24

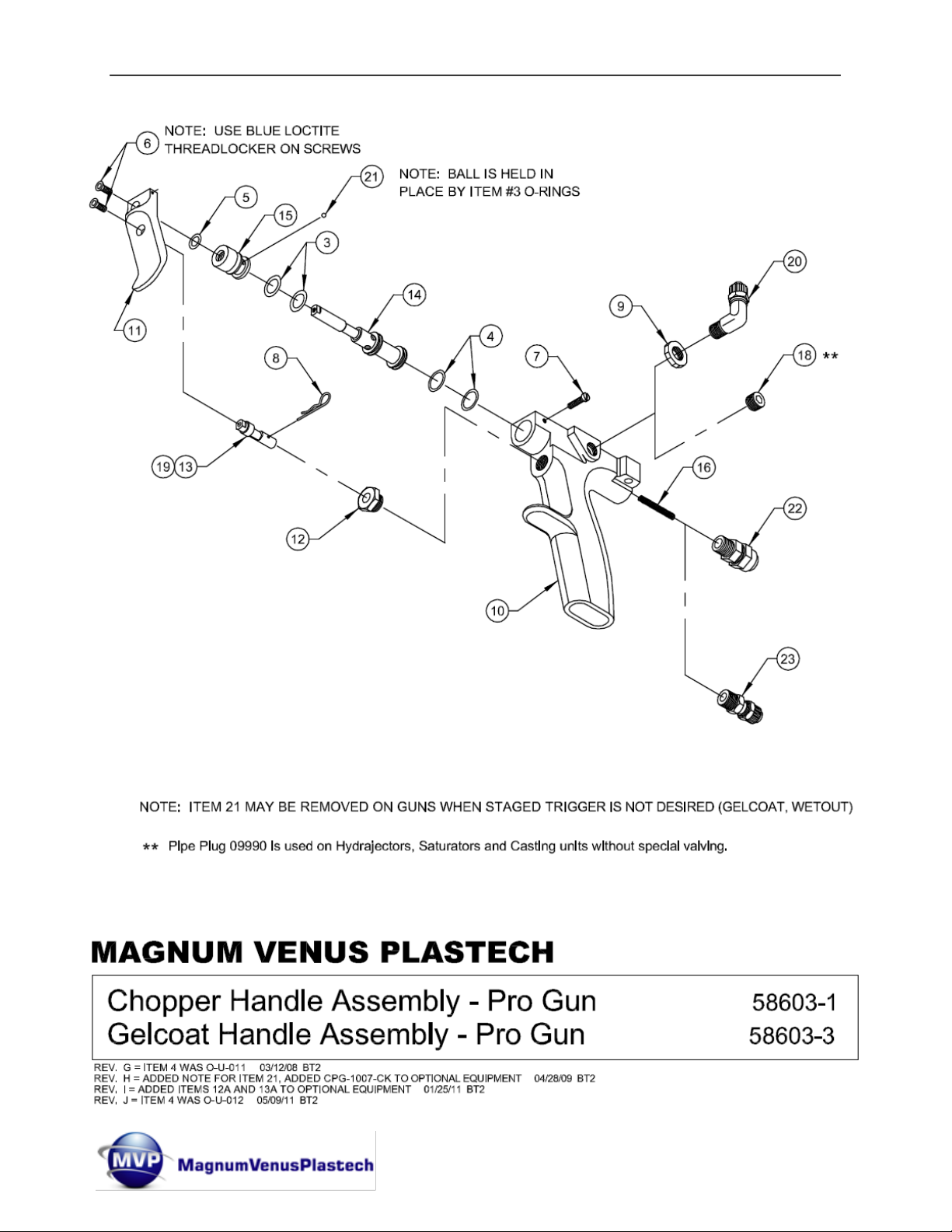

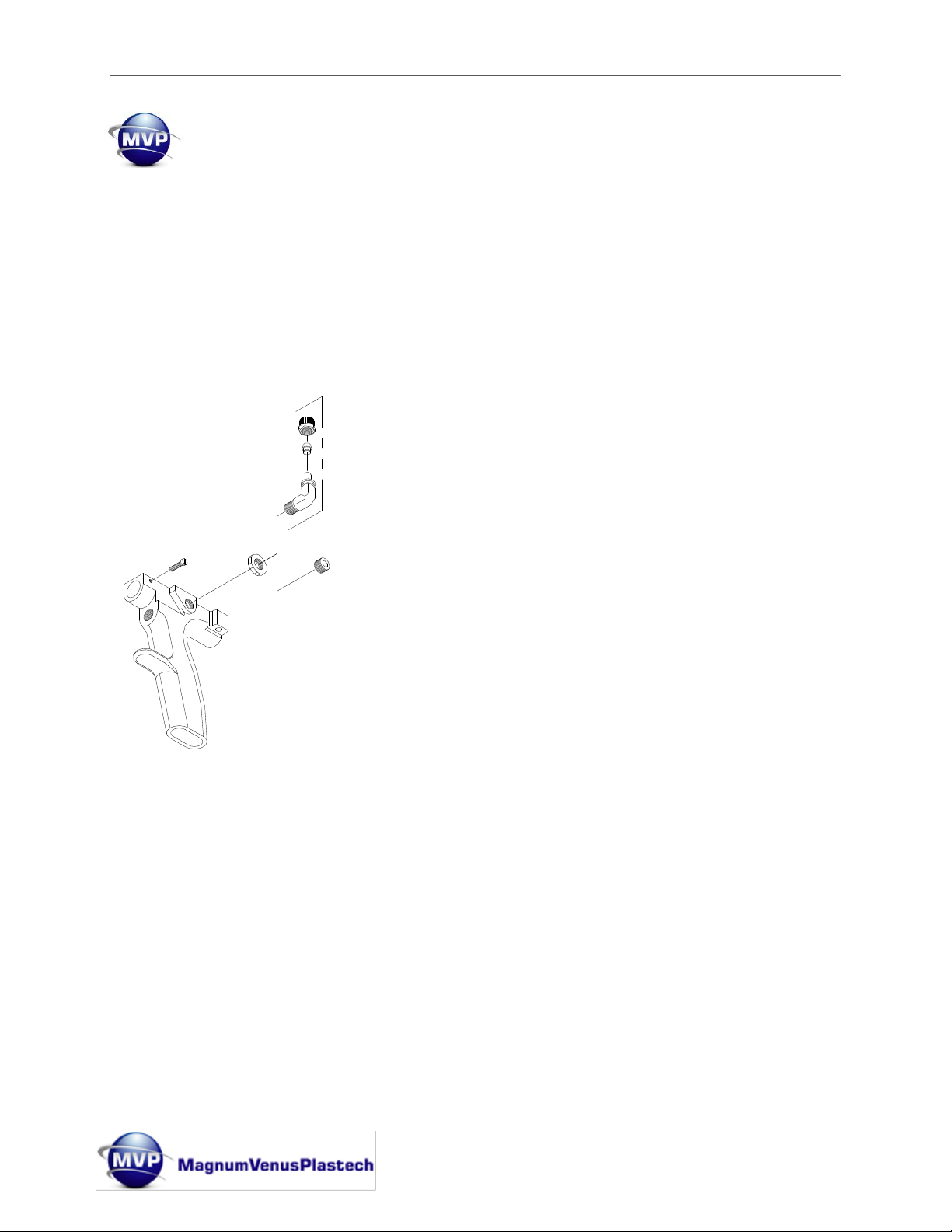

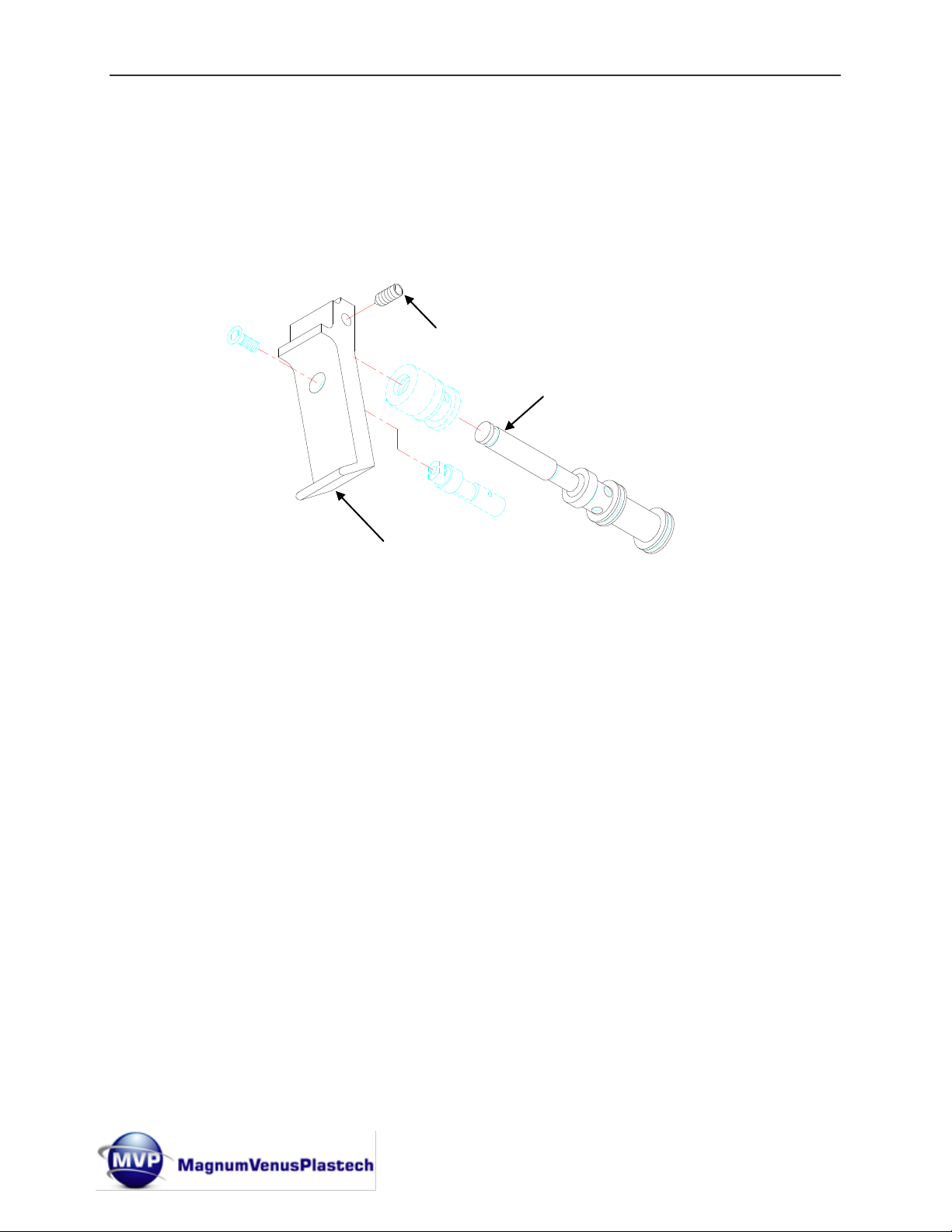

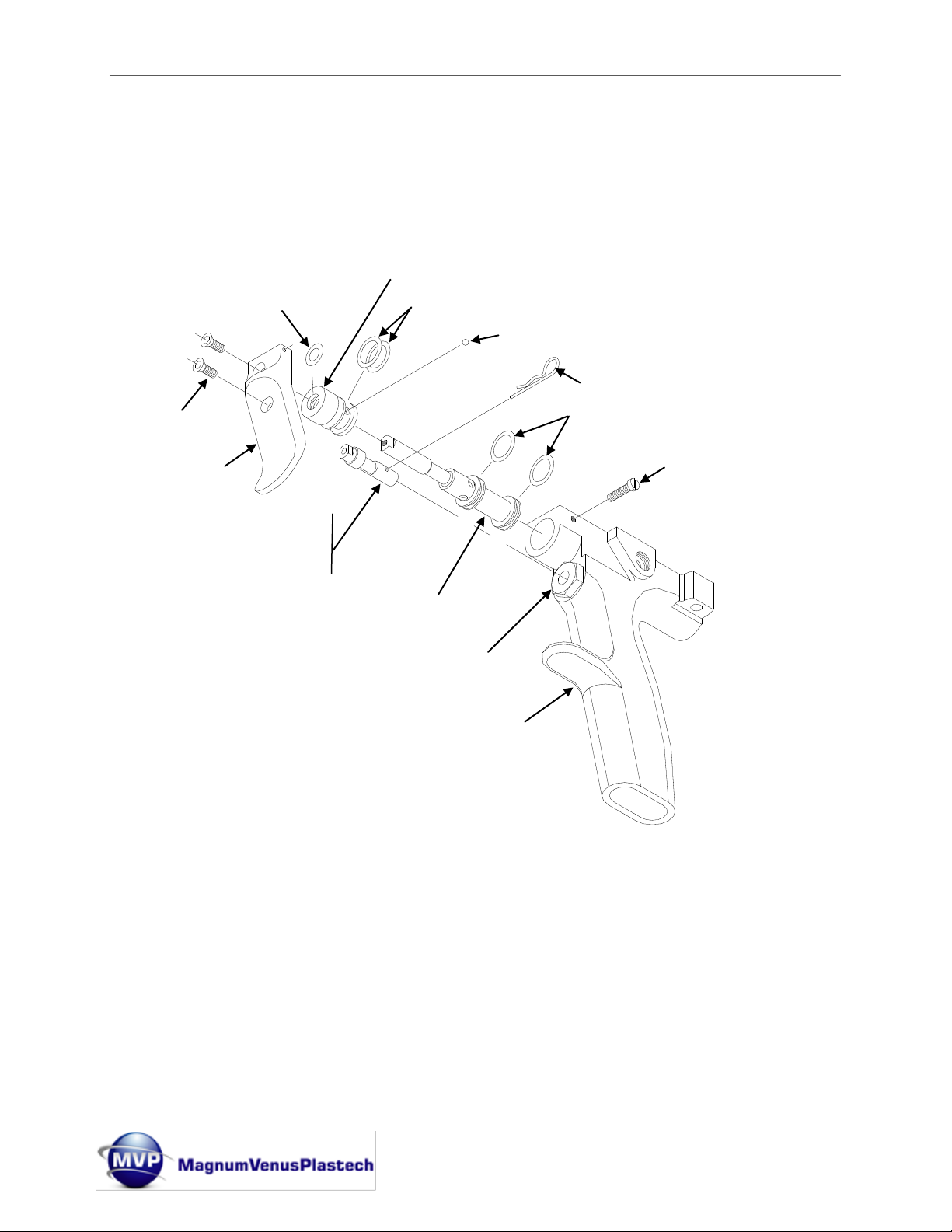

ACTUATOR REBUILD 31 CLASSIC PRO GUN HANDEL REBUILD 33

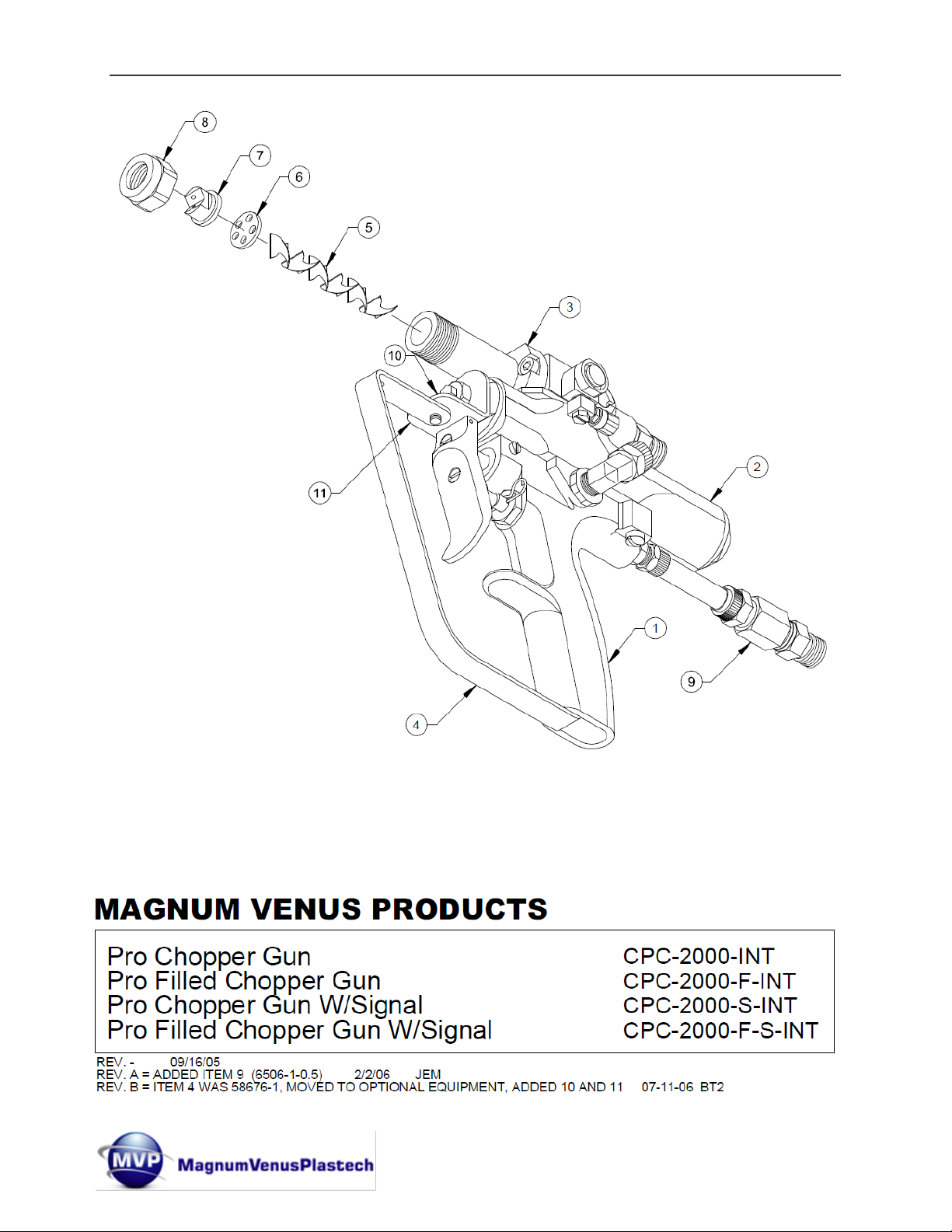

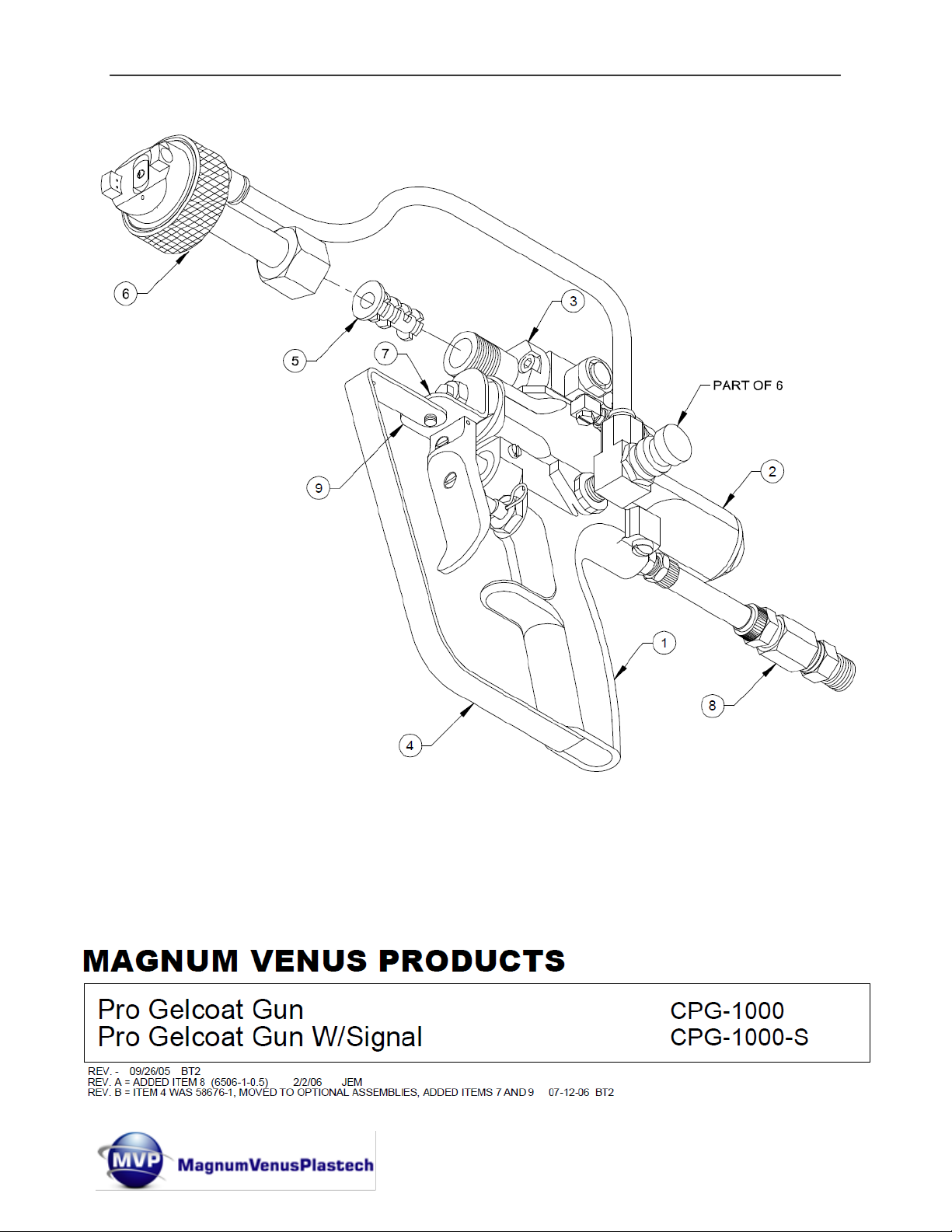

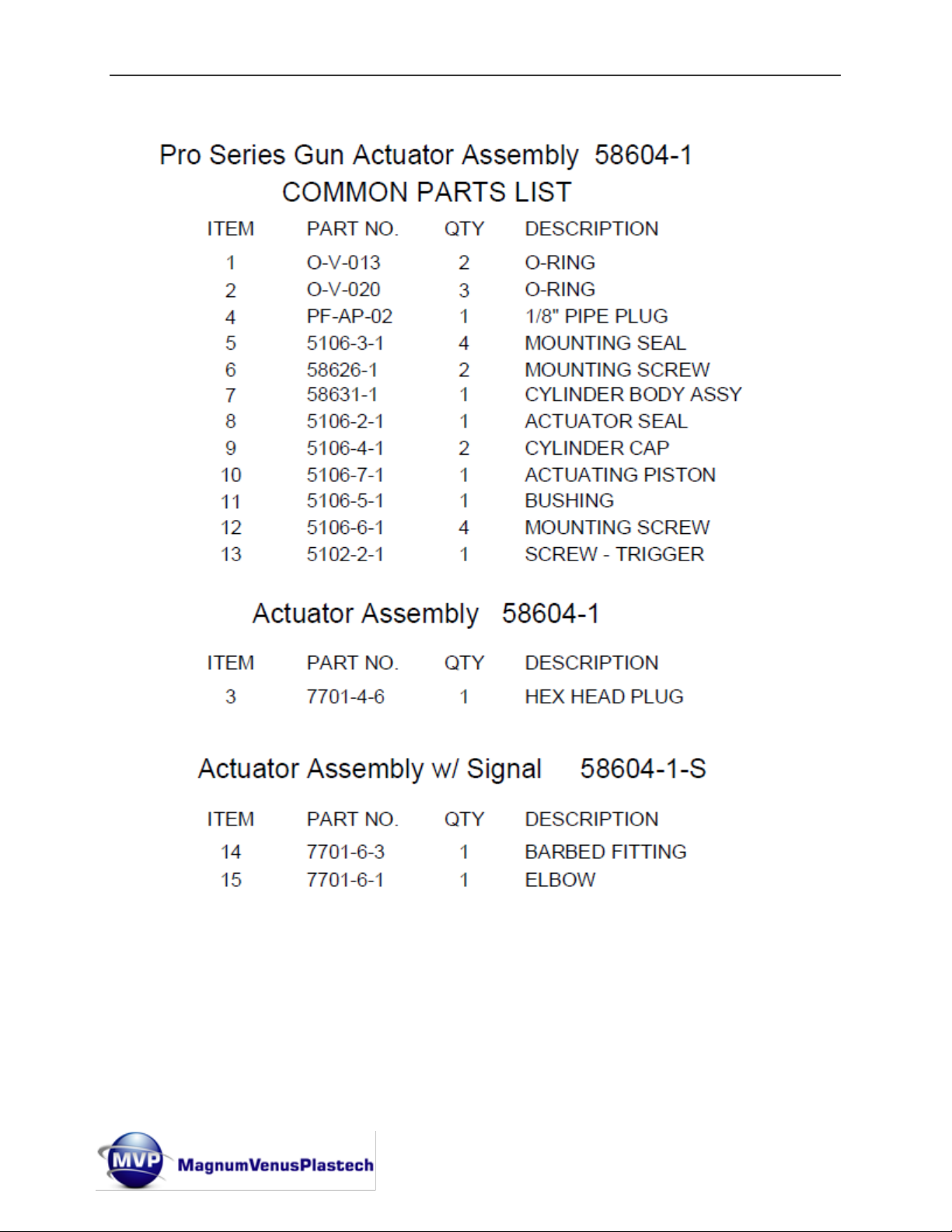

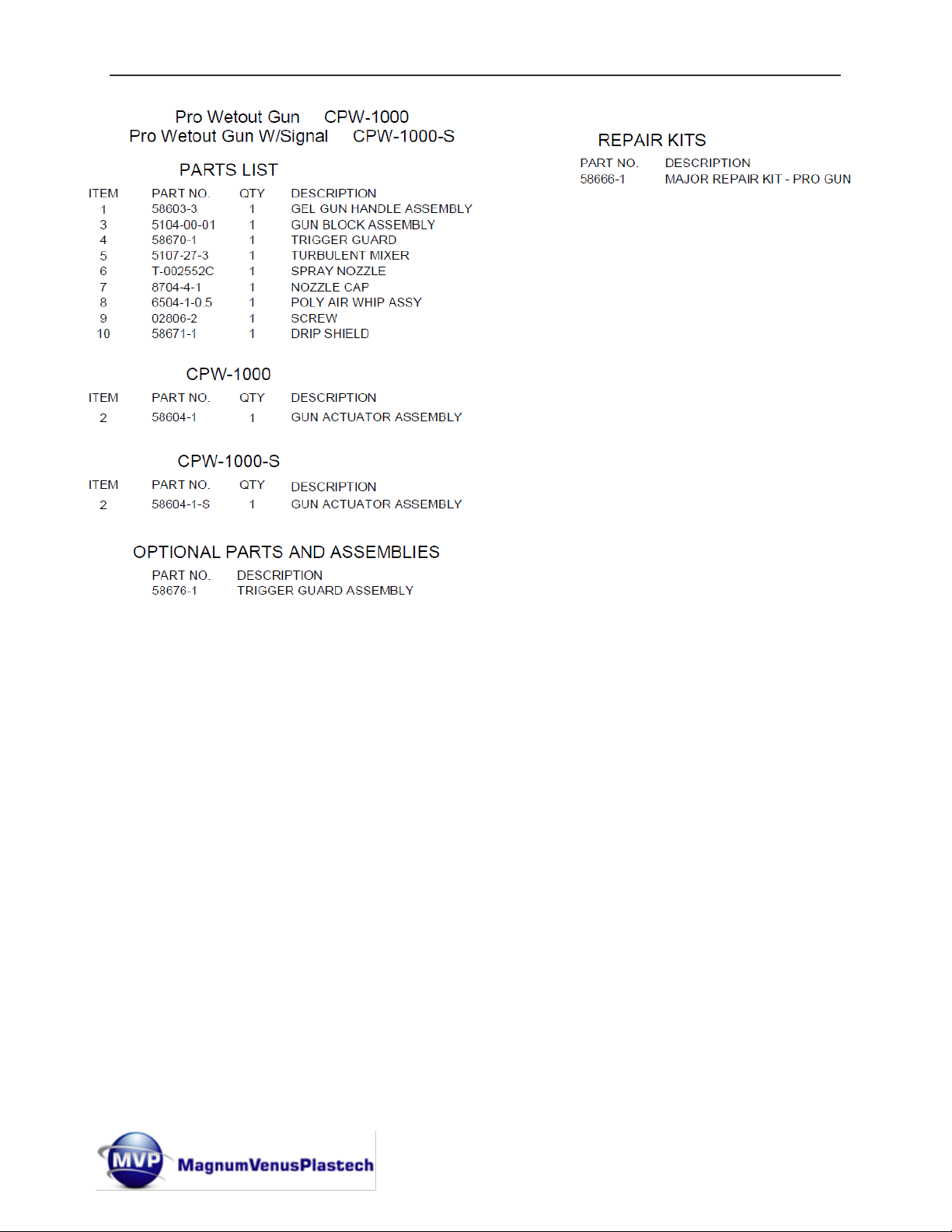

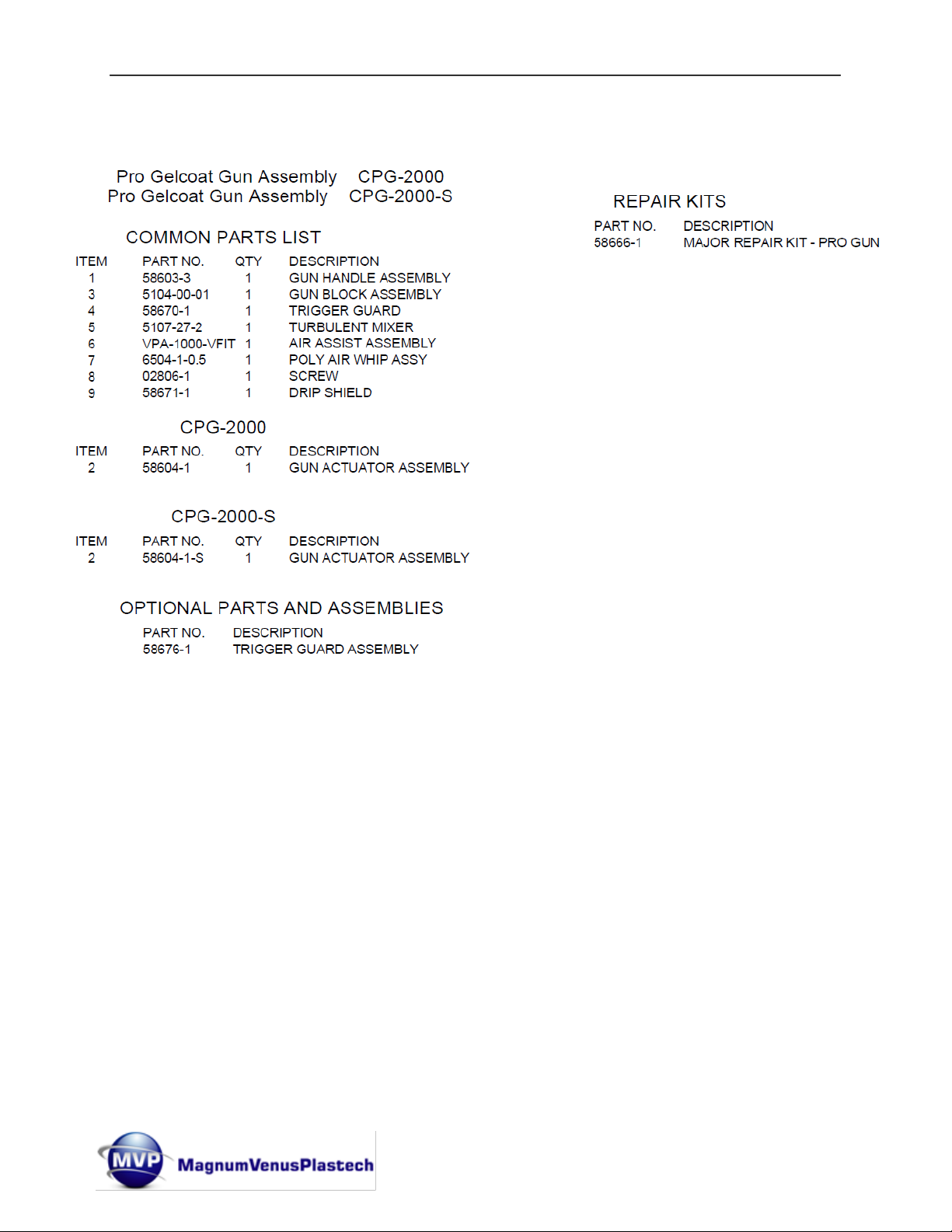

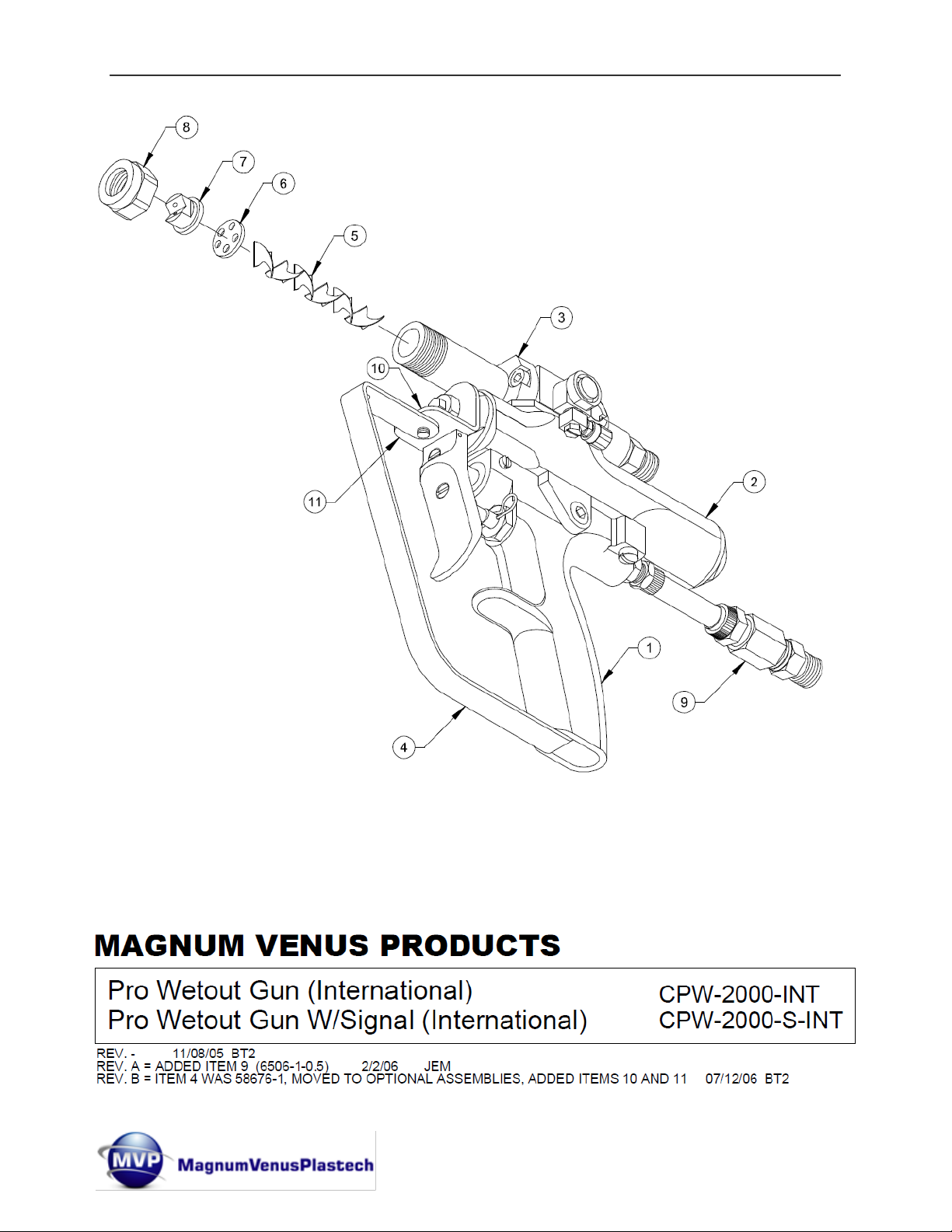

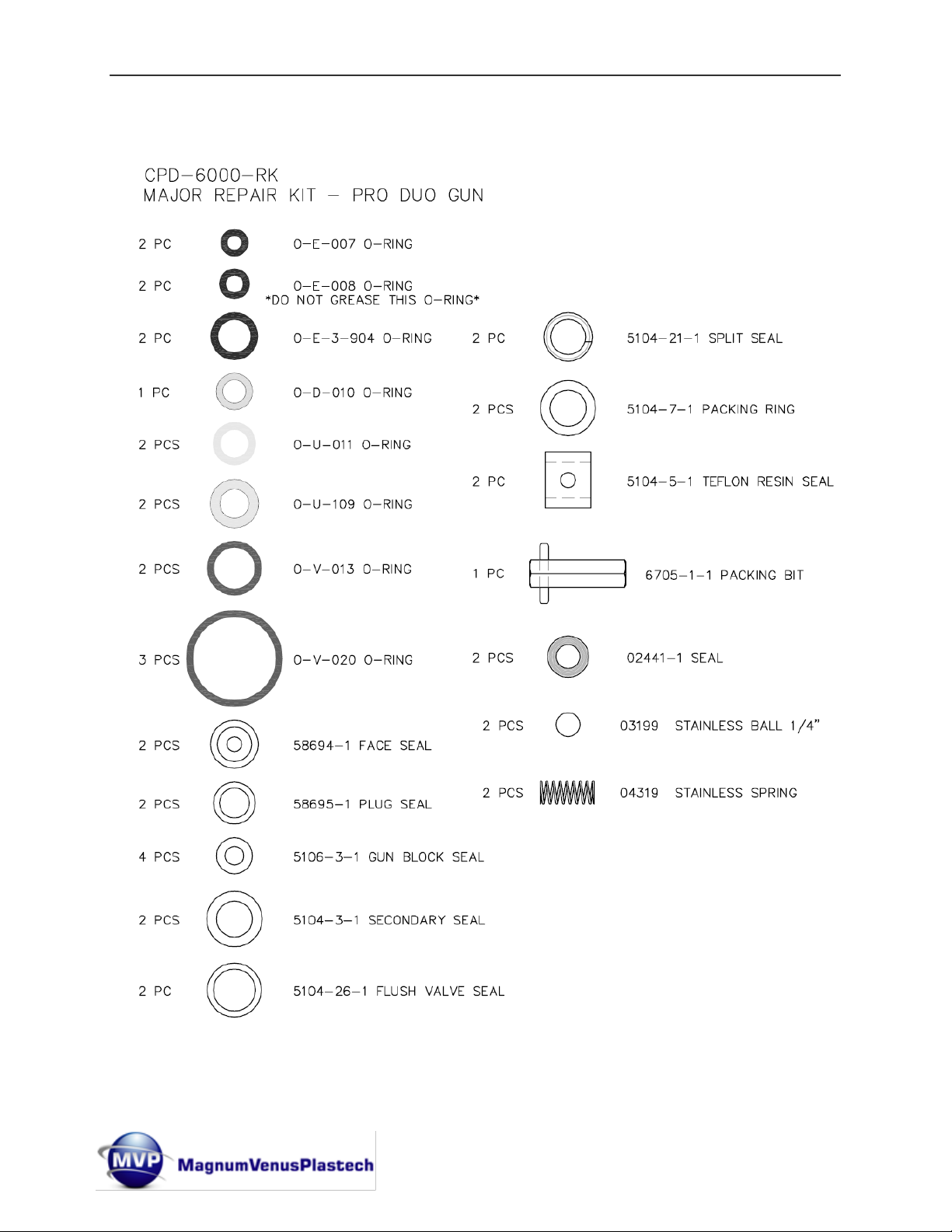

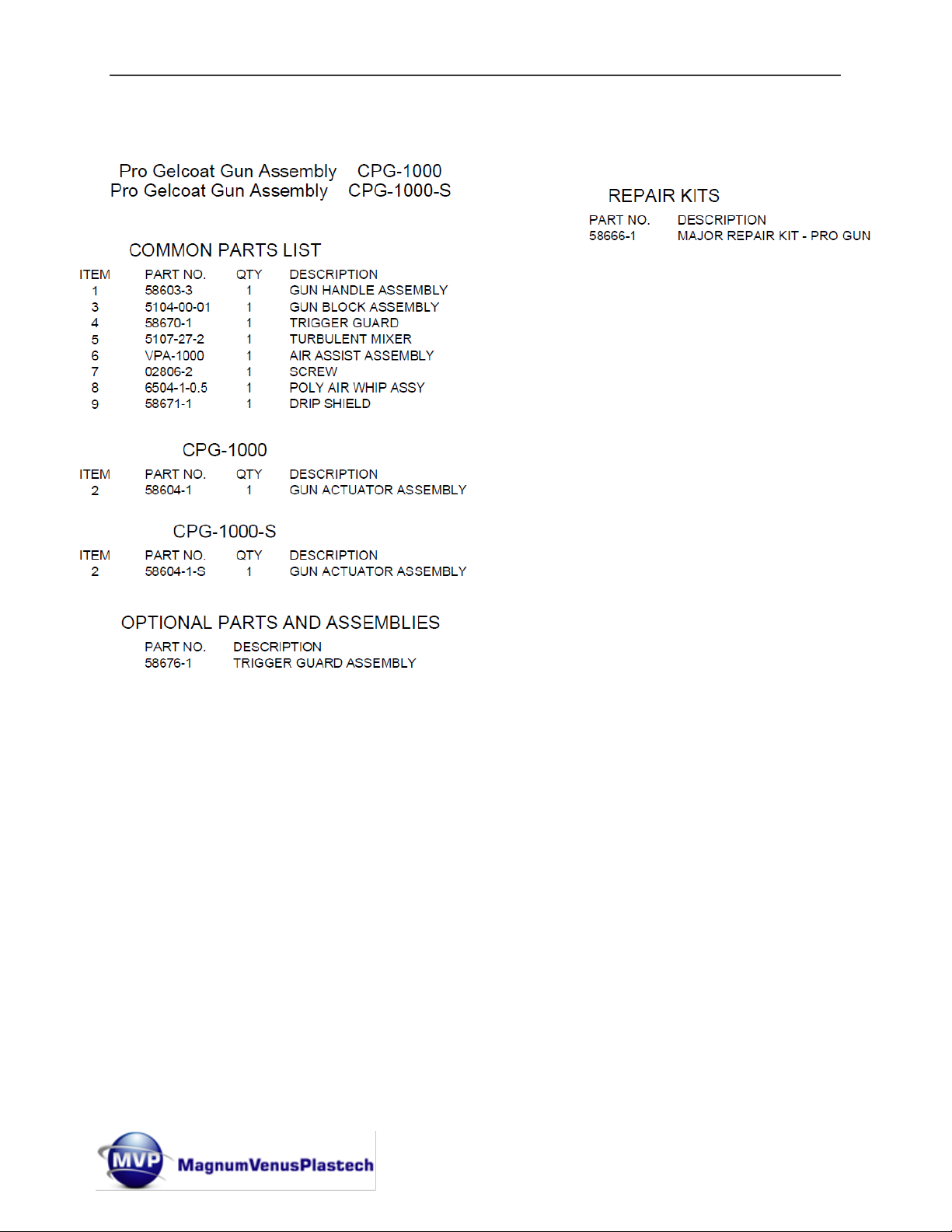

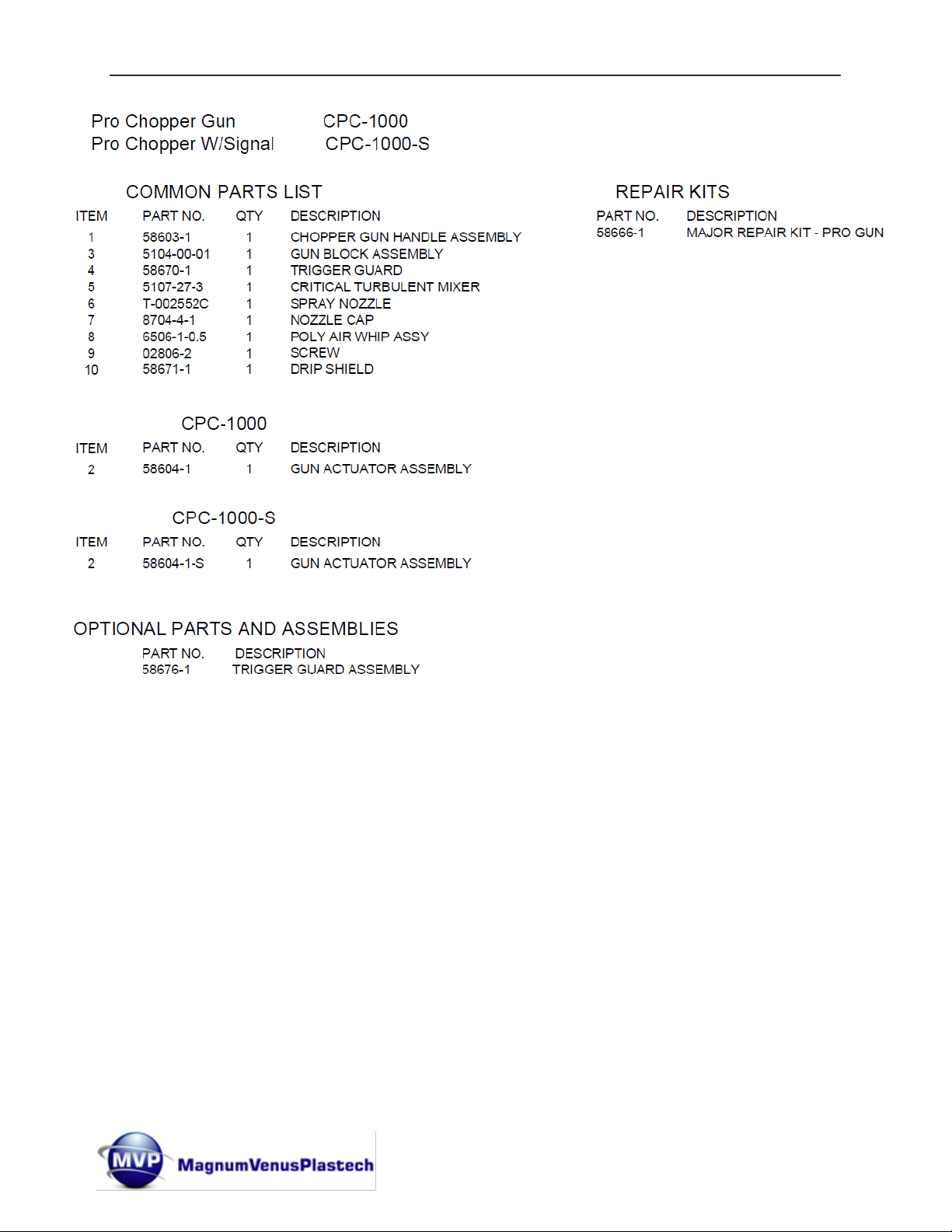

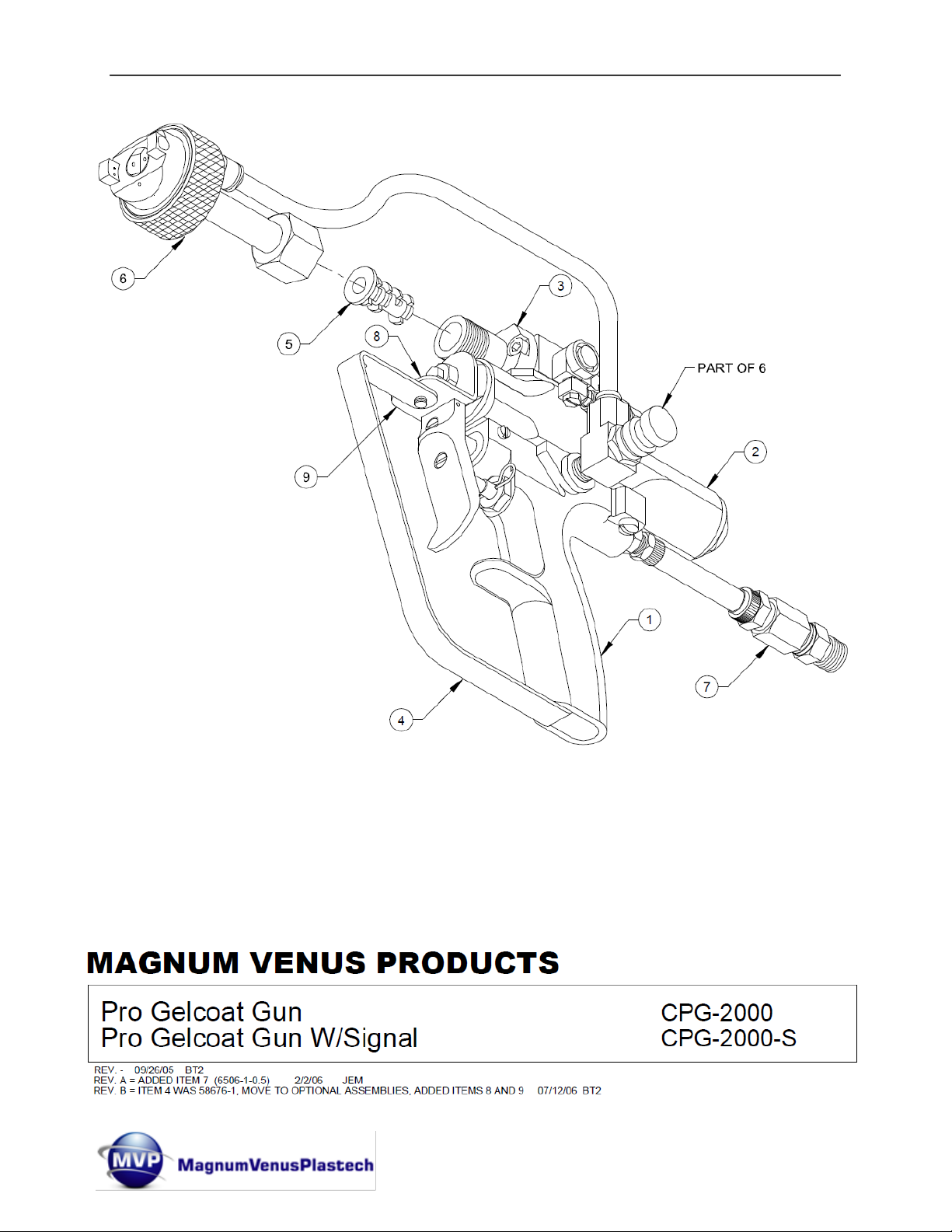

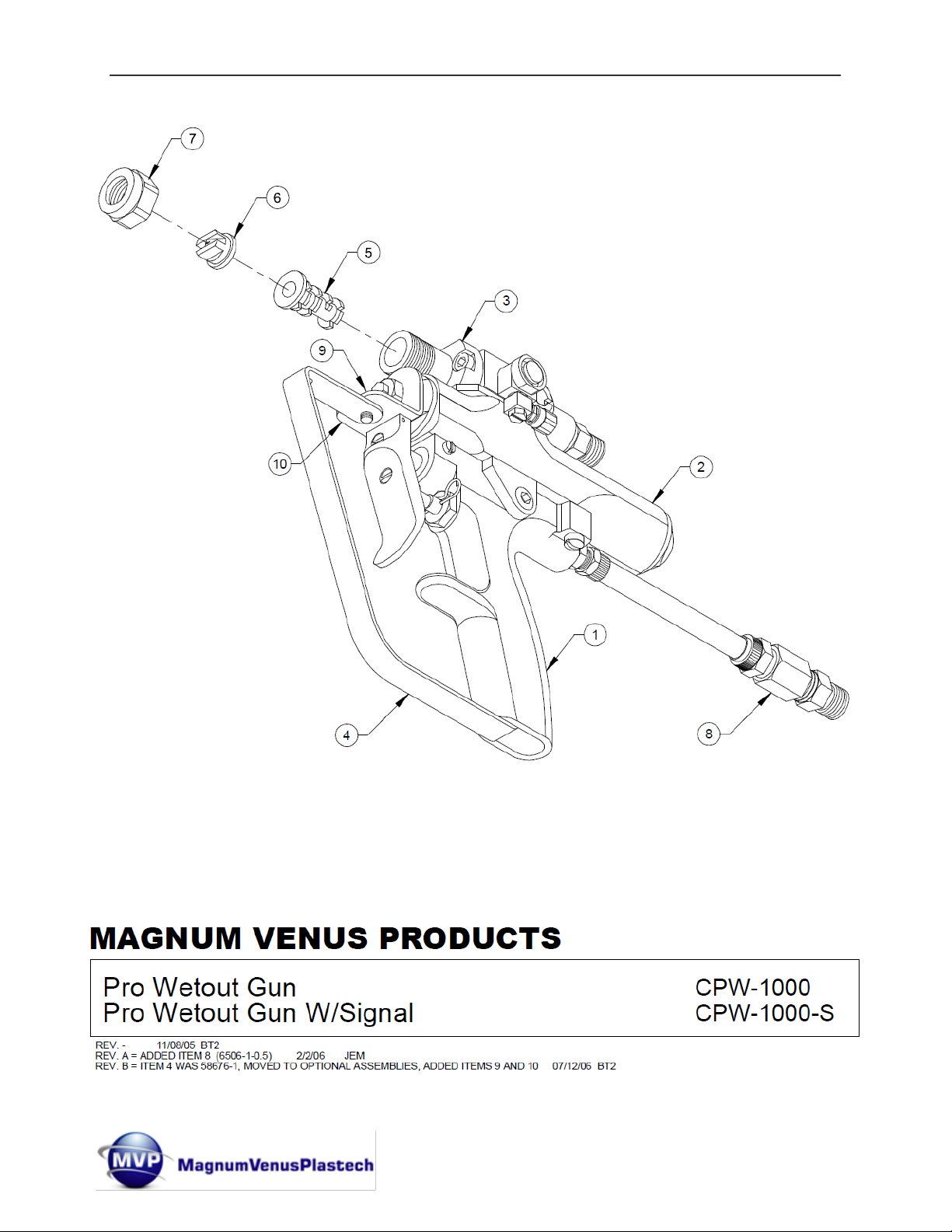

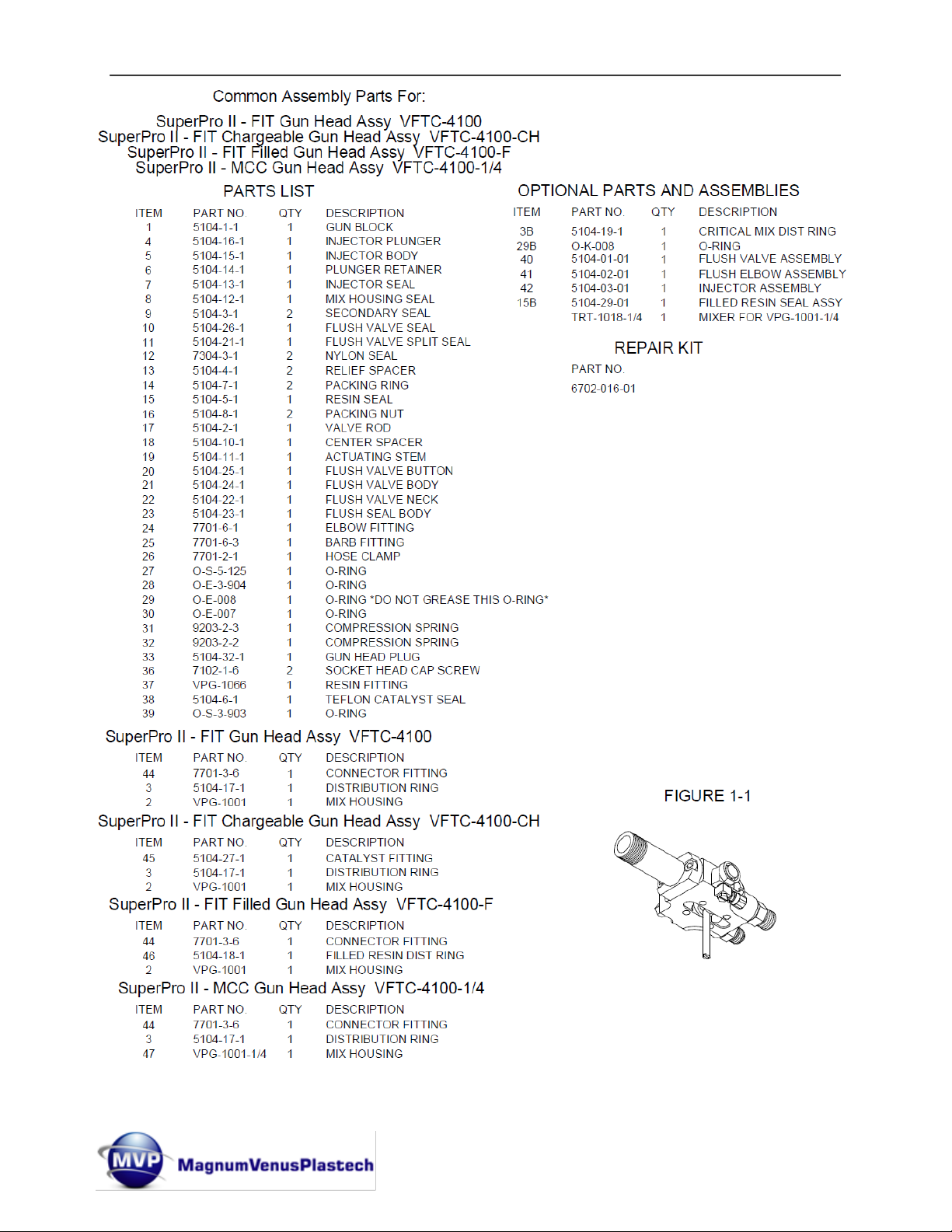

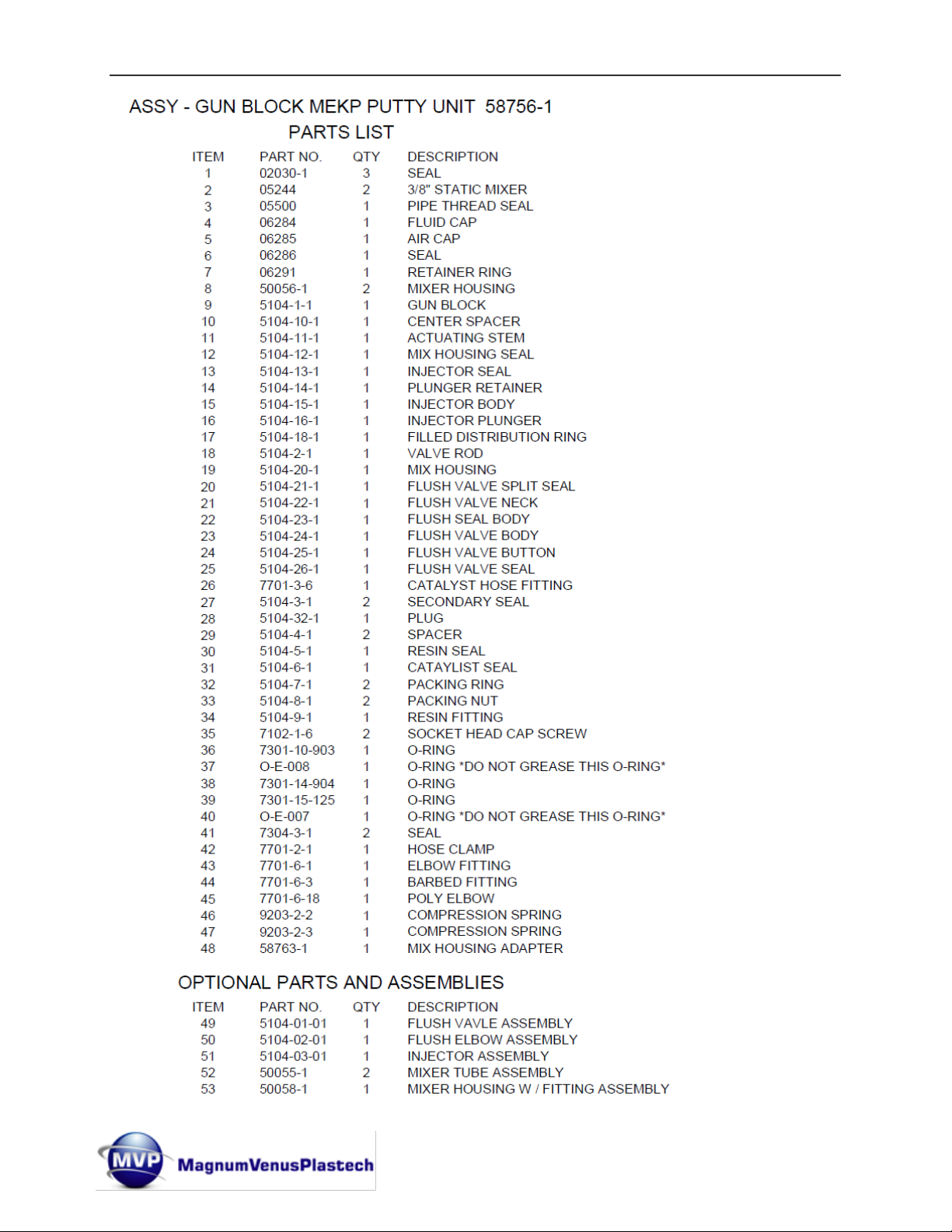

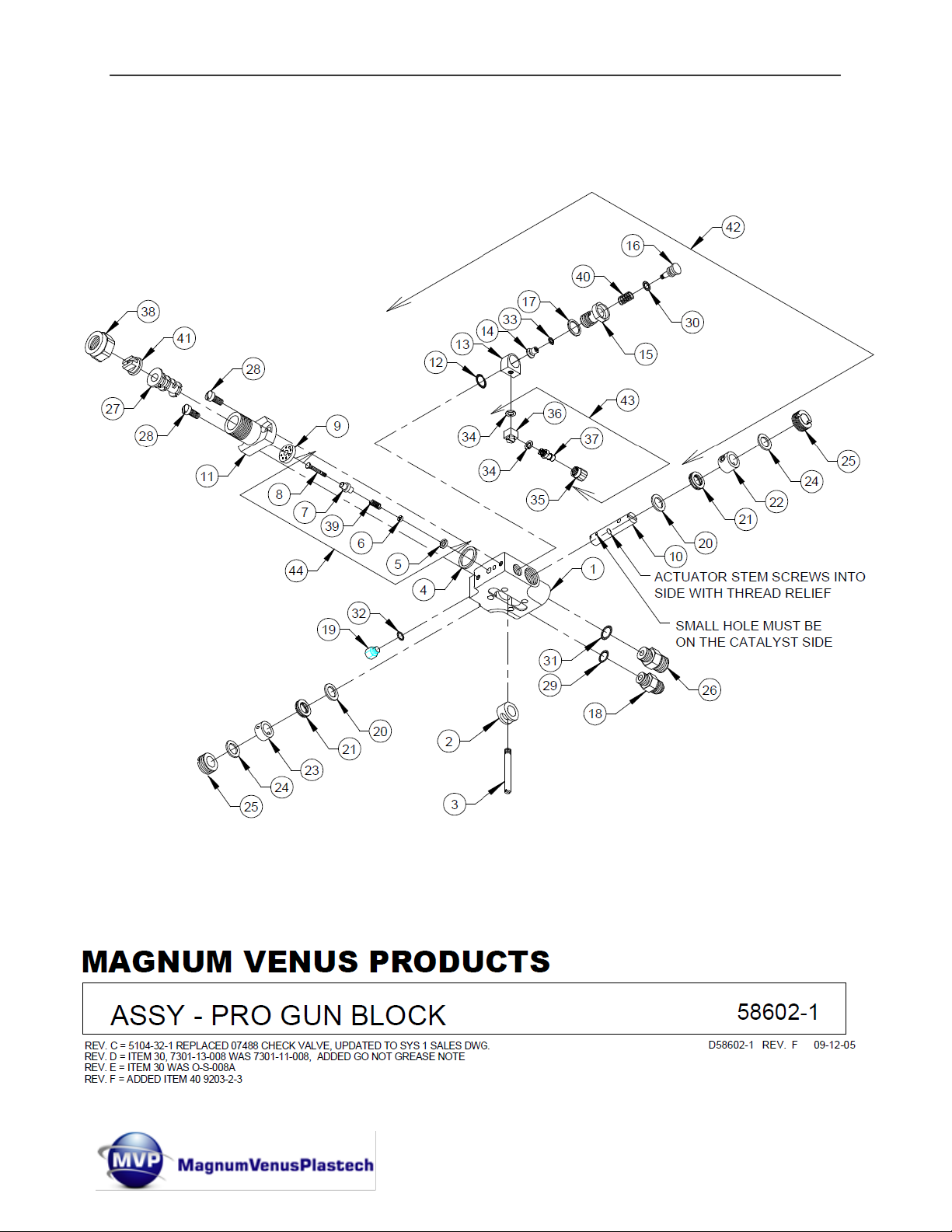

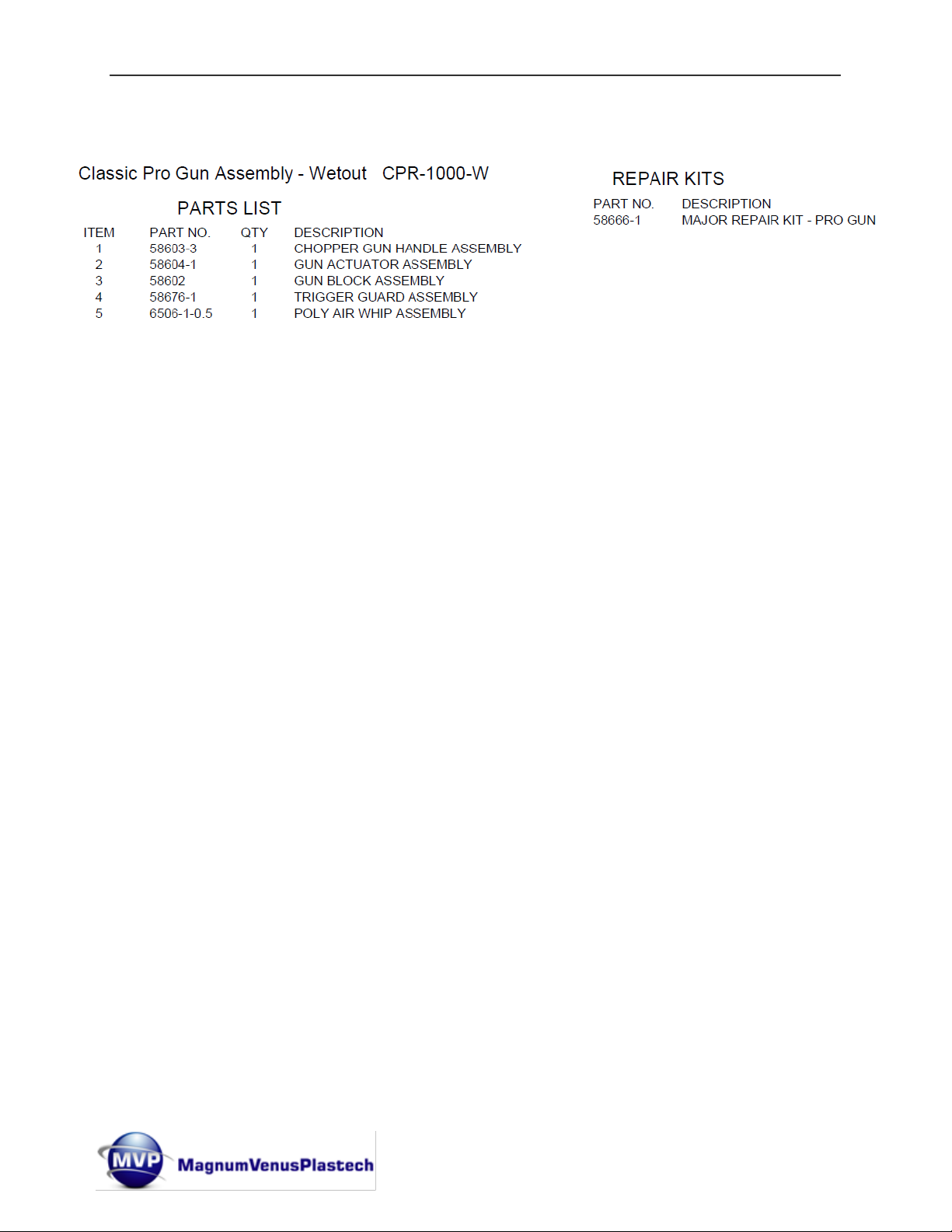

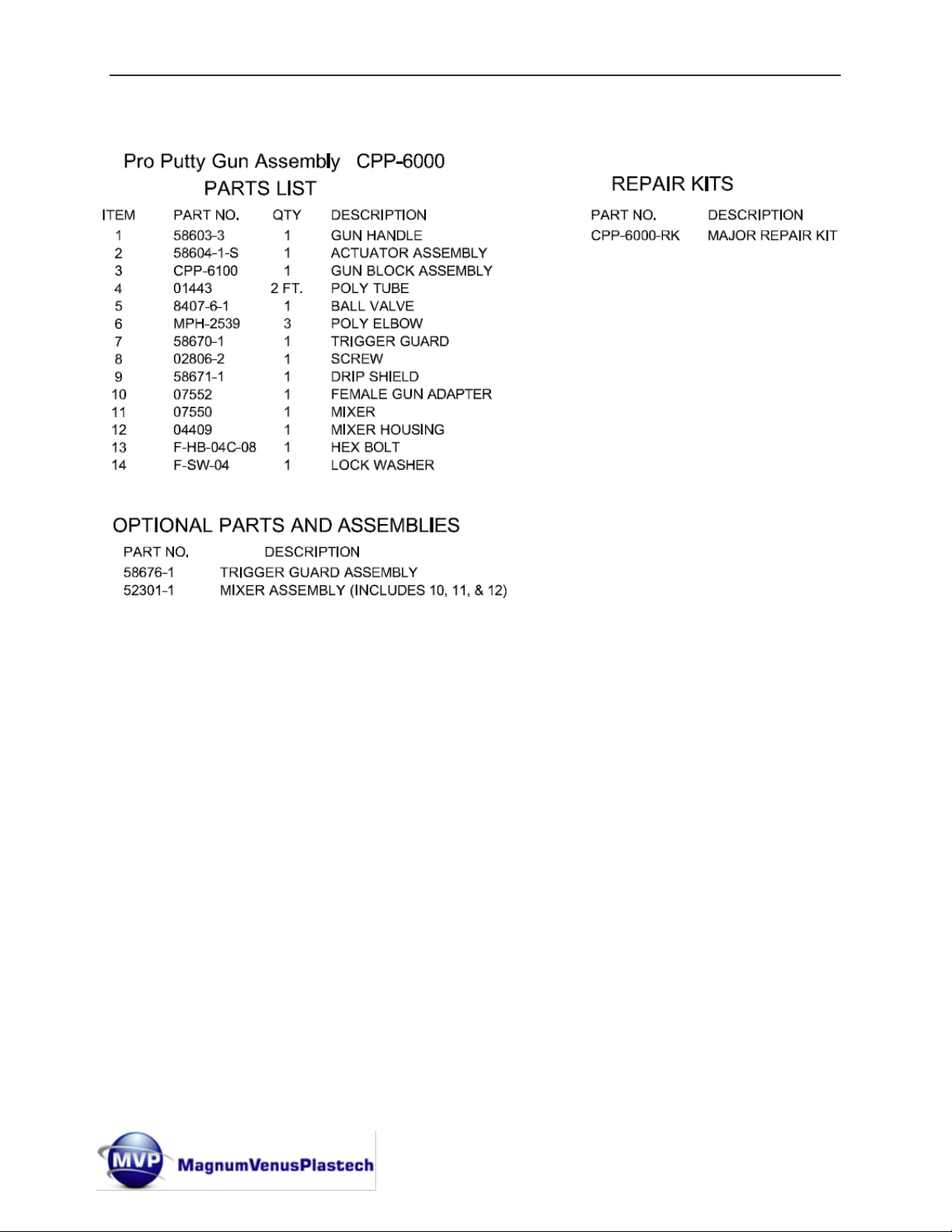

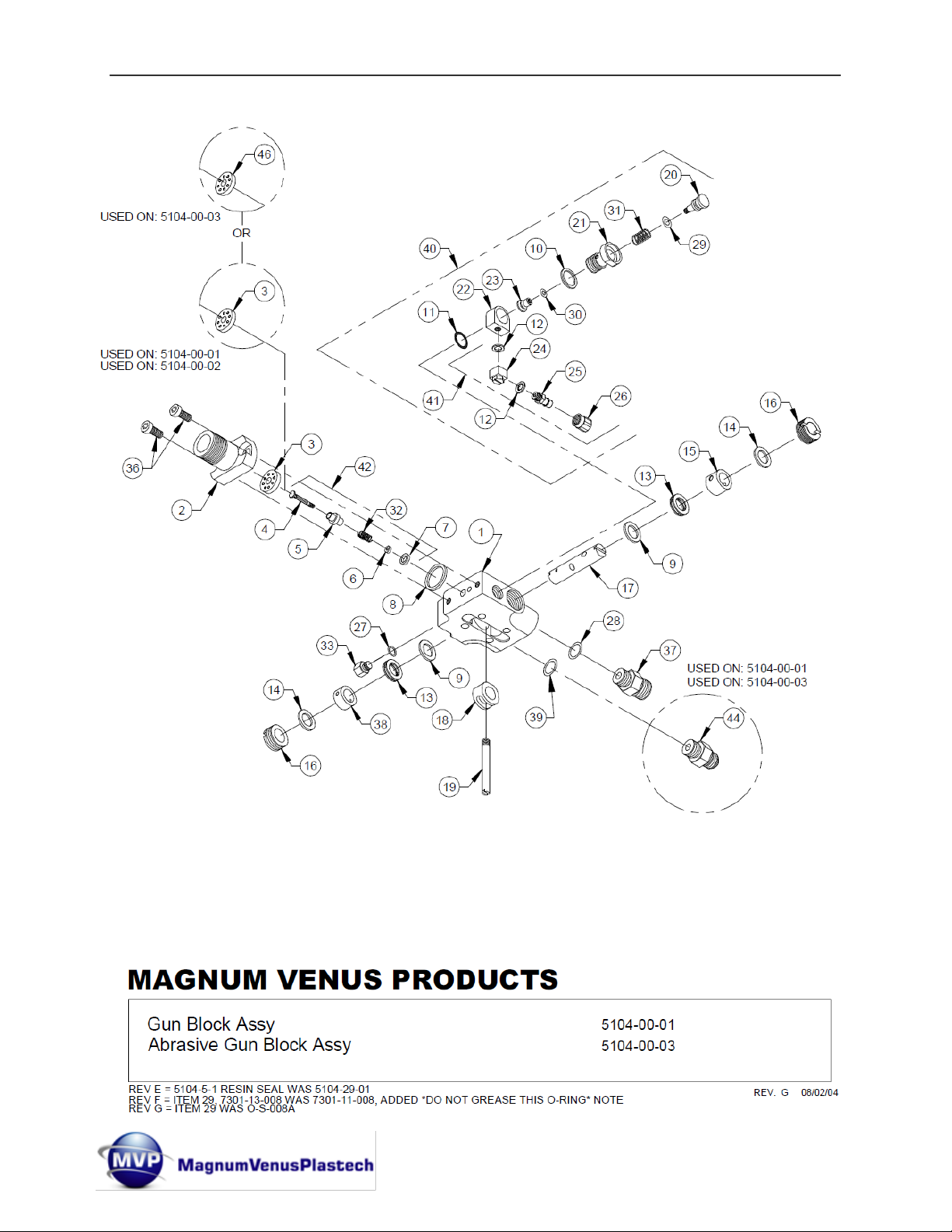

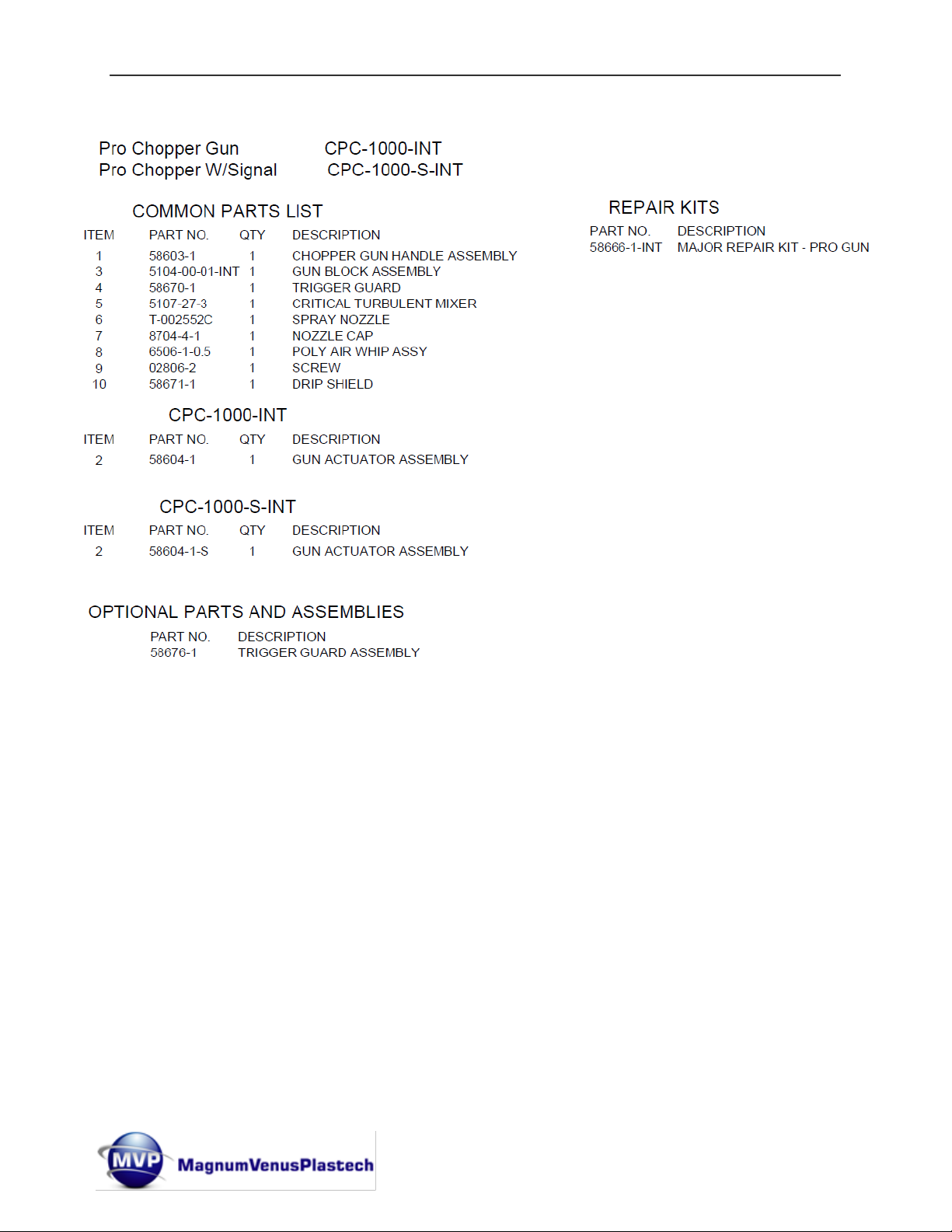

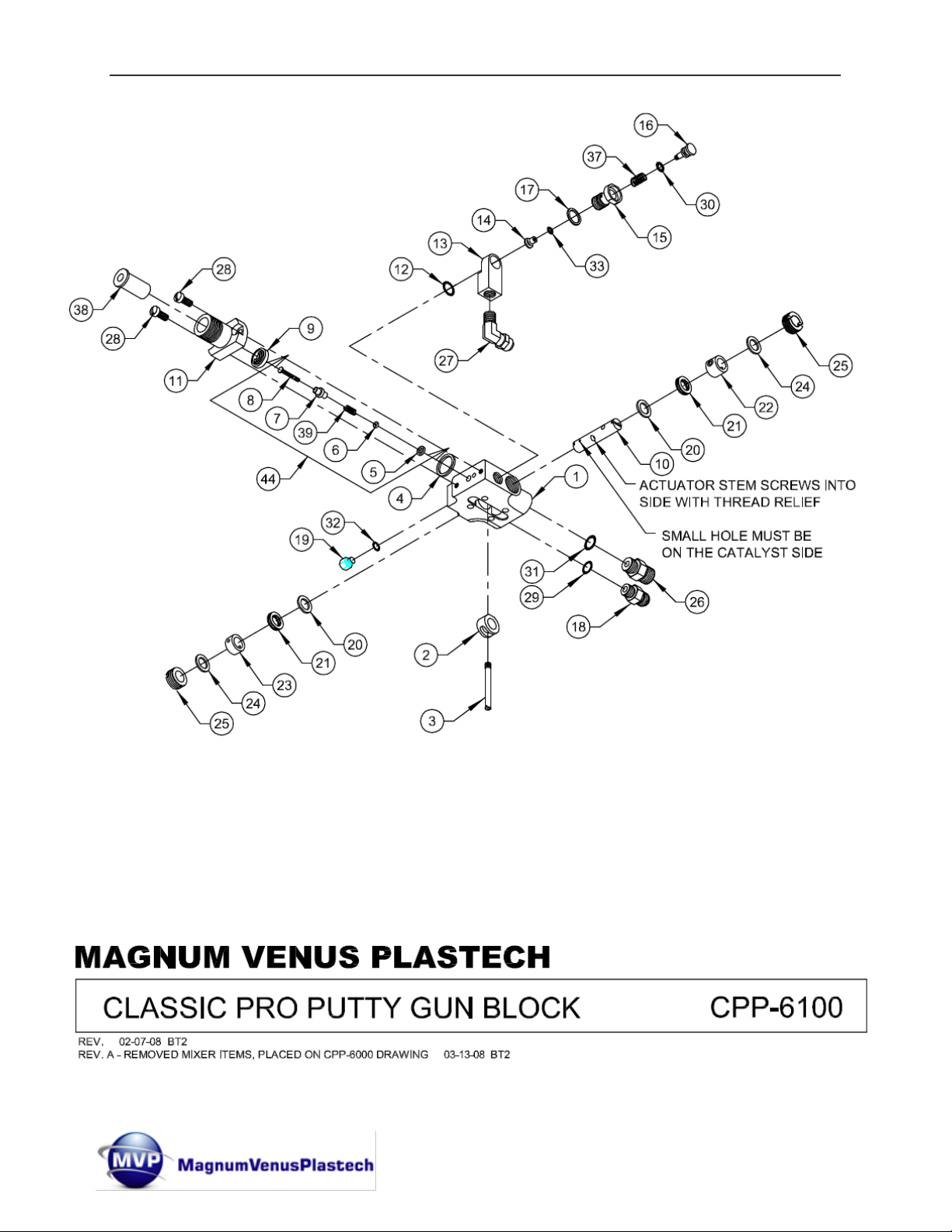

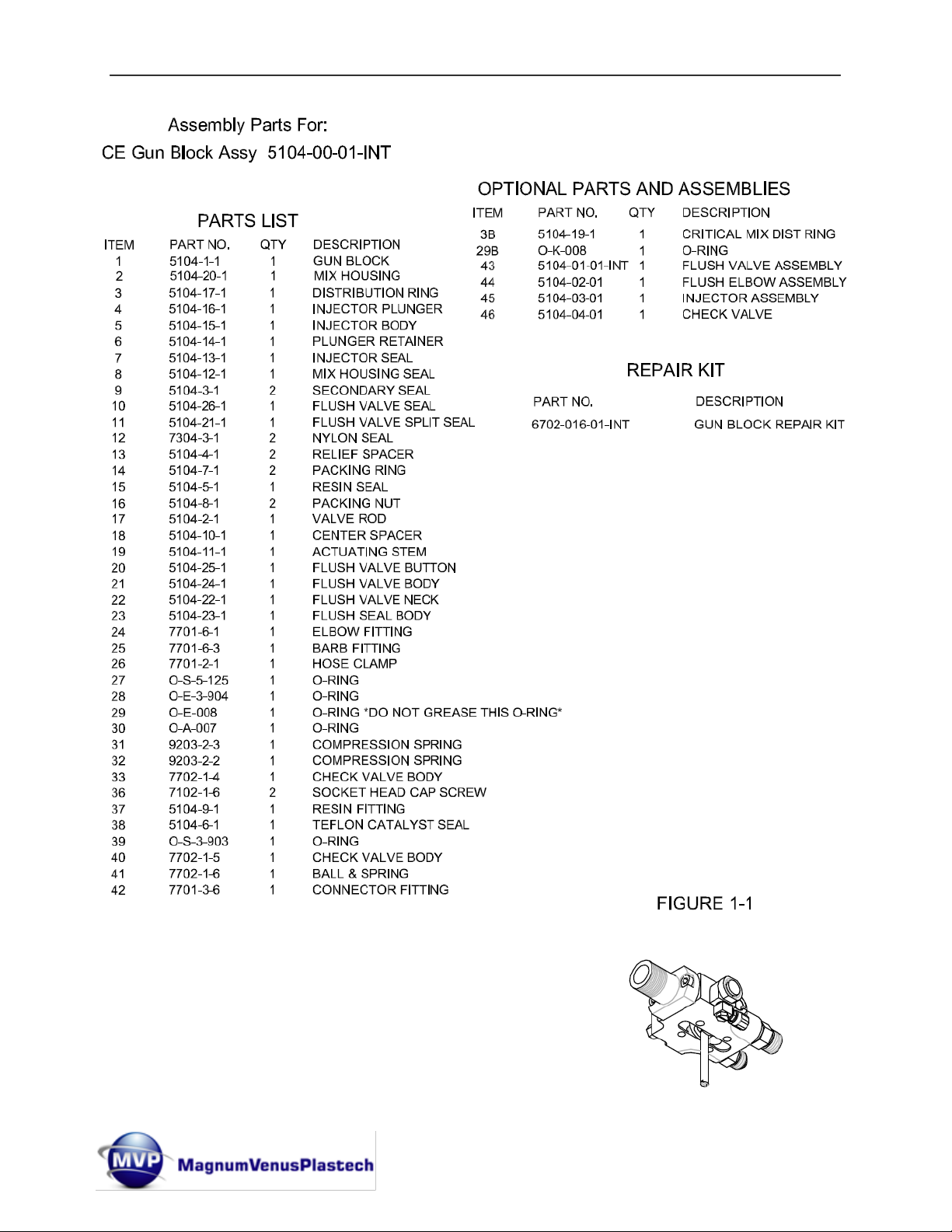

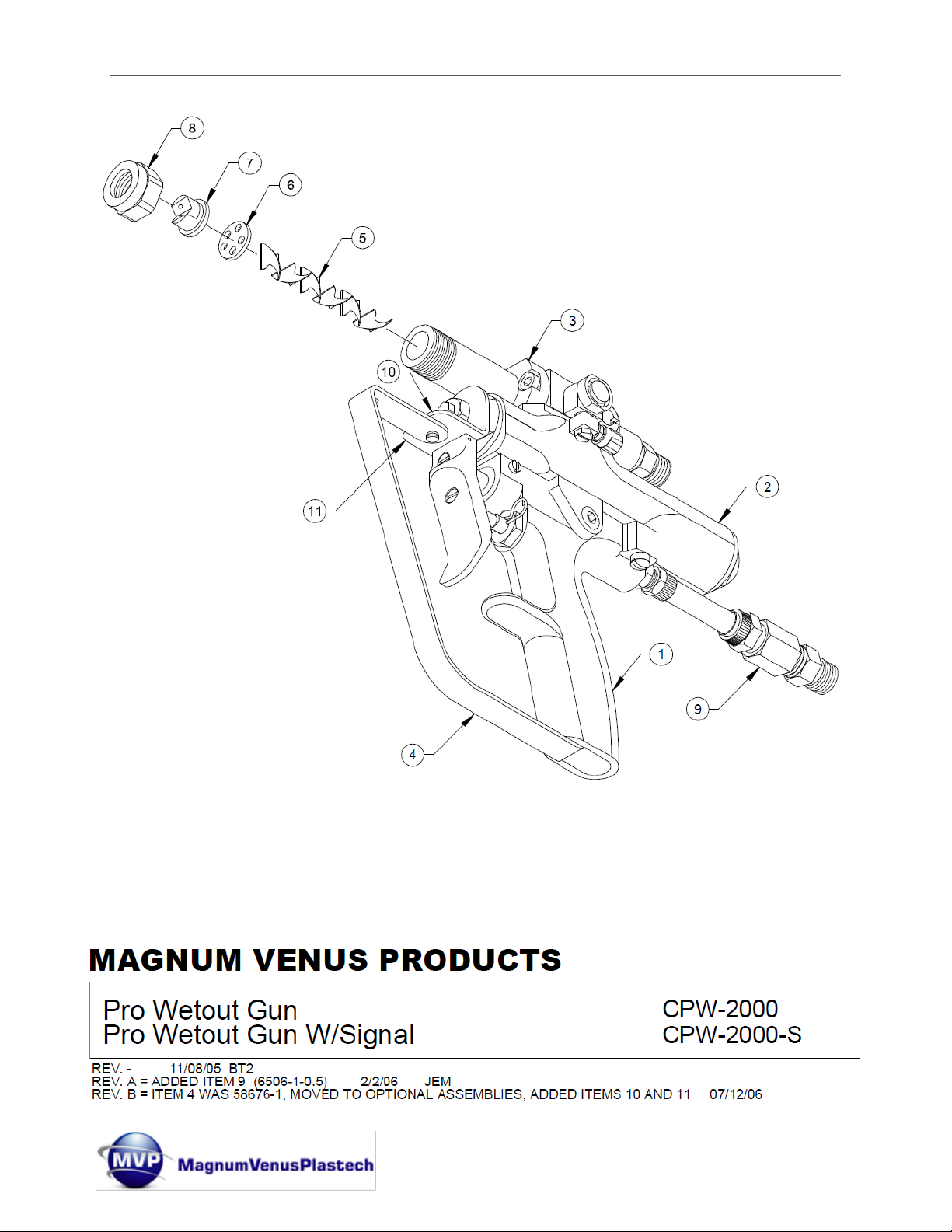

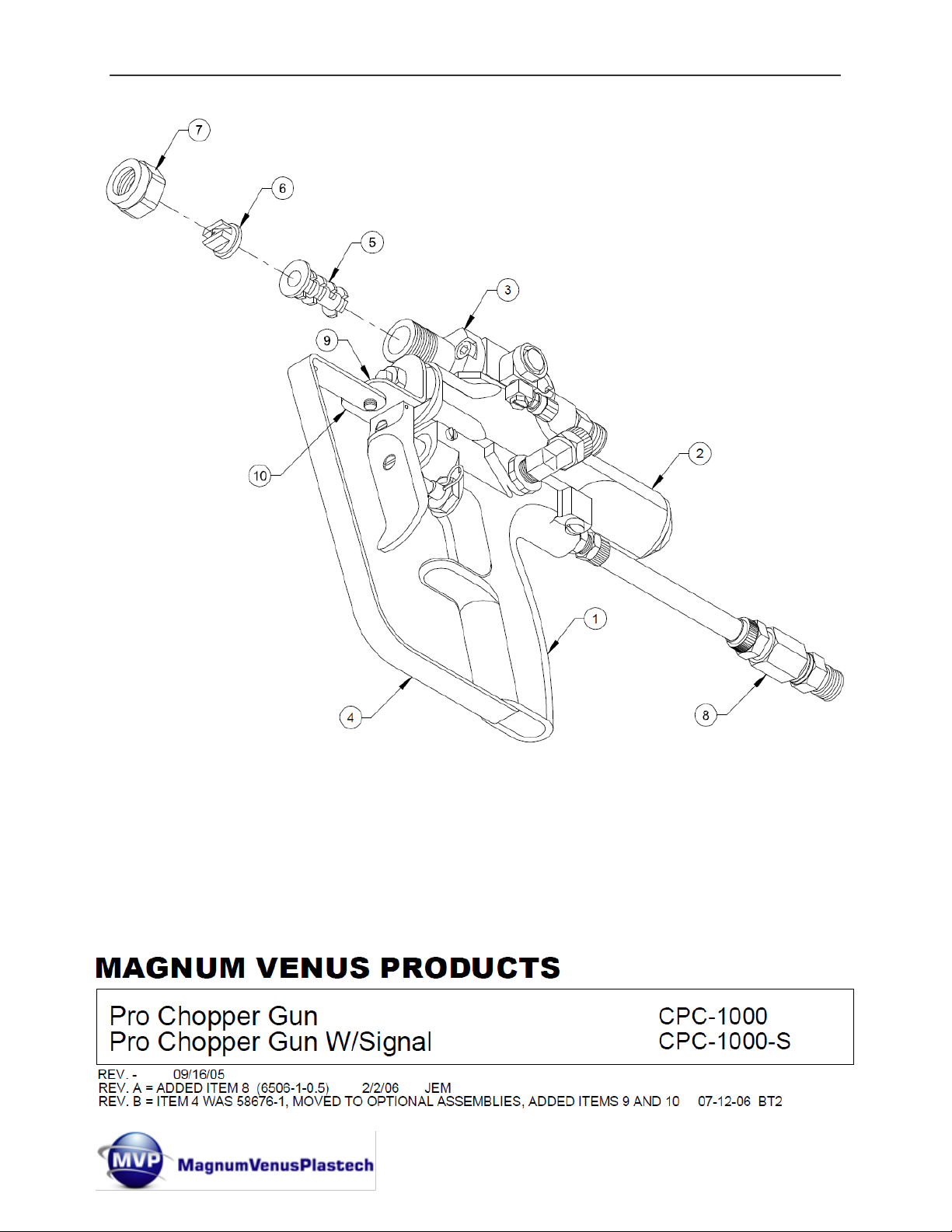

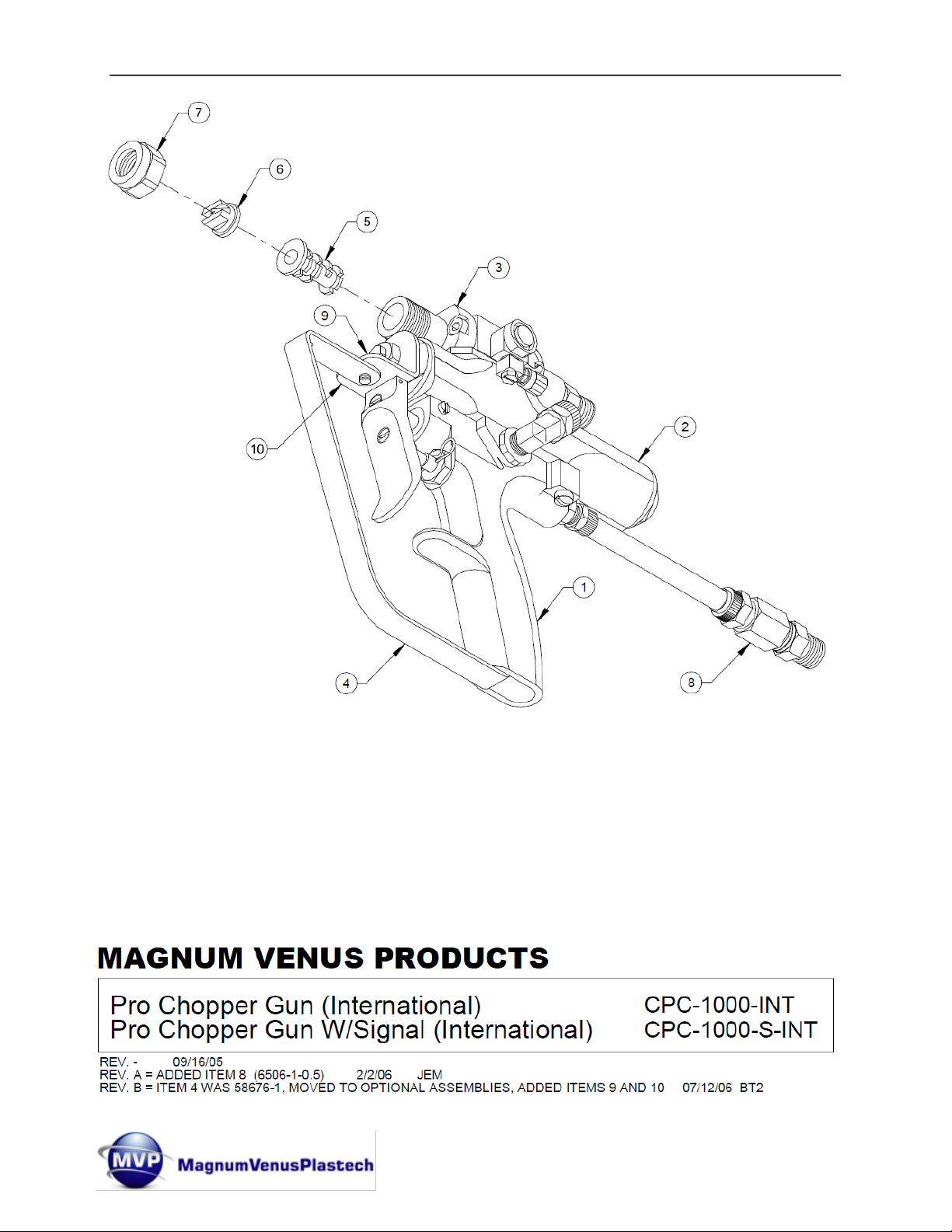

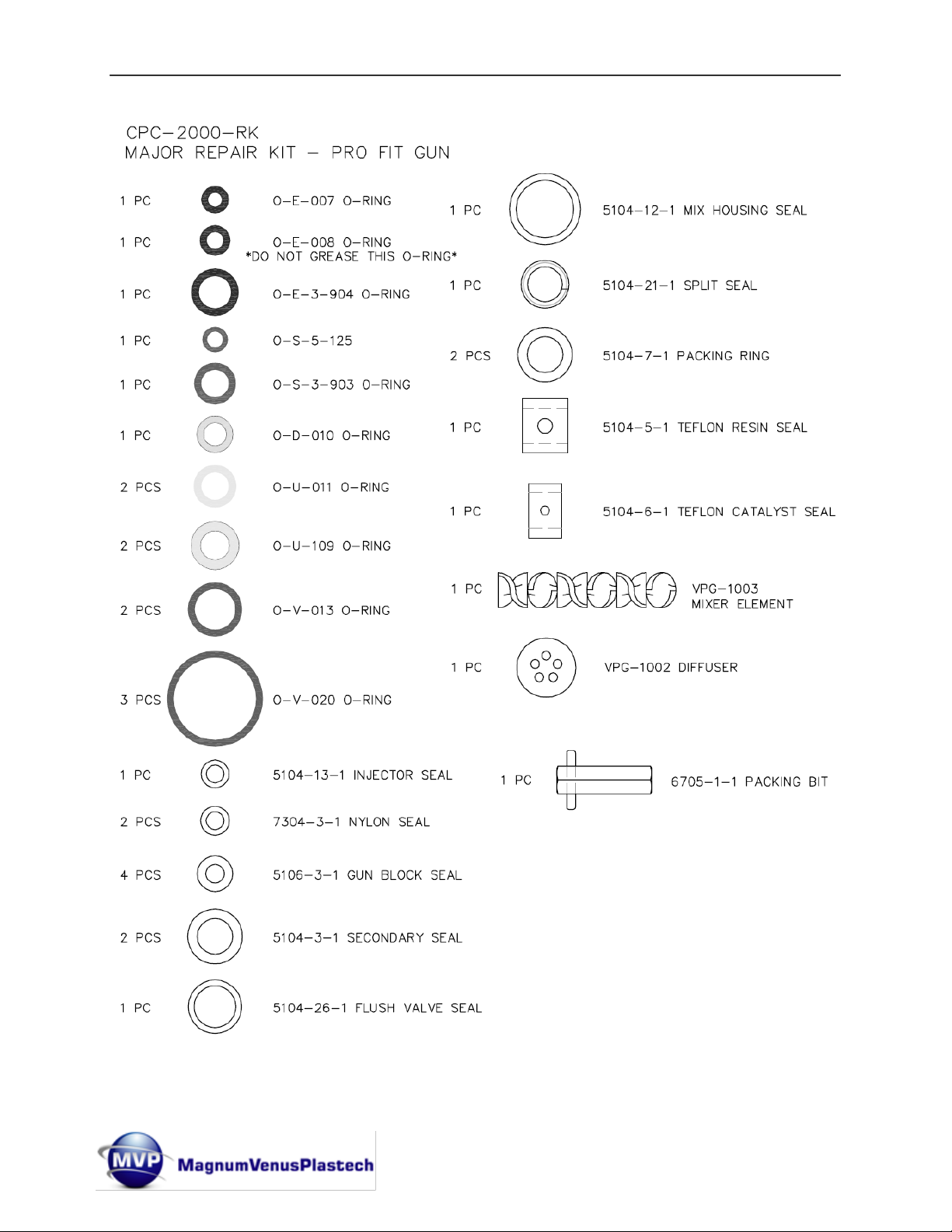

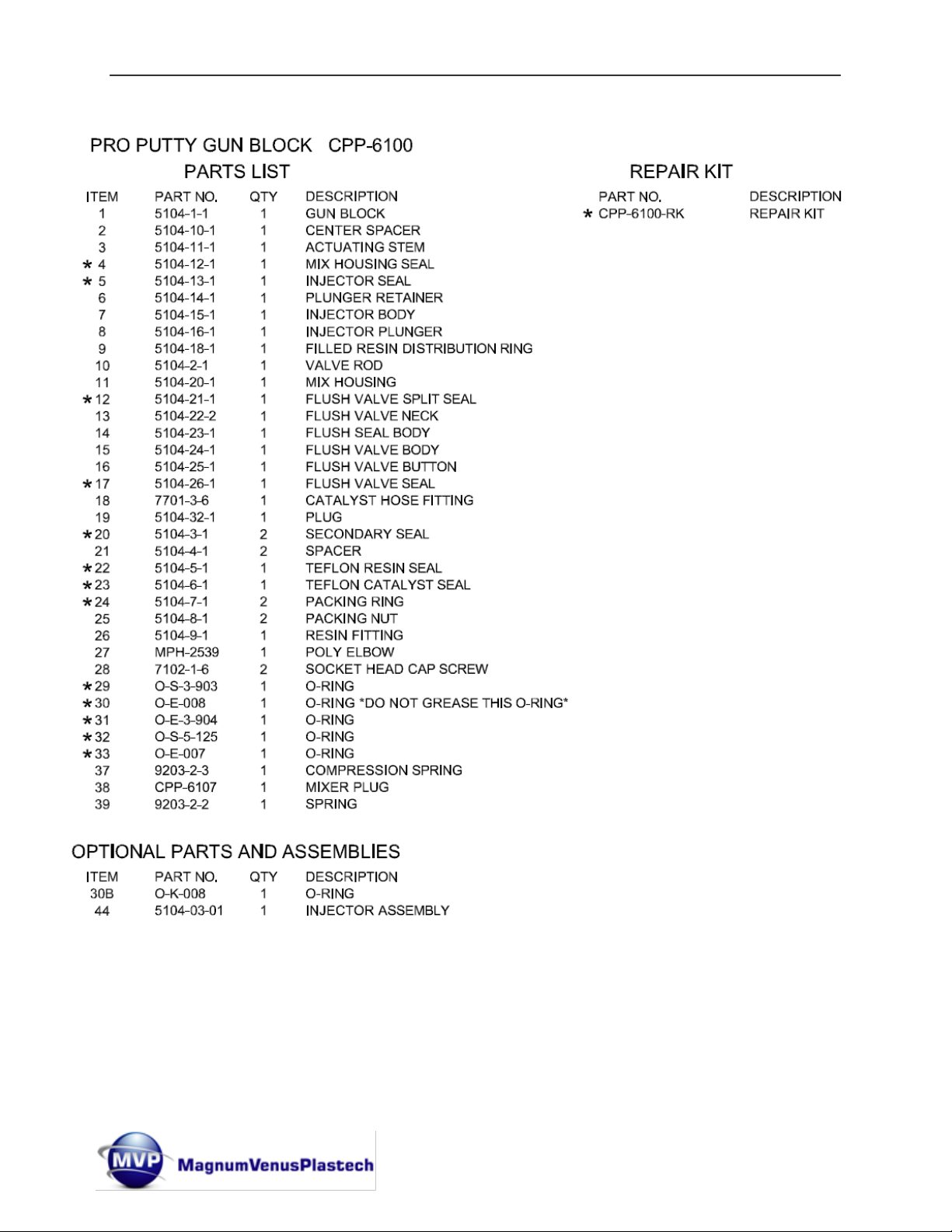

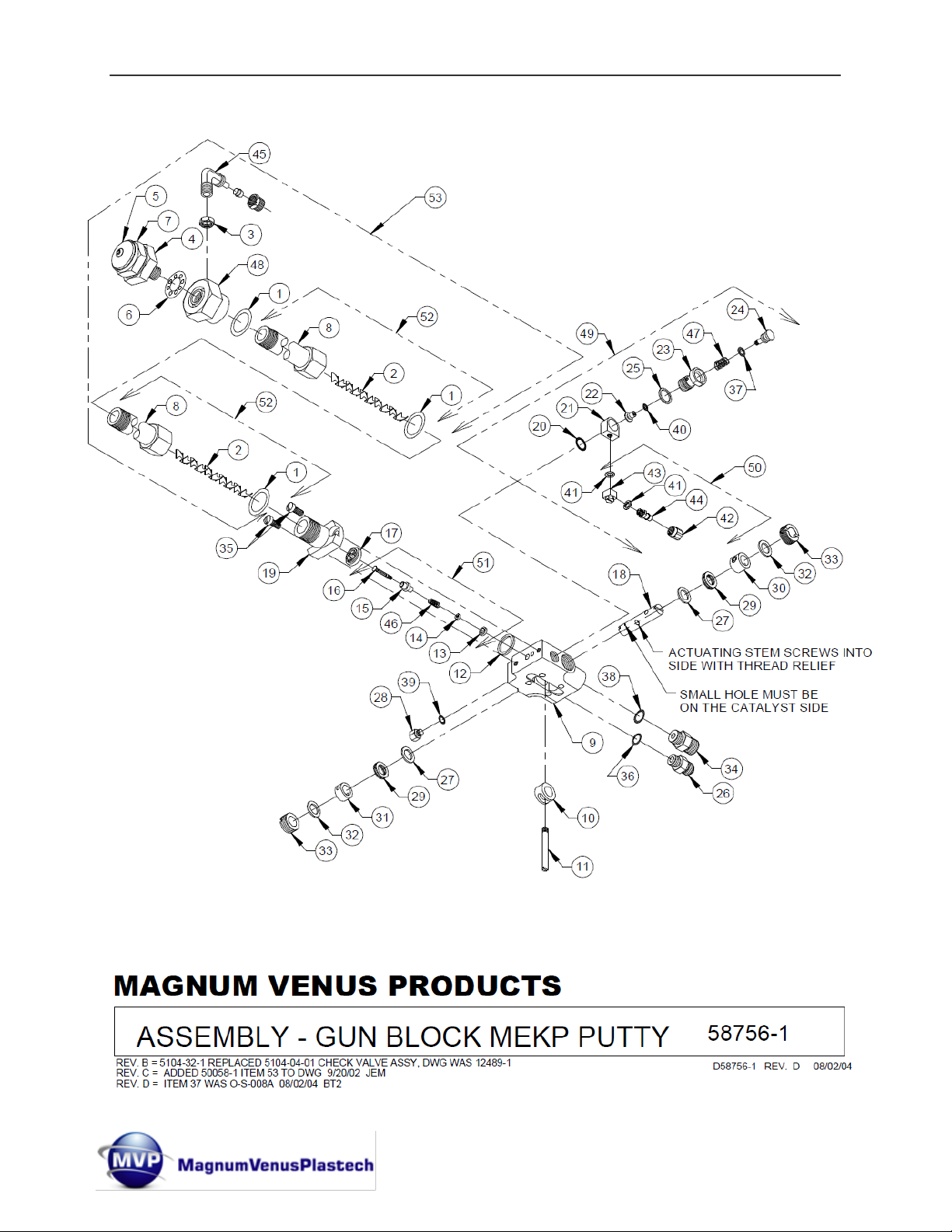

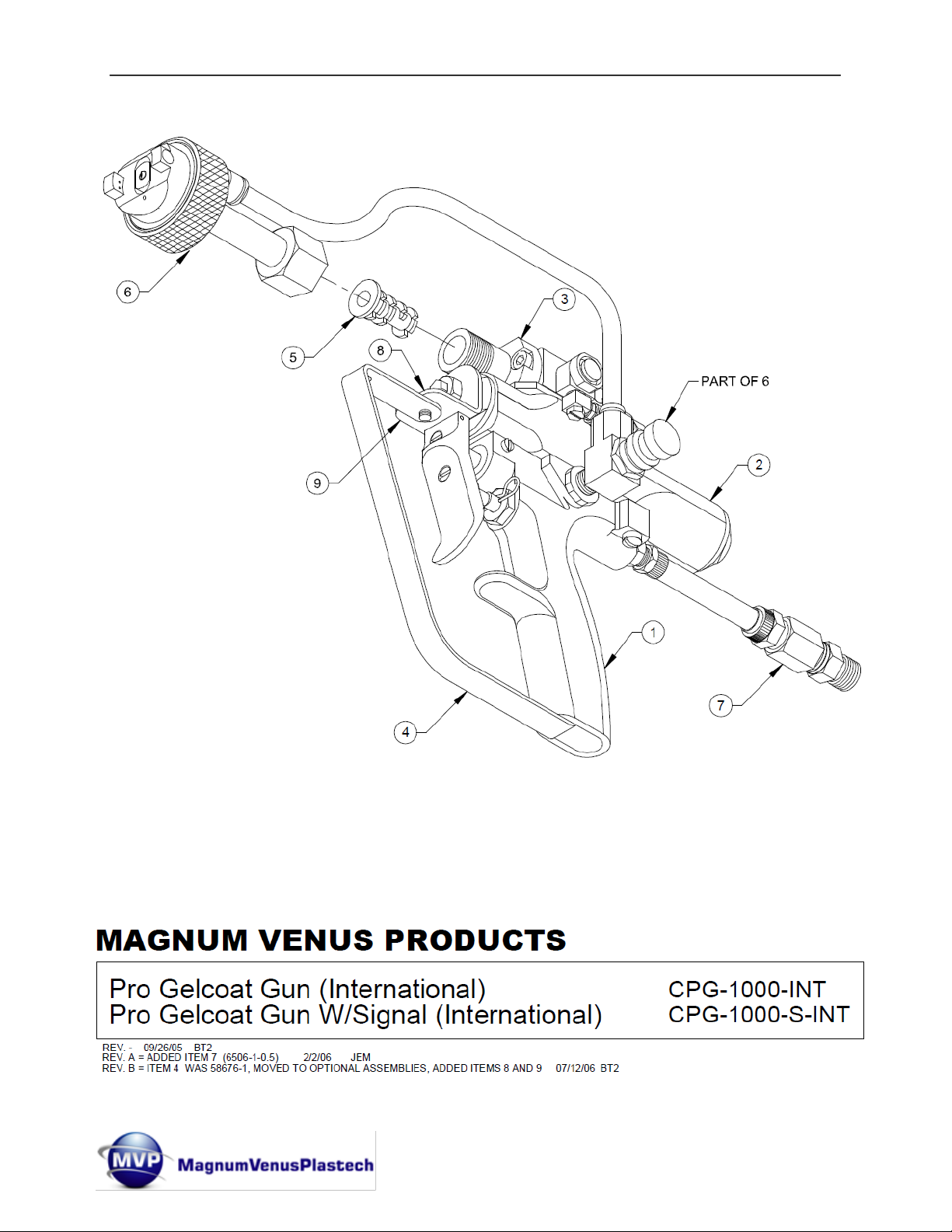

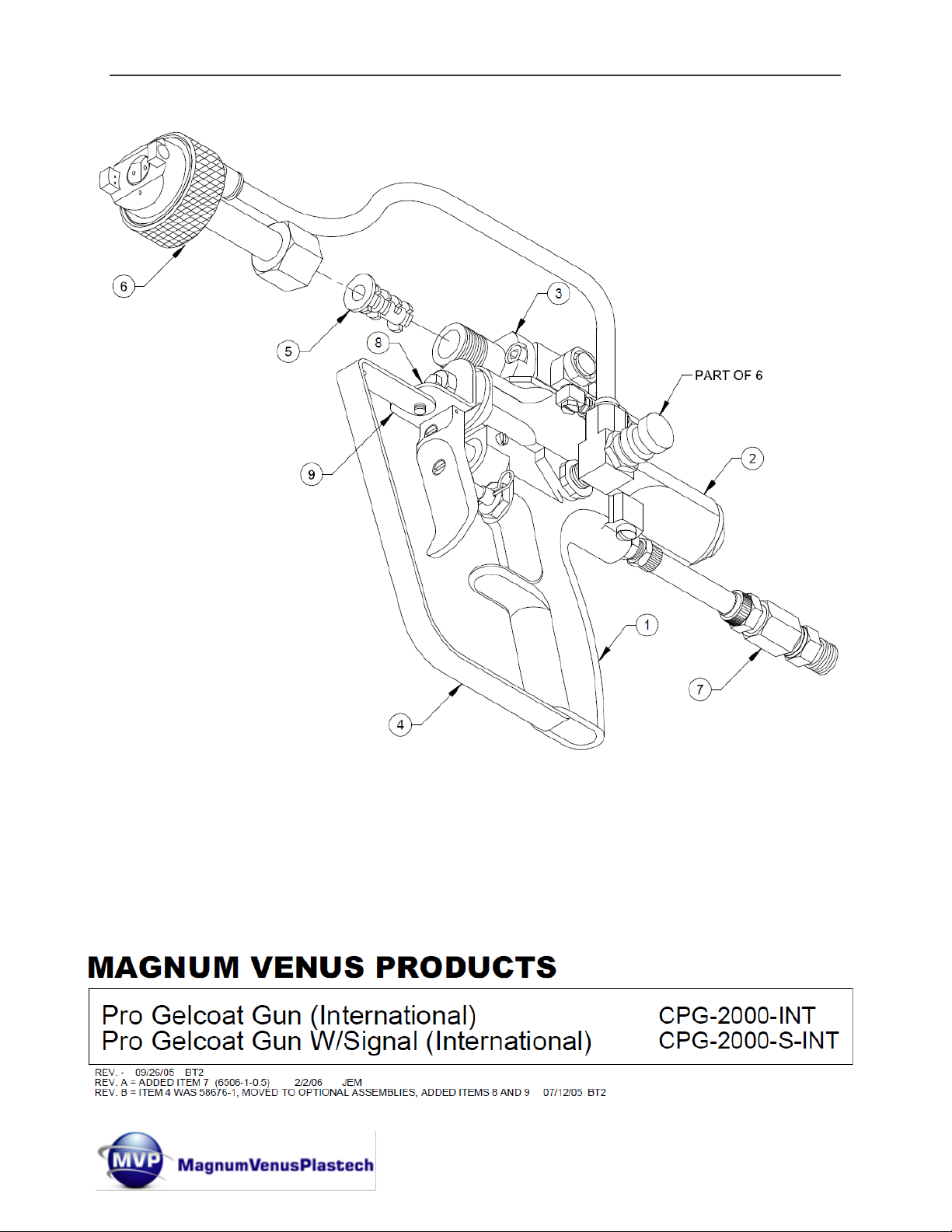

PARTS DRAWINGS 39 REVISION INFORMATION 101
Rev. 08/2012 Page | 3
Terms & Conditions of Sale:
GSSC, Inc.’s Terms & Conditions of Sale (“Terms & Conditions”) 588284v4
1. ACCEPTANCE: Acceptance of any purchase order from a customer or potential customer (“Buyer”) is subject to credit approval by GSSC, Inc. (“Seller”), acceptance of the purchase order by Seller and, when applicable, any manufacturer, vendor, or other third party that provides goods to Seller for resale to Buyer (“Vendor”). If Seller, in its sole discretion, determines that Buyer's credit becomes unsatisfactory or it has reasonable grounds for
insecurity, Seller reserves the right, upon notice to Buyer, to demand adequate assurance of due performance from Buyer and/or terminate any purchase order with no liability to Seller. BY REQUESTING A QUOTE FROM SELLER, ACCEPTING AN INVOICE FROM SELLER, OR PRESENTING A PURCHASE ORDER TO SELLER, BUYER CONFIRMS THAT THESE TERMS & CONDITIONS SHALL GOVERN ALL
PURCHASES OF PRODUCTS OR MATERIALS PROVIDED TO BUYER BY SELLER (“GOODS”). GOODS SOLD BY SELLER ARE EXPRESSLY
SUBJECT TO THE TERMS AND CONDITIONS SET FORTH HEREIN AND ANY DIFFERENT OR ADDITIONAL TERMS OR CONDITIONS SET FORTH IN A PURCHASE ORDER OR SIMILAR COMMUNICATION RECEIVED FROM BUYER ARE OBJECTED TO AND SHALL NOT BE BINDING UPON SELLER UNLESS SPECIFICALLY AGREED TO IN WRITING BY AN AUTHORIZED CORPORATE OFFICER OF SELLER.NO SELLER EMPLOYEE OR AGENT HAS THE AUTHORITY TO MODIFY THESE TERMS & CONDITIONS VERBALLY. SELLER OBJECTS TO AND REJECTS ANY TERMS BETWEEN BUYER AND ANY OTHER PARTY, AND NO SUCH TERMS, INCLUDING BUT NOT LIMITED TO ANY GOVERNMENT REGULATIONS OR “FLOWDOWN” TERMS, SHALL BE A PART OF OR INCORPORATED INTO ANY PURCHASE ORDER FROM BUYER TO SELLER, UNLESS AGREED TO IN WRITING BY AN AUTHORIZED REPRESENTATIVE OF SELLER.
2. PRICES AND TAXES: Buyer agrees to pay the prices quoted by Seller or listed on any related invoice, and is responsible for additional applicable shipping and handling charges, taxes, duties, and charges for import and export licenses and certificates. All prices quoted by Seller are subject to change without notice. Seller will generally collect applicable taxes along with the purchase price unless Buyer submits a valid tax exemption certificate, and indicates which Goods are covered by it. Prices on special-order Goods may be subject to change before shipment. In order to be corrected, any discrepancies in pricing and/or quantities on invoices must be reported by Buyer within thirty (30) days of the invoice date.
3. PAYMENT: Payment terms are 30 days net from the invoice date or upon such other terms approved by Seller in writing. Retainage shall not apply, and Buyer shall not hold back any retainage from Seller, even if retainage is part of any contract between Buyer and any other party. Payment is not contingent on Buyer’s ability to collect or obtain funds from any other party. Credit card sales are billed at the time of purchase. Buyer expressly represents it is solvent at the time it places any purchase order with Seller. Seller, in its sole discretion, may determine that Buyer’s financial condition requires full or partial payment prior to manufacture or shipment. If Buyer fails to make any payment when due, Seller reserves the right to suspend performance. Buyer agrees to pay a charge on all amounts past due at the rate of 1 ½% per month (18% per year) or the maximum lawful rate, whichever is less. In the event of non-payment, Buyer agrees to pay Seller’s reasonable attorney fees and court costs, if any, incurred by Seller to collect payment, and all applicable interest charges. Seller may apply payments to any outstanding invoices unless Buyer provides specific payment direction.
4. TITLE AND RISK OF LOSS OR DAMAGE: As to Goods delivered directly by Seller, title passes upon delivery at the place Buyer receives possession; and, thereafter, all risk of loss or damage shall be on Buyer. All other sales are F.O.B., point of shipment, and Buyer takes title and assumes responsibility for risk of loss or damage at the point of shipment for such sales. Claims for Goods damaged in transit are Buyer’s sole responsibility when not delivered directly by Seller.
5. QUOTATIONS: All quotations expire thirty (30) days from the date of the quotation unless otherwise noted on the quotation. This time limit applies even if Buyer uses the quotation to submit a job or project bid to any other party.
6. ASSIGNMENT: The Buyer’s rights and responsibilities under any purchase order or these Terms & Conditions shall not be assigned by Buyer without the express written consent of the Seller.
7. RETURN OF GOODS: Permission to return items must be requested and granted in advance. No credit will be given if items are returned prior to requesting and receiving permission. Subject to the foregoing, Seller shall accept returns of Goods for any reason for a period of thirty (30) days following shipment for exchange or refund of the purchase price; provided, that such Goods must be unused and are subject to a 15% restocking charge, which may be increased or decreased, in the Seller’s sole discretion, depending on the reason for such return. Any Goods which were special ordered by Buyer are may not be returned, and any such Goods which are returned are subject to a restocking/cancellation fee of 100% of the cost of the Goods. Goods shall be deemed accepted by Buyer (and cannot thereafter be returned), if Buyer fails to object to the Goods within thirty (30) days after the Goods are received by Buyer.
8. CANCELLATION: The Buyer may cancel any purchase order prior to shipment of the Goods by mutual agreement of the parties and upon payment to Seller of reasonable and proper cancellation charges.
9. TERMINATION: Seller may terminate the whole or any part of any purchase order if there is a material breach of these Terms & Conditions. In the event of any such breach, the Seller will provide Buyer with written notice of the nature of the breach and the Seller’s intention to terminate for default. In the event Buyer does not cure such failure within ten (10) days of such notice, Seller may, by written notice, terminate the purchase order; provided, that Buyer shall continue its performance to the extent not terminated.
10. CHANGE IN BUYER’S FINANCIAL CONDITION: Seller reserves the right to cancel any order or to require full or partial payment in advance without liability to Seller in the event of: (i) insolvency of the Buyer; (ii) the filing of voluntary petition in bankruptcy by Buyer; (iii) the appointment of a Receiver or Trustee for the Buyer; (iv) the execution by Buyer of an assignment for benefit of creditors; or (v) past due payment on previous shipments to Buyer by Seller. Seller reserves the right to cancel Buyers credit at any time for any reason.
11. INTERPRETATION RESPONSIBILITY; PRODUCT USE AND SAFETY: Seller does not guarantee that the Goods it sells conform to any plans and specifications or intended use. When plans and specifications are involved, Buyer is solely responsible for verifying Seller’s interpretations of such plans and specifications, and it is Buyer’s sole responsibility to assure that Seller’s Goods will be acceptable for any specific job. When Seller offers substitute Goods on any proposal, Buyer is solely responsible for confirming their acceptability.
12. DELIVERY: Shipping dates given in advance of actual shipment are approximate and not guaranteed. All contract dates and timelines begin upon receipt by Seller of a purchase order, Buyer’s acceptance of these Terms & Conditions, and the payment of any required down payment.
13. EXCUSABLE DELAYS: Seller shall have no liability if its performance is delayed or prevented by causes beyond its reasonable control, including, without limitation, acts of nature, labor disputes, government priorities, transportation delays, insolvency or other inability to perform by any Vendor, or any other commercial impracticability. In the event of any such delay, the date of delivery or performance shall be extended for a period equal to the time lost by reason of delay. If Goods are held or stored beyond the delivery date for the convenience of Buyer, such Goods shall be so stored at the risk and expense of Buyer.
14. CLAIMS: Claims for any nonconforming Goods must be made by Buyer, in writing, within ten (10) days of Buyer’s receipt of such Goods and must state with particularity all material facts concerning the claim then known to Buyer. Failure by Buyer to give notice within such ten (10) day period shall constitute an unqualified acceptance of such Goods by Buyer, and a waiver of any right to reject or revoke acceptance of such Goods.
Rev. 08/2012 Page | 4
15. WARRANTIES: (a) SELLER’S WARRANTIES: Seller warrants that all Goods sold shall mechanically operate as specified and shall be free from faults in respect to materials and workmanship for a period of: (i) for parts, twelve (12) months from the date of invoice, and (ii) for systems, twelve (12) months from start­up, or, if earlier, eighteen (18) months from the date of the bill of lading. Seller also warrants that the Goods shall, upon payment in full by Buyer for the Goods, be free and clear of any security interests or liens. Buyer’s exclusive remedy for breach of such warranties shall be limited to repair or replacement costs or termination of any security interests or liens, and Seller shall have no responsibility for reimbursing repair costs incurred by Buyer in connection with Goods without first giving written authorization for such charges. In any claims by the Buyer against the Seller in respect of the Goods, the liability of the Seller shall be limited to the value of the Goods. This warranty applies only to Goods properly used and maintained and does not apply to any Goods which are misused or neglected, or which has been installed, operated, repaired, altered or modified other than in accordance with instructions or written authorization by Seller. This warranty does not apply to any Goods not manufactured by Seller, and Buyer's sole warranty with respect to such Goods shall be that of the Seller’s Vendor, if any. (b) VENDOR’S WARRANTIES: Seller shall assign to Buyer any Vendor warranties and/or remedies provided to Seller by its Vendor. (c) INTELLECTUAL PROPERTY INFRINGEMENT: SELLER DISCLAIMS ANY AND ALL WARRANTIES AND/OR INDEMNIFICATIONS AGAINST INFRINGEMENT OF ANY INTELLECTUAL PROPERTY RIGHTS OF ANY NATURE. SELLER SHALL, IF GIVEN PROMPT NOTICE BY BUYER OF ANY CLAIM OF INTELLECTUAL PROPERTY INFRINGEMENT WITH RESPECT TO ANY GOODS SOLD HEREUNDER, REQUEST THE APPLICABLE VENDOR TO GRANT FOR THE BUYER SUCH WARRANTY OR INDEMNITY RIGHTS AS SUCH VENDOR MAY CUSTOMARILY GIVE WITH RESPECT TO SUCH GOODS. (d) LIMITATIONS: THERE ARE NO OTHER WARRANTIES WRITTEN OR ORAL, EXPRESS, IMPLIED OR BY STATUTE. SELLER SPECIFICALLY DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. NO REPAIR OF GOODS OR OTHER COSTS ARE ASSUMED BY SELLER UNLESS AGREED TO, IN ADVANCE, IN WRITING.
16. LIMITATIONS OF LIABILITY: UNLESS APPLICABLE LAW OTHERWISE REQUIRES, SELLER’S AND ANY VENDOR’S TOTAL LIABILITY TO BUYER, BUYER’S CUSTOMERS OR TO ANY OTHER PERSON, RELATING TO ANY PURCHASES GOVERNED BY THESE TERMS &
CONDITIONS, FROM THE USE OF THE GOODS FURNISHED OR FROM ANY ADVICE, INFORMATION OR ASSISTANCE PROVIDED BY SELLER (BY ANY METHOD, INCLUDING A WEB SITE), IS LIMITED TO THE PRICE OF THE GOODS GIVING RISE TO THE CLAIM. NEITHER SELLER NOR ITS VENDORS SHALL BE LIABLE FOR ANY SPECIAL, INCIDENTAL, DIRECT, CONSEQUENTIAL OR PENAL DAMAGES, INCLUDING, BUT NOT LIMITED TO BACKCHARGES, LABOR COSTS, COSTS OF REMOVAL, REPLACEMENT, TESTING OR INSTALLATION, LOSS OF EFFICIENCY, LOSS OF PROFITS OR REVENUES, LOSS OF USE OF THE GOODS OR ANY ASSOCIATED GOODS, DAMAGE TO ASSOCIATED GOODS, LATENESS OR DELAYS IN DELIVERY, UNAVAILABILITY OF GOODS, COST OF CAPITAL, COST OF SUBSTITUTE
GOODS, FACILITIES OR SERVICES, DOWNTIME, OR CLAIMS FROM BUYER’S CUSTOMERS OR OTHER PARTIES. IF SELLER FURNISHES
BUYER WITH ADVICE OR OTHER ASSISTANCE WHICH CONCERNS ANY GOODS SUPPLIED HEREUNDER, OR ANY SYSTEM OR EQUIPMENT IN WHICH ANY SUCH GOODS MAY BE INSTALLED, AND WHICH IS NOT REQUIRED PURSUANT TO THESE TERMS & CONDITIONS, THE FURNISHING OF SUCH ADVICE OR ASSISTANCE WILL NOT SUBJECT SELLER TO ANY LIABILITY, WHETHER BASED ON CONTRACT, WARRANTY, TORT (INCLUDING NEGLIGENCE) OR OTHER GROUNDS.
17. BUYER’S USE OF GOODS: Many factors beyond Seller’s control contribute to the success of the Buyer’s finished products, such as raw materials
used to manufacture the products. Seller is not liability for the quality or quantity of finished products produced by Buyer with the use of the Goods.
18. EXPORTS: If Goods are sold for export, Seller’s standard terms & condition for export sales, if any, shall also apply. Acceptance of export orders is not valid unless confirmed in writing by Seller. Buyer, and not Seller, is responsible for compliance with all United States export control rules and regulations. Buyer shall not name Seller as shipper or exporter of record in connection with the export of any Goods purchased from Seller.
19. INSTALLATION: Installation of the Goods is the responsibility of Buyer, unless otherwise indicated in the quotation or invoice provided to Buyer. Notwithstanding the foregoing, however, Seller will provide installation supervision personnel within thirty (30) days of Buyer’s request. If an installation for which the Seller is to participate is delayed by the Buyer more than six (6) months after the date of shipment of the Goods, or if Buyer’s facility, materials, or parts are not prepared for installation for such period of time, Seller shall be entitled to invoice the Buyer for the anticipated installation costs, up to $1,250 per day plus expenses, for each of Seller’s installations technicians which are on site.
20. ANTI-MONEY LAUNDERING RESTRICTIONS: Seller rejects questionable purchase orders and payments: Except for pre-approved credit arrangements, Seller rejects third-party payments, cashiers' checks, money orders and bank drafts. Seller accepts only checks imprinted with Buyer’s name; wire transfers originated in Buyer's account; letters of credit with Buyer as account party; and credit or debit cards in Buyer’s name. All payments must be by single instrument in the amount of the invoice, less credits, from banks acceptable to Seller.
21. GOVERNING LAW: These Terms & Conditions and all disputes related to it shall be governed by the laws of the State of Florida, United States of America, without giving effect to its conflict of law rules.
22. JURISDICTION AND VENUE: The parties hereby irrevocably submit to the jurisdiction of the state courts of the State of Florida and to the jurisdiction of the United States District Court for the Middle District of Florida, for the purpose of any suit, action, or other proceeding related to, arising out of or based upon these Terms & Conditions or in any way related to, arising out of or involving sale of Goods hereunder; waive and agree not to assert by way of motion, as a defense, or otherwise, in any such suit, action, or proceeding, any claim that it is not subject personally to the jurisdiction of the above-named courts, that its property is exempt or immune from attachment or execution, that the suit, action, or proceeding is brought in any inconvenient forum, that the venue of the suit, action, or proceeding is improper, or that these Terms & Conditions or the subject matter hereof may not be enforced in or by such court; and waive and agree not to seek any review by any court of any other jurisdiction which may be called upon to grant an enforcement of the judgment of any such Florida state or federal court. The parties hereby consent to service of process by registered mail at the address to which notice is to be given. The exclusive venue for any proceeding under these Terms & Conditions shall be solely in any state court in Pinellas County, Florida, or the Federal District Court for the Middle District of Florida, Tampa Division, sitting in Tampa, Florida. Buyer acknowledges that the prices for Goods offered hereunder are in part dependent on Buyer’s consent to jurisdiction in Florida and exclusive venue in Pinellas County, Florida or the Federal District Court for the Middle District of Florida, Tampa Division, sitting in Tampa, Florida, and without Buyer’s consent to this jurisdiction and venue provision the prices for the Goods may be higher.
23. GENERAL: Any representation, affirmation of fact and course of dealing, promise or condition in connection therewith or usage of trade not contained herein, shall not be binding on either party. If any provision hereof shall be unenforceable, invalid or void for any reason, such provision shall be automatically voided and shall not be part of these Terms & Conditions and the enforceability or validity of the remaining provisions of these Terms & Conditions shall not be affected thereby.
TO THE EXTENT NOT CONTRARY TO APPLICABLE LAW, THE FOLLOWING SHALL APPLY:
24. Buyer waives any available homestead exemption as well as any and all requirements or rights with regard to notice, demand, presentment.
IMPORTANT NOTICE: THIS INSTRUMENT PERMITS SELLER TO OBTAIN AND USE YOUR INDIVIDUAL CREDIT HISTORY FOR CREDIT EVALUATION
PURPOSES.
Rev. 08/2012 Page | 5
SAFETY & WARNING INFORMATION:
OPERATING YOUR POLYESTER SYSTEM SAFELY
1. Introduction
Any tool, if used improperly, can be dangerous. Safety is ultimately the responsibility of those using the tool. In like manner, safe operation of polyester processes is the responsibility of those who use such processes and those who operate the equipment. This manual outlines procedures to be followed in conducting polyester operations safety. This system has been specifically designed for use of Polyester Resin, Gel-Coat, and Methyl Ethyl Ketone Peroxides (MEKP) applications. Other formulations or blends considered for use in this equipment is strictly prohibited without the expressed consent by Magnum Venus Plastech Inc. Magnum Venus Plastech cannot eliminate every danger nor foresee every circumstance that might cause an injury during equipment operation. Some risks, such as the high pressure liquid stream that exits the spray tip, are inherent to the nature of the machine operation and are necessary to the process in order to manufacture the end-product. For this reason, ALL personnel involved in polyester operations should read and understand the Safety Manual. It is very important for the safety of employees involved in the operation that equipment operators, maintenance and supervisory personnel understand the requirements for safe operation. Each user should examine his own operation, develop his own safety program and be assured that his equipment operators follow correct procedures. Magnum Venus Plastech hopes that this manual is helpful to the user and recommends that the precautions in this manual be included in any such program. Magnum Venus Plastech recommends this Safety Manual remain on your equipment at all times for your personnel safety. In addition to the manual, Magnum Venus Plastech recommends that the user consult the regulations established under the Occupational Safety & Health Act (OSHA), particularly the following sections:
1910.94 Pertaining to Ventilation.
1910.106 Pertaining to flammable liquids
1910.107 Pertaining to spray finishing operations, particularly Paragraph (m) Organic Peroxides and Dual Component Coatings.
Other standards and recognized authorities to consult are the National Fire Protection Association (NFPA) bulletins as follows:
NFPA No.33 Chapter 14, Organic Peroxides and Dual Component Materials NFPA No.63 Dust Explosion Prevention NFPA No.70 National Electrical Code NFPA No.77 Static Electricity NFPA No.91 Blower and Exhaust System NFPA No.654 Plastics Industry Dust Hazards
Rev. 08/2012 Page | 6
Type of Fire Extinguishing equipment recommended: Fire Extinguisher – code ABC, rating number 4a60bc.
Extinguishing Media – Foam, Carbon Dioxide, Dry Chemical, Water Fog. Copies of the above bulletins are available, at a nominal charge from:
National Fire Protection Association 470 Atlantic Avenue Boston, MA 02210
Research Report No.11 of the American Insurance Association deal with “Fire, Explosion and
Health Hazards of Organic Peroxides”. It is published by:
American Insurance Association 85 John Street New York, NY 10038
Local codes and authorities also have standards to be followed in the operation of your spraying equipment. Your insurance carrier will be helpful in answering questions that arise in your development of safe procedures.
1.2 Personal Safety Equipment
Magnum Venus Plastech recommends the following Personal Safety Equipment for conducting safe operations of the Polyester Systems:
Magnum Venus Plastech recommends that the user consult the state and local regulations established for all Safety equipment listed.
2.0 Material Safety
2.1 Hazards Associated with Laminating Operations
The major hazards which should be guarded against in polyester laminating operations are those associated with:
1. The flammability and explosion dangers of the catalyst normally used – Methyl Ethyl Ketone Peroxide (MEKP).
2. The flammability dangers of clean-up solvents sometimes used (Magnum Venus Plastech recommends that clean-up solvents be non-flammable), and of resin diluents used, such as styrene.
3. The flammability dangers of catalyst diluents, if used. (Magnum Venus Plastech recommends that catalyst not be diluted.
4. The flammability dangers of the uncured liquid resins used.
5. The combustibility dangers of the cured laminate, accumulations of over spray, and laminate sandings.
6. The toxicity dangers of all the chemicals used in laminating operations with respect to ingestion, inhalation and skin and eye hazards.
Rev. 08/2012 Page | 7
2.2 Catalyst (Methyl Ethyl Ketone Peroxide)
MEKP is among the more hazardous materials found in commercial channels. The safe
handling of the “unstable (reactive)” chemicals presents a definite challenge to the plastics
industry. The highly reactive property which makes MEKP valuable to the plastics industry in producing the curing reaction of polyester resins also produces the hazards which require great care and caution in its storage, transportation, handling, processing and disposal. MEKP is a single chemical. Various polymeric forms may exist which are more or less hazardous with respect to each other. These differences may arise not only from different molecular structures
(all are, nevertheless, called “MEKP”) and from possible trace impurities left from the
manufacture of the chemicals, but may also arise by contamination of MEKP with other materials in its storage or use. Even a small amount of contamination with acetone, for instance, may produce an extremely shock-sensitive and explosive compound.
Contamination with promoters or materials containing promoters, such as laminate sandings, or with any readily oxidizing material, such as brass or iron, will cause
exothermic “redox” reactions which can become explosive in nature. Heat applied to
MEKP, or heat build-up from contamination reactions can cause it to reach what is called its Self-Accelerating Decomposition Temperature (SADT).
Researchers have reported measuring pressure rates-of-rise well in excess of 100,000 psi per
second when certain MEKP’s reach their SADT. (For comparison, the highest pressure rate-of-
rise listed in NFPA Bulletin NO.68, “Explosion Venting”, is 12,000 psi per second for an
explosion of 12% acetylene and air. The maximum value listed for a hydrogen explosion is 10,000 psi per second. Some forms of MEKP, if allowed to reach their SADT, will burst even an open topped container. This suggests that it is not possible to design a relief valve to vent this order of magnitude of pressure rate-of-rise. The user should be aware that any closed container, be it a pressure vessel, surge chamber, or pressure accumulator, could explode under certain conditions. There is no engineering substitute for care by the user in handling organic peroxide catalysts. If, at any time, the pressure relieve valve on top of the catalyst tank should vent, the area should be evacuated at once and the fire department called. The venting could be the first indication of a heat, and therefore, pressure build-up that could eventually lead to an explosion. Moreover, if a catalyst tank is sufficiently full when the pressure relief valve vents, some catalyst may spray out, which could cause eye injury. For this reason, and many others, anyone whose job puts them in an area where this vented spray might go, should always wear full eye protection even when laminating operations are not taking place.
Safety in handling MEKP depends to a great extent on employee education, proper safety instructions and safe use of the chemicals and equipment. Workers should be thoroughly informed of the hazards that may result from improper handling of MEKP, especially in regards to contamination, heat, friction and impact. They should be thoroughly instructed regarding the proper action to be taken in the storage, use and disposal of MEKP and other hazardous materials used in the laminating operation. In addition, users should make every effort to:
A. Store MEKP in a cool, dry place in original containers away from direct sunlight and away from other chemicals.
B. Keep MEKP away from heat, sparks and open flames.
Rev. 08/2012 Page | 8
C. Prevent contamination of MEKP with other materials, including polyester over spray and sandings, polymerization accelerators and promoters, brass, aluminum and non-stainless steels.
D. Never add MEKP to anything that is hot, since explosive decomposition may result. E. Avoid contact with skin, eyes and clothing. Protective equipment should be worn at all times.
During clean-up of spilled MEKP, personal safety equipment, gloves and eye protection must be worn. Firefighting equipment should be at hand and ready.
F. Avoid spillage, which can heat up to the point of self-ignition. G. Repair any leaks discovered in the catalyst system immediately, and clean up the leaked
catalyst at once in accordance with the catalyst manufacturer’s instructions. H. Use only original equipment or equivalent parts from Magnum Venus Plastech in the catalyst
system (i.e.: hoses, fitting, etc.) because a dangerous chemical reaction may result between substituted parts and MEKP.
I. Catalyst accumulated from the purging of hoses or the measurement of fluid output deliveries should never be returned to the supply tank, such catalyst should be diluted with copious
quantities of clean water and disposed of in accordance with the catalyst manufacturer’s
instructions. The extent to which the user is successful in accomplishing these ends and any additional
recommendations by the catalyst manufacturer determines largely the safety that will be present in his operation.
2.3 Clean-Up Solvents and Resin Diluents
WARNING
A hazardous situation may be present in your pressurized fluid system! Hydrocarbon Solvents can cause an explosion when used with aluminum or galvanized components in a closed (pressurized) fluid system (pump, heaters, filters, valves, spray guns, tanks, etc.). The explosion could cause serious injury, death and/or substantial property damage. Cleaning agents, coatings, paints, etc. may contain Halogenated Hydrocarbon Solvents. Some Magnum Venus Plastech spray equipment includes aluminum or galvanized components and will be affected by Halogenated Hydrocarbon Solvents.
A. There are three key elements to the Halogenated Hydrocarbon (HHC) solvent hazard.
a. The presence of HHC solvents. 1,1,1 – Trichloroethane and Methylene Chloride are
the most common of these solvents. However, other HHC solvents are suspect if used; either as part of paint or adhesives formulation, or for clean-up flushing. b. Aluminum or Galvanized Parts. Most handling equipment contains these elements. In contact with these metals, HHC solvents could generate a corrosive reaction of a catalytic nature.
b. Equipment capable of withstanding pressure. When HHC solvent contacts aluminum
or galvanized parts inside a closed container such as a pump, spray gun, or fluid handling system, the chemical reaction can, over time, result in a build-up of heat and pressure, which can reach explosive proportions.
Rev. 08/2012 Page | 9
When all three elements are present, the result can be an extremely violent explosion. The reaction can be sustained with very little aluminum or galvanized metal; any amount of aluminum is too much.
A. The reaction is unpredictable. Prior use of an HHC solvent without incident (corrosion or explosion) does NOT mean that such use is safe. These solvents can be dangerous alone (as a clean-up or flushing agent) or when used as a component or a coating material. There is no known inhibitor that is effective under all circumstances. Furthermore, the mixing of HHC solvents with other materials or solvents, such as MEKP, alcohol, and toluene, may render the inhibitors ineffective.
B. The use of reclaimed solvents is particularly hazardous. Reclaimers may not add any inhibitors. Also, the possible presence of water in reclaimed solvents could feed the reaction.
C. Anodized or other oxide coatings cannot be relied upon to prevent the explosive reaction. Such coatings can be worn, cracked, scratched, or too thin to prevent contact. There is no known way to make oxide coatings or to employ aluminum alloys, which will safely prevent the chemical reaction under all circumstances.
D. Several solvent suppliers have recently begun promoting HHC solvents for use in coating systems. The increasing use of HHC solvents is increasing the risk. Because of their exemption from many State Implementation Plans as Volatile Organic Compounds
(VOC’s), their low flammability hazard, and their not being classified as toxic or carcinogenic
substances, HHC solvents are very desirable in many respects.
WARNING: Do not use Halogenated Hydrocarbon solvents in pressurized fluid systems having aluminum or galvanized wetted parts.
NOTE: Magnum Venus Plastech is aware of NO stabilizers available to prevent Halogenated Hydrocarbon solvents from reaction under all conditions with aluminum components in closed fluid system. TAKE IMMEDIATE ACTION… Halogenated Hydrocarbon solvents are dangerous when used with aluminum components in a closed fluid system.
A. Consult your material supplier to determine whether your solvent or coating contains Halogenated Hydrocarbon Solvents.
B. Magnum Venus Plastech recommends that you contact your solvent supplier regarding the best non-flammable clean-up solvent with the heat toxicity for your application.
C. If, however, you find it necessary to use flammable solvents, they must be kept in approved, electrically grounded containers.
D. Bulk solvent should be stored in a well-ventilated, separate building, 50 feet away from your main plant.
E. You should allow only enough solvent for one day’s use in your laminating area. F. “NO SMOKING” signs must be posted and observed in all areas of storage or where solvents
and other flammable materials are used.
Rev. 08/2012 Page | 10
G. Adequate ventilation (as covered in OSHA Section 1910.94 and NFPA No.91) is important wherever solvents are stored or used, to minimize, confine and exhaust the solvent vapors.
H. Solvents should be handled in accordance with OSHA Section 1910.106 and 1910.107.
2.4 Catalyst Diluents
Magnum Venus Plastech spray-up and gel-coat systems currently produced are designed so that catalyst diluents are not required. Magnum Venus Plastech, therefore, recommends that diluents not be used. This avoids the possible contamination which could lead to an explosion due to the handling and mixing of MEKP and diluents. In addition, it eliminates any problems from the diluents being contaminated through rust particles in drums, poor quality control on the part of the diluents suppliers, or any other reason. If, however, diluents are absolutely required, contact your catalyst supplier and follow his instructions explicitly. Preferable, the supplier should premix the catalyst to prevent possible “on the job” contamination while mixing.
WARNING
If diluents are not used, it should be remembered that catalyst spillage, gun, hose and packing leaks are potentially more hazardous, since each drop contains a higher concentration of catalyst, and therefore will react quicker with over spray and the leak.
2.5 Cured Laminate, Overspray and Laminate Sandings Accumulation
A. Remove all accumulations of overspray, FRP sandings, etc. from the building as they occur. If this waste is allowed to build up, spillage of catalyst is more likely to start a fire; in addition, the fire would burn hotter and longer.
B. Floor coverings, if used, should be non-combustible. C. Spilled or leaked catalyst may cause a fire if it comes in contact with an FRP product, over-
sprayed chop or resin, FRP sandings or any other material with MEKP. To prevent this spillage and leakage, you should:
1. Maintain your Magnum Venus Plastech System. Check the gun several times daily for catalyst and resin packing or valve leaks. REPAIR ALL LEAKS IMMEDIATELY.
2. Never leave the gun hanging over, or lying inside the mold. A catalyst leak in this situation would certainly damage the part, possibly the mold, and may cause a fire.
3. Inspect resin and catalyst hoses daily for wear or stress at the entry and exits of the boom sections and at the hose and fittings. Replace if wear or weakness is evident or suspected.
4. Arrange the hoses and fiberglass roving guides so that the fiberglass strands DO NOT rub against any of the hoses at any point. If allowed to rub, the hose will be cut through, causing a hazardous leakage of material which could increase the danger of fire. Also, the material may spew onto personnel in the area.
Rev. 08/2012 Page | 11
2.7 Toxicity of Chemicals
A. Magnum Venus Plastech recommends that you consult OSHA Sections 1910.94, 1910.106,
1910.107 and NFPA No.33, Chapter 14, and NFPA No.91. B. Contact your chemical supplier(s) and determine the toxicity of the various chemicals used as
well as the best methods to prevent injury, irritation and danger to personnel. C. Also determine the best methods of first aid treatment for each chemical used in your plant.
2.8 Treatment of Chemical Injuries
Great care should be used in handling the chemicals (resins, catalyst and solvents) used in polyester systems. Such chemicals should be treated as if they hurt your skin and eyes and as if they are poison to your body. For this reason, Magnum Venus Plastech recommends the use of protective clothing and eye wear in using polyester systems. However, users should be prepared in the event of such an injury. Precautions include:
1. Know precisely what chemicals you are using and obtain information from your chemical supplier on what to do in the event the chemical gets onto your skin or into the eyes, or is swallowed.
2. Keep this information together and easily available so that it may be used by those administering first aid or treating the injured person.
3. Be sure the information from your chemical supplier includes instructions on how to treat any toxic effects the chemicals have.
WARNING
Contact your doctor immediately in the event of any injury and give him the information you have collected. If your information includes first aid instructions, administer first aid immediately while you are contacting your doctor.
Fast treatment of the outer skin and eyes that contact such chemicals generally includes immediate and thorough washing of the exposed skin and immediate and continuous flushing of the eyes with lots of clean water for at least 15 minutes or more. These general instructions of first aid treatment, however, may be incorrect for some chemicals; that is why you must know the chemicals and treatment before an accident occurs. Treatment for swallowing a chemical frequently depends upon the nature of the chemical.
NOTE: Refer to your System User Manual for complete and detailed operating instructions and service information.
Rev. 08/2012 Page | 12
3.0 Equipment Safety
WARNING
Magnum Venus Plastech suggests that personal safety equipment such as EYE GOGGLES, GLOVES, EAR PROTECTION, and RESPIRATORS be worn when servicing or operating this equipment. Ear protection should be worn when operating a fiberglass chopper to protect against hearing loss since noise levels can be as high as 116 dB (decibels). This equipment should only be operated or serviced by technically trained personnel!
WARNING
Never place fingers, hands, or any body part near or directly in front of the spray gun fluid tip. The force of the liquid as it exits the spray tip can cause serious injury by shooting liquid through the skin. NEVER LOOK DIRECTLY INTO THE GUN SPRAY TIP OR POINT THE GUN AT OR NEAR ANOTHER PERSON. (TREAT THE GUN AS IF IT WERE A LOADED PISTOL.)
3.1 Emergency Stop Procedures
The following steps should be followed in order to stop the machinery in an emergency situation
1. The ball valve located where the air enters the power head of the resin pump, should be moved to the “OFF” or closed position. To do this, simply rotate the lever on the ball valve 90 degrees. Doing this will cause all the system air to bleed out of the system in a matter of a few seconds, making the system incapable of operating
NOTE: Step 2 is a precautionary step and should be followed whenever the above mentioned ball valve is activated to the stop mode. Failure to do so, can damage the
regulators and components on reactivating to the “ON” position.
2. Turn all system regulators to the “OFF” position (counter-clockwise) position
NOTE: Verify that the Catalyst relief line, located on the catalyst manifold, and the resin return line, located on the resin filter, are secured relieving catalyst and resin fluid pressure.
3. Catalyst pressure in the catalyst pump can be eliminated by rotating the ball valve on the catalyst manifold 90 degrees to the “open” or “on” position.
Note: The “open” or “on” position is when the ball valve handle is parallel (in line) with the ball valve body. The “closed” or “off” position is when the ball valve handle is
perpendicular (across) the ball valve body.
4. Resin pressure in the resin pump can be eliminated by rotating the ball valve on the resin
filter 90 degrees to the “open” or “on” position. Place a container under the ball valve to
catch any resin that is ejected out of the valve.
Rev. 08/2012 Page | 13
3.2 Grounding
Grounding an object means providing an adequate path for the flow of the electrical charge from the object to the ground. An adequate path is one that permits charge to flow from the object fast enough that it will not accumulate to the extent that a spark can be formed. It is not possible to define exactly what will be an adequate path under all conditions since it depends on many variables. In any event, the grounding means should have the lowest possible electrical resistance. Grounding straps should be installed on all loose conductive objects in the spraying area. This includes material containers and equipment. Magnum Venus Plastech recommends grounding straps be made of AWG No.18 stranded wire as a minimum and the larger wire be used where possible. NFPA Bulletin No77 states that the electrical resistance of such a leakage path may be as low as 1 meg ohm (10 ohms) but that resistance as high as 10,000 meg ohms will produce an adequate leakage path in some cases. Whenever flammable or combustible liquids are transferred from one container to another, or from one container to the equipment, both containers or container and equipment shall be effectively bonded and grounded to dissipate static electricity. For further information, see National Fire Protection Association ( NFPA) 77, titled “Recommended Practice on Static Electrical”. Refer especially to section 7-7 titled “Spray Application of Flammable and Combustible Materials”. Check with local codes and authorities for other specific standards that might apply to your application. NEVER USE HARD MATERIALS SUCH AS WIRE, PINS, ETC., TO CLEAR A PLUGGED GUN. HARD MATERIALS CAN CAUSE PERMANENT DAMAGE. DAB WITH A BRISTLE BRUSH, BLOW BACKWARDS WITH AIR UNTIL CLEAR WHILE WEARING A PROTECTIVE EYE SHIELD. REPEAT AS MANY TIMES AS NECESSARY. DO NOT PERFORM ANY MAINTENANCE OR REPAIRS UNTIL YOU HAVE FOLLOWED THE PRECAUTIONS STATED ABOVE. IF YOU, AS AN EQUIPMENT OPERATOR OR SUPERVISOR, DO NOT FEEL THAT YOU HAVE BEEN ADEQUATELY TRAINED OR INSTRUCTED AND THAT YOU LACK THE TECHNICAL KNOWLEDGE TO OPERATE OR PERFORM MAINTENANCE ON A PIECE OF MAGNUM VENUS PLASTECH EQUIPMENT, PLEASE CALL MAGNUM VENUS PLASTECH BEFORE OPERATING OR PERFORMING MAINTENANCE ON THE EQUIPMENT. IF YOU HAVE ANY QUESTIONS REGARDING THE ABOVE PRECAUTIONS OR ANY SERVICE OR OPERATION PRECEDURES, CALL YOUR MAGNUM VENUS PLASTECH DISTRIBUTOR OR MAGNUM VENUS PLASTECH.
NOTICE: All statements, information and data given herein are believed to be accurate and reliable but are presented without guaranty, warranty or responsibility of any kind express or implied. The user should not assume that all safety measures are indicated or that other measures are not required.
DANGER: Contaminated catalyst may cause Fire or Explosion. Before working on the catalyst pump or catalyst accumulator, wash hands and tools thoroughly. Be sure work area is free of dirt, grease or resin. Clean catalyst system components with clean water only.
DANGER: Eye, skin and respiration hazard. The Catalyst, MEKP, may cause blindness, skin irritation or breathing difficulty. Keep hands away from face. Keep food and drink away from work area.
WARNING: Please refer to your catalyst manufacturer’s safety information regarding the
safe handling and storage of catalyst. Wear appropriate safety equipment as recommended.
Rev. 08/2012 Page | 14
Introduction:
The Pro Gun is an air trigger gun; meaning when the trigger is pulled an air cylinder pushes on the actuator stem and rotates the gun block into the on position. The Pro Gun works very similar to a dual ball valve in that the valve rod rotates and the catalyst and resin holes line up with the ports in the gun block allowing material to flow. The actuator is an air cylinder and as the piston moves back and forth it rotates the valve rod 90 degrees to the on or off position.
Generally, the Pro Gun ™ will not need to be completely disassembled for daily
cleaning. However, the entire gun should be disassembled and the o-rings and seals replaced approximately every six months.
Disassembling the Pro Gun™ is easy; the gun breaks down into four separate modules which are then disassembled further into their individual parts. A special tool kit, which includes a specially designed Pro Gun™ tool and a packing assembly tool, is available to aid in performing maintenance and repair.
This manual, the CLASSIC PRO GUN REPAIR MANUAL, provides information you need to perform simple maintenance and repair on your equipment.
Step-by-step assembly and disassembly procedures are included for each
component.
Please read the manual carefully. Follow the steps in the order given, otherwise you may damage the equipment or injure yourself.
DANGER: Always wear proper safety equipment, including eye protection and gloves when performing service and repair on this equipment.
During Disassembly:
As you disassemble the equipment, lay out the components on a clean surface in the correct order and direction. This will help you to reassemble them.
Rev. 08/2012 Page | 15

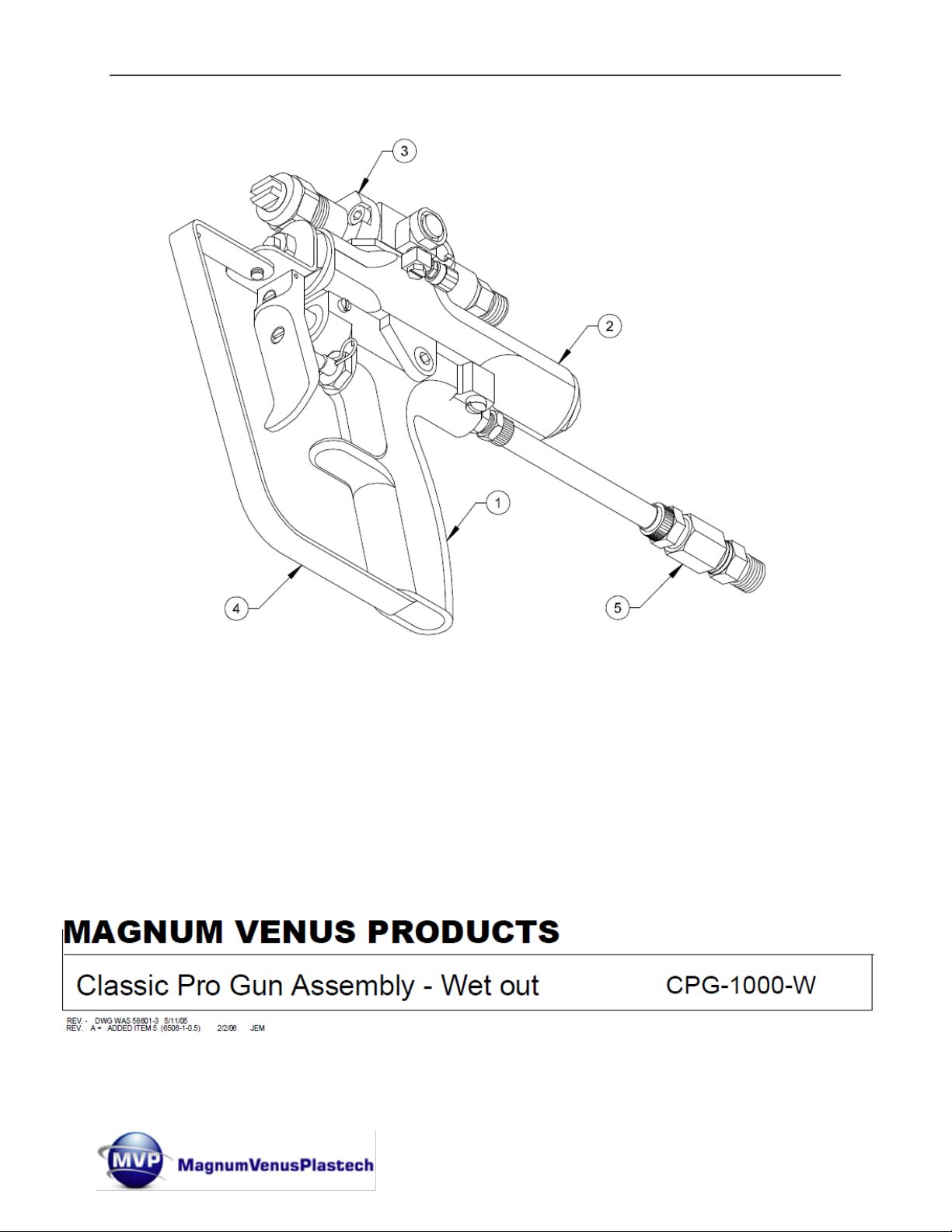

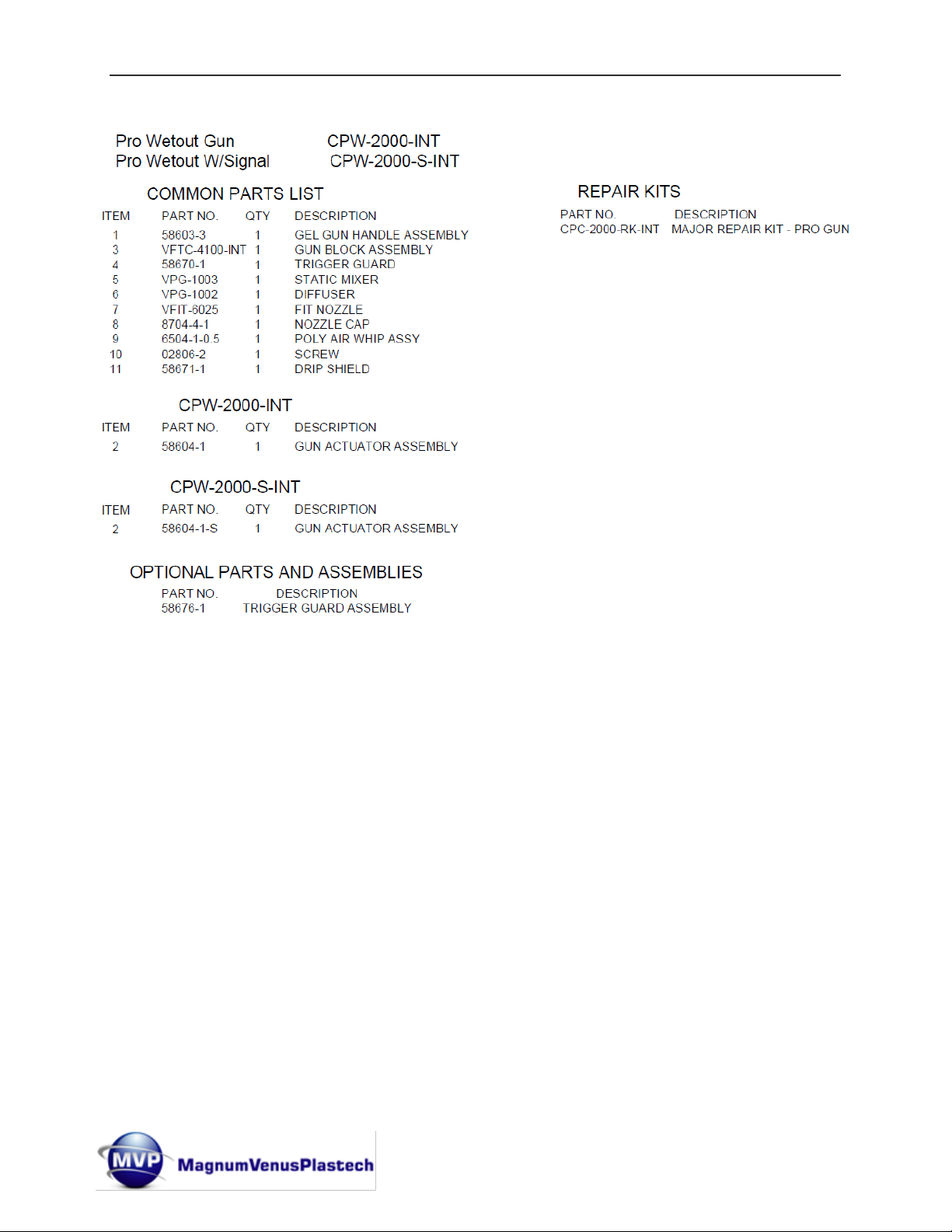

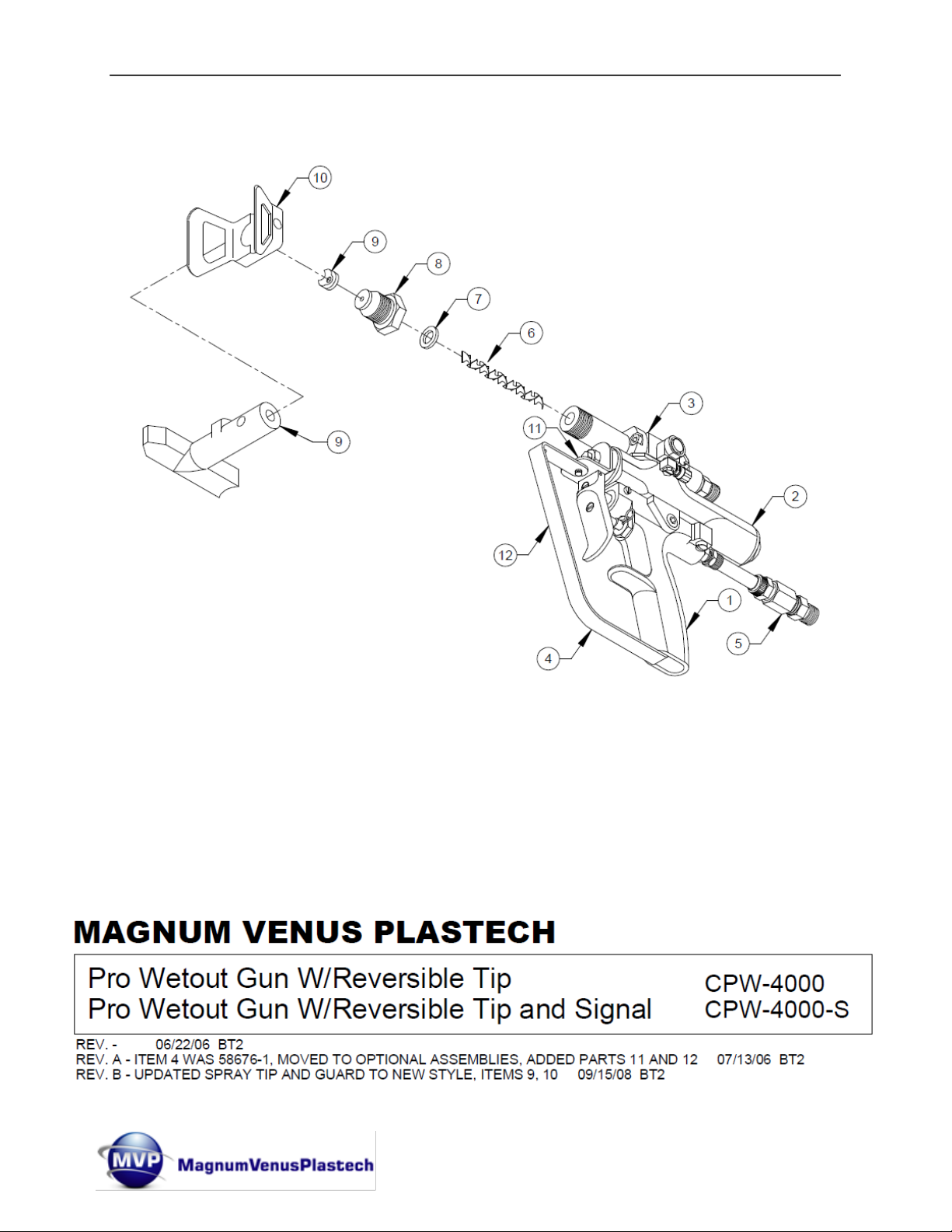

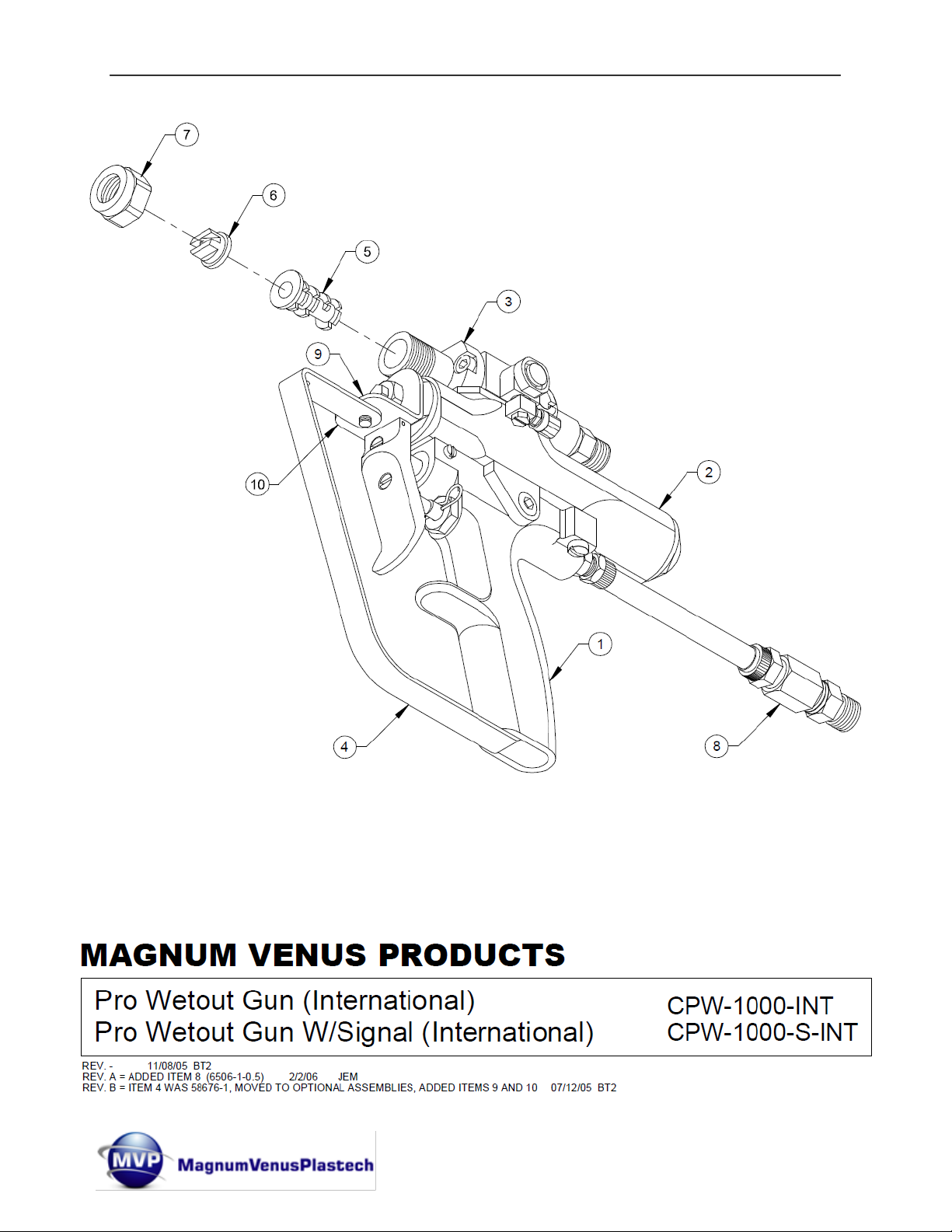

This manual covers the following Classic Pro Gun assemblies: CPG-1000-W CLASSIC PRO GUN ASSEMBLY – WETOUT
CPG-1000-X PRO GEL COAT GUN CPG-1000-X-INT PRO GEL COAT GUN – INTERNATIONAL CPG-2000-X PRO GEL COAT GUN – FIT CPG-2000-X-INT PRO GEL COAT GUN – INTERNATIONAL FIT CPC-1000-X CLASSIC PRO CHOPPER GUN CPC-1000-X-INT CLASSIC PRO CHOPPER GUN – INTERNATIONAL CPC-2000-X CLASSIC PRO CHOPPER GUN – FIT CPC-2000-X-INT CLASSIC PRO CHOPPER GUN – INTERNATIONAL FIT CPP-3000 CLASSIC PRO GUN ASSEMBLY – SPRAY PUTTY CPP-6000 CLASSIC PRO GUN ASSEMBLY – PUTTY POUR CPW-1000-X CLASSIC PRO GUN ASSEMBLY – WETOUT CPW-1000-X-INT CLASSIC PRO GUN ASSEMBLY – INTERNATIONAL WETOUT CPW-2000-X CLASSIC PRO GUN ASSEMBLY – FIT CPW-2000-X-INT CLASSIC PRO GUN ASSEMBLY – INTERNATIONAL FIT CPW-4000 CLASSIC PRO GUN ASSEMBLY – FIT REVERSIBLE TIP
Tools required
You will need the following tools:
Rubber mallet Thread Sealant Adjustable wrench Needle-nose pliers Flat-end screwdriver Lubriplate™ lubricant (08465) Scribe set (08126) Pro Gun ™ oil (04394) Turbulent Mixer Puller (6705-2-1) Seal Installation tool (58661-1) Alignment tool for resin seals (58663-1) Alignment tool for catalyst seals (58662-1) Pro Gun ™ screwdriver (9301-3-2) and packing bit (6705-1-1)
You should also have appropriate cleaning materials such as solvent, clean shop towels or rags, a small brush, and empty containers into which you will flush the gun.

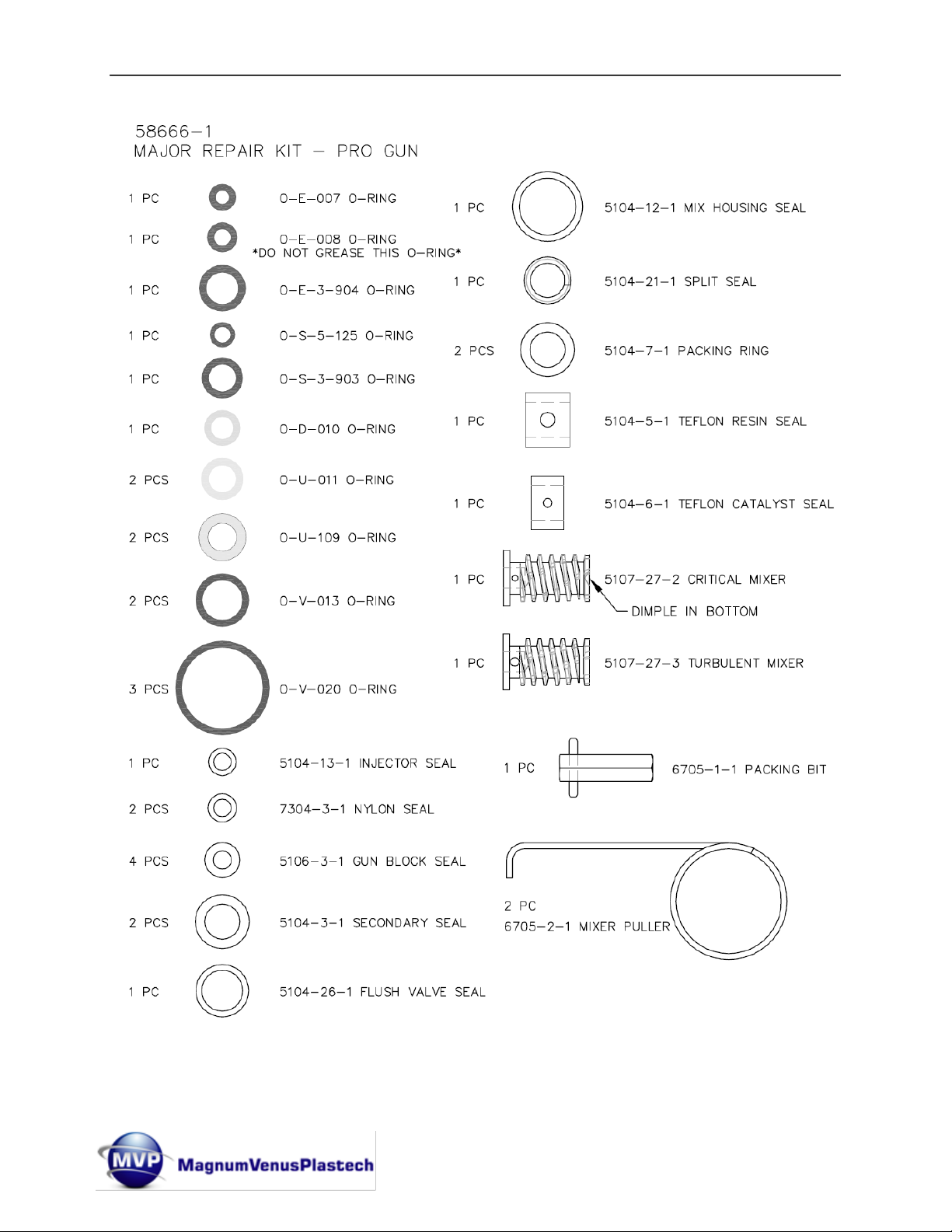

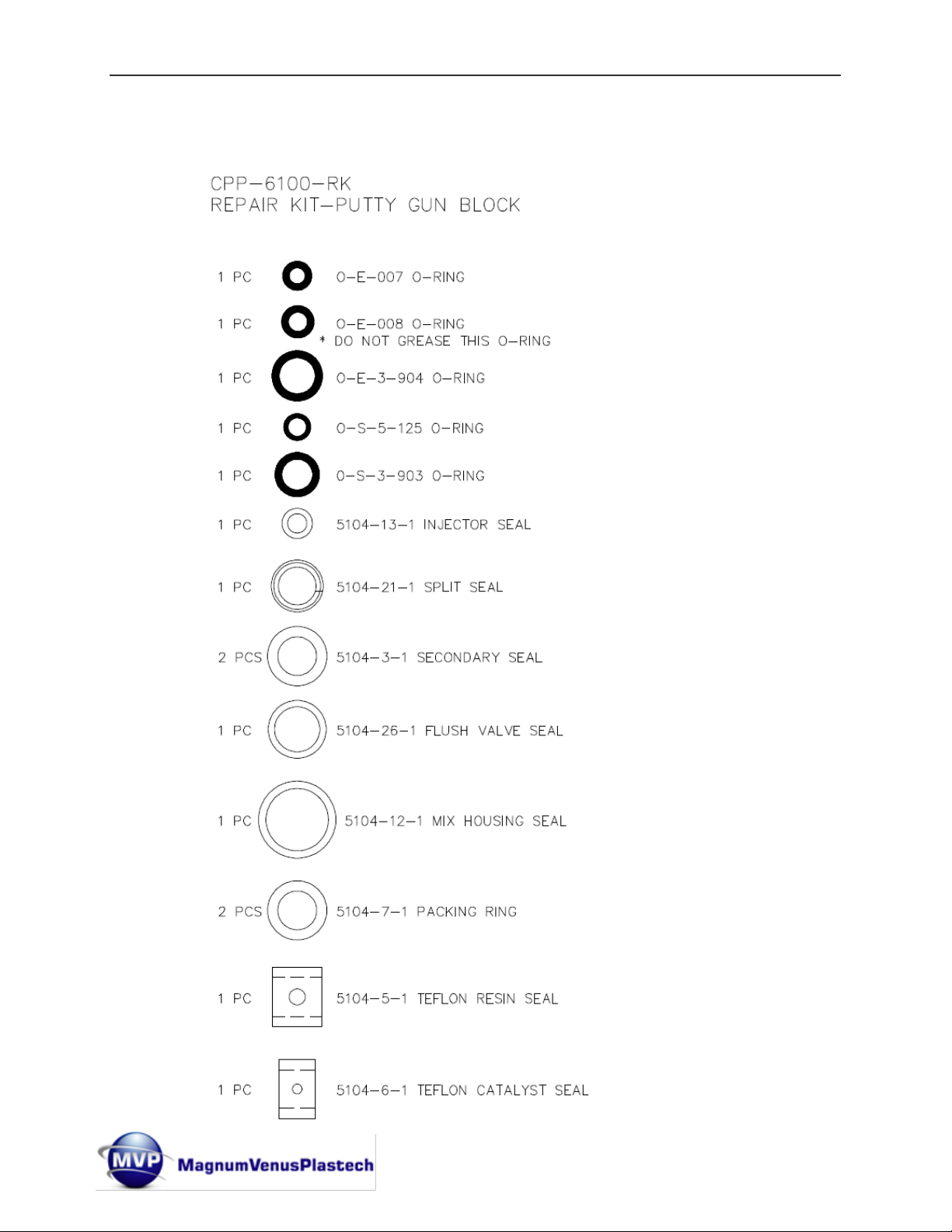

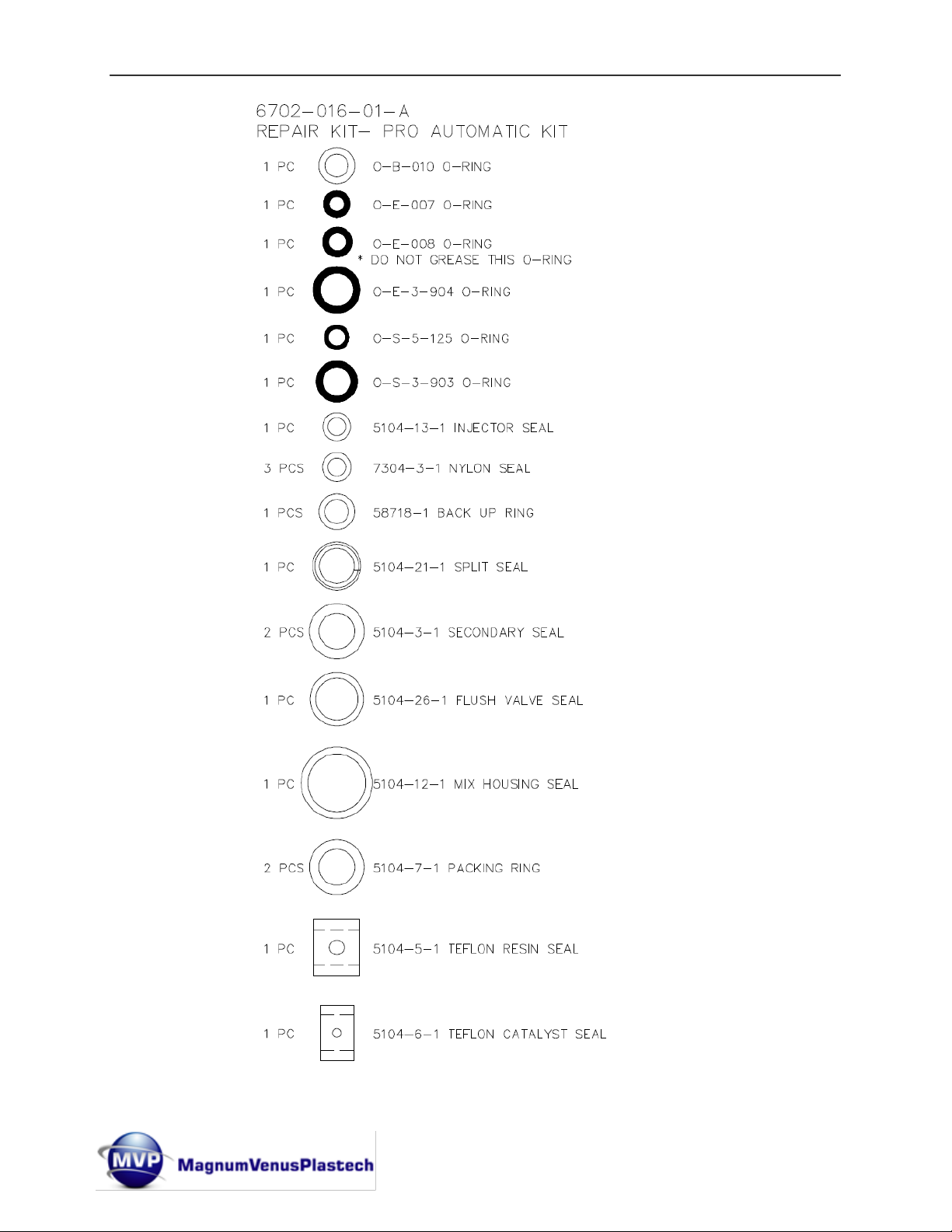

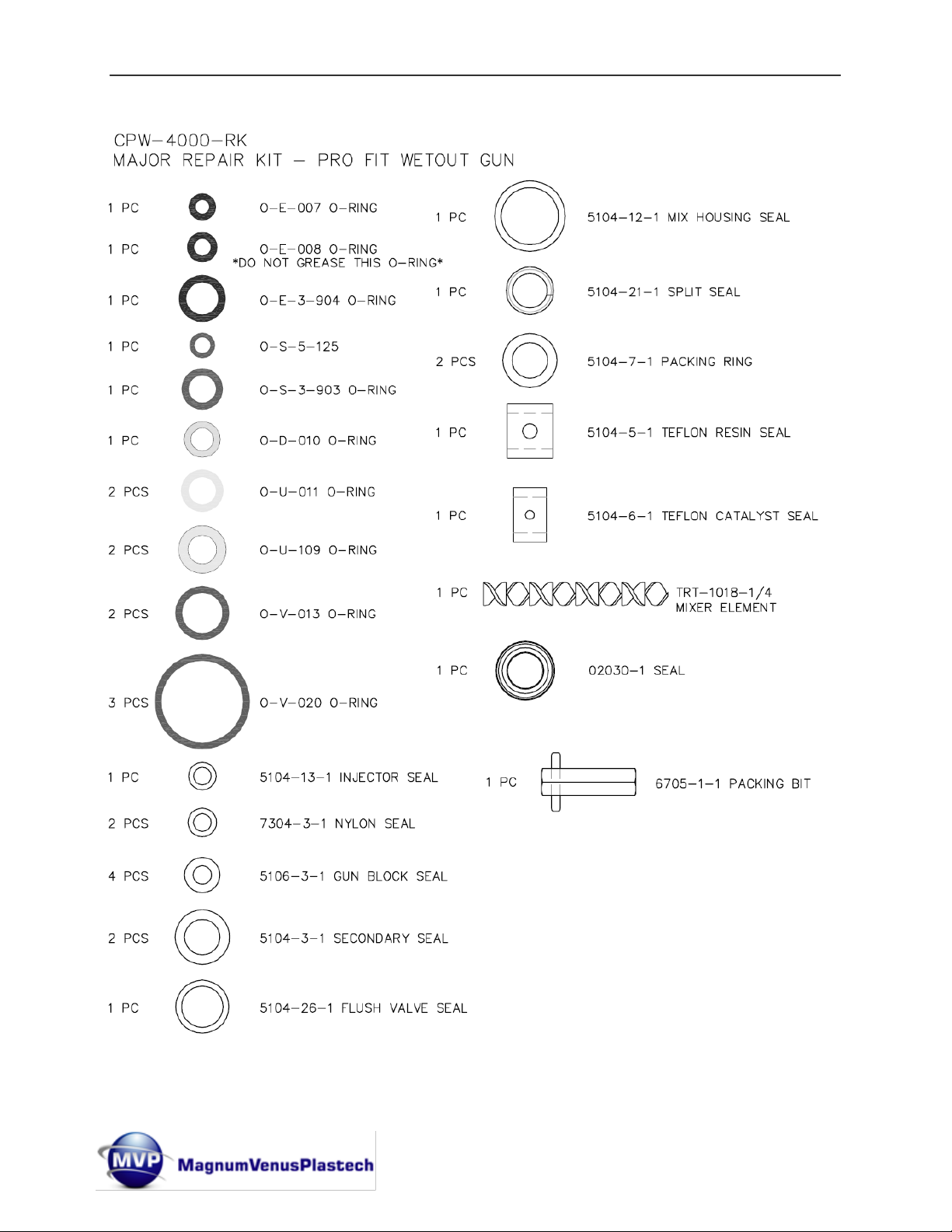

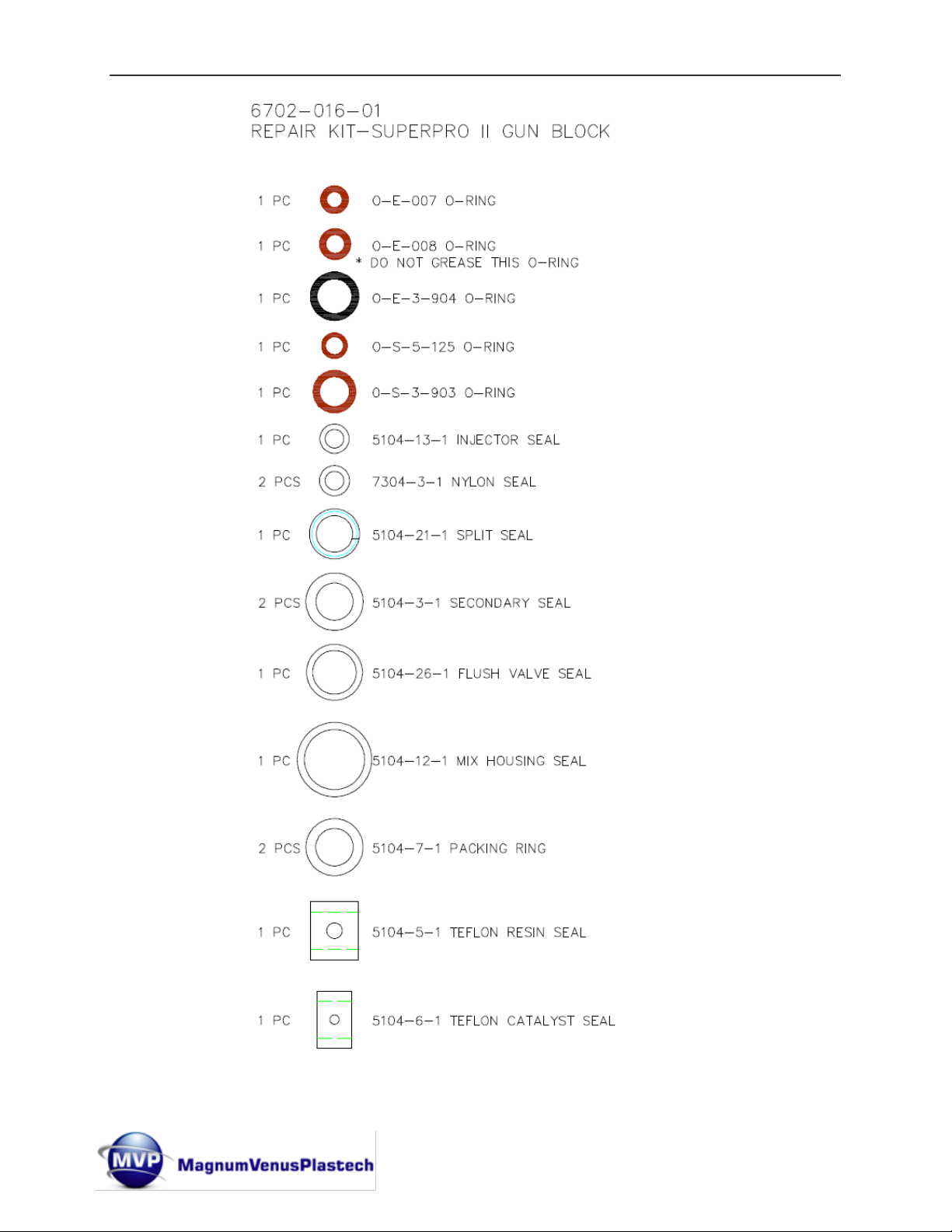

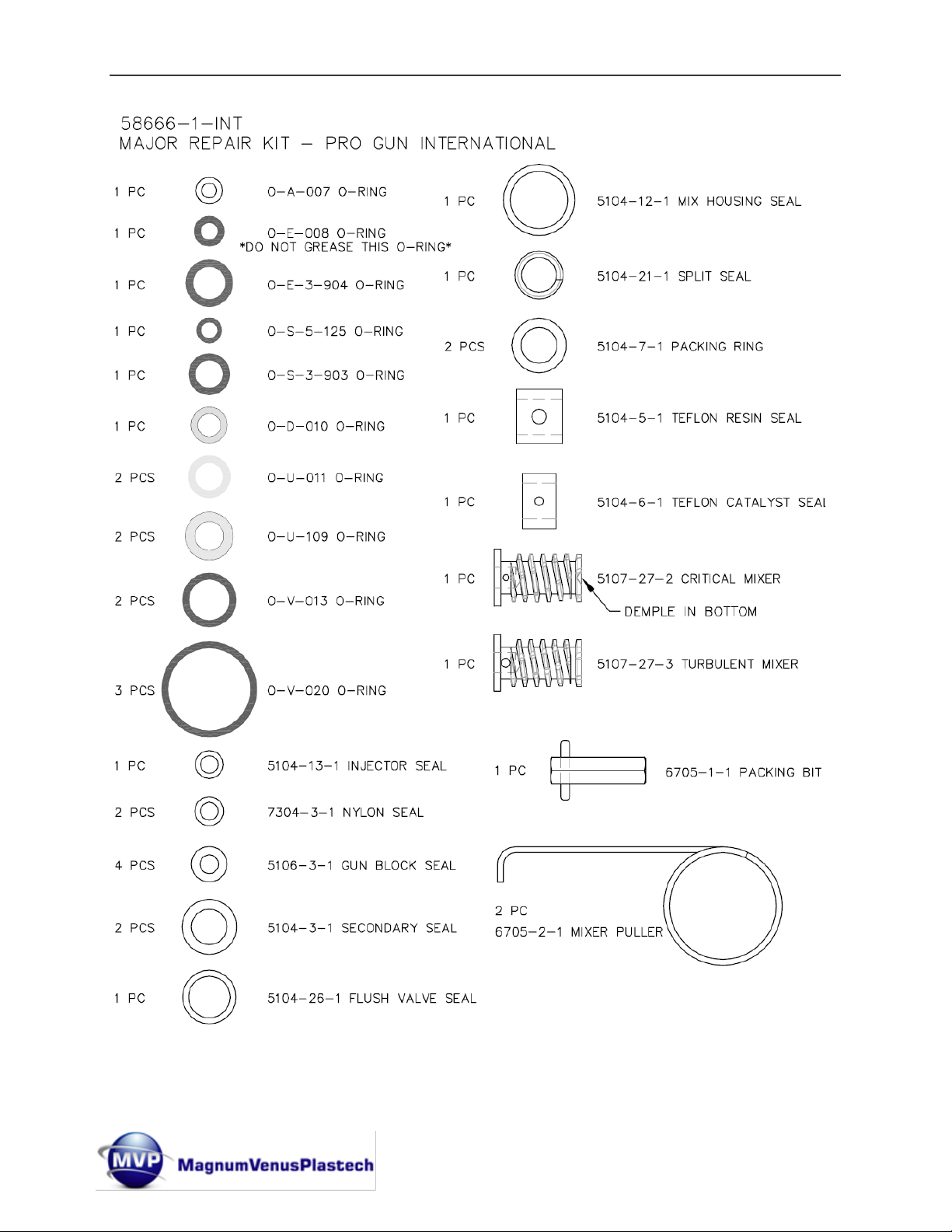

Also, you will need new o-rings and seals to replace the current ones in the Pro Gun™. Please refer to the parts drawings to obtain proper parts numbers for the o-rings and seals to be replaced.
Note: If you are using o-ring part number 01128 in the gun block, you do not need to replace the o-ring unless it is showing obvious signs of wear. This o-ring is specially designed to handle most solvents
Rev. 08/2012 Page | 16
Release System Pressure
1. Turn off air supply to pumping system.
2. Release fluid pressure from lines by holding the gun over an appropriate empty container and pulling the trigger.
3. Flush gun into appropriate container
4. Turn off air supply to the solvent tank.
5. Release any pressure in the flush tank by gently pulling upwards on the ring attached to the pressure relief valve.
6. Disconnect air line from rear of gun handle.
7. Place an empty container under the ball valve located at the bottom of the filter assembly.
8. SLOWLY open the ball valve, you can leave the ball valve open or close it when the all the pressure has been released.
Disable Catalyst Pump
Slave Arm pumps
1. Remove the quick pin from the top of the catalyst pump and upper slave arm.
2. Tilt the catalyst pump away from the resin pump until the catalyst pump is resting against the vertical connecting post.
3. Trap the catalyst pump’s upper bearing block between the vertical connecting post and the quick pin.
Ultra Proportioning System (UPS)
1. Remove the hairpin from the quick pin assembly.
2. Remove the quick pin assembly from the pivot link assembly
Rev. 08/2012 Page | 17
Remove Hoses
Note: Although previous steps should have removed all pressure from the lines, there may still be trapped fluids under pressure in the lines. Read the recommended safety procedures below.
WARNING: Wear appropriate eye protection. Pressurized fluids may cause eye injuries.
WARNING: When removing hoses from fittings, wrap a large rag or shop towel around the wrench and fitting as you remove the fitting. Remove fitting slowly to allow any pressurized fluid to escape into the rag or towel.
1. Wrap a large rag or shop towel around the resin fitting and a wrench.
2. Use the wrench to loosen the fitting slowly until you can remove the resin hose from the fitting.
3. Use this technique to remove the solvent hose, and the catalyst hose.
Rev. 08/2012 Page | 18

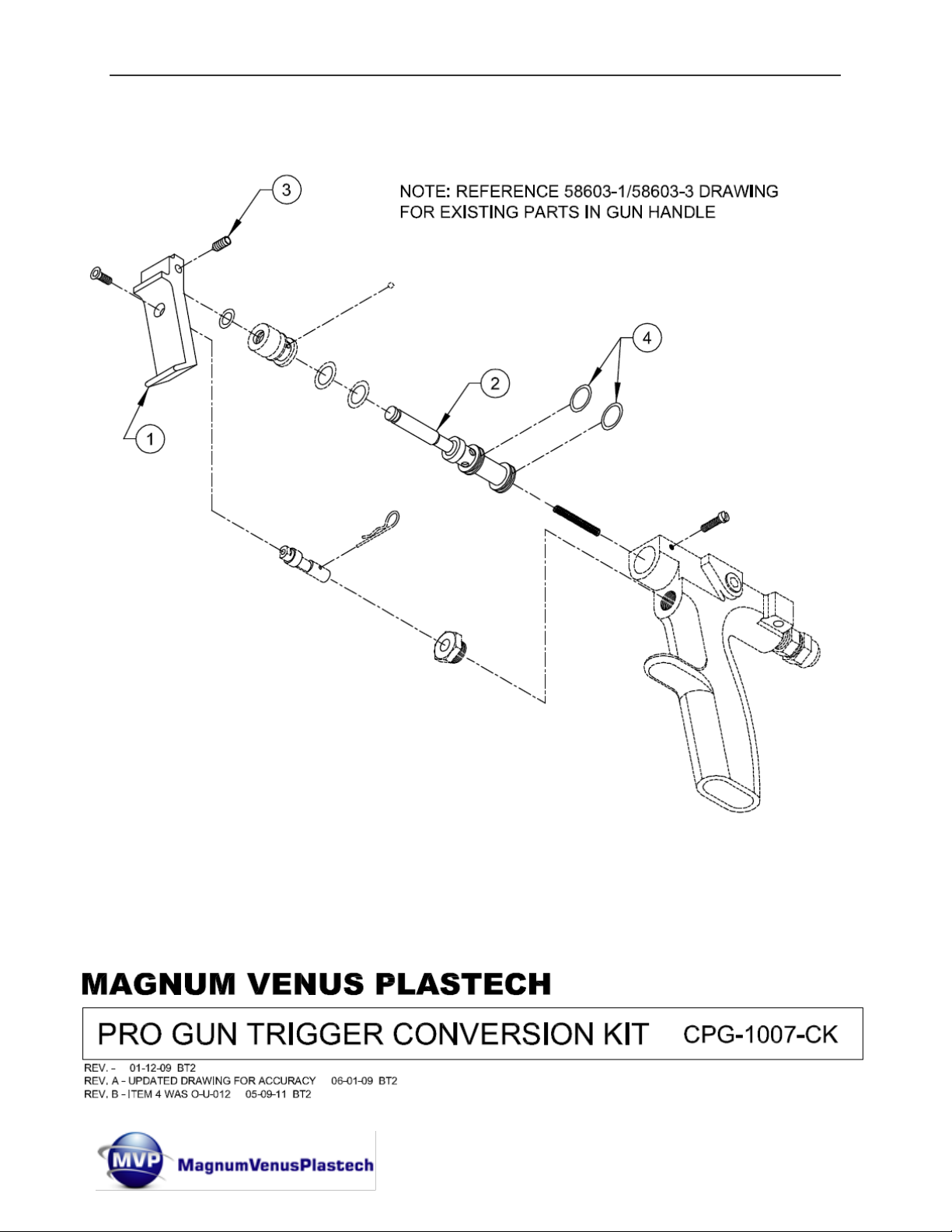

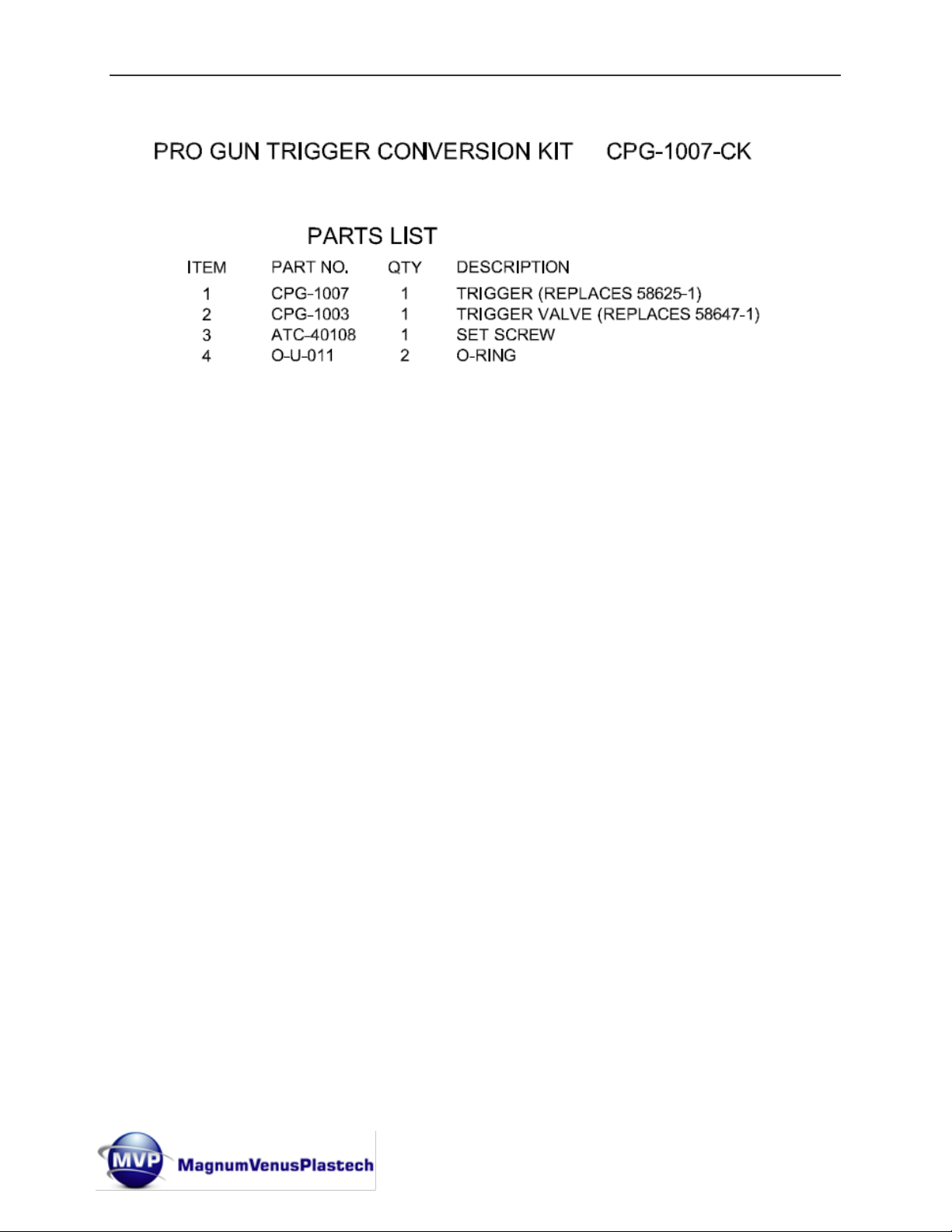

Gun Disassembly:
WARNING: To prevent injury, be sure all air is disconnected from the gun and that all pressure has been relieved before attempting to remove trigger guard.
Note: The bolt that secures the trigger guard to the air cylinder also serves as a plug for the end cap. Removing this bolt can result in injury from escaping pressurized air if air pressure is not relieved.
1. Check to be sure all air is disconnected from the gun
2. Be sure all pressure is relieved from the gun.
3. Disconnect the trigger guard by using a wrench to remove the nut securing the top of the trigger guard to the end cap on the gun’s actuating cylinder.
Disassemble Gun into Modules

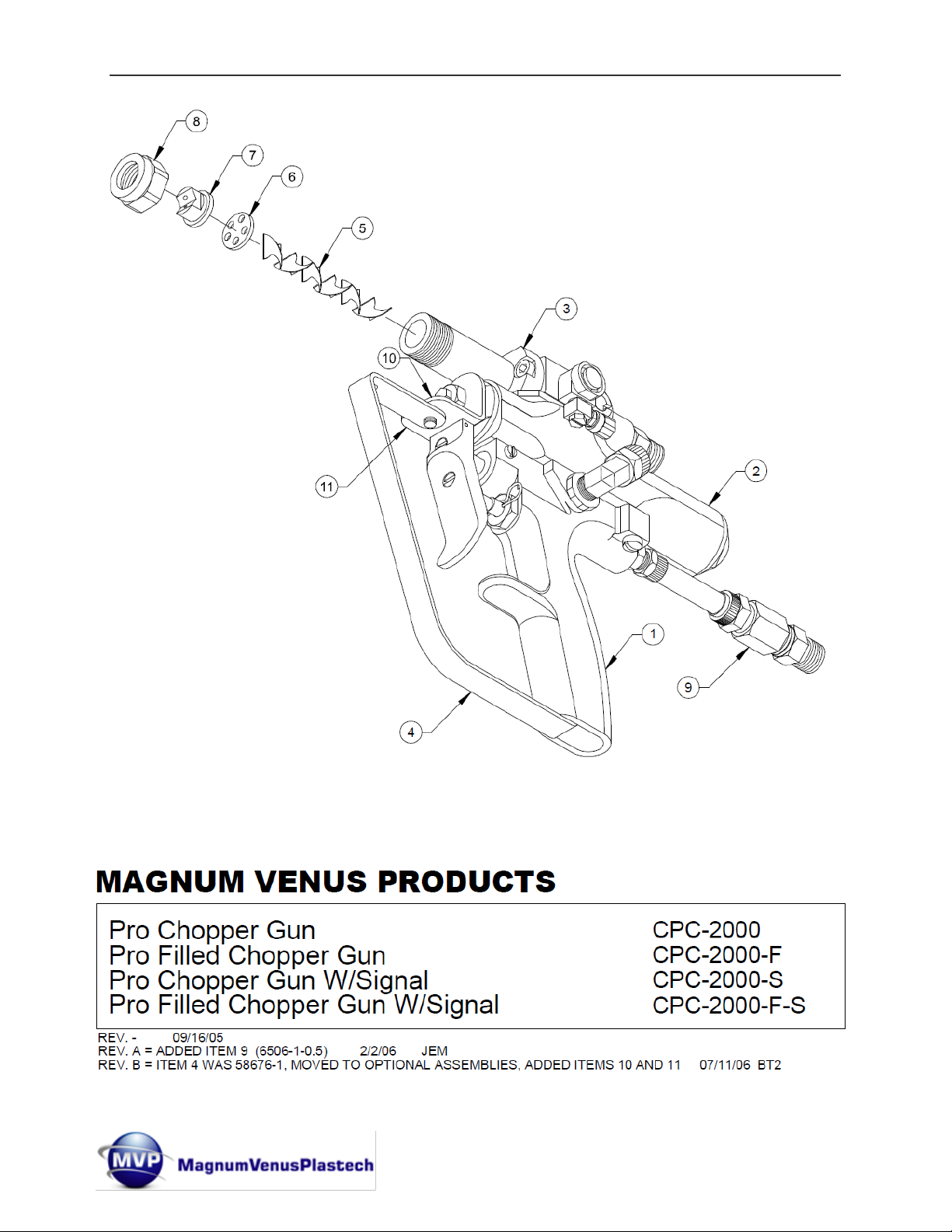

Note: If your Pro Gun™ is used for chopping, perform the two steps, A and B:
A. Detach the chopper assembly by removing the air tube that connects the
chopper to the gun handle.
B. Remove the hex cap screw securing the chopper to the top of the gun block. Use
caution not to lose the eccentric stud in the chopper mount.
1. Remove the four screws that secure the gun block to the actuator. Set gun block a side for now
2. Remove the two mounting screws which secure the handle to the actuator.
3. You have now disassembled the gun into modules. Next you will disassemble, clean, and reassemble each module.
Rev. 08/2012 Page | 19
ACTUATOR STEM
Remove Actuating Stem
1. Unscrew the actuating stem from the valve rod. Tightly clamp the actuating stem into a soft jawed vise and rotate the whole gun block.
Note: The screw driver slot in the end of the actuating stem should not be used for removal as if it becomes damaged the stem will not fit into the actuator bushing. Make sure the actuating stem is smooth or it will wear out the actuator bushing.

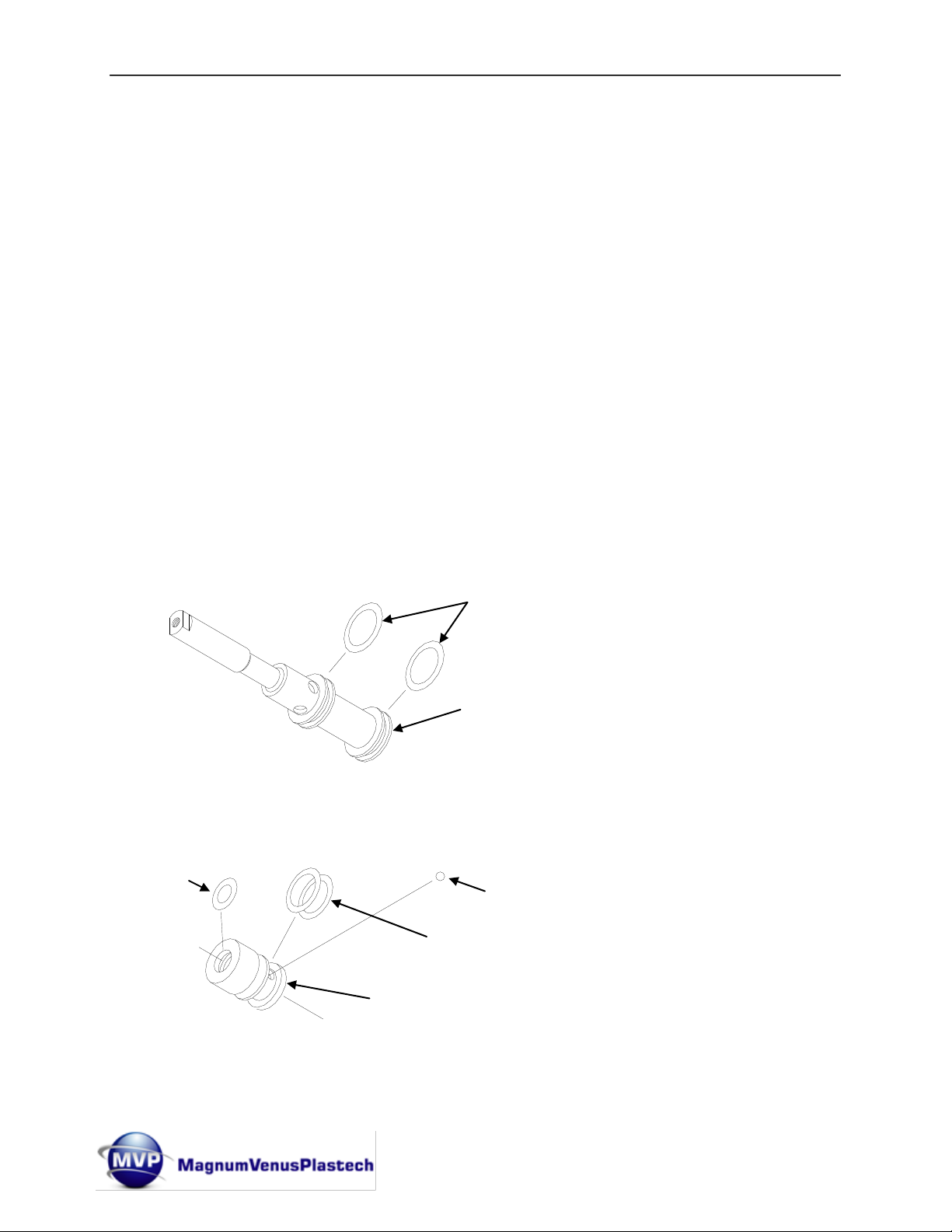

Remove & Disassemble Flush Valve Assembly
1. Unscrew the flush valve body from the gun block.
2. Remove the split seal from the flush valve body.
3. Remove the flush valve body from the flush valve neck.
4. Remove the flush valve seal from the flush valve body.
5. Unscrew the flush seal body (5104-23-1) from the flush valve button (5104-25-01).
6. Remove the spring (9203-2-3).
7. Use a scribe to remove the o-ring (O-K-008) from the flush valve button.
8. Remove the o-ring (O-A-007) from the flush seal body (5104-23-1).
9. Set parts aside for now or go down to flush valve assembly
10. Discard and replace the flush valve’s o-rings and seals, after reading the note below.
Note: Do not replace o-ring (O-K-008) unless it is worn or damaged. This o-ring is designed for use with all solvents. In some cases O-K-008 o-ring can be replaced with the more economical o-ring (O-E-008).
Rev. 08/2012 Page | 20
OR
STANDARD MIX CHAMBER
FIT MIX CHAMBER
1/4" FIT MIX CHAMBER
DISTRIBUTION RING
CATALYST INJECTOR
INJECTOR SEAL
MIX HOUSING SEAL
CAP SCREW (7102-1-6)
(5104-20-1)
Remove Mix Housing
1. Remove the nozzle cap from the mix housing.
2. Remove the nozzle from the cap.
3. Remove the mix housing (5104-20-1) by unscrewing the screws holding the mix housing to the gun block.
4. Pull the injector and injector seal out and set the injector assembly aside.
5. Use the turbulent mixer puller to remove the turbulent mixer by inserting the puller and giving a slight twist.
6. Use a blunt tool to push the distribution ring™ and housing seal out of the mix housing.
7. Inspect and clean the mix housing components with solvent.
Disassemble the Catalyst Injector Assembly
1. Unscrew the plunger retainer from the end of the injector plunger.
2. Remover spring (9203-2-2).
3. Remove the injector plunger from the injector body. Inspect injector plunger and injector body for dirt or damage.
4. Clean and reassemble.
Rev. 08/2012 Page | 21
PACKING NUT
VALVE ROD
SEAL INSTALLATION TOOL
CENTER SPACER
Remove Hose Fittings
1. Remove and clean the catalyst fitting and o-ring on the rear of the gun block.
2. Remove and clean the resin fitting and o-ring on the rear of the gun block.
Remove Valve Rod
1. Use the magnetic handle and packing bit to unscrew the packing nuts (5104-8-1) from both the catalyst and resin side. Use caution not to damage the packing bit. If you are unable to remove the packing nut soak in a solvent or apply heat to the packing nuts.
2. Place the small end of the seal installation tool onto one end of the valve rod.
3. Use a rubber mallet or hammer to gently tap the valve rod out of the gun block.
4. Inspect the valve rod for damage; clean with solvent.
Remove Center Spacer
1. Use needle-nose pliers to remove the center spacer (5104-10-1).
Rev. 08/2012 Page | 22
Remove Catalyst and Resin Seals
1. Insert the seal installation tool into one of the side ports and gently tap it completely through the gun block with a rubber or hammer mallet. As the tool is tapped through the interior of the gun block it will remove the seal sets for both the resin and the catalyst sides.
2. Remove catalyst and resin seal (relief spacer and secondary seal) from the seal installation tool. Clean with solvent.
CAUTION: Keep the components of the catalyst side separate from the components of the resin side. Mixing the components could result in cross­contamination.
3. Clean the two relief spacers (5104-4-1) with solvent and allow to air dry.
4. Discard the seals and replace with new ones from repair kit.
Remove Check Valve on International Pro Guns
1. Remove the check valve on the side of the gun block
Or
Remove Catalyst Plug on Domestic Pro Guns
1. Remove the plug (5104-32-1) from the side of the gun block
2. Check o-ring (O-E-5-125) for damage
Note: This valve serves as a check valve for the catalyst system. DANGER: If this valve must be replaced, contact Magnum Venus Plastech. These
valves have undergone specific remanufacture at Magnum Venus Plastech for
use with the Pro Gun™. Using a check valve not obtained directly from Magnum
Venus Plastech may result in contamination and/or dangerous ignition of the catalyst.
Rev. 08/2012 Page | 23

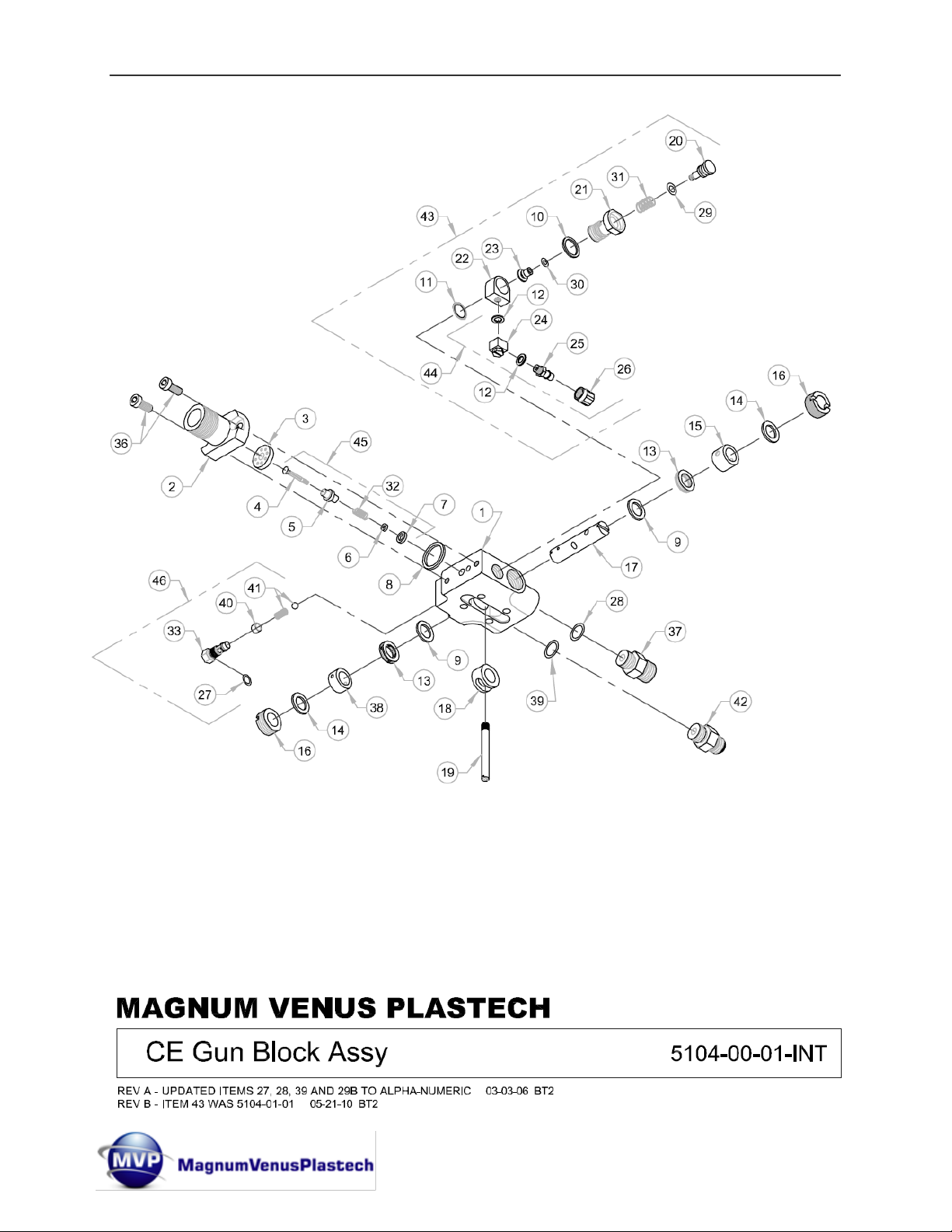

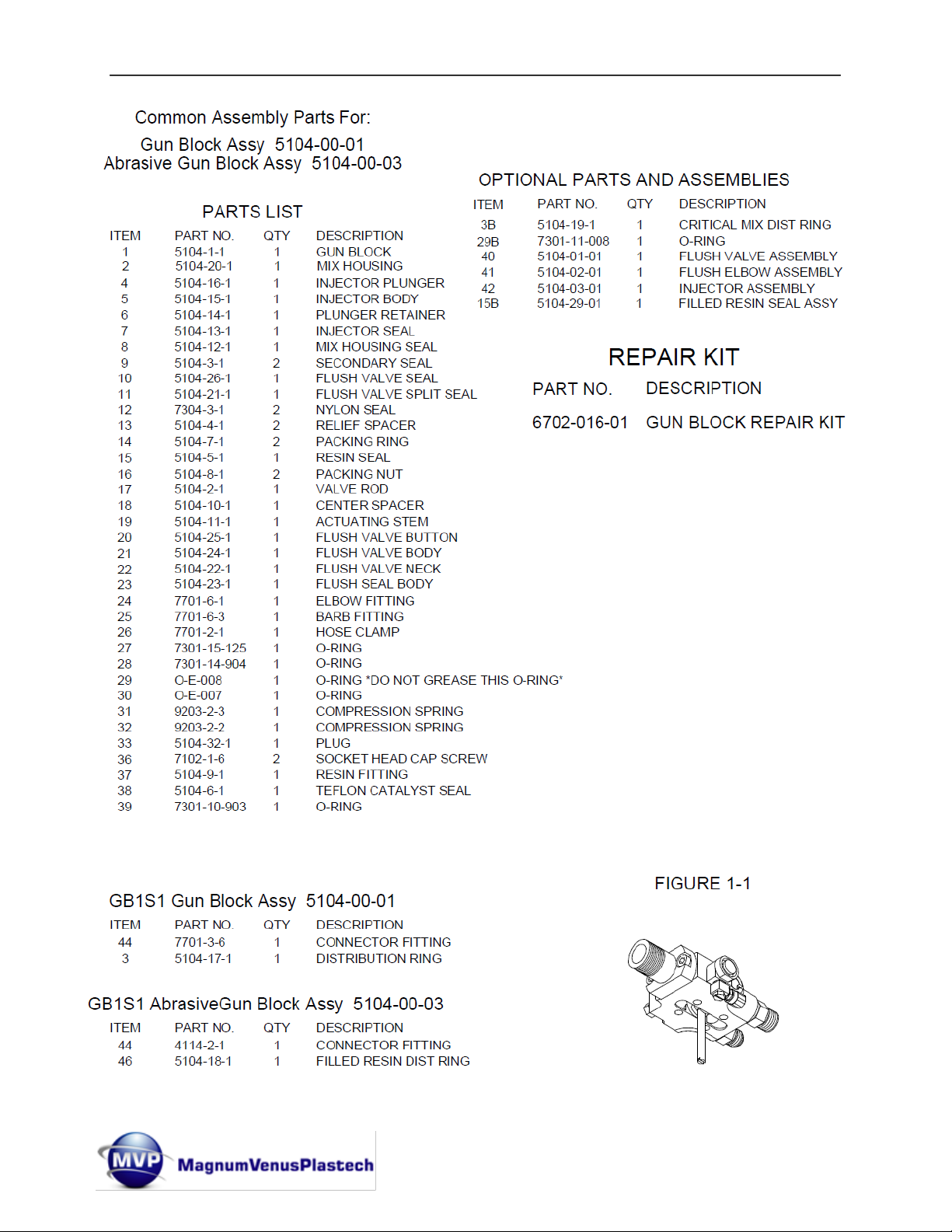

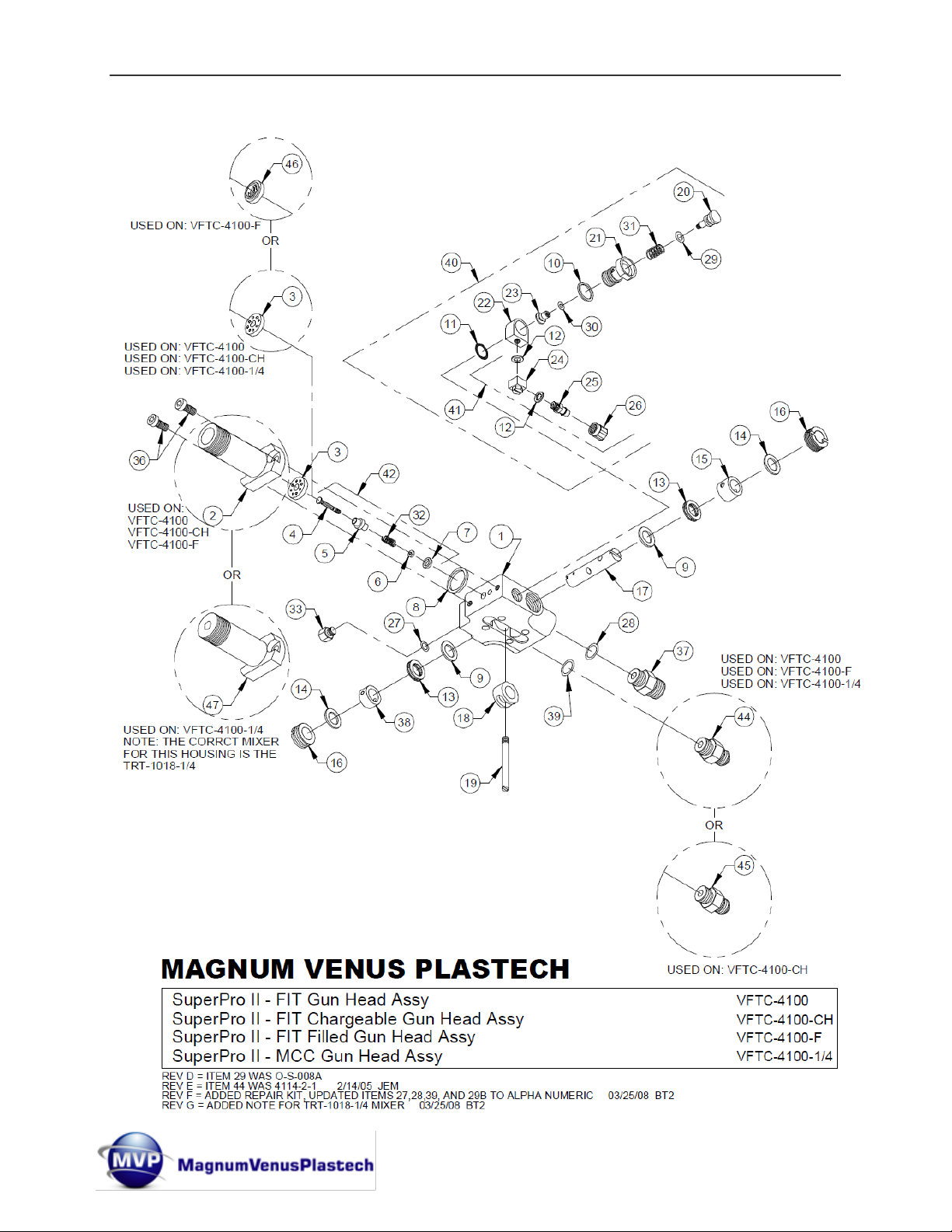

Gun Block Assembly:
Clean Block Assembly
Discard o-rings and seals. Clean remaining components with solvent and allow to air dry. You have now disassembled the gun block.
Install Secondary Seals
1. Place one of the secondary seals (5104-3-1) into the center of the gun block where the center spacer goes. Gently push the secondary seal into position with something flat, flush with the gun block. Use caution not to damage it the seal.
2. Repeat the process for the other secondary seal.
Secondary Seals
Center Spacer
Reinstall Center Spacer
1. Place the center spacer (5104-10-1) in the gun block, making sure that the center spacer is aligned as accurately as possible with the slot facing up. Use caution not to damage the secondary seals, already installed
Rev. 08/2012 Page | 24
Reassemble Catalyst Components
1. Place the catalyst components onto the seal installation tool in the following order:
Packing ring (5104-7-1) Catalyst seal (5104-6-1) Relief spacer (5104-4-1)
Note: The hole in the catalyst seal should be aligned with the port in the gun block before inserting the seal installation tool into the gun block.
Valve Rod Relief Spacer Packing Nut Catalyst Seal Packing Ring Packing Ring Resin Seal Packing Nut Relief Spacer
2. Insert the seal installation tool with the components on it into the catalyst side of the gun block. Press firmly, or tap with a rubber mallet, then pull the packing tool out of the gun block.
Note: Again before inserting the seal installation tool, align the holes in the catalyst seal with the holes in the gun block as closely as possible.
3. The catalyst components should be seated in the interior of the gun block against the center spacer.
4. Gently screw a packing nut (5104-8-1) into the catalyst side. Do not tighten.
Rev. 08/2012 Page | 25
Align Catalyst Seal
1. Hold the catalyst alignment tool (6705-3-1) (tapered drill bit) firmly with a pair of pliers.
2. Insert the catalyst alignment tool (tapered end first) into the gun block through the rear of the gun block
3. Gently press and move the alignment tool around until the holes in the catalyst seal aligns with the hole / port in the gun block.
Note: At this point, the catalyst side packing nut should only be hand tight.
Reassemble Resin Components
1. Place the resin components onto the seal installation tool in the following order:
Packing ring (5104-7-1) Resin seal (5104-5-1) Relief spacer (5104-4-1)
Note: Before inserting the packing tool, align the hole in the resin seal with the hole in the gun block as closely as possible
2. Insert the seal installation tool into the resin side of the gun block. Tap gently with a rubber mallet or hammer, and then pull the packing tool out of the gun block.
3. The resin components should be seated in the interior of the gun block against the center spacer.
4. Gently screw a packing nut (5104-8-1) into the resin side. Do not tighten.
Align Resin Seal
1. Hold the resin alignment tool (6705-4-1) (tapered drill bit) firmly with a pair of pliers.
2. Insert the resin alignment tool (tapered end first) into the gun block through the rear of the gun block.
3. Gently move the resin alignment tool inside the gun block so that the holes in the resin seal aligns with the hole / port in the gun block.
Note: At this point, the resin side packing nut should only be hand tight.
Rev. 08/2012 Page | 26
ACTUATING STEM SCREWS INTO SIDE WITH THREAD RELIEF
SMALL HOLE MUST BE
ON THE CATALYST SIDE
Install Valve Rod
1. Insert the valve rod (5104-2-1) into the gun block through the resin side. Use a packing tool to center the valve rod.
Note: Make sure that the valve rod is correctly aligned; the larger hole goes on the resin side, while the smaller hole goes on the catalyst side.
Note: The middle hole, into which the actuating stem will be inserted, must also be correctly aligned. One end of the hole has a relief; and this relief should face out of the gun block, as this is where the actuating stem will be installed.
Reinstall Actuating Stem
1. Screw the actuating stem (5104-11-1) into the valve rod (5104-2-1) thru the center spacer.
Note: Make sure the actuating stem is screwed into the side of the valve rod with the larger hole (thread relief).
2. Look down the front of the gun while moving the actuating stem back and forth. You should be able to see the holes open and close. Set the actuating stem so that the holes are closed.
Tighten Packing Nuts
1. Tighten both the resin and the catalyst packing nuts. Do not damage the packing bit
2. Move the actuating stem back and forth, opening and closing the gun.
3. Again tighten both the resin and the catalyst packing nuts.
4. Repeat the above tightening process one more time
Reinstall Hose Fittings
1. Reinstall the fitting and o-ring for the resin hose on the rear of the gun block.
2. Reinstall the catalyst fitting and o-ring on the rear of the gun block
Rev. 08/2012 Page | 27
Reinstall Check Valve on International Pro Guns
DANGER: To replace this valve, contact Magnum Venus Plastech. These valves have undergone specific remanufacture at Magnum Venus Plastech for the Pro Gun ™. Using a check valve not obtained directly from Magnum Venus Plastech may result in contamination and /or dangerous ignition of the catalyst.
1. Reinstall the check valve (5104-04-01) and o-ring (O-S-5-125) into the side port on the catalyst side of the gun block.
Or
Reinstall Catalyst Plug on Domestic Pro Guns
2. Thread the catalyst plug (5104-32-1) and o-ring (O-S-5-125) into the side port on the catalyst side of the gun block
Reassemble Flush Valve
1. Place the o-ring (O-K-008) on the flush valve button (5104-25-1).
2. Insert the spring (9203-2-3) onto the flush valve button.
3. Push the button and spring into the flush valve body (5104-24-1).
4. Place the o-ring (O-A-007) on the flush seal body (5104-23-1).
5. Insert a flush seal body (5104-23-1) into the end of the flush valve body and screw it onto the button.
6. Place a flush valve seal (5104-26-1) on the flush valve body.
7. Install the flush valve body (5104-24-1) into the flush valve neck (5104-22-1).
8. Install the split seal (5104-21-1) onto the flush valve body (5104-24-1).
9. Screw the flush valve assembly (5104-01-01) into the front side port on the resin side of the gun block
Note: If using o-ring part number O-K-008 (o-ring is used on the flush button), you do not need to replace the o-ring unless it is showing obvious signs of wear or damage. This o-ring is specially designed for use with all solvents.
Note: In some cases O-K-008 o-ring can be replaced with the more economical o­ring (O-E-008)
Rev. 08/2012 Page | 28
Optional Flush Valve Configurations:
There are several variations on the flush valve assembly to include air / solvent purge and high pressure flush. Check the parts drawing for the valve assembly installed on your gun assembly.
5104-01-01 Standard Flush Valve Assembly SAPV-1000-INT Solvent / Air Purge Assembly – international SAPV-1000 Solvent / Air Purge Assembly BVF-1000 Ball Valve Flush Assembly – for high pressure flush
Assemble Mix Housing
1. Install the distribution ring (5104-17-1 Standard) into the mix housing
Note: Be sure the distribution ring is positioned correctly. The chamfered or beveled edge of the hole should face away from the turbulent mixer and toward the gun block.
Note: Be sure the holes in the distribution ring are clean and free of debris or hardened material.
2. Position the mix housing seal into the mix housing, against the distribution ring.
3. Insert the catalyst injector assembly (5104-03-01) and injector seal into the center hole of the distribution ring. The spring should be facing up, as it will go into the gun block and the injector seal will be against the gun block.
4. Use the socket cap screws (7102-1-6) to attach the mix housing to the gun block
WARNING: Screws and fasteners provided with this Pro Gun ™ are specially
designed for this equipment. Use only Magnum Venus Product replacement parts, or warranty may be voided.
5. Insert the turbulent mixer into the mix housing.
6. Apply some red grease to the threads of the mix housing and nozzle cap. This will make them easier to remove later.
7. Install the nozzle into the nozzle cap (8704-4-1). See above for nozzle selection.
8. Screw the nozzle and nozzle cap onto the mix housing.
Rev. 08/2012 Page | 29
Mix Housing Options
Standard Mix Housing (5104-20-1) – Use with all turbulent mixers and most
applications.
FIT Mix Housing (VPG-1001) – Use with FIT style spray tips. Uses mixer
VPG-1003.
FIT Low Flow Mix Housing (VPG-1001-1/4) – replacement mixer TRT-1018-1/4 Ratio Block – Pail Dispenser Mix Housing (58735-1) – separates material
streams.
Distribution Ring Selection
There are three different distribution rings and they are as follows:
Standard Distribution Ring 5104-17-1 (58607-1) – Used for most applications
where outputs are not critical.
Filled Resin Distribution Ring 5104-18-1 (58701-1) – Used in application
where the resin is filled above 20 percent. Use with high filler loads and high outputs.
Critical Mix Distribution Ring 5104-19-1 (58703-1) – Use in low output
application, where it is important to restrict flow.
Turbulent Mixer Selection
There are two different turbulent mixers, in two different materials.
Standard Turbulent Mixer 5107-27-3 – Use for most applications where
outputs are not critical. Use with chopper and saturator applications.
Glass Filled Special Turbulent Mixer 5107-27-4 – Use with abrasive materials
and filled resin applications where durability is required.
Critical Mix Turbulent Mixer 5107-27-2 – Use for low output applications such
as gel coat. In low flow application the critical mix turbulent mixer will work best.
Glass Filled Critical Mix Turbulent Mixer 5107-27-5 – Use in low flow
applications where the material is abrasive and durability is required.
Rev. 08/2012 Page | 30
Loading...
+ 72 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
