Magnum Dynalab MD 301
HYBRID INTEGRATED AMPLIFIER
INSTRUCTION MANUAL
- -
2
TABLE OF CONTENTS
TABLE OF CONTENTS DEAR VALUED CUSTOMER ......................................................... 2
DEAR VALUED CUSTOMER .............................................................................................. 3
UNPACKING YOUR MD 301 HYBRID INTEGRATED AMPLIFIER ................................... 4
SETTING UP THE MD 301 HYBRID INTEGRATED AMPLIFIER ...................................... 5
CONNECTING ADDITIONAL SOURCES TO THE MD 301 HYBRID INTEGRATED AMPLIFIER .. 5
SET UP THE MD 301 HYRBID INTEGRATED AMPLIFIER WITH AN EXTERNAL HOME
THEATER PROCESSOR ............................................................................................ 7
HOOKING UP A SUBWOOFER TO YOUR SYSTEM ......................................................... 7
OPTIONAL DIGITAL AUDIO CONVERTER (D.A.C) ........................................................... 8
A6 REMOTE CONTROL ...................................................................................................... 8
CONTROL/DISPLAY FUNCTIONS .............................................................................. 9
DIAGRAM OF MD 301 HYBRID INTEGRATED AMPLIFIER ........................................... 10
TROUBLE SHOOTING ....................................................................................................... 11
SPECIFICATIONS .............................................................................................................. 12
SAFETY SHEET ................................................................................................................. 13
LIMITED WARRANTY ...................................................................................................... 14
- -
3
Dear Valued Customer
Thank you for choosing the Magnum Dynalab
Great care has been given to the design, manufacturing and selection of
components for the
insures optimum listening enjoyment for many years.
When using these high grade components, a considerable length of time is required
for the
high quality break-in disc or white noise from a FM tuner will help ensure optimum
performance as quickly as possible.
Once again, thank you for including a MAGNUM DYNALAB product in your
entertainment system. We are sure that you will have years of listening pleasure
from your
product at www.magnumdynalab.com, and if there is anything else we can do,
please call us on our toll free number, 1-800-551-4130, or contact us via email:
info@magnumdynalab.com.
Respectfully yours,
Larry Zurowski
President
MD 301 Hybrid Integrated Amplifier
MD 301 Hybrid Integrated Amplifier
MD 301 Hybrid Integrated Amplifier
MD 301 Hybrid Integrated Amplifier
. This complete process
to reach its full potential. Using either a
. Please be sure to register your
.
- -
4
UNPACKING YOUR MD 301 HYBRID INTEGRATED AMPLIFIER
Carefully inspect all sides of the shipping carton for damage. If there are marks or
holes in the carton make note of the location in relation to the unit inside. Any
obvious dents or scuff marks should alert you to the possibility of damage. Carefully
remove the MD 301 Hybrid Integrated Amplifier from the end caps and wrapping,
inspect all sides. Pay special attention to the corresponding areas on the unit where
damage was found to the shipping carton. If damage is evident, document the type
and extent of the damage, then repack the unit and call the dealer.
KINDLY DO NOT SEND THE UNIT BACK TO THE SHIPPER UNTIL YOU HAVE BEEN
ASKED TO DO SO.
DO NOT DISCARD THE PACKING MATERIALS AND CARTONS. Should there be a
necessity to return the unit for any reason, it must arrive safely and suitably
packaged in order for our receiver to accept it from the carrier. If the unit has
incurred damage as a result of improper packaging, it is not likely that a claim for
the damage against the carrier will be successful.
Likewise, we will ship your unit back to you only in factory-approved packaging,
however, if the unit were to arrive at the factory on anything other than factory
approved packaging, we reserve the right to return the unit in factory-approved
packaging and charge the cost of the packaging to the shipper. This is the only way
we can assure you of a safe return (damage by carrier excepted).
- -
5
SETTING UP THE MD 301 HYBRID INTEGRATED AMPLIFIER
1. Position the unit away from any spot which may have extremes in temperatures.
2. Place the unit on a very rigid surface capable of holding 75 pounds (34 KG).
3. The heat sinks located inside the unit are used to keep the unit at a safe
operating temperature. It is important that they are not covered and that the unit
is not installed in a closed area where there is little air circulation. Ensure at
least 2” of clearance on the left and right of the device, and 5” of clearance
above the unit to allow for proper ventilation.
4. Unwrap the EIA AC cord and plug the EIA end into the rear socket marked
Input
. Plug the other end of the AC cord into a 120/220/230/240 volt
continuous AC power supply. Be sure that the voltage marked on the rear of the
unit is the same as the AC source that you are using.
5. Hook up your speakers to the back of the unit insuring that the positive (+)
terminal on the speaker is hooked up to the positive (+) output terminal on the
MD 301, likewise that the negative (-) is correctly hooked up. Be sure that all the
connections are tightly affixed.
6. Turn on the power switch on the front panel
Power
CONNECTING ADDITIONAL SOURCES TO THE MD 301 HYBRID INTEGRATED
AMPLIFIER
CAUTION
As standard practice, you should always turn off the main power to the MD 301
Hybrid Integrated Amplifier whenever any source component, interconnect or
loudspeaker is being changed in your system.
1. Using your RCA cables, plug your source(s) into one of the inputs marked in the
back of the MD 301
2. Power up you Hybrid Integrated Amplifier and set the input to match the input on
the rear of the unit that the other source is plugged into.
- -
6
3. With volume set to zero, power up the source, initialize the playback, and slowly
adjust volume to desired level.
- -
7
SET UP THE MD 301 HYRBID INTEGRATED AMPLIFIER WITH AN EXTERNAL HOME
THEATER PROCESSOR
The MD 301 Hybrid Integrated Amplifier is equipped with a unity gain input (A3/SSP
Mode Input on the Pre-Amplifier section). This is a switchable input, meaning the
input can be used as a normal pre-amplifier input or in unity gain mode.
To Connect to a Home Theater Processor
1. Turn all the power off to the MD 301 and unplug the power cord.
2. Connect your theater processor Main Left and Right interconnects into the MD
301 Hybrid Integrated Amplifier through the A3 input.
3. Connect your Main Left and Right speakers to the MD 301 Hybrid Integrated
Amplifier speaker connections.
4. Re-connect the power to the MD 301 Hybrid Integrated Amplifier. Push the
“POWER” button to the “ON” position.
5. Push the input button or use the remote to select input Aux 3. On the remote
Select input and 00. You will see the display switch to P1 and then the volume
display will go dark, indicating that there is no volume being controlled by the MD
301.
6. Input P1 is now the dedicated input and the volume is controlled by your home
theater processor. To go back to normal operation push the input 00 button on
the remote.
HOOKING UP A SUBWOOFER TO YOUR SYSTEM
1. Unplug the power cord to the MD 301 Hybrid Integrated Amplifier.
2. Using RCA cables, connect one end to the
the MD 301, the other end to your subwoofer.
3. Turn the subwoofer “ON”.
4. Re-connect the power to the MD 301 Hybrid Integrated Amplifier. Push the
“POWER” button to the “ON” position and adjust the volume level to suit you.
Please note the volume of the subwoofer is controlled by the volume control on the
Hybrid Integrated Amplifier.
Pre Out
output marked on the rear of
- -
8
OPTIONAL DIGITAL AUDIO CONVERTER (D.A.C)
The Digital Audio Converter (D.A.C.) provides an additional USB, and two (2) coaxial
inputs or one optical and one RCA in the back of the MD 301 Hybrid Integrated
Amplifier.
1. Connect an external source to the USB, or either of the coaxial inputs.
2. Set the input displayed on the unit to correspond to the input selected on the
back of the unit.
A6 REMOTE CONTROL
REMOTE OPERATION ON INTEGRATED AMPLIFIERS AND
RECEIVERS WITH THE A6 REMOTE
1. The remote is activated with the “Audio” button. You may
program other components.
2. Turn your amplifier on/off with the “ON “ button.
3. Volume is controlled by the volume “Up” and “Down”
button.
4. To change inputs you first touch the “Input” key and then
the corresponding numbered key for the input you want
as follows: Input 1 thru 4 are AUX , 5 is blank 6 to 8 is
for digital inputs which is an option
5. To audio mute touch the “Mute” button and to Un-mute
touch it again.
- -
9
CONTROL/DISPLAY FUNCTIONS
1. POWER BUTTON-Turns on main power
2. MUTE –Turns audio output off or back on
3. INPUT - Sequentially moves through the inputs on the rear of the MD 301
4. VOLUME CONTROL – The digitally controlled precision volume control allows you
to vary the volume from 0-99. Normal operating range is 40-85. Note that it is
not a linear volume control – therefore volume changes will vary more as you turn
the control at higher levels than at lower levels. The volume control has been
calibrated so that the volume level can not exceed the safe operating parameters
of the system
- -
10

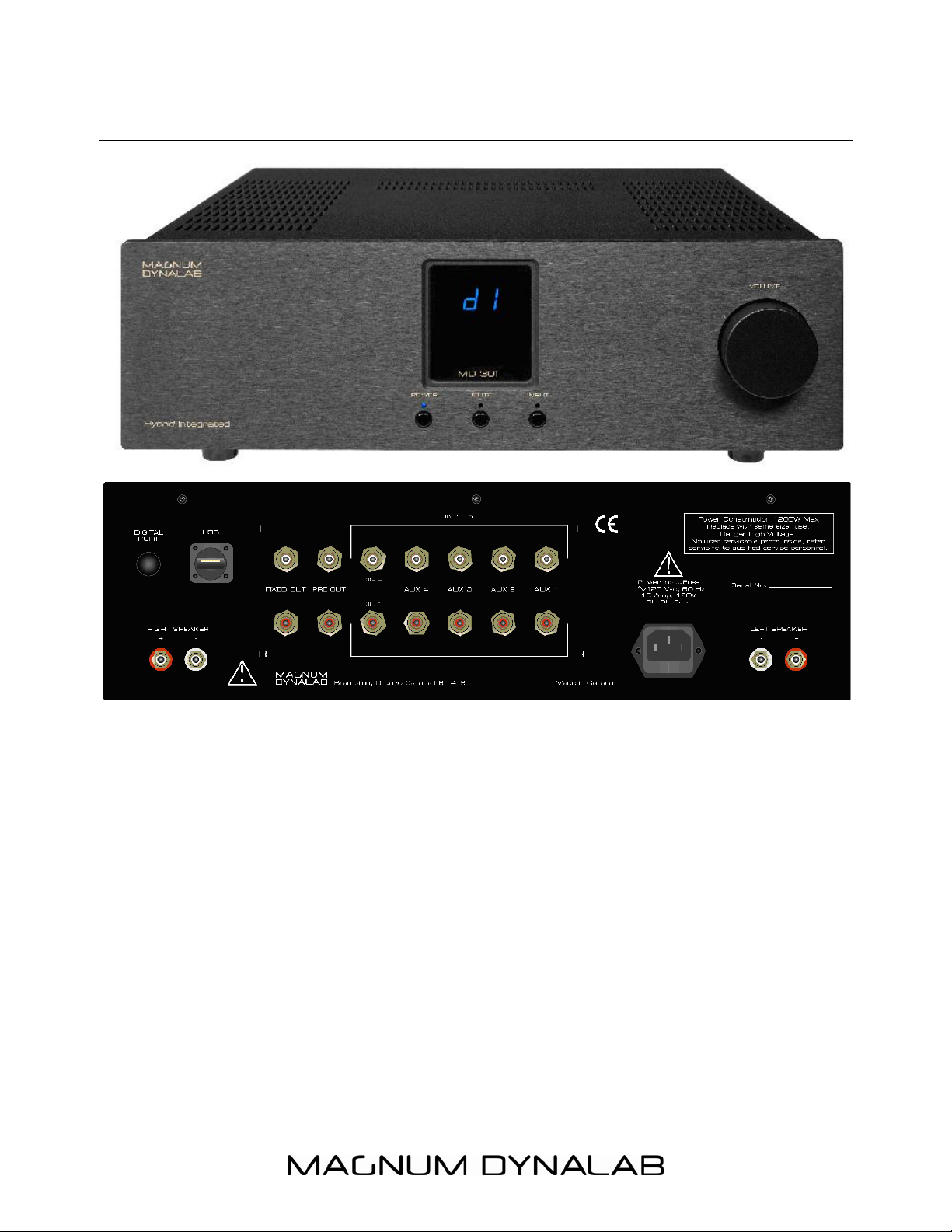

DIAGRAM OF MD 301 HYBRID INTEGRATED AMPLIFIER
PROBLEM POSSIBLE CAUSE
No sound
Unit seems to be
frozen – functions
don’t work
No sound from
USB ( optional
DAC)
• Power cord
disconnected
• Power off at source
• Fuse blown
• Interconnect not
properly installed
• Preamp set to wrong
source
• Power amp off
• Control function error
• Not compatible
• Signal not receiving
- -
11
TROUBLE SHOOTING
POSSIBLE SOLUTION
• Connect power cord
• Check AC source
• Check rear panel fuse
• Check installation of
interconnects
• Turn preamp to other input
Turn on amp
• Display should still be active
• Turn off the MD 301, Unplug
the unit for 1 minute, restart
unit
• Restart your computer or
program
• If using a MAC, you must go
to “system preferences”,
“sound” and select “USB DAC”
- -
12
Power Output
Audio Frequency Response (+/-0.1dB)
Signal to Noise Ratio
Total Harmonic Distortion
Class of Operation
Input Impedance
Output Impedance after volume control
Inputs
Outputs
Input Sensitivity
Fully Balanced Amplifier Design
Safety Diagnostic System
Dynamic Headroom
Dimensions (W.D.H.)
Shipping Weight
Fuse Replacement
(located with AC plug)
Tube Specifications
Warranty (Tubes)
100 Watts into 8 Ohms, 200 Watts
into 4 Ohms
+ Zero, -0.25dB, 2Hz - 100KHz
-110dB, A-Weighted
0.05% at any power
Class A/B, Class A at 1-3 Watts
10k
2K2
4 Analog single ended including
Surround Sound Processor input
2 line level pre-out (variable and fixed)
1.2V RMS
8 Sanken Output Transistors per
channel
Continuous of all Voltages and Current
+3.0 Db
173/4 " x 20" X 6.5"
45 lbs
120V, 4 amp slow blow OR 240V,
4 amp slow blow
1- EC 83
1 year
SPECIFICATIONS
- -
13
SAFETY SHEET
IMPORTANT SAFETY INSTRUCTIONS
1. KEEP THESE INSTRUCTIONS
2. HEED ALL WARNINGS
3. FOLLOW ALL INSTRUCTIONS
4. DO NOT USE THIS APPARATUS IN WATER
5. CLEAN ONLY WITH DRY CLOTH
6. DO NOT BLOCK ANY VENTILATION OPENINGS, INSTALL IN ACCORDANCE
WITH THE MANUFACTURER’S INSTRUCTIONS.
7. DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS RADIATORS, HEAT
REGISTERS, STOVES, OR OTHER APPARATUS (INCLUDING AMPLIFIERS) THAT
PRODUCE HEAT.
8. DO NOT DEFEAT THE SAFETY PURPOSE OF THE GROUNDING TYPE PLUG.
THE GROUNDING PLUG HAS TWO BLADES AND A THIRD GROUNDING
PRONG. THE THIRD PRONG IS PROVIDED FOR YOUR SAFETY. IF THE
PROVIDED PLUG DOES NOT FIT INTO YOUR OUTLET, CONSULT AN
ELECTRICIAN FOR REPLACEMENT OF THE OBSOLETE OUTLET.
9. PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED
PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT
WHERE THEY EXIT FROM THE APPARATUS.
10. ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE
MANUFACTURER.
11. UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN
UNUSED FOR LONG PERIODS OF TIME.
12. REFER ALL SERVICING TO QUALIFIED PERSONNEL. SERVICING IS REQUIRED
WHEN THE APPARATUS HAS BEEN DAMAGED IN ANY WAY, SUCH AS THE
POWER SUPPLY CORD OR PLUG IS DAMAGED, LIQUID HAS BEEN SPILLED
OR OBJECTS HAVE FALLEN INTO THE APPARATUS, THE APPARATUS HAS
BEEN EXPOSED TO RAIN OR MOISTURE, DOES NOT OPERATE NORMALLY,
OR HAS BEEN DROPPED.
13. THE EQUIPMENT REQUIRES A GROUNDED POWER OUTLET TO OPERATE
SAFELY.
14. THE POWER SUPPLY CORD IS THE MAIN DISCONNECT AND SHALL BE
READILY OPERABLE.
“WARNING” TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
- -
Y
14
LIMITED WARRANTY
Register your product at www.magnumdynalab.com
Magnum Dynalab Ltd. herein referred to as the “manufacturer” guarantees this
product to be free of defect in both material and workmanship and agrees to
remedy any such defect or replace any defective component at no charge for a
period of two years from date of sale to the first end user. This warranty is void if
the product has been found to be subjected to misuse, abuse, lightning strike,
unauthorized service, damaged in transit or has been altered or repaired in such a
way as to detract from its performance, reliability or its safe operation.
Should such defect be discovered and it falls within the terms of this guarantee,
the manufacturer will correct the defect in workmanship and/or replace any
defective component with a new one of same or better capability and value. This
warranty does not apply to the cabinet or appearance items such as the faceplate,
control knobs or meter lenses nor does it cover any expenses in shipping the unit to
the appropriate service depot.
The foregoing is in lieu of any other warranties expressed, implied or statutory
and the manufacturer neither assumes nor authorizes any person to assume for it
any other obligation or liability in the connection with the sale of this product. This
warranty is not transferable except by written authorization from the manufacturer.
In order to qualify under the terms of the above warranty, all items must be
returned to the appropriate factory service depot with all shipping charges prepaid
in lieu of having previously registered the purchase of the unit by completing and
returning the attached
from an authorized Magnum Dynalab Ltd. dealer.
*All tubes are covered for 12 months.
OUR LOCATION RETURN SHIPPING ADDRESS
Within the USA Magnum Dynalab C/o Trans American
Within Canada Magnum Dynalab Ltd.
Other Countries Contact selling dealer
TO PREVENT FIRE SHOCK OR HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
Registration Card
, the unit must be accompanied by proof
2775 Broadway
Buffalo, NY
14227-1043
1-800-551-4130
8 Strathearn Avenue, Unit # 9
Brampton, ON, Canada
L6T 4L9
PHONE: 1-800-551-4130
- -
15
COVER OR FACEPLATE, NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
Loading...
