Magnum Ui5 User Manual

USER GUIDE

PLEASE READ ME FIRST!

English

Table of contents

1. Your E-Bike…………………………………………………………………..2—3

1.1 Introduction

1.2 General presentation of the vehicle

2. Function of Display…………………………………………………………4—8

2.1 Function summary

2.2 Full view area

2.3 Normal view area

2.4 Normal operation

3. Using the bike……………………………………………………………...9—12

3.1 Riding the bike

3.2 Quick-release devices

3.3 Adjusting the saddle height

3.4 Precautions required prior to each use

3.5 Lubrication

3.6 Routine maintenance.

4. The battery………………………………………………………..……....12—14

4.1 Installation and Removal

4.2 Charging

4.3 Battery autonomy and lifespan

4.4 Battery safety instructions

5. Safety maintenance and recommendations………………….……..14—16

5.1 Safety recommendation

5.2 Maintenance

6. Accessories………………………………………………………………….....16

7.

Warranty ………………………………………………………………………...16

2

Your E-Bike

1.1 Introduction

We would like to thank you for your purchase of a new Magnum e-Bike. The e-bike is
equipped with pedals and an auxiliary electric motor. You will thoroughly enjoy riding
this new and electrical power- assisted bike with an optional throttle propulsion.
Riding an e-bike means that you’re helping preserve the environment, since any CO2
or other polluting gases will not be released. For your safety and for the safety of
others, we recommend that you obey all road regulations and wear a protective
helmet. For optimal, safe and enjoyable use of the e-bike, make sure you thoroughly
read this user guide before you first use it.

Have a pleasant ride!

1.2 General presentation of the vehicle

1.2.1 General information

Weight of bike: 52 Lbs
Maximum assistance speed: No speed limit
The dimensions of the bike (MM): L 1750 x W230 x H980 (95% package)
Maximum total weight: 120KG (includes the bike, battery and rider)

3

1.2.2 Parts specifications

Spare parts name

Ui5

Motor Das-Kit, 36V 350W, Rear drive motor

Battery 36V13AH SAMSUNG CELLS, with USB port

Display

Das-Kit, C4BT : LCD, 6 Levels, Error code
report

Front fork SUNTOUR, NEX

E-Brake Lever ARTEK

Disc Brake TEKTRO Disc Brake

Derailleur SHIMANO ,Altus, 7 Speed

Tires SCHWALBE, Big Ben 26*2.15

** Charging time: 5.5 hours 0-100% charge

** Autonomy: between 40 to 100 KM, depending on the assistance level and road
condition.

** 2 charge indicators: 1 located on the display; 1 located on the side of battery.

** Weight: 3 KG

4

2. Function Display

2 .1 FUNCTION SUMMARY

The indicated contents are as below.

5

2.2 FULL VIEW AREA

2.3 NORMAL VIEW AREA

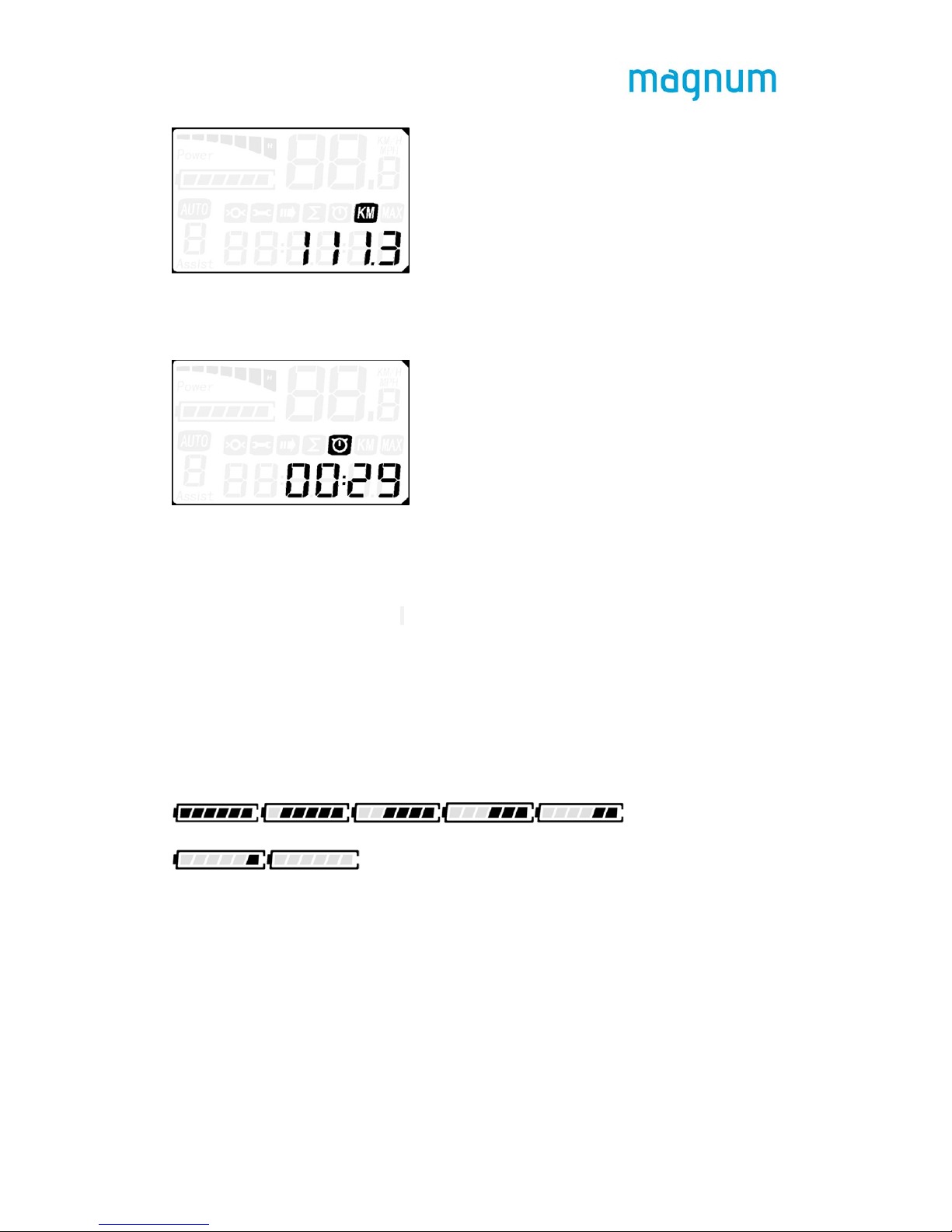

The normal viewing area of the C4BT LCD is shown below. Press SET to switch the
displaying information. The sequence is: ODO →Riding Time→Riding

Distance→Max Speed.

2.4 NORMAL OPERATION

1、ON/OFF

Click ON/OFF and start the display. The display will provide power for the controller.
Click ON/OFF again can open the backlight. With display on, press ON/OFF for 3
seconds to turn off the power. With the display off, there is no battery consumption.
The leakage current is no more than 2 µA.

※ The display will go to sleep when speed is 0 km/h for 5 minutes.

2、CURRENT DISPLAY

The current indicator below represents the working discharging current of the
controller, each segment represents a working current of 2A, six segments
means >=12A.
