Battery Charger
Instruction Sheet
For Flex Transmitters
1. 12-24 VDC Input 4. Status LED for output “B”
2. Charging Output “A” 5. Charging Output “B”
3. Status LED for output “A”
Figure 1: Charging Unit CHR-01
Operating Instructions
1. Insert the battery pack (part number BAT-01) into the transmitter.
Figure 2: Inserting the Battery Pack
2. When the charging unit (part number CHR-01) is initially powered on, both LED-A and LED-B will
3. Plug the charging cable (output A or B) into the battery pack charging input slot.
P.O. Box 13615
Milwaukee, WI 53213
Toll-Free Phone 800.288.8178
Toll-Free Fax 800.298.3503
blink green two or three times (indicating that the charger is in go od working order) and then stop
(indicating standby mode).
Figure 3: Plugging in the Charging Cable
N49 W13650 Campbell Drive
Menomonee Falls, WI 53051
Phone 262.783.3500
Fax 262.783.3510
www.magnetek.com
Instruction Sheet No. 0-CHR-03E R0
Page 2
Battery Charger
4. When the charging cable is plugged in, the associated status LED will blink gre en two or three
times again, followed by continuous fast blinks (indicating charging in progress) for 10 to 15
seconds.
5. When charging is completed, the associated LED status will light up as solid green.
6. When the charging cable is unplugged, the associated LED will turn off (indicating standby
mode).
NOTE: The total charging time is approximately 1.5 to 2 hours.
7. For in-car charging (12-24 VDC), us the factory approved cigarette lighter adaptor (part number
CIG-01).

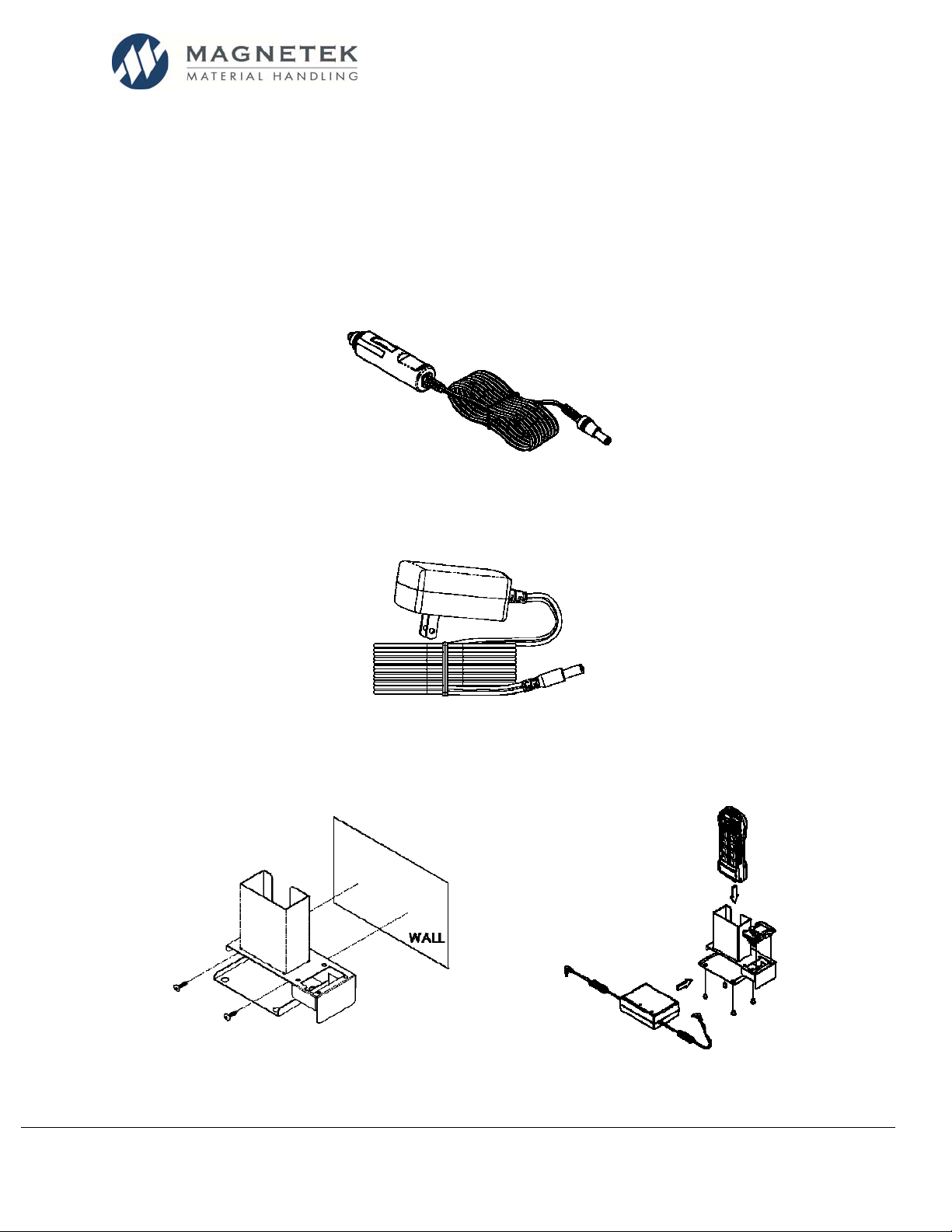

Figure 4: Cigarette Lighter Adaptor CIG-01
Instruction Sheet
For Flex Transmitters
8. Use only factory approved 100-240 VAC power transformers with 12 VDC output, as unapproved
power transformers on the market may not be compatible with this charging unit.
Figure 5: Power Transformer
9. Figure 6 and Figure 7 show the desktop and wall mounted housing installation (part number
DWH-01) should be set up.
P.O. Box 13615
Milwaukee, WI 53213
Toll-Free Phone 800.288.8178
Toll-Free Fax 800.298.3503
Figure 6: Wall mounted housing
N49 W13650 Campbell Drive
Menomonee Falls, WI 53051
Phone 262.783.3500
Fax 262.783.3510
www.magnetek.com
Figure 7: Desktop mounted housing
Instruction Sheet No. 0-CHR-03E R0
