Page 1

Ultra HD Blu-ray Disc

User Manual

Model: UDP900

Player

Page 2

Page 3

Contents

Important Information....................................................................................... 1

Important Safety Instructions ........................................................................................................... 1

Instructions .............................................................................................................................. ................... 2

Accessories ................................................................................................................................................ 2

Trademark Notice

Cinavia Notice

Types of Compatible Discs ................................................................................................................. 4

Storage and Maintenance of Compact Discs ........................................................................... 4

Product Installation Guide.............................................................................. 5

Functions of Front Panel ...................................................................................................................... 5

Display Screen of Front Panel ........................................................................................................... 5

Ports of Back Panel ................................................................................................................................ 6

Descriptions of Remote Control ....................................................................................................... 7

Battery Installation ......................................................................................................................... 8

Use of Remote Control .................................................................................................................. 8

Common Connections ....................................................................................... 9

Connection to an A/V Power Amplifier through HDMI .......................................................... 9

Connection to TV via HDMI............................................................................................................... 10

Dual HDMI Connection to a TV Set and an A/V Power Amplifier .................................. 11

Connection to a Stereo System via RCA ................................................................................... 12

Connection to a Stereo System Using an XLR Balanced Audio Cable ...................... 13

Connection to an A/V Power Amplifier through S/PDIF (Optical/Coaxial) ................ 14

Connect to an A/V receiver or amplifier via Analog Outputs .......................................... 15

Digital Audio Input (USB) ................................................................................................................... 16

Connection to the Internet ............................................................................................................... 17

BD-Live ......................................................................................................................................................... 18

.............................................................................................................. 3

.................................................................................................................... 3

Basic Operations ............................................................................................... 19

Disc Playing .............................................................................................................................................. 19

Option Menu .............................................................................................................................................. 19

Rapid Playing ........................................................................................................................................... 20

Slow Playing ............................................................................................................................................. 20

Pause and Frame-by-frame Playing .............................................................................................. 21

Blu-ray Disc Menu............................................................................................................................... 21

Audio Control ........................................................................................................................................... 21

Mute .............................................................................................................................................................. 22

Track Selection ....................................................................................................................................... 22

Caption Selection .............................................................................................................................. .... 22

Advanced Operations...................................................................................... 23

Repeated Playing ................................................................................................................................... 23

Repeat Choosing a Segment ............................................................................................................ 23

Pure Audio Mode .................................................................................................................................... 24

Page 4

Control over Image Zooming and Display Ratio .................................................................... 24

XMOS ............................................................................................................................................................ 24

Memory and Automatic Recovery ................................................................................................. 25

Play Based on Songs ............................................................................................................................ 25

Play Media Documents ................................................................................... 26

Play from USB Storage Devices ..................................................................................................... 26

Main Menu .................................................................................................................................................. 27

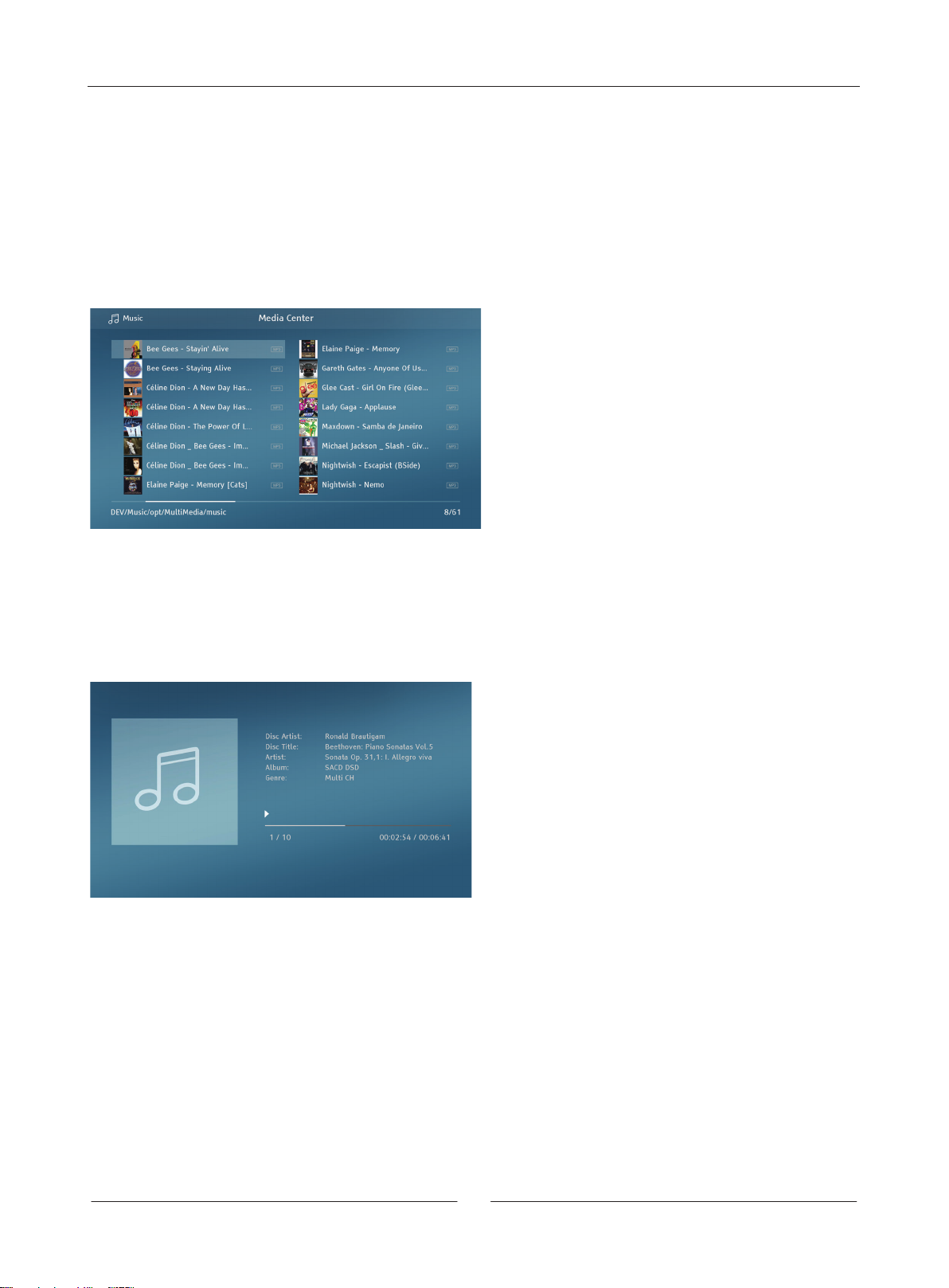

Play Music Documents ........................................................................................................................ 28

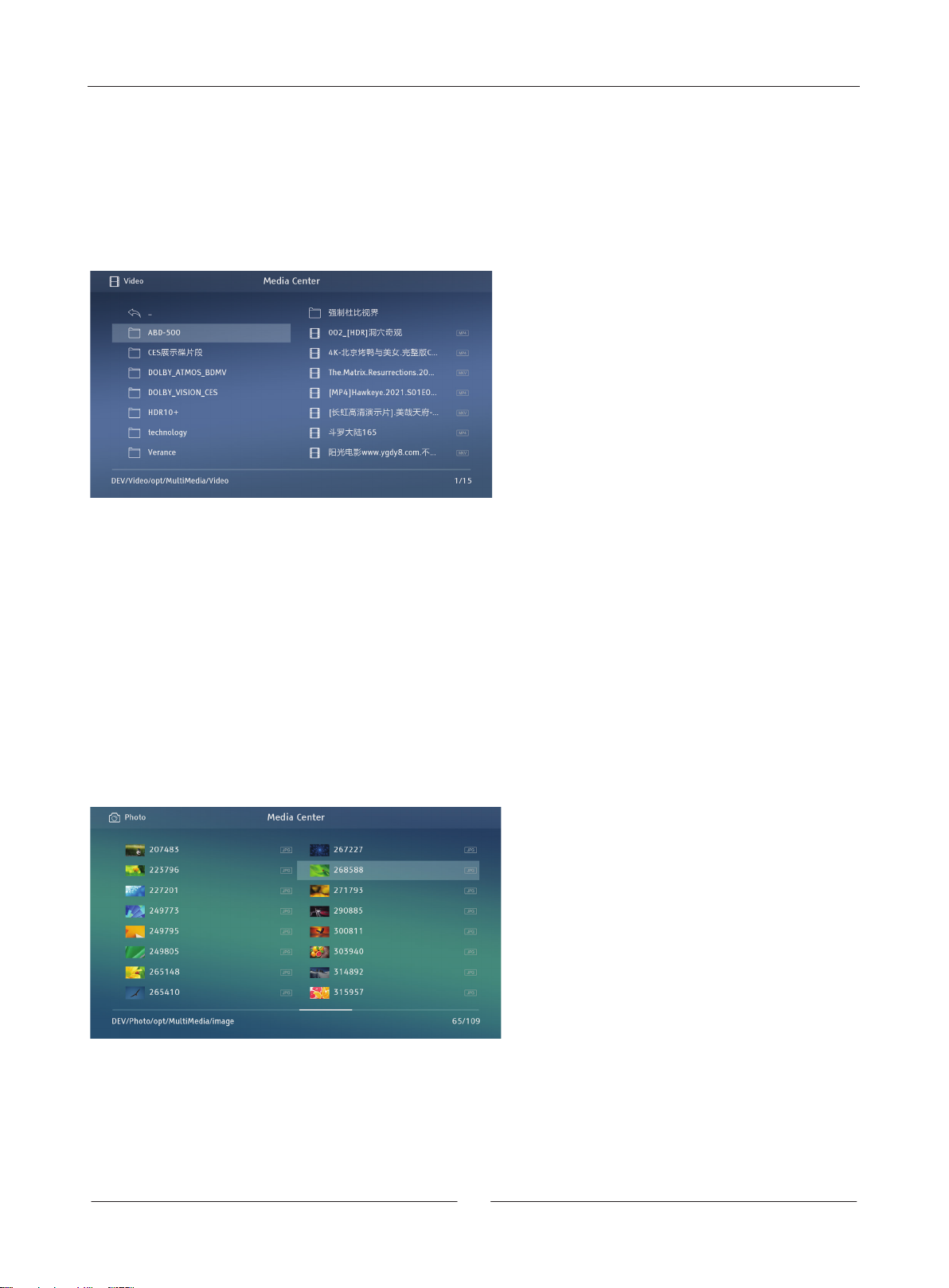

Play Video Documents ........................................................................................................................ 29

Browse Image Documents ................................................................................................................ 29

Add Background Music ....................................................................................................................... 30

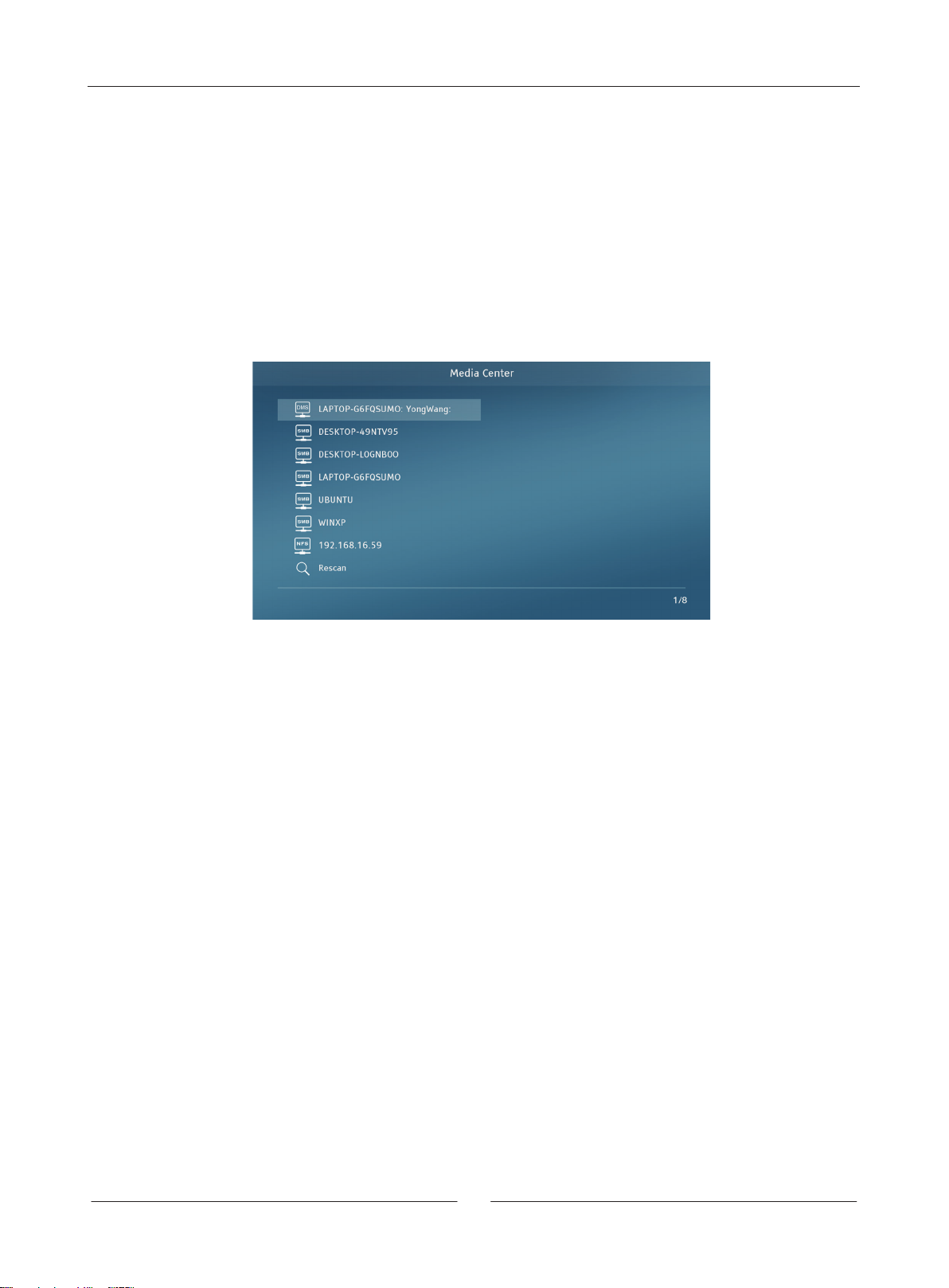

Media Sharing in a Home Network ............................................................................................... 31

Set Menu Options .............................................................................................. 32

Use the Setting Menu .......................................................................................................................... 32

Display Setting ........................................................................................................................................ 33

TV Screen .............................................................................................................................. ............. 33

Resolution .......................................................................................................................................... 33

HDR Setting ....................................................................................................................................... 34

Dolby Vision Mode ......................................................................................................................... 34

Television System .......................................................................................................................... 34

Color Space .............................................................................................................................. ......... 34

Color Depth........................................................................................................................................ 34

DVD 24P Conversion ..................................................................................................................... 35

Choose 3D video output mode. ............................................................................................... 35

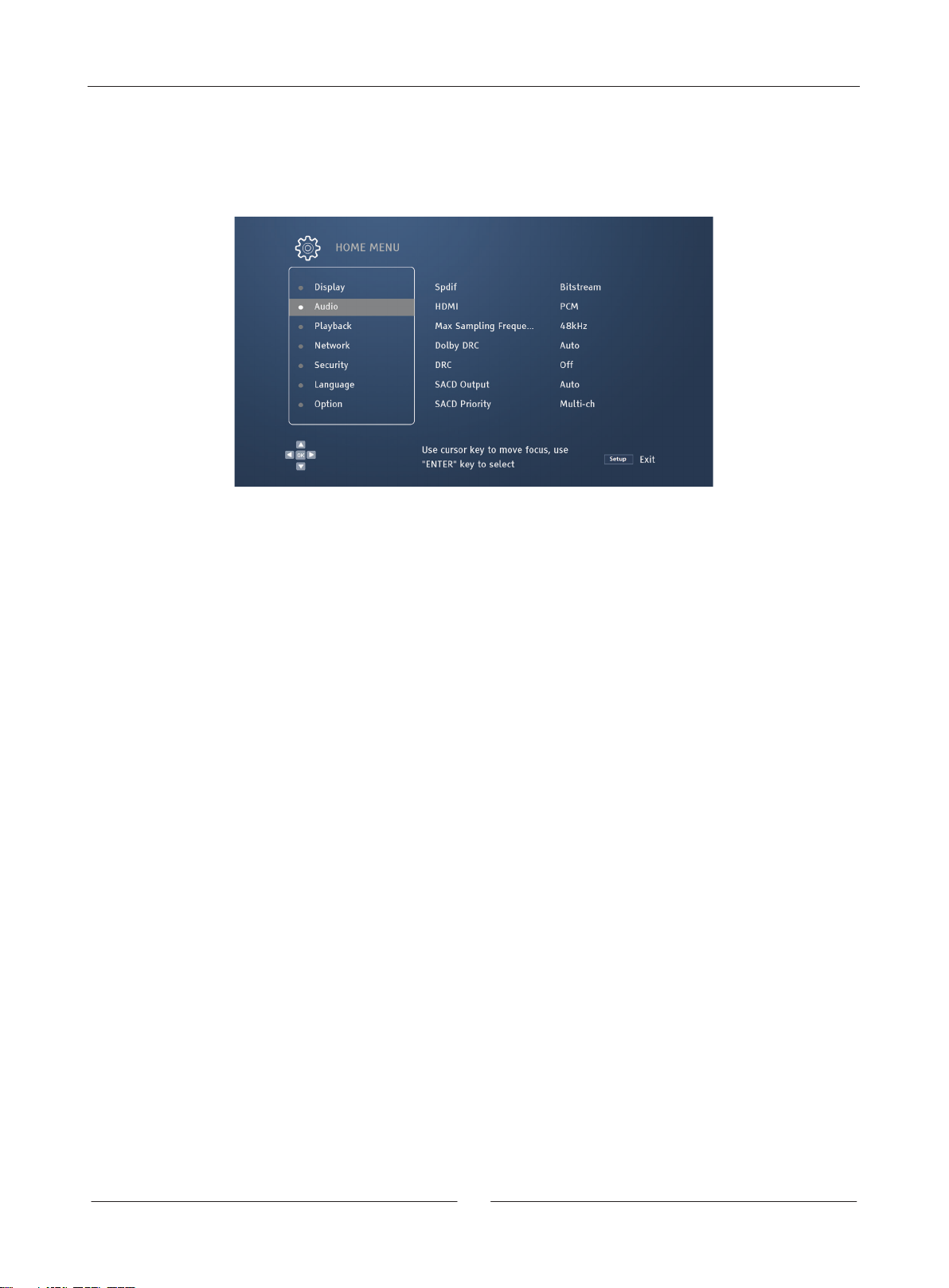

Audio Setting ............................................................................................................................................ 36

Optical/coaxial output ................................................................................................................. 36

HDMI Audio Format ....................................................................................................................... 36

Dynamic Compression ................................................................................................................. 3 6

SACD Output ..................................................................................................................................... 37

Priority of SACD .............................................................................................................................. 37

DVD Audio Mode ............................................................................................................................. 37

Crossover ........................................................................................................................................... 37

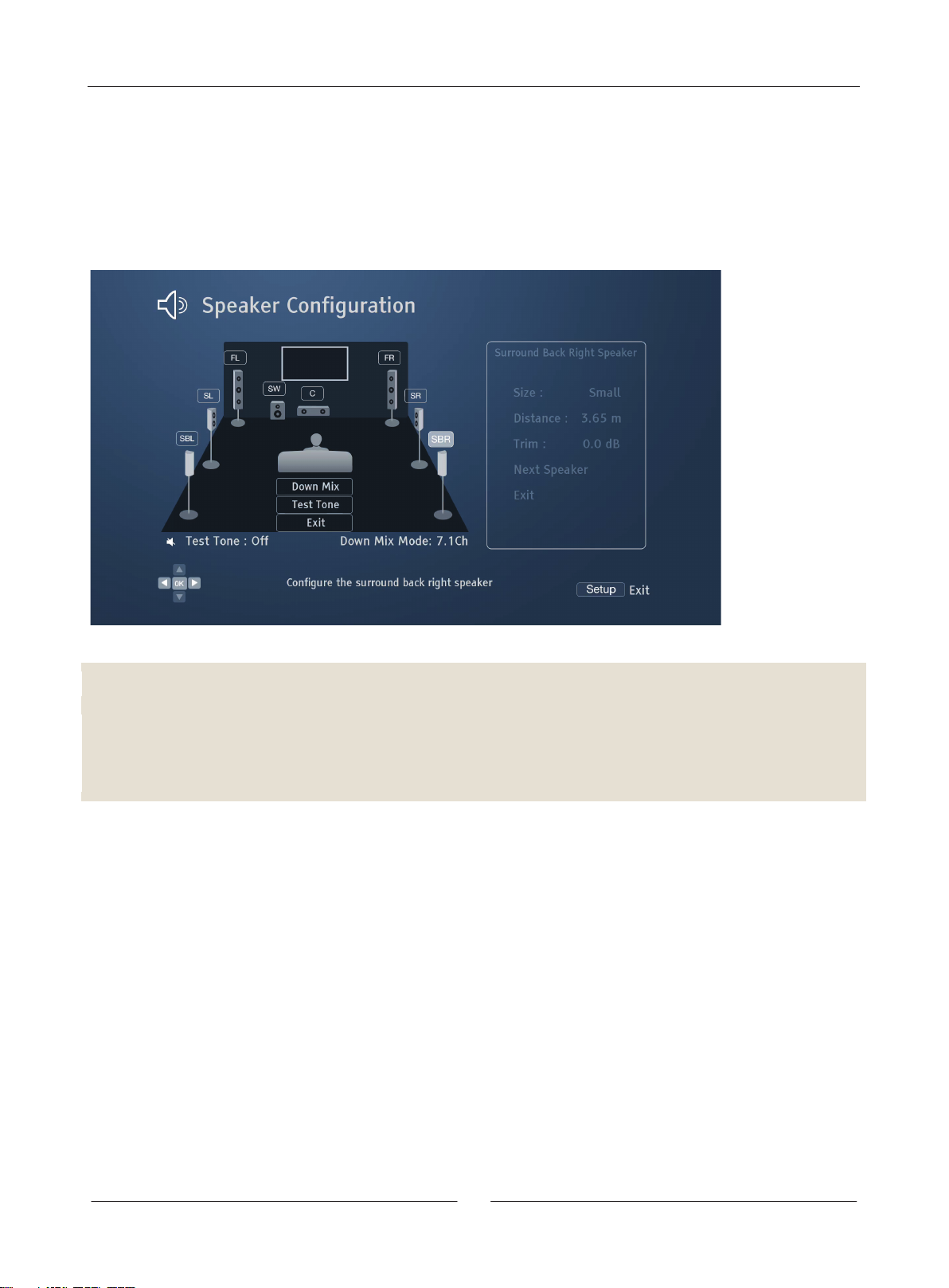

Speaker Configuration ................................................................................................................. 38

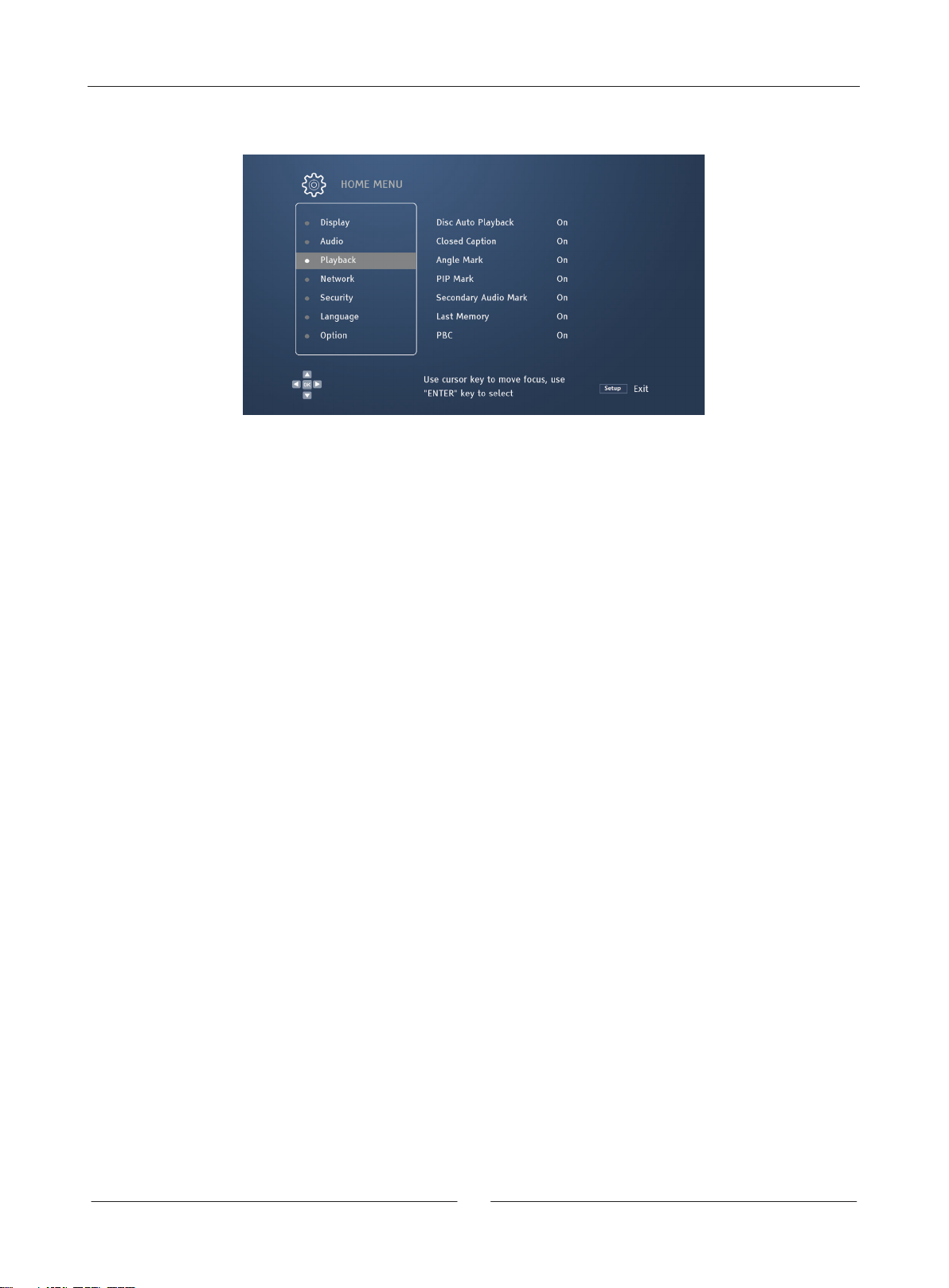

Playback Setting .............................................................................................................................. ...... 40

Automatic disc playing ............................................................................................................... 40

CC Captions ...................................................................................................................................... 40

Angle Mark .............................................................................................................................. .......... 40

Picture-in-picture Mark ............................................................................................................... 40

Second Audio Mark ....................................................................................................................... 40

Memory-based playing ................................................................................................................ 40

Network Setting ..................................................................................................................................... 41

Internet............................................................................................................................... ................. 41

IP Address Setting ......................................................................................................................... 41

Page 5

Proxy Server ..................................................................................................................................... 41

Information .............................................................................................................................. .......... 41

Connection Test .............................................................................................................................. 41

Connection to BD-Live ................................................................................................................. 42

Choose whether to enable DLNA (DMP). ........................................................................... 42

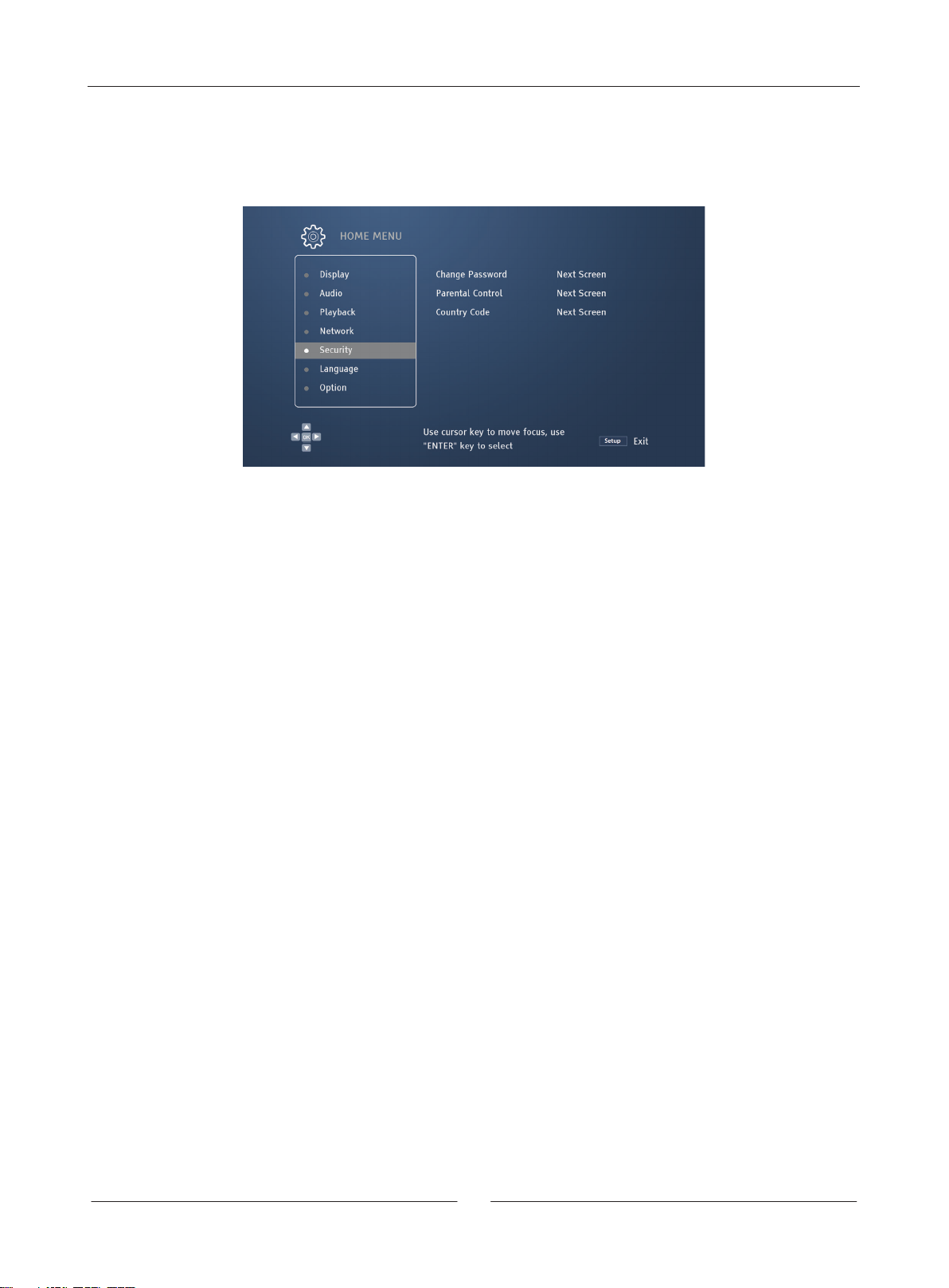

Security Setting ...................................................................................................................................... 43

Change Password .......................................................................................................................... 43

Control over BD Level .................................................................................................................. 43

Hierarchical DVD Control ........................................................................................................... 43

National Code................................................................................................................................... 43

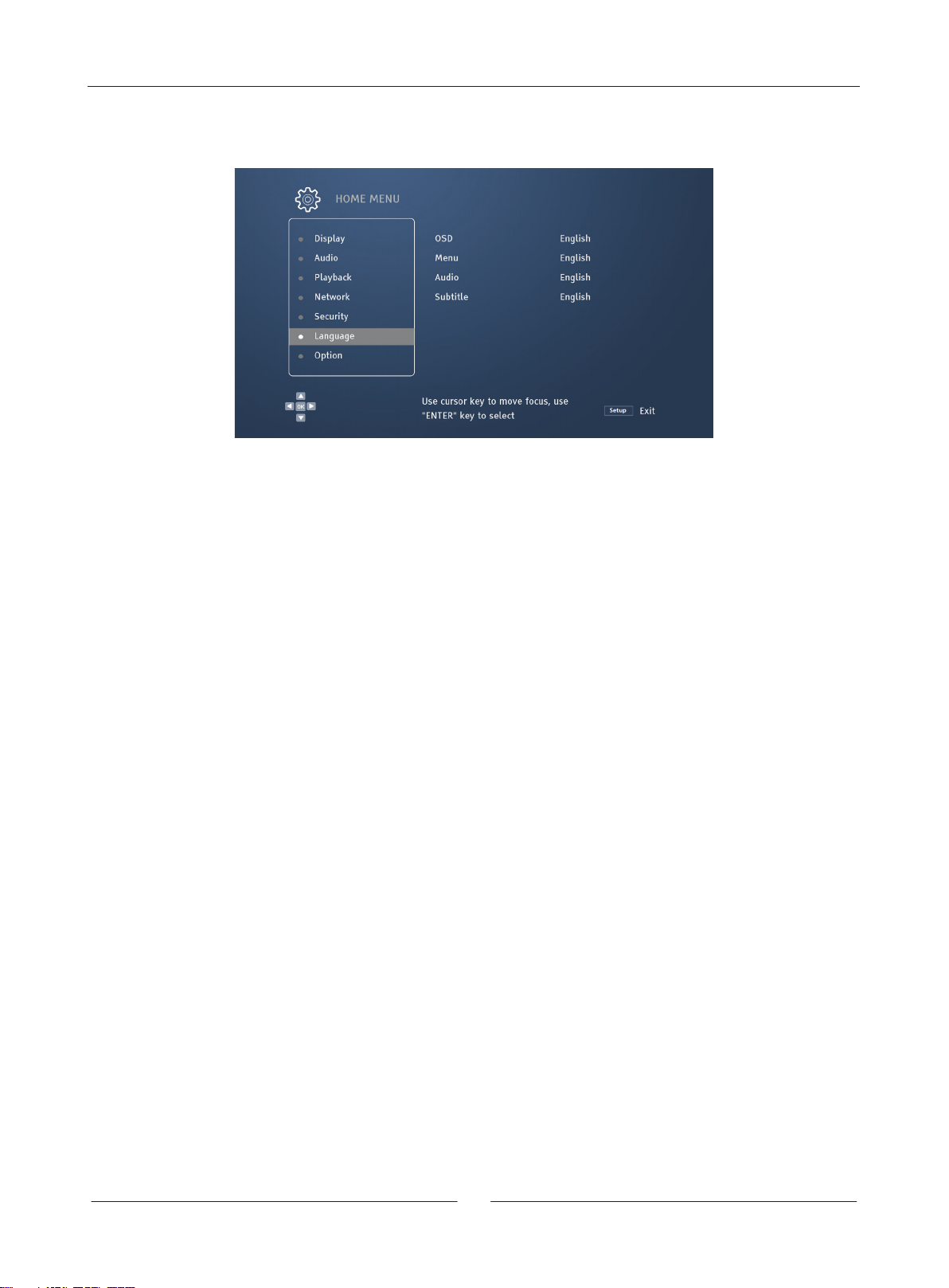

Language Setting ................................................................................................................................... 44

Display Language of Screen .................................................................................................... 44

Menu Languages for Discs ........................................................................................................ 44

Sound Language ............................................................................................................................. 44

Caption Language .......................................................................................................................... 4 4

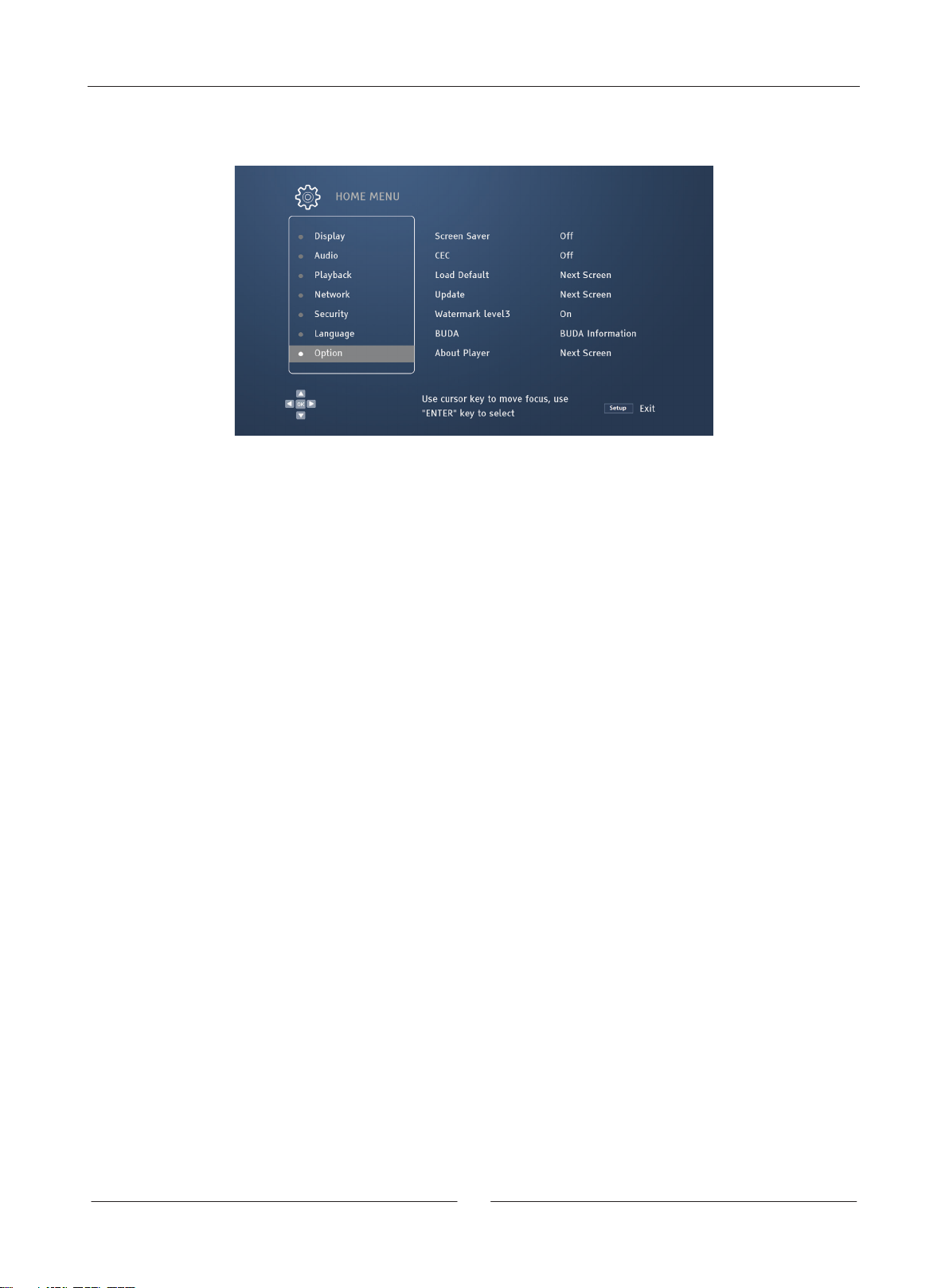

Other Settings.......................................................................................................................................... 45

Screen Protection .......................................................................................................................... 45

HDMI CEC ........................................................................................................................................... 45

Restore Factory Settings ........................................................................................................... 45

Firmware Upgrading ..................................................................................................................... 45

BD Memory Setting ....................................................................................................................... 46

About the Disc Player .................................................................................................................. 46

Other Data ............................................................................................................. 47

Troubleshooting ...................................................................................................................................... 47

Product Specifications and Parameters .................................................................................... 49

RS-232 Control Protocol ................................................................................ 50

Communication Configuration

Command Structure ............................................................................................................................. 50

Response Structure .............................................................................................................................. 51

Commands .............................................................................................................................. ................... 51

........................................................................................................ 50

Network Control................................................................................................. 53

Page 6

Important Information

NOTES: TO AVOID ELECTRIC SHOCK, PLEASE DON’T OPEN

THE MACHINE CASING. THIS PRODUCT EXCLUDES

USER-REPAIRABLE COMPONENTS. PLEASE HAVE THIS

PRODUCT REPAIRED BY A PROFESSIONAL.

The triangular arrow-headed lightning flash icon

signifies that inside the product, there is uninsulated

“dangerous voltage”, which readily causes electric

shock.

The triangular icon with an exclamation mark

purports to remind users that important operating

and maintenance (repair) instructions are hereby

introduced.

CAUTION:

TO AVOID FIRE OR ELECTRIC SHOCK, PLEASE DON’T

EXPOSE THIS PRODUCT TO RAIN OR HUMID ENVIRONMENT.

INSIDE THE PRODUCT, HIGH VOLTAGE EXISTS. DON’T OPEN

THE CASING. PLEASE HAVE THE PRODUCT MAINTAINED BY

A PROFESSIONAL.

AVOID SPLASHING WATER ON THIS PRODUCT. DON’T PLACE

ANY OBJECT CONTAINING LIQUID (E.G. VASE) ON THIS

PRODUCT.

Important Safety Instructions

1. Please carefully read the following instructions.

2. Follow these safety instructions.

3. Pay attention

4. Observe all reminders.

5. Please don’t use this product near water.

6. Please clean this product with dry cloth.

7. Please don’t block the vent. Please assemble this product

according to the manufacturer’s requirements.

8. Don’t assemble this product near heat sources (e.g. heat

sink, hot air outlet and stove) or other heating equipment

(including power amplifier).

9. Please do use original plug. If pins are not matched with

socket, please conta

10. Please avoid trampling on or extruding the power cord,

especially plug, socket and outgoing parts of this product.

to all cautions.

ct a

technician for replacement.

NOTES:

INCORRECT BATTERY INSTALLATION MIGHT CAUSE

EXPLOSION HAZARDS. IDENTICAL OR SIMILAR TYPES OF

BATTERIES MUST BE USED.

THIS PRODUCT USES LASER. YOUR FAILURE TO

CONTROL OR ADJUST ACCORDING TO THIS MANUAL OR

YOUR FAILURE TO OPERATE AS PER STEPS MIGHT

CAUSE YOUR EXPOSURE TO RADIATION. PLEASE DON’T

REMOVE THE COVER OR REPAIR THIS PRODUCT BY

YOURSELF. THIS PRODUCT MUST BE REPAIRED BY A

PROFESSIONAL ONLY.

11. Please do use parts and accessories designated by the

manufacturer.

12. Please don’t put this product on an insecure

cart, pedestal, tripod, support or workbench.

Please be careful in using a cart, in order not

to be injured for overturn of the cart or this product.

13. When this product is used in case of thunderstorm o

idle for a long period of time, please unplug the power cord.

14. Please have this product impaired by a professional when

necessary. Once this product is damaged, for instance, its

power cord or plug is damaged, liquid or foreign body enters

the product, or this product is drenched with water or

becomes damp or the product cannot work normally or it falls

off, repair must be performed. Don’t expose batteries (battery

packs or assembled batteries) to

overheated environment.

sunlight, fire sources or

r kept

Page 7

Important Information

Instructions

1. Before connecting this product to alternating current, please confirm if its rated voltage is the same as local power supply voltage. If

you are unclear about the local power supply voltage, please consult with the local power supply company. The allowed voltage

input range for this product (as indicated on the rear panel of the machine) is:

z ,QFRXQWULHVZLWKDQ$&YROWDJHRI9$&99a+]

z ,QFRXQWULHVZLWKDQ$&YROWDJHRI9$&99a+]

2. A power plug with grounding protection must be used for this electrical appliance.

3. If this product is still connected to a power socket, the alternating current power supply will not be disconnected even if the power

supply has been switched off. Please unplug the plug if this product is kept idle for a long period of time. To unplug the plug, please

hold the plug instead of the power cord.

4. To disconnect power supply with a power supply plug, please do make sure that the plug is easy to insert and remove.

5. Please provide favorable ventilation conditions for this product. Please don’t put this product on a sofa, bed or carpet or book shelf.

Please ensure availability of enough space. You’d better spare 4-inch (10cm) free space on the top, on both sides and behind.

gh temperature might result in abnormal operation of this product. Please don’t directly expose this product or its batteries to

6. Hi

sunlight or put them near heating objects.

7. To move this product from lower temperature to higher temperature or from higher temperature or lower temperature, moisture

would condense on internal laser components of this product. Under this circumstance, the product might not normally work. In this

case, please turn on power supply of this product for 1 to 2 hours (without CD) so that moisture will evaporate.

Accessories

Please check if the following accessories are contained in the package of this player:

User Manual Power Cord

Remote with AAA batteries

Control

Page 8

Important Information

Trademark Notice

 DVD Logo is a trademark of DVD Format / Logo Licensing Corporation.

 The Blu-ray Disc

Ultra HD

 Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio, and the double-D symbol are tradem

arks of Dolby Laboratories Licensing Corporation.

 For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the

Symbol, & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio is a trademark of DTS, Inc. ©

 Java and all other Java trademarks and logo are registered trademarks of Oracle and/or its affiliates.

 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of

HDMI Licensing Administrator, Inc.

, Blu-rayTM, Blu-ray 3DTM, BD-LiveTM, BONUSVIEWTM, Ultra HD Blu-rayTM word marks and logos and the 4K

logo are trademarks of the Blu-ray Disc Association.

Cinavia Notice

This product uses CinaviaTM technology to limit the use of unauthorized copies of some commercially-produced film and videos

and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or

copying will be interrupted.

If playback or copying is interrupted and one of the messages shown below is displayed, the content is an unauthorized copy

protected by Cinavia technology.

Message

[Message(s) 1] 1

[Message(s) 2] 2

[Message(s) 3] 3

[Message(s) 4] 4

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center

at http://www.cinavia.com

. To request additional information about Cinavia by mail, send a postcard with your mailing address to:

Cinavia Consumer information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

PR Message

AUTION: This product utilizes a laser.

Do not open cover and do not repair yourself. Refer servicing to qualified personnel.

Cinavia Message Code

is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677

Page 9

Important Information

Types of Compatible Discs

Logo Features Manual Icon

BD: Compatible with 4K %OX-ray discs and %OX-ray discs containing BONUS VIEW and BD-Live content, including %OX-ray 3D discs. Displays with 3D functions and 3D goggles are necessary for 3D playing. Also compatible with single-layer and double-layer BD-R/RE discs.

DVD: Compatible with DVDs and DVD±R/RW discs issued for commercial purposes.

SACD: High-resolution stereo or multi-track audios. Notes: Some SACDs use mixed formats with CD and high-resolution DSD layer.

CD: Compatible with standard red-book CD and CD-R/RW.

Storage and Maintenance of Compact Discs

 Keep compact discs tidy and avoid scratching compact discs or leaving fingerprints on compact discs.

 To take a compact disc, please hold its edge, and please don’t touch its recording side.

 %OX-ray discs record data based on polarity density, and recording layer is very close to surface of the compact disc. Hence,

compared with DVD, %OX-ray discs are more sensitive to dust and fingerprints. If you encounter any problems on playing and

discover any stain on a disc, please tidy the disc up using clean cloth. Please clean the disc from the center outwards along the ray.

Please don’t clean them by drawing circles.

 Please don’t use disc cleaning spray or solution like benzene, diluent or anti-static spray.

 Please don’t stick labels or stickers to compact discs. Otherwise, the discs will warp or be too thick. As a result, problems will occur

during playing and the discs will be stuck.

 Don’t have compact discs directly exposed to sunlight or put them near heat sources.

 Please don’t use the following compact discs:

z The compact discs with glue left by stickers or labels might be stuck inside players;

z The compact discs which warp or crack

z The compact discs in irregular shapes, including heart-shaped or business card-shaped compact discs.

Page 10

Product Installation Guide

Functions of Front Panel

1. USB input port 5. Stop key 8. Display lens

2. Ejector 6. Last song 9. Power key

3. Access key 7. Next song 10. Headphone jack

4. Play/pause key

Display Screen of Front Panel

1. Playing state.

2. HDMI connection state.

3. Disc information.

4. Playing mode.

5. HDMI outputs 4K resolution

6. Digital audio output mode.

7. 2G -12G main display zone.

Page 11

Ports of Back Panel

Product Installation Guide

1. Network interface 2. HDMI OUT (main) port 3. HDMI OUT (Audio Only) port

4. USB 3.0 input port 5. RS-232C serial console port 6. Coaxial digital audio output port

7. Optical fiber digital audio output port 8. 7.1 channel analog audio output port 9. AC port

10. Power switch 11/14. Balanced stereo audio output 12/13. Stereo audio output

15. USB (type B) audio input port

Page 12

Product Installation Guide

Descriptions of Remote Control

 Power supply: Put the player under the “Standby” state or “On” state

 Number key: Enter numerical value

 Clear: Clear numerical inputs

 Audio adjustment: Fine tuning of audio output parameters

 Image adjustment: Fine tuning of image output parameters

 Repeat: Repeat playing

 A-B repeat: Repeat playing a chosen band

 Setting: Open the setting menuof the player

 Option: Current option menu will pop up

 Pure tone: Switch off HDMI video output

 Volume +/-: Raise/lower volume

 Disc menu: Display the menu of %OX-ray discs or title menu of DVD

disks

 Direction key: Choose the navigation menu

 Homepage: Return to the main interface

 Fast rewind:Fast rewind playback

 Play/Pause: Start playing/stop playing

 Last song: Jump to the last song

 Stop: Stop playing

 XMOS: USB audio input

 HDR (high dynamic range): Open/close images within the high

dynamic range

 Color key: Functions vary with content

 Ejector opening/closing: Open/close the ejector

 Search: Jump to a certain position and start playing

 Resolution: Switch HDMI output resolution

 Information: Display/hide information displayed on the screen

 Quick forward jump: Jump to a time point after 30s for playing

 Quick backward jump: Jump to a time point before 10s for play.

 Caption: Choose caption language

 Sound track: Choose sound track or dubbing language

 Mute: Turn off audio output

 Popup menu: Display popup menu of a %OX-ray disc or DVD menu

 Return: Return to the previous menu

 Fast-forward: Play fast forward

 Next song: Jump to the next song

 Backlight: Turn on/off backlight of the remote control key

 Light modulation: Modulate display luminance of the front panel

Notes

If a function is unavailable when a key is pressed, a circle with a slash will be displayed on the

screen:

Page 13

Product Installation Guide

Battery Installation

1. Open the lid

2. Put the batteries inside

Align battery anode (+) and cathode (-) with the positions

indicated inside the casing.

3. Close the lid

1. Open

3. Close

2. Put the batteries

inside

Use of Remote Control

Caution

z Don’t let the remote control fall off or put it under humid environment.

z Don’t have the front remote control sensor directly exposed to sunlight or other high-intensity light sources.

z When battery is low, remote control operations would be affected. Please promptly change the batteries.

z If the remote control is kept idle for a long period of time, please take the batteries out.

z Please correctly use the batteries to avoid leakage and corrosion. Don’t directly put the batteries under the sunlight or at high

temperature for a long period of time.

z Don’t heat the batteries or put them near flame. Don’t use old and new batteries together. Don’t use different types of batteries

together.

z Don’t charge batteries.

z In case of battery leakage, don’t directly touch the liquid by hand. Please fully clear liquid out of the battery chamber, and mount

new batteries.

Page 14

Common Connections

Connection to an A/V Power Amplifier through HDMI

HDMI

HDMI cable

z If your power amplifier has HDMI functions and supports 4K HDR video transmission, you will only have to connect the HDMI OUT

(Main) port of the player to the power amplifier using an HDMI cable, and start HDMI video transmission on the power amplifier (for

more information, refer to the user manual for receivers). Generally, the power amplifier is equipped with HDMI output, and can be

connected to a display device to transmit video signals.

z Some power amplifiers have both HDMI 2.0 and HDMI 1.4 ports. To normally watch 4K contents, please connect this product to 4K

UHD TV input ports which are compatible with HDMI 2.0 and HDCP 2.2.

output

HDMI

input

HDMI cable

Notes

z HDMI (high-definition multimedia interface) can simultaneously transmit audios and videos from the player to a display device.

However, please beware that HDMI standards are still in the stage of constant improvement, so they might still have problems in

terms of compatibility. The power amplifier must be compatible with HDMI audio inputs. Certain power amplifiers only provide

HDMIfor video switching. If the power amplifier has no function for audio input, please refer to other related connection

methodsdescribed below.

z For %OX-ray discs, it is better to use power amplifiers with Dolby TrueHD and DTS-HD Master Audio decoding functions which are

compatible with HDMI v1.4.

z For 4K %OX-ray discs, please use power amplifiers compatible with HDMI 2.0 and HDCP 2.2 or higher versions. It is recommended

that superior high-speed (18Gbps) HDMI cable should be used for guaranteeing watc

z The formats supported by this product range from the latest object-oriented surround sound from source codes to decoding

formats, including Dolby Atmos and DTS:X.

z Please check specifications of your power amplifiers to make sure of satisfying these needs.

hing of 4K UHD videos.

Page 15

Common Connections

Connection to TV via HDMI

+'0,FDEOH

z Connect HDMI OUT (Main) port of the player to a TV set using an HDMI cable. For this connection, pure digital video and audio

signals are simultaneously transmitted using a cable.

z For normally playing 4K UHD contents, please do connect the HDMI OUT (Main) port of the player to a 4K UHD TV set compatible

with HDMI 2.0 and HDCP2.2.

Notes

z For this connection, sound is output through the speaker of the TV set. For the best sound quality, you’d better transmit audio from

this product to an A/V power amplifier with speaker.

z Please use a 4K TV set compatible with HDMI 2.0 and HDCP 2.2, to make sure that 4K %OX-ray discs and other 4K content can be

normally watched with 4K resolution.

z Please use anHDR (high dynamic range images) TV set for watching HDR content.

z Please use a high-speed (18Gbps) HDMI cable for connection, to make sure that 4K 60Hz videos can be watched.

z Please don’t output HDMI OUT (Audio Only) to the TV set.

Page 16

Common Connections

Dual HDMI Connection to a TV Set and an A/V Power Amplifier

+'0,OLQH

z “Dual HDMI connection” of this product does not only guarantee audios with high bit rate, but also assures the highest video quality

and resolution. You can connect the HDMI OUT (Main) port to a TV set using an HDMI cable, and connect the HDMI OUT (Audio

Only) port to the power amplifier with another HDMI cable.

z If your display device has 3D or 4K image functions, but your power amplifier does not have these functions, this configuration

method will be recommended. Then, video signals (3D or 4K images) can be directly sent to the TV set, and audio signals will be

sent to the power amplifier.



+'0,LQSXW

+'0,OLQH

+'0,LQSXW

Notes

z Please refer to instructions on HDMI connection.

z If your receiver doesn’t support HDMI audio input, please try other connections.

Page 17

Common Connections

Connection to a Stereo System via RCA

Stereo or surround sound system

Audio connection cable

z If your sound system only has a stereo input port or you want to connect your surround sound system to an independent stereo

system in addition to HDMI, optical fiber or coaxial output port, you can connect that system to the independent STEREO AUDIO

OUT port of this player.

z This product has two groups of stereo audio output ports: RCA terminal and XLR balanced terminal.

z You’d better give priority to choose XLR terminal, because it outperforms the RCA terminal in noise suppression and signal

integrity.

Notes

z Independent stereo output ports will automatically down mix multi-track audio source signals into stereo signals, but independent

stereo output will not be affected by down mix or menu setting>other speaker setting options of sound processing.

Page 18

Common Connections

Connection to a Stereo System Using an XLR Balanced Audio

Cable

Stereo or surround sound system

Audio connection cable

z You can also connect the XLR BALANCED STEREO AUDIO OUT to the stereo system. Please use XLR3 balanced audio cable,

and the XLR port of this player is a male terminal.

Notes

z The XLR BALANCED STEREO AUDIO OUT is commonly used for specialized electronic audio devices, including high-quality

microphones and cables connected between devices.

z This product uses XLR port (as shown in the figure below) and transmits a pair of differential signals (positive/negative signals).

Back-end circuits can cancel common-mode noises and increase integrity of original signals by comparing voltage differences

between this pair of signals.

Ground

This product uses male XLR terminal

Positive

Negative

Page 19

Common Connections

Connection to an A/V Power Amplifier through S/PDIF

(Optical/Coaxial)

Coaxial digit audio

Coaxial inpu

Optical inpu

A power amplifier with Dolby Digital or DTS decoder

z Please connect the optical or coaxial audio output to corresponding output terminal of the A/V power amplifier using a 75 ȍ coaxial

digital audio cable or S/PDIF optical/digital audio cable with RCA plug.

cable

Optical and digital

audio cable

Notes

z Owing to bandwidth limits, high resolution audios in formats such as Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution

and DTS-HD Master Audio cannot be output in a coaxial manner or through optical fiber cable. The aforementioned sound tracks

will be replaced by versions with lower resolution. Please use HDMI for connection of your power amplifier can process HDMI audio

inputs, in order that high resolution audios can be in the best format. Otherwise, use multi-track analog output.

z Due to copyright limitations, SACD audios cannot be transmitted through coaxial or optical/digital audio output. To appreciate

SACD, please choose HDMI or analog audio connection.

z Because of copyright and bandwidth limitations, high resolution audios of DVD-Audio discs cannot be transmitted through co-axial

or optical and digital audio outputs. To appreciate high resolution DVD-Audio discs, please choose HDMI or analog audio

connections.

Page 20

Common Connections

Connect to an A/V receiver or amplifier via Analog Outputs



]Â·Â×ĩÂĈȱðĄê×ŔÂĈĪ×ēÔǌȒǆ·Ôę½×ø/òĄęē



z The UDP-900 is equipped with a 7.1 channel analog audio output, which can be connected to the 7.1 channel analog audio input

panel of a receiver or amplifier. This connection method is necessary for A/V receivers that do not support HDMI audio input. At the

same time, this connection method is also recommended as a good use of the advanced digital-to-analog converter of the

UDP-900.

z If the A/V receiver or amplifier only has a 5.1 channel audio input, then there is no need to connect the SBL (left rear surround) and

SBR (right rear surround) terminals. Set the audio mode to 5.1 channels in the speaker configuration of the setup menu.

z If your audio system is only equipped with stereo audio input, or if you want to connect a dedicated stereo system in addition to the

surround sound system that is already connected to the HDMI or S/PDIF output, you can connect it to the FL (left front) and FR

(right front) terminals of this player. Set the audio mode to stereo in the speaker configuration of the setup menu.

Page 21

Digital Audio Input (USB)





Digital Audio Source

Common Connections



z The UDP900 implements USB Audio Class 2.0 sound card functionality and can act as a standalone digital-to-analog converter

(DAC). The built-in ES9038Pro audio processor is used to process digital audio signals. The processed analog audio can be output

from independent stereo terminals (RCA and XLR) and the front panel headphone output.

z You can use a USB cable (not provided) to directly connect a digital audio device (such as a PC, MAC computer, or mobile phone)

to the USB input of the UDP900. You may need to make some settings on the audio source device to ensure that the audio signal is

output from the correct terminal. Then use the XMOS key on the remote control to enable this function.

Notes

z The USB audio input of UDP900 supports up to 2-channel 32-bit 384k Hz PCM and DSD256 signals.

z To input audio data from a Windows computer to UDP900 via USB, you need to install the sound card driver software on your

computer in advance. This software can be downloaded from the MAGNETAR official website (magnetar-audio.com).

z No driver installation is required for Mac computers and mobile phones.

Page 22

Common Connections

Connection to the Internet

This product can also play audios, videos and photos through a home network. This option supports NFS, DLNA and SAMBA/CIFS.

This product also supports BD-Live available from certain %OX-ray discs. BD-Live provides extra downloadable content and additional

online interactive programs. BD-Live content varies with discs and publishers. They might include extra captions, comments, movie

trailers, games and online chat. To use BD-Live through the Internet, this player has to be connected to the broadband Internet. If you

needn’t use onlinestreaming media, it will be unnecessary to connect BD-Live to the Internet.

Broadband Router/Modem

Connected to broadband

Internet

z Insert one end of the network cable (type 5/5E straight Ethernet cable) into the LAN port on the back panel of this product.

z Insert the other end of the network cable into the LAN port of the broadband router or modem.

z After this player is connected to the broadband Internet, some network configurations might be needed.

z For setting the broadband router or modem, please refer to related instructions or contact the Internet operator.

Internet

Network cable (Ethernet)

Notes

z Only the LAN ports of this player can be connected to Ethernet ports compatible with 1000BASE-Tǃ100BASE-TX or 10BASE-T. Its

connection to other ports or interfaces such as phone interfaces will cause damages to the player.

Page 23

Common Connections

BD-Live

Titles of certain %OX-ray discs have functions of BD-Live (%OX-ray interactions). BD-Live provides extra

downloadable content and additional online interactive programs. The BD-Live content also varies with

discs and publishers. They might include extra captions, comments, movie trailers, games and online

chat. Only if the player is connected to the broadband Internet can it play BD-Live content.

BD-Live content is represented in different forms dependent upon manufacturers’ organization of the content. For instance, start

downloading BD-Live content at the start time of playing, and BD-Live will be optional on the main menu of the disc. Reminders will be

displayed to ask you if you need to start downloading, and inquire you if you have to register membership or an account. Please enjoy the

BD-Live content based on disc instructions.

Your Internet connection speed and capacity of BD-Live content server will affect download speed of the BD-Live content. If you find that

download is slow or playing is intermittent, you’d better only play contents of the disc without using the BD-Live function, or try again at

some other time. When you use the BD-Live function, your player ID, compact disc and IP (Internet protocol) address would be sent to

the content provider through the Internet. Generally, no information on personal identity will be sent. Instead, there are really certain

technologies which will match your IP address with certain geographical areas or service providers. Therefore, your Internet service

provider is able to know who is using a certain IP address. If the BD-Live content provider requires you to log in with membership

qualification or an account, it will be able to obtain information about your membership qualification or account. Please confirm with your

Internet service provider and BD-Live content provider about their privacy policies.

You can restrict the access to the BD-Live network by setting menu of the player.

Page 24

Basic Operations

Disc Playing

Basic Operations

Power supply

Pause

Option

Ej ector

opening/

closing

1. Power on the player by pressing the power key.

2. Press the ejector opening/closing key. Then, the disc Ejector

will pop out.

3. Put the printed side of a disc upward and the recording side

downward.

4. Press the ejector opening/closing key to put the disc away.

5. The player will read the disc information and start playing.

6. The menu or navigation interface might be displayed

dependent upon disc content. Please choose the content to be

played by pressing the direction key and OK.

7. To stop playing, press the stop key.

8. To switch off the player, press the power key.

1. Press the OPTION on the remote control and open the option

menu during navigation and playing of a media document.

2. When the option menu is displayed, press the up/down key

on the remote control to highlight specific options. Then, press

OK key for confirmation.

the

Option Menu

For different types of content, options would vary. The options and corresponding functions are summarized as follows:

In playing video discs (DVD, BD) and video documents:

z Caption setting: Choose requisite caption languages among captions available.

z Track setting: Choose requisite sound tracks among those available.

z Replay: Repeated sections, headings or the whole disc.

z Image adjustment: D

In playing audio discs (CD, SACD) and music documents:

z Programmed playing: Play songs based on the set order of precedence (only available in playing CD).

z Replay: Replay the current song or all songs.

z Disorderly and random playing: Turn on disorderly and random modes.

In playing image documents:

z Disorderly and random playing: Turn on/off disorderly and random playing modes;

z Switching method: Change the method for playing slides.

isplay a menu for image adjustment.

Page 25

Rapid Playing

Fast

backward

Notes

Fast

forward

Basic Operations

You can perform fast forward or fast rewind operations at the time of

playing.

1. Press the fast forward key on the remote control. Then, the

player will start playing fast forward. Whenever the fast forward key

is pressed, the player will adjust the play speed in order as follows:

2x 4x 8x 16x 32x

2. Press the fast rewind key on the remote control. Then, the player

will start playing fast rewind. Whenever the fast rewind key is

pressed, the player will adjust the play speed in order as follows:

2x 4x 8x 16x 32x

discs using BD-Java might have their own fast forward and fast rewind control. Actual speed might somewhat differ z Certain %OX-ray

among the discs, and progress is even displayed for certain discs.

Slow Playing

Fast backward

Pause/play

Fast

forward

To play a video slowly, please follow the following steps.

1. First, press the pause key on the remote control to stop

playing.

2. Press the fast forward key to choose a low forward

playing speed. Whenever the fast forward key is

pressed, the playing speed will change in order as

follows.

3. Press the fast rewind key to choose a low playback

speed. Whenever the fast rewind key is pressed, the

playing speed will change in order as follows.

4. Press the playing key to exit from the slow playing mode.

Page 26

Basic Operations

Pause and Frame-by-frame Playing

 The playing may be suspended by pressing the

Pause/play

 When a DVD or a %OX-ray disc is under the paused state,

Blu-ray Disc Menu

pause/playing key during playing. Under this mode, a

pause icon will show up on the TV screen.

press the last song or the next song, so that video

images will be played forward or backward frame by

frame.

Disc menu

Direction key

Audio Control

Volume

Popup Menu

OK key

Color key

 A %OX-ray disc menu usually comprises of a disc menu

and a popup menu. The disc menu usually appears

behind preview and copyright information after the player

starts playing. The popup menu may appear in the

process of playing a movie, which needn’t be suspended.

 In the playing process, press the disc menu key to enter

the disc menu, and press the popup menu keyto enter

the popup menu.

 Browse the menus by the direction key. Then, press OK

to confirm your choice.

 Color keys are used in some menus. You can press

correspondingcolor keyon the remote control to choose

menu functions.

1. Audios can be controlled with the VOL +/- on the remote

control. You’d better set audios of the player to be the

same as other information sources (e.g. TV programs or

VCR).

Press VOL + to increase radio volume.

Press VOL - to lower audio volume.

Page 27

Mute

Track Selection

Mute

Audio Track

Basic Operations

1. By pressing MUTE on the remote control during playing,

the audio output will be turned off, and a mute icon will be

displayed on TV screen.

2. Press MUTE again to recover the audio output.

1. Press the track key on the remote control during playing

and choose track.

2. Repeat pressing the track key or the up/down key to

choose the track available.

Notes

z The tracks available vary among discs. For certain DVD-Audio discs, tracks can be selected through the track key. For other discs,

track choices have to be made by users in the sound setting menu. For multi-track and stereo playing of SACD, the track key can

be pressed between the two modes.

Caption Selection

 In playing DVD, %OX-ray discs or other video programs

with captions, press the caption key on the remote

Caption

control to choose requisite captions.

 Repeat pressing the caption key or up/down key to

choose the captions available.

Page 28

Advanced Operations

Repeated Playing

1. To repeat a disc, song, heading or section, press repeat

Repeat

2. Whenever repeat is pressed, the repeat mode will be

Repeat Choosing a Segment

To repeat playing a certain segment, please follow the

following steps:

1. In the course of normal playing, press AB on the remote

AB Repeat

2. When playing at the desired stop point (Point B), press

3. Press AB for the third time, and normal play will be

on the remote control.

switched in order.

control at the desired start point to set repeated playing.

Then, “A-” will be displayed on the TV screen.

AB again. Then, the player will repeatedly play the

designated part (A-B), and “A-B” will be displayed on the

TV screen.

recovered.

Notes

z Some disc formats or content might be inapplicable. Repeated playing mightbe disallowed for certain %OX-ray discs.

Page 29

Advanced Operations

Pure Audio Mode

Under the pure audio mode, any potential interference

between video and audio signals is reduced by turning off

video processing and output.

1. Press pure audio on the remote control, and “pure on”

will be displayed on the display screen. At this moment,

Pure audio

Notes

z HDMI simultaneously transmits audios and videos, so HDMI video signals cannot be fully turned off. Instead, black screen will

appear, and potential interference can be maximized.

the player will enter the pure audio mode, and video

output will be turned off accordingly.

2. Press pure audio again, and “pure off” will be show up on

the display screen. At this time, recover normal video

output and cancel t

he pure audio mode.

Control over Image Zooming and Display Ratio

This function is used for amplifying or narrowing display

frames.

Press zoom on the remote control to change the zoom level.

Zoom

The following zoom levels are optional:

1:1 (no zoom), 2X, 3X, 4X, 1/2X, 1/3X, 1/4X

Whenever zoom is pressed, switch the zoom level in order.

XMOS

This feature is a USB Audio Class 2.0 sound card function.

Connect the computer or mobile phone to the USB input port

on the rear panel via a USB cable. The music from the

computer or mobile phone will be output from the Stereo audio

XMOS

output (RCA and XLR) and the headphone output on the front

panel.

Page 30

Advanced Operations

Memory and Automatic Recovery

Power supply

Notes

Ejector opening/closing

Return

1. When playing is suspended, the player will automatically

memorize the current position. In opening the Ejector or

turning the player on or off, the player will save where it is

playing.

2. Even if the device is powered off or the disc is replaced,

the memory on where the player is playing will remain.

3. To play a disc with such memory, the player will identify

where the disc has been played as saved, and

automatically continue playing from

you want to cancel automatic playing continuance, the

player will replay from the beginning. You can press RFT

IRK when any reminder is displayed.

4. This player can memorize where 5 discs have played at

most. To memorize the 6

be replaced.

disc, the earliest memory will

memorized part. If

the

z Certain %OX-ray discs don’t have functions for playing based on memories. They can only play discs from the beginning.

Play Based on Songs

In playing a disc, you can directly jump to certain song by pressing

the number on the remote control. For instance:

Number Key

z To choose the 7

z To choose the 16

and [2].

Notes

z For certain DVD-Audio and %OX-ray discs, the sections to be played might not be directly chosen.

song, please press [7].

sing, rapidly and continuously press [1]

Page 31

Advanced Operations

Play Media Documents

This product can also play digital media documents apart from standard disc formats such as %OX-ray discs, DVD, CD and SACD. You

canappreciate data discs (recordable CD, DVD or %OX-ray discs), USB flash disks, hard disks or network storage devices.

Owing to diversity of media documents, coding software and technologies, we cannot assure compatibility with all your original or

downloaded content, but we will try our best to provide support in respect of such content.

Play from USB Storage Devices

This product has two USB ports: including one USB 3.0 port on the back panel and one USB 2.0 port on the front panel. You can connect

a USB storage device to either of these USB ports.

The USB ports are used for supplying maximum power supply (5 V, 500 mA) for USB storage devices. This power supply is high enough

for all USB flash disks and flash memory card readers, but might be insufficient for USB flash disks.

Therefore, in using USB flash disks, you’d better use external power supply. The USB port on the front panel is only used for upgrading,

and must not be utilized for supplying power to other equipment.

Notes

z This function is for USB storage devices only. This type of equipment is compatible with a majority of USB flash disks, mobile hard

disks and card readers. For other devices (including MP3 players, digital cameras and cellphones), there might be compatibility

problems.

z All compatible USB storage devices must be in FAT, FAT32, exFAT formats and compatible with NTFS.

z Incompatible USB storage devices might make the player stop responding. Under this circumstance, it is only necessary to switch

off power supply and remove the USB storage device before turning on the player again.

z The player reads the USB storage devices under the read-only mode. To minimize risks of data damages, you’d better not remove

the USB devices until the player stops playing.

Page 32

Advanced Operations

Main Menu

This product provides a main menu to help you browse and play discs/USB flash disks and sharing local area networks. The main menu

is the starting point for accessing media documents.

Main menu

You can call up the main menu from the MAIN MENU on the remote control. At present, there are 6 options:

z Choose a compact disc. Then, the player will start playing the inserted disc.

z With pictures, music and videos, you will b

devices and inserted data discs.

z The network can enable the player to play audios, videos and pictures of home media servers by streaming media. Hardware and

software with corresponding functions might be needed.

z Set the settings menu from which the player may be called up.

e allowed to access corresponding types of media documents from connected storage

Page 33

Advanced Operations

Play Music Documents

To play music documents of compact disks or USB storage devices, please choose the music option in the main menu. Then, the

document browser will be opened to help you browse documents and files. First, choose a data disc or storage device containing music

documents. It will take the player some time to read media information and list files and music documents.

In a music browser, the following operations can be

performed:

z Choose a music document by

up/down/left/right key to move the cursor.

z Press OK for playing.

pressing the

The following information will be displayed on the playing interface:

z Display playing status: play, pause, song and time.

z Display and modify playing modes: disorderly playing, random playing, single song on repeat and repeat all.

z Music information.

The following operations can be performed on the playing

interface:

z Routine playing control: Play, stop, pause, last song/next

song, fast

z Return to the previous menu without stopping music

playing: Press the return key. Stop playing and return to

the browser: Press the stop key.

rewind and fast forward.

Page 34

Advanced Operations

Play Video Documents

To play video documents of a compact disc or a USB storage device, please choose the video option in the main menu.

Then, the document browser will be opened to help you browse documents and files.

First of all, choose a data disc or a USB device containing video documents. It will take the player some time to read media information,

and list files and video documents.

The following operations can be performed in the video

browser:

z Press the up/down/left/right key to move the cursor

to choo

se video documents.

z When a video document is chosen, press OK to start

playing.

Once the video document is played, the following functions can be used for playing control:

z By pressing the stop key, the player will stop playing the video and return to the document browser.

z Press the option key for choosing captions and audios, etc.

Browse Image Documents

To play image documents of a compact disc or a USB storage device, please choose the image option in the main menu.

Then, the document browser will be opened to help you browse documents and files.

First, choose a data disc or USB device containing image documents. It will take the player some time to access media information, and

list files and image documents.

In the image browser, you can perform the following

operations:

z To choose video documents, press the

up/down/left/right key or page up/down key to move

the cursor.

z When an image document is chosen, press OK or the

The following operations can be performed in the process of image playing

Routine playing control: Play, stop, pause, last song/next song.

Repeated browsing: Repeat.

Random playing: Yellow key.

Image zooming: Blue key.

playing key. Then

the full-screen slide show mode.

Turn left (counterclockwise): Leftward key.

Turn right (clockwise): Rightward key.

, the player will start playing under

Page 35

Advanced Operations

Add Background Music

You can also add background music for browsing image slides. For this operation, you have to prepare some digital music documents.

First, choose music in the main menu and start playing music. Turn, press the return key to return to the main menu. Choose images.

Then, start browsing and playing slides in routine ways.

Page 36

Advanced Operations

Media Sharing in a Home Network

This product can remotely play music, pictures and video documents stored in media devices connected to the same home network with

it. You have to prepare a set of hardware like a computer (network attached storage) server connected to the same network segment as

the player. Install and configure software which is functionally equivalent to NFS, DLNA or SAMBA/CIFS (a protocol for sharing network

documents) client. In the setting menu, my network setting is enabled. Choose the network icon in the main menu. Then, press OK, and a

list of servers available will be displayed. In some cases, you might have to disable the hardware firewall, to allow access to the server by

this product.

For the UDP-900 player, a network can be shared in any of the following three ways

z Function as digital media player (DMP):

z The player can actively search the local DLNA server, browser and play the share content

z Access SMB/CIFS:

z The player can actively search the SMB/CIFS, brows and share the content therein with the player.

z For instance, the documents shared in the neighborhood document of Windows.

z Access NFS:

z The player can actively search the NFS, and browse the content it shares with the player.

z Generally, it will take more time to search the NFS.

therein.

Page 37

Set Menu Options

The setting menu of this product provides various setting and configuration options. For a majority of users, default configurations have

been perfect enough, so no setting needs to be modified. To be sure, if you want to adjust configurations of the player so that they will

perfectly match settings of your home cinema and your movie watching habits, please read the following contact, to understand details of

configuration options.

Use the Setting Menu

You can use the setting menu for adjusting settings of this player, in order that they will be fit for specific audio/video configurations. In

making these adjustments with the menu, we will indicate positions of requisite functions as follows:

OptionsMenu optionsSetting menu

Setting categories belong to the first level of the setting menu. This product has 7 setting categories altogether, which are on the left

column of the setting menu, including display, audios, playing, network, safety, language and options.

The menu options contain adjustable parameters, which are in the center of the setting menu. In entering a setting category, the list of

menu options under that category and corresponding current settings will be displayed in the box.

The options are exact numerical values or descriptive phrases, which represent variations in chosen factors and are on the right of

corresponding menu options.

When so many options are available on an interface that they cannot be fully displayed, you can check more options by pressing the

up/down key.

Setting Category Menu Options Current Value Chosen value

Page 38

Set Menu Options

Display Setting

For display setting in the setting men, you are allowed to configure video output options.

TV Screen

TV aspect ratio: The player adjusts output aspect ratio according to aspect ratio of current display equipment, in order that videos viewed

by users will not deform.

Full screen

Mailbox

Panoramic

--- The videos output by the player are always displayed on a full screen.

--- When TV aspect ratio differs from the video aspect ratio, choose this option. There will be b

upper or lower, left or right part of the TV screen.

--- When TV aspect ratio differs from the video aspect ratio, choose this option. The video contents on the upper or

lower, left or right part will be cut.

lack blocks on the

Resolution

Output resolution: Choose the output resolution of the original resolution which best matches TV

Automatic 1080i

480i/576i 1080p

480P/576P 4K2K

720P

Notes

z If a TV set is not compatible with the chosen resolution, black screen or wrong information will be displayed. Under this

circumstance, please press the resolution key on the remote control for 3 to 5 seconds before switching to the resolution suitable

for the TV set.

Page 39

HDR Setting

Choose a suitable mode for HDR images

Automatic (default)

HDR

SDR

--- When both source contents and display equipment support HDR, there will be HDR output. The player will

automatically detect if HDR source content and TV set or projector are compatible with HDR. If both

conditions are satisfied, the player will output HDR videos via the HDMI OUT (Main) port. Otherwise, SDR

videos will be output only.

--- Enable the HDR function.

--- HDR source contents will be converted into SDR.

Dolby Vision Mode

Choose HDMI Dolby Vision output mode.

Automatic (default)

TV-dominated

Player-dominated

OFF

--- When both source contents and display equipment support Dolby Vision, the player will automatically

choose the optimal output mode.

--- When the source contents are Dolby Vision and the display equipment supports the (standard) Dolby

Vision mode, choose this option, and the player will output the (standard) Dolby Vision mode.

--- When the source contents are Dolby Vision and the display equipment supports the (low-latency) Dolby

Vision mode, choose this option, and the player will output the (low-latency) Dolby Vision mode.

--- Ban outputting Dolby video signals.

Set Menu Options

Television System

Choose HDMI video signal output system

Automatic (default) --- The player automatically chooses a video signal output system based on the source content.

NTSC --- Compulsorily output NTSC video signals.

PAL --- Compulsorily output PAL video signals.

Color Space

Choose color space for HDMI output.

RGB Video Level --- Use RGB color space within a confined scope of [16-235] for HDMI outputs.

RGB PC Level --- Use RGB color space within the full range of [0-255] for HDMI outputs.

YCbCr444 --- Use YCbCr444 color space for HDMI outputs.

YCbCr422 (default) --- Use YCbCr422 color space for HDMI outputs.

Color Depth

Choose color depth for HDMI outputs. Increase color depth so that color transition will be smoother and color gradation will be more

desirable.

Automatic (default) --- The player automatically chooses the optimal color space based on the supporting list of

display equipment.

12 bits --- Use 12-bit color depth for HDMI outputs.

10 bits --- Use 10-bit color depth for HDMI outputs.

8 bits --- Use 8-bit color depth for HDMI outputs.

Page 40

Set Menu Options

DVD 24P Conversion

“3:2 telecine” is used as a conversion technology for DVDs of many movies. With this technology, movies shot at 24 frames per second

can be converted into those at 60 frames per second. The player can convert the movies at 60 frames per second back into those at 24

frames per second and output them at 24 Hz. If both the television set and DVD satisfy the conversion conditions, smoother dynamic

scenes will be created by enabling this option.

Enable --- If possible, DVDs could be converted into those at 24 frames per second and output at 24 Hz.

Disable (default) --- DVDs will not be converted into those at 24 frames per second.

Choose 3D video output mode.

Automatic (default) --- If a disc contains 3D content and its display equipment supports the 3D mode, the player will output the

3D videos from the HDMI.

Disable --- The player only outputs 2D videos.

Page 41

Audio Setting

Set Menu Options

Optical/coaxial output

Set audio format output by SPDIF. Among the options, the upper limit upon sampling rate depends upon whether audio data is to be

sampled at a lower frequency.

Bitstream (default) --- Output audio data in the compressed bitstream format.

48K LPCM --- Compulsorily down mixed into 48K dual-track linear PCM (LPCM) digital audio format for outputting.

96K LPCM --- Compulsorily down mixed into 96K dual-track linear PCM (LPCM) digital audio format for output.

192K LPCM --- Compulsorily down mixed into 192K dual-track linear PCM (LPCM) digital audio format for output.

OFF --- Audio data is not output through SPDIF.

HDMI Audio Format

Set audio format of HDMI outputs.

Automatic (default) --- The player automatically selects the output audio format based on performances of the device connected to

HDMI.

LPCM --- Digital audios are output in a multi-track linear PCM (LPCM) format.

Bitstream --- Digital audios are output in formats of source codes.

Disable --- A

udio data is not output through HDMI.

Dynamic Compression

Automatic (default) --- Choose this option, to set for automatically opening/closing DRC based on input audio signals of

discs.This will impact Dolby TrueHD signals only.

Enable --- Choose this setting and adjust the range between the noisiest and the gentlest sound (functional range),

and play at the average volume. Please use this setting when it is hard to hear dialogues or when you

watch a movie late at night.

Disable --- When this setting is chosen, audio signals can be output without using the DRC function.

Page 42

Set Menu Options

SACD Output

Automatic (default) --- Automatically choose the output format. If supported by the connected device, DSD will be output.

Otherwise, PCM will be output.

PCM --- Convert SACD data into multi-track and high-resolution PCM data. The converted PCM data are

output through HDMI, or output through the output analog audio port after processing by the internal DAC

(digital analog converter).

DSD --- Direct stream digital (DSD) of SACD is not converted at all, but directly output through HDMI. For analog

audio output, DSD data are directly converted into analog signals via internal DAC.

Notes

z Owing to copyright and broadband limitations, optical/coaxial transmission of DSD audio data is impossible.

Priority of SACD

Choose to play an audio layer of the Super Audio CD (SACD).

Multi-track (default) --- Play high-definition multi-track surround sound audio layer.

Stereo --- Play high-definition dual-track stereo audio layer.

CD mode --- Play CD layer of SACDs.

DVD Audio Mode

Choose the mode for playing DVD Audio.

DVD Audio --- Play high-definition audios of DVD Audio.

DVD Video --- Play videos of DVD Audio discs.

Crossover

Set the bass cut-off frequency for all speakers. If the speaker size is set to small in the speaker configuration, bass below this frequency will not be transmitted to the speaker, reducing potential distortion. If there is a subwoofer, the bass will be redirected to the subwoofer. When all speaker sizes are set to large, there is no bass limit.

Page 43

Set Menu Options

Speaker Configuration

In the speaker configuration menu, you can set the audio mode, number, distance, size and channel volume of the speakers. The

speaker configuration menu is represented by a graphical representation of the speaker distribution to help you more intuitively complete

the speaker parameter settings.



Notes

z These settings will affect dynamic range control (DRC), audio and video synchronization, HDMI, optical and coaxial output.

z When set to Bitstream output, HDMI, optical and coaxial output are not affected by these settings.



Audio Mode

The audio mode menu is used to set the downmix function, which converts multi-channel audio into audio output with fewer channels. For

example: converting 7.1 channels to 5.1 channels. Downmixing allows the audio output of the player to match the actual number of

speakers in your home theater.

LT/RT --- The center and surround channels are mixed into the left front and right front channels according to the

left and right matrix. Receivers that support Dolby Pro Logic can decode two-channel audio into surround

sound audio.

Stereo --- Downmixes multi-channel audio into two-channel stereo output. For original stereo content, the output

remains unchanged. For original multi-channel content, the surround and center channels are mixed into

the left front and right front channels.

5.1 Channel --- Outputs 5.1 channel decoded audio in this mode. The actual number of output channels depends on the

disc. If the audio source content has more channels,

surround channels.

the rear surround channels will be mixed into the

Page 44

Set Menu Options

ǆȒ

7.1 Channel --- Outputs 7.1 channel decoded audio in this mode. The actual number of output channels depends on the

disc. For 6.1 channel content, its left/right rear surround channels will output the same rear surround

channel audio.

Test Tone

Test tone is a set of artificially created sounds used to test the speaker system and help identify wiring errors. The test tone is set to off by

default. Please note that these test tones are only effective for multi-channel analog audio output and are only suitable for channel

identification purposes. Considering the configuration of the speakers, we recommend using dedicated test tones from professional audio

calibration discs.

Speaker Settings

To set the size, distance and volume of each speaker, you can move the cursor to the speaker by pressing the LEFT/RIGHT arrow keys

and then press the ENTER key to open the speaker settings menu on the right side of the screen. In the speaker settings menu, use the

UP/DOWN arrow keys to select a parameter and then press to set the following speaker parameters:

Size : Set the bass filter control for each speaker

z Large - All audio is transmitted to the corresponding speaker.

z Small - All audio except for low frequencies is transmitted to the corresponding speaker. The purpose is to reduce distortion. If there

is a subwoofer, low frequencies will be redirected to the subwoofer, otherwise they will be discarded. The upper limit of low

frequencies must be set in the crossover in the settings menu .

z Off - The corresponding speaker does not exist. The audio corresponding to the missing speaker will be redirected to other

speakers, and if it cannot be redirected, it will be discarded directly.

z On (only applicable to subwoofers) - Indicates that a subwoofer is available.

Notes

z The size configuration of the front, surround and rear surround speakers is done in pairs. If you need to change the size of one

speaker, the other one paired with it will also be automatically changed.

2. Distance: The speaker distance parameter setting can adjust the delay time of the corresponding channel. The delay function can

compensate for the audio transmission time difference caused by the speaker position.

3. Channel Volume: Set the volume of each channel. Since most A/V receivers have channel volume adjustment and speaker

sensitivity difference compensation functions, channel volume setting is usually not required. However, if your receiver does not

have this function (many receivers’ multi-channel analog inputs do not support it), you can adjust the channel volume through the

player. For the most accurate results, it is recommended that you use a calibration disc (such as “Digital Video Essentials HD

Basics”) and an SPL (sound pressure level) meter.

Page 45

Set Menu Options

Playback Setting

Automatic disc playing

Enable (default) --- The player will automatically start playing the disc right after a disc is inserted into it.

Disable --- The compact disc will not be automatically played after it is inserted into the player. It will not start

playing the disc until the user presses the playing key.

CC Captions

Enable (default) --- Turn on CC (Close Caption) display.

Disable --- Turn off CC (Close Caption) display.

Angle Mark

To play a multi-angle disc, you can enable or disable the multi-angle reminder function.

Enable (default) --- Enable the function for displaying multi-angle marks.

Disable --- Disable the function for displaying multi-angle marks, to not affect normal viewing.

Picture-in-picture Mark

To play a disc with pictures-in-pictures, enable or disable to picture-in-picture reminder function.

Enable (default) --- Enable the picture-in-picture reminder function.

Disable --- Disable the picture-in-picture reminder function, to not affect normal viewing.

Second Audio Mark

To play a disc with the second audio, enable or disable the second audio reminder function.

Enable (default) --- Enable the second audio reminder function.

Disable --- Disable the second audio reminder function, to not affect normal viewing.

Memory-based playing

Choose whether to play a disc from the previous saved point.

Enable (default) --- Automatically start playing from the previous saved point.

Disable --- Start playing from the beginning.

Page 46

Set Menu Options

Network Setting

For network setting on the setting menu, you can configure parameters for the player network, test connections and set access to BD-Live.

Internet

Choose whether to enable the Internet.

Enable (default) --- Enable the Internet.

Disable --- Disable the Internet.

IP Address Setting

Choose the method for the player to acquire an IP address.

Automatic (default)

Manual

--- The player automatically acquires information on IP addresses through the dynamic host configuration

protocol. This is a default setting. In most cases, automatic IPconfiguration has to be used.

--- Manually enter the IP address, subnet mask, gateway and DNS. When a router cannot function as a

DHCP server or the DHCP server is disabled, choose this mode. Press CLEAR on the keyboard to clear

the edited content.

Proxy Server

Set the proxy server, which may function as media for the player to have network communications with other servers. It is safe, anonymous, speedier and subject to no regional limit.

Disable (default)

Enable

--- Disable the proxy server.

--- Enable the proxy server.

Information

Display information on current Internet connections, including connection type, IP address and Ethernet MAC address.

Connection Test

Test if the player is connected to the Internet and display the test results.

Page 47

Set Menu Options

Connection to BD-Live

Choose the BD-Live content to be accessed.

Enable (default) --- Grant access to all BD-Live content.

Partially enable --- Only grant access to content with effective ownership certificate. Access to the BD-Live content

without certificate will be banned. This option ensures you that you will only access reliable

information and hinder you from accessing some small-scale independent content providers as far

as possible.

Disable --- Ban access to BD-Live.

Choose whether to enable DLNA (DMP).

Enable (default) --- Enable DLNA.

Disable --- Disable DLNA.

Page 48

Set Menu Options

Security Setting

To prevent minors from viewing unhealthy content, you can set child lock control level. This function only works for correctly graded and

numbered discs.

The default password is “0000”.

Change Password

Change the grading control password. The current password can be replaced by a new one after it is entered.

Control over BD Level

Press the up/down key and choose %OX-ray grading. “Disable” means that no hierarchical control is available, and all %OX-ray discs can

be played.

Numbers from 1 to 21 correspond to age limits. When the age limit upon disc numbering is below the chosen age, the user will be allowed

to view. The user will be banned from viewing the age limit exceeds or equals to the chosen age.

Hierarchical DVD Control

Choose DVD class by the up/down key. The effective classes include OFF, Kid, G, PG, PG-13, PGR, R, NC-17 and Adult. The discs with

lower classes than the chosen one can be viewed, while those with the chosen class orhigher will

be played if this function is disabled.

be banned from viewing. All discs can

National Code

Classes of some %OX-ray discs might vary in different countries. At present, the player only supports hierarchical control placed in the

United States.

Page 49

Set Menu Options

Language Setting

Display Language of Screen

Choose the language for displaying information on the player menu and screen.

Menu Languages for Discs

Choose menu languages for DVDs and %OX-ray discs. If the chosen menu language for discs is available, this language will replace the

default menu language.

Sound Language

Choose sound language for DVD and %OX-ray discs. If a disk has a sound track in the chosen language, this track will be chosen for

playing the disc.

Caption Language

Choose caption language for DVDs and %OX-ray discs. If a disc has captions in the chosen language, these captions will be displayed.

Page 50

Set Menu Options

Other Settings

Screen Protection

Enable/disable screen protection. Screen protection is specially designed for reducing plasma and aging of CRT display devices.

Enable --- If no operation is performed over one minute/three/ten minutes, the screen protection program will be enabled.

Disable --- The screen protection is not activated. You can choose this option if your TV set has no aging problem.

HDMI CEC

Set HDMI CEC mode. CEC is an optional HDMI function. It is convenient for placing remote control and automatically setting by

connecting to the CEC of the player. The remote control function makes it possible for you to control multiple connected devices by HDMI

using a single remote control. For instance, control a %OX-ray player with a TV remote control. With the remote control function, the player

will be automatically powered off when you turn off the TV set. Realization and compatibility of HDMI CEC vary among equipment

manufacturers. HDMI CEC might only have some or special functions.

HDMI1 Enabled --- Enable CEC via HDMI1.

HDMI2 Enabled --- Enable CEC via HDMI2.

Disable (default) --- Disable CEC.

Restore Factory Settings

Restore all factory settings, including passwords of all accounts.

Firmware Upgrading

Upgrade player firmware. This option will be only available when the player contains no disc or completely stops.

Firmware is system software with functions for controlling the player. Since specifications for %OX-ray discs are new and being constantly

improved, the %OX-ray discs issued after production of these players would adopt new specifications and have new functions. Therefore,

to ensure optimal viewing experiences, the player firmware has to be updated from time to time.

Page 51

Set Menu Options

Please browse magnetar’s website (www.magnetar-audio.com) to check new firmware and upgrading instructions.

USB storage device --- You can download the latest firmware from the official website of magnetar to a USB flash disk. Then,

use this disk for upgrading the player firmware.

Network --- If the network to which your player is connected is normal, you can upgrade your player firmware

through the network.

BD Memory Setting

Manage BD-Video data memory. BD-Video data memory is used for storing additional content of BonusView and BD-Live. Once the

player is powered off, the data will be further saved.

Used space

Storage device

--- Display used space of the current storage device. If the space available is small, some %OX-ray discs

wouldn’t be normally planed.

--- Choose where to save the BD-Video data.

About the Disc Player

Display firmware version number and some other information of the player.

Page 52

RS-232 Control Protocol

Other Data

Reminders

z To prolong service life of the player, you’d better not power the player on again until at least 30 seconds after the player is powered

off.

z After use, please take the compact disc out and power the player off.

z In playing some compact discs, certain functions of the player would be unavailable.

z The player would not fully support tidbits of certain compact discs, but this is not a fault of the player.

z If the player malfunctions, please power the player off, and don’t power it on again until 30 seconds later.

Troubleshooting

You can choose general operation problems as shown in the table here below.

Faults Potential Causes Solutions Remarks

The audio cable is incorrectly

connected

Mute mode is turned on Press MUTE to cancel the mute mode

Volume is too low Press Volume + to raise volume to 100

No sound

No image

No color Saturation setting is too low Check saturation settings of your TV set and player

Color is wrong Color space is incorrectly set

“No compact disc”

or “unknown disc”

error

When SACD is played, the

audios connected are coaxial

or optical and digital

In playing DVD-Audio, the

audios connected are coaxial

or optical and digital

The video cable is incorrectly

connected

TV input source is incorrectly

chosen

Under the “pure tone” mode Press PURE TONE to cancel this mode

TV sets don’t support this

video output format

The player contains no

compact disc or the compact

disc is incompatible

Inspect the audio cable and please reconnect the cable when

necessary

This connection mode is not supported for the time being due to

output. Or you can set SACD priority as CD mode so that the player

will play the CD layer.

This connection mode is not supported for the time being due to

output. Or you can switch to the DVD-Video playing mode.

Inspect the video cable and reconnect it when necessary

Choose player input

Choose output resolution suitable for your TV set

To output videos through HDMI, please check color space settings

of your TV set and player

Take the compact disc out for inspection

Page 53

RS-232 Control Protocol

Faults Potential Causes Solutions Remarks

Remote control

malfunctions

Temporary

malfunctions

Some set menu

options become

gray

“Connection

test” fails

“The network”

displays that no

server is

available.

The recording side of the disc is

dirty

The disc is put upside down

The laser head condensates

Remote control is too far away Use remote control within effective distance

Battery is low Replace batteries

The disc is scratched on the

surface or damaged

Some functions don’t work

during playing

Interference of other devices

While a disc is being played,

some set options cannot be

altered. Certain set options

and others would be mutually

exclusive

The player cannot be connected

to the Internet.

No Internet connection.

Take the disc out and clear the dirt/stain or fingerprint off the disc.

Take the disc out to make sure that the printing side will be upward,

while the recording side will be downward.

Open the player and take the disc out.

Keep the player open for one hour.

Replace the disc

Try again after the player fully stops playing

Power off other devices to inspect their interference. Then, replace

the devices which interfere with the player or put them in other

places.

Try setting the menu again after the player fully stops playing and

the disc pops out.

Check if the router is connected to the Internet. Try restarting the

modem and the router. If possible, please try directly connecting

your player to Ethernet.

Check if other network functions of the player are normal. If it is

certain that there are problems with “network” functions, please

refer to instructions on media server, to ensure that

configurations are correct.

Page 54

RS-232 Control Protocol

Product Specifications and Parameters

The Company reserves the right to alter product designs and specifications without further notice.

Disc type *

Output

Characteristics of

analog audios **

(Stereo audio output)

Characteristics of

analog audios **

(7.1channel audio

output)

General specifications

Working temperature

Working humidity

UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW,

DVD±R/RW, DVD±R DL, BD-R/RE

Analog audio: Stereo

Independent stereo analog audio: XLR balanced output, RCA output.

Optical/coaxial audios: 2-track at maximum/192kHz PCM, Dolby Digital, DTS.

HDMI audios: 7.1-track at maximum/192kHz PCM, 5.1-track (maximum) DSD, Bitstream.

HDMI videos: UHD/1080p24/1080p/1080i/720p/576p/576i/480p/480i.

Frequency range: 20 Hz - 20 kHz (+/- 0.05dB)

Signal-to-noise ratio> 120dBr(RCA), >130dBr (XLR)

Total harmonic distortion + noise< 0.008%

Output level: 2.1±0.2Vrms (RCA), 4.2±0.4Vrms (XLR).

Dynamic range>120dB(RCA), >130dB(XLR)

Channel separation> 120dB(RCA), >130dB(XLR)

Frequency range: 20 Hz - 20 kHz (+/- 0.05dB)

Signal-to-noise ratio> 110dBr

Total harmonic distortion + noise< 0.008%

Output level: 2.1±0.2Vrms.

Dynamic range>120dB

Channel separation> 110dB

Power supply: AC 100V–120V~ / 220V–240V~ˈ50/60Hz

Power: 40 W (standby: 0.5 W under the energy-saving mode)

Dimension: 445 mm x 321 mm x 123 mm

Weight: about 15.8 kg

41°F – 95°F

5°C – 35°C

15% – 75%

No condensation

* Due to diversity of used multimedia, software and technologies, compatibility of user codes or users’ own discs cannot be guaranteed.

** Nominal specifications

Page 55

RS-232 Control Protocol

UDP-900 has a RS-232 interface with wired remote control. The interface pins are described as follows:

Pins 2 3 5

Signals Transmit data (TXD) Receive data (RXD) Ground (GND)

This pin configuration allows connection of a personal computer to the player by a straight-through 9-pin RS-232 serial cable, and a serial

terminal (e.g. Hyper Terminal) is operated for communication. Please don’t connect the player to your personal computer through any

“Null-Modem” cable.

To understand how to create connections, please refer to the document on remote control system.

Communication Configuration

Baud Rate 115200

Stop Bit 1

Data Bit 8

Parity Bit N/A

Flow Control N/A

Command Structure

Each command starts with “#” (ASCII code is 0x23), followed by one 3-character command code. It ends with a line feed upon carriage

return (ASCII code is 0x0d 0x0a).

The command structure is exemplified as follows:

<Start symbol of command> = # (ASCII 0x23)

<Parameters>=specific commands

<End symbol of command> = carriage return (ASCII 0x0d) [line feed (ASCII 0x0a)]

Page 56

RS-232 Control Protocol

Response Structure

The player will execute the command and send a response back after receiving it. Character string of the response is “ack”.

Commands

Command

Codes

POW Power

EJT Ejector Opening/Closing Open/close the ejector ack

PON Power On Power the player “on” ack

POF Power Off Power the player “off” ack

DIM Dimming Adjust display luminance of front panel ack

PUR Pure Tone Pure tone mode (switch off video output) ack

VUP Volume + Raise volume ack

VDN Volume - Lower volume ack

MUT Mute Turn off audios ack

NU1 1 Number Key 1 ack

NU2 2 Number Key 2 ack

NU3 3 Number Key 3 ack

NU4 4 Number Key 4 ack

NU5 5 Number Key 5 ack

NU6 6 Number Key 6 ack

NU7 7 Number Key 7 ack

NU8 8 Number Key 8 ack

NU9 9 Number Key 9 ack

NU0 0 Number Key 0 ack

CLR Clear Clear digital input ack

GOT Jump Jump to the designated point to start playing ack

HOM Main Menu Open the main menu to choose media sources ack

OSD Information Display/hide displayed information ack

Remote Control Keys Functions

Put the player under the “standby” state

Response

Instances

ack

TTL Disc Menu Display title menu of a %OX-ray disc or DVD ack

MNU Popup Menu Display popup menu of a %OX-ray disc or DVD ack

NUP Up Navigation ack

NLT Lef Navigation ack

NRT Right Navigation ack

NDN Down Navigation ack

SEL Confirm Navigation ack

SET Set Open setting menu of the player ack

RET Return Return to the previous menu or mode ack

Page 57

RS-232 Control Protocol

RED Red Functions vary with content ack

GRN Green Functions vary with content ack

BLU Blue Functions vary with content ack

YLW Yellow Functions vary with content ack

STP Stop Stop playing ack

PLA Play Start playing ack

PAU Pause Pause playing ack

PRE Rebounce Jump to the previous song ack

REV Fast Rewind Play fast rewind ack

FWD Fast Forward Play fast forward ack

NXT Next Jump to the next song ack

AUD Audio Track Choose track or dubbing language ack

SUB Caption Choose caption language ack

ANG Angle Choose angle of view ack

ZOM Zoom Zoom up/down and adjust image ratio ack

SAP Second Audio

ATB AB Repeat Repeat playing the chosen segment ack

RPT Repeat Repeat playing ack

PIP Picture-in-picture Display/hide picture-in-picture ack

HDM Resolution Switch output resolution ack

SUH Caption (hold)

OPT Option Display/hide option menu ack

SEH Image Adjustment Adjust image brightness, contrast and saturation, etc. ack

HDR HDR Display HDR selection menu ack

Enable/disable the second audio and menu. Down mix sound effects into

main audios.

Keep pressing the caption key to enable the function for setting caption

positions

ack

Page 58

RS-232 Control Protocol

Network Control

The UDP-900 is equipped with an RJ-45 network interface. It allows a personal computer to connect to the player via a local area network,

with the player's network listening port being 8102.

You can use third-party applications to connect to this listening port to control the player.

The instruction format, feedback information list, and instruction list of control commands are the same as RS232 control.

Page 59

RS-232 Control Protocol

Names and Contents of Toxic and Hazardous Substances or

Elements

Material Types

Baseplate for

Assembly

Casing

Optical Module

Drive Unit

Accessories

(Cables and Remote

Control, etc.)

żLQGLFDWHVWKDWcontent of a toxic and hazardous substance in all homogeneous materials of a component is below the limit specified by

SJ/T11363-2006.

x means that content of a toxic and hazardous substance in at least one homogeneous material of a component exceeds the limit

specified by SJ/T11363-2006.

Notes

Upon test, this machine is found to conform to the rules of EMC Directive on use of cables connected within 3m.

Lead Mercury Cadmium

(Cr6+) (PBB) (PBDE)

(Pb) (Hg) (Cd)

Page 60

RS-232 Control Protocol

Instructions on Warranty Card for Magnetar Products

I. According to related national laws and regulations, three warranties will be granted

Users of Magnetar products will receive complete services on three warranties according to the Rules on Responsibilities for Repair,

Replacement and Return of Household Auditory Products promulgated by related national authorities on July 23, 2002.

II. Warranty Principle

 Any products which malfunction in normal use and have not been disassembled for repair may be freely returned within seven

days after purchase, and replaced within 15 days after purchase, subject to one-year warranty.

 In the following cases, free replacement and repair will not be performed, but paid maintenance services will be available:

D Damages caused by human factors, including operations under abnormal working environment (humid and dusty) and failure to

use in compliance with the manual;

E Users disassemble, repair or alter the products without authorization, or use firmware of other companies other than

0$*1(7$5’s or have the products repaired by organizations other than our joint warranty service providers;

F Damages caused by force majeure or natural disasters (e.g. flood, fire, earthquake and lightning strike);

G No effective purchase voucher is provided;

H The purchase voucher is not in line with product model or altered. The product type and code are torn away;

I The products are not for normal household use, but utilized as engineering, test or commercial samples.

 Warranty Method

1. For warranty services, an effective purchase voucher must be presented.

2. You can have the product which satisfies the requirements for free replacement replaced with the sales outlet from which you’ve

purchased the product. For replacement of any product with host fault, in principle, we will only provide the same type of host for free

replacement.

3. You can have the products to be repaired (if necessary) repaired at any joint warranty service provider within our national joint

warranty network (excluding Hong Kong, Macao and Taiwan), or send the products back to our Aftersales Service Department for

repair.

Notes:

1. Before product use and in case of faults, please carefully read this manual.

2. Please carefully read the “notes” of this manual.

Manufacture: Magnetar Technology Shenzhen Co., Ltd.

Address: Room 211, 1

Website: www.magnetar-audio.com

Building, 26 Puzhai Road, Pingdi Street Center, Longgang District, Shenzhen

Page 61

Page 62

Page 63

Page 64

www.magnetar-audio.com
