User’s Manual MAGNER150
- Contents –
Important Safety Precautions ................................................................ .................... ........ 4
Warning .................................................... .... .... ........ .... .... .... ........ .... .... ....... .... .... .... ............ 4
1. START
1-1. Packing List ...................................................................................................... 5
1-2. Options ............................................................................................................ 5
1-3. Appearance ........................................ ............................................................... 6
2. BASIC OPERATION
2-1 Self-Diagnosis ........................................ ........................ ................... ................ 7
2-2. Counting Notes ..................................................................................... ............ 8
2-3. Display Function .............................................................................................. 9
2-4. Operation Key Function .............................................................................. .. 10
3. BASIC MODE
3-1. Count Mode ................................................ ........................... ........................ .. 11
3-2. Euro Mode ....................................................................................................... 14
3-3. USD Mode .......................... ............................................................................. 14
3-4. Local Currencies Mode ................................................. ....................... .......... 14
4. OPERATION MODE I
4-1. Batch Mode ..................................................................................................... 15
4-2. CF Mode .......................................................................................................... 15
4-3. ADD Mode ....................................................................................................... 16
4-4. Grand Total Mode ........................................................................................... 18
5. OPERATION MODE II
5-1. Mix Mode .......................................................................................................... 24
5-2. Dispenser Mode ............................................................................................... 24
5-3. Separate Mode (SP Mode) .................................................................... .......... 25
5-4. SP-ver Mode ..................................................................................................... 25
5-5. SP-verA Mode .................................................................................................. 25
5-6. Single Mode ..................................................................................................... 26
5-7. Dir-MF Mode ..................................................................................................... 26
5-8. Dir-MO Mode .................................................................................................... 26
5-9. Dir-SF Mode ..................................................................................................... 27
5-10. Dir-MO Mode ............................................................. .... ....... .... .... .... ........ .... .. 27
5-11. Serial Number Print Mode ........................................................................... 29
- 2 -
Page 3
User’s Manual MAGNER150
6. SERIAL PRINTER
6-1. Descriptions of Serial Printer ....................................................................... 31

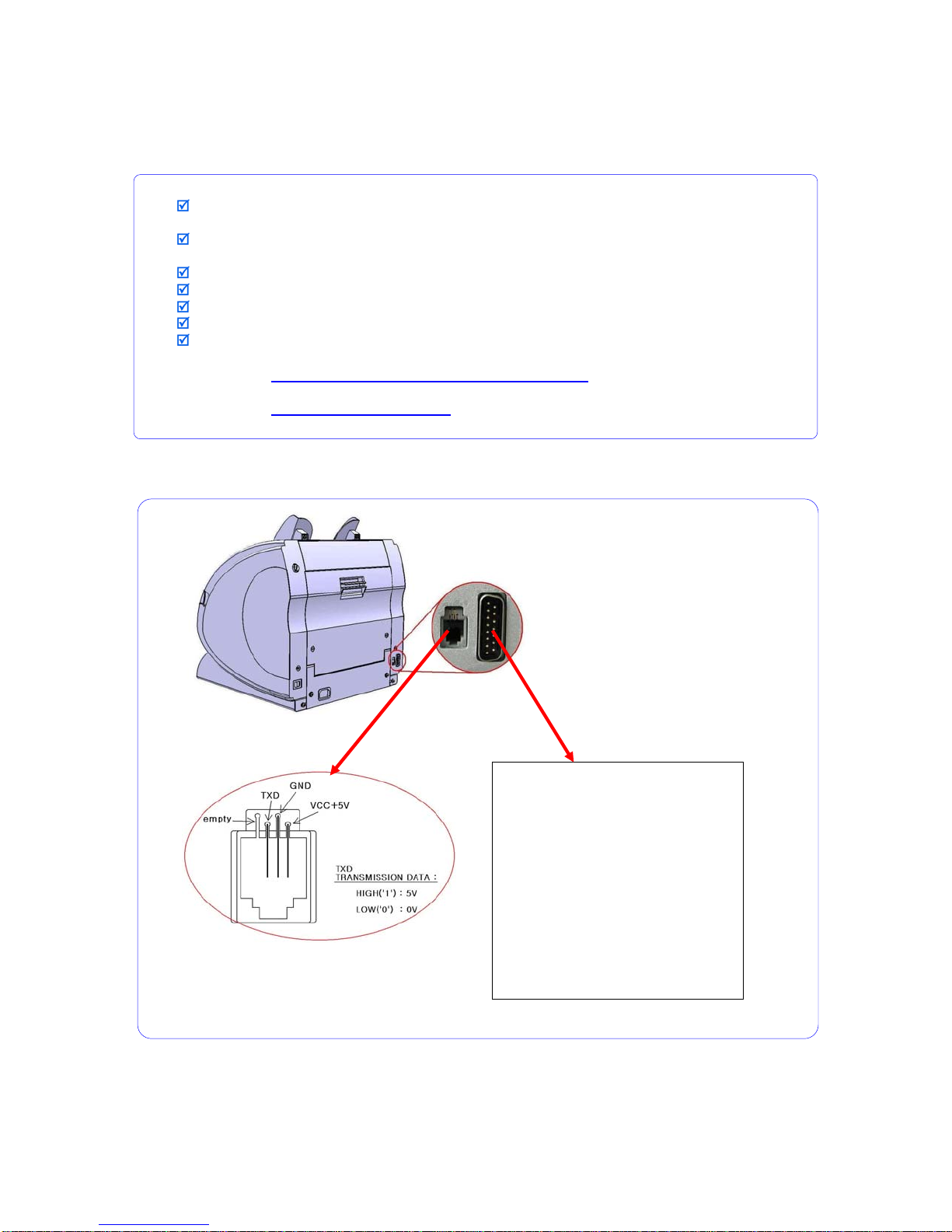

6-2. Descriptions of Serial Port ............................................................................ 31
6-3. How to set the Serial Printer ......................................................................... 32
6-4. Descriptions of Menu ..................................................................................... 33
6-5 Print the receipt .............................................................................................. 33
6-6. Form of the receipt ......................................................................................... 34
7. USER SETTING Mode
7-1. How to set the User Setting Mode ................................................................ 35
7-2. Descriptions of Menu ..................................................................................... 36

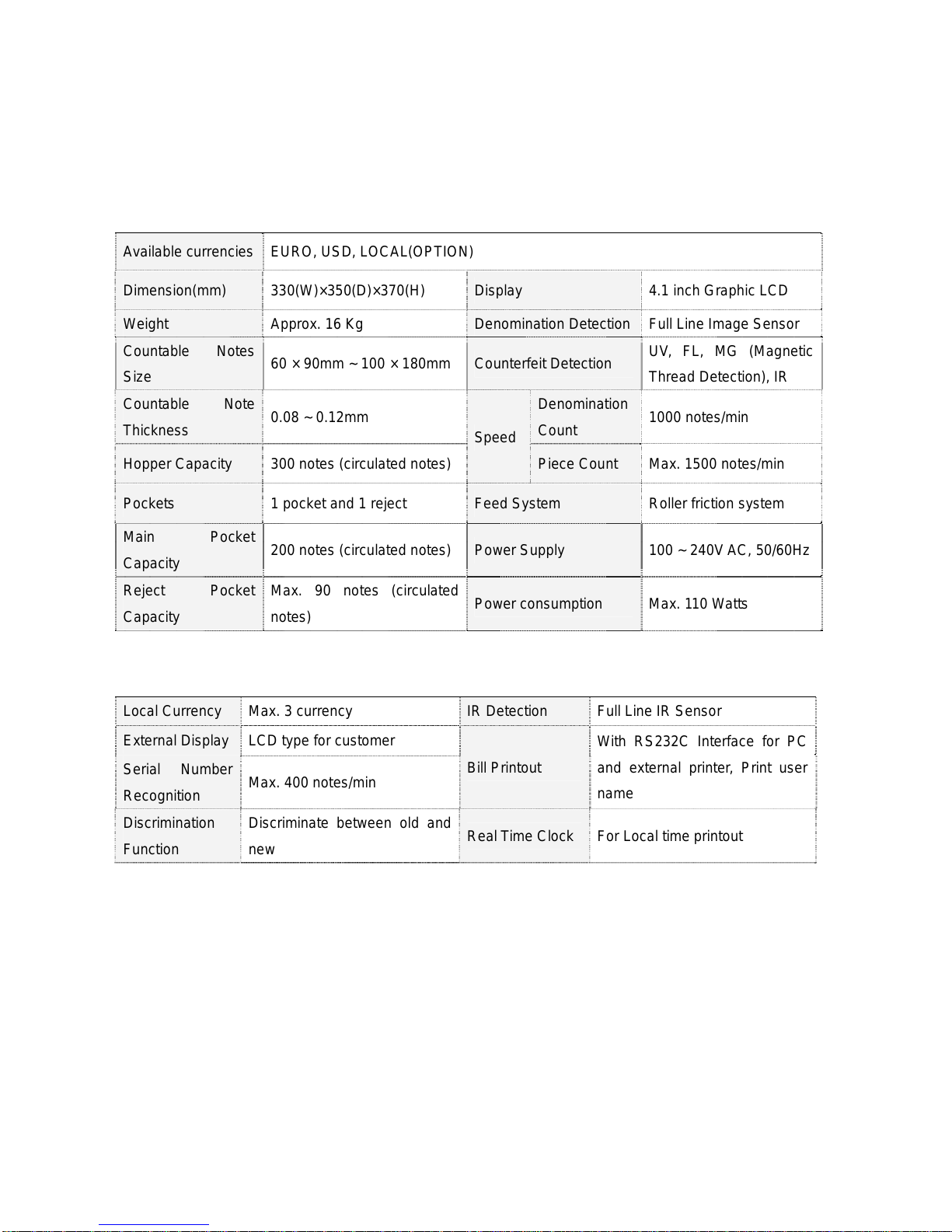

SPECIFICATION OF THE MAGNER150
Technical Specification/Options ................................................................................. 39

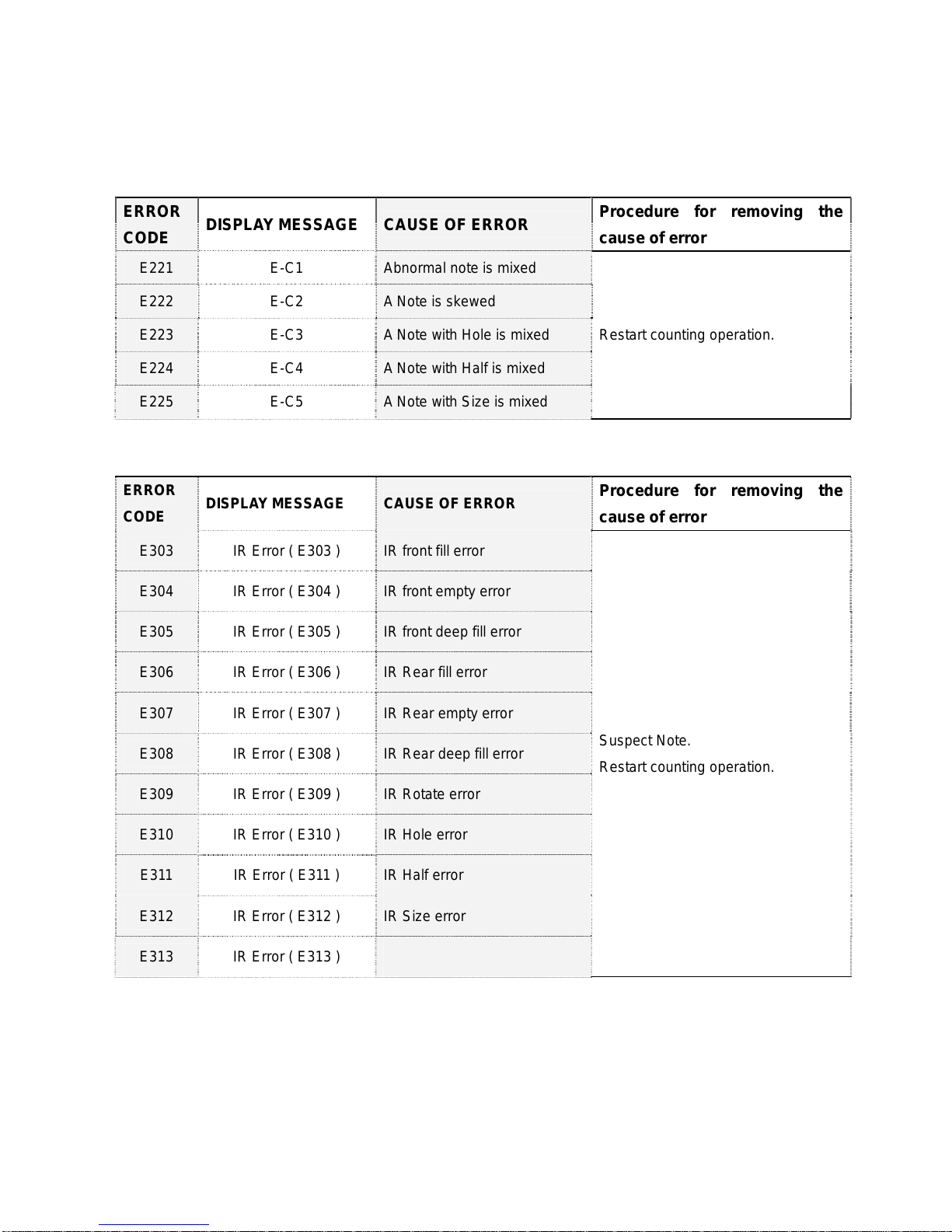

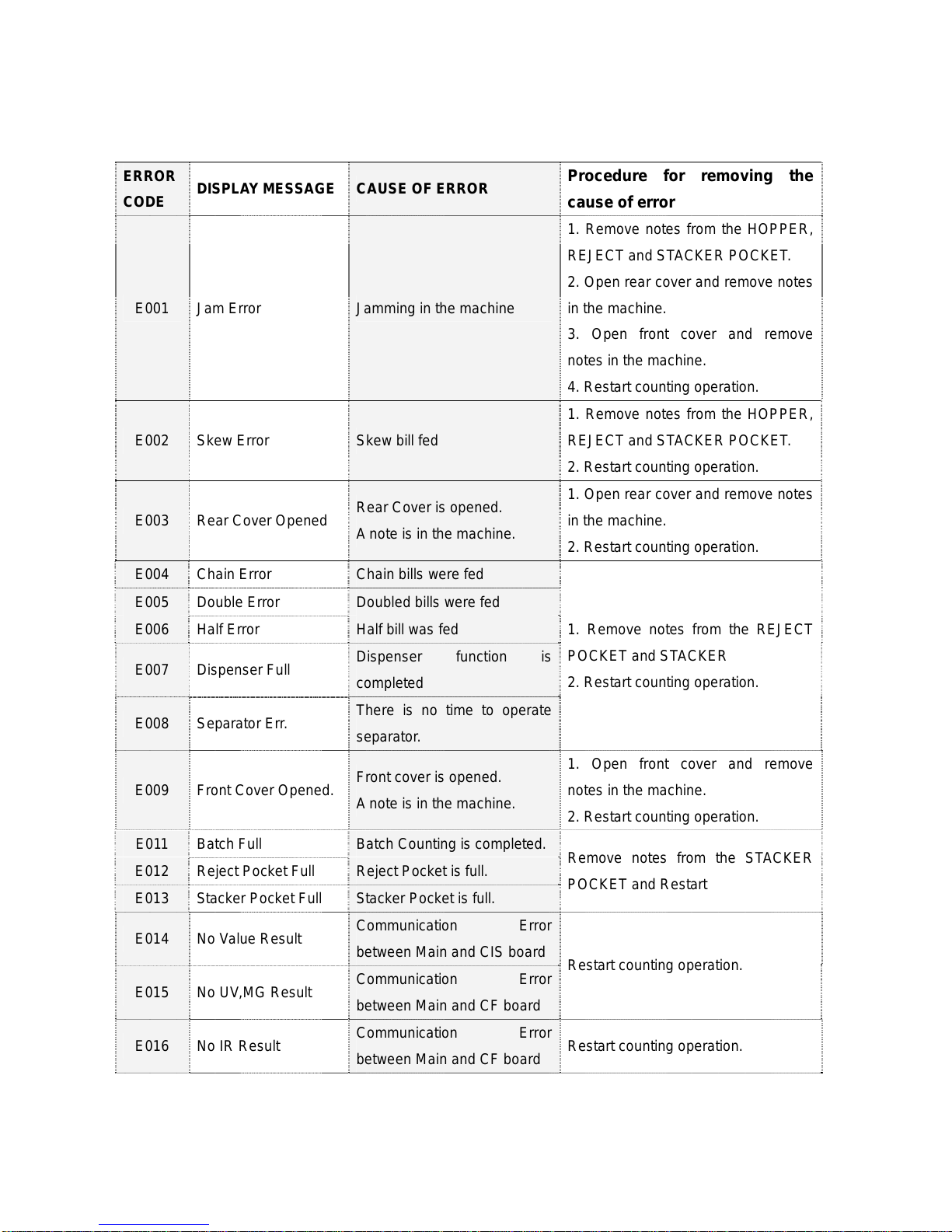

Error Code – Count Error ................................................................ ....................... .......... 40

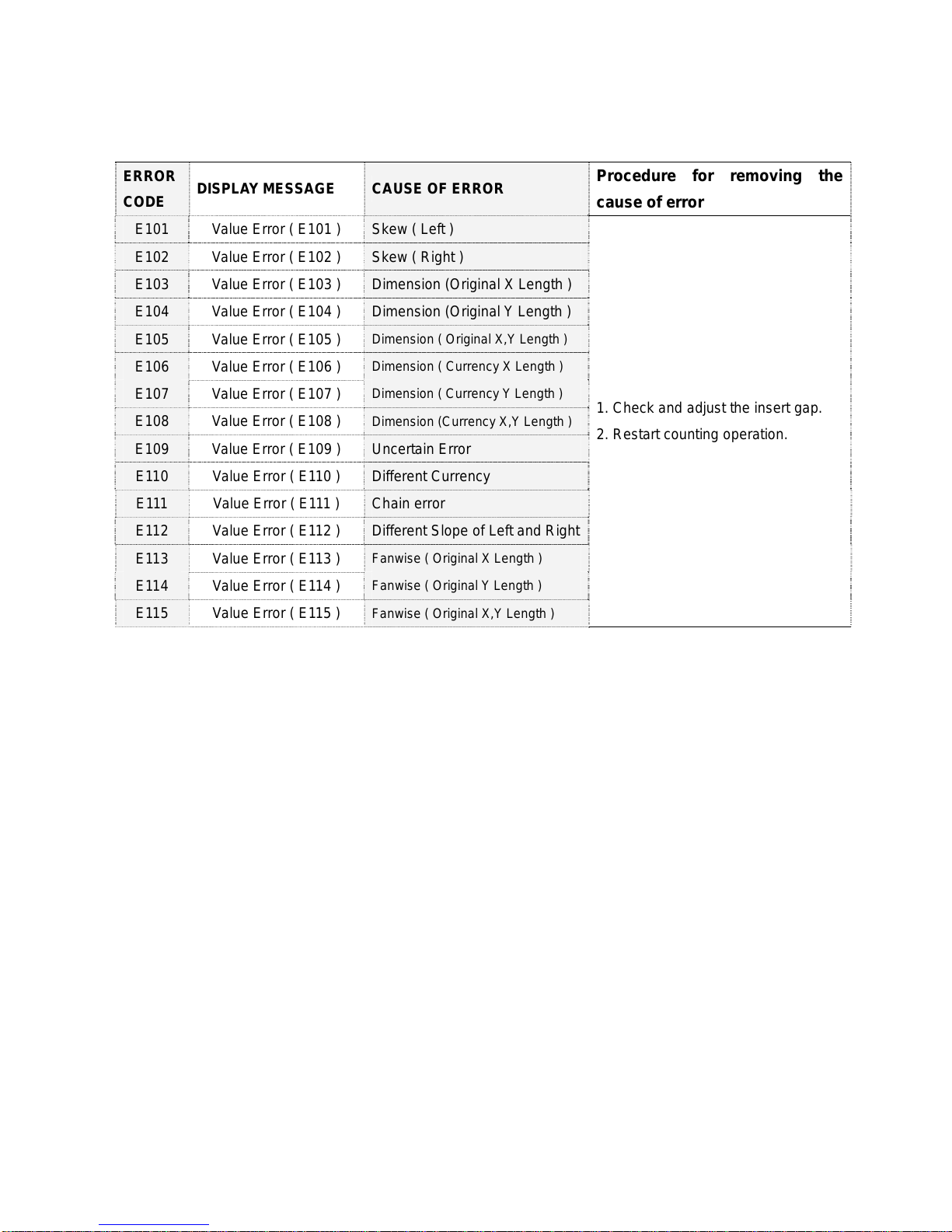

Value Error ................................................................................................. 41

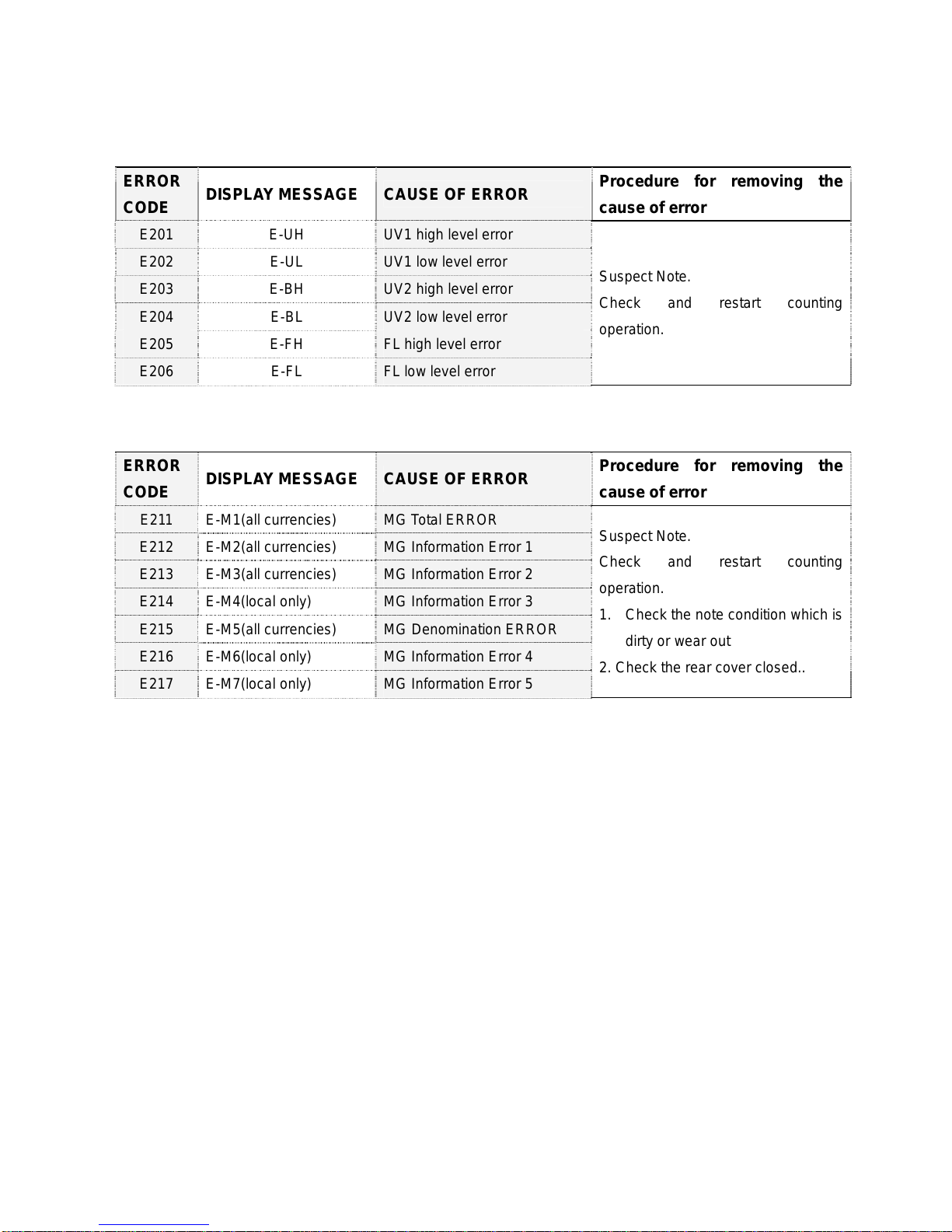

UV Error / MG Error ................................................................................... 42
CF Error / IR Error ..................................................... ........................... ...... 43
REGULAR CLEANING OF THE MACHINE ...................................................................... 44
- 3 -
Page 4
User’s Manual MAGNER150
- Important Safety Precautions -
9 Do not plug several products in one multi-outlet.
9 Do not bend the cable by force or leave it under any heavy object.
9 Install the machine on the stable surface
9 Unplug the machine before it is moved
9 Do not pull the cable it unplugged.
9 Do not plug in or unplug with your hands wet.
9 Use only approved accessories and do not try to disassemble, repair or remodel it for
yourself.
9 Do not let coin or other foreign objects in the machine.
9 Do not keep and operate the machine at a place with high temperature and humidity.
- Warning-
Adjust the Gap Adjustment Knob before you start to count the notes.
Do not let coin or other foreign objects in the machine.
When folded note is inserted or notes are placed wrong on the HOPPER, the
machine does not work properly.
Before counting, adjust the HOPPER GUIDE.
If you catch Rear Cover Knob when you move the machine, it will be possible
setup value is changed or fatal error caused.
When you close the Front Cover or Rear Cover, be careful not to get hurt.
Do not look at directly of UV sensor in the Detector Module.
- 4 -
Page 5
User’s Manual MAGNER150
1. START

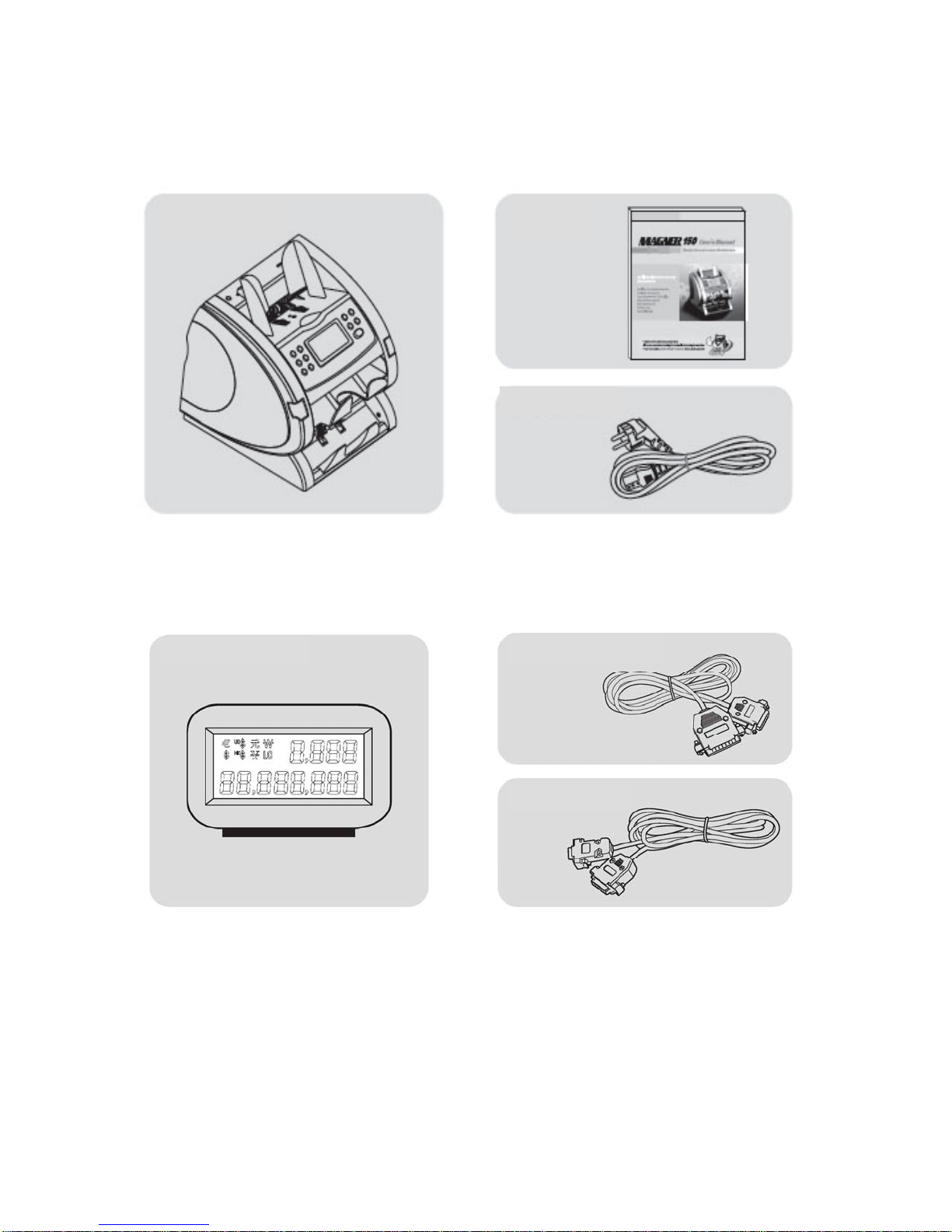

1-1. Packing List
MAGNER150 Manual
Power Cable
1-2. Options
Serial Print cableExternal Display
RS232C cable
- 5 -
Page 6
User’s Manual MAGNER150

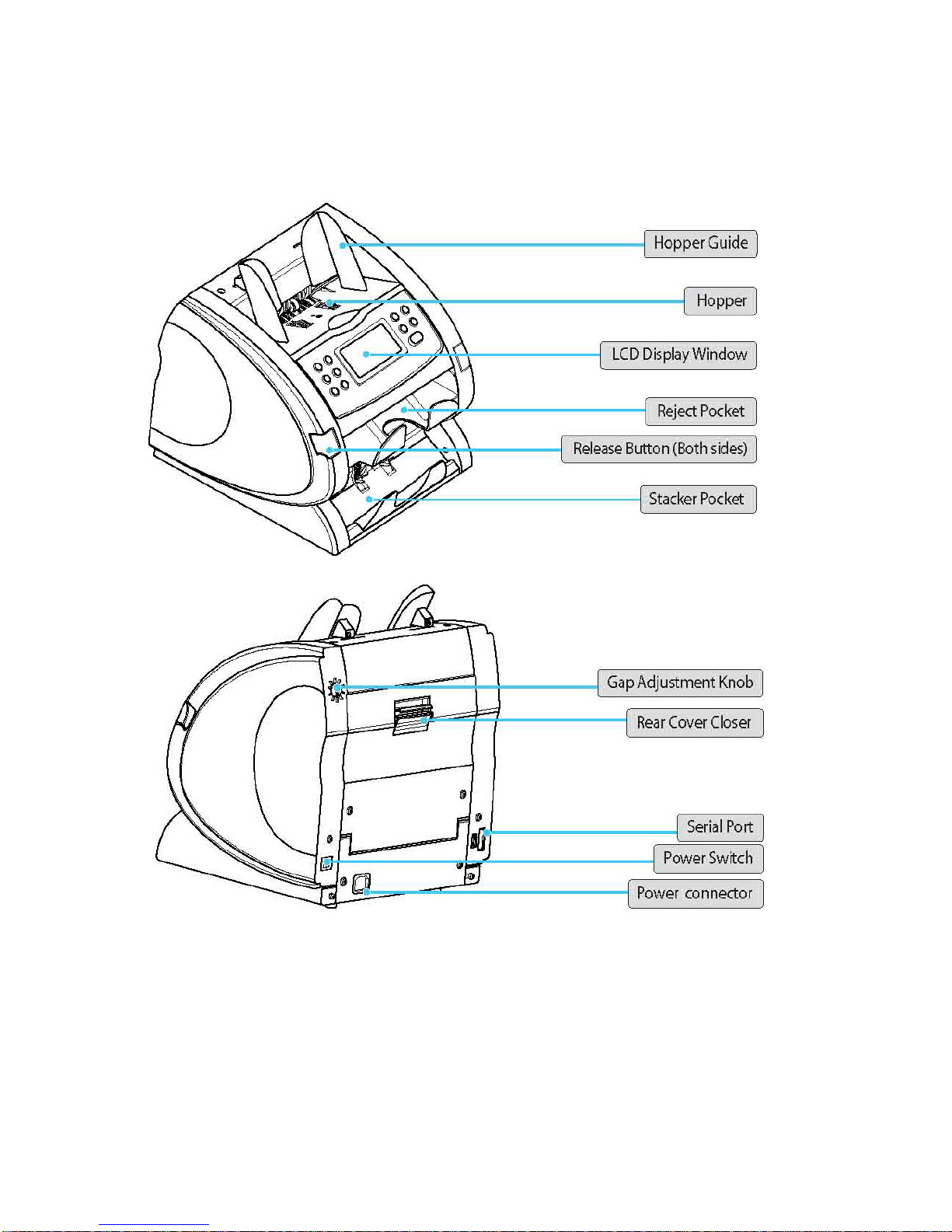

1-3. Appearance
- 6 -
Page 7
User’s Manual MAGNER150
2. BASIC OPERATION

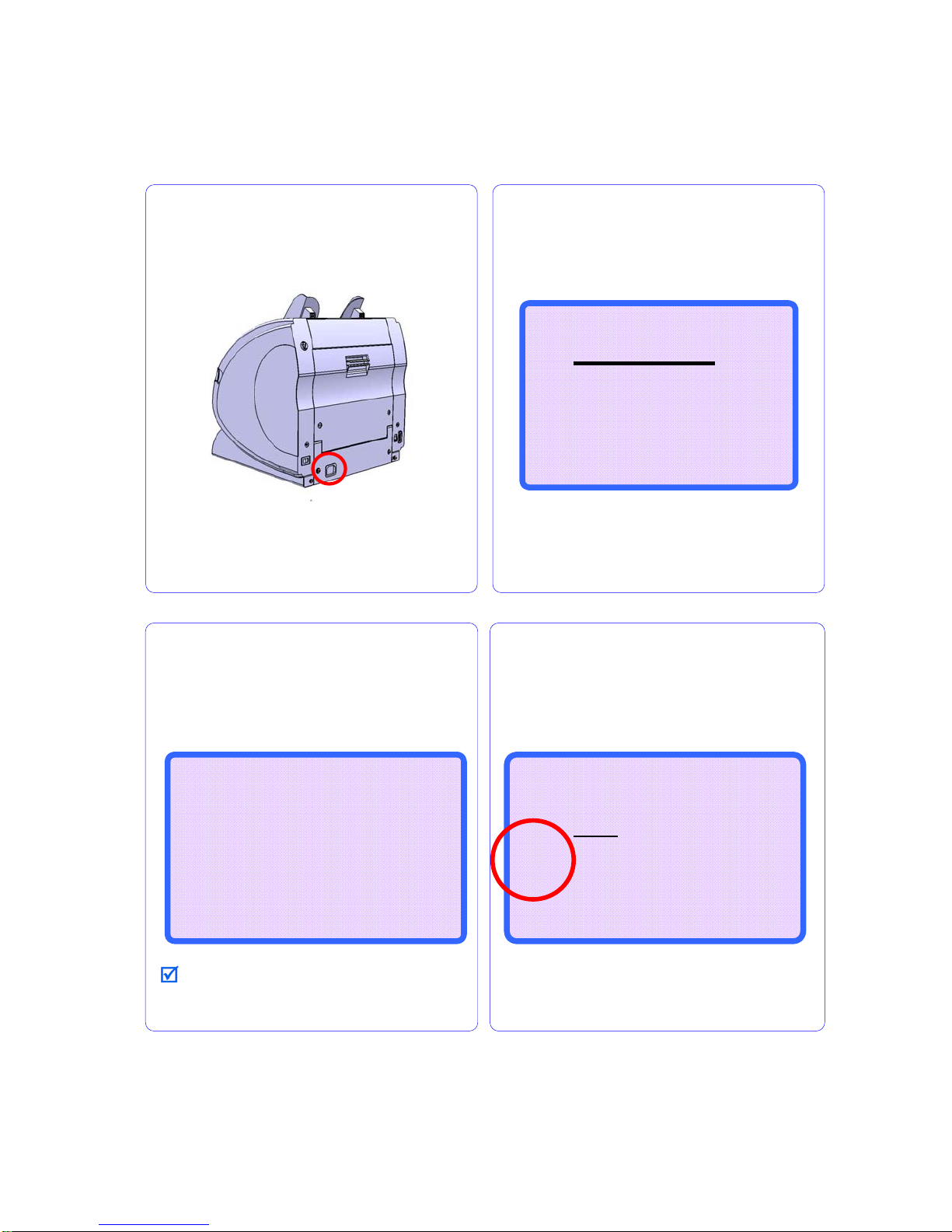

2-1. Self-Diagnosis
Plug the power cable into the machine.
Turn on the power switch.
The machine shows below message on the
LCD DISPLAY for a short time during check i ng
the Memory.
The machine starts self-diagnosis and checklists are shown on the display.
MAGNER150
MAGNER150 SERIES
CF FUNCTION : YES
SERIAL NUMBER : YES
LOCAL CURRENCY : YES
S/W ver: Vxx.x 2007-xx-xx
After self-diagnosis, display shows as below.
When the machine turns on again, the latest
used mode will be shown.
Checking EEPROM Data .... OK
Checking Setting Data
HSRB Sensors ......... OK
Checking Count Sensors
Cis Up ............... OK
Main ................. OK
Reject ............... OK
Motor Speed Data
Main Motor ........... OK
Sub Motor ............ OK
If there is a problem in the system, error
message will be blinking on the Display.
Mix RJP CF
--------------------
$
------------------- B100 ---
0
0
0
- 7 -
Page 8
User’s Manual MAGNER150

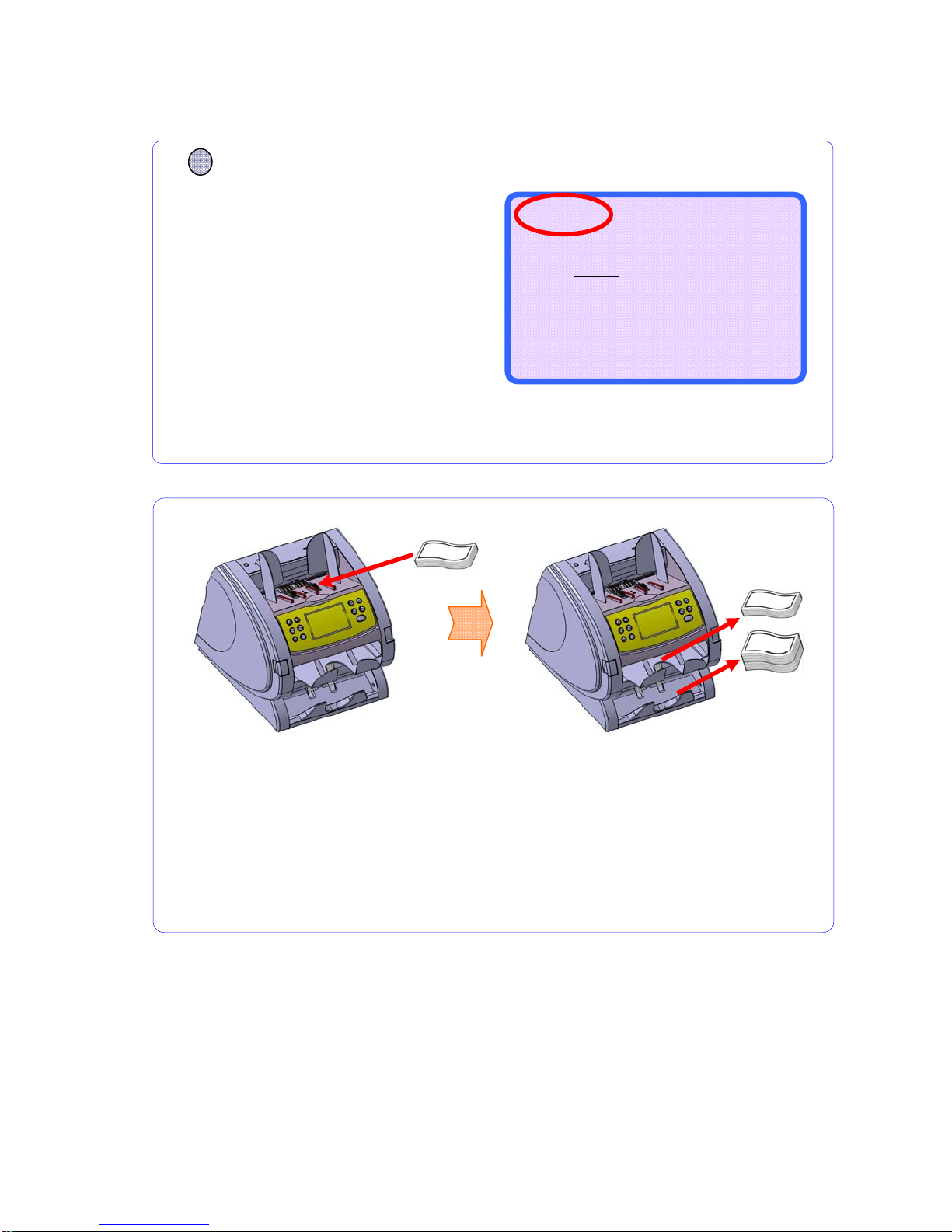

2-2. Counting Notes
Display shows as below.
CURRENCY
Press CURRENCY key and
select any mode you will.
COUNT RJP ---
When you place the notes on the
HOPPER, machine starts running.
If you remove the rejected note during counting, it is possible that displayed
reject counts differ from number of notes in the REJECT POCKET.
--------------------
0
0
0
------------------- B100 ---
Counting Mode is for counting all currencies
without detection.
Counted notes stack at the STACKER
Pocket and trouble notes are sent to
REJECT Pocket.
- 8 -
Page 9
User’s Manual MAGNER150
A
2-3. Display Function
Number of notes
on Reject Pocket
Currency Mark
It is possible that the actual machine’s Display and the illustration Display
in the manual are little different.
Operation Mode
Mix RJP ---
--------------------
$ 0
------------------- B100 ADD
Selected Batch Number
Use of Reject Po ck et
0
0
Counterfeit
Detection
Activation
DD mode Display
Number of
notes on
Stacker
Pocket
Total value
of accepted
notes
- 9 -
Page 10
User’s Manual MAGNER150

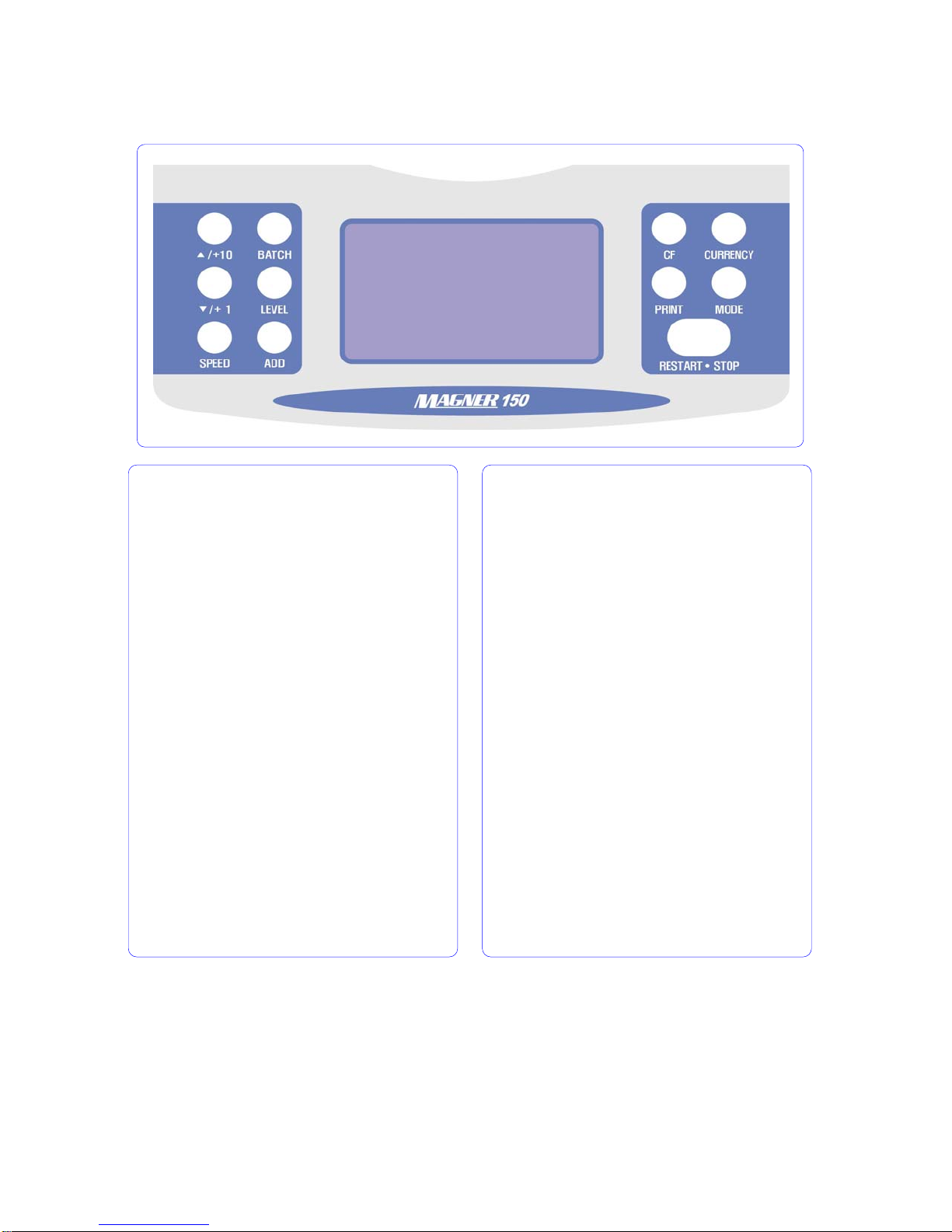

2-4. Operation Key Function
▲/+10 When press and hold down, enter User
setting Mode and Serial Print Mode.
BATCH Batch function Key. When press and
hold down the key, the function is released.
▼/+1 Menu selector.
LEVEL Select the double detection level in
Count Mode.
SPEED Change the count the speed in Count
Mode. After pressing, adjust the speed by
pressing +10 or +1 key.
ADD When press and hold down the key, you
can enter the ADD Mode.
CF Counterfeit detection function key.
CURRENCY Choose currency
PRINT Show the denomination information. In
Serial Number Print Mode, print the information
by printer or display.
MODE Choose operation mode.
RESTART•STOP Clear counting value
information in Display. In special mode, exit the
menu.
- 10 -
Page 11
User’s Manual MAGNER150
3. Basic Mode
3-1. Count Mode
CURRENCY
Press CURREN CY key and
select any mode you will.

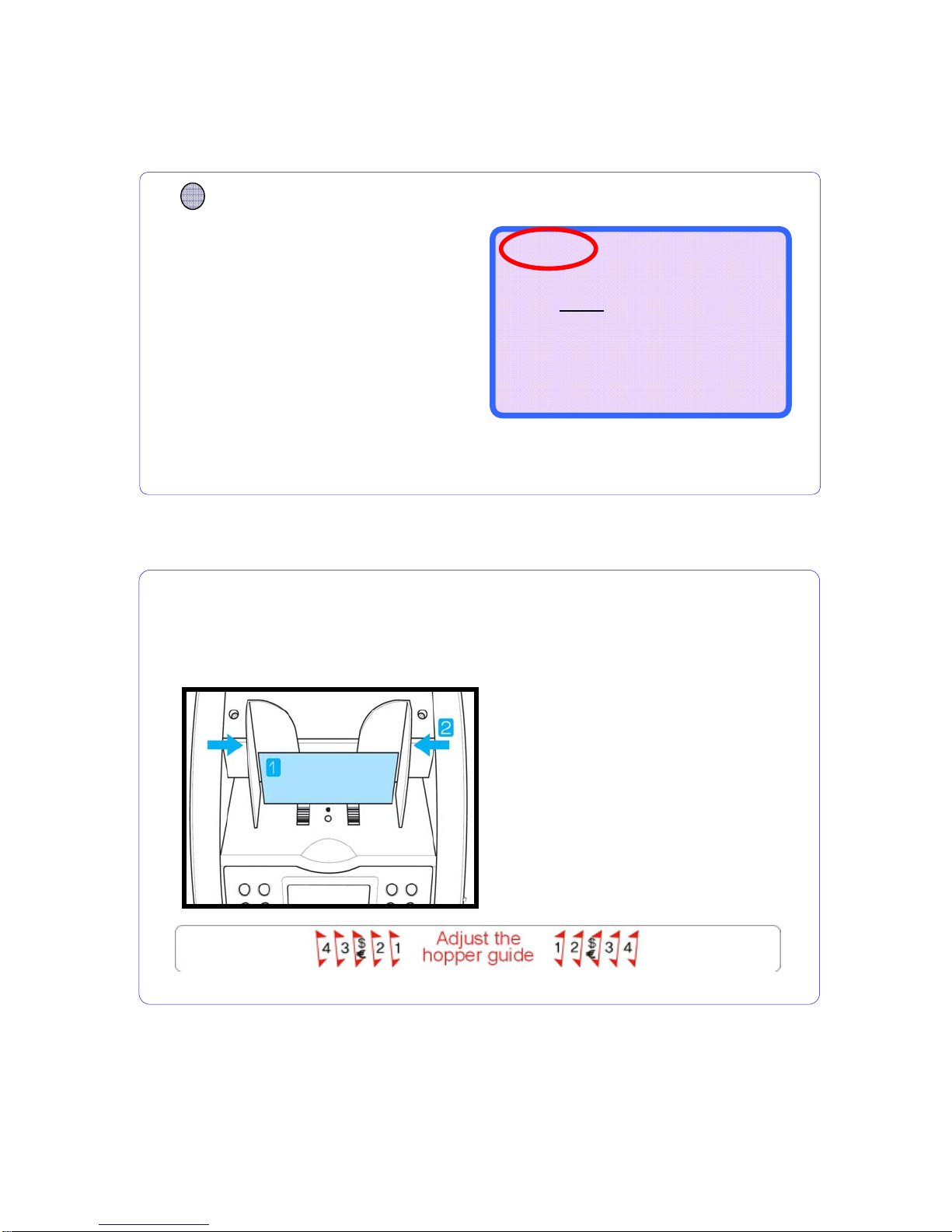

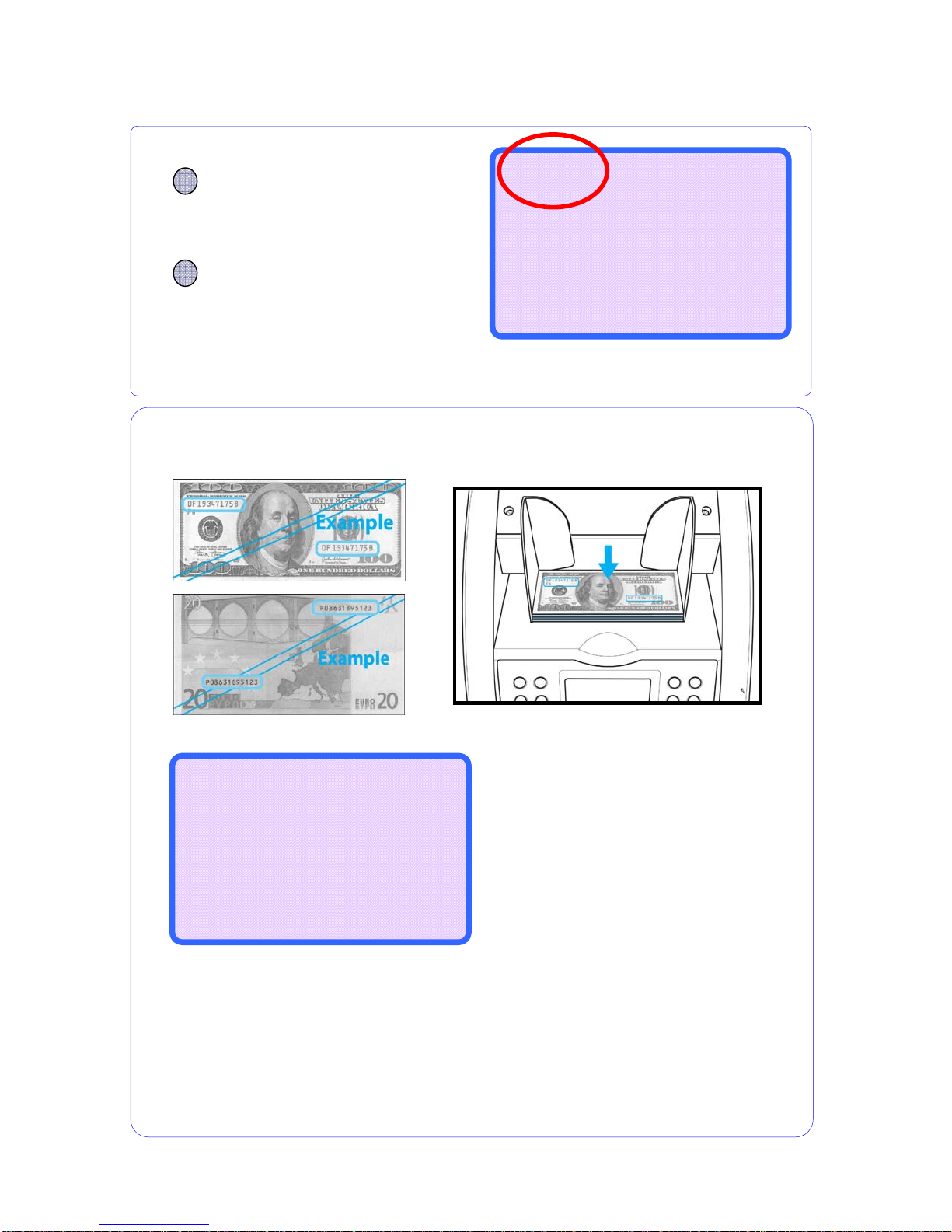

How to place notes properly on HOPPER
Adjust the hopper guide, before counting
If you not adjust the hopper guide, the machine does not work properly.
Display shows as below.
COUNT RJP ---
--------------------
0
0
0
------------------- B100 ---
Counting Mode is for counting all currencies
without detection.
1. Place a note on the HOPPER
referring to following figure.
2. Move the HOPPER guide to make
the guide size is the same with the
note size.
3. If you use to USD or Euro, refer to
symbol of Hopper sticker.
- 11 -
Page 12
User’s Manual MAGNER150
g

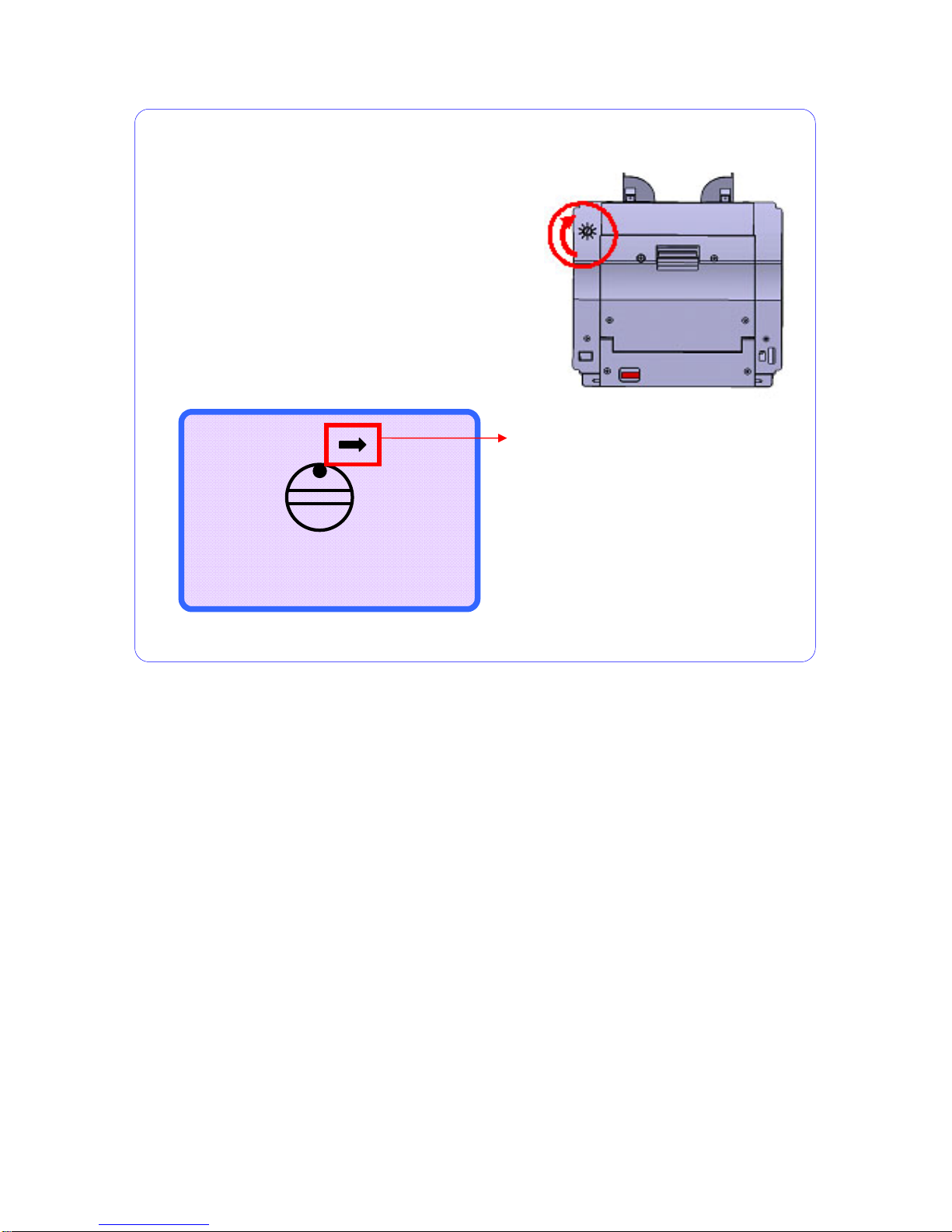

Gap Adjustment
If CIS skew error or Jam error occurs frequently,
adjust the GAP wider by turning the Gap Adjustment
Knob clockwise slightly.
In serial number print mode, if the inserted gap is
narrow, display shows as below.
- O +
This mark will be blinking.
Adjust the GAP wider
by turning the GAP KNOB
clockwise sli
If you want to exit, press RESTART/STOP key.
htly
- 12 -
Page 13
User’s Manual MAGNER150
y
g
Level key function
COUNT RJP ---
--------------------
DDL:5
0
0
0
------------------- B100 ---
LEVEL
When you save the DDL value, press and
hold down the LEVEL ke
If you want to change the DDL,
press the LEVEL key and
select level.
.
DDL means Double Detection Level.
User can select the level and the range from 1
to 9.
- DDL 1: Euro, USD.
- DDL 2~8: Local currency
- DDL 9: If the notes are darker than EURO
or USD or the notes are so old,
user can select this level to
detection double notes. But when
counts normal notes in this level,
the machine do not detect the
double notes. Please take care.
Double Detection Level 4
------------------------------|Do you want to save DDL? |
| SAVE -> LEVEL |
| EXIT -> RESTART |
-------------------------------
If you press the LEVEL key, DDL value save
and
o to the COUNT mode.
- 13 -
Page 14
User’s Manual MAGNER150
3-2. Euro Mode
CURRENCY
MODE
Select Euro currency pressing
CURRENCY key.
Press the MODE key and
select operation mode.
3-3. USD Mode
CURRENCY
MODE
Select USD currency pressing
CURRENCY key.
Press the MODE key and
select operation mode.
3-4. Local Currencies Mode
Display shows as below.
Mix RJP ---
--------------------
€
0
0
0
------------------- B100 ---
It is possible that the machine denominates
Euro.
Display shows as below.
Mix RJP ---
--------------------
$
0
0
0
------------------- B100 ---
It is possible that the machine denominates
USD.
CURRENCY
MODE
Press CURREN CY key and
select local currency.
Press the MODE key and
select operation mode.
Display shows as below.
Mix RJP ---
--------------------
LC
0
0
0
------------------- B100 ---
According to optional local currency, LC is ₩,
¥, ZAR, AUD, SYP and etc.
- 14 -
Page 15
User’s Manual MAGNER150
4. Operation Mode I
4-1. Batch Mode
BATCH
If you want to activate Batch
function, press BATCH key. But
Display has no change.
After activating Batch function, if
you press BATCH key again, you
can select Batch Number. Batch
Number is changed continuously
when you press BATCH key.
If you press and hold down
BA TCH key, Batch function is
inactive and Batch Number
becomes zero.
Display shows as below.
Mix RJP CF
--------------------
0
0
0
€
------------------- B100 ---
Mix RJP CF
--------------------
0
0
0
€
------------------- B 0
---
4-2. CF Mode
CF
CF function is performed with other mode, except Count Mode and Serial
Number Print Mode, at the same time.
If you want to detect the
counterfeit, press CF key
before counting.
Display shows as below.
Mix RJP CF
--------------------
0
0
0
€
------------------- B100 ---
- 15 -
Page 16
User’s Manual MAGNER150
4-3. ADD Mode
ADD
When press and hold ADD key,
you can enter ADD Mode or
GRAND TOTAL Mode.
To enter ADD Mode, press +1 key.
In ADD Mode, you can cumulate
the counted result.
In ADD Mode, if press CURRENCY
Key, previous ADD value is
cleared.
It means ADD value is not saved
per currency.
Display shows as below.
SELECT KEY
+10 -> OFF ( COUNT )
+1 -> ADD
SPEED -> GRAND TOTAL
Mix RJP CF
--------------------
$
--------------------
0
0
0
Add
B100 ADD
When count the notes
Mix RJP CF
--------------------
$
------------------- B100 ADD
Display shows current counted information.
0
43
523
current
When remove the notes from stacker
Mix RJP CF
--------------------
$
--------------------
0
43
523
Add
B100 ADD
Display shows added information between
current and ahead counted notes.
- 16 -
Page 17
User’s Manual MAGNER150
When count the notes again
Mix RJP CF
--------------------
$
------------------- B100 ADD
Display shows current counted information
If you want to see the result
PRINT
Print the receipt: PRINT key
Clear Data: RESTART•STOP key.
0
48
1,207
Press and hold down
PRINT key.
current
When remove the notes from stacker again
Mix RJP CF
--------------------
$
--------------------
0
91
1,730
Add
B100 ADD
Display shows added information between
current and ahead counted notes.
Ex) The result of cumulate mode in USD Mode
ADD VALUE ( USD )
----------------------------- $5 : XXX,XXX |
$10 : XXX,XXX |
$20 : XXX,XXX | Total Notes
$50 : XXX,XXX | : X,XXX,XXX
$100 : XXX,XXX |
$200 : XXX,XXX | Total Value
$500 : XXX,XXX | : XX,XXX,XXX
----------------------------- EXIT – RESTART KEY
When active this mode is active, it is possible that
the machine detects the counterfeit and recognizes
the denomination of notes
- 17 -
Page 18
User’s Manual MAGNER150
4-4. Grand Total Mode
ADD
When press and hold ADD key,
you can enter ADD Mode or
GRAND TOTAL Mode.
To enter Grand Total Mode, press
SPEED key.
In Grand Total Mode, you can
settle accounts daily.
In Grand Total Mode, the counted
value is not erased, even if turn off
power.
Display shows as below.
SELECT KEY
+10 -> OFF ( COUNT )
+1 -> ADD
SPEED -> GRAND TOTAL
Mix RJP CF
--------------------
$
--------------------
0
0
Grand Total
0
B100 G.TOTAL
When count the notes
Mix RJP CF
--------------------
$
------------------- B100 G.TOTAL
Display shows current counted information.
0
24
153
current
When remove the notes from stacker
Mix RJP CF
--------------------
$
--------------------
0
24
153
SubTotal 1
B100 G.TOTAL
Display shows SubTotal 1 value.
- 18 -
Page 19
User’s Manual MAGNER150
If you want to save SubTotal 1, press and
hold down ADD Key again.
Mix RJP CF
--------------------
$
------------------- B100 G.TOTAL
If press ADD key, return the previous screen
and count SubTotal xx continuously.
0
24
153
SubTotal 1
SELECT KEY
ADD -> CONTINUE
SPEED -> ADD TO GRAND TOTAL
BATCH -> CLEAR SUB-TOTAL
+10 -> CLEAR GRAND-TOTAL
+1 -> OFF ( COUNT )
Mix RJP CF
--------------------
SubTotal 1
If press SPEED key, SubTotal xx value is
saved to Grand Total.
Mix RJP CF
--------------------
$
--------------------
0
24
153
Grand Total
B100 G.TOTAL
$
--------------------
0
24
153
B100 G.TOTAL
And when start to count again, SubTotal xx+1
is started.
Mix RJP CF
--------------------
$
--------------------
0
65
1702
SubTotal 2
B100 G.TOTAL
If press BATCH key, SubTotal xx is cleared
and Grand Total value which is saved until
SubTotal xx-1 is shown.
- 19 -
Mix RJP CF
--------------------
$
--------------------
0
24
153
Grand Total
B100 G.TOTAL
Page 20
User’s Manual MAGNER150
If press +10 key, Grand Total value is
cleared.
If press +1 key, exit Grand Total Mode.
Mix RJP CF
--------------------
$
------------------- B100 G.TOTAL
Mix RJP CF
--------------------
$
------------------- B100 ---
0
0
0
0
Grand Total
0
0
In GRAND TOTAL Mode, although changes CURRENCY and counts other currency, previous
SUB-TOTAL value is deleted.
If return to previous currency mode, previous SUB-TOTAL value is reloaded.
It means SUB-TOTAL value is saved per currency and only it is deleted by Menu item, +10 Key.
Mix RJP CF
--------------------
$
------------------- B100 G.TOTAL
COUNT
--------------------
DDL:2
------------------- B100
0
87
3667
0
0
S1000 G.TOTAL
SubTotal 12
RJP --
SubTotal 12
0
Mix RJP CF
--------------------
€
------------------- B100 G.TOTAL
Mix RJP CF
--------------------
$
------------------- B100 G.TOTAL
0
0
0
87
3667
SubTotal 12
0
SubTotal 12
- 20 -
Page 21
User’s Manual MAGNER150

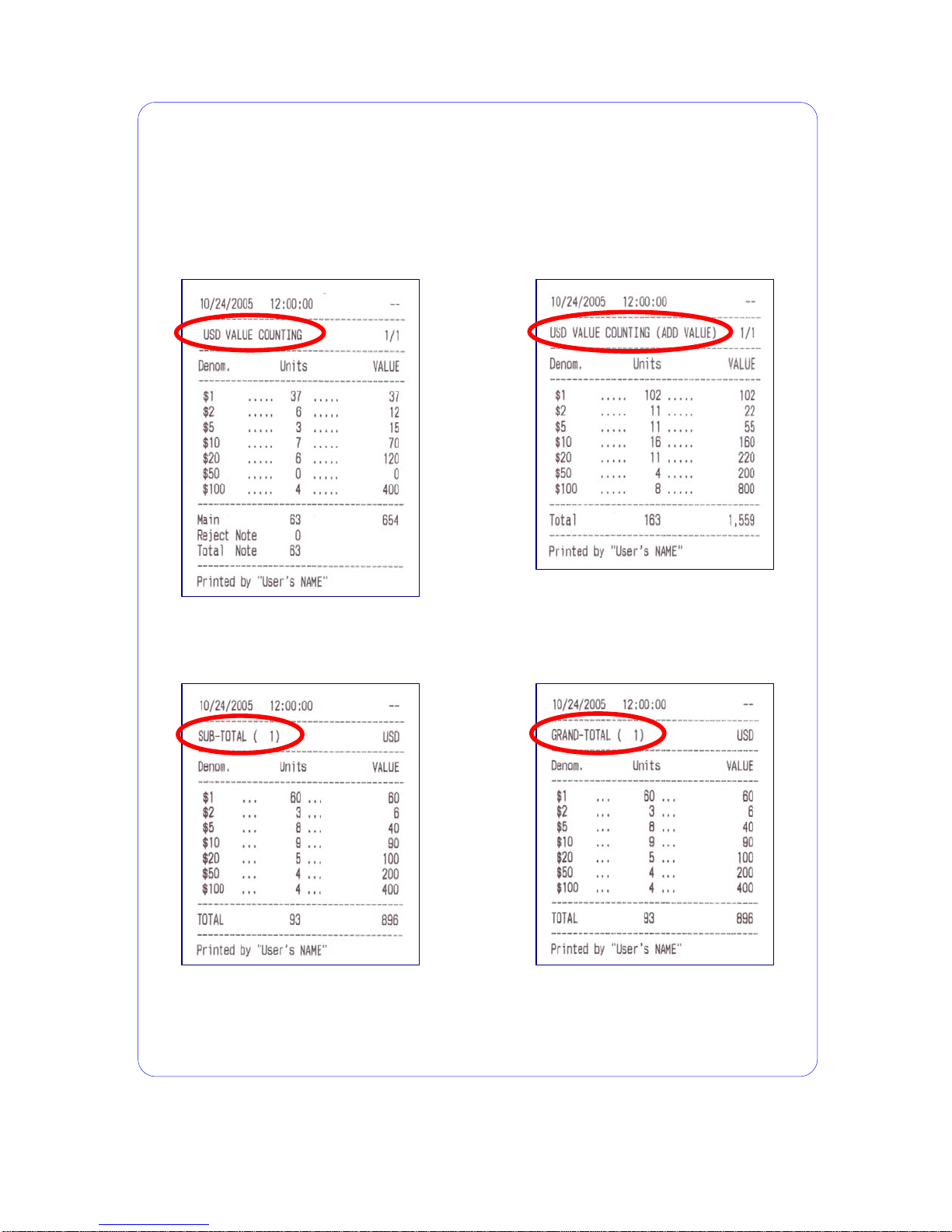

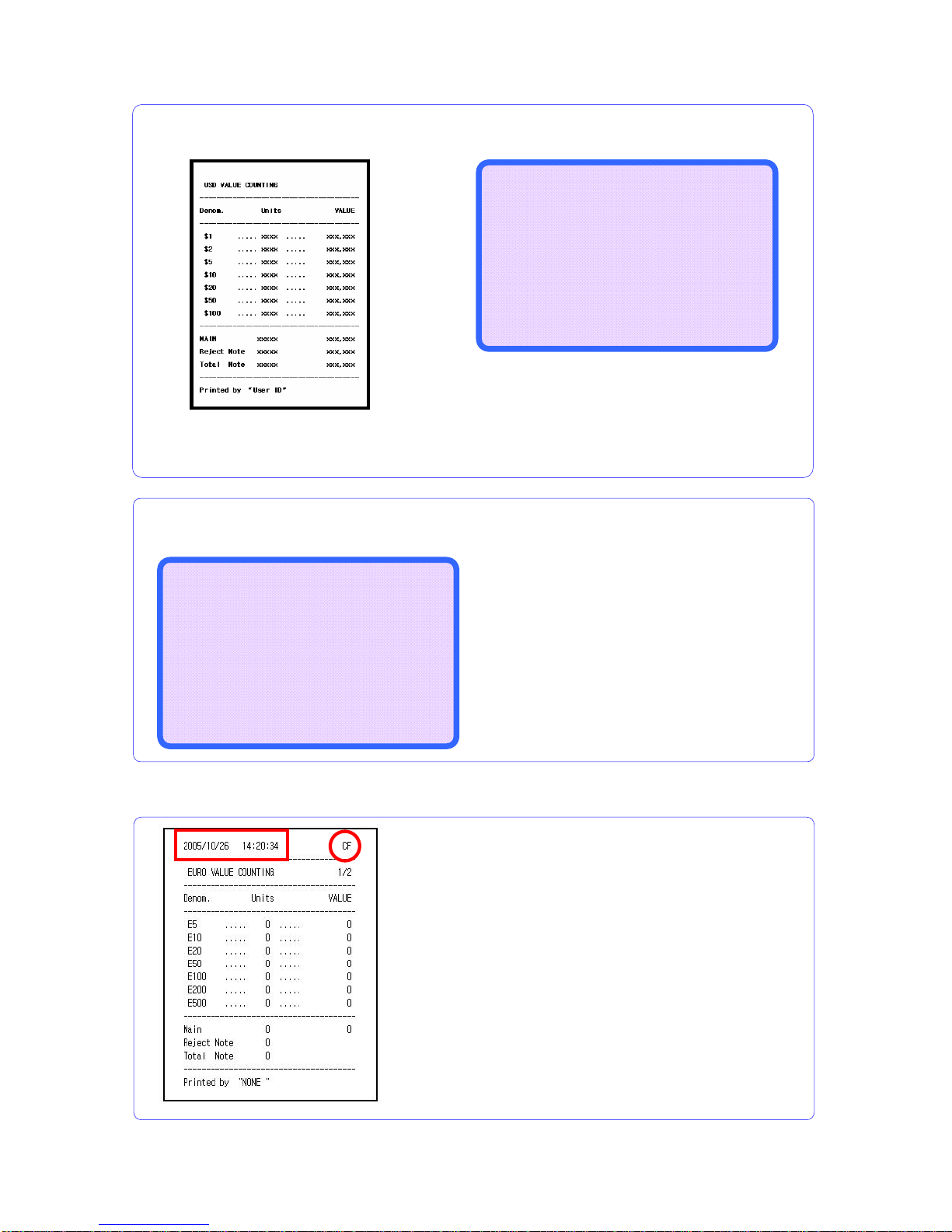

Receipt of Operation, ADD and Grand Total Mode
User can print the counted result to printer. There are three types of Receipt.
Normal Operation Mode
Ex) Mix Mode
In ADD Mode
In Grand Total Mode
During counting SubTotal xx, if press
PRINT key, the receipt for SubTotal is
printed.
After saving SubTotal xx, if press PRINT
key, the receipt for Grand Total xx is
printed.
- 21 -
Page 22
User’s Manual MAGNER150
V
erify function
During count ing in ADD or GTOTAL mode, use can verif y counting result which already c ounted
after activating ADD or GTOTAL function or new bundle of note which is independent with ADD or
GTOTAL counting result.
EX) ADD mode
After activate ADD function, use counts 1200 notes. But he wants to count again some notes
which were already counted or count new bundle. In this case, if press ADD Key shortly, verify
function is activated. When verify function is turned on, use can count new notes which is no
relation with 1200 notes. After completes verifying counts, if press ADD Key shortly again,
Mix RJP CF
--------------------
Add
Mix RJP CF
--------------------
VERIFY
$
------------------- B100 ADD
Mix RJP CF
--------------------
VERIFY
$
------------------- B100 ADD
0
1200
120000
Press ADD Key shortly and
VERIFY function is activated.
0
Count notes which you want to check
or verify
34
128
$
------------------- B100 ADD
Mix RJP CF
--------------------
Add
$
------------------- B100 ADD
After verifying, press ADD Key shortly
again. The s creen which is before verif ying
is shown again.
0
0
0
0
1200
120000
- 22 -
Page 23
User’s Manual MAGNER150
5. Operation Mode II
COUNTING FUNCTIONS
Mix MODE Count all denomination of selected currency.
DISPENSER
MODE (Option)
SP MODE
SP-ver MODE
(Option)
SP-verA MODE
(Option)
SG MODE Before counting, the user can select a specific denomination to be counted.
SORTING FUNCTIONS
Dir-MF MODE
Dir-MO MODE
Dir-SF MODE Separation mode by Facing function (Single denomination).
User can count notes as their wish.
The machine saves information from first inserted note.
(Different notes will be separated into the Reject Pocket)
Sp mode plus discrimination of old and new version notes.
Mix mode plus discrimination of old & new & very new version notes.
(USD only)
Separation mode by Facing function (all denominations).
The machine separates front side or rear side of the notes.
Mixed separation mode by Orientation function (all denominations).
The machine separates different direction notes.
Dir-SO MODE Separation mode by Orientation function (Single denomination).
SPECIAL FUNCTION
SERIAL
NUMBER MODE
(Option)
Prints out the printer and saves the PC to discriminate the serial number of
notes.
- 23 -
Page 24
User’s Manual MAGNER150
5-1. Mix Mode
CURRENCY
MODE
Select currency pressing
CURRENCY key.
Press the MODE key and
choose Mix mode.
5-2. Dispenser Mode
CURRENCY
MODE
▲/+10
▼/+1
+10 key: After count and remove the note from
Stacker Pocket, Dispenser function is off
automatically.
+1 key: Even if remove the note from Stacker
Pocket, the functi on is activated c ontinuously. If
Press CURR ENCY key to
select currency.
Press MODE key to select Mix
mode.
Press +10 key or +1 key to
enter the DISPENSER setting
OR
Display shows as below.
Mix RJP CF
--------------------
$
0
0
0
------------------- B100 ---
You can count all denomination of selected
currency without any selection.
Mix RJP CF
--------------------
€
000
00,000
0,000,000
------------------- B100 ---
MIX DISPENSER MENU
------------------------------
MIX VALUE :
----------------------------- INCREASE – UP/+10 KEY
DECREASE – DOWN/+1 KEY
CLEAR VALUE – BATCH KEY
MOVE CURSOR – MODE KEY
EXIT - RESTART KEY
* *** **0
€
press +1 key again, Dispenser function is off
manually. Or when select another mode by
pressing MODE key, exit Dispenser Mode.
Using the key commend, you can set the value
which you want.
After set the value, exit the MENU using
RESTART key.
- 24 -
MIX
€X,XXX,XXX
--------------------
€
000
0,000,000
RJP CF
00,000
------------------- B100 ---
Page 25
User’s Manual MAGNER150
5-3. Separate Mode (SP Mode)
CURRENCY
MODE
Press CURRENCY key and
choose the mode, you want.
Press the MODE key and
choose SP mode.
SP RJP CF
--------------------
$
0
0
0
------------------- B100 ---
The machine sorts out the same denomination
with first inserted note.
5-4. SP-ver Mode (Separate Mode by Old & New version)
CURRENCY
MODE
▲/+10
▼/+1
Press CURRENCY key to
select currency.
Press MODE key to select
SP mode.
Press +1 or +10 key and select
SP-ver mode
OR
SP-ver RJP CF
--------------------
$
0
0
0
------------------- B100 ---
If user selects this mode, the machine sends
notes to Stacker which have same
denomination and version (old and new&very
new) with first inserted note.
5-5. SP-verA Mode (Separate Mode by New & Very New version)
CURRENCY
MODE
▲/+10
▼/+1
Press CURRENCY key to
select currency. (USD only)
Press MODE key to select
SP mode.
Press +1 or +10 key and select
SP-verA mode
OR
SP-verA RJP CF
--------------------
$
0
0
0
------------------- B100 ---
If user selects this mode, the machine send
note to Stacker which has same
denomination with the first inserted note.
- 25 -
Page 26
User’s Manual MAGNER150
5-6. Single Mode (SG Mode)
CURRENCY
MODE
▲/+10
▼/+1
Press CURRENCY key and
choose the mode, you want.
Press the MODE key and
choose SG mode.
Press the +1 or +10 key and
choose denomination.
OR
5-7. Dir-MF Mode
CURRENCY
MODE
Press CURRENCY key and
choose the mode, you want
Press the MODE key and
choose Dir-MF mode
SG $100 RJP CF
--------------------
$
0
0
0
------------------- B100 ---
You can sort the selected denominations.
Dir-MF RJP CF
.
--------------------
$
0
0
0
------------------- B100 ---
Regardless of denomination, the machine saves
the front or rear information of the first inserted
note and sorts the same things.
5-8. Dir-MO Mode
CURRENCY
MODE
▲/+10
▼/+1
Press CURRENCY key and
choose the mode, you want.
Press the MODE key and
choose Dir-MO mode
Press the +1 or +10 key and
choose Dir-MO mode.
OR
Dir-MO RJP CF
--------------------
$
0
0
0
------------------- B100 ---
Regardless of denomination, the machine
saves the direction information of the first
inserted note and sorts the same things.
- 26 -
Page 27
User’s Manual MAGNER150
5-9. Dir-SF Mode
CURRENCY
MODE
▼/+1
▲/+10
Press CURRENCY key and
choose the mode, you want.
Press the MODE key and
choose Dir-MO mode
Press the +1 or +10 key and
OR
choose Dir-SF mode
5-10. Dir-SO Mode
CURRENCY
MODE
▼/+1
▲/+10
Press CURRENCY key and
choose the mode, you want.
Press the MODE key and
choose Dir-MO mode
Press the +1 or +10 key and
OR
choose Dir-SO mode.
Dir-SF RJP CF
--------------------
$
0
0
0
------------------- B100 ---
The machine saves the denomination and front
or rear information of the first inserted note and
sorts the same things.
Dir-SO RJP CF
--------------------
$
0
0
0
------------------- B100 ---
The machine saves the denomination and
direction of the first inserted note and sorts the
same thing.
- 27 -
Page 28
User’s Manual MAGNER150
Print the Error Report
When the counted notes are rejected, user can receive the error report by the LCD Display or
printing receipt.
- Error report on the LCD Display.
When the notes are rejected, do not remove the note from reject pocket, press and hold down
MODE key.
The display shows as below.
Reject Reasons
----------------------------- Count | Detail Reasons
----------------------------- 1 | Value Error (E101)
2
4
5
6
7 | Skew Error
------------------------------
HELP – CF KEY
| Jam Error
3 | E-M1
| E-C1
| E-UH
| Double Error
Count means the number of rejected notes.
User can move next or previous page pressing
+10 key or +1 key.
When pressing MODE key, Display shows the
list of type of error.
MODE
Type of Error
------------------------------
Count Error
Function Error
Value Error
UV, MG Error
No CIS Result
No UV,MG Result
|
------------------------------
HELP – CF KEY
Count Error: This error is caused by counting states. For example, double notes inserted, the
note is skewed, etc.
Function Error: This error is caused in SP, Single and Direction Mode.
Value Error: When CIS sensor data is wrong, this error is caused.
UV, MG Error: When the machine detects the counterfeit, this error is caused.
No CIS Result: When the machine does not get the CIS sensor data, this error is caused.
No UV, MG result: When the machine does not get the UV and MG data, this error is caused.
| Number
| 0
| 3
| 0
| 1
| 3
|
|
|
When pressing MODE key again, return to
previous display.
If want to exit, press RESTART•STOP key.
0
7
- 28 -
Page 29
User’s Manual MAGNER150

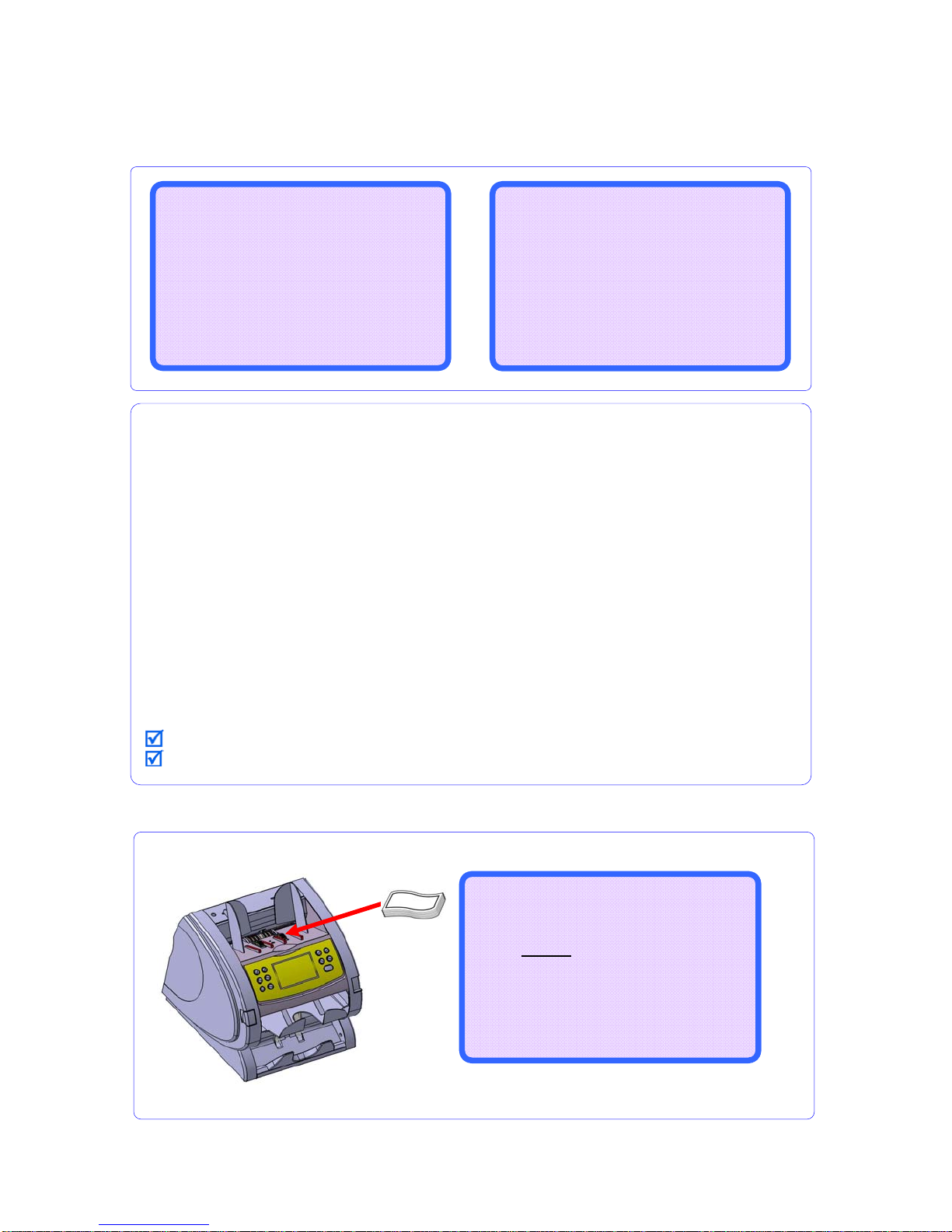

5-11. Serial Number Print Mode
CURRENCY
MODE
Before counting in serial number print mode, please arrange the notes that the serial number
printed side is faced upward.
For example, USD is front side and Euro is rear side.
After counting, the LCD Display will display the message as below.
Press CURRENC Y key and
choose the mode, EURO or
USD
Press the MODE key and
choose Serial mode
Serial RJP CF
--------------------
$
0
0
0
------------------- B100 ---
You can count all denomination of selected
currency without any selection.
---------------------
|Please Wait..... |
|Printing serial number...|
--------------------------
If you wants to count other notes continually, place the note on the HOPPER not remove the
notes in the Stacker Pocket.
The printer prints out the serial number successively.
After finishing counting if you remove the notes from the Stacker Pocket, prints out the total
notes.
▶In this mode, the machine could not detect the counterfeit.
▶This mode operates only for be exist SRAM in MAIN BOARD. (Option)
▶ If you want to know more detail of serial printer, refer to CHAPER 6.
- 29 -
Page 30
User’s Manual MAGNER150

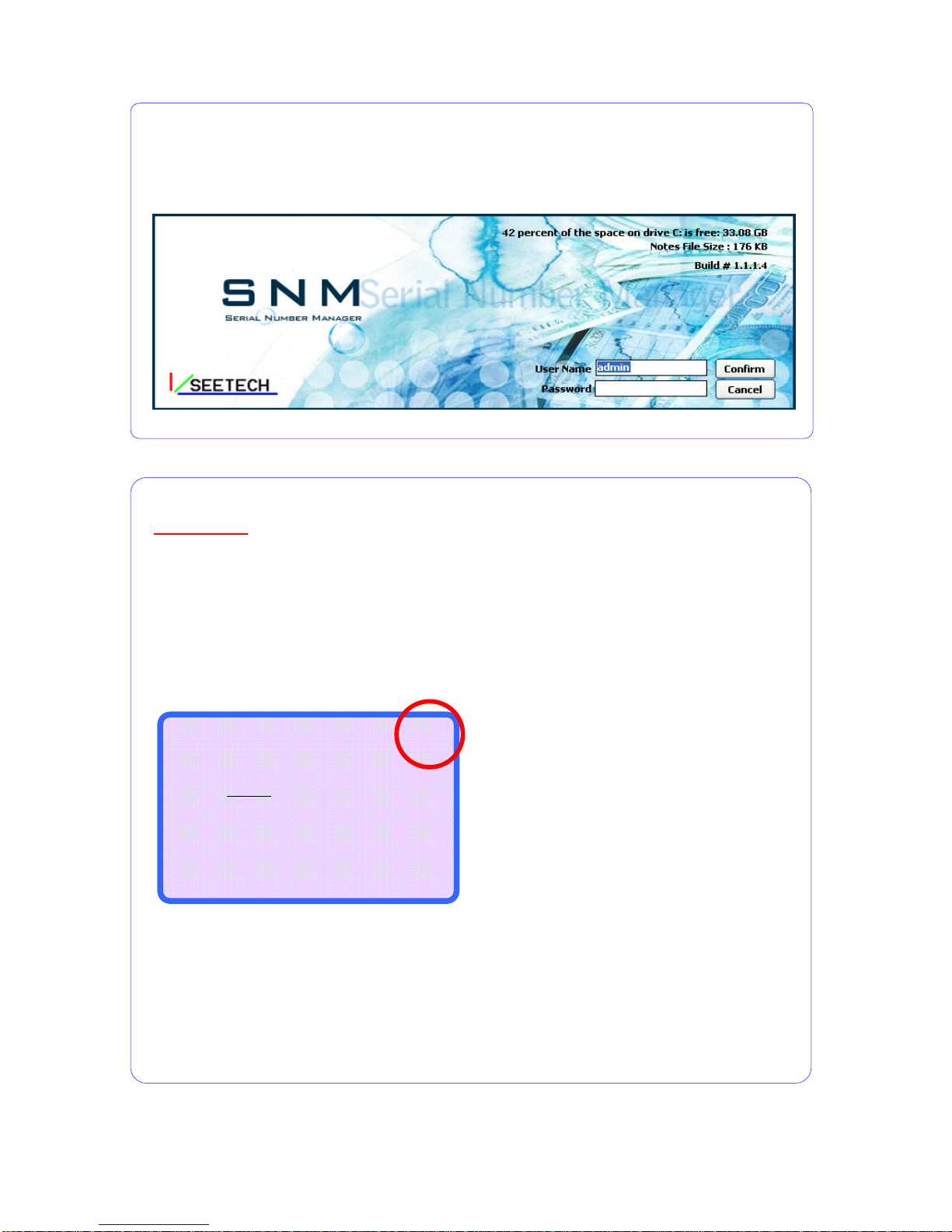

How to store Serial Number to PC
MAGNER150 allows storage of Serial Number to PC by special PC program, Serial Number
Manager. If you want to use Serial Number Manager, please contact manufacture.
CF function in Serial Number Print Mode
Please note.
This function is only available with special hardware.
If you want to use counterfeit detection in Serial Number Print Mode,
Please contact manufacture.
Although the machine doesn’t have special hardware, user can turn on or off CF function in
Serial Number P rint Mode. (Pleas e refer to User S etting Mode item 17) But it will not w ork
properly.
Serial RJP CF
--------------------
$
------------------- B100 ---
0
0
0
- 30 -
Page 31
User’s Manual MAGNER150
6. SERIAL PRINTER
6-1. Descriptions of Serial Printer (RS232c)
Emulation MODE : EPSON or STAR
( EPSON Emulat ion MODE is a Default Value of Factory )
Baud Rate : 2,400 bps ~ 115,200 bps
( 115,200 bps is a Default Value of Factory. )
Data Bits : 8 bits
Stop Bits : 1 bit
Handshaking : DTR/DSR
Parity Check : Disable
Available Serial Printer :
SAMSUNG : SRP-370
Web Site : HTTP://WWW.SAMSUNGMINIPRINTERS.COM/
EPSON : TM-T88III, etc.
Web Site : HTTP://POS.EPSON.COM/
6-2. Descriptions of Serial Port
For only external display
There are two types of interface.
1. SPI (Serial Peripheral Interface)
- For Upgrade
- PIN1: GND
- PIN2, 3, 4, 5, 6, 7, 9, 10, 11, 13,
14, 15: for SPI
2. RS232C
- For PC communication
- For serial printer
- For other devices with RS232C
- PIN1: GND
- PIN12: TXD
- PIN8: RXD
- 31 -
Page 32
User’s Manual MAGNER150
6-3. How to set the Serial Printer
Press and hold down +10 key.
Serial RJP CF
--------------------
$
------------------- B100 ---
0
0
0
By pressing and holding down +10 Key in
any mode, you can enter special mode.
Press PRINT key to enter PRINT MENU
SERIAL PRINTER MENU
----------------------------->>1.EXIT(PRESS RESTART KEY)
2.Find SERIAL PRINTER
3.How to print ----- *Manual
4.Printout Type --- *Receipt
5.Blank of tail --------- *5
-----------------------------NEXT
HELP – CF KEY
(1/2)
+10 -> USER MENU
PRINT -> PRINT MENU
Display of special mode
SERIAL PRINTER MENU
------------------------------
1.EXIT(PRESS RESTART KEY)
2.Find SERIAL PRINTER
>>3.How to print ----- *Manual
4.Printout Type --- *Receipt
5.Blank of tail --------- *5
------------------------------
When you press RESTART key after changing a setting value, Display shows
the message “Wait… Sett i ng Data Sa v i ng … ”
NEXT
HELP – CF KEY
(1/2)
Menu selection: MODE key
Value selection: PRINT, +10 or +1 key
- 32 -
Page 33
User’s Manual MAGNER150
6-4. Descriptions of Menu
SERIAL PRINTER MENU
----------------------------->>1.EXIT(PRESS RESTART KEY)
2.Find SERIAL PRINTER
3.How to print ----- *Manual
4.Printout Type --- *Receipt
5.Blank of tail --------- *5
----------------------------- NEXT PAGE – BATCH KEY
1. EXIT Quit the menu
2. Find SERIAL PRINTER Check the connection of machine and printer.
3. How to print Manual – If you want to print the results, you have to press the print key.
4. Printout Type Receipt – print the receipt information
5. Blank of tail User set up the blank of tail.
6. Emulation Set up the print type. Machine can offer only EPSON Emulation.
7. Baud Rate Set up the baud rate between machine and printer.
8. ROLL PAPER Size Set up the size of printer paper.
9. Font Size set up the font size.
* means the encourage value.
When you quit the all menu, press the RESTART/STOP key.
(1/2)
Auto – When the counted notes removed from stacker pocket, printing
starts automatically.
Detail – Print the detail information (ex) denomination information, error
information and etc.
CIS Info – User cannot use this type.
CF Info – User cannot use this type.
IR Info – User cannot use this type.
All Info – User cannot use this type.
SERIAL PRINTER MENU
------------------------------
6.Emulation --------- *EPSON
7.Baud Rate ------- *9600bps
8.ROLL PAPER Size --- *3inch
9.Font Size ------- *12 * 24
----------------------------- NEXT PAGE – BATCH KEY
(2/2)
6-5. Print the Receipt
After counting, PRESS key sho r tly,
Mix RJP CF
--------------------
0
$
910
134,500
------------------- B100 ---
Display shows the message “Please Wait…
Printing the data...”.
- 33 -
Page 34
User’s Manual MAGNER150
The machine pr ints the receipt.
If serial printer connected, the result
is printed to the printer.
If the notes remain at the Reject Pocket while user presses PRINT Key, following
message is displayed.
After counting, press and hold down PRINT ke y,
USD VALUE COUNTING
----------------------------- $5 : XXX,XXX |
$10 : XXX,XXX |
$20 : XXX,XXX | Total Notes
$50 : XXX,XXX | : X,XXX,XXX
$100 : XXX,XXX |
$200 : XXX,XXX | Total Value
$500 : XXX,XXX | : XX,XXX,XXX
----------------------------- EXIT – RESTART KEY
If serial printer does not connect,
the result prints to the screen.
--------------------------
|Please Check...........|
|Make rej. Pocket empty |
--------------------------
6-6. Form of the Receipt
①
②
① Printing date and time: This function is optional.
(Real time checking hardware is needed)
② CF enable or disenable is printed. When CF
function enables, “CF” is printed. And if CF function is
not enable, “--“is printed.
- 34 -
Page 35
User’s Manual MAGNER150
7. USER SETTING MODE
7-1. How to set the User Setting Mode
Press and hold down +10 Key.
Serial RJP CF
--------------------
$
0
0
0
------------------- B100 ---
+10 -> USER MENU
PRINT -> PRINT MENU
By pressing and holding down +10 key in
any mode, you can enter special mode.
Press +10 Key to enter USER MENU
USER SETTING MODE (1/2)
----------------------------->>1.EXIT(PRESS RESTART KEY)
2.ID --- NONE
3.USER s ID PRINTING - *YES
4.REJECT POCK. ACTIVE - *YES
5.REJECT POCK. SIZE - *60
6.NUMBER OF PRINTOUT - *1
7.PRE-BATCH PCS. SETTING
8.SCREEN SAVER^^^- NONE
9.BUZZER VOLUME^^- Middle
----------------------------- NEXT PAGE – BATCH KEY
USER SETTING MODE (1/2)
------------------------------
1.EXIT(PRESS RESTART KEY)
2.ID --- NONE
>>3.USER s ID PRINTING - *YES
4.REJECT POCK. ACTIVE - *YES
5.REJECT POCK. SIZE - *60
6.NUMBER OF PRINTOUT - *1
7.PRE-BATCH PCS. SETTING
8.SCREEN SAVER^^^- NONE
9.BUZZER VOLUME^^- Middle
----------------------------- NEXT PAGE – BATCH KEY
Display of special mode
Menu selection: MODE key
Value selection: PRINT, +10 or +1 key
When you press RESTART •STOP key after changing a setting value, Display
shows the message “Wait… Setting Data Saving…”
- 35 -
Page 36
User’s Manual MAGNER150
7-2. Descriptions of Menu
USER SETTING MODE (1/3)
----------------------------->>1.EXIT(PRESS RESTART KEY)
2.ID --- NONE
3.USER s ID PRINTING - *YES
4.REJECT POCK. ACTIVE - *YES
5.REJECT POCK. SIZE - *60
6.NUMBER OF PRINTOUT - *1
7.PRE-BATCH PCS. SETTING
8.SCREEN SAVER^^^- NONE
9.BUZZER VOLUME^^- Middle
-----------------------------NEXT PAGE – BATCH KEY
USER SETTING MODE (3/3)
------------------------------
>>19.Face&Orientate - NORMAL
20.See the result - NOTMAL
21.Reject Number- SHOW
22.Serial Cutting - 200
23.Stacker Warning- NONE
------------------------------
NEXT PAGE – BATCH KEY
USER SETTING MODE (2/3)
----------------------------->>10.PRINT WARNING - YES
11.STOP CONDITION - DISABLE
12.BAR CODE SEND TO COMPUTER
13. *USING : CENTER
14. *TYPE : 2 OF 5
15. *LENGTH : 18
16.CF KEY - EXCEPTION
17.SERIAL CF MODE- ON
18.BATCH FUNCTION- CLEAR
----------------------------- NEXT PAGE – BATCH KEY
1. EXIT(PRESS RESTART KEY) Quit the menu.
2. ID Type the user name.
3. USER’s ID PRINTING The use of the Reject Pocket or not.
4. REJECT POCK. ACTIVE you can select whether use the Reject Pocket or not.
5. REJECT POCK. SIZE Set up the limit quantity of Reject Pocket. (30 ~ 90 Sheets)
6. NUMBER OF PRINTOUT Set up the number of printed sheets. (1~3 sheets)
7. PRE-BATCH PCS. SETTING You can choose any batch number.
8. SCREEN SAVER If user does not use the machine during regular time, the
machine enters screen save state. User set the regular time.
When press the key or take the notes on the HOPPER, return
back operation state.
9. BUZZER VOLUME Select buzzer volume.
10. PRINT WARNING Message of printing status is shown or not.
11. STOP CONDITION Stop Condition means when the note goes to reject pocket,
User can select the machine works continuously or not.
Disable: although a note is rejected, the machine works continuously.
CF error: if a not e is rejected with CF error, t he mac h i ne stops to work.
All error: if a note is rejected with any error, the machine stops to work
12. BAR CODE SEND TO COMPUTER User can select to print bar code to PC or Printer.
13. *USING : CENTER Select position of printed bar code
14. *TYPE : 2 OF 5 User can select bar code type
15. *LENGTH: 18 Length means bar code length and user can select this.
(1~26)
- 36 -
Page 37
User’s Manual MAGNER150
16. CF KEY - EXCEPTION
NORMAL: Machine detects all counterfeits.
EXCEPTION: Machine detects counterfeits except special note or denomination.
17. SERIAL CF MODE- ON Activate or inactivate CF function in Serial Mode.
This function is only available with special hardware. If you want to use counterfeit
detection in Serial Number Print Mode, please contact manufacture.
18. BATCH FUNCTION- CLEAR
CLEAR – After batch count and remove note from stacker, value and count go to zero.
CONTINUE – After batch count, counting information is accumulated.
19. Face&Orientate – NORMAL
NORMAL: User can sort the notes with 4 directions, Face-Front, Face-Rear, Back-Front
and Back-Rear.
CONTINUE: User can sort the notes only Face-Front.
20. See the Result – NORMAL
NORMAL: If press PRINT Key shortly, counting result is printed to serial printer.
If press and hold down PRINT Key, counting result is printed to the display.
SCREEN: If press PRINT Key shortly, counting result is printed to the display.
21. Reject Number – SHOW
SHOW: Reject count number is shown on the display.
HIDE: If select this, reject count number becomes invisible.
22. Stacker Warning – NONE
User can select wait time for Stacker Warning. (10sec ~ 300sec)
* means the encourage value.
When you quit the all menu, press the RESTART•STOP key.
If you want to go to next page immediately, press BATCH Key.
- 37 -
Page 38
User’s Manual MAGNER150
How to input ID
1. Press MODE key to move the “>>” make
to select “2. ID-“ and press PRINT key to
enter.
2. Display shows following display.
Move to left: CF
Move to right: CURRENCY
Move to up: +10
Move to down: +1
Delete a character: Select “BackSpace”
and press PRINT key.
3. If want to type a selected character, press
PRINT key.
4. When finish typing ID, press RESTAR T•
STOP key.
PRE-BATCH PCS. setting
USER SETTING MODE (1/2)
----------------------------->>1.EXIT(PRESS RESTART KEY)
2.ID --- NONE
3.USER NAME PRINTING - *YRS
4.REJECT POCK. ACTIVE - *YES
5.REJECT POCK. SIZE - *60
6.NUMBER OF PRINTOUT - *1
7.PRE-BATCH PCS. SETTING
-----------------------------NEXT PAGE – BATCH KEY
PRE-BATCH PCS. ADJUSTING
>>EXIT<< DEFAULT SAVE
----------------------------- The Unit of Calc. : 10
BATCH 1 --- 100
BATCH 2 --- 50
BATCH 3 --- 25
BATCH 4 --- 20
BATCH 5 --- 10
BATCH 6 --- 0
------------------------------
WRITING USER’s ID
-----------------------------! ” # $ % & ’ ( ) * + , -
. / 0 1 2 3 4 5 6 7 8 9 : ;
< = > ? @ A B C D E F G H I
J K L M N O P Q R S T U V W
X Y Z
f g h I j k l m n o p q r s
t u v w x y z BackSpace
------------------------------
USER’s ID:
^ _＇ a b c d e
[＼ ]
1. Press MODE key to move the “>>” make to
select “7.PRE-BATCH PCS.SETTING”
Then press PRINT key to enter the “7.PRE-
BATCH PCS.SETTING”
2. The LCD Display will display as below.
EXIT : Exit the menu.
DEFAULT : Return the standard value.
SAVE : Saves the setting value.
3. If you want to change the BATCH value,
press the MODE key and select the BATCH
number.
4. Change the value using the ▲/+10 or ▼/+1
key.
5. After finishing, move the “>>” make to
select “SAVE” then
press the PRINT key.
6. Display shows the message as left.
7. Press the RESTART•STOP key.
----------------------
|Please Wait.......
|Setting Data Saving..|
----------------------
|
- 38 -
Page 39
User’s Manual MAGNER150
SPECIFICATION OF THE MAGNER150------------------------------------
-Technical Specification
Available currencies EURO, USD, LOCAL(OPTION)
Dimension(mm) 330(W)×350(D)×370(H) Display 4.1 inch Graphic LCD
Weight Approx. 16 Kg Denomination Detection Full Line Image Sensor
Countable Notes
Size
Countable Note
Thickness
Hopper Capacity 300 notes (circulated notes) Piece Count Max. 1500 notes/min
Pockets 1 pocket and 1 reject Feed System Roller friction system
Main Pocket
Capacity
Reject Pocket
Capacity
60 × 90mm ~ 100 × 180mm
0.08 ~ 0.12mm
200 notes (c irculated notes)
Max. 90 notes (circulated
notes)
Counterfeit Detection
Denomination
Speed
Power Supply 100 ~ 240V AC, 50/60Hz
Power consumption Max. 110 Watts
Count
UV, FL, MG (Magnetic
Thread Detection), IR
1000 notes/min
-Options
Local Currency Max. 3 currency IR Detection Full Line IR Sensor
External Display LCD type for customer
Serial Number
Max. 400 notes/m i n
Recognition
Bill Printout
With RS232C Interface for PC
and external printer, Print user
name
Discrimination
Function
Discriminate between old and
new
Real Time Clock For Local time printout
- 39 -
Page 40
User’s Manual MAGNER150
- ERROR CODE AND DISPLAY MESSAGE
ERROR
DISPLAY MESSAGE
CODE
E001 Jam Error Jamming in the machine
E002 Skew Error Skew bill fed
E003 Rear Cover Opened
E004 Chain Error Chain bills were fed
E005 Double Error Doubled bills were fed
CAUSE OF ERROR
Rear Cover is opened.
A note is in the machine.
Procedure for removing the
cause of error
1. Remove notes from the HOPPER,
REJECT and STACKER POCKET.
2. Open rear cover and remove notes
in the machine.
3. Open front cover and remove
notes in the machine.
4. Restart counting operation.
1. Remove notes from the HOPPER,
REJECT and STACKER POCKET.
2. Restart counting operation.
1. Open rear cover and remove notes
in the machine.
2. Restart counting operation.
E006 Half Error Half bill was fed
Dispenser function is
E007 Dispenser Full
completed
There is no time to operate
E008 Separator Err.
separator.
Front cover is opened.
E009 Front Cover Opened.
A note is in the machine.
E011 Batch Full Batch Counting is completed.
E012 Reject Pocket Full Reject Pocket is full.
E013 Stacker Pocket Full Stacker Pocket is full.
Communication Error
E014 No Value Result
between Main and CIS board
Communication Error
E015 No UV,MG Result
between Main and CF board
Communication Error
E016 No IR Result
between Main and CF board
1. Remove notes from the REJECT
POCKET and STACKER
2. Restart counting operation.
1. Open front cover and remove
notes in the machine.
2. Restart counting operation.
Remove notes from the STACKER
POCKET and Restart
Restart counting operation.
Restart counting operation.
- 40 -
Page 41
User’s Manual MAGNER150
- ERROR CODE AND DISPLAY MESSAGE FOR VALUE
ERROR
DISPLAY MESSAGE
CODE
E101 Value Error ( E101 ) Skew ( Left )
E102 Value Error ( E102 ) Skew ( Right )
E103 Value Error ( E103 ) Dimension (Original X Length )
E104 Value Error ( E104 ) Dimension (Original Y Length )
E105 Value Error ( E105 )
E106 Value Error ( E106 )
E107 Value Error ( E107 )
E108 Value Error ( E108 )
E109 Value Error ( E109 ) Uncertain Error
E110 Value Error ( E110 ) Different Currency
E111 Value Error ( E111 ) Chain error
E112 Value Error ( E112 ) Different Slop e of Le ft an d R i g ht
E113 Value Error ( E113 )
E114 Value Error ( E114 )
E115 Value Error ( E115 )
CAUSE OF ERROR
Dimension ( Original X,Y Length )
Dimension ( Currency X Length )
Dimension ( Currency Y Length )
Dimension (Currency X,Y Length )
Fanwise ( Original X Lengt h )
Fanwise ( Original Y Length )
Fanwise ( Original X,Y Length )
Procedure for removing the
cause of error
1. Check and adjust the insert gap.
2. Restart counting operation.
- 41 -
Page 42
User’s Manual MAGNER150
- ERROR CODE AND DISPLAY MESSAGE FOR UV
ERROR
DISPLAY MESSAGE
CODE
E201 E-UH UV1 high level error
E202 E-UL UV1 low level error
E203 E-BH UV2 high level error
E204 E-BL UV2 low level error
E205 E-FH FL high level error
E206 E-FL FL low level error
CAUSE OF ERROR
- MG ERROR CODE
ERROR
DISPLAY MESSAGE
CODE
E211 E-M1(all currencies) MG T otal ERROR
E212 E-M2(all currencies) MG Information Error 1
E213 E-M3(all currencies) MG Information Error 2
E214 E-M4(local only) MG Information Error 3
E215 E-M5(all currencies) MG Denomination ERROR
E216 E-M6(local only) MG Information Error 4
E217 E-M7(local only) MG Information Error 5
CAUSE OF ERROR
Procedure for removing the
cause of error
Suspect Note.
Check and restart counting
operation.
Procedure for removing the
cause of error
Suspect Note.
Check and restart counting
operation.
1. Check the note condition which is
dirty or wear out
2. Check the rear cover closed..
- 42 -
Page 43
User’s Manual MAGNER150
- CF ERROR CODE FOR COUNTING
ERROR
CODE
E221 E-C1 Abnormal note is mixed
E222 E-C2 A Note is skewed
E223 E-C3 A Note with Hole is mixed
E224 E-C4 A Note with Half is mixed
E225 E-C5 A Note with Size is mixed
DISPLAY MESSAGE
CAUSE OF ERROR
- Error Code of IR part
ERROR
DISPLAY MESSAGE
CODE
E303 IR Error ( E303 ) IR front fill error
E304 IR Error ( E304 ) IR front empty error
E305 IR Error ( E305 ) IR front deep fill error
CAUSE OF ERROR
Procedure for removing the
cause of error
Restart counting operation.
Procedure for removing the
cause of error
E306 IR Error ( E306 ) IR Rear fill error
E307 IR Error ( E307 ) IR Rear empty error
E308 IR Error ( E308 ) IR Rear deep fill error
E309 IR Error ( E309 ) IR Rotate error
E310 IR Error ( E310 ) IR Hole error
E311 IR Error ( E311 ) IR Half error
E312 IR Error ( E312 ) IR Size error
E313 IR Error ( E313 )
Suspect Note.
Restart counting operation.
- 43 -
Page 44
User’s Manual MAGNER150

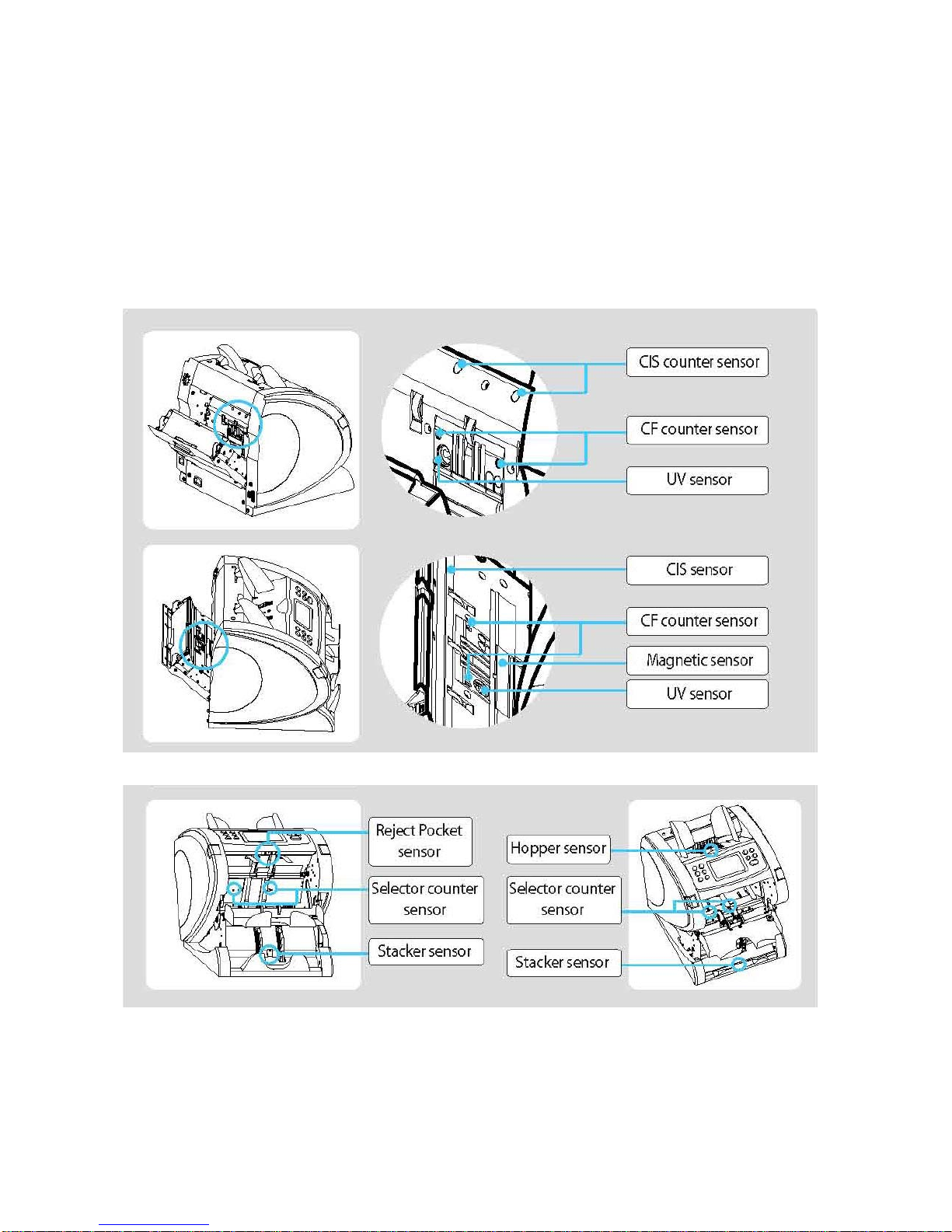

REGULAR CLEANING OF THE MACHINE--------------------------------------------
The machine has a many sensitive sensor to perform high technology functions, for example
counterfeit detection, denominations, recognition of serial number and etc.
Users are recommended to clean the machine sensors at least once a week.
Refer to following section and clean the machine regularly.
※ Please turn the power off before clean the machine.
- 44 -
Page 45
User’s Manual MAGNER150
Rev 1.3 2008. 02. 18
- 45 -
Loading...
