Magnepan CC Speaker Stand User Manual

Magneplanar CC (Center Channel) Speaker Stand

Table of Contents

1. General Description

2. Carton Contents

3. Packaging

4. Installation and Adjustments

5. Hookup

6. Phasing and Processor Settings

7. Bass Attenuation

8. Service and Shipping

9. Specifications

General Description

The Magneplanar CC Speaker Stand is both a speaker stand and a midbass/bass woofer to augment the low
frequencies for Magneplanar center channel speakers. An internal crossover has a high pass filter for the Magneplanar
center channel speaker. The woofer section of the CC Speaker Stand uses the same DiPlanar technology as the MG

20.1 bass driver.

Carton Contents

1- Magneplanar CC Speaker Stand
3- 1/4-20x1 inch Phillips screws
4- 10-24x1-3/4 inch Foot bolts
1- 2 ohm resistor
1- Allen wrench
1- Speaker logo
1- Owner's manual
1- Magnepan shaped pink noise test CD

Packaging

Save all packaging. If you need to transport the speakers, they can be shipped safely only in the original packaging. You
may never have to return your loudspeakers, but should the occasion arise, they should not be shipped in any
packaging but the original. Should you discard it, packaging is available.

Installation and Adjustments

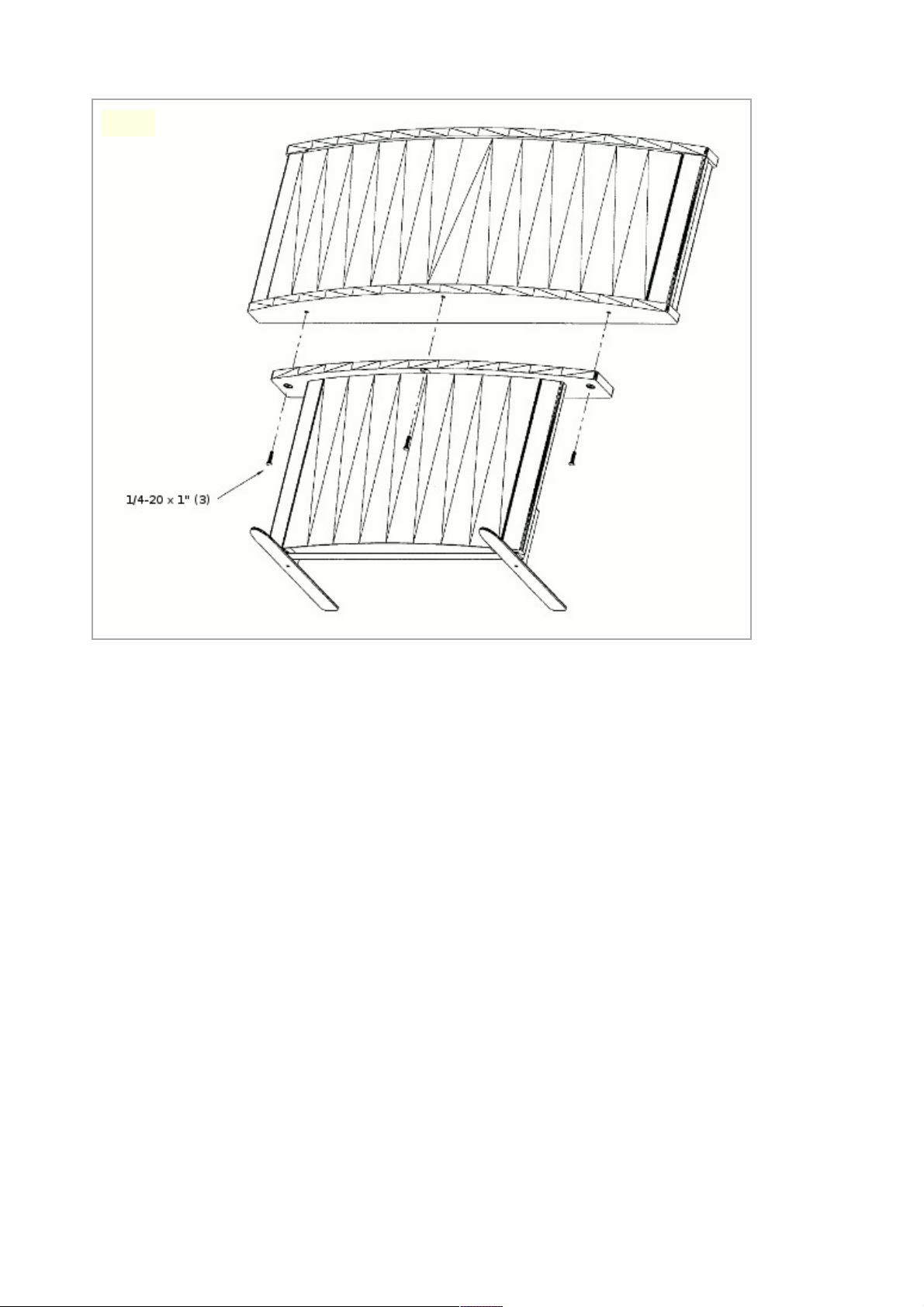

1. Install the feet on the CC Speaker Stand as shown in Fig. 1.

Fig. 1
