Magnavox SYLVANIA EMERSON 19MF339B/F7 Schematic

LCD TV

chassis FL9.0

SERVICE MANUAL

Contents

19” LC195SLX SYLVANIA (Serial No. : DS1A**********) 19” LC195SLX SYLVANIA (Serial No. : DS2A**********) 19” LC195SLX SYLVANIA (Serial No. : DS3A**********) 19” LC195SLX SYLVANIA (Serial No. : DS4A**********) 19” LC195SLX SYLVANIA (Serial No. : TH3A**********) 19” LC195SLX SYLVANIA (Serial No. : TH4A**********) 19” LC195SLX SYLVANIA (Serial No. : TH6A**********) 19” LC195EMX EMERSON (Serial No. : DS1A**********) 19” LC195EMX EMERSON (Serial No. : DS2A**********) 19” LC195EMX EMERSON (Serial No. : DS3A**********) 19” LC195EMX EMERSON (Serial No. : DS4A**********) 19” LC195EMX EMERSON (Serial No. : TH3A**********) 19” LC195EMX EMERSON (Serial No. : TH4A**********) 19” LC195EMX EMERSON (Serial No. : TH5A**********) 19” LC195EMX EMERSON (Serial No. : TH6A**********) 22” 22MF339B/F7 MAGNAVOX 22” LC225SSX SYLVANIA Limited 19” LC195SSX SYLVANIA Limited (Serial No. : DS1A**********) 19” LC195SSX SYLVANIA Limited (Serial No. : DS2A**********) 19” 19MF339B/F7 MAGNAVOX (Serial No. : DS1A**********) 19” 19MF339B/F7 MAGNAVOX (Serial No. : DS2A**********)

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

A91N3UH/N4UH/70UH/71UH/N1UH/N0UH/N5UH/N6UH/N8UT/N9UT/NCUT/NBUT

A9AN3UH/N4UH/N0UH/N5UH/N6UH/N1UH/NBUH/N9UT/NCUT

091020

IMPORTANT SAFETY NOTICE

o

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of col This is not to be considered a defect in the LCD screen.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

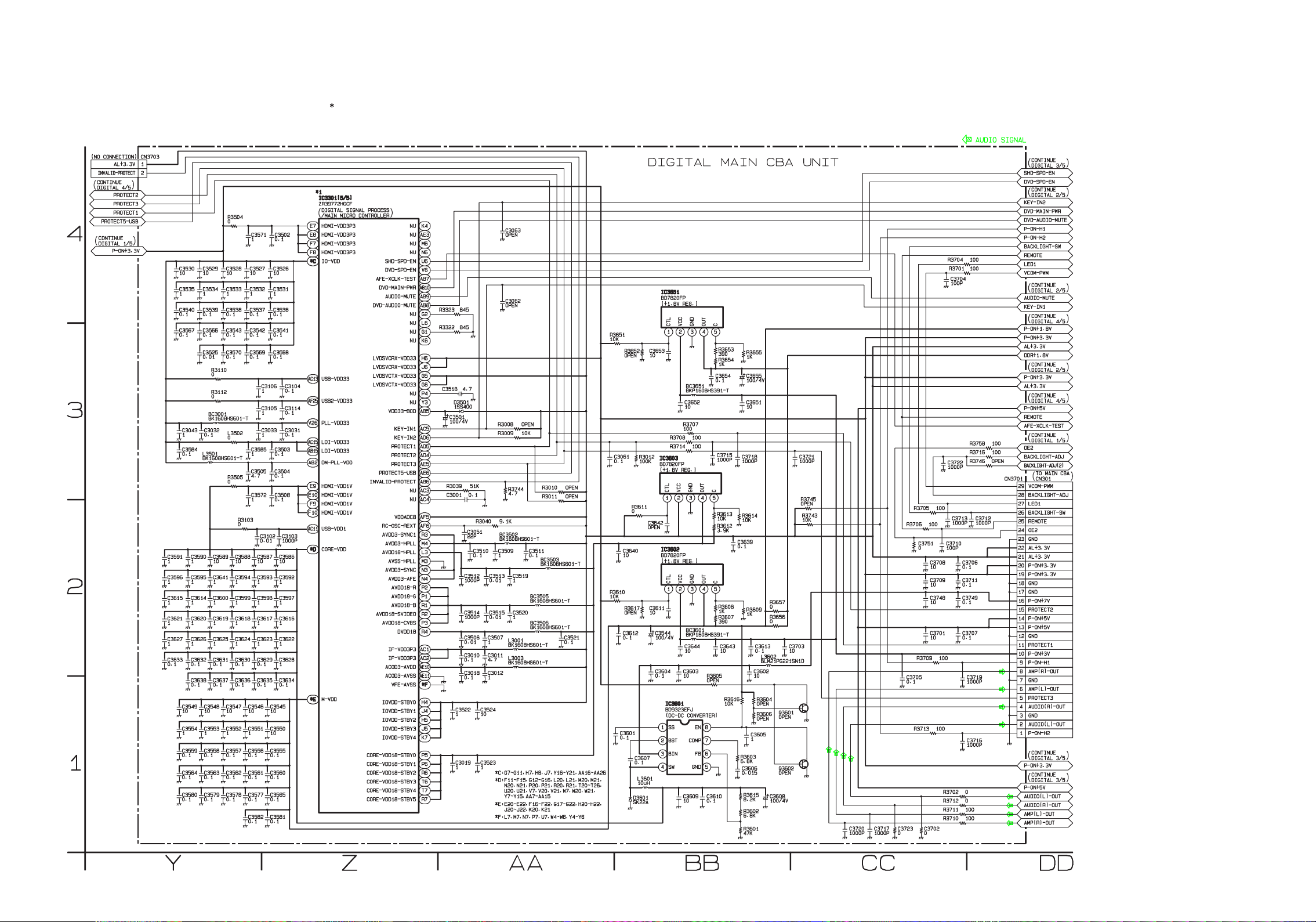

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1

SPECIFICATIONS

< TUNER / NTSC >

ANT. Input ---------------------- 75 Ω Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-In Range --- MHz ±2.3 ±2.1 TV.ch.4

2. Synchronizing Sens.

CA.ch.31 CA.ch.87

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

ch.4

2. ATSC Dynamic Range (min / max)

ch.10 ch.41

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolution

2. Brightness (w / filter) --- cd/m

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

dBµ dBµ dBµ

dBm dBm dBm

pixels pixels

° °

18 18 18

---

1366

768

[LC195SLX, LC195EMX,

LC195SSX,

2

19MF339B/F7]

300

[22MF339B/F7,

LC225SSX]

330

-85 to 85

-80 to 80

20 20 23

-76/0

-76/+4

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--x y

Horizontal

Vert ical

% %

°K 12000

line line

5 5

0.272

0.278 400

350

5±5 5±5

--±3% ±3%

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1. Audio Output 10% Distortion (ATSC 0 dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response (NTSC)

Lch/Rch W 3.0/3.0 2.8/2.8

-

6dB: Lch

-

6dB: Rch

1-1 FL9.0SP

Hz Hz

70 to 10 k 70 to 10 k

---

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the Liquid Crystal Panel and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 120 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the Liquid Crystal Panel.

CURRENT

TESTER

+

EARTH GROUND

_

2-1 LTVN_ISP

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Hot Chassis Warning a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 LTVN_ISP

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

2-3 LTVN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter (High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3-1 TVN_SN

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Tape

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

3-2 TVN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “●” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the pin 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

3-3 TVN_SN

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-4 TVN_SN

CABINET DISASSEMBLY INSTRUCTIONS

[LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[12] Junction-C CBA

[13] Junction-B CBA

[5] Jack Holder (A)

[6] Jack CBA

[15] Function CBA

[14] Junction-A CBA

[3] Jack Holder (D)

[4] Digital Main CBA Unit

[10] Speaker Holder (s)

[11] Speaker (s)

[1] Stand

Assembly

[2] Rear Cabinet

[7] Main CBA

[8] Stand Holder

[9] LCD Module Assembly

[16] Front Cabinet

Removal

Step/

Loc.

No.

Part

Fig.

Remove/*Unhook/

Unlock/Release/

No.

Unplug/Unclamp/

Note

Desolder

[6] Jack CBA

[7] Main CBA

Stand

[8]

Holder

D2D34(S-10), CN702,

*CN861A 10(S-11), *CN102,

D2

*CN201, *CN862A,

D3

*CN1001, *CN1002

D2 2(S-12), (S-13) ---

LCD

[9]

Module

D2 --------------- ---

Assembly Speaker

[10]

Holder(s)

D2 4(S-14) ---

[11] Speaker(s) D2 --------------- ---

[12]

[13]

[14]

Junction-C CBA

Junction-B CBA

Junction-A CBA

D2

Desolder ---

D3 D2

Desolder ---

D3 D2

Desolder ---

D3

---

2. Disassembly Method

Removal

Step/

Loc.

No.

Stand

[1]

Assembly Rear

[2]

Cabinet Jack

[3]

Holder(D)

Digital Main

[4]

CBA UnitD2D3

Jack

[5]

Holder(A)

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Desolder

D1 3(S-1) ---

D1 9(S-2), 2(S-3), 2(S-4) ---

D2 (S-5) ---

4(S-6), (S-7), 4(S-8), 2(H-1), *CN301, *CN302, *CN3902, Shield Box

D2 (S-9) ---

Note

---

[15]

[16]

↓

(1)

Function CBA

Front Cabinet

↓

(2)

D2

2(S-15) ---

D3

D2 --------------- ---

↓

(3)

↓

(4)

(5)

↓

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, H = Hex Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Ta bl e ."

4-1 A91N3DC

[2] Rear Cabinet

[1] Stand Assembly

(S-2)

(S-3)

(S-2)

(S-3)

(S-2)

(S-4)

(S-2)

(S-1)

Fig. D1

4-2 A91N3DC

[16] Front Cabinet

[14] Junction-A CBA

[15] Function CBA

[4] Digital Main CBA Unit

(S-8)

[3] Jack Holder(D)

(S-5)

[11] Speaker(s)

(S-14)

[10] Speaker Holder(s)

[13] Junction-B CBA

[12] Junction-C CBA

(S-15)

(S-14)

[9] LCD Module Assembly

[8] Stand Holder

(S-11)

[7] Main CBA

(S-13)

Shield Box

[6] Jack CBA

(S-12)

(S-10)

(H-1)

(S-9)

[5] Jack Holder(A)

(S-10)

(S-11)

(S-6)

(S-7)

(S-6)

(S-11)

Fig. D2

4-3 A91N3DC

TV Cable Wiring Diagram

To LCD Module Assembly

Main CBA

To LCD Module Assembly

Digital Main CBA Unit

CN862B

CN1001

CN1002

CN862A

AC CORD

Junction-B CBA

CL862

To Speaker

CN201

CN301

CN302

CN702

CN102

Junction-A CBA

CN101 CN101A

CN861B

CN3902

CN3701

CN3702

Jack CBA

CN701

CN861A

Junction-C CBA

CL861

Function CBA

CN101B

4-4 A91N3DC

To Speaker

Fig. D3

CABINET DISASSEMBLY INSTRUCTIONS

[22MF339B/F7, LC225SSX]

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[12] Junction-C CBA

[13] Junction-B CBA

[5] Jack Holder (A)

[6] Jack CBA

[15] Function CBA

[14] Junction-A CBA

[3] Jack Holder (D)

[4] Digital Main CBA Unit

[10] Speaker Holder (s)

[11] Speaker (s)

[1] Stand

Assembly

[2] Rear Cabinet

[7] Main CBA

[8] Stand Holder

[9] LCD Module Assembly

[16] Front Cabinet

Removal

Step/

Loc.

No.

Part

Fig.

Remove/*Unhook/

Unlock/Release/

No.

Unplug/Unclamp/

Note

Desolder

10(S-11), *CN102,

D2

[7] Main CBA

*CN201, *CN862A,

D3

*CN1550, *CN1650, *CN1750

Stand

[8]

Holder

D2 2(S-12), (S-13) ---

LCD

[9]

Module

D2 --------------- ---

Assembly Speaker

[10]

Holder(s)

D2 4(S-14) ---

[11] Speaker(s) D2 --------------- ---

[12]

[13]

[14]

[15]

Junction-C CBA

Junction-B CBA

Junction-A CBA

Function CBA

D2

Desolder ---

D3 D2

Desolder ---

D3 D2

Desolder ---

D3 D2

2(S-15) ---

D3

---

2. Disassembly Method

Removal

Step/

Loc.

Part

No.

Stand

[1]

Assembly Rear

[2]

Cabinet Jack

[3]

Holder(D)

Digital Main

[4]

CBA UnitD2D3

Jack

[5]

Holder(A)

[6] Jack CBA

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Desolder

D1 3(S-1) ---

D1 9(S-2), 3(S-3), 3(S-4) ---

D2 (S-5) ---

4(S-6), (S-7), 4(S-8), 2(H-1), *CN301, *CN302, *CN3902, Shield Box

D2 (S-9) ---

D2D34(S-10), CN702,

*CN861A

Note

---

Front

[16]

↓

(1)

Cabinet

↓

(2)

D2 --------------- ---

↓

(3)

↓

(4)

(5)

↓

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, H = Hex Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Ta bl e ."

4-5 A9170DC

(S-2)

(S-3)

(S-2)

[2] Rear Cabinet

[1] Stand Assembly

(S-4)

(S-2)

(S-1)

Fig. D1

4-6 A9170DC

[4] Digital Main CBA Unit

[3] Jack Holder(D)

[16] Front Cabinet

[11] Speaker(s)

(S-14)

[13] Junction-B CBA

[14] Junction-A CBA [15] Function CBA

[12] Junction-C CBA

(S-15)

(S-14)

[10] Speaker Holder(s)

[9] LCD Module Assembly

(S-8)

(S-12)

(S-13)

Shield Box

(H-1)

[6] Jack CBA

(S-5)

(S-6)

(S-7)

(S-6)

[5] Jack Holder(A)

(S-9)

(S-10)

(S-11)

[8] Stand Holder

[7] Main CBA

(S-11)

Fig. D2

4-7 A9170DC

TV Cable Wiring Diagram

To LCD Module Assembly

Main CBA

To LCD Module Assembly

Digital Main CBA Unit

CN862B

CN1550

CN1650

CN1750

CN862A

Junction-B CBA

CL862

To Speaker

AC CORD

CN201

CN301

CN302

CN702

CN102

Junction-A CBA

CN101 CN101A

CN861B

CN3902

CN3701

CN3702

Jack CBA

CN701

CN861A

Junction-C CBA

CL861

Function CBA

CN101B

4-8 A9170DC

To Speaker

Fig. D3

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. Remote control unit

3. Color Analyzer

How to make the Service remote control unit: [LC195SLX, LC195EMX]

Cut “A” portion of the attached remote control unit as shown in Fig. 1.

service button (There is a button under the plastic housing.)

[LC225SSX, LC195SSX]

Cut “A” portion of the attached remote control unit as shown in Fig. 3.

service button

A

Fig. 3

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on.

3. Press the service button on the service remote control unit. The following screen appears.

"*" differs depending on the models.

Code :

***********-***

Pic code :

**-***-**-*****-***

MIPS :

Push 0key

A

Fig. 1

[22MF339B/F7, 19MF339B/F7]

Cut “A” portion of the attached remote control unit as shown in Fig. 2.

service button (There is a button under the plastic housing.)

A

Fig. 2

Tuner :

****-*****-**** safety_Non

Safety :

5-1 FL9.0EA

1. Purity Check Mode

2. VCOM Adjustment

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time pressing [7] button on the service remote control unit, the display changes as follows.

Purity Check Mode

White mode

[7] button

Black mode

[7] button

Red mode

[7] button

Green mode

[7] button

Blue mode

Test Point Adj. Point

Screen

[CHANNEL UP/DOWN ]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

To avoid interference from ambinent light, this adjustment should be performed in a dark room.

Perpendicularity

L = 3 cm

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Set the color analyzer and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

3. Enter the Service mode.

4. Press [3] button on the service remote control unit.

5. Press [CHANNEL UP/DOWN] buttons on the service remote control unit so that the color analyzer value becomes minimum.

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

5-2 LC7NEA

The white balance adjustment should be performed when replacing the LCD Panel or Digital CBA.

3. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point

Screen

Adj. Point Mode Input

[VOLUME

DOWN]

button

[VIDEO1]

C/D

M. EQ. Spec.

White Raster

(APL 70%)

or

(APL 40%)

5. [CUTOFF] Press [1] button to select “COR” for Red Cutoff adjustment. Press [3] button to select “COB” for Blue Cutoff adjustment.

[DRIVE]

Press [4] button to select “DR” for Red Drive adjustment. Press [6] button to select “DB” for Blue Drive adjustment.

6. In each color mode, press [CHANNEL UP/DOWN] buttons to adjust the values of color.

7. Adjust Cutoff and Drive so that the color temperature becomes 12000°K (x

=

0.272 / y

=

0.278 ±0.005).

Pattern Generator,

Color analyzer

x= 0.272 ± 0.005 y= 0.278 ± 0.005

Figure

To avoid interference from ambinent light, this adjustment should be performed in a dark room.

Perpendicularity

L = 3 cm

INPUT: WHITE 70%, 40%

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Input the White Raster(70%=70IRE, 40%=40IRE).

INPUT SIGNAL

0IRE 0IRE

Low

Hight

Light

100IRE

40%=40IRE

70%=70IRE

100IRE

3. Set the color analyzer to the CHROMA mode and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [VOLUME DOWN] button on the service remote control unit and select “C/D” mode.

5-3 LC7NEA

HOW TO INITIALIZE THE LCD TV

The purpose of initialization is to place the set in a new out of box condition. The customer will be prompted to select a language and program channels after the set has been initialized. To put the program back at the factory-default, initialize the LCD TV using the following procedure.

1. Turn the power on.

2. To enter the service mode, press the service button on the service remote control unit.

- To cancel the service mode, press [POWER]

button on the service remote control unit.

3. Press [INFO] button on the service remote control unit to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is complete.

6-1 A91F3INT

FIRMWARE RENEWAL MODE

Equipment Required

a. USB memory b. Remote Control Unit

Firmware Update Procedure

Note: There are two states (the User Upgrade and

the Factory Upgrade) in firmware update.

User Upgrade Upgrade the firmware only.

The setting values are not initialized.

Factory upgrade Upgrade the firmware and

initialize the setting values.

The identification of User Upgrade and Factory Upgrade are done by the filename.

1. Turn the power off and unplug the AC Cord.

2. Insert the USB memory to the USB port as shown below.

Rear Cabinet

USB port

Note: If the above screen isn’t displayed, repeat from

step 1.

The appearance shown in *1 is described as follows.

Appearance State

Downloading...

Writing...

Downloading the firmware from the USB memory.

Writing the downloaded firmware in flash memory.

Checking... Checking the new firmware.

5. When the firmware update is completed, the following will appear on the screen.

Software Upgrade

The software upgrade is completed. Remove USB storage device, unplug and replug power code.

USB Memory

3. Plug the AC cord in the wall outlet and turn the power on.

4. The update will start and the following will appear on the screen.

Software Upgrade

Software upgrade in progress. Please wait. Do not remove the USB device or turn the TV off while upgrade is in progress.

Unplug the AC cord and kindly remove the USB memory from the USB port. Plug the AC cord in the wall outlet again and turn the power on.

Note:

When the Factory Upgrade is used, after restarting TV, shift to initial screen menu in service mode. "INITIALIZED" will appear on the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is complete.

*1

Downloading...

0%

7-1 A91N3FW

[ Power Supply Section ]

FLOW CHART NO.1

The power cannot be turned on.

TROUBLESHOOTING

Is the fuse (F601) normal?

Ye s

Is normal state restored when once unplugged power cord is plugged again several seconds?

Ye s

Is the INV+31V line voltage normal?

Ye s

Check each rectifying circuit of the secondary circuit and service it if defective.

FLOW CHART NO.2

The fuse blows out.

Check the presence that the primary component is leaking or shorted and service it if defective.

After servicing, replace the fuse.

FLOW CHART NO.3

When the output voltage fluctuates.

No

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the primary circuit component, and service it if defective. (D601, D602, D603, D604, Q601, Q602, T601)

Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of secondary side, and service it if defective.

Does the photocoupler circuit on the secondary side operate normally?

Ye s

Check IC601, D608, D610 and their periphery, circuit and service it if defective.

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit and service it if defective. (IC631, Q201, Q205, Q206, Q634, Q635, Q636, Q637, Q640, Q641, Q643, D631, D632, D636, D638, D639, D641, D643)

FLOW CHART NO.5

INV+31V is not output.

Is approximately +31V voltage supplied to the cathode of D632?

Ye s

Check if there is any leak or short-circuit on the loaded circuit, and service it if defective.

No

Check IC601, D633, Q631 and their periphery circuit, and service it if defective.

in each rectifying circuit of the secondary side,

Check C632, D632, D633 and their periphery circuit, and service it if defective.

8-1 A91N3TR

FLOW CHART NO.6

PANEL+24.5V is not output.

Is approximately +30V voltage supplied to the collector of Q205?

Ye s

Check Q202, Q203, D203, P-ON-H1 line and their periphery circuit, and service it if defective.

FLOW CHART NO.7

PANEL+13V is not output.

Is approximately +15V voltage supplied to the collector of Q201?

Ye s

Is approximately +13V voltage supplied to the base of Q201?

Ye s

Replace Q201.

FLOW CHART NO.8

P-ON+7V is not output.

No

See FLOW CHART No.5

Check C631, D631, D668 and their periphery circuit, and service it if defective.

Check Q202, Q203, D201, D202, D210 and their periphery circuit, and service it if defective.

Is approximately +7V voltage supplied to the cathode of D641?

Ye s

Check if there is any leak or short-circuit on the loaded circuit, and service it if defective.

FLOW CHART NO.9

P-ON+5V is not output. (PANEL+13V is outputted normally.)

Is approximately +6.8V voltage supplied to the collector of Q635?

Ye s

Is approximately +6V voltage supplied to the base of Q635 and the base of Q636?

Ye s

Replace Q635 and Q636.

No

Check C641, D641 and their periphery circuit, and service it if defective.

See FLOW CHART No.8

Check D659 and their periphery circuit, and service it if defective.

8-2 A91N3TR

FLOW CHART NO.10

TUNER+5V is not output. (PANEL+13V is outputted normally.)

Is approximately +6.7V voltage supplied to the collector of Q637?

Ye s

Is approximately +6V voltage supplied to the base of Q637?

Ye s

Replace Q637.

FLOW CHART NO.11

P-ON+3V is not output.

Is approximately +3V voltage supplied to the cathode of D638?

Ye s

Check if there is any leak or short-circuit on the loaded circuit, and service it if defective.

FLOW CHART NO.12

P-ON+3.3V(PANEL+3.3V) is not output.

No

See FLOW CHART No.8

Check D659 and their periphery circuit, and service it if defective.

Check C638, D638 and their periphery circuit, and service it if defective.

Is approximately +5V voltage supplied to the cathode of D639?

Ye s

Is the "H" signal (approximately +3.5V) inputted to base of Q640?

Ye s

Replace Q640.

FLOW CHART NO.13

P-ON+9V is not output. (PANEL+13V is outputted normally.)

Is approximately +13V voltage supplied to the collector o

Is approximately +10V voltage supplied to the base of Q641?

Replace Q641.

f Q641?

Ye s

the

No

Check C639, D639 and their periphery circuit, and service it if defective.

Check Q638, Q639, P-ON-H2 line and their periphery circuit, and service it if defective.

Check C643, D643 and their per and service it if defective.

Check D666 and their periphery circuit, and service it if defective.

iphery circuit,

8-3 A91N3TR

FLOW CHART NO.14

AL+3.3V is not output.

Is approximately +34V voltage supplied to the collector of Q634?

Ye s

Is approximately +5V voltage supplied to Pin(1) of IC631?

Ye s

Replace IC631.

FLOW CHART NO.15

LCD-7.1V is not output.

Is approximately -9V voltage supplied to the Anode of D636?

Ye s

Is approximately -8V voltage supplied to the base of Q206?

Ye s

Replace Q206.

No

See FLOW CHART No.5

Check Q634, D650 and their periphery circuit, and service it if defective.

Check C636, D636, D637 and their periphery circuit, and service it if defective.

Check Q202, Q203, D204, P-ON-H1 line and thei periphery circuit, and service it if defective.

r

8-4 A91N3TR

[ Video Signal Section ]

FLOW CHART NO.1

The key operation is not functioning.

Are the contact point and installation state of the key switches (SW104~SW109) normal?

Ye s

When pressing each switches (SW104~SW109) do the voltage of Pin(29) of CN302 increase?

Ye s

Replace Digital Main CBA Unit.

FLOW CHART NO.2

No operation is possible from the remote control unit.

Operation is possible from the remote control unit.

Is 3.3V voltage supplied to Pin(2) terminal of the remote control receiver (RS101)?

Ye s

Is the "L" pulse sent out Pin(1) terminal of remote control receiver (RS101) when the infrared remote

control is activated?

Ye s

Is the "L" pulse supplied to Pin(25) of CN301?

Ye s

Replace Digital Main CBA Unit.

No

Re-install the switches (SW104~SW109) correctly or replace the poor switch.

Check the switches (SW104~SW109) and their periphery, and service it if defective.

Check AL+3.3V line and service it if defective.

Replace the remote control receiver(RS101) or the remote control unit.

Check the line between Pin(1) terminal of remote control receiver(RS101) and Pin(25) of CN301, and service it if defective.

FLOW CHART NO.3

Picture does not appear normally.(Video input)

Are the video signal inputted to Pin(4) of CN302?

Ye s

Replace Digital Main CBA Unit or LCD Module Assembly.

No

Check the line between Pin(4) of CN302 and JK752, and service it if defective.

8-5 A91N3TR

FLOW CHART NO.4

Picture does not appear normally.(Tuner input)

Are the DIF signal inputted to Pin(26,28) of CN302?

Ye s

Replace Digital Main CBA Unit or LCD Module Assembly.

FLOW CHART NO.5

Picture does not appear normally.(S-Video input)

Are the video signal outputted to Pin(6, 8) of CN302?

Pin(6): S-VIDEO-C Pin(8): S-VIDEO-Y

Ye s

Replace Digital Main CBA Unit or LCD Module Assembly.

FLOW CHART NO.6

Picture does not appear normally.(Y/Pb/Pr input)

No

Check the line between Pin(26, 28) of CN302 and Pin(10, 11) of TU302, and service it if defective.

Check the line between Pin(6, 8) of CN302 and JK751, and service it if defective.

Are the video signal inputted to Pin(15, 17, 19) of CN302?

Pin(15): VIDEO-Y Pin(17): VIDEO-Pb Pin(19): VIDEO-Pr

Ye s

Replace Digital Main CBA Unit or LCD Module Assembly.

No

Check the line between Pin(15, 17, 19) of CN302 and input terminals(JK731, JK732, JK733), and service it if defective.

8-6 A91N3TR

[ Audio Signal Section ]

FLOW CHART NO.1

Audio is not outputted normally.(Audio input)

Are the audio(L/R) signals inputted to Pin(2, 15) of IC771?

Ye s

Are the audio(L/R) signals inputted to Pin(6, 8) of CN301?

Ye s

Are the audio(L/R) signals inputted to Pin(3, 5) of IC803?

Ye s

Are the audio(L/R) signals outputted to Pin(1, 7) of IC803?

Ye s

Are the audio(L/R) signals inputted to Pin(1, 9) of IC801?

Ye s

Are the audio(L/R) signals outputted to Pin(4, 6) of IC801?

Ye s

Check SP861,SP862 and their periphery circuit, and service it if defective.

No

Check the line between Pin(2, 15) of IC771 and input terminal(JK753, JK754), and service it if defective.

Replace Digital Main CBA Unit.

Check the line between Pin(6, 8) of CN301 and Pin(3, 5) of IC803, and service it if defective.

Replace IC803

Check the line between Pin(1, 7) of IC803 and Pin(1, 9) of IC801, and service it if def

Check IC801 and their periphery circuit, and service it if defective.

ective.

FLOW CHART NO.2

Audio is not outputted normally.(Component Audio input)

Are the audio(L/R) signals inputted to Pin(4, 11) of IC771?

Ye s

Are the audio(L/R) signals inputted to Pin(6, 8) of CN301?

Ye s

Are the audio(L/R) signals inputted to Pin(3, 5) of IC803?

Ye s

Are the audio(L/R) signals outputted to Pin(1, 7) of IC803?

Ye s

Are the audio(L/R) signals inputted to Pi of IC801?

Ye s

Are the audio(L/R) signals outputted to of IC801?

Ye s

n(1, 9)

Pin(4, 6)

No

Check the line between Pin(4, 11) of IC771 and input terminal(JK741, JK742), and service it if defective.

Replace Digital Main CBA Unit.

Check the line between Pin(6, 8) of CN301 and Pin(3, 5) of IC803, and service it if defective.

Replace IC803

Check the line between Pin(1, 7) of IC803 and Pin(1, 9) of IC801, and service it if defective.

Check IC801 and their periphery circuit, and service it if defective.

Check SP861,SP862 and their periphery circuit, and service it if defective.

8-7 A91N3TR

FLOW CHART NO.3

Audio is not outputted normally.(Tuner input)

Are the DIF signals outputted to Pin(26, 28) of CN302?

Ye s

Are the audio(L/R) signals inputted to Pin(6, 8) of CN301?

Ye s

Are the audio(L/R) signals inputted to Pin(3, 5) of IC803?

Ye s

Are the audio(L/R) signals outputted to Pin(1, 7) of IC803?

Ye s

Are the audio(L/R) signals inputted to Pin(1, 9) of IC801?

Ye s

Are the audio(L/R) signals outputted to Pin(4, 6) of IC801?

Ye s

Check SP861,SP862 and their periphery circuit, and service it if defective.

No

Check TU302 and their periphery circuit, and service it if defective.

Replace Digital Main CBA Unit.

Check the line between Pin(6, 8) of CN301 and Pin(3, 5) of IC803, and service it if defective.

Replace IC803

Check the line between Pin(1, 7) of IC803 and Pin(1, 9) of IC801, and service it if def

Check IC801 and their periphery circuit, and service it if defective.

ective.

FLOW CHART NO.4

Audio is not outputted normally.(HDMI Audio input)

Are the audio(L/R) signals inputted to Pin(5, 14) of IC771?

Ye s

Are the audio(L/R) signals inputted to Pin(6, 8) of CN301?

Ye s

Are the audio(L/R) signals inputted to Pin(3, 5) of IC803?

Ye s

Are the audio(L/R) signals outputted to Pin(1, 7) of IC803?

Ye s

Are the audio(L/R) signals inputted to Pi of IC801?

Ye s

Are the audio(L/R) signals outputted to Pin(4, 6) of IC801?

Ye s

n(1, 9)

No

Check the line between Pin(5, 14) of IC771 and input terminal(JK721, JK722), and service it if defective.

Replace Digital Main CBA Unit.

Check the line between Pin(6, 8) of CN301 and Pin(3, 5) of IC803, and service it if defective.

Replace IC803

Check the line between Pin(1, 7) of IC803 and Pin(1, 9) of IC801, and service it if defective.

Check IC801 and their periphery circuit, and service it if defective.

Check SP861,SP862 and their periphery circuit, and service it if defective.

8-8 A91N3TR

FLOW CHART NO.5

Audio is not outputted normally.(PC Audio input)

Are the audio(L/R) signals inputted to Pin(1, 12) of IC771?

Ye s

Are the audio(L/R) signals inputted to Pin(6, 8) of CN301?

Ye s

Are the audio(L/R) signals inputted to Pin(3, 5) of IC803?

Ye s

Are the audio(L/R) signals outputted to Pin(1, 7) of IC803?

Ye s

Are the audio(L/R) signals inputted to Pin(1, 9) of IC801?

Ye s

Are the audio(L/R) signals outputted to Pin(4, 6) of IC801?

Ye s

Check SP861,SP862 and their periphery circuit, and service it if defective.

No

Check the line between Pin(1, 12) of IC771 and input terminal(JK711), and service it if defective.

Replace Digital Main CBA Unit.

Check the line between Pin(6, 8) of CN301 and Pin(3, 5) of IC803, and service it if defective.

Replace IC803

Check the line between Pin(1, 7) of IC803 and Pin(1, 9) of IC801, and service it if defective.

Check IC801 and their periphery circuit, and service it if defective.

8-9 A91N3TR

BLOCK DIAGRAMS

System Control Block Diagram

AL+3.3V

D104

D103

STANDBY

POWER

KEY SWITCH

SENSOR

REMOTE

RS101

CN101B

CN101A

JUNCTION -A

CBA

CN101

CN102

LED144

REMOTE22

P-ON-H155

KEY-IN166

LED144

REMOTE22

P-ON-H155

KEY-IN166

Q172

Q171

CN302CN3702

CN301

FUNCTION CBA

TO

POWER SUPPLY

BLOCK DIAGRAM

TO

INVERTER

BLOCK

DIAGRAM

VCOM

P-ON-H2

P-ON-H1

PROTECT2

PROTECT1

PROTECT3

BACKLIGHT-SW

BACKLIGHT-ADJ

DRIVE

IC201,Q207,

Q208,Q209

SCL

SDA

TU302 (TUNER UNIT)

4

5

CN301CN3701

11

15

29

28

26

22

21

IC3301

(MAIN MICRO CONTROLLER)

KEY-IN129 29

AC5

KEY-IN1

P-ON-H199

REMOTE25 25

P-ON-H211

LED127 27

CN3701

F1

R22

R23

AB13

LED1

P-ON-H2

P-ON-H1

REMOTE

INPUT0

INPUT1

E1

E2

AUDIO-MUTE

INPUT0

INPUT1

TO AUDIO

BLOCK

DIAGRAM

AUDIO-MUTE

AB9

PROTECT1

PROTECT2

11

15

AD4

AD5

PROTECT2

PROTECT1

VCOM-PWM

PROTECT3

BACKLIGHT-SW

5

29

AE5

AB16

AC14

PROTECT3

VCOM-PWM

BACKLIGHT-SW

SCL

BACKLIGHT-ADJ 28

26

AB23

BACKLIGHT-ADJ

22

CN3702 CN302

AC18

SCL

IC3101 (MEMORY)

SDA 21

AC19

SDA

SCK

AB25

652

SCK

SIN

AB24

SI

SOUTCSWP

E11

AC25

AC24

1

3

CS

SO

WP

X3101

CLKOUT

CLKIN

N1

N2

25MHz

OSC

DIGITAL MAIN CBA UNIT MAIN CBA

9-1

A91N3BLS

Video Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

VIDEO SIGNAL

DIGITAL MAIN CBA UNIT

VIDEO-IN

S-VIDEO-SW

S-VIDEO-Y-IN

CN302 CN3702

WF1WF2

WF3

S-VIDEO-C-IN

S-VIDEO-C-IN6 6

VIDEO-IN4 4

COM-VIDEO-Pr-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

S-VIDEO-Y-IN88

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

S-VIDEO-SW5 5

15 15

17 17

COM-VIDEO-Pr-IN 19 19

WF6

WF4 WF5

VGA-R-IN

VGA-G-IN

123

JK3703

VGA-B-IN

PC-RGB

IN

DIF-OUT1

DIF-OUT2

DIF-OUT126 26

CN302 CN3702

IF-AGC

IF-AGC24 24

DIF-OUT228 28

JK752

VIDEO-IN

CN702

VIDEO-IN 27 272826

CN701

28

1919

2020

S-VIDEO-C-IN

S-VIDEO-Y-IN 26

S-VIDEO-SW-IN

COM-VIDEO-Y-IN

CY

JK751

S-VIDEO

-IN

1818

1616

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

COMPONENT

-Y-IN

JK731

JK732

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

JK733

MAIN CBA

9

11

10

IF-AGC

DIF-OUT1

DIF-OUT2

JACK CBA

TU302

(TUNER UNIT)

9-2 A91N3BLV

Audio Block Diagram

AUDIO SIGNAL

TO

DIGITAL

SIGNAL

AUDIO(L)

PROCESS

BLOCK

DIAGRAM

AUDIO(R)

TO

SYSTEM

INPUT1

CONTROL

BLOCK

INPUT0

AUDIO-MUTE

DIAGRAM

BCLK

LRCLK

876

TO

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

ACLK

ADATA0

5

SPDIF

D/A

CONVERTER

IC3801

(D/A CONVERTER)

(L-CH)

(R-CH)

15

14

22

CN3702CN302

WF7

Q773

3

(AUDIO SELECTOR)

IC771

241

JACK CBA

5

151112

Q774

13

14

AUDIO(L)13 13

BUFFER

CONTROL

AUDIO(R)11 11

CN702CN701

LOGIC

AUDIO(L)13 13

CN3702CN302

AUDIO(R)15 15

Q771

109

CN3701CN301

INPUT110 10

INPUT012 12

5

IC803

(OP AMP)

IC801 (AUDIO AMP)

7

1

DRIVE

4

CN702CN701

2323

SPDIF

INPUT124 24

INPUT022 22

Q722

CN3702

AUDIO-MUTE 2020

SPDIF

AMP(L)-OUT66

AMP(R)-OUT88

CN302

1 3

Q801

8

9

DRIVE

MUTE CONTROL

6

3,43,4

9,109,10

HEADPHONE(R)

HEADPHONE(L)

SP(R) 1,21,2

1,21,2

DIGITAL MAIN CBA UNIT

MAIN CBA

1,21,2

AUDIO(L)

JK753

SP(R)

SP(L)

1

CL861 CN861B CN861A

SP861

SP-GND 3,43,4

JUNCTION-C

CBA

2

SPEAKER

L-CH

BUFFER

Q841

-IN

AUDIO(R)

-IN

JK754

COMPONENT-

JK741

AUDIO(L)-IN

COMPONENT-

JK742

AUDIO(R)-IN

PC-AUDIO-IN

JK711

HDMI-

JK721

AUDIO(L)-IN

HDMI-

JK722

JK841

AUDIO(R)-IN

DIGITAL

AUDIO-OUT

(COAXIAL)

JK851

HEADPHONE

JACK

9-3

SP-GND 3,43,4

JUNCTION-B

1

2

CL862 CN862B CN862A

SP862

SPEAKER

R-CH

A91N3BLA

CBA

Digital Signal Process Block Diagram

[LC195SLX(Serial No.:DS1A**********, DS2A**********, TH3A**********, TH4A**********), LC195EMX(Serial No.:DS1A**********, DS2A**********, TH3A**********, TH4A**********), LC195SSX(Serial No.:DS1A**********), LC225SSX, 22MF339B/F7, 19MF339B/F7(Serial No.:DS1A**********)]

LCD MODULE

ASSEMBLY

LLV1(+)21

LLV1(-)20

LLV0(+)23

LLV0(-)22

LLV2(+)19

LLV2(-)18

LLV3(+)13

LLV3(-)12

LLV4(+)11

LLV4(-)10

LLV5(+)9

LLV5(-)8

LLVCLKP16

LLVCLKN15

TP6

POL5

CPV4

OE13

STV1

CN3902

AUDIO SIGNAL

48474645444338373635343342416364303132

VIDEO SIGNAL

IC3901 (TINING CONTROLLER)

IC3301 (DIGITAL SIGNAL PROCESS)

LVD S

OUTPUT

DAT A

INPUT

LATCH

FRC

LINE BUFFER

GAMMA

CORRECTOR

DAT A

PROCESSING

IC3201

DATA(0-15)

H1,H3,H7,H9

B1,B9,C2,C8,

F1,F9,G2,G8,

M2,M3,M7,M8,

D1,D3,D7,D9,

A13-15,A18,

A21-23,B13-15,

B17,B19-23

C15,C17-19,

VIDEO

DECODER

B7

ADDESS(0-12)

N2,N3,N7,N8,

P2,P3,P7,P8,R2

C23,C24,D14,

D15,D17-19,

D22,D23

B1

B2

C1C2D1

D2

A1A2A3

B3

C4

C5

(DDR2 SDRAM)

B4A4B6A6A7

LVD S

RX

8

7109

1211161514

AF23

AF22

AE23

AD23

AD24

LVD S

TX

AUDIO I/F

A/D

CONVERTER

DEMODULATOR

SW

T3T1T2

AA3

V1

V3

U2

U1

U3

/MPEG DECODER

S-VIDEO-SW

IF-AGC

C6

AF7

AF2

AE2

M1

AD9

AC10

AD12

AD10

AD11

AE22

AD21

A9

AD22

DIGITAL

B9

13

AF24

AE24

SIGNAL

PROCESS

C8

C9

AUDIO

DECODER

B8

A8

B10

A10

A11

B11

HDMI

I/F

A5

B5

DIGITAL MAIN CBA UNIT

VGA-R-IN

VGA-G-IN

VGA-B-IN

VIDEO-IN

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

TO VIDEO

BLOCK DIAGRAM

DIF-OUT1

DIF-OUT2

S-VIDEO-SWM2AUDIO(R)

IF-AGC

AUDIO(L)

BCLK

TO AUDIO

ACLK

LRCLK

BLOCK DIAGRAM

SPDIF

ADATA0

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

9-4

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

3

HDMI-IN1

JK3701

SDA

SCL

TMDS-CLOCK(+)

TMDS-CLOCK(-)

101216

15

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

3

HDMI-IN2

JK3702

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

15

WITH HDMI-IN3

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

79461

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

3

101216

JK3704

HDMI-IN3

TMDS-CLOCK(-)

SDA

SCL

15

A91N3BLD

Digital Signal Process Block Diagram

[LC195SLX(SerialNo.:DS3A**********,DS4A**********,TH6A**********),LC195EMX(SerialNo.:DS3A**********, DS4A**********,TH5A**********,TH6A**********), 19MF339B/F7(Serial No.:DS2A**********), LC195SSX(Serial No.:DS2A**********),]

LCD MODULE

ASSEMBLY

LLV1P21

LLV1N20

LLV0P23

LLV0N22

LLV2P19

LLV2N18

LLV3P13

LLV3N12

LLV4P11

LLV4N10

LLV5P9

LLV5N8

LLVCLKP16

LLVCLKN15

TP6

POL5

CPV4

OE3

STV1

CN3902

AUDIO SIGNAL

VIDEO SIGNAL

Y24

Y23

Y22

W25

AD23

AD24

AE23

AF23

AF22

AE22

AD21

AD22

AE21

AF21

AF20

AE20

AF24

AE24

W23

TP

OE

STV

POL

CPV

IC3201

(DDR2 SDRAM)

DATA(0-15)

ADDESS(0-12)

IC3301 (DIGITAL SIGNAL PROCESS)

VGA-R-IN

VGA-G-IN

T3T1T2

AA3

VIDEO-IN

VGA-B-IN

A/D

CONVERTER

SW

V3

U1

U3

S-VIDEO-Y-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Y-IN

S-VIDEO-C-IN

V1

U2

COM-VIDEO-Pr-IN

DEMODULATOR

/MPEG DECODER

IF-AGC

AF7

AF2

AE2

DIF-OUT1

DIF-OUT2

IF-AGC

LVD S T X

S-VIDEO-SW

C6

M1

AD9

S-VIDEO-SWM2AUDIO(R)

AUDIO(L)

BCLK

AUDIO I/F

AD12

AD10

ACLK

LRCLK

AD11

SPDIF

H1,H3,H7,H9

B1,B9,C2,C8,

F1,F9,G2,G8,

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

D1,D3,D7,D9,

A13-15,A18,

A21-23,B13-15,

B17,B19-23

C15,C17-19,

C23,C24,D14,

D15,D17-19,

D22,D23

DIGITAL

SIGNAL

PROCESS

AUDI O

DECODER

VIDEO

DECODER

HDMI

I/F

A9

B9

B8

A8

C8

C9

B10

AC10

ADATA0

A10

A11

B11

A5

B5

C4

C5

B4A4B6A6A7

B7

B1

B2

C1C2D1

WITH HDMI-IN3

D2

A1A2A3

B3

DIGITAL MAIN CBA UNIT

TO VIDEO

BLOCK DIAGRAM

TO AUDIO

BLOCK DIAGRAM

TMDS-D0(+)

TMDS-D0(-)

79461

9-5

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

JK3701

TMDS-D2(-)

SDA

TMDS-CLOCK(+)

TMDS-CLOCK(-)

3

101216

HDMI-IN1

SCL

15

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

3

HDMI-IN2

JK3702

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

15

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

3

101216

JK3704

HDMI-IN3

A9AN3BLD

TMDS-CLOCK(-)

SDA

SCL

15

Inverter Block Diagram

[LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

BACK

LIGHT

BACK

LIGHT

LCD MODULE

ASSEMBLY

LC195EMX (Serial No. : DS1A**********),

LC195SSX (Serial No. : DS1A**********)

TH3A**********, TH4A**********, TH6A**********),

LC195EMX (Serial No. : DS2A**********, DS3A**********, DS4A**********,

TH3A**********, TH4A**********, TH5A**********, TH6A**********)

LC195SSX (Serial No. : DS2A**********),

19MF339B/F7

*1 LC195SLX (Serial No. : DS1A**********),

*2 LC195SLX (Serial No. : DS2A**********, DS3A**********, DS4A**********,

SW+16V

Q1004,Q1006,

Q1008,Q1012

1

2

CN1001

786

5

T1002

4

3

1

2

Q1022

CURRENT

CONTROL

SWITCH

CURRENT

CONTROL

Q1001,

Q1007,

Q1016

SWITCH

DRIVE

8

Q1005

*1

DRIVE

Q1010,

Q1017,

Q1018

11

1

CN1002

Q1005

2

CURRENT

CONTROL

SWITCH

*2

Q1014

Q1009

OVER VOLTA GE

PROTECTOR

OVER VOLTA GE

PROTECTOR

Q1015

67523

Q1002,

Q1011

INV+31V

SW+16V

PANEL+15V

VREF

VCC

IC1001(PWM CONTROL)

14

12

Q1023,

Q1024

DTC

4

SW

5 6

OSC

PWM

CONTROL

LOGIC

3

2

15

1

16

IC1002

(COMPARATOR)

Q1019

1

Q1003

MAIN CBA

BACKLIGHT-ADJ

PROTECT3

BACKLIGHT-SW

TO

SYSTEM

CONTROL

BLOCK

DIAGRAM

9-6

A91N3BLINV

Inverter Block Diagram

[22MF339B/F7, LC225SSX]

BACK

LIGHT

BACK

LIGHT

LCD MODULE

ASSEMBLY

CN1550

T1500

1

2

786

3

2

5

4

1

SW+12.5V

Q1004,Q1011,

Q1013,Q1014

CN1650

T1600

1

2

786

3

2

Q1500

Q1005,

Q1007,

Q1008

5

4

1

CURRENT

CONTROL

SWITCH

DRIVE

11

Q1600

Q1006,

Q1009,

1

CN1750

T1700

2

CURRENT

CONTROL

SWITCH

DRIVE

Q1010

8

2

786

3

CURRENT

Q1700

1

CONTROL

SWITCH

OVER VOLTAGE

PROTECTOR

Q1650

13

OVER VOLTAGE

Q1651

PROTECTOR

12

PROTECTOR

Q1551

OVER VOLTAGE

PROTECTOR

Q1550

67523

OVER VOLTAGE

PROTECTOR

OVER VOLTAGE

Q1751

5

4

Q1003

Q1750

OVER VOLTAGE

PROTECTOR

INV+31V

SW+12.5V

Q1001,Q1002

PANEL+15V

VCC

VREF

IC1001

(PWM CONTROL)

12

14

Q1023,

Q1024

DTC

4

SW

IC1002

5 6

OSC

PWM

CONTROL

LOGIC

3

15

2

16

1

(COMPARATOR)

Q1401

PROTECT3

14

Q1402

BACKLIGHT-SW

1

BACKLIGHT-ADJ

MAIN CBA

TO

SYSTEM

CONTROL

BLOCK

DIAGRAM

9-7

A9170BLINV

Power Supply Block Diagram

[LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

P-ON+3.3V

PANEL+13V

P-ON+3V

P-ON+7V

LCD MODULE ASSEMBLY

16

10

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

AL+3.3V

P-ON+3.3V

19,20

21,22

P-ON+5V

DIGITAL MAIN CBA UNIT

13,14

PANEL+15V

INV+33V

P-ON+9V

P-ON+5V

SP+14V

AL+3.3V

TUNER+5V

TO SYSTEM

P-ON-H1

P-ON-H2

CONTROL

BLOCK

DIAGRAM

VCOM

PROTECT2

PROTECT1

PANEL-7.1V8

P-ON+3.3V6,7

PANEL+24.5V4

PANEL+13V2,3

VCOM10

CN201

SW-7.1V

Q206

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

SW+24.5V

Q205

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

11

15

P-ON+7V16

P-ON+3V10

CN301 CN3701

SWITCHING

Q202,Q203

10

AL+3.3V21,22

P-ON+3.3V19,20

P-ON+5V13,14

9

Q402

SW+13V

Q201,D202

16

SW+9V

Q641

14

13

12

SW+3.3V

Q640,D662

14

SWITCHING

Q638,Q639

Q631

FEED

Q637

BACK

SW+5V

Q633

SW+5V

Q635,Q636

IC631

Q634

23

REG.

+3.3V

+5V REG.

2

T601

BRIDGE

RECTIFIER

D601- D604

LINE

FILTER

L601

F601

4A/125V

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

AC601

AC CORD

3

4A/125V

4

7

9-8

6

SWITCHING

Q601

IC601

3 2

Q602

SWITCHING

HOT COLD

CONTROL

MAIN CBA

A91N3BLP

Power Supply Block Diagram

[22MF339B/F7, LC225SSX]

P-ON+3V

P-ON+7V

AL+3.3V

P-ON+3.3V

LCD MODULE ASSEMBLY

16

10

19,20

21,22

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

P-ON+5V

DIGITAL MAIN CBA UNIT

13,14

PANEL+13V

PANEL+15V

INV+31V

P-ON+9V

P-ON+3.3V

P-ON+5V

SP+14V

AL+3.3V

TUNER+5V

TO SYSTEM

P-ON-H1

P-ON-H2

CONTROL

BLOCK

DIAGRAM

VCOM

PROTECT2

PROTECT1

PANEL-7.1V8

P-ON+3.3V6,7

PANEL+24.5V4

PANEL+13V2,3

VCOM10

CN201

SW-7.1V

Q206

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

SW+24.5V

Q205

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

11

15

P-ON+7V16

P-ON+3V10

CN301 CN3701

SWITCHING

Q202,Q203

10

AL+3.3V21,22

P-ON+3.3V19,20

P-ON+5V13,14

9

Q402

SW+13V

Q201,D202

16

SW+9V

Q641

SW+12.5V

Q632

14

13

12

SW+3.3V

Q640,D662

14

SWITCHING

Q638,Q639

Q631

FEED

BACK

Q637

SW+5V

Q633

SW+5V

Q635,Q636

IC631

Q634

23

REG.

+3.3V

+5V REG.

2

T601

BRIDGE

RECTIFIER

D601- D604

LINE

FILTER

L601

F601

4A/125V

HOT CIRCUIT. BE CAREFUL.

AC601

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

AC CORD

3

4A/125V

4

9-9

7

6

IC601

3 2

HOT COLD

CONTROL

Q602

SWITCHING

Q601

A9170BLP

MAIN CBA

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

6. This schematic diagrams are masterized version that should cover the entire FL9.0 chassis models. Thus some parts in detail illustrated on this schematic diagrams may vary depend on the model within the FL9.0 chassis. Please refer to the parts lists for each models.

7. The Circuit Board layout illustrated on this service manual is the latest version for this chassis at the moment of making this service manual. Depend on the mass production date of each model, the actual layout of each Board may differ slightly from this version.

3

, M = 106).

-6

µF).

10-1 FL9_0_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

r

THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

2

(Unit: Volt)

1

5.0 5.0

3

Power on mode

5. How to read converged lines

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

3

2

1

AREA D3

1-B1

AREA B1

1-D3

ABCD

10-2 FL9_0_SC

Main 1/4 Schematic Diagram

[LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

10-3

A91N3SCM1

Main 2/4 Schematic Diagram

[LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

10-4

A91N3SCM2

Main 3/4 & Junction-B Schematic Diagram

[LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

10-5

A91N3SCM3

Main 4/4 Schematic Diagram

[LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

10-6

A91N3SCM4

Main 1/4 Schematic Diagram

[22MF339B/F7, LC225SSX]

10-7

A9170SCM1

Main 2/4 Schematic Diagram

[22MF339B/F7, LC225SSX]

10-8

A9170SCM2

Main 3/4 & Junction-B Schematic Diagram

[22MF339B/F7, LC225SSX]

10-9

A9170SCM3

Main 4/4 Schematic Diagram

[22MF339B/F7, LC225SSX]

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

10-10

A9170SCM4

Jack & Junction-C Schematic Diagram

10-11

A91N3SCJ

Function & Junction-A Schematic Diagram

10-12

A91N3SCF

Digital Main 1/5 Schematic Diagram

[LC195SLX(Serial No.:DS1A**********,DS2A**********,TH3A**********, TH4A**********), LC195EMX(Serial No.:DS1A**********,DS2A**********, TH3A**********, TH4A**********) ,LC195SSX(Serial No.:DS1A**********), LC225SSX, 22MF339B/F7, 19MF339B/F7(Serial No.:DS1A**********)]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-13

A91N3SCD1

Digital Main 2/5 Schematic Diagram

[LC195SLX(Serial No.:DS1A**********,DS2A**********,TH3A**********, TH4A**********), LC195EMX(Serial No.:DS1A**********,DS2A**********, TH3A**********, TH4A**********), LC195SSX(Serial No.:DS1A**********), LC225SSX, 22MF339B/F7, 19MF339B/F7(Serial No.:DS1A**********)]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-14

A91N3SCD2

Digital Main 3/5 Schematic Diagram

[LC195SLX(Serial No.:DS1A**********,DS2A**********,TH3A**********, TH4A**********), LC195EMX(Serial No.:DS1A**********,DS2A**********, TH3A**********, TH4A**********) ,LC195SSX(Serial No.:DS1A**********), LC225SSX, 22MF339B/F7, 19MF339B/F7(Serial No.:DS1A**********)]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-15

A91N3SCD3

Digital Main 4/5 Schematic Diagram

[LC195SLX(Serial No.:DS1A**********,DS2A**********,TH3A**********, TH4A**********), LC195EMX(Serial No.:DS1A**********,DS2A**********, TH3A**********, TH4A**********) ,LC195SSX(Serial No.:DS1A**********), LC225SSX, 22MF339B/F7, 19MF339B/F7(Serial No.:DS1A**********)]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-16

A91N3SCD4

Digital Main 5/5 Schematic Diagram

[LC195SLX(Serial No.:DS1A**********,DS2A**********,TH3A**********, TH4A**********), LC195EMX(Serial No.:DS1A**********,DS2A**********, TH3A**********, TH4A**********), LC195SSX(Serial No.:DS1A**********), LC225SSX, 22MF339B/F7, 19MF339B/F7(Serial No.:DS1A**********)]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-17

A91N3SCD5

Digital Main 1/5 Schematic Diagram

[LC195SLX(Serial No.:DS3A**********,DS4A**********,TH6A**********), LC195EMX(Serial No.:DS3A**********,DS4A**********,TH5A**********,TH6A**********),19MF339B/F7(Serial No.:DS2A**********), LC195SSX(Serial No.:DS2A**********)

]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-18

A9AN3SCD1

Digital Main 2/5 Schematic Diagram

[LC195SLX(Serial No.:DS3A**********,DS4A**********,TH6A**********), LC195EMX(Serial No.:DS3A**********,DS4A**********,TH5A**********,TH6A**********),19MF339B/F7(Serial No.:DS2A**********), LC195SSX(Serial No.:DS2A**********)

]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-19

A9AN3SCD2

Digital Main 3/5 Schematic Diagram

[LC195SLX(Serial No.:DS3A**********,DS4A**********,TH6A**********), LC195EMX(Serial No.:DS3A**********,DS4A**********,TH5A**********,TH6A**********),19MF339B/F7(Serial No.:DS2A**********), LC195SSX(Serial No.:DS2A**********)

]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-20

A9AN3SCD3

Digital Main 4/5 Schematic Diagram

[LC195SLX(Serial No.:DS3A**********,DS4A**********,TH6A**********), LC195EMX(Serial No.:DS3A**********,DS4A**********,TH5A**********,TH6A**********),19MF339B/F7(Serial No.:DS2A**********), LC195SSX(Serial No.:DS2A**********)

]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-21

A9AN3SCD4

Digital Main 5/5 Schematic Diagram

[LC195SLX(Serial No.:DS3A**********,DS4A**********,TH6A**********), LC195EMX(Serial No.:DS3A**********,DS4A**********,TH5A**********,TH6A**********),19MF339B/F7(Serial No.:DS2A**********), LC195SSX(Serial No.:DS2A**********)

]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-22

A9AN3SCD5

Main CBA Top View [LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

R699

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

10-23

BA94N0F01012

Main CBA Bottom View [LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

WF6

PIN 19 OF CN302

WF5

PIN 17 OF CN302

WF4

PIN 15 OF CN302

WF7

PIN 13 OF CN302

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

WF2

PIN 8 OF CN302

WF3

PIN 6 OF CN302

WF1

PIN 4 OF CN302

10-24

BA94N0F01012

Main CBA Top View [22MF339B/F7, LC225SSX]

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

R699

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

10-25

BA9170F01011

Main CBA Bottom View [22MF339B/F7, LC225SSX]

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

WF6

PIN 19 OF CN302

WF5

PIN 17 OF CN302

WF4

PIN 15 OF CN302

WF7

PIN 13 OF CN302

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

WF2

PIN 8 OF CN302

WF3

PIN 6 OF CN302

WF1

PIN 4 OF CN302

10-26

BA9170F01011

Jack CBA Top View

10-27

BA94N0F01021-A

Jack CBA Bottom View

10-28

BA94N0F01021-A

Function CBA Top View

Junction-A CBA

Top View

Junction-B CBA T op Vie w

Bottom View

BA94N0F01021

Junction-B CBA Bottom View

Function CBA Bottom View

Junction-C CBA T op Vie w

BA94N0F01021

Junction-C CBA Bottom View

BA94N0F01021-B

10-29

BA94N0F01021

WAVEFORMS

WF1 ~ WF7 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

WF1

WF2

Pin 4 of CN302

CVBS 0.2V 20µs

Pin 8 of CN302

S-VIDEO-Y 0.2V

20µs

WF5

WF6

Pin 17 of CN302

VIDEO-Pb 0.2V 20µs

Pin 19 of CN302

VIDEO-Pr 0.2V 20µs

WF3

WF4

Pin 6 of CN302

S-VIDEO-C 0.2V

Pin 15 of CN302

VIDEO-Y 0.2V 20µs

20µs

Pin 13 of CN302

WF7

AUDIO 0.1V 0.5ms

LC7NWF11-1

WIRING DIAGRAM

[LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

HDMI-

PC-RGB-IN

CONNECTOR-1

HDMI-

CONNECTOR-2

HDMI-

CONNECTOR-3

WITH HDMI-IN3

SP861

CL861

SPEAKER

L-CH

1

2

SP(L)

SP-GND

DIGITAL MAIN CBA UNIT

CN3902

2

1

STV

XAO

BACK

1

CN1001

TUNER UNIT

3

OE1

LIGHT

2

4

CPV

POL

7

6TP5

GND

BACK

1

CN1002

8

LLV5(-)

LIGHT

2

9

LLV5(+)

10

LLV4(-)

CN201

SP862

CL862

12

11

LLV3(-)

LLV4(+)

GND

1

SPEAKER

R-CH

1

2

SP(R)

SP-GND

14

13

GND

LLV3(+)

PANEL+13V

3

2

16

15

LLVCLK(-)

LLVCLK(+)

GND4PANEL+24.5V

5

18

17

GND

LLV2(-)

PANEL+3.3V

7

6

CN101B

CN101A

20

19

LLV1(-)

LLN2(+)

GND8PANEL-7.1V

9

1

2

GND

REMOTE

1

2

23

22

21

LLV0(-)

LLV0(+)

LLV1(+)

LCD MODULE

GND10VCOM

11

3

4

5

AL+3.3V

LED1

P-ON-H1

3

4

5

24

GND

ASSEMBLY

6

KEY-IN1

6

7

KEY-IN2

7

8

DVD-LED

8

COMPONENT

-Pb-IN

COMPONENT

-Y-IN

CN701

1

3

2

SP(R)

HEADPHONE(R)

SP(R)

1

3

2

CN702 CL701

FUNCTION

CBA

COMPONENT

-Pr-IN

COMPONENT-

AUDIO(L)-IN

4

5

6

8

HEADPHONE(R)

GND77GND

GND

4

5

6

8

HDMI-

AUDIO(L)-IN

COMPONENT-

AUDIO(R)-IN

9

11

12

13

10

GND

AUDIO(L)

HEADPHONE(L)

9

11

12

13

10

HDMI-

AUDIO(R)-IN

VIDEO-IN

14

15

16

P-ON+9V

AUDIO(R)

COM-VIDEO-Pr-IN

14

15

16

AUDIO(R)

AUDIO(L)

-IN

17

18

19

20

GND

COM-VIDEO-Pb-IN

S-VIDEO-SW

COM-VIDEO-Y-IN

17

18

19

20

AC CORD

AC601

-IN

21

GND

21

PC-AUDIO

-IN

22

23

INPUT0

SPDIF

22

23

S-VIDEO

24

25

INPUT1

GND

24

25

-IN

26

S-VIDEO-Y-IN

26

CN861B

DIGITAL

AUDIO-OUT

(COAXIAL)

CN861A

27

28

29

VIDEO-IN

S-VIDEO-C-IN

GND

27

28

29

1

SP(L)

1

2

SP(L)

2

3

4

SP-GND

3

4

JUNCTION-C CBA

JACK CBA

CN3701CN301

P-ON-H2

1

2

GND

2

GND

3

4

GND

4

MAIN CBA

CN303CN4001

6

513

PROTECT3

AMP(L)-OUT

6

5

2

GND

KEY-IN2

DVD-LED

1

3

2

8

9

7

GND

AMP(R)-OUT

P-ON-H1

9

7

8

CN862B

CN862A

6

7

513

4

P-ON-H3(NU)

DVD-MAIN-PWR

DVD-P-ON

DVD-REMOTE

7

6

5

4

13

11

P-ON+3V

PROTECT1

GND

P-ON+5V

12

13

10

11

1

2

SP(R)

1

2

8

9

DVD-SDATA

DVD-DISC-IN

9

8

15

141012

P-ON+5V

PROTECT2

15

14

3

4

SP-GND

3

4

11

GND

DVD-CS

10

11

172220

16

P-ON+7V

GND

16

17

JUNCTION-B CBA

13

GND

DVD-SCLK

12

13

18

GND

P-ON+3.3V

192321

18

CN101CN102

15

16

141012

GND

DVD-DISC-OUT

LED-CONT

15

14

16

P-ON+3.3V

AL+3.3V

22

20

1

3

2

GND

AL+3.3V

REMOTE

1

3

2

172220

18

GND

DVD-Pr

GND

192321

18

17

231921

24

25

GND

OE2

REMOTE

24

25

4

LED1

4

DVD-Pb

20

26

BACKLIGHT-SW

26

5

6

P-ON-H1

KEY-IN1

5

6

GND

DVD-Y

22

27

28

LED1

BACKLIGHT-ADJ

27

28

JUNCTION-A

7

8

KEY-IN2

DVD-LED

7

8

231921

24

25

GND

DVD-AUDIO(L)

DVD-AUDIO-MUTE

24

25

CN3702CN302

29

VCOM-PWM

GND

1

29

CBA

26

27

DVD-AUDIO(R)

GND

26

27

2

SPDIF

GND

3

2

28

29

DVD-SPDIF

GND

28

29

513

4

VIDEO-IN

S-VIDEO-SW

5

4

6

8

9

7

S-VIDEO-C-IN

GND

S-VIDEO-Y-IN

GND

9

7

6

8

11

INPUT1

AUDIO(R)

10

11

13

INPUT0

AUDIO(L)

12

13

141012

GND

14

15

16

COM-VIDEO-Y-IN

GND

15

16

172220

18

COM-VIDEO-Pb-IN

GND

COM-VIDEO-Pr-IN

AUDIO-MUTE

SDA

192321

18

17

20

SCL

22

231921

24

RESET

IF-AGC

24

25

GND

25

26

27

28

DIF-OUT1

GND

DIF-OUT2

26

27

28

29

KEY-IN1

29

A91N3WI12-1

[22MF339B/F7, LC225SSX]

HDMI-

PC-RGB-IN

CONNECTOR-1

WIRING DIAGRAM

HDMI-

CONNECTOR-2

HDMI-

CONNECTOR-3

WITH HDMI-IN3

SP861

CL861

SPEAKER

L-CH

1

2

SP(L)

SP-GND

DIGITAL MAIN CBA UNIT

CN3902

1

STV

BACK

LIGHT

1

CN1550

TUNER UNIT

S-VIDEO

-IN

26

27

S-VIDEO-Y-IN

VIDEO-IN

26

27

CN861B

DIGITAL

AUDIO-OUT

(COAXIAL)

CN861A

28

29

S-VIDEO-C-IN

GND

28

29

1

SP(L)

1

2

SP(L)

2

3

4

SP-GND

3

4

JACK CBA

JUNCTION-C CBA

2

POL

OE1

CPV

XAO

2

BACK

1

CN1650

GND

LIGHT

2

SP862

CL862

LLV5(-)

LLV5(+)

SPEAKER

R-CH

1

2

SP(R)

SP-GND

11

10

LLV4(-)

LLV4(+)

BACK

1

CN1750

12

LLV3(-)

LIGHT

2

13

LLV3(+)

14

GND

CN201

16

15

LLVCLK(-)

LLVCLK(+)

PANEL+13V

GND

2

1

19

18

17

GND

LLV2(-)

LLN2(+)

GND4PANEL+24.5V

PANEL+13V

5

3

22

21

20

LLV0(-)

LLV1(-)

LLV1(+)

PANEL+3.3V

7

6

1

2

CN101B

GND

REMOTE

1

2

CN101A

24

23

GND

LLV0(+)

LCD MODULE

ASSEMBLY

GND10VCOM

GND8PANEL-7.1V

9

11

3

4

5

AL+3.3V

LED1

P-ON-H1

3

4

5

6

KEY-IN1

6

COMPONENT

CN701

CN702 CL701

7

8

KEY-IN2

DVD-LED

7

8

COMPONENT

-Pb-IN

-Y-IN

1

3

2

4

SP(R)

HEADPHONE(R)

SP(R)

HEADPHONE(R)

1

3

2

4

FUNCTION

CBA

COMPONENT

-Pr-IN

COMPONENT-

AUDIO(L)-IN

5

6

8

GND77GND

GND

5

6

8

COMPONENT-

AUDIO(R)-IN

HDMI-

AUDIO(L)-IN

9

11

12

13

10

GND

AUDIO(L)

HEADPHONE(L)

9

11

12

13

10

HDMI-

AUDIO(R)-IN

VIDEO-IN

14

15

16

P-ON+9V

AUDIO(R)

COM-VIDEO-Pr-IN

14

15

16

AUDIO(R)

AUDIO(L)

-IN

17

18

19

20

21

GND

COM-VIDEO-Pb-IN

S-VIDEO-SW

COM-VIDEO-Y-IN

GND

17

18

19

20

21

AC CORD

AC601

-IN

22

INPUT0

22

PC-AUDIO

-IN

23

24

25

SPDIF

INPUT1

GND

23

24

25

9

8

7

6TP5

4

3

CN3701CN301

2

P-ON-H2

GND

1

2

GND

3

4

GND

4

MAIN CBA

CN303CN4001

GND

1

6

7

513

PROTECT3

AMP(L)-OUT

GND

7

6

5

CN862B

CN862A

2

513

4

KEY-IN2

DVD-LED

P-ON-H3(NU)

DVD-MAIN-PWR

5

3

2

4

8

9

11

AMP(R)-OUT

P-ON-H1

P-ON+3V

PROTECT1

9

8

10

11

1

2

SP(R)

1

2

6

DVD-P-ON

6

GND

12

3

4

SP-GND

3

4

8

7

DVD-REMOTE

DVD-SDATA

7

8

141012

13

P-ON+5V

13

14

JUNCTION-B CBA

9

11

DVD-DISC-IN

GND

DVD-CS

9

10

11

15

172220

16

PROTECT2

P-ON+7V

GND

15

16

17

13

GND

DVD-SCLK

12

13

18

GND

P-ON+3.3V

192321

18

15

16

141012

GND

DVD-DISC-OUT

LED-CONT

15

14

16

P-ON+3.3V

AL+3.3V

22

20

1

CN101CN102

GND

1

172220

18

GND

DVD-Pr

GND

192321

18

17

231921

24

25

GND

OE2

REMOTE

24

25

2

REMOTE

2

DVD-Pb

20

26

BACKLIGHT-SW

26

3

4

AL+3.3V

LED1

3

4

GND

DVD-Y

22

27

28

LED1

BACKLIGHT-ADJ

27

28

5

6

7

P-ON-H1

KEY-IN1

KEY-IN2

5

6

7

231921

24

25

GND

DVD-AUDIO(L)

DVD-AUDIO-MUTE

24

25

CN3702CN302

29

VCOM-PWM

GND

1

29

12-2

JUNCTION-A

8

DVD-LED

8

26

27

28

DVD-AUDIO(R)

GND

DVD-SPDIF

26

27

28

2

4

SPDIF

GND

VIDEO-IN

3

2

4

CBA

29

GND

29

6

7

513

S-VIDEO-SW

S-VIDEO-C-IN

GND

7

6

5

8

9

S-VIDEO-Y-IN

GND

INPUT1

9

8

10

11

AUDIO(R)

INPUT0

12

11

141012

13

AUDIO(L)

GND

13

14

15

172220

16

COM-VIDEO-Y-IN

GND

COM-VIDEO-Pb-IN

15

16

17

18

GND

18

231921

COM-VIDEO-Pr-IN

AUDIO-MUTE

SDA

SCL

RESET

192321

22

20

24

IF-AGC

24

25

26

GND

DIF-OUT1

25

26

27

28

GND

DIF-OUT2

27

28

29

KEY-IN1

29

A9170WI

Cabinet [LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

EXPLODED VIEWS

Function CBA

Junction-B CBA

B8

A5

A1

L8

A3

SP862

Junction-C CBA

A16

B8

L1

LCD1

Junction-A CBA

SP861

L8

CL201

B2

CL3902

L12

CL3701

CL3702

L12

L9

B4

CL701

Jack CBA

L3

B12

Digital Main CBA Unit

B7

L1

A9

L3

B13

B1

L3

L11

L2

A4

B3

L3

L4

A10

L3

L4

L2

B3

L1

See Electrical Parts List for parts with this mark.

L3

Main CBA

L1

L13

L3

L9

L4

A8

A6

S5

B14

L13

AC601

L1

Stand Assembly

L17

13-1 A91N3CEX

Cabinet [22MF339B/F7, LC225SSX]

A14

Function CBA

Junction-B CBA

SP862

B8

A1

A5

L8

L1

B8

A3

Junction-C CBA

L1

Junction-A CBA

SP861

L8

LCD1

CL201

CL3902

L9

B12

CL3701

CL3702

L12

L3

L13

L12

CL701

Jack CBA

B13

L2

L3

Digital Main CBA Unit

B7

L1

A9

L3

L2

B3

B1

L11

L4

A10

L3

L4

L3

A4

L1

See Electrical Parts List for parts with this mark.

B2

L1

Main CBA

L3

L13

B14

AC601

L3

L1

L17

L9

Stand Assembly

L1

L4

A8

A6

S5

13-2 A9170CEX

Packing [LC195SLX, LC195EMX, LC195SSX, 19MF339B/F7]

L17

*1 LC195SLX (Serial No. : DS1A**********), LC195EMX (Serial No. : DS1A**********),

Tape

Stand Assembly

LC195SSX (Serial No. : DS1A**********)

S2

X4

Packing Tape

S3

S4

X3

S6

S5

Packing Tape

X2

X8 X6 X7

X1

*1

Tape

FRONT

S3

S5

FRONT

Some Ref. Numbers are not in sequence.

S1

13-3 A91N3PEX

Packing [22MF339B/F7, LC225SSX]

L17

Tape

S2

X3

S4

Stand Assembly

X4

X2

S5

Packing Tape

S6

X8 X6 X7

X1

FRONT

Packing Tape

S3

Tape

S3

S5

FRONT

Some Ref. Numbers are not in sequence.

S1

13-4 A9170PEX

MECHANICAL PARTS LIST

[LC195SLX (Serial No. : DS1A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N1UH 1ESA20165 A1 FRONT CABINET A91N3UH 1EM023685 A3 CONTROL PLATE A91N3UH 1EM325763 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N3UH 1EM222950 A6# RATING LABEL A91N3UH ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A16 LOGO LABEL A8A71UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392A L17 STAND SCREW KIT A91N0UH 1ESA19876 LCD1 LCD MODULE 18.5INCH WIDE CMO 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N3UH 1EM428499 S2 STYROFOAM TOP A91N0UH 1EM023885 S3 STYROFOAM BOTTOM A91N0UH 1EM023886 S4 SET BAG A81N0UH 1EM323958 S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N3UH 1EMN24519 X3 REMOTE CONTROL NH000UD NH000UD NH000UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N3UH 1EMN24606

UH19MXA

Ref. No. Description Part No.

X7 FCC ADDENDUM SHEET A94F0UH 1EMN24959 X8 CHILD SAFETY SHEET A94F1UH 1EMN24522

20090402 14-1 A91N3CA

MECHANICAL PARTS LIST

[LC195SLX (Serial No. : DS2A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N1UH 1ESA20165 A1 FRONT CABINET A91N3UH 1EM023685 A3 CONTROL PLATE A91N3UH 1EM325763 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N3UH 1EM222950 A6# RATING LABEL A91N5UH ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A16 LOGO LABEL A8A71UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392A L17 STAND SCREW KIT A91N0UH 1ESA19876 LCD1 LCD MODULE 18.5INCH WIDE CPT 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N3UH 1EM428499 S2 STYROFOAM TOP A91N0UH 1EM023885 S3 STYROFOAM BOTTOM A91N0UH 1EM023886 S4 SET BAG A81N0UH 1EM323958 S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N3UH 1EMN24519 X3 REMOTE CONTROL NH000UD NH000UD NH000UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N3UH 1EMN24606

UH19PXA

Ref. No. Description Part No.

X8 CHILD SAFETY SHEET A94F1UH 1EMN24522

20090527 14-2 A91N5CA

MECHANICAL PARTS LIST

[LC195SLX (Serial No. : DS3A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N1UH 1ESA20165 A1 FRONT CABINET A91N3UH 1EM023685 A3 CONTROL PLATE A91N3UH 1EM325763 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N3UH 1EM222950 A6# RATING LABEL A9AN3UH ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A16 LOGO LABEL A8A71UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM430139 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392B L17 STAND SCREW KIT A91N0UH 1ESA19876 LCD1 LCD MODULE 18.5INCH WIDE CMO 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N3UH 1EM428499A S2 STYROFOAM TOP A91N0UH 1EM023885 S3 STYROFOAM BOTTOM A91N0UH 1EM023886 S4 SET BAG A81N0UH 1EM323958 S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N3UH 1EMN24519A X3 REMOTE CONTROL NH000UD NH000UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N3UH 1EMN24606

UH19MXA

Ref. No. Description Part No.

X8 CHILD SAFETY SHEET A94F1UH 1EMN24522

20090902 14-3 A9AN3CA

MECHANICAL PARTS LIST

[LC195SLX (Serial No. : TH3A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N8UT 1ESA21094 A1 FRONT CABINET A91N3UH 1EM023685 A3 CONTROL PLATE A91N3UH 1EM325763 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N3UH 1EM222950 A6# RATING LABEL A91N8UT ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A16 LOGO LABEL A8A71UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392A L17 STAND SCREW KIT A91N8UT 1ESA21095 LCD1 LCD MODULE 18.5INCH WIDE CMO 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N8UT 1EM429397 S2 STYROFOAM TOP A91N8UT 1EM024305 S3 STYROFOAM BOTTOM A91N8UT 1EM024306 S4 SET BAG A81N0UH 1EM323958A S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N8UT 1EMN25040 X3 REMOTE CONTROL NH000UD NH000UD NH000UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N8UT 1EMN25042

UH19MXA

Ref. No. Description Part No.

X8 CHILD SAFETY SHEET A91N8UT 1EMN25041

20090616 14-4 A91N8CA

MECHANICAL PARTS LIST

[LC195SLX (Serial No. : TH4A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N8UT 1ESA21094 A1 FRONT CABINET A91N3UH 1EM023685 A3 CONTROL PLATE A91N3UH 1EM325763 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N3UH 1EM222950 A6# RATING LABEL A91NBUT ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A16 LOGO LABEL A8A71UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392B L17 STAND SCREW KIT A91N8UT 1ESA21095 LCD1 LCD MODULE 18.5INCH WIDE CPT 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N8UT 1EM429397A S2 STYROFOAM TOP A91N8UT 1EM024305 S3 STYROFOAM BOTTOM A91N8UT 1EM024306 S4 SET BAG A81N0UH 1EM323958A S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N8UT 1EMN25040 X3 REMOTE CONTROL NH000UD NH000UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N8UT 1EMN25042

UH19PXA

Ref. No. Description Part No.

X8 CHILD SAFETY SHEET A91N8UT 1EMN25041

20090810 14-5 A91NBCA

MECHANICAL PARTS LIST

[LC195EMX (Serial No. : DS1A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N1UH 1ESA20165 A1 FRONT CABINET A91N4UH 1EM123296 A3 CONTROL PLATE A91N3UH 1EM325763 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N3UH 1EM222950 A6# RATING LABEL A91N4UH ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A16 LOGO LABEL A8A71UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392A L17 STAND SCREW KIT A91N0UH 1ESA19876 LCD1 LCD MODULE 18.5INCH WIDE CMO 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N4UH 1EM428500 S2 STYROFOAM TOP A91N0UH 1EM023885 S3 STYROFOAM BOTTOM A91N0UH 1EM023886 S4 SET BAG A81N0UH 1EM323958 S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N4UH 1EMN24520 X3 REMOTE CONTROL NH000UD NH000UD NH000UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N4UH 1EMN24607

UH19MXA

Ref. No. Description Part No.

X7 FCC ADDENDUM SHEET A94F0UH 1EMN24959 X8 CHILD SAFETY SHEET A94F1UH 1EMN24522

20090402 14-6 A91N4CA

MECHANICAL PARTS LIST

[LC195EMX (Serial No. : DS2A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N1UH 1ESA20165 A1 FRONT CABINET A91N4UH 1EM123296 A3 CONTROL PLATE A91N3UH 1EM325763 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N3UH 1EM222950 A6# RATING LABEL A91N6UH ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A16 LOGO LABEL A8A71UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392A L17 STAND SCREW KIT A91N0UH 1ESA19876 LCD1 LCD MODULE 18.5INCH WIDE CPT 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N4UH 1EM428500 S2 STYROFOAM TOP A91N0UH 1EM023885 S3 STYROFOAM BOTTOM A91N0UH 1EM023886 S4 SET BAG A81N0UH 1EM323958 S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N4UH 1EMN24520 X3 REMOTE CONTROL NH000UD NH000UD NH000UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N4UH 1EMN24607

UH19PXA

Ref. No. Description Part No.

X8 CHILD SAFETY SHEET A94F1UH 1EMN24522

20090527 14-7 A91N6CA

MECHANICAL PARTS LIST

[LC195EMX (Serial No. : DS3A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N1UH 1ESA20165 A1 FRONT CABINET A91N4UH 1EM123296 A3 CONTROL PLATE A91N3UH 1EM325763 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N3UH 1EM222950 A6# RATING LABEL A9AN4UH ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A16 LOGO LABEL A8A71UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRA ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM430139 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392B L17 STAND SCREW KIT A91N0UH 1ESA19876 LCD1 LCD MODULE 18.5INCH WIDE CMO 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N4UH 1EM428500 S2 STYROFOAM TOP A91N0UH 1EM023885 S3 STYROFOAM BOTTOM A91N0UH 1EM023886 S4 SET BAG A81N0UH 1EM323958 S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N4UH 1EMN24520A X3 REMOTE CONTROL NH000UD NH000UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N4UH 1EMN24607

UH19MXA

Ref. No. Description Part No.

X8 CHILD SAFETY SHEET A94F1UH 1EMN24522

20090910 14-8 A9AN4CA

MECHANICAL PARTS LIST

[LC195EMX (Serial No. : TH3A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N8UT 1ESA21094 A1 FRONT CABINET A91N4UH 1EM123296 A3 CONTROL PLATE A91N3UH 1EM325763 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N3UH 1EM222950 A6# RATING LABEL A91N9UT ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A16 LOGO LABEL A8A71UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392B L17 STAND SCREW KIT A91N8UT 1ESA21095 LCD1 LCD MODULE 18.5INCH WIDE CMO 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N9UT 1EM429399 S2 STYROFOAM TOP A91N8UT 1EM024305 S3 STYROFOAM BOTTOM A91N8UT 1EM024306 S4 SET BAG A81N0UH 1EM323958A S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N9UT 1EMN25059 X3 REMOTE CONTROL NH000UD NH000UD NH000UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N9UT 1EMN25060

UH19MXA

Ref. No. Description Part No.

X8 CHILD SAFETY SHEET A91N8UT 1EMN25041

20090714 14-9 A91N9CA

MECHANICAL PARTS LIST

[LC195EMX (Serial No. : TH4A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N8UT 1ESA21094 A1 FRONT CABINET A91N4UH 1EM123296 A3 CONTROL PLATE A91N3UH 1EM325763 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N3UH 1EM222950 A6# RATING LABEL A91NCUT ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A16 LOGO LABEL A8A71UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392B L17 STAND SCREW KIT A91N8UT 1ESA21095 LCD1 LCD MODULE 18.5INCH WIDE CPT 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N9UT 1EM429399 S2 STYROFOAM TOP A91N8UT 1EM024305 S3 STYROFOAM BOTTOM A91N8UT 1EM024306 S4 SET BAG A81N0UH 1EM323958A S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N9UT 1EMN25059 X3 REMOTE CONTROL NH000UD NH000UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N9UT 1EMN25060

UH19PXA

Ref. No. Description Part No.

X8 CHILD SAFETY SHEET A91N8UT 1EMN25041

20090805 14-10 A91NCCA

MECHANICAL PARTS LIST [22MF339B/F7]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N0UH 1ESA19808 A1 FRONT CABINET A9170UH 1EM023469 A3 CONTROL PLATE A91N0UH 1EM325762 A4 REAR CABINET A9170UH 1EM023470 A5 DECORATION PLATE A9170UH 1EM222803 A6# RATING LABEL A9170UH ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A14 POP LABEL A9170UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A9170UH 1EM325637 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 90MM WX1A9170-107 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 80MM WX1A9170-101 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392A L17 STAND SCREW KIT A91N0UH 1ESA19876 LCD1 LCD MODULE 6BIT NORMAL GRADE UH22MXA SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

PAC K IN G

S1 CARTON A9170UH 1EM428018 S2 STYROFOAM TOP A9170UH 1EM023471 S3 STYROFOAM BOTTOM A9170UH 1EM023472 S4 SET BAG A81N0UH 1EM323958 S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N0UH/A9170UH 1EMN24239 X3 REMOTE CONTROL NF802UD NF802UD NF802UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N0UH 1EMN24541 X7 FCC ADDENDUM SHEET A94F0UH 1EMN24959 X8 CHILD SAFETY SHEET A94F0UH 1EMN24439

20090408 14-11 A9170CA

MECHANICAL PARTS LIST [LC225SSX]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N1UH 1ESA20165 A1 FRONT CABINET A9171UH 1EM123313 A3 CONTROL PLATE A91N0UH 1EM325762 A4 REAR CABINET A9170UH 1EM023470 A5 DECORATION PLATE A9171UH 1EM223063 A6# RATING LABEL A9171UH ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A14 POP LABEL A9170UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A9170UH 1EM325637 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 90MM WX1A9170-107 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 80MM WX1A9170-101 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392A L17 STAND SCREW KIT A91N0UH 1ESA19876 LCD1 LCD MODULE 6BIT NORMAL GRADE UH22MXA SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

PAC K IN G

S1 CARTON A9171UH 1EM428098 S2 STYROFOAM TOP A9170UH 1EM023471 S3 STYROFOAM BOTTOM A9170UH 1EM023472 S4 SET BAG A81N0UH 1EM323958 S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N1UH/A9171UH 1EMN24319 X3 REMOTE CONTROL NF015UD 170/

X4 DRY BATTERY(SUNRISE) R6SSE/2S XB0M451MS002 X6 QUICK START GUIDE A91N1UH 1EMN24604 X7 FCC ADDENDUM SHEET A94F0UH 1EMN24959 X8 CHILD SAFETY SHEET A94F1UH 1EMN24522

ECNLC501/NF015UD

NF015UD

20090408 14-12 A9171CA

MECHANICAL PARTS LIST

[LC195SSX (Serial No. : DS1A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N1UH 1ESA20165 A1 FRONT CABINET A91N1UH 1EM123295 A3 CONTROL PLATE A91N0UH 1EM325762 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N1UH 1EM222949 A6# RATING LABEL A91N1UH ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A14 POP LABEL A91N0UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392A L17 STAND SCREW KIT A91N0UH 1ESA19876 LCD1 LCD MODULE 18.5INCH WIDE CMO 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N1UH 1EM428498 S2 STYROFOAM TOP A91N0UH 1EM023885 S3 STYROFOAM BOTTOM A91N0UH 1EM023886 S4 SET BAG A81N0UH 1EM323958 S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N1UH/A9171UH 1EMN24319 X3 REMOTE CONTROL NF015UD 170/

X4 DRY BATTERY(SUNRISE) R6SSE/2S XB0M451MS002

ECNLC501/NF015UD

UH19MXA

NF015UD

Ref. No. Description Part No.

X6 QUICK START GUIDE A91N1UH 1EMN24604 X7 FCC ADDENDUM SHEET A94F0UH 1EMN24959 X8 CHILD SAFETY SHEET A94F1UH 1EMN24522

20090421 14-13 A91N1CA

MECHANICAL PARTS LIST

[19MF339B/F7 (Serial No. : DS1A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N0UH 1ESA19808 A1 FRONT CABINET A91N0UH 1EM123294 A3 CONTROL PLATE A91N0UH 1EM325762 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N0UH 1EM222948 A6# RATING LABEL A91N0UH ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A14 POP LABEL A91N0UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM422042 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392A L17 STAND SCREW KIT A91N0UH 1ESA19876 LCD1 LCD MODULE 18.5INCH WIDE CMO 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N0UH 1EM428457 S2 STYROFOAM TOP A91N0UH 1EM023885 S3 STYROFOAM BOTTOM A91N0UH 1EM023886 S4 SET BAG A81N0UH 1EM323958 S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N0UH/A9170UH 1EMN24239 X3 REMOTE CONTROL NF802UD NF802UD NF802UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N0UH 1EMN24541

UH19MXA

Ref. No. Description Part No.

X8 CHILD SAFETY SHEET A94F0UH 1EMN24439

20090512 14-14 A91N0CA

MECHANICAL PARTS LIST

[19MF339B/F7 (Serial No. : DS2A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91N0UH 1ESA19808 A1 FRONT CABINET A91N0UH 1EM123294 A3 CONTROL PLATE A91N0UH 1EM325762 A4 REAR CABINET A91N0UH 1EM023687 A5 DECORATION PLATE A91N0UH 1EM222948 A6# RATING LABEL A9AN0UH ---------A8 JACK LABEL A94N0UH 1EM428257 A9 JACK HOLDER(A) A94N0UH 1EM222783 A10 JACK HOLDER(D) A94N0UH 1EM222784 A14 POP LABEL A91N0UH ---------B1 SHIELD BOX A94F0UH 1EM222764 B2 STAND HOLDER A94N0UH 1EM325619 B3 WALL MOUNT BRACKET A84N0UH 1EM323797 B4 PCB STUD A91N0UH 1EM326198 B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A94N0UH 1EM325677 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 75MM WX1A94N0-105 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRA ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 65MM WX1A94N0-106 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM430139 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392B L17 STAND SCREW KIT A91N0UH 1ESA19876 LCD1 LCD MODULE 18.5INCH WIDE CMO 18.5INCH

SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

WXGA

PAC K IN G

S1 CARTON A91N0UH 1EM428457 S2 STYROFOAM TOP A91N0UH 1EM023885 S3 STYROFOAM BOTTOM A91N0UH 1EM023886 S4 SET BAG A81N0UH 1EM323958 S5 SERIAL NO. LABEL TD812HC ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A91N0UH/A9170UH 1EMN24239A X3 REMOTE CONTROL NF802UD NF802UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A91N0UH 1EMN24541

UH19MXA

Ref. No. Description Part No.

X8 CHILD SAFETY SHEET A94F0UH 1EMN24439

20090914 14-15 A9AN0CA

ELECTRICAL PARTS LIST

[LC195SLX (Serial No. : DS1A**********)]

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT 1ESA19749

MAIN CBA

Ref. No. Description Part No.

MAIN CBA Consists of the following:

CAPACITORS

C201 ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471 C202 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C203 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C204 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C207 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C209 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C214 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C215 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C216 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C217 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C218 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C219 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C220 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C221 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C301 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C302 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C303 ELECTROLYTIC CAP. 330µF/10V M CE1AMASDL331 C304 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C305 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C306 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C309 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C310 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C311 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C401 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C601# CAP METALIZED FILM 0.47µF/300V K 3.5MM CT2F474DC004 C603 CAP ELECTROLYTIC 270µF/200V CEA271DYG005 C604 POLYESTER FILM CAP. (PB FREE) 0.039µF/

100V J

1ESA20272

CA2A393DT018

Ref. No. Description Part No.

C605 POLYESTER FILM CAP. (PB FREE) 0.0012µF/

C606 CERAMIC CAP. 560pF/2KV CA3D561PAN04 C607 POLYESTER FILM CAP. (PB FREE) 0.082µF/

C608 POLYESTER FILM CAP. (PB FREE) 0.0018µF/

C631 ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471 C632 ELECTROLYTIC CAP. 1000µF/35V M CE1GMZPDL102 C633 CERAMIC CAP. B K 1500pF/1KV CCD3AKP0B152 C636# ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101 C638 ELECTROLYTIC CAP. 2200µF/6.3V M CE0KMZPDL222 C639 ELECTROLYTIC CAP. 2200µF/10V M CE1AMZPDL222 C641 ELECTROLYTIC CAP. 3300µF/10V M CE1AMZPDL332 C643 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPDL102 C645 POLYESTER FILM CAP. (PB FREE) 0.0022µF/

C646 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C647 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101 C648 ELECTROLYTIC CAP. 47µF/25V M H7 CE1EMAVSL470 C649 ELECTROLYTIC CAP. 220µF/10V M H7 CE1AMAVSL221 C650 ELECTROLYTIC CAP. 220µF/10V M H7 CE1AMAVSL221 C652 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C653 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C654 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C655 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C656 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C661 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3 C681 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C682 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C683 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C684 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C685 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C691# CAP CERAMIC 4700pF/250V/M/KX CA2E472MR101 C692# SAFTY CAP. 2200pF/250V KX CA2E222MR101 C802 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C805 ELECTROLYTIC CAP. 330µF/25V M CE1EMASDL331 C806 ELECTROLYTIC CAP. 330µF/25V M CE1EMASDL331 C807 CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223 C808 CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223 C809 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C810 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C811 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C812 ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471 C813 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101 C816 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C817 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C825 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C826 CHIP CERAMIC CAP.(1608) CH J 390pF/50V CHD1JJ3CH391 C827 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C828 CHIP CERAMIC CAP.(1608) CH J 390pF/50V CHD1JJ3CH391 C829 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C830 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C831 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C832 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C833 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C1001 CAP CERAMIC (AX) 2200pF/50V/B/K CA1J222TU061 C1002 POLYESTER FILM CAP. (PB FREE) 0.022µF/

100V J

CA2A122DT018

CA2A823DT018

CA2A182DT018

CA2A222DT018

CA2A223DT018

20090402 15-1 A91N3EL

Ref. No. Description Part No.

C1003 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1004 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1005 POLYESTER FILM CAP. (PB FREE) 0.022µF/

C1006 CAP CERAMIC HV 10pF/6KV/SL/J CCA1000TE009 C1007 CAP CERAMIC (AX) 2200pF/50V/B/K CA1J222TU061 C1008 CAP CERAMIC HV 10pF/6KV/SL/J CCA1000TE009 C1009 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1010 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1011 ELECTROLYTIC CAP. 1000µF/35V M CE1GMZPDL102 C1012 CERAMIC CAP. B K 220pF/500V CCD2JKS0B221 C1014 CAP CERAMIC HV 10pF/6KV/SL/J CCA1000TE009 C1015 CAP CERAMIC HV 10pF/6KV/SL/J CCA1000TE009 C1016 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C1018 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1019 CERAMIC CAP. B K 220pF/500V CCD2JKS0B221 C1020 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1023 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1024 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1025 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1026 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1027 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1028 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1031 POLYESTER FILM CAP. (PB FREE) 0.0027µF/

C1032 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1033 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1034 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1035 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1037 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C1038 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1039 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1040 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1041 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1042 CHIP CERAMIC CAP.(1608) F Z 0.22µF/50V CHD1JZ30F224 C1043 CHIP CERAMIC CAP.(1608) B K 0.22µF/16V CHD1CK30B224 C1044 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1045 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1052 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1053 ELECTROLYTIC CAP. 100µF/25V M H7 CE1EMASSL101 C1054 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1056 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

100V J

CA2A223DT018

CA2A272DT018

CONNECTORS

CN102 242 SERIES CONNECTOR 224202108W1 J322C08TG001 CN201 FFC CONNECTOR IMSA-9615S-11A-PP-A JC96J11ER007 CN301 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN302 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN702 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN862A 242 SERIES CONNECTOR 224202104W1 J322C04TG001 CN1001# BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001 CN1002# BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001

DIODES

D201 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D202 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D203 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D204 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D205 DIODE ZENER 24BSC-T26 NDTC024BST26 D206 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D207 DIODE ZENER 7V5BSA-T26 NDTA7R5BST26 D208 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D209 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D210 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D401 DIODE FR104-B NDLZ000FR104

Ref. No. Description Part No.

D402 DIODE ZENER 10BSB-T26 NDTB010BST26 D404 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D405 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D406 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D407 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D408 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D409 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D410 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D411 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D412 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D413 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D414 DIODE ZENER 6V2BSB-T26 NDTB6R2BST26 D416 DIODE ZENER 10BSB-T26 NDTB010BST26 D417 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D601# DIODE 1N5397BD NDL1001N5397 D602# DIODE 1N5397BD NDL1001N5397 D603# DIODE 1N5397BD NDL1001N5397 D604# DIODE 1N5397BD NDL1001N5397 D605 DIODE ZENER 4V3BSB-T26 NDTB4R3BST26 D606# DIODE ZENER 27BSB-T26 NDTB027BST26 D607# DIODE ZENER 39BSB-T26 NDTB039BST26 D608# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D610 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D631 DIODE FAST RECOVERY FR153-B/P NDWZ0FR153BP D632 DIODE SCHOTTKY 30PHA20 QDLZ030PHA20 D633# DIODE ZENER 1ZB43BB NDWZ0001ZB43 D636 DIODE FR104-B NDLZ000FR104 D637# DIODE ZENER 36BSB-T26 NDTB036BST26 D638 SCHOTTKY BARRIER DIODE SB240-B/P NDWZ000SB240 D639 SCHOTTKY BARRIER DIODE SB240-B/P NDWZ000SB240 D641 DIODE SCHOTTKY SB360BH NDWZ000SB360 D642 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D643 FAST RECOVERY DIODE FR252 NDWZ000FR252 D645 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D646 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D648 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D649# DIODE ZENER 3V3BSB-T26 NDTB3R3BST26 D650 DIODE ZENER 6V8BSA-T26 NDTA6R8BST26 D651 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D653 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D654 DIODE FR154 NDLZ000FR154 D655 DIODE FR154 NDLZ000FR154 D657 DIODE ZENER 4V7BSB-T26 NDTB4R7BST26 D659 SHUNT REGULATOR KIA431B-AT/P NSZBA0TJY038 D660 WIRE CP STP-S-0.50 XZ40F0REN001 D662 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D665 WIRE CP STP-S-0.50 XZ40F0REN001 D666 DIODE ZENER 10BSB-T26 NDTB010BST26 D668# DIODE ZENER 20BSB-T26 NDTB020BST26 D670 SCHOTTKY BARRIER DIODE SB160 NDWZ000SB160 D804 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D805 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D808 DIODE ZENER 20BSB-T26 NDTB020BST26 D809 DIODE ZENER 20BSB-T26 NDTB020BST26 D1001 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1002 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1003 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1004 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1005 DIODE ZENER 6V2BSB-T26 NDTB6R2BST26 D1006 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1007 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1008 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1009 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

20090402 15-2 A91N3EL

Ref. No. Description Part No.

D1010 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1011 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1012 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1013 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1014 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1015 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1016 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1018 DIODE ZENER 10BSB-T26 NDTB010BST26 D1020 DIODE ZENER 5V1BSB-T26 NDTB5R1BST26 D1021 DIODE ZENER 15BSB-T26 NDTB015BST26 D1022 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1023 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1024 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1025 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1026 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1027 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1028# DIODE ZENER 4V7BSB-T26 NDTB4R7BST26 D1029 DIODE ZENER 16BSB-T26 NDTB016BST26 D1030 DIODE ZENER 16BSB-T26 NDTB016BST26 D1034 DIODE ZENER 9V1BSB-T26 NDTB9R1BST26 D1036 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1038 WIRE CP STP-S-0.50 XZ40F0REN001 D1039 DIODE ZENER 16BSB-T26 NDTB016BST26 D1040 DIODE ZENER 16BSB-T26 NDTB016BST26 D1045 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

ICS

IC201 IC TL3472CDR NSZBA0TTY115 IC601# PHOTO COUPLER LTV817MCF NPECLTV817MF IC631 IC LD1117V NSZBA0SSS046 IC801 AUDIO AMP IC TDA1517P/N3 112 NSCA0SNXP003 IC803 IC OP AMP NJM4558M(TE1)-#ZZZB QSZBA0TJR089 IC1001 IC PULSE-WIDTH-MODULATION CONT

IC1002 IC OPERATIONNAL AMPLIFIER KIA358F-EL NSZBA0TJY030

TL494CDR

NSCA0T0TY006

COILS

L301 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 L302 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22 L303 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22 L601# LINE FILTER 5.0MH 6Y075 LLBG00ZKT004

TRANSISTORS

Q171 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q172 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q201 TRANSISTOR 2SD400(F) QQUF002SD400 Q202 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q203 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q205 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q206 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q207 TRANSISTOR 2SC2655-Y(TE6 F M) QQSY2SC2655F Q208 TRANSISTOR 2SA1020-Y(TE6 F M) QQSY2SA1020F Q209 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q210 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q401 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q402 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q601# FET MOS 2SK3563(Q) QFWZ2SK3563Q Q602# TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q631 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q633 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q634 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q635 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q636 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q637 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q638 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q639 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

Ref. No. Description Part No.

Q640 NPN TRANSISTOR POWER 2SC4881F HFE

Q641 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q643 TRANSISTOR 2SA950-Y(TE2 F T) QQSY02SA950F Q801 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1001 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1002 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1003 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1004 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1005# FET MOS SMD TPC8214-H QF2ZTPC8214H Q1006 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q1007 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q1008 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1009 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1010 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1011 TRANSISTOR 2SA950-Y(TE2 F T) QQSY02SA950F Q1012 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1014 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1015 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1016 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1017 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1018 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q1019 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1022# FET MOS SMD TPC8214-H QF2ZTPC8214H Q1023 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1024 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

MAX320

QQWZ2SC4881F

RESISTORS

R171 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R172 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R175 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R201 METAL OXIDE FILM RES. 1W J 5.6 Ω RN015R6ZU001 R202 CHIP RES. 1/10W F 9.1k Ω RRXAFR5H9101 R203 CHIP RES. 1/10W F 510 Ω RRXAFR5H5100 R204 CHIP RES. 1/10W F 2.2k Ω RRXAFR5H2201 R205 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R206 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R207 RES CARBON FILM T 1/4W J 6.8k Ω RCX4682T1001 R208 RES CARBON FILM T 1/4W J 6.8k Ω RCX4682T1001 R209 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R210 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682 R211 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R212 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R213 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R214 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R215 RES CARBON FILM T 1/4W J 330 Ω RCX4331T1001 R216 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R217 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R218 RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001 R219 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R220 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R221 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R222 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001 R223 RES CARBON FILM T 1/4W J 15k Ω RCX4153T1001 R224 CHIP RES. 1/10W J 1 Ω RRXAJR5Z01R0 R225 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R226 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R227 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R228 WIRE CP STP-S-0.50 XZ40F0REN001 R229 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R230 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R231 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R232 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R233 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

20090402 15-3 A91N3EL

Ref. No. Description Part No.

R234 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R238 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R239 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001 R240 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001 R302 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R303 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R304 CHIP RES. 1/10W J 82 Ω RRXAJR5Z0820 R305 CHIP RES. 1/10W J 82 Ω RRXAJR5Z0820 R313 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R401# CHIP RES. 1/10W J 1 Ω RRXAJR5Z01R0 R402 CHIP RES. 1/10W F 5.6k Ω RRXAFR5H5601 R403 CHIP RES. 1/10W F 36k Ω RRXAFR5H3602 R406 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001 R407 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R408 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R409 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R411 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R412 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R413 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R601# GLASS GLAZE RES. 1/2W J 1M Ω RXX2JZLZ0105 R602 CEMENT RES. 3W K 1.2 Ω RW031R2PG007 R603 RES CARBON FILM T 1/4W J 560k Ω RCX4564T1001 R604 RES CARBON FILM T 1/4W J 560k Ω RCX4564T1001 R605 RES CARBON FILM T 1/4W J 390k Ω RCX4394T1001 R607 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001 R608 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001 R609 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001 R610# METAL OXIDE FILM RES. 2W J 0.39 Ω RN02R39ZU001 R611 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R612 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R631 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R632 RES CHIP.(1608) 1/10W D 1.1k Ω RRXADR5H1101 R633 RES CHIP.(1608) 1/10W D 10k Ω RRXADR5H1002 R634 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R635 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R637 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001 R638 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R639 CHIP RES. 1/10W F 820 Ω RRXAFR5H8200 R640 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R641 CHIP RES. 1/10W F 120 Ω RRXAFR5H1200 R642 CHIP RES. 1/10W F 22k Ω RRXAFR5H2202 R643 CHIP RES. 1/10W F 22k Ω RRXAFR5H2202 R644 CHIP RES. 1/10W F 22k Ω RRXAFR5H2202 R645 CHIP RES. 1/10W F 7.50 k Ω RRXAFR5H7501 R646 CHIP RES. 1/10W F 820 Ω RRXAFR5H8200 R647 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R648 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R649# RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R650 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R651# RES CARBON FILM T 1/4W J 15 Ω RCX4150T1001 R652 WIRE CP STP-S-0.50 XZ40F0REN001 R653 CHIP RES. 1/10W F 820 Ω RRXAFR5H8200 R654 CHIP RES. 1/10W F 820 Ω RRXAFR5H8200 R655 WIRE CP STP-S-0.50 XZ40F0REN001 R656 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R658 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R659 RES. CARBON FILM J 1/2W J 2.7 Ω RCX22R7T1003 R660 RES CHIP.(1608) 1/10W D 10k Ω RRXADR5H1002 R661 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R662 RES CARBON FILM T 1/4W J 39 Ω RCX4390T1001 R663 RES CARBON FILM T 1/4W J 3.3 Ω RCX43R3T1001 R664 RES CARBON FILM T 1/4W J 3.9 Ω RCX43R9T1001 R665 RES CARBON FILM T 1/4W J 3.9 Ω RCX43R9T1001

Ref. No. Description Part No.

R666 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R667 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R668 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R669 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R670 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R671 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R672 METAL OXIDE FILM RES. 1W J 0.47 Ω RN01R47ZU001 R673 CHIP RES. 1/10W F 3.3k Ω RRXAFR5H3301 R674 CHIP RES. 1/10W F 10k Ω RRXAFR5H1002 R675 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R676 RES CARBON FILM T 1/4W J 22 Ω RCX4220T1001 R677 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R678 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R679 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R681 CHIP RES. 1/10W F 820 Ω RRXAFR5H8200 R682 WIRE CP STP-S-0.50 XZ40F0REN001 R683 METAL OXIDE FILM RES. 1W J 3.3 Ω RN013R3ZU001 R684 METAL OXIDE FILM RES. 1W J 3.3 Ω RN013R3ZU001 R685 CHIP RES. 1/10W F 620 Ω RRXAFR5H6200 R686 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R688 RES CARBON FILM T 1/4W J 1.0 Ω RCX41R0T1001 R689 RES CARBON FILM T 1/4W J 33 Ω RCX4330T1001 R690 RES CARBON FILM T 1/4W J 3.3 Ω RCX43R3T1001 R699 RES CARBON FILM T 1/4W J 56 Ω RCX4560T1001 R803 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R804 CHIP RES. 1/10W J 8.2 Ω RRXAJR5Z08R2 R805 CHIP RES. 1/10W J 8.2 Ω RRXAJR5Z08R2 R806 WIRE CP STP-S-0.50 XZ40F0REN001 R807 WIRE CP STP-S-0.50 XZ40F0REN001 R808 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R809 CHIP RES. 1/10W J 360 Ω RRXAJR5Z0361 R810 CHIP RES. 1/10W J 5.6k Ω RRXAJR5Z0562 R811 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R813 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R814 CHIP RES. 1/10W J 5.6k Ω RRXAJR5Z0562 R815 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R816 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R817 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183 R818 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R819 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R820 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R821 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R823 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R826 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R830 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R834 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R836 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R837 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R838 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R842 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1001 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1002 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R1003 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1004 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1005 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1006 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R1007 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R1008 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1010 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R1011 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1012 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1013 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1014 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001

20090402 15-4 A91N3EL

Ref. No. Description Part No.

R1015 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1017 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1018 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1019 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1020 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1022 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333 R1023 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1024 CHIP RES. 1/10W F 22k Ω RRXAFR5H2202 R1025 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R1026 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1027 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512 R1028 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1029 RES CARBON FILM T 1/4W J 1.8k Ω RCX4182T1001 R1030 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1031 RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001 R1032# METAL OXIDE FILM RES. 2W J 0.33 Ω RN02R33ZU001 R1035 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R1036 CHIP RES. 1/10W F 15k Ω RRXAFR5H1502 R1037 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1038 CHIP RES. 1/10W J 240k Ω RRXAJR5Z0244 R1039 CHIP RES. 1/10W F 68k Ω RRXAFR5H6802 R1040 CHIP RES. 1/10W F 6.2k Ω RRXAFR5H6201 R1041 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R1042 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1043 CHIP RES. 1/10W F 5.1k Ω RRXAFR5H5101 R1044 RES CARBON FILM T 1/4W G 5.1k Ω RCX4512T1002 R1045 CHIP RES. 1/10W J 240k Ω RRXAJR5Z0244 R1046 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243 R1048 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1049 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1052 CHIP RES. 1/10W F 100k Ω RRXAFR5H1003 R1054 CHIP RES. 1/10W F 5.6k Ω RRXAFR5H5601 R1055 CHIP RES. 1/10W F 100k Ω RRXAFR5H1003 R1056 CHIP RES. 1/10W F 100k Ω RRXAFR5H1003 R1058 CHIP RES. 1/10W F 10k Ω RRXAFR5H1002 R1059 CHIP RES. 1/10W F 10k Ω RRXAFR5H1002 R1060 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1061 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333 R1065 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R1066 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R1067 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1068 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1069 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1070 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1071 CHIP RES. 1/10W F 4.3k Ω RRXAFR5H4301 R1072 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1073 CHIP RES. 1/10W F 1.2k Ω RRXAFR5H1201 R1074 RES CARBON FILM T 1/4W J 100k Ω RCX4104T1001 R1081 CHIP RES. 1/10W F 100k Ω RRXAFR5H1003 R1082 CHIP RES. 1/10W F 68k Ω RRXAFR5H6802 R1083 CHIP RES. 1/10W F 1M Ω RRXAFR5H1004 R1084 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1086 CHIP RES. 1/10W F 100k Ω RRXAFR5H1003 R1087 CHIP RES. 1/10W F 68k Ω RRXAFR5H6802 R1088 CHIP RES. 1/10W F 1M Ω RRXAFR5H1004 R1089 CHIP RES. 1/10W F 12k Ω RRXAFR5H1202 R1090 CHIP RES. 1/10W F 47.0 k Ω RRXAFR5H4702 R1091 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1092 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1093 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1094 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1095 RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001 R1099 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102

Ref. No. Description Part No.

R1100 WIRE CP STP-S-0.50 XZ40F0REN001 R1101 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R1102 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1103 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R1104 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1105 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R1106 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1107 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1108 WIRE CP STP-S-0.50 XZ40F0REN001 R1109 CHIP RES. 1/10W F 2.2k Ω RRXAFR5H2201 R1110 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1111 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R1112 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1117 WIRE CP STP-S-0.50 XZ40F0REN001 R1118 RES CARBON FILM T 1/4W J 1.2 Ω RCX41R2T1001

MISCELLANEOUS

AC601# AC CORD PB8K9F9110A-057 WAC0172LW008 B12 MODULE HEAT SINK PMC P7150UT 1EM423968 B13 HEAT SINK PMU A8A70UH 1EM324377 B14 POW HEAT SINK A7120UH 1EM423993 BC301 CHIP INDUCTOR BK1608HS601-T LLC601NTU017 BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC801 CHIP INDUCTOR BK1608HS601-T LLC601NTU017 F601# FUSE STC4A125V U/CT PAGE20CW3402 FH601 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 FH602 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 JS304 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS305 WIRE CP STP-S-0.50 XZ40F0REN001 JS306 WIRE CP STP-S-0.50 XZ40F0REN001 JS801 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS802 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS803 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS804 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS1005 WIRE CP STP-S-0.50 XZ40F0REN001 JS1007 WIRE CP STP-S-0.50 XZ40F0REN001 JS1010 WIRE CP STP-S-0.50 XZ40F0REN001 JS1013 WIRE CP STP-S-0.50 XZ40F0REN001 L13 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB T601# TRANS POWER BCK-28-9923 LTT2PC0XB044 TM601 EYELET TYPE D-1 0VM406868 TM602 EYELET TYPE D-1 0VM406868 T1002# TRANS INVERTER HVT-160 LTZ3PZ0XB014 TU302 TUNER UNIT ATSC/NTSC/QAM TDAU4-D02A UTUNNTUAL052

JACK ASSEMBLY

Ref. No. Description Part No.

JACK ASSEMBLY Consists of the following:

JACK CBA(MJC-A)

--------------------------------------------------------------------FUNCTION CBA(MJC-B) JUNCTION-A CBA(MJC-C) JUNCTION-B CBA(MJC-D) JUNCTION-C CBA(MJC-E)

JACK CBA(MJC-A)

Ref. No. Description Part No.

JACK CBA (MJC-A) Consists of the following:

CAPACITORS

C703 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105 C704 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105

1ESA19748

1ESA19748-JK

---------------------------1ESA19748-FN.JN

----------

20090402 15-5 A91N3EL

Ref. No. Description Part No.

C723 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105 C724 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105 C731 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C732 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C733 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C734 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C735 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C736 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C743 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105 C744 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105 C751 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C752 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C753 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C754 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C755 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C756 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C757 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105 C758 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105 C771 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101 C772 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C773 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105 C775 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C776 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C841 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105 C842 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105 C843 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C845 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330

CONNECTORS

CN701 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN861A 242 SERIES CONNECTOR 224202104W1 J322C04TG001

IC

IC771 IC SWITCHING TC4052BF(ELNF) QSZBA0TTS162

COILS

L851 WIRE CP STP-S-0.50 XZ40F0REN001 L852 WIRE CP STP-S-0.50 XZ40F0REN001 L853 WIRE CP STP-S-0.50 XZ40F0REN001

TRANSISTORS

Q722 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q771 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q773 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q774 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q841 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

RESISTORS

R711 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R712 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R717 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R718 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R721 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R722 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R727 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R728 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R731 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R732 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R733 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R734 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R735 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R736 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R741 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R742 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R747 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R748 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R751 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750

Ref. No. Description Part No.

R752 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R753 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R754 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R755 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R756 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R757 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R758 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R763 RES CARBON FILM T 1/4W J 56k Ω RCX4563T1001 R764 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R772 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R773 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R774 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R775 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R780 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R781 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R782 RES CARBON FILM T 1/4W J 82k Ω RCX4823T1001 R783 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R784 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R785 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R786 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R787 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R788 RES CARBON FILM T 1/4W J 82k Ω RCX4823T1001 R789 RES CARBON FILM T 1/4W J 82k Ω RCX4823T1001 R790 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R791 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R792 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R793 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R794 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R795 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R796 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R797 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R843 CHIP RES. 1/10W J 110 Ω RRXAJR5Z0111 R844 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R845 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R846 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R847 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R848 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R851 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R852 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001

MISCELLANEOUS

BC771 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC841 CHIP INDUCTOR BK1608HS601-T LLC601NTU017 JK711 JACK HPEP SML PCB S PJ-358H JXSJ020YUQ01 JK721 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02 JK722 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JK731 JACK RCA PCB S GREEN 01/RCA-101H(GN) JXRJ010YUQ03 JK732 JACK RCA PCB S BLUE 01/RCA-101H(BL) JXRJ010YUQ04 JK733 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JK741 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02 JK742 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JK751 JACK SW DIN PCB L DIN-435C(777D) JYEL040YUQ03 JK752 JACK RCA PCB L RCA-101S(1)-03 JXRL010YUQ12 JK753 JACK RCA PCB L RCA-101S(1)-04 JXRL010YUQ13 JK754 JACK SW RCA PCB L RCA-102F(RD) JYRL010YUQ05 JK841 JACK RCA PCB S ORANGE 01/RCA-101H(OR) JXRJ010YUQ06 JK851 JACK SW HPEP SML PCB L PJ-350 JYSL010YUQ03 JS701 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

FUNCTION CBA(MJC-B)

Ref. No. Description Part No.

FUNCTION CBA (MJC-B) Consists of the following:

----------

20090402 15-6 A91N3EL

Magnavox SYLVANIA EMERSON 19MF339B/F7 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
