Magnavox MWC24T5 User Manual

SERVICE MANUAL

Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List

This service manual is for the MWC24T5 version B model, which is different from the previous model. For MWC24T5 version B model, a suffix “B” is printed on the rating label on the back of the unit. Refer to the rating label illustration at right.

When servicing the deck mechanism, refer to MK14 Deck Mechanism Section.

Deck Mechanism Part No.: N2466FT

Rating Label

Suffix "B"

24″ COLOR

TV/DVD/VCR

MWC24T5

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

MAIN SECTION

24″ COLOR TV/DVD/VCR

MWC24T5

Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4-1

Preparation for Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

How to Initialize the TV/DVD/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

Wiring Diagram < TV/VCR Section > . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13-1

Wiring Diagram < DVD Section > . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13-2

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-14-1

IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19-1

SPECIFICATIONS

*ˆ Mode---------SP mode unless otherwise specified * Test input terminal

<Except Tuner>--------Video input (1 Vp-p)

Audio input (-10 dB)

<Tuner>------------------Ant. input (80 dBµV) Video: 87.5%

Audio: 25 kHz dev. (1 kHz Sin)

< DEFLECTION >

Description Condition Unit Nominal Limit

1. Over Scan --- % 90 5

2. Linearity

3. High Voltage --- kV 27 ---

Horizontal % --- ±18

Vertical % --- ±10

< VIDEO & CHROMA >

Description Condition Unit Nominal Limit

Center m/m --- 0.4

1. Misconvergence

2. Tint Control Range --- deg ±30 ---

3. Contrast Control Range --- dB 6 2

4. Brightness (100% White Full Field) Contrast: Max ft-L 40 24

5. Color Temperature --- K 9200 ---

Corner m/m --- 2.5

Side m/m --- 1.5

< DVD >

Description Condition Unit Nominal Limit

1. Horizontal Resolution (TDV-540 TIT.2 CHP.16) --- Line 350 300

2. Video S/N at CN3400 (TDV-540 TIT.2 CHP.6) --- dB 60 55

3. S/N Chroma at CN3400 (TDV-540 TIT.2 CHP.17)

4. Audio Distortion (LPCM 48 kHz, W/LPF) (PTD 1-NOR TIT.1 CHP.1)

5. Audio freq. response (LPCM 48 kHz) (PTD 1-NOR TIT.1 CHP.5 -- 10)

6. Audio S/N (LPCM 48 kHz,W/LPF,A-WTD) (PTD 1-NOR TIT.1 CHP.1 -- 2)

AM --- dB 58 53 PM --- dB 58 53

L, 20 Hz

R, 20 Hz

L, 20 kHz

R, 20 kHz

1-1-1 T1200SP

% 0.03 0.07

dB 0 +4/-5

dB 85 75

< VCR >

Description Condition Unit Nominal Limit

1. Horizontal Resolution (R/P, SP) Line 230 200

2. Jitter (Low) (R/P, SP) µs0.10.2

3. S/N Chroma

4. Wow & Flutter (JIS, UNWTD) (R/P, SP) % 0.25 0.5

AM(SP) (R/P, SP) dB 38 33 PM(SP) (R/P, SP) dB 38 33

< TUNER >

Description Condition Unit Nominal Limit

1. Video S/N (80 dBµV, T V4 ch ) -- - dB 45 40

2. Audio S/N (W/LPF) --- dB 45 40

< NORMAL AUDIO>

All items are measured across 8 Ω resistor at speaker output terminal.

Description Condition Unit Nominal Limit

1. Audio Output Power (R/P, SP) W 1.0 0.8

2. Audio S/N (W/LPF) (R/P, SP) dB 40 36

3. Audio distortion (W/LPF, -10 dB 1 kHz IN) (R/P, SP) % 3.0 5.0

4. Audio Freq. Response (-10dB 1kHz IN)

200 Hz (R/P, SP) dB -2.0 -2.0±5.0 8 kHz (R/P, SP) dB 0 0±6.0

< Hi-Fi AUDIO >

Description Condition Unit Nominal Limit

1. Output Level (-10 dB 1 kHz IN) (R/P, SP) dB -8.0 -8±4

2. Audio Distortion (-10 dB 1 kHz IN) (R/P, SP) % 0.5 1.0

3. Freq. Response (-15 dB 1 kHz IN)

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

20 Hz (R/P, SP) dB 0 ±4 20 kHz (R/P, SP) dB 0 ±4

1-1-2 T1200SP

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.

Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin.

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser beam.

CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in hazardous radiation exposure.

Drive Mechanism Assembly

Laser Beam Radiation

Laser Pickup

Turntable

WHEN OPEN. DO NOT

CAUTION

LASER RADIATION

STARE INTO BEAM.

Location: Top of DVD mechanism.

1-2-1 E7NLSP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the picture tube and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the

AC line cord directly into a 120 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits -

Because the picture tube is the primary potential source of X-radiation in solid-state TV receivers, it is specially constructed to prohibit X-radiation emissions. For continued Xradiation protection, the replacement picture tube must be the same type as the original.

CURRENT

TESTER

EARTH GROUND

1-3-1 TVDVDN_ISP

Also, because the picture tube shields and mounting hardware perform an X-radiation protection function, they must be correctly in place. High voltage must be measured each time servicing is performed that involves B+, horizontal deflection or high voltage. Correct operation of the X-radiation protection circuits also must be reconfirmed each time they are serviced. (X-radiation protection circuits also may be called “horizontal disable” or “hold down.”) Read and apply the high voltage limits and, if the chassis is so equipped, the Xradiation protection circuit specifications given on instrument labels and in the Product Safety & X-Radiation Warning note on the service data chassis schematic. High voltage is maintained within specified limits by close tolerance safety-related components/ adjustments in the high-voltage circuit. If high voltage exceeds specified limits, check each component specified on the chassis schematic and take corrective action.

2. Read and comply with all caution and safetyrelated notes on or inside the receiver cabinet, on the receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning - The picture tube in this receiver employs integral implosion protection. For continued implosion protection, replace the picture tube only with one of the same type number. Do not remove, install, or otherwise handle the picture tube in any manner without first putting on shatterproof goggles equipped with side shields. People not so equipped must be kept safely away while picture tubes are handled. Keep the picture tube away from your body. Do not handle the picture tube by its neck. Some “in-line” picture tubes are equipped with a permanently attached deflection yoke; because of potential hazard, do not try to remove such “permanently attached” yokes from the picture tube.

5. Hot Chassis Warning a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without

an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

7. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

8. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes

1-3-2 TVDVDN_ISP

of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

When replacing the power transformer in sets where the connections between the power cord and power transformer primary lead wires are performed using crimp type connectors, in order to prevent shock hazards, perform carefully and precisely the following steps. Replacement procedure

1) Remove the old connector by cutting the wires at a point close to the connector. Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the DVD/VCR

connectors, first, disconnect the AC plug from the AC supply socket.

1-3-3 TVDVDN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.).

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

AC Voltmeter (High Impedance)

Earth Ground

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

1-3-4 TVDVDN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Input

Bottom View

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Pin 1

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible Foil Connector) cable, be sure to first disconnect the AC cord.

2. FFC (Flexible Foil Connector) cable should be inserted parallel into the connector, not at an angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape

1-4-1 TVDVDN_SN

around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

Hot-air Flat Pack-IC Desoldering

CBA

Machine

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

Masking Tape

Tweezers

Flat Pack-IC

Fig. S-1-2

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

1-4-2 TVDVDN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “●” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

1-4-3 TVDVDN_SN

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

1-4-4 TVDVDN_SN

PREPARATION FOR SERVICING

How to Enter the Service Mode

Caution 1:

1. Optical sensors system are used for Tape Start and End Sensor on this equipment. Read this page carefully and prepare as described on this page before starting to service; otherwise, the unit may operate unexpectedly.

Preparing 1:

1. Cover Q1202 (START SENSOR) and Q1201 (END SENSOR) with Insulation Tape or enter the service mode to activate Sensor Inhibition automatically.

Note: Avoid playing, rewinding or fast forwarding the

tape to its beginning or end, because both Tape End Sensors are not active.

How to Enter the Service Mode

1. Turn power on.

2. Use service remote control unit and press [DISC MENU] button. (See page 1-7-1.)

3. When entering the service mode, one of the number (1, 2 or 4) will be displayed at corners of the screen.

4. During the service mode, electrical adjustment mode can be selected by remote control key. (Service remote control unit).

Details are as follows.

Key Adjustment Mode

Purity check mode: Shows Red, Green,

VOL o No need to use.

VOL p

Caution 2:

1. The deck mechanism assembly is mounted on the Main CBA directly, and SW1211 (REC-SAFETY SW) is mounted on the Main CBA. When deck mechanism assembly is removed from the Main CBA due to servicing, this switch can not be operated automatically.

Blue or White cyclically on the screen each time the [7] button is pressed.

H. Position adjustment: See adjustment instructions page 1-7-5.

V. Shift/V.Size adjustment: See adjustment instructions page 1-7-5.

Cut-off adjustment: See adjustment instructions page 1-7-3. White balance adjustment: See adjustment instructions page 1-7-4.

Preparing 2:

1. To eject the tape, press the [STOP/EJECT] button on the unit (or Remote Control).

2. When you want to record during the Service mode, press the [Rec] button while depressing SW1211 (REC-SAFETY SW) on the Main CBA.

Key Adjustment Mode

Picture adjustment mode: Press the [PICTURE] button to change from BRT (Bright), *CNT (Contrast), *COL (Color),


0 No need to use. 1 No need to use.

3 No need to use.

6 No need to use.

*TNT(Tint), *V-T(V-Tint) and *SHP (Sharp). Press [CH. o/p] buttons to display Initial Value. *Marked items are not necessary to adjust normally.

H f

adjustment mode: See adjustment

instructions page 1-7-2.

Auto record mode: Perform recording (15 Sec.) --> Stop --> Rewind (Zero return) automatically.

Head switching position adjustment: See adjustment instructions page 1-7-6.

Q1201 (END SENSOR)

SW1211 (REC-SAFETY SW)

Q1202 (START SENSOR)

MAIN CBA

1-5-1 T2203PFS

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

CAUTION!

When removing the CRT, be sure to discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

[1] Rear Cabinet

[3] CRT[2] Tray Chassis Unit

[7] Function CBA

[4] DVD

Mechanism

[5] DVD Main

CBA Unit

[6] Sub CBA

[8] Deck Assembly

[9] Main CBA

2. Disassembly Method

Removal

Step/

Loc.

No.

[1]

Part

Rear Cabinet

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Desolder

6(S-1), (S-2), (S-3A),

(S-3B)

Note

---

Removal

Step/

Loc.

No.

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

3(S-7), Top Shield,

Deck

[8]

AssemblyD2D5

5(S-8), (S-9), (S-10), *CL1201, *CL1401,

*CL1402, *CL1403

[9] Main CBA D2 5(S-11) ---

↓

(1)

↓

(2)

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following “Reference Notes in the

Ta bl e ” .

Tr ay

[2]

Chassis Unit

[3] CRT

DVD

[4]

Mechanism

DVD Main

[5]

CBA Unit

[6] Sub CBA

Function

[7]

CBA

Anode Cap, *CN2501,

CRT CBA, *CN1601,

*CN3802, *CN2571,

*CN3801

4(S-4) ---

D5 D2

4(S-5), *CN201,

D4 D5

*CN301

2, 3

D2 D4D5*CN1, *CN2 ---

D2D55(S-6), *CN1301,

*CN1602, *CL2601

*CN2401 ---

---

1-6-1 T2202DC

Reference Notes in the Table

CAUTION!

When removing the CRT, be sure to discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

1. CAUTION 1: Discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

Disconnect the following: Anode Cap, CN2501, CRT CBA, CN1601, CN3802, CN2571 and CN3801. Then remove Tray Chassis Unit.

2. CAUTION 2: Electrostatic breakdown of the laser diode in the optical system block may occur as a potential difference caused by electrostatic charge accumulated on cloth, human body etc., during unpacking or repair work. To avoid damage of pickup follow next procedures.

1) Disconnect Connector (CN301) on the DVD Main CBA Unit.

2) Short the three short lands of FPC cable with solder before removing the FFC cable (CN201) from it. If you disconnect the FFC cable (CN201), the laser diode of pickup will be destroyed. (Fig. D4)

3) Remove DVD Mechanism.

3. CAUTION 3: When reassembling, confirm the FFC cable (CN201) is connected completely. Then remove the solder from the three short lands of FPC cable. (Fig. D4)

4. Remove three screws (S-7) and remove Top Shield. Remove screws 5(S-8), (S-9) and (S-10). Then, desolder connectors (CL1201, CL1401, CL1402, CL1403) and lift up the Deck Assembly.

(S-1)

(S-2)

(S-3A)

(S-1)

(S-3B)

(S-1)

[1] Rear Cabinet

Fig. D1

1-6-2 T2202DC

[2] Tray Chassis Unit

(S-5)

(S-6)

(S-5)

[4] DVD Mechanism

(S-6)

[6] Sub CBA

(S-7)

(S-8)

[5] DVD Main CBA Unit

(S-11)

Top Shield

(S-7)

(S-8)

[8] Deck Assembly

[7] Function CBA

(S-11)

(S-9)

(S-10)

1-6-3 T2202DC

[9] Main CBA

Fig. D2

Anode Cap

(S-4)

[3] CRT

CRT CBA

(S-4)

Fig. D3

DVD Mechanism

Short the three short lands by soldering. (Either of two places.)

FPC Cable

View for A

Fig. D4

1-6-4 T2202DC

DVD MAIN CBA UNIT

CN301

ANODE

CRT

GND

CL2504A

FOCUS

JUNCTION-B CBA

TO SPEAKER

CL3801 CN3801

FUNCTION CBA

CN1803

CN2801

CN2401

SUB CBA

MAIN CBA

CL1403

CN201

CN2A

CN2571

CN1A

CN2

CN2503

CL2501A

CN1

CL2601

CN2502

CN1602CN1301

SCREEN

CRT CBA

CN2501

CL2501B

CN1802

CN3802 CL3802

TO SPEAKER

JUNCTION-A CBA

DECK ASSEMBLY

CL1401

CL1402

CN1601

AC CORD

CL1201

TUNER

ACE HEAD ASSEMBLY

FE HEAD

CYLINDER ASSEMBLY

CAPSTAN MOTOR

Fig. D5

1-6-5 T2202DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. AC Milli Voltmeter (RMS)

3. Alignment Tape (FL8A, FL8N), Blank Tape

4. DC Voltmeter

5. Oscilloscope: Dual-trace with 10:1 probe, V-Range: 0.001~50 V/Div, F-Range: DC~AC-60 MHz

6. Frequency Counter

7. Plastic Tip Driver

8. Color Analyzer

How to enter the Service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on. (Use main power on the TV unit.)

3. To enter the TV mode, press [CH. o / p] buttons on the TV unit.

4. Press [DISC MENU] button on the service remote control unit. Version of micro computer will display on the CRT. (Ex: BA4-0.16)

X-Ray Protection Test

X-Ray protection test should be done when replacing any parts of this chassis.

1. Short both ends of R2592 (on Sub CBA).

2. Confirm that the main power turns off.

3. If the main power does not turn off, then replace the following parts (D2591, Q2591, R2592, R2593, R2594 and IC1201).

4. Perform steps 1 to 3 again.

1. DC 120V (+B) Adjustment

How to make service remote control unit:

1. Prepare normal remote control unit (Part No. NE204UD or NE209UD). Remove 4 screws from the back lid (Fig. 1).

Screws

Remote control unit (bottom)

2. Cut off pin 10 of the remote control microprocessor and short circuit pins 10 and 17 of the microprocessor with a jumper wire

Fig. 1

Purpose: To obtain correct operation. Symptom of Misadjustment: The picture is dark and

unit does not operate correctly.

Test Point Adj. Point Mode Input

TP2501(+B)

TP2504(GND)

Tape M. EQ. Spec.

--- DC Voltmeter +120±1.0 V DC

Note: TP2501(+B), TP2504(GND) --- Sub CBA,

VR1601 --- Main CBA

1. Connect the unit to AC Power Outlet.

2. Connect DC Volt Meter to TP2501(+B) and TP2504(GND).

3. Adjust VR1601 so that the voltage of TP2501(+B) becomes +120±1.0 V DC.

VR1601 --- ---

1-7-1 T2202EA

2. Setting for CONTRAST, COLOR,

3. H f0 Adjustment

TINT, V-TINT and SHARP Data Values

General

1. Enter the Service mode. (See page 1-7-1.)

2. Press [PICTURE] button on the service remote control unit. Display changes “BRT,” “CNT,” “COL,” “TNT,” “V-T,” and “SHP” cyclically when [PICTURE] button is pressed.

CONTRAST (CNT)

1. Press [PICTURE] button on the service remote control unit. Then select “CONTRAST (CNT)” display.

2. Press [CH. o / p] buttons on the service remote control unit so that the value of “CONTRAST (CNT)” becomes 84.

COLOR (COL)

1. Press [PICTURE] button on the service remote control unit. Then select “COLOR (COL)” display.

2. Press [CH. o / p] buttons on the service remote control unit so that the value of “COLOR (COL)” becomes 58.

Purpose: To get correct horizontal position and size of screen image.

Symptom of Misadjustment: Horizontal position and size of screen image may not be properly displayed.

Test Point Adj. Point Mode Input

R2583 [CH. o / p] buttons Video ---

Tape M. EQ. Spec.

--- Frequency Counter 15.734 kHz±300 Hz

Note: R2583 --- Sub CBA

1. Connect frequency counter to R2583.

2. Operate the unit for at least 20 minutes.

3. Enter the Service mode. (See page 1-7-1.) Press [2] button on the remote control unit and select HADJ mode.

4. Press [CH. o / p] buttons on the remote control unit so that the display will change “0” to “7.”

5. At this moment, choose display “0” to “7” when the frequency counter display is closest to 15.734 kHz ± 300 Hz.

TINT (TNT)

1. Press [PICTURE] button on the service remote control unit. Then select “TINT (TNT)” display.

2. Press [CH. o / p] buttons on the service remote control unit so that the value of “TINT (TNT)” becomes 45.

V-TINT ( V- T )

1. Press [PICTURE] button on the service remote control unit. Then select “V-TINT (V-T)” display.

2. Press [CH. o / p] buttons on the service remote control unit so that the value of “V-TINT (V-T)” becomes 49.

SHARP (SHP)

1. Press [PICTURE] button on the service remote control unit. Then select “SHARP (SHP)” display.

2. Press [CH. o / p] buttons on the service remote control unit so that the value of “SHARP (SHP)” becomes 46.

Note: BRIGHT data value does not need to be

adjusted because this setting is performed in other setting.

1-7-2 T2202EA

4. Cut-off Adjustment

Purpose: To adjust the beam current of R, G, B, and

screen voltage. Symptom of Misadjustment: White color may be

reddish, greenish or bluish.

Test Point Adj. Point Mode Input

Screen-Control

---

Tape M. EQ. Spec.

---

[CH. o / p]

buttons

Pattern

Generator

Figure

Pattern Generator

See Reference

Notes below.

Black

Raster

5. H. Size Adjustment

Purpose: To obtain correct size of screen image. Symptom of Misadjustment: Size of screen image

may not be properly displayed.

Test point Adj. Point Mode Input

--- VR2531 --- Monoscope

Tape M. EQ. Spec.

--- Pattern Generator 90+1%/-5%

Note: VR2531 --- Sub CBA

1. Input monoscope pattern.

2. Adjust VR2531 so that the monoscope pattern is 90+1%/-5% of display size and the circle is round.

6. H. Pincushion Adjustment

Purpose: To obtain straight line on the screen. Symptom of Misadjustment: Straight line image may

not be properly displayed.

Test point Adj. Point Mode Input

RF Input

Fig. 2

Notes: Screen Control --- FBT (Sub CBA),

FBT = Fly Back Transformer, Use the Remote Control Unit.

1. Degauss the CRT and allow the unit to operate for 20 minutes before starting the alignment.

2. Input the Black raster signal from RF input.

3. Enter the Service mode. (See page 1-7-1.)

4. Press the [VOL p] button. (Press [VOL p] button then display will change “C/D”, “7F” and Initial Setting.)

5. Choose CUT OFF/DRIVE mode then press [1] button. This adjustment mode is CUT OFF (R).

6. Increase the screen control so that the horizontal line just appears on the CRT.

7. Press the [CH. o / p] buttons until the horizontal line becomes white.

8. Choose CUT OFF/DRIVE mode then press [2] button. This adjustment mode is CUT OFF (G). Press [CH. o / p] buttons until the horizontal line becomes white.

9. Choose CUT OFF/DRIVE mode then press [3] button. This adjustment mode is CUT OFF (B). Press [CH. o / p] buttons until the horizontal line becomes white.

--- VR2530 --- Crosshatch

Tape M. EQ. Spec.

--- Pattern Generator See below

Note: VR2530 --- Sub CBA

1. Input crosshatch pattern.

2. Adjust VR2530 so that the lines of the crosshatch pattern become straight.

1-7-3 T2202EA

7. White Balance Adjustment

8. Sub-Brightness Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point Adj. Point Mode Input

Screen

Tape M. EQ. Spec.

---

Note: Use service remote control unit

1. Operate the unit more than 20 minutes.

2. Face the unit to the east. Degauss the CRT using a degaussing coil.

3. Input the White Raster (APL 100%).

4. Set the color analyzer to the CHROMA mode and after zero point calibration, bring the optical receptor to the center on the tube surface (CRT).

5. Enter the Service mode. Press [VOL p] button on the service remote control unit and select “C/D” mode. (Display changes “C/D”, “7F” and Initial Setting cyclically when [VOL p] button is pressed.)

6. Press [4] button on the service remote control unit for Red adjustment. Press [5] button on the service remote control unit for Blue adjustment.

7. In each color mode, press [CH. o / p] buttons to adjust the values of color.

8. Adjust Red and Blue color so that the temperature becomes 9200K (x: 286 / y: 294) ±3%.

9. At this time, re-check that horizontal line is white. If not, re-adjust Cut-off Adjustment until the horizontal line becomes pure white.

10. Turn off and on again to return to normal mode. Receive APL 100% white signal and confirm that Chroma temperatures become 9200K (x: 286 / y:

294) ±3%.

Note: Confirm that Cut Off Adj. is correct after this

adjustment, and attempt Cut Off Adj. if needed.

[CH. o / p]

buttons

Pattern

Generator,

Color analyzer

Figure

Color Analyzer

See below

White Raster

(APL 100%)

Fig. 3

Purpose: To get proper brightness. Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by adjusting the Brightness Control.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

White

Note: SMPTE Setup level --- 7.5 IRE

1. Enter the Service mode. (See page 1-7-1.) Then input SMPTE signal from RF input.

2. Press [PICTURE] button. (Press [PICTURE] button then display will change BRT, CNT, COL, TNT, V-T, and SHP). Select BRT and press [CH. o / p] buttons so that the bar is just visible (See above figure).

[CH. o / p]

buttons

Pattern

Generator

Figure

---

SMPTE

7.5IRE

See below

Black

This bar just visible

Fig. 4

1-7-4 T2202EA

9. Focus Adjustment

11. V. Shift Adjustment

Purpose: Set the optimum Focus. Symptom of Misadjustment: If Focus Adjustment is

incorrect, blurred images are shown on the display.

Test Point Adj. Point Mode Input

--- Focus Control --- Monoscope

Tape M. EQ. Spec.

--- Pattern Generator See below

Note: Focus VR --- FBT (Sub CBA),

FBT = Fly Back Transformer

1. Operate the unit more than 30 minutes.

2. Face the unit to the East and degauss the CRT using a degaussing coil.

3. Input the monoscope pattern.

4. Adjust the Focus Control on the FBT to obtain a clear picture.

10. H. Position Adjustment

Purpose: To obtain correct horizontal position of

screen image.

Purpose: To obtain correct vertical position of screen image.

Symptom of Misadjustment: If V. position is incorrect, vertical position of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator ---

1. Enter the Service mode. (See page 1-7-1.) Press [9] button on the remote control unit and select V-P mode. (Press [9] button then display will change to V-P and V-S).

2. Input monoscope pattern.

3. Press [CH. o / p] buttons on the remote control unit so that the top and bottom of the monoscope pattern are equal to each other.

[CH. o / p]

buttons

--- Monoscope

12. V. Size Adjustment

Symptom of Misadjustment: H. position may not be

properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator ---

1. Enter the Service mode. (See page 1-7-1.) Press [8] button on the remote control unit and select H-P mode.

2. Input monoscope pattern.

3. Press [CH. o / p] buttons on the remote control unit so that the left and right side of the monoscope pattern are equal to each other.

[CH. o / p]

buttons

--- Monoscope

Purpose: To obtain correct vertical height of screen image.

Symptom of Misadjustment: If V. Size is incorrect, vertical height of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-7-1.) Press [9] button on the remote control unit and select V-S mode. (Press [9] button then display will change to V-P and V-S).

2. Input monoscope pattern.

3. Press [CH. o / p] buttons on the remote control unit so that the monoscope pattern is 90±5% of display size and the circle is round.

[CH. o / p]

buttons

--- Monoscope

1-7-5 T2202EA

13. Head Switching Position Adjustment

Purpose: Determine the Head Switching Position

during Playback. Symptom of Misadjustment: May cause Head

Switching Noise or Vertical Jitter in the picture. Note: Unit reads Head Switching Position

automatically and displays it on the screen (Upper Left Corner).

1. Playback test tape (VFMS0001H6).

2. Enter the Service mode. (See page 1-7-1.)

Then press the number [5] button on the remote control unit.

3. The Head Switching position will display on the

screen; if adjustment is necessary follow step 4.

6.5H(412.7µs) is preferable.

4. Press [CH. o] or [CH. p] button on the remote

control unit if necessary. The value will be changed in 0.5H steps up or down. Adjustable range is up to 9.5H. If the value is beyond adjustable range, the display will change as: Lower out of range: 0.0H Upper out of range: -.-H

The following 2 adjustments normally are not attempted in the field. They should be done only when replacing the CRT then adjust as a preparation.

14. Purity Adjustment

Purpose: To obtain pure color. Symptom of Misadjustment: If Color Purity

Adjustment is incorrect, large areas of color may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator See below

GREEN RED BLUE

Deflection Yoke

Purity Magnet

Figure

--- *Red Color

Fig. 5

* This becomes RED COLOR if the [7] button is pressed while in service mode.

1. Set the unit facing east.

2. Operate the unit for over 30 minutes before adjusting.

3. Fully degauss the unit using an external degaussing coil.

4. Set the unit to the AUX mode which is located before CH2 then input a red raster from video in.

5. Loosen the screw on the Deflection Yoke Clamper and pull the Deflection Yoke back away from the screen. (See Fig. 6.)

6. Loosen the Ring Lock and adjust the Purity Magnets so that a red field is obtained at the center of the screen. Tighten Ring Lock. (See Fig. 5, 6.)

7. Slowly push the Deflection Yoke toward the bell of the CRT and set it where a uniform red field is obtained.

8. Tighten the clamp screw on the Deflection Yoke.

1-7-6 T2202EA

15. Convergence Adjustment

Purpose: To obtain proper convergence of red, green

and blue beams. Symptom of Misadjustment: If Convergence

Adjustment is incorrect, the edge of white letters may have color edges.

Test Point Adj. Point Mode Input

4. Fix the C.P. Magnets by tightening the Ring Lock.

5. Remove the DY Wedges and slightly tilt the Deflection Yoke horizontally and vertically to obtain the best overall convergence.

6. Fix the Deflection Yoke by carefully inserting the DY Wedges between CRT and Deflection Yoke.

---

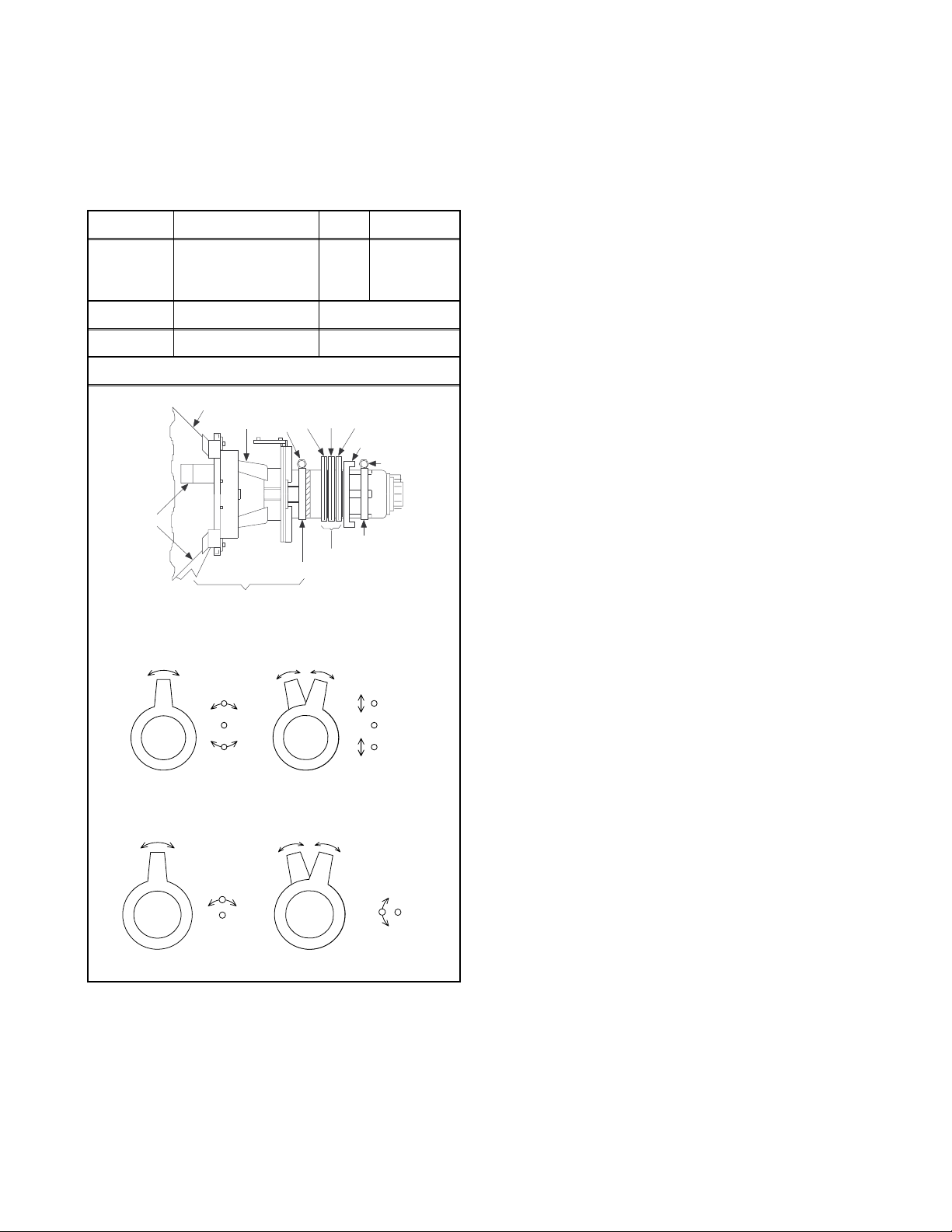

C.P. Magnet (RB)

C.P. Magnet (RB-G)

Deflection Yoke

Dot Pattern

--Crosshatch

Tape M. EQ. Spec.

--- Pattern Generator See below

Figure

CRT

RB-GRB

RING LOCK

SCREW

C.P. MAGNET CLAMPER

C.P. MAGNET

DY WEDGE

COIL

SCREW

COIL CLAMPER

DEFLECTION YOKE

PURITY

Fig. 6

C.P. MAGNET (RB)

Fig. 7

C.B. MAGNET (RB-G)

Fig. 8

1. Set the unit to the AUX mode which is located before CH2 then input a dot or crosshatch pattern.

2. Loosen the Ring Lock and align red with blue dots or crosshatch at the center of the screen by rotating (RB) C.P. Magnets. (See Fig. 7.)

3. Align red / blue with green dots at the center of the screen by rotating (RB-G) C.P. Magnet. (See Fig. 8.)

1-7-7 T2202EA

HOW TO INITIALIZE THE TV/DVD/VCR

To put the program back at the factory-default, initialize the TV/DVD/VCR as the following procedure.

< DVD Section >

1. Turn the power on and press [SELECT] button on the remote control unit to put the TV/DVD/VCR into DVD mode.

2. Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order. Fig. a appears on the screen.

" differ depending on the models.

*******

MODEL : *******

Version Region

: *.**

: *

EXIT: SELECTEEPROM CLEAR : CLEAR

Fig. a

" differ depending on the models.

*******

3. Press [CLEAR] button on the remote control unit. Fig. b appears on the screen.

< TV/VCR Section >

1. Use the service remote control unit.

2. Turn the power on. (Use main power on the TV unit.)

3. Press [DISC MENU] button on the service remote control unit to enter the Service mode. (Refer to “How to enter the Service mode” on page 1-7-1.)

4. Press [VOL p] button on the service remote control unit twice, and confirm that OSD indication is “7F = FF.” If needed, set it to become “7F = FF” by pressing [CH. o / p] buttons on the service remote control unit.

5. Confirm that OSD indication on the four corners on TV screen changes from on and off light indication to red by pressing a [DISPLAY] button. (It is necessary for one or two seconds.)

6. Turn the power off by pressing main power button on the TV unit, and unplug the AC cord from the AC outlet.

MODEL : *******

Version Region

: *.**

: *

EXIT: SELECTEEPROM CLEAR : CLEAR

Fig. b

EEPROM CLEAR : OK

When “OK” appears on the screen, the factory default will be set.

4. To exit this mode, press [CH. o / p] or [SELECT] button to go to TV mode, or press [STANDBY-ON] button to turn the power off.

1-8-1 T1202NT

FIRMWARE RENEWAL MODE

1. Turn the power on and press [SELECT] button on the remote control unit to put the TV/DVD/VCR into DVD mode. Then remove the disc on the tray. (It is possible to move to F/W version up mode only when the TV/DVD/VCR is in DVD mode with the tray open.)

2. To put the TV/DVD/VCR into F/W version up mode, press [9], [8], [7], [6], and [MODE] buttons on the remote control unit in that order. Fig. a appears on the screen.

" differs depending on the models.

*******

F/W Version Up Mode Model No : *******

Please insert a DISC

for F/W Version Up.

VERSION : *.**

EXIT: SELECT

Fig. a Version Up Mode Screen

The TV/DVD/VCR can also enter the version up mode with the tray open. In this case, Fig. a will be shown on the screen while the tray is open.

3. Load the disc for version up.

4. The TV/DVD/VCR enters the F/W version up mode automatically. Fig. b appears on the screen. If you enter the F/W for different models, “Disc Error” will appear on the screen, then the tray will open automatically.

" differs depending on the models.

*******

" differs depending on the models.

*******

(*2)

F/W Version Up Mode

VERSION : ************.ab7 Completed

SUM : 7ABC

Model No : ******* VERSION : *.**

Fig. c Completed Program Mode Screen

At this time, no button is available.

6. Remove the disc on the tray.

7. Press [SELECT] button on the remote control unit to go to TV mode, or press [STANDBY-ON] button on the unit to turn the power off.

8. Press [SELECT] button on the remote control unit to put the TV/DVD/VCR into DVD mode again.

9. Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order. Fig. d appears on the screen.

" differs depending on the models.

*******

MODEL : *******

Version Region

: *.**

: *

EXIT: SELECTEEPROM CLEAR : CLEAR

(*1)

F/W Version Up Mode Model No : *******

VERSION : ************.ab7 Reading...

VERSION : *.**

Fig. b Programming Mode Screen

The appearance shown in (*1) of Fig. b is described as follows:

No. Appearance State

1 Reading... Sending files into the memory 2 Erasing... Erasing previous version data 3 Programming... Writing new version data

5. After programming is finished, the tray opens automatically. Fig. c appears on the screen and the checksum will be shown in (*2) of Fig. c.

Fig. d

10. Press [CLEAR] button on the remote control unit. Fig. e appears on the screen.

" differs depending on the models.

*******

MODEL : *******

Version Region

: *.**

: *

EXIT: SELECTEEPROM CLEAR : CLEAR

EEPROM CLEAR : OK

Fig. e

When “OK” appears on the screen, the factory default will be set. Then the firmware renewal mode is complete.

11. To exit this mode, press [CH. o / p] or [SELECT] button to go to TV mode, or press [STANDBY-ON] button to turn the power off.

1-9-1 T1202FW

BLOCK DIAGRAMS < TV/VCR Section >

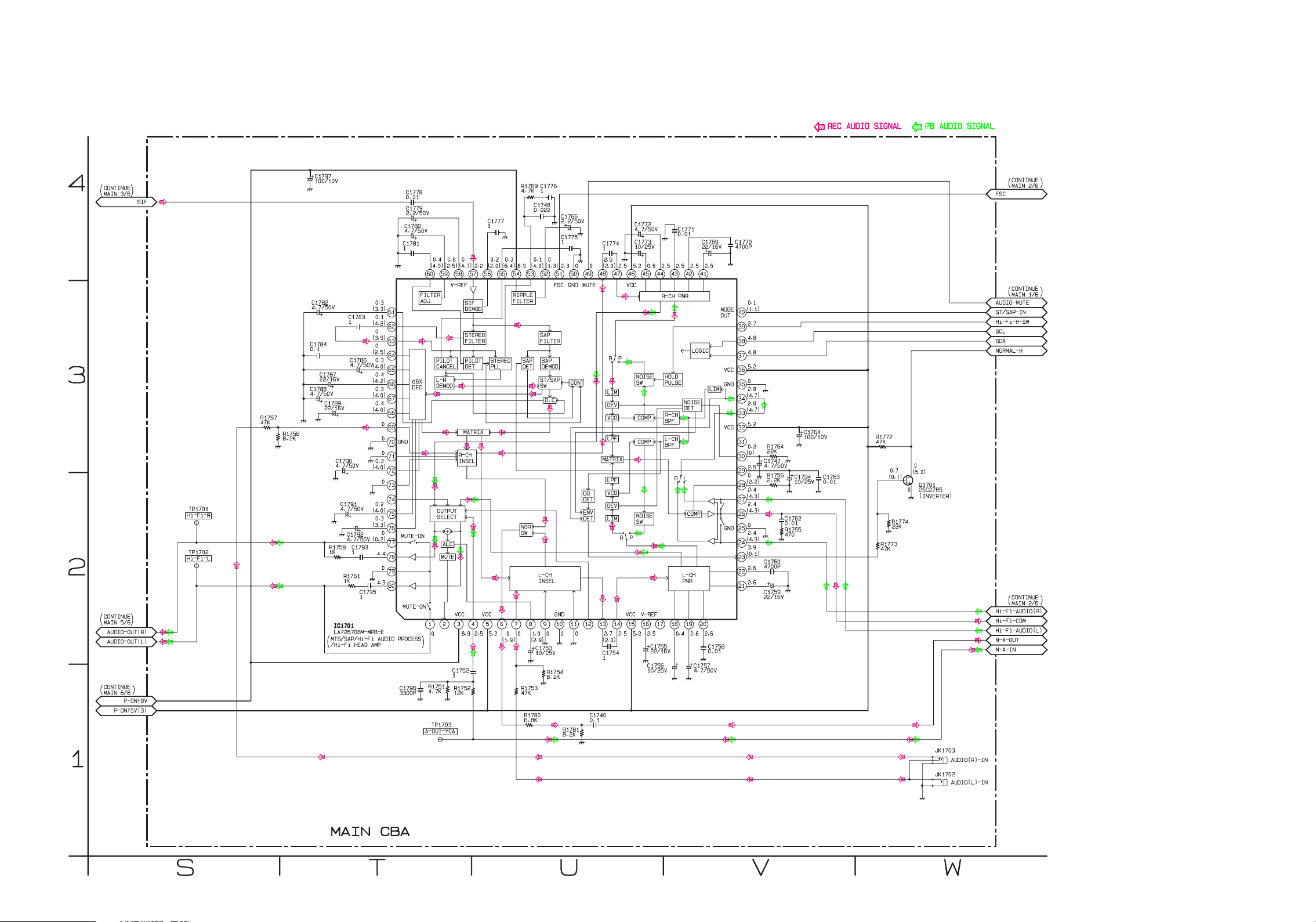

System Control / Servo Block Diagram

TO POWER

SUPPLY BLOCK

TO TV PROCESS

BLOCK DIAGRAM

DIAGRAM

TO Hi-Fi AUDIO

BLOCK DIAGRAM

TO AUDIO

BLOCK DIAGRAM

TO VIDEO

BLOCK DIAGRAM

RS1201

REMOTE

REC

SAFETY

SW1211

REC-SAFETY

KEY0

KEY1

IC1201(SERVO/SYSTEM CONTROL)

AL+5V

KEY SWITCH

SW1201 SW1203,

SW1206 SW1210

REMOTE

(MEMORY)

SCL

IC1202

SENSOR

SCL

SDATA

SCLK

SDA

C-OPEN

DVD-REMOTE

AFT

SCL

SPOT-KILL

AFT

SPOT-KILL

D1224 S-LED

D1204 REC

AL+5V

SDA

C-SYNC

REC-LED

D1216 DVD

C-SYNC

DVD-LED

P-ON-H

DVD-MAIN-POWER

P-ON-H

DVD-MAIN-POWER

CTL(+)

TV/VCR-LED

TV/VCR

D1217

P-DOWN

CTL-AMP-OUT

CTL(-)

TP1202

WF3

SCL

SDA

ST/SAP-IN

NORMAL-H

ST/SAP-IN

AL+5V

SW1212

LD-SW

CTL-AMP-OUT

Hi-Fi-H-SW

AUDIO-MUTE

Hi-Fi-H-SW

NORMAL-H

ST-SENS.

LD-SW1

AUDIO-MUTE

END-SENS.

T-REEL

DVD-H

D-REC-H

SP-MUTE

DVD-AUDIO-MUTE

D-REC-H

SP-MUTE

AUDIO-MUTE

DVD-AUDIO-MUTE

T-REEL

Q1205

Q1206

VOLUME

YCA-SCL

DVD-H

VOLUME

RESET

TIMER+5V

YCA-CS

YCA-SDA

CL1201

P-ON+5V(3)

M+12V

1CM+12V

2P-ON+5V(3)

C-FG

3C-FG

V-H-SW

ENV-DET

V-H-SW

C-F/R

C-CONT

CM-F/R

V-ENV

DV-SYNC

V-ENV

ENV-DET

DV-SYNC

LD-CONT

827790

7LD-CONT

FG-GND

ROTA

RF-SW

ROTA

D-CONT

D-PFG

9D-PFG

8D-CONT

YCA-SCL

YCA-SDA

RF-SW

YCA-SCL

10M-GND

YCA-CS

YCA-SDA

+26V

11D/L+12V

12VG+15V

MAIN CBA

CN1803

55KEY1

CN2401

KEY SWITCH

FUNCTION CBA

SW2401 SW2408

CN1301

13SDATA

14SCLK

15CS

CN2503

Q2201

BUFFER

Q2203

BUFFER

CN1

18 SDATA

16 SCLK

17 CS

TO DVD SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

Q2202

DVD-REMOTE

CN1A

CN1602

DVD-REMOTE

19 19

CN2502

)

SUB CBA

ASSEMBLY

(DECK

CL1402

5CTL(+)

6CTL(-)

ACE HEAD ASSEMBLY

CONTROL

HEAD

1-10-1

END-SENS.

Q1201

ST-SENS.

Q1202

SENSOR CBA

(END-SENSOR)

CAPSTAN MOTOR

SENSOR CBA

(ST-SENSOR)

MOTOR

DRIVE

CAPSTAN

SENSOR

CYLINDER ASSEMBLY

DRUM

MOTOR

CIRCUIT

MOTOR

T2202BLS

Video Block Diagram

REC VIDEO SIGNAL PB VIDEO SIGNAL MODE: SP/REC

MAIN CBA

CLAMP

Q1402

BUFFER

CCD 1H

36 37 39 34

VCA

DELAY

LUMINANCE

SIGNAL PROCESS

YNR/COMB FILTER

CHROMINANCE

SIGNAL PROCESS

WF2

X1401

VXO

3.58MHz

HEAD

AMP

HEAD

AMP

727374

656667

TP1402

RF-SW

ENV.

TP1403

WF6

ROTA/RF-SW

ENV-DET

V-ENV

WF5

TP1401

V-OUT

BUFFER

Q1401

6dB

AMP

QV/QH

IC1401

(VIDEO SIGNAL PROCESS/ HEAD AMP)

FBC

WF4

Y/C

MIX

AGC

VIDEO

TUNER

VIDEO

TU-VIDEO

EXT-V-IN

TO TV PROCESS

BLOCK DIAGRAM

LINE

JK1701

VIDEO-IN

I/F

SERIAL

YCA-SCL

YCA-SDA55YCA-CS

TO SYSTEM

CONTROL/SERVO

DV-SYNC

BLOCK DIAGRAM

VIDEO(R)-1

VIDEO-COM1

VIDEO(L)-1

CL1401

VIDEO(L)-2

VIDEO-COM2

123

456

VIDEO (L)-1 HEAD

VIDEO (R)-1 HEAD

(DECK ASSEMBLY)

WF1

VIDEO(R)-2

VIDEO (L)-2 HEAD

VIDEO (R)-2 HEAD

V-ENV

V-H-SW

ENV-DET

ROTA

RF-SW

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

CYLINDER ASSEMBLY

1-10-2

T2202BLV

Audio Block Diagram

SPEAKER

R-CH

SP1801

SPEAKER

L-CH

SP801

WF7

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

Mode : SP/REC

DVD AUDIO SIGNAL

PB AUDIO SIGNAL

VCR

IC1803 (AUDIO AMP)

AMP

DVD

JK1801

JUNCTION-A CBA

HEADPHONE

JACK

VOLUME

MUTE

/STANDBY

CONTROL

(R-CH)

CL3802

CN3802

CN1802

(L-CH)

VCR

SP(R)1SP-GND 2

SP(R)

1,2 1,2

AMP

DVD

CL3801

SP-GND 2

SP(L)

MUTE

SP(L)

1,2 1,2

SP(L)

1,3 1,3

JUNCTION-B CBA

FUNCTION

CBA

7880

IC1401

(AUDIO SIGNAL PROCESS)

FRONT

REAR TUNER

ALC

LINE

LPF

AMP

SP/LP-ON

Q1872

CN3801

CN2801

CN2401

CN1803

212

BIAS

OSC

REC

AUTO

Q1871

AMP

BIAS

SERIAL

I/F

WF8

Q1873

P-ON+5V

(PB=ON)

55 54 53

SWITCHING

YCA-CS

YCA-SCL

YCA-SDA

P-ON+5V

D-REC OFF

Q1875

D-REC-H

AUDIO-MUTE

Q1874

(PB=ON)

REC AUDIO SIGNAL

WF19

CN1301CN2 CN2503

DVD-AUDIO(R)

DVD-AUDIO(L)

DVD-AUDIO-MUTE

19 19

DIGITAL

AUDIO-OUT

Q2619

(COXIAL)

JK2701

SUB CBA

WF20

BUFFER

Q2701

418

TO DVD

AUDIO

BLOCK

DIAGRAM

<DVD

SECTION>

CN2A

MAIN CBA

DVD-AUDIO-MUTE

SP-MUTE

DVD -H

VOLUME

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

1-10-3

AUDIO-OUT(R)

AUDIO-OUT(L)

N-A-IN

N-A-OUT

TO Hi-Fi AUDIO

BLOCK DIAGRAM

CL1402

3 AUDIO-PB/REC

ACE HEAD ASSEMBLY

AUDIO

HEAD

(DECK ASSEMBLY)

4 AUDIO-COM

6 AE-H

5 AE-H/FE-H

AUDIO

ERASE

HEAD

CL1403

1 FE-H

FE HEAD

FULL

2 FE-H-GND

ERASE

HEAD

T2202BLA

Hi-Fi Audio Block Diagram

TO SYSTEM

CONTROL/SERVO

Mode : SP/REC

PB AUDIO SIGNALREC AUDIO SIGNAL

BLOCK DIAGRAM

SDA

SCL

SERIAL

DATA

DECODER

P-ON+9V

RIPPLE

FILTER

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

N-A-IN

ST/SAP-IN

NORMAL-H

Q1701

MODE

OUT

ENV

DET

TO AUDIO

BLOCK DIAGRAM

AUDIO-OUT(L)

AUDIO-OUT(R)

TP1702 TP1701

77139

TO SYSTEM

CONTROL/SERVO

Hi-Fi-R

Hi-Fi-H-SW

AUDIO-MUTE

Hi-Fi-L

BLOCK DIAGRAM

CYLINDER

Hi-Fi

ASSEMBLY

CL1401

AUDIO(R) 7

Hi-Fi-

AUDIO

(R) HEAD

-COM 8

Hi-Fi

AUDIO(L) 9

Hi-Fi-

Hi-Fi

AUDIO

(L) HEAD

MAIN CBA

SAP

CONT

DET

SAP

SIF

MATRIX

dBX

DEC

ST/SAP

L-R

DEMOD

FILTER

DEMOD

D.C

DEMOD

PILOT

62 63

STEREO

CANCEL

FILTER

PILOT

DET

STEREO

PLL

R-CH BPF

COMP

NOISE

R-CH

PNR

DET

LPF

VCO

LIM DEV

OUTPUT

SELECT

48 47

R-CH

INSEL

NOR

HOLD

PULSE

13 14

L-CH

COMP

MATRIX

NOISE

INSEL

DET

LPF

VCO

LIM DEV

L-CH

34 33

LIM

L-CH BPF

COMP

NOISE

PNR

IC1701 (MTS/ SAP/ Hi-Fi AUDIO PROCESS/ Hi-Fi HEAD AMP)

SIF

TO TV PROCESS

BLOCK DIAGRAM

JK1703

1-10-4

JK1702

AUDIO(R)-IN

AUDIO(L)-IN

N-A-OUT

TO AUDIO

BLOCK DIAGRAM

T2202BLH

TV Process Block Diagram

TO POWER

SUPPLY BLOCK

TO Hi-Fi AUDIO

Mode : SP/REC

SIF

MAIN CBA

REC AUDIO SIGNAL

SIF

DVD VIDEO SIGNAL

PB VIDEO SIGNAL

BLOCK DIAGRAM

AMP

TO VIDEO

BLOCK DIAGRAM

TU-VIDEO

AMP

SIF

AMP

+8V

DIAGRAM

+5V-CTRL

+5.7V

REG.

TUNER

VCR

TO VIDEO

BLOCK DIAGRAM

EXT-V-IN

VIDEO

252329

LINE

DVD

WF17 WF18

DVD-C

TP2512

DVD-Y

TP2513

TUNER

VCR

TO DIGITAL

SIGNAL PROCESS

CN2

DVD-Y

CN1301 CN2503

LINE

BLOCK DIAGRAM

CN2A

DVD-C11

DVD

TO CRT/H.V. BLOCK

CN1301

V-DRIVE

H-OUT

V-RAMP

AFC 7

H-DRIVE1

DIAGRAM CN2503

ACL

V-DRIVE

V-RAMP-NF9

P-ON+8V

Q1350

TO CRT/H.V. BLOCK

DIAGRAM CN2503

TP1302 TP1303

BLUE GREEN RED

TP1301

RED 3

CN1301

GREEN4

BLUE 5

TP1304

WF9

TP1305

TP1306

453

SUB CBA

X1301

3.58MHz

VXCO

FILTER

TUNING

REC VIDEO SIGNAL

IC1001(IF SIGNAL PROCESS)

CF1032

SF1001

TU1001

4.5MHz

FILTER

VIDEO

DET

VIF

AMP

SAW

FILTER

CHROMA

BPF

IF AGC DET

CHROMA

TRAP

VCO

AFT

AGC

AMP

AGC

IC1301(CHROMA/DEFLECTION SIGNAL PROCESS)

SCL

FSC

SDA

SERIAL

I/F

INTELLIGENT

MONITORING

SYNC

SEPARATION

SCL

SDA

AFT

C-SYNC

SPOT-KILL

CHROMA

SIGNAL

LUMA

SIGNAL

PROCESS

CIRCUIT

PROCESS

CIRCUIT

H-SYNC

V-SYNC

IC1201

(SYSTEM CONTROL/OSD)

PROCESS

CIRCUIT

PROCESS

CIRCUIT

Q1403

BUFFER

CV-IN

OSD MIX/RBG MATRIX/

BLIGHT/DRIVE AMP/

HV BLANKING

101112

626364

OSD-B

OSD-R

OSD-G

OSD-BLK

WF16

595860

V-SYNC

H-SYNC

WF15

1-10-5

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

T2202BLT

CRT/H.V. Block Diagram

Mode : SP/REC

DVD VIDEO SIGNAL

PB VIDEO SIGNAL

REC VIDEO SIGNAL

IC2551 (V-DEFLECTION CONTROL)

L551

D.Y.

WF11

V-

DRIVEH-DRIVE

THERMAL

PROTECTION

AMP

Q2530,

Q2531

CONTROL

PULSE

CN2571

Q2533

T2572A

VR2531VR2530

PINC. H SIZE

Q2532

ANODE

FOCUS VR

T2571 F.B.T.

V501

CRT

ANODE

JK2501

CL2501BCL2501A

FOCUS

SCREEN

SCREEN VR

796

HEATER 11

+180V 33

AFC

TP2506

FOCUS

SCREEN

GND

WF13WF12

RGB

GREEN AMP

Q2502

HEATER

WF14

BLUE AMP

Q2501

GND

CN2501

CRT CBA

RED AMP

Q2503

Q2591

Q2571

WF10

H.DRIVE

H.OUTPUT

TP2501

TP2504

GND

SUB CBA

GREEN

BLUE

CL2504A

432RED

CN2502

+B1+B

TO POWER

SUPPLY

BLOCK

+26V

DIAGRAM

CN1602

CN2503

V-DRIVE

TO TV

AFC

H-DRIVE

PROCESS

BLOCK

DIAGRAM

ACL

V-RAMP-NF

CN1301

RED5GREEN4BLUE

CN2503 CL2601

TO TV PROCESS

BLOCK DIAGRAM

CN1301

1-10-6

T2202BLCRT

Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

TO CRT/H.V.

BLOCK DIAGRAM

CN2502

+33V

M+12V

TIMER+5V

AL+5V

P-ON+12V

1+B

2+B

8 +26V

CN1602

+5.7V REG.

P-ON+8V

P-ON+9V

Q1614

P-ON+5V(2)

P-ON+5V(3)

P-ON+5V(4)

IC1682

+5V REG.

TO SYSTEM

TO TV PROCESS

+5.7V-CTRL

CONTROL/SERVO

BLOCK DIAGRAM

P-ON-H

P-DOWN

DG-ON-H

Q1221

DVD MAIN

BLOCK DIAGRAM

DVD-MAIN-POWER

SUB CBA

CBA UNIT

CN1A

14 14EV+9V

CN1

Q2611

Q2610

DVD-ON+5V

EV+9V

DVD-ON+5V

13 13

12 12

DVD-ON+3.3V

EV+3.3V

EV+1.2V

DVD-ON+3.3V

99EV+3.3V

33EV+1.2V

11 11

10 10EV+3.3V

IC3604

SW CTL

Q2617

Q2612

22EV+1.2V

11EV+1.2V

Q2615

PWRCON

TO DVD SYSTEM

CONTROL / SERVO

PWRCON

15 15

+1.2V

IC2602

3 2

Q2618

SW CTL

IC3603

BLOCK DIAGRAM

REG.

Q2616

Q1606 Q1609

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A 125V

121516

T1601

Q1601

SWITCHING

Q1607

Q1613

Q1681

SW +5V

Q1688

SW +5V

14 14DVD+9V

CN1602 CN2502

10 10EV+4V

11 11EV+4V

CN2503

DVD-MAIN-POWER

17 17

CN1301

MAIN CBA

VR1601

+B ADJ

FEED

ERROR

IC1601

VOLTAGE DET

BACK

Q1604

Q1605

Q1603

COLD

RL1601

HOT

Q1602

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

D1603 D1606

L1601

4A 125V

F1601

4A/125V

W1601

BRIDGE

RECTIFIER

LINE

FILTER

CN1601

DEGAUSSING

DG601

COIL

PS1601

1-10-7

T2202BLP

BLOCK DIAGRAMS < DVD Section >

DVD System Control / Servo Block Diagram

TO SYSTEM CONTROL

/SERVO BLOCK

DIAGRAM

CN1

SCLK

SD ATA

DVD-REMOTE

181716

CN1A

TO POWER SUPPLY

BLOCK DIAGARAM

PWRCON

IC101 (MICRO CONTROLLER)

VREF

IC301 (SERVO DRIVE)

FOCUS DRIVE

FD-OFST

127

124

FOCUS

ACTUATOR

DRIVE

TD-OFST

TRACKING

DRIVE

126

123

TRACKING

ACTUATOR

DRIVE

312

SPDL

SPINDLE

MOTOR

DRIVE

FP-DOUT

645

545349

FP-DIN

FP-CLK

SLD

SLED

MOTOR

DRIVE

DVD-REMOTE

IC202

(OP AMP)

PWRCON

SL-ADS

122

+3.3V

SL-AMP

SP-ROT

121

TRAY-IN

DVD MAIN CBA UNITDRIVE CBA

FS(+)

FS(-)

TO DIGITAL SIGNAL

TS(+)

TS(-)

PROCESS BLOCK

DIAGRAM

1-10-8

6SP(+)

5SP(-)

1TRAY-IN

4GND

3SL(-)

CN301

TRAY-IN

SPINDLE

MOTOR

2SL(+)

SLED

MOTOR

T2202BLSD

Digital Signal Process Block Diagram

TO AUDIO

BLOCK DIAGRAM

4 DVD-AUDIO(L)

144

CONVERTER

I/F

SERIAL

CN2

GENERAL

I/O

INTERRUPT

DVD AUDIO SIGNAL

DVD VIDEO SIGNAL

DATA

RAM

DSP

INST.

ROM

DECODER

DATA

RAM

I/O

INST.

ROM

PROCESSOR

1 SPDIF

CN2A

152

DVD-AUDIO-MUTE 9

3 DVD-AUDIO(R)

151

146

AUDIO D/A

AUDIO

CONTROLLER

TIMER

TV PROCESS

BLOCK

DIAGRAM

8 DVD-Y

CN2A

131

D/A

NTSC/PAL

VIDEO

WATCH DOG

TIMER

<TV/VCR

SECTION>

6 DVD-C

139

D/A

ENCODER

I/F

REMOTE

CONTROL

CN2

32BIT CPU

DATA

INST

CACHE

IC103 (FLASH ROM)

FLASH

162548

FADR (0-19)

ROM

293638

FDQ (0-15)

SDRAM ADDRESS(0-10)

IC101 (MICRO CONTROLLER)

194

209

SDRAM ADDRESS(0-10)

222629

IC503 (SDRAM)

STREAM

DECODER

EXTERNAL

MEMORY

I/F

SDRAM

I/F

ECC

SDRAM DATA(0-15)

159

178

SDRAM DATA(0-15)

134253

DMA

999897

100

CN201

DVD/CD

FORMATTER

SIGNAL

PROCESS

115

116

C16

D18

UMAC

CIRCUIT

113

114

A17

B15

DETECTOR

BCU

CD/DVD 19

CPU

I/F

READ

MEMORY

32BIT

INST.

ROM

106

AMP

Q253,Q254

CN201

CD-LD 10

CPU

DATA

RAM

104

105

Q251,Q252

AMP

DVD-LD 8

PD-MONI 7

103

GND(CD-PD)

GND(DVD-PD)

GND(LD)

CPU

I/F

WATCH DOG

TIMER

INTERRUPT

CONTROLLER

BCU

1 3

CD DVD

DEBUG

34~42 212

21~30

17~18 215~216

7~14

1~4

CD/DVD

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

IC201

(SW)

FS(+)

CN201

FS(+) 2

FS(-)

FS(-) 3

TS(+)

TS(+) 1

TS(-)

DVD MAIN CBA UNIT

TS(-) 4

PICK-UP

UNIT

1-10-9

T2202BLD

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

, M = 106).

-6

µF).

1-11-1 X7TN_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY

WITH SAME TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Mode: SP/REC

5. Voltage indications for PLAY and REC modes on the schematics are as shown below:

< DVD Section >

231

5.0

The same voltage for both PLAY & STOP modes

5.0 (2.5)

Indicates that the voltage is not consistent here.

6. How to read converged lines

1-D3 Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

7. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin.

PLAY mode STOP mode

< TV/VCR Section >

The same voltage for PLAY, REC & DVD modes

231

5.0

5.0 (2.5)

< 0 >

Indicates that the voltage is not consistent here.

PLAY mode REC mode DVD mode

Unit: Volts

1-B1

AREA D3

AREA B1

1-D3

ABCD

: Used to indicate a test point with a test pin.

1-11-2 X7TN_SC

Main 1/6 & Sensor Schematic Diagram < TV/VCR Section >

1-11-3

T2202SCM1

Main 2/6 Schematic Diagram < TV/VCR Section >

1-11-4

T2202SCM2

Main 3/6 Schematic Diagram < TV/VCR Section >

1-11-5

T2202SCM3

Main 4/6 Schematic Diagram < TV/VCR Section >

1-11-6

T2202SCM4

Main 5/6 & Junction-A Schematic Diagram < TV/VCR Section >

1-11-7

T2202SCM5

Main 6/6 Schematic Diagram < TV/VCR Section >

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

VOLTAGE CHART (Power off mode)

Ref. No. 1 4

IC1601 25.7 1.2

Ref. No.

IC1682

Ref. No.

Q1601

Ref. No.

Q1221 Q1602 Q1604 Q1605 Q1606 Q1607 Q1609 Q1613 Q1614 Q1681 Q1688

24.7 0.3

123

3.2 0 1. 7 SDG 0 162.8 1.9 ECB

5.2 5.1 4.6

01.90.3

6.7 24.7 7.3

07.90

8.5 8.5 7.8

07.76.6

5.9 8.2 6.5

0.8 4.2 1.4

0.9 4.2 1.4

03.3

03.30

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A 125V

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

1-11-8

T2202SCM6

Sub 1/2 Schematic Diagram < TV/VCR Section >

1-11-9 T2202SCSUB1

Sub 2/2 Schematic Diagram < TV/VCR Section >

1-11-10

T2202SCSUB2

CRT Schematic Diagram < TV/VCR Section >

Function & Junction-B Schematic Diagram < TV/VCR Section >

T2202SCCRT

1-11-11

T2202SCF

DVD Main 1/3 Schematic Diagram < DVD Section >

1-11-12

T2202SCD1

DVD Main 2/3 Schematic Diagram < DVD Section >

1-11-13

T2202SCD2

DVD Main 3/3 Schematic Diagram < DVD Section >

1-11-14

T2202SCD3

Main CBA Top View < TV/VCR Section >

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

4A 125V

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

TO SENSOR CBA (END-SENSOR)

Sensor CBA Top View

BHF300F01011A

BHF300F01011B

WF9

TP1305

H-OUT

VR1601

+B ADJ

1-11-15

WF6

TP1403

ENV.

WF5

TP1401

V-OUT

WF1

TP1402 RF-SW

WF3

TP1202

CTL-AMP-OUT

TO SENSOR CBA (START-SENSOR)

BT1200F01013

Main CBA Bottom View < TV/VCR Section >

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

WF4

PIN 32 OF IC1401

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

4A 125V

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

CAUTION !

WF2

PIN 49 OF IC1401

WF8

PIN 9 OF IC1401

WF7

PIN 10 OF IC1401

WF15

PIN 58 OF IC1201

WF16

PIN 59 OF IC1201

1-11-16

BT1200F01013

Sub CBA Top View < TV/VCR Section >

TP2504

GND

VR2530

PIN C.

VR2531

H SIZE

TP2501 +B

R2583 (H f0 Adjustment)

1-11-17

BT1200F01023-A

Sub CBA Bottom View < TV/VCR Section >

WF19

PIN18

OF CN2503

WF17

TP2513 DVD-Y

WF18

TP2512

DVD-C

1-11-18

WF10

Q2571 Collector

WF11

PIN 5 CN2571

WF20

PIN2

OF CN2

BT1200F01023-A

CRT CBA Top View < TV/VCR Section >

CRT CBA Bottom View < TV/VCR Section >

WF12

Q2503 Collector

WF13

Q2502 Collector

WF14

Q2501 Collector

1-11-19

BT1200F01023-B

Function CBA Top View < TV/VCR Section >

Function CBA Bottom View < TV/VCR Section >

Junction-A CBA

Top View

< TV/VCR Section >

Junction-B CBA

Top View

< TV/VCR Section >

Junction-A CBA

Bottom View

< TV/VCR Section >

BT1200F01023-D

Junction-B CBA

Bottom View

< TV/VCR Section >

BT1200F01023-C

1-11-20

BT1200F01023-E

WAVEFORMS

SPDIF

0.1

1DIV: 0.2V 20µs

TP2513 DVD-Y

WF17

1DIV: 0.2V 20µs

TP2512 DVD-C

WF18

1DIV: 0.5V 0.5ms

CN2503 PIN 18

WF19

sec

1V 0.1

SPDIF

CN2 PIN 1

1DIV: 1V 0.1µs

WF20

1DIV: 20V 20µs

Q2502 COLLECTOR

WF13

reconnect to AC outlet and then turn power on.

Input: NTSC Color Bar Signal (with 1kHz Audio Signal) --- WF1~WF16

DVD Video (Power on (Stop) MODE) --- WF17, WF18

(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)

CD (1KHz Play) --- WF19, WF20

INITIAL POSITION: Unplug unit from AC outlet for at least five minutes,

1DIV: 2V 20µs

TP1305 H-OUT

WF9

1DIV: 20V 20µ

Q2501 COLLECTOR

WF14

1DIV: 200V 20µs

Q2571 COLLECTOR

WF10

1DIV: 1V 20µs

IC1201 PIN 58

WF15

1DIV: 10V 5ms

CN2571 PIN 5

WF11

1DIV: 1V 5ms

IC1201 PIN 59

WF16

1DIV: 20V 20µs

Q2503 COLLECTOR

WF12

TP1401 V-OUT

1DIV: 0.5V 20 µs

WF5

1DIV: 2V 5ms

TP1402 RF-SW

WF1

1-12-1

Upper: WF6 Lower: WF1

1DIV: 0.2V 2DIV: 5V 5ms

TP1403 ENV.

IC1401 Pin 49

1DIV: 0.2V 0.1µs

WF2

1DIV: 0.5V 0.5ms

IC1401 PIN10

WF7

1DIV: 1V 10ms

TP1202 CTL-AMP-OUT

WF3

1DIV: 0.5V 0.5ms

IC1401 PIN9

WF8

IC1401 Pin 32

1DIV: 0.25V 20 µs

WF4

X7TWF

WIRING DIAGRAM < TV/VCR Section >

CN1602 CN2502 CN2

SPDIF

11+B

GND

22+B

TO CN2A

DVD-AUDIO(R)

33GND

44GND

GND5DVD-AUDIO(L)

55GND

66+26V

77GND

DVD-AUDIO-MUTE

DVD-Y8GND7DVD-C

DVD-ON+5V(NU)

88GND

99GND

10 10EV+4V

CN1

EV+1.2V1EV+1.2V2EV+1.2V3GND4GND5GND6GND7GND

11 11EV+4V

12 12GND

13 13GND

14 14DVD-ON+9V

15 15GND

SP1801

SPEAKER

R-CH

CONTINUE

WIRING DIAGRAM

16 16P-ON+5V(4)

17 17P-SAFETY1

18 18P-SAFETY2

19 19DVD-REMOTE

CN1301 CN2503

TO CN1A

EV+3.3V9EV+3.3V10DVD-ON+3.3V

11H-DRIVE

22ACL

33RED

44GREEN

CN3801CN2801

PWRCON

DVD-ON+5V12EV+9V

EV+9V

55BLUE

66P-ON+8V(1)

77AFC

SP801

SPEAKER

L-CH

1SP(L)

CL3801

SP-GND

SCLK16SD ATA18CS

99V-RAMP-NF

88V-DRIVE

DVD-REMOTE

10 10DVD-Y

11 11DVD-C

12 12P-SAFETY3

JUNCTION-B

CBA

L551

D.Y.

CN2571

CL2501A

T2571

FBT

SUB CBA

SCLK

DVD-AUDIO-MUTE

DVD-MAIN-POWER

DVD-AUDIO(L)

15 15CS16 16

DVD-AUDIO(R)

17 17

18 18

19 19

13 13SDATA

14 14

ANODE

FOCUS

+180V

GND

HEATER

CL2501B

SCREEN

CRT CBA

CL2504A

CL2601

12345

P-ON+8V(1)

RED

GREEN

BLUE

GND

CN2501

GND

MAIN CBA

CL1201

CM+12V

P-ON+5V(3)

CAPSTAN

MOTOR

WIRING DIAGRAM FOR

DECK MECHANISM SECTION

1SP(R)

CL3802

SP-GND

CN3802CN1802

SP(R)

SP-GND

C-CONT

D-CONT

CM-F/R

C-FG

LD-CONT

FG-GND

SENSOR

D-PFG

DRUM

M-GND

MOTOR

JUNCTION-A

CBA

VG+15V

D/L+12V

SP(L)

SP-GND

CN2401CN1803

SP(L)

GND

SP(L)

KEY1

Hi-Fi-

AUDIO(L)

HEAD

GND

CL1401

Hi-Fi-COM8Hi-Fi-AUDIO(R)

Hi-Fi-AUDIO(L)

Hi-Fi-

AUDIO(R)

HEAD

VIDEO

(R)-2

FUNCTION

CBA

VIDEO(R)-26VIDEO-COM2

HEAD

VIDEO

(L)-2

VIDEO(L)-24VIDEO(L)-13VIDEO-COM1

VIDEO(R)-1

HEAD

VIDEO

(L)-1

HEAD

SENSOR CBA

(ST-SENSOR)

CYLINDER

ASSEMBLY

VIDEO

(R)-1

HEAD

SENSOR CBA

(END-SENSOR)

CL1402

AE-H6AE-H/FE-H5AUDIO-COM

AUDIO HEAD

AUDIO ERASE

HEAD

W1601

CTL(+)2CTL(-)

AUDIO-PB/REC

CONTROL

HEAD

CN1601

FE-H1FE-H-GND

CL1403

FE HEAD

FULL

ACE HEAD ASSEMBLY

ERASE HEAD

1-13-1

T2202WIT

WIRING DIAGRAM < DVD Section >

CONTINUE

WIRING DIAGRAM

1234567

EV+1.2V

GND

EV+1.2V

CN1A

GND

8159

GND

CN301

TO CN1

101112

EV+3.3V

SP(-)2SP(+) 5

EV+9V

DVD-ON+5V

DVD-ON+3.3V

GND

SL(-)

SL(+)

EV+9V

1 TRAY-IN

SCLK

PWRCON

TO CN2

SD ATA

DVD-REMOTE

12345

CN2A

SPDIF

GND

DVD-AUDIO(L)

DVD-AUDIO(R)

GND

678

GND

DVD-C

DVD-Y

DVD-AUDIO-MUTE

DVD-ON+5V(NU)

DVD MAIN CBA UNIT

CN201

TS(+)

TS(-)

FS(-)

FS(+)

GND(CD-PD)

123456789

CD-LD

GND(DVD-PD)

PD-MONI

DVD-LD

GND

GND(LD)

1011121314151617181920

VREF

P-ON+5V

CD/DVD

DAC

DVD MECHANISM

TRAY-IN

SPINDLE

MOTOR

SLED

MOTOR

DRIVE CBA

1-13-2

FSTS

91123654

DETECTOR

PICK UP UNIT

T2202WID

SYSTEM CONTROL TIMING CHARTS

< TV/VCR Section >

Mode SW: LD-SW

LD-SW Position detection

A/D Input voltage Limit

(Calculated voltage)

3.76 V ~ 4.50 V (4.12 V) EJ

4.51 V ~ 5.00 V (5.00 V) CL

0.00 V ~ 0.25 V (0.00 V) SB

1.06 V ~ 1.50 V (1.21 V) TL

0.66 V ~ 1.05 V (0.91 V) FB

1.99 V ~ 2.60 V (2.17 V) SF

1.51 V ~ 1.98 V (1.80 V) SM

3.20 V ~ 3.75 V (3.40 V) AU

0.26 V ~ 0.65 V (0.44 V) AL

4.51 V ~ 5.00 V (5.00 V) SS

Symbol

2.61 V ~ 3.19 V (2.97 V) RS

Note:

Note: EJ RS: Loading FWD (LM-FWD / REV “H”)

RS EJ: Loading REV (LM-FWD / REV “L”) Stop (A) = Loading Stop (B) = Unloading

Note:

Symbol Loading Status

EJ Eject CL Eject ~ REW Reel SB REW Reel ~ Stop (B)

TL Stop (B) ~ Brake Cancel FB Brake Cancel ~ FF / REW SF FF / REW ~ Stop (M), (FF / REW)

SM Stop (M), (FF / REW) ~ Stop (A)

AU Stop (A) ~ Play / REC AL Play / REC ~ Still / Slow SS Still / Slow ~ RS (REW Search)

RS RS (REW Search)

1-14-1 X7T4HTI

Chart 1

1) SP MODE

18 RF-SW

F-AD ( Internal Signal )

C-DRIVE

PB CTL

The first rise of RF-SW after a rise in F-AD signal.

Acceleration Detection

"H" "H"

"Z"

Stop Detection

Slow Tracking Value

66 C-F/R

ROLL COMPENSATION (DRUM SERVO)

H-A-SW

15 ROTA

12 3 4

STILL STILLFRAME ADVANCE

Reversal Limit Value

1-14-2 X7T4HTI

Chart 2

2) LP/EP MODE

18 RF-SW

F-AD ( Internal Signal )

C-DRIVE

PB CTL

The first rise of RF-SW after a rise in F-AD signal.

Acceleration Detection

"H" "H"

"Z"

Stop Detection

Slow Tracking Value

66 C-F/R

ROLL COMPENSATION (DRUM SERVO)

H-A-SW

15 ROTA

12 3 4

STILL STILLFRAME ADVANCE

Reversal Limit Value

1-14-3 X7T4HTI

Chart 3

DISPLAY

D-REC-H

D-PB-H

AUDIO-MUTE

P-ON-H

ROTATION

DRUM

C-F/R

C-DRIVE

LD-CONT

PIN NO.

LD-SW

CL/SS

1. EJECT (POWER OFF) -> CASSETTE IN (POWER ON) -> STOP(B) -> STOP(A) -> PLAY -> RS -> FS -> PLAY -> STILL/SLOW -> PLAY -> STOP(A)

-OFF

POWER

STOP

PLAY RS

0.2S

+100mS(NTSC)

+620mS(PAL)

0.2S

0.8S

0.3S

0.2S

40mS

1.2S

0.2S

0.4S

20mS

"Z"

0.2S

CLEJ

TL SB

SMSF AL AL RS AU AL SS AU AL SM

STOP(B)

EJECT

CASS.LOAD

LD-FWD

0.2S

LD-REV

LD-FWD

0.4S

0.2S

LD-REV

0.2S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-FWD

PLAY

ST-S/ END-S "OFF"

REC SFT-SW

POWER

PLAY

PLAY STOPPLAY

(SLOW)

STILL

1.0S

0.5S

0.12S

1.2S

40mS

Refer to STILL/

SLOW TIMING

CHART 1, 2.

0.4S

20mS

0.2S

0.3S

LD-FWD

RS1(RS2)

LD-REV

0.2S

LD-FWD

FS1(FS2)

PLAY

LD-FWD

STILL(SLOW)

LD-REV

0.2S

LD-FWD

PLAY

LD-REV

STOP(A)

REW

PLAY

PAUSE (SLOW)

PLAY

STOP /EJECT

1-14-4 X7T4HTI

Chart 4

DISPLAY

D-REC-H

D-PB-H

AUDIO-MUTE

P-ON-H

ROTATION

DRUM

C-F/R

C-DRIVE

LD-CONT

PIN NO.

LD-SW

CL/SS

2. STOP(A) -> FF -> STOP(A) -> REW -> STOP(A) -> REC -> PAUSE -> PAUSE or REC -> STOP(A) -> EJECT

STOP

STOPFF

REW STOP

REC

RECREC PAUSE STOP

1.0S

1.2S

40mS

0.4S

20mS

0.4S

20mS

1.5S(NTSC)

1.0S(PAL)

0.4S

"Z"

0.2S

SM SF FB SM AU AU SS

FB SF AU AUFB SF

TL TL SMSM SF SFAL AL SM AL AL ALAU AU SM TL SB EJRS RSSM

SF FB SM

SS SS SF

AL AL AUSS FB CL

STOP(A)

LD-REV

0.2S

LD-FWD

0.2S FF

REV

1.0S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-REV

0.2S

LD-FWD

0.2S REW LD-REV

1.0S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-FWD

REC

LD-FWD

2.5S Short REV

LD-REV

0.2S

LD-FWD

REC PAUSE

REC

LD-FWD

1.5S

LD-REV

0.2S LD-FWD

0.5S

LD-REV

STOP /EJECT

REW

STOP /EJECT

REC

PAUSE

REC or PAUSE

STOP /EJECT

20mS

0.1S

0.2S

STOP(A)

LD-REV

0.2S LD-REV

0.5S

0.2S

0.5S

CASS. UNLD

EJECT

STOP /EJECT

ST-S "ON"

1-14-5 X7T4HTI

< DVD Section >

Tray Close ~ Play / Play ~ Tray Open

Tray IN (TL221)

Sled Drive (TP303)

Disc Drive (TP301)

Focus Drive (TP304)

Tracking Drive (TP302)

3.3V

1.65V

Tr ay Close

Disc Rotation

Play

Disc Stop

Tr ay Open

1-14-6 X7T4HTI

IC PIN FUNCTION DESCRIPTIONS

IC1201 (TV/VCR Micro Controller IC)

“H” ≥ 4.5 V, “L” ≤ 1.0 V

IN/

No.

OUT

1 IN LD-SW Loading Switch Input 2 OUT DVD-LED DVD LED Control Output

3IN

4 IN ST/SAP-IN

5 IN KEY0 Key Input 0 6 IN KEY1 Key Input 1 7 IN END-SENS End-Sensor 8 IN AFT AFT Voltage Input 9 IN ST-SENS Start-Sensor

10 IN V-ENV Video Envelope Input

11 OUT VOLUME

12 OUT SP-MUTE Speaker Mute Signal Output 13 OUT DV-SYNC Artificial Vertical Sync Output 14 IN REMOTE Remote Control Signal Input

15 OUT ROTA

16 OUT V-H-SW

17 IN ENV-DET Envelope Comparator Signal 18 OUT RF-SW Video Head Switching Pulse

19 OUT Hi-Fi-H-SW

20 - NU Not Used 21 OUT REC-LED REC LED Control Signal

22 IN

23 - NU Not Used 24 - NU Not Used

25 OUT

26 OUT

27 - NU Not Used 28 - NU Not Used

29 OUT

30 - NU Not Used 31 OUT P-ON-H Power On Signal at High

Signal

Name

P-SAFETY 2Power Supply Failure

Detection 2 Tuner Stereo/Sap Detector

Signal Input

Volume Control Signal Output

Color Phase Rotary Changeover Signal

Video Head Amp Switching Pulse

HiFi Audio Head Switching Pulse

NORMALH

DVDREMOTE

TV/VCRLED

D-REC /PB-L

Audio Mode Input Signal

Remote Control Signal Output to DVD

TV/VCR LED Control Signal

Delayed Record/Playback Control Signal

Function

IN/

No.

OUT

32 - NU Not Used

33 IN

34 IN RESET

35 IN XC-IN Sub Clock (32kHz) 36 OUT XC-OUT Sub Clock (32kHz) 37 - TIMER+5V Vcc 38 IN X-IN Main Clock (10.6MHz) 39 OUT X-OUT Main Clock (10.6MHz) 40 - GND GND 41 OUT SPOT-KILL Counter Measure for Spot

42 IN

43 IN CLKSEL Clock Select (GND)

44 OUT D-REC-H

45 IN I2C-OPEN Chip Select 46 - GND GND

47 IN

48 OUT DVD-H DVD at High 49 - GND GND 50 IN CS DVD Interface Chip Select 51 IN SCLK DVD Interface Serial Clock 52 IN SDATA DVD Interface Serial Data 53 - P-ON+5V OSD Vcc 54 - HLF Horizontal Filter 55 IN V-HOLD Vertical Hold

56 IN CV-IN

57 - GND GND 58 IN H-SYNC Horizontal SYNC Input 59 IN V-SYNC Vertical SYNC Input 60 OUT OSD-BLK Output for Picture Cut off

61 OUT DG-ON-H

62 OUT OSD-B Blue Signal Output 63 OUT OSD-G Green Signal Output 64 OUT OSD-R Red Signal Output

65 OUT

Signal

Name

RECSAFETY

DVD-MAINPOWER

DVDAUDIOMUTE

AUDIOMUTE

Function

Record Protection Tab Detection

System Reset Signal (Reset = “L”)

Power On Signal at High for DVD

Delayed Record Control Signal

DVD Audio Mute Signal

Composite Video Signal Input

Degaussing Coil Control Signal

Audio Mute Signal Output

1-15-1 T2203PIN

IN/

No.

OUT

66 OUT C-F/R

67 OUT

68 OUT YCA-SDA YCA Serial Data 69 OUT YCA-CS YCA Chip Select 70 OUT YCA-SCL YCA Serial Clock 71 OUT SCL Serial Clock

IN/

OUT 73 - NU Not Used 74 IN C-SYNC Composite Sync Input 75 - NU Not Used

76 OUT C-CONT

77 OUT D-CONT Drum Motor Control Signal

78 IN

79 - NU Not Used

80 IN T-REEL

81 - NU Not Used 82 OUT LD-CONT Loading Motor Control Signal 83 - NU Not Used

84 IN P-DOWN

85 - NU Not Used 86 - NU Not Used

87 IN C-FG

88 - GND GND (AMP) 89 - NU Not Used 90 IN D-PFG Drum Motor Pulse Generator 91 - NU Not Used

92 IN

93 - C

IN/

OUT

IN/

OUT 96 - AMPC Amp Capacitor

97 OUT

98 - P-ON+5V Power Supply for AMP

Signal

Name

Capstan Motor FWD/REV Control Signal

D-REC /PB-H

SDA Serial Data

P-SAFETY 3Power Supply Failure

AMPVREF-IN

CTL (-)

CTL (+)

CTL-AMPOUT

Delayed Record/Playback Control Signal

Capstan Motor Control Signal

Detection 3

Take Up Reel Rotation Signal

Power Voltage Down Detector Signal

Capstan Motor Rotation Detection Pulse

Standard Voltage Input

Ext. Capacitor Connection Port for Analog Amp

Record/Playback Control Signal (-)

Record/Playback Control Signal (+)

Control Amp Output

Function

IN/

No.

OUT

99 - AL+5V A/D, D/A Standard Voltage

100 IN

Signal

Name

P-SAFETY 1Power Supply Failure

Detection 1

Function

1-15-2 T2203PIN

LEAD IDENTIFICATIONS

2SK3561

S D G

LA78041-E

KIA7805API/P

MID-32A22F

AN17812A

KIA431-AT/P

ECB

KTC3503-Y/P

2SC2785(F) KRA103M-AT/P KRC103M-AT/P KTC3199-GR-AT/P KTC3199-Y-AT/P KTC3205-Y-AT/P

TLV1117IDCYRG3

1: GND 2: Vout 3: Vin

123

2SC5978

2SA1175(F) 2SA950-O(TE2 F T) 2SC2120-O(TE2 F T) 2SC1627-Y(TE2.F.T) 2SC3331(T) 2SC3708S

ECB

2SD1666R

1: IN 2: GND 3: OUT

123

LTV-817C-F

1: A

2: K

3: E 4: C

CAT24WC02WI-TE13

123

1: R 2: A 3: K

ECB

LA71205M-MPB-E LA72670BM-MPB-E

M61116FP TF0G

100

B C E

M3776AMCH-BA4GP

B C E

M61275FP-TF3H

Note:

A: Anode K: Cathode E: Emitter C: Collector B: Base R: Reference S: Source G: Gate D: Drain

1-16-1 T2202LE

Cabinet

CLN551CLN551CLN551

Details for L551 and surrounding parts

Scotch Tape #880

V501-2

SHINWHA TAPE SGT-730 (WHITE)

SHINWHA TAPE SGT-730 (BLACK)

Scotch Tape #880

L551

EXPLODED VIEWS

V501-1

CRT CBA

TB18

L3-1

SP801

Junction-B CBA

A1X

A1-1

V501

A1-5

DG601

A1-7

A1-6

A1-9

A1-4

Scotch Tape #880

A1-8

TL4

1B2

DB2

TL1-2

Function CBA

DVD Mechanical Parts

TL4

TL1-1

TL1-2

DL2

DVD Main CBA Unit

TL1-2

Sub CBA

TL1-3

TL3

1B1

TL1-3

TB19

TB13

TL14

TB3

TB2

TL1-1

TL1-3

TL3

TL1-1

TB17

Sensor CBA

L3-2

TL6

W1601

Main CBA

A1-3

A1-2

SP1801

TL18

Junction-A CBA

TB1

1-17-1 T2202CEX

Packing

Tape

Packing Tape

FRONT

1-17-2 T2203PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

A1X FRONT CABINET ASSEMBLY T2202UC 1EM121336 A1-1 FRONT CABINET T2202UC 1EM121337 A1-2 CONTROL PLATE T2202UC 1EM221102 A1-3 BADGE BRAND T7310UL ~MAGNAVOX~ 0EM407275 A1-4 CASSETTE DOOR T2100UA 1EM320170A A1-5 SPRING DOOR T1200UA 1EM422903 A1-6 CLOTH(4X7XT0.7) T5000UA 0EM404974 A1-7 TRAY PANEL T2100UA 1EM320169 A1-8 TRAY SPRING TD707UH 0EM408552 A1-9 CLOTH(10X20XT 0.3) T2100UA 1EM421154 A2 REAR CABINETT T2200UA 1EM020688 A3# RATING LABEL T2202UC ---------1B1 DECK ASSEMBLY CZD014/VM2466 N2466FT 1B2 DVD MECHA X7 TRIPLE N79U1KVM N79U1KVM B1 SPRING TENSION B0080B0 EM40808 26WH006 B2 SCREW M7 CRT(D22) T7205UF 0EM406573A B4# HOLDER DEGAUSS L1200UA 0EM405869 B5 CLOTH 190X15XT0.5 TS7623 B6 CLOTH(10X30XT0.5) B5900UA 0EM404486 B7 CLOTH(15X10XT0.5) L9700UA 0EM405038 CLN551# WIRE CRT GND WX1L6240-005 WX1L6240-005 DG601# DEGAUSSING COIL LLBH00ZTM048 LLBH00ZTM048 L1 SCREW P-TIGHT 4X18 BIND HEAD + GBJP4180 L2 SCREW TAPPING M4X14 DBT14140 L3-1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L3-2 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L4 SCREW P-TIGHT 3X10 BIND HEAD+ GBJP3100 SP801 SPEAKER S0407F01A DSD0807XQ001 SP1801 SPEAKER S0407F01A DSD0807XQ001 TB1 TRAY CHASSIS T1200UA 1EM020548 TB2 TOP SHIELD T5500UA 0EM201787 TB18 LASER CAUTION LABEL T8200UA ---------TB19# 24V CHASSIS NO. LABEL TJ T2200UA ---------TL1-1 SCREW P-TIGHT 3X12 WASHER HEAD+ GCJP3120 TL1-2 SCREW P-TIGHT 3X12 WASHER HEAD+ GCJP3120 TL1-3 SCREW P-TIGHT 3X12 WASHER HEAD+ GCJP3120 TL3 SCREW S-TIGHT M3X4 BIND HEAD GBJS3040 TL4 SCREW P-TIGHT 3X20 BIND HEAD + GBJP3200 TL14 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 TL18 SCREW P-TIGHT M3X8 BIND HEAD+ BLK GBHP3080 V501-2 WEDGE FT-00110W XV10000T4001

PACKING

S1 CARTON T2202UC 1EM423156 S2 STYROFOAM TOP T2200UA 1EM020890 S3 STYROFOAM BOTTOM T2200UA 1EM020891 S4 SERIAL NO. LABEL T2202UC ---------S6 SHEET SET PCEC 003502019816 0EM403887 S7 HOLD PAD T2200UA 1EM423082

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A

Ref. No. Description Part No.

X2# OWNERS MANUAL T2202UC 1EMN21690 X3 REMOTE CONTROL NF104UD 151/ECNX701/

X4 DRY BATTERY(SUNRISE) R6SSE/2S XB0M451MS002 Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS ALSO HAS MATCHING COMBINATION WITH L551. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

2. L551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

NF104UD

CRT TYPE A

L551# DEFLECTION YOKE CDY-F2518F LLBY00ZQS016 V501# CRT A59KPR84X TCRT190SM029 V501-1 PCM JH88DTA XM04000BV010

CRT TYPE B

L551# DEFLECTION YOKE 6150Z-1030X LLBY00ZGS007 V501# CRT A59KYL220X TCRT190GS040 V501-1 PCM JH88DTA XM04000BV010

CRT TYPE C

V501# CRT A59KPR84X01 S TCRT190SM037

CRT TYPE D

V501# CRT(BARE+DY) A59ELN011X007 TCRT190TMS01 V501-1 PCM JH88DTA XM04000BV010

Table 1 (V501 and L551 Combination)

Note 1: Purity and Convergence Adjustments must be

performed following CRT replacement. Refer to Electrical Adjustment Instructions.

Note 2: Please confirm CRT Type No. on the CRT Warning Label which is located on the CRT. Then See the Table 1 for V501 and L551 combination chart. Please refer this CRT, Deflection Yoke combination chart for parts order.

V501: CRT Type No. V501: CRT Part No.

A59KPR84X TCRT190SM029 LLBY00ZQS016 A59KYL220X TCRT190GS040 LLBY00ZGS007 A59KPR84X01 S TCRT190SM037 -------------------A59ELN011X007 TCRT190TMS01 --------------------

L551: Deflection

Yoke Part No.

CRT Warning Label Location

CRT Type No.

CRT

CRT Warning Label

20060325 1-18-1 T2202CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DVD MAIN CBA UNIT

Ref. No. Description Part No.

DVD MAIN CBA UNIT N79T1KUP

MMA CBA

Ref. No. Description Part No.

MMA CBA Consists of the following:

MAIN CBA SENSOR CBA

MAIN CBA

Ref. No. Description Part No.

MAIN CBA Consists of the following:

CAPACITORS

C1004 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C1008 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMAVSL100 C1030 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C1034 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1035 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1036 CHIP CERAMIC CAP. CH J 120pF/50V CHD1JJ3CH121 C1037 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C1040 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1043 FILM CAP.(P) 0.018µF/50V J CMA1JJS00183 C1044 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473 C1045 CHIP CERAMIC CAP. CJ C 3.3pF/50V CHD1JC3CJ3R3 C1046 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C1048 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1049 CERAMIC CAP.(AX) CH K 2.7pF/50V CCA1JKTCH2R7 C1050 CHIP CERAMIC CAP.(1608) CH D 5.6pF/50V CHD1JD3CH5R6 C1117 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C1118 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C1203 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C1206 CHIP CERAMIC CAP. B K 0.056µF/50V CHD1JK30B563 C1207 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C1208 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C1210 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

1ESA12613

---------1ESA12193

----------

Ref. No. Description Part No.

C1212 CHIP CERAMIC CAP.(1608) CH J 22pF/50V CHD1JJ3CH220 C1213 CHIP CERAMIC CAP.(1608) CH J 22pF/50V CHD1JJ3CH220 C1214 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C1217 CHIP CERAMIC CAP.(1608) CH D 10pF/50V CHD1JD3CH100 C1218 CHIP CERAMIC CAP. CH J 15pF/50V CHD1JJ3CH150 C1222 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222 C1223 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1224 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1225 CHIP CERAMIC CAP. CH J 560pF/50V CHD1JJ3CH561 C1227 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C1228 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C1234 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C1235 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C1239 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1240 CHIP CERAMIC CAP. CH J 560pF/50V CHD1JJ3CH561 C1241 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472 C1242 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1243 ELECTROLYTIC CAP. 22µF/16V M LL CE1CMASLH220 C1245 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C1247 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C1251 CHIP CERAMIC CAP.(1608) B K 2700pF/50V CHD1JK30B272 C1252 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C1253 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C1254 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C1264 CHIP CERAMIC CAP. F Z 0.047µF/50V CHD1JZ30F473 C1299 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1309 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1312 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C1313 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C1314 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1316 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMAVSLR47 C1317 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C1319 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1321 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C1323 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1325 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1332 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1333 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C1336 STACKED FILM CAP. 0.47µF/50V J CMA1JJS00474 C1337 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1338 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1339 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1342 ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471 C1350 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100 C1410 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1411 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101 C1413 CHIP CERAMIC CAP.(1608) CH J 390pF/50V CHD1JJ3CH391 C1414 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C1415 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101 C1417 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221 C1418 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1419 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1420 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1421 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1422 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1423 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1424 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1425 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1426 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1427 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

20060325 1-19-1 T2202EL

Ref. No. Description Part No.

C1428 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1429 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C1430 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1431 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1432 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C1435 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C1436 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1437 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1438 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1439 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1441 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C1442 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C1443 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C1444 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1445 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1452 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1463 CHIP CERAMIC CAP. CH J 820pF/25V CHD1EJ3CH821 C1464 CHIP CERAMIC CAP.(1608) B K 2700pF/50V CHD1JK30B272 C1465 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1466 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1468 ELECTROLYTIC CAP. 33µF/16V M H7 CE1CMAVSL330 C1469 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1604# METALIZED FILM CAP. 0.22µF/250V CT2E224MS037 C1605# METALIZED FILM CAP. 0.22µF/250V CT2E224MS037 C1606 CERAMIC CAP. F Z 0.01µF/500V CCD2JZP0F103 C1607 CERAMIC CAP. F Z 0.01µF/500V CCD2JZP0F103 C1610 ELECTROLYTIC CAP. 470µF/200V LX CA2D471S6017 C1611 CERAMIC CAP. BN 820pF/2KV CCD3DKA0B821 C1612 FILM CAP.(P) 0.047µF/50V J CMA1JJS00473 C1613 FILM CAP.(P) 0.0018µF/50V J CMA1JJS00182 C1614 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C1615 CERAMIC CAP. BN 680pF/2KV CCD3DKA0B681 C1616 ELECTROLYTIC CAP. 100µF/160V M CE2CMZPDL101 C1617 ELECTROLYTIC CAP. 470µF/35V M CE1GMASDL471 C1618# ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPDL102 C1619 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221 C1620 ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPDL102 C1622 FILM CAP.(P) 0.0047µF/50V J CMA1JJS00472 C1625 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMAVSLR47 C1626# ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1627 ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPDL102 C1630# SAFETY CAP. 4700pF/250V KX CA2E472MR050 C1642 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1643 ELECTROLYTIC CAP. 2200µF/6.3V CE0KMASDL222 C1661 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101 C1683 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221 C1688# ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471 C1689 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C1691 ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471 C1740 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C1747 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1748 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C1752 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1753 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100 C1754 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1755 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1756 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100 C1757 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1758 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1759 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1760 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472 C1762 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1763 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

Ref. No. Description Part No.

C1764 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101 C1766 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMAVSL2R2 C1769 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1770 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472 C1771 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1772 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1773 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100 C1774 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1775 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1776 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1777 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1778 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1779 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMAVSL2R2 C1780 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1781 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1782 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1783 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1784 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C1786 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1787 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1788 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1789 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1790 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1791 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1792 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C1793 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1794 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100 C1795 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1796 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332 C1797 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101 C1801 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221 C1807 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221 C1810 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152 C1811 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1812 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152 C1813 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1814 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMAVSL2R2 C1815 ELECTROLYTIC CAP. 47µF/25V M H7 CE1EMAVSL470 C1816 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C1818 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1819 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C1821 ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471 C1822 ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471 C1870 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C1871 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101 C1872 CERAMIC CAP. B K 470pF/100V CCD2AKS0B471 C1873 FILM CAP.(P) 0.018µF/100V J CMA2AJS00183

CONNECTORS

CN601A TERMINAL PRINTBORD PIN MS-PIN155155 JTEA001CHY01 CN601B TERMINAL PRINTBORD PIN MS-PIN155155 JTEA001CHY01 CN1301 BOARD CONNECTOR 19P(PB FREE)

CN1602 BOARD CONNECTOR 19P(PB FREE)

CN1802 242 SERIES CONNECTOR 224202104W1 J322C04TG001 CN1803 TWG CONNECTOR 07P TWG-P07P-A1 J3TWA07TG001

127301119K2

JCTWA19TG004

DIODES

D1032 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6 D1204 LED LTL-4214M1 NPQZLTL4214M D1211 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 D1215 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 D1216 LED LAMP 333GT/F45-50 NPWZ3GTF4550 D1217 LED LTL-4214M1 NPQZLTL4214M

20060325 1-19-2 T2202EL

Ref. No. Description Part No.

D1224 LED SIR-563ST3F P QPQPS1R563ST D1229 ZENER DIODE MTZJT-7715B QDTB00MTZJ15 D1230 ZENER DIODE MTZJT-7715B QDTB00MTZJ15 D1231 ZENER DIODE MTZJT-7718A QDTA00MTZJ18 D1237 ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8 D1302 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1303 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1304 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1305 CARBON RES. 1/4W J 15 Ω RCX4JATZ0150 D1351 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1419 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1420 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1603# DIODE 1N5406 NDLZ001N5406 D1604# DIODE 1N5406 NDLZ001N5406 D1605# DIODE 1N5406 NDLZ001N5406 D1606# DIODE 1N5406 NDLZ001N5406 D1607# ZENER DIODE MTZJT-7724C QDTC00MTZJ24 D1609# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1610 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 D1611 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1612 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1613 FAST RECOVERY DIODE FE201-6 QDLZ00FE2016 D1614# DIODE FR104-B NDLZ000FR104 D1615 RECTIFIER DIODE 1N4005 NDQZ001N4005 D1616# FAST RECOVERY DIODE FR202 NDWZ000FR202 D1617# FAST RECOVERY DIODE FR202 NDWZ000FR202 D1618# DIODE FR154 NDLZ000FR154 D1619# DIODE FR104-B NDLZ000FR104 D1620# ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8 D1621 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1622# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1623 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1624 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1626 ZENER DIODE MTZJT-7736A QDTA00MTZJ36 D1627 ZENER DIODE MTZJT-7722A QDTA00MTZJ22 D1628 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1634 ZENER DIODE MTZJT-778.2B QDTB0MTZJ8R2 D1635 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1636 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1637 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1640# DIODE 1ZC36(Q) QDLZ001ZC36Q D1641# ZENER DIODE MTZJT-7736A QDTA00MTZJ36 D1645# FAST RECOVERY DIODE FR202 NDWZ000FR202 D1646 DIODE FR154 NDLZ000FR154 D1657 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1660 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1663 ZENER DIODE MTZJT-776.2C QDTC0MTZJ6R2 D1680 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1682 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1683 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1684 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1687 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1688 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1691 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101 D1811 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1812 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1813 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

ICS

IC1001 IC VIF/SIF M61116FP TF0G QSZBA0SHT034 IC1201# MICRO COMPUTER M3776AMCH-BA4GP QSZAA0RHT099 IC1202 IC CAT24WC02WI-TE13 NSZBA0TBG007 IC1301# VCD IC M61275FP-TF3H QSZAD0RMB133

Ref. No. Description Part No.

IC1401 IC Y/C/A LA71205M-MPB-E QSZBA0RSY037 IC1601# PHOTOCOUPLER LTV-817C-F NPEC0LTV817F IC1682# IC VOLTAGE REGULATOR 5V KIA7805API/P NSZBA0SJY041 IC1701 IC HIFI LA72670BM-MPB-E QSZBA0RSY039 IC1803 IC AN17812A QSZBA0SMS017

COILS

L1031 PCB JUMPER D0.6-P5.0 JW5.0T L1032 PCB JUMPER D0.6-P5.0 JW5.0T L1033 INDUCTOR 150µH-J-26T LLAXJATTU151 L1202 INDUCTOR 0.10µH-K-26T LLAXKATTUR10 L1601# LINE FILTER JLB2460 LLBG00ZXB012 L1872 INDUCTOR 47µH-K-5FT LLARKBSTU470

TRANSISTORS

Q1205 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q1206 PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F Q1221 RES. BUILT-IN TRANSISTOR KRA103M-AT/P NQSZ0KRA103M Q1350 NPN TRANSISTOR 2SC1627-Y (TE2.F.T) QQSY2SC1627F Q1401 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q1402 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q1403 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q1601# MOS FET 2SK3561 QFWZ02SK3561 Q1602# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q1603 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q1604# TRANSISTOR 2SC2785(F) QQSF02SC2785 Q1605 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q1606# TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q1607# TRANSISTOR 2SC2785(F) QQSF02SC2785 Q1609 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q1613 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1614 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q1681# TRANSISTOR KTC3205-Y-AT/P NQSYKTC3205P Q1688# TRANSISTOR KTC3205-Y-AT/P NQSYKTC3205P Q1701 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q1871 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q1872 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q1873 TRANSISTOR 2SC3331(T) QSC3331TNPAA Q1874 TRANSISTOR 2SC3331(T) QSC3331TNPAA Q1875 RES. BUILT-IN TRANSISTOR KRA103M-AT/P NQSZ0KRA103M

RESISTORS

R1002 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R1003 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R1032 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R1033 CHIP RES. 1/10W J 390k Ω RRXAJR5Z0394 R1034 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182 R1037 CHIP RES. 1/10W J 180 Ω RRXAJR5Z0181 R1038 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1039 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R1040 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1041 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153 R1042 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R1043 PCB JUMPER D0.6-P5.0 JW5.0T R1049 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1050 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1053 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R1110 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1111 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1159 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1160 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1163 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182 R1164 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182 R1200 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1201 CHIP RES. 1/16W G 4.7k Ω RRXAGR5Z0472

20060325 1-19-3 T2202EL

Ref. No. Description Part No.

R1202 CHIP RES. 1/16W G 22k Ω RRXAGR5Z0223 R1203 CHIP RES. 1/16W G 470 Ω RRXAGR5Z0471 R1204 CHIP RES. 1/16W G 1.5k Ω RRXAGR5Z0152 R1205 CHIP RES. 1/16W G 3.6k Ω RRXAGR5Z0362 R1206 CHIP RES. 1/16W G 10k Ω RRXAGR5Z0103 R1207 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1208# CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1209 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1210 CHIP RES. 1/16W G 15k Ω RRXAGR5Z0153 R1211 CHIP RES. 1/16W G 6.8k Ω RRXAGR5Z0682 R1212 CHIP RES. 1/16W G 4.7k Ω RRXAGR5Z0472 R1213 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1214 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1215 CHIP RES. 1/16W G 1.5k Ω RRXAGR5Z0152 R1216 CHIP RES. 1/16W G 1.5k Ω RRXAGR5Z0152 R1217 CHIP RES. 1/10W G 2.2k Ω RRXAGR5Z0222 R1218 CHIP RES. 1/16W G 2.7k Ω RRXAGR5Z0272 R1219 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1220 CHIP RES. 1/10W J 390k Ω RRXAJR5Z0394 R1221 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1222 CHIP RES. 1/10W J 390k Ω RRXAJR5Z0394 R1224 CHIP RES. 1/10W J 680 Ω RRXAJR5Z0681 R1225 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R1227 CHIP RES. 1/10W J 270 Ω RRXAJR5Z0271 R1229 CHIP RES. 1/10W J 680 Ω RRXAJR5Z0681 R1231 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1232 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682 R1233 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1234 CHIP RES. 1/10W J 1.2k Ω RRXAJR5Z0122 R1235 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R1236 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1237 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1238 CHIP RES. 1/10W J 470k Ω RRXAJR5Z0474 R1239 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1240 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1241 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R1243 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1244 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105 R1245 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R1246 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R1247 CHIP RES. 1/10W J 820 Ω RRXAJR5Z0821 R1248 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R1249 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R1250 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R1251 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R1252 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R1253 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R1254 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R1255 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R1257 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1258 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R1259 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R1260 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1261 METAL OXIDE FILM RES. 1W J 1.2 Ω RN011R2ZU001 R1262 CHIP RES. 1/10W J 680 Ω RRXAJR5Z0681 R1263 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R1267 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R1270 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1273 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182 R1274 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R1277 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1280 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R1281 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222

Ref. No. Description Part No.

R1283 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1284 CHIP RES. 1/10W J 220k Ω RRXAJR5Z0224 R1285 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R1286 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R1287 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1289 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1290 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1298 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1299 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1301 CHIP RES. 1/10W J 330 Ω RRXAJR5Z0331 R1303 CHIP RES. 1/10W J 330 Ω RRXAJR5Z0331 R1305 CHIP RES. 1/10W J 330 Ω RRXAJR5Z0331 R1308 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333 R1310 CHIP RES. 1/10W J 180k Ω RRXAJR5Z0184 R1313 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1314 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R1315 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R1316 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R1317 CHIP RES. 1/10W J 3.3M Ω RRXAJR5Z0335 R1329 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R1334 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1335 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1336 CHIP RES. 1/10W J 5.6k Ω RRXAJR5Z0562 R1337 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R1338 CHIP RES. 1/10W J 130 Ω RRXAJR5Z0131 R1339 CHIP RES. 1/10W J 130 Ω RRXAJR5Z0131 R1340 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1350 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R1351 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1352 CARBON RES. 1/4W J 33 Ω RCX4JATZ0330 R1405 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1406 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1407 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183 R1408 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183 R1409 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682 R1410 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1411 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R1412 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1413 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1415 CHIP RES. 1/10W J 1.2k Ω RRXAJR5Z0122 R1416 CHIP RES. 1/10W J 330k Ω RRXAJR5Z0334 R1417 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R1418 CHIP RES. 1/10W J 330 Ω RRXAJR5Z0331 R1419 CHIP RES. 1/10W J 330 Ω RRXAJR5Z0331 R1420 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1421 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822 R1422 CHIP RES. 1/10W J 270 Ω RRXAJR5Z0271 R1424 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1425 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R1426 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1427 CHIP RES. 1/10W J 820 Ω RRXAJR5Z0821 R1428 CHIP RES. 1/10W J 680k Ω RRXAJR5Z0684 R1429 CHIP RES. 1/10W J 1.2k Ω RRXAJR5Z0122 R1431 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822 R1432 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1437 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1438 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1602 CEMENT RESISTOR 7W K 1.2 Ω H=25MM RW071R2PG002 R1603# METAL OXIDE FILM RES. 2W J 0.27 Ω RN02R27ZU001 R1604 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R1605 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R1606 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R1607 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151

20060325 1-19-4 T2202EL

Ref. No. Description Part No.

R1608 CARBON RES. 1/4W J 180k Ω RCX4JATZ0184 R1609# CARBON RES. 1/4W J 1.5 Ω RCX4JATZ01R5 R1610 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182 R1613 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R1614 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R1617 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1618 PCB JUMPER D0.6-P5.0 JW5.0T R1619 METAL OXIDE FILM RES. 1W J 2.7k Ω RN01272ZU001 R1620 METAL OXIDE FILM RES. 1W J 2.7k Ω RN01272ZU001 R1621 METAL OXIDE FILM RES. 1W J 4.7k Ω RN01472ZU001 R1622 PCB JUMPER D0.6-P5.0 JW5.0T R1623 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333 R1624# CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R1625# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333 R1626 CARBON RES. 1/4W J 82 Ω RCX4JATZ0820 R1627 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1628# CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1629# CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1630 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1631 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R1632# CARBON RES. 1/4W J 390 Ω RCX4JATZ0391 R1633# CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R1634 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1635 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1636 METAL OXIDE FILM RES. 1W J 2.7k Ω RN01272ZU001 R1637 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1638 PCB JUMPER D0.6-P5.0 JW5.0T R1639# CARBON RES. 1/2W J 1.2k Ω RCX2JZQZ0122 R1640# CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R1641 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1642# CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R1644# CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R1645# CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R1646 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R1650 METAL OXIDE FILM RES. 1W J 4.7k Ω RN01472ZU001 R1654# CARBON RES. 1/4W J 1.2 Ω RCX4JATZ01R2 R1655# CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332 R1662 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R1663 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R1664 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R1665 CARBON RES. 1/4W J 22 Ω RCX4JATZ0220 R1666 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R1667 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R1685 METAL OXIDE FILM RES. 1W J 5.6 Ω RN015R6ZU001 R1686 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1687 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1688 METAL OXIDE FILM RES. 1W J 10 Ω RN01100ZU001 R1689 CARBON RES. 1/4W J 1.2 Ω RCX4JATZ01R2 R1691 CARBON RES. 1/4W J 1.2 Ω RCX4JATZ01R2 R1692 METAL OXIDE FILM RES. 1W J 10 Ω RN01100ZU001 R1701 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R1751 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R1752 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1753 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R1754 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822 R1755 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R1756 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1757 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R1758 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822 R1759 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1761 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1764 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1769 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472

Ref. No. Description Part No.

R1772 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R1773 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R1774 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1780 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682 R1781 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822 R1801# CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1802# CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1803# METAL OXIDE FILM RES. 1W J 12 Ω RN01120ZU001 R1808# METAL OXIDE FILM RES. 1W J 12 Ω RN01120ZU001 R1809 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1810 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1813 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183 R1814 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183 R1815 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333 R1816 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333 R1871 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1872 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1873 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183 R1874 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R1875 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1876 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1877 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821

SWITCHES

SW1201 TACT SWITCH SKQSAB SST0101AL038 SW1202 TACT SWITCH SKQSAB SST0101AL038 SW1203 TACT SWITCH SKQSAB SST0101AL038 SW1206 TACT SWITCH SKQSAB SST0101AL038 SW1207 TACT SWITCH SKQSAB SST0101AL038 SW1208 TACT SWITCH SKQSAB SST0101AL038 SW1209 TACT SWITCH SKQSAB SST0101AL038 SW1210 TACT SWITCH SKQSAB SST0101AL038 SW1211 LEAF SWITCH LSA-1142-2AU SSC0101KB014 SW1212 ROTARY MODE SWITCH SSS-53MD SSR0106KB003

MISCELLANEOUS

BC1600 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC1601# PCB JUMPER D0.6-P5.0 JW5.0T BC1603 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC1604 BEAD CORE B16 RH 3.5X3X1.3 XL03003XM002 BC1608 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC1612 BEAD CORE B16 RH 3.5X3X1.3 XL03003XM002 CF1032 CERAMIC SIF FILTER EFCS4R5YS8P FBB455LMS001 CL1201 FMN CONNECTOR TOP 12P 12FMN-BTRK-

F1601# FUSE 4.00A/125V PAGG20CNG402 FH1601 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 FH1602 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 J1173 CHOKE COIL 47µH LLBD00PKV022 JC1601 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JK1701 RCA JACK(YELLOW) (PB FREE) AV-3B-54H JXRL010SNJ01 JK1702 JACK RCA PCB L 01 AV1-05-023 JXRL010RP042 JK1703 RCA JACK(RED) (PB FREE) AV-3A-57H JYRL010SNJ01 JK1801 MINIATURE JACK(PB FREE) CKX-035-318AZ4 JYSL010SNJ01 JS1601 PCB JUMPER D0.6-P5.0 JW5.0T PS1601 THERMISTOR ZPB45BL7R0A QNZZ45BL7R0A RL1601# POWER RELAY SDT-S-112LMR MRNDC12QN014 RS1201 REMOTE RECEIVER PIC-37042LU USESJRSKK033 SF1002 FILTER CERAMIC BAND PASS

SG1601# GAP. FNR-G3.10D FAZ000LD6005 T1601# TRANS POWER BCK-35-0309 LTT3PC0XB002 TB3 HEAD SHIELD T1200UA 1EM321250 TB13 BUSH LED(F) H3700UD 0VM409508 TB17 X7 MAIN HEAT SINK PLG ASSEMBLY T2200UA 1EM422509

A(LF)(SN)

SAFHS45M7VAJZ00B05

JCFNG12JG020

FBB456LMR004

20060325 1-19-5 T2202EL

Ref. No. Description Part No.

TL6 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 TP1202 PCB JUMPER D0.6-P16.0 JW16.0T TP1301 PCB JUMPER D0.6-P9.0 JW9.0T TP1302 PCB JUMPER D0.6-P8.0 JW8.0T TP1303 PCB JUMPER D0.6-P8.5 JW8.5T TP1304 PCB JUMPER D0.6-P5.0 JW5.0T TP1305 PCB JUMPER D0.6-P5.0 JW5.0T TP1306 PCB JUMPER D0.6-P11.5 JW11.5T TP1401 PCB JUMPER D0.6-P13.5 JW13.5T TP1402 PCB JUMPER D0.6-P17.5 JW17.5T TP1403 PCB JUMPER D0.6-P23.0 JW23.0T TP1701 PCB JUMPER D0.6-P22.5 JW22.5T TP1702 PCB JUMPER D0.6-P26.0 JW26.0T TP1703 PCB JUMPER D0.6-P29.0 JW29.0T TU1001 TUNER UNIT TEFH9-001A UTUNNTUAL042 VR1601# CARBON P.O.T. VZ067TL1 B103 PB(F) VRCB103HH014 W1601# AC CORD (PB FREE) A0A0280-012 WAC0172LTE12 WT1 LEAD CLAMPER 1790256 X1201 XTAL DT38 32.768kHz FX0323LDS001 X1202 XTAL HC-49/U 10.6MHz FXD106LLN001 X1301 XTAL 3.579545 MHz FXD355LLN003 X1401 XTAL 3.579545MHz(20PPM) FXC355LLN004

SENSOR CBA

Ref. No. Description Part No.

SENSOR CBA Consists of the following:

1ESA12193

TRANSISTORS

Q1201 PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F Q1202 PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F

MPS CBA

Ref. No. Description Part No.

MPS CBA Consists of the following:

SUB CBA (MPS-A) CRT CBA (MPS-B) FUNCTION CBA (MPS-C) JUNCTION-A CBA JUNCTION-B CBA

SUB CBA

Ref. No. Description Part No.

SUB CBA (MPS-A) Consists of the following:

CAPACITORS

C2530 ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101 C2532 METALIZED FILM CAP. 0.56µF/200V J CT2D564F7003 C2533# P.P. CA P 0. 0 1 8µF/1.6KV J CA3C183VC011 C2534# P.P. CA P. 0 .0 3 3µF/200V K CBP2DKD00333 C2535# ALMINIUM ELECTRIC CAPACITOR

C2536 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C2537 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C2538 ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470 C2539 ELECTROLYTIC CAP. 470µF/35V M CE1GMASDL471 C2551 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332 C2552 FILM CAP.(P) 0.22µF/100V J CMA2AJS00224 C2553 ELECTROLYTIC CAP. 1µF/50V LL CE1JMASLH1R0 C2555 ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470 C2556 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPDL102 C2559 ELECTROLYTIC CAP. 470µF/35V M CE1GMASDL471

UHA1H4R7KHD

1ESA12616

----------

CA1J4R7NC235

Ref. No. Description Part No.

C2560 FILM CAP.(P) 0.033µF/100V J CMA2AJS00333 C2561 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C2573# FILM CAP.(P) 0.033µF/100V J CMA2AJS00333 C2574# ELECTROLYTIC CAP. 4.7µF/250V M CE2EMASDL4R7 C2577 FILM CAP.(P) 0.018µF/50V J CMA1JJS00183 C2578 ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470 C2583 ELECTROLYTIC CAP. 2.2µF/100V M CE2AMASDL2R2 C2584# ELECTROLYTIC CAP. 2.2µF/100V M CE2AMASDL2R2 C2586 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C2590 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C2591# ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C2592 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C2594 ELECTROLYTIC CAP. 100µF/160V M CE2CMZNDL101 C2603 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C2604 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C2605 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C2616 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101 C2629 ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASDL221 C2630 ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471 C2645 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C2670 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471 C2703 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C3595# PP CAP. 0.0027µF/1.6KV J CT3C272MS039

CONNECTORS

CN2502 TWG CONNECTOR 19P TWG-P19P-A1 J3TWA19TG001 CN2503 TWG CONNECTOR 19P TWG-P19P-A1 J3TWA19TG001 CN2571 CONNECTOR PRINT OSU 5P RTB-1.5-5P (LF) J3RTC05JG002

DIODES

D2530# DIODE ERD07-15L QD4ZERD0715L D2531# FAST RECOVERY DIODE ERD38-06 QDQZ0ERD3806 D2532 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D2536 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D2552 DIODE FR104-B NDLZ000FR104 D2555 ZENER DIODE MTZJ-51 QDTZ00MTZJ51 D2572# DIODE FR104-B NDLZ000FR104 D2575# ZENER DIODE MTZJT-7710B QDTB00MTZJ10 D2583 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D2584 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D2585 ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1 D2591# ZENER DIODE MTZJT-7736B QDTB00MTZJ36 D2592 ZENER DIODE MTZJT-7710B QDTB00MTZJ10 D2595# ZENER DIODE MTZJT-7722A QDTA00MTZJ22 D2596# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D2597# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D2598# DIODE FR104-B NDLZ000FR104 D2601 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 D2603 ZENER DIODE MTZJT-775.6C QDTC0MTZJ5R6 D2604 DIODE 1N5397-B NDLZ001N5397 D2627 ZENER DIODE MTZJT-773.9B QDTB0MTZJ3R9 D2661 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D2662 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D2703 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

ICS

IC2551 IC VERTICAL OUTPUT LA78041-E QSZBA0SSY006 IC2602 VOLTAGE REGULATOR TLV1117IDCYRG3 NSZBA0TTY219 IC3603 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 IC3604 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036

COILS

L2505 CHOKE COIL 47µH LLBD00PKV022 L2530# LINEARITY COIL STS007 LLBD00ZY2002 L2531 CHOKE COIL ELC18B821LK LLC821KMS001 L2613 INDUCTOR 10µH-K-5FT LLARKBSTU100

20060325 1-19-6 T2202EL

Ref. No. Description Part No.

L2701 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q2201 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q2202 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q2203 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q2530# TRANSISTOR 2SD1666R QQER02SD1666 Q2531 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q2532 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q2533 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q2571# TRANSISTOR 2SC5978 QQZZ02SC5978 Q2591# TRANSISTOR 2SC3708S QQSS02SC3708 Q2592# TRANSISTOR 2SC2785(F) QQSF02SC2785 Q2610 TRANSISTOR 2SA1175(F) QQSF02SA1175 Q2611 TRANSISTOR KTC3199-Y-AT/P NQSYKTC3199P Q2612 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q2615 TRANSISTOR KTC3205-Y-AT/P NQSYKTC3205P Q2616 NPN TRANSISTOR KRC103M-AT/P NQSZKRC103MP Q2617 TRANSISTOR KTC3199-Y-AT/P NQSYKTC3199P Q2618 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q2619 TRANSISTOR 2SC2785(F) QQSF02SC2785 Q2701 TRANSISTOR 2SC2785(F) QQSF02SC2785

RESISTORS

R2201 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R2202 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R2203 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R2501 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R2504 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R2526 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R2527 CHIP RES. 1/10W J 10M Ω RRXAJR5Z0106 R2529 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R2530 METAL OXIDE FILM RES. 1W J 1k Ω RN01102ZU001 R2531# METAL OXIDE FILM RES. 2W J 8.2 Ω RN028R2ZU001 R2532 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R2533 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R2534 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R2535 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R2536 CHIP RES. 1/10W J 150k Ω RRXAJR5Z0154 R2537 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R2538 CHIP RES. 1/10W J 1.2k Ω RRXAJR5Z0122 R2539# CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R2540 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2541 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R2542 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R2543 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R2545 CHIP RES. 1/10W J 150k Ω RRXAJR5Z0154 R2546 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R2547 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2549 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R2550 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R2551 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R2552 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R2553 CHIP RES. 1/10W J 390k Ω RRXAJR5Z0394 R2555 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R2554 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2556 CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0 R2557 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R2558 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R2559 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2560 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182 R2561 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R2562 CARBON RES. 1/4W J 3.3 Ω RCX4JATZ03R3 R2563 CARBON RES. 1/4W J 3.3 Ω RCX4JATZ03R3

Ref. No. Description Part No.

R2564 CARBON RES. 1/4W J 3.3 Ω RCX4JATZ03R3 R2565# CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0 R2566# CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0 R2567# CARBON RES. 1/4W J 1.2 Ω RCX4JATZ01R2 R2568# CARBON RES. 1/4W J 1.2 Ω RCX4JATZ01R2 R2570 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182 R2571 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R2572 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R2573 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R2576 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R2577 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R2579 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R2580# PCB JUMPER D0.6-P5.0 JW5.0T R2581 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R2582 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2583# METAL RESISTER. 2W J 2.7 Ω RN022R7ZU001 R2584 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R2585 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2586 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R2587 CARBON RES. 1/4W J 82k Ω RCX4JATZ0823 R2588 CARBON RES. 1/4W J 68k Ω RCX4JATZ0683 R2589# CARBON RES. 1/4W J 27 Ω RCX4JATZ0270 R2590 CARBON RES. 1/4W J 27 Ω RCX4JATZ0270 R2591# CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R2592 CARBON RES. 1/4W J 180k Ω RCX4JATZ0184 R2593 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224 R2594 CARBON RES. 1/4W J 68k Ω RCX4JATZ0683 R2595 CHIP RES. 1/10W J 220k Ω RRXAJR5Z0224 R2597 CHIP RES. 1/10W J 470k Ω RRXAJR5Z0474 R2598# CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R2599# CHIP RES. 1/10W J 5.6k Ω RRXAJR5Z0562 R2601 CHIP RES. 1/10W J 5.6k Ω RRXAJR5Z0562 R2602 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R2613 CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0 R2614 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R2618 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391 R2649 CHIP RES. 1/10W J 3.3 Ω RRXAJR5Z03R3 R2650 CARBON RES. 1/4W J 1.5 Ω RCX4JATZ01R5 R2651 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R2653 CARBON RES. 1/4W J 33 Ω RCX4JATZ0330 R2655 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R2656 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R2657 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R2658 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R2659 CHIP RES. 1/10W J 820 Ω RRXAJR5Z0821 R2660 CHIP RES. 1/10W J 820 Ω RRXAJR5Z0821 R2671 CHIP RES. 1/10W F 5.6k Ω RRXAFR5Z5601 R2672 CHIP RES. 1/10W F 15k Ω RRXAFR5Z1502 R2675 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R2676 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R2677 METAL OXIDE FILM RES. 1W J 1.2 Ω RN011R2ZU001 R2678 CHIP RES. 1/10W J 560 Ω RRXAJR5Z0561 R2679 METAL OXIDE FILM RES. 1W J 2.2 Ω RN012R2ZU001 R2685 CHIP RES. 1/10W J 330 Ω RRXAJR5Z0331 R2687 CHIP RES. 1/10W G 5.6k Ω RRXAGR5Z0562 R2688 CHIP RES. 1/16W G 15k Ω RRXAGR5Z0153 R2691 CARBON RES. 1/4W J 1.2 Ω RCX4JATZ01R2 R2701 CHIP RES. 1/10W J 2k Ω RRXAJR5Z0202 R2702 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R2703 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R2704 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R2705 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750 R3506 PCB JUMPER D0.6-P5.0 JW5.0T

20060325 1-19-7 T2202EL

Ref. No. Description Part No.

R3568# CARBON RES. 1/4W J 1.2 Ω RCX4JATZ01R2 R3576 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R3580 PCB JUMPER D0.6-P5.0 JW5.0T

MISCELLANEOUS

BC2501 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026 CL2601 LEAD WIRE 5P 370MM WX1T3221-001 DB2 X7 H/V HEAT SINK PLH ASSEMBLY T2200UA 1EM422510 DL2 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 JK2701 JACK RCA PCB L MSP-241V-05 NI LFW/O JXRL010LY148 T2571# TRANS FBT JF0501-2167-G LTF00CPXB050 T2572A# HORIZONTAL DRIVE TRANS(PB FREE

TP2501 PCB JUMPER D0.6-P10.5 JW10.5T TP2504 PCB JUMPER D0.6-P12.5 JW12.5T TP2506 PCB JUMPER D0.6-P10.0 JW10.0T TP2512 PCB JUMPER D0.6-P22.0 JW22.0T TP2513 PCB JUMPER D0.6-P9.0 JW9.0T VR2530 CARBON P.O.T. VZ067TL1 B303 PB(F) VRCB303HH014 VR2531 CARBON P.O.T. VZ067TL1 B502 PB(F) VRCB502HH014

PY2005

LTH00CPY2005

CRT CBA

Ref. No. Description Part No.

CRT CBA (MPS-B) Consists of the following:

CAPACITORS

C2504 CHIP CERAMIC CAP. B K 470pF/50V CHD1JK30B471 C2505 CHIP CERAMIC CAP. B K 470pF/50V CHD1JK30B471 C2506 CHIP CERAMIC CAP. B K 560pF/50V CHD1JK30B561 C2508 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C2509 CERAMIC CAP. B K 1000pF/2KV CCD3DKP0B102

CONNECTOR

CN2501 CONNECTOR PIN 1P RT-01N-2.3A 1730688

COIL

L2501 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q2501 TRANSISTOR(PB FREE) KTC3503-Y/P NQEYKTC3503P Q2502 TRANSISTOR(PB FREE) KTC3503-Y/P NQEYKTC3503P Q2503 TRANSISTOR(PB FREE) KTC3503-Y/P NQEYKTC3503P

RESISTORS

R2507 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R2508 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R2509 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R2510 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R2511 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R2512 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R2513 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R2514 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R2515 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R2516# FIXED METAL OXIDE FILM RE S. 3W J 10k Ω RN03103DP005 R2517# FIXED METAL OXIDE FILM RE S. 3W J 10k Ω RN03103DP005 R2518# FIXED METAL OXIDE FILM RE S. 3W J 10k Ω RN03103DP005 R2519 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R2520 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R2521 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R2522 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R2524 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R2523 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

MISCELLANEOUS

CL2501 LEAD WIRE 3P 420MM WX1T1000-001 JK2501# CRT SOCKET ISHD40S JSCC290PK008

----------

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA (MPS-C) Consists of the following:

---------

CONNECTORS

CN2401 BOARD CONNECTOR 07P(PB FREE)

CN2801 242 SERIES CONNECTOR 224202104W1 J322C04TG001

127301107K2

JCTWA07TG004

RESISTORS

R2401 CHIP RES. 1/16W G 1.5k Ω RRXAGR5Z0152 R2402 CHIP RES. 1/16W G 1.5k Ω RRXAGR5Z0152 R2403 CHIP RES. 1/10W G 2.2k Ω RRXAGR5Z0222 R2404 CHIP RES. 1/16W G 2.7k Ω RRXAGR5Z0272 R2405 CHIP RES. 1/16W G 4.7k Ω RRXAGR5Z0472 R2406 CHIP RES. 1/16W G 6.8k Ω RRXAGR5Z0682 R2407 CHIP RES. 1/16W G 15k Ω RRXAGR5Z0153

SWITCHES

SW2401 TACT SWITCH SKQSAB SST0101AL038 SW2402 TACT SWITCH SKQSAB SST0101AL038 SW2403 TACT SWITCH SKQSAB SST0101AL038 SW2404 TACT SWITCH SKQSAB SST0101AL038 SW2405 TACT SWITCH SKQSAB SST0101AL038 SW2406 TACT SWITCH SKQSAB SST0101AL038 SW2407 TACT SWITCH SKQSAB SST0101AL038 SW2408 TACT SWITCH SKQSAB SST0101AL038

JUNCTION-A CBA

Ref. No. Description Part No.

JUNCTION-A CBA Consists of the following:

----------

CONNECTOR

CN3802 242 SERIES CONNECTOR TUC-P04X-B1 WHT STJCTUB04TG002

MISCELLANEOUS

CL3802 WIRE ASSEMBLY 2P 180MM WX1T9200-005

JUNCTION-B CBA

Ref. No. Description Part No.

JUNCTION-B CBA Consists of the following:

CONNECTOR

CN3801 242 SERIES CONNECTOR TUC-P04X-B1 WHT STJCTUB04TG002

MISCELLANEOUS

CL3801 WIRE ASSEMBLY 2P 180MM WX1T9200-005

----------

20060325 1-19-8 T2202EL

MWC24T5

T2202UC

2006-04-06

Magnavox MWC24T5 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

LASER BEAM SAFETY PRECAUTIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

PREPARATION FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

ELECTRICAL ADJUSTMENT INSTRUCTIONS

HOW TO INITIALIZE THE TV/DVD/VCR

FIRMWARE RENEWAL MODE

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAM < TV/VCR Section >

WIRING DIAGRAM < DVD Section >

SYSTEM CONTROL TIMING CHARTS

IC PIN FUNCTION DESCRIPTIONS

LEAD IDENTIFICATIONS

EXPLODED VIEWS

MECHANICAL PARTS LIST

ELECTRICAL PARTS LIST
