Page 1

SERVICE MANUAL

13" COLOR TV/DVD

MGD134

Page 2

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Laser Beam Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

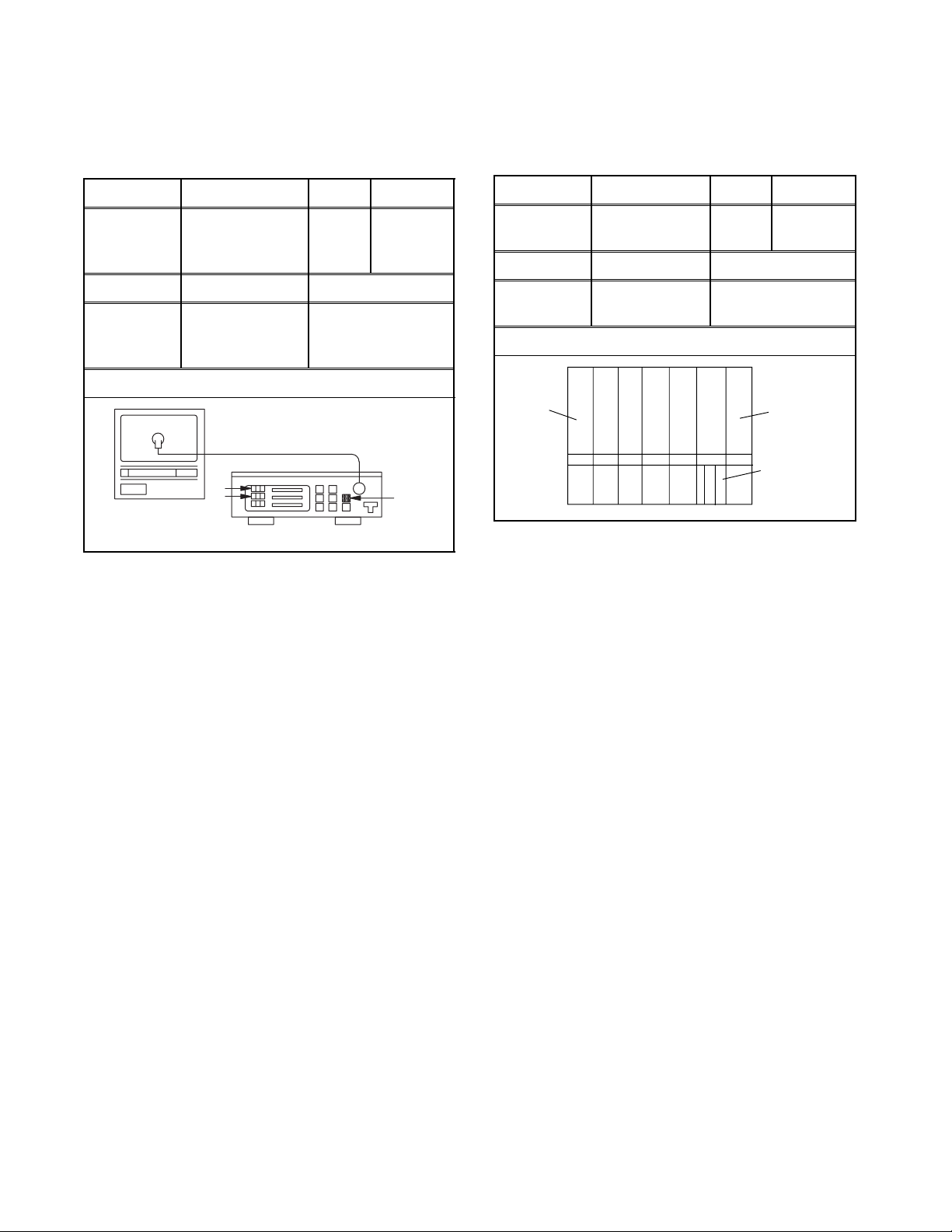

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

FIRMWARE Renewal Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

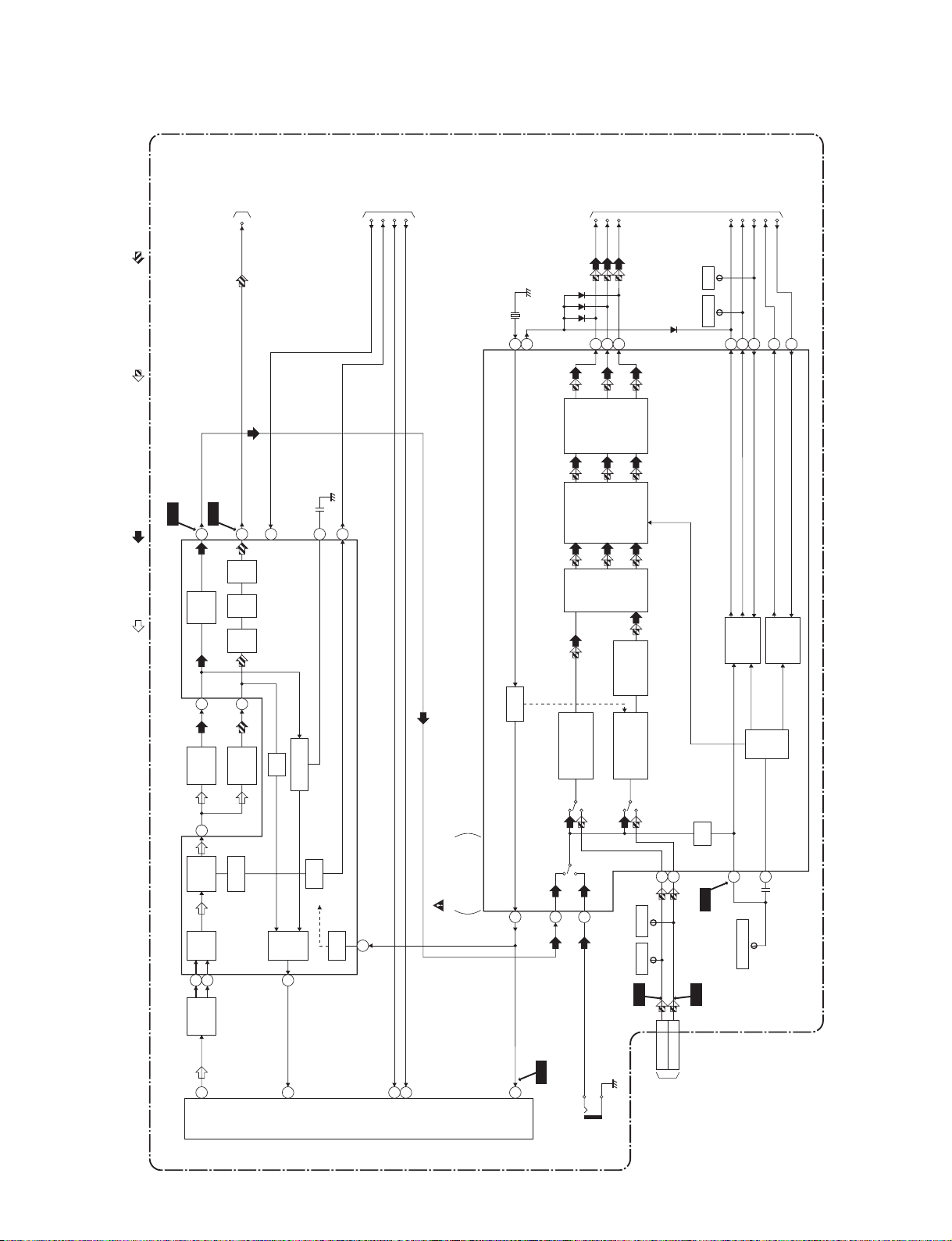

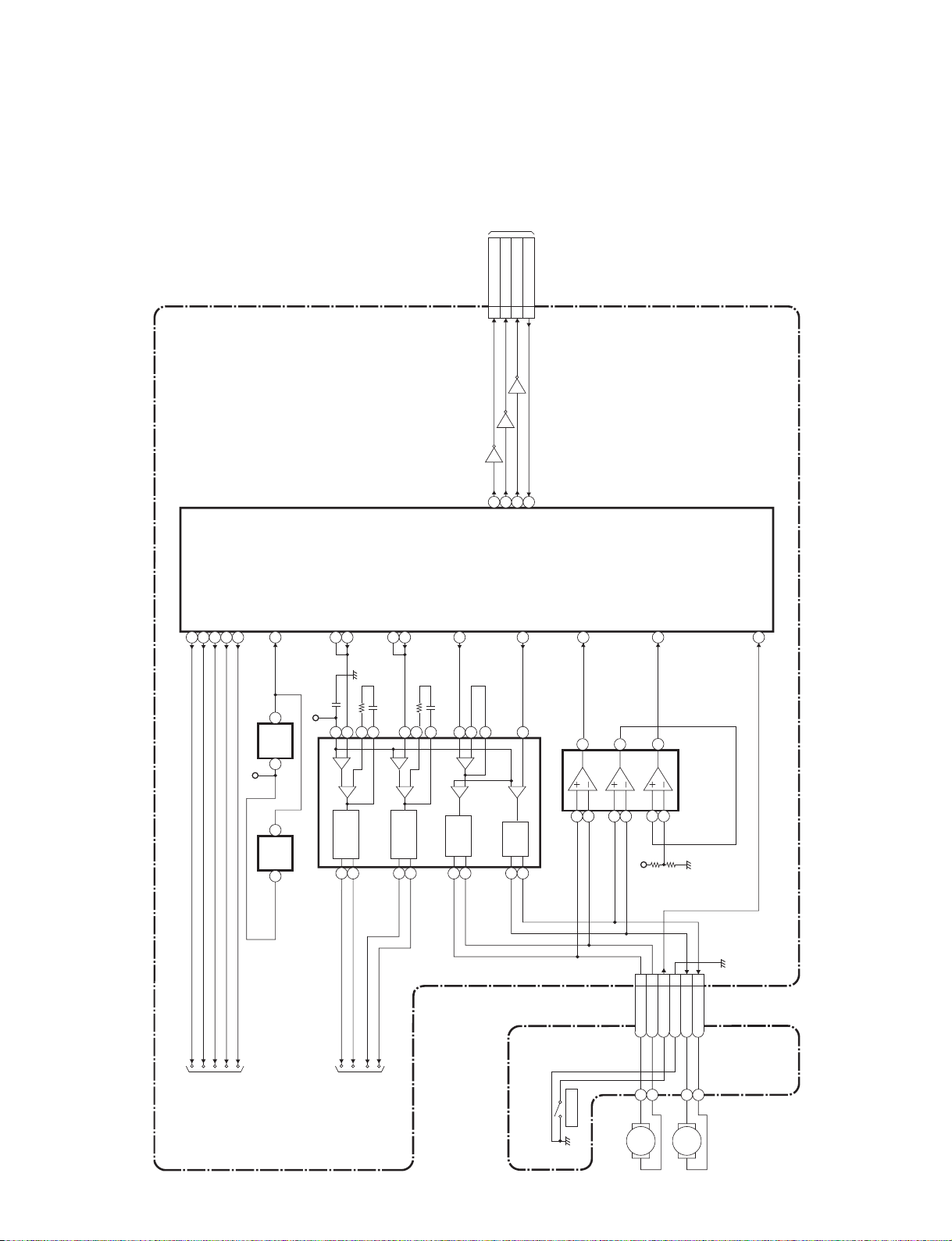

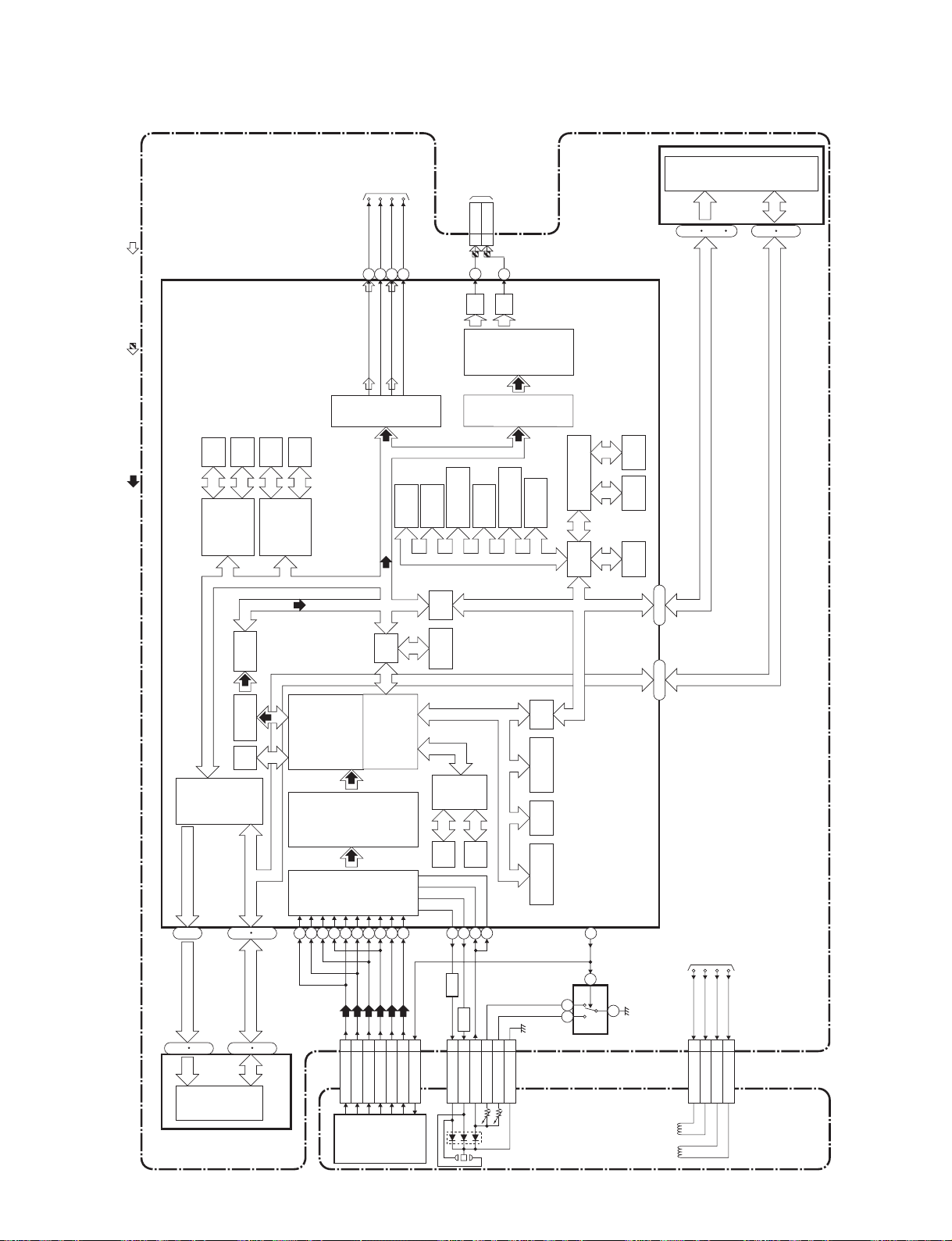

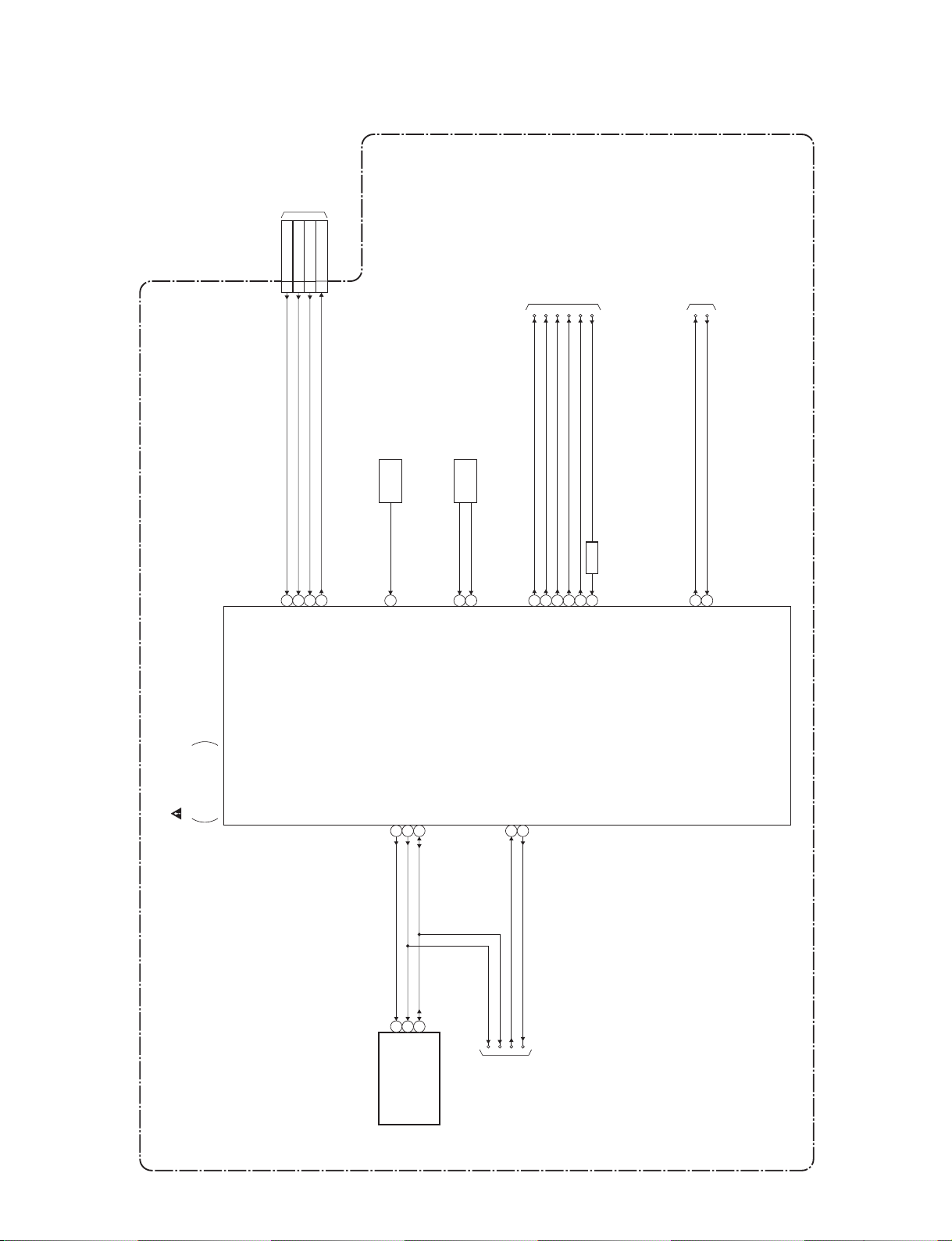

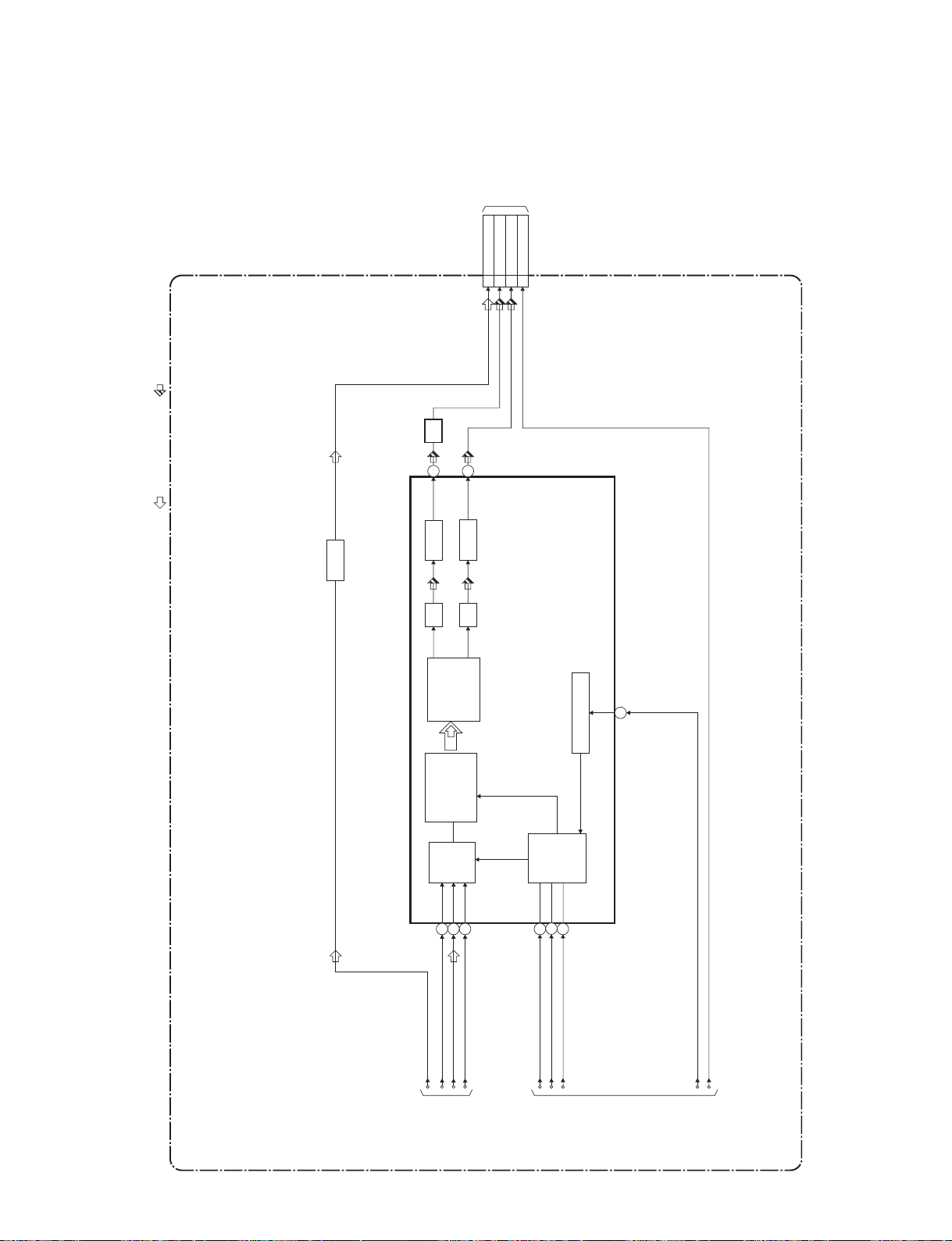

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

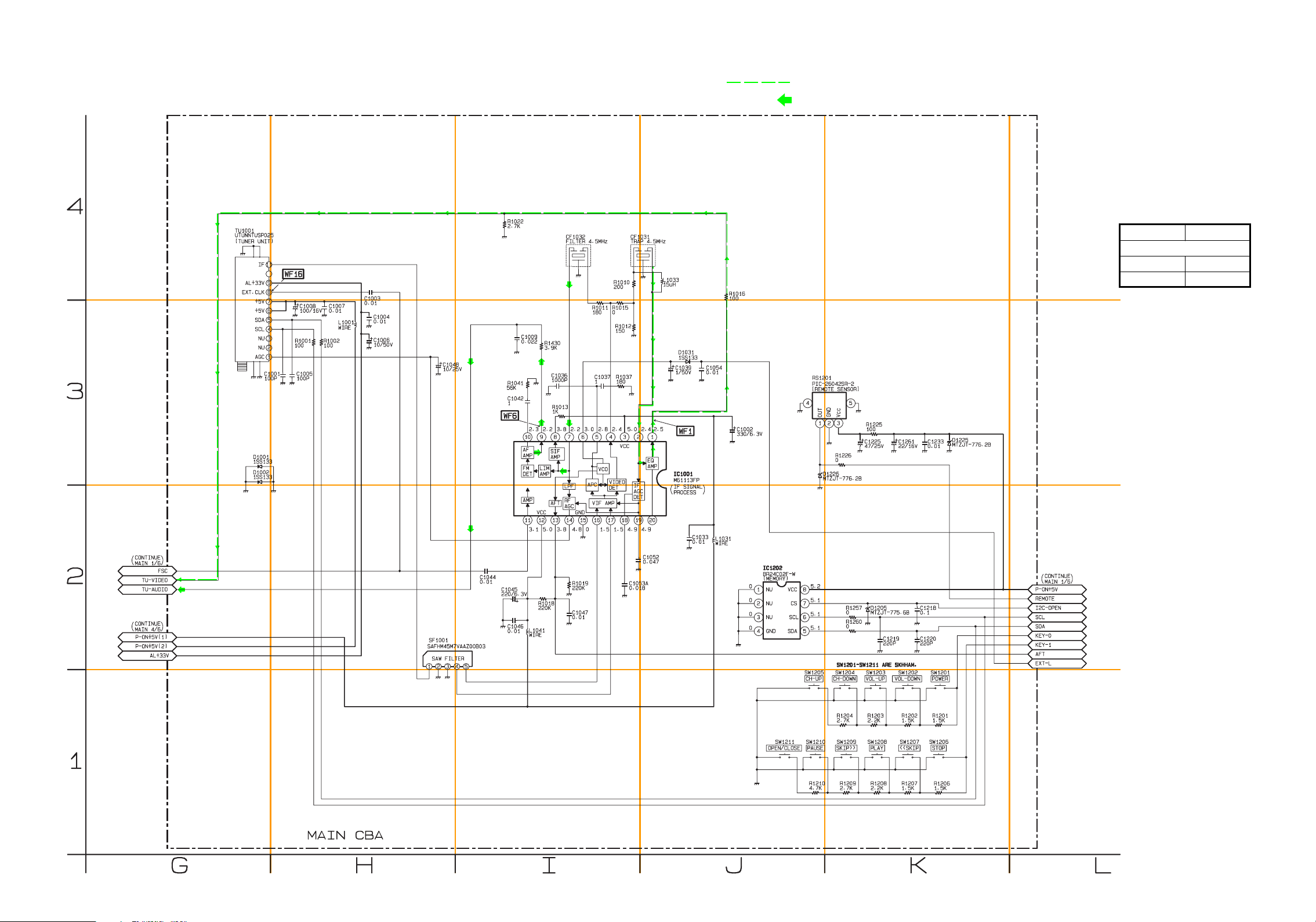

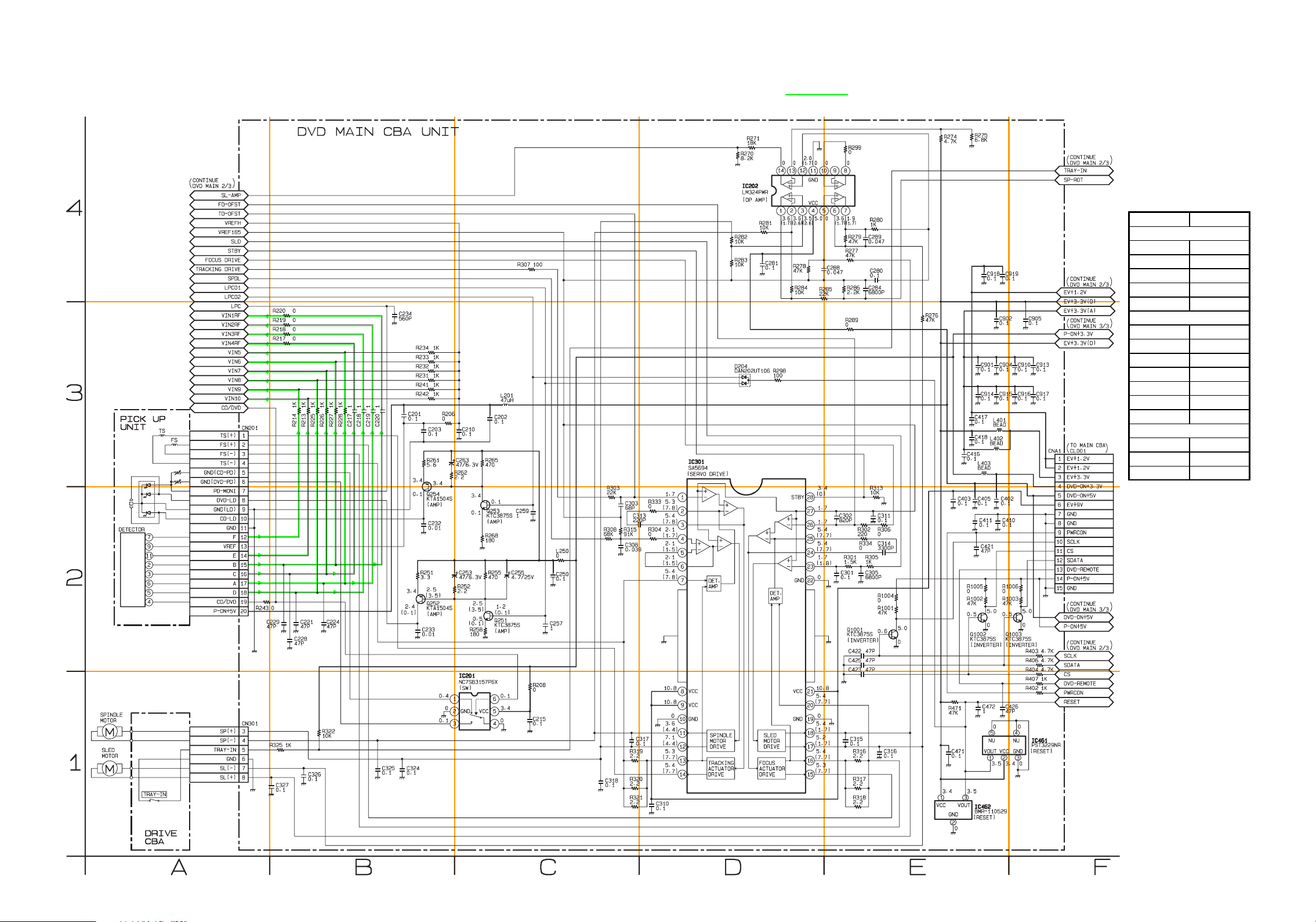

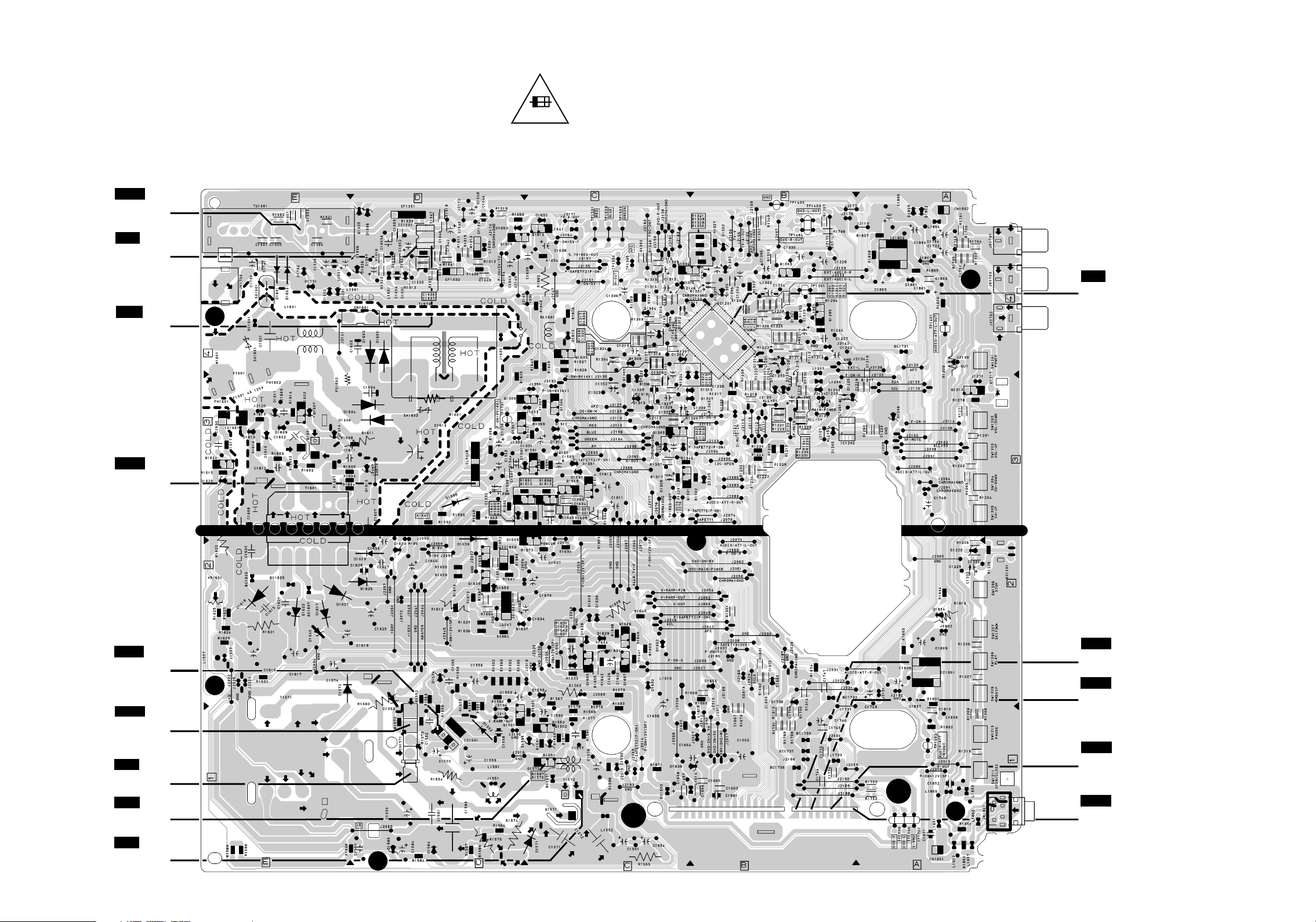

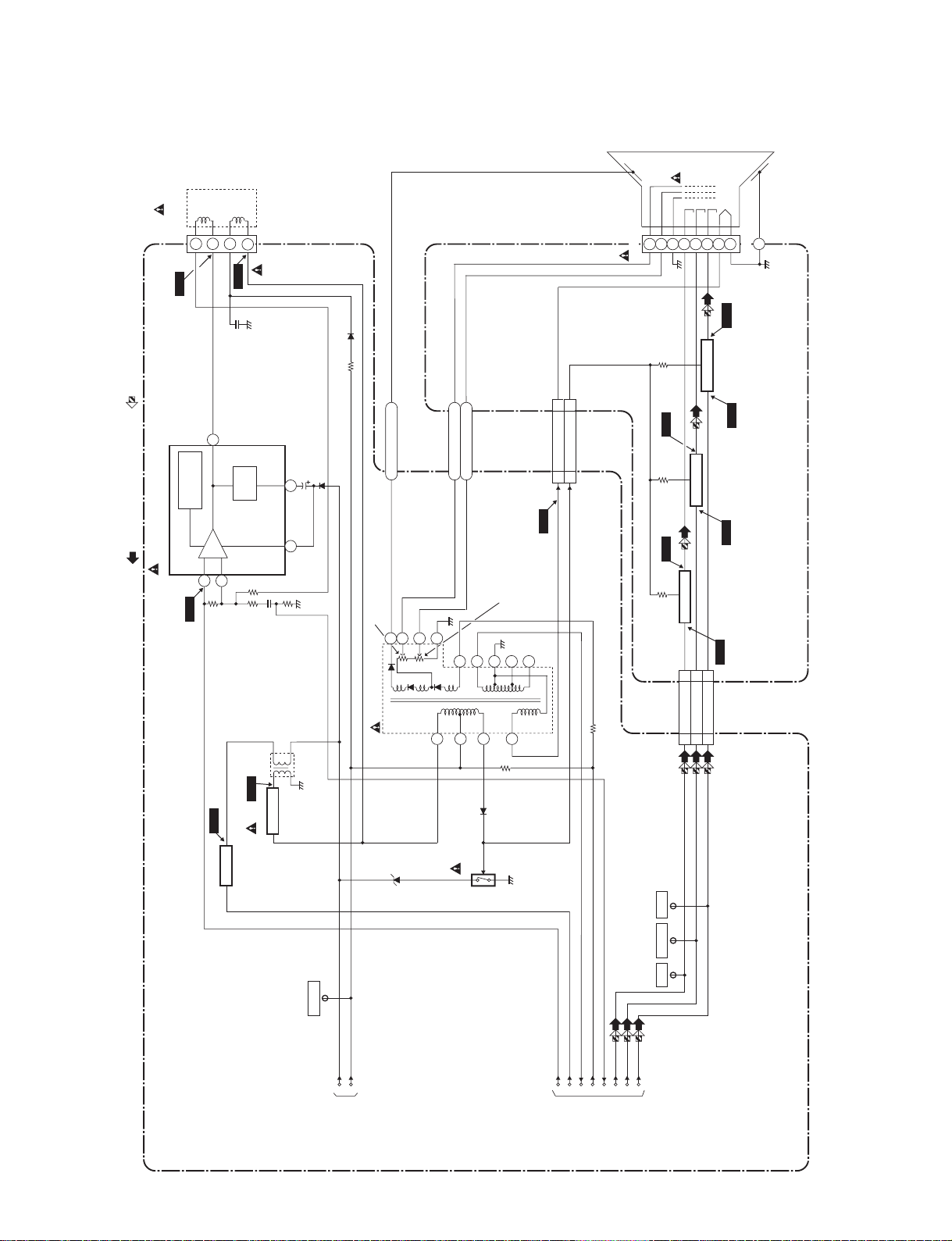

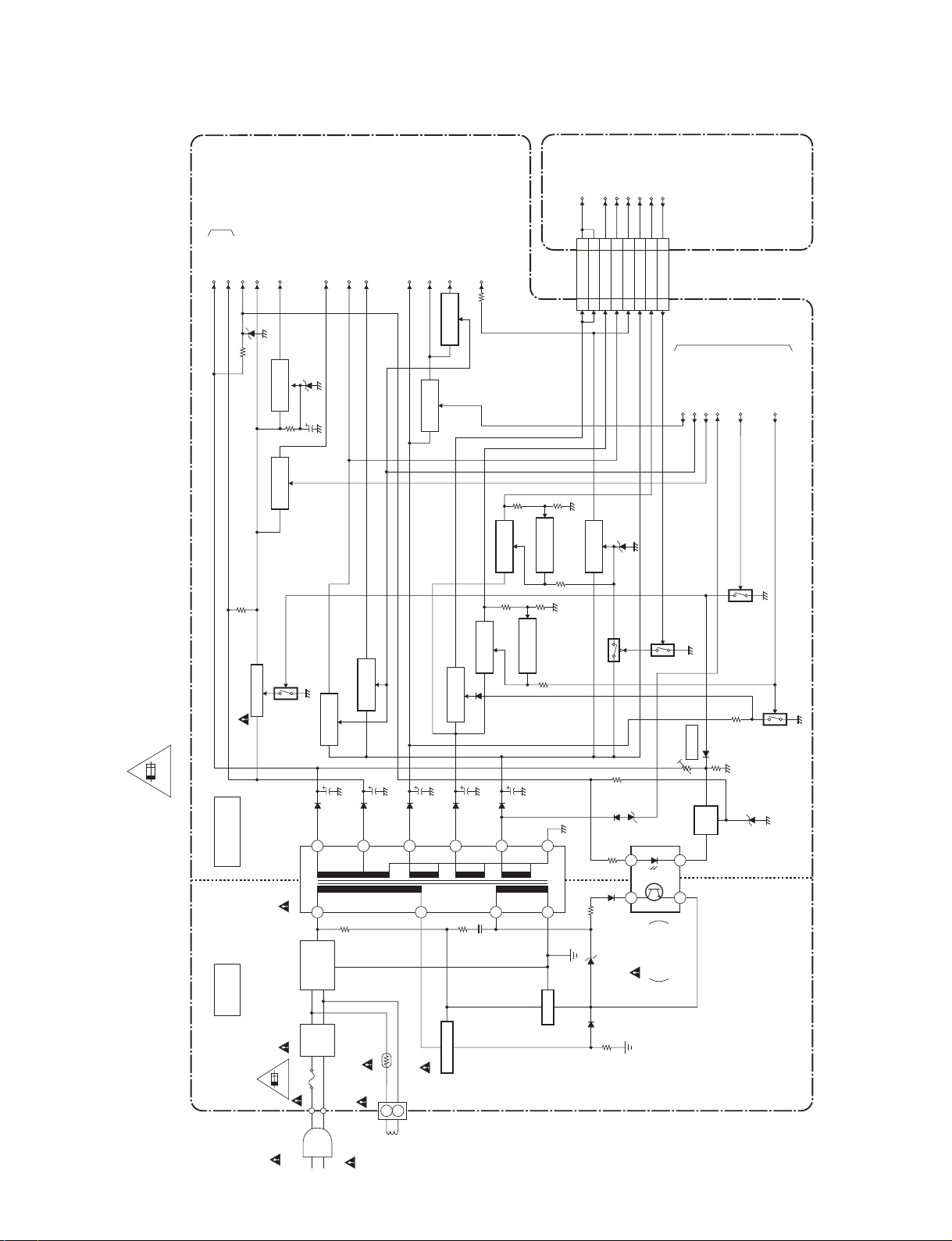

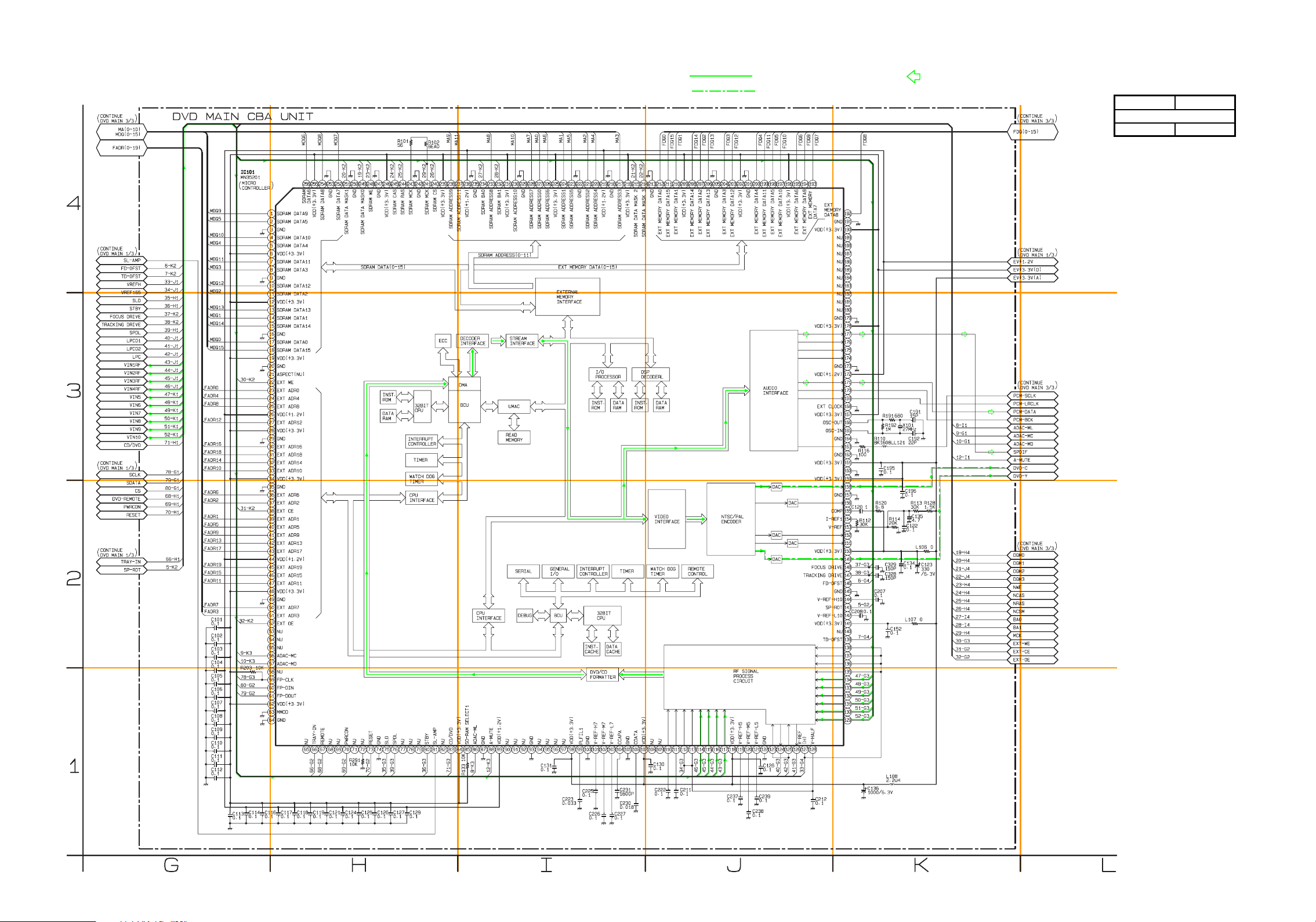

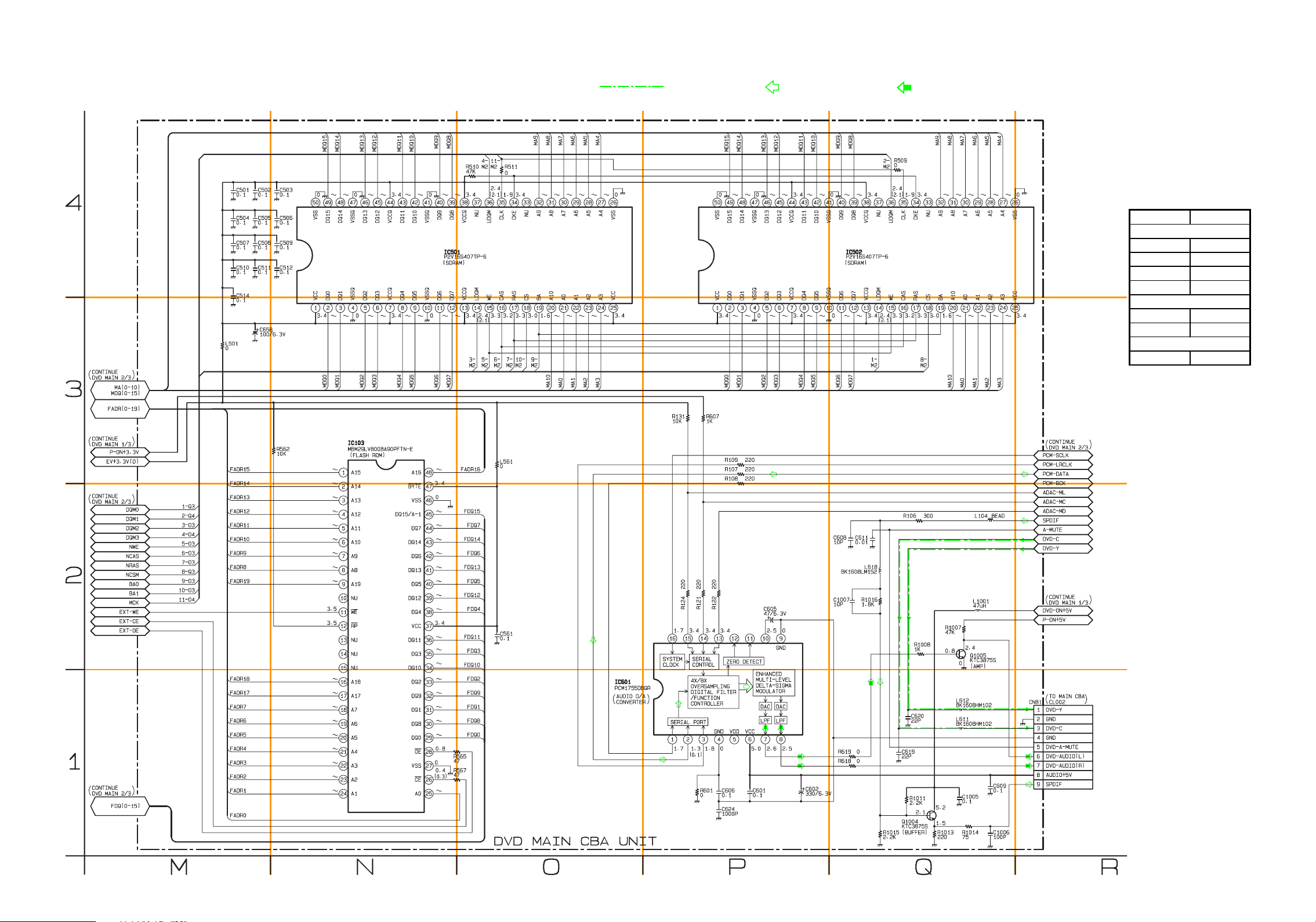

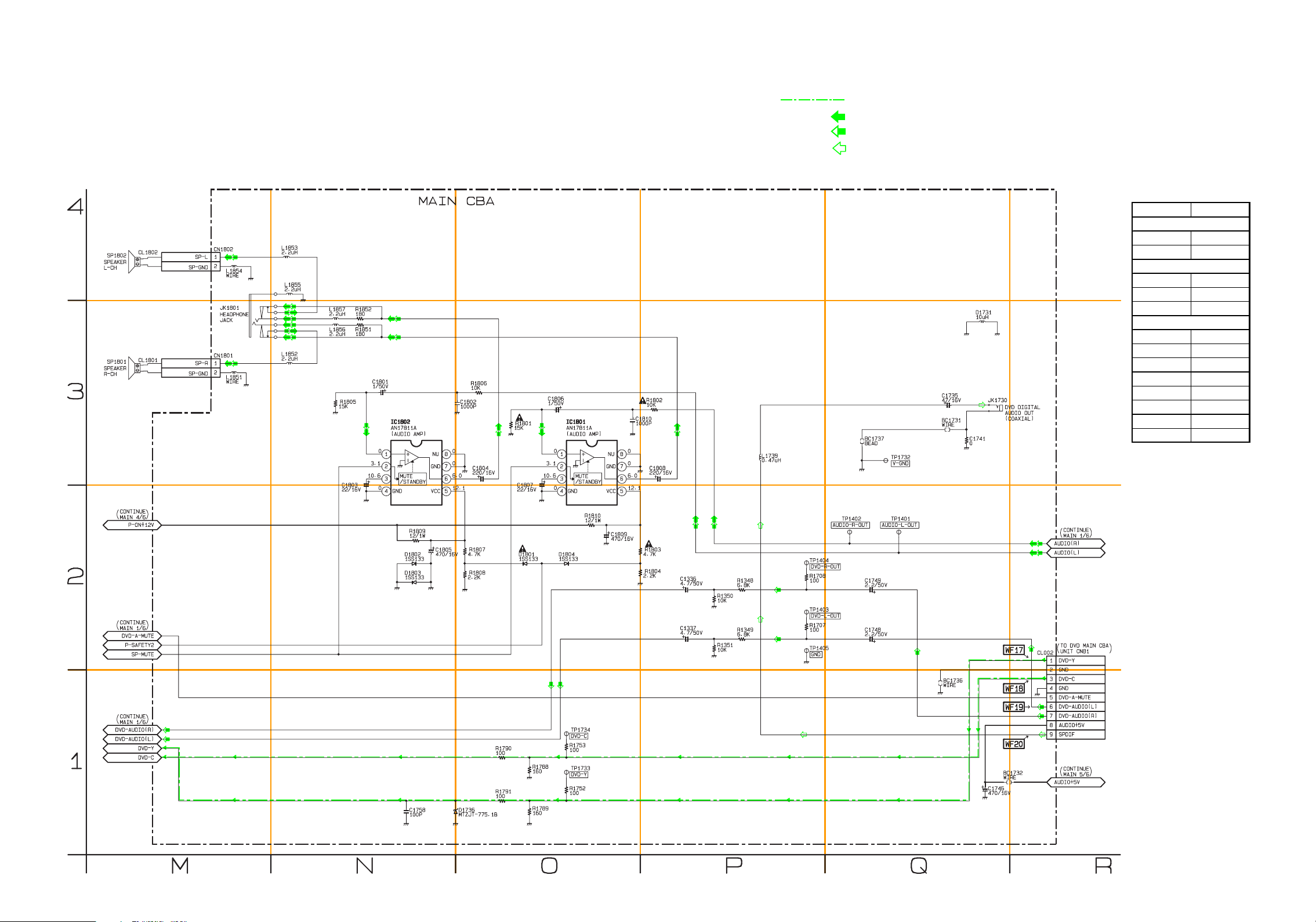

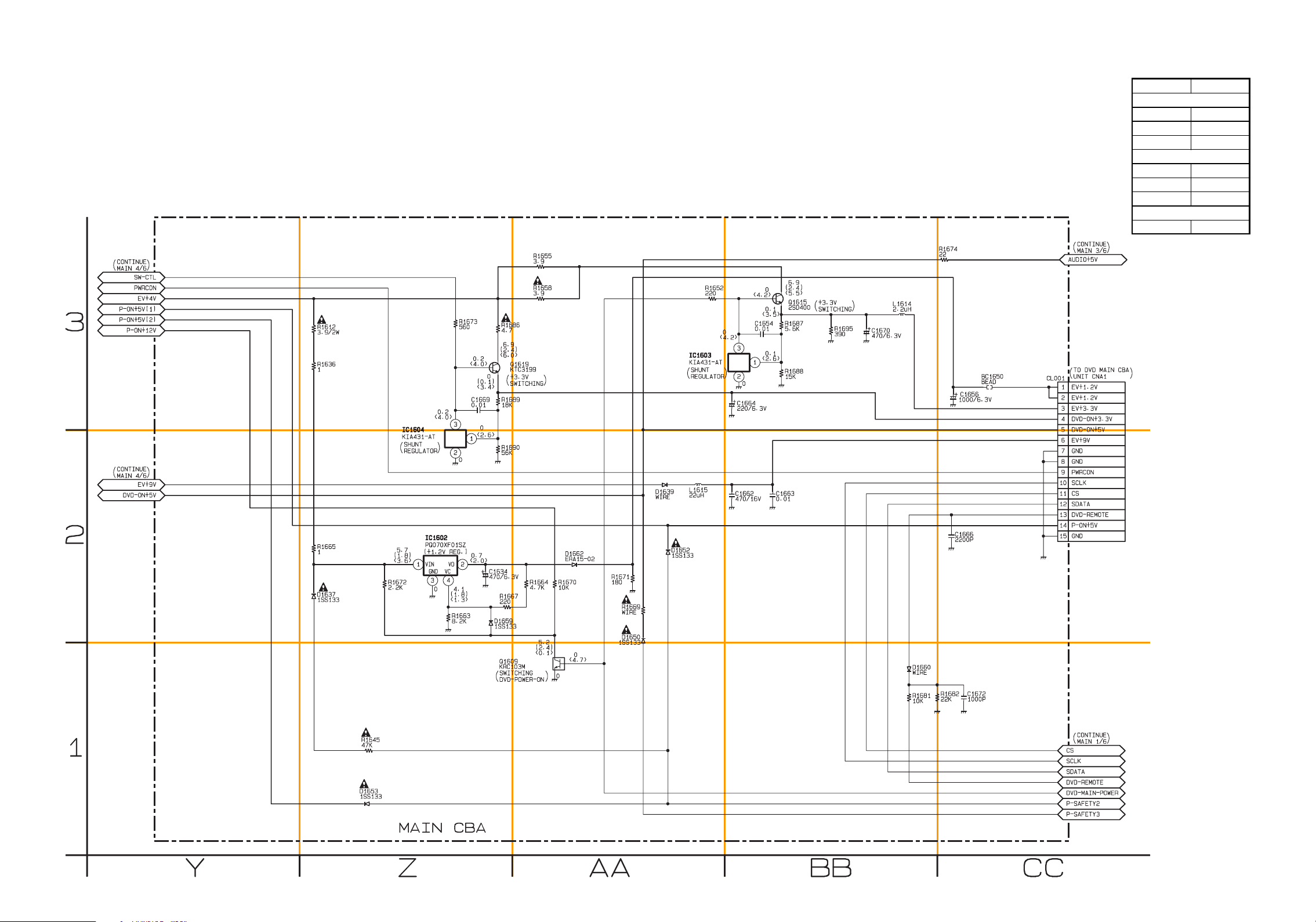

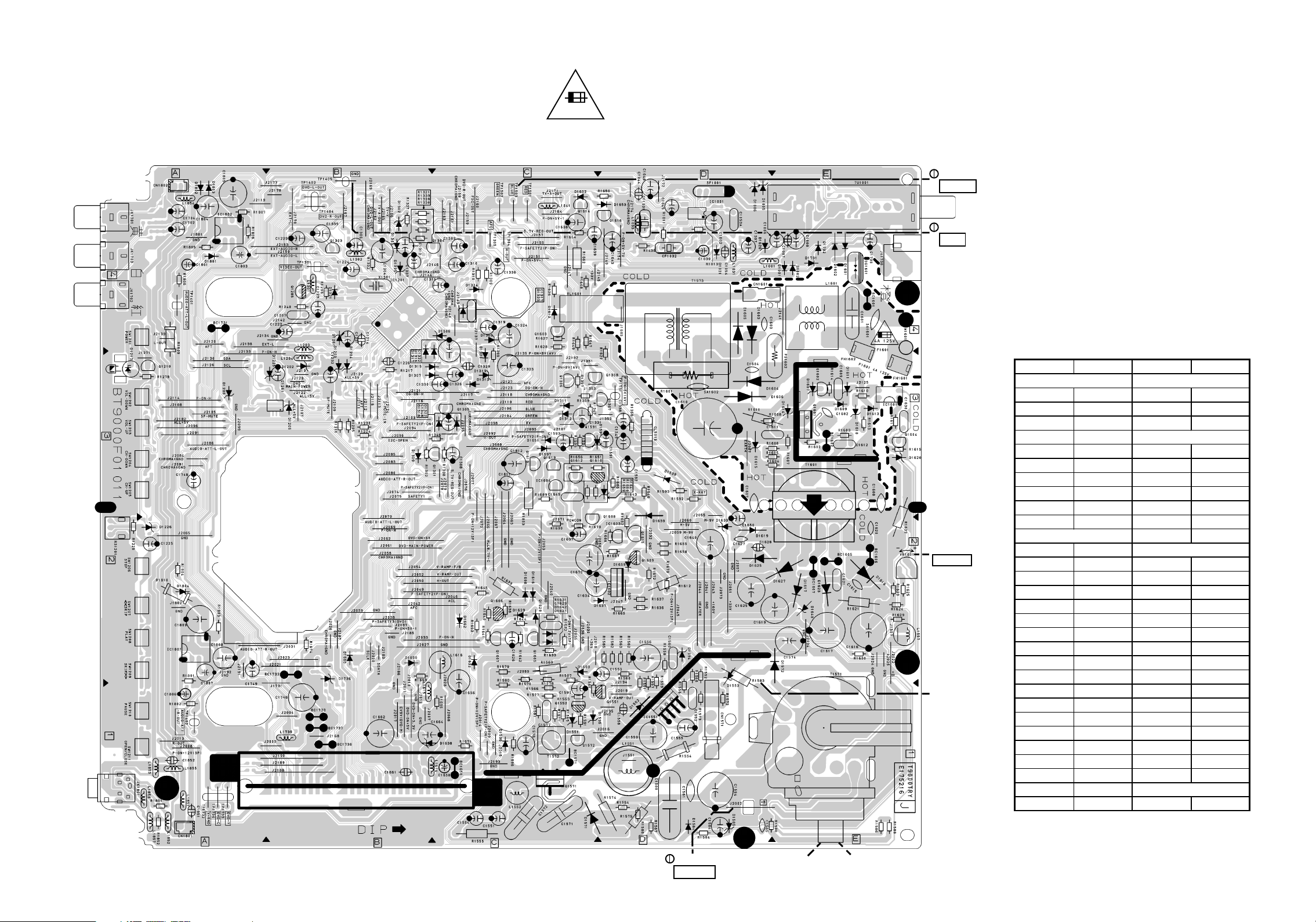

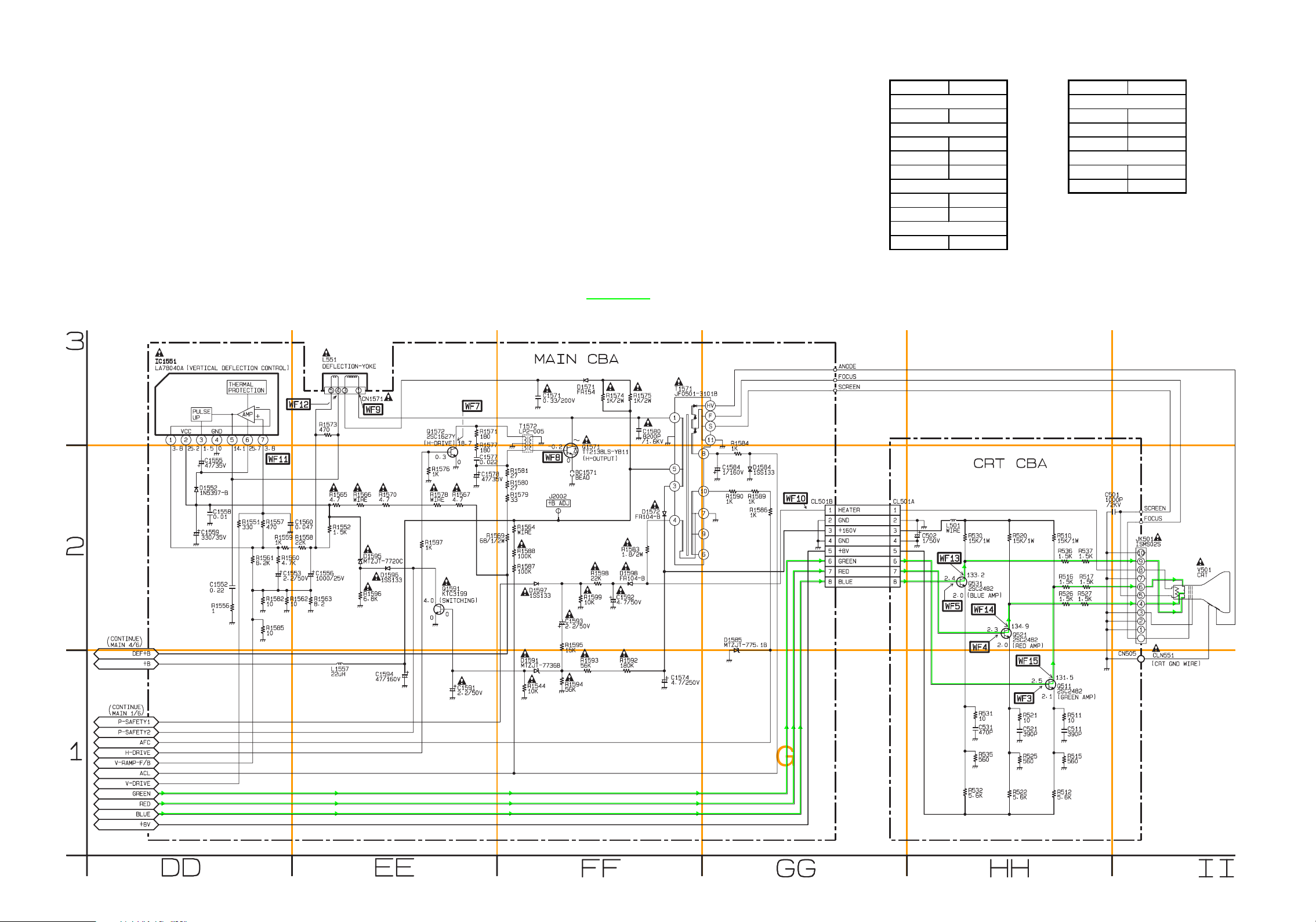

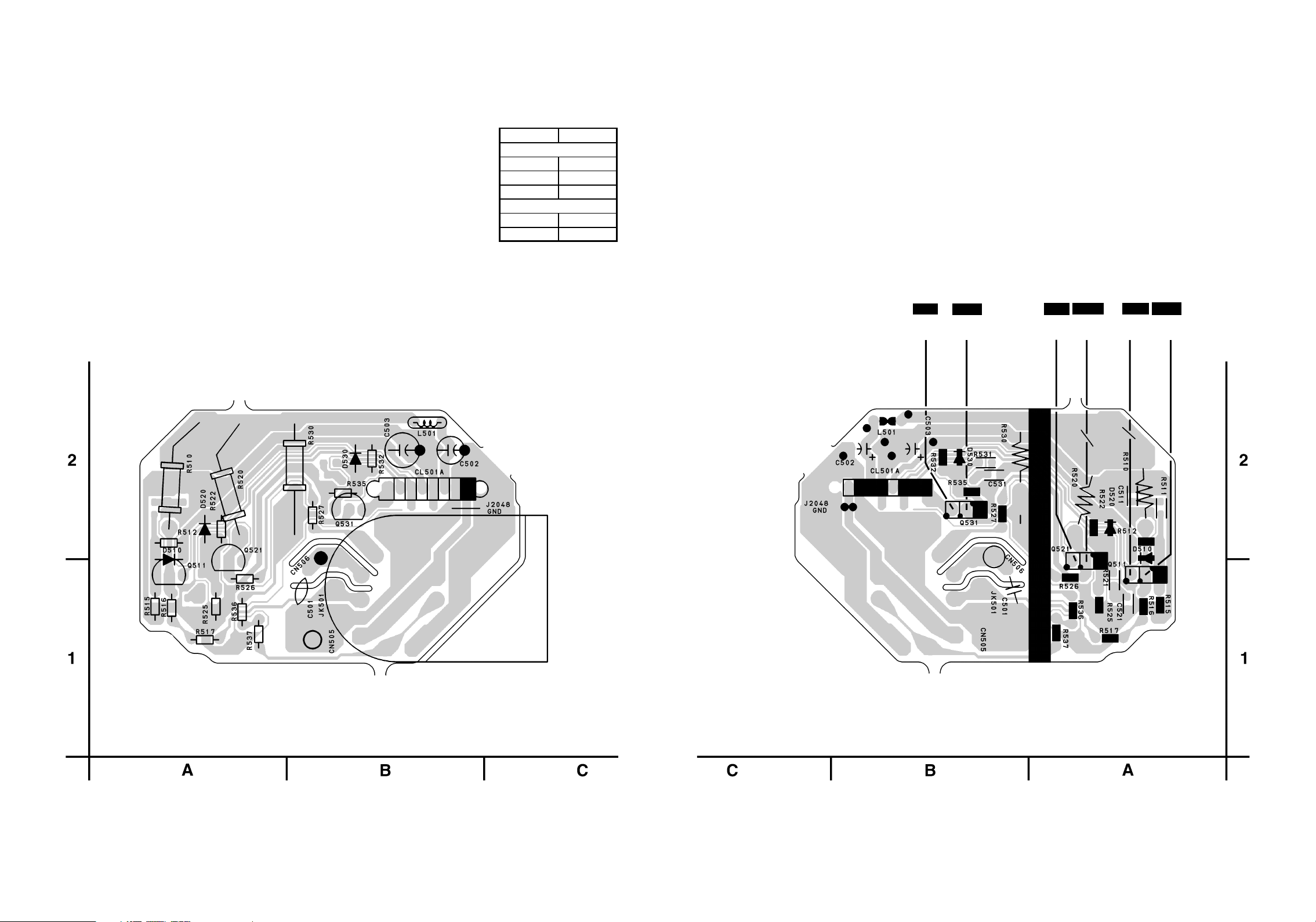

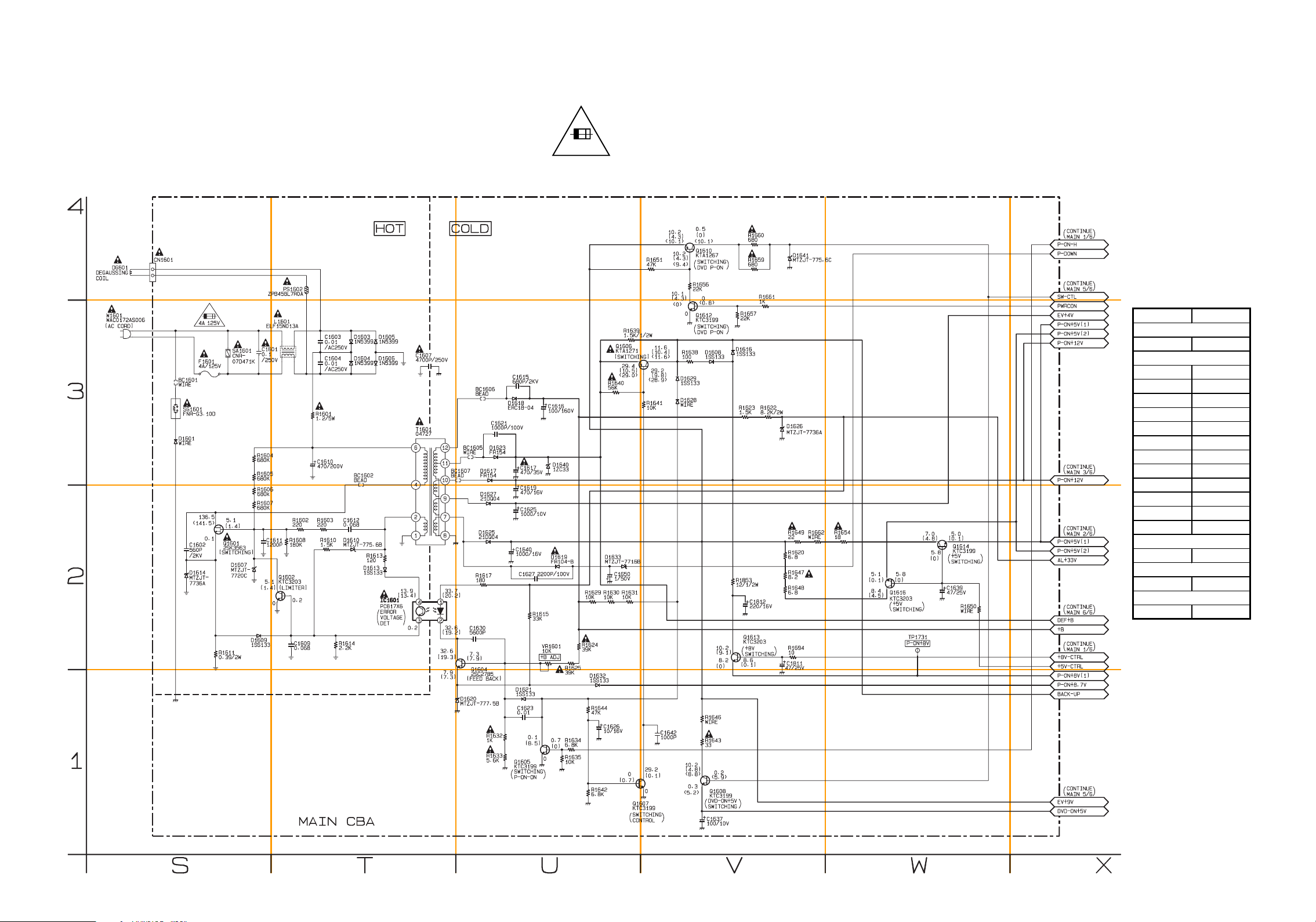

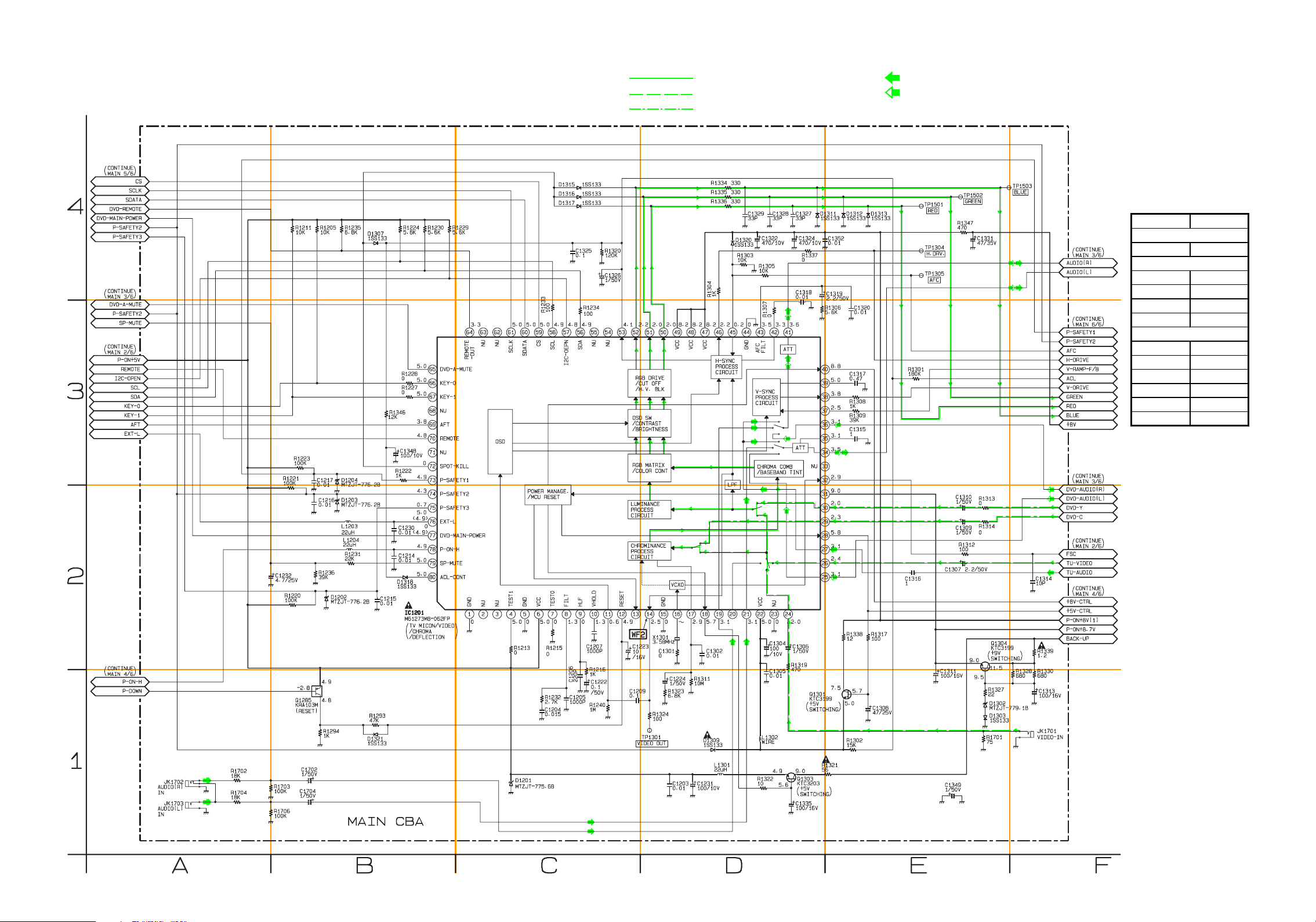

Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

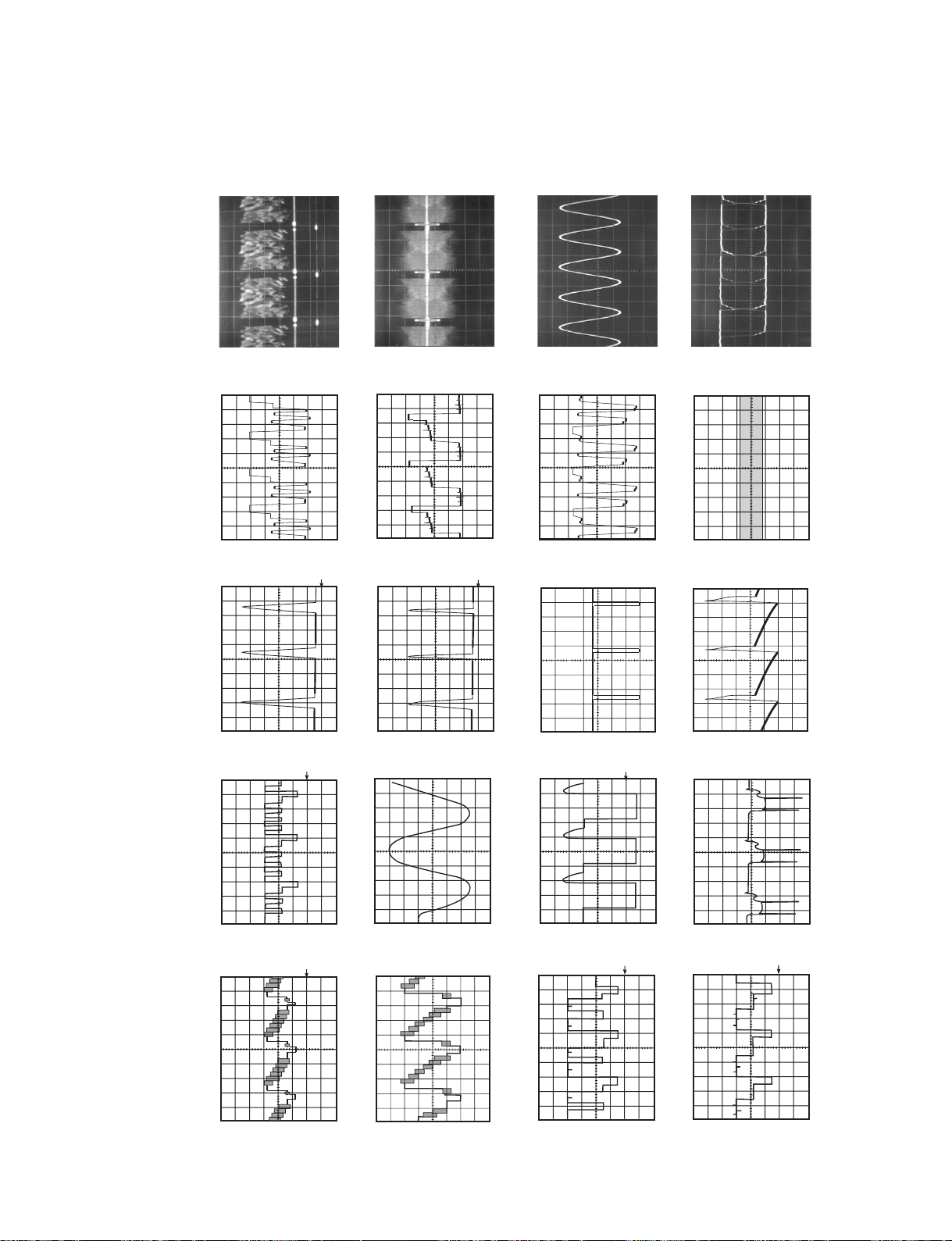

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1

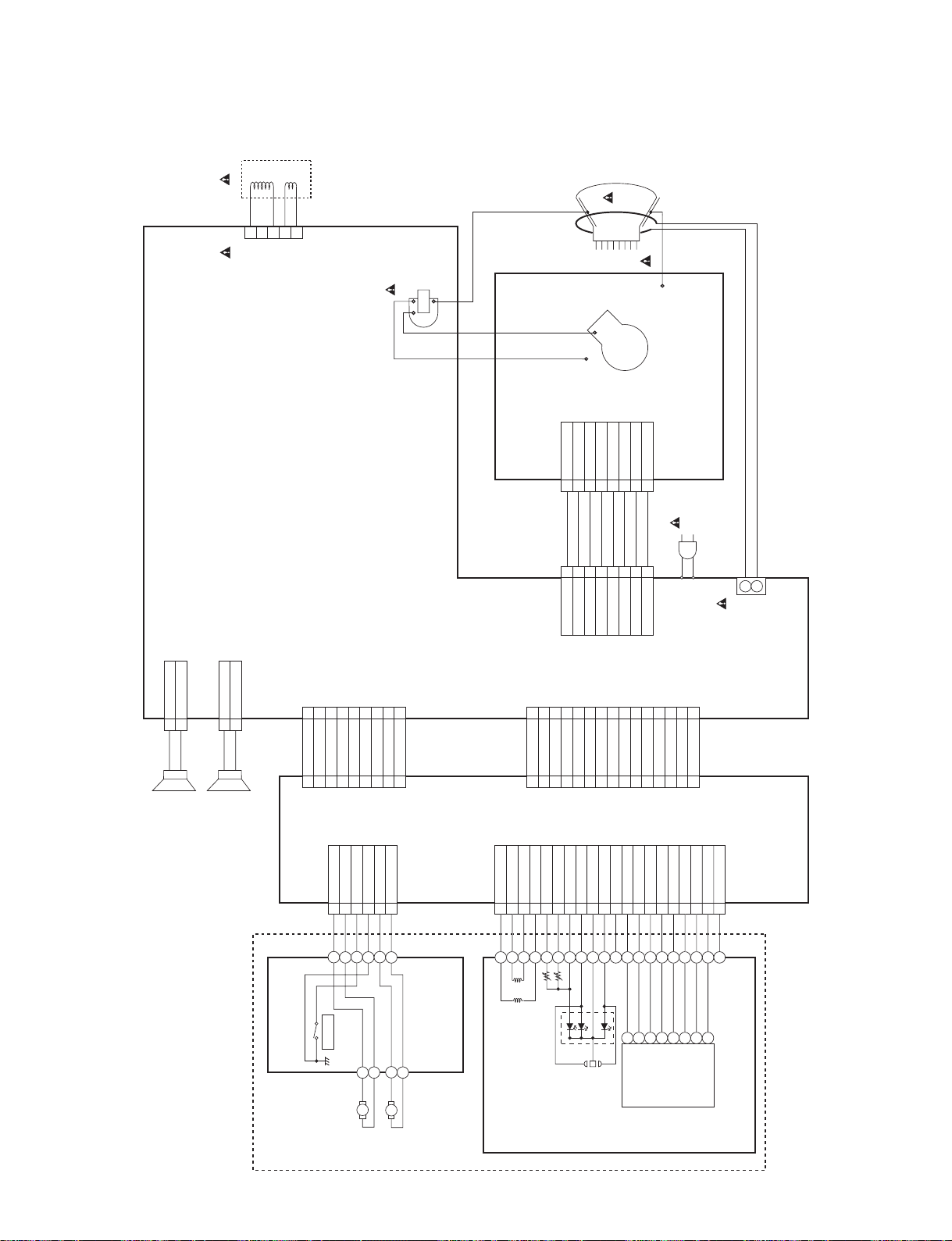

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

IC Pin Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

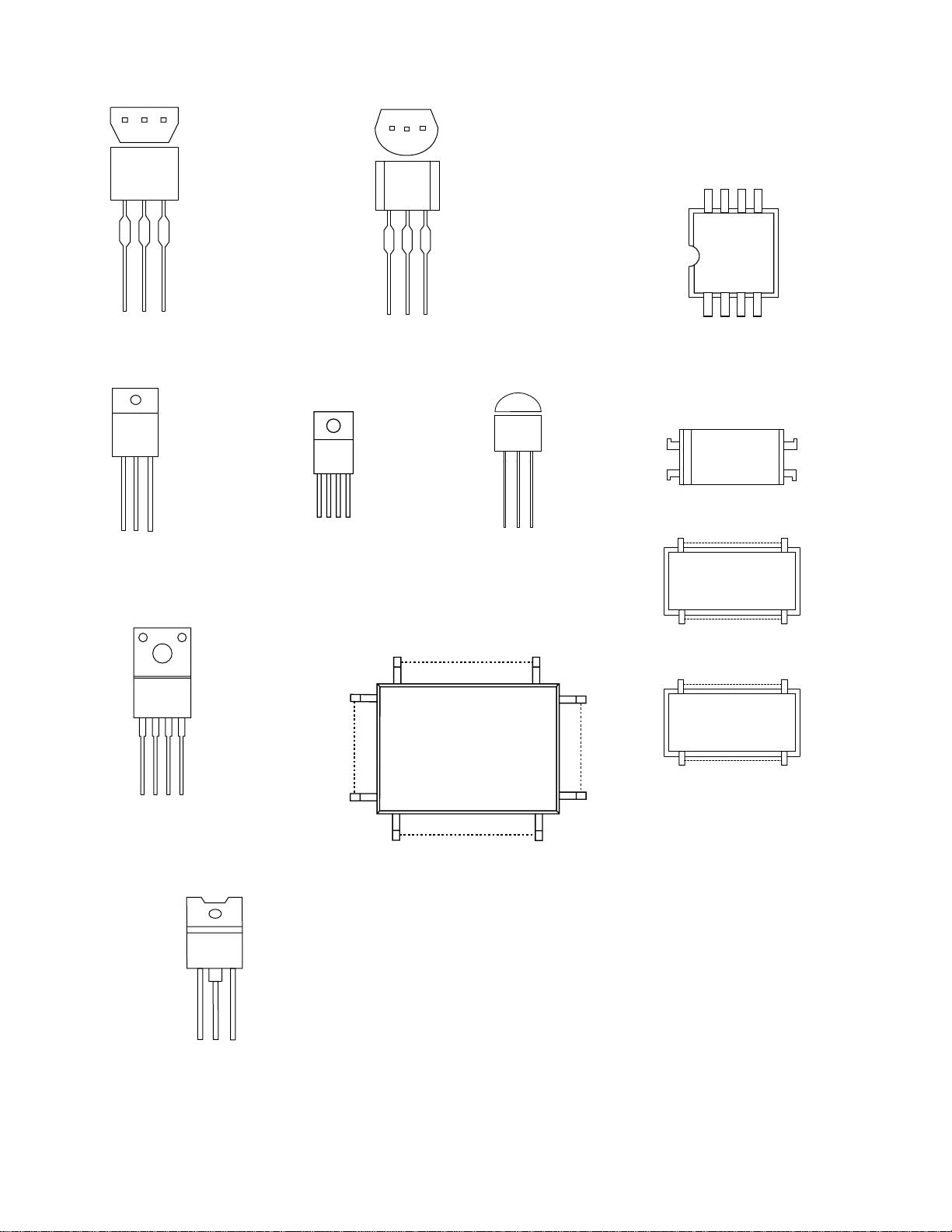

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

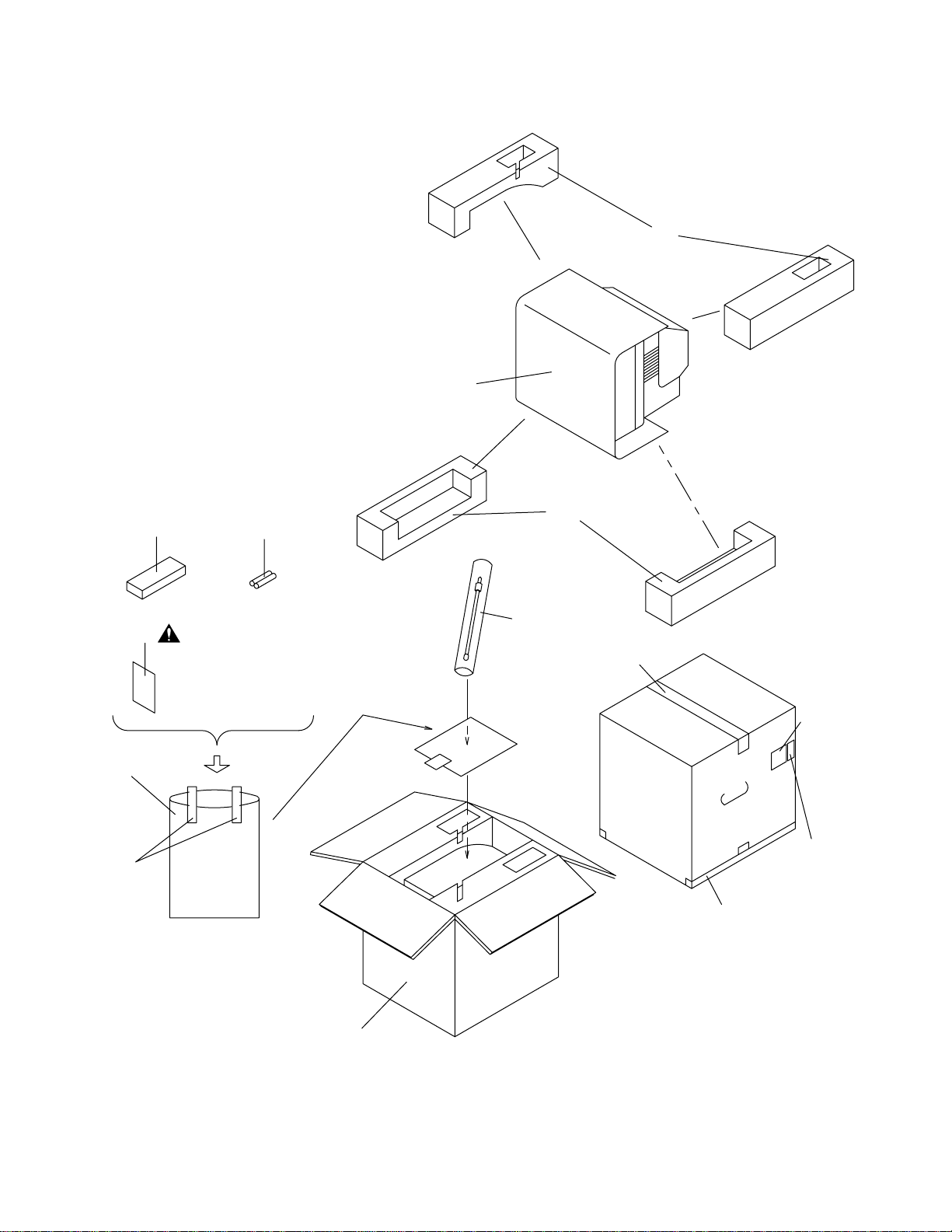

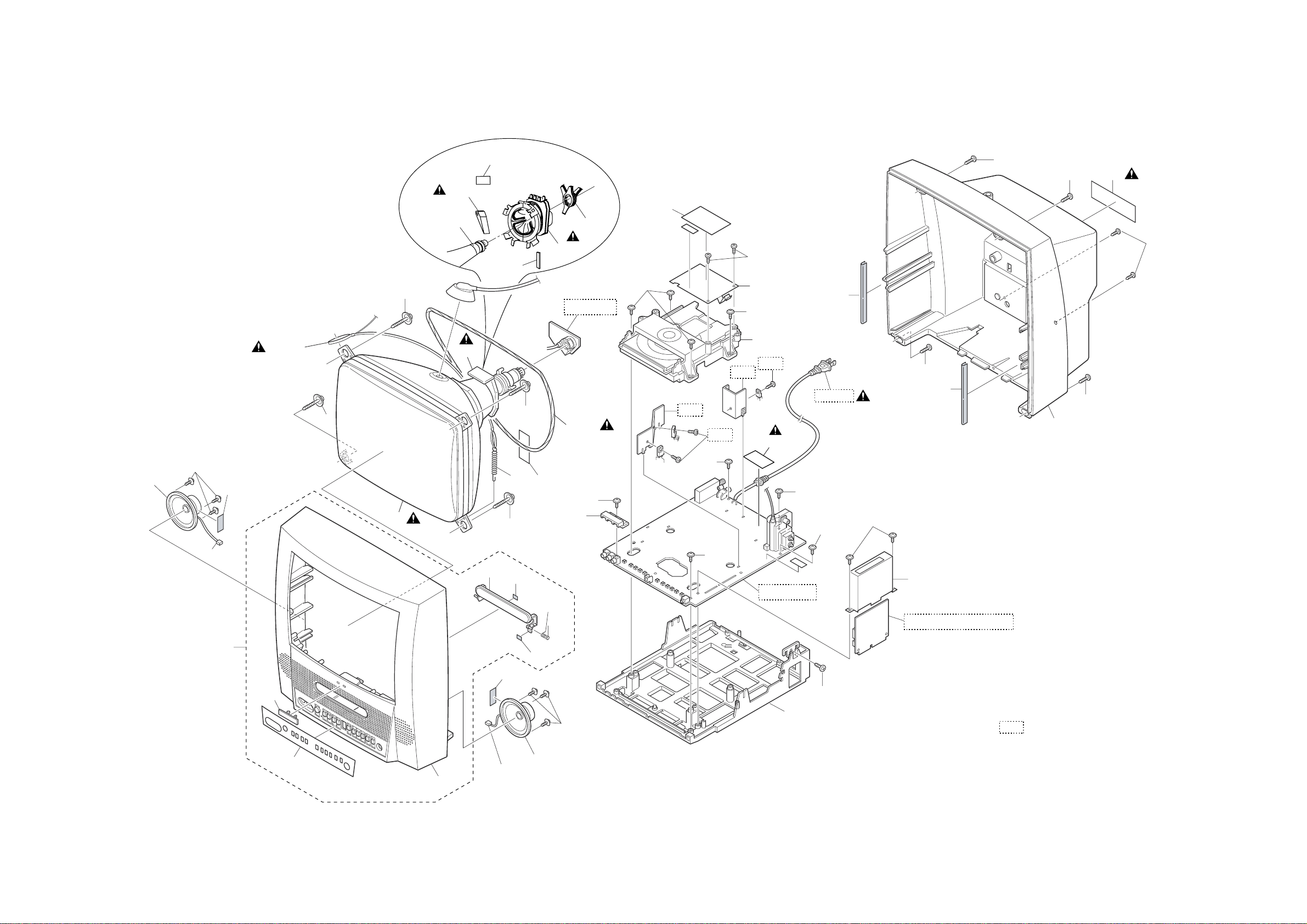

Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17-1

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Page 3

SPECIFICATIONS

< TV Section >

*Test input terminal <Except Tuner>-------------Video input (1Vp-p) Audio input (-10dB) <Tuner>-----------------------Ant. input (80dBµV) Video: 87.5% Audio: 25kHz dev (1kHz Sin)

Description Condition Unit Nominal Limit

1. Over Scan — % 90 —

Horizontal % — ±15

2. Linearity

3. High Voltage — kV 22 —

Description Condition Unit Nominal Limit

Vert ical % — ±10

Center m/m — 0.4

1. Misconvergence

2. Tint Control Range — deg ±30 —

3. Contrast Control Range — dB 12 2

4. Brightness (100% White Full Field) Contrast: Max ft-L 55 40

5. Color Temperature — K 9200 —

Corner m/m — 2.1

Side m/m — 1.5

<TUNER>

Description Condition Unit Nominal Limit

1. Video S/N (80dBµV, TV4ch) — dB 45 40

2. Audio S/N (W/LPF) — dB 45 40

3. Audio Output Power at Speaker — W 1 0.8

Note: Nominal specifications represent the design specifications. All units should be able to approximate these. Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

1-1-1 T8001SP

Page 4

ITEM CONDITIONS UNIT NOMINAL LIMIT

Coaxial Digital Out 75 ohm load mVpp 500 ± 100

NOTES:

1. All Items are measured without pre-emphasis unless otherwise specified.

2. Power supply : AC120 V 60 Hz

3. Load imp. : 100 k ohm

4. Ambient temperature: +25

°C

1-1-2 T8001SP

Page 5

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.

Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin.

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser beam.

Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in hazardous radiation exposure.

Drive Mecha Assembly

Laser Beam Radiation

Laser Pickup

Turntable

WHEN OPEN. DO NOT

CAUTION

LASER RADIATION

STARE INTO BEAM.

Location: Top of DVD mechanism.

1-2-1 E5_LASER

Page 6

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the custom-

er, always make a safety check of the entire instru-

ment, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are de-

fective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not oper-

ate this instrument or permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings through

which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the picture tube and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the instru-

ment completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer during this test.) Use a leak-

age current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED

METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG

AS REQUIRED

CURRENT

TESTER

EARTH GROUND

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits - Because

the picture tube is the primary potential source of X-radiation in solid-state TV receivers, it is specially constructed to prohibit X-radiation emissions. For continued X-radiation protection, the replacement picture tube must be the same type as the original. Also, because the picture tube shields and mounting hardware perform an X-radiation protection function, they must be correctly in place. High voltage must be measured each time servic-

1-3-1 TD204IMP

Page 7

ing is performed that involves B+, horizontal deflection or high voltage. Correct operation of the X-radiation protection circuits also must be reconfirmed each time they are serviced. (X-radiation protection circuits also may be called "horizontal disable" or "hold down.") Read and apply the high voltage limits and, if the chassis is so equipped, the X-radiation protection circuit specifications given on instrument labels and in the Product Safety & X-Radiation Warning note on the service data chassis schematic. High voltage is maintained within specified limits by close tolerance safety-related components/adjustments in the high-voltage circuit. If high voltage exceeds specified limits, check each component specified on the chassis schematic and take corrective action.

2. Read and comply with all caution and safety-related notes on or inside the receiver cabinet, on the receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning -

The picture tube in this receiver employs integral implosion protection. For continued implosion protection, replace the picture tube only with one of the same type number. Do not remove, install, or otherwise handle the picture tube in any manner without first putting on shatterproof goggles equipped with side shields. People not so equipped must be kept safely away while picture tubes are handled. Keep the picture tube away from your body. Do not handle the picture tube by its neck. Some "in-line" picture tubes are equipped with a permanently attached deflection yoke; because of potential hazard, do not try to remove such "permanently attached" yokes from the picture tube.

5. Hot Chassis Warning -

a. Some TV receiver chassis are electrically connect-

ed directly to one conductor of the AC power cord and may be safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known

earth ground. If a voltage reading in excess of 1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

7. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

8. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc.. Parts that have special safety characteristics are identified by a ( # ) on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product's Safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

1-3-2 TD204IMP

Page 8

Precautions during Servicing

A. Parts identified by the ( # ) symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements.

Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors. E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

When replacing the power transformer in sets where the connections between the power cord and power transformer primary lead wires are performed using crimp type connectors, in order to prevent shock hazards, perform carefully and precisely the following steps.

Replacement procedure

1) Remove the old connector by cutting the wires at a point close to the connector.

Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the TV/DVD

connectors, first, disconnect the AC plug from AC supply socket.

1-3-3 TD204IMP

Page 9

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit Terminals

dd’

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

USA or

CANADA

Clearance

Distance (d), (d')

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.).

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

Table 2: Leakage current ratings for selected areas

Exposed Accessible Part

One side of

Power Cord Plug Prongs

Fig. 1

AC Voltmeter (High Impedance)

Fig. 2

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

USA or

CANADA

0.15µF CAP. & 1.5kΩ RES. connected in

parallel

1-3-4 TD204IMP

i≤0.5mA rms

Exposed accessible

parts

Page 10

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown:

Top View

Out

2. For other ICs, pin 1 and every 5th pin is indicated as shown:

Pin 1

3. The 1st pin of every pin connector are indicated as shown:

Pin 1

Input

Bottom View

Instructions for Connectors

1. When you connect or disconnect FFC cable (connector), be sure to disconnect the AC cord.

2. FFC cable (connector) should be inserted parallel into the connector, not at an angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

[ CBA= Circuit Board Assembly ]

Pb (Lead) Free Solder

Pb free mark will be found on PCBs used Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack IC

Caution:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not apply the hot air to the chip parts around the Flat Pack-IC for over 6 seconds as damage may occur to the chip parts. Put Masking Tape around the Flat Pack-IC to protect other parts from damage. (Fig. S-1-2)

3. The Flat Pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or solder lands under the IC when removing it.

1. Removal

With Hot - Air Flat Pack - IC Desoldering Machine:

a. Prepare the Hot - Air Flat Pack - IC Desoldering

Machine, then apply hot air to Flat Pack - IC (about 5~6 seconds). (Fig. S-1-1)

b. Remove the Flat Pack- IC with tweezers while

applying the hot air.

With Soldering Iron:

a. Using desoldering braid, remove the solder from all

pins of the Flat Pack - IC. When you use solder flux which is applied to all pins of the Flat Pack - IC, you can remove it easily. (Fig. S-1-3)

b. Lift each lead of the Flat Pack - IC upward one by

one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air Desoldering Machine. (Fig. S-1-4)

With Iron Wire:

a. Using desoldering braid, remove the solder from all

pins of the Flat Pack - IC. When you use solder flux which is applied to all pins of the Flat Pack - IC, you can remove it easily. (Fig. S-1-3)

1-4-1 X5SNOTE

Page 11

b. Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

c. Pull up on the wire as the solder melts so as to lift

the IC leads from the CBA contact pads, while heating the pins using a fine tip soldering iron or hot air blower.

Note:

When using a soldering iron, care must be taken to ensure that the Flat Pack - IC is not being held by glue, or when it is removed from the CBA, it may be damaged if force is used.

2. Installation

a. Using desoldering braid, remove the solder from

the foil of each pin of the Flat Pack - IC on the CBA, so you can install a replacement Flat Pack - IC more easily.

b. The "I" mark on the Flat Pack - IC indicates pin 1

(See Fig. S-1-6). Make sure this mark matches the 1 on the CBA when positioning for installation. Then pre - solder the four corners of the Flat PackIC (See Fig. S-1-7).

c. Solder all pins of the Flat Pack - IC. Make sure that

none of the pins have solder bridges.

Flat Pack-IC

Fine Tip Soldering Iron

Desoldering Braid

Soldering Iron

Fig. S-1-3

Sharp Pin

Fig. S-1-4

CBA

Masking Tape

Tweezers

Hot Air Blower

Iron Wire

Fig. S-1-1

Soldering Iron

To Solid Mounting Point

Fig. S-1-5

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

1-4-2 X5SNOTE

Page 12

Example :

Instructions for Handling Semiconductors

Electrostatic breakdown of the semiconductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Presolder

CBA

Fig. S-1-6

Flat Pack-IC

Fig. S-1-7

Ground for Work Bench

Be sure to place a conductive sheet or copper plate with proper grounding (1MΩ) on the work bench or other surface, where the semiconductors are to be placed. Because the static electricity charge on the clothing will not escape through the body grounding band, be careful to avoid contacting semiconductors to clothing.

CBA

CBA

1MΩ

1-4-3 X5SNOTE

Grounding Band

1MΩ

Conductive Sheet or Copper Plate

Page 13

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

Caution !

When removing the CRT, be sure to discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

[1] Rear Cabinet

[2] Tray Chassis Unit[3] CRT

[4] DVD Mechanism

[5] DVD Main CBA Unit

[6] Main CBA

2. Disassembly Method

REMOVAL

ID/

LOC.

No.

[1]

[2]

[3] CRT 2 4(S-3) -

[4]

[5]

[6] Main CBA 3 5(S-7), (S-8) -

↓

(1)

PART

Rear Cabinet

Tr ay Chassis Unit

DVD Mechanism

DVD Main CBA Unit

↓

(2)

REMOVE/ *UNHOOK/UNLOCK/

Fig. No.

RELEASE/UNPLUG/ DESOLDER

1 4(S-1), 2(S-2) -

Anode Cap, CN1801,

2,3,

CN1802, CN505,

CRT CBA, CN1601, CN1571

4(S-4), 2(S-5),

3,4,

Loader Cover,

CN201, CN301

2(S-6), Shield Box,

3,5

CL001, CL002

↓

(3)

↓

(4)

Note

2-1 2-2 2-3 2-4

(5)

↓

(1): Order of steps in Procedure. When reassembling,

follow the steps in reverse order.These numbers are also used as the Identification (location) No. of

parts in Figures. (2): Parts to be removed or installed. (3): Fig. No. showing Procedure of Part Location. (4): Identification of part to be removed, unhooked,

unlocked, released, unplugged, unclamped, or

desoldered.

S=Screw, P=Spring, L=Locking Tab, CN=Connec-

tor, *=Unhook, Unlock, Release, Unplug, or Desol-

der

2(S-2) = two Screws (S-2) (5): Refer to the following "Reference Notes in the

Table."

Reference Notes in the Table

Caution !

When removing the CRT, be sure to discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

CAUTION 1: Discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

1. Disconnect the following: Anode Cap, CN1801,

CN1802, CN505, CRT CBA, CN1601, and CN1571. Then remove Tray Chassis Unit.

CAUTION 2: Electrostatic breakdown of the laser diode in the optical system block may occur as a potential difference caused by electrostatic charge accumulated on cloth, human body etc., during unpacking or repair work.

To avoid damage of pickup follow next procedures. 2-1. Disconnect Connector (CN301) on the DVD Main

CBA Unit.

2-2. Remove four Screws (S-4) and lift the DVD

Mechanism up. (Fig. 3)

2-3. Short the three short lands of FPC cable with sol-

der before removing the FFC cable (CN201) from it. If you disconnect the FFC cable (CN201), the

laser diode of pickup will be destroyed. (Fig. 4) 2-4. Remove two Screws (S-5) and Loader Cover. CAUTION 3: When reassembling, confirm the FFC

cable (CN201) is connected completely. Then remove the solder from the three short lands of FPC cable. (Fig. 4)

1-5-1 T8059DC

Page 14

(S-1)

(S-2)

(S-1)

[1] Rear Cabinet

Fig. 1

(S-3)

[3] CRT

Anode Cap

CRT CBA

(S-3)

Fig. 2

1-5-2 T8059DC

Page 15

Loader Cover

(S-4)

[2] Tray Chassis Unit

(S-5)

(S-4)

[4] DVD Mechanism

(S-7)

[6] Main CBA

(S-7)

CL002

CL001

(S-7)

(S-6)

(S-7)

Shield Box

[5] DVD Main

CBA Unit

CN201

CN301

(S-8)

Fig. 3

1-5-3 T8059DC

Page 16

DVD Mechanism

Short the three short lands by soldering. (Either of two places.)

Connector

View for A

Fig. 4

1-5-4 T8059DC

Page 17

ANODE

DVD MAIN CBA UNIT

CRT CBA

GND

SPEAKER

CN1802

MAIN CBA

CN201

CN301

CNB1 CNA1

CL501A

SCREEN

CN505

CN1601

CL501B

FOCUS

AC CORD

CN1801

SPEAKER

CN1571

CL002 CL001

T1571

1-5-5 T8059DC

Fig. 5

Page 18

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note:

"CBA" is abbreviation for "Circuit Board Assembly."

NOTE:

Electrical adjustments are required after replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. AC Milli Voltmeter (RMS)

3. DC Voltmeter

4. Oscilloscope: Dual-trace with 10:1 probe,

V-Range: 0.001~50V/Div, F-Range: DC~AC-60MHz

5. Frequency Counter

6. Plastic Tip Driver

7. Color Analyzer

How to make service remote control unit:

1. Prepare remote control unit. (Part No. NE224UD) Remove 4 screws from the back lid. (Fig. 1-1)

How to Set up the Service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on.

3. Press "DISC MENU" button on the service remote control unit.

1. DC 105V (+B) Adjustment

Purpose: To obtain correct operation. Symptom of Misadjustment: The picture is dark and

unit does not operate correctly.

Test point Adj. Point Mode Input

J2002 (+B)

TP1405 (GND)

Tape M. EQ. Spec.

---

Note:

J2002 (+B), TP1405 (GND), VR1601 --- Main CBA

1. Connect the unit to AC Power Outlet.

2. Connect DC Volt Meter to J2002 (+B) and TP1405 (GND).

3. Adjust VR1601 so that the voltage of J2002 (+B) becomes +105±0.5V DC.

VR1601 --- -----

DC Voltmeter

Plastic Tip Driver

+105±0.5V DC

SCREW

Remote control unit (Bottom)

2. Cut off pin 10 of the remote control microprocessor and short circuit pins 10 and 17 of the microprocessor with a jumper wire.

Fig. 1-1

1-6-1 T8059EA

Page 19

2-1. Setting for Data Values

3-1. C-Trap Adjustment

General

1. Enter the Service mode. (See page 1-6-1.)

2. To select the Data Value, press "VOL p" button on

the service remote control unit.

3. To set the following data values, press "CH o / p"

buttons on the service remote control unit.

7F --- set to FF

9V --- set to OFF

2-2. Setting for CONTRAST,

COLOR, TINT and V-TINT Data Values

General

1. Enter the Service mode. (See page 1-6-1.)

2. Press "PICTURE" button on the service remote con-

trol unit. Display changes "BRIGHT," "CONTRAST," "COLOR," "TINT," and "V-TINT" cyclically when "PICTURE" button is pressed.

CONTRAST (CNT)

1. Press "PICTURE" button on the service remote con-

trol unit. Then select "CONTRAST" (CNT) display.

2. Press "CH o / p" buttons on the service remote

control unit so that the value of "CONTRAST" (CNT) becomes 76.

COLOR (CLR)

1. Press "PICTURE" button on the service remote

control unit. Then select "COLOR" (CLR) display.

2. Press "CH o / p" buttons on the service remote

control unit so that the value of "COLOR" (CLR) becomes 58.

TINT (TNT)

1. Press "PICTURE" button on the service remote

control unit. Then select "TINT" (TNT) display.

2. Press "CH o / p" buttons on the service remote

control unit so that the value of "TINT" (TNT) becomes 57.

V-TINT (V-TNT)

1. Press "PICTURE" button on the service remote

control unit. Then select "V-TINT" (V-TNT) display.

2. Press "CH o / p" buttons on the service remote

control unit so that the value of "V-TINT" (V-TNT) becomes 56.

Note: BRIGHT data value does not need to be adjust-

ed at this moment.

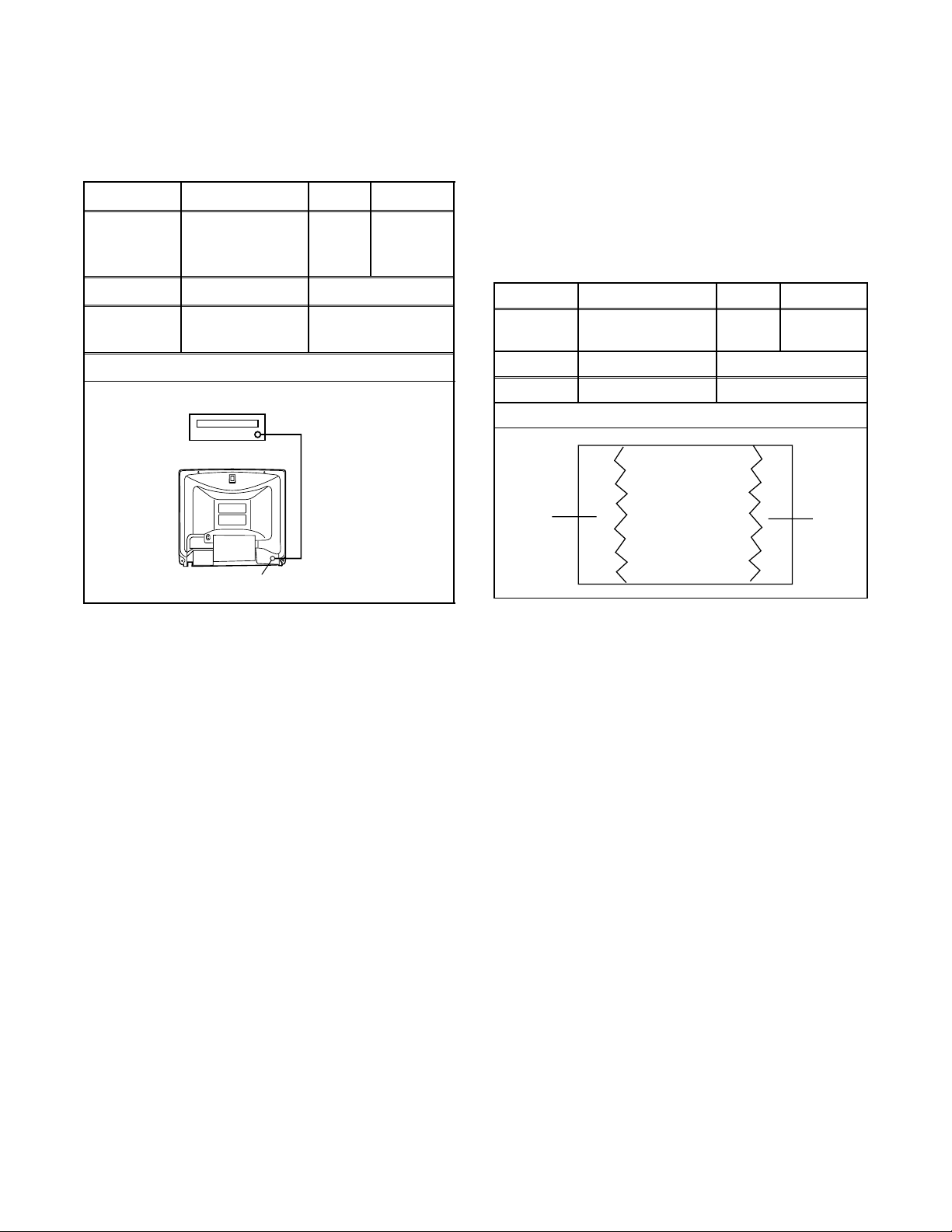

Purpose: To get minimum leakage of the color signal carrier.

Symptom of Misadjustment: If C-Trap Adjustment is incorrect, stripes will appear on the screen.

Test point Adj. Point Mode Input

TP1503

(B-OUT)

Tape M. EQ. Spec.

---

minimum

Note: TP1503 (B-OUT)--- Main CBA

1. Connect oscilloscope to TP1503.

2. Input a color bar signal from RF input. Enter the Service mode. (See page 1-6-1.)

3. Press "0" button on the remote control unit and select C-TRAP mode. (Fig. 3)

4. Press "CH o / p" buttons on the remote control unit so that the carrier leakage B-Out (3.58MHz) value becomes minimum on the oscilloscope.

5. Turn the power off and on again.

CH o / p

buttons

Oscilloscope

Pattern Generator

Figure

--- Color Bar

---

Fig. 2

1-6-2 T8059EA

Page 20

3-2. Y DL Time TV/Y DL Time EXT/

Y SW LPF/Black Stretch Off/ Black Stretch CONT/C. Angle Adjustment

Purpose: To get minimum leakage of the color signal

carrier. Symptom of Misadjustment: If Y DL Time Adjust-

ment is incorrect, stripes will appear on the screen.

1. Enter the Service mode. (See page 1-6-1.)

2. Y DL Time TV Adjustment: Press "0" button on the service remote control unit twice to show "D-T TV" on the display. Y DL Time EXT Adjustment: Press "0" button on the service remote control unit three times to show "D-T EXT" on the display. Y SW LPF Adjustment: Press "0" button on the service remote control unit four times to show "Y SW" on the display. Black Stretch Off Adjustment: Press "0" button on the service remote control unit five times to show "B-S" on the display. Black Stretch CONT Adjustment: Press "0" button on the service remote control unit six times to show "BS2" on the display. C. Angle Adjustment: Press "0" button on the service remote control unit seven times to show "CANG" on the display.

3. Y DL Time TV Adjustment: Select "2" by pressing "CH o / p" buttons on the service remote control. Y DL Time EXT Adjustment: Select "2" by pressing "CH o / p" buttons on the service remote control. Y SW LPF Adjustment: Select "0" by pressing "CH o / p" buttons on the service remote control. Black Stretch Off Adjustment: Select "OFF" by pressing "CH o / p" buttons on the service remote control. Black Stretch CONT Adjustment: Select "0" by pressing "CH o / p" buttons on the service remote control. C. Angle Adjustment: Select "103" by pressing "CH o / p" buttons on the service remote control.

C-TRAP Adjustment (Factory mode)

"0" button

C-TRP 0 C-TRP 1

"0" button

button

CH button

Y DL Time TV Adjustment

D-T TV 0 D-T TV 1

"0" button

button

CH button

Y DL Time EXT Adjustment

D-T EXT 0 D-T EXT 1

"0" button

button

CH button

Y SW LPF Adjustment

Y SW

"0" button

button

0 Y SW

CH button

Black Stretch Off Adjustment

B-S OFF

"0" button

button

CH button

Black Stretch CONT Adjustment

BS2 0

button

CH button

B-S 0

BS2 1

"0" button

C. Angle Adjustment

C-ANG 103

button

CH button

C-ANG 95

Fig. 3

1-6-3 T8059EA

Page 21

4. V. Size Adjustment

6. H. Position Adjustment

Purpose: To obtain correct vertical height of screen

image. Symptom of Misadjustment: If V. Size is incorrect,

vertical height of image on the screen may not be properly displayed.

Test point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-6-1.) Press "9" button on the remote control unit and select V-S mode. (Press "9" button then display will change to V-P and V-S).

2. Input monoscope pattern.

3. Press "CH o / p" buttons on the remote control unit so that the monoscope pattern is 90±5% of display size and the circle is round.

CH o / p

buttons

--- Monoscope

5. V. Shift Adjustment

Purpose: To obtain correct vertical position of screen

image. Symptom of misadjustment: If V. Position is incor-

rect, vertical position of image on the screen may not be properly displayed.

Purpose: To obtain correct horizontal position of screen image.

Symptom of Misadjustment: If H. Position is incorrect, horizontal position of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

CH o / p

---

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 1-6-1.)

3. Input monoscope pattern.

4. Press "8" button on the remote control unit and select "H-P" mode.

5. Press "CH o / p" buttons on the service remote control unit so that the monoscope pattern is 90±5% of display size and the circle is round.

6. Turn the power off and on again, using the main power button on the TV unit.

buttons

[ H-P ] mode

Mono-

scope

Test point Adj. Point Mode Input

Screen Control,

---

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 1-6-1.)

3. Input monoscope pattern.

4. Press "9" button on the service remote control unit and select "V-P" mode. (Display change "V-S" and "V-P" cyclically when "9" button is pressed.)

5. Press "CH o / p" buttons on the service remote control unit so that the top and bottom of the monoscope pattern are equal to each other.

6. Turn the power off and on again, using the main power button on the TV unit.

CH o / p

buttons

RF Monoscope

1-6-4 T8059EA

Page 22

7. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

8. Sub-Brightness Adjustment

Purpose: To get proper brightness. Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by adjusting the Brightness Control.

Test Point Adj. Point Mode Input

Screen

Tape M. EQ. Spec.

---

Note: Use service remote control unit

1. Operate the unit more than 20 minutes.

2. Face the unit to the east. Degauss the CRT using a degaussing coil.

3. Input the White Raster (APL 100%).

4. Set the color analyzer to the CHROMA mode and after zero point calibration, bring the optical receptor to the center on the tube surface (CRT).

5. Enter the Service mode. Press "VOL p" button on the service remote control unit and select "C/D" mode. (Display changes "C/D," "7F," and "9V" cyclically when "VOL p" button is pressed.)

6. Press "4" button on the service remote control unit for Red adjustment. Press "5" button on the service remote control unit for Blue adjustment.

7. In each color mode, press "CH o / p" buttons to adjust values of color.

8. Adjust Red and Blue color so that the temperature becomes 9200K (x: 286 / y: 294) ±3%.

9. At this time, re-check that horizontal line is white. If not, Re-adjust Cut-off Adjustment until the horizontal line becomes pure white.

10. Turn off and on again to return to normal mode. Receive APL 100% white signal and confirm that Chroma temperatures become 9200K (x: 286 / y: 294) ±3%.

Note: Confirm that Cut Off Adj. is correct after this adjustment, and attempt Cut Off Adj. if needed.

CH o / p

buttons

Pattern

Generator,

Color analyzer

Figure

Color Analyzer

See below

White Ras-

ter (APL

100%)

Fig. 4

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

White

Note: IQW Setup level --- 7.5 IRE

Use service remote control unit

1. Enter the Service mode. (See page 1-6-1.) Then input IQW signal from RF Input.

2. Press "PICTURE" button on the service remote control unit and select "BRT" mode. (Display changes "BRT," "CNT," "CLR," "TNT," and "V-TINT" cyclically when PICTURE button is pressed.) Press "CH o / p" buttons so that the bar is just visible (See above figure).

3. Turn the power off and on again, using the main power button on the TV unit.

CH o / p

buttons

Pattern

Generator

Figure

RF IQW

See below

Black

This bar just visible

Fig. 5

1-6-5 T8059EA

Page 23

9. Focus Adjustment

Purpose: Set the optimum Focus. Symptom of Misadjustment: If Focus Adjustment is

incorrect, blurred images are shown on the display.

10. H fo Adjustment

Purpose: To get correct horizontal frequency. Symptom of Misadjustment: If H f0 adjustment is

incorrect, skew distortion will appear on the screen.

Test Point Adj. Point Mode Input

--- Focus Control RF

Tape M. EQ. Spec.

---

Note: Focus VR (FBT) --- Main CBA,

FBT= Fly Back Transformer

1. Operate the unit more than 30 minutes

2. Face the unit to the East and degauss the CRT using a degaussing coil.

3. Input monoscope pattern.

4. Adjust the Focus Control on the FBT to obtain a clear picture.

Pattern

Generator

Mono-

scope

See below

Test Point Adj. Point Mode Input

R1583

Tape M. EQ. Spec.

---

Note: R1583 --- Main CBA

Use Service remote control unit.

1. Connect frequency counter to R583 and ground.

2. Set the unit to the VIDEO mode which is located before CH2 and no input is necessary. Enter the Service mode. (See page 1-6-1.)

3. Operate the unit for at least 20 minutes.

4. Press "2" button on the Service remote control unit and select H-ADJ mode. (By pressing "2" button the display will change from TV AGC to H-ADJ.)

5. Press "CH o / p" buttons on the Service remote control unit so that the display will change "0" ~ "7." At this moment, choose display "0" ~ "7" when the frequency counter display is closest to 15.734 kHz±300Hz.

6. Turn the power off and on again, using the main power button on the TV unit.

CH o / p button ["H-ADJ"] MODE

Frequency

Counter

15.734kHz±300Hz

---

1-6-6 T8059EA

Page 24

11. Cut-off Adjustment

Purpose: To adjust the beam current of R, G, B, and

screen voltage. Symptom of Misadjustment: White color may be

reddish, greenish or bluish.

The following 2 adjustments normally are not attempted in the field. They should be done only when replacing the CRT then adjust as a preparation.

12. Purity Adjustment

Test Point Adj. Point Mode Input

Screen-Control

---

Tape M. EQ. Spec.

---

PATTERN GENERATOR

Note: Screen Control FBT --- Main CBA

FBT= Fly Back Transformer Use service remote control unit

1. Degauss the CRT and allow CRT to operate for 20 minutes before starting the alignment.

2. Input the Black Raster Signal from RF Input.

3. Enter the Service mode. (See page 1-6-1.)

4. Press "VOL p" button on the service remote control unit and select "C/D" mode. (Display changes "C/ D," "7F," and "9V" cyclically when "VOL p" button is pressed.) Then press "1." The display will momentarily show "CUT OFF R" (R= Red.) Now there should be a horizontal line across the center of the picture tube. If needed, gradually turn the screen control on the flyback clockwise until the horizontal line appears. Adjust the Red Cut off by pressing the "CH o / p" buttons. Proceed to Step 5 when the Red Cut off adjustment is done.

5. Press the "2" button. The display will momentarily show "CUT OFF G" (G=Green.) Adjust the Green Cut off by pressing the "CH o / p" buttons. Proceed to step 6 when the Green Cut off adjustment is done.

6. Press the "3" button. The display will momentarily show "CUT OFF B" (B=Blue.) Adjust the Blue cut off by pressing the "CH o / p" buttons. When done with steps 4, 5 and 6 the horizontal line should be pure white. If not, then attempt the Cut off adjustment again.

CH o / p

buttons

Pattern

Generator

Figure

RF INPUT

Black Ras-

See Reference

Notes below.

Fig. 6

ter

Purpose: To obtain pure color. Symptom of Misadjustment: If Color Purity Adjust-

ment is incorrect, large areas of color may not be properly displayed.

Test point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator See below.

GREEN

* This becomes RED COLOR if the 7KEY is pressed

while in service mode.

1. Set the unit facing east.

2. Operate the unit for over 30 minutes before adjusting.

3. Fully degauss the unit using an external degaussing coil.

4. Set the unit to the AUX mode which is located before CH2, then input a red raster from video in.

5. Loosen the screw on the Deflection Yoke Clamper and pull the Deflection Yoke back away from the screen. (See Fig. 8.)

6. Loosen the Ring Lock and adjust the Purity Magnets so that a red field is obtained at the center of the screen. Tighten Ring Lock. (See Fig. 7,8.)

7. Slowly push the Deflection Yoke toward the bell of the CRT and set it where a uniform red field is obtained.

8. Tighten the clamp screw on the Deflection Yoke.

Deflection Yoke

Purity Magnet

Figure

RED

--- *Red Color

BLUE

Fig. 7

1-6-7 T8059EA

Page 25

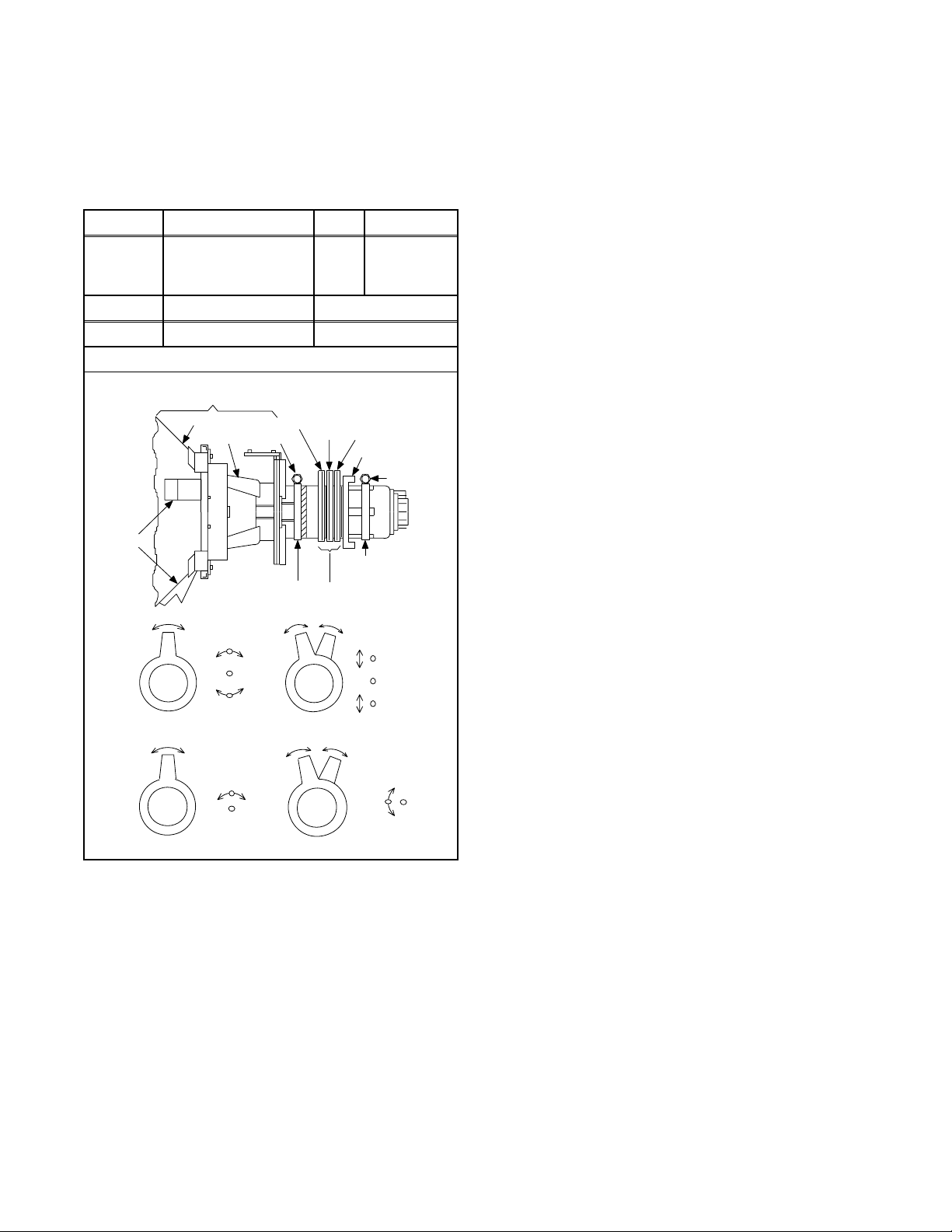

13. Convergence Adjustment

Purpose: To obtain proper convergence of red, green

and blue beams. Symptom of Misadjustment: If Convergence Adjust-

ment is incorrect, the edge of white letters may have color edges.

Test point Adj. Point Mode Input

C.P. Magnet (RB),

---

C.P. Magnet (RB-G),

Deflection Yoke

Tape M. EQ. Spec.

--- Pattern Generator See below.

Figure

DEFLECTION YOKE

CRT

COIL

PURITY

SCREW

---

RB-G

RING LOCK

Dot Pattern

Crosshatch

SCREW

DY WEDGE

C.P. MAGNET

COIL CLAMPER

C.P. MAGNET (RB)

C.P. MAGNET (RB-G)

CLAMPER

C.P. MAGNET

Fig. 8

Fig. 9

Fig. 10

1. Set the unit to the AUX mode which is located before CH2, then input a dot or crosshatch pattern.

2. Loosen the Ring Lock and align red with blue dots or crosshatch at the center of the screen by rotating (RB) C.P. Magnets. (See Fig. 9.)

3. Align red / blue with green dots at the center of the screen by rotating (RB-G) C.P. Magnet. (See Fig. 10.)

4. Fix the C.P. Magnets by tightening the Ring Lock.

5. Remove the DY Wedges and slightly tilt the Deflection Yoke horizontally and vertically to obtain the best overall convergence.

6. Fix the Deflection Yoke by carefully inserting the DY Wedges between CRT and Deflection Yoke.

1-6-8 T8059EA

Page 26

FIRMWARE RENEWAL MODE

1. Turn the power on and press [SELECT] button on the remote control unit to put the DVD player into DVD mode. Then remove the disc on the tray. (It is possible to move to F/W version up mode only when the DVD player in DVD mode with the tray opened.)

2. To put the DVD player into F/W version up mode, press [9], [8], [7], [6], and [SEARCH MODE] buttons on the remote control unit in that order. Fig. a appears on the screen.

" differ depending on the models.

*******

F/W Version Up Mode Model No : *******

Please insert a DISC

for F/W Version Up.

VERSION : *.**

EXIT: SELECT

Fig. a Version Up Mode Screen

The DVD player can also enter the version up mode with the tray open. In this case, Fig. a will be shown on the screen while the tray is open.

3. Load the disc for version up.

4. The DVD player enters the F/W version up mode automatically. Fig. c appears on the screen. If you enter the F/W for different models, “Disc Error” will appear on the screen, then the tray will open automatically.

" differ depending on the models.

*******

5. After programming is finished, the tray opens automatically. Fig. e appears on the screen and the checksum in (*3) of Fig. e.

" differ depending on the models.

*******

F/W Version Up Mode

VERSION : X5****_****.ab5 Completed

SUM : 7ABC (*3)

Model No : ******* VERSION : *.**

Fig. e Completed Program Mode Screen

At this time, no buttons are available.

6. Remove the disc on the tray.

7. Press [CH UP/DOWN] button on the unit to go to TV mode, or press [POWER] button on the unit to turn the power off.

8. Press [SELECT] button on the remote control unit to put the DVD player into DVD mode again.

9. Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order. Fig. g appears on the screen.

" differ depending on the models.

*******

MODEL : *******

Version Region

: *.**

: *

F/W Version Up Mode Model No : *******

VERSION : X5****_****.ab5 Reading...(*2)

VERSION : *.**

Fig. c Programming Mode Screen

The appearance shown in (*2) of Fig. c is described as follows:

AppearanceNo. State

Reading... Sending files into the memory

Erasing... Erasing previous version data

Programming...

3 Writing new version data

EXIT: SELECTEEPROM CLEAR : CLEAR

Fig. g

10.Press [CLEAR] button on the remote control unit. Fig. h appears on the screen.

" differ depending on the models.

*******

MODEL : *******

Version Region

: *.**

: *

EXIT: SELECTEEPROM CLEAR : CLEAR

EEPROM CLEAR : OK

Fig. h

When “OK” appears on the screen, the factory default will be set. Then the firmware renewal mode is complete.

11.To exit this mode, press [CH UP/DOWN] or [SELECT] button to go to TV mode, or press [POWER] button to turn the power off.

1-7-1 T9000TEST

Page 27

BLOCK DIAGRAMS < TV Section >

System Control Block Diagram

TO DVD SYSTEM

CONTROL / SERVO

BLOCK DIAGRAM

(DVD SECTION)

CNA1

CS11

SD ATA12

SCLK10

DVD-REMOTE13

CL001

MAIN CBA

+8.7V-REG

MCV+5.7V-REG

+5.7V-REG

TO POWER SUPPLY

DVD-MAIN-POWER

BLOCK DIAGRAM

P-ON-H

P-DOWN

TO AUDIO

BLOCK DIAGRAM

SP-MUTE

DVD-A-MUTE

TV MICON/VIDEO

/CHROMA

/DEFLECTION

IC1201

596061

SD ATA

SCLK

REMOTE-OUT

RS1201

REMOTE

SENSOR

REMOTE

SCL

57 I2C-OPEN

KEY

SWITCH

RESET

Q1285

MCV+5.7V-REG

+5.7V-REG

DVD-MAIN-POWER

RESET

P-ON-H

KEY-1

KEY-0

+8.7V-REG

SDA

69 AFT

76 EXT-L

SP-MUTE

DVD-A-MUTE

(MEMORY)

IC1202

SCL

SDA

1-8-1

SCL

SDA

AFT

EXT-L

TO IF/VIDEO

BLOCK DIAGRAM

T8059BLS

Page 28

IF/Video Block Diagram

TO AUDIO

BLOCK DIAGRAM

TO SYSTEM

CONTROL

BLOCK DIAGRAM

TO CRT/H.V.

BLOCK DIAGRAM

AUDIO (TV/LINE) SIGNAL

TU-AUDIO

DVD VIDEO SIGNAL

MAIN CBA

WF1

AMP

WF6

LIM

AMP

DET

AMP

VIDEO (TUNER/LINE) SIGNAL

RF/IF SIGNAL

VCO F/B

AFT

SCL

SDA

EXT-L

X1301

3.58MHz

SPOT-KILL

VCXO

RED

BLUE

GREEN

525150

RGB DRIVE

/CUT OFF

/H.V. BLK

OSD SW

/CONTRAST

BRIGHTNESS

RGB

MATRIX

/COLOR

CONT

CHROMA

COMB

/BASEBAND

TINT

AFC

TP1305

H.DRV.

TP1304

ACL

AFC

V-DRIVE

H-DRIVE

V-RAMP-F/B

5346453837

V-SYNC

H-SYNC

PROCESS

CIRCUIT

PROCESS

CIRCUIT

CF1031

IC1001 (IF SIGNAL PROCESS)

SF1001

TU1001

4.5MHz

TRAP

VIDEO

DET

VIF

AMP

SAW

FILTER

11 IF

CF1032

VCO

4.5MHz

FILTER

LPF

AGC

IF AGC DET

AFT

AMP

OSD

LUMINANCE

PROCESS

CIRCUIT

CHROMINANCE

PROCESS

CIRCUIT

DVD

TUNER/LINE

TUNER

LINE

TV MICON/VIDEO

/CHROMA

/DEFLECTION

IC1201

SCL

SDA

EXT.CLK

WF16

JK1701

VIDEO-IN

DVD

TUNER/LINE

DVD-C

TP1734

DVD-Y

TP1733

WF17

CL002

DVD -Y 1

DVD -C 3

TO DIGITAL SIGNAL

PROCESS BLOCK

DIAGRAM

(DVD SECTION)

CNB1

LPF

WF18

WF2

TP1301

VIDEO-OUT

1-8-2 T8059BLIF

Page 29

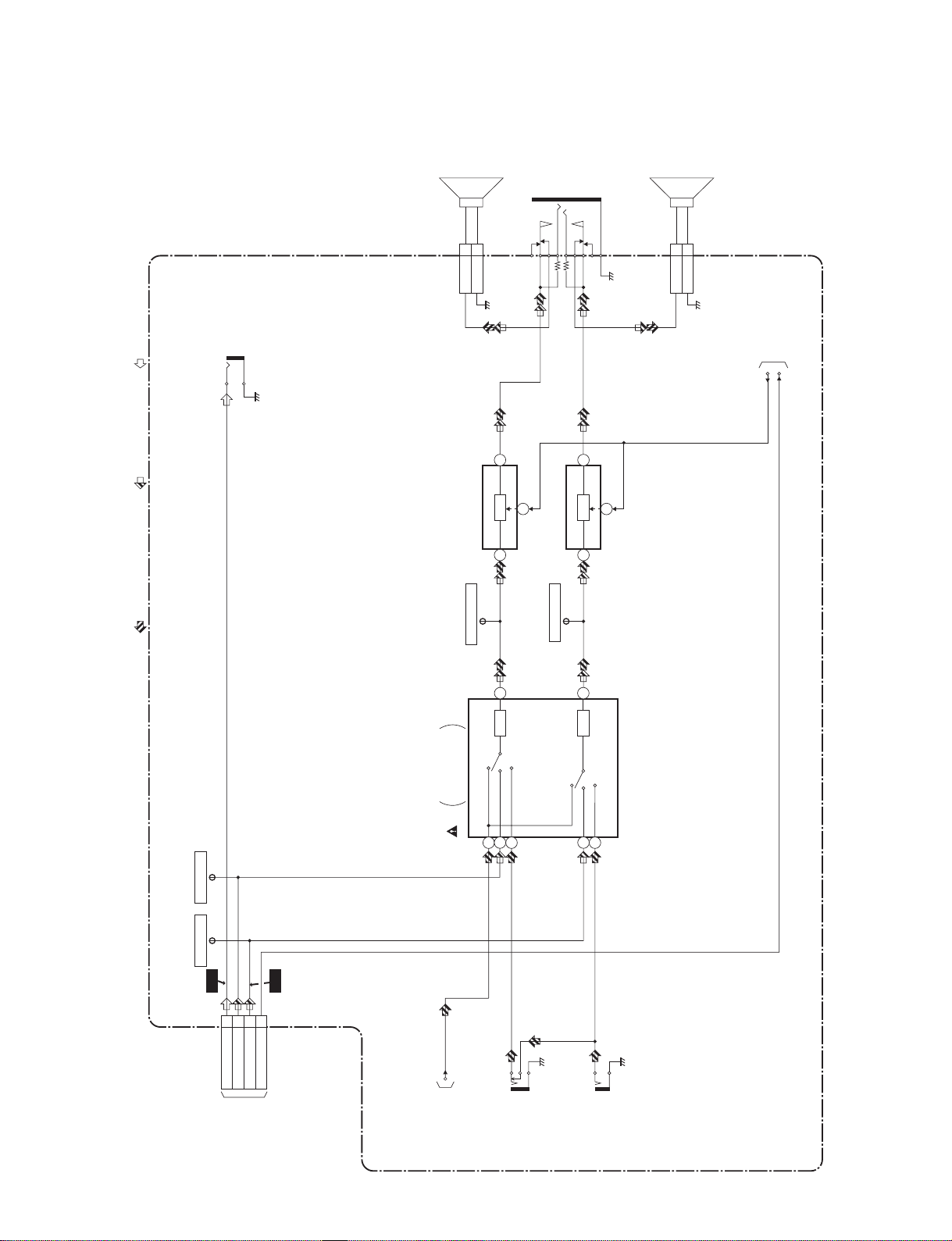

Audio Block Diagram

SP1801

SPEAKER

R-CH

SP1802

SPEAKER

L-CH

AUDIO (TV/LINE) SIGNAL DVD AUDIO SIGNAL DATA(AUDIO) SIGNAL

DVD DIGITAL

JK1730

AUDIO OUT

(COAXIAL)

CL1801

SP-R 1

CN1801

TP1402

AUDIO-R-OUT

SP-GND 2

AMP

IC1801 (AUDIO AMP)

JK1801

HEADPHONE

JACK

IC1802 (AUDIO AMP)

TP1401

AUDIO-L-OUT

AMP

CL1802

SP-L 1

SP-GND 2

CN1802

TO SYSTEM CONTROL

BLOCK DIAGRAM

SP-MUTE

DVD-A-MUTE

ATT

(R-CH)

TV MICON/VIDEO

/CHROMA

/DEFLECTION

TUNER

LINE

IC1201

DVD

AUDIO(R)

JK1702

MAIN CBA

TP1404

DVD-R-OUT

TP1403

DVD-L-OUT

DVD-AUDIO(L) 6

DVD-AUDIO(R)

WF19

DVD-A-MUTE 5

TU-AUDIO

WF20

CL002

SPDIF 9

TUNER

DVD

ATT

LINE

JK1703

(L-CH)

AUDIO(L)

TO DVD AUDIO

BLOCK DIAGRAM

(DVD SECTION)

CNB1

TO IF/VIDEO

BLOCK DIAGRAM

1-8-3

T8059BLA

Page 30

CRT/H.V. Block Diagram

D.Y.

V-

DRIVEH-DRIVE

L551

543

WF12

WF9

CN1571

ANODE

JK501

FOCUS

SCREEN

GND

V501

CRT

RGB

HEATER

WF13

GND

CN505

DVD VIDEO SIGNAL

PROTECTION

AMP

WF7

PULSE

THERMAL

VIDEO SIGNAL(TUNER/LINE)

IC1551 (VERTICAL DEFLECTION CONTROL)

WF11

WF8

T1572

H.OUTPUT

Q1571

BLUE AMP

Q531

CL501ACL501B

WF14WF15

ANODE

FOCUS VR

T1571 F.B.T.

135

FOCUS

SCREEN

SCREEN VR

810796

HEATER 11

+160V 33

Q511

WF10

Q521CL501ACL501B

MAIN CBA

GREEN AMP

RED AMP

77RED

66GREEN

88BLUE

WF5

WF4

CRT CBA

WF3

H.DRIVE

Q1572

J2002

+B ADJ

DEF+B

POWER SUPPLY

BLOCK DIAGRAM

Q1591

1-8-4

H-DRIVE

V-DRIVE

AFC

ACL

RED

V-RAMP-F/B

TO IF/VIDEO

BLOCK DIAGRAM

GREEN

BLUE

TP1503

GREEN

TP1502

RED

TP1501

T8059BLCRT

Page 31

Power Supply Block Diagram

TO CRT/H.V.

BLOCK DIAGRAM

EV+1.2V

EV+3.3V

P-ON+5V

DVD-ON+5V

EV+9V

DVD-ON+3.3V

PWRCON

DVD MAIN CBA UNIT

DEF+B

NOTE :

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,

REPLACE ONLY WITH SAME TYPE 4 A, 125V FUSE.

CAUTION:

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

AL+33V

BACK-UP

Q1606

SWITCHING

+9V

Q1304

+5V

Q1303

AL+8.7V

SWITCHING

Q1607

P-ON+5V

+5V

Q1614

P-ON+5V(1)

P-ON+5V(2)

+5V

Q1616

SWITCHING

P-ON+12V

SWITCHING

+8V

Q1613

P-ON+8V

P-ON+5V

+5V

SWITCHING

Q1301

SWITCHING

+1.2V

REGULATOR

IC1602

AUDIO+5V

+3.3V

Q1615

Q1619

+3.3V

SWITCHING

IC1603

IC1604

SHUNT

REGULATOR

EV+1.2V11

EV+1.2V22

EV+3.3V33

CL001 CNA1

SHUNT

REGULATOR

+5V

SWITCHING

Q1608

Q1610

P-ON+5V14 14

DVD-ON+5V

EV+9V66

DVD-ON+3.3V

PWRCON99

MCV+5.7V-REG

+5.7V-REG

+8.7V-REG

Q1612

+B ADJ

VR1601

P-DOWN

SYSTEM

CONTROL

BLOCK

P-ON-H

Q1605

DIAGRAM

DVD-

MAIN-POWER

Q1609

4A 125V

T1601

BRIDGE

RECTIFIER

D1603 - D1606

HOT COLD

LINE

FILTER

L1601

PS1602

4A 125V

F1601

W1601

AC CORD

4A/125V

CN1601

DEGAUSSING

DG601

COIL

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.

If Main Fuse (F1601) is blown, check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

Q1601

SWITCHING

1-8-5

MAIN CBA

FEED

BACK

Q1604

LIMITER

Q1602

IC1601

ERROR

VOLTAGE DET

T8059BLP

Page 32

BLOCK DIAGRAMS < DVD Section >

DVD System Control / Servo Block Diagram

DIAGRAM

(TV SECTION)

CL001

TO SYSTEM

SDATA

121110

CNA1

Q1003

FP-DOUT

CONTROL BLOC

SCLK

Q1001

Q1002

606167

FP-DIN

FP-CLK

DVD-REMOTE

REMOTE

(MICRO CONTROLLER)

IC101

ADAC-MD

A-MUTE

PCM-SCLK

163

56 ADAC-MC

86 ADAC-ML

IC462

+3.3V

IC461

RESET73

RESET

1 3

RESET

2 1

VREF

IC301 (SERVO DRIVE)

FOCUS DRIVE

FD-OFST

148

146

FOCUS

ACTUATOR

DRIVE

TD-OFST

TRACKING

DRIVE

147

139

TRACKING

ACTUATOR

DRIVE

312

SPDL 76

SPINDLE

MOTOR

DRIVE

SLD 75

645

SLED

MOTOR

DRIVE

IC202 (OP AMP)

SP-ROT 143

SL-AMP

+3.3V

3SP(+)

CN301

4SP(-)

5TRAY-IN

6GND

7SL(-)

8SL(+)

TRAY-IN 66

DVD MAIN CBA UNITDRIVE CBA

A-MUTE

ADAC-MD

PCM-SCLK

TO DVD AUDIO

ADAC-MC

ADAC-ML

BLOCK DIAGRAM

FS(+)

FS(-)

TO DIGITAL SIGNAL

TS(+)

TS(-)

PROCESS BLOCK

DIAGRAM

1-8-6

TRAY-IN

SPINDLE

MOTOR

SLED

MOTOR

T8059BLSD

Page 33

Digital Signal Process Block Diagram

TO DVD

AUDI O

BLOCK

DIAGRAM

TO IF/VIDEO

BLOCK DIAGRAM

(TV SECTION)

CL002

FLASH

ROM

DATA(AUDIO) SIGNAL

DATA(VIDEO/AUDIO) SIGNAL DVD VIDEO SIGNAL

DATA

RAM

DSP

INST.

ROM

DECODER

STREAM

I/F

DATA

RAM

I/O

INST.

ROM

PROCESSOR

SPDIF

PCM-BCK

177

170

PCM-DATA

171

AUDI O

I/F

UMAC

PCM-LRCLK

169

SERIAL

GENERAL

I/O

CPU

I/F

READ

MEMORY

INTERRUPT

CNB1

CONTROLLER

IC103 (FLASH ROM)

1DVD-Y

3DVD-C

149

158

D/A

NTSC/PAL

ENCODER

VIDEO

I/F

DATA

RAM

TIMER

WATCH DOG

TIMER

REMOTE

32BIT CPU

CONTROL

BCU

INST

DEBUG

RAM

23~51

162548

FADR (0-19)

293638

FDQ (0-15)

SDRAM ADDRESS(0-10)

217

238

SDRAM ADDRESS(0-11)

222629

IC501,IC502 (SDRAM) IC101 (MICRO CONTROLLER)

EXTERNAL

MEMORY

I/F

SDRAM

DECODER

I/F

ECC

SDRAM DATA(0-15)

252

SDRAM DATA(0-15)

123949

256

114

115

116

DMA

DVD/CD

117

132

CN201

C16

FORMATTER

SIGNAL

PROCESS

CIRCUIT

131

D18

192~212

CPU

I/F

BCU

WATCH DOG

GND(LD)

INTERRUPT

TIMER

CONTROLLER

CD/DVD

TO DVD SYSTEM

CONTROL / SERVO

BLOCK DIAGRAM

IC201

(SW)

1 3

CD DVD

FS(-)

TS(-)

FS(+)

TS(+)

CN201

FS(-) 3

TS(-) 4

FS(+) 2

TS(+) 1

DVD MAIN CBA UNIT

PICK-UP

UNIT

32BIT

CPU

INST.

ROM

DATA

RAM

126

124

125

AMP

Q253,Q254

AMP

CN201

CD-LD 10

DVD-LD 8

123

Q251,Q252

PD-MONI 7

GND(CD-PD)

GND(DVD-PD)

134

133

129

130

F12

A17

B15

E14

CD/DVD 19

DETECTOR

1-8-7

T8059BLD

Page 34

DVD Audio Block Diagram

DVD AUDIO SIGNAL

DATA(AUDIO) SIGNAL

Q1004

BUFFER

Q1005

L-CH

AMP

LPF+AMP

CNB1

R-CH

LPF+AMP

TO AUDIO BLOCK

(TV SECTION)

CL002

9 SPDIF

6 DVD-AUDIO(L)

7 DVD-AUDIO(R)

5 DVD-A-MUTE

IC601 (AUDIO DAC)

DAC

ENHANCED

MULTI-LEVEL

DELTA-SIGMA

4X/8X

/FUNCTION

DIGITAL FILTER

OVERSAMPLING

PORT

SERIAL

123

DAC

MODULATOR

CONTROLLER

SERIAL

131415

SYSTEM CLOCK

DVD MAIN CBA UNIT

CONTROL

SPDIF

PCM-BCK

PCM-DATA

DIGITAL

SIGNAL

PROCESS

PCM-LRCLK

BLOCK

DIAGRAM

1-8-8

ADAC-MD

ADAC-MC

ADAC-ML

DVD

SYSTEM

CONTROL

/SERVO

BLOCK

DIAGRAM

PCM-SCLK

A-MUTE

T8059BLAD

Page 35

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

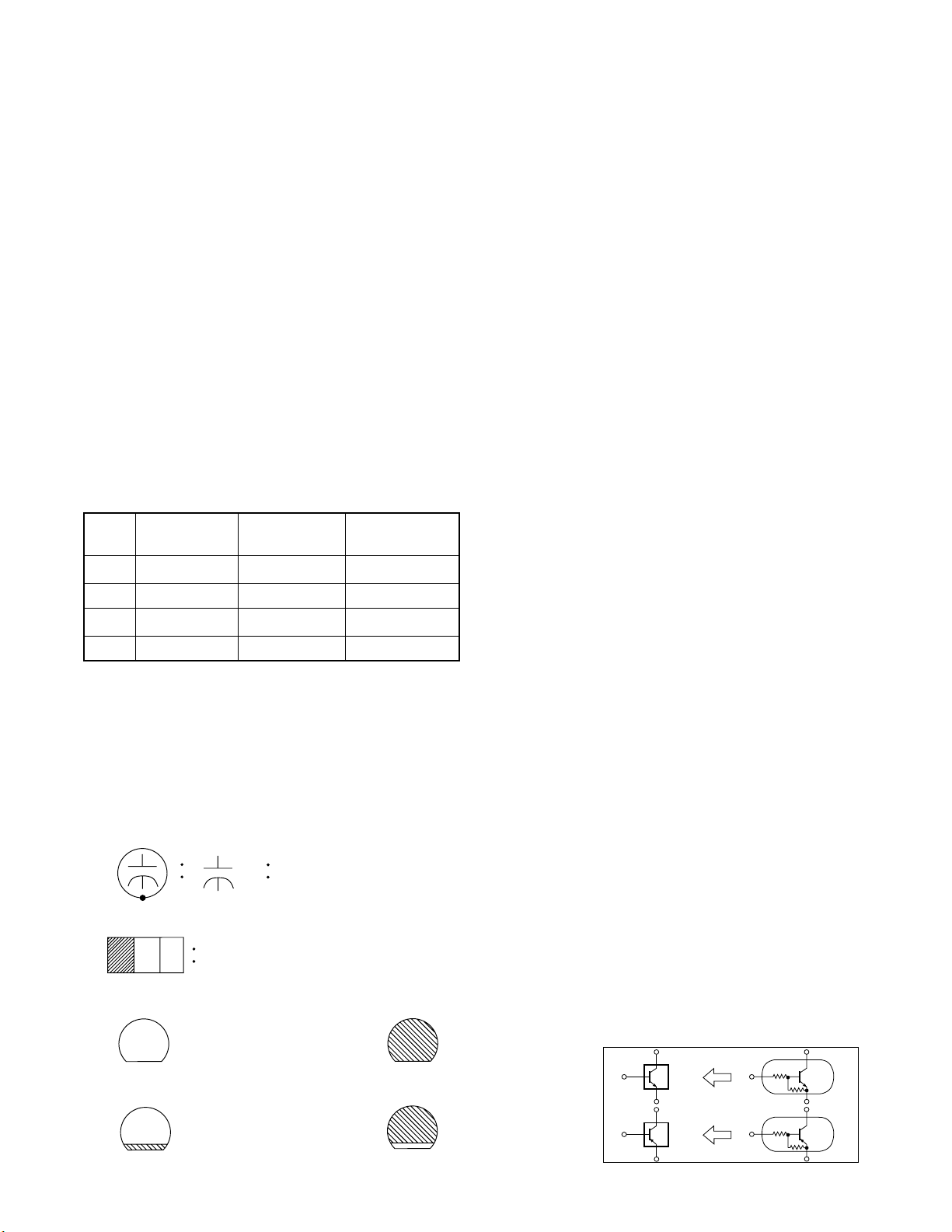

Standard Notes

Warning

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark " # " in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Capacitor Temperature Markings

Mark

(B)

(F) +30 -80% 20°C -25~+85°C

Capacity

change rate

±10%

Standard

temperature

20°C -25~+85°C

Temperature

range

Note:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K=10

M=10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF

-6

(P=10

5. All voltages are DC voltages unless otherwise specified.

µF).

(SR)

(Z) +30 -80% 20°C -10~+70°C

Capacitors and transistors are represented by the following symbols.

±15%

20°C -25~+85°C

CBA Symbols

(Top View) (Bottom View)

Electrolytic Capacitor

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

(Top View)

PNP Transistor

Schematic Diagram Symbols

Digital Transistor

E C B

(Top View)

E C B

NPN Digital Transistor

E C B

(Top View)

PNP Digital Transistor

E C B

1-9-1 X5S_SC

Page 36

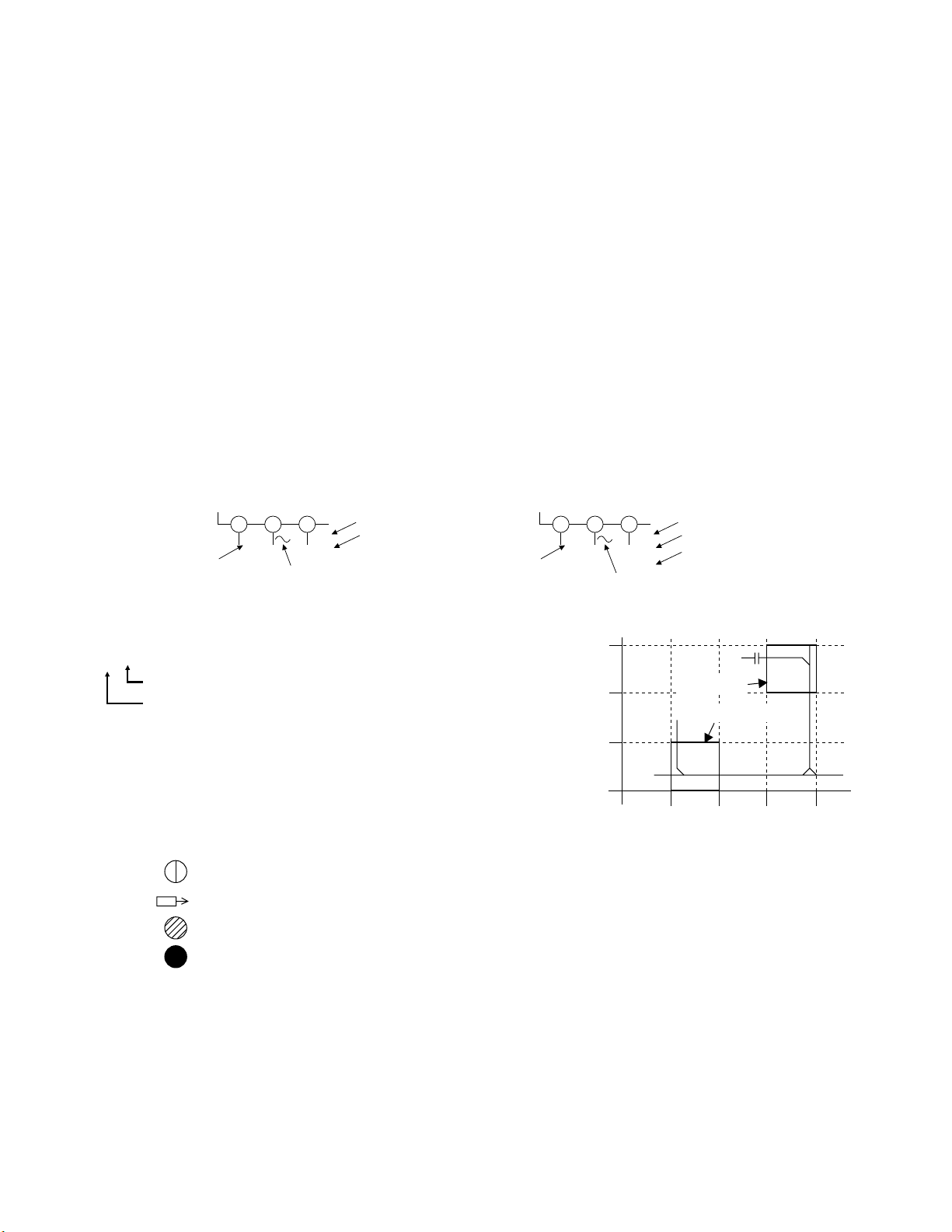

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAG ES :

1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts

list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only original replacement parts which are

listed with their part numbers in the parts list section of the service manual.

4. Mode: SP/REC

5. Voltage indications on the schematics are as shown below: Plug the TV power cord into a standard AC outlet.:

< DVD Section >

Unit: Volts

5.0

The same voltage for both PLAY & STOP modes

231

5.0 (2.5)

Indicates that the voltage is not consistent here.

PLAY mode STOP mode

Unit: Volts

The same voltage for both TV & DVD modes

< TV Section > Unit: Volts

231

5.0

5.0 (2.5) < 0 >

Indicates that the voltage is not consistent here.

TV mode (Power on) TV mode (Power off) DVD mode

6. How to read converged lines

1-D3

Distinction Area

Line Number

(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

7. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

AREA D3

AREA B1

1-D3

ABCD

1-B1

1-9-2 X5S_SC

Page 37

Main 1/6 Schematic Diagram < TV Section >

MAIN 1/6

Ref No. Position

IC1201

B-2

Q1285

B-1

Q1301

E-1 Q1303 D-1 Q1304 E-2

TP1301

D-1 TP1304 E-4 TP1305

E-4 TP1501 E-4 TP1502 E-4 TP1503 F-4

TRANSISTORS

TEST POINTS

VIDEO (TV/LINE) + DVD VIDEO SIGNAL VIDEO (TV/LINE) SIGNAL

DVD VIDEO SIGNAL

AUDIO (TV/LINE) SIGNAL DVD AUDIO SIGNAL

1-9-3 1-9-4

T8059SCM1

Page 38

Main 2/6 Schematic Diagram < TV Section >

MAIN 2/6

Ref No. Position

IC1001

J-2

IC1202 J-2

ICS

VIDEO (TV/LINE) SIGNAL

AUDIO (TV/LINE) SIGNAL

1-9-5

1-9-6

T8059SCM2

Page 39

Main 3/6 Schematic Diagram < TV Section >

MAIN 3/6

Ref No. Position

IC1801

O-3

IC1802

N-3

CL002 R-2

CN1801

M-3

CN1802

M-4

TP1401

Q-2 TP1402 Q-2 TP1403

P-2

TP1404

P-2

TP1405

P-2 TP1732 Q-3 TP1733 O-1 TP1734 O-1

CONNECTORS

TEST POINTS

ICS

DVD VIDEO SIGNAL AUDIO (TV/LINE) SIGNAL

DVD AUDIO SIGNAL DATA (AUDIO) SIGNAL

O4 P4 Q4 R4

1-9-7

1-9-8

T8059SCM3

Page 40

Main 4/6 Schematic Diagram < TV Section >

MAIN 4/6

Ref No. Position

IC1601

T-2

Q1601 S-2 Q1602 T-2 Q1604 U-2 Q1605 U-1 Q1606 U-3 Q1607 V-1 Q1608 V-1 Q1610 V-4 Q1612 V-3 Q1613 V-2 Q1614 W-2 Q1616 W-2

CN1601 S-4

TP1731

W-2

VR1601 U-2

TRANSISTORS

VARIABLE RESISTOR

TEST POINT

CONNECTOR

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F1601) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

U4 V4 W4 X4

1-9-9

1-9-10 T8059SCM4

Page 41

Main 5/6 Schematic Diagram < TV Section >

MAIN 5/6

Ref No. Position

IC1602 Z-2 IC1603 AA-3 IC1604 Z-2

Q1609 Z-1 Q1615

BB-3

Q1619 AA-3

CL001 CC-3

ICS

TRANSISTORS

CONNECTOR

AA3

AA2

BB3

BB2

CC3

CC2

1-9-11

AA1

BB1

CC1

1-9-12

T8059SCM5

Page 42

Main 6/6 & CRT Schematic Diagram < TV Section >

MAIN 6/6

Ref No. Position

IC1551 DD-3

Q1571 FF-2 Q1572

EE-3

Q1591 EE-2

CL501B GG-2

CN1571

EE-3

J2002 FF-2

TRANSISTORS

CONNECTORS

TEST POINT

VIDEO (TV/LINE) + DVD VIDEO SIGNAL

CRT

Ref No. Position

TRANSISTORS Q511 Q521 Q531

CONNECTORS

CN505 II-1

CL501A GG-2

HH-1 HH-2 HH-2

DD3

DD2

EE3

EE2

FF3

FF2

GG3

GG2

HH3

HH2

II3

II2

DD1

1-9-13

EE1

FF1

GG1

1-9-14

HH1

II1

T8059SCM6

Page 43

DVD Main 1/3 Schematic Diagram < DVD Section >

DVD MAIN 1/3

Ref No. Position

IC201 C-1 IC202 E-4 IC301 D-3 IC461 F-1 IC462 E-1

Q251 C-2 Q252 B-2 Q253 C-2

Q254 B-2 Q1001 E-2 Q1002 E-2 Q1003 F-2

CN201 A-3 CN301 A-1

CNA1 F-3

CONNECTORS

ICS

TRANSISTORS

DATA(VIDEO+AUDIO) SIGNAL

1-9-15

1-9-16

T8059SCD1

Page 44

DVD Main 2/3 Schematic Diagram < DVD Section >

DVD MAIN 2/3

Ref No. Position

IC101 G-4

DATA(VIDEO+AUDIO) SIGNAL DVD VIDEO SIGNAL

DATA (AUDIO) SIGNAL

1-9-17

1-9-18

T8059SCD2

Page 45

IC101 VOLTAGE CHART

PIN.NO PLAY STOP PI N.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

129 2.3 2.3 161 3.4 3.4 193 ~ ~ 225 3.4 3.4 130 2.3 2.3 162 0 0 194 ~ ~ 226 ~ ~ 131 2.3 2.3 163 1.8 1.8 195 ~ ~ 227 ~ ~ 132 2.4 2.3 164 0 0 196 3.4 3.4 228 ~ ~ 133 2.4 2.4 165 1.7 1.8 197 ~ ~ 229 0 0 134 2.4 2.4 166 1.7 1.7 198 ~ ~ 230 ~ ~ 135 2.3 2.3 167 3.4 3.4 199 ~ ~ 231 3.4 3.4 136 2.3 2.3 168 0 0 200 ~ ~ 232 1.3 1.6 137 2.3 2.3 169 1.8 1.8 201 0 0 233 ~ ~ 138 2.3 2.3 170 1.7 1.7 202 3.4 3.4 234 1.9 2.3 139 1.7 1.7 171 1.3 0.1 203 ~ ~ 235 0 0 140 ----- ----- 172 1.3 1.3 204 ~ ~ 236 1.3 1.3 141 3.4 3.4 173 0 0 205 0 0 237 ~ ~ 142 1.3 1.3 174 ----- ----- 206 ~ ~ 238 ~ ~ 143 2.1 1.7 175 ----- ----- 207 ~ ~ 239 3.4 3.4 144 2.2 2.2 176 ----- ----- 208 ~ ~ 240 3.4 3.3 145 0 0 177 1.8 1.7 209 3.4 3.4 241 1.9 1.9 146 1.7 1.7 178 3.4 3.5 210 ~ ~ 242 0 0 147 1.8 1.7 179 0 0 211 ~ ~ 243 1.9 1.9 148 1.7 1.7 180 ----- ----- 212 ~ ~ 244 3.4 3.3 149 0.6 0.5 181 ----- ----- 213 0 0 245 3.4 3.4 150 3.4 3.4 182 ----- ----- 214 2.5 3.0 246 3.4 3.4 151 ----- ----- 183 ----- ----- 215 2.5 3.0 247 0 0 152 ----- ----- 184 ----- ----- 216 3.4 3.4 248 3.3 3.4 153 1.4 1.3 185 ----- ----- 217 ~ ~ 249 3.2 3 154 1.4 1.3 186 ----- ----- 218 0 0 250 0 0 155 2.4 2.4 187 ----- ----- 219 1.3 1.3 251 3.2 3.0 156 ----- ----- 188 ----- ----- 220 ~ ~ 252 ~ ~ 157 0 0 189 ----- ----- 221 ~ ~ 253 0 0 158 0.9 0.9 190 3.4 3.5 222 0 0 254 ~ ~ 159 3.4 3.4 191 0 0 223 ~ ~ 255 3.4 3.4 1600 0192~ ~224~ ~256~ ~

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

1 ~ ~ 33 ~ ~ 65 ----- ----- 97 ----- ----2 ~ ~ 343.43.4663.43.5983.43.4 3 0 0 35 0 0 673.23.2990.90.8 4 ~ ~ 36 ~ ~ 68 ----- ----- 100 0 0 5 ~ ~ 37 ~ ~ 69 ----- ----- 101 2.4 2.4 6 3.4 3.4 38 0.4 0.3 70 3.4 3.4 102 2.2 2.2 7 ~ ~ 39 ~ ~ 71 ----- ----- 103 1.9 1.9 8 ~ ~ 40 ~ ~ 72 1.4 2.7 104 0.4 0.3

9 0 0 41 ~ ~ 73 3.4 3.4 105 0 0 10 ~ ~ 42 ~ ~ 74 0 0 106 1.7 1.7 11 ~ ~ 43 ~ ~ 75 1.7 1.8 107 3.4 3.4 12 3.4 3.4 44 1.3 1.3 76 2.3 1.8 108 ----- ----13 ~ ~ 45 ~ ~ 77 ----- ----- 109 ----- ----14 ~ ~ 46 ~ ~ 78 ----- ----- 110 1.9 1.9 15 ~ ~ 47 ~ ~ 79 ----- ----- 111 1.9 1.9 16 0 0 48 3.4 3.4 80 3.4 0.1 112 1.7 1.7 17 ~ ~ 49 0 0 81 0.1 0.1 113 1.7 1.7 18 ~ ~ 50 ~ ~ 82 ----- ----- 114 1.7 1.7 19 3.4 3.4 51 ~ ~ 83 0.1 0.1 115 1.7 1.7 20 0 0 52 0.8 0.8 84 3.4 3.4 116 1.7 1.7 21 ----- ----- 53 ----- ----- 85 0.1 0.1 117 1.7 1.7 22 3.5 3.5 54 ----- ----- 86 3.6 3.4 118 3.4 3.4 23 ~ ~ 55 ----- ----- 87 0 0 119 2.0 2.0 24 ~ ~ 56 3.4 3.4 88 3.5 0.1 120 1.7 1.7 25 ~ ~ 57 3.5 3.5 89 1.3 1.3 121 1.5 1.5 26 1.3 1.3 58 ----- ----- 90 ----- ----- 122 0 0 27 ~ ~ 59 3.4 3.4 91 ----- ----- 123 0.3 0.1 28 3.4 3.4 60 3.4 3.4 92 ----- ----- 124 1.2 0.1 29 0 0 61 3.5 3.5 93 0 0 125 0.3 0.1 30 ~ ~ 62 3.4 3.4 94 ----- ----- 126 0.1 0.1 31 ~ ~ 63 0 0 95 ----- ----- 127 2.3 2.3 32 ~ ~ 64 0 0 96 ----- ----- 128 1.7 1.7

1-9-19

1-9-20

Page 46

DVD Main 3/3 Schematic Diagram < DVD Section >

DVD MAIN 3/3

Ref No. Position

IC103 N-3 IC501 N-4 IC502 Q-4 IC601 O-1

Q1004 Q-1 Q1005 Q-2

CNB1 R-1

ICS

CONNECTOR

TRANSISTORS

DVD VIDEO SIGNAL

DATA (AUDIO) SIGNAL

DVD AUDIO SIGNAL

1-9-21

1-9-22

T8059SCD3

Page 47

Main CBA Top View < TV Section >

MAIN CBA

Ref No. Position Ref No. Position

IC1001 D-4

Q1615 D-2

IC1201

B-4

Q1616 D-4

IC1202

B-3

Q1619

C-3 IC1551 D-1 IC1601

E-3 CL001 B-1

IC1602

D-2 CL002 B-1 IC1603 D-2 CL501B D-3 IC1604 C-3

CN1571 D-1

IC1801 A-2 CN1601

D-4

IC1802 A-4 CN1801

A-1

CN1802

A-4 Q1285 B-4 Q1301

C-3 J2002 D-1

Q1303 B-4

TP1301

B-4 Q1304 B-4

TP1304

C-4

Q1571 C-1

TP1305

C-4

Q1572 C-1

TP1401

A-4 Q1591 C-3

TP1402

A-1 Q1601 E-3 TP1403

B-4 Q1602 E-3 TP1404

B-4 Q1604 E-3 TP1405

B-4 Q1605 C-2

TP1501 C-4

Q1606 C-2

TP1502 C-4

Q1607 C-2

TP1503 C-4

Q1608 D-2 TP1731

D-3

Q1609 D-2 TP1732

A-1 Q1610 C-3 TP1733

A-1 Q1612 C-3 TP1734

A-1 Q1613 C-3

Q1614 C-4 VR1601 E-2

TEST POINTS

VARIABLE RESISTOR

TRANSISTORS

TRANSISTORSICS

CONNECTORS

CAUTION !

4A 125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER

SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.

ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT

SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY

CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

TP1503

B-OUT

TP1405

GND

J2002 +B ADJ

FOCUS-VR (UPPER SIDE)

VR1601

+B ADJ

R1583 (H Adjustment)

SCREEN-VR (LOWER SIDE)

1-9-23

1-9-24

BT9000F01011

Page 48

Main CBA Bottom View < TV Section >

CAUTION !

WF16

PIN 8 OF TU1001

WF1

PIN 1 OF IC1001

WF6

PIN 9 OF IC1001

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK

OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.

4A 125V

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER

SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.

ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT

SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY

CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF2

PIN 14 OF IC1201

WF10

PIN 1 OF CL501B

WF11

PIN 7 OF IC1551

WF12

PIN 4 OF CN1571

WF9

PIN 1 OF CN1571

WF7

Q1572 Collector

WF8

Q1571 Base

WF17

PIN 1 OF CL002

WF18

PIN 3 OF CL002

WF19

PIN 6 OF CL002

WF20

PIN 9 OF CL002

1-9-25

1-9-26

BT9000F01011

Page 49

CRT CBA Top View < TV Section >

CRT CBA

Ref No. Position

TRANSISTORS Q511 Q521 Q531

CONNECTORS

CN505 B-1

CL501A B-2

CRT CBA Bottom View < TV Section >

A-1 A-2 B-2

WF5

Q531 Base

WF13

Q531 Collector

WF3

Q521 Base

WF15

Q521 Collector

Q511 Base

WF14WF4

Q511 Collector

1-9-27 1-9-28

BT9000F01011

Page 50

WAVEFORMS

SPDIF

0.1

µσ

0.1

CL002 Pin 1

WF17

1DIV: 20V 20µs

Q531 Collector

WF13 1DIV: 0.2V 20µs

Input: NTSC Color Bar Signal (with 1kHz Audio Signal) --- WF1~WF16

DVD Video (Power on (Stop) MODE) --- WF17, WF18

CD (1KHz Play) --- WF19, WF20

INITIAL POSITION: Unplug unit from AC outlet for at least five minutes,

reconnect to AC outlet and then turn power on.

(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)

GND

1DIV: 200V 20µs

CN1571 Pin 1

WF9

GND

CL002 Pin 3

WF18

1DIV: 20V 20µs

Q511 Collector

WF14 1DIV: 0.2V 20µs

1DIV: 5V 20µs

CL501B Pin 1

WF10

CL002 Pin 6

WF19

1DIV: 20V 20µs

Q521 Collector

WF15 1DIV: 1V 0.5ms

1DIV: 2V 5ms

IC1551 Pin 7

WF11

CL002 Pin 9

1DIV: 1V 0.1µs

SPDIF

WF20

TU1001 Pin 8

1DIV: 0.2V 20µs

WF16

1DIV: 10V 5ms

CN1571 Pin 4

10 V 5 ms

WF12

WF1 ~ WF20 = Waveforms to be observed at

Waveform check points.

(Shown in Schematic Diagram.)

GND

1DIV: 2V 20µs

Q531 Base

WF5

IC1001 Pin 1

1DIV: 0.5V 20µs

WF1

1-10-1

1DIV: 0.2V 20ms

IC1001 Pin 9

WF6

IC1201 Pin 14

1DIV: 0.5V 20µs

WF2

GND

Q1572 Collector

1DIV: 10V 20µs

WF7

1DIV: 2V 20µs

Q521 Base

WF3

GND

1DIV: 5V 20µs

Q1571 Base

WF8

Q511 Base

1DIV: 2V 20µs

WF4

X5SWF

Page 51

D.Y.

CN1571

MAIN CBA

BT9000F01011

WIRING DIAGRAM

CRT

T1571

FBT

ANODE

HEATER

CL501A

FOCUS

CN506

SCREEN

+160V

GND

+8V

GREEN

RED 7654321

CN505

8 BLUE

CLN551

GND

CRT CBA

BT9000F01011

W1601

AC CORD

CN1801

1 SP-R

CL1801

SP1801

SPEAKER

2 SP-GND

R-CH

CN1802

1 SP-L

CL1802

SP1802

SPEAKER

2 SP-GND

L-CH

DVD -Y 11

CNB1 CL002

GND 22

DVD -C 33

CN301

TRAY-IN

CL501B

HEATER 1

+160V 3

GND 2

GND 4 +8V 5

GREEN 6

RED 7



DVD-A-MUTE 55

DVD-AUDIO(R)77AUDIO+5V 88

SPDIF 99

DVD-AUDIO(L) 66

GND 44

SP(-)7SP(+)

TRAY-IN

GND

SL(-)

8 SL(+)

DVD MAIN CBA UNIT

DRIVE CBA

EV+1.2V 11

EV+1.2V 22

EV+3.3V 33

CNA1 CL001

CN201

TS(+)

TS(-)

FS(-)

FS(+)

GND(DVD-PD)

GND(CD-PD)

123456789

FSTS

DVD-ON+3.3V 44

DVD-ON+5V 55

PD-MONI

DVD-LD

EV+9V 66

GND(LD)

BLUE 8

GND 77

GND 88

PWRCON 99

SCLK 1010

CD-LD

GND

1011121314151617181920

P-ON+5V 1414

CS 1111

SDATA 1212

DVD-REMOTE 1313

VREF

91123654

CN1601

GND 1515

P-ON+5V

CD/DVD

DAC

PICK UP UNIT

SPINDLE

MOTOR

SLED

MOTOR

1-11-1

DETECTOR

T8059WI

Page 52

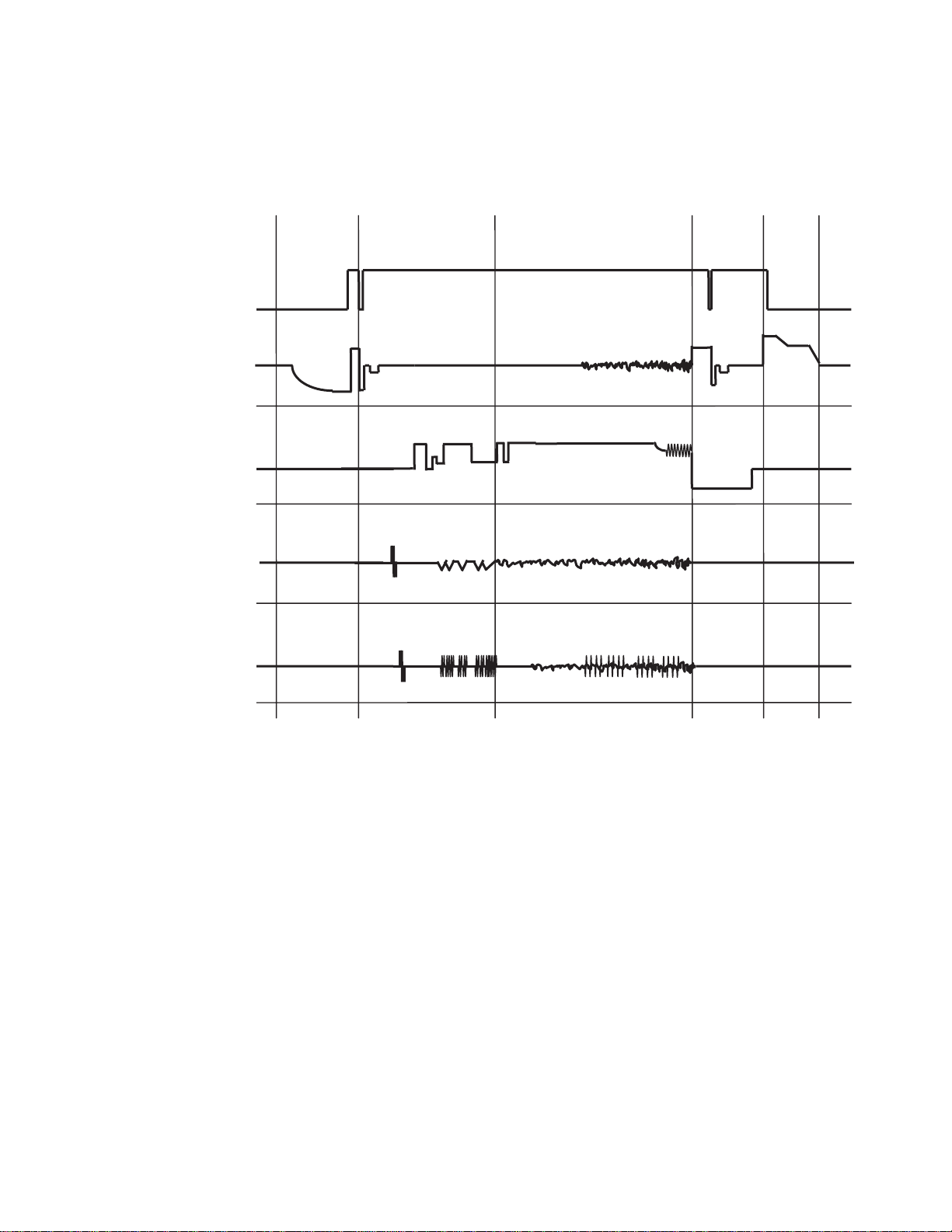

SYSTEM CONTROL TIMING CHARTS

Tray Close ~ Play / Play ~ Tray Open

Tray IN (TL221)

Sled Drive (TP303)

Disc Drive (TP301)

Focus Drive (TP304)

3.3V

1.65V

Tr ay Close

Disc Rotation

Play

Disc Stop

Tr ay Open

Tracking Drive (TP302)

1.65V

1-12-1 X5S_TI

Page 53

IC PIN FUNCTIONS

IC1201 (TV Micro Controller)

Signal Name Function

No.

1GND GND 2 N.U. Not Used 3 N.U. Not Used 4 TEST1 TEST 1 5GND GND 6VCC AL+5V 7 TEST 0 TEST 0 8 FILT FILT

9 HLF Filter for CCD 10 VHOLD VHOLD 11 CVIN Input for Video Signal 12 RESET RESET 13 N.U. Not Used

VIDEO LINE

OUT 15 GND GND 16 3.58 X'TAL 3.58MHz Crystal 17 C-APC CHROMINANCE APC 18 5.7V REG OUT 5.7V Output 19 AUX2(R)IN AUX Audio R Input 20 N.U. Not Used 21 AUX2(L)IN AUX Audio L Input 22 VCC VCC 23 GND GND

24 CVBS IN2

25 AUX1(L)IN DVD Audio L Input

26 CVBS IN1

27 AU MONO IN Audio Input (TUNER) 28 5.7V REG OUT 5.7V Output 29 C IN DVD Chrominance Signal 30 Y IN DVD Luminance Signal 31 V REG VCC DC 8.7V Input 32 FSC OUT Clock Output 3.58MHz 33 N.U. Not Used

Composite Signal Output

Composite Signal Input 2 (LINE)

Composite Signal Input 1 (TUNER)

Signal Name Function

No.

AUDIO ATT

OUT(L) AUDIO ATT

FILTER 36 AUX1(R)IN DVD Audio Input R 37 V RAMP F/B V Ramp Feed Back 38 V RAMP OUT Vertical Output 39 V RAMP CAP V Ramp OSC Capacitor 40 8.7V REG OUT 8.7V Output

AUDIO ATT 41

OUT(R) 42 H VCO F/B H Vco Feed Back 43 AFC FILT Horizontal AFC Filter 44 GND GND 45 FBP IN Flyback Pulse Input 46 H-OUT H Pulse Output 47 VCC Vcc 48 VCC Vcc 49 VCC Vcc 50 R OUT Red Output 51 G OUT Green Output 52 B OUT Blue Output 53 ACL IB-Input 54 N.U. Not Used 55 N.U. Not Used

56 SDA

57 I2C-OPEN

58 SCL

59 CS DVD Interface Chip Select 60 SDATA DVD Interface Data 61 SCLK DVD Interface Clock 62 N.U. Not Used 63 N.U. Not Used

64 REMOTE-OUT

65 DVD-A-MUTE DVD Mute Signal Input

Audio Output L

Audio Filter

Audio Output R

I2C-BUS Controller Interface (Data

White Balance Adjustment Judgement

I2C-BUS Controller Interface (Clock)

DVD Control Key Code Output

1-13-1 T9000PIN

Page 54

Signal Name Function

No.

66 KEY-0 Key Input 0 67 KEY-1 Key Input 1 68 N.U. Not Used 69 AFT AFT Voltage Input 70 REMOTE Input for Remote Control 71 N.U. Not Used 72 SPOT-KILL Spot Countermeasure 73 P-SAFETY 1 Power Supply Protection 74 P-SAFETY 2 Power Supply Protection 75 P-SAFETY 3 Power Supply Protection 76 EXT-L Switching External Input

DVD-MAIN-

POWER 78 P-ON-H Output for P-ON-H 79 SP-MUTE Audio Mute Signal 80 ACL-CONT ACL Control Signal

Power On Signal to High for DVD

1-13-2 T9000PIN

Page 55

LEAD IDENTIFICATIONS

ECB

2SK3563

S D G

2SC2785(F,H,J) 2SC3400 BA1F4M-T BN1F4M-T KRA103M KRC103M KTA1266(GR) KTC3199(GR) KTC3203(Y)

S: Souce D: Drain G: Gate

AN15224A LA78040A

1234

ECB

2SA1015-GR(TPE2) 2SA1175(F) 2SA950(O,Y) 2SC1627Y-TPE2 2SC1815-GR(TPE2) 2SC2120-O-TPE2 2SC2120-Y(TPE2) 2SC2482 TPE6 2SD400(E,F) KTA1267(GR) KTA1271(Y) KTC3198(GR) KTC3207

KIA431-AT

RAK

BR24C02F-W BR24L02F-WE2 CAT24WC02JI M24C02-WMN6

LTV-817B-F LTV-817C-F PC817X6

AN17811A

PQ070XF01SZ

1234

TT2138LS-YB11 T2SC5884000RF

B C E

1: Vin 2: Vo 3: GND 4: Vc

M61273M8-062FP

M61113FP

Note:

A: Anode K: Cathode E: Emitter C: Collector B: Base R: Reference S: Source G: Gate D: Drain

1-14-1 T8059LE

Page 56

Cabinet

EXPLODED VIEWS

SP1802

Details for L1551 and surrounding parts

CLN551

V501

V501-2

SHINWHA TAPE SGT-730 (WHITE)

L1551

SHINWHA TAPE SGT-730 (BLACK)

V501-3

Scotch

Tape #880

V501-1

L1551

CRT CBA

DG601

TL1

TB10

TL4

TB12

TB4

TL1

TL2

TB5

TL3

TB14

TL4

1B1

TL2

TB19

TL1

W1601

TL1

L1 A3

TL1

CL1802

A1X

A1-3

TL1

A1-6

MAIN CBA

A1-5

A1-7

TB2

DVD MAIN CBA UNIT

TB1

See Electrical Parts List for parts with this mark.

A1-2

CL1801

A1-1

SP1801

1-15-1 1-15-2 T8059CEX

Page 57

Packing

TAPE

Packing Tape

FRONT

Packing Tape

1-15-3 T8059PEX

Page 58

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

A1X FRONT CABINET ASSEMBLY T8059CK 1EM120002 A1-1 FRONT CABINET T8059CK 1EM120003 A1-2 CONTROL PLATE T8059CK 1EM220006 A1-3 BRAND BADGE B4304UE:MAGNABOX 0EM401477 A1-5 TRAY SPRING TD707UH 0EM408552 A1-6 CLOTH(B) L5201U0:15X10X1.0T 0EM400076 A1-7 CLOTH(4X7X0.3T) TD250UA 0EM407578 A2 REAR CABINET T8001UB 0EM101444 A3# RATING LABEL T8059CK --------A5 TRAY PANEL T8059CK 1EM420014 1B1 DVD MECHA(S-COMBO) 0838 VCZL0500 N79U0HVM B1 SPRING TENSION B0080B0:EM40808 26WH006 B2 M5 CRT SCREW(B) B4000UA 0VM403923 B5 CLOTH 190X15XT0.5 TS7623 B6 CLOTH(10X30XT0.5) B5900UA 0EM404486 CL1801 WIRE ASSEMBLY SPEAKER WIRE(180MM) WX1L9800-001 CL1802 WIRE ASSEMBLY SPEAKER WIRE(180MM) WX1L9800-001 CLN551# CRT GND WIRE CRT GND WX1L7720-001 DG601# DEGAUSSING COIL F-019 or LLBH00ZTM019 # DEGAUSSING COIL AVDG016 LLBH00ZWR016 L1 SCREW, P-TIGHT 4X18 BIND HEAD + GBMP4180 L2 SCREW TAPPING M4X14 DBU14140 L4 SCREW, ASSEMBLED 12:M3X12 0EM406746 L7 SCREW, P-TIGHT 3X10 BIND HEAD+ GBKP3100 SP1801 SPEAKER S08F02B or DSD0808XQ010

SPEAKER J-F097-C5 DSD0808DCP01

SP1802 SPEAKER S08F02B or DSD0808XQ010

SPEAKER J-F097-C5 DSD0808DCP01 TB1 TRAY CHASSIS T9000UA 0EM000877 TB2 X5 SHIELD BOX T8020UA 0EM302034 TB10 RCA HOLDER T9000UA 0EM409058 TB12 LABEL, LASER CAUTION (C) TD100UA --------TB14 X5 LODER COVER T8020UA 0EM408820 TB19# 13V CHASSIS NO.LABEL TJ T8001UB --------TL1 SCREW, P-TIGHT 3X12 WASHER HEAD+ GCMP3120 TL3 P-TIGHT SCREW 3X8 BIND + GBMP3080 TL4 SCREW, P-TIGHT 3X16 BIND HEAD + GBMP3160 S1 CARTON T8059CK 1EM420017 S2 STYROFOAM TOP ASSEMBLY TD709UK 0EM408522 S3 STYROFOAM BOTTOM ASSEMBLY TD709UK 0EM408523 S4 SERIAL NO. LABEL T8059CK --------S5 LABEL, EAS(H3761UD) MAKER NO.ZLLFNSLE1 --------S6 SET SHEET B5506UG:800X1500 0EM402369 X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420 X2# OWNER'S MANUAL T8059CK 1EMN20008

Ref. No. Description Part No.

X3 REMOTE CONTROL 144/ECNX501/NE224UD NE224UD X4 DRY BATTERY R6P UM3 or XB0M451GH001

DRY BATTERY R6P(AR)2PX or XB0M451HU002 DRY BATTERY R6P(AR)2P X ICI or XB0M451HU003 DRY BATTERY(SUNRISE) R6SSE/2S or XB0M451MS002 DRY BATTERY R6P/2S XB0M451T0001

X5 ROD ANTENNA T5200UA or 0EMN01755

ROD ANTENNA L7720UA:NTSC W/COO or 0EMN00673 ROD ANTENNA T5000UA 0EMN01599

Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS ALSO HAS MATCHING COMBINATION WITH L551. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

2. L551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

CRT TYPE A

L551# DEFLECTION YOKE LLBY00ZSY005 or LLBY00ZSY005 # DEFLECTION YOKE KDY3GDA82X LLBY00ZMS011

V501# CRT A34AGT13X TCRT190CP036 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

CRT TYPE B

L551# DEFLECTION YOKE LLBY00ZSY002 or LLBY00ZSY002 # DEFLECTION YOKE KDY3GCE83X LLBY00ZMS027

V501# CRT A34JQQ093X TCRT190MS010 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

CRT TYPE C

L551# DEFLECTION YOKE KDY3GCE83X or LLBY00ZMS027 # DEFLECTION YOKE LLBY00ZSY002 or LLBY00ZSY002 # DEFLECTION YOKE CDY-M1456S or LLBY00ZQS008 # DEFLECTION YOKE DSE1493FU(S) LLBY00ZSM008

V501# CRT A34KQW42X TCRT190SM013 V501-1 C.P.MAGNET JH225-014 or XM04000BV009

CPM E-225-F01 XM04000ETC01 V501-2# WEDGE FT-00110W or XV10000T4001 # WEDGE DB25SR XV10000D9001 V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

CRT TYPE D

L551# DEFLECTION YOKE CDY-M1422F LLBY00ZQS001 V501# CRT A34JLL90X(W) TCRT190QS015 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2# WEDGE FT-00110W or XV10000T4001 # WEDGE DB25SR XV10000D9001 V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

CRT TYPE E

L551# DEFLECTION YOKE CDY-M1455F or LLBY00ZQS007 # DEFLECTION YOKE LLBY00ZSY003 or LLBY00ZSY003 # DEFLECTION YOKE KDY3GD592X LLBY00ZMS004

V501# CRT A34LRQ90X(VW) TCRT190P7003 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2# WEDGE FT-00110W or XV10000T4001 # WEDGE DB25SR XV10000D9001 V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

CRT TYPE F

20040415 1-16-1 T8059CA

Page 59

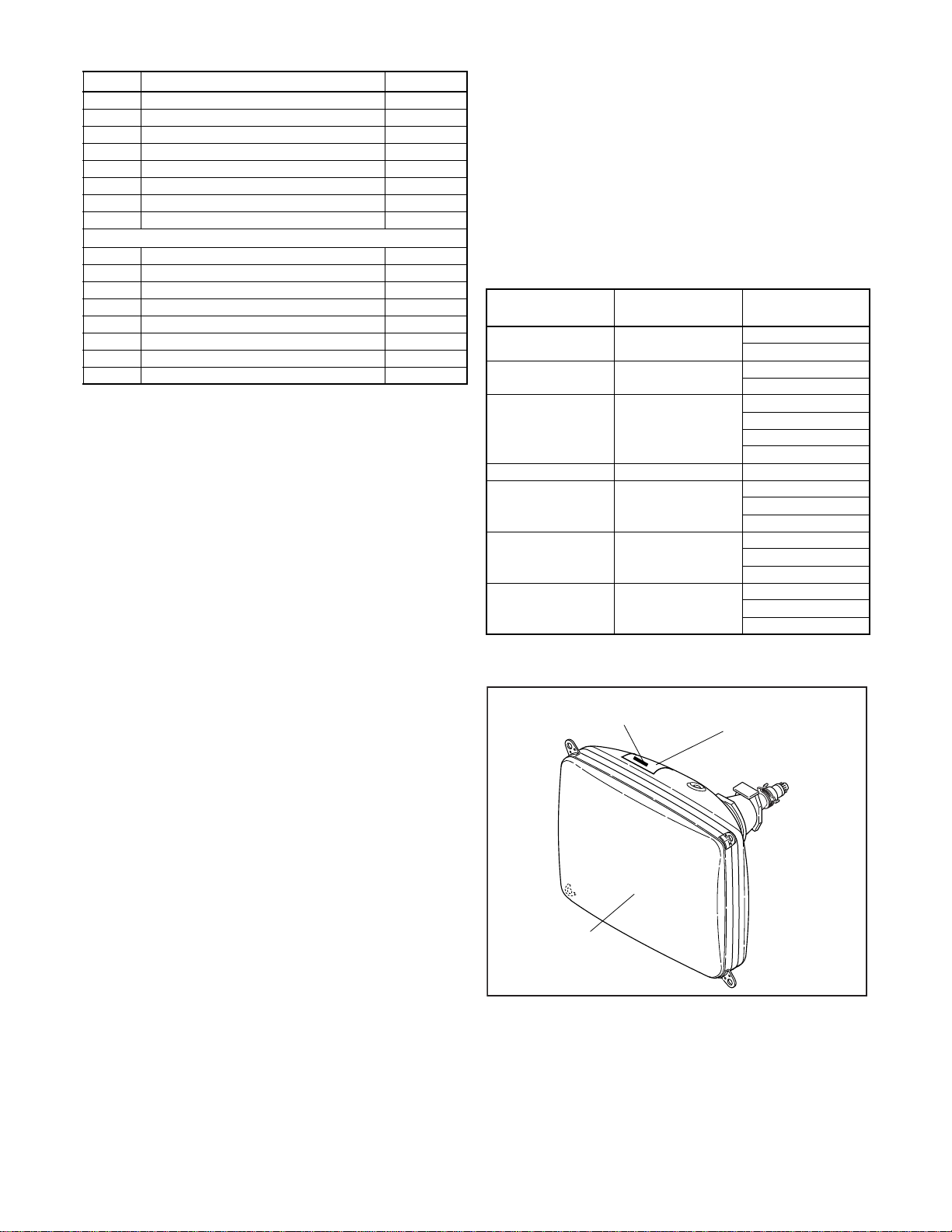

Ref. No. Description Part No.

L551# DEFLECTION YOKE LLBY00ZSY002 or LLBY00ZSY002 # DEFLECTION YOKE KDY3GCE83X or LLBY00ZMS027 # DEFLECTION YOKE CDY-M1456S LLBY00ZQS008

V501# CRT A34KPU02XX TCRT190GS016 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2# WEDGE FT-00110W or XV10000T4001 # WEDGE DB25SR XV10000D9001 V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

CRT TYPE G

L551# DEFLECTION YOKE LLBY00ZSY002 or LLBY00ZSY002 # DEFLECTION YOKE KDY3GCE83X or LLBY00ZMS027 # DEFLECTION YOKE CDY-M1456S LLBY00ZQS008

V501# CRT A34JXV70X TCRT190THA02 V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003 V501-2# WEDGE FT-00110W or XV10000T4001 # WEDGE DB25SR XV10000D9001 V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

Table 1 (V501 and L551 Combination)

Note 1: Purity and Convergence Adjustments must be

performed following CRT replacement. Refer to Electrical Adjustment Instructions.

Note 2: Please confirm CRT Type No. on the CRT Warning Label which is located on the CRT. Then See the Table 1 for V501 and L551 combination chart. Please refer this CRT, Deflection Yoke combination chart for parts order.

V501: CRT Type No. V501: CRT Part No.

A34AGT13X TCRT190CP036

A34JQQ093X TCRT190MS010

A34KQW42X TCRT190SM013

A34JLL90X(W) TCRT190QS015 LLBY00ZQS001

A34LRQ90X(VW) TCRT190P7003

A34KPU02XX TCRT190GS016

A34JXV70X TCRT190THA02

L551: Deflection

Yoke Par t N o .

LLBY00ZSY005

LLBY00ZMS011

LLBY00ZSY002 LLBY00ZMS027 LLBY00ZMS027

LLBY00ZSY002

LLBY00ZQS008 LLBY00ZSM008

LLBY00ZQS007

LLBY00ZSY003 LLBY00ZMS004

LLBY00ZSY002 LLBY00ZMS027

LLBY00ZQS008

LLBY00ZSY002 LLBY00ZMS027

LLBY00ZQS008

CRT Warning Label Location

CRT Type No.

CRT

CRT Warning Label

20040415 1-16-2 T8059CA

Page 60

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DVD MAIN CBA UNIT

Ref. No. Description Part No.

DVD MAIN CBA UNIT N79U2HCP

MMA CBA

Ref. No. Description Part No.

MMA CBA Consists of the following

MAIN CBA CRT CBA

MAIN CBA

Ref. No. Description Part No.

MAIN CBA Consists of the following

CAPACITORS

C1001 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C1002 ELECTROLYTIC CAP. 330µF/ 6.3V M or CE0KMASDL331

ELECTROLYTIC CAP. 330µF/6.3V M CE0KMASTL331 C1003 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1004 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1005 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C1006 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASTL100 C1007 CERAMIC CAP.(AX) B K 0.01µF/50V CCA1JKT0B103 C1008 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101 C1009 CHIP CERAMIC CAP. F Z 0.022µF/50V CHD1JZB0F223 C1033 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1036 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102 C1037 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C1039 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C1042 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C1044 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103 C1045 ELECTROLYTIC CAP. 220µF/ 6.3V M or CE0KMASDL221

ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASTL221 C1046 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1047 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1048 ELECTROLYTIC CAP. 10µF/25V M or CE1EMASDL100

0ESA06227

--------------

----------

Ref. No. Description Part No.

ELECTROLYTIC CAP. 10µF/25V M CE1EMASTL100 C1052 CHIP CERAMIC CAP. B K 0.047µF/50V CHD1JKB0B473 C1054 CERAMIC CAP.(AX) B K 0.01µF/50V CCA1JKT0B103 C1203 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C1204 CHIP CERAMIC CAP. B K 0.015µF/50V CHD1JKB0B153 C1205 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102 C1206 CHIP CERAMIC CAP. B K 220pF/50V CHD1JKB0B221 C1207 FILM CAP.(P) 0.001µF/50V J or CMA1JJS00102

FILM CAP.(P) 0.001µF/50V J CA1J102MS029 C1209 CHIP CERAMIC CAP. F Z 0.1µF/25V CHD1EZB0F104 C1214 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103 C1215 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C1216 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C1217 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C1218 CHIP CERAMIC CAP. F Z 0.1µF/25V CHD1EZB0F104 C1219 CHIP CERAMIC CAP. B K 220pF/50V CHD1JKB0B221 C1220 CHIP CERAMIC CAP. B K 220pF/50V CHD1JKB0B221 C1222 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASDL0R1

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASTL0R1 C1223 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100 C1224 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0 C1225 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470 C1230 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1231 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASTL101 C1232 ELECTROLYTIC CAP. 4.7µF/25V M or CE1EMASDL4R7

ELECTROLYTIC CAP. 4.7µF/25V M CE1EMASTL4R7 C1233 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZB0F103 C1261 ELECTROLYTIC CAP. 22µF/16V M or CE1CMASDL220

ELECTROLYTIC CAP. 22µF/16V M CE1CMASTL220 C1301 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 C1302 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1304 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASTL101 C1305 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1306 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0 C1307 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASTL2R2 C1308 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470 C1309 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0 C1310 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0 C1311 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101 C1313 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101 C1314 CHIP CERAMIC CAP. CH D 10pF/50V CHD1JDBCH100

20040415 1-17-1 T8059EL

Page 61

Ref. No. Description Part No.

C1315 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C1316 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105 C1317 TF CAP. 0.47µF/50V J or CT1J474MS045

FILM CAP. 0.47µF/50V J 122Z317S C1318 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1319 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASTL2R2 C1320 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1322 ELECTROLYTIC CAP. 470µF/ 10V M or CE1AMASDL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471 C1324 ELECTROLYTIC CAP. 470µF/ 10V M or CE1AMASDL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471 C1325 CHIP CERAMIC CAP. F Z 0.1µF/ 25V CHD1EZB0F104 C1326 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0 C1327 CHIP CERAMIC CAP. CH J 33pF/50V CHD1JJBCH330 C1328 CHIP CERAMIC CAP. CH J 33pF/50V CHD1JJBCH330 C1329 CERAMIC CAP.(AX) SL J 33pF/50V CCA1JJTSL330 C1331 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470 C1335 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101 C1336 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASDL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASTL4R7 C1337 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASDL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASTL4R7 C1348 ELECTROLYTIC CAP. 100µF/ 10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASTL101 C1349 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0 C1352 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1552 MYLAR CAP. 0.22µF/ 50V J or CMA1JJS00224

FILM CAP.(P) 0.22µF/50V J CA1J224MS029 C1553 ELECTROLYTIC CAP. 2.2µF/50V M LL or CE1JMASLL2R2

ELECTROLYTIC CAP. 2.2µF/50V LL CE1JMASLH2R2 C1555 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470 C1556 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZZTL102

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPTL102 C1558 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011 C1559 ELECTROLYTIC CAP. 330µF/ 35V M CE1GMASDL331 C1560 FILM CAP.(P) 0.047µF/50V J or CMA1JJS00473

FILM CAP.(P) 0.047µF/50V J CA1J473MS029 C1571# P. P. C A P 0 .3 3 µF/200V J or CA2D334VC012 # PP CAP. 0.33µF/250V J CT2E334MS041 C1574 ELECTROLYTIC CAP. 4.7µF/250V M or CE2EMASDL4R7

ELECTROLYTIC CAP. 4.7µF/250V M CE2EMASTL4R7 C1577 FILM CAP.(P) 0.022µF/50V J or CMA1JJS00223

FILM CAP.(P) 0.022µF/50V J CA1J223MS029 C1578 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470 C1580 P.P. CAP 0.0082µF/1.6K J CA3C822VC011 C1580# PP CAP. 0.0082µF/1.6KV J or CT3C822MS039

# METALLIZED FILM CAP. 0.0082µF/1.6KV J or CT3C822F7004 # POLYPROPYLENE FILM CAP. 0.0082µF/1.6KV CT3C822HJE16

C1584 ELECTROLYTIC CAP. 1µF/160V M or CE2CMASDL1R0

ELECTROLYTIC CAP. 1µF/160V M or CE2CMASTL010

ELECTROLYTIC CAP. 1µF/160V M CE2CMASTL1R0

Ref. No. Description Part No.

C1591# ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2 # ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASTL2R2 C1592# ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASDL4R7 # ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASTL4R7 C1593# ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2 # ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASTL2R2

C1594 ELECTROLYTIC CAP. 47µF/160V M W/F or CE2CMZNDL470

ELECTROLYTIC CAP. 47µF/160V M W/F or CE2CMZNTL470 ELECTROLYTIC CAP. 47µF/160V M W/F CE2CMZPDL470

C1601# METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037

# FILM CAP.(MP) 0.1µF/250V K or CT2E104DC011 # METALLIZED FILM CAP. 0.1µF/275V K or CT2E104HJE06 # LINE ACROSS CAP. 0.1U/250V CT2E104DC015

C1602 CERAMIC CAP. BN 560pF/2KV or CCD3DKA0B561

CERAMIC CAP. 560pF/2KV or CA3D561PAN04 CERAMIC CAP. RB 560pF/2KV CA3D561TE006

C1603 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V or CCD2EZA0F103 CERAMIC CAP. E Z 0.01µF/500V CCD2JZP0E103

C1604 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V or CCD2EZA0F103

CERAMIC CAP. E Z 0.01µF/500V CCD2JZP0E103 C1607# SAFETY CAP. 4700pF/250V KX CA2E472MR050 C1609 FILM CAP.(P) 0.068µF/50V J or CMA1JJS00683

FILM CAP.(P) 0.068µF/50V J CA1J683MS029 C1610 ELECTROLYTIC CAP. 470µF/200V or CA2D471NC013

ELECTROLYTIC CAP. 470µF/200V M W/F CA2D471EA029 C1611 FILM CAP.(P) 0.0012µF/50V J or CMA1JJS00122

FILM CAP.(P) 0.0012µF/50V J CA1J122MS029 C1612 FILM CAP.(P) 0.068µF/50V J or CMA1JJS00683

FILM CAP.(P) 0.068µF/50V J CA1J683MS029 C1615 CERAMIC CAP. BN 680pF/2KV or CCD3DKA0B681

CERAMIC CAP. 680pF/2KV or CA3D681PAN04

CERAMIC CAP. RB 680pF/2KV CA3D681TE006 C1616 ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPDL101

ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPTL101

ELECTROLYTIC CAP. 100µF/160V M W/F CE2CMZNTL101 C1617# ELECTROLYTIC CAP. 470µF/35V M or CE1GMZPDL471 # ELECTROLYTIC CAP. 470µF/35V M(VR) CE1GMZNTL471 C1619 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471 C1621 CERAMIC CAP. B K 1000pF/100V CCD2AKS0B102 C1623 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J CA1J103MS029 C1625 ELECTROLYTIC CAP. 1000µF/10V M or CE1AMASDL102

ELECTROLYTIC CAP. 1000µF/10V M CE1AMASTL102 C1626 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100 C1627 CERAMIC CAP. B K 2200pF/100V CCD2AKS0B222 C1630 FILM CAP.(P) 0.0056µF/50V J or CMA1JJS00562

FILM CAP.(P) 0.0056µF/50V J CA1J562MS029 C1634 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471 C1637 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASTL101 C1639 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470 C1640 ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102

ELECTROLYTIC CAP. 1000µF/16V M(VR/HC) CE1CMZNTL102 C1642 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102 C1650 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

20040415 1-17-2 T8059EL

Page 62

Ref. No. Description Part No.

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0 C1654 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1656 ELECTROLYTIC CAP. 1000µF/ 6.3V M or CE0KMASDL102

ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASTL102 C1662 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471 C1663 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1664 ELECTROLYTIC CAP. 220µF/ 6.3V M or CE0KMASDL221

ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASTL221 C1666 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JKB0B222 C1669 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C1670 ELECTROLYTIC CAP. 470µF/ 6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471 C1672 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102 C1702 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0 C1704 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0 C1735 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASTL470 C1741 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 C1746 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471 C1748 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASTL2R2 C1749 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASTL2R2 C1758 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101 C1801 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C1802 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102 C1803 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1804 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221 C1805 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471 C1806 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C1807 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C1808 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221 C1809 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471 C1810 CHIP CERAMIC CAP. B K 1000pF/50V CHD1JKB0B102 C1811 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470 C1812 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221 C1053A FILM CAP.(P) 0.018µF/50V J or CMA1JJS00183

FILM CAP.(P) 0.018µF/50V J CA1J183MS029

CONNECTORS

CN1571# CONNECTOR BASE, 5P TV-50P-05-V3 or J3TVC05TG002 # CONNECTOR BASE, 5P RTB-1.5-5P J3RTC05JG001 CN1601# CONNECTOR BASE, 2P TV-50P-02-V3 or J3TVC02TG002 # CONNECTOR BASE, 2P RTB-1.5-2P J3RTC02JG001

CN1801 STRAIGHT CONNECTOR BASE 00 8283 0212 00

CN1802 STRAIGHT CONNECTOR BASE 00 8283 0212 00

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

000 or

J383C02UG002

Ref. No. Description Part No.

STRAIGHT PIN HEADER, 2P 173981-2 1770258

DIODES

D1001 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D1002 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D1031 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D1201 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D1202 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D1203 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D1204 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D1205 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D1225 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D1226 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D1302 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS

D1303 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D1307 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1309# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D1311 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1312 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1313 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1315 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1316 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1317 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1318 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1320 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1321 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1552 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERA15-02 AERA1502**** D1571 DIODE FR154 or NDLZ000FR154

FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402 D1572# DIODE FR104-B NDLZ000FR104 D1584 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1585 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS D1591# ZENER DIODE MTZJT-7736B or QDTB00MTZJ36 # ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS D1595# ZENER DIODE MTZJT-7720C or QDTC00MTZJ20 # ZENER DIODE DZ-20BSCT265 NDTC00DZ20BS

20040415 1-17-3 T8059EL

Page 63

Ref. No. Description Part No.

D1596# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D1597# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148

D1598# DIODE FR104-B NDLZ000FR104 D1601 PCB JUMPER D0.6-P10.0 JW10.0T D1603 DIODE 1N5399-B/P or NDLZ001N5399

RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206 DIODE 1N5399BE NDL1001N5399

D1604 DIODE 1N5399-B/P or NDLZ001N5399

RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206 DIODE 1N5399BE NDL1001N5399

D1605 DIODE 1N5399-B/P or NDLZ001N5399

RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206 DIODE 1N5399BE NDL1001N5399

D1606 DIODE 1N5399-B/P or NDLZ001N5399

RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206 DIODE 1N5399BE NDL1001N5399

D1607 ZENER DIODE MTZJT-7720C or QDTC00MTZJ20

ZENER DIODE DZ-20BSCT265 NDTC00DZ20BS

D1608 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D1609 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D1610 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D1613 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D1614 ZENER DIODE MTZJT-7736A or QDTA00MTZJ36

ZENER DIODE DZ-36BSAT265 NDTA00DZ36BS

D1616 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D1617 DIODE FR154 or NDLZ000FR154

FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402

D1618 RECTIFIER DIODE 15DF4 or QDQZ00015DF4

RECOVERY DIODE ERC18-04 QDZZ0ERC1804 D1619# DIODE FR104-B NDLZ000FR104 D1620 ZENER DIODE MTZJT-777.5B or QDTB0MTZJ7R5

ZENER DIODE DZ-7.5BSBT265 NDTB0DZ7R5BS D1621 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1623 DIODE FR154 or NDLZ000FR154

FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402 D1625 SCHOTTKY BARRIER DIODE 21DQ04 or QDQZ0021DQ04

SCHOTTKY BARRIER DIODE ERB81-004 AERB81004*** D1626 ZENER DIODE MTZJT-7736A or QDTA00MTZJ36

ZENER DIODE DZ-36BSAT265 NDTA00DZ36BS D1627 SCHOTTKY BARRIER DIODE 21DQ04 or QDQZ0021DQ04

SCHOTTKY BARRIER DIODE ERB81-004 AERB81004*** D1628 PCB JUMPER D0.6-P5.0 JW5.0T D1629 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1632 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1633 ZENER DIODE MTZJT-7716B or QDTB00MTZJ16

ZENER DIODE DZ-16BSBT265 NDTB00DZ16BS D1637# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D1639 PCB JUMPER D0.6-P10.0 JW10.0T D1640 DIODE 1ZC33 or QDQZ0001ZC33

ZENER DIODE RD33FB QDQZ000RD33F

Ref. No. Description Part No.

D1641 ZENER DIODE MTZJT-775.6C or QDTC0MTZJ5R6

ZENER DIODE DZ-5.6BSCT265 NDTC0DZ5R6BS D1650# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D1652# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D1653# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D1659 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1660 PCB JUMPER D0.6-P5.0 JW5.0T D1662 RECTIFIER DIODE ERA15-02 AERA1502**** D1731 INDUCTOR 10µH-J-26T or LLAXJATTU100

INDUCTOR 10µH-K-26T LLAXKDTKA100 D1736 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS D1801# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D1802 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1803 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D1804 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

ICS

IC1001 IC:VIF/SIF M61113FP QSZBA0SHT019 IC1201# MICRO COMPUTER+VCD M61273M8-062FP QSZAA0RHT012 IC1202 IC:MEMORY BR24C02F-W or QSMBA0SRM003

IC:EEPROM CAT24WC02JI or NSZBA0SBG001

IC(EEP-ROM) M24C02-WMN6 or NSZAA0SSS004

IC BR24L02F-WE2 QSZBA0TRM068 IC1551# VERTICAL OUTPUT IC LA78040A or QSBBA0SSY003 # VERTICAL OUTPUT IC AN15524A QSZBA0SMS019 IC1601# PHOTOCOUPLER LTV-817B-F or NPEB0LTV817F

# PHOTOCOUPLER LTV-817C-F or NPEC0LTV817F # PHOTO COUPLER PC817X6 QPE600PC817X

IC1602 VOLTAGE REGULATOR PQ070XF01SZ QSZBA0SSH026 IC1603 IC:SHUNT REGULATOR KIA431-AT NSZLA0TJY001 IC1604 IC:SHUNT REGULATOR KIA431-AT NSZLA0TJY001 IC1801 AUDIO AMP IC AN17811A QSZAA0SMS015 IC1802 AUDIO AMP IC AN17811A QSZAA0SMS015

COILS

L1001 PCB JUMPER D0.6-P5.0 JW5.0T L1031 PCB JUMPER D0.6-P5.0 JW5.0T L1033 INDUCTOR 15µH-J-26T or LLAXJATTU150

INDUCTOR 15µH-K-26T LLAXKDTKA150 L1041 PCB JUMPER D0.6-P5.0 JW5.0T L1203 INDUCTOR 22µH-J-26T or LLAXJATTU220

INDUCTOR 22µH-K-26T LLAXKDTKA220 L1204 INDUCTOR 22µH-J-26T or LLAXJATTU220

INDUCTOR 22µH-K-26T LLAXKDTKA220 L1301 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K-5FT LLARKDSKA220 L1302 PCB JUMPER D0.6-P5.0 JW5.0T L1557 CHOKE COIL 22µH-K or LLBD00PKV006

CHOKE COIL 22µH-K LLBD00PKT002 L1601# LINE FILTER 2.7MH ELF15N013A LLBG00ZMS037 L1614 INDUCTOR 2.2µH-K-5FT or LLARKBSTU2R2

INDUCTOR 2.2µH-K-5FT LLARKDSKA2R2 L1615 INDUCTOR 22µH-K-5FT or LLARKBSTU220

20040415 1-17-4 T8059EL

Page 64

Ref. No. Description Part No.

INDUCTOR 22µH-K-5FT LLARKDSKA220

L1739 INDUCTOR 0.47µH-J-26T or LLAXJATTUR47

INDUCTOR 0.47µH-K-26T LLAXKDTKAR47 L1851 PCB JUMPER D0.6-P5.0 JW5.0T L1852 INDUCTOR 2.2µH-K-5FT or LLARKBSTU2R2

INDUCTOR 2.2µH-K-5FT LLARKDSKA2R2 L1853 INDUCTOR 2.2µH-K-5FT or LLARKBSTU2R2

INDUCTOR 2.2µH-K-5FT LLARKDSKA2R2 L1854 PCB JUMPER D0.6-P5.0 JW5.0T L1855 INDUCTOR 2.2µH-K-5FT or LLARKBSTU2R2

INDUCTOR 2.2µH-K-5FT LLARKDSKA2R2 L1856 INDUCTOR 2.2µH-J-26T or LLAXJATTU2R2

INDUCTOR 2.2µH-K-26T LLAXKDTKA2R2 L1857 INDUCTOR 2.2µH-J-26T or LLAXJATTU2R2

INDUCTOR 2.2µH-K-26T LLAXKDTKA2R2

TRANSISTORS

Q1285 RES. BUILT-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M Q1301 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q1303 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203 Q1304 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q1571# TRANSISTOR TT2138LS-YB11 or QQZZ00TT2138 # TRANSISTOR 2SC5884000RF QQZZ02SC5884 Q1572 TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627 Q1591# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785 # TRANSISTOR 2SC2785(J) or QQSJ02SC2785 # TRANSISTOR KTC3199(GR) or NQS10KTC3199 # TRANSISTOR KTC3198(GR) or NQS40KTC3198 # TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1601# MOS FET 2SK3563 QFWZ02SK3563 Q1602 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203 Q1604 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q1605 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q1606# TRANSISTOR 2SA950(O) or Q2SA9500TPE2

# TRANSISTOR 2SA950(Y) or Q2SA950YTPE2 # TRANSISTOR KTA1271(Y) NQSY0KTA1271

Q1607 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

Ref. No. Description Part No.

TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1608 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1609 RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M

RES. BUILT-IN TRANSISTOR 2SC3400 or 2SC3400Z RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q1610 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267 TRANSISTOR KTA1266(GR) or NQS40KTA1266 TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q1612 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1613 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120 TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q1614 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1615 TRANSISTOR 2SD400(F) or QQUF002SD400

TRANSISTOR 2SD400(E) QQUE002SD400

Q1616 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120 TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q1619 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R1001 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1002 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1010 CHIP RES.(1608) 1/10W J 200 Ω RRXAJB5Z0201 R1011 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1012 CHIP RES.(1608) 1/10W J 150 Ω RRXAJB5Z0151 R1013 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R1015 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R1016 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1018 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224 R1019 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224 R1022 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272 R1037 CHIP RES.(1608) 1/10W J 180 Ω RRXAJB5Z0181 R1041 CHIP RES.(1608) 1/10W J 56k Ω RRXAJB5Z0563 R1201 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R1202 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R1203 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222 R1204 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272 R1205 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1206 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R1207 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152 R1208 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222 R1209 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272 R1210 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472 R1211 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1213 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R1215 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000

20040415 1-17-5 T8059EL

Page 65

Ref. No. Description Part No.

R1216 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R1220 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104 R1221 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104 R1222 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R1223 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104 R1224 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R1225 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R1226 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R1227 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R1228 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R1229 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562 R1230 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R1231 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R1232 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272 R1233 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1234 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1235 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682 R1236 CHIP RES.(1608) 1/10W J 39k Ω RRXAJB5Z0393 R1240 CARBON RES. 1/4W J 1M Ω RCX4JATZ0105 R1257 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R1260 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R1293 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R1294 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R1301 CHIP RES.(1608) 1/10W J 180k Ω RRXAJB5Z0184 R1302 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153 R1303 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R1304 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R1305 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1306 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562 R1307 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R1308 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R1309 CARBON RES. 1/4W J 39k Ω RCX4JATZ0393 R1311 CHIP RES.(1608) 1/10W J 10M Ω RRXAJB5Z0106 R1312 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1313 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R1314 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R1317 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1319 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471 R1320 CHIP RES.(1608) 1/10W J 120k Ω RRXAJB5Z0124 R1321# CARBON RES. 1/4W J 56 Ω RCX4JATZ0560 R1322 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100 R1323 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682 R1324 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1327 CARBON RES. 1/4W J 22 Ω RCX4JATZ0220 R1328 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R1330 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R1334 CHIP RES.(1608) 1/10W J 330 Ω RRXAJB5Z0331 R1335 CHIP RES.(1608) 1/10W J 330 Ω RRXAJB5Z0331 R1336 CHIP RES.(1608) 1/10W J 330 Ω RRXAJB5Z0331 R1337 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R1338 CARBON RES. 1/4W J 12 Ω RCX4JATZ0120 R1339# CARBON RES. 1/4W J 1.2 Ω RCX4JATZ01R2 R1346 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123 R1347 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R1348 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682 R1349 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682 R1350 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R1351 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R1430 CARBON RES. 1/4W J 3.9k Ω RCX4JATZ0392 R1544# CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R1551 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331

Ref. No. Description Part No.

R1552 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R1556 CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0 R1557 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R1558 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R1559 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R1560 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R1561 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R1562 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100 R1563 CARBON RES. 1/4W J 8.2 Ω RCX4JATZ08R2 R1564 PCB JUMPER D0.6-P5.0 JW5.0T R1565# CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R1566# PCB JUMPER D0.6-P5.0 JW5.0T R1567# CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R1569 CARBON RES. 1/2W J 68 Ω or RCX2JZQZ0680

CARBON RES. 1/2W J 68 Ω RCX2680KA013 R1570# CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R1571 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1573 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R1574# METAL OXIDE FILM RES. 2W J 1k Ω or RN02102ZU001 # METAL OXIDE FILM RES. 2W J 1k Ω RN02102DP004 R1575# METAL OXIDE FILM RES. 2W J 1k Ω or RN02102ZU001 # METAL OXIDE FILM RES. 2W J 1k Ω RN02102DP004 R1576 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R1577 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1578# PCB JUMPER D0.6-P5.0 JW5.0T R1579 CARBON RES. 1/4W J 33 Ω RCX4JATZ0330 R1580 CARBON RES. 1/4W J 27 Ω RCX4JATZ0270 R1581 CARBON RES. 1/4W J 27 Ω RCX4JATZ0270 R1582 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100 R1583# METAL OXIDE FILM RES. 2W J 1.8 Ω or RN021R8ZU001 # METAL OXIDE FILM RES. 2W J 1.8 Ω RN021R8DP004 R1584 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R1585 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100 R1586 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R1587 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R1588# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R1589 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R1590 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R1592# CARBON RES. 1/4W J 180k Ω RCX4JATZ0184 R1593# CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R1594# CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R1595 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153 R1596# CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R1597 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R1598# CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R1599# CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R1601# CEMENT RES. 3W K 1.2 Ω or RW031R2PG007

# CEMENT RES. 5W K 1.2 Ω or RW051R2DP005 # CEMENT RESISTOR 5W K 1.2 Ω or RW051R2PG001 # CEMENT RESISTOR 5W J 1.2 Ω H:10MM or RW051R2PAK10 # CEMENT RESISTOR 3W K 1.2 Ω RW031R2PAK10

R1602 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R1603 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R1604 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R1605 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R1606 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R1607 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R1608 CARBON RES. 1/4W J 180k Ω RCX4JATZ0184 R1610 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R1611 METAL OXIDE FILM RES. 2W J 0.39 Ω or RN02R39ZU001

METAL OXIDE FILM RES. 2W J 0.39 Ω RN02R39DP004

20040415 1-17-6 T8059EL

Page 66

Ref. No. Description Part No.

R1612# METAL OXIDE FILM RES. 2W J 3.9 Ω or RN023R9ZU001 # METAL OXIDE FILM RES. 2W J 3.9 Ω RN023R9DP004

R1613 CARBON RES. 1/4W J 120 Ω RCX4JATZ0121 R1614 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R1615 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333 R1617 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1620 CARBON RES. 1/4W J 6.8 Ω RCX4JATZ06R8 R1622 METAL OXIDE FILM RES. 2W J 8.2k Ω or RN02822ZU001

METAL OXIDE FILM RES. 2W J 8.2k Ω RN02822DP004 R1623 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R1624# CARBON RES. 1/4W J 39k Ω RCX4JATZ0393 R1625# CARBON RES. 1/4W J 39k Ω RCX4JATZ0393 R1629 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1630 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1631 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1632# CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R1633# CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R1634 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682 R1635 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R1636 CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0 R1638 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R1639 CARBON RES. 1/2W J 1.5k Ω or RCX2JZQZ0152

CARBON RES. 1/2W J 1.5k Ω RCX2152KA013 R1640# CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R1641 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1642 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R1643# CARBON RES. 1/4W J 33 Ω RCX4JATZ0330 R1644 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R1645# CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R1646 PCB JUMPER D0.6-P5.0 JW5.0T R1647# CARBON RES. 1/4W J 8.2 Ω RCX4JATZ08R2 R1648 CARBON RES. 1/4W J 6.8 Ω RCX4JATZ06R8 R1649# CARBON RES. 1/4W J 22 Ω RCX4JATZ0220 R1650 PCB JUMPER D0.6-P5.0 JW5.0T R1651 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R1652 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R1654# CARBON RES. 1/4W J 18 Ω RCX4JATZ0180 R1655 CARBON RES. 1/4W J 3.9 Ω RCX4JATZ03R9 R1656 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R1657 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R1658# CARBON RES. 1/4W J 3.9 Ω RCX4JATZ03R9 R1659# CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R1660# CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R1661 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102 R1662 PCB JUMPER D0.6-P12.5 JW12.5T R1663 CHIP RES. 1/10W F 8.2k Ω or RRXAFB5Z8201

CHIP RES.(1608) 1/10W F 8.2k Ω RRXAFB5H8201 R1664 CHIP RES. 1/10W F 4.7k Ω or RRXAFB5Z4701

CHIP RES.(1608) 1/10W F 4.7k Ω RRXAFB5H4701 R1665 CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0 R1667 CHIP RES. 1/10W F 220 Ω or RRXAFB5Z2200

CHIP RES.(1608) 1/10W F 220 Ω RRXAFB5H2200 R1669# PCB JUMPER D0.6-P5.0 JW5.0T R1670 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1671 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1672 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R1673 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R1674 CARBON RES. 1/4W J 22 Ω RCX4JATZ0220 R1681 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103 R1682 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223 R1686# CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7

Ref. No. Description Part No.

R1687 CARBON RES. 1/4W G 5.6k Ω RCX4GATZ0562 R1688 CARBON RES. 1/4W G 15k Ω RCX4GATZ0153 R1689 CARBON RES. 1/4W G 18k Ω RCX4GATZ0183 R1690 CARBON RES. 1/4W G 56k Ω RCX4GATZ0563 R1694 CHIP RES.(1608) 1/10W J 10 Ω RRXAJB5Z0100 R1695 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391 R1701 CHIP RES.(1608) 1/10W J 75 Ω RRXAJB5Z0750 R1702 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183 R1703 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104 R1704 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183 R1706 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104 R1707 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1708 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1752 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1753 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1788 CHIP RES.(1608) 1/16W J 160 Ω RRXAJB5Z0161 R1789 CHIP RES.(1608) 1/16W J 160 Ω RRXAJB5Z0161 R1790 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1791 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101 R1801# CARBON RES. 1/4W J 15k Ω RCX4JATZ0153 R1802# CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1803# CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R1804 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R1805 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153 R1806 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R1807 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R1808 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R1809 METAL OXIDE FILM RES. 1W J 12 Ω or RN01120ZU001

METAL OXIDE FILM RES. 1W J 12 Ω RN01120DP003

R1810 METAL OXIDE FILM RES. 1W J 12 Ω or RN01120ZU001

METAL OXIDE FILM RES. 1W J 12 Ω RN01120DP003 R1851 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1852 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R1853 CARBON RES. 1/2W J 12 Ω or RCX2JZQZ0120

CARBON RES. 1/2W J 12 Ω RCX2120KA013

SWITCHES

SW1201 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH SKHHAM or SST0101AL029

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH TC-1104(H=5.0) SST0101DNG02 SW1202 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH SKHHAM or SST0101AL029

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH TC-1104(H=5.0) SST0101DNG02 SW1203 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH SKHHAM or SST0101AL029

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH TC-1104(H=5.0) SST0101DNG02 SW1204 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH SKHHAM or SST0101AL029

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH TC-1104(H=5.0) SST0101DNG02 SW1205 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH SKHHAM or SST0101AL029

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH TC-1104(H=5.0) SST0101DNG02 SW1206 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH SKHHAM or SST0101AL029

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH TC-1104(H=5.0) SST0101DNG02 SW1207 TACT SWITCH SKQSAB or SST0101AL038

20040415 1-17-7 T8059EL

Page 67

Ref. No. Description Part No.

TACT SWITCH SKHHAM or SST0101AL029 TACT SWITCH KSM0612B or SST0101HH003 TACT SWITCH TC-1104(H=5.0) SST0101DNG02

SW1208 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH SKHHAM or SST0101AL029 TACT SWITCH KSM0612B or SST0101HH003 TACT SWITCH TC-1104(H=5.0) SST0101DNG02

SW1209 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH SKHHAM or SST0101AL029 TACT SWITCH KSM0612B or SST0101HH003 TACT SWITCH TC-1104(H=5.0) SST0101DNG02

SW1210 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH SKHHAM or SST0101AL029 TACT SWITCH KSM0612B or SST0101HH003 TACT SWITCH TC-1104(H=5.0) SST0101DNG02

SW1211 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH SKHHAM or SST0101AL029 TACT SWITCH KSM0612B or SST0101HH003 TACT SWITCH TC-1104(H=5.0) SST0101DNG02

MISCELLANEOUS

BC1571 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026 BC1601 PCB JUMPER D0.6-P5.0 JW5.0T BC1602 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC1605 PCB JUMPER D0.6-P5.0 JW5.0T BC1606 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC1607 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC1650 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC1731 PCB JUMPER D0.6-P5.0 JW5.0T BC1732 PCB JUMPER D0.6-P5.0 JW5.0T BC1736 PCB JUMPER D0.6-P5.0 JW5.0T BC1737 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 CF1031 CERAMIC TRAP 4.5MHzHz or FBE455PMR003

4.5M TRAP XT4.5MB2 or FBE455PLN001 CERAMIC TRAP 4.5MHz FBE455PMS002

CF1032 CERAMIC FILTER SFSRA4M50CF00-B0 or FBB455PMR004

4.5M FILTER LTH4.5MCB FBB455PLN001

F1601# FUSE 4.00A/125V or PAGU20CAG402

# FUSE 51MS040L or PAFC20CHV402 # FUSE STC4A125V U/CT or PAGE20CW3402 # FUSE 4.00A/125V PAGG20CNG402

FH1601 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 XH01Z00DK001

FH1602 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 XH01Z00DK001

JK1701 RCA JACK(YELLOW) MTJ-032-05B-20 or JXRL010LY038

RCA JACK 1P:YELLOW DA1-05A3N0S001 JXRL010RP036

JK1702 RCA JACK(RED) MTJ-032-05A-21 or JYRL010LY010

RCA JACK 1P:RED(SW) DA1-05A2N1S001 JYRL010RP017

JK1703 RCA JACK(WHITE) MTJ-032-05B-22 or JXRL010LY039

RCA JACK 1P : WHITE DA1-05A4N0S001 JXRL010RP037 JK1730 RCA JACK MSP-241V-05 PBSN W/O JXRL010LY085 JK1801 MINI JACK HSJ2000-01-010 or JYSL010HD002

MINI JACK MSJ-2000 or JYSL010LY003

PHONE JACK DP3-25-7-001 JYSL010RP002 PS1602# THERMISTOR ZPB45BL7R0A QNZZ45BL7R0A RS1201 REMOCON RECEIVE UNIT PIC-37042SR or USESJRSKK034

REMOCON RECEIVE UNIT PIC-26042SR-2 or USESJRSKK032

REMOCON RESEVER MIM-0BM8DKL-C USESJRSUNT07 SA1601# SURGE ABSORBER JVR-07N471K or NVQZVR07N471

# SURGE ABSORBER CNR-10D471K or NVQZR10D471K # SURGE ABSORBER CNR-07D471K or NVQZR07D471K

Ref. No. Description Part No.

# SURGE ABSORBER PVR-07D471KB NVQZ07D471KB SF1001 SAW FILTER SAFHM45M7VAAZ00B03 FBB456PMR010 SG1601# GAP. FNR-G3.10D FAZ000LD6005 T1571# FLYBACK TRANSFORMER JF0501-3101B or LTF00CPXB039 # FLYBACK TRANS BSC23-2603S LTF00CPS2054 T1572 H0RIZONTAL DRIVE TRANS LP2-005 LTH00CPA5005 T1601# SWITCHING TRANS 04727 LTT00CPKT137 TB4 13V H/V HEAT SINK PIU T8001UB 0EM302039 TB5 9V POW HEAT SINK PHC T4400UA 0EM407598 TL2 SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080 TP1301 PCB JUMPER D0.6-P10.0 JW10.0T TP1304 PCB JUMPER D0.6-P5.0 JW5.0T TP1305 PCB JUMPER D0.6-P5.0 JW5.0T TP1401 PCB JUMPER D0.6-P10.0 JW10.0T TP1402 PCB JUMPER D0.6-P10.0 JW10.0T TP1403 PCB JUMPER D0.6-P7.5 JW7.5T TP1404 PCB JUMPER D0.6-P7.5 JW7.5T TP1405 PCB JUMPER D0.6-P7.5 JW7.5T TP1501 PCB JUMPER D0.6-P5.0 JW5.0T TP1502 PCB JUMPER D0.6-P5.0 JW5.0T TP1503 PCB JUMPER D0.6-P5.0 JW5.0T TP1731 PCB JUMPER D0.6-P12.5 JW12.5T TP1732 PCB JUMPER D0.6-P7.5 JW7.5T TP1733 PCB JUMPER D0.6-P7.5 JW7.5T TP1734 PCB JUMPER D0.6-P7.5 JW7.5T TU1001 TUNER B9015AF or UTUNNTUSP025

TUNER ENV56K02G3 UTUNNTUMS012 VR1601 CARBON P.O.T. 10k Ω B VRCB103HH014 W1601# AC CORD PB8K9F9110A-057 or WAC0172LW008

# AC CORD WAC0172LTE01 or WAC0172LTE01 # AC CORD WAC0172AS006 or WAC0172AS006 # AC CORD LA-2366 or WAC0172LW006 # AC CORD A0A0280-007 WAC0172LTE04

X1301 X'TAL 3.579545 MHz or FXD355LLN003

X'TAL 3.579545MHz(30PPM) FXD355LCHE01

CRT CBA

Ref. No. Description Part No.

CRT CBA Consists of the following

CAPACITORS

C501 CERAMIC CAP. B K 1000pF/2KV or CCD3DKP0B102

CERAMIC CAP. B K 1000pF/2KV or CA3D102MR030 CERAMIC CAP. B K 1000pF/2KV CCD3DKD0B102

C502 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0 C511 CHIP CERAMIC CAP. B K 390pF/50V CHD1JKB0B391 C521 CHIP CERAMIC CAP. B K 390pF/50V CHD1JKB0B391 C531 CHIP CERAMIC CAP. B K 470pF/50V CHD1JKB0B471

CONNECTORS

CN505 PIN CONNECTOR 005P-5100 or JTEA001TG001

CONNECTOR PIN, 1P LV or 1700576

CONNECTOR PIN, 1P RT-01N-2.3A 1730688

COIL

L501 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q511 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR KTC3207 NQSZ0KTC3207 Q521 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

--------

20040415 1-17-8 T8059EL

Page 68

Ref. No. Description Part No.

TRANSISTOR KTC3207 NQSZ0KTC3207

Q531 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR KTC3207 NQSZ0KTC3207 Q511 TRANSISTOR 2SC2482 TPE6 QQSZ02SC2482 Q521 TRANSISTOR 2SC2482 TPE6 QQSZ02SC2482 Q531 TRANSISTOR 2SC2482 TPE6 QQSZ02SC2482

RESISTORS

R510 METAL OXIDE FILM RES. 1W J 15k Ω or RN01153ZU001

METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003 R511 CHIP RES.(1608) 1/10W J 10 Ω RRXAJB5Z0100 R512 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R515 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R516 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R517 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R520 METAL OXIDE FILM RES. 1W J 15k Ω or RN01153ZU001

METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003 R521 CHIP RES.(1608) 1/10W J 10 Ω RRXAJB5Z0100 R522 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R525 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R526 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R527 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R530 METAL OXIDE FILM RES. 1W J 15k Ω or RN01153ZU001

METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003 R531 CHIP RES.(1608) 1/10W J 10 Ω RRXAJB5Z0100 R532 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R535 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R536 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R537 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

MISCELLANEOUS

CL501A LEAD WIRE 8P 270MM WX1T8001-001 JK501# CRT SOCKET ISMS02S JSCC220PK003

20040415 1-17-9 T8059EL

Page 69

MGD134

T8059CK

2004-04-20

Magnavox MGD134 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

LASER BEAM SAFETY PRECAUTIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

ELECTRICAL ADJUSTMENT INSTRUCTIONS

FIRMWARE RENEWAL MODE

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAM

SYSTEM CONTROL TIMING CHARTS

IC PIN FUNCTIONS

LEAD IDENTIFICATIONS

EXPLODED VIEWS

MECHANICAL PARTS LIST

ELECTRICAL PARTS LIST
