Magnavox MDV443/17, MDV453/17 Schematic

MANUAL 5889 DVD Player Magnavox MDV443/17, MDV453/17

Philips Consumer Electronics Company

A Division of Philips Electronics North America Corporation

Technical Service Data

Service Solutions Group
Technical Publications Dept.
P.O. Box 555, 401 E. Old Andrew Johnson Hwy.
Jefferson City,TN 37760

DVD PLAYER

Service Manual

MANUAL 5889

Sec. 1A: Main Section

( MDV443/17 )

Supplement 1

Sec. 1B: Main Section

( MDV453/17 )

Operating Instructions
Schematic Diagrams
Cabinet & Electrical Parts Lists

MAGNAVOX

Model: MDV443/17

MAGNAVOX

Model: MDV453/17

DVD PLAYER

First Issue: 5/03

2003 Philips Consumer Electronics Company

Philips Consumer Electronics Company

A Division of Philips Electronics North America Corporation

Technical Service Data

Service Solutions Group
Technical Publications Dept.
P.O. Box 555, 401 E. Old Andrew Johnson Hwy.
Jefferson City,TN 37760

DVD PLAYER

Service Manual

MANUAL 5889

Supplement 1

Sec. 1B: Main Section

( MDV453/17 )

Operating Instructions
Schematic Diagrams
Cabinet & Electrical Parts Lists

MAGNAVOX

Model: MDV453/17

DVD PLAYER

First Issue: 5/03

2003 Philips Consumer Electronics Company

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Philips Consumer Electronics Company** Equipment. The service procedures
recommended by Philips and described in this service manual are effective
methods of performing service operations. Some of these service operations
require the use of tools specially designed for the purpose. The special tools
should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and
NOTICES which should be carefully read in order to minimize the risk of per­sonal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It also is important to understand that
these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Philips could not
possibly know, evaluate and advise the service trade of all conceivable ways
in which service might be done or of the possible hazardous consequences of
each way. Consequently, Philips has not undertaken any such broad evalua­tion. Accordingly, a servicer who uses a service procedure or tool which is
not recommended by Philips must first satisfy himself thoroughly that neither
his safety nor the safe operation of the equipment will be jeopardized by the
service method selected.

** Hereafter throughout this manual, Philips Consumer Electronics Company

will be referred to as Philips.

WARNING

Critical components having special safety characteristics are identified
with a # by the Ref. No. in the parts list and enclosed within a broken
line* (where several critical components are grouped in one area) along
with the safety symbol # on the schematics or exploded views.

Use of substitute replacement parts which do not have the same specified
safety characteristics may create shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered
without written permission from Philips. Philips assumes no liability,
express or implied, arising out of any unauthorized modification of
design. Servicer assumes all liability.

* Broken Line

TABLE OF CONTENTS

Note:

One model, MDV453/17, is covered by Supplement 1. This section only shows what differs between this model and
its base model covered by Section 1A.

OPERATING CONTROLS AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

REMOTE CONTROL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

System Control/ Servo Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Video/Audio Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-3

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

AV 2/3 Schematic Diagram Parts Location Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-2

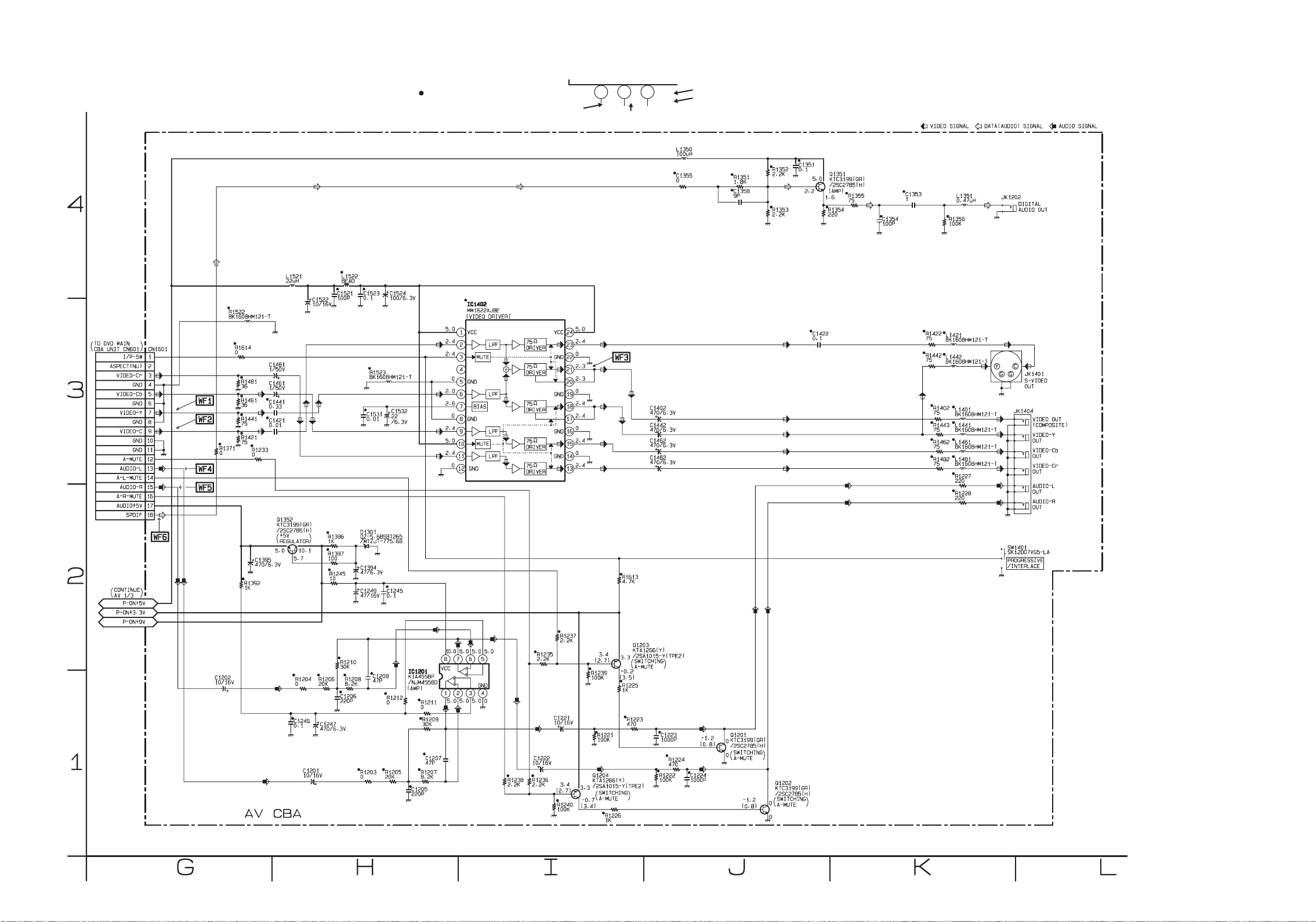

AV 2/3 Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-3

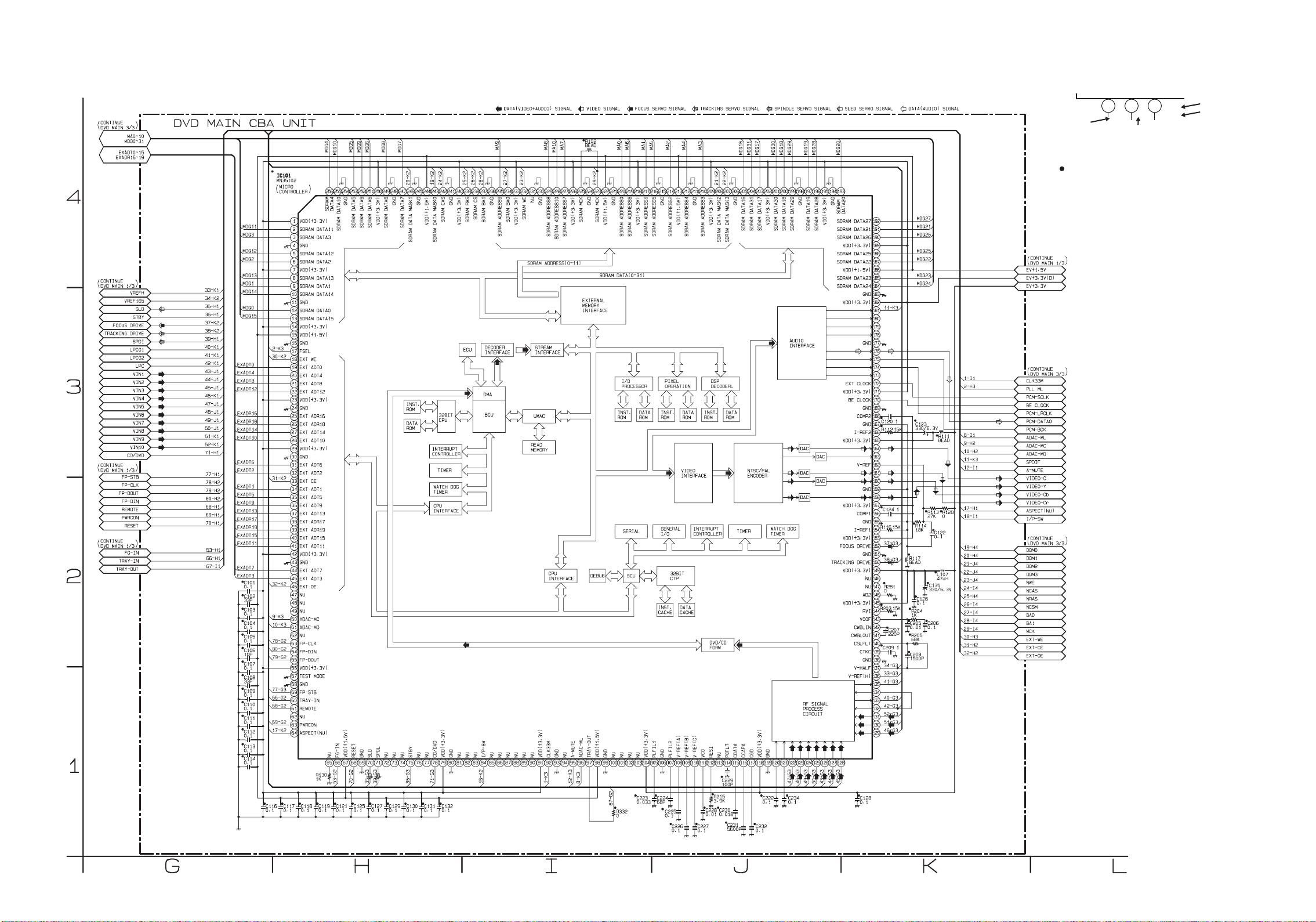

DVD Main 2/3 Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-5

IC101 Voltage Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-7

DVD Main 3/3 Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-9

WAVEFORMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

MECHANICAL PARTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

Manufactured under license from Dolby Laboratories. "Dolby"
and the double-D symbol are trademarks of Dolby Laboratories.

OPERATING CONTROLS AND FUNCTIONS

1-1-1 E5775IB

1-1-2 E5775IB

REMOTE CONTROL OPERATION

1-2-1 E5775IBR

1-2-2 E5775IBR

System Control/Servo Block Diagram

" " = SMD

FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL

IC451

(CLOCK GENERATOR)

3

1/4

MULTI
PLL

BLOCK DIAGRAMS

SLED SERVO SIGNAL SPINDLE SERVO SIGNAL

IC101

(MICRO CONTROLLER)

EXT CLOCK

172

CLK33M
BE CLOCK

170

X451

X'TAL
OSC

7
8

36.864MHz
OSC

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.
(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER
HOLES OF THE PCB.
(WIRE IS SOLDERED DIRECTLY.)

FROM/TO
VIDEO/ AUDIO
BLOCK DIAGRAM

TRAY-OUT

TRAY-IN

SPINDLE
MOTOR

M

SLED
MOTOR

M

FG CBA

FG
SENSOR

PCM-SCLK
A-MUTE
ADAC-MD
ADAC-MC
ADAC-ML
I/P-SW

TO DIGITAL SIGNAL
PROCESS BLOCK
DIAGRAM

DRIVE CBA

FS(+)
FS(-)

TS(+)
TS(-)

CN301

3SP(+)
4SP(-)
5TRAY-OUT
6TRAY-IN
7GND
8SL(-)
9SL(+)
1FG-IN

15

10

1/4

IC301

(SERVO DRIVE)

FOCUS

15

ACTUATOR
DRIVE

16

TRACKING

14

ACTUATOR
DRIVE

13

SPINDLE

12

MOTOR
DRIVE

11

SLED

17

MOTOR
DRIVE

18

IC202

(OP AMP)

12 14

PLL2

-

+

-

+

-

+

-

+3.3V

14

27

+

-+

26

25
24

+

-

1

2
3

4

+

-

5

6

23

IC461

5 4

1792FSEL

95

A-MUTE
ADAC-MD

51
50 ADAC-MC
96 ADAC-ML

84

I/P-SW

152

FOCUS DRIVE

TRACKING

150

DRIVE

FP-DOUT

SPDL71

SLD70

RESET68RESET

TRAY-OUT

97

TRAY-IN

60

FG-IN

66

FP-STB

FP-CLK

REMOTE

CN401 CN1001

59
54FP-DIN
55
53
61

FP-STB 16

16

FP-DIN 18

18

FP-DOUT 20

20

FP-CLK 21

21

REMOTE 22

22

RM2001

REMOTE
SENSOR

IC2001

(FRONT PANEL CONTROL)

1G

23

~

7G

17

a/KEY-1
b/KEY-2
c/KEY-3

K2
K1

10
11

e

f

12

g

13

h

14

i

16

2

FP-STB

28

FP-DIN

27

FP-DOUT

1

FP-CLK

d/KEY-4

7
8
9

4
3

DVD MAIN CBA UNIT AV CBA

~

GRID FIP

FL2001

SEGMENT

JP2001 JP2002

KEY-1 7

7

KEY-2 2

2

KEY-3 6

6

KEY-4 5

5

K2 1

1

K1 8

8

FUNCTION CBA

KEY
MATRIX

1-3-1

1-3-2

E5775BLS

Video / Audio Block Diagram

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

" " = SMD

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER
HOLES OF THE PCB.
(WIRE IS SOLDERED DIRECTLY.)

WF1

WF2

IC1402 (VIDEO DRIVER)

4dB

6

AMP

LPF DRIVER

2dB
AMP

2dB
AMP

DRIVER

18

21

WF3

VIDEO SIGNAL

Y

3 4

1

2

AUDIO SIGNALDATA(AUDIO) SIGNAL

C

JK1401
S-VIDEO OUT

FROM
DIGITAL
SIGNAL
PROCESS
BLOCK
DIAGRAM

FROM/TO
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM

SPDIF

PCM-BCK
PCM-DATA0
PCM-LRCLK

I/P-SW
ADAC-MD
ADAC-MC
ADAC-ML

FROM DIGITAL
SIGNAL PROCESS
BLOCK DIAGRAM

IC601 (AUDIO DAC)

1
2
3

13
14
15

VIDEO-Y
VIDEO-C
VIDEO-Cb
VIDEO-Cr

SERIAL

PORT

SERIAL

CONTROL

CN601

7 7VIDEO-Y
9 9VIDEO-C
5 5VIDEO-Cb
3 3VIDEO-Cr

4X/8X

OVERSAMPLING

DIGITAL FILTER

/FUNCTION

CONTROLLER

CN1601

ENHANCED

MULTI-LEVEL

DELTA-SIGMA

MODULATOR

ZERO DETECT

SYSTEM CLOCK

16

DAC

DAC

2

9

11

4dB
AMP

4dB
AMP

4dB
AMP

LPF+AMP

LPF+AMP

12
11

2dB
AMP

2dB
AMP

2dB
AMP

3

7

8

CN601 CN1601

LPF DRIVER

LPF DRIVER

LPF DRIVER

MUTE

L-CH

R-CH

23

15

13

11I/P-SW
1818SPDIF
13 13AUDIO-L
15 15AUDIO-R
14 14A-L-MUTE
16 16A-R-MUTE
12 12A-MUTE

WF6

WF4

WF5

JK1404

Q1351

AMP

COMPOSITE
VIDEO OUT

VIDEO-Y
OUT

VIDEO-Cb
OUT

VIDEO-Cr
OUT

SW1401

PROGRESSIVE
/INTERLACE

3
2

6
5

+5V

Q1204

IC1201

(AMP)

1

7

Q1202

JK1202

DIGITAL
AUDIO OUT

JK1404

AUDIO-L
OUT

AUDIO-R
OUT

PCM-SCLK
A-MUTE

1-3-3

DVD MAIN CBA UNIT

1-3-4

+3.3V

Q1201

Q1203

AV CBA

+3.3V

E5775BLV

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Standard Notes

WARNING

Critical components having special safety characteris­tics are identified with a # by the Ref. No. in the parts
list and enclosed within a broken line* (where several
critical components are grouped in one area) along
with the safety symbol # on the schematics or
exploded views.
Use of substitute replacement parts which do not have
the same specified safety characteristics may create
shock, fire or other hazards.
Under no circumstances should the original design be
modified or altered without written permission from
Philips Consumer Electronics Company. Philips
assumes no liability, express or implied, arising out of
any unauthorized modification of design. Servicer
assumes all liability.
* Broken Line :

Capacitor Temperature Markings

Mark

(B)

Capacity

change rate

±10%

(F) +30 - 80% 20°C –25~+85°C

(SR)

(Z)

±15%

±22.5%

Capacitors and transistors are represented by the fol­lowing symbols.

< PCB Symbols >

(Top View) (Bottom View)

+

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

Standard

Temperature

temperature

20°C -25~+85°C

20°C –25~+85°C

20°C –25~+85°C

Electrolytic Capacitor

(Top View)

range

PNP Transistor

Notes:

1. Do not use the part number shown on these draw­ings for ordering. The correct part number is shown
in the parts list, and may be slightly different or
amended since these drawings were prepared.

2. To maintain original function and reliability of
repaired units, use only original replacement parts
which are listed with their part numbers in the parts
list section of the service manual.

3. Prefix symbol "CN" means "connector" (can dis­connect and reconnect).
Prefix symbol "W" means "wire-solder holes of the
PCB" (wire is soldered directly).

4. How to read converged lines.

1-D3

Distinction Area
Line Number
(1 to 3 digits)

Examples:
(1). "1-D3" means that line number "1" goes to area

"D3."

(2). "1-B1" means that line number "1" goes to area

"B1."

5. All resistance values are indicated in ohms

3

(K=10

, M=106).

6. Resistor wattages are 1/6W unless otherwise spec­ified.

7. All capacitance values are indicated in µF

-6

(P=10

µF).

8. All voltages are DC voltages unless otherwise
specified.

9. Voltage indications for PLAY and STOP modes on
the schematics are as shown below.

1

(Unit: Volt)

The same voltage for
both PLAY & STOP modes

5.0

< Schematic Diagram Symbols >

Digital Transistor

3

AREA D3

2

1

2

3

5.0
(2.5)

Indicates that the voltage
is not consistent here.

AREA B1

1-D3

ABCD

PLAY mode
STOP mode

1-B1

E C B

(Top View)

E C B

NPN Digital Transistor

E C B

(Top View)

PNP Digital
Transistor

E C B

1-4-1 SCNT-P2

AV 2/3 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position

CAP A CITORS
C1201 H-1 IC1201 H-1 R1235 I-2
C1202 G-1 IC1402 I-3 R1236 I-1
C1205 H-1 R1237 I-2
C1206 H-1 L1350 J-4 R1238 I-1
C1207 H-1 L1351 K-4 R1239
C1208 H-1 L1401
C1221 I-1 L1421 K-3 R1245
C1222 I-1 L1441 K-3 R1351
C1223 J-1 L1442
C1224 J-1 L1461
C1245 H-2 L1481
C1246 H-1 L1521
C1247 H-1 L1522
C1249
C1351
C1353
C1354
C1355
C1358
C1394 H-2
C1395 G-2 R1441 G-3
C1402 J -3 R1203 H-1 R1442 K-3
C1421 H-3 R1204 H-1 R1443 K-3
C1422 J -3 R1205 H-1 R1461 G-3
C1441 H-3 R1206 H-1 R1462 K-3
C1442 J -3 R1207 H-1 R1481 G-3
C1461 H-3 R1208 H-1 R1482 K-3
C1462 J -3 R1209 H-1 R1522 G-3
C1481 H-3 R1210 H-2 R1523 H-3
C1482 J -3 R1211 H-1 R1613 I -2
C1521 H-4 R1212 H-1 R1614 G-3
C1522 H-3 R1221 I-1
C1523 H-4 R1222 J-1 SW1401 K-2
C1524 H-4 R1223 I-1
C1531 H-3 R1224 J-1 JK1202 K-4
C1532 H-3 R1225 I-1 J K1401 K-3

CONNECTOR

CN1601 G-3

DIODE

D1301 H-2 R1233 G-3

H-2
J-4Q1201J-1
K-4 Q1202 J-1
K-4 Q1203 I -2
J-4 Q1204 I -1
J-4Q1351J-4

Q1352 H-2

R1226 I-1 JK 1404 L-3
R1227 K-2
R1228 K-2

ICS

COILS

K-3

K-3
K-3
K-3
H-4
H-4

TRANSISTORS

RESISTORS

RESISTORS

I-1

R1240

R1352
R1353
R1354
R1355
R1356
R1371 G-3
R1392 G-2
R1396 H-2
R1397 H-2
R1402 K -3
R1421 G-3
R1422 K -3

SWITCH

MIS CELLANEOUS

I-1

H-2

J-4
J-4
J-4

J-4
K-4
K-4

1-4-2

AV 2/3 Schematic Diagram

“ “ = SMD

Voltage indications for PLAY and STOP modes
on the Schematic Diagrams are as shown below:

1 2 3

5.0

THE SAME VOLTAGE FOR
BOTH PLAY & STOP MODES.

5.0

~

(2.5)

INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.

PLAY MODE
STOP MODE

1-4-3

1-4-4

E5775SCAV2

DVD Main 2/3 Schematic Diagram

Voltage indications for PLAY and STOP modes
on the Schematic Diagrams are as shown below:

1 2 3

5.0
(2.5)

~

5.0

THE SAME VOLTAGE FOR
BOTH PLAY & STOP MODES.

INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.

PLAY MODE
STOP MODE

“ “ = SMD

1-4-5

1-4-6

E5775SCD2

IC101 VOLTAGE CHART

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

129 2.0 2.0 161 0.5 0.5 193 ~ ~ 225 1.9 1.9

130 2.2 2.2 162 1.4 1.4 194 0 0 226 3.3 3.3

131 2.3 2.3 163 ----- ----- 195 3.3 3.3 227 ~ ~

132 0.4 0.1 164 0.9 0.9 196 ~ ~ 228 ~ ~

133 1.2 0.4 165 3.3 3.3 197 ~ ~ 229 ~ ~

134 0.4 0.1 166 1.5 1.5 198 0 0 230 0 0

135 0.2 0.2 167 0 0 199 ~ ~ 231 ----- -----

136 2.3 2.3 168 2.1 2.1 200 ~ ~ 232 3.3 3.3

137 1.7 1.7 169 0 0 201 ~ ~ 233 3.3 3.3

138 0 0 170 0.8 0.8 202 3.3 3.3 234 1.6 1.6

139 1.7 1.7 171 3.3 3.3 203 ~ ~ 235 ~ ~

140 1.7 1.7 172 1.6 1.6 204 ~ ~ 236 0 0

141 1.7 1.7 173 ----- ----- 205 ~ ~ 237 1.7 1.7

142 1.7 1.7 174 1.8 1.8 206 0 0 238 3.0 3.0

143 0.5 0.5 175 1.7 1.7 207 2.4 3.5 239 3.3 3.3

144 1.6 1.6 176 1.4 0.1 208 2.4 2.1 240 3.3 3.3

145 3.3 3.3 177 0 0 209 3.3 3.3 241 0 0

146 0 0 178 ----- ----- 210 ~ ~ 242 3.2 3.2

147 ----- ----- 179 ----- ----- 211 0 0 243 2.4 2.1

148 ----- ----- 180 ----- ----- 212 ~ ~ 244 1.5 1.5

149 3.3 3.3 181 1.7 1.7 213 1.5 1.5 245 0 0

150 1.7 1.7 182 3.3 3.3 214 ~ ~ 246 2.4 2.1

151 0 0 183 0 0 215 0 0 247 ~ ~

152 1.7 1.7 184 ~ ~ 216 ~ ~ 248 0 0

153 3.3 3.3 185 ~ ~ 217 ~ ~ 249 ~ ~

154 1.4 1.4 186 1.5 1.5 218 3.3 3.3 250 3.3 3.3

155 0 0 187 ~ ~ 219 ~ ~ 251 ~ ~

156 2.2 2.2 188 ~ ~ 220 ~ ~ 252 ~ ~

157 3.3 3.3 189 3.3 3.3 221 0 0 253 ~ ~

158 0.7 0.7 190 ~ ~ 222 1.5 1.5 254 0 0

159 0 0 191 ~ ~ 223 1.9 1.9 255 ~ ~

160 0.5 0.5 192 ~ ~ 224 0 0 256 ~ ~

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

1 3.33.3332.22.9650.10.1973.43.4

2 ~ ~ 34 ~ ~ 661.22.5981.61.6

3 ~ ~35~ ~671.61.6990 0

4 0 0 36 ~ ~ 68 3.4 3.4 100 ----- -----

5 ~ ~ 37 ~ ~ 69 0 0 101 ----- -----

6 ~ ~ 38 0.3 0.5 70 1.7 1.7 102 ----- -----

7 3.3 3.3 39 0.1 0.1 71 2.4 1.7 103 ----- -----

8 ~ ~ 40 ~ ~ 72 ----- ----- 104 3.3 3.3

9 ~ ~ 41 ~ ~ 73 ----- ----- 105 0.9 0.9

10 ~ ~ 42 3.3 3.3 74 ----- ----- 106 0 0

11 0 0 43 0 0 75 3.4 3.4 107 0.8 0.8

12 ~ ~ 44 ~ ~ 76 ----- ----- 108 1.6 1.6

13 ~ ~ 45 ~ ~ 77 ----- ----- 109 2.1 2.1

14 3.3 3.3 46 2.0 2.6 78 0.1 0.1 110 2.6 2.6

15 1.5 1.5 47 ----- ----- 79 3.3 3. 3 111 2.0 2.0

16 0 0 48 ----- ----- 80 0 0 112 0.7 0.9

17 3.4 3.4 49 ----- ----- 81 ----- ----- 113 ----- -----

18 3.4 3.4 50 3.4 3.4 82 ----- ----- 114 1.8 1.8

19 ~ ~ 51 3.4 3.4 83 ----- ----- 115 1.4 1.4

20 ~ ~ 52 ----- ----- 84 2.4 2.4 116 0.3 0.3

21 ~ ~ 53 3.4 3.4 85 ----- ----- 117 1.6 1.6

22 ~ ~ 54 3.4 3.4 86 ----- ----- 118 3.3 3.3

23 3.3 3.3 55 3.3 3.3 87 ----- ----- 119 0 0

24 0 0 56 3.3 3.3 88 ----- ----- 120 1.9 1.9

25 0.4 0.4 57 0 0 89 ----- ----- 121 1.9 1.9

26 0.9 0.6 58 0 0 90 ----- ----- 122 2.4 2.4

27 ~ ~ 59 3.3 3.3 91 3.3 3.3 123 2.4 2.4

28 ~ ~ 60 3.4 3.4 92 1.7 1.5 124 2.4 2.4

29 3.3 3.3 61 3.1 3.1 93 0 0 125 2.4 2.4

30 0 0 62 ----- ----- 94 ----- ----- 126 2.0 2.0

31 ~ ~ 63 3.4 3.4 95 3.4 0.1 127 2.0 2.0

32 ~ ~ 64 0.8 0.8 96 3.4 3.4 128 2.0 2.0

1-4-7 1-4-8

DVD Main 3/3 Schematic Diagram

“ “ = SMD

Voltage indications for PLAY and STOP modes
on the Schematic Diagrams are as shown below:

1 2 3

5.0

THE SAME VOLTAGE FOR
BOTH PLAY & STOP MODES.

5.0

~

(2.5)

INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.

PLAY MODE
STOP MODE

1-4-9

1-4-10

E5775SCD3

WAVEFORMS

WF1 Pin 7 of CN1601

VIDEO-Y 0.2V 20µsec

WF2 Pin 9 of CN1601

WF5

Pin 15 of CN1601

AUDIO-R

WF6

Pin 18 of CN1601

1V 0.5msec

NOTE:

Input
CD: 1kHz PLAY
(WF4~WF6)
DVD: POWER ON (STOP) MODE
(WF1~WF3)

VIDEO-C 0.2V 20µsec

WF3 Pin 21 of IC1402

VIDEO-CVBS 0.5V 20µsec

WF4

Pin 13 of CN1601

SPDIF

1V 0.1µsec

AUDIO-L

1V 0.5msec

1-5-1

1-5-2

E5775WF

VIDEO-Y
OUT

VIDEO-Cb
OUT

VIDEO-Cr
OUT

VIDEO
OUT

AUDIO-L
OUT

CN1001

AUDIO-R
OUT

DIGITAL
AUDIO OUT

S-VIDEO
OUT

2222

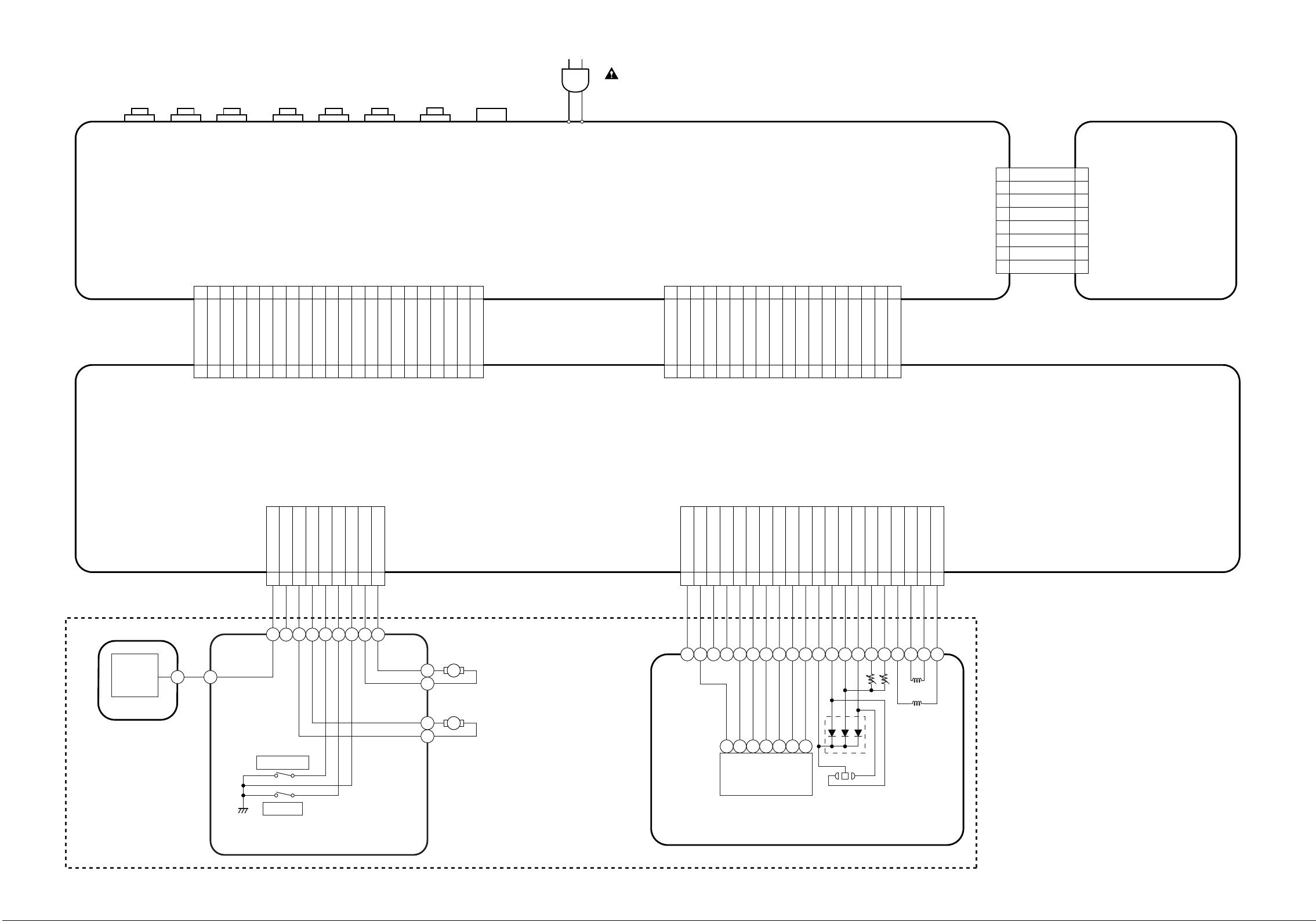

WIRING DIAGRAM

AV CBA
(BE57S0F01015)

AC CORD

CN1601

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.
(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "JP" MEANS WIRE-SOLDER
HOLES OF THE PCB.
(WIRE IS SOLDERED DIRECTLY.)

JP2001 JP2002

K2 1

1

KEY-2 2

2

NU 3

3

GND 4

4

KEY-4 5

5

KEY-3 6

6

KEY-1 7

7

K1 8

8

FUNCTION CBA
(BE57S0F01015)

FG
SENSOR

FG CBA

W1001

EV+1.5V 11

EV+1.5V 22

EV+3.3V 44

EV+3.3V 55

GND 66

GND 77

GND 88

GND 99

GND 1010

GND 1111

GND 1212

P-ON+5V 1313

EV+9V 1414

EV+9V 1515

FP-STB 1616

P-ON+3.3V 1717

FP-DIN 1818

EV+1.5V 33

CN401

PWRCON 1919

REMOTE

FP-DOUT 2020

FP-CLK 2121

W1601

AUDIO-L 1313

A-L-MUTE 1414

VIDEO-Cb 55

VIDEO-Y 77

VIDEO-Cr 33

I/P-SW 11

GND 44

ASPECT(NU) 22

GND 88

GND 66

CN601

GND 1111

VIDEO-C 99

A-MUTE 1212

GND 1010

AUDIO-R 1515

SPDIF 1818

A-R-MUTE 1616

AUDIO+5V 1717

DVD MAIN CBA UNIT

CN201CN301

FG-IN
123

SP(-)7SP(+)

P-ON+3.3V(D)

TRAY-OUT

TRAY-IN

GND

4

5

6

8 SL(-)

9 SL(+)

SLED
MOTOR

M

SPINDLE
MOTOR

M

GND
123456789

VREF

P-ON+5VFE

CBD

A

PD-MONI

GND(LD)

CD/DVD

101112131415161718

DVD-LD

CD-LD

GND(DVD-PD)

TS(+)

FS(-)

FS(+)

TS(-)

GND(CD-PD)

19

20

FS

TS

11 2 3 5 6 4 7

TRAY-OUT

DETECTOR

TRAY-IN

PICK UP UNIT

DRIVE CBA

DVD MECHA

1-6-1 1-6-2

E5775WI

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read care­fully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

NOTE: Parts that are not assigned part numbers
(---- --- ----- or blank) are not normally available.

To order parts call the TOLL FREE Philips Sales
Center number: 1 - 800 - 851 - 8885
(In Canada) 1 - 800 - 363 - PART.
1 - 800 - 535 - 3715 (Fax).

Ref. # Description ID No. Part No.

A1X FRONT ASSEMBLY 0VM204248

A2 TRAY PANEL 0VM415462

A13 FOOT(REAR) 0VM415007

A15 MAIN CHASSIS 0VM101219

A16 TOP COVER:SILVER 0VM101220

A17 REAR PANEL 0VM204250

A21 LABEL, SERIAL NO. ---------- -- -- --- -----

A22 LABEL, BAR CODE ---------- ---- --- --- --

A27 REGISTRATION CARD 0VMN03333

A28 LABEL, IMPORTANT ----------

1B1 DVD MECHA (THIN TYPE) N79F1GVM

2B3 HOLDER, MAIN PCB 0VM305832B

2L011 SCREW, C-TIGHT M3X5 BIND HEAD + GBCC3050

2L021 SCREW, S-TIGHT M3X8 BIND + CHROME GBMS3080

2L031 SCREW, C-TIGHT M3X6 BIND HEAD GBMC3060 ---- --- -----

2L041 SCREW, B-TIGHT M3X8 BIND HEAD + GBKB3080

2L071 SCREW, C-TIGHT M3X6 BIND HEAD GBMC3060 ---- --- -----

2L101 SCREW, C-TIGHT M3X6 BIND HEAD GBMC3060 ---- --- -----

2L105 P-TIGHT SCREW 3X8 BIND + GBMP3080

PACKING

S1 GIFT BOX CARTON 0VM306366

S2 STYROFOAM 0VM101231

S4 UNIT, BAG 0VM411683

S5 PAD 0VM414757

ACCESSORIES

X1 REMOTE CONTROL UNIT DVD NA820UD 4835 218 37353

X2 DRY BATTE RY R6P/2S or XB0M451T0001 4835 138 17012

X4 ACCESSORY BAG 0VM413280

X5 AV CORD TSCKA-Y/RW100 or WPZ0102TM015 4835 321 17148

X10 # OWNER'S MANUAL 0VMN03736 00IB 843 4E001

X12 SERVICE LOCATION MAP 0VMN03463

X13 # IMPORTANT SAFEGUARD 0VMN02376

X17 QUICK GUIDE 0VMN03780 8 239 300 27251

X33 STOP SHEET(MAGNAVOX) 0VMN03201

DRY BATTERY ES-GR6M-C XB0M571GLP01 4 835 138 17012

AV CORD RCA(M*2)TO RCA(M*2) WPZ0102LTE01 4835 321 17148

20030331 1-7-1 E5775CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read care­fully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

To order parts call the TOLL FREE Philips Sales
Center number: 1 - 800 - 851 - 8885
(In Canada) 1 - 800 - 363 - PART.
1 - 800 - 535 - 3715 (Fax).

NOTES:

1. Parts that are not assigned part numbers
(---- --- ----- or blank) are not normally available.

2. “ ● ”=SMD

DVD MAIN CBA UNIT

Ref. # Description ID No. Part No.

DVD MAIN CBA UNIT N79PBGUP

AV CBA ASSEMBLY

Ref. # Description ID No. Part No.

AV CBA ASSEMBLY
Consists of the followings:

AVC BA
FUNCTION CBA

MAIN CBA

Ref. # Description ID No. Part No.

AV C BA
Consists of the followings:

CAPACITORS

C1001 # METALLIZED FILM CAP. 0 .01µF/275V ±10% orCT2E103HJE05

# METALLIZED FILM CAP. 0.01µF/250V ±20% orCT2E103MS037

# METALLIZED FILM CAP. 0.01µF/250V ±10% CT2E10 3DC011 4835 122 47703

C1003 ELECTROLYTIC CAP. 2.2 µF/250V ±20% or CA2E2R2S6009 4835 124 47748

C1004 ELECTROLYTIC CAP. 82µF/200V ±20% or CA2D820S6014

C1005 CERAMIC CAP. 56pF/500V ±5% (CH) CCD2JJPCH560

C1006 # SAFETY CAP. 2200pF/250V or CCD2EMA0E222

C1007 ELECTROLYTIC CAP. 1000 µF/6.3V ±20% CE0KMASDL102 4835 124 47203

C1009 ELECTROLYTIC CAP. 2200 µF/6.3V ±20% CE0KMASTL222 4 835 121 47718

C1010 CERAMIC CAP.(AX) 560pF/50V ±5% (CH) CA1J561TU008 4835 122 47206

C1013 CERAMIC CAP.(AX) 3300pF/50V ±10% (B) CA1J332TU011

C1014 ELECTOLYTIC CAP. 1000µF/6.3V

C1017 CERAMIC CAP.(AX) 0.01µF/16V ±20% (Y) CCA1CMT0Y103 4835 122 47522

C1018 ELECTROLYTIC CAP. 100µF/6.3V ±20% CE0KMASDL101 4835 124 47165

●

C1021 CHIP CERAMI C CAP. 0.01µF/50V ±10 % (B) CHD1JK30B103 4835 122 87255

●

C1022 CHIP CERAMI C CAP. 0.01µF/50V ±10 % (B) CHD1JK30B103 4835 122 87255

C1029 CERAMIC CAP.(AX) 2200pF/16V ±10% (X) CCA1CKT0X222 4835 122 47727

ELECTROLYTIC CAP. 2.2µF/250V

°C)

±20%(105

ELECTROLYTIC CAP. 82µF/200V ±20% CA2D820NC002 4835 124 17017

# SAFETY CAP. 2200pF/250V or CCG2E MA0F222 4835 125 97034

# SAFETY CAP. 2200pF/125V CCG2BMA 0E222 4835 125 97033

±20%(105

°C)

0VSA13623

----------

----------

----------

CE2EMASTH2R2 4835 124 47748

CE0KMASDH102

Ref. # Description ID No. Part No.

C1034 ELECTROLYTIC CAP. 470µF/6.3V ±20% CE0KMASDL471 4835 124 4723 9

C1035 ELECTROLYTIC CAP. 470µF/16V ±20% CE1CMASDL471 4835 1 24 47286

●

C1036 CHIP CER AMIC CAP. 0.01µF/50 V ±10% (B) CHD1JK30B103 4835 122 87255

●

C1037 CHIP CER AMIC CAP. 0.1µF/50V +80/-20%

C1038 ELECTROLYTIC CAP. 470µF/6.3V ±20% CE0KMASDL471 4835 124 4723 9

●

C1039 CHIP CER AMIC CAP. 0.1µF/50V +80/-20%

C1047 FILM CAP. (P) 0.01µF/50V ±5% or CMA1JJS0010 3 4835 121 47461

C1048 ELECTROLYTIC CAP. 220µF/16V ±20% CE1CMASDL221 4835 1 24 47209

●

C1049 CHIP CER AMIC CAP. 0.1µF/50V +80/-20%

C1050 ELECTROLYTIC CAP. 220µF/6.3V ±20% CE0KMASDL221 4835 124 4716 8

C1201 ELECTROLYTIC CAP. 10µF/16V ±20% CE1CMASDL 100 4835 124 47268

C1202 ELECTROLYTIC CAP. 10µF/16V ±20% CE1CMASDL 100 4835 124 47268

●

C1205 CHIP CER AMIC CAP. 220pF/50V ± 5% (CH) CHD1JJ3CH2 21 4835 122 87137

●

C1206 CHIP CER AMIC CAP. 220pF/50V ± 5% (CH) CHD1JJ3CH2 21 4835 122 87137

●

C1207 CHIP CER AMIC CAP. 47pF/50V ± 5% (CH) CH D1JJ3CH470 4835 122 87148

●

C1208 CHIP CER AMIC CAP. 47pF/50V ± 5% (CH) CH D1JJ3CH470 4835 122 87148

C1221 ELECTROLYTIC CAP. 10µF/16V ±20% CE1CMASDL 100 4835 124 47268

C1222 ELECTROLYTIC CAP. 10µF/16V ±20% CE1CMASDL 100 4835 124 47268

●

C1223 CHIP CER AMIC CAP. 1000pF/50 V ±5% (CH) CHD1JJ3CH102

●

C1224 CHIP CER AMIC CAP. 1000pF/50 V ±5% (CH) CHD1JJ3CH102

●

C1245 CHIP CER AMIC CAP. 0.1µF/50V +80/-20%

●

C1246 CHIP CER AMIC CAP. 0.1µF/50V +80/-20%

C1247 ELECTROLYTIC CAP. 470µF/6.3V ±20% CE0KMASDL471 4835 124 4723 9

C1249 ELECTROLYTIC CAP. 47µF/16V ±20% CE1CMASDL 470 4835 124 47073

●

C1351 CHIP CER AMIC CAP. 0.1µF/25V ±10% (B) CHD1E K30B104 4835 122 8721 3

●

C1353 CHIP CER AMIC CAP. 1µF/10V ± 10% (B) CHD 1AK30B105 483 5 122 87639

●

C1354 CHIP CER AMIC CAP. 100pF/50V ± 5% (CH) CHD1JJ3CH1 01 4835 122 87193

●

C1355 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 1 11 37215

●

C1358 CHIP CERAMIC CAP. 9pF/50V ±0.5% (CH) CHD1JD3CH9R0

C1394 ELECTROLYTIC CAP. 47µF/6.3V ±20% CE0KMASDL470 4835 124 47265

C1395 ELECTROLYTIC CAP. 470µF/6.3V ±20% CE0KMASDL471 4835 124 4723 9

C1402 ELECTROLYTIC CAP. 470µF/6.3V ±20% CE0KMASDL471 4835 124 4723 9

●

C1421 CHIP CER AMIC CAP. 0.01µF/50 V ±10% (B) CHD1JK30B103 4835 122 87255

●

C1422 CHIP CER AMIC CAP. 0.1µF/25V ±10% (B) CHD1E K30B104 4835 122 8721 3

●

C1441 CHIP CER AMIC CAP. 0.33µF/10 V ±10% (B) CHD1AK30B334

C1442 ELECTROLYTIC CAP. 470µF/6.3V ±20% CE0KMASDL471 4835 124 4723 9

C1461 ELECTROLYTIC CAP. 1µF/50V ±20% CE1JMASDL010 4835 124 47014

C1462 ELECTROLYTIC CAP. 470µF/6.3V ±20% CE0KMASDL471 4835 124 4723 9

C1481 ELECTROLYTIC CAP. 1µF/50V ±20% CE1JMASDL010 4835 124 47014

C1482 ELECTROLYTIC CAP. 470µF/6.3V ±20% CE0KMASDL471 4835 124 4723 9

●

C1521 CHIP CER AMIC CAP. 100pF/50V ± 5% (CH) CHD1JJ3CH1 01 4835 122 87193

C1522 ELECTROLYTIC CAP. 10µF/16V ±20% CE1CMASDL 100 4835 124 47268

●

C1523 CHIP CER AMIC CAP. 0.1µF/50V +80/-20%

C1524 ELECTROLYTIC CAP. 100µF/6.3V ±20% CE0KMASDL101 4835 124 4716 5

●

C1531 CHIP CER AMIC CAP. 0.01µF/50 V ±10% (B) CHD1JK30B103 4835 122 87255

C1532 ELECTROLYTIC CAP. 22µF/6.3V ±20% CE0KMASDL220 4835 124 47238

C2001 ELECTROLYTIC CAP. 22µF/50V ±20% CE1JMASDL 220 4835 124 47051

C2002 ELECTROLYTIC CAP. 22µF/50V ±20% CE1JMASDL 220 4835 124 47051

●

C2004 CHIP CER AMIC CAP. 0.1µF/50V +80/-20%

●

C2011 CHIP CER AMIC CAP. 0.1µF/50V +80/-20%

C2012 ELECTROLYTIC CAP. 100µF/6.3V ±20% CE0KMASDL101 4835 124 4716 5

●

C2013 CHIP CER AMIC CAP. 1000pF/50 V ±5% (CH) CHD1JJ3CH102

(F)

(F)

FILM CAP.(P) 0.01µF/50V ±5% CA1J103MS029 4835 121 47461

(F)

(F)

(F)

(F)

(F)

(F)

CHD1JZ30F104 4835 122 8764 5

CHD1JZ30F104 4835 122 8764 5

CHD1JZ30F104 4835 122 8764 5

CHD1JZ30F104 4835 122 8764 5

CHD1JZ30F104 4835 122 8764 5

CHD1JZ30F104 4835 122 8764 5

CHD1JZ30F104 4835 122 8764 5

CHD1JZ30F104 4835 122 8764 5

CONNECTORS

CN1001 FMN CONNECTOR, TOP 22P 22FMN-BTK JCFNG22JG001 ---- --- -----

CN1601 FMN CONNECTOR, TOP 18P 18FMN-BTK orJCFNG18JG001

FFC/FPC CONNECTOR 18P 00 6232 018
000 800

JC62G18TM009

20030331 1-8-1 E5775EL

Ref. # Description ID No. Part No.

DIODES

D1001 RECTIFIER DIODE 1N4005 NDQZ001 N4005 4835 130 37047

D1002 RECTIFIER DIODE 1N4005 NDQZ001 N4005 4835 130 37047

D1003 RECTIFIER DIODE BA157 or NDQZ000BA157 4835 130 37052

FAST RECOVERY DIODE ERA18-04 QDPZ0ERA1804 4835 130 37641

D1004 RECTIFIER DIODE 1N4005 NDQZ001 N4005 4835 130 37047

D1005 RECTIFIER DIODE 1N4005 NDQZ001 N4005 4835 130 37047

D1006 SCHOTTKY BARRIER DIODE SB140 or N DQZ000SB140 4 835 130 37894

SCHOTTKY BARRIER DIODE ER A81-004 QDPZERA81004 4835 130 37211

D1008 SCHOTTKY BARRIER DIODE SB140 or N DQZ000SB140 4 835 130 37894

SCHOTTKY BARRIER DIODE ER A81-004 QDPZERA81004 4835 130 37211

D1011 RECTIFIER DIODE BA157 or NDQZ000BA157 4835 130 37052

FAST RECOVERY DIODE ERA18-04 QDPZ0ERA1804 4835 130 37641

D1012 SWITCHING DIODE 1N4148M or NDTZ01N4148M 4835 130 37048

SWITCHING DIODE 1S S133(T-77) QDTZ001SS 133 4835 130 37235

D1015 ZENER DIODE DZ-6.8BSBT265 or NDTB0 DZ6R8BS 4835 130 38027

ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8 4835 130 37881

D1016 RECTIFIER DIODE BA157 or NDQZ000BA157 4835 130 37052

FAST RECOVERY DIODE ERA18-04 QDPZ0ERA1804 4835 130 37641

D1017 ZENER DIODE DZ-22BSBT265 or NDTB00DZ22BS 4835 130 38056

ZENER DIODE MTZJT-7722B QDTB00MTZJ22 4 835 130 38017

D1018 SWITCHING DIODE 1N4148M or NDTZ01N4148M 4835 130 37048

SWITCHING DIODE 1S S133(T-77) QDTZ001SS 133 4835 130 37235

D1024 SWITCHING DIODE 1N4148M or NDTZ01N4148M 4835 130 37048

SWITCHING DIODE 1S S133(T-77) QDTZ001SS 133 4835 130 37235

D1030 RECTIFIER DIODE FR202 or NDQZ000FR202 4835 130 38058

FAST RECOVERY DIODE ERB32-01L3 QDQZ0ERB3201 4835 130 37149

D1046 ZENER DIODE DZ-5.6BSCT265 or NDTC0DZ5R6BS 4 835 130 38026

ZENER DIODE MTZJT-775.6C QDTC0MTZJ5R6 4835 130 37329

D1047 ZENER DIODE DZ-5.1BSBT265 or NDTB0 DZ5R1BS 4835 130 38025

ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1 4835 130 37964

D1048 ZENER DIODE DZ-15BSAT265 or NDTA00DZ15BS 4835 130 38029

ZENER DIODE MTZJT-7715A QDTA00MTZJ15 4835 130 38046

D1051 ZENER DIODE DZ-6.2BSBT265 or NDTB0 DZ6R2BS 4835 130 38039

ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 4835 130 37593

D1053 PCB JUMPER D0.6-P10.0 JW10.0T ---- --- -----

D1054 PCB JUMPER D0.6-P10.0 JW10.0T ---- --- -----

D1055 SWITCHING DIODE 1N4148M or NDTZ01N4148M 4835 130 37048

SWITCHING DIODE 1S S133(T-77) QDTZ001SS 133 4835 130 37235

D1058 SCHOTTKY BARRIER DIODE SB140 or N DQZ000SB140 4 835 130 37894

SCHOTTKY BARRIER DIODE ER A81-004 QDPZERA81004 4835 130 37211

D1301 ZENER DIODE DZ-5.6BSBT265 or NDTB0 DZ5R6BS 4835 130 38026

ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6 4835 130 37329

D2005 SWITCHING DIODE 1N4148M or NDTZ01N4148M 4835 130 37048

SWITCHING DIODE 1S S133(T-77) QDTZ001SS 133 4835 130 37235

D2006 SWITCHING DIODE 1N4148M or NDTZ01N4148M 4835 130 37048

SWITCHING DIODE 1S S133(T-77) QDTZ001SS 133 4835 130 37235

D2007 SWITCHING DIODE 1N4148M or NDTZ01N4148M 4835 130 37048

SWITCHING DIODE 1S S133(T-77) QDTZ001SS 133 4835 130 37235

D2008 SWITCHING DIODE 1N4148M or NDTZ01N4148M 4835 130 37048

SWITCHING DIODE 1S S133(T-77) QDTZ001SS 133 4835 130 37235

D2010 PCB JUMPER D0.6-P5.0 JW5.0T

ICS

IC1001 # IC, ERROR VOLTAGE DET LTV-817B-F or NPEB0LTV817F 4 835 130 37977

# IC, ERROR VOLTAGE DET LTV-817C-F NPEC0LTV817F 4835 130 37977

IC1002 IC, +1.5V REGULATOR PQ070XF01SZ QSZBA0SSH026 4835 209 47612

IC1006 IC, SHUNT REGULATOR KIA431-AT NSZLA0TJ Y001 4835 209 88194

IC1201 IC, AMP KIA4558P or NSZBA0SJY004

IC, AMP NJM4558D QSZBA0SJR006 4835 209 47544

IC1402 IC, VIDEO DRIVER MM 1622XJBE QSZBA0TMM085

IC2001 IC, FRONT PANEL CONTROL PT6313-S-TP NSZBA0TG2006

COILS

L1001 # L INE FILTE R 20MH SA-00911 LLBG00 ZSA003

L1007 CHOKE COIL 22µH-K LLBD00PKV006 4835 157 58024

L1008 CHOKE COIL 22µH-K LLBD00PKV006 4835 157 58024

L1009 CHOKE COIL 22µH-K LLBD00PKV006 4835 157 58024

Ref. # Description ID No. Part No.

L1011 BEAD CORE B16 RH 3.5X3X1.3 XL03003X M002

L1043 BEAD CORE B16 RH 4X3X2 X L03003XM001 ---- --- -----

L1060 BEAD CORE B16 RH 3.5X3X1.3 XL03003X M002

L1350 INDUCTOR 100µH-K-26T LLAXKATTU101 4835 157 57369

L1351 INDUCTOR 0.47µH-K-26T LLAXKATTUR47 4835 157 5801 8

●

L1401 CHIP INDUCTOR BK1608HM121-T LLBC003TU051

●

L1421 CHIP INDUCTOR BK1608HM121-T LLBC003TU051

●

L1441 CHIP INDUCTOR BK1608HM121-T LLBC003TU051

●

L1442 CHIP INDUCTOR BK1608HM121-T LLBC003TU051

●

L1461 CHIP INDUCTOR BK1608HM121-T LLBC003TU051

●

L1481 CHIP INDUCTOR BK1608HM121-T LLBC003TU051

L1521 CHOKE COIL 22µH-K LLBD00PKV006 4835 157 5802 4

●

L1522 CHIP BEAD MMZ1608R102CT XL06001TE002

L2001 PCB JUMPER D0.6-P5.0 JW5.0T

L2002 INDUCTOR 100µH-K-26T LLAXKATTU101 4835 157 57369

L2003 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q1001 SWITCHIN G 2SK3374 QFWZ02SK3374

Q1002 SWITCH ING P-ON+9V KTA1267(Y) "PNP" NQSY0KTA1267 4835 130 47913

Q1003 SWI TCHING CONTROL KTC3199(GR)

"NPN" or

NQS10KTC3199 4835 130 47914

SWITCHING CONTROL 2SC 2785(H) "NPN" QQSH02SC2785 4835 1 30 47722

Q1004 SWITCHIN G P-ON+5V KTC3198(Y) "NPN" NQSY0KTC31 98 4835 130 47946

Q1005 SWITCH ING P-ON-ON KTC3198(Y) "NPN" NQSY0KTC319 8 4835 130 47946

Q1006 SHUNT REGULATOR KRA110M " PNP" or NQSZ0KRA110M 4835 130 48158

SHUNT REGULATOR BN1L3Z(P) QQSP00BN1L3Z

Q1011 SWITCHIN G P-ON+3.3V 2SC2120-Y(TPE2)

"NPN"

QQSY02SC2120 4835 130 48047

Q1015 SWITCH ING P-ON-ON KRA110M "PNP" or NQS Z0KRA110M 4835 130 4815 8

SWITCHING P-ON-ON BN1L3Z(P) QQSP00BN1L3Z

Q1016 SWITCH ING P-ON-ON KTC3199(GR) "NPN" orNQS10KTC3199 4835 130 47914

SWITCHING P-ON-ON 2 SC2785(H) "NPN" QQSH02SC2785 4835 130 47722

Q1201 SWITCH ING A-MUTE KTC3199(GR) "NPN" orNQS10KTC3199 4835 130 47914

SWITCHING A-MUTE 2SC2785(H) "NPN" QQSH02SC2785 4835 130 47722

Q1202 SWITCH ING A-MUTE KTC3199(GR) "NPN" orNQS10KTC3199 4835 130 47914

SWITCHING A-MUTE 2SC2785(H) "NPN" QQSH02SC2785 4835 130 47722

Q1203 SWITCHIN G A-MUTE KTA1266(Y) "PNP" or NQSY0KTA1266 4835 130 47422

SWITCHING A-MUTE 2SA1015-Y(TPE2)
"PNP"

QQSY02SA1015

Q1204 SWITCHIN G A-MUTE KTA1266(Y) "PNP" or NQSY0KTA1266 4835 130 47422

SWITCHING A-MUTE 2SA1015-Y(TPE2)
"PNP"

QQSY02SA1015

Q1351 AMP KT C3199(GR) "NPN" or NQS10KTC3199 4835 130 4791 4

AMP 2SC2785(H) "NPN" QQSH02SC2785 4835 130 47722

Q1352 +5V RE GURATOR KTC3199(GR ) "NPN" or NQ S10KTC3199 483 5 130 47914

+5V REGURATOR 2SC2785(H) "NPN" QQSH02SC278 5 4835 1 30 47722

RESISTORS

●

R1002 CHIP RES.(1608) 1/10W 390 Ω ±5% RRXAJR5Z0391 483 5 111 37253

R1004 METAL OXIDE FILM RES. 2W 82k Ω ±5% or RN02823ZU001

R1005 CARBON RES. 1/4W 2.7M Ω ±5% RCX4JATZ0275 4835 110 5737 2

R1006 CARBON RES. 1/4W 2.7M Ω ±5% RCX4JATZ0275 4835 110 5737 2

R1008 CARBON RES. 1/4W 1k Ω ±5% RCX4JATZ0102 4835 110 57025

R1010 CARBON RES. 1/6W 15k Ω ±5% or RCX6JATZ0153 483 5 111 37307

R1011 METAL OXIDE FILM RES. 1W 1.2 Ω ±5% or RN011R2ZU001 4835 116 67022

R1013 CARBON RES. 1/4W 560 Ω ±5% RCX4JATZ0561 4835 110 57052

R1015 CARBON RES. 1/4W 560 Ω ±5% RCX4JATZ0561 4835 110 57052

R1016 CARBON RES. 1/6W 22k Ω ±5% or RCX6JATZ0223 483 5 111 37177

●

R1019 CHIP RES.(1608) 1/16W 820 Ω or RRXGFR5Z0821

●

R1020 CHIP RES.(1608) 1/10W 2.7k Ω ±5% RRXAJR5Z0272 4835 111 37243

●

R1021 CHIP RES.(1608) 1/10W 5.6k Ω ±5% RRXAJR5Z0562 4835 111 37376

●

R1022 CHIP RES.(1608) 1/10W 820 Ω ±5% RRXAJR5Z0821 483 5 111 37466

METAL OXIDE FILM RES. 2W 82k Ω ±5% RN02823KE009

CARBON RES. 1/4W 15k Ω ±5% RCX4JATZ0153 4835 110 57032

METAL OXIDE FILM RES. 1W 1.2 Ω ±5% RN011R2KE009 4835 116 6702 2

CARBON RES. 1/4W 22k Ω ±5% RCX4JATZ0223 4835 110 57038

CHIP RES. 1/10W 820 Ω RRXAFR5Z8200

20030331 1-8-2 E5775EL

Ref. # Description ID No. Part No.

●

R1023 CHIP RES.(16 08) 1/16W 2.4k Ω or RRXGFR5Z0242

CHIP RES.(1608) 1/10W 2.4k Ω ±1% RRXAFR5Z2401

●

R1025 CHIP RES.(16 08) 1/10W 10k Ω ±5% RRXAJR5Z0103 4 835 111 37216

R1029 CARBON RES. 1/6W 470k Ω ±5% or RCX6JATZ0474 4835 110 57225

CARBON RES. 1/4W 470k Ω ±5% RCX4 JATZ0474 4835 110 57225

R1032 CARBON RES. 1/6W 3.3k Ω ±5% or RCX6JATZ0332 4835 111 37185

CARBON RES. 1/4W 3.3k Ω ±5% RCX4JATZ0332 4835 110 57046

R1035 CARBON RES. 1/4W 1k Ω ±5% RCX4JATZ0102 4835 110 57025

R1043 METAL OXIDE FILM RES. 1W 2.7 Ω ±5% or RN012R 7ZU001 4835 116 57346

METAL OXIDE FILM RES. 1W 2.7 Ω ±5% RN012R7K E009 4835 116 57346

●

R1044 CHIP RES.(16 08) 1/10W 100k Ω ±5% RRXA JR5Z0104 4835 111 37 434

●

R1059 CHIP RES.(16 08) 1/10W 10k Ω ±5% RRXAJR5Z0103 4 835 111 37216

●

R1067 CHIP RES.(1608) 1/10W 1k Ω ±5% RRXAJR5Z0102 4 835 111 17068

R1068 CARBON RES. 1/4W 1k Ω ±5% RCX4JATZ0102 4835 110 57025

R1069 CARBON RES. 1/6W 470 Ω ±5% or RCX6JATZ0471 4835 111 37193

CARBON RES. 1/4W 470 Ω ±5% RCX4JATZ0471 4835 110 57167

R1073 METAL OXIDE FILM RES. 2W 22 Ω ±5% or R N02220ZU001 4835 116 57368

METAL OXIDE FILM RES. 2W 22 Ω ±5% RN02220KE009

R1074 RECTIFIER DIODE 1N4005 NDQZ001 N4005 4835 130 37047

●

R1075 CHIP RES.(16 08) 1/10W 2.7k Ω ±5% RRXAJR5Z0272 4835 111 37243

●

R1076 CHIP RES.(16 08) 1/10W 10k Ω ±5% RRXAJR5Z0103 4 835 111 37216

●

R1078 CHIP RES.(1608) 1/10W 470 Ω ±5% RRXAJR5Z0471 4835 111 37259

R1079 CARBON RES. 1/4W 0.47 Ω ±5% RCX4JATZ0R47 4835 110 57343

●

R1080 CHIP RES.(16 08) 1/10W 22k Ω ±5% RRXAJR5Z0223 4 835 111 37441

●

R1081 CHIP REG. 1/16W 100 Ω or RRXGFR5Z0101

CHIP RES. 1/10W 100 Ω RRXAFR5Z1000

●

R1082 CHIP RES.(16 08) 1/10W 10k Ω ±5% RRXAJR5Z0103 4 835 111 37216

R1083 CARBON RES. 1/4W 0.47 Ω ±5% RCX4JATZ0R47 4835 110 57343

R1084 CARBON RES. 1/6W 220k Ω ±5% or RCX6JATZ0224 4835 110 57208

CARBON RES. 1/4W 220k Ω ±5% RCX4 JATZ0224 4835 110 57208

●

R1085 CHIP RES.(16 08) 1/10W 6.8k Ω ±5% RRXAJR5Z0682 4835 111 37272

●

R1086 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

●

R1091 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

●

R1203 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

●

R1204 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

●

R1205 CHIP RES.(16 08) 1/16W 20k Ω or RRXGFR5Z0203

CHIP RES.(1608) 1/10W 20k Ω ±1% RRXAFR5Z2002

●

R1206 CHIP RES.(16 08) 1/16W 20k Ω or RRXGFR5Z0203

CHIP RES.(1608) 1/10W 20k Ω ±1% RRXAFR5Z2002

●

R1207 CHIP RES.(16 08) 1/10W 8.2k Ω ±5% RRXAJR5Z0822 4835 111 37448

●

R1208 CHIP RES.(16 08) 1/10W 8.2k Ω ±5% RRXAJR5Z0822 4835 111 37448

●

R1209 CHIP RES. 1 /16W 30k Ω or RRXGFR5Z0303

CHIP RES.(1608) 1/10W 30k Ω ±1% RRXAFR5Z3002

●

R1210 CHIP RES. 1 /16W 30k Ω or RRXGFR5Z0303

CHIP RES.(1608) 1/10W 30k Ω ±1% RRXAFR5Z3002

●

R1211 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

●

R1212 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

●

R1221 CHIP RES.(16 08) 1/10W 100k Ω ±5% RRXA JR5Z0104 4835 111 37 434

●

R1222 CHIP RES.(16 08) 1/10W 100k Ω ±5% RRXA JR5Z0104 4835 111 37 434

●

R1223 CHIP RES.(1608) 1/10W 470 Ω ±5% RRXAJR5Z0471 4835 111 37259

●

R1224 CHIP RES.(1608) 1/10W 470 Ω ±5% RRXAJR5Z0471 4835 111 37259

●

R1225 CHIP RES.(1608) 1/10W 1k Ω ±5% RRXAJR5Z0102 4 835 111 17068

●

R1226 CHIP RES.(1608) 1/10W 1k Ω ±5% RRXAJR5Z0102 4 835 111 17068

●

R1227 CHIP RES.(1608) 1/10W 220 Ω ±5% RRXAJR5Z0221 4835 111 37371

●

R1228 CHIP RES.(1608) 1/10W 220 Ω ±5% RRXAJR5Z0221 4835 111 37371

●

R1233 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

●

R1235 CHIP RES.(16 08) 1/10W 2.2k Ω ±5% RRXAJR5Z0222 4835 111 37234

●

R1236 CHIP RES.(16 08) 1/10W 2.2k Ω ±5% RRXAJR5Z0222 4835 111 37234

●

R1237 CHIP RES.(16 08) 1/10W 2.2k Ω ±5% RRXAJR5Z0222 4835 111 37234

●

R1238 CHIP RES.(16 08) 1/10W 2.2k Ω ±5% RRXAJR5Z0222 4835 111 37234

●

R1239 CHIP RES.(16 08) 1/10W 100k Ω ±5% RRXA JR5Z0104 4835 111 37 434

●

R1240 CHIP RES.(16 08) 1/10W 100k Ω ±5% RRXA JR5Z0104 4835 111 37 434

●

R1245 CHIP RES.(1608) 1/10W 10 Ω ±5% RRXAJR5Z0100 4835 111 17 393

●

R1351 CHIP RES.(16 08) 1/10W 1.8k Ω ±5% RRXAJR5Z0182 4835 111 37231

●

R1352 CHIP RES.(16 08) 1/10W 2.2k Ω ±5% RRXAJR5Z0222 4835 111 37234

●

R1353 CHIP RES.(16 08) 1/10W 2.2k Ω ±5% RRXAJR5Z0222 4835 111 37234

●

R1354 CHIP RES.(1608) 1/10W 220 Ω ±5% RRXAJR5Z0221 4835 111 37371

Ref. # Description ID No. Part No.

●

R1355 CHIP RES.(1608) 1/10W 75 Ω ±5% RRXAJR5Z0750 4835 111 17131

●

R1356 CHIP RES.(1608) 1/10W 100k Ω ±5% RRXAJR5Z0104 4835 111 37434

●

R1371 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 1 11 37215

●

R1392 CHIP RES.(1608) 1/10W 1k Ω ±5% RRXA JR5Z0102 4835 111 1706 8

●

R1396 CHIP RES.(1608) 1/10W 1k Ω ±5% RRXA JR5Z0102 4835 111 1706 8

●

R1397 CHIP RES.(1608) 1/10W 100 Ω ±5% RRXAJR5Z0101 483 5 111 37432

●

R1402 CHIP RES.(1608) 1/10W 75 Ω ±5% RRXAJR5Z0750 4835 111 17131

●

R1421 CHIP RES. 1/16W 75 Ω or RRXGFR5Z0750

CHIP RES.(1608) 1/10W 75 Ω ±1% RRXAFR5Z75R0

●

R1422 CHIP RES.(1608) 1/10W 75 Ω ±5% RRXAJR5Z0750 4835 111 17131

●

R1441 CHIP RES. 1/16W 75 Ω or RRXGFR5Z0750

CHIP RES.(1608) 1/10W 75 Ω ±1% RRXAFR5Z75R0

●

R1442 CHIP RES.(1608) 1/10W 75 Ω ±5% RRXAJR5Z0750 4835 111 17131

●

R1443 CHIP RES.(1608) 1/10W 75 Ω ±5% RRXAJR5Z0750 4835 111 17131

●

R1461 CHIP RES(1608) 1/16W 36 Ω or RRXGFR5Z0360

CHIP RES.(1608) 1/10W 36 Ω ±1% RRXAFR5Z36R0

●

R1462 CHIP RES.(1608) 1/10W 75 Ω ±5% RRXAJR5Z0750 4835 111 17131

●

R1481 CHIP RES(1608) 1/16W 36 Ω or RRXGFR5Z0360

CHIP RES.(1608) 1/10W 36 Ω ±1% RRXAFR5Z36R0

●

R1482 CHIP RES.(1608) 1/10W 75 Ω ±5% RRXAJR5Z0750 4835 111 17131

●

R1522 CHIP INDUCTOR BK1608HM121-T LLBC003TU051

●

R1523 CHIP INDUCTOR BK1608HM121-T LLBC003TU051

●

R1524 CHIP INDUCTOR BK1608HM121-T LLBC003TU051

●

R1613 CHIP RES.(1608) 1/10W 4.7k Ω ±5% RRXAJR5Z0472 4835 111 37426

●

R1614 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 1 11 37215

●

R2015 CHIP RES.(1608) 1/10W 100k Ω ±5% RRXAJR5Z0104 4835 111 37434

●

R2016 CHIP RES.(1608) 1/10W 10k Ω ±5% RRX AJR5Z0103 4835 111 3721 6

●

R2017 CHIP RES.(1608) 1/10W 10k Ω ±5% RRX AJR5Z0103 4835 111 3721 6

●

R2025 CHIP RES.(1608) 1/10W 0 RRXAZR5Z0000 4835 111 37215

●

R2026 CHIP RES.(1608) 1/10W 6.8k Ω ±5% RRXAJR5Z0682 4835 111 37272

●

R2028 CHIP RES.(1608) 1/10W 10k Ω ±5% RRX AJR5Z0103 4835 111 3721 6

●

R2031 CHIP RES.(1608) 1/10W 22k Ω ±5% RRX AJR5Z0223 4835 111 3744 1

●

R2033 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 1 11 37215

●

R2041 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 1 11 37215

●

R2042 CHIP RES.(1608) 1/10W 10k Ω ±5% RRX AJR5Z0103 4835 111 3721 6

●

R2048 CHIP RES.(1608) 1/10W 10k Ω ±5% RRX AJR5Z0103 4835 111 3721 6

●

R2049 CHIP RES.(1608) 1/10W 10k Ω ±5% RRX AJR5Z0103 4835 111 3721 6

R2053 CARBON RES. 1/6W 10 Ω ±5% or RCX6JATZ0100 4835 111 37159

CARBON RES. 1/4W 10 Ω ±5% RCX4JATZ0100 4835 110 57002

●

R2054 CHIP RES.(1608) 1/10W 1k Ω ±5% RRXA JR5Z0102 4835 111 1706 8

●

R2055 CHIP RES.(1608) 1/10W 1k Ω ±5% RRXA JR5Z0102 4835 111 1706 8

●

R2056 CHIP RES.(1608) 1/10W 1k Ω ±5% RRXA JR5Z0102 4835 111 1706 8

MISCELLANEOUS

AC1001 # AC CORD PB8K 9F9110A-055 WAC0162LW003 483 5 321 17158

F1001 # FUSE 1A/25 0V or PAGA20CW3102 4835 253 97152

# FUSE 1A/250V PAGG20CAG102 4835 253 97152

FH1001 FUSE HOLDER MSF-015 XH01Z00LY001

FH1002 FUSE HOLDER MSF-015 XH01Z00LY001

FL2001 V.F.D. 7-BT-292GN or TVFD150FT010

JK1202 RCA JACK(BLACK) MSP-251V-01 NI JXRL010LY070

JK1401 S TYPE JACK MDC-050V-2.4 JXEL0 40LY001 4835 265 9750 7

JK1404 RCA JACK MSD-246V-65NI/PBSN JXRL060LY069

JP2001 PARALLEL WIRE (8P)250MM WX1E57S0-

JP2002 PARALLEL WIRE (8P)250MM WX1E57S0-

RM2001 REM OTE RECEIVER PIC-37042LU USESJRSKK033 4835 210 27058

SA1001 # SURGE ABSORBER PVR-10D471KB or NVQZ10D471KB

SW1401 SLIDE SWITC H SK12D07VG5-L A SSS0102LY003 4835 277 17003

T1001 # PULSE TRANS CSA-SW0215B LTT00CPSA132

W1001 22P FFC AV PCB TO MAIN WX1E57S0-002

W1601 18P FFC WX1E57S0-005

V.F.D. 20U29100SAN TVFD150FT007

003

003

WX1E57S0-003

WX1E57S0-003

# SURGE ABSORBER CNR-10D471K NVQZR10 D471K 4835 252 27024

20030331 1-8-3 E5775EL

FUNCTION CBA

Ref. # Description ID No. Part No.

FUNCTION CBA
Consists of the followi ngs:

RESISTORS

●

R2011 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

●

R2012 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

●

R2044 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

●

R2045 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

●

R2046 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 4835 111 37215

SWITCHES

SW2002 TACT SWITCH KSM0614B or SST01 01HH013 4835 276 17282

SW2003 TACT SWITCH KSM0614B or SST01 01HH013 4835 276 17282

SW2005 TACT SWITCH KSM0614B or SST01 01HH013 4835 276 17282

SW2006 TACT SWITCH KSM0614B or SST01 01HH013 4835 276 17282

SW2007 TACT SWITCH KSM0614B or SST01 01HH013 4835 276 17282

SW2008 TACT SWITCH KSM0614B or SST01 01HH013 4835 276 17282

TACT SWITCH SKQSAF001A SST0101AL041 4835 2 76 17282

TACT SWITCH SKQSAF001A SST0101AL041 4835 2 76 17282

TACT SWITCH SKQSAF001A SST0101AL041 4835 2 76 17282

TACT SWITCH SKQSAF001A SST0101AL041 4835 2 76 17282

TACT SWITCH SKQSAF001A SST0101AL041 4835 2 76 17282

TACT SWITCH SKQSAF001A SST0101AL041 4835 2 76 17282

----------

20030331 1-8-4 E5775EL

Philips Consumer Electronics Company

A Division of Philips Electronics North America Corporation

Service Solutions Group

Philips Consumer Electronics Company
Service Solutions Group
Technical Publications Dept.
P.O. Box 555, 401 E. Old Andrew Johnson Hwy.
Jefferson City,TN 37760

Philips Consumer Electronics Company

A Division of Philips Electronics North America Corporation

Service Solutions Group

Philips Consumer Electronics Company
Service Solutions Group
Technical Publications Dept.
P.O. Box 555, 401 E. Old Andrew Johnson Hwy.
Jefferson City,TN 37760

MANUAL 5889 DVD Player Magnavox MDV443/17, MDV453/17
