Magnavox MC09E1MG, MC092EMG User Manual

Download

Once your MAGNAVOX purchase is registered, you're eligible to receive all the privileges of own-

ing a MAGNAVOX product. So complete and return the Warranty Registration Card enclosed

with your purchase at once. And take advantage of these important benefits.

Know these

safetysymbols

Congratulations on your purchase,

and welcome to the "familyl. "

Dear MAGNAVOX product owner:

Thank you for your confidence in MAGNAVOX. You've selected one of the best-built, best-backed products available today. And we'll do everything in our power to keep you happy with your

purchase for many years to come. As a member of the MAGNAVOX "family," you're entitled to

protection by one of the most comprehensive warranties and outstanding service networks in the industry. What's more, your purchase guarantees you'll receive all the

information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping

network. And most importantly you can count on our uncompromising

commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing

in a MAGNAVOX product.

P.S.

Remember, to get the most from your MAGNAVOX product, you must return your

Warranty Registration Card within 10 days. So

please mail it to us right now!

AThis "bolt of lightning" indi-

cates uninsulated material

within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

_The "exclamation point"

calls attention to features

for which you should read the enclosed literature closely to prevent operating and mainte- nance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent elec-

tric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour eviter les

choc electriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu'au

fond.

For Customer Use

Enter below the Serial No. which is located on the rear of

the cabinet. Retain this infor- mation for future reference.

Model No. Serial No.

Introduction 3

Welcome to your TV/VCR owner's manual.

This manual describes the MCO9E1MG and MCO92EMG. The models may look differ- ent, but they operate exactly the same. The MCOgE1MG is illustrated in this manual.

Features

Automatic Channel Setup Automatic Head Cleaner

Automatic Tracking Adjustment Daylight-Savings Time

English or Spanish displays and menus High Quality (HQ) System One-Touch Recording

Remote Control or Front Panel menu access

• Rental Playback

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

Federal Communications Commission (FCC) Warning: Any unauthorized changes or modifications to this equipment void the user's authority to operate it. This equipment has been tested and found to comply with the limits for a Class B digi-

tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installa- tion. If this equipment does cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following mea-

sures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Repeat Play ShowGuard TM - Indefinite Timer

Recording memory Sleep Timer

Special Effects: Forward and Reverse Searching; Still

Time Search Timer Recording Wake Up Timer

Zero Return

Magnavox recommends you use only videotapes that have the _ mark. Other tapes may cause poor picture quality and excessive deposits on the video heads that

the warranty may not cover if damage occurs. This TV/VCR has a High Quality (HQ) system and is compatible with existing Video Home System (VHS) equipment.

Note to the Cable TV System Installer: This reminder calls the Cable TV system installer's attention to Article 820-40 of the National Electrical Code, which provides

guidelines for proper grounding - in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

Declaration of Conformity

Model Number: MC09E1MG, MC092EMG Trade Name: Magnavox Responsible Party: Philips Consumer Electronics

P.O. Box 14810

Knoxville,TN 37914-1810 (865)521-4316

As an ENERGY STAR Partner, Magnavox has determined that this product meets the ENERGY STAR guidelines for energy efficiency. ENERGY STAR is a U.S. registered mark. Using products with the ENERGYSTAR label can

4 Table of Contents

Setting Up Your TV/VCR

Introduction .......................................................... 3

Table of Contents ...................................................... 4

Before Using the TV/VCR ................................................ 5

Hooking Up the TV/VCR ............................................... 6-7

Setting TV Channels for the First Time ...................................... 8

Selecting a Menu Language ............................................... 9

Resetting TV Channels ................................................. 10

Adding/Deleting Channels ............................................... 11

Setting the Clock ................................................... 12-15

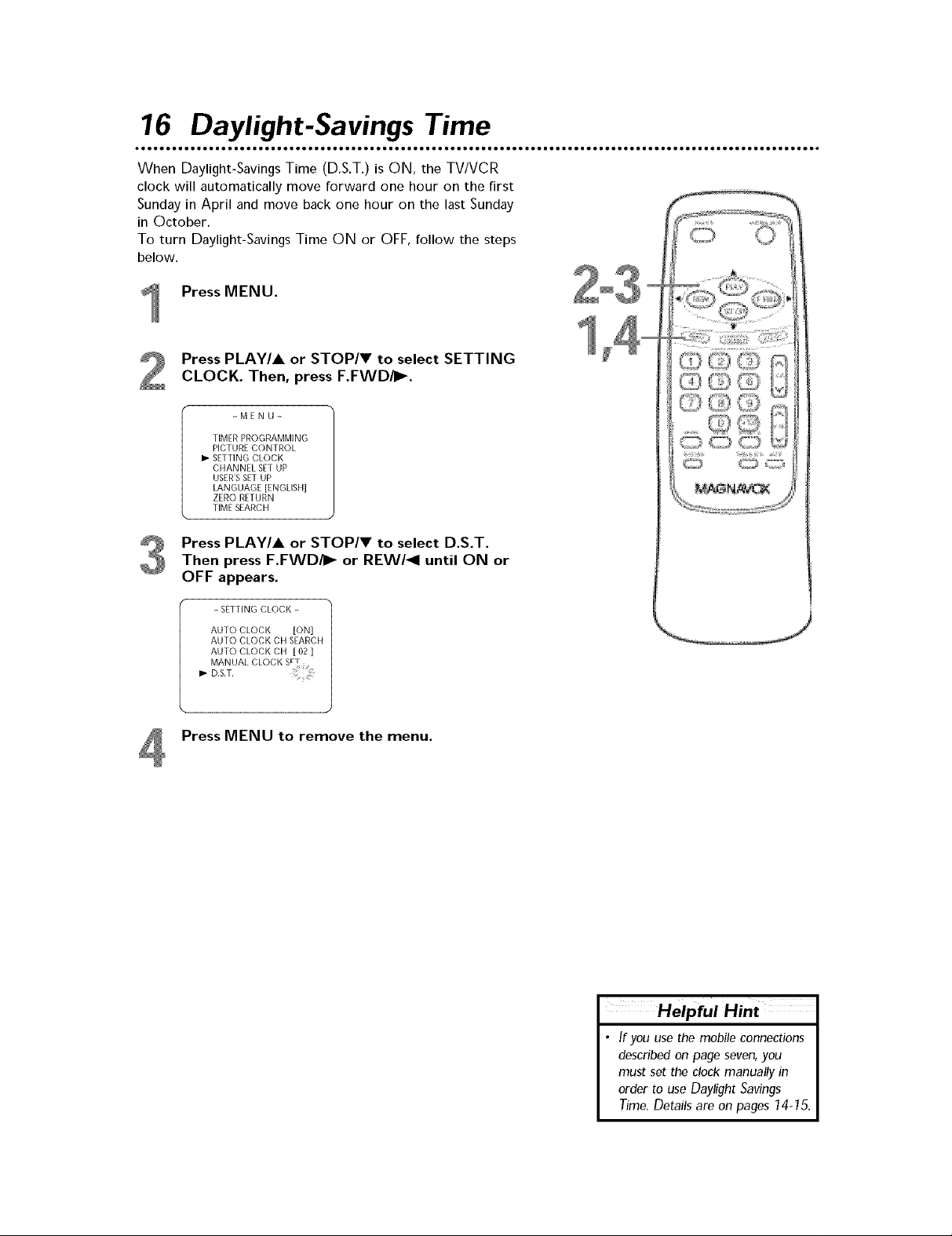

Daylight-Savings Time .................................................. 16

Description of Controls

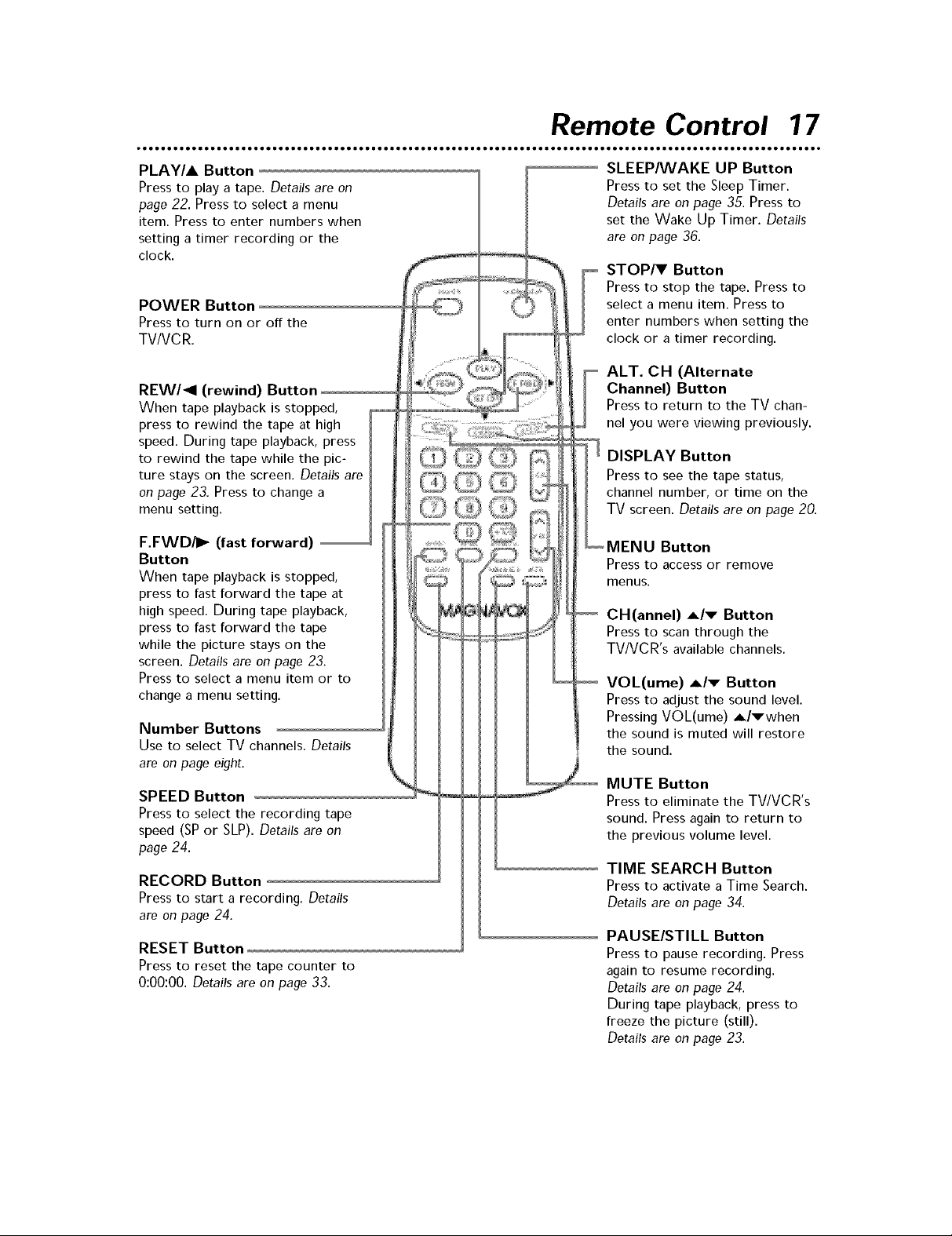

Remote Control ...................................................... 17

Front Panel .......................................................... 18

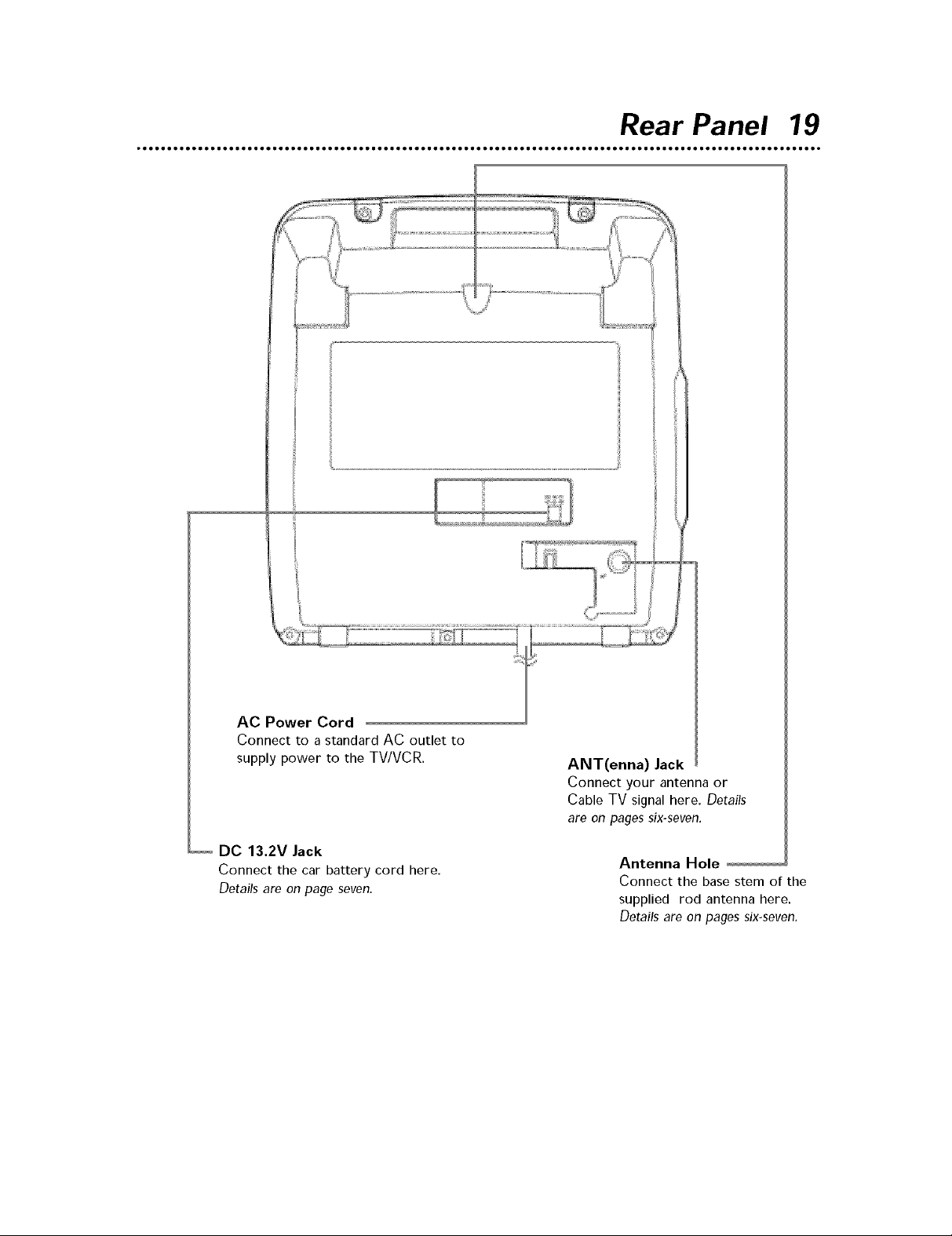

Rear Panel ........................................................... 19

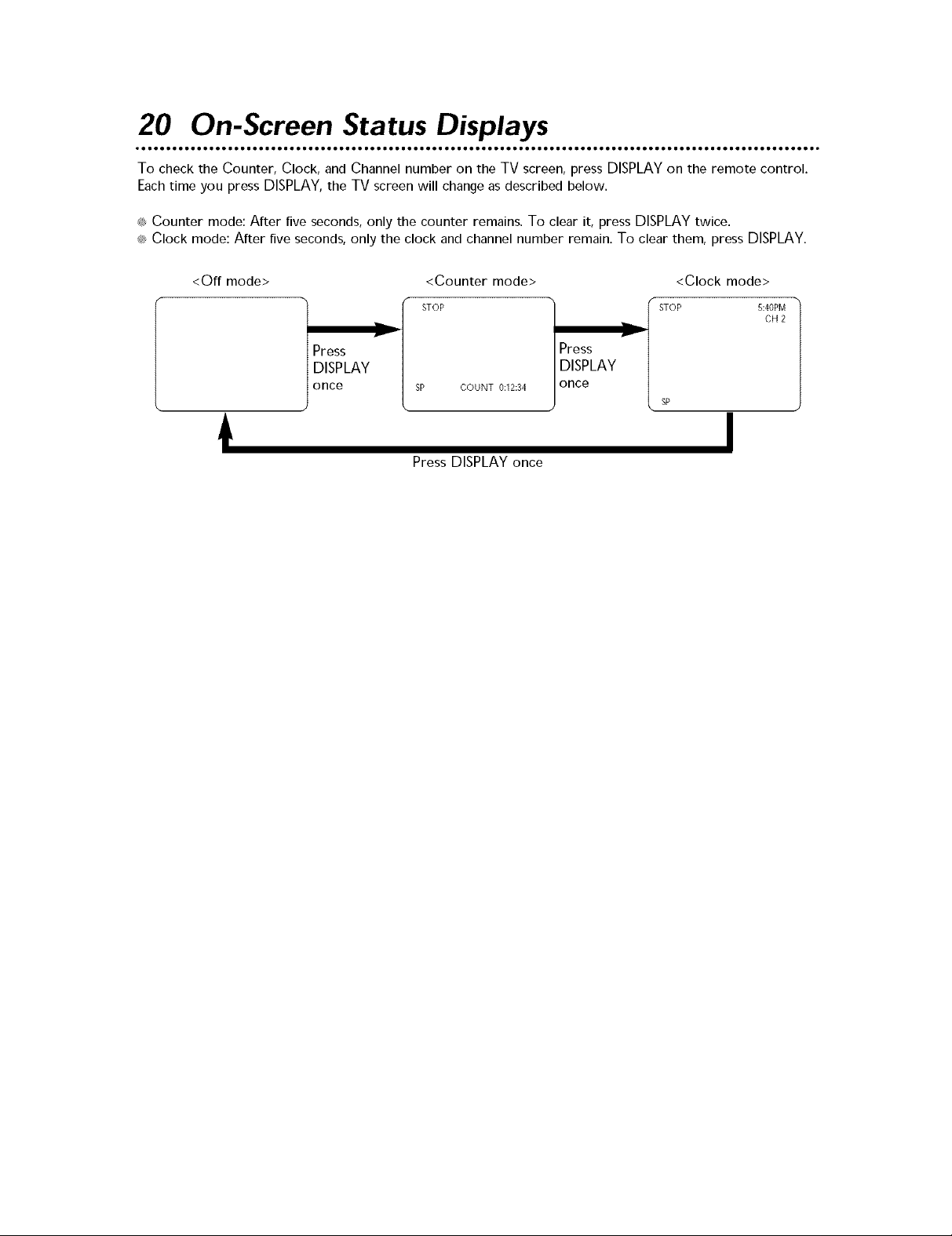

On-Screen Status Displays .............................................. 20

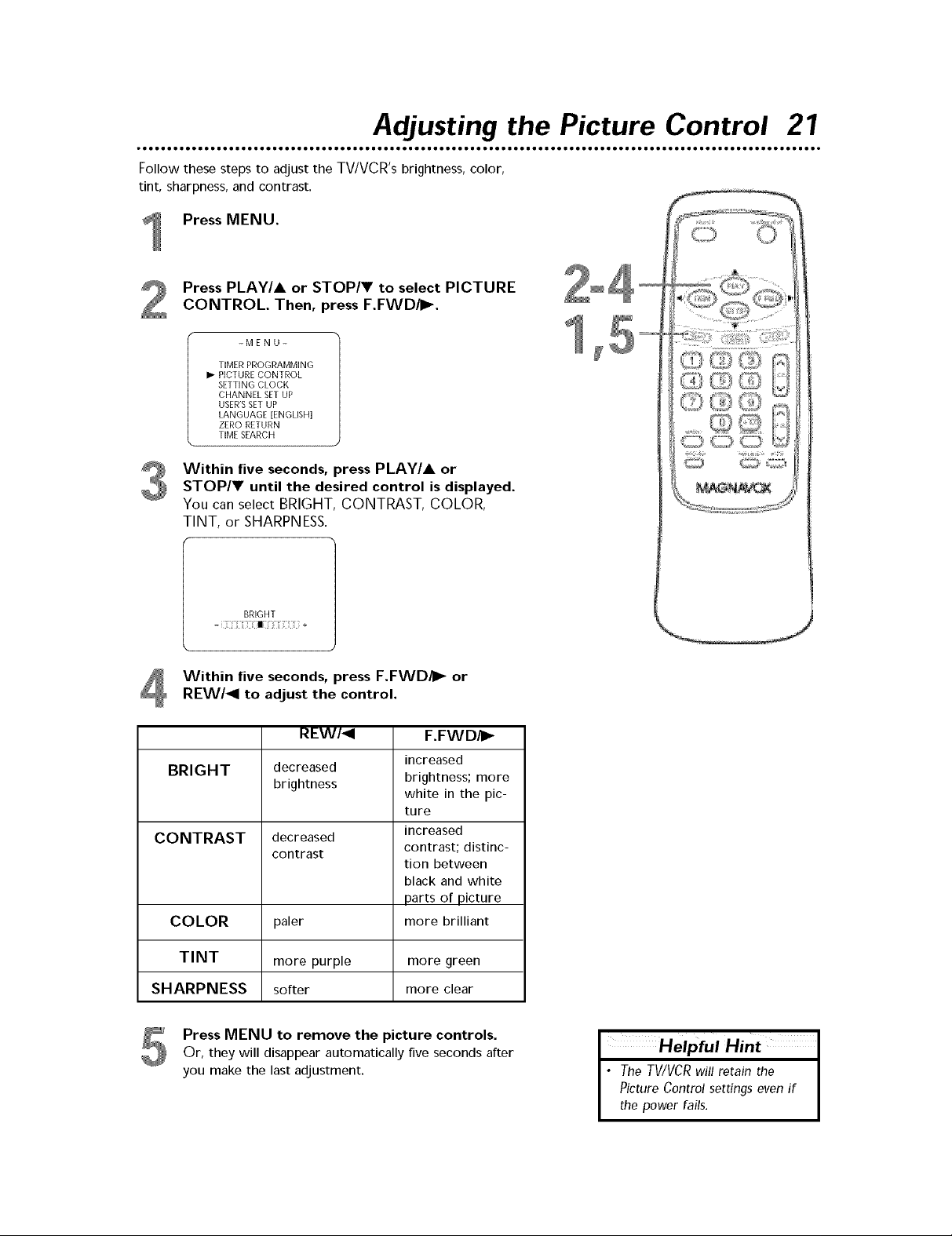

Adjusting the Picture Control ............................................ 21

Basic Operations

Playing a Videotape .................................................... 22

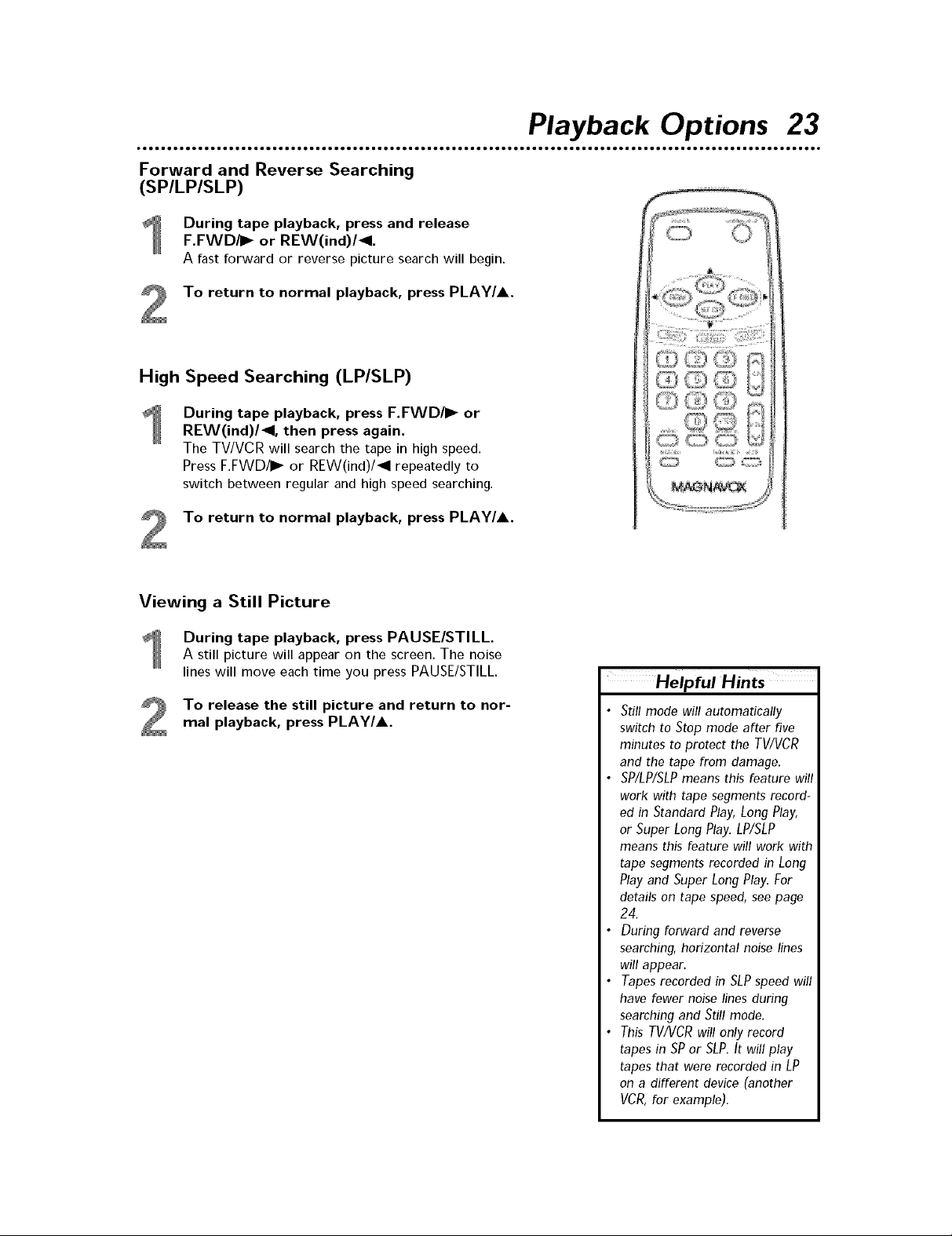

Playback Options ..................................................... 23

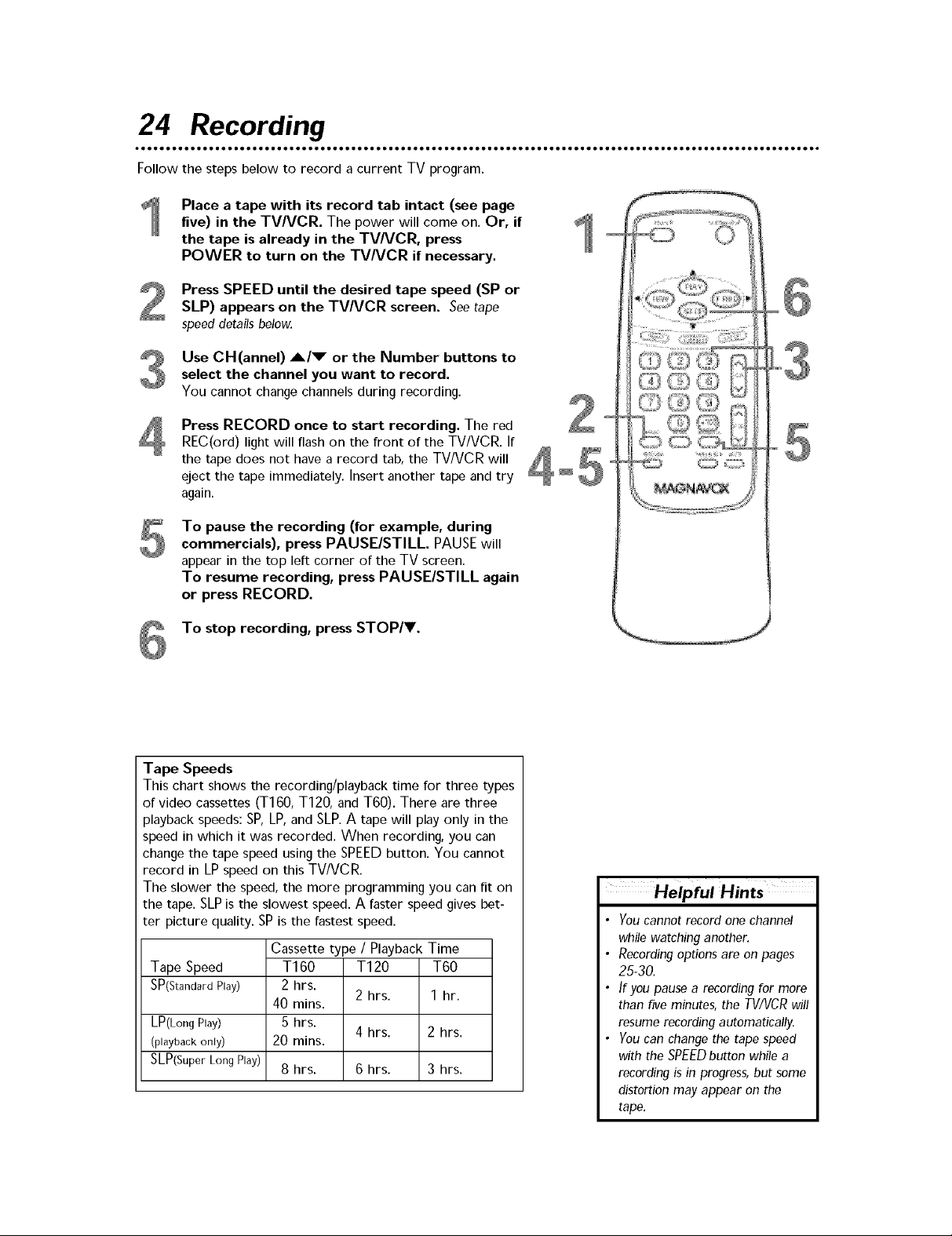

Recording ........................................................... 24

Recording Options

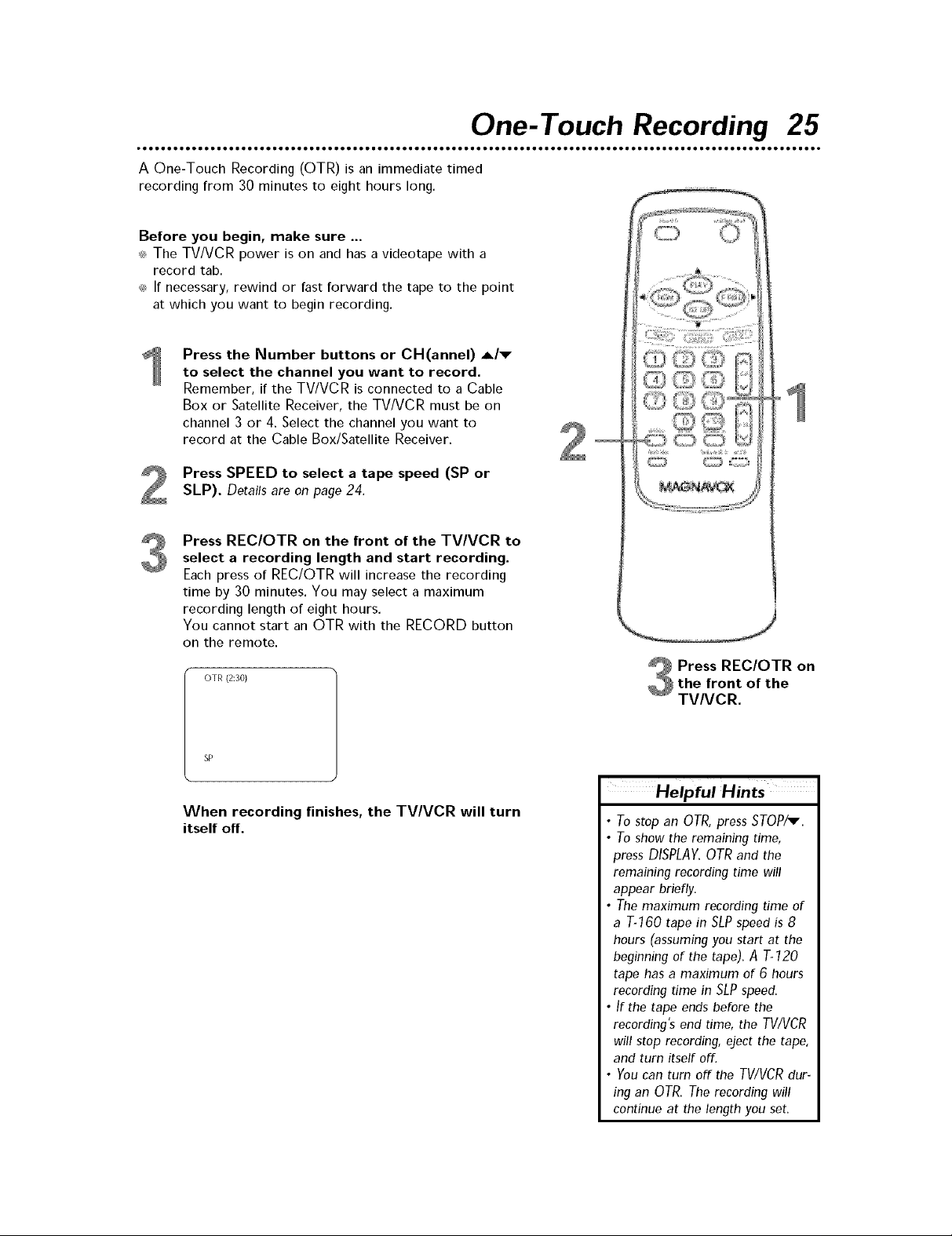

One-Touch Recording ................................................. 25

Timer Recording ................................................... 26-28

Timer Recording Auto Return ........................................... 29

Rerecording (Tape Duplication) .......................................... 30

Playing Options

Repeat Play .......................................................... 31

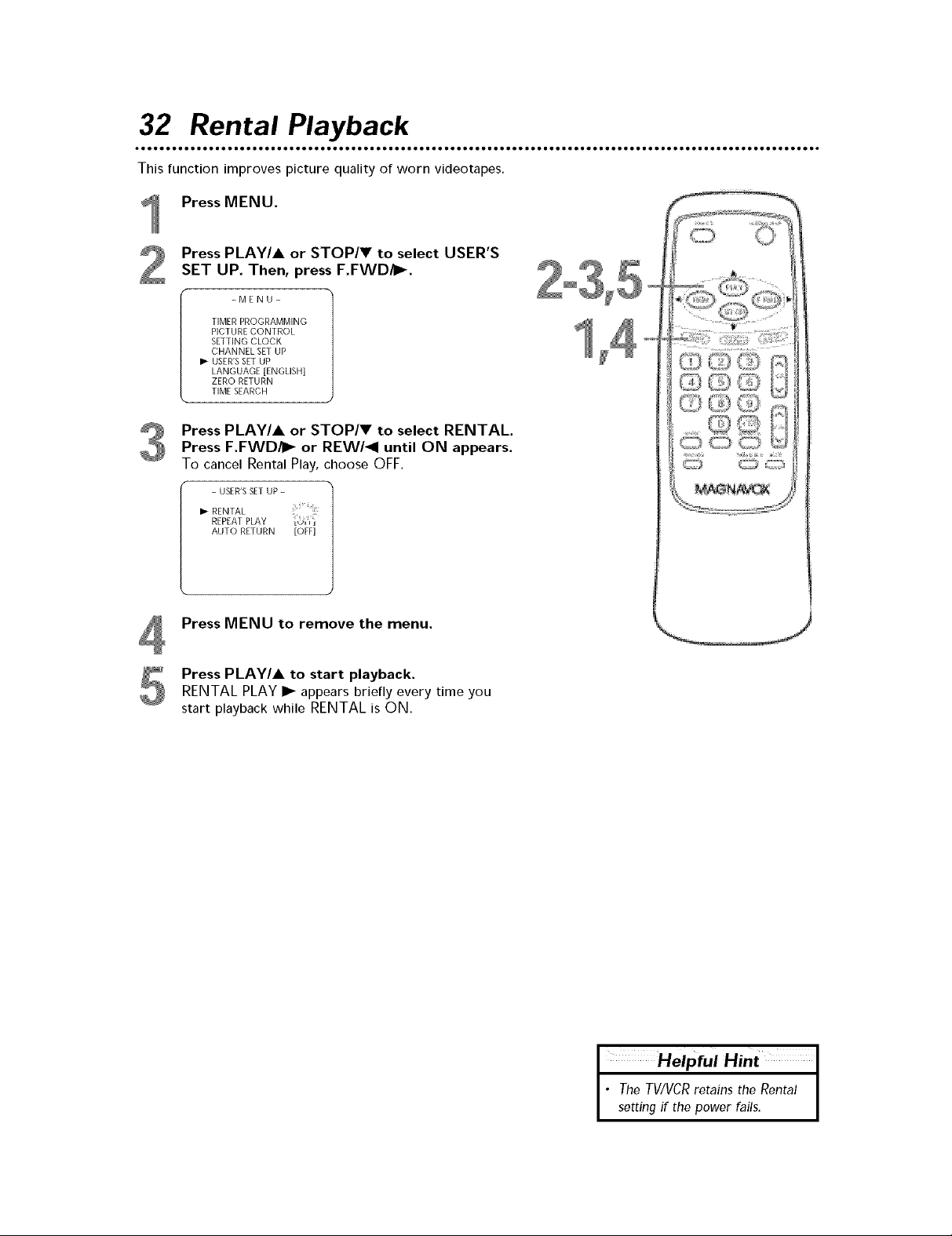

Rental Playback ....................................................... 32

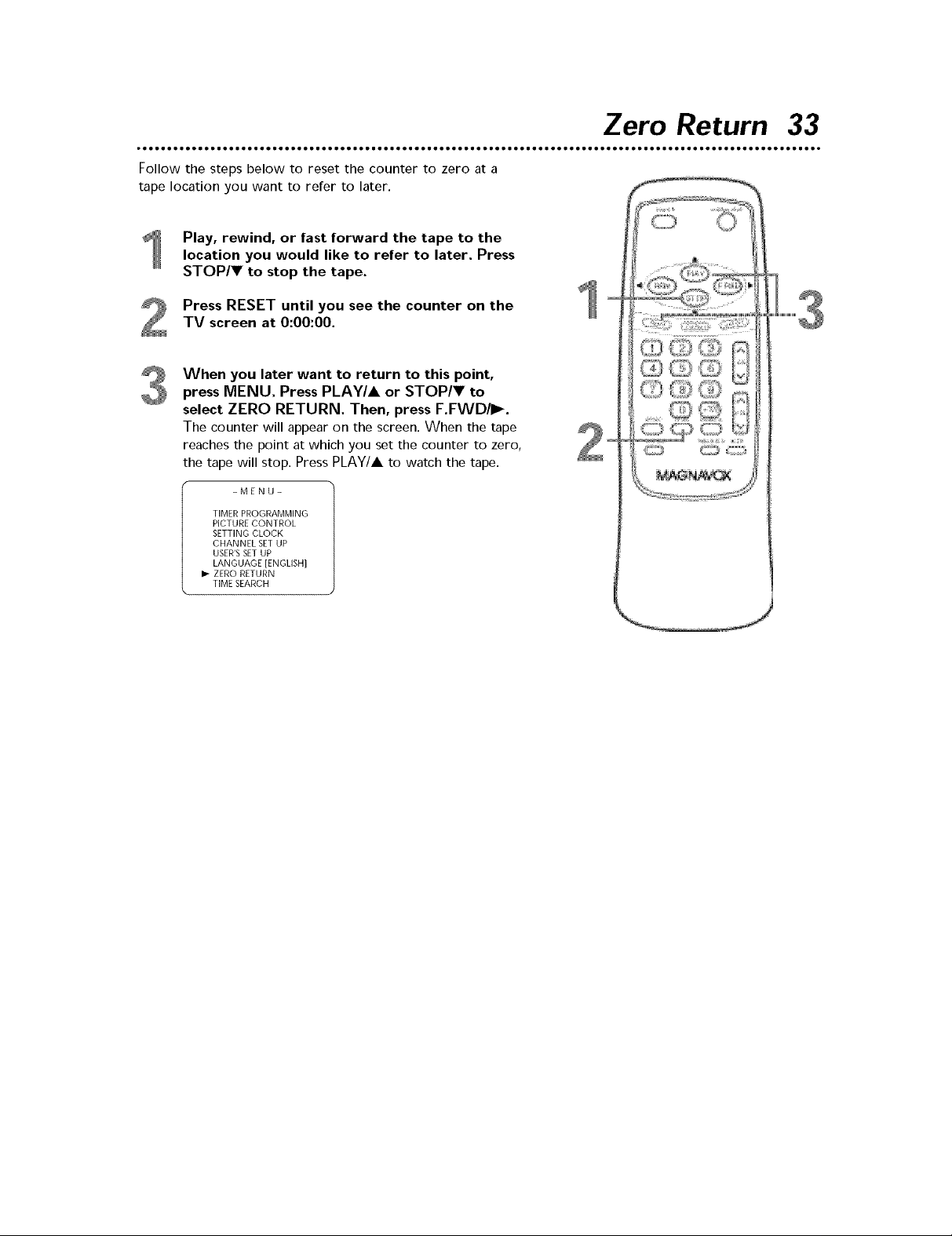

Zero Return ......................................................... 33

Time Search ......................................................... 34

Additional Features

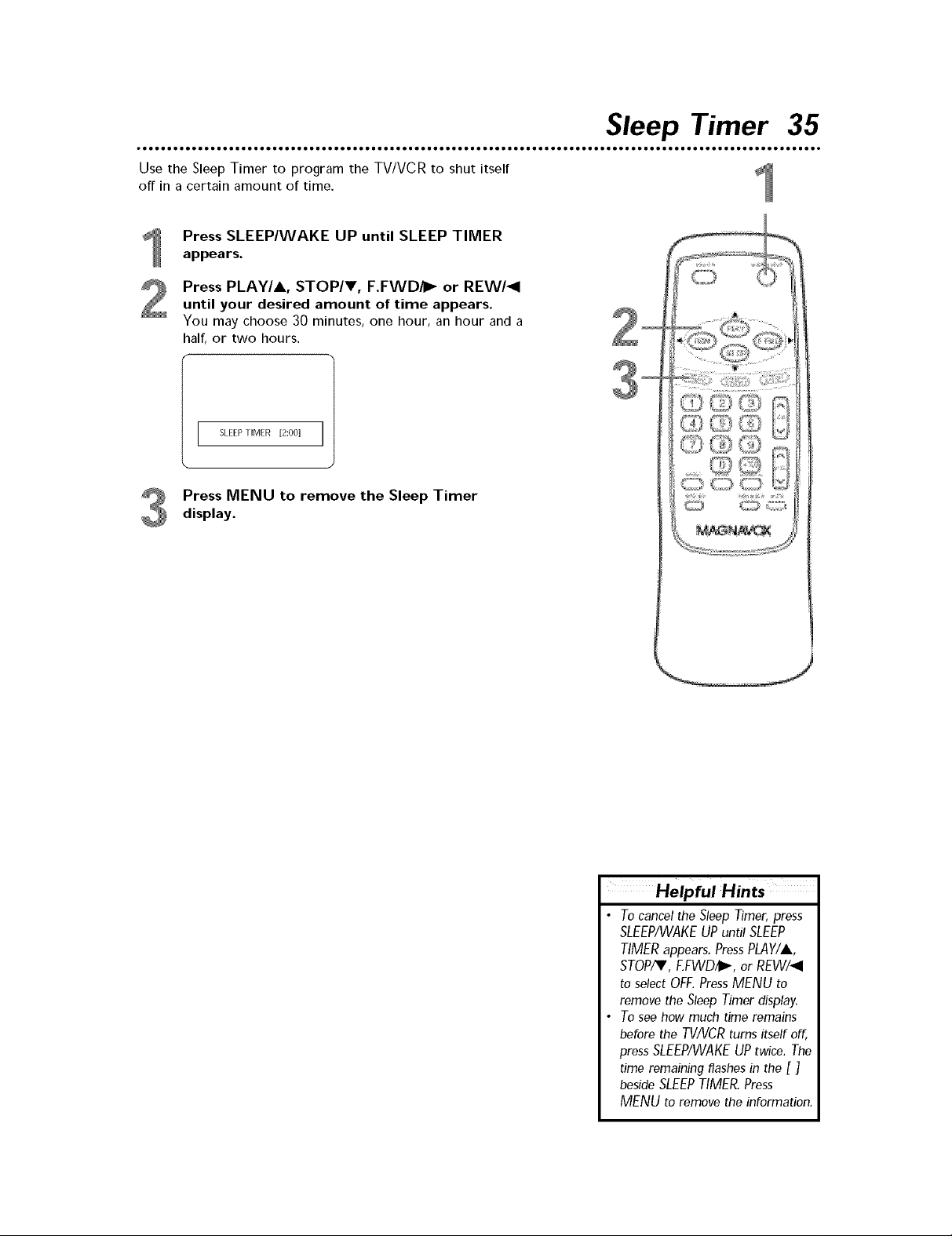

Sleep Timer .......................................................... 35

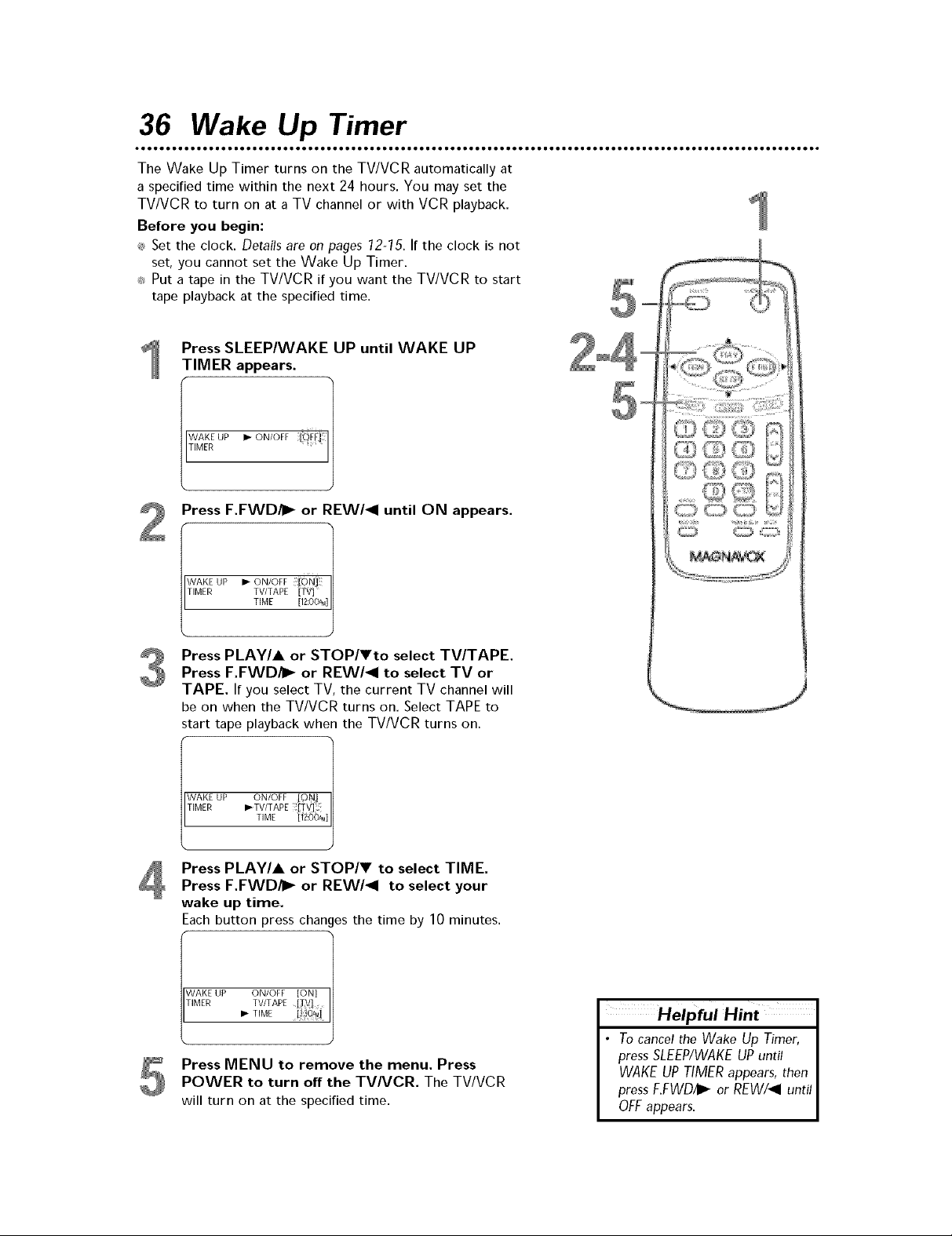

Wake Up Timer ...................................................... 36

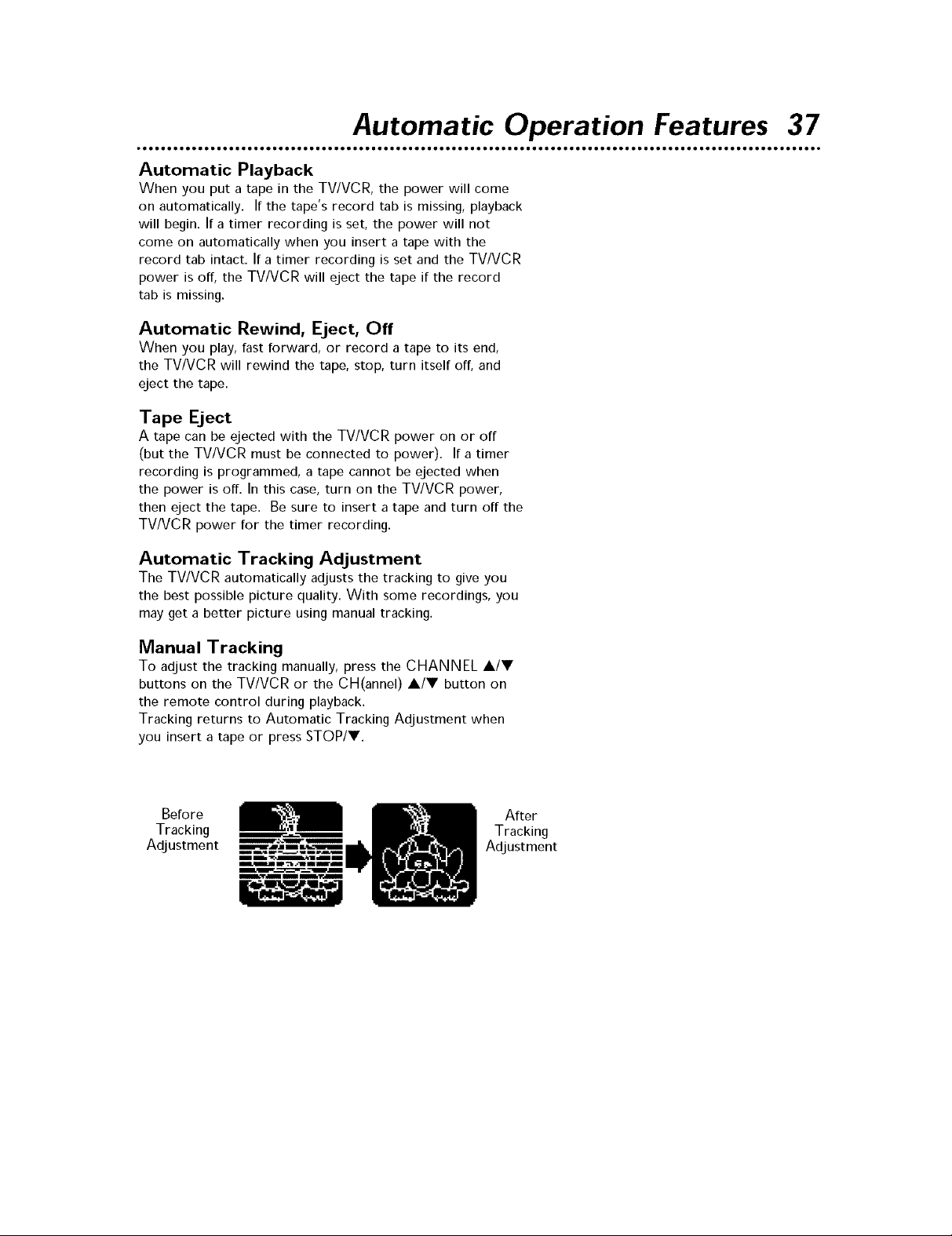

Automatic Operation Features ........................................... 37

Information You May Need

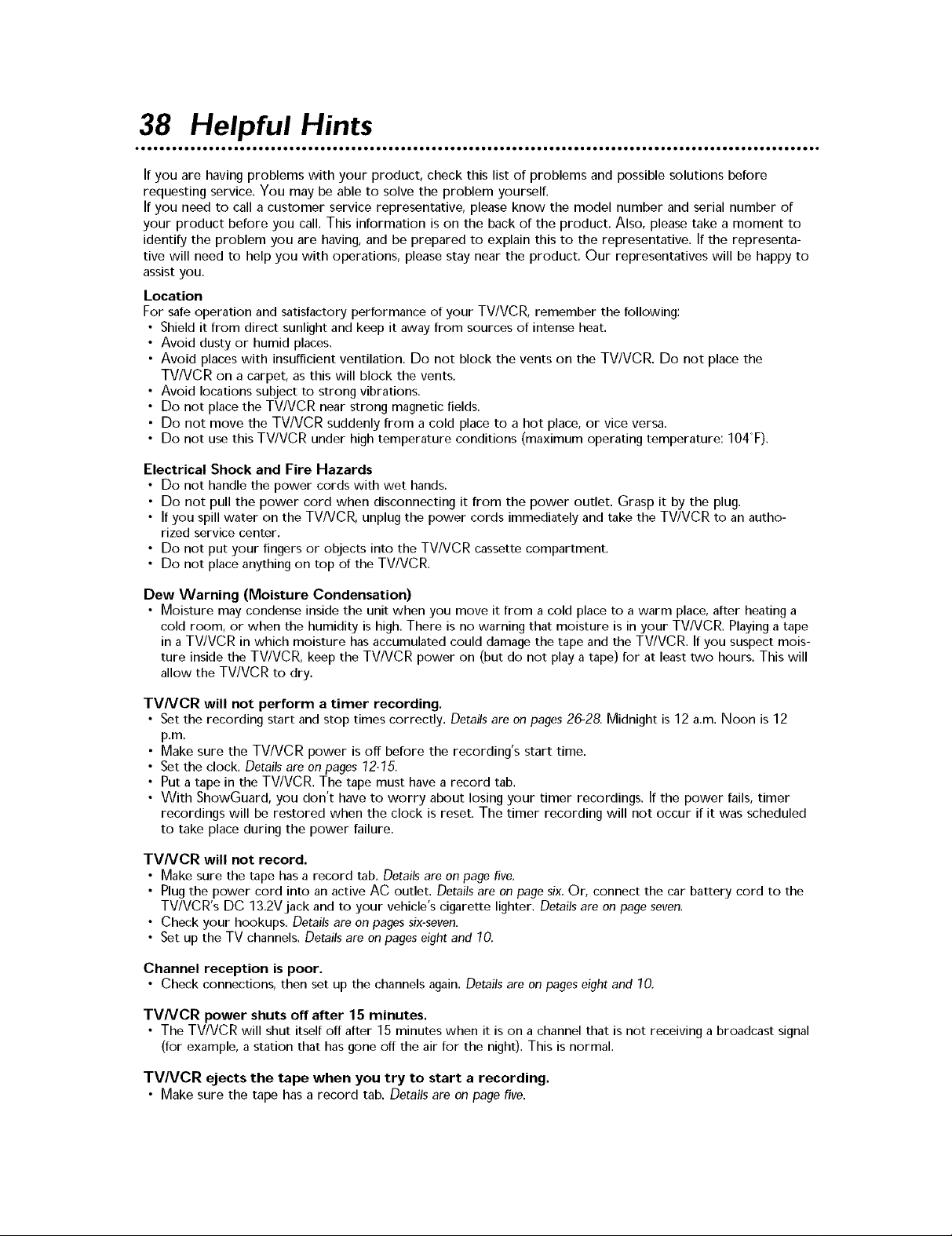

Helpful Hints ...................................................... 38-39

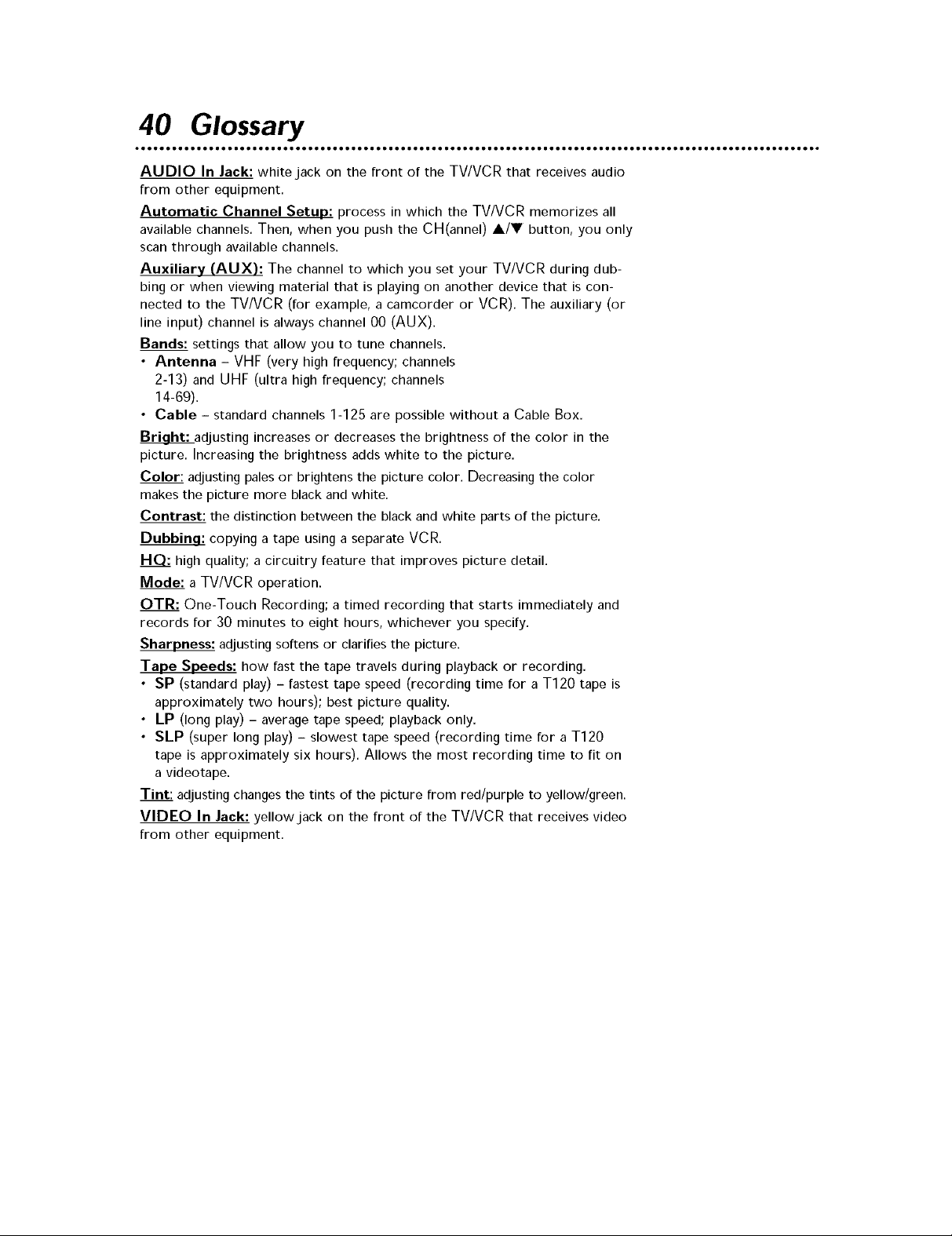

Glossary ............................................................ 40

Specifications ......................................................... 41

Limited Warranty ..................................................... 42

Index ............................................................... 44

Before Using the TV/VCR 5

Putting Batteries in the Remote Control _=_

Remove the battery compartment lid on the bot-tom of the remote control by sliding the lid down and

off, following the direction of the arrow on the lid.

Place two AA batteries inside the battery com- partment with their + and - ends aligned as indicated.

Replace the battery compartment lid.

Battery Safety

Battery Usage CAUTION - To prevent battery leakage that

may result in bodily injury, property damage, or damage to the

unit:

_:_Install ALL batteries correctly, with the + and - markings on

the battery aligned as indicated on the unit;

_;_Do not mix batteries, for example, old with new or carbon

with alkaline; and

_;_Remove batteries when the unit will not be used for a long

time.

Recording Prevention

Videotapes have record tabs to ensure you do not erase

recordings accidentally.

To prevent accidental recording, break off the tab with a screwdriver.

To record again on the same tape, cover the hole with cellophane tape.

Using the Remote Control

_ Point the remote control at the front of the TV/VCR. _ Do not put objects between the remote control and the

TV/VCR.

TV/VCR Maintenance

_, In this TV/VCR, use only tapes with the _ mark. _ Remove any light adhesive stick-on notes from the videotape

before putting the tape in the TV/VCR. Removable labels can

jam the TV/VCR.

_ The TV/VCR requires periodic maintenance to maintain its

excellent performance. This TV/VCR has an internal auto- matic head cleaning system. However, the video heads will eventually require cleaning or replacement. Only an autho- rized service center should perform this service.

HelpfulHint

• Yournew product, its packaging,

and this manual contain materials

that can be recycled and reused.

Specialized companies can recycle your product to increase the

amount of reusable materials and

to minimize the amount that

needs to be properly disposed.

Your product uses batteries that should not be thrown away when depleted but should be disposed

of as small chemical waste. Please find out about the local

regulations on disposal of your old product, batteries, manual, and

packaging when you replace exist- ing equipment.

6 Hooking Up the TV/VCR

Hook up your TV/VCR using one of the

connections shown.

Hooking Up Your TV/VCR With a

Cable Box/Satellite Receiver

To view any channel, set the TV/VCR to

the Cable Box/Satellite Receiver output channel (channel 03 or 04). Then, select

channels at the Cable Box/Satellite

Receiver.

Connect a Cable TV

signal or an antenna to the ANT(enna) Jack.

Connect the Cable TV/Satellite

Jack on the Cable

_signal to the IN

Box/Satellite

%: f:::;: _,,:_ Receiver.

Connect an RF

_ _" coaxial cable

(not supplied) to

....... _# the OUT Jack on

...............[..........:,_ or Satellite

the Cable Box

Receiver and to

the ANT(enna)

Jack on the TVNCR.

Hooking Up Your TV/VCR With the

Supplied Rod Antenna

To install the supplied rod antenna, push

the stem of the antenna into the antenna hole at the top on the rear of the

TV/VCR. Connect the antenna wire to the ANT(enna) Jack on the rear of the

TV/VCR as shown. Extend the antenna and adjust its length, direction, and angle

for the clearest picture.

Plug the AC power cord into an AC power

outlet.

Follow the steps on page eight when you

turn on the TVNCR for the first time.

Rod Antenna

(supplied)

Hooking Up the TV/VCR (cont'd) 7

Mobile Connections

Usually, the supplied rod antenna provides adequate recep- tion. When you want to watch TV outdoors or in a vehicle, try a mobile antenna (not supplied); or, try an indoor dipole antenna (not supplied) for better reception.

Connect an antenna to the ANT(enna)jack as shown at 1-C on page six. If you do not use the supplied rod antenna, refer to the instructions with

your other antenna to make a connection.

Make sure your vehicle has a 13.2-volt, negative ground electrical system. Connect one end of the

car battery cord to the DC 13.2V jack on the rear of the TVNCR. Connect the other end of

the car battery cord to the cigarette lighter in your vehicle.

Use only the supplied car battery cord. Using another cord could damage the TV/VCR. Make sure you push

the car battery cord's plug completely into the ciga- rette lighter. Wind the unused AC power cord as shown at right.

Car Battery Cord

Fuse Replacement

If the TV/VCR does not have power when connected prop- erly in your vehicle, replace the fuse in the car battery cord. Use only a 5-amp, 250-volt, fast blow fuse, which is

available at an electronics retailer.

To remove the old fuse, unscrew the red cap from

the end of the cord. Place your fingers on the grooved part of the cap and turn the cap counter-

clockwise.

When the cap is removed, the red cap and the silver tip will be loose. The fuse will be loose inside the end

of the cord.

Remove the old fuse and insert a new fuse.

Replace the red cap and the silver tip. The fuse will tighten into place as you screw on the cap, turning

the cap clockwise. (The end of the fuse will fit into the silver tip, which is in the center of the red cap

when tightened.)

MC09E1MG MC092EMG

Helpful Hints

Do not watch TVwhile driving. Make sure the cigarette lighter is free

of ashes and other debris. Always unplug the car battery cord

from the cigarette lighter before you unplug it from the TV/VCR.

You must disconnect the car battery

cord from the TV/VCRbefore you can use standard electrical (AC) power.

If you use the TV/VCR with the vehi- cle's engine off, recharge the vehicle's battery often. Unplug the car battery cord from the cigarette lighter when you finish using the TV/VCR.

When you use the TV/VCRwith a car

battery cord, noise may appear on

theTV/VCRscreen.

Do not use this TV/VCRin high tem- perature conditions. Details are on

page 41.

8 Settin 9 TV Channels for the First Time

The TV/VCR can memorize the channels you receive in your area. If you are using a Cable Box or Satellite Receiver, you

do not need to set channels at the TV/VCR. Set the TV/VCR to the output channel of the Cable Box or Satellite Receiver

(channel 03 or 04). Then select the channel to be viewed on

the Cable Box or Satellite Receiver.

If you do not see these menus when you turn on the TV/VCR for the very first time, set TV channels as instruct- ed on page 10 instead.

Press POWER to turn on the TV/VCR.

Press F.FWD/_ or REW/_I to select ENG- LISH or ESPAI_IOL (Spanish). The selected lan-

guage will appear inside the [ ].

- SET UP -

If- LANGUAGE

[ENGLISH] ESPANOL

AUTO PRESET

Press PLAY/A or STOP/V to select AUTO PRESET. Then press F.FWD/_. The TV/VCR

scans and memorizes all active channels in your area. When scanning is complete, the TV/VCR will go to

the lowest available channel.

Use the CH(annel) A/v button to select memorized

channels. Use the Number buttons to select non-

memorized channels.

- SET UP -

LANGUAGE [ENGLISH] ESPANOL

m,-AUTO PRESET

• To remove the SET UP menu

• To select cable TV channels high-

• You will need to set up the lan-

Helpful Hints

without changing the language or

setting up channels, press the

MENUbutton. To set up chan-

nels later, see Resetting TV

Channels on page 70.

er than 99, press the +700 but-

ton, then press the Number but-

tons for the last two digits. For example, to select channel 725, press + 700, 2, 5. Precede single- digit channel numbers with a

zero (for example, 01 ... 09).

guage and channels again after a power failure.

Selecting a Menu Language 9

This function affects only the language of the TVIVCR's menu, not the audio of TV programming or videotapes.

Press MENU. Press PLAY/A or STOP/V to select LANGUAGE.

-MENU-

TIMER PROGRAMMING PICTURE CONTROL

SETTING CLOCK CHANNEL SET UP

USER'SSET UP

1,- LANGUAGE _ I

ZERO RETURN TIME SEARCH

Press F.FWD/_ or REW/_I to select ENG-

LISH or ESPAI_IOL (Spanish).

Press MENU to remove the menu.

Helpful Hint

• If the menu is in Spanish but

you prefer English, press MENU,

then pressPLAY/,Aor STOP/V to select IDIOMA [ESPANOL].

PressF.FWD/J; to selectENG-

LISH.PressMENU to remove

the menu.

10 Resetting TV Channels

• •

Although the TV/VCR may memorize the channels you receive when you turn it on the first time, you may set up

channels again by following the steps below.

Press MENU.

Press PLAY/A or STOP/V to select CHAN- NEL SET UP. Press F.FWD/_.

-MENU-

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK

I_ CHANNEL SET UP

USER'SSET UP LANGUAGE [ENGLISH]

ZERO RETURN TIME SEARCH

Press PLAY/A or STOP/V to select AUTO PRESET. Then, press F.FWD/I_.

The TV/VCR scans and memorizes all the active channels.

When scanning is complete, the TV/VCR will go to the lowest available channel.

Use the CH(annel) A/v button to select memorized

channels. Use the Number buttons to select non-

memorized channels.

- CHANNEL SET UP -

ADD / DELETE CH (TV)

I,- AUTO PRESET

• The TV/VCRcannot control or J

change the channels of a Cable J

I Helpful Hint I

Box or Satellite Receiver. I

Adding/Deleting Channels 11

The channels you no longer receive or seldom watch can be deleted from the memory. Or, you can add new channels into

the memory without having to reset all the channels. This lets you see only the channels you want when you use the CH(annel) A/T button to scan through channels.

Press MENU.

Press PLAY/A or STOP/V to select

CHANNEL SET UP. Press F.FWD/_.

-MENU-

TIMER PROGRAMMING PICTURE CONTROL

SETTING CLOCK

I_ CHANNEL SET UP

USER'SSET UP LANGUAGE [ENGLISH]

ZERO RETURN TIME SEARCH

Press PLAY/A or STOP/_' to select

ADD/DELETE CH. Then, press F.FWD/_-.

- CHANNEL SET UP -

If- ADD / DELETE CH (TV)

AUTO PRESET

Press the Number buttons to choose a channel you want to add or delete.

ADD / DELETE

Press F.FWD/_- or REW/_I to add or delete the channel. Deleted channels will appear in light

purple. Added channels will appear in light blue. To add or delete other channels, repeat steps 4-5.

Press MENU to remove the menu.

Helpful Hints

• Toconfirm that a channel has

been added or deleted, press the

CH(annel) A/Y button to see if

you can or cannot select the

channel. Only memorized or

added channels can be selected

with CH(annel) A/Y. Youstill

can select any channel with the

Number buttons on the remote

control.

• If you have Cable TV, channels 1-125 are possibly available. If

you have an antenna, channels 2-69 are possibly available.

• TV or CATV will appear beside

ADD/DELETECH.Thisindicates

whether you have Cable TV

(CAW)or an antenna (TV) con-

nected to the TWVCR.The

TV/VCRdetects this internally

when Auto Preset is completed. You cannot adjust it.

72 Settin 9 the Clock

Set the clock accurately for proper timer recording. If a

Public Broadcasting Station (PBS)is available in your area,

follow Auto Clock Setting below. If not, follow Manual

Clock Setting on pages 14-15,

Auto Clock Setting

You can have the TV/VCR set the clock using the PBSchan-

nel. Once you have set the clock, the TV/VCR will monitor

the correct time and date being broadcast by the PBSsta- tion and update the time accordingly.

Before you begin, make sure ...

_ The TV/VCR power is on. _,_The antenna/Cable TV connections are correct.

_,_The Cable Box is on (if applicable). (See Helpful Hints.) _: Channels are set. Details are on pages eight and 10.

Press MENU.

Press PLAY/A or STOP/V to select SETTING CLOCK, then press F.FWD/I_.

-MENU-

TIMER PROGRAMMING PICTURE CONTROL

I_ SETTING CLOCK

CHANNEL SET UP

USER'SSET UP LANGUAGE [ENGLISH] ZERO RETURN

TIME SEARCH

With AUTO CLOCK selected, press

F.FWD/I_ or REW/_I until ON appears beside

AUTO CLOCK.

- SETTING CLOCK -

I_ AUTO CLOCK [_

AUTO CLOCK CH SEARCH AUTO CLOCK CH [ 02 [

MANUAL CLOCK SET D.S.T, [OFF]

Helpful Hints

• If the TV/VCRis connected to a

Cable Box or Satellite Receiver,

select the local PBSstation on

the Cable Box/Satellite Receiver.

Set the TV/VCR to the output channel of the Cable Box or

Satellite Receiver (usually chan- nel 3 or 4), to set the clock automatically.

• The TV/VCR cannot control or change the channels of the

Cable Box or Satellite Receiver.

• If you use the mobile connec-

tions described on page seven,

you cannot use the AUTO

CLOCK function.

$ettin 9 the Clock (cont'd) 13

If you already know your PBS channel number,

skip ahead to step 7.

If you do not know the channel number of your

PBS station, press STOP/V to select AUTO CLOCK CH SEARCH, then press F.FWD/I_.

- SETTING CLOCK -

AUTO CLOCK [ON] AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ] MANUAL CLOCK SET D.S.T, [OFF]

The TV/VCR will scan all your available TV channels.

Those that carry a time signal will be listed at the top of the screen. Use one of these channels when you enter your AUTO CLOCK CH at step 7. It will take

the TV/VCR several minutes to scan the channels. An

_" appears in the lower left corner of the screen

when the search is complete.

-AUTO CLOCK CH SEARCH-

08 10 13

Press MENU to remove the menu.

Press MENU. Press PLAY/A or STOP/V to select SETTING CLOCK, then press F.FWD/iI_.

Press PLAY/A or STOP/V to select AUTO CLOCK CH. Then press F.FWD/iI_ or REW/_I

until the channel number of your PBS station appears.

Use the channel number ',ou found at step 4.

-SETTING CLOCK-

AUTO CLOCK [ON] AUTO CLOCK CH SEARCH AUTO CLOCK CH [ 02 ]

MANUAL CLOCK SET D.S.T. [OFF]

Press MENU to remove the menu.

Press POWER to turn off the TV/VCR.

The TV/VCR will search for the time only when the

power is off. Leave it off for several minutes to give

the TV/VCR time to set the clock.

Helpful Hints

• If the TV/VCR sets the time incor- rectly, it may have taken the time

from a PBS station in a different time zone. Follow the steps for

Manual Clock Setting on pages 14-15.

• If no channel numbers appear during the channel search at step

4, there are no stations in your

area that contain the time signal.

Use Manual Clock Setting on

pages 14-15.

• To stop the channel search during

step 4, press the MENUbutton.

74 $etting the Clock (cont'd)

Manual Clock Setting

Press MENU.

Press PLAY/A or STOP/V to select SETTING CLOCK. Then, press F.FWD/P_.

-MENU-

TIMER PROGRAMMING PICTURE CONTROL

1,- SETTING CLOCK

CHANNEL SET UP USER'SSET UP

LANGUAGE [ENGLISH] ZERO RETURN

TIME SEARCH

Press PLAY/A or STOP/V to select MANUAL CLOCK SET. Then, )ress F.FWD/P_.

- SETTING CLOCK -

AUTO CLOCK [ON] AUTO CLOCK CH SEARCH AUTO CLOCK CH [ 02 ]

I_ MANUAL CLOCK SET

D.S.T. [OFF]

While the MONTH space is flashing, press

PLAY/A or STOP/V until the correct month

appears. Then, press F.FWD/_.

- MANUAL CLOCK SET- MONTH DAY YEAR

HOUR MINUTE

While the DAY space is flashing, press PLAY/A or STOP/V until the correct day appears. Then, press F.FWD/_.

- MANUAL CLOCK SET-

MONTH DAY YEAR

os ........

HOUR MINUTE

Helpful Hints

• If the power fails, you must reset the clock.

• If you set the clock usingMANU-

AL CLOCKSET,thenlaterwant

to useAUTO CLOCK,you must

disconnect the TV/VCRfrom power for about two minutes.

After reconnecting the power cord,

theTV/VCRwill reset to its default

settings. Complete the first-time setup again as detailed on page eight. Then, use AUTO CLOCKto

set the clock.

$ettin 9 the Clock (cont'd) 15

While the YEAR space is flashing, press PLAY/A or STOP/I' until the correct year appears. The day of the week (Tuesday - TUE, etc.) will change appropriately for the year you select

Press F.FWD/_.

- MANUAL CLOCK SET- MONTH DAY YEAR

05 / 06 TUE

HOUR MINUTE

While the HOUR space is flashing, press PLAY/A or STOP/_' until the correct hour

and AM or PM appears. Then, press F.FWD/_.

- MANUAL CLOCK SET- | MONTH DAY YEAR

05 / 06 TUE 2003

MIN 7

While the MINUTE space is flashing, press

PLAY/A or STOP/V until the correct minute

appears.

- MANUAL CLOCK SET- "_ MONTH DAY YEAR

05 / 06 TUE 2003

HOUR MINUTE

05 : :: I M

Press MENU. Although seconds are not displayed, they

begin counting from zero when you press MENU. Use this feature to synchronize the clock exactly.

To see the current time on the TV screen, press DISPLAY. Details are on page 20.

5:40 PM

Helpful Hint

• Toadjust the clock later, follow

steps /-3 on page 74. Then,

pressF.FWD/I_ or REW/_I to

select the item you want to change. Enter the correct infor-

mation by pressing PLAY/Aor

STOP/T. PressMENU whenyou

are finished.

16 Daylight-Savings Time

When Daylight-Savings Time (D.S.T.)is ON, the TV/VCR clock will automatically move forward one hour on the first

Sunday in April and move back one hour on the last Sunday in October.

To turn Daylight-Savings Time ON or OFF,follow the steps below.

Press MENU.

Press PLAY/& or STOP/V to select SETTING CLOCK. Then, press F.FWD/I _.

-MENU-

TIMER PROGRAMMING PICTURE CONTROL

I_ SETTING CLOCK

CHANNEL SET UP USER'SSET UP

LANGUAGE [ENGLISH] ZERO RETURN TIME SEARCH

Press PLAY/& or STOP/V to select D.S.T.

Then press F.FWD/i_ or REW/_I until ON or

OFF appears.

- SETTING CLOCK - 1

AUTO CLOCK [ON] AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ]

MANUAL CLOCK S_T

I_ D.S.T.

Press MENU to remove the menu.

Helpful Hint

• /f you use the mobile connections described on page seven, you must set the clock manually in

order to use Daylight Savings

Time. Details are on pages 74-75.

Remote Control 17

PLAY/A Button

Press to play a tape. Details are on page 22. Press to select a menu

item. Press to enter numbers when setting a timer recording or the

clock.

POWER Button

Press to turn on or off the TVIVCR.

REW/II (rewind) Button

When tape playback is stopped, press to rewind the tape at high speed. During tape playback, press to rewind the tape while the pic-

ture stays on the screen. Details are on page 23. Press to change a menu setting.

F.FWD/I_ (fast forward)

Button

When tape playback is stopped, press to fast forward the tape at high speed. During tape playback,

press to fast forward the tape while the picture stays on the screen. Details are on page 23.

Press to select a menu item or to change a menu setting.

Number Buttons Use to select TV channels. Details

are on page eight.

SPEED Button

Press to select the recording tape speed (SP or SLP). Details are on

page 24.

RECORD Button Press to start a recording. Details

are on page 24.

RESET Button

Press to reset the tape counter to 0:00:00. Details are on page 33.

SLEEPNVAKE UP Button Press to set the Sleep Timer.

Details are on page 35. Press to set the Wake Up Timer. Details are on page 36.

STOP/V Button Press to stop the tape. Press to

select a menu item. Press to enter numbers when setting the

clock or a timer recording.

ALT. CH (Alternate

Channel) Button Press to return to the TV chan-

nel you were viewing previously.

:? DISPLAY Button

Press to see the tape status, channel number, or time on the

TV screen. Details are on page 20.

_MENU Button

Press to access or remove menus,

CH(annel) _/v Button Press to scan through the

TVIVCR's available channels.

VOL(ume) _/v Button Press to adjust the sound level. Pressing VOL(ume) _l_when

the sound is muted will restore the sound.

MUTE Button

Press to eliminate the TV/VCR's sound. Press again to return to

the previous volume level.

TIME SEARCH Button Press to activate a Time Search.

Details are on page 34.

PAUSE/STILL Button Press to pause recording. Press

again to resume recording.

Details are on page 24.

During tape playback, press to freeze the picture (still).

Details are on page 23.

78 Front Panel

Cassette Compartment

Insert a videotape here.

Remote Sensor

Receives a signal from your remote so you

can operate the TV/VCR from a distance,

REC(ord) Light This light flashes during a recording and

when recording is paused. It stays on when the TV/VCR is off for a timer

recording.

AUDIO and VIDEO In Jacks Connect thesejacks to the Audio and

Video Outjacks of a Camcorder, VCR,

DVD Player, etc. This is useful if you want

to watch material playing on other equip- ment at the TV/VCR.

Details are on page 30.

POWER Button

Press to turn the TV/VCR on or off.

STOP/EJECT Button Press once to stop the tape. When playback is stopped, press to eject the tape. Press to select an

item in the menu.

REW (rewind) Button

Press to rewind a videotape. Details are on page 23. Press to change a setting of a menu item.

PLAY Button Press to play a tape. Details are on page 22.

Press to select a menu item.

F.FWD (Fast Forward) Button

Press to fast forward avideotape. Details are on page

23. Press to change a setting of a menu item or to go to the next menu.

REC/OTR (record/one-touch recording) Button Press once to start a recording. Detailsare on page 24.

Press repeatedly for a One-Touch Recording.

Details are on page 25.

CHANNEL •/.

Buttons Press to select a memo-

rized TV channel. Press to adjust tracking. Details are

on page 37.

To access the menu,

pressCHANNEL • while

in line input (AUX) mode. Press again to remove the menu and go to your low-

est TV channel.

VOLUME A/v

Buttons Press to adjust the sound

level. Pressing VOLUME while the sound is muted will restore the sound.

o EARPHONE Jacks

Connect headphones (not supplied) to the EARPHONEjacks. The MC092EMG

has one jack. Use it for personal listen- ing. There will be no sound from the

TV/VCR's speakers. The MC09E1MG has two jacks. Use jack

1 for personal listening (no sound from

TV/VCR speakers). If you use only jack 2, there will be sound from the TV/VCR

speakers. Or, use both jacks and the

TV/VCRspeakers will be muted.

Rear Panel 19

• • •e • • • • • • • • • • • • • • • • • •e • •e • •e • • • • • • • • • • • • • • • • • •e • •e • •e • • • • • • • • • • • • • • •e • •e • •e • • • • • • • • • • • • • • • • • •e • •e • •e • • • • • • • •

AC Power Cord

Connect to a standard AC outlet to

supply power to the TV/VCR.

DC 13.2V Jack Connect the car battery cord here.

Details are on page seven.

ANT(enna) Jack

Connect your antenna or Cable TV signal here. Details

are on pages six-seven.

Antenna Hole Connect the base stem of the

supplied rod antenna here.

Details are on pages six-seven.

20 On-Screen Status Displays

• °• • • • o• • o• • o• • • • • • • • • • • • • • • •• • •• • •• • • • • • • • • • • • • • • • • • •• • •• • •• • • • • • • • • • • • • • • • • • •• • •• • •• • • • • • • • • • • • • • • •• • •• • •• • • •

To check the Counter, Clock, and Channel number on the TV screen, press DISPLAYon the remote control.

Each time you press DISPLAY,the TV screen will change as described below.

_ Counter mode: After five seconds, only the counter remains. To clear it, press DISPLAYtwice. _ Clock mode: After five seconds, only the clock and channel number remain. To clear them, press DISPLAY.

Press

DISPLAY

once

STOP STOP 5:40PM

Press DISPLAY

SP COUNT 0:12:34

once

PressDISPLAYonce

CH2

Adjusting the Picture Control 27

Follow these steps to adjust the TVIVCR's brightness, color, tint, sharpness, and contrast.

Press MENU.

Press PLAY/A or STOP/V to select PICTURE CONTROL. Then, press F.FWD/_.

-MENU-

TIMER PROGRAMMING

I_ PICTURE CONTROL

SETTING CLOCK CHANNEL SET UP

USER'SSET UP LANGUAGE [ENGLISH]

ZERO RETURN TIME SEARCH

Within five seconds, press PLAY/A or STOP/V until the desired control is displayed.

You can select BRIGHT, CONTRAST, COLOR, TINT, or SHARPNESS.

BRIGHT

-I1[ +

Within five seconds, press F.FWD/I_ or REW/_I to adjust the control.

REW/_I

BRIGHT

decreased brightness

CONTRAST

COLOR

TINT

SHARPNESS

Press MENU to remove the picture controls. Or, they will disappear automatically five seconds after

you make the last adjustment.

decreased contrast

paler

more purple softer

F.FWD/_

increased

brightness; more white in the pic- ture

increased contrast; distinc-

tion between black and white

parts of picture more brilliant

more green

more clear

Helpful Hint I

• The TV/VCRwill retain the I

Picture Control settings even if I

the power fails. I

22 Playing a Videotape

Follow the steps below to play a tape.

Insert a tape in the TV/VCR's cassette com-

partment.

The power will come on. If the tape's record tab is

missing, playback should start automatically.

If playback does not start automatically, press

PLAY/A.

Press STOP/Y to stop playback.

Press REW(ind)/11 to rewind the tape.

When the tape finishes rewinding, press STOP/EJECT on the front of the TVNCR to

remove the tape.

Insert a tape.

Press STOP/EJECT on

the TV/VCR to

remove the tape,

If the tape you want to play is

already in the TV/VCR, turn on

the TV/VCRpower, then press

PLAY/A.

Playback features and options

are on pages 23 and 31-34.

If a timer recording is set, the

power will not come on when you insert a tape with its record

tab intact. If a timer recording is

set and the TV/VCRpower is off,

the TV/VCRwillejectthe tape if

the record tab is missing.

Forward and Reverse Searching (SP/LP/SLP)

During tape playback, press and release F.FWD/_ or REW(ind)/11.

A fast forward or reverse picture search will begin.

To return to normal playback, press PLAY/A.

High Speed Searching (LP/SLP)

During tape playback, press F.FWD/I_ or

REW(ind)/11, then press again.

The TV/VCR will search the tape in high speed. Press F.FWD/II,- or REW(ind)/11 repeatedly to

switch between regular and high speed searching.

To return to normal playback, press PLAY/A.

Playback Options 23

Viewing a Still Picture

During tape playback, press PAUSE/STILL

A still picture will appear on the screen. The noise lines will move each time you press PAUSE/STILL.

To release the still picture and return to nor- mal playback, press PLAY/A.

Helpful Hints

• Still mode will automatically switch to Stop mode after five minutes to protect the TV/VCR and the tape from damage.

• SP/LP/SLPmeans this feature will

work with tape segments record-

ed in Standard Play, Long Play, or Super Long Play. LP/SLP

means this feature will work with

tape segments recorded in Long Play and Super Long Play. For details on tape speed, see page

24.

• During forward and reverse searching, horizontal noise lines

will appear.

• Tapes recorded in SLP speed will have fewer noise lines during

searching and Still mode.

• This TV/VCR will only record

tapes in SPor SLP.It will play tapes that were recorded in LP

on a different device (another

VCR, for example).

24 Recording

Follow the steps below to record a current TV program.

Place a tape with its record tab intact (see page

five) in the TVNCR. The power will come on. Or, if

the tape is already in the TVNCR, press

POWER to turn on the TVNCR if necessary.

Press SPEED until the desired tape speed (SP or

SLP) appears on the TVNCR screen. See tape

speeddetails below.

Use CH(annel) A/_" or the Number buttons to

select the channel you want to record.

You cannot change channels during recording.

Press RECORD once to start recording. The red REC(ord) light will flash on the front of the TV/VCR. If

the tape does not have a record tab, the TV/VCR will eject the tape immediately. Insert another tape and try again.

To pause the recording (for example, during

commercials), press PAUSE/STILL PAUSE will

appear in the top left corner of the TV screen. To resume recording, press PAUSE/STILL again

or press RECORD.

To stop recording, press STOP/V.

Tape Speeds This chart shows the recording/playback time for three types of video cassettes (T160,T120,and T60). There are three playback speeds: SP, LP,and SLP.A tape will play only in the

speed in which it was recorded. When recording, you can change the tape speed using the SPEEDbutton. You cannot record in LPspeed on this TV/VCR. The slower the speed, the more programming you can fit on

the tape. SLPis the slowest speed. A faster speed gives bet- ter picture quality. SPis the fastest speed.

Cassette type / Playback Time

Tape Speed T160 T120 T60 SP(Standard Play) 2 hrs.

40 rains.

LP(Long Play) 5 hrs. (playbackonly) 20 rains.

SLP(Super Long Play) 8 hrs. 6 hrs. 3 hrs.

2 hrs. 1 hr.

4 hrs. 2 hrs.

Helpful Hints

• Youcannot record one channel

while watching another.

• Recording options are on pages 25-30.

• If you pause a recording for more

than five minutes, the TV/VCRwill

resume recording automatically.

• You can change the tape speed

with the SPEEDbutton while a

recording is in progress, but some distortion may appear on the

tape.

One-Touch Recording 25

A One-Touch Recording (OTR) is an immediate timed

recording from 30 minutes to eight hours long .......

Before you begin, make sure ... <_The TV/VCR power is on and has a videotape with a

record tab.

<_ If necessary, rewind or fast forward the tape to the point

at which you want to begin recording.

Press the Number buttons or CH(annel) A/v to select the channel you want to record.

Remember, if the TV/VCR is connected to a Cable

Box or Satellite Receiver, the TV/VCR must be on channel 3 or 4. Select the channel you want to

record at the Cable Box/Satellite Receiver.

Press SPEED to select a tape speed (SP or SLP). Details are on page 24.

Press REC/OTR on the front of the TV/VCR to select a recording length and start recording.

Each press of REC/OTRwill increase the recording

time by 30 minutes. You may select a maximum recording length of eight hours.

You cannot start an OTR with the RECORD button on the remote.

OTR (2:30)

Press REC/OTR on the front of the

TVNCR.

When recording finishes, the TV/VCR will turn itself off.

Helpful Hints

• To stop an OTR, press STOP/v.

• To show the remaining time, press DISPLAY. OTR and the remaining recording time will appear briefly.

• The maximum recording time of a 7--160 tape in SLP speed is 8

hours (assuming you start at the beginning of the tape). A 7--120

tape has a maximum of 6 hours

recording time in SLP speed.

• If the tape ends before the recording's end time, the TV/VCR

will stop recording, eject the tape,

and turn itself off.

• You can turn off the TV/VCR dur- ing an OTR. The recording will

continue at the length you set.

26 Timer Recording

Follow the steps below to program the TV/VCR to record TV pro- grams while you're away from home. The TV/VCR will turn itself on, record, and turn itself off automatically.

Before you begin, make sure ... _:_The clock is set. If the clock is not set, MANUAL CLOCK SET

appears when you select TIMERPROGRAMMING. See pages 14-

15 to set the clock.

_:_Channels are set. Details are on pages eight and 70. _ A tape is in the TV/VCR.

Press MENU. Press PLAY/A or STOP/V to select

TIMER PROGRAMMING. Press F.FWD/I_.

-MENU-

I_ TIMER PROGRAMMING

PICTURE CONTROL SETTING CLOCK

CHANNEL SET UP

USER'SSET UP LANGUAGE [ENGLISH]

ZERO RETURN

TIME SEARCH

Press PLAY/A or STOP/V to select a program posi-

tion. Then, press F.FWD/I_.

- TIMER PROGRAMMING -

CH DATE BEGIN END

/. . .: . .: . .

Press PLAY/A or STOP/V until the channel number

appears. Then press F.FWD/i_. Ifthe TV/VCR is con-

nected to a Cable Box or Satellite Receiver, the TV/VCR must be on channel 3 or 4. Set CH as 03 or 04 in the Timer

Programming menu. Select the channel to be recorded on the Cable Box/Satellite Receiver.

- TIMER PROGRAMMING -

CH DATE BEGIN END

.. ./... :. :. .

-: i?i iii

./... :. :. .

The current date will flash beneath DATE, For a one-time

recording, press PLAY/A to select the date you want

to record.

Or, to record a TV program at the same time on the same

channel every day, press STOP/V until EVRYDAY appears.

Or, to record a TV program at the same time on the same

channel on the same day of every week, for example every

Monday, press STOP/V until EVRYand the day of the week

appear together (EVRYMON, EVRY TUE, etc.).

Finally, press F.FWD/i_.

- TIMER PROGRAMMING -

CH DATE BEGIN END

- _: ....: ::::: -

I : :

Example: one-time

recording

• You should not operate the unit during a timer recording.

• If the tape ends before the recording is complete, the TV/VCR

will stop recording immediately

and eject the tape. The red REC light will come on. Insert a differ-

ent tape to continue the recording.

Or press POWER to turn on the

TV/VCR.Thetimer recording will

not occur.

• The red REC light will flash during a timer recording.

Timer Recordin 9 (cont'd) 27

Press PLAY/A or STOP/V until the beginning hour and AM or PM appears. Press F.FWD/II_.

- TIMER PROGRAMMIN -i)

Press PLAY/A or STOP/_' until the beginning

minute appears. Then, press F.FWD/I_.

- TIMER PROGRAMMING -

X X] X] ]iX ]iX X

Press P/AY/A or STOP/V until the end hour and AM or PM appears. Then, press F.FWDJlI_.

- TIMER PROGRAMMING -

]] X] ]]] ]!K " _ [

_61 7i014[RI 7:30Ft_ ]

Press PLAY/A or STOP/_' until the end minute

appears. Press F.FWD/_.

- TIMER PROGRAMMING - )

CH DATE BEGIN END

]_]] X]

./ .....

Press PLAY/& or STOP/T to choose a tape

speed (SP or SLP).

- TIMER PROGRAMMING - 1

CH DATE BEGIN END

61 7/04 [RI 7:30Pta

. ./... :. :. .

/ : :

Press MENU to remove the menu.

the timer recording. The red REC light will turn on

1 Press POWER to turn off the TVNCR and set

at the front of the TV/VCR. You must turn off the TV/VCR for a timer recording. If

the power is on, TIMERRECSTANDBY flashes on the screen two minutes before the recording is scheduled

to begin. Turn off the TV/VCR.

Helpful Hints

• Tape speed details are on page

24.

• With ShowGuard, you don't have to worry about losing your timer

recordings. /f the power fails,

timer recordings will be restored when the clock is reset. The

timer recording will not occur if it was scheduled to take place dur-

ing the power failure.

• The videotape must have its

record tab intact. /f it is missing,

the TWVCRwill eject the video-

tape when you turn off the

TV/VCR.

28 Timer Recording (cont'd)

Extending a Timer Recording

To make a Timer Recording start and end later than originally sched-

uled, follow these steps.

With the TVIVCR power on, press MENU. Press PLAYIA or

STOPIV to select TIMER PROGRAMMING. PressF.FWDII_.

2 Press RECORD, then press PLAYIA or STOPIV to select the

desired program. The BEGIN and END times of the selected pro- gram will flash.

3 Press RECORD again. Each press of RECORD will shift forward the

beginning/end time by 10 minutes. If the recording is in progress, only the end time will shift forward. The recording speed will change

to SLP.

To restore the original recording times, press PAUSEISTILL.

4 Press MENU to remove the menu.

5 Press POWER to turn off the TVIVCR for the recording.

Correcting Timer Recording Details

1 With the TV/VCR on, press MENU. Press PLAY/A or STOP/V to

select TIMER PROGRAMMING. Press F.FWD/I_.

Press PLAY/A or STOP/. to select a timer recording, then press

F.FWD/I_.

3 Press F.FWD/P,-or REW/_I to select an item. Press PLAY/A or

STOP/T to enter the correct information.

4 Press MENU to remove the menu.

Cancelling Timer Recordings

To cancel a timer recording that is in progress:

1 Press POWER to turn on the TV/VCR, then press STOP/EJECT on

the front of the TV/VCR.

To cancel a timer recording that has not started:

1 With the TV/VCR power on, press MENU. Press PLAY/A or

STOP/V to select TIMER PROGRAMMING. Press F.FWD/I_. Press PLAY/A or STOP/_' to select a timer recording, then press

F.FWD/I_.

3 Press RESET. 4 Press MENU to remove the menu.

Checking Scheduled Timer Recordings

With the TV/VCR on, press MENU. Press PLAY/A or STOP/_' to select TIMER PROGRAMMING.

2 Press F.FWD/I_. The program details will appear on the screen. 3 Press MENU to remove the menu.

Timer Recording Auto Return 29

Turning on AUTO RETURN sets the TV/VCR to rewind the tape automatically to the beginning of the timer recordings.

Press MENU.

Press PLAY/A or STOP/V to select USER'S

SET UP. Then, press F.FWD/_.

-MENU-

TIMER PROGRAMMING PICTURE CONTROL

SETTING CLOCK CHANNEL SET UP

I_ USER'SSET UP

LANGUAGE [ENGLISH] ZERO RETURN

TIME SEARCH

Press PLAY/A or STOP/V to select AUTO RETURN. Press F.FWD/I_ or REW/_I until ON appears beside AUTO RETURN. To deacti-

vate AUTO RETURN, select OFF.

- USER'S SET UP -

RENTAL [OFF] REPEAT PLAY ,_r,

,.AUTORETURN]]

Press MENU. When all timer recordings are com-

pleted, the TV/VCR will rewind the tape to the begin- ning of the recorded program(s).

Helpful Hints

• If you press POWER while the tape is rewinding, Auto Return

will stop.

• If there is a power failure, the

TV/VCRwill retain its memory

for this feature.

30 Rerecording (Tape Duplication)

AUDIO and VIDEO OUT Jacks on source unit

V,DEOOUttoV,OEO,n ye,,ow/

Audio Cable from

AUDIO OUT to AUDIO In (white)

Make the connections shown above, using audio

and video cables (not supplied). Connect the source unit (VCR or camcorder) to a power

source after connections are made.

The VCR or camcorder will play your tape. Insert a

prerecorded tape in the source unit. If playback

begins, press STOPon the unit.

AUDIO andVIDEO In Jacks on the front of the TV/VCR

The TV/VCR will record your tape. Insert a blank tape in the TVNCR. Make sure the tape's record

tab is intact and the TV/VCR is on.

Point the TVNCR remote control at the

TVNCR. Press Number buttons O, 0 so AUX appears on the screen. The TV/VCR is now in Line Input or Auxiliary mode.

If you only want to watch material playing on the other

VCR or camcorder, press PLAY on the source unit

(VCR, etc.) now to start playback. The material will be

shown on the TV/VCR's AUX channel. To dub the

material, continue with steps 5-7.

Point the TVNCR remote control at the

TVNCR. Press SPEED until the desired tape speed (SP or SLP) appears on the screen.

Press PLAY on the source unit and REC(ord)/OTR on your TVNCR at the same

time. Copying will begin.

To stop copying, press STOP/EJECT on the

TVNCR, then stop the tape on the VCR or camcorder.

Helpful Hints

• Unauthorized recording of copy-

righted television programs, video

tapes, or other materials may infringe on the rights of copyright owners and violate copyright laws.

• Different brands of equipment may operate differently.

• Make sure all connections are secure. Otherwise, you may not

record both picture and sound.

• Programs that are copyright protected may not record clearly.

• Tape speed details are on page

24.

Repeat Play allows you to play a tape repeatedly.

Press MENU.

Press PLAY/A or STOP/V to select USER'S SET UP. Then, press F.FWD/_.

-MENU-

TIMER PROGRAMMING PICTURE CONTROL

SETTING CLOCK CHANNEL SET UP

I_ USER'SSET UP

LANGUAGE [ENGLISH] ZERO RETURN TIME SEARCH

Press PLAY/A or STOP/V to select REPEAT PLAY Press F FWD/I_ or REW/_I until ALL or

BLANK appears. Choose ALL if you want to play tapes repeatedly from beginning to end Choose

BLANK to repeatedly play tapes from the beginning until the first blank portion of 10 seconds or more

Choose OFF to cancel Repeat Play

- USER'S SET UP -

RENTAL [F_I

I" REPEAT PLAY

AUTO RETURN i,>hi

Repeat Play 37

Press MENU to remove the menu.

Press PLAY/A to start tape playback REPEAT

PLAY I_ appears briefly on the screen each time you

start playback

Helpful Hints

• Once you set Repeat Play, it stays in effect even after you

turn off the TV/VCRYoumust

set it to OFF to disable it again

• If RENTALis ON the RENTAL

PLAYD, message has priority

when you start playback

(REPEATPLAYD, will not

appear when you start play back.) Details are on page 32

• TheTV/VCRkeepsthe Repeat

Play setting if the power fails

32 Rental Playback

This function improves picture quality of worn videotapes.

Press MENU.

Press PLAY/A or STOP/V to select USER'S

SET UP. Then, press F.FWD/_.

-MENU-

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK

CHANNEL SET UP

I_ USER'S SET UP

LANGUAGE [ENGLISH] ZERO RETURN

TIME SEARCH

Press PLAY/A or STOP/V to select RENTAL. Press F.FWD/_ or REW/41 until ON appears.

To cancel Rental Play, choose OFF.

- USER'S SET UP -

I_ RENTAL

REPEATPLAY •

AUTO RETURN [OFF]

L_-J

Press MENU to remove the menu.

Press PLAY/A to start playback.

RENTAL PLAY I_ appears briefly every time you

start playback while RENTAL is ON.

• The TV/VCR retains the Rental I

I Helpful Hint I

setting if the power fails. I

Follow the steps below to reset the counter to zero at a tape location you want to refer to later.

Play, rewind, or fast forward the tape to the location you would like to refer to later. Press

STOP/V to stop the tape.

Press RESET until you see the counter on the TV screen at 0:00:00.

When you later want to return to this point, press MENU. Press PLAY/A or STOP/V to

select ZERO RETURN. Then, press F.FWD/I_.

The counter will appear on the screen. When the tape reaches the point at which you set the counter to zero, the tape will stop. Press PLA¥/A to watch the tape.

-MENU-

TIMER PROGRAMMING PICTURE CONTROL

SETTING CLOCK CHANNEL SET UP USER'SSET UP

LANGUAGE [ENGLISH]

If- ZERO RETURN

TIME SEARCH

Zero Return 33

34 Time Search

Time Search lets you rewind or fast forward a tape to a posi- tion by entering the amount of playback time you want to skip.

In the example below, Time Search is set to 2 hours, 50 min-

utes from the present position.

Insert a tape.

PressTIME SEARCH.

PressPLAY/A or STOP/V until your length of

time appears (for example, 2:50 for 2 hours, 50 min-

utes). Each press changes the time by 10 minutes.

To cancel the Time Search at this point, press MENU.

Press REW/4 or F.FWD/I_. The TV/VCR will rewind or fast forward the tape by the specified

amount of time. The time counts down on the screen as the search progresses. When 0:00 is reached, the

tape will start playback automatically.

Or, to cancel the time search before it finishes, press

STOP/T.

Helpful Hints

• Time Search can be set up to a maximum of 9 hours 50 minutes

(9:50) in l O-minute increments.

• Time Search is not available dur- ing recording.

Use the Sleep Timer to program the TV/VCR to shut itself off in a certain amount of time.

Press SLEEP/WAKE UP until SLEEP TIMER appears.

Press PLAY/A, STOP/V, F.FWD/_ or REW/_I until your desired amount of time appears.

You may choose 30 minutes, one hour, an hour and a half, or two hours.

SLEEPTIMER [2:00] I

Press MENU to remove the Sleep Timer display.

Sleep Timer 35

Helpful Hints

• Tocancel the Sleep Timer, press

SLEEP/WAKEUPuntil SLEEP

TIMERappears.PressPLAY/A,

STOP/V,EFWD/_, or REW/_I

to select OFF.PressMENU to

remove the Sleep Timer display.

• To see how much time remains

before the TV/VCRturns itself off,

pressSLEEP/WAKEUPtwice.The

time remaining flashes in the [ ]

besideSLEEPTIMER.Press

MENUto removetheinformation.

36 Wake Up Timer

The Wake Up Timer turns on the TV/VCR automatically at a specified time within the next 24 hours. You may set the

TV/VCR to turn on at a TV channel or with VCR playback.

Before you begin: _ Set the clock. Details are on pages 12-75. If the clock is not

set, you cannot set the Wake Up Timer.

_:_Put a tape in the TV/VCR if you want the TV/VCR to start

tape playback at the specified time.

Press SLEEP/WAKE UP until WAKE UP

TIMER appears.

WAKE UP I_ ON/OFF OFF] TIMER

Press F.FWD/_ or REW/<I until ON appears.

_/AKE UP I_ ON/OFF [DNJ HMER TV/TAPE [l_i

TIME [12OO_a]

Press PLAY/A or STOP/Vto select TV/TAPE. Press F.FWD/_ or REW/<I to select TV or

TAPE. If you select TV, the current TV channel will

be on when the TV/VCR turns on, Select TAPE to

start tape playback when the TV/VCR turns on.

_VAKE UP ON/OFF _ON] [IMER I_TV/TAPE HV]

TIME [f_:OOAM]

Press PLAY/A or STOP/T to select TIME. Press F.FWD/i_ or REW/<I to select your

wake up time.

Each button press changes the time by 10 minutes.

WAKE UP ON/OFF [ON] TIMER TV/TAPE [TV]

I_ TIME [! i_]

Press MENU to remove the menu. Press POWER to turn off the TVNCR. The TV/VCR

will turn on at the specified time.

Helpful Hint

• Tocancel the Wake Up Timer,

pressSLEEP/WAKEUPuntil

WAKEUPTIMERappears,then

pressF.FWD/I_ or REW/_I until

OFF appears.

Automatic Operation Features 37

Automatic Playback

When you put a tape in the TV/VCR, the power will come on automatically. If the tape's record tab is missing, playback will begin. If a timer recording is set, the power will not

come on automatically when you insert a tape with the record tab intact. If a timer recording is set and the TV/VCR power is off, the TV/VCR will eject the tape if the record tab is missing.

Automatic Rewind, Eject, Off When you play, fast forward, or record a tape to its end, the TV/VCR will rewind the tape, stop, turn itself off, and

eject the tape.

Tape Eject

A tape can be ejected with the TV/VCR power on or off (but the TV/VCR must be connected to power). If a timer

recording is programmed, a tape cannot be ejected when the power is off. In this case, turn on the TV/VCR power,

then eject the tape. Be sure to insert a tape and turn off the

TV/VCR power for the timer recording.

Automatic Tracking AdJustment

The TV/VCR automatically adjusts the tracking to give you the best possible picture quality. With some recordings, you

may get a better picture using manual tracking.

Manual Tracking To adjust the tracking manually, press the CHANNEL A/_'

buttons on the TV/VCR or the CH(annel) A/V button on the remote control during playback.

Tracking returns to Automatic Tracking Adjustment when you insert a tape or press STOP/_'.

Before

Tracking

Adjustment

After

Tracking

38 Helpful Hints

If you are having problems with your product, check this list of problems and possible solutions before requesting service. You may be able to solve the problem yourself. If you need to call a customer service representative, please know the model number and serial number of

your product before you call. This information is on the back of the product. Also, please take a moment to identify the problem you are having, and be prepared to explain this to the representative. If the representa- tive will need to help you with operations, please stay near the product. Our representatives will be happy to

assist you. Location

For safe operation and satisfactory performance of your TV/VCR, remember the following:

• Shield it from direct sunlight and keep it away from sources of intense heat.

• Avoid dusty or humid places,

• Avoid places with insufficient ventilation. Do not block the vents on the TV/VCR. Do not place the TV/VCR on a carpet, as this will block the vents.

• Avoid locations subject to strong vibrations.

• Do not place the TV/VCR near strong magnetic fields.

• Do not move the TV/VCR suddenly from a cold place to a hot place, or vice versa.

• Do not use this TV/VCR under high temperature conditions (maximum operating temperature: 104°F),

Electrical Shock and Fire Hazards

• Do not handle the power cords with wet hands.

• Do not pull the power cord when disconnecting it from the power outlet. Grasp it by the plug.

• If you spill water on the TV/VCR, unplug the power cords immediately and take the TV/VCR to an autho- rized service center.

• Do not put your fingers or objects into the TV/VCR cassette compartment.

• Do not place anything on top of the TV/VCR.

Dew Warning (Moisture Condensation)

• Moisture may condense inside the unit when you move it from a cold place to a warm place, after heating a cold room, or when the humidity is high. There is no warning that moisture is in your TV/VCR. Playing a tape

in a TV/VCRin which moisture has accumulated could damage the tape and the TV/VCR.If you suspect mois- ture inside the TV/VCR, keep the TV/VCR power on (but do not play a tape) for at least two hours. This will allow the TV/VCR to dry.

TVNCR will not perform a timer recording.

• Set the recording start and stop times correctly. Details are on pages 26-28. Midnight is 12 a.m. Noon is 12 p.m.

• Make sure the TV/VCR power is off before the recording's start time.

• Set the clock. Details are on pages 72-75.

• Put a tape in the TV/VCR. The tape must have a record tab.

• With ShowGuard, you don't have to worry about losing your timer recordings. If the power fails, timer recordings will be restored when the clock is reset. The timer recording will not occur if it was scheduled to take place during the power failure.

TVNCR will not record.

• Make sure the tape has a record tab. Details are on page five.

• Plug the power cord into an active AC outlet. Details are on page six. Or, connect the car battery cord to the TV/VCR's DC 13.2V jack and to your vehicle's cigarette lighter. Details are on page seven.

• Check your hookups. Details are on pages six-seven.

• Set up the TV channels. Details are on pages eight and 70.

Channel reception is poor.

• Check connections, then set up the channels again. Details are on pages eight and 70.

TVNCR power shuts off after 15 minutes.

• The TV/VCR will shut itself off after 15 minutes when it is on a channel that is not receiving a broadcast signal

(for example, a station that has gone off the air for the night). This is normal.

TVNCR ejects the tape when you try to start a recording.

• Make sure the tape has a record tab. Details are on page five.

Helpful Hints (cont'd) 39

The remote control is not available and you need to access the menu.

• Press CHANNEL • or • on the front of the TV/VCR to go to AUX (located before your lowest TV chan-

nel or at channel zero position). Press CHANNEL • once to access the TV/VCR menu. Use the PLAY,

REW,F.FWD, and STOP/EJECTbuttons on the front of the TV/VCR to go through the menu. Press CHANNEL • on the front of the TV/VCR again to remove the menu and go to your lowest TV channel.

(Press CHANNEL • on the front of the TV/VCR again to remove the menu and go to AUX.) Details are on

page 78. If you cannot remove the menu, turn the TV/VCR off, then on again, to remove the menu.

TV/VCR has no power.

• Connect the AC power cord to an AC outlet completely. Or, connect the car battery cord to the TV/VCR's DC 13.2V jack and to your vehicle's cigarette lighter. Details are on pages six-seven.

TV/VCR does not have a picture.

• Adjust the antenna or check the Cable TV signal. Details are on pages six-seven.

• Adjust the TV/VCR picture controls. Details are on page 21.

• Select an active channel.

TV/VCR has poor sound or no sound.

• Adjust the volume or press the MUTE button to restore the volume.

Tape playback is poor or tape is destroyed.

• Adjust the tracking. Details are on page 37.

• Use the Rental feature. Details are on page 32.

• If moisture has accumulated in your TV/VCR, keep the power on for at least two hours, but do not try to play

a tape. Details are on page .38.

Remote control does not operate the TVNCR.

• Aim the remote control directly at the remote sensor on the front of the TV/VCR. Details are on page 78.

• Remove all obstacles between the remote control and the TV/VCR.

• Inspect and replace the batteries in the remote control. Details are on page five.

Number buttons will not select channels above 69.

• Enter channel numbers as a two-digit number. If you want to select channels 100 and above, press the +100 button, then the Number buttons for the last two digits.

• If you are using an antenna and do not have Cable TV service, only channels 2-69 are possible.

You cannot insert a tape into the TV/VCR.

• Insert the videotape with the window side up, with the record tab facing you and to the left.

• Make sure a tape isn't already in the TV/VCR by pressing the STOP/EJECT button on the front of the

TV/VCR.

• Gently push on the center of the tape. Never force a tape into the TV/VCR.

• If you have set a timer recording and the TV/VCR power is off, the TV/VCR will eject the tape if the record tab is missing.

You cannot remove the tape from the TV/VCR.

• Make sure the power plug is completely connected to a power outlet. Or, make sure the car battery cord is

completely connected to your vehicle's cigarette lighter.

• If a timer recording is programmed, turn on the TV/VCR power, then eject the tape. Be sure to insert a tape

and turn off the TV/VCR power for the timer recording.

• Unplug the TV/VCR power cord for five minutes. Plug in the power cord again, then press the POWER button on the TV/VCR. If the tape does not eject, press the STOP/EJECT button on the TV/VCR three to

five times. If the tape still does not ejecL you may need to have an authorized servicer remove the tape.

The picture or color is faulty.

• Magnetism or geomagnetism from nearby equipment can affect the color in the TV picture. Move the

TV/VCR away from other equipment; the color should correct automatically. Or, unplug the power cord and reconnect it after 30 minutes.

Automatic clock setting won't work.

• Disconnect the car battery cord from the DC 13.2V jack. Instead, connect the AC power cord to an AC power outlet to supply standard electrical power. Details are on page six.

• Make sure channels are set and you have connected an antenna or Cable TV signal to the TV/VCR. Details are on pages six, eight, and 10,

40 Glossary

AUDIO In Jack: white jack on the front of the TV/VCR that receives audio

from other equipment. Automatic Channel Setup: process in which the TV/VCR memorizes all

available channels. Then, when you push the CH(annel) A/V button, you only scan through available channels.

Auxiliary (AUX): The channel to which you set your TV/VCR during dub- bing or when viewing material that is playing on another device that is con- nected to the TV/VCR (for example, a camcorder or VCR). The auxiliary (or

line input) channel is always channel 00 (AUX).

Bands: settings that allow you to tune channels.

• Antenna - VHF (very high frequency; channels

2-13) and UHF (ultra high frequency; channels 14-69).

• Cable - standard channels 1-125 are possible without a Cable Box.

_adjusting increases or decreases the brightness of the color in the

picture. Increasing the brightness adds white to the picture. Color: adjusting pales or brightens the picture color. Decreasing the color

makes the picture more black and white. Contrast: the distinction between the black and white parts of the picture.

Dubbinq: copying a tape using a separate VCR.

high quality; a circuitry feature that improves picture detail.

Mode: a TV/VCR operation. OTR: One-Touch Recording; a timed recording that starts immediately and

records for 30 minutes to eight hours, whichever you specify.

Sharpness: adjusting softens or clarifies the picture. Tape Speeds: how fast the tape travels during playback or recording.

• SP (standard play) - fastest tape speed (recording time for a T120 tape is

approximately two hours); best picture quality.

• LP (long play) - average tape speed; playback only.

• SLP (super long play) - slowest tape speed (recording time for a T120 tape is approximately six hours). Allows the most recording time to fit on

a videotape.

Tint: adjusting changes the tints of the picture from red/purple to yellow/green.

VIDEO In Jack: yellow jack on the front of the TV/VCR that receives video

from other equipment.

General

CRT: 9-inch in line gun Television Color system: NTSC-M

Video Heads: Two heads Tape width: 1/2 inch (12.65 ram)

Tape speed

SP: 33.35 mm/sec. LP: 16.67 mm/sec.

SLP:11.12 mm/sec.

Operating Temperature: 41°F (5°C) to 104°F (40%) Relative Humidity: 10% to 75%

Power requirement: AC 120V, 60 Hz/DC 13.2V Power consumption: 55W (AC), 60W (DC) Sound output: 0.8W

Dimensions:

13" (H) x 12-1/8" (W) x 12-15/16" (D)- 7 330 mmx 308 mmx 329 mm

14-1/2" (H) x 12-3/16" (W) x 12-1/64" (D) --_ (MC092EMG)

368 mmx 310 mmx 332 mm

Weight: 18.5 Ibs (8.4 kg)

(MC09E1MG)

._l

Tuner Broadcast Channels

VHF 2-13, UHF 14-69

Specifications 47

Cable TV Channels

1-125

Jacks

Antenna In: VHF/UHF 75 ohms unbalanced Video In: RCA connector

Audio In: RCA connector Earphone: 3.5 mm CES

Electrical Specifications

Video input level: 0.5-2.0Vp-p Audio input level: -15dBv

Video S/N ratio

SP: More than 46dBIJ

Audio S/N ratio

SP: More than 43dB

Designs and specifications are subject to change without

notice and without our legal obligation.

42 Limited Warranty

TVAICR COMBINATION

90 Days Free Labor/One Year Parts Exchange

This product must be carried in for repair,

WHO IS COVERED?

You must have proof of purchase to receive warranty

service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHA T IS CO VERED?

Warranty coverage begins the day you buy your

product. For 90 days thereafter, all parts will be repaired or replaced, and labor is free. From 90 days to one year from the day of purchase, all parts will be

repaired or replaced, but you pay for all labor charges. After one year from the day of purchase, you pay for the replacement or repair of all parts, and for all

labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHA T IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the prod- uct, adjustment of customer controls on the prod-

uct, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Magnavox.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufac-

tured, approved and/or authorized, or repair of products damaged by these modifications. incidental or consequential damages resulting from the product. (Some states do not allow the exclu- sion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded materi- al, whether copyrighted or not copyrighted.)

• damage caused by the use of non-VHS tapes or tapes that have not been tested and labeled for

use in two, four, six, and eight hour VHS recorders.

• a product that is used for commercial or institu- tional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Magnavox. In countries where Magnavox does not distribute the

product, the local Magnavox service organization will

attempt to provide service (although there may be a

delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP..,

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner's

manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner's manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A.,

PUERTO RICO, OR U.S. VIRGIN ISLANDS...

Take the product to a Magnavox factory service cen- ter (see enclosed list) or authorized service center for repair. When the product has been repaired, you must pick up the unit at the center. Centers may keep defective parts.

(In U.S.A., Puerto Rico, and U.S. Virgin Islands, all

implied warranties, including implied warranties of merchantability and fitness for a particular purpose,

are limited in duration to the duration of this express warranty. But, because some states do not allow limi-

tations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Magnavox at:

1-800-705-2000.

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of mer- chantability or fitness for a particular purpose. Magnavox is not liable under any circumstances for any direct, indirect, special, incidental or consequen- tial damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record below the model and serial numbers found on the product. Also, please fill out and mail

your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL# SERIAL#

This warranty gives you specific legal rights. You may have other rights which vary from state to state.

EL6515E002/01-03

44 Index

alt.ch button .............. 17 menu access from front panel 18 timer recording

ant(enna) jack ........... 6, 19

audio in jack ........... 18, 30

auto return ............... 29

automatic

playback ............... 37

rewind ................ 37

auxiliary mode (aux) .... 30, 40

batteries .................. 5

bright ................... 21

channel

above 100 .............. 8

adding ................ 11

buttons .......... 17, 18, 37

deleting ............... 11

setup ............... 8, 10

clock ................. 12-15

color ................... 21

connections ........... 6-7, 30

contents, table of ........... 4

contrast ................. 21

controls

remote ................ 17

tv/vcr ................. 18

daylight-savings time ........ 16

dc 13.2v jack ............ 7, 19

display button .......... 17, 20

duplication ............... 30

earphone jack ............. 18

ejecting a tape ......... 37, 39

fast forward search ......... 23

f.fwd/l_ button ......... 17, 23

f.fwd button .............. 18

front panel ............... 18

glossary ................. 40

helpful hints ............ 38-39

hookups ............. 6-7, 30

menu button ............. 17

mute button .............. 17

cancelling .............. 28

setting .............. 26-27

tint ..................... 21

number buttons ......... 8,17

tracking ................. 37

one-touch recording ........ 25 video in jack ........... 18, 30

pause/still button ....... 17, 23

picture control ............ 21

wake up timer ............ 36

warranty ................. 42

play button ............ 17, 18

playback options ........... 23

zero return .............. 33

playing a tape ............. 22

power

button ............. 17, 18

cord .............. 6, 7, 19

rear panel ................ 19

rec/otr button ......... 18, 25

rec(ord) light ............. 18

recording ................ 24

recording prevention ........ 5

remote control ............ 17

remote sensor ............ 18

repeat play ............... 31

rerecording .............. 30

rew(ind) button ........... 18

rew(ind)/4 button ...... 17, 23

rewinding ................ 23

safety precautions .......... 3

searching ............. 23, 34

sensor (remote) ........... 18

sharpness ................ 21

sleep timer ............... 35

slp .................. 24, 40

sp .................. 24, 40

specifications ............. 41

standard play .......... 24, 40

status display ............. 20

still picture ............... 23

stop/v button ............ 17

stop/eJect button .......... 18

super long play ......... 24, 40

language selection ........... 9

line input mode ........ 30, 40

long play .............. 24, 40

tape duplication ........... 30

tape speed ............ 24, 40

time search ............... 34

Ip .................. 24, 40

O This owner's manual is made of recycled paper,

......... As an ENERGY STAR_ Partner, Magnavox has determined that

_ " _ this product meets the ENERGY STAR_ guidelines for energy

_" efficiency

ENERGY STAR _, JS a US. registered mark.

0EMN02113 / T4410UL/T4411UM

Printed In Malaysia

IB8416E001

Magnavox MC09E1MG, MC092EMG User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
