Magnavox MAS-80 User Manual
Use this simple and quick guide to get started
listening to your favorite music.
T
o connect your MAS-80 Mini Hi-Fi system
follow these steps:

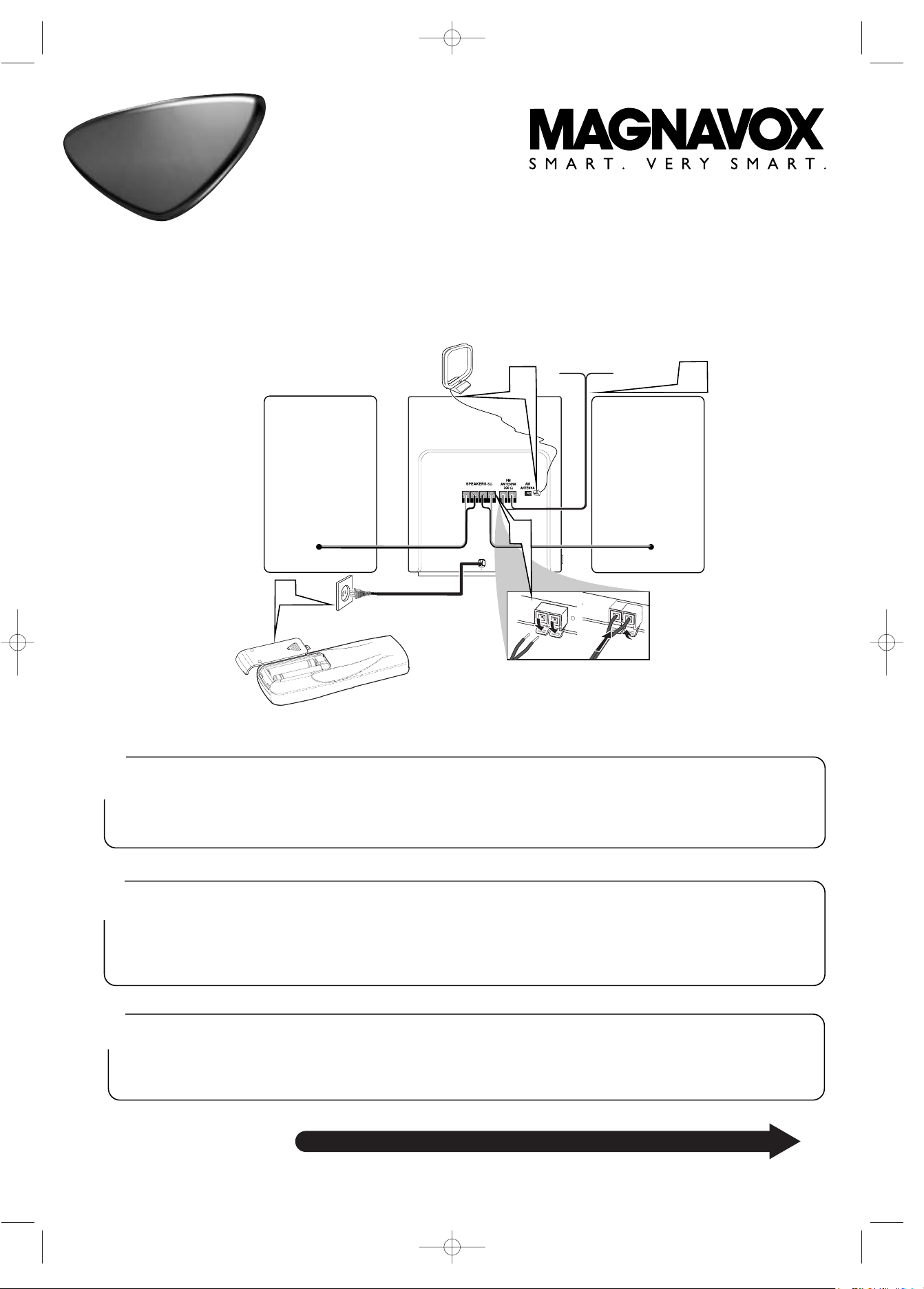

Antenna Connections
a. Connect the supplied AM loop antenna to the AM ANTENNA jacks.
b. Connect the supplied FM antenna to the FM ANTENNA jacks.
c. Adjust the antennas for optimal reception.
1
Final Preparations
a. Insert two (2) AA batteries into the remote control. Besure to line up the polarity, + to + and - to -.
b. Plug the AC power cord into an outlet.
3
Speaker Connections
a. Connect the Right speaker wires to the “R” jacks. Connect the Red wire to the “+” jack and the black wire to the “-”
jack.
b. Connect the Left speaker wires to the “L” jacks. Connect the Red wire to the “+”
jack and the black wire to the “-” jack.
2
3
1b
1a
2
MAC80QUG 7/24/03 3:23 AM Page 1
Quick Use
Quick Use
Guide
Guide
AM loop
antenna
FM wire antenna
speaker
(right)
AC power cord
+
+
L
–
–
R
speaker
(left)
See the other side for some important tips.
MAC80QUG 7/24/03 3:23 AM Page 2
For more detailed
instrustions see the following
Quick Use
Quick Use
pages in the User Guide.
Basic Functions . . . . . . . . . . . . . . . . . . 13-15
CD Operation . . . . . . . . . . . . . . . .16-18
Radio Operatation . . . . . . . . . . . . .19-20
Clock/Timer . . . . . . . . . . . . . . . . .21-22
Troubleshooting . . . . . . . . . . . . . .24-25

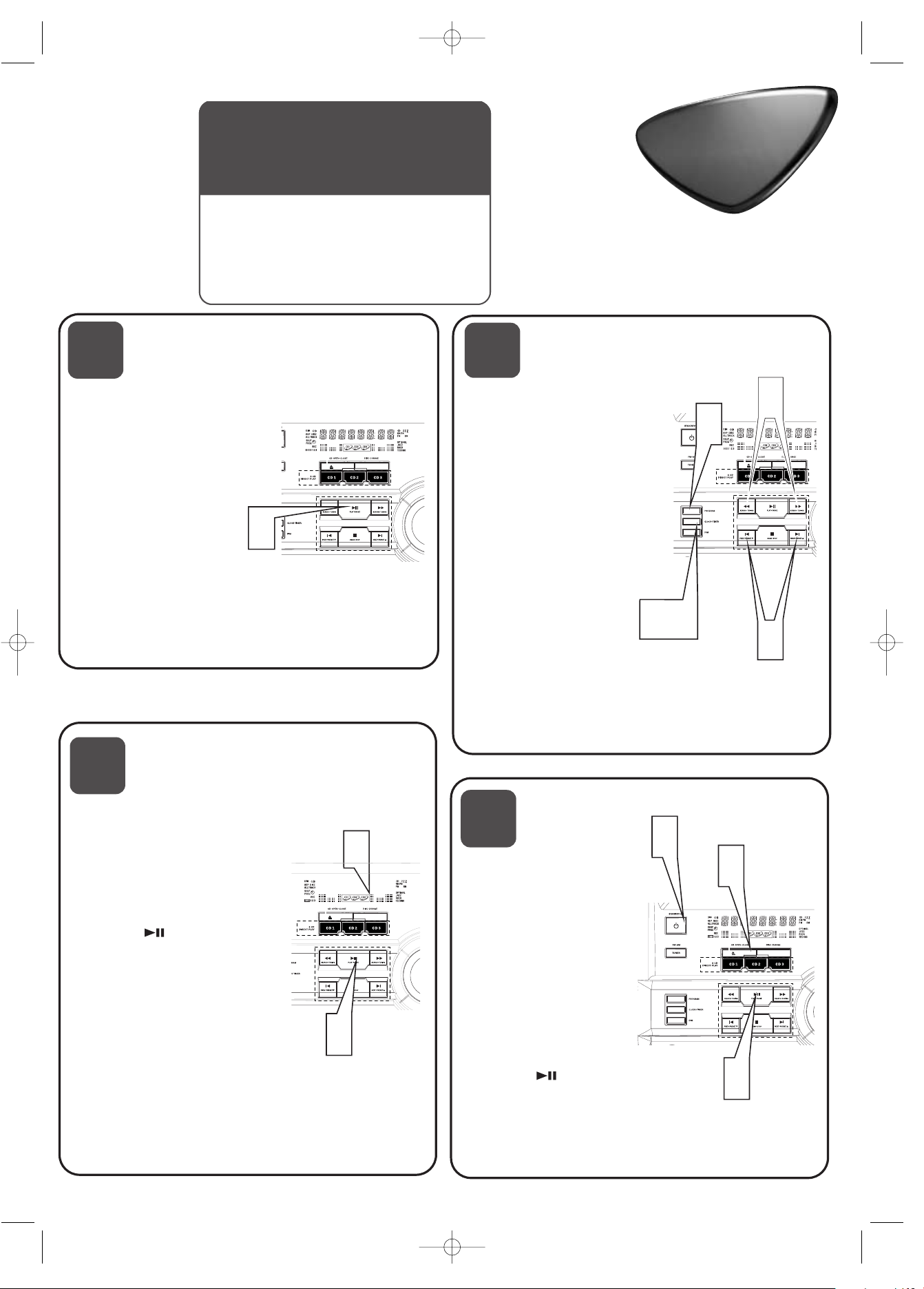

A
DEMO Mode
When you plug your system in
for the first time, it will begin
showing different settings on
the display and flashing lights on
the buttons. This is to
demonstrate the various
features.
Press and hold 7
(STOP) to deactivate
1
the demo mode.
●“DEMO OFF” appears
on the display screen.
1
B
Setting the Clock
With the system off,
press CLOCK•TIMER.
1
Press PROGRAM to
select clock mode.
2
•"12 :00 AM” or "00 :00"
starts flashing.
Press 1 or ¡ on the
system to set the hour.
3
Press w or ∑ on
the system to set the
4
minute.
Guide
Guide
2
1,5
3
4
C
Plug and Play
(Automatic Radio station Programming)
When you turn on the main
power for the first time,
1
"AUTO INSTALLPRESS
PLAY" is displayed.
Press (PLAY PAUSE) on
the system to start
2
installation.
•"INSTALL" is displayed,
followed by “TUNER" and
"AUTO".
•PROG starts flashing.
•All available radio stations
with sufficient signal strength will be stored automatically,
starting from FM and followed by AM band.
1
AUTO INST
2
Press CLOCK•TIMER again to store the setting.
●The clock starts working.
5
To exit without storing the setting Press 7 on the system.
D
Playing a CD
Press STANDBY ON
if the system is not
1
already on.
Press OPEN•CLOSE
to open the disc tray.
2
Place a disc in the disc
tray.
Press (PLAY) to
play the CD.
3
1
2
3
•When all the available radio stations are stored or the
memory for 40 presets is used, the last preset radio
station will be played.
