Magnavox 19MF301B/F7, 32PFL3000/F8 Schematic

32” LCD TV

chassis PL11.0

Service Manual

Contents

TYPE A

32PFL3506/F7 PHILIPS (Serial No.: DS1) 32PFL3506/F7 PHILIPS (Serial No.: XA1) 32PFL3000/F8 PHILIPS (Serial No.: XA1)

TYPE B

32PFL3506/F7 PHILIPS (Serial No.: DS2) 32PFL3506/F7 PHILIPS (Serial No.: DS3) 32PFL3000/F8 PHILIPS (Serial No.: XA2)

This service manual contains information of different types of models. Make sure to refer to the section describing your model.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

111128

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all P&F Equipment. The service procedures recommended by P&F and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. P&F could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, P&F has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by P&F must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

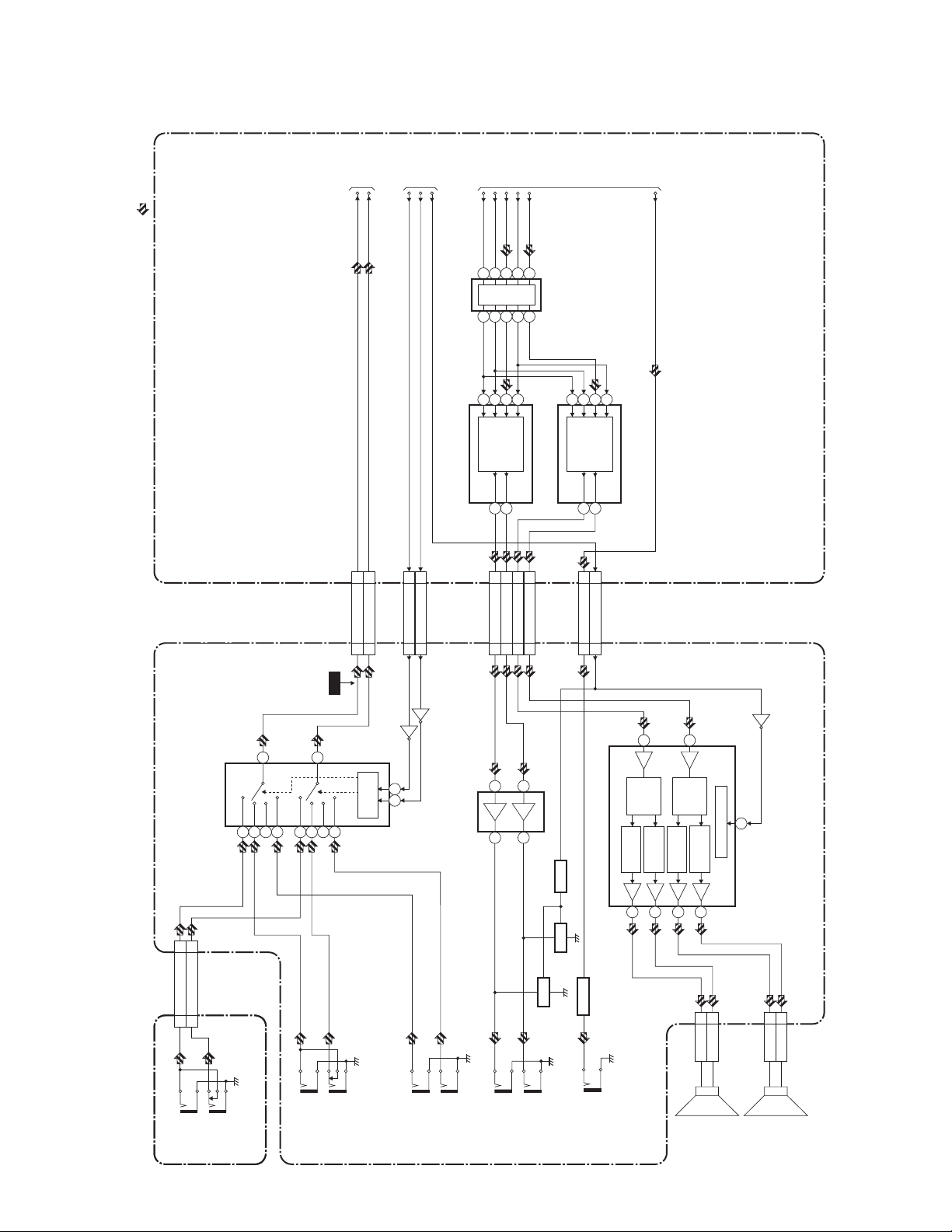

Block Diagrams [TYPE A] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

[TYPE B] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

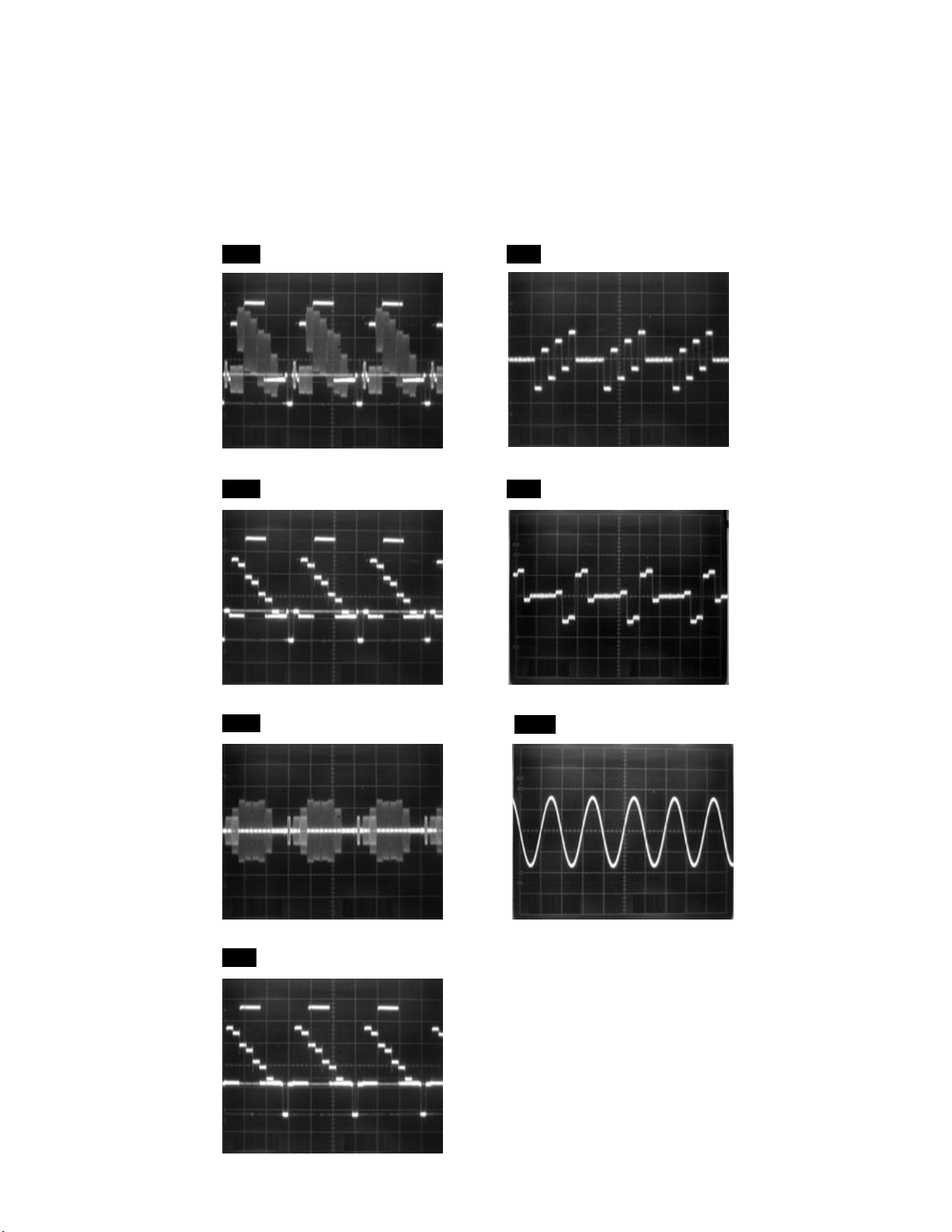

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Parts List [TYPE A] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

[TYPE B] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-12

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

SPECIFICATIONS

< TUNER / NTSC >

ANT. Input ---------------------- 75 Ω Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-In Range --- MHz ±2.3 ±2.1 20

20 23

2. Synchronizing Sens.

TV.ch.4 CA.ch.31 CA.ch.87

dBµ dBµ dBµ

18 18 18

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

2. ATSC Dynamic Range (min / max)

ch.4 ch.10 ch.41

dBm dBm dBm

---

-76/0

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolution

2. Brightness (w / filter) --- cd/m

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

pixels pixels

° °

1366

768

2

350 ---

-88 to 88

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--x y

Horizontal

Vert ical

% %

°K 12000

line line

5 5

0.272

0.278 400

350

5±5 5±5

--±3% ±3%

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1. Audio Max Output (ATSC 0 dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response (NTSC)

Lch/Rch W 10.0/10.0 8.0/8.0

-

6dB: Lch

-

6dB: Rch

Hz Hz

70 to 10 k 70 to 10 k

---

1-1 PL11.0SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the Liquid Crystal Panel and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 120 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the Liquid Crystal Panel.

CURRENT

TESTER

+

EARTH GROUND

_

2-1 LTVN_ISP

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Hot Chassis Warning a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 LTVN_ISP

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

11~13 lb (5~6 kg) of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

2-3 LTVN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter (High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

To p Vi ew

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3-1 TVN_SN

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Ta pe

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

3-2 TVN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the pin 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

3-3 TVN_SN

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-4 TVN_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts and the CBA in order to gain access to items to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[1] Stand

Assembly

[8] IR Sensor CBA

[9] Function CBA

[2] Rear Assembly

[3] Inverter CBA

[4] Jack CBA

[5] Power Supply CBA

[6] Digital Main CBA Unit

[10] LCD Module Assembly

[11] Front Cabinet

[7] Speaker

2. Disassembly Method

Step/

Loc.

No.

[1]

[2]

Part

Stand Assembly

Rear Assembly

Fig.

No.

Removal Note

D1 3(S-1) ---

12(S-2), 2(S-3),

D1

4(S-4), 11(L-1)

---

Step/

Loc.

No.

[8]

[9]

Part

IR Sensor CBA

Function CBA

Fig.

No.

D3 D4

Removal Note

CL103A ---

D3D4Function Knob,

Knob Frame

---

LCD

[10]

Module

D3 (S-11) ---

Assembly Front

[11]

↓

(1)

Cabinet

↓

(2)

D3 --------------- ---

↓

(3)

↓

(4)

↓

(5)

*1: TYPE A

*2: TYPE B

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, H = Hex Screw, CN = Connector e.g. 2(S-2) = two Screws of (S-2), 2(L-2) = two Locking Tabs of (L-2)

(5) Refer to the following "Reference Notes in the

Table."

Inverter

[3]

CBA

[4] Jack CBA

Power

[5]

Supply CBA

Digital Main

[6]

CBA UnitD2D4

D2 D4

[7] Speaker D3

7(S-5), CN1001, CN1003, CN1100, CN1101, CN1102,

---

CN1901

2(S-6), CL701B ---

9(S-7), CN101, CN301, CN302,

---

CN801, CN802 2(S-8), 8(S-9),

CN3902 Jack Holder, Shield

*1

, CN3005*2,

---

Box 4(S-10),

Speaker Holder

---

4-1 PL11.0-A_DC

(L-1)

[2] Rear Assembly

(S-2)

(L-1)

(S-2)

(L-1)

(S-2)

(S-4)

[1] Stand Assembly

(S-4)

(L-1)

(S-2)

(S-3)

(S-2)

(S-1)

Fig. D1

4-2 PL11.0-A_DC

[5] Power Supply CBA

(S-7)

[3] Inverter CBA

(S-5)

(S-8)

(S-9)

Jack Holder

[4] Jack CBA

Shield Box

[6] Digital Main CBA Unit

(S-6)

(S-7)

(S-9)

Fig. D2

4-3 PL11.0-A_DC

Function Knob

Knob Frame

[9] Function CBA

[8] IR Sensor CBA

[11] Front Cabinet

Speaker Holder

[10] LCD Module Assembly

(S-11)

[7] Speaker

(S-10)

Fig. D3

4-4 PL11.0-A_DC

TV Cable Wiring Diagram

Jack CBA

Power Supply CBA

CL701B

Inverter CBA

CN1102

CL701A

CN302

CN301

CN101

Digital Main CBA Unit

CN802

To Speaker

Function CBA

CN801

CN201

CN602

AC CORD

CN1001

CN1101

CN1901

CN1003

CN1100

To LCD Module Assembly

TYPE A TYPE B

CN3902 CN3005

CN3702 CN3006

CN3701 CN3002

To LCD Module Assembly

CL103B

IR Sensor CBA

CL103A CL102B

Fig. D4

4-5 PL11.0-A_DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

[32PFL3506/F7 (Serial No.: DS1, XA1), 32PFL3000/F8 (Serial No.: XA1)]

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. Remote control unit

3. Color Analyzer

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Features”.

4. Select “Current Software Info”.

5. Press [0], [6], [2], [5], [9], [6] and [INFO] buttons on the remote control unit in this order. The following screen appears.

"*" differs depending on the models.

Code :

*******-***-*-*****-****

Pic code :

**-*******-*****-**

MIPS :

Push 0key

Press "POWER" key to exit.

Tuner :

****-*****-**** safety_Non

Safety :

5-1 A17F6EA

1. Purity Check Mode

2. VCOM Adjustment

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time the [7] button on the remote control unit is pressed, the display changes as follows.

Purity Check Mode

White mode

[7] button

Black mode

[7] button

Red mode

[7] button

Green mode

[7] button

Blue mode

Test Point Adj. Point

Screen

[CH + or -]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

To avoid interference from ambient light, this adjustment should be performed in a dark room.

Perpendicularity

L = 1.18 inches

Color Analyzer

1. Set the color analyzer at the zero point calibration and bring the optical receptor pointing at the center of the LCD-Panel at a distance of 1.18 inches(3cm) away from the LCD-Panel surface. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

2. Enter the Service mode.

3. Press [2] button on the remote control unit.

4. Press [CH + or -] buttons on the remote control unit so that the color analyzer value becomes minimum within 2minutes from Power-On.

5. To cancel or to exit from the VCOM Adjustment, press [PREV CH] button.

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

3. To cancel or to exit from the Purity Check Mode, press [PREV CH] button.

5-2 A17F6EA

The White Balance Adjustment should be performed when replacing the LCD Panel or Digital Main CBA.

3. White Balance Adjustment

Purpose: To mix red and blue beams correctly for

pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Poi nt

Screen

Adj. Point Mode Input

[VOL -]

button

[VIDEO1]

C/D

M. EQ. Spec.

White Raster

(APL 70%)

or

(APL 40%)

5. [CUTOFF] Press [1] button to select “COR” for Red Cutoff adjustment. Press [3] button to select “COB” for Blue Cutoff adjustment.

[DRIVE]

Press [4] button to select “DR” for Red Drive adjustment. Press [6] button to select “DB” for Blue Drive adjustment.

6. In each color mode, press [CH + or -] buttons to adjust the values of color.

7. Adjust Cutoff and Drive so that the color temperature becomes 12000°K (x y

=

0.278 ± 0.005).

=

0.272 /

8. To cancel or to exit from the White Balance Adjustment, press [PREV CH] button.

Pattern Generator,

Color analyzer

x= 0.272 ± 0.005 y= 0.278 ± 0.005

Figure

To avoid interference from ambient light, this adjustment should be performed in a dark room.

Perpendicularity

L = 1.18 inches

INPUT: WHITE 70%, 40%

Color Analyzer

1. Operate the unit for more than 60 minutes.

2. Input the White Raster(70%=70IRE, 40%=40IRE).

INPUT SIGNAL

0IRE 0IRE

Low

High

Light

100IRE

40%=40IRE

70%=70IRE

100IRE

3. Set the color analyzer at the CHROMA mode and zero point calibration. Bring the optical receptor pointing at the center of the LCD-Panel at a distance of 1.18 inches(3cm) away from the LCDPanel surface. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [VOL -] button on the remote control unit and select “C/D” mode.

5-3 A17F6EA

[32PFL3506/F7 (Serial No.: DS2, DS3), 32PFL3000/F8 (Serial No.: XA2)]

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. Remote control unit

2. Color Analyzer, CA-310 (KONICA MINOLTA Luminance meter) or measuring instrument as good as CA-310.

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Features”.

4. Select “Current Software Info”.

5. Press [0], [6], [2], [5], [9], [6] and [INFO] buttons on the remote control unit in this order. The following screen appears.

"*" differs depending on the models.

Code: Pic code: Panel-Option code: MIPS:

Tuner: Safety: HDMI EDID: PC EDID:

****-*****-**** Safety_Non

** **

*******-**-**-****-** **********-***-*-** **-***-***-***-***

Push 0 key

Press "POWER" key to exit.

Total Watch Time: Lightsensor:

***** ****

5-4 A17FG_HEA

1. Purity Check Mode

2. VCOM Adjustment

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time the [7] button on the remote control unit is pressed, the display changes as follows.

Purity Check Mode

White mode

[7] button

Black mode

[7] button

Red mode

[7] button

Green mode

[7] button

Blue mode

Test Point Adj. Point

Screen

[CH + or -]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

To avoid interference from ambient light, this adjustment should be performed in a dark room.

Perpendicularity

Color Analyzer

32PFL3506/F7 (Serial No.: DS2), 32PFL3000/F8 (Serial No.: XA2):

1. Set the color analyzer at the zero point calibration and bring the optical receptor pointing at the center of the LCD-Panel. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

2. Enter the Service mode.

3. Press [2] button on the remote control unit.

4. Press [CH + or -] buttons on the remote control unit so that the color analyzer value becomes minimum.

5. To cancel or to exit from the VCOM Adjustment, press [PREV CH] button.

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

3. To cancel or to exit from the Purity Check Mode, press [PREV CH] button.

32PFL3506/F7 (Serial No.: DS3):

1. Operate the unit for more than 60 minutes.

2. Set the color analyzer at the zero point calibration and bring the optical receptor pointing at the center of the LCD-Panel. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

3. Enter the Service mode.

4. Press [3] button on the remote control unit.

5. Press [CH + or -] buttons on the remote control unit so that the color analyzer value becomes minimum within 2minutes from Power-On.

6. To cancel or to exit from the VCOM Adjustment, press [PREV CH] button.

5-5 A17FG_HEA

The White Balance Adjustment should be performed when replacing the LCD Panel or Digital Main CBA.

3. White Balance Adjustment

6. Press [MENU] button. The internal Raster signal appears on the screen. (“Internal (Single)” appears on the upper right of the screen as shown below.)

Purpose: To mix red and blue beams correctly for pure white.

Symptom of Misadjustment: White becomes bluish or reddish.

ITEM

Color temperature

Input Signal

SPECIFICATION

x= 0.272 ± 0.002 y= 0.278 ± 0.002

Internal pattern (40/70% raster)

Measurement point Screen center

CA-310 (KONICA MINOLTA

M. EQ.

Luminance meter) or measuring instrument as good as CA-310.

60min.

Aging time

(Retail MODE/100IRE Raster HDMI 1080i@60)

MODE setting of TV

Ambient temperature

Shipment setting/ Retail MODE

25°C ± 5°C

1. Operate the unit for more than 60 minutes.

2. Enter the Service mode.

3. Press [VOL -] button three times on the remote control unit to select “Drive setting” mode. “Drive” appears on the screen.

4. Set the color analyzer at the CHROMA mode and zero point calibration. Bring the optical receptor pointing at the center of the LCD-Panel.

To avoid interference from ambient light, this adjustment should be performed in a dark room.

Perpendicularity

Color Analyzer

Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

5. Press [3] button to select the “HDB” for High Drive Blue adjustment. (“HDB” appears on the screen.)

Internal (Single)

HDB 0

7. Press [CH + or -] buttons to adjust the color temperature becomes 12000°K (x

=

0.272 / y= 0.278 ±0.002).

8. Press [1] button to select the “HDR” for High Drive Red adjustment (“HDR” appears on the screen.) and press [CH + or -] buttons to adjust the color temperature.

9. If necessary, adjust the “HDB” or “HDR” again.

10. Press [6] button to select the “LDB” for Low Drive Blue adjustment (“LDB” appears on the screen.) and press [CH + or -] buttons to adjust the color temperature.

Internal (Single)

LDB 0

11. Press [4] button to select the “LDR” for Low Drive Red adjustment (“LDR” appears on the screen.) and press [CH + or -] buttons to adjust the color temperature.

12. If necessary, adjust the “LDB” or “LDR” again.

13. Press [VOL -] button to shift to the “Debugging Message” mode. If there is no message under “[WB]” section, this adjustment completes. If “Drive settings are NG. Retry.” is displayed, repeat above steps from 5. to 12. Then check “Debugging Message” again. If “Drive settings are NG. Retry.” is displayed, replace the LCD Panel or Digital Main CBA.

14. To cancel or to exit from the White Balance Adjustment, press [PREV CH] button.

5-6 A17FG_HEA

HOW TO INITIALIZE THE LCD TV

The purpose of initialization is to place the set in a new out of box condition. The customer will be prompted to select a language and program channels after the set has been initialized. To put the program back at the factory-default, initialize the LCD TV using the following procedure.

[32PFL3506/F7 (Serial No.: DS1, XA1), 32PFL3000/F8 (Serial No.: XA1)]

1. Turn the power on.

2. Enter the service mode.

- To cancel the service mode, press [ ] button on the remote control unit.

3. Press [INFO] button on the remote control unit to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is completed.

[32PFL3506/F7 (Serial No.: DS2, DS3), 32PFL3000/F8 (Serial No.: XA2)]

1. Turn the power on.

2. Enter the service mode.

- To cancel the service mode, press [ ] button on

the remote control unit.

3. Press [FREEZE] button on the remote control unit to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is completed.

6-1 A17F6INT

FIRMWARE RENEWAL MODE

Equipment Required

a. USB storage device b. Remote Control Unit

Firmware Update Procedure

Note: There are two states (the User Upgrade and

the Factory Upgrade) in firmware update.

User Upgrade Upgrade the firmware only.

The setting values are not initialized.

Factory upgrade Upgrade the firmware and

initialize the setting values.

1

*

Factory Upgrade

(Flash upgrade)

1

: 32PFL3506/F7 (Serial No.: DS2, DS3),

*

32PFL3000/F8 (Serial No.: XA2)

The identification of User Upgrade and Factory Upgrade are done by the filename.

1. Turn the power off and unplug the AC Cord.

2. Insert the USB storage device to the USB port as shown below.

Upgrade the firmware and initialize the setting values along with the setting data adjusted at the factory such as White Balance, etc.

4. The update will start and the following will appear on the screen.

"*" differs depending on the models.

Software Upgrade

Software upgrade in progress. Please wait. Do not remove the USB storage device or turn the TV off while upgrade is in progress.

*1

Current Version:

New Version:

Downloading...

0%

*******-***-*-***-**** *******-***-*-***-****

Note: If the above screen isn’t displayed, repeat from

step 1.

The appearance shown in *1 is described as follows.

Appearance State

Downloading...

Writing...

Downloading the firmware from the USB storage device.

Writing the downloaded firmware in flash memory.

Checking... Checking the new firmware.

5. When the firmware update is completed, the following will appear on the screen.

Software Upgrade

Rear Cabinet

USB storage device

3. Plug the AC cord in the wall outlet and turn the power on.

The software upgrade is completed. Remove USB storage device, turn TV off then on again.

Remove the USB storage device from the USB port. Turn the power off and turn the power on again.

Note:

When the Factory Upgrade is used, after restarting TV, shift to initial screen menu in service mode. "INITIALIZED" will appear on the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is completed.

7-1 PL11.0FW

[ Power Supply Section ]

FLOW CHART NO.1

The power cannot be turned on.

TROUBLESHOOTING

Is the fuse (F601) normal?

Ye s

Is normal state restored when once unplugged power cord is plugged again after several seconds?

Ye s

Is the AL+33V line voltage normal?

Ye s

Check each rectifying circuit of the secondary circuit and service it if de

FLOW CHART NO.2

The fuse blows out.

Check the presence that the primary component is leaking or shorted and service it if defective.

After servicing, replace the fuse.

FLOW CHART NO.3

When the output voltage fluctuates.

fective.

No

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the primary circuit component, and service it if defective. (C605, D601, D602, D603, D604, Q601, Q602, Q603, Q604, IC602, T601)

Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of secondary side, and service it if defective.

Does the photocoupler circuit on secondary side operate normally?

Check IC601, D circuit and service it if defective.

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit and service it if def D642, D646, D647)

FLOW CHART NO.5

AL+33V is not output.

Is approximately +35V voltage supplied to the cathode of D638?

Check D657, R661 and their periphery circuit, and service it if de

615, D616, IC602 and their periphery,

ective. (IC631, Q209, Q210, Q211, Q635, Q637, Q640, Q641, Q642, D631, D632, D6

fective.

the

Ye s

No

Check IC601, D639, D652, D653, Q631 and their periphery circuit, and service it if defective.

in each rec

Check C638, D638, D639 and their periphery circuit, and service it if defective.

tifying circuit of the secondary side,

33, D638, D641,

8-1 PL11.0TR

FLOW CHART NO.6

LCD+31.5V is not output.

Is approximately +35V voltage supplied to the collector of Q210?

Ye s

Check Q207, Q208, D205, D207, P-ON-H1 line and their periphery circuit, and service it if defective.

FLOW CHART NO.7

LCD+13V is not output.

Is approximately collector of Q209?

Is approximately +13.5V voltage supplied to the base of Q209?

Replace Q209.

+16V voltage supp

Ye s

lied to the

No

See FLOW CHART No.5<AL+33V is not output>

Check C631, D and service it if de

Check Q207, Q208, D203, D204, D211, P-ON-H1 line and their periphery circuit, and service it if defective

631, D635 and their periphery circuit,

fective.

.

FLOW CHART NO.8

P-ON+7V is not output.

Is approximately + cathode of D646?

Check for short-circuiting or leak on the load circuit, and service it if defective.

7V voltage supplied to the

Ye s

No

Check C644, D646 and their periphery circuit, and service it if de

fective.

8-2 PL11.0TR

FLOW CHART NO.9

P-ON+5V is not output. (LCD+13V is outputted normally.)

Is approximately +6.5V voltage supplied to the collector of Q641?

Ye s

Is approximately +6V voltage supplied to the base of Q641?

Ye s

Replace Q641.

FLOW CHART NO.10

TUNER+5V is not output. (LCD+13V is outputted normally.)

Is approximately +6.5V voltage supplied to the collector of Q640?

Ye s

Is approximately +6V voltage supplied to the base of Q640?

Ye s

Replace Q640.

No

See FLOW CHART No.8 <P-ON+7V is not output.>

Check D645 and their periphery circuit, and service it if defective.

See FLOW CHAR

Check D645 and their periphery circuit, and service it if defective.

T No.8 <P-ON+7V is not output.>

FLOW CHART NO.11

AL+13V is not output.

Is approximately +13V voltage supplied to the cathode of D641 and D642?

Ye s

or short-circuiting or leak on the load circuit,

Check f and service it if de

FLOW CHART NO.12

P-ON+3V is not output.

Is approximately + cathode of D647?

Check for short-circuiting or leak on the load circuit, and service it if def

fective.

3V voltage supplied to the

Ye s

ective.

No

Check C639, D and service it if de

Check C645, D647 and their periphery circuit, and service it if de

641, D642 and their periphery circuit,

fective.

8-3 PL11.0TR

FLOW CHART NO.13

P-ON+3.3V is not output.

Is approximately +4.5V voltage supplied to the cathode of D633?

Ye s

Is the "H" signal (approximately +3.5V) inputted to the base of Q637?

Ye s

Replace Q637.

FLOW CHART NO.14

P-ON+9V is not output. (LCD+13V is outputted normally.)

Is approximately +13.5V voltage supp collector of Q642?

Ye s

Is approximately +10V voltage supplied to the base of Q642?

Ye s

Replace Q642.

lied to the

No

Check C633, D633 and their periphery circuit, and service it if defective.

Check Q638, Q639, D666, P-ON-H2 line and their peripher

Check D670 an it if defective.

y circuit, and service it if defec

See FLOW CHART No.11 <AL+13V is not output.>

d their periphery circuit, and service

tive.

FLOW CHART NO.15

AL+3.3V is not output.

Is approximately +35V voltage supplied to the collector of Q635?

Ye s

Is approximately +5V voltage supplied to Pin(3) of IC631?

Ye s

Replace IC631.

FLOW CHART NO.16

LCD-5V is not output.

Is approximately -6.5V voltage supplied to the anode of D632?

Ye s

Is approximately base of Q211?

6V voltage supplied to the

Ye s

No

See FLOW CHART No.5 <AL+33V is not output.>

Check Q635, D659 and their periphery circuit, and service it if defective.

Check C632, D632 and their periphery circuit, and service it if def

Check Q207, Q208, D208, D2 their periphery circuit, and service it if defective.

ective.

10, P-ON-H1 line and

Replace Q211.

8-4 PL11.0TR

[ Video Signal Section ]

FLOW CHART NO.1

The key operation is not functioning.

Are the contact point and installation state of the key switches (SW101B, SW103B~SW107B) normal?

Ye s

When pressing each switches (SW101B, SW103B~ SW107B) do the voltage of Pin(29) of CN302 decrease?

Ye s

Replace Digital Main CBA Unit.

FLOW CHART NO.2

No operation is possible from the remote control unit.

Operation is pos

Is 3.3V voltage supplied to Pin(2) terminal of the remote control receiver (RS101)?

Is the "L" pulse sent out Pin(1) ter control receiver (RS101) when the infrared remote

control is activated?

Is the "L" pulse supplied to Pin(25

Replace Digital Main CBA Unit.

sible from the remote control unit.

Ye s

minal of remote

Ye s

) of CN301?

Ye s

No

Re-install the switches (SW101B, SW103B~SW107B) correctly or replace the poor switch.

Check the switches (SW101B, SW103B~SW107B) and their periphery, and service it if defective.

Check AL+3.3V line and service it if defective.

Replace the remote control receiver(RS101) or the remote control unit.

Check the line between Pin(1) terminal of remote control receiver(RS101) and Pin(25) of CN301, and service it if defective.

FLOW CHART NO.3

Picture does not appear normally.(Video input)

Are the video signal i

Replace Digital Main CBA Unit or LCD Module Assembly.

nputted to Pin(4) of CN302?

Ye s

No

Check the line between Pin(4) of CN302 and JK752, and service it if defective.

8-5 PL11.0TR

FLOW CHART NO.4

Picture does not appear normally.(Tuner input)

Are the DIF signal inputted to the Pin(26,28) of CN302?

Ye s

Replace Digital Main CBA Unit or LCD Module Assembly.

FLOW CHART NO.5

Picture does not appear normally.(S-Video input)

Are the video signal o CN302?

Pin(6): S-VIDEO-C Pin(8): S-VIDEO-Y

Replace Digital Main Assembly.

FLOW CHART NO.6

Picture does not appear normally.(Y/Pb/Pr input)

utputted to the Pin(6, 8) of

Ye s

CBA Unit or LCD Module

No

Check TU301 and their periphery circuit, and service it if defective.

Check the line between Pin(6, 8) of CN302 and JK751, and service it if defective.

Are the video signal i CN302?

Pin(15): VIDEO-Y Pin(17): VIDEO-Pb Pin(19): VIDEO-Pr

Replace Digital Main CBA Unit or LCD Module Assembly.

nputted to the Pin(15, 17, 19) of

Ye s

No

Check the line between Pin(15, 17, 19) of CN302 and input terminals(JK731, JK732, JK733), and service it if defective.

8-6 PL11.0TR

[ Audio Signal Section ]

FLOW CHART NO.1

Audio is not outputted normally.(Audio input)

Are the audio(L/R) signals inputted to Pin(2, 15) of IC771?

Ye s

Are the audio(L/R) signals inputted to each pin of CN301?

Pin(6) : Pin(8) : Pin(2) : Pin(4) :

Are the audio(L/R) signals inputted to the Pin of IC801?

Are the audio(L/R) signals inputted to the Pin of IC871?

Are the audio(L/R) signals outputte of CN801 and CN80

Are the audio(L/R) signals outputte output terminal?

AMP(L)-OUT AMP(R)-OUT AUDIO(L)-OUT AUDIO(R)-OUT

Ye s

(3, 40)

(3, 5)

Ye s

d to the Pin(1, 2)

2?

CN801: SP(L) CN802: SP(R)

d to the audio

JK871: AUDIO(L)-OUT JK872: AUDIO(R)-OUT

No

Ye s

No

Check the line between Pin(2, 15) of IC771 and input terminal(JK753, JK754), and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(3, 40) of IC801, and

Check the line between Pin(2, 4 Pin(3, 5) of IC871, and service it if defective.

Check IC801 and their periphery circuit, and service it if defective.

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check the line between Pin(1 output terminal(JK871, JK872), and ser defective.

etween Pin(6, 8) of CN301 and

service it if defec

) of CN301 and

, 7) of IC871 and audio

tive.

vice it if

8-7 PL11.0TR

FLOW CHART NO.2

Audio is not outputted normally.(Component Audio input)

Are the audio(L/R) signals inputted to the Pin(4, 11) of IC771?

Ye s

Are the audio(L/R) signals inputted to each pin of CN301?

Pin(6) : Pin(8) : Pin(2) : Pin(4) :

Are the audio(L/R) si of IC801?

Are the audio(L/R) si of IC871?

Are the audio(L/R) signals outputte of CN801 and CN802?

Are the audio(L/R) signals outputte output terminal?

AMP(L)-OUT AMP(R)-OUT AUDIO(L)-OUT AUDIO(R)-OUT

Ye s

gnals inputted to the Pin(3, 40)

gnals inputted to the Pin(3, 5)

Ye s

CN801: SP(L) CN802: SP(R)

JK871: AUDIO(L)-OUT JK872: AUDIO(R)-OUT

d to the Pin(1, 2)

d to the audio

No

Ye s

No

Check the line between Pin(4, 11) of IC771 and input terminal(JK741, JK742), and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(3, 40) of IC801, and

Check the line b Pin(3, 5) of IC871, and service it if defective.

Check IC801 an service it if defective.

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check the line between Pin(1, 7) of IC871 and audio output terminal(JK871, JK872), and ser defective.

etween Pin(6, 8) of CN301 and

service it if defective.

etween Pin(2, 4) of CN301 and

d their periphery circuit, and

vice it if

8-8 PL11.0TR

FLOW CHART NO.3

Audio is not outputted normally.(Tuner input)

Are the DIF signals outputted to the Pin(26, 28) of CN302?

Ye s

Are the audio(L/R) signals inputted to each pin of CN301?

Pin(6) : Pin(8) : Pin(2) : Pin(4) :

Are the audio(L/R) si of IC801?

Are the audio(L/R) si of IC871?

Are the audio(L/R) signals outputte of CN801 and CN802?

Are the audio(L/R) signals outputte output terminal?

AMP(L)-OUT AMP(R)-OUT AUDIO(L)-OUT AUDIO(R)-OUT

Ye s

gnals inputted to the Pin(3, 40)

gnals inputted to the Pin(3, 5)

Ye s

d to the Pin(1, 2)

CN801: SP(L) CN802: SP(R)

d to the audio

JK871: AUDIO(L)-OUT JK872: AUDIO(R)-OUT

No

Ye s

No

Check TU301 and their periphery circuit, and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(3, 40) of IC801, and

Check the line b Pin(3, 5) of IC871, and service it if defective.

Check IC801 an service it if defective.

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check the line between Pin(1 output terminal(JK871, JK872), and ser defective.

etween Pin(6, 8) of CN301 and

service it if defective.

etween Pin(2, 4) of CN301 and

d their periphery circuit, and

, 7) of IC871 and audio

vice it if

8-9 PL11.0TR

BLOCK DIAGRAMS

[TYPE A]

1. System Control Block Diagram

KEY SWITCH

CL103B

KEY-IN133

CL103A

POWER

D101

TO

INVERTER

BLOCK

DIAGRAM

(CN1001)

RS101

SENSOR

REMOTE

CL102B

REMOTE22

P-ON+9V55

KEY-IN144

CN101

P-ON+9V

CN302CN3702

KEY-IN129 29

IR SENSOR CBA FUNCTION CBA

P-ON-H2

CN301

P-ON-H199

REMOTE25 25

P-ON-H211

CN3701

TO

POWER SUPPLY

BLOCK DIAGRAM

P-ON-H1

PROTECT1

CN301CN3701

11

PROTECT1 11

PROTECT2

15

PROTECT2 15

CN201

5

PROTECT3

PROTECT35BACKLIGHT-SW4BACKLIGHT-ADJ14VCOM 6

29

28

26

VCOM-PWM

BACKLIGHT-SW

BACKLIGHT-ADJ

5

29

28

26

DRIVE

IC201,Q203,

Q204,Q205

TU301 (TUNER UNIT)

*

Either TU301 is used for Power Supply CBA.

SCL

9

22

SCL 22

CN3702 CN302

SDA

8

21

SDA 21

SCL

SDA

TU301 (TUNER UNIT)

*

4

5

POWER SUPPLY CBA

IC3301

(MAIN MICRO CONTROLLER)

AC5

KEY-IN1

E3

R22

R23

AB13

P-ON-H2

P-ON-H1

REMOTE

AUDIO-MUTE

INPUT0

INPUT1

E1

E2

AB9

AUDIO-MUTE

INPUT0

INPUT1

TO AUDIO

BLOCK

DIAGRAM

PROTECT1 AD5

PROTECT2 AD4

AE5

PROTECT3

AB18

AB16

AB23

VCOM-PWM

BACKLIGHT-SW

BACKLIGHT-ADJ

AC18

SCL

AC19

SDA

CLKOUT

E11

3

WP

X3101

CLKIN

N1

N2

25MHz

OSC

DIGITAL MAIN CBA UNIT

SCK

SIN

SOUTCSWP

AB25

AB24

AC25

AC24

652

1

SI

CS

SO

SCK

IC3101 (MEMORY)

9-1 PL11.0ABLS

2. Video Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

VIDEO SIGNAL

VIDEO-IN

S-VIDEO-SW

S-VIDEO-Y-IN

CN302 CN3702

WF1WF2

WF3

S-VIDEO-C-IN

VIDEO-IN4 4

S-VIDEO-C-IN6 6

COM-VIDEO-Pr-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

S-VIDEO-Y-IN88

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

S-VIDEO-SW5 5

15 15

17 17

COM-VIDEO-Pr-IN 19 19

WF6

WF4 WF5

DIF-OUT1

DIF-OUT2

DIF-OUT126 26

CN302 CN3702

IF-AGC

DIGITAL MAIN CBA UNIT

IF-AGC24 24

DIF-OUT228 28

JK752

VIDEO-IN

CL701A

VIDEO-IN 5 531

CL701B

3

22

S-VIDEO-C-IN

S-VIDEO-Y-IN 1

S-VIDEO-SW-IN

CY

JK751

S-VIDEO

-IN

POWER SUPPLY CBA

13

12

14

IF-AGC

DIF-OUT1

DIF-OUT2

TU301

(TUNER UNIT)

COMPONENT

-Y-IN

COMPONENT

-Pb-IN

COMPONENT

JK732

JK733

-Pr-IN

JACK CBA

JK731

*

Either TU301 is used for Power Supply CBA.

TU301

*

9-2

11

10

DIF-OUT1

DIF-OUT2

(TUNER UNIT)

9

IF-AGC

PL11.0BALV

3. Audio Block Diagram

TO

AUDIO SIGNAL

DIGITAL

SIGNAL

AUDIO(L)

PROCESS

BLOCK

DIAGRAM

AUDIO(R)

TO

SYSTEM

INPUT0

INPUT1

CONTROL

BLOCK

DIAGRAM

AUDIO-MUTE

(AUDIO DSP)

IC3803

IC3802

(D/A CONVERTER)

BCLK

LRCLK

35

876

(L-CH)

ADATA1

36

D/A

(R-CH)

15

DSP

33

CONVERTER

14

TO

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

ACLK

ADATA0

3394402

34

37

IC3801

(D/A CONVERTER)

876

D/A

(L-CH)

15

CONVERTER

(R-CH)

14

5

SPDIF

5

CL701A

AUDIO(L)-IN 77

CL701B

IC771

9

AUDIO(R)-IN 9

(AUDIO SELECTOR)

241

DRIVE

Q873,Q874

MUTE

Q872

MUTE

22

CN3702

SPDIF

CN302

BUFFER

2020

AUDIO-MUTE

IC801 (AUDIO AMP)

Q841

3

GAIN

CONTROL

PWM

GENERATOR

8

15

40

GAIN

CONTROL

PWM

GENERATOR

PWM

GENERATOR

36

CN801CL801

CONTROL LOGIC

GENERATOR

28

1

2

SP(L)-

SP(L)+

4

Q801

2

CN802

SP(R)+

POWER SUPPLY CBA DIGITAL MAIN CBA UNIT

1

SP(R)-

CN3702CN302

WF7

3

13

5

151112

14

CN3702CN302

AUDIO(L)13 13

AUDIO(R)11 11

INPUT110 10

INPUT012 12

Q772

Q771

109

CONTROL

LOGIC

CN3701CN301

AUDIO(R)-OUT44

AMP(R)-OUT88

AUDIO(L)-OUT22

AMP(L)-OUT66

5

IC871

(OP AMP)

7

1 3

Q871

AUDIO(L)

JK753

CL802

JACK CBA

DIGITAL

AUDIO-OUT

(COAXIAL)

AUDIO(R)-IN

AUDIO(L)-OUT

JK871

JK872

HDMI-

AUDIO(L)-IN

HDMI-

JK721

COMPONENT-

AUDIO(L)-IN

COMPONENT-

JK742

AUDIO(R)-IN

-IN

AUDIO(R)

-IN

JK754

JK741

JK722

9-3

AUDIO(R)-OUT

JK841

SP801

SPEAKER

L-CH

SP802

SPEAKER

R-CH

PL11.0ABLA

4. Digital Signal Process Block Diagram

LCD MODULE

ASSEMBLY

LLV1(+)21

LLV1(-)20

LLV0(+)23

LLV0(-)22

LLV2(+)19

LLV2(-)18

LLV3(+)13

LLV3(-)12

LLV4(+)11

LLV4(-)10

LLV5(+)9

LLV5(-)8

LLVCLK(+)16

LLVCLK(-)15

TP6

POL5

CPV4

OE13

STV1

CN3902

AUDIO SIGNAL

VIDEO SIGNAL

IC3901 (TINING CONTROLLER)

48474645444338373635343342416364303132

LVD S

OUTPUT

FRC

LINE BUFFER

GAMMA

CORRECTOR

DATA

PROCESSING

8

AD23

7109

AE23

AD24

LVD S T X

DATA

INPUT

LATCH

LVD S

RX

1211161514

AF23

AF22

AE22

AD21

AD22

DIGITAL

SIGNAL

13

AF24

AE24

PROCESS

W25

TP

W23

POL

Y24

CPV

Y23

OE

Y22

STV

IC3201

(DDR2 SDRAM)

B1,B9,C2,C8,

D1,D3,D7,D9,

A13-15,A18,

DATA(0-15)

ADDESS(0-12)

H1,H3,H7,H9

F1,F9,G2,G8,

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

A21-23,B13-15,

B17,B19-23

C15,C17-19,

C23,C24,D14,

D15,D17-19,

D22,D23

IC3301 (DIGITAL SIGNAL PROCESS)

DIGITAL MAIN CBA UNIT

V3

AA3

VIDEO-IN

S-VIDEO-Y-IN

S-VIDEO-C-IN

TO VIDEO

A/D

CONVERTER

SW

V1

U2

U1

U3

COM-VIDEO-Y-IN

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

BLOCK DIAGRAM

V2

DEMODULATOR

/MPEG DECODER

IF-AGC

AF7

AF2

AE2

S-VIDEO-SWM2AUDIO(R)

DIF-OUT1

DIF-OUT2

IF-AGC

TO VIDEO

BLOCK DIAGRAM

S-VIDEO-SW

C6

AUDIO(L)

AUDIO I/F

M1

AD9

AC10

AD14

AD12

AD10

AD11

ACLK

LRCLK

TO AUDI O

BLOCK DIAGRAM

SPDIF

ADATA1

ADATA0

JK3701

BCLK

A9

B9

C8

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

9-4

AUDI O

DECODER

B8

A8

C9

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

3

HDMI-IN1

B10

A10

A11

B11

SDA

SCL

TMDS-CLOCK(+)

TMDS-CLOCK(-)

101216

15

TMDS-D0(+)

JK3702

HDMI

A5

B5

C4

C5

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

79461

I/F

B4A4B6A6A7

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

3

101216

HDMI-IN2

VIDEO

DECODER

B7

B1

B2

SDA

SCL

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

JK3704

79461

15

C1C2D1

TMDS-D1(-)

TMDS-D2(+)

A1A2A3

D2

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

3

101216

HDMI-IN3

B3

SCL

15

PL11.0ABLD

5. Inverter Block Diagram

BACK

LIGHT

1

2

CN1100

768

5

BACK

1

CN1101

LIGHT

2

BACK

LIGHT

LCD MODULE

ASSEMBLY

VCOM

1

2

CN1102

768

5

768

5

10

CN1003

SWITCHING

Q1700

21

STB

7

Q1301

+10.5V REG.

T1101

2

Q1701

24

4

SWITCHING

OUTPUT

LOGIC

DUTY

12

Q1201

1

Q1702

3

SWITCHING

2

4

PWM

FEED

BACK

16

17

T1100

4

3

1

2

IC1200

(PWM CONTROL)

INVERTER CBA

Q1303

Q1300

SWITCHING

Q1703

PROTECT

T1102

4

3

1

2

18

13

Q1202

Q1972

10

11

23457

T1950

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CN1901

+B1

TO

POWER

HOT-GND3

SUPPLY

BLOCK

HOT CIRCUIT. BE CAREFUL.

HOT+15V4

DIAGRAM

(CN602)

14

15

8

Q1930

14

(FEED BACK)

IC1930

SWITCHING

3 2

Q1932

Q1970

14

(ISOLATOR)

IC1931

Q1931

3 2

HOT

9-5

COLD

Q1971

CN1001

PROTECT3 10

TO

SYSTEM

BACKLIGHT-ADJ

BACKLIGHT-SW

12

11

CONTROL

BLOCK

DIAGRAM

VCOM 2

(CN201)

PL11.0ABLINV

6. Power Supply Block Diagram

LCD+5V

VGH

P-ON+3.3V

LCD+13V

P-ON+3V

P-ON+7V

AL+3.3V

P-ON+3.3V

P-ON+5V

AL+33V

P-ON+9V

P-ON+5V

AL+13V

AL+3.3V

TUNER+5V

TO SYSTEM

CONTROL

P-ON-H1

P-ON-H2

BLOCK

DIAGRAM

PROTECT2

PROTECT1

INVERTER CBA

DIGITAL MAIN CBA UNIT

3

4

6

7,8

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

LCD-5V13

P-ON+3.3V12

VGH10

LCD+13V8,9

CN201 CN1001

SW-5V

Q211,D210

SW

Q201, Q202,

Q212

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

Q210

SW+31.5V

10

P-ON+3V10

CN301 CN3701

16

P-ON+7V16

Q207,Q208

19,20

21,22

13,14

P-ON+3.3V19,20

P-ON+5V13,14

AL+3.3V21,22

SWITCHING

Q401

SW+13V

Q209, Q213,

D204

Q642

SW+9V

SW+3.3V

Q637,D666

SWITCHING

Q638,Q639

Q640

SW+5V

Q641,Q643

Q634

SW+5V

Q636

IC631

Q635

23

REG.

+3.3V

+5V REG.

4A/125V

11

3

T601

BRIDGE

RECTIFIER

D601- D604

LINE

FILTER

L602

LINE

FILTER

L601

12

14

13

4

Q603,

Q604

SW

15

5

HOT+15V

4A/125V

F601

4A/125V

HOT CIRCUIT. BE CAREFUL.

AC601

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

AC CORD

CN602

+B1

TO

HOT-GND2

INVERTER

BLOCK

HOT+15V3

DIAGRAM

(CN1901)

16

9-6

FEED

2

3

Q631,

D653

BACK

17

18

19

14

7

9

8

IC601

ERROR

VOLTAGE DET

HOT COLD

SWITCHING

Q602

8

1

5OUT

4FB3IS6VCC

VH

SWITCHING

Q601

SWITCHING

CONTROL

IC602

ZCD

PL11.0ABLP

POWER SUPPLY CBA

[TYPE B]

1. System Control Block Diagram

KEY SWITCH

CL103B

KEY-IN133

CL103A

POWER

D101

TO

INVERTER

BLOCK

DIAGRAM

(CN1001)

RS101

SENSOR

REMOTE

CL102B

REMOTE22

P-ON+9V55

KEY-IN144

CN101

P-ON+9V

CN302

KEY-IN129 29

CN3006

IR SENSOR CBA FUNCTION CBA

P-ON-H2

CN301

P-ON-H199

REMOTE25 25

P-ON-H211

CN3002

Q3006

AL+3.3V

Q3005

TO

POWER SUPPLY

BLOCK DIAGRAM

P-ON-H1

PROTECT1

CN301

11

PROTECT1 11

CN3002

PROTECT2

15

PROTECT2 15

CN201

5

PROTECT3 5

PROTECT35BACKLIGHT-SW4BACKLIGHT-ADJ14VCOM 6

DRIVE

IC201,Q203,

29

28

26

VCOM-PWM

BACKLIGHT-SW

BACKLIGHT-ADJ

29

28

26

Q204,Q205

TU301 (TUNER UNIT)

*

Either TU301 is used for Power Supply CBA.

SCL

9

CN302

22

SCL

22

CN3006

SDA

8

21

SDA

21

SCL

SDA

TU301 (TUNER UNIT)

*

4

5

TO DIGITAL

SIGNAL

PROCESS

BLOCK

SCL

SDA

POWER SUPPLY CBA

DIAGRAM

IC3005

(MAIN MICRO CONTROLLER)

A15

KEY-IN1

C14

REMOTE

C1

B16

P-ON-H2

P-ON-H1

INPUT0

G1

INPUT0

INPUT1

TO AUDIO

BLOCK

AUDIO-MUTE

INPUT1

E1

D1

AUDIO-MUTE

DIAGRAM

D13

C13

PROTECT2

PROTECT1

F2

PROTECT3 B13

VCOM-PWM

9-7

E2

BACKLIGHT-SW

F3

BACKLIGHT-ADJ

T12

R12

SCL

SDA

XOUT25

X3001

XIN25

H15

H16

25MHz

OSC

DIGITAL MAIN CBA UNIT

SCK

SIN

SOUT

CS

T11

P11

P12

R11

652

1

SI

CS

SO

SCK

IC3006 (MEMORY)

PL11.0BBLS

2. Video Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

VIDEO SIGNAL

VIDEO-IN

S-VIDEO-SW

S-VIDEO-Y-IN

CN302 CN3006

WF1WF2

WF3

S-VIDEO-C-IN

VIDEO-IN4 4

S-VIDEO-C-IN6 6

COM-VIDEO-Pr-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

S-VIDEO-Y-IN88

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

S-VIDEO-SW5 5

15 15

17 17

COM-VIDEO-Pr-IN 19 19

WF6

WF4 WF5

DIF-OUT1

DIF-OUT2

DIF-OUT126 26

CN302 CN3006

IF-AGC

DIGITAL MAIN CBA UNIT

IF-AGC24 24

DIF-OUT228 28

JK752

VIDEO-IN

CL701A

VIDEO-IN 5 531

CL701B

3

22

S-VIDEO-C-IN

S-VIDEO-Y-IN 1

S-VIDEO-SW-IN

CY

JK751

S-VIDEO

-IN

POWER SUPPLY CBA

13

12

14

IF-AGC

DIF-OUT1

DIF-OUT2

TU301

(TUNER UNIT)

COMPONENT

-Y-IN

COMPONENT

-Pb-IN

COMPONENT

JK732

JK733

-Pr-IN

JACK CBA

JK731

*

Either TU301 is used for Power Supply CBA.

TU301

*

9-8

11

10

DIF-OUT1

DIF-OUT2

(TUNER UNIT)

9

IF-AGC

PL11.0BBLV

3. Audio Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

TO DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

WF7

AUDIO(L)

CN3006CN302

AUDIO(L)13 13

AUDIO(R)

AUDIO(R)11 11

INPUT1

CN3006CN302

INPUT110 10

INPUT0

AUDIO-MUTE

INPUT012 12

SPDIF

AMP(L)-OUT

AMP(R)-OUT

AUDIO(L)-OUT

AUDIO(R)-OUT

22

CN3002CN301

AUDIO(R)-OUT44

AUDIO(L)-OUT22

AMP(L)-OUT66

CN3006

2020

AUDIO-MUTE

AMP(R)-OUT88

SPDIF

CN302

CL701A

AUDIO(L)-IN 77

CL701B

JK753

9

AUDIO(R)-IN 9

AUDIO(L)

-IN

JK754

(AUDIO SELECTOR)

IC771

AUDIO(R)

20

MUTE CONTROL

1

2

SP(L)-

SP(L)+

Q801

2

CN802

SP(R)+

CL802

POWER SUPPLY CBA DIGITAL MAIN CBA UNIT

1

SP(R)-

241

Q772

CONTROL

LOGIC

109

Q771

IC871

(OP AMP)

5

7

1 3

DRIVE

Q873,Q874

MUTE

Q872

MUTE

Q871

BUFFER

3

13

5

151112

14

IC801 (AUDIO AMP)

Q841

1

PWM1

DRIVE1

13,14

9,10

44

PWM2

DRIVE2

35,36

31,32

CN801CL801

JACK CBA

DIGITAL

AUDIO-OUT

(COAXIAL)

AUDIO(R)-OUT

JK841

SP801

SPEAKER

L-CH

SP802

SPEAKER

R-CH

HDMI-

AUDIO(L)-IN

HDMI-

AUDIO(R)-IN

JK721

COMPONENT-

AUDIO(L)-IN

COMPONENT-

JK742

AUDIO(R)-IN

-IN

JK741

JK722

AUDIO(L)-OUT

JK871

JK872

9-9

PL11.0BBLA

4. Digital Signal Process Block Diagram

LCD MODULE

ASSEMBLY

LLV1(+)21

LLV1(-)20

LLV0(+)23

LLV0(-)22

LLV2(+)19

LLV2(-)18

LLV3(+)13

LLV3(-)12

LLV4(+)11

LLV4(-)10

LLV5(+)9

LLV5(-)8

LLVCLK(+)16

LLVCLK(-)15

TP6

POL5

CPV4

OE13

STV1

CN3005

AUDIO SIGNAL

IC3002

(DDR2 SDRAM)

DATA(0-15)

ADDRESS(0-12)

VIDEO SIGNAL

IC3005 (DIGITAL SIGNAL PROCESS)

H1,H3,H7,H9

B1,B9,C2,C8,

F1,F9,G2,G8,

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

D1,D3,D7,D9,

L13

L16

N16

C9

CONVERTER

N15

D8

P16

B11

P15

C10

T16

LVD S T X

P14

P13

A/D

SW

B9

C8

A10

T14

T15

R14

R13

DEMODULATOR

/MPEG DECODER

IF-AGC

A12

A16

B12

T13

R16

S-VIDEO-SW

A8

N12

R15

L15

M15

M14

TP

OE

STV

POL

CPV

N4,N7,N8,P3,P4,P6-P8,

R3,R4,R6,R8,T2-T5

H1,H2,J1,J2,J4,K1,K3,

L1,L2,M1-M3,N1

DIGITAL

SIGNAL

PROCESS

HDMI

B6

AUDIO I/F

A6

N10

AUDI O

DECODER

A7

B7

I/F

B4A4B3A3B2A2B1

A1

HDMI-IN3

JK3002

VIDEO

DECODER

79461

TMDS-D0(-)

TMDS-D0(+)

TMDS-D1(+)

3

TMDS-D1(-)

TMDS-D2(-)

TMDS-D2(+)

101216

15

HDMI-DATA

HDMI-CLOCK

TMDS-CLOCK(-)

TMDS-CLOCK(+)

TO SYSTEM

CONTROL

BLOCK DIAGRAM

SCL

SDA

VIDEO-IN

DIGITAL MAIN CBA UNIT

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

DIF-OUT1

TO VIDEO

BLOCK DIAGRAM

DIF-OUT2

COM-VIDEO-Pr-IN

S-VIDEO-SWB8AUDIO(R)

IF-AGC

AUDIO(L)

(R)-OUT

(L)-OUT

AUDI O

TO AUDIO

SPDIF

BLOCK DIAGRAM

(R)-OUT

(L)-OUT

AMP

IC3018 (HDMI SW)

414544484739383637

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

HDMI-IN1

JK3003

7 42

94613

9-10

26272324202117

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

HDMI-DATA

TMDS-CLOCK(+)

TMDS-CLOCK(-)

101216

18

HDMI

SW

HDMI-CLOCK

JK3004

15

8

7

111014

575660596362545351

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

HDMI-IN2

TMDS-D2(+)

79461

541

13

TMDS-CLOCK(-)

TMDS-D2(-)

TMDS-CLOCK(+)

HDMI-DATA

3

101216

2

10

SCL3

SCL1

IC3011 (EEPROM)

2

52

HDMI-CLOCK

15

PL11.0BBLD

7

6

11

SCL0

SDA0

SDA3

SDA1

SDA2

SCL2

3

15

14

5. Inverter Block Diagram

BACK

LIGHT

1

2

CN1100

768

5

BACK

1

CN1101

LIGHT

2

BACK

LIGHT

LCD MODULE

ASSEMBLY

VCOM

1

2

CN1102

768

5

768

5

10

CN1003

SWITCHING

Q1700

21

STB

Q1301

+10.5V REG.

T1101

2

Q1701

24

4

SWITCHING

OUTPUT

LOGIC

DUTY

12

1

Q1702

Q1201

3

SWITCHING

4

PWM

FEED

BACK

2

16717

T1100

4

3

1

2

IC1200

(PWM CONTROL)

INVERTER CBA

Q1303

Q1300

SWITCHING

Q1703

T1102

PROTECT

4

3

1

2

18

13

Q1202

Q1972

10

11

23457

T1950

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CN1901

+B1

TO

POWER

HOT-GND3

SUPPLY

BLOCK

HOT CIRCUIT. BE CAREFUL.

HOT+15V4

DIAGRAM

(CN602)

14

15

8

Q1930

SWITCHING

14

(FEED BACK)

IC1930

3 2

Q1932

Q1970

14

(ISOLATOR)

IC1931

Q1931

9-11

3 2

COLD

HOT

Q1971

CN1001

PROTECT3 10

TO

BACKLIGHT-ADJ

BACKLIGHT-SW

12

11

SYSTEM

CONTROL

BLOCK

VCOM 2

DIAGRAM

(CN201)

PL11.0BBLINV

6. Power Supply Block Diagram

LCD+5V

VGH

P-ON+3.3V

LCD+13V

P-ON+3V

P-ON+7V

AL+3.3V

P-ON+3.3V

P-ON+5V

AL+33V

P-ON+9V

P-ON+5V

AL+13V

AL+3.3V

TUNER+5V

TO SYSTEM

P-ON-H1

P-ON-H2

CONTROL

BLOCK

DIAGRAM

PROTECT2

PROTECT1

INVERTER CBA

DIGITAL MAIN CBA UNIT

3

4

6

7,8

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

LCD-5V13

P-ON+3.3V12

VGH10

LCD+13V8,9

CN201 CN1001

SW-5V

Q211,D210

SW

Q201, Q202,

Q212

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

SW+31.5V

Q210

10

P-ON+3V10

CN301 CN3002

16

P-ON+7V16

Q207,Q208

19,20

21,22

13,14

P-ON+3.3V19,20

P-ON+5V13,14

AL+3.3V21,22

SWITCHING

Q401

SW+13V

Q209, Q213,

D204

Q642

SW+9V

SW+3.3V

Q637,D666

SWITCHING

Q638,Q639

Q640

SW+5V

Q641,Q643

Q634

Q636

IC631

Q635

23

REG.

+3.3V

+5V REG.

4A/125V

11

3

T601

BRIDGE

RECTIFIER

D601- D604

LINE

FILTER

L602

LINE

FILTER

L601

12

14

13

4

Q603,

Q604

SW

15

5

HOT+15V

4A/125V

F601

4A/125V

HOT CIRCUIT. BE CAREFUL.

AC601

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

AC CORD

CN602

TO

+B1

INVERTER

HOT+15V3

HOT-GND2

BLOCK

DIAGRAM

(CN1901)

16

9-12

FEED

2

3

Q631,

D653

BACK

17

18

19

14

7

9

8

IC601

ERROR

VOLTAGE DET

HOT COLD

SWITCHING

Q602

8

1

5OUT

4FB3IS6VCC

VH

SWITCHING

Q601

SWITCHING

CONTROL

IC602

ZCD

PL11.0BBLP

POWER SUPPLY CBA

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

6.

This schematic diagrams are masterized version that should cover the entire PL11.0 chassis models. Thus some parts in detail illustrated on this schematic diagrams may vary depend on the model within the PL11.0 chassis. Please refer to the parts lists for each models.

7. The Circuit Board layout illustrated on this service manual is the latest version for this chassis at the moment of making this service manual. Depend on the mass production date of each model, the actual layout of each Board may differ slightly from this version.

3

, M = 106).

-6

µF).

10-1 PL11.0SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

r

THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

2

(Unit: Volt)

1

5.0 5.0

3

Power on mode

5. How to read converged lines

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

3

2

1

AREA D3

1-B1

AREA B1

1-D3

ABCD

The reference number of parts on Schematic Diagrams/CBA can be retrieved by application search function.

10-2 PL11.0SC

Power Supply 1 Schematic Diagram

4

3

2

1

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

AC601 AC CORD

124.9

159.4

0.1

C607 330P /2KV

C614

0.022

C615 3300P

CN601 2AC120V 1AC120V

CN602 1+B

2HOT-GND 3HOT+15V

Q602 KHB1D0N60D-RTF

D

G

0.1

R622

1.2K

0

Q601 TK5A50D

(SWITCHING)

G

2.8

S

D

R611

4.7K

R612 68

(NO CONNECTION)

TO INVERTER CBA CN1901

R613

0.47 /2W

C613 33P

F601 4A/125V

R601

2.7M/1/2W

R602 OPEN

SA601 SURGE ABSORBER

C601

0.22/300V

L601

LINE FILTER

C602

0.22/300V

L602 LINE FILTER

JS603

R626

R604

2.7M R607

2.7M

R619 WIRE

VCC

OPEN

D621 1ZB200-YBB

R618 WIRE

D609 27BSB-T26

D608 27BSB-T26

15.2 15.2

R627 OPEN

R623 10K

D620 OPEN

R617 100K

VH

81

NU

7

15.2

6

3.3

5

C611

0.1

JS602

OPEN

JS601

OPEN

SWITCHING CONTROL

15.2

S

R620 OPEN

R621 OPEN

C608A

C608

1000P

1000P /100V

D619 15K

0.7

Q603 KTC3198

-GR-AT/P (SWITCHING)

C606A

C606

1500P

1500P /100V

D615 39BSB-T26

IC602 FA5571-ND1-TE1

SWITCHIG CONTROL

1.0 155.3 ZCD

0.6 FB

2

0.1 IS

3

0

4

GND OUT

D602 1N5406-BU

D601 1N5406-BU

JS604

OPEN

C610 100 /50V

D606 OPEN

14.5

R624 10K

D607A 0

D607 11BSB

-T26

D610

4A 125V

C603 OPEN

C605 470 /200V

D612 FR104-B

R625 OPEN

Q604 KTA1267

-GR-AT/P SW HOT+15V

BC602 BEAD

D614 FR103-B/P

D622 FR103-B/P

C609 47/50V

D616 27BSB-T26

BC603 BEAD

D617 FR103-B/P

D611 OPEN

D621A

D621B

WIRE

1ZB200-YBB

R605

2.2/5W

R603

2.2/5W

D603 1N5406-BU

D604 1N5406-BU

C604 OPEN

D613 FR104-B

BC601 BEAD

R610 10

R609 180

HOT COLD

T601 POWER TRANS

9

8

7

5

4

R606 47K

IC601 TLP781F

ERROR VOLTAGE DET

0.6 4

0

32

C691 1000P/250V

C692 OPEN

C693 1000P/250V

C694 OPEN

1

IC631 MM3123DPRE (+3.3V REG.)

GND

123

0 3.35.2

11

12

13

14

15

16

17

18

193

35.1

34.1 D654

WIRE C650

0.022/100V

C650A

0.022

D653 KIA431

-AT/PF5

VIN

VOUT

R667 WIRE

C658 100/10V

C643 1

D631 SB2150BD

C631 1000/25V

D635 24BSB-T26

D646 SB360BH

R651 1

C637 1500P/2KV

D638 FR154

D633 FR151-B/P

D632 FR104-B

D647 SB140

D641 SB390

D642 SB390

R645 OPEN

R646 180

R668 10K

34.1

5.5

(FEED BACK)

D652 5V6BSB-T26

D652A 0

Q636 2SA950-O

(SWITCHING)

5.2

R695 OPEN

D637 OPEN

D660

R636

R635

3.9/

3.9/ 1/2W

1/2W

R501 OPEN

C644 3300/16V

D643 FR104-B

C638 220/50V

D649 OPEN

C646A 2200P

C646 2200P/100V

6.1

Q631 KTC3198

-Y-AT/P

R650

R649

2.7K

3.7

6.0

R666 OPEN

D673 OPEN

C649

0.1

4A/125V

R253

6.8/1/2W

16.8 13.2

16.2

R247

R227

4.7

3.9

/1/2W

R410 51K

D648 WIRE

R644

1.5K R648

1K

D650 OPEN

D651 OPEN

0

R655 27K

0

D658 3V3BSB-T26

R665 WIRE

D407 10BSB-T26

D664 4V7BSB-T26

C501 OPEN

JS201

OPEN

R246 OPEN

C402 OPEN

Q402 KTC3198-Y-AT/P

(RESET)

R639 39K

R637

3.3K R638

WIRE

R228

2.7K

R229

2.7K

D203

-2.0

35.2

34.4

R223

R224

3.3k

27K

0.1

0

Q634 KTC3199-GR-AT/P

(SWITCHING)

0.7

R661 390 /1/2W

R660 820

R663 820

R664 820

D659A 0

D659 5V6BSA-T26

D662 FR154

D661

R407

FR154

22K

R502 OPEN

D644 6V2BSB-T26

C642 1/50V

D639 1ZB43BB

C633 2200/6.3V

C632 220/25V

C645 2200/6.3V

C639 1000/35V

JS631

OPEN

R652 24K

R653 WIRE

JS630

35.2

5.5

R657 1

R696

2.7/1W R697

2.7/1W

C648 100/10V

Q501 OPEN

(SW+13V)

R254 OPEN

D201 OPEN

D655 1N4005

R662 15

5.5

Q635 2SC2120-Y

(+5V REG.)

POWER SUPPLY CBA

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

R250

Q213 2SA950-O

(SWITCHING)

4.4

0

35.1 Q207

KTA1267-GR-AT/P (SWITCHING)

Q208 KTC3198-Y-AT/P (SWITCHING)

C647 OPEN

8.2/1W

16.2 12.9 Q209

2SC2120-Y

13.5 (SW+13V)

D211

D423

D208

0.7

R242 12K

C641 OPEN

R673 22K

Q639 KTC3199

-GR-AT/P

(SWITCHING)

C640 1/50V

R406 OPEN

C222 470/25V

R231

1.5K

D204 KIA431-AT/P

D401

Q211 KTC3198

-Y-AT/P (SW-5V)

R240 47K

R225 22K

R226 22K

R672 WIRE

6.9

6.1

0.2

0

R659 47K

D657 33BSB-T26

D418 3V9BSB-T26

R232 11K

R233 750

R234

2.2K

R243 220

-6.6

-6.7

R241 22K

R677 270

C676

2.2/50V

R658 10K

R687 10

R689

1.2K

D670 10BSB-T26

D671 WIRE

R682

2.7

R683

2.7

2.5

9.7

R688 10

6.7 5.3

C221

0.01

R411 30K

-6.0

D209 39BSB-T26

6.8

Q638 KTA1267-GR-AT/P

(SWITCHING)

R674 1K

0.7

D416

D403

OPEN

-0.5

Q401

0

KTC3198

-Y-AT/P

(SWITCHING)

R403 47K

R244

C224

OPEN

10/50V

R235 330

34.5 31.2

D207

R238

1.5K

R239

C223

OPEN

22/50V

R237

8.2K

4.6

4.1 Q637

2SC4881F

3.4 (SW+3.3V)

R678 10

D666 KIA431-AT/P

R675 10K

R676 47K

9.013.4

Q642 KTC3198-Y-AT/P

(SW+9V)

C657 22/50V

Q640 2SC2120-Y

6.0 (SW+5V)

R405 47K

R404 22K

D210 6V2BSB-T26

Q210 KTC3198-Y-AT/P

(SW+31.5V)

31.6

R236 10

D205 24BSC-T26

D206

R679

3.6K

C651 OPEN

R680 10K

D665 WIRE

R681

D667

OPEN

C656 100/16V

C653 220/10V

R245

R412 10K

R692 OPEN

R691 OPEN

D4068.2K 15BSB-T26

C652 1000/6.3V

D674 OPEN

R408

R694 OPEN

R693 OPEN

R702

2.2/2W

R686 1K

D404

D405

D414

D411

R699 OPEN

D421

D419

D40910K

D412

D410

5.36.8 Q643

2SA950-O (SWITCHING)

6.5

6.5 5.3

Q641 2SC2120-Y

(SW+5V)

C655 OPEN

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

C225 OPEN

CN301

3.3 1 P-ON-H2

R654 10K

C682

0.1

R700

D676

OPEN

WIRE

C684

0.1

R401 22K

D413

C681

0.1

R409 100

C403 10/50V

R701

2.2/2W

R698 OPEN

6.0

R641

1.1K

R642

R685

10K

22

D645 KIA431B-AT/P

R690 OPEN

D417 3V9BSB-T26

R402 22K

D420

C654 220/10V

R643 10K

C683

0.1

D415

UNLESS OTHERWISE SPECIFIED: DIODES ARE 1SS133.

2.6 2 AUDIO(L)-OUT

0

3 GND

2.6 4 AUDIO(R)-OUT

3.3 5 PROTECT3

2.6 6 AMP(L)-OUT

0

7 GND

2.6 8 AMP(R)-OUT

3.2 9 P-ON-H1

3.1

10 P-ON+3V

2.5

11 PROTECT1

0

12 GND

5.3

13 P-ON+5V

5.3

14 P-ON+5V

0.3

15 PROTECT2

6.9

16 P-ON+7V

0

17 GND

0

18 GND

3.3

19 P-ON+3.3V

3.3

20 P-ON+3.3V

3.3

21 AL+3.3V

3.3

22 AL+3.3V

0

23 GND

0.6

24 OE2

3.3

25 REMOTE

3.2

26 BACKLIGHT-SW 27 NU

1.1

28 BACKLIGHT-ADJ

0.8

29 VCOM-PWM

CONTINUE POWER 4

INV+13V LCD+13V P-ON+3.3V LCD-5V LCD+31.5V

CONTINUE POWER 4

AUDIO(R)-OUT AUDIO(L)-OUT

CONTINUE POWER 2

AMP(R)-OUT AMP(L)-OUT

TO DIGITAL MAIN CBA UNIT CN3701 or CN3002

CONTINUE POWER 4

PROTECT3 BACKLIGHT-SW BACKLIGHT-ADJ VCOM-PWM OE2 P-ON-H1 LCD-P-SAFETY

CONTINUE POWER 4

REMOTE P-ON+9V AL+3.3V

CONTINUE POWER 2

AL+3.3V AL+13V PROTECT1 P-ON-H1

CONTINUE POWER 3

P-ON+3.3V P-ON+9V P-ON+5V RESET

CONTINUE POWER 2

AL+33V TUNER+5V

ABCDEF

10-3

PL11.0SCP1

Power Supply 2 Schematic Diagram

4

3

2

SP802 SPEAKER R-CH

CL802

CONTINUE POWER 1

AL+33V

TUNER+5V

CONTINUE POWER 3

IF-AGC DIF-OUT2 DIF-OUT1

AUDIO-MUTE

CONTINUE POWER 1

AL+3.3V

AL+13V PROTECT1

P-ON-H1

SCL SDA

CN802 1SP(R)-

2SP(R)+

R303 0

R302 0

BC301 WIRE

L301 WIRE

C845 470P

C823 1000/25V

D806 OPEN

D807 OPEN

*Either TU301 is used for Power Supply CBA.

TU301 TUNER UNIT

*

IF-AGC

SCL10NU

9

R306 0

C830 OPEN

2.59.9

GAIN CONTROL

ATT

GAIN CONTROL

NU

11

R305 OPEN

R894 47K

DIF-OUT2

DIF-OUT1

12

13

R304 OPEN

2.5

VREF

VCC16NU17NU18NU19NU

14

15

R311 OPEN

C828 1

L803 33uH

R804 OPEN

PWM GENERATOR

JS301

OPEN

R309 82

R308 82

C820

0.47

13.5

CONTROL LOGIC

D302 OPEN

D301 OPEN

C846 470P

C308 47P

C307 47P

C310 47P

C311 47P

R805 OPEN

D804 20BSB-T26

C836

0.47

1NU2NU3NU4

L302

0.22uH

L303

0.22uH

R815 22K

VCC5NU6+32V7GND8SDA

R301 OPEN

D803 20BSB-T26

C815 1/50V

C837

R816

220P

47K

IC801 R2A15124FP (AUDIO AMP)

BC805 BEAD

BC804 BEAD

10/50VC819

1C817 10/50VC816

R307 0

R810 0

AVCC

C821

0.1

HBA2

TU301 TUNER UNIT

*

C825

0.1

R811 0

NU

2529 222428 2327 2630

OSC

JS303

4.8

R310 0

NU

IF-AGC10DIF-OUT2

8

9

C826 1000P

R812 0

0

DIF-OUT1

11

C309

0.1

C827 10/50V

0

RREF

C302

0.1

C303 330 /10V

C301 OPEN

D303 OPEN

R819 22K

NU2NU3NU4SCL5SDA6+32V7+5V

1

JS302

C305

C306

C304 OPEN

C822 1000P

313242 3839 35 3340 36 3441 37

NU

HBB2

1/50V

C824

0.47

NU

PWM GENERATOR

0.1

L804 33uH

C829 1

000002.5 4.9 5.7 15.0 13.515.0 5.7

1

SP801 SPEAKER L-CH

CL801

CONTINUE POWER 1

G

AMP(R)-OUT AMP(L)-OUT

CN801 1SP(L)-

2SP(L)+

C838 470P

H

C839 470P

C834

R813

0.47

22K

D801 20BSB-T26

C835 220P

D802 20BSB-T26

C801 1/50V

R814 47K

R801 0

GND

3 18711152 17 21610141 165 209134 19812

2.5

C814 1

R647 1K

BC803 BEAD

BC802 BEAD

5.5

2.503.2

C811 OPEN

0

NU

00 00 0

HBA1NUNU

14.913.5 14.9 13.55.6 5.6 13.5 10.0

L801 33uH

C809

0.1

C803

0.47

C804

0.1

C806

0.47

C805 1000P

I

10-4

HBB1

L802 33uH

C810

0.47

NU

R802 22K

2.3

J

2.9

R803 OPEN

VD

DVDD

C831 10/50V

C807

0.1

R807 0

C808 1000P

R817 10K

R808 OPEN

C832

C818

0.1

OPEN

R809

4.7K

5.5

Q801 KTC3198

-Y-AT/P

(AUDIO-MUTE)

0.1

R818 10K

R820 47K

POWER SUPPLY CBA

K

L

PL11.0SCP2

Power Supply 3 & Jack Schematic Diagram

POWER SUPPLY CBA

C843

0.01

R847

4.7K

R846 100

2.6

Q841 KTC3198-Y-AT/P

(BUFFER)

C703 OPEN

C701 OPEN

C704 OPEN

C702 OPEN

C723

2.2

C721 OPEN

C724

2.2

C722 OPEN

C743

2.2

C741 OPEN

C744

2.2

C742 OPEN

R734

C734

10

0

C735 0

C736 0

C754 0

C755 0

R758

C756

0

R753 75

C761 OPEN

C762 OPEN

C757

2.2

C758

2.2

R848

4.7K

C842 1

4

3

2

1

DIGITAL AUDIO-OUT (COAXIAL)

PC-AUDIO-IN

HDMIAUDIO(L)-IN

HDMIAUDIO(R)-IN

COMPONENTAUDIO(L)-IN

COMPONENTAUDIO(R)-IN

COMPONENT

-Y-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

JK751 S-VIDEO-IN

SW

VIDEO-IN

AUDIO(L)-IN

AUDIO(R)-IN

JK841

JK711

JK721

JK722

JK741

JK742

JK731

JK732

JK733

JK752

JK753

JK754

5.3

R843 110

R713 OPEN

R714 OPEN

R723 15K

R724 15K

R743 15K

R744 15K

R751 75

R752 75

R844 220

2.0

R725 39K

R726 39K

R745 39K

R746 39K

R731 75

R732 75

R733 75

R756 0

R757 0

C753

OPEN

R715 OPEN

R716 OPEN

R761 39K

R762 39K

R845 OPEN

R735 10

R736 10

R842

C841

0

1

R841 OPEN

R711 OPEN

R712 OPEN

R721 OPEN

R722 OPEN

R741 OPEN

R742 OPEN

C731 39P

C732 39P

C733 39P

YC

C751

OPEN

C752

OPEN

R759

15K

R754 OPEN

R760

15K

R755 OPEN

JACK CBA

C844 10/50V

C776 100P

BC841 BEAD

R778

R788

100K

OPEN

R779

R792

100K

OPEN

CL701B

1 S-VIDEO-Y-IN 2 S-VIDEO-SW 2

4 GND 5 VIDEO-IN 5 6 GND 7 AUDIO(L)-IN 8 GND 9 AUDIO(R)-IN

R789 OPEN

R793 OPEN

R790 OPEN

R794 OPEN

CL701A 1

33 S-VIDEO-C-IN 4

6 7 8 9

R791 OPEN

R795 OPEN

IC771 TC4052BF(ELNF)

(AUDIO SELECTOR)

2.3

4.5

4.5 0.2 3

0.2 4

0.2 5

0

INH

6

0

7

VEE

0

89GND

SW CTL

CONTINUE POWER 1

P-ON+3.3V

R771

R776 100K

R777 100K

C771 100/16V

C775 100P

WIRE

R763 10K

WF1

C773

C772

OPEN

R772

R773

R780

R781

10K

OPEN

9.0

16

VDD1

4.5

152

14

4.5

13

2.3

12

0.2

11

0

10

9.0

9.0 0

Q772

0

KTC3198-Y-AT/P (INVERTER)

R784 OPEN

0

0.7

Q771

0

KTC3198-Y-AT/P (INVERTER)

R775 10K

OPEN

R785 OPEN

R774 10K

R782 OPEN

R786 OPEN

R783 OPEN

R787 OPEN

0.1

WF3

WF2

WF4

WF7

WF5

WF6

P-ON+9V P-ON+5V RESET

CONTINUE POWER 4

KEY-IN1 AUDIO-MUTE

TO DIGITAL MAIN CBA UNIT CN3702

CN302

or CN3006

0

1GND

1.7 2 SPDIF

0

3GND

0

4 VIDEO-IN

3.4 5 S-VIDEO-SW

0

6 S-VIDEO-C-IN

0

7GND

0

8 S-VIDEO-Y-IN

0

9GND

3.3

10 INPUT1

4.5

11 AUDIO(R)

0

12 INPUT0

4.5

13 AUDIO(L)

0

14 GND

0

15 COM-VIDEO-Y-IN

0

16 GND

0

17 COM-VIDEO-Pb-IN

0

18 GND

0

19 COM-VIDEO-Pr-IN

0

20 AUDIO-MUTE

3.3

21 SDA

3.3

22 SCL

3.3

23 RESET

0

24 IF-AGC

0

25 GND

1.0

26 DIF-OUT1

0

27 GND

0.2

28 DIF-OUT2

3.3

29 KEY-IN1

CONTINUE POWER 2

SCL SDA IF-AGC DIF-OUT2 DIF-OUT1 AUDIO-MUTE

10-5

QPONM

R

PL11.0SCP3

Power Supply 4 Schematic Diagram

CONTINUE POWER 1

INV+13V LCD+13V

P-ON+3.3V

LCD-5V

LCD+31.5V

4

C201

0.1

TO INVERTER

3

2

CBA CN1001

INV+13V(NU) 2

P-ON+3.3V 12

CONTINUE POWER 1

TO IR SENSOR CBA CL102B

GND 1

GND 7 LCD+13V 8 LCD+13V 9

VGH 10

GND 11

LCD-5V 13

VCOM 14

GND 15

REMOTE P-ON+9V AL+3.3V

CN201

3GND 4BACKLIGHT-ADJ 5BACKLIGHT-SW 6PROTECT3

CN101

1GND 2REMOTE 3AL+3.3V 4KEY-IN1 5P-ON+9V

C202

0.1

C203

0.1

D675 OPEN

C675 OPEN

JS633

R896 0

IC201 TL3472CDR

(COMPARATOR)

C208

C209

OPEN

VCC

1234

R205 OPEN

25.7

1

C216 1000P

R213 100K

R215 OPEN

R214

5.3

5.35.5

12.9 5678

VEE

0.2

00

Q201 KTA1267-GR-AT/P

R204

(SWITCHING)

560

Q202 KTC3198-Y-AT/P

(SWITCHING)

0.4

0

12.9

5.4

Q203 KTC3198-Y-AT/P

(V-COM DRIVE)

Q204 KTA1267-GR-AT/P

(V-COM DRIVE)

R209 0

R207 100K

C218 1

29.0

R206 1K

5.4

R203 OPEN

5.3

0

C219 47/25V

31.2

30.4

R202 1K

C207

0.1

R210 10

R212 10

R211 0

R221 OPEN

R201 100K

C206 OPEN

C217

0.1

R208 1

JS203 OPEN

R2170

1.5K

R216 10K

D202 1SS133

R218 10K

R219 15K

3.6

0.3

Q205

0

KTC3198-Y-AT/P (V-COM DRIVE)

C204

2.2/50V

R249 OPEN

C210 22/25V

0.4

C213 OPEN

C220 OPEN

R248 10K

C214 OPEN

JS202

C212 OPEN

R222 OPEN

R220 1K

1.0

Q212 KTC3198-Y-AT/P

(SWITCHING)

C215 OPEN

L871 WIRE

IC871 NJM4558M(TE2) (OP AMP)

33KR891

47PC875

Q206 OPEN

C879

C880

0.1

100/16V

33KR892

47PC876

4.5

9.0

4.5

R879 16K

C884

2.2

4.5

5678

GND

0

R881 100

VCC

1234

C873

2.2

C874

2.2

R885 100K

R883 100K

R880 16K

C885

2.2

R882 100

R886 100K

R875 0

R876 0

R873 100K

R874 100K

R884 100K

R871 560

R872 560

3.4

-2.3

C878 1000P

C877 1000P

POWER SUPPLY CBA

R821 OPEN

R887 22K

R888

C883 1K

C882 1K

1K

0

-2.3

0

-2.3

0

Q873 KTC3198-Y-AT/P

3.4 (SWITCHING)

0.1

0

C871 3300P

Q871 KTC3198-Y-AT/P

(AUDIO-MUTE)

C872 3300P

Q872 KTC3198-Y-AT/P

(AUDIO-MUTE)

JK871

JK872

3.4

Q874 KTA1267

-GR-AT/P

(MUTE DRIVE)

R877 1K

R878 1K

R893 22K

AUDIO(L)

-OUT

AUDIO(R)

-OUT

CONTINUE POWER 1

PROTECT3 BACKLIGHT-SW BACKLIGHT-ADJ VCOM-PWM OE2 P-ON-H1 LCD-P-SAFETY

CONTINUE POWER 3

KEY-IN1 AUDIO-MUTE

CONTINUE POWER 1

AUDIO(R)-OUT AUDIO(L)-OUT

10-6

XWVUTS

PL11.0SCP4

Inverter Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

HOT CIRCUIT. BE CAREFUL.

CN1900 1GND 2+B

CN1901 1+B 2NU 3HOT-GND 4HOT+15V

R1949 150K

C1930 680P /2KV

C1910 270 /200V

163.6

5.9

D1934 1ZB36BB

R1950 OPEN

R1951 OPEN

R1952 OPEN

R1934A OPEN

R1933A OPEN

R1932A OPEN

R1935A OPEN

Q1932 2SC2120-O

(SWITCHING)

6.0

0.4

0

Q1930 TK7A50D

D

(SWITCHING) G

0.2

S

C1931 1800P

6.0

0

R1937

0.39/2W

BC1930 BEAD

BC1931 BEAD

R1938 82K

C1932

0.056 /100V

R1934 120

R1933 120

R1932 120

D1931 5V6BSB-T26

R1935

1.5K

D1930 27BSB-T26

R1930A

R1930

OPEN

47

0.2

Q1931 KTC3198-Y-AT/P

(SWITCHING)

D1933

C1933

0.1

R1940 OPEN

R1941 OPEN

R1942 OPEN

R1931 47K

R1939A OPEN

R1936 180

D1932

C1934 OPEN

R1939

2.2K

4

3

(NO CONNECTION)

TO POWER SUPPLY CBA CN602

HOT

2

TO POWER SUPPLY

1

CBA CN201

TO LCD MODULE ASSEMBLY

GND 15

INV+13V(NU) 14

GND 9 LCD+13V 8 LCD+13V 7

VGH 6

GND 5

P-ON+3.3V 4

LCD-5V 3

VCOM 2

GND 1

GND 1 LCD+13V 2 LCD+13V 3

VGH 4

GND 5

P-ON+3.3V 6 P-ON+3.3V 7

LCD-5V 8

GND 9

VCOM 10

GND 11

CN1001

13GND 12BACKLIGHT-ADJ 11BACKLIGHT-SW 10PROTECT3

CN1003

0

12.9

29.0 0

3.4

-5.1 0

5.3 0

C1938 OPEN

C1939 OPEN

C1936 OPEN

C1937 OPEN

COLD

C1935 OPEN

A

T1950 POWER TRANS

2

3

4

5

7

8

R1936A OPEN

IC1930 TLP781F (FEEDBACK)

12.1 4

0.4 32

IC1931 TLP781F

(ISOLATOR)

0.2 4

0

32

R1931A OPEN

C1905 1000P/250V

C1906 OPEN

R1307 1K

R1306 10K

C1311 1000P

3.3

0

Q1202 KTC3875S-Y-RTK/P

(SWITCHING)

1

R1310 22K

23.6

22.5

1.1

0

10.6

0.7

B

10

C1990 820P/2KV

11

D1990 SB3150BH

D1991 SB3150BH

D1992 SB3150BH

14

15

D1960 OPEN

D1961 OPEN

R1970A OPEN

R1970 220

R1981 0

R1982

1.5K

C1981

0.01

Q1303 2SA1576UBTLQ

(SWITCHING)

8.0

8.6

R1308

4.7K

0

Q1301 KTC3875S

-Y-RTK/P (SWITCHING)

0

C1200

R1207

OPEN

33K

BC1301 WIRE

C1993 2200 /35V

R1967

3.9K

Q1971 KTC3875S-Y-RTK/P

(SWITCHING)

1.1

0

C1206 10/50V

R1304

4.7K

R1303

C1301

4.7K

1000P

R1206 10K

J1037 OPEN

C1994 2200 /35V

R1967A OPEN

Q1970 KTC3875S-Y-RTK/P

(SWITCHING)

22.5

6.3

5.6

D1970 5V6BSB-T26

0

C1982

0.47/50V

C1201

0.1

D1203

C1212

0.47

J1044 OPEN

D1994 1ZB30BB

D1972 OPEN

R1986 1K

C1970 2200P

R1201 68K

R1200 68K

R1220 OPEN

R1215 10K

J1027 OPEN

R1977 20K

R1979

6.8K R1980

180

D1971 33BSB-T26

Q1972 KTC3875S-Y-RTK/P (SWITCHING)

R1988 1K

R1987 OPEN

R1204

R1205

75K

560K

R1202 130K

R1213

4.7K

R1203

8.2K

R1209

4.7K

R1212 10K

C1211 OPEN

R1973

3.3K

C1983 OPEN

D1201

C1208

0.47

R1208 22K

0

C1213

0.01

R1214 0

C1207 1000P

0.1

C

R1972 22K

D1973

3.3

0

3.1

C1304

C1305

220/35V

0.1

R1305 510/2W

Q1300 2SA1576UBTLQ

(SW+10.5V)

17.0

10.6

11.0

R1309 10K

D1300 5V6BSB-T26

D1301 5V6BSB-T26

IC1200 BD9244AFV

(PWM CONTROL)

0

1

1.0 2

27.0 3

25.1 4

20.5 5

10.6 6

4.0 7

1.5 8

9

0

10

0

11

3.1

12 13

Q1201 KTC3875S-Y-RTK/P

(SWITCHING)

0

VCC

STB

GND

OUTPUT

LOGIC

PWM

OSC

DUTY

C1700 2200/35V

C1303

0.1

FEED BACK

PROTECT

C1302 10/50V

REG

VLO

C1701 2200/35V

1.0

24

7.6

23

27.0

22

25.1

21

20.6

20

2.2

19

1.2

18

0.8

17

1.3

16

0.6

15

0

14

0

INVERTER CBA

R1301 47K

R1302 51K

R1300

C1300

10K

0.1

D1202

D1200

R1216 100

C1204

0.1

C1209

0.47

C1203 6800P

C1202 6800P

C1210

0.47

C1214 OPEN

D

R1221 1

C1205

2.2

R1700 100

D1701 15BSB-T26

R1222 10

R1702 100

D1703 15BSB-T26

J1002

J1091 OPEN

Q1203 OPEN (SWITCHING)

7.6

0

R1225 OPEN

J1001 OPEN

R1226 OPEN

D1700

D1702

JS1200

5.1

C1703

R1701

1000P

10K

C1704

R1703

1000P

10K

R1705 100

D1705 15BSB-T26

R1223 10

R1707 100

D1707 15BSB-T26

23.8

25.2

G

20.9

0.7

G

0

D1704

C1706 1000P

D1706

C1707 1000P

R1227 OPEN

R1228 OPEN

5.1

0.2

0

Q1204 OPEN

(SWITCHING)

Q1700

D

TK50P04M1

(SWITCHING)

S

R1704

4.7/1W

D

Q1701

TK50P04M1

(SWITCHING)

S

24.8

R1706 10K

0.7

R1708 10K

C1500

0.01

C1705

0.022

23.8

G

20.5

G

R1229 0

R1500 1M

Q1702

D

TK50P04M1

(SWITCHING)

S

D

Q1703

TK50P04M1

(SWITCHING)

S

0

D1500

DAN202U

D1501

DAN202U

D1502

DAN202U

E

C1702 1

2.2C1100

2.2C1101

2.2C1102

2.2C1103

2.2C1116

2.2C1117

R1709

4.7/1W

C1708

0.022

100KR1501

100KR1502

100KR1503

100KR1504

100KR1505

100KR1506

100KR1507

100KR1508

100KR1509

100KR1510

100KR1511

100KR1512

T1100 INVERTER TRANS

2

8

4

7

1

6

5

3

T1101 INVERTER TRANS

2

8

4

7

1

6

5

3

T1102 INVERTER TRANS

2

8

4

7

1

6

5

3

C1104 10P/6.3KV

OPENR1143

470R1103

OPENR1146

470R1106

C1106 10P/6.3KV

C1108 10P/6.3KV

OPENR1145

470R1115

OPENR1148

470R1118

C1110 10P/6.3KV

C1112 10P/6.3KV

OPENR1147

470R1127

OPENR1150

470R1130

C1114 10P/6.3KV

R1515 27K

C1105 330P

C1107 330P

C1109 330P

C1111 330P

C1113 330P

C1115 330P

C1501 1000P

C1502 OPEN

F

C1118 330P

R1104 100

R1107 100

C1119 330P

C1120 330P

R1116 100

R1119 100

C1121 330P

C1122 330P

R1128 100

R1131 100

C1123 330P

R1513 1M

R1514 39K

R1101

R1100

0

39K

R1105 13

R1108 13

R1109 39K

R1112 39K

R1117 13

R1120 13

R1121 39K

R1124 39K

R1129 13

R1132 13

R1133 39K

R1102

2.2K

R1110 0

R1111

2.2K

R1113 0

R1114

2.2K

R1122 0

R1123

2.2K

R1125 0

R1126

2.2K

R1134 0

R1135

2.2K

R1516 0

UNLESS OTHERWISE SPECIFIED: DIODES ARE 1SS133.

D1503 DAN202U

D1506 DAN202U

D1504 DAN202U

D1507 DAN202U

D1505 DAN202U

D1508 DAN202U

CN1100

1 2

CN1101

1 2

CN1102

1 2

LCD MODULE ASSEMBLY

G

BACK LIGHT

10-7

PL11.0SCINV

Function Schematic Diagram

FUNCTION CBA

2

1

TO IR SENSOR CBA CL103A

CL103B 1AL+3.3V

2GND 3KEY-IN1

R109 10K

R111

4.7K

SW101A OPEN

SW101B SKQSAB

POWER

R108 220

C108

0.1

R112

2.7K

SW103A OPEN

SW104B SKQSAB

CH UP

D107 OPEN

SW104A OPEN

R113

4.7K

SW103B SKQSAB

CH DOWN

R114

8.2K

SW105A OPEN

SW105B SKQSAB

MENU

C151 OPEN

R115 18K

SW106A OPEN

SW107B SKQSAB

VOL UP

D151 OPEN

SW107A OPEN

SW106B SKQSAB

VOL DOWN

R152 OPEN

R153 OPEN

SW151 OPEN

R151 OPEN

R154 OPEN

SW152 OPEN

R155 OPEN

SW153 OPEN

R156 OPEN

SW154 SW155

OPENOPEN

UNLESS OTHERWISE SPECIFIED: SWITCHES ARE SKHHLMA0100.

ABC

10-8

PL11.0SCF

IR Sensor Schematic Diagram

2

IR SENSOR CBA

RS101 KSM-712TH2E

(REMOTE SENSOR)

1

TO POWER SUPPLY CBA CN101

CL102B 1GND

2REMOTE

4KEY-IN1 5P-ON+9V

R106 1K

C104

0.1

R103

9.1K

D101 SLR343WBCT3XM

POWER

R102

3.3K

C1033AL+3.3V 330P

D109 OPEN

R101 100

C101 47/16V

Vcc

VOUT

231

C102 OPEN

GND

D108 OPEN

CL103A

1 AL+3.3V 2 GND 3 KEY-IN1 4 KEY-IN2

TO FUNCTION CBA CL103B

A

B

10-9

C

PL11.0SCIR

Digital Main 1 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

IC4202 AT24C16BN-SH-T (MEMORY)

1

A0

2

A1

3

A2

45

GND SDA

R3901

1.1K

R3939 OPEN

8

VCC

7

WP

6

SCL

0R4110 0R4109

0R4112 0R4111 0R4114 0R4113 0R4116 0R4115 0R4118 0R4117

R3933 100

R3935

2.2K R3936

2.2K R3919

OPEN C3921

1

R3931 100

R3930 100

R3929 100

R3928 100

R3927 100

4

3

2

1

(NO CONNECTION)

CN3903 1+3.3V

2BUS-OPEN 3GND 4SDA 5SCL

CN4104

20GND 19LVDS3(+) 18LVDS3(-) 17GND 16LVDSCE(+) 15LVDSCE(-) 14GND 13LVDS2(+) 12LVDS2(-) 11GND 10LVDS1(+)

9LVDS1(-) 8GND 7LVDS0(+) 6LVDS0(-) 5GND 4GND 3GND 2+3.3V 1+3.3V

C3901 OPEN

*1

IC3301(1/5) ZR39775HGCF

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

LVDS TX

TO DIGITAL MAIN 2 IC3301(2/5)

AE24 AF24 AE19 AF19 AD24 AD23 AF23 AE23 AE22 AF22 AD22 AD21 AF21 AE21 AE20 AF20 AF18 AE18 AD17 AD18 AE17 AF17 AF16 AE16 AD15 AD16 AE15 AF15

AD19NU AD20NU AB23BACKLIGHT-ADJ AC23VCOM-PWM

R3932 100

IC3901 BU9069KUT

TIMING COTROLLER

1

2

3

NU

4

NU

5

VDD-REG

6

GND

7

8

9

10

11

12

13

14

15

16

C3924 1

C3904 1

C3927

0.1

DIGITAL MAIN CBA UNIT

OPENR3905 OPENR3903 OPENR3907 OPENR3906

R3921 OPEN

R3904 OPEN

R3913 22

R3934 10K

NU

GND

OE2

CONTROL SIGNAL GENERATOR

DATA INPUT LATCH

LVDS RX

21 22 24 25 26 27 28 2923 30 31 32

R3958 10K

R3912 OPEN

R3951 OPEN

NU

GND

PWMI

PWMO

DATA PROCESSING

GAMMA CORRECTOR FRC LINE BUFFER

C3910 1

OPENR3910 OPENR3908 OPENR3918 OPENR3911 OPENR3923 OPENR3922 OPENR3924 OPENR3925 OPENR3926 OPENR3938

C3902 10

LVDS RX

VDDL

R3937 OPEN

R3909 22

TEST

SERIAL INTERFACE

VDDL

20191817

CONTINUE DIGITAL 5

P-ON+3.3V BACKLIGHT-ADJ BACKLIGHT-ADJ(1)

5678

IC3752 OPEN

OPENR3954

100KR3956

R3838 OPEN

C3786 OPEN

100KR3953

OPENR3950

OPENR3952

OPENR3955

1234

R3800 OPEN

R3798 OPEN

R3799 OPEN

R3957 10K

NU

GND

VDDIO

GND

49505152535455565758596061626364

VDDP

LVDS OUTPUT

R39160R3902 22K

C3912 1

48

47

46

45

44

43

42

41

GND

40

VDDM

39

38

37

36

35

34

33

0R3917 22R3915 22R3914

C3911 1

L3907 EXC24CG900U

L3906 EXC24CG900U

L3905 EXC24CG900U

L3904 EXC24CG900U

L3903 EXC24CG900U

L3901 EXC24CG900U

L3902 EXC24CG900U

0R3945 0R3946 0R3947

0L3908 0R3949 0R3948

220PC3919

OPENC3920

220PC3916

220PC3918

Q3751 OPEN

220PC3917

C3766 OPEN

1KR3920

LCD+12V(1)

(NO CONNECTION)

CN3904

31 LCD+12V 30 LCD+12V 29 LCD+12V 28 LCD+12V 27 LCD+12V 26 GND 25 GND 24 GND 23 LLV0(+) 22 LLV0(-) 21 LLV1(+) 20 LLV1(-) 19 LLV2(+) 18 LLV2(-) 17 GND 16 LLVCNK(+) 15 LLVCLK(-) 14 GND 13 LLV3(+) 12 LLV3(-) 11 LLV4(+) 10 LLV4(-)

9 LLV5(+) 8 LLV5(-) 7GND 6TP 5POL 4CPV 3OE1 2XA0 1STV

TO LCD MODULE ASSEMBLY

CN3902

24 GND 23 LLV0(+) 22 LLV0(-) 21 LLV1(+) 20 LLV1(-) 19 LLV2(+) 18 LLV2(-) 17 GND 16 LLVCNK(+) 15 LLVCLK(-) 14 GND 13 LLV3(+) 12 LLV3(-) 11 LLV4(+) 10 LLV4(-)

9 LLV5(+) 8 LLV5(-) 7GND 6TP 5POL 4CPV 3OE1 2XA0 1STV

OE2 POL TP CPV OE STV VCOM-PWM

CONTINUE DIGITAL 2

10-10

DCFAB E

PL11.0SCDA1

Digital Main 2 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

4

3

2

1

CONTINUE DIGITAL 5

P-ON+3.3V

AL+3.3V

GPIO-P2 1

GND 2

OE2 P-ON-H1 P-ON-H2

REMOTE

LED1

VCOM-PWM

WP

USB-EN

GPIO1

RESET-DSP

OE2

POL

TP

CPV

OE

STV

VCOM-PWM

CN3101

(NO CONNECTION)

CONTINUE DIGITAL 5

BACKLIGHT-SW

CONTINUE DIGITAL 4

CONTINUE DIGITAL 3

CONTINUE DIGITAL 1

R3140 OPEN

R3749 OPEN

R3002 0

R3004 0

L3004 OPEN

C3060

C3059

OPEN

IC3001 OPEN

1

VCC

5

2

34

GND

Q3704 OPEN

(BUFFER)

R3746 OPEN

R3003 OPEN

R3006 OPEN

L3002

0.22uH

R3102 100

C3004 33P

R3158 OPEN

R3104

4.7K

4.7KR3111

4.7KR3106

4.7R3107

C3002 15P

C3003 15P

R3751 OPEN

R3137

4.7K

4.7KR3157

4.7KR3146

OPENR3161

R3007

2.2K

C3006 100P

R3101 100

0.1C3013

0.1C3014

3.9KR3001

0.1C3005

0.1C3007

0.1C3008

0.1C3009

4.7KR3005 OPENR3044

R3108

4.7K

OPENR3750

100R3109

4.7KR3118

100R3160

33R4108

33R3142 33R3143 33R3144

33R3145

33R3141

*1

IC3301(2/5) ZR39775HGCF

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

AF4

NU U3 AE4 NU AF2 AE2 AD3 NU AD2 NU AD1 NU AF1 NU AE1 NU AD8 NU AC7 NU AC8 GPIO0 AC6 NU AE7 NU AF8 NU AF7 IF-AGC AA5 NU

C10 GPIO-P0 C11 RESET-LCD C12 GPIO-P2 D10 GPIO-P1 D11 GPIO-P4 D12 NU E12 NU E11 WP AB20 NU AB19 GPIO-P9 AB18 VCOM-PWM AB17 NU

W22 OE2 U22 NU Y22 STV Y23 OE Y24 CPV Y25 NU Y26 NU W25 TP W24 NU W23 POL V23 NU V22 NU V24 NU

C6 S-VIDEO-SW

D5 NU U24 NU U23 NU R23 P-ON-H1 AB13 P-ON-H2 AB14 NU AB16 BACKLIGHT-SW AC14 VCOM-PWM

E1 INPUT0

E2 INPUT1

E3 REMOTE

E4 NU

E5 NU

F1 LED1

F2 USB-EN

F3 NU

F4 NU

F5 NU

DEMODULATOR /MPEG DECODER

TO DIGITAL MAIN 3 IC3301(3/5)

SW

A/D CONVERTER

DIGITAL SIGNAL PROCESS

TO DIGITAL MAIN 4 IC3301(4/5)

*A:B24,F6,J10~J18,K9~K18,L9~L18, M9~M18,N9~N18,P9~P18,R9~R18, R25,T9~T18,U9~U18,V9~V18,V25, AE25

TO DIGITAL MAIN 1 IC3301(1/5)

VGAVSYNC VGAHSYNC

VGASCL VGASDA

V3 U4NU V4NU U5NU V5NU

AA3 AB3NU AB4NU AA4NU

U2 U1

V1 V2

W2NU W1NU

Y1NU Y2NU

T4 T2 T1 T3

T5 R5

AB11 AE9

*AGND

W3GND L5GND K5GND M5GND N5GND

AA1VREF(+) AA2VREF(-) AB1NU

L4NU

G3NU G4NU

H3NU AA6NU K22NU

0.1C3020 22R3022

0.1C3021 22R3021

C3026

C3025

OPEN

0.1C3022 22R3023

C3024 OPEN

0.22C3034 10R3031

0.22C3035 10R3032

0.22C3036 10R3033 4700PC3037 0R3026

OPENC3042 OPENR3030

C3049

C3050

OPEN

C3064

C3063

OPEN

C3057 OPEN

C3517

4.7

0.47C3516 62KR3501

C3046 33P

C3038 OPEN

C3058 OPEN

R3836 0

C3048 OPEN

OPENR3037 OPENR3038

OPENR3045 OPENR3046

C3045 33P

C3047 33P

C3044 OPEN

CONTINUE DIGITAL 3

SDA SCL

CONTINUE 100R3724 100R3723 100R3720

C3740 1000P

100R3722 100R3703

C3734 100P

C3738 33P

C3739 33P

D3706 OPEN

R3732 OPEN

R3034 OPEN

R3035 OPEN

R3036 OPEN

R3747 OPEN

R3748 OPEN

R3718 100

R3719 100

100R3717

R3733 OPEN

R3027 OPEN

R3028 OPEN

R3029 OPEN

L3701 OPEN

L3702 OPEN

C3731 100P

C3726 33P

C3730 100P

D3703 OPEN

OPENC3039 OPENC3040 OPENC3041

C3714 OPEN

C3732

C3736

33P

1000P

C3733 33P

C3735 33P

C3728

C3729

33P

C3727 33P

C3741

C3725

1000P

33P

C3737 100P

100R3735 100R3737 100R3721

R3736 OPEN

JK3703 D-SUB CONNECTOR OPEN

11156

12

7

13

8

14

9

10

1

2

3

4

5

R3738 OPEN

DIGITAL 4

SDA SCL RESET

CONTINUE

DIGITAL 5

AUDIO-MUTE KEY-IN1

TO POWER SUPPLY CBA CN302

CN3702

KEY-IN129 DIF-OUT228 GND27 DIF-OUT126 GND25 IF-AGC24 RESET23 SCL22 SDA21 AUDIO-MUTE20 COM-VIDEO-Pr-IN19 GND18 COM-VIDEO-Pb-IN17 GND16 COM-VIDEO-Y-IN15 GND14 AUDIO(L)13 INPUT012 AUDIO(R)11 INPUT110 GND9 S-VIDEO-Y-IN8 GND7 S-VIDEO-C-IN6 S-VIDEO-SW5 VIDEO-IN4 GND3 SPDIF2 GND1

CONTINUE

DIGITAL 3

AUDIO(L) AUDIO(R) SPDIF P-ON+5V

DIGITAL MAIN CBA UNIT

GH K

JI

L

10-11

PL11.0SCDA2

Digital Main 3 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

4

3

2

CONTINUE DIGITAL 2

AUDIO(L)

AUDIO(R)

SPDIF

P-ON+5V

DIGITAL MAIN CBA UNIT

*1

IC3301(3/5) ZR39775HGCF

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

M1 M2 L1 L2 K1NU K2NU J1NU J2NU H1NU H2NU K3NU

TO DIGITAL MAIN 2 IC3301(2/5)

TO DIGITAL MAIN 4 IC3301(4/5)

AUDIO I/F

J3NU AC9NU AD13NU AF14NU

AD10ACLK AD9BCLK AD12LRCLK AC10 AD14 AE14NU

AF12 AF11 AF10 AF9 AD11

AE8NU

AE12NU

AE13NU

AF13GND

C3812 100P

10C3054

0.1C3015

10C3053

0.1C3016

10C3052

0.1C3017

10C3055 10C3056

10KR3041 10KR3042 10KR3043

C3813 100P

CONTINUE DIGITAL 5

100R3149 100R3153 100R3154 OPENR3151 OPENR3152 0R4101

CN4101

1 VDD 2 TRSTN 3 ADATA1 4 EJTDO 5 EJTMS 6 EJTCK 7 RESET 8 RESET 9 VSS

P-ON+3.3V P-ON+5V AUDIO(L)-OUT AUDIO(R)-OUT AMP(L)-OUT AMP(R)-OUT

CONTINUE DIGITAL 4

EJTCK JTMS JTDO-M JTDI-M JTDO-T JTDI-T TRSTN RESET

(NO CONNECTION)

CONTINUE DIGITAL 2

RESET-DSP

BC3801 BK1608HS601-T

R38200R3821

R3803

0

47K

IC3801 PCM1782DBQR

AUDIO D/A CONVERTER

100PC3816 100PC3815 100PC3814

OPENR3824 OPENR3825 OPENR3826 OPENR3827

33R3828 33R3829 33R3830 33R3831 33R3832

C3023 1000P

ZERO DETECT

SERIAL CONTROL PORT

1234567

C3802 10

GND VCC NUNU

LPF DAC LPF

SYSTEM CLOCK MANAGER

R3801 100

OPENR3810 OPENR3811

R3812 OPEN

DAC

4X/8X OVERSAMPLING DIGITAL FILTER /FUNCTION CONTROLLER

IC3803 BU9414FV-E2

AUDIO D/A CONVERTER

C3801

C3803

10

0.1

910

1112131516 14

ENHANCED MULTI-LEVEL DELTA-SIGMA MODULATOR

AUDIO SERIAL PORT

R3802 100

R3813 OPEN

R3814 OPEN

MCLK

LRCKI

NU BCKI

1234567 9108 111213 151614 17 18 19 20

8

R3808 100

VSS3

SYSCLKO

SDATA2

SDATA1

IC3802 PCM1782DBQR

AUDIO D/A CONVERTER

R3809 100

BCKO

LRCKO

MUTEX-SP

RESETX

R3822

R3804

0

47K

ZERO DETECT

SERIAL CONTROL PORT

1234567

C3818 OPEN

DATAO1

DATAO2

RESETOX

MUTEXSPO

VSS1

SDAI

SCLI

MUTEX-DAC

C3805

R3823

10

0

LPF DAC LPF

4X/8X OVERSAMPLING DIGITAL FILTER /FUNCTION CONTROLLER

C3819 OPEN

SCLO

SDAO

REG15

DVDDCORE

BC3802 BK1608HS601-T

1112131516 14

GND VCC NUNU

DAC

ENHANCED MULTI-LEVEL DELTA-SIGMA MODULATOR

SYSTEM

AUDIO

CLOCK

SERIAL PORT

MANAGER

R3805 100

NUNUNUNUNU

NU

VDD

ANATEST

LDOPOFF

C380610C3804

0.1

910

8

R38350R3834 0

2130 28 2729 26 2540 39 24 23 2238 37 36 34 3335 32 31

NU

SPDIFO

VSS2

PLLFIL

NU

R3819 10K

ADDRMODE

1KR4103

4.7KR4106

R3806 47K

1KR4104

1KR4105

R3807 47K

OPENR4107

R3164

4.7K

R4102 47

1

CONTINUE DIGITAL 5

P-ON-H1

R3817 0

OPENR3833

C3817

R3940

OPEN

100

MN Q

100

R3816 100

PO

R3818

C3808

2.2

C3809 OPEN

C3807 10

R3815

1.5K C3811

0.027

C3810 2700P

BC3803 BC1608HS601-T

CONTINUE DIGITAL 2

SDA SCL

R

10-12

PL11.0SCDA3

Digital Main 4 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

L3402 OPEN

IC3201 K4T51163QG-HCF7 (DDR2 SDRAM)

*A VDD

E2 NU A2 NU R8 NU R7 NU R3 NU

B7 UDQS A8 UDQS/NU B3 UDM B9 DQ15 B1 DQ14 D9 DQ13 D1 DQ12 D3 DQ11 D7 DQ10 C2 DQ9 C8 DQ8 F7 LDQS E8 LDQS/NU F3 LDM F9 DQ7 F1 DQ6 H9 DQ5 H1 DQ4 H3 DQ3 H7 DQ2

*A:A1,A9,C1,C3,C7,C9,E1,E9, G1,G3,G7,G9,J1,J9,M9,R1

G2 DQ1

*B:A3,A7,B2,B8,D2,D8,E3,E7,

G8 DQ0

F2,F8,H2,H8,J3,J7,N1,P9

Q3101 OPEN

IC3101 W25X32VSSIGE (MEMORY)

CS

VCC

1

SO

NU

2

WP

SCK

3

GND SI

45

10KR3761

C4102

2SB1732TL

0.1 (SW+5V)

R3763

R3762

330

R3774 15K

Q3702 2SC4081UBTLQ

(SWITCHING)

8

7

6

C3107

0.1

R3760 10K

C3420

0.1

J2VREF

K2CKE J8CK K8CK L8NU K7RAS L7CAS K3WE L1BA2/NU L3BA1 L2BA0 R2A12 P7A11 M2A10/AP P3A9 P8A8 P2A7 N7A6 N3A5 N8A4 N2A3 M7A2 M3A1 M8A0 K9ODT

*BVSS

C37241KR3770 1

R3764 10K

R3765 15K

4

3

2

1

CONTINUE DIGITAL 5

P-ON+1.8V P-ON+3.3V

AL+3.3V

DDR+1.8V

CONTINUE DIGITAL 2

SDA SCL

RESET

CONTINUE DIGITAL 5

PROTECT2 PROTECT3 PROTECT1

PROTECT5-USB

(NO CONNECTION)

CONTINUE DIGITAL 2

(USB JACK)

(NO CONNECTION)

WP

USB-EN

GPIO1

CN4103 1USB+5V

2UARTSUB-TX 3UARTSUB-RX 4GND

CN3704 1USB+5V

2USB(-) 3USB(+) 4GND

CN3102 1I2C0-C

2GND 3I2C0-D

0.1C3403

0.1C3404

0.1C3405

0.1C3406

0.1C3407

0.1C3408

0.1C3409

0.1C3410

0.1C3411

0.1C3412

0.1C3413

0.1C3414

0.1C3415

0.1C3416

0.1C3417

0.1C3418

C3753 56P

1-U3 2-U3 3-U4

S0-DQ15 S0-DQ14 S0-DQ13 S0-DQ12 S0-DQ11 S0-DQ10 S0-DQ9

S0-DQ8 4-U3 5-U3 6-U4

S0-DQ7

S0-DQ6

S0-DQ5

S0-DQ4

S0-DQ3

S0-DQ2

S0-DQ1

S0-DQ0

R3171 OPEN

D3102 OPEN D3103 OPEN

C3750 Q3701

1

C3754

R3775

56P

15K

C3419

0.1

R3402 100

R3403 100

L3401 0

C3101

C3115

0.01

OPEN

IC3103

OUT3CD

PST8420UR (RESET)

GND

R3105 D3101 33K

1SS400

C3752 OPEN

IC3701 AS431AKTR-E1 33K

SHUNT REGULATOR

4

1

R3409 0

C3421 10

R3401 100

VDD

2

R3767 33K

R3768

R3769 180

C3401

0.1

C3116

0.033

R3159 10K

4.7KR3162

R3121

1.8K

R3715

2.4

R3766

1.6

C3402

0.1

4.7KR3126

R3122

1.8K

C3109 12P

C3108 12P

R3139

4.7K

R3410 OPEN

X3101 25MHz 1M

R3128 330

100R3123 100R3167

S0-DQ15 S0-DQ14 S0-DQ13 S0-DQ12 S0-DQ11 S0-DQ10 S0-DQ9 S0-DQ8 S0-DQ7 S0-DQ6 S0-DQ5 S0-DQ4 S0-DQ3 S0-DQ2 S0-DQ1 S0-DQ0

R3127

100R3138

4.7KR3125 100R3168 100R3166 100R3169 100R3135

4.7KR3133 10KR3129 10KR3132

4.7KR3130

4.7KR3131

3-S4 6-S3

2-S4 1-S4 5-S3 4-S3

59R3404 59R3405 150R3406

*1

IC3301(4/5) ZR39775HGCF DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

B15 SO-DQ15 A21 S0-DQ14 A14 S0-DQ13 B22 S0-DQ12 B20 S0-DQ11 B17 S0-DQ10 B21 S0-DQ9 A15 S0-DQ8 B14 S0-DQ7 A22 S0-DQ6 B13 S0-DQ5 A23 S0-DQ4 B19 S0-DQ3 A18 S0-DQ2 B23 S0-DQ1 A13 S0-DQ0

A20 S0-UDM A19 S0-LDM

A24 S0-VREF

A16 S0-UDQSN B16 S0-UDQS B18 S0-LDQSN A17 S0-LDQS D16 S0-RASN C16 S0-CASN D20 S0-WEN B12 S0-CKN A12 S0-CK C21 S0-CKE C13 S0-ODT C14 NU C24 S0-A12 C18 S0-A11 D22 S0-A10 D18 S0-A9 D14 S0-A8 D23 S0-A7 D17 S0-A6 C19 S0-A5 C15 S0-A4 C23 S0-A3 C17 S0-A2 D19 S0-A1 D15 SO-A0 C22 S0-BA2 C20 S0-BA1 D21 S0-BA0

B26 NU A26 NU A25 NU

N1 CLKIN N2 CLKOUT

AC12 USB(+) AB12 USB(-)

MOR-RESET-N

AB21 AB22 MOR-RESET-N

AD7 GPIO1

W26 RESET AB26 SPI-HOLD AC26 SPI-SEL1 AC24 CS AB25 SCK AC25 SOUT AB24 SIN AC22 I2C-MORPH-ENA AC21 TV-I2C-D AC20 TV-I2C-C AC19 SDA AC18 SCL AC17 I2C0-D AC16 I2C0-C

*B NU

AUDIO

-OUT

DECODER

TO DIGITAL MAIN 3 IC3301(3/5)

*B:C25,C26,D24~D26,E23~E26, F23~F26,G23~G26,H23~H26, J23~J26,K23~K26,L23,L24, M23~M26,N23~N26,P23~P26, R24,R26

HDMI I/F

VIDEO DECODER

TO DIGITAL MAIN 2 IC3301(2/5)

B10 A10

B11 A11

L25S1-DQ11

L26S1-UDM U25NU

AF3CLKIN-SEL AD25NU AD26NU AE26NU AF26NU

R22REMOTE

N22NU

P22NU

M22RXD0

L22TXD0

D13NU

E13NU

B25JTDO-M

E19JTDI-M

E17EJTCK

E15JTMS

E18JTDO-T

E14JTDI-T

E16TRSTN

DIGITAL MAIN CBA UNIT

HDMICONNECTOR-1

C4101

0.1

JK3701

1 TMDS-D2(+) 2 D-SHIELD0 3 TMDS-D2(-) 4 TMDS-D1(+) 5 D-SHIELD1 6 TMDS-D1(-) 7 TMDS-D0(+) 8 D-SHIELD2 9 TMDS-D0(-) 10 TMDS-CLOCK(+) 11 C-SHIELD0 12 TMDS-CLOCK(-) 13 CEC 14 NU 15 SCL 16 SDA 17 GND 18 VCC 19 HOT-PLUG-DETECT

HDMICONNECTOR-2

JK3702

1 TMDS-D2(+) 2 D-SHIELD0 3 TMDS-D2(-) 4 TMDS-D1(+) 5 D-SHIELD1 6 TMDS-D1(-) 7 TMDS-D0(+) 8 D-SHIELD2 9 TMDS-D0(-) 10 TMDS-CLOCK(+) 11 C-SHIELD0 12 TMDS-CLOCK(-) 13 CEC 14 NU 15 SCL 16 SDA 17 GND 18 VCC 19 HOT-PLUG-DETECT

HDMICONNECTOR-3

JK3704

1 TMDS-D2(+) 2 D-SHIELD0 3 TMDS-D2(-) 4 TMDS-D1(+) 5 D-SHIELD1 6 TMDS-D1(-) 7 TMDS-D0(+) 8 D-SHIELD2 9 TMDS-D0(-) 10 TMDS-CLOCK(+) 11 C-SHIELD0 12 TMDS-CLOCK(-) 13 CEC 14 NU 15 SCL 16 SDA 17 GND 18 VCC 19 HOT-PLUG-DETECT

CONTINUE DIGITAL 5

P-ON+5V REMOTE

(NO CONNECTION)

CN4102

1 P-ON+5V 2 UART0-TX 3 UART0-RX 4 GND

CONTINUE DIGITAL 3

EJTCK JTMS JTDO-M JTDI-M JTDO-T JTDI-T TRSTN RESET

B8 A8 C8 C9 A9 B9

D8HDMI0-CEC

D9HDMI-HPD D7HDMI0-5VSENSE

R3731

D3NU

390

C3HDMI0-REXT

R3773 10K

B4 A4 C4 C5 A5 B5 B6 A6 B7 A7 D6HDMI1-HPD C7HDMI1-5VSENSE

R3742 OPEN

D1 D2 C1 C2 B1 B2 A1 A2 B3 A3 D4HDMI2-HPD E6HDMI1-5VSENSE

R3407

4.7K R3408

4.7K

R3113U26NU

4.7K

R3148 OPEN

100R3120 100R3119

4.7KR3115 R3165

4.7K

R3114 OPEN

100R3117

100R3116

R3772 10K

R3739 10K

R3734 27K

C3743

0.1

C3747

0.1

Q3703 2SK3018

(BUFFER)

C3745

0.1

R3781 82K

D3704 RB751S-40TE61

R3778 1K

1KR3779

1KR3780

R3726 10K

R3725 10K

R3771 10K

R3124

4.7K

R3727 47K

C3744

0.1

R3729 47K

C3742

0.1

R3740 47K

C3746

0.1

R3728 47K

D3702 EDZTE61

R3730 47K

D3701 EDZTE61

R3741 47K

D3707 EDZTE61

STUVWX

10-13

PL11.0SCDA4

Digital Main 5 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

4

3

2

1

CONTINUE DIGITAL 4

PROTECT2 PROTECT3 PROTECT1

PROTECT5-USB

C3530 10

C3535 1

C3540

0.1

C3567

0.1

C3043 1

C3584

0.1

C35911C3590 1

C3596

C3595

1

C3614

C3615

1

C3620

C3621

1

C3626

C3627

1

C3632

C3633

0.1

C3638

0.1

C3549 10

C3554 1

C3559

0.1

C3564

0.1

C3580

0.1

R3504 0

C3528

C3529

10

C3534

C3533

1

C3538

C3539

0.1

C3566

C3543

0.1

C3570

C3525

0.1

0.01

R3110 0

R3112 0

BC3001 BK1608HS601-T

C3032

L3502

0.1 0

L3501 BK1608HS601-T

R3505 0

R3103 0

C3588

C3589

10

C3641

C3594

1

C3600

C3599

1

C3619

C3618

1

C3625

C3624

1

C3631

C3630

0.1

C3637

C3636

0.1

C3547

C3548

10

C3552

C3553

1

C3557

C3558

0.1

C3562

C3563

0.1

C3579

C3578

0.1

*1

IC3301(5/5) ZR39775HGCF

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

C3104

0.1

C3114

0.1

C3031

0.1

C3103 1000P

C3592 1

C3597 1

C3616 1

C3622 1

C3628 1

C3634

0.1

E7 HDMI-VDD3P3 E8 HDMI-VDD3P3 F7 HDMI-VDD3P3 F8 HDMI-VDD3P3 *C IO-VDD

AC13 USB-VDD33

AF25 USB2-VDD33

V26 PLL-VDD33

AC15 LDI-VDD33 AB15 LDI-VDD33

AB2 DM-PLL-VDD

E9 HDMI-VDD1V

F9 HDMI-VDD1V

F10 HDMI-VDD1V

AC11 USB-VDD1

*D CORE-VDD

*E M-VDD

C3502

C3571

0.1

1

C352710C3526 10

C3531

C3532

1

C3536

C3537

0.1

C3541

C3542

0.1

C3568

C3569

0.1

C3106 1

C3105 1

C3033 1

C3503

C3585

0.1

1

C3504

C3505

0.1

4.7

C3508

C3572 E10 HDMI-VDD1V

0.1

1

C3102

0.01

C358710C3586 10

C3593 1

C3598 1

C3617 1

C3623 1

C3629

0.1

C3635

0.1

C3545

C3546

10

C3550

C3551

10

1

C3555

C3556

0.1

C3560

C3561

0.1

C3565

C3577

0.1

C3581

C3582

0.1

AE3NU

AB7NU

AB10NU

AB9AUDIO-MUTE AB8NU

NU G1

AB5VDD33-BOD

AC5KEY-IN1 AD6KEY-IN2 AD5PROTECT1 AD4PROTECT2 AE5PROTECT3 AE6PROTECT5-USB AB6NU AC3NU AC4NU

AF5VDDADC8 AF6RC-OSC-REXT

AC1IF-VDD3P3

AC2IF-VDD3P3 AE10ACOD3-AVDD AE11ACOD3-AVSS

K4NU

M6NU N6NU U6NU V6NU

G2NU L6NU

K6NU

H6LVDSVCRX-VDD33 J6LVDSVCRX-VDD33 G5LVDSVCTX-VDD33 G6LVDSVCTX-VDD33 P4NU Y3NU

R3AVDD3-SYNC1 M4AVDD3-HPLL L3AVDD18-HPLL M3AVSS-HPLL N3AVDD3-SYNC N4AVDD3-AFE P2AVDD18-R P1AVDD18-G R1AVDD18-B R2AVDD18-SVIDEO P3AVDD18-CVBS R4DVDD18

*FVFE-AVSS

H4IOVDD-STBY0 J4IOVDD-STBY1 H5IOVDD-STBY2 J5IOVDD-STBY3 K7IOVDD-STBY4

P5CORE-VDD18-STBY0 P6CORE-VDD18-STBY1 R6CORE-VDD18-STBY2 T6CORE-VDD18-STBY3 T7CORE-VDD18-STBY4 R7CORE-VDD18-STBY5

845R3323

845R3322

4.7C3518

D3501 1SS400

C3501 100/4V

R3039 51K

0.1C3001

C3051 22P

C35101C3509

0.1

C3512 1000P

C3514 1000P

C3506

0.01

C3010

0.1

C30181C3012

0.1

C352210C3524 1

C30191C3523 1

R3651 OPEN

R3008 OPEN R3009 10K

C3062

0.1

R3013 OPEN

R3040 9.1K

C3511

0.1

BC3505 BK1608HS601-T

C3520 1

BC3506 BK1608HS601-T

R3010 OPEN R3011 OPEN

BC3503 BK1608HS601-T

C3521

0.1

R3610 10K

R3744

4.7K

C3061

BC3502

OPEN

BK1608HS601-T

C35131C3519

0.01

C3515

0.01

C3507

L3001

1

BK1608HS601-T

C3011

L3003

4.7 BK1608HS601-T

*C:G7~G11,H7,H8,J7,Y16~Y21,AA16~AA26 *D:F11~F15,G12~G16,L20,L21,M20,M21,

N20,N21,P20,P21,R20,R21,T20~T26, U20,U21,V7,V20,V21,W7,W20,W21, Y7~Y15,AA7~AA15

*E:E20~E22,F16~F22,G17~G22,H20~H22, J20~J22,K20,K21

*F:L7,M7,N7,P7,U7,W4~W6,Y4~Y6

DIGITAL MAIN CBA UNIT

IC3651 OPEN

CTL

VCC

GND

OUT

C

R3654 OPEN

R3653 OPEN

C3654

BC3602 OPEN

C3652 OPEN

100R3708 100R3714

C3715 1000P

GND

OUT

C

R3613 10K

R3612

3.9K

GND

OUT

C

R3608 1K

R3609 510

BC3601 BKP1608HS391-T

SS

EN

COMP

C3609 10

8

7

6

C3610

0.1

C3643 10

R3616 22K

C3601

0.01

R3603 16K

C3606 1500P

C3644 10

R3655 OPEN

C3655 OPENOPEN

C3651 OPEN

C3718 OPEN

R3614 10K

C3639

0.1

R3607 1K

C3648 10

C3613

0.1

C3602 10

C3605 1

R3615

9.1K R3602

6.8K

R3601 47K

C3653

R3652

OPEN

R3012

IC3603

100K

BD7820FP-E2 (+1.8V REG.)

R3611 0

C3642 OPEN

C3640 10

R3617 OPEN

C3612 C3544

0.1

C3646 1000P

R3604 10

C3647 1000P

R3605 10

IC3602 BD7820FP-E2 (+1.8V REG.)

C3611 10

100/4V

C360410C3603

0.1

1

2

C3607

0.1 3

45

L3601 22uH

D3601 OPEN

12345

R3707 100

CTL

VCC

12345

CTL

VCC

12345

IC3601 BD9329EFJ-E2 (DC-DC CONVERTER)

BST

VIN

SW

GND FB

R3657 OPEN

R3656 0

C3645 OPEN

C3703 10

L3602 BEAD

C3608 100/4V

C3721 1000P

R3745 OPEN

R3743 10K

C3720 1000P

C3717 1000P

OPEN

R3777

C3705

0.1

C3723 1000P

OPEN

R3861

C3751 100P

C3702 1000P

OPEN

R3759

100R3706

C3708 10

C3709 10

C3748 10

C3701 10

100R3709

100R3713

C3704 100P

C3722 1000P

C3713 1000P

C3710 100P

100R3758

100R3705

OPENR3704 100R3701

C3706

0.1

C3711

0.1

C3749

0.1

C3707

0.1

C3719 1000P

C3716 1000P

100R3702 100R3712 100R3711 100R3710

100R3716 OPENR3757

C3712 1000P

CONTINUE DIGITAL 3

P-ON-H1

CONTINUE DIGITAL 2

OE2 P-ON-H1 P-ON-H2 BACKLIGHT-SW REMOTE LED1 VCOM-PWM

CONTINUE DIGITAL 2

AUDIO-MUTE KEY-IN1

CONTINUE DIGITAL 4

P-ON+1.8V P-ON+3.3V AL+3.3V DDR+1.8V

CONTINUE DIGITAL 2

P-ON+3.3V AL+3.3V

CONTINUE DIGITAL 4

P-ON+5V REMOTE

CONTINUE DIGITAL 1

P-ON+3.3V BACKLIGHT-ADJ BACKLIGHT-ADJ(1) LCD+12V(1)

TO POWER SUPPLY CBA CN301

CN3701

VCOM-PWM29 BACKLIGHT-ADJ28 LED127 BACKLIGHT-SW26 REMOTE25 OE224

GND23 22 AL+3.3V 21 AL+3.3V

P-ON+3.3V20

P-ON+3.3V19

GND18

GND17

P-ON+7V16

PROTECT215

P-ON+5V14

P-ON+5V13

GND12

PROTECT111

P-ON+3V10

P-ON-H19

AMP(R)-OUT8

GND7

AMP(L)-OUT6

PROTECT35

AUDIO(R)-OUT4

GND3

AUDIO(L)-OUT2

P-ON-H21

CONTINUE DIGITAL 3

P-ON+3.3V P-ON+5V AUDIO(L)-OUT AUDIO(R)-OUT AMP(L)-OUT AMP(R)-OUT

10-14

CCYBBZ

DDAA

PL11.0SCDA5

Digital Main 1 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

DIGITAL MAIN CBA UNIT

C3906 OPEN

4

5

Y

C3902 OPEN

VCC

OE2A3GND

1

4

*1

IC3005(1/6) R8A05011BG-U0 DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

K16SM-CLK K14SM-MOSI J16SM-MOSO F14SM-PU-CONT

IC3901 OPEN

OPENR3210 OPENR3514 OPENR3515

C3904

C3903

OPEN

3

2

1

LVDS TX

TO DIGITAL MAIN 2 IC3005(2/6)

R16 R15 P14 P13 N16 N15 P16 P15 T16 T15 R14 T14 R13 T13

L13TP M15POL L16CPV L15OE M14STV M16NU M13NU

K15NU

N14LESET LCD

N13NU

R3088

7.5K

OPENC3352

OPENC3349

OPENC3350

OPENC3351

OPENC3353

OPENC3354

OPENC3355

R3915 OPEN

R3919 OPEN

Q3901 OPEN

R3903 OPEN

R3920 OPEN

R3901 OPEN

Q3903 OPEN

R3905 OPEN

VIDEO SIGNAL

R3913 OPEN

Q3905

C3905 OPEN

OPENR3918

R3917 OPEN

R3916 OPEN

OPEN

Q3906 OPEN

R3909 OPEN

R3912 OPEN

D3907 OPEN

OPENR3561 OPENR3560 OPENR3559 OPENR3558 OPENR3557 OPENR3556 OPENR3555 OPENR3554 OPENR3553 OPENR3552

R3907 OPEN

Q3908 OPEN

Q3904 OPEN

R3908 OPEN

R3906 OPEN

R3910 OPEN

D3906 OPEN

Q3907 OPEN

R3911 OPEN

OPENR3902

C3901 OPEN

R3921 OPEN

R3914 OPEN

L3902 OPEN L3901 OPEN

L3903 OPEN

L3904 OPEN

R3904 OPEN

R3925 OPEN

Q3002 OPEN

R3002 OPEN

123

R3001 OPEN

678

R3006 OPEN

Q3001 OPEN

D3905

D3904

D3903

D3902

OPEN

5

R3007

4

OPEN

C3002 OPEN

0R3537

100KR3566

OPENR3563

100KR3565

100KR3567

100KR3564

100PC3567

OPEN

100KR3562

D3901 OPEN

C3345 OPEN

1KR3152

REMOTE AL+3.3V P-ON+5V P-ON+3.3V

CN3901

(SMART PORT)

1 SM-CLK 2 SM-MISO 3NU 4 SM-MISI 5 GND 6 REMOTE

CN3011

(NO CONNECTION)

31 LCD+12V 30 LCD+12V 29 LCD+12V 28 LCD+12V 27 LCD+12V 26 GND 25 GND 24 GND 23 LLV0(+) 22 LLV0(-) 21 LLV1(+) 20 LLV1(-) 19 LLV2(+) 18 LLV2(-) 17 GND 16 LLVCNK(+) 15 LLVCLK(-) 14 GND 13 LLV3(+) 12 LLV3(-) 11 NU 10 NU

9NU 8NU 7 GND 6NU 5NU 4NU 3NU 2NU 1NU

TO LCD MODULE ASSEMBLY

CN3005

24 GND 23 LLV0(+) 22 LLV0(-) 21 LLV1(+) 20 LLV1(-) 19 LLV2(+) 18 LLV2(-) 17 GND 16 LLVCNK(+) 15 LLVCLK(-) 14 GND 13 LLV3(+) 12 LLV3(-) 11 LLV4(+) 10 LLV4(-)

9 LLV5(+) 8 LLV5(-) 7 GND 6TP 5 POL 4 CPV 3 OE1 2 XA0 1 STV

P-ON+3.3V

RESET-LCD

OE2L14OE2 LCD+12V

CONTINUE

DIGITAL 5

CONTINUE

DIGITAL 5

CONTINUE

DIGITAL 2

CONTINUE

DIGITAL 5

10-15

DCFAB E

PL11.0SCDB1

Digital Main 2 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

DIGITAL MAIN CBA UNIT

*1

IC3005(2/6) R8A05011BG-U0

DIGITAL SIGNAL PROCESS

4

3

/MAIN MICRO CONTROLLER

TO DIGITAL MAIN 3 IC3005(3/6)

DEMODULATOR /MPEG DECODER

B12

A12

A16IF-AGC

G1INPUT0 D1INPUT1

N12S-VIDEO-SW

A14VGA-HSYNC B14VGA-VSYNC

A9 C7

C11

R3202

2.2K

R3513 10K

C3226 10P

C3225 10P

C3178

0.1

R3189 10K

OPENR3296 OPENR3298

2

C3197

0.1

0.01C3198

0.1C3199

0.1C3200

0.1C3201

0.1C3202

0.1C3290

0.1C3284

C3335

2.2

A/D CONVERTER

DIGITAL SIGNAL PROCESS

SW

C10

C9

D8 B11 A10

C8

D9NU

B9

B10NU A11NU D10NU

1

TO DIGITAL MAIN 6 IC3005(6/6)

TO DIGITAL MAIN 1 IC3005(1/6)

L3022

0.27uH 33P

22R3511 22R3187 47R3091

OPENC3194 OPENC3195 OPENC3196

33PC3255

33PC3256

33PC3254

0.1C3285

0.1C3286 1C3336

C3177 OPEN

33PC3287

C3235

OPENC3291

OPENC3292

33PC3289

33PC3288

L3024 OPEN

L3023 OPEN

OPENC3293

R3402

C3243 OPEN

C3242 OPEN

C3084 OPEN

22R3403

22 22R3401

56R3400 56R3399

R3398 56

R3369 OPEN

R3361 OPEN

R3360 OPEN

R3368 OPEN

100R3175

IC3013 OPEN (BUFFER GATE)

1

VCC

5

2

34

GND

IC3014 OPEN (BUFFER GATE)

1

VCC

5

2

34

GND

Q3010 2SC4081UBTLQ

(BUFFER)

R3185 10K

R3186 39K

C3214 OPEN

D3027 OPEN

R3416 OPEN

R3184 10K

D3040 OPEN

R3183 100

R3343 OPEN

R3339 OPEN

R3284 OPEN

R3285 OPEN

R3286 OPEN

R3532 OPEN

R3376 OPEN

R3358 OPEN

R3347 OPEN

R3356 OPEN

R3364 OPEN

R3377 OPEN

100R3156

100R3172

D3050 OPEN

D3045 OPEN

D3049 OPEN

D3053 OPEN

D3055 OPEN

C3089 33P

C3104 33P

D3041 OPEN

C3099 100P

C3112 100P

D3054 OPEN

D3056 OPEN

C3092 1000P

C3105 33P

100R3154 100R3171

R3333 OPEN

R3334 OPEN

11156

12

13

14

C3101 100P

R3181 OPEN

7

8

9

10

C3087 33P

C3086 1000P

C3074 1000P

C3093 33P

C3095 33P

C3098 33P

C3100 33P

C3107 33P

C3111 33P

R3326 OPEN

1

2

JK3001

3

PC-RGB-IN OPEN

4

5

C3103 33P

R3321 OPEN

100R3144 100R3142 100R3138

100R3404

100R3134

C3102 33P

CN3006

AUDIO-MUTE SDA SCL

KEY-IN1 LIGHT-SENS RESET

KEY-IN129 DIF-OUT228 GND27 DIF-OUT126 GND25 IF-AGC24 RESET23 SCL22 SDA21 AUDIO-MUTE20 COM-VIDEO-Pr-IN19 GND18 COM-VIDEO-Pb-IN17 GND16 COM-VIDEO-Y-IN15 GND14 AUDIO(L)13 INPUT012 AUDIO(R)11 INPUT110 GND9 S-VIDEO-Y-IN8 GND7 S-VIDEO-C-IN6 S-VIDEO-SW5 VIDEO-IN4 GND3 SPDIF2 GND1

AUDIO(L) AUDIO(R) SPDIF

P-ON+5V(1) VGA-SDA VGA-SCL

P-ON+5V AL+3.3V(2)

RESET-LCD

CONTINUE DIGITAL 4

CONTINUE DIGITAL 3

TO POWER SUPPLY CBA CN302

CONTINUE DIGITAL 3

CONTINUE DIGITAL 6

CONTINUE DIGITAL 5

CONTINUE DIGITAL 1

GH K

JI

L

10-16

PL11.0SCDB2

Digital Main 3 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

CONTINUE DIGITAL 2

AUDIO(L)

AUDIO(R)

SPDIF

DIGITAL MAIN CBA UNIT

100R3335 100R3336

R3500

R3499

100P

*1

IC3005(3/6) R8A05011BG-U0

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

SPDIF

N10 F13DTV-ON-H1 B16P-ON-H2

CONTINUE DIGITAL 5

AUDIO(L)-OUT AUDIO(R)-OUT AMP(L)-OUT AMP(R)-OUT

R3503

R3504

R3501

C3338 100P

R3325

R3520 100

R3322 100

100

R3518 100

C33371C334010C322310C3224 1

100R3209 100R3215

100P

OPEN

C3229

C3227

C3341

OPEN

R3502 OPEN

AL+3.3V

2

1

TO DIGITAL MAIN 2 IC3005(2/6)

TO DIGITAL MAIN 6 IC3005(6/6)

AUDIO I/F

C14REMOTE

J15RESET-N

F2VCOM-PWM

A15KEY-IN1 A13LIGHT-SENS C13PROTECT1 D13PROTECT2 B13PROTECT3 G13DTV-ON-H2

B6 A6 B7 A7 C5NU

A8

C12LPF

B8

D11NU

D7NU C6NU

10C3216

0R3341

10KR3340 10C3219 10C3220

22R3213

R3178

100R3517

22R3313 22R3315 22R3316 22R3312 100R3314 22R3233

R3498

C3228

100K

OPEN

10C3217

0.22C3231

10C3218

3.3K

C3106

0.1

IC3009 BU4221F (RESET)

14

GND OUT

C3252

0.1

CDVDD

R3191 100

32

C3113

0.47

C3116 OPEN

R3182 56K

C3120 1000P

CONTINUE DIGITAL 4

CPU-RESET-N

CONTINUE DIGITAL 2

KEY-IN1 LIGHT-SENS RESET

CONTINUE DIGITAL 5

P-ON+3.3V(2)

CONTINUE DIGITAL 5

PROTECT1 PROTECT2 PROTECT3 DTV-ON-H2 DTV-ON-H1 P-ON-H2 REMOTE VCOM-PWM

MN Q

PO

R

10-17

PL11.0SCDB3

Digital Main 4 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

IC3002 K4T51163QI-HCF7 (DDR2 SDRAM)

*A VDD

E2 NU A2 NU R8 NU R7 NU R3 NU

B7 UDQS A8 UDQS/NU B3 UDM B9 DQ15 B1 DQ14 D9 DQ13 D1 DQ12 D3 DQ11 D7 DQ10 C2 DQ9 C8 DQ8 F7 LDQS E8 LDQS/NU F3 LDM F9 DQ7 F1 DQ6 H9 DQ5 H1 DQ4 H3 DQ3 H7 DQ2

*A:A1,A9,C1,C3,C7,C9,E1,E9, G1,G3,G7,G9,J1,J9,M9,R1

G2 DQ1

*B:A3,A7,B2,B8,D2,D8,E3,E7,

G8 DQ0

F2,F8,H2,H8,J3,J7,N1,P9

3

0.1C3029

0.1C3030

0.1C3031

0.1C3032

0.1C3033

0.1C3034

0.1C3035

0.1C3036

0.1C3037

0.1C3038

0.1C3039 1-V3

0.1C3040 2-V3

0.1C3041 3-V3

SD-DQ15 SD-DQ10 SD-DQ12 SD-DQ11 SD-DQ13 SD-DQ14 SD-DQ9

SD-DQ8 4-V3 5-V3 6-V3

SD-DQ7

SD-DQ6

SD-DQ5

SD-DQ4

SD-DQ3

SD-DQ2

SD-DQ1

SD-DQ0

2

1

(USB JACK)

CN3009 1BUS-POWER

2USBDN 3USBDP 4GND

R3104 10K

L3025 EXC24CG900U

IC3006 MX25L3205DM2I-12G (MEMORY)

1

CS

VCC

2

SO

3

WP

SCK

45

GND SI

NU

8

7

6

C3246 1

R3102 10K

R3107 10K

D3052 OPEN

L3004 BLM21PG221SN1D

C3073

0.1

C3348 100/16V

C3327

0.1

R3480 10K

(HIGH SIDE SW)

1

2

34

IC3019 BD2224G-TR

VOUT

5

VIN

GND

/EN /OC

*1

IC3005(4/6) R8A05011BG-U0

DIGITAL SIGNAL PROCESS

C3050

R3064

0.1

100

C3051

R3065

0.1

100

SD-DQ15 SD-DQ14

C3009

0.1

J2VREF

C3010

0.1

K2CKE J8CK K8CK L8CS K7RAS L7CAS K3WE L1BA2/NC L3BA1 L2BA0 R2A12 P7A11 M2A10/AP P3A9 P8A8 P2A7 N7A6 N3A5 N8A4 N2A3 M7A2 M3A1 M8A0 K9ODT

*BVSS

R3479 10K

R3204

R3203

4.7K

L3041 BLM21PG221SN1D

4.7K

SD-DQ13 SD-DQ12 SD-DQ11 SD-DQ10 SD-DQ9 SD-DQ8 SD-DQ7 SD-DQ6 SD-DQ5 SD-DQ4 SD-DQ3 SD-DQ2 SD-DQ1 SD-DQ0

R3049 100

3-S3 6-S3 2-S3 1-S3 5-S3 4-S3

15R3029 15R3030 15R3031

6.8R3024

6.8R3015 15R3016 15R3048 15R3035 15R3036 15R3037 15R3038 15R3039 15R3040 15R3041 15R3042 15R3043 15R3044 15R3045 15R3046 15R3047 15R3032 15R3033 15R3034

/MAIN MICRO CONTROLLER

M5 SD-VREF0 N3 GND

G2M32TRST-N

F15ASEBRKAK-N F16ASEMD0 E16TRST-N E15TCK D16TDI D15TDO E14TMS

F3BACKLIGHT-ADJ

G14LED1 J14GND H15XIN25 H16XOUT25

E1AUDIO-MUTE

E13GPY10

R3234 OPEN

G15TXD0 G16RXD0

P12CS

R11SOUT P11SIN T11SCK

E2BACKLIGHT-SW C1P-ON-H1

R3190 OPEN

T9GPIO4 R9GPIO5

R10USBDP T10USBDN P10NU

H14NU

R12SCL T12SDA

150R3070

R8 SD-DQ15 N8 SD-DQ14 P7 SD-DQ13 R6 SD-DQ12 P6 SD-DQ11 N7 SD-DQ10 T5 SD-DQ9 P8 SD-DQ8 P4 SD-DQ7 T3 SD-DQ6 R4 SD-DQ5 T2 SD-DQ4 P3 SD-DQ3 T4 SD-DQ2 R3 SD-DQ1 N4 SD-DQ0 T6 SD-UDM R5 SD-LDM T7 SD-UDQSN R7 SD-UDQS N5 SD-LDQSN P5 SD-LDQS

J3 SD-RAS H3 SD-CAS L4 SD-WE

R1 SD-CLKN R2 SD-CLK L3 SD-CKE K2 SD-ODT M2 SD-A12 J2 SD-A11 J4 SD-A10 L2 SD-A9 H2 SD-A8 N1 SD-A7 K3 SD-A6 M1 SD-A5 H1 SD-A4 M3 SD-A3 K1 SD-A2 L1 SD-A1 J1 SD-A0 P1 SD-BA2 K4 SD-BA1 N2 SD-BA0 H4 NU

DIGITAL MAIN CBA UNIT

5.6KR3099

10C3072

0.1C3071

R3201

2.2K

22R3095

22R3206 22R3207

R3224 10K

R3522 10K

100R3516

R3223 1K

22R3510

100R3468 100R3469

47R3089

47R3092 47R3093 47R3094 22R3188

C3184 18P

X3001 25MHz

C3183 18P

4.7KR3395

4.7KR3396

C3175 OPEN

C3176 OPEN

CN3007

CN3010

C3253 OPEN

(NO CONNECTION)

1 AL+3.3V 2 GND 3 ASEBRKAK-N 4 ASEMD0 5 TRST-N 6 TCK 7 TDI 8 TDO 9 TMS

10 CPU-RESET-N

(NO CONNECTION)

1 P-ON+5V 2 UART0-TX 3 UART0-RX 4 GND

CONTINUE DIGITAL 5

GPY10 P-ON-H1 LED1 BACKLIGHT-SW BACKLIGHT-ADJ CPU-RESET-N

CONTINUE DIGITAL 5

P-ON+1.8V P-ON+3.3V AL+3.3V P-ON+5V

CONTINUE DIGITAL 3

CPU-RESET-N

CONTINUE DIGITAL 2

AUDIO-MUTE SDA SCL

CONTINUE DIGITAL 6

SDA SCL

SV

TU

10-18

WX

PL11.0SCDB4

Digital Main 5 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

DIGITAL MAIN CBA UNIT

*1

IC3005(5/6) R8A05011BG-U0

DIGITAL SIGNAL PROCESS

4

3

2

1

CONTINUE DIGITAL 3

P-ON+3.3V(2)

CONTINUE DIGITAL 6

P-ON+3.3V(2)

/MAIN MICRO CONTROLLER

*D VSS

H13 AVSS12 L10 AVSS12 G10 AVSS12

G8 AVSS12 G9 AVSS12 E9 AVSS33 D2 AVSS33 D3 AVSS33

D12 AVSS33

D5 AVSS33 E7 AVSS33 E3 PD1 E4 PD1 D4 PD1 E5 PD1

F10 VSSCLK

*C:G5,G6,H6,J7,J11,K7,K11,L8, L9,M9,N9,P9

*D:F4,F6,F7,F10,F11,G7,H7~H12, J6,J8~J10,K5,K8~K10,K12, L5~L7,L11,P2,T8

VCC33STB

F12 G12VCC33STB E12VDDSTB

*CVDD12

J13AVDD12

K6AVDD12

M11AVDD12

F5VCCQ33

G4VCCQ33 J12VCCQ33 K13VCCQ33 L12VCCQ33 N11AVDD33

H5VCCQ18

J5VCCQ18

M4VCCQ18

M6VCCQ18

M7VCCQ18

M8VCCQ18

N6VCCQ18

T1VCCQ18

M10AVDD12

E8AVDD12

F8AVDD12

F9AVDD12

E10AVDD33

C2AVDD33

C3AVDD33 E11AVDD33

D6ADAC

E6AADC

G11VDDCLK

C3181

0.1

C3152

0.1

C3160

0.1

L3030 BEAD

C3121

0.1

C3127

0.1

C3157

0.1

C3326 10

C3322 10

C3140

0.1

C3135

0.1

C3346 10

C3117

0.1

C3151

0.1

C3122

0.1

C3128

0.1

C3158

0.1

C3325 10

C3321 10

C3141

0.1

C3136

0.1

C3347 10

C3154

0.1

C3139

0.1

R3221 100

C3182

0.1

C3324 10

C332010C331910C331810C3114 10

C3142

0.1

L3019 BLM21PG221SN1D

G

DS

Q3013 SSM3K309T

(SW+3.3V)

C3123

C3124

0.1

C3129

0.1

C3159

0.1

L3014 BLM21PG221SN1D

C3147

0.1

L3029 BEAD

C3125

0.1

C3133

C3134

10

OPEN

L3016 BLM21PG221SN1D

C3264

0.01 C3343 10

C3144

C3143

0.1

L3020 BLM21PG221SN1D

L3021 BLM21PG221SN1D

C3149

C3148

0.1

L3028 BLM21PG221SN1D

L3015 BLM21PG221SN1D

C3145

0.1

L3026 BLM21PG221SN1D

C3126

0.1

C3079 100/4V

C3150

0.1

R3222 10K

L3027 BLM21PG221SN1D

L3001 BLM21PG221SN1D

R3079 10K

C3066 220/6.3V

R3423 47K

C3091 1000P

R3141 10

C3085

0.1

L3009 22uH

D3001 SK22A

IC3004 BD7820FP-E2 (+1.8V REG.)

C3024

C3023

C3108 100/16V

Q3003 2SC4081UBTLQ

(SWITCHING)

Q3004 2SC4081UBTLQ

(SWITCHING)

C3066A OPEN

C3060 220/6.3V

BC3001 BLM21PG221SN1D

C3082

0.1 D3105

1SS400TE61

Q3101 2SC4081UBTLQ

(SWITCHING)

C3265 10

R3097

2.2K

IC3008 BD9329EFJ-E2 (DC-DC CONVERTER)

1

BST

2

VIN

3

SW

45

GND FB

C3094 47/4V

10

C3060A OPEN

SS

EN

COMP

C3097 10

10

R3077 10K

C3068 10

D3106 1SS400TE61

R3100 22K

Q3005 2SC4081UBTLQ

(SWITCHING)

C3083

0.022

8

7

6

C3096 10

CTL

VCC

GND

OUT

C3027

0.1

C3263 1

C3054 1

R3086

2.2K

R3084

2.2K

VCC

GND

C3070

0.1

C3052 10

C3080 10

R3105 1K

Q3006 2SA1774TLQ

(SWITCHING)

D3101 1SS400TE61

D3102 1SS400TE61

R3137 16K

C3088 1500P

R3149

5.6K

R3145 12K

R3143 47K

C

R3060 20K

R3059 1K

C3049 100/4V

OUT

C

R3110 56K

R3109

4.7K

C3053

0.1

C3077 100/16V

D3104 1SS400TE61

R3106 22K

C3090 1

D3002 OPEN

12345

IC3007 BD7820FP-E2 (+1.8V REG.)

CTL

12345

C3069 10

C3076 10

C3081 10

R3061 33K

R3111

C3075

42.2K

OPEN

R3424 D3103 100

1SS400TE61

L3003 BLM21PG221SN1D

L3044 BLM21PG221SN1D

R3464 OPEN

R3133 10K

R3062 OPEN

C3057 1000P

C3003 100P

C3004 1000P

L3043 BLM21PG221SN1D

100R3011

100R3014

R3050 0

R3054 0

C3063 1000P

C3045 10

100R3072

C3011 100P

C3065 1000P

R3531 OPEN

C3046 1000P

C3061 1000P

AUDIO SIGNAL

100R3068 100R3058 100R3083

100R3008

OPENR3010

100R3009

R3017 100

R3526

R3525

OPEN

C3005

C3006

OPEN

1000P

C3008 100P

C3015

C3016

10

0.1

C3019

C3022

10

0.1

C3043

C3028

0.1

10

C3047

C3044

0.1

1000P

C3055

C3048

1000P

OPEN

C3062 1000P

100R3101

C3067 1000P

100R3087 100R3085 100R3078 100R3074

R3524 OPEN

CN3002

22 AL+3.3V 21 AL+3.3V

CONTINUE DIGITAL 3

PROTECT1 PROTECT2 PROTECT3 DTV-ON-H2 DTV-ON-H1 P-ON-H2 REMOTE VCOM-PWM

CONTINUE DIGITAL 4

GPY10 P-ON-H1 LED1 BACKLIGHT-SW BACKLIGHT-ADJ CPU-RESET-N

CONTINUE DIGITAL 1

REMOTE AL+3.3V P-ON+5V P-ON+3.3V

CONTINUE DIGITAL 4

P-ON+1.8V P-ON+3.3V AL+3.3V P-ON+5V

CONTINUE DIGITAL 2

P-ON+5V AL+3.3V(2)

CONTINUE DIGITAL 6

P-ON+3.3V AL+3.3V(2)

CONTINUE DIGITAL 1

OE2 LCD+12V

TO POWER SUPPLY CBA CN301

VCOM-PWM29 BACKLIGHT-ADJ28 NU27 BACKLIGHT-SW26 REMOTE25 OE224 GND23

P-ON+3.3V20 P-ON+3.3V19 GND18 GND17 P-ON+7V16 PROTECT215 P-ON+5V14 P-ON+5V13 GND12 PROTECT111 P-ON+3V10 P-ON-H19 AMP(R)-OUT8 GND7 AMP(L)-OUT6 PROTECT35 AUDIO(R)-OUT4 GND3 AUDIO(L)-OUT2 P-ON-H21

CONTINUE DIGITAL 1

P-ON+3.3V

CONTINUE DIGITAL 3

AUDIO(L)-OUT AUDIO(R)-OUT AMP(L)-OUT AMP(R)-OUT AL+3.3V

10-19

CCYBBZ

DDAA

PL11.0SCDB5

Digital Main 6 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

CONTINUE DIGITAL 5

P-ON+3.3V

AL+3.3V(2)

CONTINUE DIGITAL 5

P-ON+3.3V(2)

CONTINUE DIGITAL 4

SDA SCL

L3046 BLM21PG221SN1D

*1

IC3005(6/6) R8A05011BG-U0 DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

VIDEO DECODER

TO DIGITAL MAIN 3 IC3005(3/6)

AUDIO DECODER

HDMI I/F

TO DIGITAL MAIN 2 IC3005(2/6)

C3316 10

HDMI-CEC B15

B1 A1 B2 A2 B3 A3 B4 A4

C16HDMI1-SCL

C15HDMI1-SDA

D14HDMI1-HPD

G3HDMI-SEL0

F1HDMI-SEL1

C4EXT-RES B5PLL-XFC-A A5PLL-XFC-P

M12PWR

C3310

0.1

C3331

0.1

C3311

0.01

C3332

0.01

R3237 27K

R3508 22

R3509 22

R3236 560

C3312

0.1

C3333

0.1

Q3014 2SK3018T106

(BUFFER)

R3497

4.7K

R3270

2.2K

R3271 3K

C3185

0.01

C3313

C3314

0.01

0.1

C3334

0.01

R3405 100

R3415 82K

D3057 RB751S-40TE61

R3488

4.7K

C3187

2.2

C3186 4700P

C3188 2200P

C3315

0.01

R3489 10K

R3304 10K

R3303

1.5K

R3302 10K

C3300

0.1

C3305

0.01

R3496

4.7K

R3487

4.7K

C3302

C3301

0.1

0.01

C3307

C3306

0.01

0.1

Q3301 2SC4081UBTLQ

(SWITCHING)

C3304

C3303

0.1

0.01

C3309

C3308

0.01

0.1

R3486

4.64K

16

17

18

19 VCC

20

21

22 GND

23

24

25 VCC

26

27

28 GND

29 SCL-SINK

30 SDA-SINK

HOT-PLUG-

31

DETECT-SINK HDMI-

32

SEL0

HDMI-

33

R3523 10K

131415

NU

GND

SEL134NU35HOT-PLUG-

DETECT1

36 37 38

R3282 100

C3191

0.1

VCC

0.1C3192

R3281 100

VCC

GND

VCC2

SCL2

SDA2

NU

GND

SDA3

SCL3

456

44 45 46

16

15

14

13

12

11

10

GND

VCC

10

1112

39 40

789

GND

HDMI SW

VCC

41 42 43

IC3011 BU9883FV-WE2 (HDMI SERIAL EEPROM)

VCC1

1

2

SCL1

SDA1

3

WPB

4

VCC-OUT

5

SDA0

6

SCL0

7

VCC0 VCC3

89

123

HOT-PLUGDETECT3

HOT-PLUGDETECT2

47 48

C3190

0.1

C3212

0.1

IC3018 BU16029KV-E2 (HDMI SW)

64

63

62

61VCC

60

59

58GND

57

56

55VCC

54

53

52

51

50

49NU

R34770R3478 0

C3213

0.1

R3512 0

R3278

R3293 10K

R3294 10K

R3301 33K

R3507

R3476

R3475

R3275 47K

D3067 1SS400TE61

OPEN

47K

C3262

R3411

1

2.7K

R3412 OPEN

R3408 1K

R3274

R3277

47K

C3260 1

R3414 OPEN

R3406 1K

D3065 1SS400TE61

D3066 1SS400TE61

R3387 0

R3273 47K

R3370 1K

R3371 OPEN

R3409

2.7K

R3385 10K

R3413 OPEN

R3407 1K

R3386 10K

R3276 47K

C3261

Q3030 2SC4081UBTLQ

(SWITCHING)

R3374 1K

R3375 OPEN

Q3032 2SC4081UBTLQ

(SWITCHING)

R3388 0

R3410

2.7K1

Q3031 2SC4081UBTLQ

(SWITCHING)

DIGITAL MAIN CBA UNIT

R3372 1K

R3373 OPEN

R3383 10K

HDMI-

JK3002

CONNECTOR-3

1 TMDS-D2(+) 2 D-SHIELD0 3 TMDS-D2(-) 4 TMDS-D1(+) 5 D-SHIELD1 6 TMDS-D1(-) 7 TMDS-D0(+) 8 D-SHIELD2

9 TMDS-D0(-) 10 TMDS-CLOCK(+) 11 C-SHIELD0 12 TMDS-CLOCK(-) 13 HDMI-CEC 14 NU 15 HDMI-CLOCK 16 HDMI-DATA 17 GND 18 +5V 19 HOT PLUG DETECT

HDMICONNECTOR-2

JK3004

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-) 10 TMDS-CLOCK(+) 11 C-SHIELD0 12 TMDS-CLOCK(-) 13 HDMI-CEC 14 NU 15 HDMI-CLOCK 16 HDMI-DATA 17 GND 18 +5V 19 HOT PLUG DETECT

HDMICONNECTOR-1

JK3003

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-) 10 TMDS-CLOCK(+) 11 C-SHIELD0 12 TMDS-CLOCK(-) 13 HDMI-CEC 14 NU 15 HDMI-CLOCK 16 HDMI-DATA 17 GND 18 +5V 19 HOT PLUG DETECT

CONTINUE DIGITAL 2

P-ON+5V(1) VGA-SDA VGA-SCL

EE FF GG HH II JJ

10-20

PL11.0SCDB6

Power Supply CBA & Jack CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

Jack CBA Power Supply CBA

BA01F2F0102 7 B

91

CL701B

JK753

JK751

1 2 3 4 5 6 7 8 9 10

TOOL NO.

R697

4

3

R667

J352

C658

J209

C648

D664

J347

ALL+3.3V

J348

ALL+3.3V

J182

GND

J346

GND

J203

GND

J173 GND

1

2

J167

2

CN302

28

29

GND

J152

RESET

J148

J146

KEY-IN1

GND

J382

1

J129

2

P-ON 5V

3.5Vfor1.8V

J124

J141

GND

J126

J113

R700

CN301

J140

R699

P-ON 5V

28

29

J222

J185

J154

GND

JK752

R695

Q636

D660

D407

Q635

R406

D659

R665

C640

9

V-L

V-R

GND

J224

J225

J226

GND

J199

Q772

J177

BC301

J349

J162

GND

JS303

C306

JS301

S-Y

J190

SPDIF

R666

R657

R407

R662

R660

D658

R663

R664

D637

R635

CL701A

1

GND

J228

R763

GND

A-MUTE

J217

SEL-L

SEL-R

INPUT1

J178

INPUT0

J175

D302

D301

J342

GND

TUNER

A

CN101

1

J102

ALL3.3V

ABC

GND

JS302

J350

TU301S

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

D406

D667

JK754

R696

R636

D662

J149

J356

J357

J355

GND

VT 31V

J230

V-L

R791

R790

J214

V-R

C771

J205

J187

SW 9V

R771

VT 31V

J165

J158

J156

J192

PC-L

TUNER 5V

R781

Q771

GND

S

5

D676

J241

PROTECT1

D416 Q501

R254

JS201

D211

J384

GND

R227

D204

D403

R661

D412

D661

D673

R788

R780

J180

PC-R

D303

C303

GND

D657

GND

J363

J364

C647

Q873

L301

J234

SW 9V

J196

HDMI-R

J169

J343

J358

ALL+3.3V

J345

P-ON 3.3V

J195

HDMI-L

J170

JK721

JK722

SPDIF

J151

D413

D674

Q874

J216

COMP-L

A-OUT-L

J134

PROTECT1

J237 COMP-Y

J235

COMP-Pb

J233

COMP-Pr

J229

A-OUT-MUTE

J213

JK872

J133

P-ON-H2

Q401

J239

GND

J385

GND

C501

D401

D201

C222

Q213

JK871

GND

J131

6.7V

J108

P-ON 3.3V

J115

GND

J103

D423

Q209

R250

R253

JK731

JK732

J200

J189 A-OUT-R

JK841

GND

J132

BL-SW

BL-ADJ

OE2

VCOM-PWM

J121

J120

J122

J119

GND

J344

J372

J374

J378

R247

JK733

JK741

Q872

JK742

J168 P-ON 9V

JK711

KEY-IN1

J117

D405

J298

INV+13V

J375

Q402

J383

J377

+15Vfor13VLCD

R501

R502

GND

J362

R878

J166 TUNER 5V

9V

3.5Vfor1.8V

J135

J118

R405

LCD 24V

J289

J292

PROTECT2

LOW-VOL PROTECT

J381

ALL+6.0V

J369

J386

J387

J319

GND

J361

Q871

D671

Q841

J139

PROTECT3

J373

+36V

J376

LCD+16V

J379

J359

LCD+16V

J290

J365

J351

OPAMP 9V

J183

ALL3.3V

J130

GND

LCD -6V

LCD+16V

+6.7V

J388

J278

D404

OPAMP 9V

J210

D670

C656

BC841

J340

J101

GND

J267

J339

AMP+12V

J232

L871

C657

D421

R402

J137

ALL3.3V

GND

LCD 16V

R688

C844

PROTECT2

CN802

D410

R689

R819

D210

R244

C224

+15Vfor13VLCD

J246

D648

J218

GND

J204

C880

J191

J186

J184

D411

Q642

R687

R821

D414

D418

J125

C815

GND

J316

GND

J366

+36V

J380

J263

-7V

3.5Vfor1.8V

J399

P-ON-H1

J254

J238

J227

J223

J215

J211

PROTECT1

AOUT-L

GND

AOUT-R

J153

ALL3.3V

J160

J159

J157

J155

J142

J111

GND

J116

D804

J300

R243

A-MUTE

GND

AMP 13V

LCD 16V

J341

P-ON-H2

GND

D806

A-MUTE

C816

GND

D803

GND

-7V

J264

P-ON 5V

TUNER 5V

D417

BC804

BC805

Q211

R658

R655

Q634

D209

C645

J242

LOW-VOL PROTECT

J360

J212

D649

J202

J194

P-ON 3.3V

J174

GND

J145

J110

C801

6.7V

GND

C632

6.7V

J147

J330

C819

C633

GND

J206

D665

P-ON-H1

D807

D

C7A3 A3

R240

C403

J269

JS631

D419

R653

D651

D650

C631

R242

J353

GND

R672

GND

R674

J207

Q638

J171

R702

R693

R701

R698

C654

Q801

D415

J127

GND

D208

D420

Q631

C646

GND

J390

C637

D635

3

6

D

D655

C644

C652

R673

R677

6.7V

R691

Q643

L801

J104

L803

AMP+12V

J317

1

GND

D652

D647

D

633

Q641

P-ON+5V

J161

C832

J144

J143

J188

D203

C642

J105

R228

C650

D632

D644

Q637

GND

L802

AMP+12V

D207

R223

R229

Q207

D654

R645

D653

R639

R637

R638

R646

JS630

D639

D638

T601

D643

D641

D646

R678

J354

Q639

D666

J172

R685

R682

R683

Q640

C653

D409

AMP+12V

J136

C831

J128

J123

GND

J114

J112

GND

BC803

L804

R235

GND

OE2

JS202

Q210

R224

Q208

R649

R650

1

GND

J389

C638

42 6 D

R686

C676

J164

C655

D645

J337

J315

GND

J268

R237

C223

GND

J371

4

IC601

2

3

D613

D612

BC602

R617

BC603

BC601

C691

C639

GND

J367

J368

GND

J176 GND

J150 GND

C823

COLD

AMP+12V

J323

GND

J106

D801

D802

E

GND

BC802

J107

C827

BA01F2F0102 7 A

C225

R236

R245

D205

R238

R239

D206

FB

J391

D622

D614

C611

C615

C614

IS

J394

Q601

7

C60

D603

HOT

C694

J322

GND

Q201

D202

J320

R249

R203

D610

C609

R612

DRIVE OUT

D617

D616

R609

R610

R605

L602

JS633

C693

R204

Q202

D675

R619

D609

R613

C606

R611

C604

GND

J328

FGABC

F

GND

Q212

J314

R618

D611

C613

J392

D602

C602

CN801

GND

J163

LCD 16V

C675

C608

D621B

C219

PROTECT3

BL-ADJ

C210

JS203

R212

Q203

C220

Q204

R210

C692

LCD+3.3V

D619

R622

D608

R621

R620

D606

D607

R625

D604

D601

C601

L601

J309

CN201

15

14

LCD -6V

BL-SW

J303

1

2

Q603

R623

R626

R627

Q604

HOT+15V

J395

3

CN602

FH602

R601

J299

J286

GND

RISK OF FIRE-

REPLACE FUSE AS MARKED

J307

J288

R624

2

1

SA601

C204

Q205

GNDGND

J312

J301

Q206

J306

J297

J291

GND

J284

GND

J396

C610

HV

J393

J370

D620

R606

D615

C605

R603

D621A

C603

4A/125V

FH601

F601

TM601

AC601

CN601

TM602

10-21

BA01F2F01027

Power Supply CBA & Jack CBA Bottom View

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

Power Supply CBA

R236

C225

C206

R245

R201

Q201

D202

J320

R249

R248

R202

Q212

GND

D622

R618

D611

1

DRIVE OUT

C613

J392

D602

R605

C602

HOT

CN801

D205

R238

R239

D206

D205A

J314

J391

FB

D614

8

5

C611

IC602

4

C615

C614

J394

IS

Q601

C607

D603

C694

J322

C838

GND

Q202

JS633

D609

C606A

J328

R206

C207

D610

C609

R612

D617

D616

R609

R610

L602

C693

C839

Q210

C223

D612

R617

BC603

BC601

R237

BC602

D801

GND

OE2

J337

GND

4

IC601

3

D613

C639

GND

J368

J176

J150

GND

COLD

J323

GND

JS202

J268

J367

GND

R235

R224

J315

Q208

J371

GND

R649

R650

1

J389

GND

2

C691

C641

C676

C655

C823

AMP+12V

GND

BC802

AMP+12V

GND

J107

J106

C827

D802

E

R223

Q207

R226

R668

R645

JS630

R639

R637

R646

D639B

D638

C638

T601

R651

D64

D641

2

R678

R686

R675

R679

R676

Q639

J354

C651

J172

J164

R685

R682

R683

D645

R642

R641

R643

D409

J136

R802

C811

R803

C831

J128

GND

J123

GND

J114

GND

J112

BC803

R811

R812

L804

LCD -6V

CN201

J309

BL-SW

15

14

C201

J299

J286

GND

1

2

Q603

R623

R626

R627

HOT+15V

J395

CN602

FH602

4A/125V

R601

F601

FH601

CN601

PROTECT3

R216

C218

J163

GND

BL-ADJ

C210

C213

C202

C214

C212

C215

R209

R208

R211

J303

J307

Q204

J288

C203

LCD+3.3V

D619

R624

D606

R625

Q604

3

2

1

SA601

C219

Q203

C692

R622

D607A

C601

R217

R218

IC201

1

4

R220

R212

8

5

JS203

R222

R221

C220

Q206

LCD 16V

J306

C217

R210

C675

C608

D608

C608A

R621

R620

D607

C605

D621B

D604

C603

D601

L601

AC601

C204

R219

Q205

R203

R213

R215

C216

R214

R207

R204

R205

C209

C208

J312

J301

GNDGND

J297

D675

J291

GND

J284

R619

Q602

GND

D

J396

C610

SG

R613

J393

HV

J370

C606

D620

R607

R611

R604

R606

D615

R603

D621A

C604

GND

FG ABC

F

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

4A/125V

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using

J384

GND

J234

C773

GND

1

R888

Q873

8

R792

SW 9V

J196

9

HDMI-R

L301

J169

J343

J358

ALL+3.3V

J345

J239

D66

C647

R788

IC771

R780

PC-R

D676

Jack CBA

CL701B

C757

R761

C761

C762

R759

R755

R760

JK754

R762

C758

BA01F2F0102 7

R696

Q636

D662

J357

GND

R791

R783

R772

J192

TUNER 5V

J158

C304

C302

R896

R636

J149

J356

GND

R778

V-L

R794

C771

R787

SW 9V

R773

VT 31V

J156

J165

C305

C301

TUNER

TU301S

R895

Q635

R665

D659

D659A

C640

J355

9

GND

V-L

V-R

J226

J225

J214

R779

C776

V-R

R777

C775

J205

R776

J199

GND

C772

J187

Q772

J177

R771

Q771

J350

J349

GND

BC301

J162

GND

JS303

C306

R311

JS302

JS301

R307

R306

R305

C308

C307

R301

A

S

CN101

5

1

D673

R893

D303

C303

VT 31V

J180

J230

R789

R790

1

16

R782

R781

PC-L

D660

R774

R309

JK753

D407A

CL701A

GND

R775

L302

ALL3.3V

J102

R754

R758

R753

JK752

R695

D407

R407

R406

GND

J224

INPUT1

INPUT0

D637

J228

A-MUTE

R752

C752

R756

C753

R757

C751

R751

R667

R666

R657

R662

R660

D658

R663

R664

R635

J352

1

C643

C658

IC631

R763

GND

J209

J222 S-Y

J217

SEL-L

J190

ALL+3.3V

J185

SEL-R

J178

J175

SPDIF

J182

GND

J203

J173

GND

2

J167

JK751

R697

4

C649

3

C648

D664

J347

J348

J346

GND

1

WF1

PIN 4 OF

PIN 4 OF CN302

CN302

WF3

PIN 6 OF

PIN 6 OF CN302

CN302

19

C755

C756

C754

WF2

CN302

R302

R303

C309

R310

D302

D301

J154

GND

C681

C683

GND

J129

GND

28

J152

3.5Vfor1.8V P-ON 5V

J124

GND

J126

J113

R700

R699

P-ON 5V

29

RESET

J148

KEY-IN1

J146

J382

GND

1

2

J141

CN301

J140

J342

R304

C311

L303

R308

C310

C682

PIN 8 OF CN302

WF7

PIN 13 OF CN302

WF4

PIN 15 OF CN302

WF5

PIN 17 OF CN302

WF6

PIN 19 OF CN302

28

29

ABC

hot GND as a common terminal.

INV+13V

J381

J369

J319

GND

Q871

C875

4

IC871

5

R876

D671

TUNER 5V

R712

PROTECT3

J298

R681

J375

R502

J361

R891

J166

R716

R714

Q841

J139

C684

D405

D406A

R412

J372

J374

J378

Q402

R410

J383

J377

R247

R501

GND

J362

C873

R873

1

8

R874

P-ON 9V

C702

C703

C704

R795

R846

R847

C842

3.5Vfor1.8V

J135

C402

R877

R875

R878

JK742

J168

R848

9V

J118

D406

D423

JK733

R871

JK741

A-OUT-R

Q872

JK711

R845

R843

R844

KEY-IN1

J117

D667

J189

R842

D401

Q209

JK731

JK732

C733

R742

JK841

VCOM-PWM

BL-ADJ

J121

J122

R404

C501

R246

R232

R233R234

R734

C734

C735

R735

C736

A-OUT-MUTE

C743

R745

JK871

J200

C744

C742

C722

R726

GND

J131

J132

P-ON 3.3V

GND

J344

J103

COMP-Y

COMP-Pb

COMP-Pr

J229

C872

R721

C723

C724

R724

R722

J108

PROTECT1

Q213

J237

J235

J233

Q874

J216

COMP-L

J213 A-OUT-L

C871

JK872

R786

P-ON-H2

6.7V

J115

R254

D211

D204

JK721

JK722

J133

J241

D416 Q501

R231

C221

R661

R785

R713

C701

R723

PROTECT1

D674

D412

GND

J363

Q401

R227

R715

J134

D657

GND

R887

R793

HDMI-L

D413

JS201

D403

J364

P-ON 3.3V

J195

R784

HDMI-L

J170

SPDIF

J151

ALL+3.3V

J385

GND

R411

D201

C222

R250

R253

R731

C731

R732

C732

R736

R733

C741

R743

R741

R744

R746

R725

R711

C721

C841

R841

BL-SW

OE2

J120

J119

GND

J300

J316

GND

D210

GND

-7V

J264

3.5Vfor1.8V

A-MUTE

AMP 13V

LCD 16V

PROTECT1

P-ON-H2

R892

C876

ALL3.3V

D806

C801

R243

J263

P-ON-H1

GND

J341

R872

C874

J153

J160

J159

GND

R654

D417

C816

D803

+36V

R659

J380

+15Vfor13VLCD

-7V

J399

J254

J238

J227

J223

J215

J211

J204

AOUT-L

AOUT-R

J157

J155

R690

R821

A-MUTE

R894

GND

J116

R244

GND

J366

J246

D648

J218

GND

C880

J191

GND

J186

J184

D411

R403

R687

D414

J142

D418

J125

R816

C837

R815

J111

C815

D804

C846

D207

D208

D420

D203

R229

R225

D654

C650A

R638

D653

D639

D632

D643

D644A

D644

D 6

46

Q637

D666

GND

R680

Q640

C653

R408

L802

C810

C806

21

22

C824

C821

R228

C650

D647

D633

C642

R817

C808

C822

J105

AMP+12V

J188

GND

D652

C652

R691

Q641

J161

C818

J144

C807

IC801

C826

Q631

C637

D635

D631

Q643

P-ON+5V

C832

J143

C804

J317

D652A

C644

C825

AMP+12V

J104

R240

R409

R241

J269

D419

R653

D651

D650

D639A

C631

R242

C633

J353

GND

LOW-VOL PROTECT

GND

J207

Q638

6.7V

R702

R701

R698

Q801

D415

R818

J147

R808

R647

R807

J127

GND

R805

R804

C830

D

R648

C632

6.7V

GND

J206

P-ON 3.3V

D665

GND

P-ON-H1

J330

C814

C819

D807

J242

J202

J174

R401

Q211

R658

R644

R655

J360

J212

D649

J194

P-ON 5V

TUNER 5V

GND

J110

C645

R886

C817

BC804

BC805

Q634

D209

R882

R880

J145

C403

JS631

R652

C646A

C646

J390

GND

D655

R672

R674

R673

R677

J171

6.7V

R693

C654

R820

R809

L801

C809

C805

C803

1

42

C820

C829

C828

L803

C224

LCD -6V

GND

LOW-VOL PROTECT

GND

LCD+16V

J267

J339

GND

LCD 16V

C877

C882

R883

C879

C878

C883

D410

R689

R688

Q642

D670A

C657

C844

D421

PROTECT2

R819

C836

C835

R814

C845

CN802

LCD+16V

+6.7V

J388

J278

J232

R885

R881

J137

J101

GND

R813

LCD 24V

GND

J292

J373

+36V

PROTECT2

J376

LCD+16V

J379

J359

ALL+6.0V

+15Vfor13VLCD

J290AMP+12V

J365

J351

D404

OPAMP 9V

C884

J210

R884

C885

L871

D670

C656

BC841

R402

ALL3.3V

J340

C834

R405

J289

J386

J387

R879

OPAMP 9V

J183

C843

ALL3.3V

J130

10-22

BA01F2F01027

Inverter CBA, Function CBA & IR Sensor CBA Top View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

Function CBA

AGING

SW103A

CN1102

SW154

CH UP

R111

SW104B

R109

EJECT

SW107B

VOL UP

4

BA17F4F0103 1 B

SW107A

VOL

UP

C1114

GND

J1004

GND

3

VOL

DOWN

J1003

VOL DOWN

SW106B

MENU

R115

R114

SW105ASW106A

SW155

PATTERN

R113

SW105B

R156

MENU

R112

SW104A

CH

DOWN

UP

SW103B

CH DOWN

R152

R155

R153

R154

SW152SW153

STOP

C1112

C7A3 A3

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

C7A3/A3

D151

R151

PLAY

SW101B

POWER

SW151

R108

J101

C151

POWER

D107

C108

SW101A

CL103B

C1110

RS101

CL103A

C101

BA17F4F0103 1

C7A3 A3

D101

STB BY

D108

CN1101

R101

Not UsedIR Sensor CBA

/

D109

CL102B

D

C1108

RS102

BA17F4F0103 1 C

GREEN/RED/ORANGE

R123

C113

D104

R128

R124

STD BY

R127

D105

DVDPOWER

D106

C7A3 A3

C1106

CL103C

GND

J102

CL101B

TOOL NO.

1 2 3 4 5 6 7 8 9 10

CN1100

C1104

J1005

GND

BA17F4F0103 1 A

2

VS6

J1054

J1058

VSEN

J1067

VS4

R1148

R1118

R1115

1

J1082

Inverter CBA

R1147

SW2

PROT2

J1010

J1011

J1006

PROT3

J1007

J1008

J1009

J1012

SW2

J1013

SW2

T1100

COLD

IC1930

C1906

D1932

R1936

J1069

R1935

IC1931

R1934

R1931

D1931

R1933

BC1930

D1933

R1932

C1930

J1078

Q1931

HOT

BC1931

Q1930

R1939

Q1932

R1930

R1938

CN1901

D1934

J1089

J1073

R1949

R1937

CN1900

D1930

J1051

GND

C1910

J1027

GND

C1993

GND

J1044

D1994

C1990

0

T1950

J1085

J1090

+24V

GND

D1973

C1983

D1971

J1101

+24V

D1970

D1972

R1967

R1970

C1982

C1905

GND

J1104

J1055

D1961

D1960

1

2

CN1003

10

11

J1093

J1032

R1127

R1145

PROT6

R1106

VSEN

J1080

J1026 GND

J1028 GND

J1060

R1146

VS2

R1130

J1061

J1083

R1150

J1077

R1103

VSENJ1062

R1143

GND

T1102

J1097

BL-SW

SW1

D1200

J1047

J1071

PROT6

J1048

J1075

D1202

D1703

LN1J1039

J1002

REG 7.5V

NH1J1040

GNDJ1045

J1091

REG 7.5V

J1063

BST2

D1201

J1074

LN1

J1076

+24V

J1100

J1022

PROT4

J1020

J1021

PROT5

J1023

SW1J1014

SW1J1015

PROT3

+24VJ1066

2

J1024

+24VJ1064

J1098 PROTECT3

1

SW2

D1706

+24VJ1065

J1108

J1084

J1088

SW2J1025

D1705

R1709

C1304

D1704

GND

14

BL-SWJ1107

PROT4

PROT5

J1110

J1111

J1112

D1700

J1033

DUTY

PROT5

J1034

J1035

C1302

J1105

PROTECT3

PROT4

J1068

J1113

J1036

PROT

D1300

J1087

PROT

FAILJ1086

D1301

LN2J1030

NH2J1031

J1102

BL-ADJ

J1049

J1050

J1053

J1056

R1305

J1046

J1120

GND

D1707

PROT2

PROT1

D1701

SW2J1038

STBJ1070

REG 7.5V

J1001

JS1200

D1203

R1704

GND

J1109

J1059

PROT

C1206

J1081

D1702

LN2J1041

NH2J1042

J1072

DC12V

NH1

GND

J1079

J1095

BL-SW

J1096

CN1001 15

GND

J1099

J1037

C1994

T1101

GND

D1991

J1103

C1700C1701

D1992

BC1301

GND

D199

J1092

ABC DEF

10-23

BA17F4F01031

Inverter CBA, Function CBA & IR Sensor CBA Bottom View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

CL101B

CL103C

GND

J102

C1104

J1005

GND

CN1100

D106

DVD

R125

D105

C1106

C111

C112

R124

POWER

STD BY

R127

R128

C115

R126

H.V. CAUTION

BA17F4F0103 1A

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

R103

D104

C110

C113

C114

R123

RS102

C1108

CL102B

R106

R102

D109

C103

CN1101

R101

C104

D101

STB BY

D108

C102

C101

RS101

CL103A

Function CBANot Used IR Sensor CBA

C151

SW101B

D151

CL103B

C108

D107

R108

SW101A

C1110 C1112 C1114

J101

POWER

R151

SW151

PLAY

R152

R153

DOWN

STOP

CH

R155

R154

R109

SW154

CH UP

R111

351WS251WS

EJECT

SW103A

CN1102

AGING

MENU

CH

UP

SW105B

R112

SW104A

R156

PATTERN

SW155B401WSB301WS

R113

DOWN

SW106B

R115

R114

CH

MENU

VOL

DOWN

SW107B

BA17F4F0103 1B

VOL

UP

4

A701WSA601WSA501WS

VOL

UP

DOWN

VOL

J1004

GND

J1003

GND

3

D1961

D1960

1

2

CN1003

10

11

J1055

J1093

Inverter CBA

C1910

J1051

C1103

SW2

J1013

C1100

C1101

T1100

J1012

SW2

J1006

J1007PROT3

J1008PROT2

J1009

J1011

J1010

COLD

C1906

HOT

R1950

C1931

D1930

GND

R1937

J1073

R1949

CN1900

J1089

CN1901

R1940

R1951

R1952

D1934

R1930

R1938

BC1931

C1933

Q1932

Q1930

R1939

BC1930

D1933

Q1931

C1930

R1941

J1078

D1931

R1932

R1942

R1933

C1932

R1934

R1931

IC1931

J1069

R1935

R1936

D1932

C1934

C1905

IC1930

C1981

R1981

J1027

GND

J1044

C1993

GND

D1994

C1990

D1990

T1950

D1970

D1972

R1967

R1970

GND

J1104

C1982

C1970

Q1971

+24V

J1101

R1980

Q1970

R1986

R1979

D1971

R1977

R1982

R1987

J1085

+24V

R1988

C1983

R1972

D1973

R1973

J1090

GND

Q1972

J1092

C1102

T1101

C1700 C1701

D1991

D1992

GND

C1994

BC1301

C1702

J1037

C1937

J1103

J1099

GND

CN1001

R1705

D1704

C1936

BL-SW

15

Q1702

J1096

BL-SW

C1706

C1305

GND

C1935

14

J1107

R1706

R1709

D1705

C1304

J1084

J1088

PROTECT3

J1108

SW2

J1025

J1098

SW2

D1706

C1708

+24V

J1065

J1024

R1707

+24V

J1064

2

1

Q1703

J1043

+24V

J1066

D1707

C1938

J1046PROT3

C1939

J1120

J1049PROT2

J1050

J1053

J1056PROT1

R1305

GND

C1707

BL-ADJ

R1708

J1102

LN2

NH2

R1309

J1030

J1031

R1509

Q1300

R1508

D1301

D1300

FAIL

J1086

C1303

PROT

R1215

R1504

R1201

J1087

J1023

J1113

J1036

R1505

PROT

R1500

PROT4

D1501

J1068

R1212

J1022

J1112PROT4

J1035

R1506

R1213

C1211

J1105

J1021

PROT5

J1111PROT5

PROT5

J1034

R1507

D1500

C1302

R1209

C1207

PROTECT3

R1502

C1201

R1214

DUTY

R1208

J1020

J1110

D1700

J1033

R1203

Q1201

Q1202

R1503

J1059

R1205

R1202

J1081

R1200

R1501

PROT

C1214

Q1700

R1700

R1512

C1210

C1212

C1200

R1510

D1502

C1500

R1207

C1206

J1109

C1203

R1206

C1703

R1511

R1229

GND

C1202

R1701

R1228

R1704

R1227

R1204

12

IC1200

13

JS1200

D1203

Q1203

Q1204

D1701

C1213

J1001

SW1

J1015

C1705

R1225

R1226

STB

R1515

D1702

R1702

SW2

J1038

C1208

J1070

J1072

DC12V

1

GND

24

REG 7.5V

J1095

SW1

J1014

NH2

J1042

R1223

J1079

R1300

Q1701

C1704

LN2

GND

J1045

J1041

J1091

REG 7.5V

J1063

BST2

D1201

NH1

C1205

C1204

+24V

C1300

R1703

J1074

LN1

NH1

J1040

J1076

R1221

R1216

R1301

J1100

C1116

LN1

J1039

R1222

J1002

R1302

C1117

D1703

PROT6

J1048

C1118

C1105

R1220

J1071

REG 7.5V

J1075

D1202

T1102

SW1

J1047

R1303

R1304

SW1

D1200

R1100

R1307

C1209

R1306

BL-SW

R1101

GND

J1097

R1143

R1310

R1102

C1301

Q1303

J1077

Q1301

R1514

R1103

D1503

VSEN

J1062

C1311

R1150

D1506

R1308

R1114

C1502

J1026

J1061

R1113

C1120

R1516

GND

J1028

R1130

R1104

VS2

R1110

R1112

J1083

GND

R1146

C1501

R1131

J1060

R1513

PROT6

R1132

R1106

R1109

J1080

VSEN

C1115

R1105

R1108

C1107

R1111

R1121

D1504

C1109

J1032

C1123

R1127

R1107

C1119

R1122

R1124

R1125

R1145

R1117

R1133

R1147

R1116

R1134

R1115

D1507

J1082

VS6

R1118

J1054

C1122

C1113

C1121

C1111

J1067 VS4

R1135

VSEN

D1505

R1126

R1123

R1148

R1120

R1129

J1058

R1119

2

R1128

D1508

1

ABCDEF

10-24

BA17F4F01031

WAVEFORMS

S-VIDEO-Y

S-VIDEO-C

VIDEO-Pr

VIDEO-Pb

VIDEO-Y

WF1 ~ WF7 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

WF1

WF2

Pin 4 of CN302

CVBS 0.2V 20µs

Pin 8 of CN302

S-VIDEO-Y

0.2V

20µs

WF5

VIDEO-Pb

WF6

VIDEO-Pr

Pin 17 of CN302

0.2V 20µs

Pin 19 of CN302

0.2V 20µs

WF3

S-VIDEO-C

WF4

VIDEO-Y

Pin 6 of CN302

0.2V

Pin 15 of CN302

0.2V 20µs

20µs

Pin 13 of CN302

WF7

AUDIO 0.1V 0.5ms

LC9NWF11-1

CN3902

[TYPE A]

CN3005

[TYPE B]

CL3902

BACK

LIGHT

1

STV

WIRING DIAGRAM

HDMI-

CONNECTOR-1

6TP5

4

3

2

POL

OE1

CPV

XAO

BACK

LIGHT

7

GND

8

LLV5(-)

BACK

9

LLV5(+)

LIGHT

10

LLV4(-)

HDMI-

11

LLV4(+)

CONNECTOR-2

15

14

13

12

GND

LLV3(-)

LLV3(+)

LLVCLK(-)

HDMI-

17

16

GND

LLVCLK(+)

CONNECTOR-3

21

20

19

18

LLV1(-)

LLV2(-)

LLV1(+)

LLN2(+)

USB JACK

24

23

22

GND

LLV0(-)

LLV0(+)

LCD MODULE

ASSEMBLY

2

4

3

1

DIGITAL MAIN CBA UNIT

1

CN1100

CL201

CN201 CN1001

POWER SUPPLY CBA

2

151

GND

2

1

CN1101

142

133

124

115

106

INV+13V(NU)

GND

BACKLIGHT-ADJ

BACKLIGHT-SW

PROTECT397GND88LCD+13V79LCD+13V

TU301 TUNER UNIT

1

CN1102

610

VGH

2

511

GND

412

313

214

P-ON+3.3V

LCD-5V

VCOM

115

GND

CN1901

1

+B

CN602

2

HOT-GND

HOT-GND2NU1+B

3

HOT+15V

4

CL1003

GND

1

CN1003

LCD+13V

2

P-ON+3.3V

GND4VGH3LCD+13V

6

5

GND8LCD-5V

P-ON+3.3V

9

7

VIDEO-IN

AUDIO(L)

-IN

AUDIO(R)

-IN

S-VIDEO

GND10VCOM

11

-IN

CL103

GND

AL+3.3V

2

1

KEY-IN1

3

KEY-IN2

4

JACK CBA

CL701B

INVERTER CBA

CL701A CL701

1

2

S-VIDEO-Y-IN

S-VIDEO-SW

1

2

3

4

5

6

S-VIDEO-C-IN

GND

VIDEO-IN77AUDIO(L)-IN

GND

3

4

5

6

8

9

GND

AUDIO(R)-IN

8

9

SP801

1

SP(L)-

CN801

CL102B CL103BCL103A

1

CL102

GND

1

CN101

SPEAKER

L-CH

CL801

2

SP(L)+

2

REMOTE

2

3

AL+3.3V

3

4

KEY-IN1

4

SP802

CN802

5

P-ON+9V

5

SPEAKER

R-CH

CL802

1

2

SP(R)-

SP(R)+

IR SENSOR CBA FUNCTION CBA

CN3002

CN3701

[TYPE A] [TYPE B]

CL3701

CN301

2

P-ON-H2

AUDIO(L)-OUT

1

2

COMPONENT

4

GND

AUDIO(R)-OUT

3

4

-Y-IN

6

7

513

PROTECT3

AMP(L)-OUT

GND

7

6

5

COMPONENT

-Pb-IN

8

9

11

AMP(R)-OUT

P-ON-H1

P-ON+3V

PROTECT1

9

8

10

11

COMPONENT

-Pr-IN

15

141012

13

GND

P-ON+5V

PROTECT2

12

13

15

14

COMPONENT-

AUDIO(L)-IN

COMPONENT-

AUDIO(R)-IN

172220

16

P-ON+7V

GND

16

17

HDMI-

18

GND

P-ON+3.3V

192321

18

20

AUDIO(L)-IN

HDMI-

231921

AL+3.3V

GND

22

DIGITAL

AUDIO(R)-IN

24

25

26

OE2

REMOTE

BACKLIGHT-SW

24

25

26

AUDIO(L)

AUDIO-OUT

(COAXIAL)

27

28

LED1(NU)

BACKLIGHT-ADJ

27

28

-OUT

CN3006

CN3702CN302

[TYPE A] [TYPE B]

29

CL3702

VCOM-PWM

29

AUDIO(R)

-OUT

GND

1

2

SPDIF

2

4

GND

VIDEO-IN

3

4

6

8

7

513

S-VIDEO-SW

S-VIDEO-C-IN

GND

S-VIDEO-Y-IN

7

6

5

8

9

GND

9

11

INPUT1

AUDIO(R)

10

11

13

INPUT0

AUDIO(L)

12

13

AC601

AC CORD

141012

GND

14

15

16

COM-VIDEO-Y-IN

GND

15

16

172220

18

COM-VIDEO-Pb-IN

GND

COM-VIDEO-Pr-IN

AUDIO-MUTE

SDA

192321

18

17

20

SCL

22

231921

24

RESET

IF-AGC

24

25

26

GND

DIF-OUT1

25

26

27

28

GND

DIF-OUT2

27

28

29

KEY-IN1

29

PL11.0WI12-1

Cabinet

EXPLODED VIEWS

32PFL3506/F7 (DS2, DS3), 32PFL3000/F8 (XA2)

A42

A41

B27

A15

A1

32PFL3506/F7 (DS1, XA1), 32PFL3000/F8 (XA1)

L34

LCD1

Jack CBA

CL3702 CL3701

Power Supply CBA

B46

L19

L1

B22

L19

L33

CL201

L17

B34

AC601

X6

CL1003

L17

Inverter CBA

B34

X7

S6

L19

A2

L33

A5

A4

Function CBA

IR Sensor CBA

See Electrical Parts List for parts with this mark.

SP802

L23

B11

Digital Main CBA Unit

L19

A8

CL3902

B18

B24

B1

L19

B18

32PFL3506/F7 (DS2, DS3), 32PFL3000/F8 (XA2)

SP801

CL802

CL801

L42

L1

B22

S6

B5

Stand Assembly

L33

L23

L33

L15

A12

L23

L33

S6

13-1 PL11.0-A_CEX

Packing

Stand Screw Kit

X3

Packing Tape

Stand Assembly

X14

S3

S5

X2

X4

X12

Ta pe

X1

S7

Packing Tape

FRONT

S6

S1

S17

S4

32PFL3506/F7 (XA1)

CARTON

13-2 PL11.0PEX

TYPE A

PARTS LIST

[32PFL3506/F7 (Serial No.: DS1), 32PFL3000/F8 (Serial No.: XA1)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A17F6UH 1ESA28472 A1 FRONT CABINET A17F6UH 1EM027428 A2 REAR CABINET A17F6UH 1EM027429 A4 FUNCTION KNOB A17F6UH 1EM225787 A5 KNOB FRAME A17F6UH 1EM225788 A8 JACK HOLDER A01F2UH 1EM124273 A12# RATING LABEL A17F6UH ---------A15 ENERGY STAR LABEL A91F2UH ---------A41 SENSOR PLATE A17F6UH 1EM330357A B1 SHIELD BOX A01F2UH 1EM224323 B5 STAND HOLDER A17F6UH 1EM225789 B11 SPEAKER HOLDER A17F6UH 1EM126056 B18 GASKET A8AF0UH 1EM425861 B22 WALL MOUNT BRACKET A84N0UH 1EM323797 B24 THERMAL SHEET TMS-14-20 12X12 XK10000X4011 B27 CLOTH(10X180XT0.5) L0336JG 0EM408827 CL201 WIRE ASSEMBLY 15PIN FFC 15PIN 140MM WX1A01F4-102 CL801 WIRE ASSEMBLY 2PIN 2PIN/320MM WX1A17F6-301 CL802 WIRE ASSEMBLY 2PIN 2PIN/110MM/CORE WX1A01F2-003 CL1003 WIRE ASSEMBLY 11PIN FFC 11PIN 129MM WX1A01F4-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 117.5MM WX1A91F6-102 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L15 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L19 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392B L23 SCREW TAP TIGHT M3X10 BIND HEAD+BLK NIGBHS3100

Ref. No. Description Part No.

ACCESSORIES

STAND SCREW KIT A17F6UH 1ESA28477 X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A17F6UH 1EMN28039 X3 REMOTE CONTROL TRANSMITTER YKF259-

X4 BATTERY R03-B500/01S XB0M451CZB01 X6 QUICK START GUIDE A17F6UH 1EMN28041 X7 REGISTRATION CARD(PHILIPS) A11P4UH 1EMN27321 X12 CABLE MANAGEMENT TIE(BLACK) A01F2UH 1EM431197 X14 ADDENDUM SHEET A17F6UH 1EMN28479

001

URMT34JHG001

L33 SCREW P-TIGHT 3X14 BIND HEAD+ BLK GBHP3140 L34 SCREW P-TIGHT 3X14 WASHER HEAD+ GCJP3140 L42 SHOULDER SCREW A01Q0UF 1EM328277 LCD1 LCD MODULE UK32AXB SP801 SPEAKER MAGNETIC S0412F28B DS08130XQ002 SP802 SPEAKER MAGNETIC S0412F28C DS08130XQ003

PACKING

S1 CARTON A17F6UH 1EM434457 S3 STYROFOAM TOP A17F6UH 1EM027431 S4 STYROFOAM BOTTOM A17F6UH 1EM027432A S5 SET BAG A17F6UH 1EM330877 S6 SERIAL NO. LABEL A01PBUH ---------S7 STAND BAG A02NBJH 1EM431977

2011/10/31 14-1 A17F6CA.fm

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A17F6MMA-003

MPW CBA

Ref. No. Description Part No.

MPW CBA Consists of the following:

POWER SUPPLY CBA(MPW-A) JACK CBA(MPW-B)

POWER SUPPLY CBA

Ref. No. Description Part No.

POWER SUPPLY CBA(MPW-A) Consists of the following:

CAPACITORS

C201 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C202 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C203 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C204 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C207 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104 C210 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C216 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C217 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104 C218 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C219 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C221 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C222 ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471 C223 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C224 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C302 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C303 ELECTROLYTIC CAP. 330µF/10V M CE1AMASDL331 C305 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C306 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C307 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C308 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C309 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104

A17F6MPW-001

----------

Ref. No. Description Part No.

C310 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C311 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C601# CAP METALIZED FILM 0.22µF/300V K 3.5MM CT2F224DC004 C602# CAP METALIZED FILM 0.22µF/300V K 3.5MM CT2F224DC004 C605 CAP ELECTROLYTIC 470µF/200V M CA2D471DYG07 C606 POLYESTER FILM CAP. (PB FREE) 0.0015µF/

C607# CERAMIC CAP. 330pF/2KV CA3D331PAN04 C608 POLYESTER FILM CAP. (PB FREE) 0.001µF/

C609 ELECTROLYTIC CAP. 47µF/50V M CE1JMASDL470 C610 ELECTROLYTIC CAP. 100µF/50V M CE1JMASDL101 C611 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062 C613 CAP CERAMIC (AX) 33pF/50V/CH/J CA1J330TU059 C614 CAP CERAMIC (AX) 0.022µF/50V/B/K CA1J223TU061 C615 CAP CERAMIC (AX) 3300pF/50V/B/K CA1J332TU061 C631 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102 C632 ELECTROLYTIC CAP. 220µF/25V M CE1EMASDL221 C633 CAP ALUMINUM ELECTOLYTIC 2200µF/6.3V MCE0KMZNDL222

C637 CERAMIC CAP. 1500pF/2KV CA3D152PAN04 C638 ELECTROLYTIC CAP. 220µF/50V M CE1JMASDL221 C639 ELECTROLYTIC CAP. 1000µF/35V M CE1GMZADL102 C640 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C642 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C643 CHIP CERAMIC CAP.(1608) B K 1µF/10V CHD1AK30B105 C644 ELECTROLYTIC CAP 3300µF/16V M CE1CMZNDL332 C645 CAP ALUMINUM ELECTOLYTIC 2200µF/6.3V MCE0KMZNDL222

C646 POLYESTER FILM CAP. (PB FREE) 0.0022µF/

C648 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C649 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C650 POLYESTER FILM CAP. (PB FREE) 0.022µF/

C652 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C653 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221 C654 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221 C656 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C657 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C676 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C681 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C682 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C683 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C684 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C691# SAFTY CAP. 1000pF/250V KX CA2E102MR101 C693# SAFTY CAP. 1000pF/250V KX CA2E102MR101 C723 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C724 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C731 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C732 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C733 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C734 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 C735 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 C736 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 C743 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C744 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C771 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C772 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C775 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C776 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C801 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105

100V J

CA2A152DT018

CA2A102DT018

CA2A222DT018

CA2A223DT018

2011/10/31 14-2 A17F6EL.fm

Ref. No. Description Part No.

C803 CHIP CERAMIC CAP.(1608) B K 0.47µF/25V CHD1EK30B474 C804 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C805 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C806 CHIP CERAMIC CAP.(1608) B K 0.47µF/25V CHD1EK30B474 C807 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C808 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C809 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C810 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C814 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C815 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C816 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C817 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C818 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C819 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C820 CHIP CERAMIC CAP.(1608) B K 0.47µF/25V CHD1EK30B474 C821 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C822 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C823 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102 C824 CHIP CERAMIC CAP.(1608) B K 0.47µF/25V CHD1EK30B474 C825 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C826 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C827 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C828 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C829 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C831 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C834 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474 C835 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C836 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474 C837 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C838 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C839 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C841 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C842 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C843 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C844 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C845 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C846 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C871 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332 C872 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332 C873 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C874 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C875 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C876 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C877 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C878 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C879 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C880 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C882 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C883 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C884 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C885 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225

CONNECTORS

CN101 CONNECTOR PRINT OSU B5B-PH-K-S

CN201 FFC CONNECTOR 15P IMSA-9615S-15A-PP-A JC96J15ER007 CN301 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN302 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN602# WIRE ASSEMBLY 3PIN 3PIN 145MM R/B/W WX1A01F0-201 CN801 PH CONNECTOR TOP 2P B2B-PH-K-S

CN802 PH CONNECTOR TOP 2P B2B-PH-K-S

(LF)(SN)

J3PHC05JG029

J3PHC02JG029

Ref. No. Description Part No.

DIODES

D202 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D203 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D204 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D205 DIODE ZENER 33BSA-T26 NDTA033BST26 D206 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D207 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D208 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D209 DIODE ZENER 39BSB-T26 NDTB039BST26 D210 DIODE ZENER 5V1BSB-T26 NDTB5R1BST26 D211 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D401 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D404 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D405 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D406 DIODE ZENER 27BSB-T26 NDTB027BST26 D407 DIODE ZENER 10BSB-T26 NDTB010BST26 D409 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D410 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D411 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D412 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D413 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D414 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D415 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D417 DIODE ZENER 3V9BSB-T26 NDTB3R9BST26 D418 DIODE ZENER 3V9BSB-T26 NDTB3R9BST26 D419 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D420 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D421 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D601# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D602# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D603# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D604# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D607 DIODE ZENER 11BSB-T26 NDTB011BST26 D608# DIODE ZENER 27BSB-T26 NDTB027BST26 D609# DIODE ZENER 27BSB-T26 NDTB027BST26 D610 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D612# DIODE FR104-B NDLZ000FR104 D613 DIODE FR104-B NDLZ000FR104 D614# DIODE FAST RECOVERY FR103-B/P NDWZ0FR103BP D615# DIODE ZENER 39BSB-T26 NDTB039BST26 D616# DIODE ZENER 27BSB-T26 NDTB027BST26 D617 DIODE FAST RECOVERY FR103-B/P NDWZ0FR103BP D619 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D621 DIODE ZENER 1ZB200-YBB NDWZ01ZB200Y D622# DIODE FAST RECOVERY FR103-B/P NDWZ0FR103BP D631 DIODE SCHOTTKY BARRIER SB2150BD NDWZ00SB2150 D632 DIODE FR104-B NDLZ000FR104 D633 DIODE FAST RECOVERY FR151-B/P NDWZ0FR151BP D635 DIODE ZENER 24BSB-T26 NDTB024BST26 D638 DIODE FR154 NDLZ000FR154 D639 DIODE ZENER 1ZB43BB NDWZ0001ZB43 D641 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390 D642 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390 D643 DIODE FR104-B NDLZ000FR104 D644 DIODE ZENER 7V5BSB-T26 NDTB7R5BST26 D645 SHUNT REGULATOR KIA431B-AT/P NSZBA0TJY038 D646 DIODE SCHOTTKY SB360BH NDWZ000SB360 D647 SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140 D648 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D652 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D653 IC SHUNT REGULATOR KIA431-AT/PF5 NSZBB0TJY036 D654 WIRE COPPER 6111-06003-0120 XZ40C0SHG002

2011/10/31 14-3 A17F6EL.fm

Ref. No. Description Part No.

D655 RECTIFIER DIODE 1N4005 NDQZ001N4005 D657 DIODE ZENER 33BSB-T26 NDTB033BST26 D658 DIODE ZENER 3V3BSB-T26 NDTB3R3BST26 D659 DIODE ZENER 5V6BSA-T26 NDTA5R6BST26 D660 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D661 DIODE FR154 NDLZ000FR154 D662 DIODE FR154 NDLZ000FR154 D664 DIODE ZENER 4V7BSB-T26 NDTB4R7BST26 D665 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D666 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D670 DIODE ZENER 10BSB-T26 NDTB010BST26 D671 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D676 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D801 DIODE ZENER 20BSB-T26 NDTB020BST26 D802 DIODE ZENER 20BSB-T26 NDTB020BST26 D803 DIODE ZENER 20BSB-T26 NDTB020BST26 D804 DIODE ZENER 20BSB-T26 NDTB020BST26

ICS

IC201 IC TL3472CDR NSZBA0TTY115 IC601# IC PHOTOCOUPLER TLP781F(D4-FUNBLL F) QPEL781FBLLF IC602# IC SWITING FA5571N-D1-TE1/SOP-8 QSCA0T0FD003 IC631 IC REGULATOR MM3123DPRE QSCA0T0MM108 IC771 IC SWITCHING TC4052BF(ELNF) QSZBA0TTS162 IC801 IC D-CLASS POWER AMPLIFER R2A15124SP-

IC871 IC OP AMP NJM4558M(TE1)-#ZZZB QSZBA0TJR089

W00T

QSCA0T0HT006

COILS

L301 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 L302 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22 L303 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22 L601# COIL LINE FILTER ST0908ET28V-016 LLEG0Z0Y2008 L602# COIL LINE FILTER ST0908ET28V-016 LLEG0Z0Y2008 L801 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L802 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L803 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L804 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L871 WIRE COPPER 6111-06003-0120 XZ40C0SHG002

TRANSISTORS

Q201 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q202 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q203 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q204 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q205 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q207 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q208 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q209 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q210 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q211 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q212 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q213 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q401 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q402 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q601# FET MOS TK5A50D(FUNAI QEWZTK5A50DQ Q602# FET POWER MOS SMD KHB1D0N60D-RTF/

Q603 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q604 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q631 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q634 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q635 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q636 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q637 NPN TRANSISTOR POWER 2SC4881F HFE

PMC

MAX320

NF1ZKHB1D0N6

QQWZ2SC4881F

Ref. No. Description Part No.

Q638 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q639 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q640 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q641 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q642 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q643 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q771 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q772 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q801 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q841 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q871 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q872 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q873 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q874 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

RESISTORS

R201 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R202 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013 R204 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R206 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013 R207 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R208 RES CHIP 1608 1/10W J 1.0 Ω RRXA1R0HH013 R209 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R210 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R211 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R212 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R213 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R214 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R216 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R217 RES CHIP 1608 1/10W J 1.5k Ω RRXA152HH013 R218 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R219 RES CHIP 1608 1/10W J 15k Ω RRXA153HH013 R220 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013 R223 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R224 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R225 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R226 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R227 RES. CARBON FILM J 1/2W J 5.6 Ω RCX25R6T1003 R228 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R229 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R231 RES CHIP 1608 1/10W J 1.5k Ω RRXA152HH013 R232 RES CHIP 1608 1/10W F 9.10k Ω RTW9101HH008 R233 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R234 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008 R235 RES CARBON FILM T 1/4W J 68 Ω RCX4680T1001 R236 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R237 RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001 R238 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R240 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001 R241 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R242 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R243 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001 R245 RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001 R247 RES. CARBON FILM J 1/2W J 5.6 Ω RCX25R6T1003 R248 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R250 METAL OXIDE FILM RES. 1W J 8.2 Ω RN018R2ZU001 R253 RES. CARBON FILM J 1/2W J 5.6 Ω RCX25R6T1003 R302 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R303 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R306 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R307 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R308 RES CHIP 1608 1/10W J 82 Ω RRXA820HH013 R309 RES CHIP 1608 1/10W J 82 Ω RRXA820HH013

2011/10/31 14-4 A17F6EL.fm

Ref. No. Description Part No.

R310 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R401 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R402 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R403 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013 R404 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R405 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001 R407 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R408 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R410 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008 R411 RES CHIP 1608 1/10W F 47.0k Ω RTW4702HH008 R412 RES CHIP 1608 1/10W J 3.3k Ω RRXA332HH013 R601# GLASS GLAZE RES. 1/2W J 2.7M Ω RXX2JZLZ0275 R603# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10 R604 RES CHIP 3216 1/4W J 2.7M Ω RRX4275HH034 R605# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10 R606 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001 R607 RES CHIP 3216 1/4W J 2.7M Ω RRX4275HH034 R609 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R610 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R611 RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001 R612 RES CARBON FILM T 1/4W J 68 Ω RCX4680T1001 R613# METAL OXIDE FILM RES. 2W J 0.47 Ω RN02R47ZU001 R617 RES CARBON FILM T 1/4W J 100k Ω RCX4104T1001 R618 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R619 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R622 RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001 R623 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R624 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R626 RES CARBON FILM T 1/4W J 15k Ω RCX4153T1001 R635 RES. CARBON FILM J 1/2W J 3.9 Ω RCX23R9T1003 R636 RES. CARBON FILM J 1/2W J 3.9 Ω RCX23R9T1003 R637 RES CARBON FILM T 1/4W G 3.3k Ω RCX4332T1002 R638 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R639 RES CARBON FILM T 1/4W G 39k Ω RCX4393T1002 R641 RES CHIP 1608 1/10W D 1.10k Ω RTW1101HH007 R642 RES CHIP 1608 1/10W D 10.0k Ω RTW1002HH007 R643 RES CHIP 1608 1/10W D 10.0k Ω RTW1002HH007 R644 RES CHIP 1608 1/10W F 1.50k Ω RTW1501HH008 R646 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R647 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013 R648 RES CHIP 1608 1/10W F 1.00k Ω RTW1001HH008 R649 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R650 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R651 RES CHIP 1608 1/10W J 1.0 Ω RRXA1R0HH013 R652 RES CHIP 1608 1/10W F 24.0k Ω RTW2402HH008 R653 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R654 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R655 RES CARBON FILM T 1/4W G 27k Ω RCX4273T1002 R657 RES CARBON FILM T 1/4W J 1.0 Ω RCX41R0T1001 R658 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R659 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013 R660 RES CARBON FILM T 1/4W J 820 Ω RCX4821T1001 R661 RES. CARBON FILM J 1/2W J 390 Ω RCX2391T1003 R662 RES CARBON FILM T 1/4W J 15 Ω RCX4150T1001 R663 RES CARBON FILM T 1/4W J 820 Ω RCX4821T1001 R664 RES CARBON FILM T 1/4W J 820 Ω RCX4821T1001 R665 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R667 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R668 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008 R672 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R673 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R674 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R675 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013

Ref. No. Description Part No.

R676 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013 R677 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R678 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R679 RES CHIP 1608 1/10W F 3.60k Ω RTW3601HH008 R680 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008 R682 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001 R683 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001 R685 RES CARBON FILM T 1/4W J 22 Ω RCX4220T1001 R686 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R687 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R688 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R689 RES CARBON FILM T 1/4W J 560 Ω RCX4561T1001 R691 RES CARBON FILM T 1/4W J 1.8 Ω RCX41R8T1001 R693 RES CARBON FILM T 1/4W J 1.5 Ω RCX41R5T1001 R696 METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7ZU001 R697 METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7ZU001 R698 RES CARBON FILM T 1/4W J 2.2 Ω RCX42R2T1001 R723 RES CHIP 1608 1/10W J 15k Ω RRXA153HH013 R724 RES CHIP 1608 1/10W J 15k Ω RRXA153HH013 R725 RES CHIP 1608 1/10W J 39k Ω RRXA393HH013 R726 RES CHIP 1608 1/10W J 39k Ω RRXA393HH013 R731 RES CHIP 1608 1/10W J 75 Ω RRXA750HH013 R732 RES CHIP 1608 1/10W J 75 Ω RRXA750HH013 R733 RES CHIP 1608 1/10W J 75 Ω RRXA750HH013 R734 RES CHIP 1608 1/10W J 10 Ω RRXA100HH013 R735 RES CHIP 1608 1/10W J 10 Ω RRXA100HH013 R736 RES CHIP 1608 1/10W J 10 Ω RRXA100HH013 R743 RES CHIP 1608 1/10W J 15k Ω RRXA153HH013 R744 RES CHIP 1608 1/10W J 15k Ω RRXA153HH013 R745 RES CHIP 1608 1/10W J 39k Ω RRXA393HH013 R746 RES CHIP 1608 1/10W J 39k Ω RRXA393HH013 R763 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R771 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R772 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R773 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R774 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R775 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R776 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R777 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R778 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R779 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R801 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R802 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R807 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R809 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013 R810 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R811 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R812 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R813 RES CHIP 1608 1/10W J 7.5k Ω RRXA752HH013 R814 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013 R815 RES CHIP 1608 1/10W J 7.5k Ω RRXA752HH013 R816 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013 R817 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R818 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R819 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R820 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013 R842 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R843 RES CHIP 1608 1/10W J 110 Ω RRXA111HH013 R844 RES CHIP 1608 1/10W J 220 Ω RRXA221HH013 R846 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013 R847 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013 R848 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013 R871 RES CHIP 1608 1/10W J 560 Ω RRXA561HH013

2011/10/31 14-5 A17F6EL.fm

Ref. No. Description Part No.

R872 RES CHIP 1608 1/10W J 560 Ω RRXA561HH013 R873 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R874 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R875 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R876 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R877 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013 R878 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R879 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013 R880 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013 R881 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013 R882 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013 R883 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R884 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R885 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R886 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R887 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R888 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013 R891 RES CHIP 1608 1/10W J 20k Ω RRXA203HH013 R892 RES CHIP 1608 1/10W J 20k Ω RRXA203HH013 R893 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R894 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013

MISCELLANEOUS

AC601# AC CORD W/O A GND WIRE UL/CSA 1770 NO

B34 POW HEAT SINK A7120UH 1EM423993 B46 HEAT SINK PMM A74F0UH 1EM424517A BC301 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC602 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC603 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC802 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC803 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC804 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC805 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC841 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 CL701 WIRE ASSEMBLY 9P 9PIN/170MM WX1A94F0-002 F601# FUSE STC4A125V U/CT PAGE20CW3402 FH601 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 FH602 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 JK721 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02 JK722 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JK731 JACK RCA PCB S GREEN 01/RCA-101H(GN) JXRJ010YUQ03 JK732 JACK RCA PCB S BLUE 01/RCA-101H(BL) JXRJ010YUQ04 JK733 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JK741 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02 JK742 JACK SW RCA PCB S RED RCA-102H(RD) JYRJ010YUQ03 JK841 JACK RCA PCB S ORANGE 01/RCA-101H(OR) JXRJ010YUQ06 JK871 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02 JK872 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JS202 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 JS302 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 JS303 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 JS630 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 JS633 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 L17 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB T601# TRANS POWER BCK-28-9885 LTT2PC0XB067 TM601 EYELET TYPE D-1 0VM406868 TM602 EYELET TYPE D-1 0VM406868 TU301 TUNER UNIT ATSC TDAU4-D05A UTNATS0AL002

BLACK

WAC0172LW022

JACK CBA

Ref. No. Description Part No.

JACK CBA(MPW-B) Consists of the following:

----------

CAPACITORS

C754 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 C755 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 C756 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 C757 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C758 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225

RESISTORS

R751 RES CHIP 1608 1/10W J 75 Ω RRXA750HH013 R752 RES CHIP 1608 1/10W J 75 Ω RRXA750HH013 R753 RES CHIP 1608 1/10W J 75 Ω RRXA750HH013 R756 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R757 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R758 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R759 RES CHIP 1608 1/10W J 15k Ω RRXA153HH013 R760 RES CHIP 1608 1/10W J 15k Ω RRXA153HH013 R761 RES CHIP 1608 1/10W J 39k Ω RRXA393HH013 R762 RES CHIP 1608 1/10W J 39k Ω RRXA393HH013

MISCELLANEOUS

JK751 JACK SW DIN PCB L DIN-435C(777D) JYEL040YUQ03 JK752 JACK RCA PCB L RCA-101S(1)-03 JXRL010YUQ12 JK753 JACK RCA PCB L RCA-101S(1)-04 JXRL010YUQ13 JK754 JACK SW RCA PCB L RCA-102F(RD) JYRL010YUQ05

INVERTER ASSEMBLY

Ref. No. Description Part No.

INVERTER ASSEMBLY Consists of the following:

INVERTER CBA

----------------------------------------------------------------FUNCTION CBA IR SENSOR CBA

INVERTER CBA

Ref. No. Description Part No.

INVERTER CBA Consists of the following:

CAPACITORS

C1100 CHIP CERAMIC CAP. F Z 2.2µF/50V CHF1JZ30F225 C1101 CHIP CERAMIC CAP. F Z 2.2µF/50V CHF1JZ30F225 C1102 CHIP CERAMIC CAP. F Z 2.2µF/50V CHF1JZ30F225 C1103 CHIP CERAMIC CAP. F Z 2.2µF/50V CHF1JZ30F225 C1104 CAP CERAMIC HV 10pF/6.3KV/SL/J CCC1000MR007 C1105 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C1106 CAP CERAMIC HV 10pF/6.3KV/SL/J CCC1000MR007 C1107 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C1108 CAP CERAMIC HV 10pF/6.3KV/SL/J CCC1000MR007 C1109 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C1110 CAP CERAMIC HV 10pF/6.3KV/SL/J CCC1000MR007 C1111 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C1112 CAP CERAMIC HV 10pF/6.3KV/SL/J CCC1000MR007 C1113 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C1114 CAP CERAMIC HV 10pF/6.3KV/SL/J CCC1000MR007 C1115 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C1116 CHIP CERAMIC CAP. F Z 2.2µF/50V CHF1JZ30F225 C1117 CHIP CERAMIC CAP. F Z 2.2µF/50V CHF1JZ30F225 C1118 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C1119 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C1120 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

A17F6M1V-001

A17F6M1V-001-IV

--------------------------------A17F6M1V-001-FNIR

----------

2011/10/31 14-6 A17F6EL.fm

Ref. No. Description Part No.

C1121 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C1122 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C1123 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C1201 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1202 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C1203 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C1204 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1205 CHIP CERAMIC CAP. F Z 2.2µF/50V CHF1JZ30F225 C1206 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1207 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1208 CAP CHIP 3216 B K 0.47µF/50V CA1J474TE142 C1209 CAP CHIP 3216 B K 0.47µF/50V CA1J474TE142 C1210 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474 C1212 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474 C1213 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1300 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1301 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1302 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1303 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1304 ELECTROLYTIC CAP. 220µF/35V M CE1GMASDL221 C1305 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1311 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1500 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1501 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1700 ELECTROLYTIC CAP. 2200µF/35V M CE1GMZNDL222 C1701 ELECTROLYTIC CAP. 2200µF/35V M CE1GMZNDL222 C1702 CAP CHIP 3216 B K 1µF/50V CA1J105TE142 C1703 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1704 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1705 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C1706 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1707 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1708 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C1905# SAFTY CAP. 1000pF/250V KX CA2E102MR101 C1910 CAP ELECTROLYTIC 270µF/200V CEA271DYG005 C1930 CERAMIC CAP. 680pF/2KV CA3D681PAN04 C1931# CHIP CERAMIC CAP. B K 1800pF/50V CHD1JK30B182 C1932 CHIP CERAMIC CAP. B K 0.056µF/50V CHD1JK30B563 C1933 CHIP CERAMIC CAP. B K 0.1µF/50V CHE1JK30B104 C1970 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222 C1981 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C1982 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47 C1990 CERAMIC CAP. 1500pF/2KV CA3D152PAN04 C1993 ELECTROLYTIC CAP. 2200µF/35V M CE1GMZNDL222 C1994 ELECTROLYTIC CAP. 2200µF/35V M CE1GMZNDL222

CONNECTORS

CN1001 FFC CONNECTOR 15P IMSA-9615S-15A-PP-A JC96J15ER007 CN1003 FFC CONNECTOR IMSA-9615S-11A-PP-A JC96J11ER007 CN1100# CONNECTOR/JACK 1747386-1 JB17J02AP002 CN1101# CONNECTOR/JACK 1747386-1 JB17J02AP002 CN1102# CONNECTOR/JACK 1747386-1 JB17J02AP002 CN1901# CONNECTOR PRINT OSU 3 S B3P4-VH-L J3VH030JG015

DIODES

D1200 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1201 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1202 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1203 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1300 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D1301 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D1500 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U D1501 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U D1502 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U

Ref. No. Description Part No.

D1503 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U D1504 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U D1505 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U D1506 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U D1507 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U D1508 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U D1700 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1701 DIODE ZENER 15BSB-T26 NDTB015BST26 D1702 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1703 DIODE ZENER 15BSB-T26 NDTB015BST26 D1704 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1705 DIODE ZENER 15BSB-T26 NDTB015BST26 D1706 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1707 DIODE ZENER 15BSB-T26 NDTB015BST26 D1930# DIODE ZENER 27BSB-T26 NDTB027BST26 D1931 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D1932 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1933 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1934# DIODE ZENER 1ZB36BB NDWZ0001ZB36 D1970 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D1971 DIODE ZENER 30BSB-T26 NDTB030BST26 D1973 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1990 DIODE SCHOTTKY SB3150BH NDWZ00SB3150 D1991 DIODE SCHOTTKY SB3150BH NDWZ00SB3150 D1992 DIODE SCHOTTKY SB3150BH NDWZ00SB3150 D1994 DIODE ZENER 1ZB30BB NDWZ0001ZB30

ICS

IC1200 IC INVERTER CONTROL BD9244AFV/SSOP/

IC1930# IC PHOTOCOUPLER TLP781F(D4-FUNBLL F) QPEL781FBLLF IC1931# IC PHOTOCOUPLER TLP781F(D4-FUNBLL F) QPEL781FBLLF

24PIN

QSCA0T0RM222

TRANSISTORS

Q1201 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S Q1202 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S Q1300 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U Q1301 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S Q1303 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U Q1700# FET MOS SMD TK50P04M1(T6RSS-Q) QF1ZK50P04M1 Q1701# FET MOS SMD TK50P04M1(T6RSS-Q) QF1ZK50P04M1 Q1702# FET MOS SMD TK50P04M1(T6RSS-Q) QF1ZK50P04M1 Q1703# FET MOS SMD TK50P04M1(T6RSS-Q) QF1ZK50P04M1 Q1930# MOS FET TK7A50D(FUNAI QEWZTK7A50DQ Q1931# TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1932# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q1970 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S Q1971 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S Q1972 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S

RESISTORS

R1100 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008 R1101 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1102 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008 R1103 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002 R1104 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008 R1105 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008 R1106 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002 R1107 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008 R1108 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008 R1109 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008 R1110 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1111 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008 R1112 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008 R1113 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1114 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008

2011/10/31 14-7 A17F6EL.fm

Ref. No. Description Part No.

R1115 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002 R1116 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008 R1117 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008 R1118 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002 R1119 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008 R1120 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008 R1121 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008 R1122 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1123 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008 R1124 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008 R1125 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1126 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008 R1127 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002 R1128 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008 R1129 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008 R1130 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002 R1131 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008 R1132 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008 R1133 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008 R1134 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1135 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008 R1200 RES CHIP 1608 1/10W J 68k Ω RRXA683HH013 R1201 RES CHIP 1608 1/10W J 68k Ω RRXA683HH013 R1202 RES CHIP 1608 1/10W F 130k Ω RTW1303HH008 R1203 RES CHIP 1608 1/10W F 8.20k Ω RTW8201HH008 R1204 RES CHIP 1608 1/10W F 75.0k Ω RTW7502HH008 R1205 RES CHIP 1608 1/10W F 560k Ω RTW5603HH008 R1206 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R1207 RES CHIP 1608 1/10W J 33k Ω RRXA333HH013 R1208 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R1209 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013 R1212 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R1213 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013 R1214 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1215 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R1216 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013 R1221 RES CHIP 1608 1/10W J 1.0 Ω RRXA1R0HH013 R1222 RES CHIP 1608 1/10W J 10 Ω RRXA100HH013 R1223 RES CHIP 1608 1/10W J 10 Ω RRXA100HH013 R1229 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1300 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008 R1301 RES CHIP 1608 1/10W F 47.0k Ω RTW4702HH008 R1302 RES CHIP 1608 1/10W F 51.0k Ω RTW5102HH008 R1303 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013 R1304 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013 R1305 METAL OXIDE RES. 2W J 510 Ω RN02511ZU001 R1306 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R1307 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013 R1308 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013 R1309 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R1310 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R1500 RES CHIP 1608 1/10W F 1.00M Ω RTW1004HH008 R1501 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1502 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1503 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1504 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1505 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1506 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1507 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1508 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1509 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1510 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1511 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008

Ref. No. Description Part No.

R1512 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1513 RES CHIP 1608 1/10W F 1.00M Ω RTW1004HH008 R1514 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008 R1515 RES CHIP 1608 1/10W F 27.0k Ω RTW2702HH008 R1516 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1700 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013 R1701 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R1702 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013 R1703 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R1704 METAL OXIDE FILM RES. 1W J 4.7 Ω RN014R7ZU001 R1705 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013 R1706 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R1707 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013 R1708 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R1709 METAL OXIDE FILM RES. 1W J 4.7 Ω RN014R7ZU001 R1930 RES CARBON FILM T 1/4W J 47 Ω RCX4470T1001 R1931 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001 R1932 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001 R1933 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001 R1934 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001 R1935 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001 R1936 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R1937# METAL OXIDE FILM RES. 2W J 0.39 Ω RN02R39ZU001 R1938 RES CARBON FILM T 1/4W J 82k Ω RCX4823T1001 R1939 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1949 RES CARBON FILM T 1/4W J 150k Ω RCX4154T1001 R1967 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001 R1970 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R1972 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R1973 RES CHIP 1608 1/10W J 3.3k Ω RRXA332HH013 R1977 RES CHIP 1608 1/10W F 20.0k Ω RTW2002HH008 R1979 RES CHIP 1608 1/10W F 6.80k Ω RTW6801HH008 R1980 RES CHIP 1608 1/10W F 180 Ω RTW1800HH008 R1981 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1982 RES CHIP 1608 1/10W J 1.5k Ω RRXA152HH013 R1986 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013 R1988 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013

MISCELLANEOUS

B34 POW HEAT SINK A7120UH 1EM423993 BC1301 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 BC1930 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC1931 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 JS1200 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 L17 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 T1950# TRANS POWER BCK-28CM LTT2PCMEK031

When you replace one of the below Trans Inverters on this CBA, please replace with the one that has same parts number. Do not mix different parts number’s Trans Inverter.

T1100# TRANS INV TZ.7617A.101 LTZ3PZDAR014 T1101# TRANS INV TZ.7617A.101 LTZ3PZDAR014 T1102# TRANS INV TZ.7617A.101 LTZ3PZDAR014

or T1100# TRANS INV HVT-325 LTZ3PZ0XB018 T1101# TRANS INV HVT-325 LTZ3PZ0XB018 T1102# TRANS INV HVT-325 LTZ3PZ0XB018

2011/10/31 14-8 A17F6EL.fm

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA Consists of the following:

----------

CAPACITOR

C108 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062

RESISTORS

R108 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R109 RES CARBON FILM T 1/4W G 10k Ω RCX4103T1002 R111 RES CARBON FILM T 1/4W G 4.7k Ω RCX4472T1002 R112 RES CARBON FILM T 1/4W G 2.7k Ω RCX4272T1002 R113 RES CARBON FILM T 1/4W G 4.7k Ω RCX4472T1002 R114 RES CARBON FILM T 1/4W G 8.2k Ω RCX4822T1002 R115 RES CARBON FILM T 1/4W G 18k Ω RCX4183T1002

SWITCHES

SW101B TACT SWITCH SKQSAB SST0101AL038 SW103B TACT SWITCH SKQSAB SST0101AL038 SW104B TACT SWITCH SKQSAB SST0101AL038 SW105B TACT SWITCH SKQSAB SST0101AL038 SW106B TACT SWITCH SKQSAB SST0101AL038 SW107B TACT SWITCH SKQSAB SST0101AL038

IR SENSOR CBA

Ref. No. Description Part No.

IR SENSOR CBA Consists of the following:

CAPACITORS

C101 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470 C103 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C104 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

DIODE

D101 LED (WHITE) SLR343WBC7T3XM QPWM343WBC7T

RESISTORS

R101 RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001 R102 RES CHIP 1608 1/10W J 3.3k Ω RRXA332HH013 R103 RES CHIP 1608 1/10W J 9.1k Ω RRXA912HH013 R106 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013

MISCELLANEOUS

CL102 WIRE ASSEMBLY 5PIN 5PIN/180MM WX1A17F6-201 CL103 WIRE ASSEMBLY 4PIN 4PIN/35MM WX1A17F6-202 RS101 SENSOR REMOTE RECEIVER KSM-712TH2E USESJRSKK044

----------

2011/10/31 14-9 A17F6EL.fm

TYPE A

PARTS LIST [32PFL3506/F7 (Serial No.: XA1)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model 32PFL3506/F7 (Serial No. : DS1)

Ref. No. Description Part No.

A12# RATING LABEL A17FCMA ---------S1 CARTON A17FCMA 1EM436099 S17 CARTON LABEL A17FCMA ---------X2# OWNERS MANUAL A17FCMA 1EMN28539

2011/10/31 14-10 A17FCCA.fm

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model 32PFL3506/F7 (Serial No. : DS1)

There are no different parts from the original model 32PFL3506/F7 (Serial No : DS1). Refer to the parts list for the original model 32PFL3506/F7 (Serial No : DS1).

2011/11/22 14-11 A17FCEL.fm

TYPE B

PARTS LIST

[32PFL3506/F7 (Serial No.: DS2), 32PFL3000/F8 (Serial No.: XA2)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model 32PFL3506/F7 (Serial No. : DS1)

Ref. No. Description Part No.

A8 JACK HOLDER A17FGUH 1EM226563 A15 Not used A42 ENERGY GUIDE LABEL A17F6UH ---------B1 SHIELD BOX A17F4UH 1EM225624 S1 CARTON A17FGUH 1EM436857 X2# OWNERS MANUAL A17FGUH 1EMN28819 X6 QUICK START GUIDE A17FGUH 1EMN28820

2011/10/31 14-12 A17FGCA.fm

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model 32PFL3506/F7 (Serial No. : DS1)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A17FGMMA-001

MPW CBA A17FGMPW-001

POWER SUPPLY CBA(MPW-A) ---------C403 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C606 Not used C606A CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152 C608 Not used C608A CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C646 Not used C646A CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222 C650 Not used C650A CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C658 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C734 Not used C735 Not used C736 Not used C801 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C815 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C835 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221 C837 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221 C875 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C876 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C877 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C878 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C882 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013 C883 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013 D423 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D607A RES CHIP 1608 1/10W 0 Ω RRXA000HH014 D621 Not used D652A RES CHIP 1608 1/10W 0 Ω RRXA000HH014 D659A RES CHIP 1608 1/10W 0 Ω RRXA000HH014 IC871 IC OP AMP NJM4558M(TE2)-PBF/DM QSCA0T0JR010 R209 Not used

Ref. No. Description Part No.

R211 Not used R214 Not used R302 Not used R303 Not used R409 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013 R691 Not used R693 Not used R698 Not used R701 METAL OXIDE FILM RES. 2W J 2.2 Ω RN022R2ZU001 R702 METAL OXIDE FILM RES. 1W J 2.2 Ω RN012R2ZU001 R801 Not used R810 Not used R811 Not used R812 Not used R813 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R815 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R842 Not used R875 Not used R876 Not used R879 RES CHIP 1608 1/10W J 16k Ω RRXA163HH013 R880 RES CHIP 1608 1/10W J 16k Ω RRXA163HH013 R891 RES CHIP 1608 1/10W J 33k Ω RRXA333HH013 R892 RES CHIP 1608 1/10W J 33k Ω RRXA333HH013 R896 RES CHIP 1608 1/10W 0 Ω RRXA000HH014

JACK CBA(MPW-B) ---------C754 Not used C755 Not used C756 Not used

2011/10/31 14-13 A17FGEL.fm

REVISION HISTORY

Chassis PL11.0

• 2011-03-28 32PFL3506/F7 (Serial No. : DS1) added

• 2011-08-25 32PFL3506/F7 (Serial No. : DS2) added

• 2011-11-05 32PFL3000/F8 (Serial No. : XA1) added Note: Identical product to the 32PFL3506/F7 (Serial No.: DS1).

• 2011-11-05 32PFL3000/F8 (Serial No. : XA2) added Note: Identical product to the 32PFL3506/F7 (Serial No.: DS2).

• 2011-11-28 32PFL3506/F7 (Serial No. : XA1) added

• TBD 32PFL3506/F7 (Serial No. : DS3) added

15-1 PL11.0REV

COMPARISON LIST OF MODEL NAME

Chassis PL11.0

32PFL3506/F7 (DS1) A17F6UH

(DS2) A17FGUH (DS3) A17FHUH (XA1) A17FCMA

32PFL3000/F8 (XA1) A1AF7MA

(XA2) A1AFBMA

PL11.0COM

Magnavox 19MF301B/F7, 32PFL3000/F8 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

ELECTRICAL ADJUSTMENT INSTRUCTIONS

HOW TO INITIALIZE THE LCD TV

FIRMWARE RENEWAL MODE

TROUBLESHOOTING

BLOCK DIAGRAMS

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

WAVEFORMS

WIRING DIAGRAM

EXPLODED VIEWS

PARTS LIST [32PFL3506/F7 (Serial No.: XA1)]

REVISION HISTORY
