WiFi System
Installation Manual
WiFi Antenna Base/Housing
For Technical Assistance, please call (800) 638-3600,
RV2400
Extender
RV2458
Router
or visit www.magnadyne.com
Page 2
1
2A
Ethernet
Cable
Power
Cable
2B
Wire Tie
Cover Plate
Remove cover plate from wall. A) Bring Blue Ethernet and Blue Power Cables
through the wall.
B) Cut wire-tie & discard cover plate.
43
RV2458
Control Unit
A) Bring Blue Ethernet and Blue Power Cables
through center hole of new cover plate.
B) Screw new cover plate to wall using
original mounting holes.
2
Mount Router Control Unit to wall near
the new cover plate as pictured using
included screws.
Page 3
5 6
WARNING
Do not connect a
computer or electronic
device to Ethernet port.
Will Cause Damage
Roof Repeater Only
Bottom View
#10-24 UNC
Threaded
Machine
Screws
Lock
Washers
WiFi
Housing
Connect Blue Ethernet and Blue Power Cables
to RV2458 Control Unit as pictured.
Router Control Unit Installation Complete.
7 8
Remove 4 Machine Screws
(#10-24 UNC Threaded) and 4 Lock Washers from WiFi Housing on roof.
Wire-tie
Set WiFi Housing aside. DO NOT extend
Cables from roof further than necessary.
3
Cut Wire-tie from Blue Ethernet Cable
connected to the tube.
Page 4
9 10
TV Antenna
Cable
RV2400
Roof
Repeater
Base

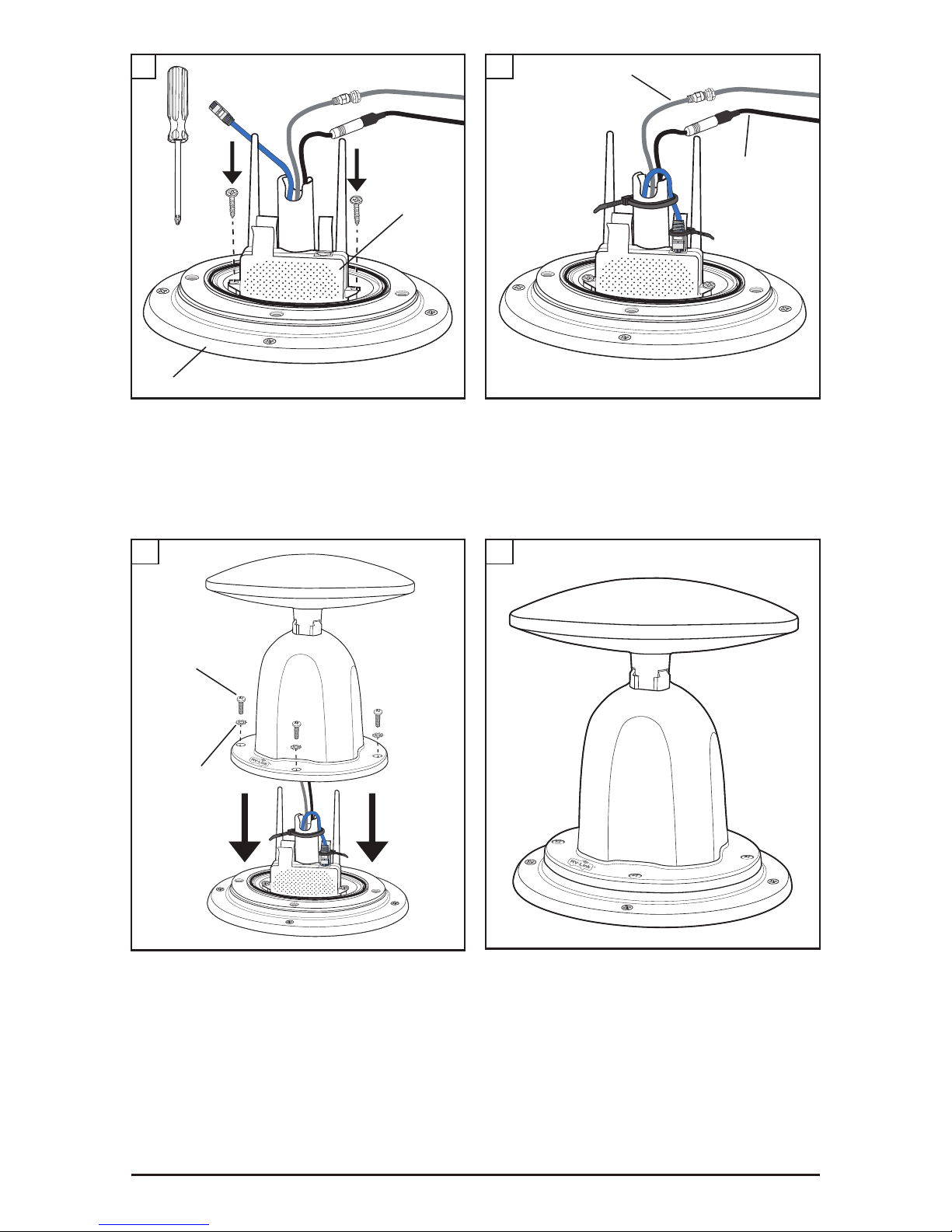

Place RV2400 Roof Repeater into Base in
location shown and screw to posts using
included screws.
WARNING
Use screwdriver and Hand Tighten only.
Radio
Antenna
Cable
A) Plug Blue Ethernet Cable into RV2400 Roof
Repeater unit.
B) Wire-tie Blue Ethernet Cable to RV2400
Roof Repeater as shown. Add new wire-tie
to tube to provide strain relief.
1211
#10-24 UNC
Threaded
Machine
Screws
Lock
Washers
A) Place WiFi Housing back onto Base, make
sure Cables fit securely inside Base, are
not pinched, and do not interfere with
RV2400 antennas.
B) Attach 4 Machine Screws
(#10-24 UNC Threaded) and 4
Lock Washers to mount.
WARNING - Make sure the O-ring is in
place & screws are tight.
RV2400 Roof Repeater Installation Complete.
The RV WiFi System is ready for use. Refer to
RV2458 Software Quickstart Guide for setup.
4
Copyright © 2017 Magnadyne Corp.
RV-LINK-INS Rev. A
