Owner's Manual
DVD
• CD • CDRW • MP3 PLAYER
PREV/CH
-
ST
OP
PLAY/PAUSE
NEXT/CH
+
IR
DVD
TV
AV
SOURCE
AUTO
V
V
VIDEO IN
L AUDIO IN 1 R
SETUP
POWER
ENTER
Mobile DVD Player
Model: MV-DVD-PL5
For operational or technical assistance, after reading this manual,
please call us toll free at (800) 638-3600.
Features
• Compatible with PAL and NTSC Systems
This player can play discs recorded in
either PAL or NTSC format.
• CD, DVD, CD-R, CD-RW, MP3 Compatible.
• L/R stereo analog audio outputs for
connection to existing head unit aux.
inputs. Video output is composite video.
Use this Product Safely
Driving
Be aware of road and traffic conditions.
Keep the volume at a low level.
Moisture
Do not expose the product to water or
excessive moisture. This could cause
electrical shorts, fire or other damage.
Parking
Parking in direct sunlight can produce very
high temperatures inside your vehicle.
Give the car interior a chance to cool down
before starting playback.
Proper Power Supply
This product is designed to operate with a
12 Volt DC, negative ground battery system.
• Supplied Remote Features: multi-language
audio-track/subtitle, multi-angle, plus all
basic functions.
• Built-In PLL TV Tuner
Protecting the Disc Mechanism
Avoid inserting any foreign objects into the
slot of this player. Failure to observe this precaution may cause malfunction of this unit.
Repairs
Contact our customer service representatives. Do not attempt to disassemble or
adjust this product yourself.
Installation
The unit should be installed in a horizontal
position with the front end up at a convenient
angle of not more than 30°.
2
Contents
Safety Information . . . . . . . . . . . . . . . . . 3
Disc Notes . . . . . . . . . . . . . . . . . . . . . . . 4
DVD Player (Front & Back View) . . . . . . 7
Installation . . . . . . . . . . . . . . . . . . . . . . . 6
Electric Connection . . . . . . . . . . . . . . . . . 7
Remote Control . . . . . . . . . . . . . . . . . . . 8
Location of Keys/Preparing Remote. . . 8
Remote Control Functions . . . . . . . . . . 9
Basic Operation . . . . . . . . . . . . . . . . . . 10
Turning the Unit On . . . . . . . . . . . . . . 10
Basic Play. . . . . . . . . . . . . . . . . . . . . . 10
DVD Video Menu . . . . . . . . . . . . . . . . 11
Mode Selection . . . . . . . . . . . . . . . . . 11
Reset Function . . . . . . . . . . . . . . . . . 11
Last Play Memory . . . . . . . . . . . . . . . 11
Advanced Operation. . . . . . . . . . . . . . . 12
Repeat Play . . . . . . . . . . . . . . . . . . . . 12
PBC Menu Playback VCD. . . . . . . . . . 12
Safety Information
CAUTION:
MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT.
HOWEVER, THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE
HAZARDOUS RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THE MOBILE DVD PLAYER
CORRECTLY AS INSTRUCTED. USE OF CONTROLS
OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
• TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
• TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK AND ANNOYING INTERFERENCE,
USE ONLY THE RECOMMENDED ACCESSORIES.
• THIS DEVICE IS INTENDED FOR CONTINUOUS
OPERATION.
On-Screen Display Function . . . . . 12-13
PAL/NTSC System Selection . . . . . . . 13
Random Playing. . . . . . . . . . . . . . . . . 14
Zoom Function. . . . . . . . . . . . . . . . . . 14
Special Function for DVD. . . . . . . . . . 14
Data Disc and Audio CD Play . . . . . . . 16
Setup . . . . . . . . . . . . . . . . . . . . . . . . . 17
Language Setup. . . . . . . . . . . . . . . . . 17
Display Setup. . . . . . . . . . . . . . . . . . . 18
Audio Setup . . . . . . . . . . . . . . . . . . . . 18
Lock Setup. . . . . . . . . . . . . . . . . . . . . 18
Others Setup . . . . . . . . . . . . . . . . . . . 18
TV Operation . . . . . . . . . . . . . . . . . . . 20
Specifications . . . . . . . . . . . . . . . . . . 22
Troubleshooting. . . . . . . . . . . . . . . . . . 23
Replacement Parts . . . . . . . . . . . . . . . . 23
Warranty . . . . . . . . . . . . . . . . . . . . . . . . 24
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Magnadyne Corporation and
other rights owners. Use of this copyright
protection technology must be authorized by
Magnadyne Corporation and is intended for home
and other limited viewing uses only unless otherwise authorized by Magnadyne Corporation.
Reverse engineering or disassembly is prohibited.
Region Management Information:
This Mobile DVD Player is designed and manufactured to respond to the Region Management
Information that is recorded on a DVD disc. If the
Region number described on the DVD disc does
not correspond to the Region number of this
Mobile DVD Player, this Mobile DVD Player cannot
play this disc.
3
Disc Notes
V
I
D
E
O
Label side up
Do not touch
the underside
of the disc
Do not bend
Wipe the disc from center
toward the outside edge
Rough spots
on inside edge
Ball point pen
or pencil
Rough spots on
outside edge
Disc Formats Supported by this Player:
Discs which Cannot be Played with this
Player:
• DVD-ROM
• DVD-R/DVD-RAM
• CDV
• CD-G
Handling and Cleaning
• Dirt, dust, scratches and warping disc
will cause non operation.
• Do not place stickers on disc or
scratch disc.
• Do not warp discs.
• A disc should always be kept in its case
when not in use to prevent damage.
• Do not place discs in the following
places:
1. Direct sunlight
2. Dirty, dusty and damp areas
3. Near car heaters
4. Car seats or dashboard
Note: A disc may become somewhat
scratched (although not enough to
make it unusable) depending on handling and conditions in the usage environment.
Preparing New Discs with Rough Spots
A new disc may have rough edges on its
inside and outside edges. If a disc with
rough edges is used, the proper setting
will not be performed and the player will
not play the disc. Therefore, remove the
rough edges in advance by using a ball
point pen or pencil as shown. To do this,
press the side of the pen or pencil against
the inside and outside edges of the disc.
Disc Cleaning
Use a dry soft cloth to wipe the surface. If
the disc is quite dirty, use a soft cloth
slightly moist with isopropyl (rubbing) alcohol.
Never use solvents such as benzine, thinner
or conventional record cleaners as they
may mar the surface of the disc.
4
DVD • CD • CDRW • MP3 PLAYER
PREV/CH
-
STOP
PLAY/PAUSE
NEXT/CH
+
IR
DVD
TV
AV
SOURCE
AUTO
V
V
VIDEO IN
L AUDIO IN 1 R
SETUP
POWER
ENTER
2
21
18
10
8
6
7
9
17
15
13
16
11
20
4
3
5
12
22
19
1
Front View
AUDIO
VIDEO
S-VIDEO
REM
OTE
DIGITAL
AUDIO
TYPE
AV OUTPUT
VIDE
OAUDIO
1
2
AB
DC 12V
ANT IN
33
31
32
30
26
24
28
29
27
25
23
INPUT OUTPUT
,
DVD Unit Functions
1. POWER
2. EJECT
3. SETUP
4. AUTO
5. SOURCE
6. Disc Slot
7. PLAY/PAUSE
8. STOP n
9. PREVIOUS/CH-
10. NEXT/CH+
^
11. VOLUME DOWN
Back View
NTSC System
23. DC 12V INPUT socket
24. DC 12V OUTPUT socket
25. AV OUTPUT TYPE switch
26. DIGITAL AUDIO
27. REMOTE socket
28. S-VIDEO socket
12. VOLUME UP
^
13. Cursor buttons
ENTER
14.
15. Indicator Light for DVD
16. Indicator Light for AV
17. Indicator Light for TV
18. VIDEO IN
19. AUDIO IN L.
20. AUDIO IN R.
21. IR
RESET BUTTON
22.
29. AUDIO OUTPUT 1
30. VIDEO OUTPUT 1
31. AUDIO OUTPUT 2
30. VIDEO OUTPUT 2
33. ANT IN
5
SCREW
M5x25
SCREW
M4x5
SCREW
M4x5
Screws Lock the Player Mechanism
Installation
AUDIO VIDEO
S-VIDEO
REMOTE
DIGITAL
AUDIO
INPUT
TYPE
OUTPUT
AV OUTPUT
VIDEOAUDIO
1
2
AB
DC
12V
ANT IN
MV-DVD-PL5
Male/Male
Jumper Cable
(not supplied)
Infrared Eye (supplied with DVD)
Digital Audio (optional)
Connecting to a VCR as an Auxiliary Source
VCR with
AUX IN
Red
Ignition
12V
Black Ground
Yellow Battery Power
Yellow
Red
White
Optional Audio/Video
Output
Note:
1. First remove the two screws that lock the
player mechanism (see figure below).
Then attach the brackets on both sides
of unit with the M4x5 screws. Next,
install the unit with the M5x25 screws.
Electric Connection
2. When mounting the unit, slide the
screws to the left or right side to meet
desired position. Select position 1 and 3,
or 2 and 4 to mount the bracket.
6
AUDIO VIDEO
S-VIDEO
REMOTE
DIGITAL
AUDIO
INPUT
TYPE
OUTPUT
AV OUTPUT
VIDEOAUDIO
1
2
AB
DC 12V
ANT IN
MV-DVD-PL5
Digital Audio
(optional)
MV-DVD-PA
MV-PL3IRA
Connecting to a MovieVision Systems as the Only Source
MV-PM710
Connecting to a MovieVision System as the Second Source
Red Ignition 12V
Black Ground
R
Y
ellow Battery Power
Y
Yellow
Red
White
Optional Audio/Video Output
AUDIO
AUX
IN OUT
VIDEO
S-VIDEO
REMOTE
DIGITAL
AUDIO
INPUT
TYPE
OUTPUT
AV OUTPUT
VIDEOAUDIO
1
2
AB
DC 12V
ANT IN
MV-DVD-PL5
MV-PL3IRA
Red Ignition 12V
Black Ground
VCR With
AUX IN
Yellow Battery Power
White
Yellow
Red
Optional Audio/Video Output
WC3-XX
(not supplied)
MV-PM710
Electric Connection
Note:
• The S-Video output is only effective on
DVD, not on AV1 and AV2.
• Slide AV OUTPUT TYPE switch on the back
of the unit left or right to select A or B.
When the switch is set to A, the AV
OUTPUT 1
under the Control of the MODE button
on the remote or the SOURCE button on
and AV OUTPUT 2 are both
the front panel of the unit. When the
switch is set to
only output the
B, the AV OUTPUT 1 will
AV INPUT 1 signal and
cannot be controlled using the MODE or
SOURCE buttons. However, the signal
output from
AV OUTPUT 2 can be
accessed using the MODE or SOURCE
button or the volume up/down buttons.
7
1
3
7
11
14
15
19
18
21
23
22
24
20
17
16
13
12
10
28
27
32
25
29
30
26
4
8
5
2
6
31
9
Remote Control
Preparing the Remote Control
Preparing/Using the Remote Control
Inserting the Batteries:
1. Open the battery compartment cover.
2. Insert the two AAA size batteries. Make sure
that the positive and negative terminals of
the batteries are oriented correctly.
3. Close the battery compartment cover.
8
Using the Remote Control
Point the remote control towards the
remote infrared sensor (IR).
Remote Control Functions
,
1. POWER: Turns the unit ON or OFF.
2. EJECT: Ejects the disc.
3. MUTE: Mutes the sound.
4. SUBTITLE: Changes the SUBTITLE language on multi-subtitle language DVD disc.
5. ANGLE: Changes the view angle on multi-angle DVD disc.
CONSOLE: Displays statistical disc information during playback.
6.
7. MODE: Changes between DVD, TV and AV mode.
8. SETUP: Displays the SETUP menu.
9.
PAL/NTSC: Switches between PAL and NTSC mode.
10. AUDIO: Changes the AUDIO soundtrack on multi-audio soundtrack DVD disc.
11. TITLE: Displays the TITLE menu that is stored on the DVD disc.
12. MENU: Displays the root menu that is stored on the DVD disc. In TV mode, use it to
enter search mode. Press to search TV channels.
13. NAVIGATION: In MENU mode, buttons serve as cursor buttons to select item
left/right, forward/back.
14. ENTER: Confirms the Track/Chapter selected with the numeric buttons or selected with
the cursor buttons on TV screen.
15. SLOW FW/RV: Slow FORWARD/REVERSE playback motion.
PLAY: Plays the disc.
16.
17. RAPID FW/RV: Searches FORWARD rapidly. REWINDS rapidly.
18. SKIP: Skips forward one track. Skips back one track.
19. STOP: n STOPS Play.
20. PAUSE: PAUSES Play.
21. 0-9: Numeric buttons.
22. 10+: Digital selection button, used in combination with numeric buttons.
23. CLEAR: Clears number when input in error.
VOLUME: VOLUME+/- Increases or decreases the volume level.
24.
25. ZOOM: Enlarges or reduces size of picture.
26. BOOKMK: Press to enter bookmark function during playback.
27. GOTO: Goes to the bookmark that you selected.
28. PBC: Change between PBC On and PBC Off on the VCD Disc.
29. RANDOM: Plays tracks in RANDOM order.
30. PROGRAM: Plays tracks in the order programmed.
31. REPEAT: Switches the REPEAT mode of discs.
32. A-B: Allows a passage to be repeated continuously.
9
Basic Operation
DVD • CD • CDRW • MP3 PLAYER
PREV/CH
STOP
PLAY/PAUSE
NEXT/CH
+
IR
DVD
TV
AV
SOURCE
AUTO
V
V
VIDEO IN
L AUDIO IN 1 R
SETUP
POWER
ENTER
Disc Slot
Eject
Button
Power
Button
Normal Playback
2X 4X 16X 100X
Normal Playback
2X 4X 8X
1/32X 1/16X 1/8X 1/2X
Turn the Unit On
1. Turn the car ignition on to the accessory
position.
2. Press the POWER button.
Loading a DVD/VCD/CD Disc
1. Insert the disc with printed side facing
up into the disc slot. The player will
automatically search the disc.
2. The player starts playback automatically.
BASIC PLAY
Stopping Play
Press the n STOP button to stop the disc
playback. Press the
PLAY button on
the remote or on the player, the disc
will continue with normal playback.
Press the
n STOP button twice, to stop
the playback and go back to initial
Track/Chapter.
Ejecting a Disc
Press the EJECT button to eject disc.
Standby
1. With the unit on, press POWER on
the remote.
2. In standby state, press
POWER on
the remote, again to recall playback.
3. To cancel standby state, press POWER
on the unit's front panel.
Note: For Screen Saver mode select "On" in
Screen Saver setup. The screen saver will
automatically activate when playback is
stopped or paused and there is no button
operation for 5 minutes. Screen saver
mode will release automatically when a
disc is played. After 5 minutes, if the unit
is not operated while in screen saver
mode, it will enter standby state.
Pause (still picture)
Press PAUSE during playback on the
remote or on the front panel of the
DVD unit to stop play temporarily. Press
PLAY on remote or on the unit to
return to normal playback.
Rapid Forward/Rapid Reverse
Press FF and REW during play.
Each time the button is pressed, the speed
of rapid forward/reverse changes according to the disc as follows:
DVD:
VCD/CD/MP3:
Slow Motion Play (DVD Only)
Press SLOW on the remote control
during playback. Each time the button is
pressed, the slow mode is changed
according to the disc as follows:
DVD:
10
Basic Operation
,
Skipping Track
Press SKIP on the remote control
or on the front panel during playback.
Press to skip to next track and
to go back one track.
Note: For some VCD 2.0 (PBC-playback
control), may be unavailable.
Mute
Mutes the sound, while the disc continues
playing. When
sound will resume at previous level.
Volume Level Adjustment
<
Press on the front panel of the unit
or VOLUME +/- on the remote to increase
or decrease volume level.
DVD Video Menu
When playing a DVD disc in the player:
1. Disc will play automatically and stop at
menu display.
NAVIGATION buttons on
2. Use
the remote to and move the highlight bar in
the menu
3. Press ENTER to confirm selection.
MUTE is pressed again,
<
/
Reset
The RESET button is on the front panel of
the unit and must be activated with a ball
point pen or thin metal object. This button is
to be activated only for the following reasons:
• After the initial wiring installation of the
unit is complete.
• All the function buttons are not operating
correctly.
• An error symbol is displayed.
Last Play Memory
Press POWER during play to turn "Off"
the unit. Press again to turn "On" the player.
The DVD player will resume playing from
the point that it stopped.
• While the disc is playing, press
EJECT to
eject the disc, then reload the disc into the
player again, the player will resume playing
from the point that it stopped.
• While the disc is playing press SOURCE
or MODE to switch to TV or AV mode.
The player will resume playing from the
point that it stopped.
Mode Selection
Press SOURCE on the front panel of the
unit or MODE on the remote to select
among DVD, TV and AV mode The indicator
on the front panel of the unit will illuminate
with the corresponding selection.
11
Advanced Operation
,
,

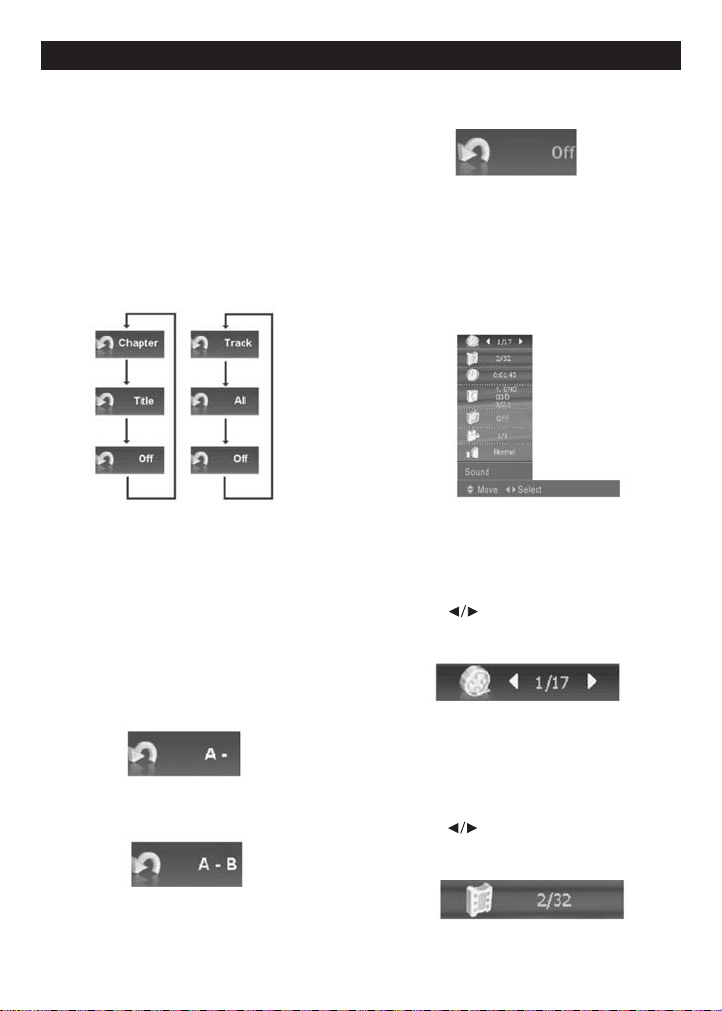

Repeat Play/Repeat Paragraph Play:
Repeat Play
Press the REPEAT button to repeat a disc,
track or chapter.
1. Press
REPEAT button repeatedly to
scan selection of repeat modes.
2. Pressing REPEAT will have different
effects on various kinds of discs.
DVD
VCD/CD/MP3/
WMA
Note: REPEAT feature does not support
VCD2.0 with PBC "On".
Repeat Paragraph
A-B
repeat allows a passage to be repeated
continuously.
1. Press A-B button at the start of the
required passage.
4. To revert to normal playing press
button again.
On Screen Display Function
Press the CONSOLE button during playback to display the console information of
the current disc onscreen.
For DVD:
1. Item: Title
Function:
Displays the current Title number and total Title number; use it to skip to
the desired Title number.
Method: buttons or numeric buttons
to input. Press
ENTER button to confirm.
A-B
2. Press A-B button again at the end of the
passage.
3. The unit will repeat playing the passage
A to B.
12
set from
2. Item: Chapter
Function:
Displays the current chapter
number and total chapter number. Use it
to select the desired chapter number.
Method: buttons or numeric buttons
to input. Press
ENTER button to confirm.
Advanced Operation
,
,
,
,
,
3. Item: Time
Function
the time directly to skip to the corresponding playback point.
Method: Use numeric buttons to input
time. Press
4. Item: Audio
Function:
Soundtrack Language and Digital Audio
Output. Use it to select other Audio
Soundtrack Languages and Digital Audio
Output.
Method: buttons or press AUDIO
button.
5. Item: Subtitle
Function:
language. Use it to select other subtitle
languages.
Method: buttons or press SUBTITLE
button.
: Displays the elapsed time. Input
ENTER button to confirm.
Displays the current Audio
Displays the current subtitle
7. Item: Sound
Function:
mode. Use it to select from normal and
3D surround mode.
Method: buttons or 3D button.
PAL/NTSC System Selection
Press the PAL/NTSC button to switch
between
NOTE: This function is only effective when
LOGO is displayed. For instance, when
there is no disc in the unit, ejecting a disc
and in the
when playing a DVD/VCD.
Bookmark Function
Press BOOKMK button while playing disc
to enter
1. During playback press
button to set desired bookmark. The
screen will display (as shown) that you
have set a bookmark.
Displays the current sound
PAL, NTSC and AUTO modes.
STOP mode or pre-STOP mode
BOOKMK mode.
BOOKMK
6. Item: Angle
Function:
it to select other angles.
Method: buttons or press ANGLE
button.
Displays the current angle. Use
2. To view the selection that you bookmarked, press the
press buttons to move cursor to
the desired bookmarked number.
Press or
GOTO button, then
ENTER button to confirm.
13
Advanced Operation
,
Random Playing
Press the RANDOM button during playback to play tracks in random order.
Press
RANDOM again to revert to normal
playback.
Note:
• This function is effective on VCD, and
CD.
Zoom
For DVD and VCD to enlarge an area on
the screen.
1. Press the
ZOOM button. This will zoom
in up to 4 times.
3. In
ZOOM mode press buttons
to move images up, down, left or right to
find the desired image to zoom in on.
4. To cancel zoom press
ZOOM again
when it is at 16 times.
SPECIAL FUNCTIONS FOR DVD
Multi-Subtitle Language Function
Press SUBTITLE during playback.
Each time the button is pressed the subtitle language changes.
Multi-Audio Language Function
Press AUDIO during playback.
Each time the button is pressed, the audio
soundtrack language changes in sequential order.
Multi-Angle Function
ZOOM x4
2. Press the
ZOOM button again. This will
zoom in up to 16 times.
ZOOM x16
14
Press ANGLE during playback.
Each time the button is pressed, the angle
soundtrack language changes in sequential order.
Advanced Operation
PARENTAL CONTROL
Instructions:
Press TITLE button, when there is no disc
in the player, then press 0,1,6,7. The
screen will read:
REGION EDIT:-
REGION CODE: 0
For Example: Input 2, then press
ENTER
to exit. The setting and the picture will
disappear. Press
TITLE button, then press
0,1,6,7 again and the following information will appear on the screen. Now you
can edit another code.
REGION EDIT:-
REGION CODE: 2
When a DVD disc is inserted that has a
PARENTAL CONTROL level higher than
the level set to the DVD player a window
will display that requires entering a 4 character password.
Note:
• The factory setting password is 3351.
If you have forgotten or lost the password enter 3351.
Parental Control Summary
• DVD discs have a PARENTAL CONTROL
assigned to the disc. The range of
PARENTAL CONTROL is from 1 to 8. The
player can be set in a similar way.
• For instance, if there is a parental level
set to 8, it will play all discs. If the player’s
parental level is set below 8, only discs
with a lower or equal parental level will
play. For example if the player is set to 5,
only discs with parental control ratings of
5, 4, 3, 2, & 1 will play.
• To play a higher rated disc you must
change the player’s level rating to a higher number.
• Some discs, that generally are suitable
for most audiences are rated at level 2.
However, there might be scenes, included
on the disc, rated 5 or 7 (not suitable for
children).
• Alternative scenes with lower rating are
included on the disc. The unit will play the
highest rated scene that the parental setting allows. A section of the disc can have
several different sequences that vary in
PARENTAL CONTROL level. The player
will choose the appropriate section
depending on the parental control level
set in the player’s menu.
• This allows parent(s) control of the content of discs without any indication that
censorship has occurred.
• The meaning of the levels 1 to 8 varies
depending upon the country and the type
of content on the disc.
PARENTAL CONTROL LEVELS
Unlock
1 Kid Safe
2G
3 PG
4 PG-13
5 PG-R
6R
7 NC-17
8 Adult
15
Advanced Operation
DATA DISC & AUDIO CD PLAY OPERATION
Insert a data disc (MP3, WMA, MPEG,
JPG or audio CD).
1. Press
2. There are three areas in the music
TITLE button to switch between
music, photo and movie pages.
page: Play List, Program List and Edit.
• Press
PLAY or ENTER to open
the highlighted folder in the play list
or play an audio file in the Play List or
Program List.
• Use the operation buttons such as:
ADD, ADD ALL, DELETE, AND
DELETE ALL in the middle Edit area
to edit the Program List.
• Press
PROGRAM button to add the
highlighted file directly to the program list when the audio file is highlighted in the Play List.
• Press
CLEAR button to delete the
highlighted file in the Program List.
3. Choose from three areas in the Photo
Page: Play List, Preview Window and Edit.
• Press
PLAY or ENTER to open
the highlighted folder in the Play List.
• A preview of the picture will be displayed in the preview window on the
right when the highlight bar stops on
the picture file.
• Select Slide Show button in
the middle area. Press
ENTER to confirm. The images will play full screen
in order and the control bar will display on the screen.
• Press or button to skip to the
previous or next picture.
• Select the Mixed Play button
in the middle area and press
to confirm.
• Select the Speed button to
adjust the display interval speed
between pictures. Press buttons
to switch between >, >>, >>> and .
4. In Movie Page, Press
ENTER button to
open the highlighted folder in the Play
List or play the corresponding file.
ENTER
Note: For an audio CD, the play interface
and operation is similar to the Music
Page operation.
16
In the STOP n mode or while disc is play-
ing, press
SETUP on the remote or front
panel of unit to enter setup menu.
• When the cursor is on the topside,
use buttons to move between
different pages.
• Press button to move the cursor to
the Setup Page (shown below). Use
the buttons to move between
different setup options.
• Press button to display the choice
list for each setup option and then
use buttons and
ENTER button
to make selection.
LANGUAGE SETUP
Open the Setup menu.
Setup
• Disc Audio sets the preset value for the
language playback of a DVD. If the DVD
and the preset value on the DVD player
match then it will play that language
directly. When the player and disc do
not match then, the disc will play its
default language.
NOTE: The unit has the following selection
of languages: Original, English, Spanish,
German, Italian, French, Portuguese,
Russian, Chinese and others.
• Disc Subtitle and Disc Menu are similar
to Disc Audio. The function of Disc
Audio is to set a preset value for the
playback subtitle and menu display language of the DVD.
• Menu Language is used to change the
language throughout the entire menu
and prompt information during playback. Choose a language from the list.
17
Setup
DISPLAY SETUP
Open the Display Menu.
• TV Aspect sets the appropriate display
effect when wide-screen video material
is played on a conventional screen.
Choose from two options: 4:3 and 16:9.
• If Display Mode is set to 4:3 in the TV
Aspect you can choose from Letterbox
and Panscan modes.
- Panscan: Displays the picture in TV
mode with the left and right edges of
screen cut off.
- Letterbox: Displays the picture in cinema
mode with black bands across the top
and bottom of screen.
• When TV Output is selected it will output
in TV mode. The unit can play discs
recorded in either PAS or NTSC format.
- Select NTSC to connect to a NTSC TV.
- Select PAL to connect to a PAL TV.
- Select Auto format to automatically
format to the DVD disc format.
• For Video Output there is only one video
output mode S-VIDEO = CVBS.
AUDIO SETUP
Open the Audio Menu.
• Dolby Digital refers to dolby digital output.
- Bitstream: Choose this when using the
Dolby Digital Decoder, DTS Decoder
or MPEG Decoder, etc, to connect to
an amplifier or other devices
- PCM (Pulse Code Modulation): Select
PCM when connecting to an amplifier
with two channel digital stereo.
When playing a DVD disc with Dolby
Digital which was recorded by MPEG1
or MPEG2 the DVD player will output
the audio in PCM2 playback mode.
• In DTS (Date Transmission System)
there are two choices: Bitstream and
PCM.
• Choose On or Off for DRC (Dynamic
Range Control). In On mode you can listen to the film sound effects at lower
volumes without losing the sound definition.
• Choose Digital Output to activate the
digital audio output On or Off.
18
Setup
LOCK SETUP
Select the Lock Setup page.
• Access the Parental Control level from
Rating
- After entering Rating, the system will
require a password. Once the correct
password is entered you will be permitted to the change the parental lock
level.
- If no password has been set, the sys-
tem will require you to set a password.
- If you incorrectly enter a character
while setting the password press
CLEAR to delete the character.
- Once the correct password is entered
you can use buttons to make
changes to the Parental level.
- Choose from 9 levels of control. (See
PARENTAL CONTROL)
• After completing the setup menu, you
must eject and then reload the disc in
order for the functions to take effect.
• Password setup sets the new password
or change the current password.
Before entering into this field the system requires you to input the current
password.
• Country Code sets the nations code. If
the country code matches the discs
country code, the parental level will take
effect. This is a two digit code.
- Before entering into this field the system
will require a password.
- Use buttons to select the first character.
- Use button to move the cursor.
- Use buttons to select the second
character.
- Press
ENTER to confirm the selection
for country code.
OTHERS SETUP
Select the Others Setup page.
In this mode you can choose between the
settings Load Default and Screen Saver.
• To revert to factory settings choose
Load Default.
• To switch the screen saver function On
or Off choose Screen Saver.
19
TV Operation
LANGUAGE SETUP
To access the TV Mode press the MODE
button on the remote. The DVD functions
are locked during TV Mode.
Searching Channels
Press MENU (TV SEARCH) button on the
DVD player front panel or MENU on
remote to enter into search mode. On the
remote press button to auto search
and store TV channels. Press button
to stop the search.
Selecting Channels
1. Press (CH+) button or (CH+)
Button to select a channel up or down.
2. The numeric buttons (0-9) allow you to
select the corresponding channel.
3. Press the digital select button 3D(-/--)
and a numeric button to select desired
channel.
Volume Adjustment
^
Press on the front panel of the DVD
player or VOLUME +/- buttons on the
/
^
remote to adjust the volume level.
Mute
Press the MUTE button to mute the
sound. Press the MUTE again or volume
up/down buttons on the front panel of
the unit or remote for sound to resume.
Specifications
Supply Voltage . . . . . . . . 12V DC, Negative Ground
Current Consumption . . Less than 2A
Signal System . . . . . . . . Composite Video 1.0Vp-p 75
Compatible Discs . . . . . .
Audio Output Level. . . . . 2 CH 2.0 Vrms @10kΩ
Characteristics . . . . . . . .
20
(1) DVD-VIDEO Disc, 5" (12cm) Single-Sided Single-Layer, 5" (12cm) Single-Sided
Double-Layer, (2) Compact Disc (CD-DA, Video CD), 5" (12cm) Disc
(1) Frequency Response: 20 Hz - 20 KHz,
(2) Signal to Noise Ratio: 80dB (JIS)
(3) Wow and Flutter: Below Measurable Limits
Ω
Troubleshooting
Only qualified service personnel can
remove the cover or service this player.
Otherwise the warranty will become
invalid.
No Power:
• Check to see if the player is set to "On".
• Check to see that the power plug of the
main unit is properly connected.
• Check to see if that power to the outlet
is properly working.
No Picture:
• Check to see that the monitor or TV is
switched to "On".
• Select the correct AV input on the monitor or TV.
• Check the video connection.
Distorted Picture:
• Check the disc for fingerprints and clean
with soft, dry, cloth, wiping from center
to edge.
• A small amount of picture distortion may
appear. This may not be a malfunction.
Completely Distorted Picture:
The disc format is not according to the
TV used (PAL/NTSC).
No Color in Picture:
The disc format is not according to the
TV used (PAL/NTSC).
No Sound:
• Check audio connections.
• If using a Hi-Fi amplifier, try another
sound source.
Disc Does Not Play:
• Ensure the disc label is facing upwards.
• Clean the disc.
• Check to see if the disc is defective by
trying another disc.
No Return to Start-Up Screen when Disc is
Removed:
• Press POWER to turn "Off" the unit, then
press it again to turn "On" the unit.
• Press RESET button "On" the front of the
DVD unit.
The Player Does Not Respond to the
Remote Control:
• Aim the remote control directly at the
sensor on the front of the player.
• Avoid all obstacles which may interfere
with the signal path.
• Inspect or replace the remote control
batteries.
No Audio at Digital Output:
• Check the digital connections.
• Check the Audio Setup menu to make
sure that the digital output setting is
correct.
• Check if the audio format of the selected
audio language matches your receiver’s
capabilities.
Buttons Do Not Work:
• Press POWER to turn "Off" the unit, then
press it again to turn "On" the unit.
• Press
RESET button on the front of the
DVD unit.
DVD player showing “REGION ERROR”
• The DVD player and the discs all have a
“REGION CODE”. If the region number
on the disc does not correspond to the
region number of the DVD player the
unit cannot play the disc.
21
Replacement Parts Order Form
Send Orders To : Magnadyne Corporation We Accept Checks, Money Orders, Visa and Master Card
ATTN: Consumer Parts Sales Make Checks Payable to: Magnadyne Corporation
P.O. Box 5365
Carson, CA 90749-5365
SHIP TO: (No P.O. Boxes)
LAST NAME FIRST NAME INITIAL
STREET ADDRESS (IF PAYING WITH A CREDIT CARD, YOUR BILLING ADDRESS IS REQUIRED)
CITY STATE ZIP CODE
DAY TIME PHONE NUMBER
CREDIT CARD INFORMATION:
CARD TYPE: VISA MASTER CARD
CARD NUMBER EXP.MONTH YEAR
NAME - AS IT APPEARS
EXACTLY
ON YOUR CREDIT CARD
Part # Description Qty. Price Each TOTAL
MV-2000RM
Subtotal = ________ . ______
California Residents Add Sales Tax = ________ . ______
Shipping and Handling (See Chart) = ________ . ______
TOTAL = ________ . ______
No C.O.D.’s
On regular orders please allow 4-5 weeks for delivery. Please give a shipping address where this order
may be delivered between the hours of 9 a.m. and 5 p.m. weekdays. If UPS is unable to deliver, your order will be
returned and additional shipping charges will be required.
Shipping and Handling
Subtotal + Tax Add
Up to $20.00 $5.00
20.01 to 30.00 5.95
30.01 to 45.00 6.50
45.01 to 70.00 6.95
Over 70.01 7.95
Remote Control
$39.95
22
Replacement Parts for MovieVision®Systems
ORDER BY MAIL DESCRIPTION MODEL # PRICE
DVD Remote Control MV2000RM $39.95 EA.
Warranty
ONE (1) YEAR LIMITED WARRANTY
Magnadyne Corporation or its authorized agents will within 1 year from the date of sale to you, repair,
replace or refund the retail sales price of said product or any part thereof, at the option of the
Magnadyne Corporation or its authorized agents, if said product or part is found defective in
materials or workmanship, when properly connected and operating on the correct power
requirements designated for the specific product. This warranty and Magnadyne Corporation or its
authorized agents obligations hereunder do not apply where the product was; damaged while in the
possession of the consumer, subjected to unreasonable or unintended use, not reasonably
maintained, utilized in commercial or industrial operations, or serviced by anyone other than
Magnadyne Corporation or its authorized agents, or where the warning seal on the product is broken
or the power and/or plugs are detached from the unit. Magnadyne Corporation or any of its
authorized agents will not assume any labor costs for the removal and re-installation of any product
found to be defective, or the cost of transportation to Magnadyne Corporation or its authorized
agents. Such cost are the sole responsibility of the purchaser.
This warranty does not cover the cabinet appearance items or accessories used in connection with
this product, or any damage to recording or recording tape, or any damage to the products resulting
from improper installation, alteration, accident, misuse, abuse or acts of nature.
MAGNADYNE CORPORATION OR ITS AUTHORIZED AGENTS SHALL NOT BE LIABLE TO ANYONE
FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES OR CLAIMS EXCEPT THOSE ACCORDED BY
LAW. NO EXPRESSED WARRANTY OR IMPLIED WARRANTY IS GIVEN EXCEPT THOSE SET FORTH
HEREIN. NO IMPLIED WARRANTY SHALL EXTEND BEYOND 1 YEAR FROM THE DATE OF SALE.
This warranty extends only to the original purchaser of the product and is not transferable.
Some states do not allow limitations on how long an implied warranty lasts and some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above limitations or
exclusion may not apply to you. This warranty gives you specific legal rights and you may have other
rights that vary from state to state.
Defective merchandise should be returned to the original point of purchase or secondly, to
Magnadyne Corporation, 1111 W. Victoria Street, Compton CA 90220. Return Authorization must be
obtained before sending, or merchandise may be refused.
23
© Copyright 2004
Magnadyne Corporation
MV-DVD-PL5UM
REV. B 10-29-04
Loading...
