Mag Layers RT42P01 User Manual

Page 1
Networking Communication Components
RT Series

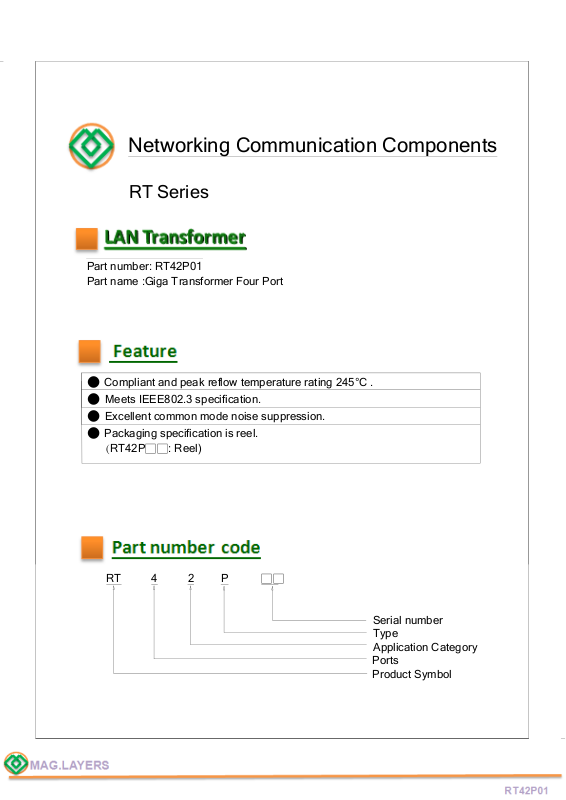

Lan Transformer
Part number: RT42P01 Part name :Giga Transformer Four Port
Feature
Compliant and peak reflow temperature rating 245°C .
Excellent common mode noise suppression.
Packaging specification is reel.
(
RT42P
□ □
: Reel)
Part number code
RT 4 2 P
□ □
Serial number Type Application Category Ports Product Symbol
Page 2
REV. Description Date Drawn
Designed Approved
A Specification issued 07.26.2013 Yuxuan.Xiang Yuxuan.Xiang James.Cheng
Page 3
Mechanical Dimension and Marking
A
RT42P01
Date Code
PIN 1
UNIT mm inch A 57.70 B 10.00 +0.254/-0.254 0.394 +0.010/-0.010 C D
B
E 2.70 +0.254/-0.254 0.106 +0.010/-0.010 F 0.50 +0.127/-0.127 0.020 +0.005/-0.005 G H 7.60 +0.254/-0.254 0.299 +0.010/-0.010
+0.254/-0.254 2.272 +0.010/-0.010
7.25 +0.254/-0.254 0.285 +0.010/-0.010
1.02 +0.127/-0.127 0.040 +0.005/-0.005
52.98 +0.254/-0.254 2.086 +0.010/-0.010
RT42P01 XX XX
D
E
G
Suggested PWB Layout
d
e
a
Maglayers Part Number
Week Year
C
F
H
UNIT mm inch
a
52.98
b
f
b
c
8.20
c
11.60
d
2.70 0.106
e
0.65 0.026
f
1.02 0.040
2.086
0.323
0.457
Drawn Yuxuan.Xiang Designed Yuxuan.Xiang Approved James.Cheng
Page 4

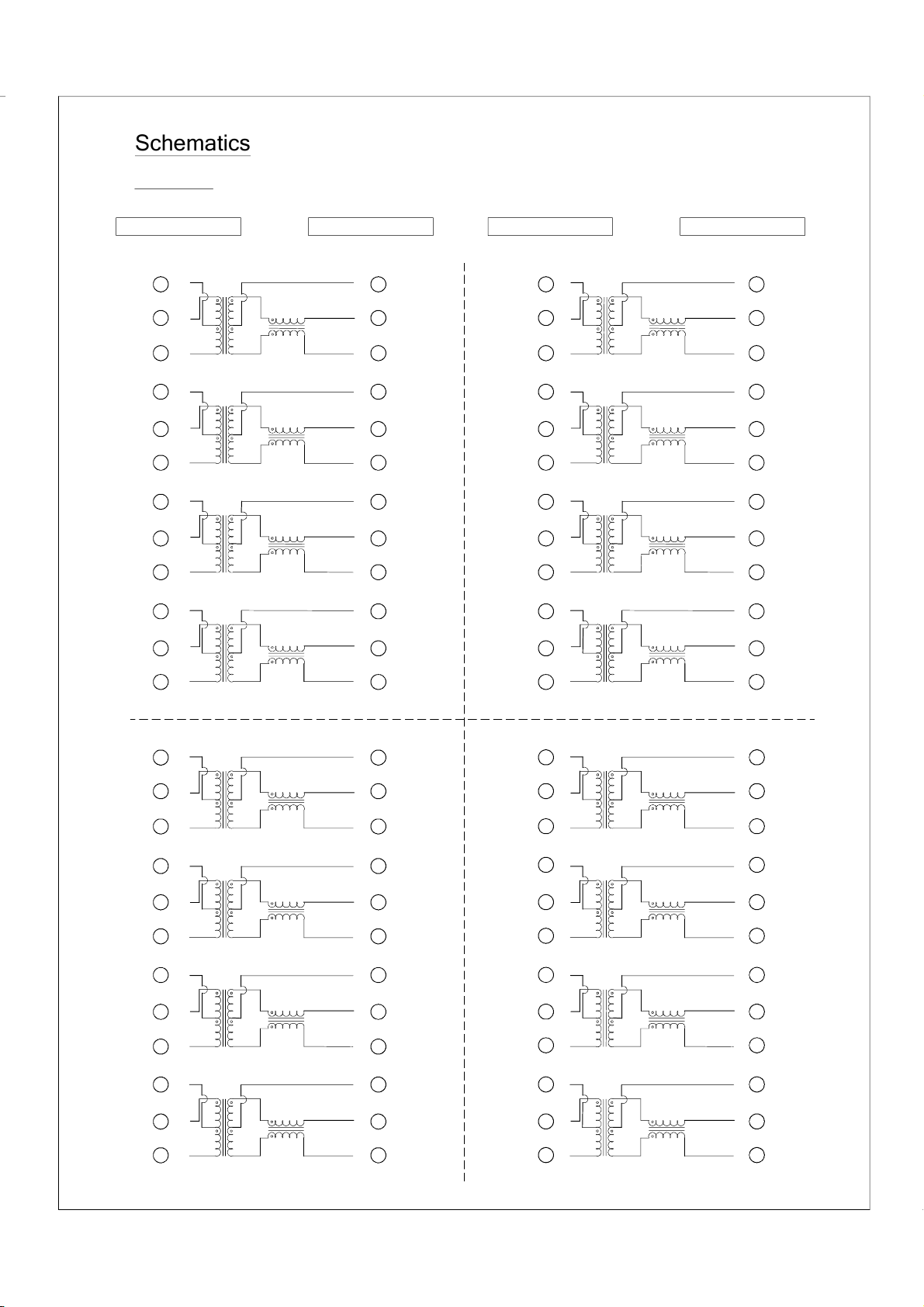

Schematics
RT42P01
TCT1
TD1+
TD1-
TCT2
TD2+
TD2-
TCT3
TD3+
TD3-
TCT4
TD4+
PHY SIDE
1
2
3
4
5
6
7
8
9
10
11
CABLE SIDE
96
95
94
93
92
91
90
89
88
87
86
CMT1
TX1+
TX1-
CMT2
TX2+
TX2-
CMT3
TX3+
TX3-
CMT4
TX4+
PHY SIDE
TCT9
TD9+
TD9-
TCT10
TD10+
TD10-
TCT11
TD11+
TD11-
TCT12
TD12+
25
26
27
28
29
30
31
32
33
34
35
CABLE SIDE
72
71
70
69
68
67
66
65
64
63
62
CMT9
TX9+
TX9-
CMT10
TX10+
TX10-
CMT11
TX11+
TX11-
CMT12
TX12+
TD4-
TCT5
TD5+
TD5-
TCT6
TD6+
TD6-
TC71
TD7+
TD7-
TCT8
TD8+
12
13
14
15
16
17
18
19
20
21
22
23
85
84
83
82
81
80
79
78
77
76
75
74
TX4-
CMT5
TX5+
TX5-
CMT6
TX6+
TX6-
CMT7
TX7+
TX7-
CMT8
TX8+
TD12-
TCT13
TD13+
TD13-
TCT14
TD14+
TD14-
TCT15
TD15+
TD15-
TCT16
TD16+
36
37
38
39
40
41
42
43
44
45
46
47
61
60
59
58
57
56
55
54
53
52
51
50
TX12-
CMT13
TX13+
TX13-
CMT14
TX14+
TX14-
CMT15
TX15+
TX15-
CMT16
TX16+
TD8-
24
73
TX8-
TD16-
48
49
TX16-
Page 5
Electrical Specification @ 25°C, Humidity 65% RH
Inductance @ Phy side(OCL) 100KHz, 0.1V, 8mA DC Bias 350uH MIN
Part Number
RT42P01
Turns Ratio
100KHz
± 3%
1:1
Insertion Loss
dB MAX
1MHz-100MHz
-1.0 -16 -14.4 -13.1 -12 -10
Return Loss
dB MIN
1MHz-
40MHz50MHz
30MHz
DMCR Crosstalk
dB MIN dB MIN
60MHz-
100MHz 30MHz 60MHz 100MHz 30MHz 60MHz 100MHz
80MHz
-45
-40 -35 -40 -35 -33 1500, 60
Operating Temperature: 0°C to +70°C. Storage Temperature: -25°C to +105°C JSDEC Moisture: Level 1.
Hipot
Vrms, Sec
Pri To Sec
Page 6
Reflow Soldering
245°C
217°C
200°C
150°C
3°C /sec MAX.
6°C /sec MAX.
Temperature(°C)
Pre-heating
53sec TYP.
60sec MIN.
180sec MAX.
Time(s)
IR Reflow soldering : Preheat at 3℃ per second to 217℃ and using lead free solder , IR at 245℃ for 30seconds Max.
Rework flow: Component must withstand two IR reflow cycles with a cool down between cycles
Temperature is measured at the terminal portion of product
(Using thermocoupler for measurement).
This profile is reference data we recommend. Please check in your actual process.
60sec MIN.
150sec MAX.
Soldering
Natural cooling
For reliable soldering, the thickness of solder paste screen should be over the terminal co-planality.
The cutted end of terminal has no plating
(out of subject of solder ability).
