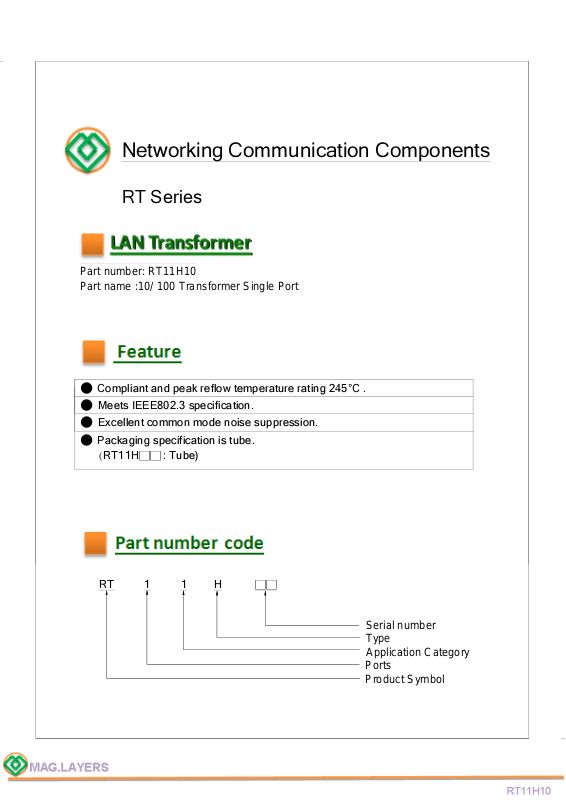

Networking Communication Components
RT Series
Lan Transformer
Part number: RT11H10
Part name :10/ 100 Transformer Single Port
Feature
●
Compliant and peak reflow temperature rating 245°C .
●
Meets IEEE802.3 specification.
●
Excellent common mode noise suppression.
●
Packaging specification is tube.
(
RT11H
□□
: Tube)
Part number code
RT 1 1 H
□□
Serial number
Type
Application Category
Ports
Product Symbol
REV. Description Date Drawn
Designed Approved
A Specification issued 06.10.2013 Yuxuan.Xiang Yuxuan.Xiang James.Cheng
Mechanical Dimension and Marking
PIN 1
D
A
RT11H10
Date Code
F
E
G
UNIT mm inch
A 11.75 +0.254/-0.254 0.463 +0.010/-0.010
B 6.90 +0.254/-0.254 0.272 +0.010/-0.010
C 4.50 +0.254/-0.254 0.177 +0.010/-0.010
B
D 3.20 +0.254/-0.254 0.126 +0.010/-0.010
E
0.50 +0.127/-0.127 0.020 +0.005/-0.005
F
2.00 +0.127/-0.127 0.079 +0.005/-0.005
G
10.00 +0.254/-0.254 0.394 +0.010/-0.010
H 5.00 +0.254/-0.254
I 0.50 +0.254/-0.254 0.020 +0.010/-0.010
0.197 +0.010/-0.010
RT11H10 XX XX
Maglayers Part Number
C
H
Week
Year
I
Suggested PWB Layout
a
c
b
Drawn Yuxuan.Xiang Designed Yuxuan.Xiang Approved James.Cheng
UNIT mm inch
a
b
c
d
10.00
5.00
2.00
0.90
0.394
0.197
0.079
0.035
Schematics
RT11H10
CABLE SIDE
RX+ CT RX-
11
11111111 2 4 6
RD+ CT RD-
1012
3
RX
TX+ CT TX-
8 9
5
TD+ CT TD-
TX
PHY SIDE
7
Electrical Specification @ 25°C, Humidity 65% RH
Inductance @ Phy side(OCL)
100KHz, 0.1V, 8mA DC Bias
350uH MIN
Part Number
RT11H10
Turn Ratio CMRR
100KHz
TX
1:1±5% 1:1±5%
Insertion Loss Hipot
dB MAX
RX
1-100 MHz
-1.1dB
Return Loss
dB MIN dB MIN
0.5-30 MHz
-18dB
40 MHz
-15dB
60 MHz
-13dB
Operating Temperature: 0°C to +70°C.
Storage Temperature: -25°C to +105°C
JSDEC Moisture: Level 1.
80 MHz
-11dB
0.1-100 MHz
-20dB
Crosstalk
dB MIN
0.1-100 MHz
-35dB
Vrms, Sec
Pri To Sec @60Hz,1mA
1500, 60
Wave Soldering
3~4 sec
100~110°C
Temperature(°C)
60~90 sec
Preheat area
Evaporation of solvent
Removal of oxide film
Liquefaction of flux
Activation of activator
Peak temp 255~265°C
30~50 sec
Cooling
Liquefaction of flux
Melting and wetting
90°C
Time(sec)
●
Tip Temperature :265ºC MAX.
●
Tip Temperature Time: 4sec MAX.
