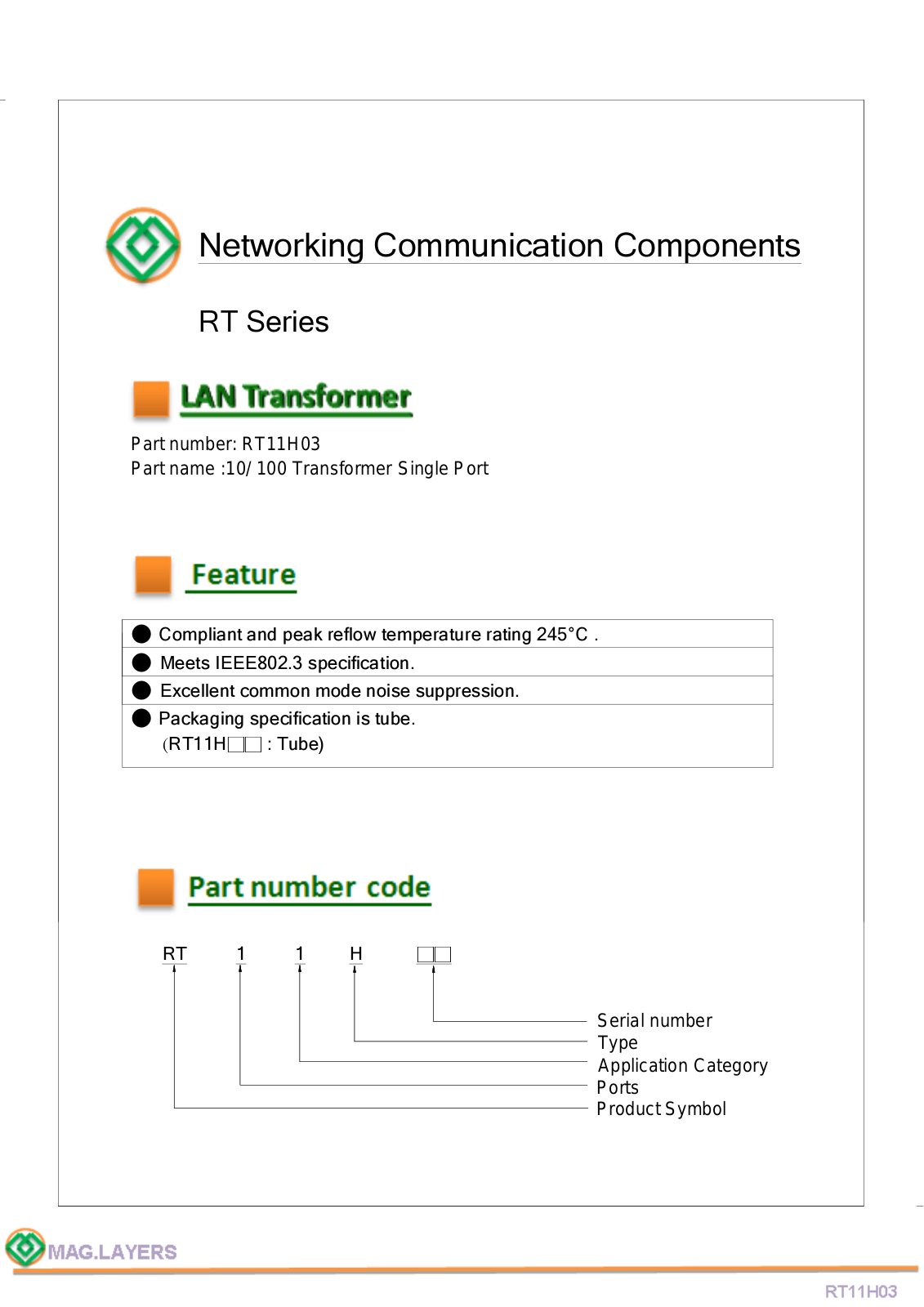

Networking Communication Components
RT Series
Lan Transformer
Part number: RT11H03
Part name :10/ 100 Transformer Single Port
Feature
●
Compliant and peak reflow temperature rating 245°C .
●
Meets IEEE802.3 specification.
●
Excellent common mode noise suppression.
●
Packaging specification is tube.
(
RT11H
□□
: Tube)
Part number code
RT 1 1 H
□□
Serial number
Type
Application Category
Ports
Product Symbol

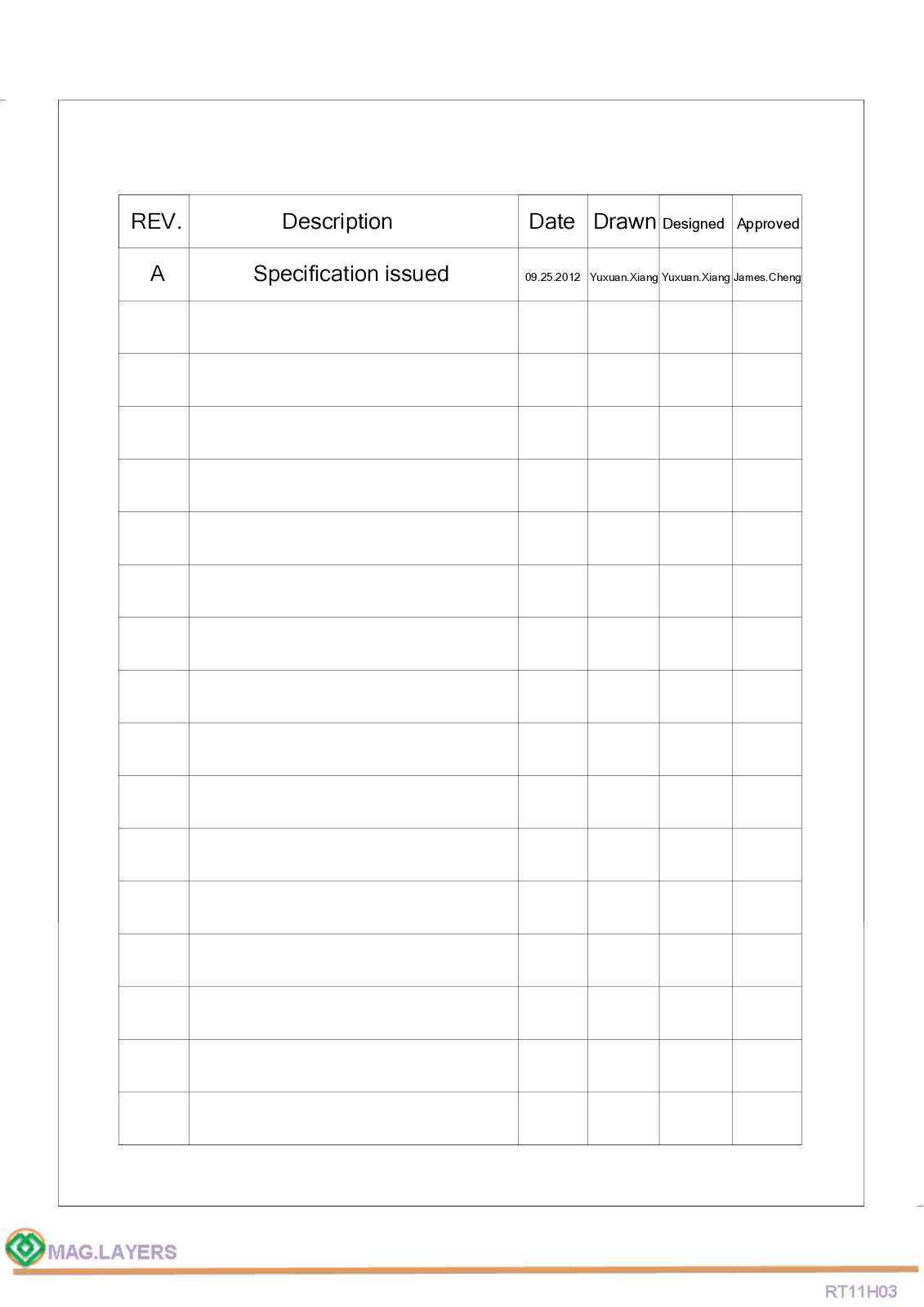

REV. Description Date Drawn
Designed Approved
A Specification issued 09.25.2012 Yuxuan.Xiang Yuxuan.Xiang James.Cheng

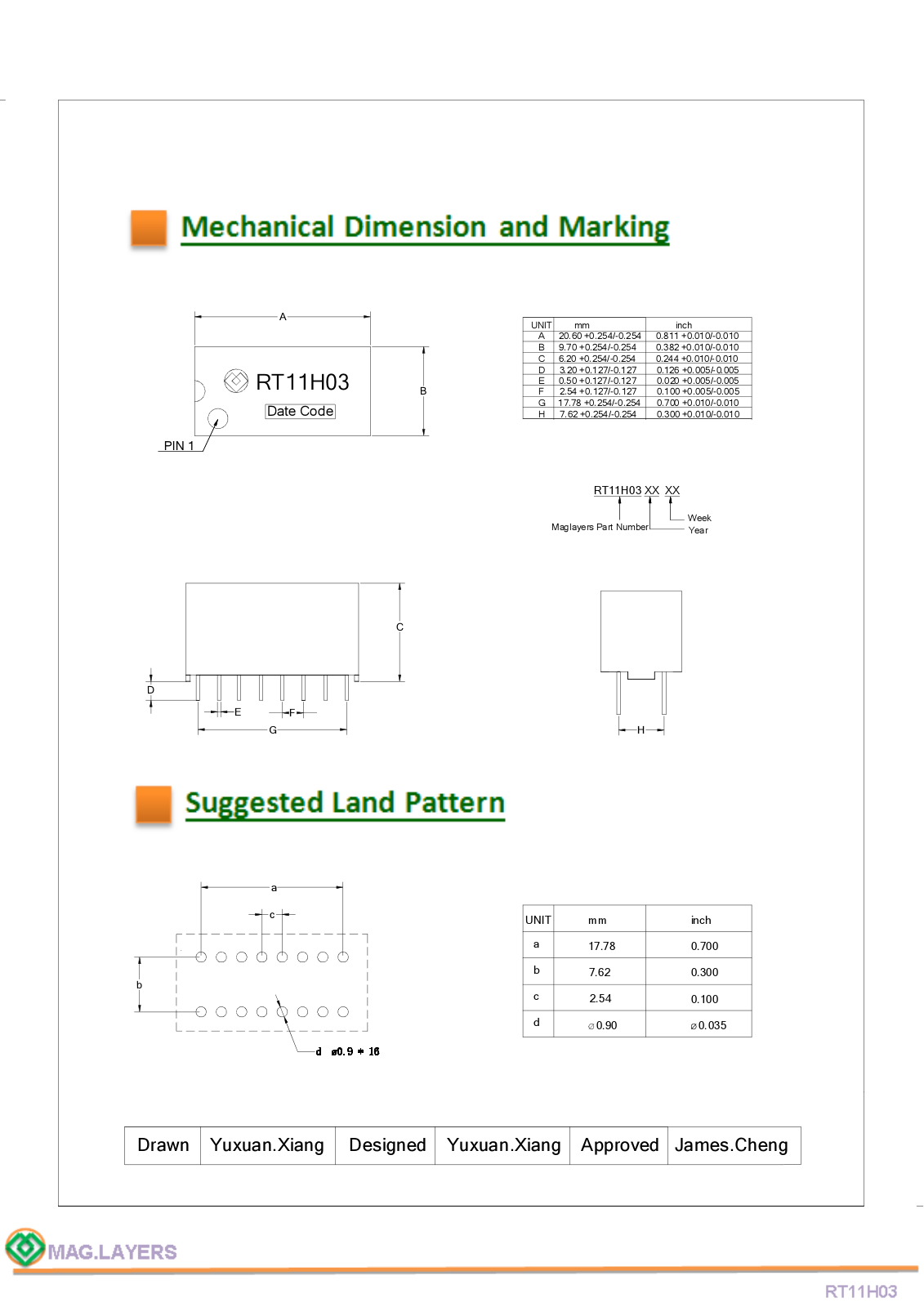

Mechanical Dimension and Marking
D
PIN 1
A
RT11H03
Date Code
E
F
G
UNIT mm inch
A 20.60 +0.254/-0.254 0.811 +0.010/-0.010
B
9.70 +0.254/-0.254 0.382 +0.010/-0.010
C 6.20 +0.254/-0.254 0.244 +0.010/-0.010
D
3.20 +0.127/-0.127 0.126 +0.005/-0.005
E 0.50 +0.127/-0.127 0.020 +0.005/-0.005
B
C
F 2.54 +0.127/-0.127 0.100 +0.005/-0.005
G 17.78 +0.254/-0.254 0.700 +0.010/-0.010
H 7.62
+0.254/-0.254 0.300 +0.010/-0.010
RT11H03 XX XX
Maglayers Part Number
H
Week
Year
Suggested PWB Layout
a
c
b
Drawn Yuxuan.Xiang Designed Yuxuan.Xiang Approved James.Cheng
UNIT mm inch
a
b
c
d
17.78
7.62
2.54
0.90
0.700
0.300
0.100
0.035

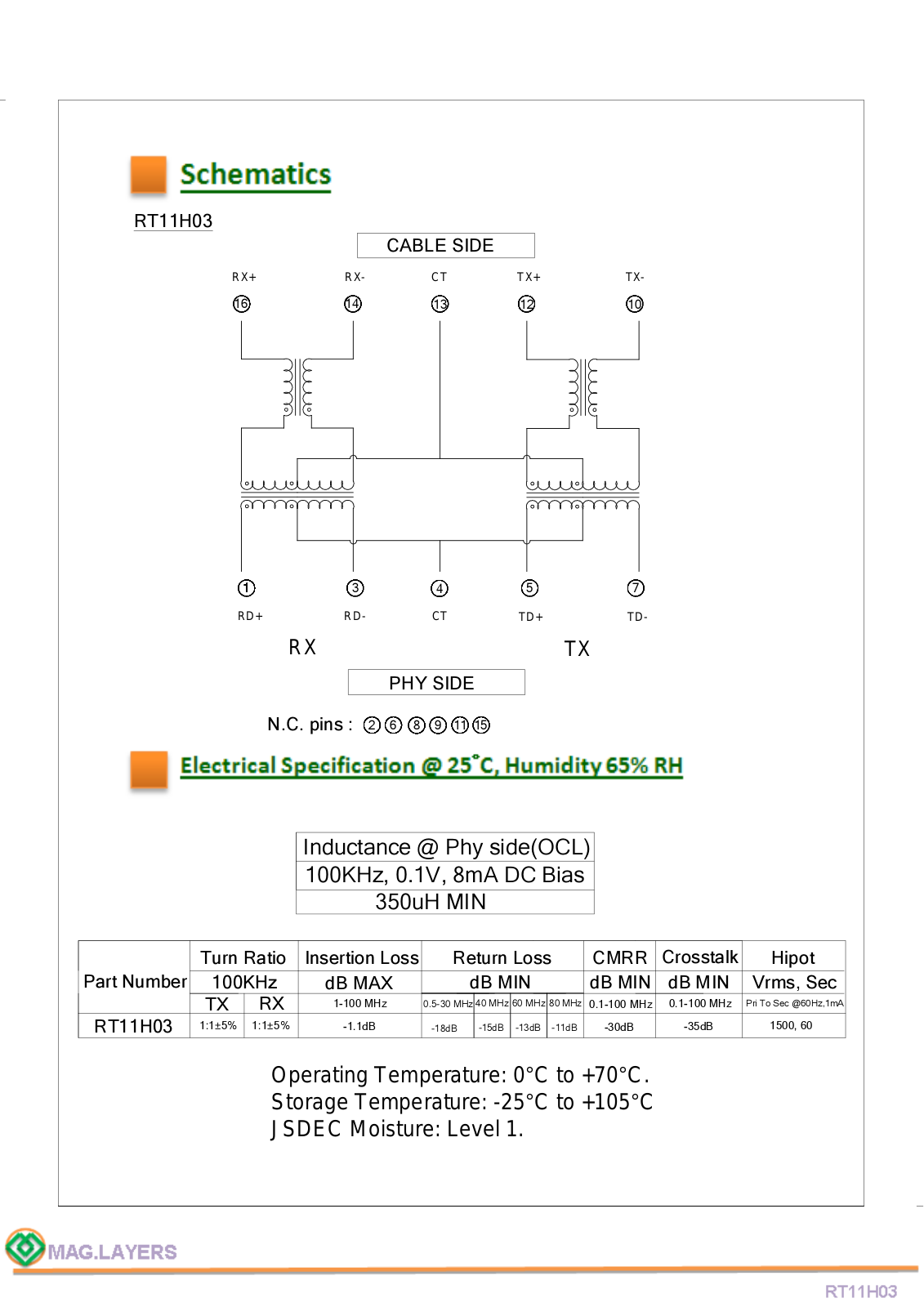

Schematics
RT11H03
CABLE SIDE
RX+ RX- CT
1416
11111111 3 5 7
RD+ RD- CT
4
RX
TX+ TX-
1213
TD+ TD-
TX
PHY SIDE
2 6 11 15
N.C. pins :
8 9
10
Electrical Specification @ 25°C, Humidity 65% RH
Inductance @ Phy side(OCL)
100KHz, 0.1V, 8mA DC Bias
350uH MIN
Return LossTurn Ratio
0.5-30 MHz
-18dB
dB MIN
40 MHz
60 MHz
-15dB
-13dB
Part Number
RT11H03
100KHz
TX
1:1±5% 1:1±5%
RX
Insertion Loss
dB MAX
1-100 MHz
-1.1dB
Operating Temperature: 0°C to +70°C.
Storage Temperature: -25°C to +105°C
JSDEC Moisture: Level 1.
CMRR
dB MIN dB MIN
80 MHz
0.1-100 MHz
-30dB
-11dB
Crosstalk
0.1-100 MHz
-35dB
Hipot
Vrms, Sec
Pri To Sec @60Hz,1mA
1500, 60

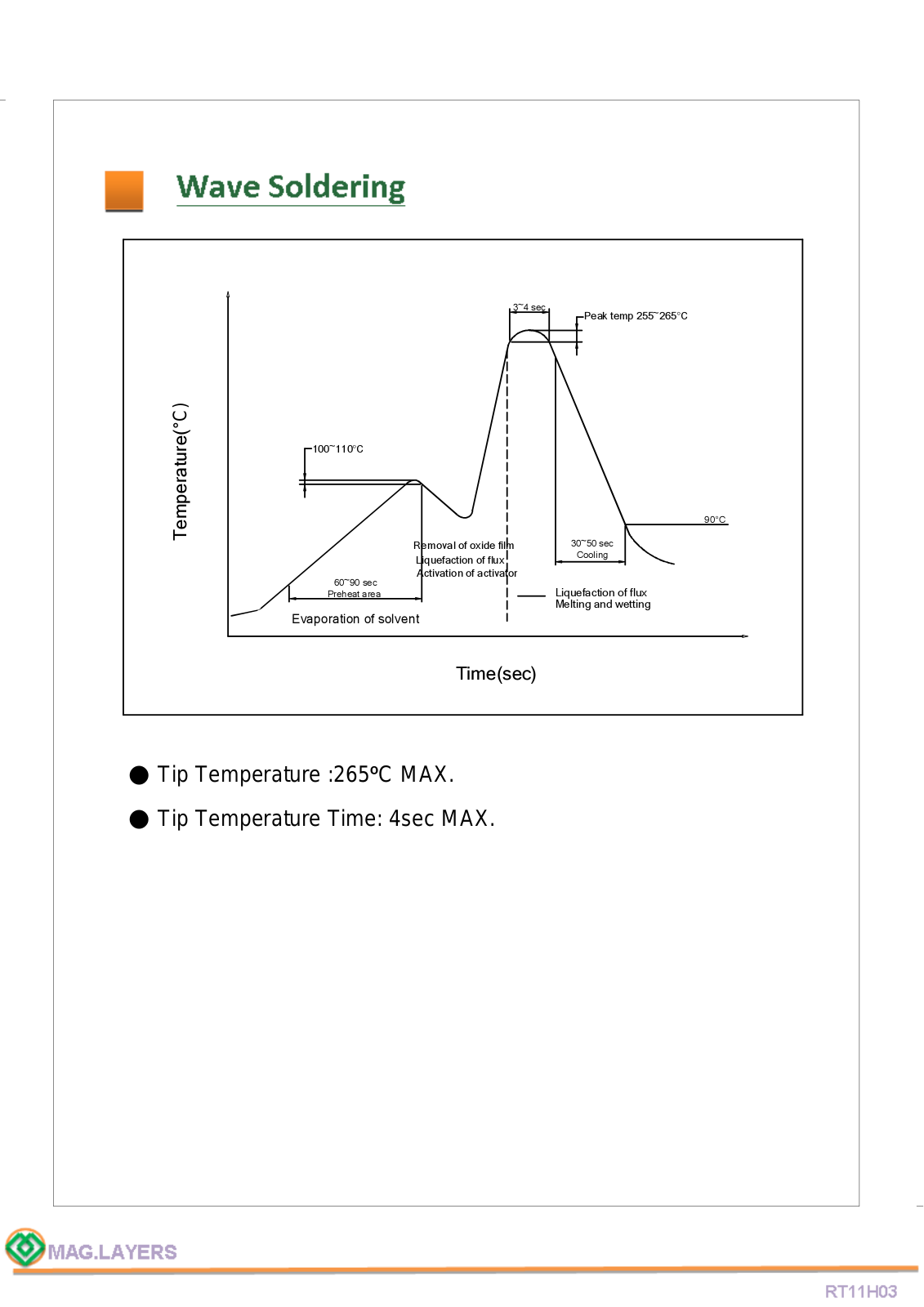

Wave Soldering
3~4 sec
100~110°C
Temperature(°C)
60~90 sec
Preheat area
Evaporation of solvent
Removal of oxide film
Liquefaction of flux
Activation of activator
Peak temp 255~265°C
30~50 sec
Cooling
Liquefaction of flux
Melting and wetting
90°C
Time(sec)
●
Tip Temperature :265ºC MAX.
●
Tip Temperature Time: 4sec MAX.
