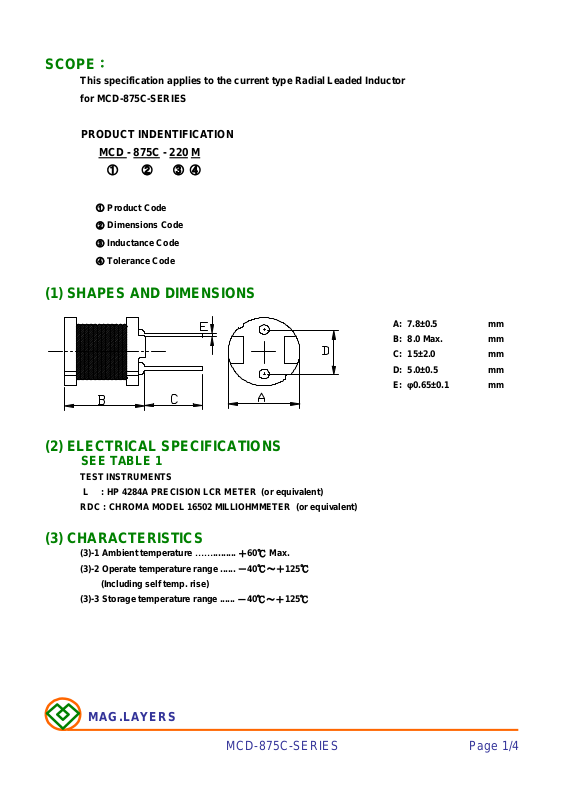

SCOPE
：
This specification applies to the current type Radial Leaded Inductor
(1) SHAPES AND DIMENSIONS
(2) ELECTRICAL SPECIFICATIONS
SEE TABLE 1
(3) CHARACTERISTICS
for MCD-875C-SERIES
PRODUCT INDENTIFICATION
MCD - 875C - 220 M
① ② ③ ④
① Product Code
② Dimensions Code
③ Inductance Code
④ Tolerance Code
A: 7.8±0.5 mm
B: 8.0 Max. mm
C: 15±2.0 mm
D: 5.0±0.5 mm
E: φ0.65±0.1 mm
TEST INSTRUMENTS
L : HP 4284A PRECISION LCR METER (or equivalent)
RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)
(3)-1 Ambient temperature ……......... ＋60℃ Max.
(3)-2 Operate temperature range ...... －40℃～＋125℃
(Including self temp. rise)
(3)-3 Storage temperature range ...... －40℃～＋125℃
MAG.LAYERS
MCD-875C-SERIES Page 1/4
TABLE 1
MAGLAYERS
PT/NO.
Inductance Percent Test Resistance Rated DC Current
L(μH) Tolerance Frequency RDC(Ω)Max. IDC1(A) IDC2(A)
MCD-875C-3R3□
MCD-875C-100□
MCD-875C-150□
MCD-875C-220□
MCD-875C-470□
MCD-875C-820□
MCD-875C-101□
MCD-875C-182□
※ □ specify the inductance tolerance,K(±10%),L(±15%),M(±20%)
IDC1： Based on inductance change (△L/Lo：drop 10% Max.) @ ambient temp. 25℃
IDC2： Based on temperature rise (△T： 40℃ TYP.)
Rated DC Current： The less value which is IDC1 or IDC2.
3.3 L,M 100kHz/0.25V 14m 6.20 6.40
10 M 100kHz/0.25V 50m 2.90 3.70
15 K,M 100kHz/0.25V 70m 2.20 3.10
22 K,M 100kHz/0.25V 90m 1.80 2.45
47 K,M 100kHz/0.25V 0.15 1.30 1.80
82 K,M 100kHz/0.25V 0.24 1.00 1.35
100 K,M 100kHz/0.25V 0.28 0.89 1.20
1800 K,M 1kHz/0.25V 5.05 0.20 0.30
MAG.LAYERS
MCD-875C-SERIES
Page-2/4
(4) RELIABILITY TEST METHOD
MECHANICAL
NO. ITEMS
1 Solderability test
2 lead tensile 1.0 Kg MIN. The lead of product is pulled with a load of
strength test 1.0kg mininum until lead breakdown. The tensile
More than 90% of the
termnial electrode
should be covered
with solder.
Dipping: 245 ± 5 ℃, 3 ± 1 seconds
force shall be recorded.
CONDITIONSSPECIFICATIONS
3 Vibration test
4 Soldering heat Visual:OK The leads of product are dipped into a solder pot
resistance test Circuit:OK
△L/L≦±7%
Visual:OK
The product is fixed ento the vibration with
amplitude of 1.52m/m at a frequency of 10～55Hz
sweeping for lmin. The vibration is done at X,Y,
Z direction respectively for 2 houes, totally 6
hours.
of 260±5℃ for a duration of 10±1sec. Nothing
particular on visual and open circuitry as a
result of ore testing.
ENVIRONMENTAL
NO. ITEMS
1 Humidity
endurance
test
2 High temp
endurance test for 72 hours. Measurement is done after recovery
SPECIFICATIONS CONDITIONS
△L/L≦±5% The product is placed in a chamber of 40±2℃,
90～95%RH for 96 hours. Measurement is done
after the reaovery of 4～24 hours.
△L/L≦±5% The product is placed in a chamber of 80±2℃,
of 4～24 hours.
3 Low temp test
4 Thermal shock
test
MAG.LAYERS
△L/L≦±5% The product is placed in a chamber of -40±2℃,
for 96 hours. Measurement is done after
recovery of 4～24 hours.
△L/L≦±5%
The specimens are placed in a chamber and the
temp is then lowered to -20±2℃ for one hour.
The temp will raised to +80±2℃ for one hour.
This constitues one cycle. Ten cycles of such
testing shall be completed. Measurement is made
after recovery for 4～24 hours from the
completion of testing.
MCD-875C-SERIES
Page-3/4
(5) PACKAGE SPECIFICATION (mm)
MAG.LAYERS
MCD-875C-SERIES
Page-4/4
