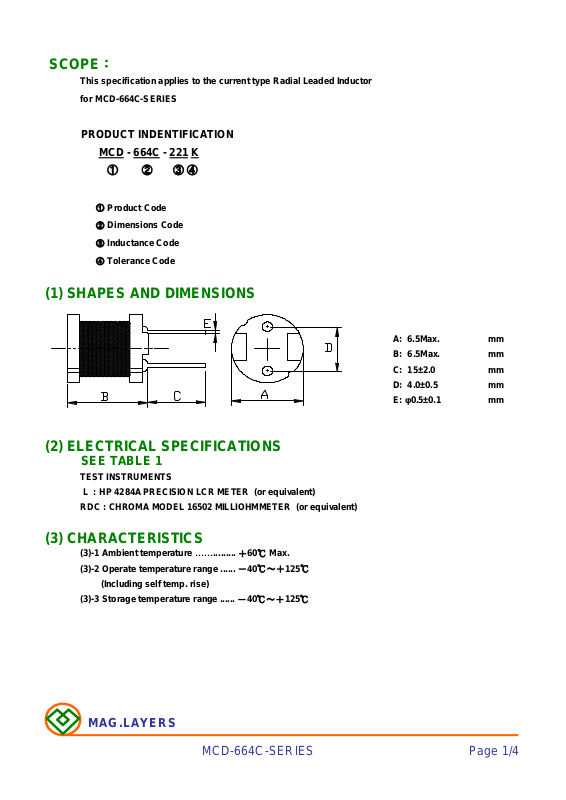

This specification applies to the current type Radial Leaded Inductor
(1) SHAPES AND DIMENSIONS
(2) ELECTRICAL SPECIFICATIONS
for MCD-664C-SERIES
PRODUCT INDENTIFICATION
MCD - 664C - 221 K
① ② ③ ④
① Product Code
② Dimensions Code
③ Inductance Code
④ Tolerance Code
A: 6.5Max. mm
B: 6.5Max. mm
C: 15±2.0 mm
D: 4.0±0.5 mm
E: φ0.5±0.1 mm
SEE TABLE 1
TEST INSTRUMENTS
L : HP 4284A PRECISION LCR METER (or equivalent)
RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)
(3)-1 Ambient temperature ……......... +60℃ Max.
(3)-2 Operate temperature range ...... -40℃~+125℃
(Including self temp. rise)
(3)-3 Storage temperature range ...... -40℃~+125℃
MAG.LAYERS
MCD-664C-SERIES
Page 1/4

TABLE 1
MAGLAYERS
PT/NO.
MCD-664C-101□
MCD-664C-221□
※ □ specify the inductance tolerance,K(±10%),M(±20%)
※ IDC1: Based on inductance change (△L/Lo:drop 10% Max.) @ ambient temp. 25℃
IDC2: Based on temperature rise (△T: 40℃ TYP.)
Rated DC Current: The less value which is IDC1 or IDC2.
Inductance Percent Test Resistance Rated DC Current
L(μH) Tolerance Frequency RDC(Ω)Max. IDC1(A) IDC2(A)
100 K,M 100kHz/0.25V 0.43 0.56 0.85
220 K,M 100kHz/0.25V 0.96 0.40 0.55
MAG.LAYERS
Page-3/5 Page-2/4
MCD-664C-SERIES

(4) RELIABILITY TEST METHOD
MECHANICAL
NO. ITEMS
More than 90% of the
1 Solderability test
2 lead tensile 1.0 Kg MIN. The lead of product is pulled with a load of
strength test 1.0kg mininum until lead breakdown. The tensile
termnial electrode
should be covered
with solder.
Dipping: 245 ± 5 ℃, 3 ± 1 seconds
force shall be recorded.
CONDITIONSSPECIFICATIONS
3 Vibration test
4 Soldering heat Visual:OK The leads of product are dipped into a solder pot
resistance test Circuit:OK
△L/L≦±7%
Visual:OK
The product is fixed ento the vibration with
amplitude of 1.52m/m at a frequency of 10~55Hz
sweeping for lmin. The vibration is done at X,Y,
Z direction respectively for 2 houes, totally 6
hours.
of 260±5℃ for a duration of 10±1sec. Nothing
particular on visual and open circuitry as a
result of ore testing.
ENVIRONMENTAL
NO. ITEMS
1 Humidity
endurance
test
2 High temp
endurance test for 72 hours. Measurement is done after recovery
SPECIFICATIONS CONDITIONS
△L/L≦±5% The product is placed in a chamber of 40±2℃,
90~95%RH for 96 hours. Measurement is done
after the reaovery of 4~24 hours.
△L/L≦±5% The product is placed in a chamber of 80±2℃,
of 4~24 hours.
3 Low temp test
4 Thermal shock
test
MAG.LAYERS
△L/L≦±5% The product is placed in a chamber of -40±2℃,
for 96 hours. Measurement is done after
recovery of 4~24 hours.
△L/L≦±5%
The specimens are placed in a chamber and the
temp is then lowered to -20±2℃ for one hour.
The temp will raised to +80±2℃ for one hour.
This constitues one cycle. Ten cycles of such
testing shall be completed. Measurement is made
after recovery for 4~24 hours from the
completion of testing.
MCD-664C-SERIES
Page-3/4

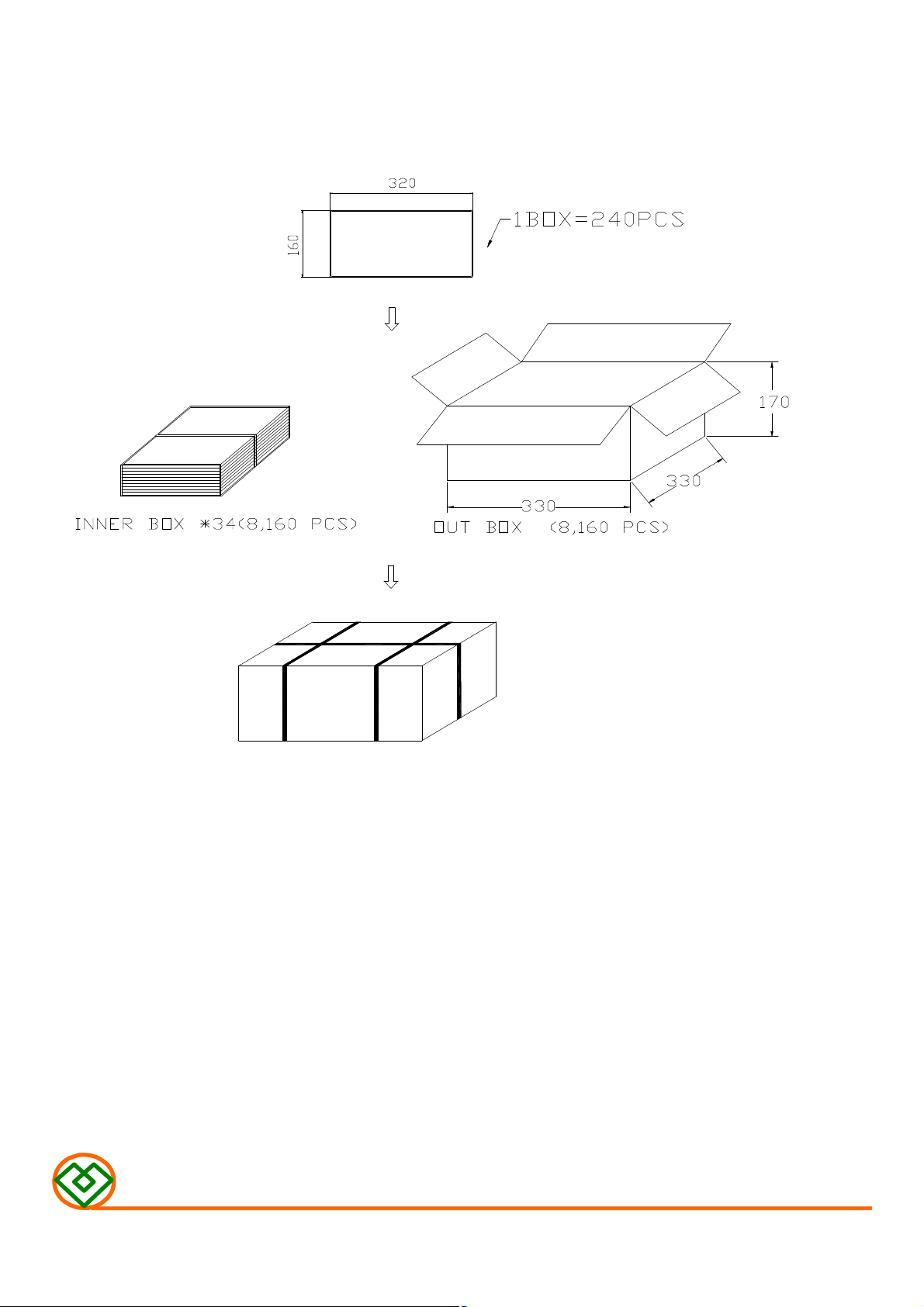

(5) PACKAGE SPECIFICATION (mm)
MAG.LAYERS
MCD-664C-SERIES
Page-4/4
