SCOPE
：
This specification applies to the current type Radial Leaded Inductor
(1) SHAPES AND DIMENSIONS
(2) ELECTRICAL SPECIFICATIONS
SEE TABLE 1
(3) CHARACTERISTICS
for MCD-654C-SERIES
PRODUCT INDENTIFICATION
MCD - 654C - 821 K
① ② ③ ④
① Product Code
② Dimensions Code
③ Inductance Code
④ Tolerance Code
TEST INSTRUMENTS
L : HP 4284A PRECISION LCR METER (or equivalent)
RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)
(3)-1 Ambient temperature ……......... ＋60℃ Max.
(3)-2 Operate temperature range ...... －40℃～＋125℃
(Including self temp. rise)
(3)-3 Storage temperature range ...... －40℃～＋125℃
A 6.0±0.5
B : 5.5 Max.
C : 15.0±2.0
D : 3.0±0.5
E : φ0.5±0.1
mm
mm
mm
mm
mm
MAG.LAYERS
MCD-654C-SERIES Page 1/4
TABLE 1
MAGLAYERS
Inductance Percent Test Resistance Rated DC Current
PT/NO.
MCD-654C-R47□
MCD-654C-1R0□
MCD-654C-1R2□
MCD-654C-4R7□
MCD-654C-220□
MCD-654C-270□
MCD-654C-330□
MCD-654C-390□
MCD-654C-470□
MCD-654C-560□
MCD-654C-680□
MCD-654C-820□
MCD-654C-101□
MCD-654C-121□
MCD-654C-151□
L(μH) Tolerance Frequency RDC(Ω)Max. IDC(A)
0.47 N 100kHz/0.25V 5.72m 8.00
1.0 N 100kHz/0.25V 11.0m 5.00
1.2 N 100kHz/0.25V 11.0m 5.00
4.7 M 100kHz/0.25V 33.5m 2.50
22 K,M 100kHz/0.25V 0.18 0.90
27 K,M 100kHz/0.25V 0.21 0.81
33 K,M 100kHz/0.25V 0.27 0.74
39 K,M 100kHz/0.25V 0.29 0.68
47 K,M 100kHz/0.25V 0.34 0.62
56 K,M 100kHz/0.25V 0.42 0.57
68 K,M 100kHz/0.25V 0.48 0.51
82 K,M 100kHz/0.25V 0.55 0.47
100 K,M 100kHz/0.25V 0.68 0.42
120 K,M 100kHz/0.25V 0.77 0.39
150 K,M 100kHz/0.25V 0.95 0.35
MCD-654C-181□
MCD-654C-221□
MCD-654C-271□
MCD-654C-331□
MCD-654C-391□
MCD-654C-471□
MCD-654C-561□
MCD-654C-681□
MCD-654C-821□
MCD-654C-102□
※ 1. □ Specify the inductance tolerance, K(±10%), M(±20%)
※ 2. IDC1： Based on inductance change (△L/Lo：drop 10% Max.) @ ambient temp. 25℃
IDC2： Based on temperature rise (△T： 40℃ TYP.)
Rated DC Current： The less value which is IDC1 or IDC2.
180 K,M 100kHz/0.25V 1.15 0.32
220 K,M 100kHz/0.25V 1.30 0.29
270 K,M 100kHz/0.25V 1.55 0.26
330 K,M 100kHz/0.25V 2.18 0.23
390 K,M 100kHz/0.25V 2.47 0.21
470 K,M 100kHz/0.25V 2.92 0.20
560 K,M 100kHz/0.25V 3.97 0.18
680 K,M 100kHz/0.25V 4.57 0.16
820 K,M 100kHz/0.25V 5.28 0.15
1000 K,M 100kHz/0.25V 7.06 0.13
MAG.LAYERS
MCD-654C-SERIES
Page-2/4
(4) RELIABILITY TEST METHOD
MECHANICAL
NO. ITEMS
1 Solderability test
2 lead tensile 1.0 Kg MIN. The lead of product is pulled with a load of
strength test 1.0kg mininum until lead breakdown. The tensile
More than 90% of the
termnial electrode
should be covered
with solder.
Dipping: 245 ± 5 ℃, 3 ± 1 seconds
force shall be recorded.
CONDITIONSSPECIFICATIONS
3 Vibration test
4 Soldering heat Visual:OK The leads of product are dipped into a solder pot
resistance test Circuit:OK
△L/L≦±7%
Visual:OK
The product is fixed ento the vibration with
amplitude of 1.52m/m at a frequency of 10～55Hz
sweeping for lmin. The vibration is done at X,Y,
Z direction respectively for 2 houes, totally 6
hours.
of 260±5℃ for a duration of 10±1sec. Nothing
particular on visual and open circuitry as a
result of ore testing.
ENVIRONMENTAL
NO. ITEMS
1 Humidity
endurance
test
2 High temp
endurance test for 72 hours. Measurement is done after recovery
SPECIFICATIONS CONDITIONS
△L/L≦±5% The product is placed in a chamber of 40±2℃,
90～95%RH for 96 hours. Measurement is done
after the reaovery of 4～24 hours.
△L/L≦±5% The product is placed in a chamber of 80±2℃,
of 4～24 hours.
3 Low temp test
4 Thermal shock
test
MAG.LAYERS
△L/L≦±5% The product is placed in a chamber of -40±2℃,
for 96 hours. Measurement is done after
recovery of 4～24 hours.
△L/L≦±5%
The specimens are placed in a chamber and the
temp is then lowered to -20±2℃ for one hour.
The temp will raised to +80±2℃ for one hour.
This constitues one cycle. Ten cycles of such
testing shall be completed. Measurement is made
after recovery for 4～24 hours from the
completion of testing.
MCD-654C-SERIES
Page-3/4

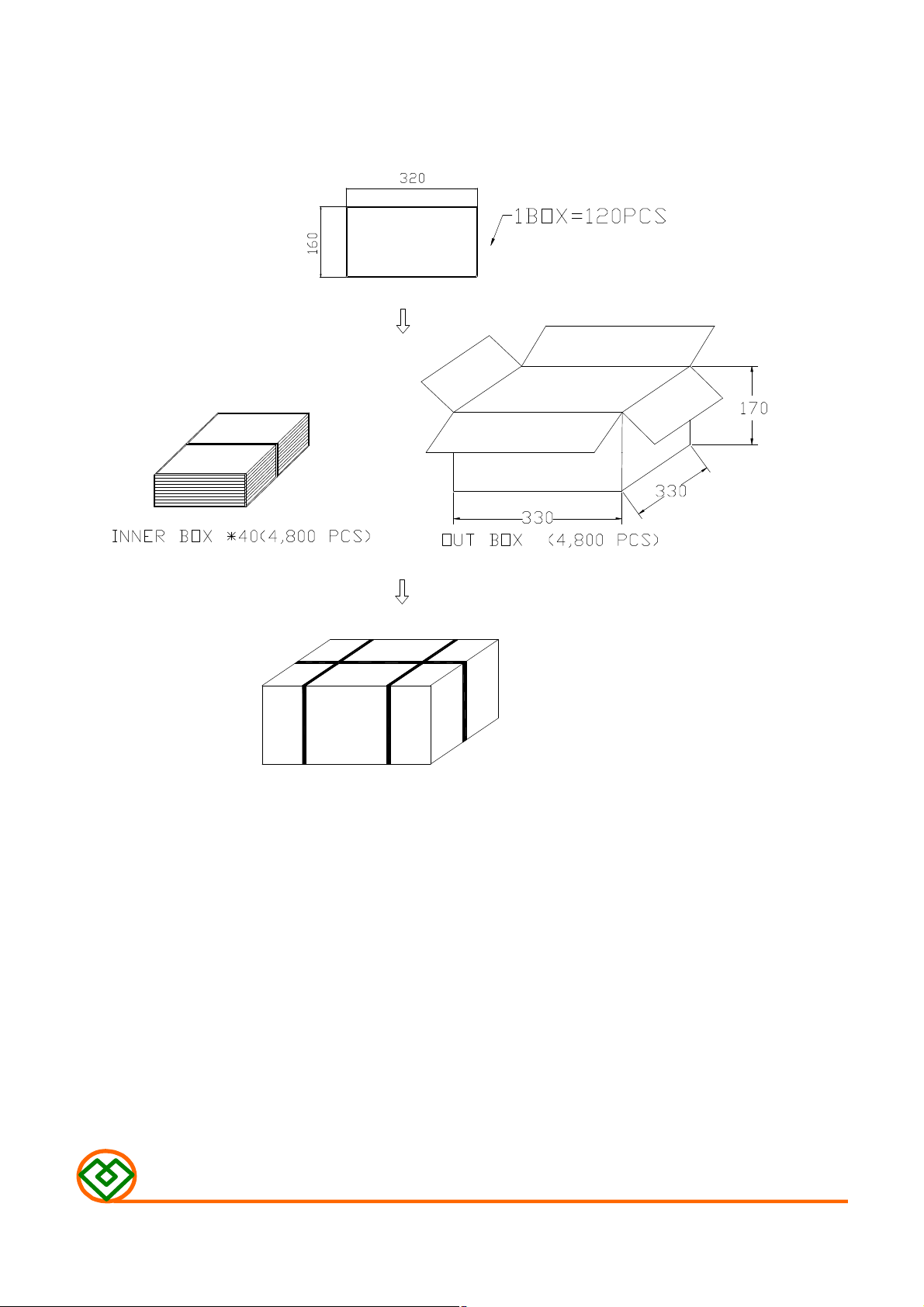

(5) PACKAGE SPECIFICATION (mm)
MAG.LAYERS
MCD-654C-SERIES
Page-4/4
