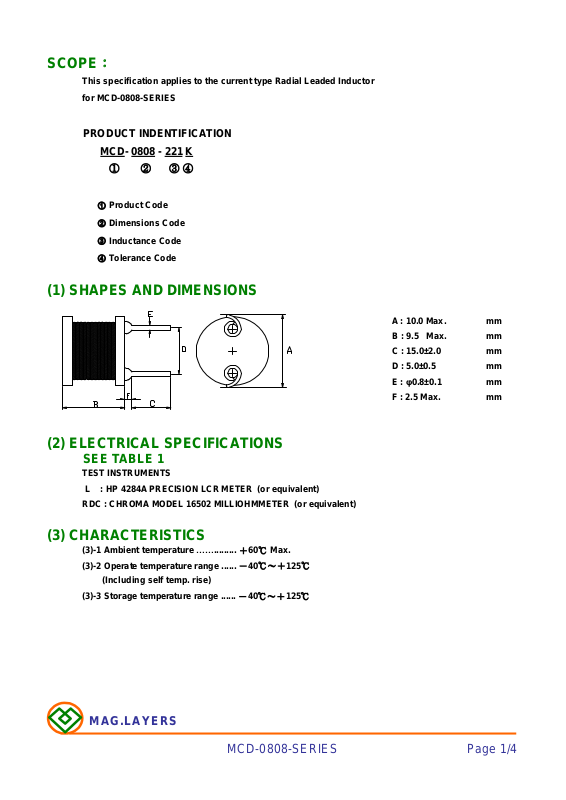

SCOPE
：
This specification applies to the current type Radial Leaded Inductor
(1) SHAPES AND DIMENSIONS
(2) ELECTRICAL SPECIFICATIONS
(3) CHARACTERISTICS
for MCD-0808-SERIES
PRODUCT INDENTIFICATION
MCD- 0808 - 221 K
① ② ③ ④
① Product Code
② Dimensions Code
③ Inductance Code
④ Tolerance Code
A : 10.0 Max. mm
B : 9.5 Max. mm
C : 15.0±2.0 mm
D : 5.0±0.5 mm
E : φ0.8±0.1 mm
F : 2.5 Max. mm
SEE TABLE 1
TEST INSTRUMENTS
L : HP 4284A PRECISION LCR METER (or equivalent)
RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)
(3)-1 Ambient temperature ……......... ＋60℃ Max.
(3)-2 Operate temperature range ...... －40℃～＋125℃
(Including self temp. rise)
(3)-3 Storage temperature range ...... －40℃～＋125℃
MAG.LAYERS
MCD-0808-SERIES Page 1/4
TABLE 1
MAGLAYERS
Inductance Percent Test Resistance
Rated DC Current
PT/NO.
MCD-0808-100□
MCD-0808-150□
MCD-0808-220□
MCD-0808-330□
MCD-0808-390□
MCD-0808-470□
MCD-0808-560□
MCD-0808-680□
MCD-0808-101□
MCD-0808-221□
MCD-0808-472□
※ □ specify the inductance tolerance,K(±10%),M(±20%)
IDC1： Based on inductance change (△L/Lo：drop 10% Max.) @ ambient temp. 25℃
IDC2： Based on temperature rise (△T： 40℃ Typ.)
L(μH) Tolerance Frequency RDC(Ω)Max. IDC1(A) IDC2(A)
10 M 100kHz/0.25V 44 m 4.0 3.4
15 M 100kHz/0.25V 56 m 3.5 3.0
22 M 100kHz/0.25V 70 m 3.0 2.5
33 M 100kHz/0.25V 0.10 2.7 2.1
39 M 100kHz/0.25V 0.12 2.5 2.0
47 M 100kHz/0.25V 0.14 2.3 1.7
56 K,M 100kHz/0.25V 0.16 2.0 1.6
68 K,M 100kHz/0.25V 0.17 1.8 1.5
100 K,M 100kHz/0.25V 0.30 1.4 1.3
220 K,M 100kHz/0.25V 0.62 1.0 0.9
4700 K,M 10kHz/0.25V 14.8 0.25 0.17
Rated DC Current： The less value which is IDC1 or IDC2.
MAG.LAYERS
MCD-0808-SERIES Page-2/4
(4) RELIABILITY TEST METHOD
MECHANICAL
NO. ITEMS
1 Solderability test
2 lead tensile 1.0 Kg MIN. The lead of product is pulled with a load of
strength test 1.0kg mininum until lead breakdown. The tensile
SPECIFICATIONS
More than 90% of the
termnial electrode
should be covered
with solder.
Dipping: 245 ± 5 ℃, 3 ± 1 seconds
force shall be recorded.
CONDITIONS
3 Vibration test
4 Soldering heat Visual:OK The leads of product are dipped into a solder pot
resistance test Circuit:OK
△L/L≦±7%
Visual:OK
The product is fixed ento the vibration with
amplitude of 1.52m/m at a frequency of 10～55Hz
sweeping for lmin. The vibration is done at X,Y,
Z direction respectively for 2 houes, totally 6
hours.
of 260±5℃ for a duration of 10±1sec. Nothing
particular on visual and open circuitry as a
result of ore testing.
ENVIRONMENTAL
NO. ITEMS
1 Humidity
endurance
test
2 High temp
endurance test
SPECIFICATIONS CONDITIONS
△L/L≦±5% The product is placed in a chamber of 40±2℃,
90～95%RH for 96 hours. Measurement is done
after the reaovery of 4～24 hours.
△L/L≦±5%
The product is placed in a chamber of 80±2℃,
for 72 hours. Measurement is done after recovery
of 4～24 hours.
3 Low temp test
4 Thermal shock
test
MAG.LAYERS
△L/L≦±5%
△L/L≦±5%
The product is placed in a chamber of -40±2℃,
for 96 hours. Measurement is done after
recovery of 4～24 hours.
The specimens are placed in a chamber and the
temp is then lowered to -20±2℃ for one hour.
The temp will raised to +80±2℃ for one hour.
This constitues one cycle. Ten cycles of such
testing shall be completed. Measurement is made
after recovery for 4～24 hours from the
completion of testing.
MCD-0808-SERIES
Page-3/4
(5) PACKAGE SPECIFICATION (mm)
MAG.LAYERS
MCD-0808-SERIES
Page-4/4
