IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual
for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: ____________________
Exploded Parts Manual
MKO30, MKO45, MKO60
Outdoor Cooking Suites
All Options
ENGLISH
L22-388 Rev 0 (03/14)
Exploded Parts-MKO Outdoor Cooking Suites(All Options)
Post in a prominent location the
instructions to be followed in the event that
an operator smells gas. Obtain this
information from your local gas supplier.
WARNING
DO NOT store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
WARNING
Improper installation, alteration, service or maintenance can
cause property damage, injury or death. Read the installation,
operating and maintenance instructions thoroughly before
installing or servicing this appliance.
WARNING
Installation, maintenance and repairs should be performed by a
MagiKitch’n Authorized Service and Parts (ASAP) company
technician or other qualified personnel. Installation,
maintenance or repairs by an unauthorized and unqualified
personnel will void the warranty.
WARNING
Installation and all connections must be made according to
national and local regulations and codes in force.
WARNING
During the warranty period if a customer elects to use a nonoriginal part or modifies an original part purchased from
MagiKitch’n and/or its Authorized Service and Parts (ASAP)
companies, this warranty will be void. In addition, MagiKitch’n
and its affiliates will not be liable for any claims, damages or
expenses incurred by the customer which arises directly or
indirectly, in whole or in part, due to the installation of any
modified part and/or received from an unauthorized ser vice
center.
WARNING
This appliance, when installed, must be electrically grounded in
accordance with local codes, or in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.2, as applicable.
WARNING
If the appliance is equipped with a power cord and it is damaged,
it must be replaced by a MagiKitch’n Authorized Service and
Parts (ASAP) company technician, or a similarly qualified person
in order to avoid a hazard.
WARNING
The power supply must be disconnected before servicing,
maintaining or cleaning this appliance.
WARNING
The appliance is NOT jet stream approved. DO NOT clean the
appliance with a water jet.
WARNING
DO NOT attempt to move this appliance or transfer hot liquids
from water tubs to another container when the unit is at
operating temperature. Serious personal injury could result if
skin comes in contact with the hot surfaces or liquids.
WARNING
DO NOT sit or stand on this appliance. The appliance’s front
panel, cook plate, splash back, sides, workshelf is not a step.
Serious injury could result from slipping, falling or contact with
hot surfaces or hot liquids.
WARNING
NEVER use the appliance as a step for cleaning or accessing the
ventilation hood. Serious injury could result from slips, trips or
from contacting hot surfaces or liquids.
WARNING
This appliance is intended for outdoor use only.
WARNING
DO NOT operate appliance unless all panels and access covers
are attached correctly.
WARNING
It is recommended that this appliance be inspected by a qualified
service technician for proper performance and operation on a
yearly basis.
WARNING
There is an open flame inside this appliance. The unit may get
hot enough to set nearby materials on fire. Keep the area around
the appliance free from combustibles.
WARNING
Adequate means must be provided to LIMIT the movement or this
appliance without depending on the gas or electrical cord
connection. Single appliances equipped with legs must be
stabilized by installing anchor straps. All appliances equipped
with casters must be stabilized by installing restraining chains.
WARNING
An appliance equipped with casters and a flexible gas line must
be connected to the gas supply with a quick disconnect device.
This quick disconnect must comply with ANSI Z24.41.
WARNING
DO NOT alter or remove structural material on the appliance to
accommodate placement under a ventilation hood.
WARNING
This appliance is intended for professional use only and should
be operated by fully trained and qualified personnel.
L22-388 Rev 0 (03/14)
WARNING
DO NOT supply the appliance with a gas that is not indicated on
the data plate. If you need to convert the appliance to another
type of fuel, contact your equipment dealer or a MagiKitch’n
Authorized Service and Parts (ASAP) Company.
WARNING
DO NOT use an open flame to check for gas leaks!
WARNING
If gas flow to appliance is interrupted, or pilots extinguish, wait 5
minutes before attempting to relight the pilot to allow any
residual gas in appliance to dissipate.
WARNING
Ensure that the appliance can get enough air to keep the fla me
burning correctly. If the flame is starved for air, it can give off a
dangerous carbon monoxide gas. Carbon monoxide is a clear
odorless gas that can cause suffocation.
Exploded Parts-MKO Outdoor Cooking Suites (All Options)
TABLE OF CONTENTS
1) CABINET & BASE ASSEMBLY ................................................................................................................................................4
C
ABINET & BASE ASSEMBLY EXPLODED VIEW A PARTS LIST ............................................................................................................ 4
CABINET & BASE ASSEMBLY EXPLODED VIEW A................................................................................................................................ 5
MKO A
MKO ASSEMBLY EXPLODED VIEW B.................................................................................................................................................. 7
2) CONTROLS, OPTIONS & ACCESSORIES..............................................................................................................................8
SSEMBLY EXPLODED VIEW B PARTS LIST............................................................................................................................... 6
MKO A
SSEMBLY CONTROLS EXPLODED VIEW C PARTS LIST............................................................................................................. 8
MKO ASSEMBLY CONTROLS EXPLODED VIEW C................................................................................................................................ 9
MKO OPTIONS & ACCESSORIES EXPLODED VIEW D PARTS LIST...................................................................................................... 10
MKO O
PTIONS & ACCESSORIES EXPLODED VIEW D......................................................................................................................... 10
3) ROTISSERIE ASSEMBLY........................................................................................................................................................11
O
PTIONAL ROTISSERIE ASSEMBLY EXPLODED VIEW E PARTS LIST................................................................................................... 11
O
PTIONAL ROTISSERIE ASSEMBLY SCHEMATIC VIEW E .................................................................................................................... 11
OPTIONAL ROTISSERIE ASSEMBLY EXPLODED VIEW E...................................................................................................................... 12
4) ADDITIONAL OPTIONS & ACCESSORIES.........................................................................................................................13
A
DDITIONAL OPTIONS & ACCESSORIES PARTS LIST ..........................................................................................................................13
L22-388 Rev 0 (03/14)
3
1) CABINET & BASE ASSEMBLY
Cabinet & Base Assembly Exploded View A Parts List
ITEM # PART # PART DESCRIPTION
5225-1578101 Assembly, Base with Casters MKO30
5225-1578102 Assembly, Base with EZ Roll Wheels MKO30
5225-1578103 Assembly, Base with Casters MKO45
5225-1578104 Assembly, Base with EZ Roll Wheels MKO45
5225-1578105 Assembly, Base with Casters MKO60
1
1A 60170501 Wheel, 14" Diameter
1B
1C 5425-1577701 Wheel, Hub Cap
1D
1E
1F 5207-1175105 Caster, 6" Swivel With Lock
1G 5125 -1576 401 W eld Ass em bly, Bo ttle Brac ke t Base
1H
2
3 3 905 -0299 400 Tan k, V ertic al 40 Lb. W ith OPD
4
5 A1859 802 Cl ip, Bottle Brac ket
6
7
5225-1578106 Assembly, Base with EZ Roll Wheels MKO60
5225-1578107 Assembly, Base with Casters MKO30 (Fixed Gas Models)
5225-1578108 Assembly, Base with EZ Roll Wheels MKO30 (Fixed Gas Models)
5225-1578109 Assembly, Base with Casters MKO45 (Fixed Gas Models)
5225-1578110 Assembly, Base with EZ Roll Wheels MKO45 (Fixed Gas Models)
5225-1578111 Assembly, Base with Casters MKO60 (Fixed Gas Models)
5225-1578112 Assembly, Base with EZ Roll Wheels MKO60 (Fixed Gas Models)
60158902 Acorn Nut, 1/2-13 UNC SST
A3902106 Axle, 1/2" MKO
5 225 -1577 801 Ass em bly, Do or MKO3 0
5225-1577802 Assembly, Door MKO45 RH
5225-1577803 Assembly, Door MKO45 LH
5225-1577804 Assembly, Door MKO60 RH
5225-1577805 Assembly, Door MKO60 LH
5 125 -1577 101 W eld Ass em bly, Bo ttle Brac ke t Gusset LH
5 125 -1577 102 W eld Ass em bly, Bo ttle Brac ke t Gusset RH
5 225 -1578 801 Ass em bly, Wat er Tub MKO
5225-1578802 Assembly, Water Tub With Drain MKO
4003-0295900 Wing Nut, 1/4-20 UNC Locking
5 225 -1579 401 Ass em bly, S ide Servic e Sh elf MKO LH
5 225 -1579 402 Ass em bly, S ide Servic e Sh elf MKO RH
5 225 -1579 403 Ass em bly, S ide Servic e Sh elf W ith Ro tiss erie MKO LH
5 225 -1579 404 Ass em bly, S ide Servic e Sh elf W ith Ro tiss erie MKO RH
5225-1579201 Assembly, Cabinet Frame MKO30
5225-1579202 Assembly, Cabinet Frame MKO45
5225-1579203 Assembly, Cabinet Frame MKO60
Exploded Parts-MKO Outdoor Cooking Suites (All Options)
4
L22-388 Rev 0 (03/14)
Exploded Parts-MKO Outdoor Cooking Suites (All Options)
Cabinet & Base Assembly Exploded View A
NOTE Some models may not have all the Items as displayed.
L22-388 Rev 0 (03/14)
5
Exploded Parts-MKO Outdoor Cooking Suites (All Options)
MKO Assembly Exploded View B Parts List
ITEM # PART # PART DESCRIPTI ON
1
2908-1318222 Orifice, Main Burner 2.10 mm (Natural Gas)
2908-0977300 Orifice, Main Burner #55 DMS (LP Gas)
2
60184701 Fitting, Elbow Male Flare X 1/2" NPT
2A 0899-1133101 Pipe, Supply 1/2" NPT SST
3 5 225 -1575401 Ass em bly, Bur ner Man ifo ld MK O30/ 45 /60 LH
4
5 225 -1575402 Ass em bly, Bur ner Man ifold M KO6 0 RH
5 225 -1575403 Ass em bly, Bur ner Man ifold M KO4 5 RH
5
2701-0028200 Regulator, Natural Gas 3/4" NPT (Fixed Gas Supply)
2701-0028300 Regulator, LP Gas 3/4" NPT (Fixed Gas Supply)
6 4 199 -1151601 Ass em bly, Regulator 2 stage With Ho se (Pr opan e Gas )
7
5 225 -1581801 Ass em bly, Side Bur ner Inlet Piping Fro nt
5 225 -1581802 Ass em bly, Side Bur ner Inlet Piping Rea r
8
5 225 -1575201 Ass em bly, Side Bu rner Na tur al MKO
5 225 -1575202 Ass em bly, Side Bu rner LP MKO
3006-0292500 Burner, Pilot Runner Tube LH
9
2908-0940700 Orifice, Pilot Burner .87 mm (Natural Gas)
2908-0940600 Orifice, Pilot Burner #74 DMS (LP Gas)
3006-0513800 Burner, Pilot Runner Tube MKO60 RH
9A
2908-0940700 Orifice, Pilot Burner .87 mm (Natural Gas)
2908-0940600 Orifice, Pilot Burner #74 DMS (LP Gas)
3006-0513801 Burner, Pilot Runner Tube MKO45 RH
9B
2908-1174800 Orifice, Pilot Burner .98 mm (Natural Gas)
2908-1174900 Orifice, Pilot Burner #76 DMS (LP Gas)
3006-0292501 Burner, Pilot Runner Tube MKO45 LH
9C
2908-1174800 Orifice, Pilot Burner .98 mm (Natural Gas)
2908-1174900 Orifice, Pilot Burner #76 DMS (LP Gas)
10
5425-1581601 Cover, Runner Tube MKO LH
5425-1581603 Cover, Runner Tube MKO45 LH
10A
5425-1581602 Cover, Runner Tube MKO RH
5425-1581604 Cover, Runner Tube MKO45 RH
11
5425-1572701 Burner, Mounting Bracket MKO
12 5425-1581501 Burner, Runner Tube Bracket MKO
13 5403-0500302 Radiant, Burner MKO
14
A8036406 Spark, Ignition Rod MKO
15 60180801 Burner, Heavy Duty 1.50" SST
16
5425-1581701 Radiant, Heat Shield MKO
3606-1184501 Radiant, Pin Support
6
L22-388 Rev 0 (03/14)
Exploded Parts-MKO Outdoor Cooking Suites (All Options)
MKO Assembly Exploded View B
L22-388 Rev 0 (03/14)
7
Exploded Parts-MKO Outdoor Cooking Suites (All Options)
2) CONTROLS, OPTIONS & ACCESSORIES

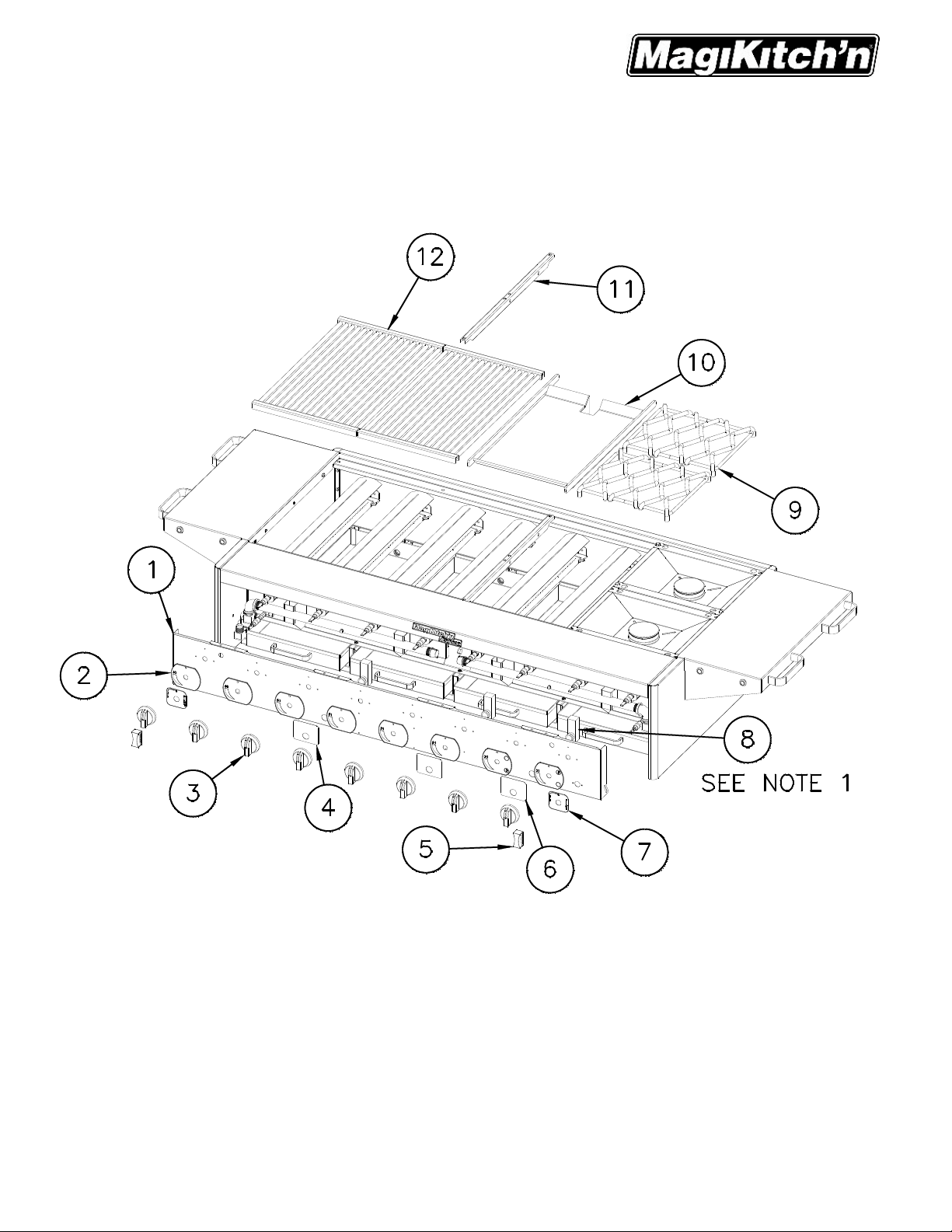

MKO Assembly Controls Exploded View C Parts List
ITEM # PART # PART DESCRIPTION
5425-1579301 Front Panel, MKO30
1
5425-1579302 Front Panel, MKO45
5425-1579303 Front Panel, MKO60
2 60182901 Label, On-Off MKO
3 60182301 Knob, Chrome Plated
4
A6105101 Label, Ignition Pilot MKO
5 3501-0705000 Knob, Rectangular Chrome Plated
6
A6105 102 Labe l, Ig nit i on Stove MK O (Wit h Side Bu rner Op tion )
7 60183401 Label, Pilot On-Off MKO
8 P9132-34 Con tro l, Sp ark Battery Operat ed
8a
P9132-37 Cont rol, Spark 4" Ground Wire
8b 60141301 Wiring, Cable Ignition with Rajah Connection
8c 60167802 Control, Spark Ignitor Wire 24"
8d
60 167803 C ontrol, S park Ignitor Wire 36"
9 5125-1574201 Weld Assembly, Stove Burner Grate MKO (With Side Burner Option)
10
5125-1574301 Weld Assembly, Griddle15" MKO
11 5 125 -1583 701 W eld Ass em bly, Center Suppo rt MKO
12
5 125 -15741 01 W eld Ass em bly, Top Gri d Sin gle MKO (W ith Ho od Opt ion)
5125-1574102 W eld Assembly, Top Grid Dual MKO
8
L22-388 Rev 0 (03/14)
Exploded Parts-MKO Outdoor Cooking Suites (All Options)
MKO Assembly Controls Exploded View C
NOTE(S):
1. See Exploded VIEW C Parts list for Item(s) 8a,8b,8c and 8d, these are various wiring connections but not
shown for clarity.
2. Main burner pilot runner tube(s) and side burner spark control(s) require different wire connections.
L22-388 Rev 0 (03/14)
9
Exploded Parts-MKO Outdoor Cooking Suites (All Options)
MKO Options & Accessories Exploded View D Parts List
ITEM # PART # PART DESCRIPTION
1
2
60183601 Knob, Mounting/Adjustment Screw Rotisserie (Included with Rotisserie)
7225-1578401 Option, Rotisserie 30" Left Mount MKO
7225-1578401 Option, Rotisserie 30" Right Mount MKO
3 5125-1578501 Accessory, Utility Ice/Sauce Bucket MKO
4 5125-1578502 Accessory, Utility Utensil/Spice Bucket MKO
5
6
7
5225-1578601 Option, Side Burner Cover (Available with Side Burner Option Only)
5225-1578701 Option, Hood Complete 15" MKO
5225-1578702 Option, Hood Complete 30" MKO
5125-1574001 Accessory, Hood Warming Rack 15" (Available with 15" Hood Only)
5125-1574002 Accessory, Hood Warming Rack 30" (Available with 30" Hood Only)
MKO Options & Accessories Exploded View D
10
L22-388 Rev 0 (03/14)
Exploded Parts-MKO Outdoor Cooking Suites (All Options)
3) ROTISSERIE ASSEMBLY
Optional Rotisserie Assembly Exploded View E Parts List
ITEM # PART # PART DESCRIPTION
1
2
3 60184901 Motor, Rotisserie 120V 6RPM
4 60125801 Screw, 10-24 x .375 Slot TH
5
6 5425-1587501 Rotisserie, Base Mounting Bracket
7
8 5425-1573501 Rotisserie, Saddle Bearing
9 5425-1573701 Rotisserie, Spit
10
11 PP11178 Screw, 10-24 x .375 sSelf Tap SST
12 5425-1573601 Rotisserie, Spit Coupling
13
14 5425-1582401 Rotisserie, Motor Mounting Plate
15
16 60183701 Pin, Quick Release Ring Grip SST
17 B6755403 Cord, Rotisserie Power 14-3 AWG
18
19 B6799001 Wiring, Rortisserie Motor Harness
5425-1582301 Rotisserie, Motor Cover Housing LH
5425-1582302 Rotisserie, Motor Cover Housing RH
P9132-14 Switch, Rectangular 20A 250V IP-65
60183601 Knob, Knurled 1/4-20 UNC
5 125 -1582 601 Weld Ass em bly, Rot isserie Fork
60174407 Pemsert, 1/4-20 UNC SST
P0112000 Bolt,10-24 X 1/2 Hex Head SST
P0142000 Nut, Acorn 10-24 with Centerlock SST
PP10914 Bushing, Stra in Relief Cable
Optional Rotisserie Assembly Schematic View E
L22-388 Rev 0 (03/14)
11
Exploded Parts-MKO Outdoor Cooking Suites (All Options)
Optional Rotisserie Assembly Exploded View E
NOTE: Item 19, motor wiring not shown, refer to View E table.
12
L22-388 Rev 0 (03/14)
Exploded Parts-MKO Outdoor Cooking Suites (All Options)
4) ADDITIONAL OPTIONS & ACCESSORIES
Additional Options & Accessories Parts List
PART # PART DESCRIPTION
5006-0040700 Accessory, Top Grid Scraper
9801-1275100 Accessory, Steamer Pan Set 15"
9801-0509000 Accessory, Steamer Pan Set 30"
9825-2000103 Accessory, Cutting Board MKO30
9825-2000104 Accessory, Cutting Board MKO45
9825-2000105 Accessory, Cutting Board MKO60
60184801 Accessory, Vinyl Cover MKO30 (W/ Hood(s))
60184802 Accessory, Vinyl Cover MKO30 FLAT (W/O Hood(s))
60184803 Accessory, Vinyl Cover MKO30 BI (W/ Hood(s), No Base)
60184804 Accessory, Vinyl Cover MKO30 BI FLAT (W/O Hood(s), No Base)
60184805 Accessory, Vinyl Cover MKO45 (W/ Hood(s))
60184806 Accessory, Vinyl Cover MKO45 FLAT (W/O Hood(s))
60184807 Accessory, Vinyl Cover MKO45 BI (W/ Hood(s), No Base)
60184808 Accessory, Vinyl Cover MKO45 BI FLAT (W/O Hood(s), No Base)
60184809 Accessory, Vinyl Cover MKO60 (W/ Hood(s))
60184810 Accessory, Vinyl Cover MKO60 FLAT (W/O Hood(s))
60184811 Accessory, Vinyl Cover MKO60 BI (W/ Hood(s), No Base)
60184812 Accessory, Vinyl Cover MKO60 BI FLAT (W/O Hood(s), No Base)
L22-388 Rev 0 (03/14)
13
In the event of problems with or questions
about your order, please contact the
MagiKitch’n factory at :
(603)225-6684 World Wide
www.magikitchn.com
MAILING ADDRESS – P.O. BOX 501, CONCORD, NH 03302-0501
SHIPPING ADDRESS – 10 FERRY ST., CONCORD, NH 03301
L22-388 Rev 0 (03/14)
In the event of problems with or questions
about your equipment, please contact the
MagiKitch’n Authorized Service and Parts
representative (ASAP) covering your area,
or contact MagiKitch’n at the numbers
listed to the left.
Loading...
