Magic Media Works EJ83T User Manual

LITE

STAR

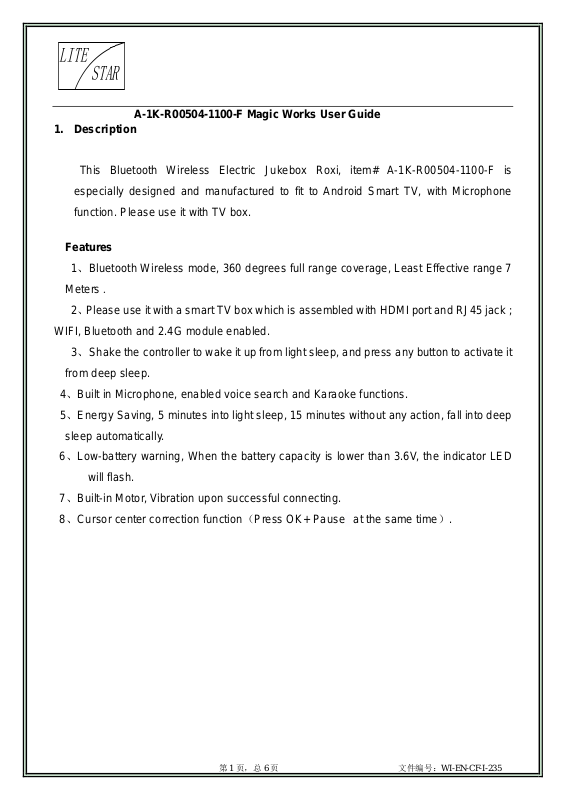

A-1K-R00504-1100-F Magic Works User Guide

1. Description

This Bluetooth Wireless Electric Jukebox Roxi, item# A-1K-R00504-1100-F is
especially designed and manufactured to fit to Android Smart TV, with Microphone
function. Please use it with TV box.

Features

1、Bluetooth Wireless mode, 360 degrees full range coverage, Least Effective range 7
Meters .

2、Please use it with a smart TV box which is assembled with HDMI port and RJ45 jack ;

WIFI, Bluetooth and 2.4G module enabled.

3、Shake the controller to wake it up from light sleep, and press any button to activate it

from deep sleep.
4、Built in Microphone, enabled voice search and Karaoke functions.
5、Energy Saving, 5 minutes into light sleep, 15 minutes without any action, fall into de ep

sleep automatically.
6、Low-battery warning, When the battery capacity is lower than 3.6V, the indicator LED

will flash.
7、Built-in Motor, Vibration upon successful connecting.
8、Cursor center correction function（Press OK+ Pause at the same time）.

第 1 页，总 6 页 文件编号：WI-EN-CF-I-235

LITE

STAR

Left click of

Play

Pause

Reset

on/off

Side mounted

2. Buttons Layout：

OK（
mouse）

MIC

LED

MIC

Magic Wand

Power

MICRO USB
Recharge Port

TV BOX

DC Input

ports

4.Connecting and Operations

4.1、Pairing

1、Connect the TV box with TV through a HDMI cable and connect it with power supply.
2、While the TV box is power on, Here appears reminders of connecting the controller.
3、Following the instructions on TV box, hold the buttons “MIC”+“pause” for about 5

seconds（Within 1 Meter），LED flash frequently , into pairing status. White LED on ,
built in motor vibrate indicating pairing success.

4.2、Functions and Oper at ions
Button OK：Single press to wake up air mouse, rapid single press into selection function

after connecting ( same function as a left mouse button)

Play：Rapid single press

1、 Pause：Rapid single press to suspend playing music
2、 MIC：Voice opening button, single press this button after connecting, white LED on

constantly, indicating MIC is turned on.

第 2 页，总 6 页 文件编号：WI-EN-CF-I-235

3、 Voice call is enabled (Press MIC to turn on Audio, go to the APP in TV box to turn

off Audio)
