SUPERBLASTER &
SUPERBLASTER XL.
PART00512
rev 01-00
CONFETTI FX
USER AND INSTALLATION MANUAL
ENGLISH
2 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
DISCLAIMER
WARNING
Read this manual carefully before installing and/or using this
product. Failure to read the manual and to follow the printed
instructions may lead to personal injury and/or damage to the
product.
© 2019 MAGICFX
®
All rights reserved.
Nothing from this publication may be copied, reproduced and/or published by
means of printing, photocopying or by any other means, without the prior written
approval of MAGIC FX.
MAGIC FX reserves the right to modify specications stated in this manual.
TRADEMARKS
Any brand names mentioned in this manual are registered trademarks of their
respective owners.
LIABILITY
MAGIC FX accepts no liability for claims from third parties arising from unauthorised
use, use other than that stated in this manual, and use other than in accordance with
the General Conditions registered at the Chamber of Commerce.
We further refer to the General Conditions. These are available on request, free of
charge.
Although considerable care has been taken to ensure a correct and comprehensive
description of all relevant components, the manual may nonetheless contain errors
and inaccuracies.
Should you detect any errors or inaccuracies in the manual, we would be grateful if
you would inform us. This helps us to further improve our documentation.
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 3
TABLE OF CONTENTS
Disclaimer 2
Trademarks 2
Liability 2
Foreword 4
Language 4
Revision table 4
1 Meet the MAGICFX® SUPERBLASTER (XL)! 5
1.1 Main parts 5
1.2 Technical data 6
1.3 Accessories 6
1.4 Productidentication 7
1.5 Confetti 7
2 Blast safely! 8
2.1 General safety rules 8
2.2 CO2 8
2.3 Indoor use 9
2.4 Rigging 9
2.5 Noise level 9
2.6 Safety symbols 9
2.7 Precautionsforoperation 10
3 Let’s blast! 11
3.1 Install the machine 11

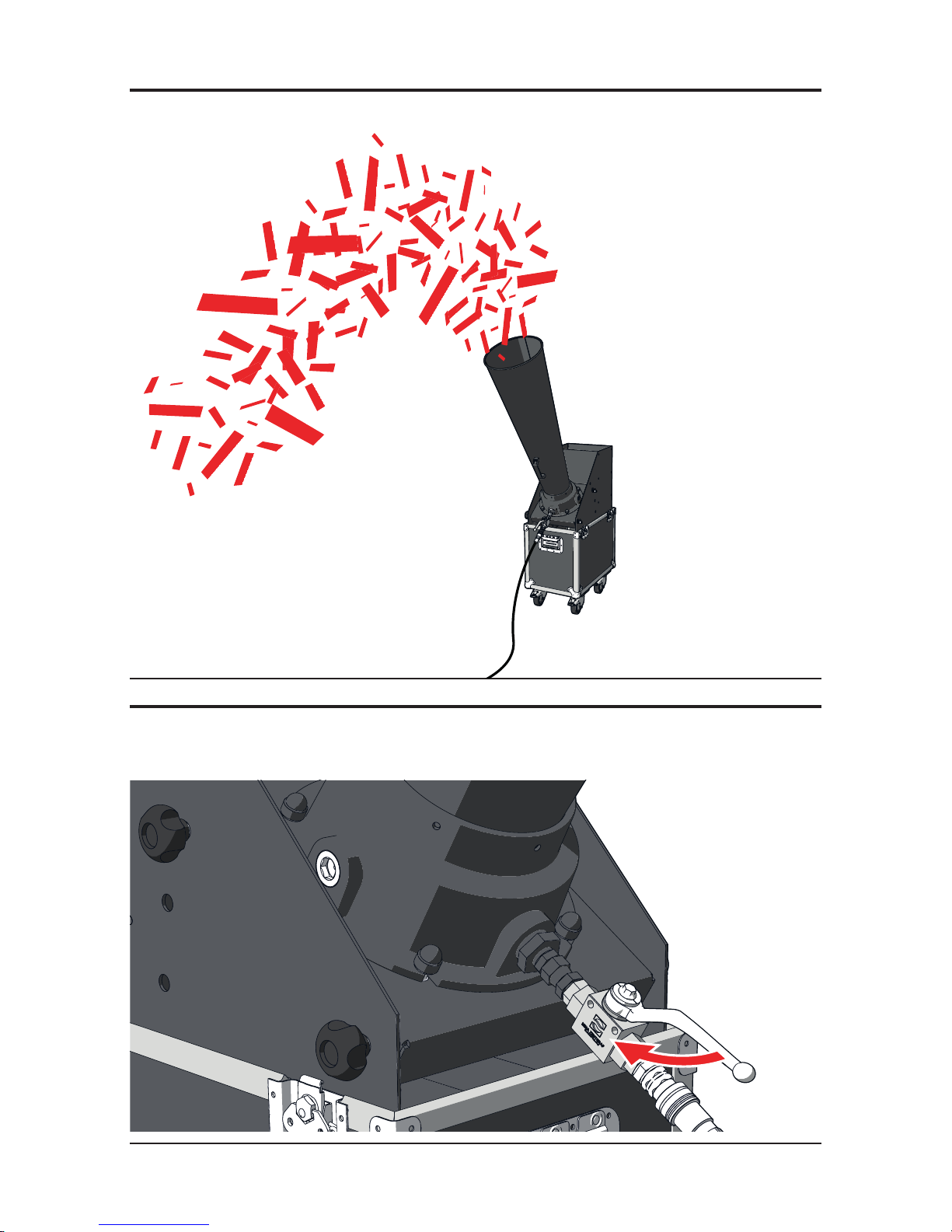

3.2 Fill with confetti and blast 18

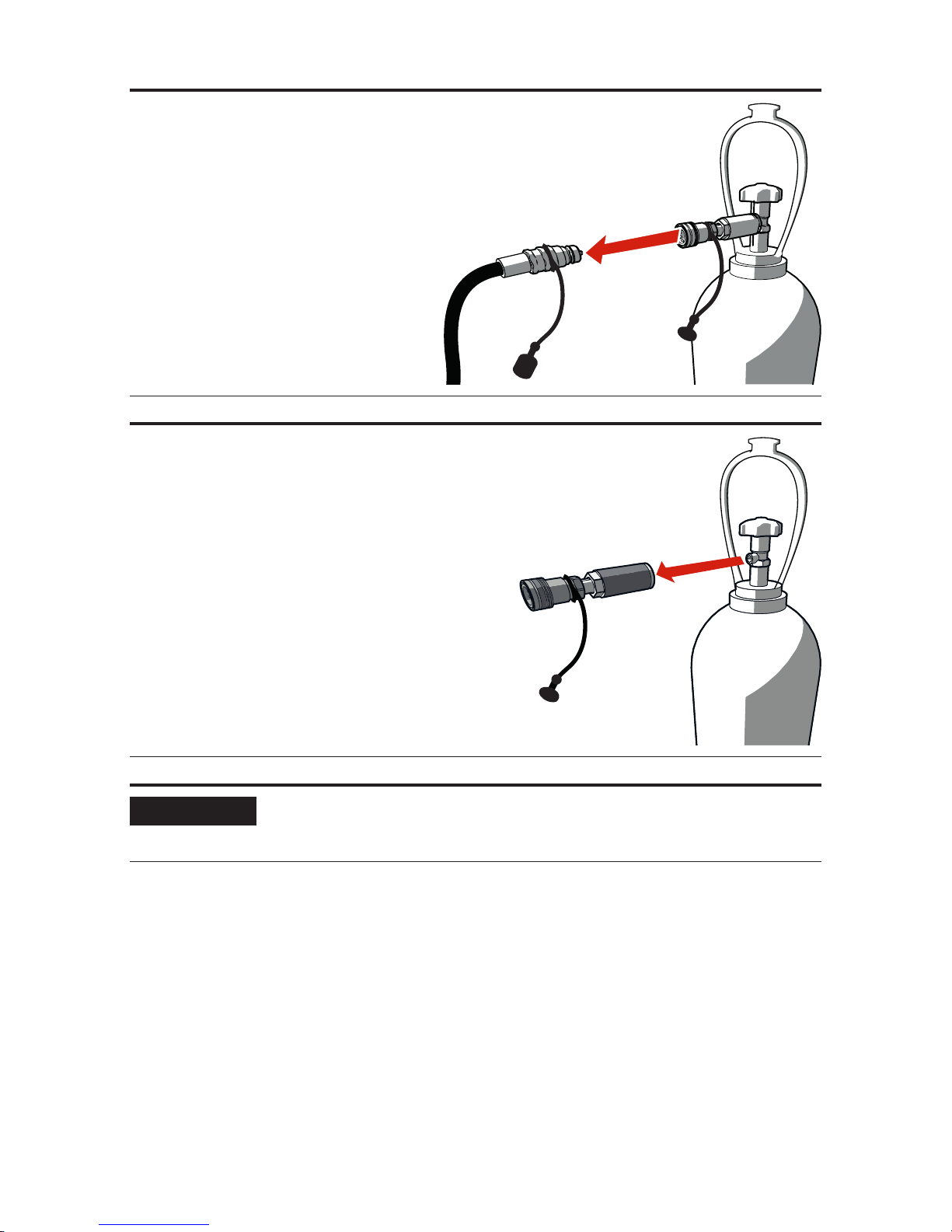

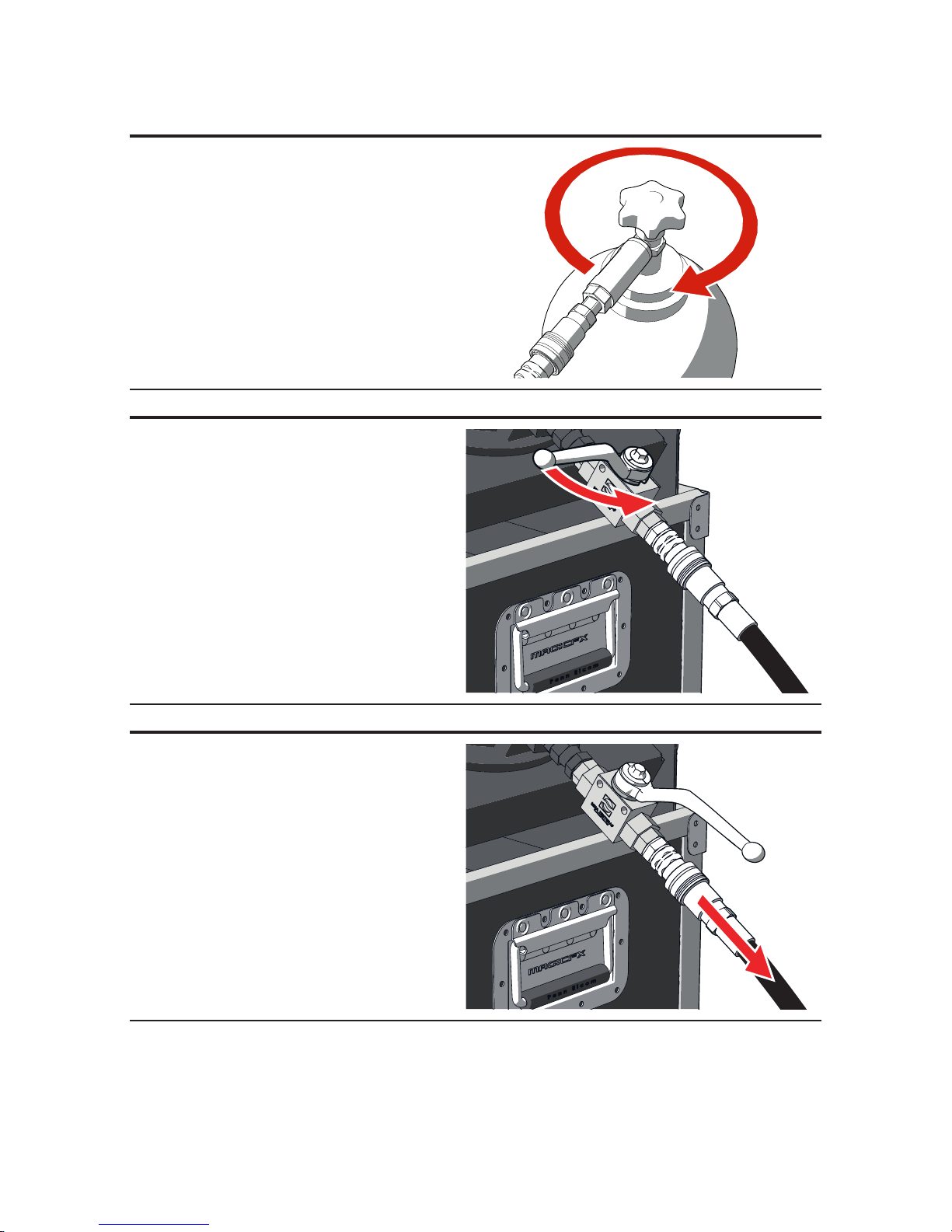

3.3 Replace a CO2cylinder 20
3.4 Clean up 23
4 Troubleshooting 27
5 Maintenance 27
6 Correctdisposal 27
7 ECDeclarationofConformity 28
7.1 SUPERBLASTER 28
7.2 SUPERBLASTERXL 29
4 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
FOREWORD
Congratulations! You have bought a great new product from MAGIC FX.
This manual contains all information required for the intended use of the equipment.
Deviation from the described intended use can result in a hazardous situation and/or
property damage.
This manual includes notes and warnings on safe operation of the equipment. These
notes and warnings are accompanied by the following icons. Read them attentively!
DANGER
Indicates a hazardous situation that, if not avoided, will result in
death or serious injury. This signal word is to be limited to the most
extreme situations.
WARNING
Indicates a hazardous situation that, if not avoided, could result
in death or serious injury.
CAUTION
Indicates a hazardous situation that, if not avoided, could result
in minor or moderate injury.
NOTICE
Indicates information considered important, but not hazardrelated (e.g. messages relating to property damage).
LANGUAGE
This document contains the original instructions in English. In case you require other
languages please contact MAGIC FX.
REVISION TABLE
Document nr Revision Date Description Authored by Checked by
PART00512 01-00 26-3-2019 Initial release TFR TVA
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 5
1 MEET THE MAGICFX®SUPERBLASTER(XL)!
The MAGICFX® SUPERBLASTER and the MAGICFX® SUPERBLASTER XL are special eects
machines that blow confetti into the air.
Type Capacity Maximum shooting distance
MAGICFX® SUPERBLASTER 3-5kgs per minute 15m
MAGICFX® SUPERBLASTER XL 10-15kgs per minute 25m
Capacity and shooting distance
The MAGICFX® SUPERBLASTER (XL) is equipped with a CO2 powered woofer. CO2 is
blown into the woofer through small holes. This creates a Venturi eect that
continuously draws the confetti from the hopper, out of the woofer and into the air.
The eect is accompanied by a strong hissing sound. If liquid CO2 is applied, a white
plume of smoke will be visible.
The CO2 supply is controlled by hand with the CO2 valve. To keep the eect going the
operator must continuously ll the hopper with confetti.
1.1 MAIN PARTS
WOOFER
HOPPER
FLIGHTCASE
CO2 INPUT
CO2 VALVE
Main parts
6 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
1.2 TECHNICAL DATA
Product Product Name MAGICFX®
SUPER BLASTER
MAGICFX®
SUPER BLASTER XL
Product Code
MFX0801 MFX0802
Product Type
CONFETTI & STREAMER FX
Main
Dimensions
Length (mm/in.)
540 21.3 661 26
Width (mm/in.)
280 11 385 15.2
Height (mm/in.)
1040 40.9 1373 54.1
Weight Empty weight (kg/lb.)
34 75 55 121.3
Environment Minimum Temperature (ºC/ºF)
-20 -4 -20 -4
Maximum Temperature (ºC/ºF)
70 158 70 158
Humidity (Relative)
20% to 90% (non condensing)
Controlling Control Options
Manual
Usage Consumable(s)
Confetti
Propellant
Liquid or Gaseous CO
2
Propellant Connector
0.25L/s 0.5L/s
Technical data
1.3 ACCESSORIES
Code Product Included
MFX1114 CO₂ High Pressure Hose 3/8 Male - Female, 1.25M
MFX1105 CO₂ High Pressure Hose 3/8 Male - Female, 2M
MFX1106 CO₂ High Pressure Hose 3/8 Male - Female, 3M x
MFX1108 CO₂ High Pressure Hose 3/8 Male - Female, 10M
MFX1109 CO₂ High Pressure Hose 3/8 Male - Female, 15M
MFX1110 CO₂ 90 Degrees Connector 3/8
MFX1103 CO₂ Bottle to Hose Connector x
MFX1115 CO₂ Bottle to Hose Connector 90 Degrees
Accessories
Please contact MAGIC FX for additional possibilities.
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual7
1.4 PRODUCT IDENTIFICATION
Type plate
1.5 CONFETTI
The MAGICFX® SUPERBLASTER (XL) can be set in 4 dierent angles between 42° and
90°. The output height and output distance depend on the type of confetti and the
set angle. The maximum load per blast also depends on the type of confetti. Check
the following table.
Type of confetti Max. load per blast Output distance
Metallic confetti 20 kg 25M
Paper confetti 10 kg 25M
Snow or Powder confetti 5 kg 25M
Confetti types and related loads and output
NOTICE
Wind and other weather circumstances will inuence the output
height and output distance of the confetti. The given values are
estimated values.
8 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
2 BLAST SAFELY!
The MAGICFX® SUPERBLASTER (XL) has been designed and constructed in such a
manner that it can be used safely. This applies to the use, the circumstances and the
regulations as described in this documentation. Reading this documentation and
following the instructions are therefore necessary for everyone who works with the
MAGICFX® SUPERBLASTER (XL).
The MAGICFX® SUPERBLASTER (XL) must be used in surroundings that:
• Have a stable temperature of between -20 and 70°C.
• Have a relative humidity degree between 20% and 90% (non condensing).
• Are free of dust, corrosive gases and high concentrations of organic vapours.
• Are not situated in the vicinity of a source of vibration.
2.1 GENERAL SAFETY RULES
• Only authorised persons may work with the MAGICFX® SUPERBLASTER (XL).
• Do not use the MAGICFX® SUPERBLASTER (XL) if there are people or animals in
the direct output.
• Make sure that children, unauthorised people and animals do not obtain
access to the MAGICFX® SUPERBLASTER (XL).
• Do not remove any safeguards, safety caps and safety symbols.
• All required safety devices must be in good condition and function properly.
• Ensure sucient lighting of the surroundings.
• Keep the workplace clean.
2.2 CO2
The MAGICFX® SUPERBLASTER (XL) uses liquid or gaseous CO2 as input. The application
of CO2 involves serious risks. Make sure that you are well informed on these risks
before installation and/or operation. Always use approved CO2 cylinders, hoses and
connections. Always consult your CO2 supplier for regulations and instructions on safe
installation and use.
MAGIC FX is not liable for unsafe situations, accidents and damage that are the result
of incorrect working with CO2 gas and CO2 cylinders.
WARNING
Inadequate installation and/or operation of a CO2 powered
machine and CO2 cylinders can lead to death or serious injury.
Always follow the instructions from this manual, from your CO2
supplier and from local authorities.
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 9
2.3 INDOOR USE
The MAGICFX® SUPERBLASTER (XL) is designed for outdoor use and use in wellventilated indoor spaces. When used indoors, make sure you take the necessary
preparations. These preparations could include, but are not limited to:
• Consulting your CO2 supplier.
• Calculating the reduction of oxygen for the indoor space.
• Checking the location for spots where CO2 could accumulate and taking
preventive actions.
• Installing CO2 monitoring devices that will warn for hazardous CO2 levels.
DANGER
Do not use the MAGICFX® SUPERBLASTER (XL) in poorly ventilated
conned spaces. Exposure to high levels of CO2 gas can cause
symptoms like headache, nausea, loss of consciousness or even
death.
2.4 RIGGING
Please follow the European and national guidelines for safe rigging and trussing.
2.5 NOISE LEVEL
The environmental noise level as measured at the ear is 97 dB(A). This level of noise is
only reached during the short instances that the CO2 output is active. Therefore
hearing protection is not necessary.
WARNING
Do not operate the MAGICFX® SUPERBLASTER (XL) close to yourself
or to others for a long period of time. If you experience any
hearing loss or ringing in the ears, you should immediately stop
using the unit.
2.6 SAFETY SYMBOLS
Symbol Meaning Position
Read the manual carefully before use! Front of the machine
Safety symbols
10 MAGICFX®SUPERBLASTER&SUPERBLASTERXL — User and Installation Manual
2.7 PRECAUTIONS FOR OPERATION
WARNING
Using a damaged or an improper installed machine can lead to
death, serious injury or property damage. Always inspect the
machine thoroughly before operation.
WARNING
Missing or obscured safety symbols on the machine can lead to
death, serious injury or property damage. Make sure all safety
symbols are correctly in place and visible, see Section 2.6.
CAUTION
A missing or loose-tted woofer can lead to injury. Make sure that
the woofer is correctly in place and secured.
WARNING
Make sure there are no objects near the output that can be
damaged or overthrown by the MAGICFX® SUPERBLASTER (XL).
WARNING
Always create a safety zone with a distance of 3 m around the
MAGICFX® SUPERBLASTER (XL).
3 m
top view
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 11
3 LET’S BLAST!
3.1 INSTALL THE MACHINE
1 Bring the cased MAGICFX® SUPERBLASTER (XL) to the desired location.
2 Unlock and remove the top cover.
12 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
3 Take all parts out of the case:
1
3
6 5 47
2
4 Place and hold the woofer in the case and insert a pin through the front
pinholes. Make sure that the CO2 input of the woofer is positioned at the front.
1. Woofer
2. Woofer pin clip (2 pcs)
3. Woofer pin (2 pcs)
4. CO₂ Bottle to Hose Connector
5. CO2 valve
6. CO₂ hose 3/8 male - female (3m)
7. Adjustable wrench
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 13
5 Secure the pin with a clip.
6 Set the angle of the woofer by aligning the back pinhole with one of the four
predened holes in the case.
0º
16
º
32º
48º
14 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
7 Insert the second pin through the back pinholes to secure the position of the
woofer.
8 Secure the pin with a clip.
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 15
9 Position the machine and set the brakes.
10 Take the necessary safety precautions, see Section 2.7.
11 Connect the CO2 valve to the CO2 input of the woofer and tighten the nut with
the adjustable wrench.
16 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
12 Connect the CO2 hose to the CO2 valve.
13 Make sure that the CO2 valve is in CLOSED position.
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual17
14 Connect the CO₂ Bottle to
Hose Connector to a CO2
cylinder.
15 Connect the CO2 hose to the
CO₂ Bottle to Hose
Connector on the CO2
cylinder.
16 Open the CO2 cylinder.
18 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
3.2 FILL WITH CONFETTI AND BLAST
1 Make sure that the prescribed safety zone is free from persons and objects.
2 When it’s time to blast, move the manual CO2 valve in OPEN position.
3 Keep lling the hopper with confetti by hand.
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 19
4 Enjoy the view!
5 When you are nished with blasting confetti, move the manual CO2 valve back
in CLOSED position.
20 MAGICFX®SUPERBLASTER&SUPERBLASTERXL — User and Installation Manual
3.3 REPLACE A CO2 CYLINDER
1 Make sure that the CO2 valve is in
CLOSED position.
2 Close the connected CO2 cylinder.
3 Move the manual CO2 valve in
OPEN position to release the
pressure from the system.
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 21
4 Disconnect the CO2 hose from the
CO2 Bottle to Hose Connector on
the CO2 cylinder.
5 Remove the CO2 Bottle to Hose
Connector from the cylinder.
6 Connect a CO2 Bottle to Hose
Connector to a new CO2 cylinder.
22 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
7 Connect the CO2 hose to the CO2
Bottle to Hose Connector on the
new CO2 cylinder.
8 Move the manual CO2 valve back
in the CLOSED position.
9 Open the CO2 cylinder.
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 23
3.4 CLEAN UP
1 Close the connected CO2 cylinder.
2 Move the manual CO2 valve in
OPEN position to release the
pressure from the system.
3 Remove the CO2 hose.
24 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
4 Disconnect the CO2 hose from the
CO2 Bottle to Hose Connector on
the CO2 cylinder.
5 Remove the CO2 Bottle to Hose
Connector from the cylinder.
NOTICE
Fasteners in the vicinity of the output pipe can become frozen
due to the use of CO2. If necessary, wait until these fasteners are
defrosted before you try to release them.
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 25
6 Unscrew the nut and remove the
CO2 valve.
7 Unlock and remove the pins while
holding the woofer and remove the
woofer.
8 Remove remaining confetti from
the hopper.
26 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
9 Store all parts in the case.
10 Place and lock the top cover.
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual27
4 TROUBLESHOOTING
Always contact MAGIC FX if any malfunctions or errors occur that cannot be solved
with the instructions as described in this manual.
5 MAINTENANCE
To achieve the maximum service life of the MAGICFX® SUPERBLASTER (XL) you must
regularly clean the MAGICFX® SUPERBLASTER (XL) and test if it is functioning correctly.
Contact MAGIC FX if the MAGICFX® SUPERBLASTER (XL) is not functioning correctly.
DANGER
Do not replace parts yourself; always consult MAGIC FX if
necessary.
6 CORRECT DISPOSAL
This symbol on the product and/or accompanying documents
means that used electrical and electronic products should not be
mixed with general household waste. For proper treatment,
recovery and recycling, please take this product to designated
collection points where it will be accepted free of charge.
Alternatively, in some countries you may be able to return your
products to your local retailer upon purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources and prevent any
potential negative eects on human health and the environment, which could
otherwise arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated
collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
your national legislation.
28 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual
7 EC DECLARATION OF CONFORMITY
7.1 SUPERBLASTER
DECLARATION OF CONFORMITY
MAGIC FX B.V. declares as manufacturer and composer of the technical construction file that the
product with the following specifications:
Name machine : SUPER BLASTER
Type : MFX0801
Serial number : on product
Year of construction : on product
Is in conformity with the minimal safety regulations as stated in the following directive(s):
PED 2014/68/EU category 4.3, SEP
(products in this category cannot be provided with a CE-marking)
The following harmonized standards were applied:
NEN-EN-ISO 12100:2010 Safety of machinery - General principles for design - Risk
assessment and risk reduction.
Original declaration of conformity
Translation of the original declaration of conformity
Name manufacturer : MAGIC FX BV
Address : Schouwrooij 27, 5281 RE BOXTEL
Country : The Netherlands
CEO : B. Veroude
Date : 19-3-2019
Signature :
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 29
7.2 SUPERBLASTER XL
DECLARATION OF CONFORMITY
MAGIC FX B.V. declares as manufacturer and composer of the technical construction file that the
product with the following specifications:
Name machine : SUPER BLASTER XL
Type : MFX0802
Serial number : on product
Year of construction : on product
Is in conformity with the minimal safety regulations as stated in the following directive(s):
PED 2014/68/EU category 4.3, SEP
(products in this category cannot be provided with a CE-marking)
The following harmonized standards were applied:
NEN-EN-ISO 12100:2010 Safety of machinery - General principles for design - Risk
assessment and risk reduction.
Original declaration of conformity
Translation of the original declaration of conformity
Name manufacturer : MAGIC FX BV
Address : Schouwrooij 27, 5281 RE BOXTEL
Country : The Netherlands
CEO : B. Veroude
Date : 19-3-2019
Signature :
30 MAGICFX®SUPERBLASTER&SUPERBLASTERXL — User and Installation Manual
MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 31
WWW.MAGICFX.EU
Loading...
