PRODUCT CODE :MFX1201
VERSION :1.0
DATE :14.12.2012
User Documentation MAGICFX® Stage Flame
1. CONGRATULATIONS!
You have purchased a wonderful new product from MAGICFX®.
MAGIC FX is a Dutch manufacturer of professional special effects machinery and equipment. We
have specialised in special effects since we established our business in 1995. All products are
manufactured under the brand name MAGICFX®, which has acquired an excellent reputation for
quality and reliability. All products are manufactured in accordance with the European Machinery
Directive. MAGIC FX handles the entire production in-house from concept to finished product. We take
care of the design, prototyping and manufacturing process.
MAGIC FX is also Europe's largest supplier of high quality and fireproof confetti products and
streamers. We keep a large inventory in stock so we can deliver speedily and at the lowest prices.
MAGICFX® products are used by special effects professionals around the world and distributed by a
dealer network across 58 countries.
Thank you for your purchase!
Page 1
NOTE:
We must assume that you, your employees and others who use or come
into contact with the machine are familiar with how the machine should
be utilized. This specifically pertains to the proper use, maintenance and
repair of the machine as described in this user manual. This also means
that employees should be qualified to use machinery through training or
experience.
DANGER WARNING:
The Stage Flame must only be used according to the prescriptions and
instructions in this manual. Consult MAGIC FX if there are any doubts
about usage.
2. CE MARKING
Disclaimers:
MAGIC FX B. V. specifically disclaims liability for unsafe situations, accidents and damages caused
by:
- Ignoring warnings or prescriptions displayed on the Stage Flame or in this documentation.
- Using the equipment for other purposes or situations than specified in this documentation.
- Modifications to the Stage Flame. This includes the use of non-original spare parts.
- Improper maintenance.
- Unauthorized removal of safety covers and/or safety devices.
- Improper use of the machine.
MAGIC FX B.V. is not liable for any damages due to failures of the Stage Flame.
© Copyright 2012
All rights reserved. No part of this manual may be reproduced, stored in a retrieval system or
transmitted in any form or by any means, electronic, mechanical, photocopied, recorded or otherwise
without the prior written permission of MAGIC FX B.V.
MAGIC FX reserves the right to make modifications at any time without having to notify the customer
beforehand. The content of this manual may also be modified.
For additional information about maintenance, repair, and so on, please contact your supplier’s
technical department. This manual was written with the utmost care. MAGIC FX cannot be held liable
for errors contained in this document or consequences thereof.
Version 1.0
Page 2
User Documentation MAGICFX® Stage Flame
3. DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
(according to Annex IIA of the Machinery Directive)
With respect to the Machinery Directive.
MAGIC FX B.V.
Industrieweg 16
5281 RW Boxtel
The Netherlands
Hereby declares under our sole responsibility:
We are the manufacturer of the product:
MFX1201 - MAGICFX® Stage Flame
to which this declaration pertains and it is in conformity with the
provisions of the following guidelines:
- Machinery Directive 2006/42/EG
- Low Voltage Directive 2006/95/EG
- EMC Directive 2004/108/EG
The following harmonized standards are applicable:
- NEN-EN-ISO 12100-1
- NEN-EN-ISO 12100-2
- NEN-EN-ISO 13850
- NEN-EN-ISO 13732-1
- NEN-EN 60204-1
City: Boxtel
Date : 08-06-2010
Name: MAGIC FX
Director: B. Veroude
Page 3
TIP:
This provides you with suggestions and advice on how to perform tasks
in an easier or more convenient way.
NOTE:
This is a note providing supplemental information that alerts you to
possible problems.
CAUTION:
This indicates that the equipment may be damaged if procedures are not
carried out in the proper manner.
DANGER WARNING:
This indicates that you may cause yourself injury, possibly serious, if
procedures are not carried out in the proper manner.
Version 1.0
4. FOREWORD
This manual provides pertinent information about the MAGICFX® Stage Flame. The information in this
manual is important with respect to the proper and safe operation of the Stage Flame. If you are not
familiar with the installation, operation, preventive maintenance, etc., of the Stage Flame then read
this manual in its entirety. MAGIC FX also urges all new users (operators, installers, maintenance staff
and possibly cleaning staff) to receive training on the equipment using this manual as the basis for the
training.
MAGIC FX recommends you keep the original of this manual and its attachments in a secure central
location, and, keep another copy of this manual close to the workplace where the Stage Flame will be
used.
If you are well acquainted with the proper handling of the equipment then keep this manual handy for
reference.
The following conventions are used in this manual to draw your attention to specific information or
actions.
TABLE OF CONTENTS
Page 4
User Documentation MAGICFX® Stage Flame
1. CONGRATULATIONS! .................................................................................... 1
2. CE MARKING ................................................................................................... 2
3. DECLARATION OF CONFORMITY ................................................................. 3
4. FOREWORD .................................................................................................... 4
5. INTRODUCTION .............................................................................................. 6
5.1 DESCRIPTION OF THE STAGE FLAME AND ITS USAGE ................................................. 6
5.2 NECESSARY ACCESSORIES ............................................................................................... 6
5.3 TYPES OF GAS ...................................................................................................................... 6
5.4 CHOICE OF FLAME ............................................................................................................... 7
6. SAFETY ........................................................................................................... 8
6.1 INTRODUCTION ..................................................................................................................... 8
6.2 GENERAL SAFETY RULES ................................................................................................... 8
6.3 EMERGENCY STOP BUTTON............................................................................................... 8
6.4 WARNINGS ............................................................................................................................. 9
6.5 FEATURES ........................................................................................................................... 10
7. PARTS ........................................................................................................... 11
8. ACCESSORIES .............................................................................................. 12
9. PREPARATION FOR USE ............................................................................. 12
10. READYING FOR USE .................................................................................... 13
11. USAGE ........................................................................................................... 19
12. TURNING OFF ............................................................................................... 21
13. TROUBLESHOOTING ................................................................ ................... 21
14. TECHNICAL SPECIFICATIONS .................................................................... 22
15. MAINTENANCE ............................................................................................. 22
16. GUARANTEE ................................................................................................. 22
Page 5
Manual
MFX0308 – POWER CABLE
MFX1204 – EMERGENCY STOP
AEROSOL CAN
GAS BOTTLE
Version 1.0
5. INTRODUCTION
5.1 DESCRIPTION OF THE STAGE FLAME AND ITS USAGE
The Stage Flame is a device specifically designed for producing flames on stage. The Stage Flame is
intended solely to be placed on a flat surface or stage and produce brief upward flame effects (fire
balls).
Should you use the equipment in any way other than just described then you release your supplier
from all liability.
The Stage Flame can be used with approved aerosol cans and propane gas bottles. The Stage Flame
also has a large flame mode where both aerosol can and gas bottle are used at the same time.
The Stage Flame is DMX controllable. One address is used as a safety channel and one address for
the flame. A third address is used for the big flame mode.
The Stage Flame has a large number of safety features and components that are discussed later in
this manual. Read this manual carefully in its entirety before you start working with the Stage Flame.
5.2 NECESSARY ACCESSORIES
The following parts are necessary with the Stage Flame:
Table 5.1
5.3 TYPES OF GAS
The Stage Flame can use approved aerosol cans (with screw-thread connector) and propane gas
bottles.
Table 5.2
Page 6
User Documentation MAGICFX® Stage Flame

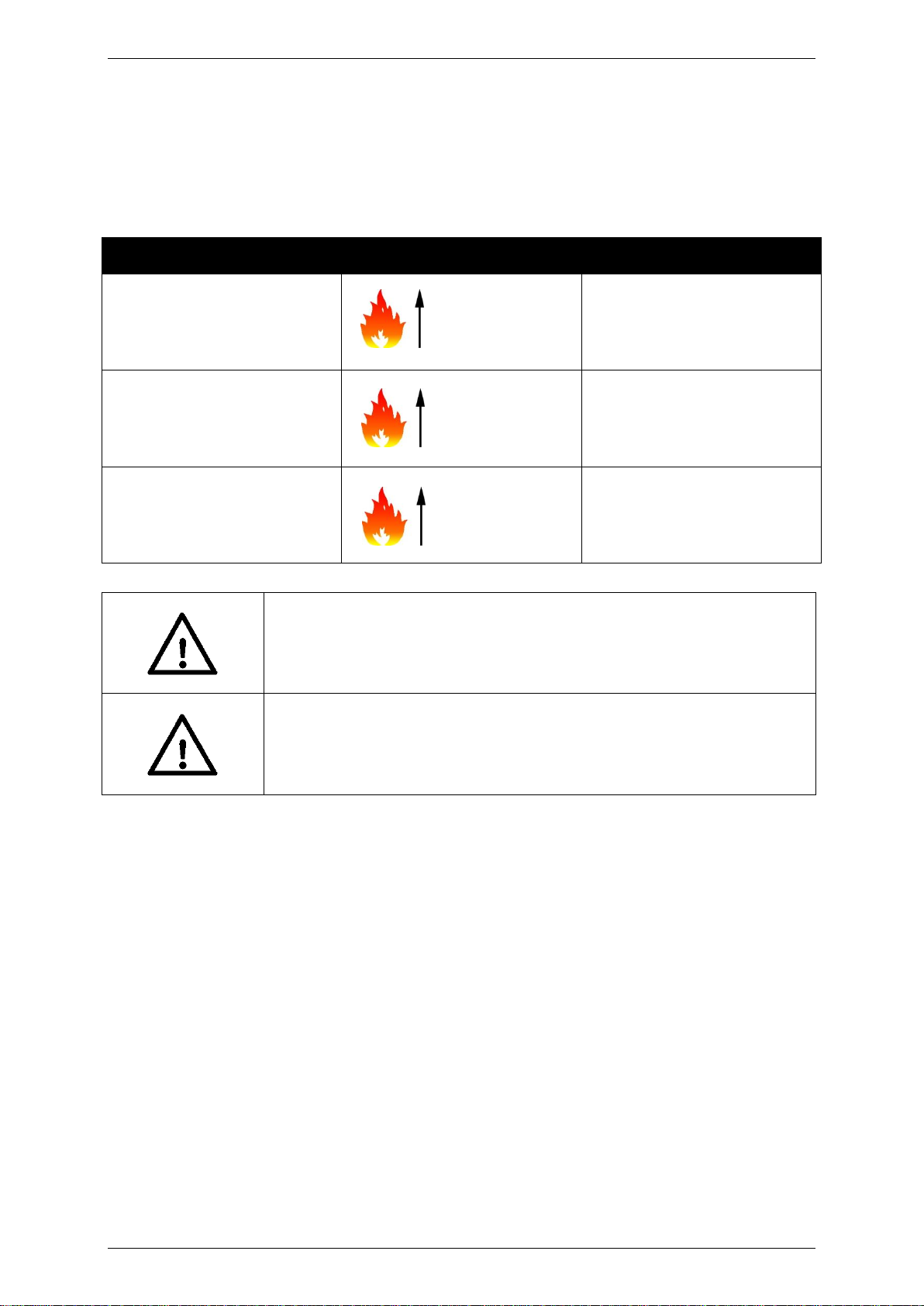

MODE
FLAME HEIGHT
MINIMUM CLEARANCE HEIGHT
AEROSOL CAN
3M
6M
GAS BOTTLE
4M
7M
BIG-FLAME
(AEROSOL CAN + GAS BOTTLE)
6M
10M
DANGER WARNING:
As the ambient temperature increases so does the gas pressure and
that leads to a higher flame.
DANGER WARNING:
An invisible hot vapor is created above the flame. At all times, ensure
that the minimum clearance height is kept clear when the Stage Flame
can be activated.
5.4 CHOICE OF FLAME
The following types of flames are possible (at a normal ambient temperature of 20°):
- AEROSOL CAN: Flame height approximately three meters high
- GAS BOTTLE: Flame height approximately three to four meters high
- BIG-FLAME (AEROSOL CAN + GAS BOTTLE): Flame height approximately six meters high
Table 5.3
Page 7
Version 1.0
6. SAFETY
6.1 INTRODUCTION
The Stage Flame is designed and constructed so that it can be used in a safe manner. Specifically,
this refers to the usage, situations, and prescriptions for the device as described in this
documentation. It is the responsibility of all persons authorized to use the Stage Flame to read and
follow the instructions in this manual.
The Stage Flame should be located and used in an environment that preferably:
- Has a fairly constant temperature between 0 and 30ºC.
- Has a relative humidity not exceeding a maximum of 75%.
- Is reasonably free of dust, corrosive gases, and high concentrations of organic vapors.
- Does not contain any source of vibrations in the environment.
The Stage Flame is designed and constructed so that it can be used in a safe manner. Specifically,
this refers to the usage, situations, and prescriptions for the device as described in this
documentation. It is the responsibility of all persons authorized to use the Stage Flame to read and
follow the instructions in this manual.
6.2 GENERAL SAFETY RULES

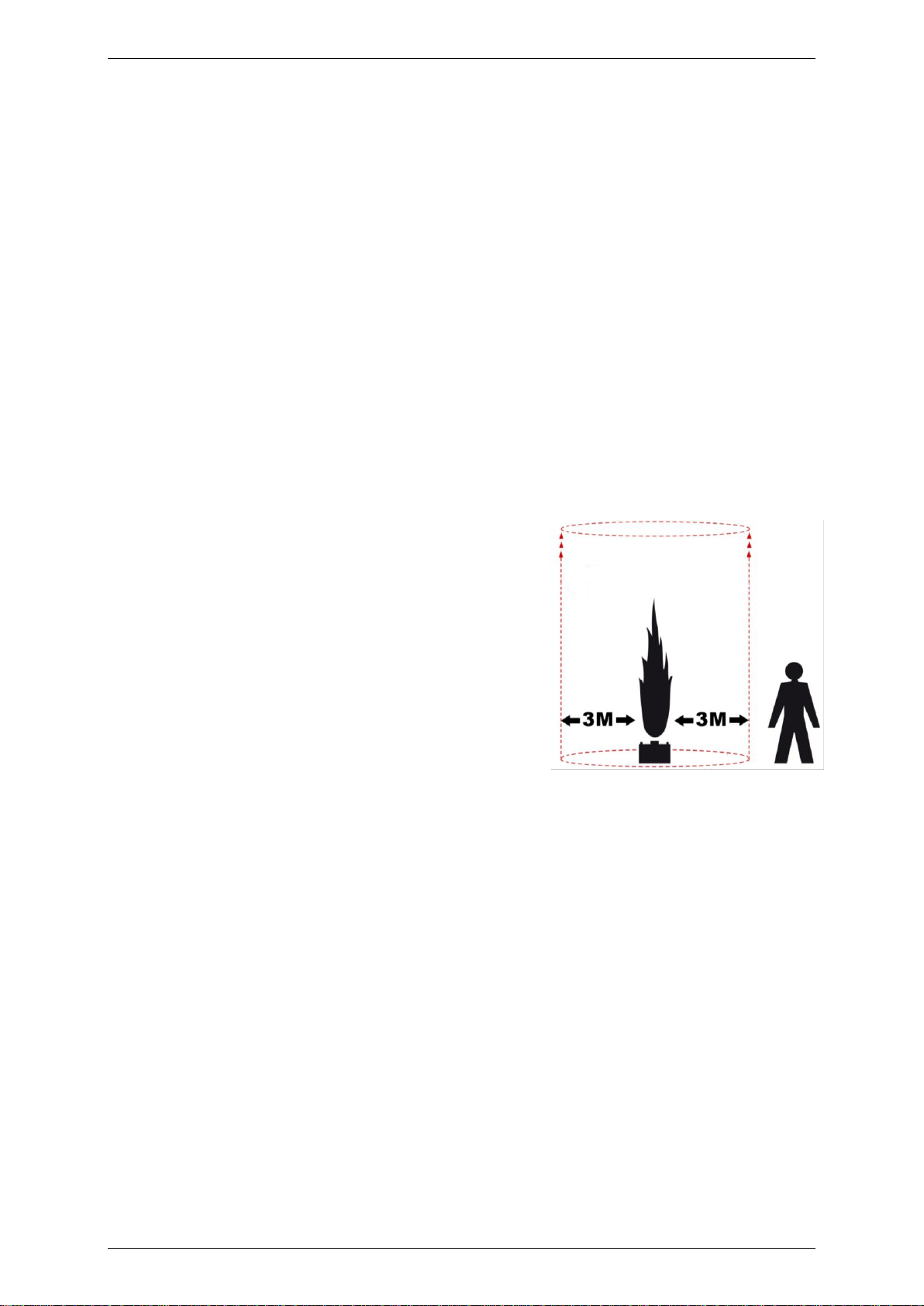

- The Stage Flame should only be used when there are no
people, animals, or inflammable objects within the danger
zone. The danger zone is the cylindrical space around the
device with a radius of three meters. See also the red
shading in Figure 3 (not drawn to scale).
- Ensure that the Stage Flame is not accessible to children,
unauthorized persons, or animals!
- Do not touch the Stage Flame when it is operational or
turned on. Even if the device is not in operation it might be
ready to activate.
- Safety devices must not be removed or rendered
inoperative.
- All required safety devices should be in good working
order and functioning properly.
- Ensure that there is adequate lighting in the environment.
- Keep the workplace clean.
- Only authorized persons may work with the Stage Flame.
- It not permitted to use the Stage Flame in an environment containing flammable gases or fluids.
- Always ask the fire brigade for permission to use the Stage Flame at the desired location.
6.3 EMERGENCY STOP BUTTON
The Stage Flame is equipped with an emergency stop button (MFX1201) in case of emergencies. The
Emergency Stop Button has the following characteristics:
- The emergency button is easy to recognize because of its red/yellow colors and should be
positioned so that it can be reached easily and quickly.
- Pressing the emergency stop button immediately stops the Stage Flame. The emergency stop
button remains mechanically blocked and the device cannot be restarted.
In the event of personal injury, immediate assistance can be given straight away. Any other
emergency procedures should also be carried out as soon as possible.
The Stage Flame can be reset after the danger is entirely eliminated.
The emergency stop button also can be used if there is a sudden danger such as a malfunction. Such
a situation does not require urgent action. The device can be simply turned off.
Further safety measures may be required depending on the nature of how the device will be used.
See the relevant prescriptions.
Recommendations:
Page 8
User Documentation MAGICFX® Stage Flame
DANGER WARNING:
Any missing, spoilt, or illegible text or icons must be replaced.
Icons
Explanation
PIC 616 Observe directions for use
Make the operator aware that they may only
use the device after they have read the user
manual.
This warning is indicated with this instruction
icon.
Icons
Explanation
PIC 307 Hazardous voltage
This warning icon indicates the presence of
dangerous live voltage.
Icons
Explanation
- Have new operators practice several times with the emergency stop button.
- Do not use the emergency stop button to stop the device in normal circumstances.
- Regularly test that it is working properly.
- An emergency stop button should not be reset when it is not known who or why it was used.
6.4 WARNINGS
There are several warnings displayed on the Stage Flame to which the following restrictions apply:
- The text must not be removed or otherwise spoilt. The operator should regularly check that the
warnings are in good condition.
- The operator must ensure that the text is always visible and legible and that it remains so.
The icons used are shown below:
Page 9
PIC 315 Hot surface
A warning for danger from a hot surface must
be indicated using the PIC 315 icon. This is
located on the top of the Stage Flame.
Icons
Explanation
PIC 300 Combustible substances
A warning for danger for fire must be indicated
using the PIC 300 icon. This is located on the
top of the Stage Flame.
Version 1.0
6.5 FEATURES
The Stage Flame has many safety features. One of these features checks whether the Stage Flame is
moved, tilted, or was given a massive jolt.
In these cases, the Stage Flame automatically stops and it will not be possible to create flames.
If the Stage Flame experiences a failure or is moved then the message “error press reset” will appear
on the display window.
The Stage Flame can be made ready for use again by pressing and holding the reset button for three
seconds.
Page 10
User Documentation MAGICFX® Stage Flame

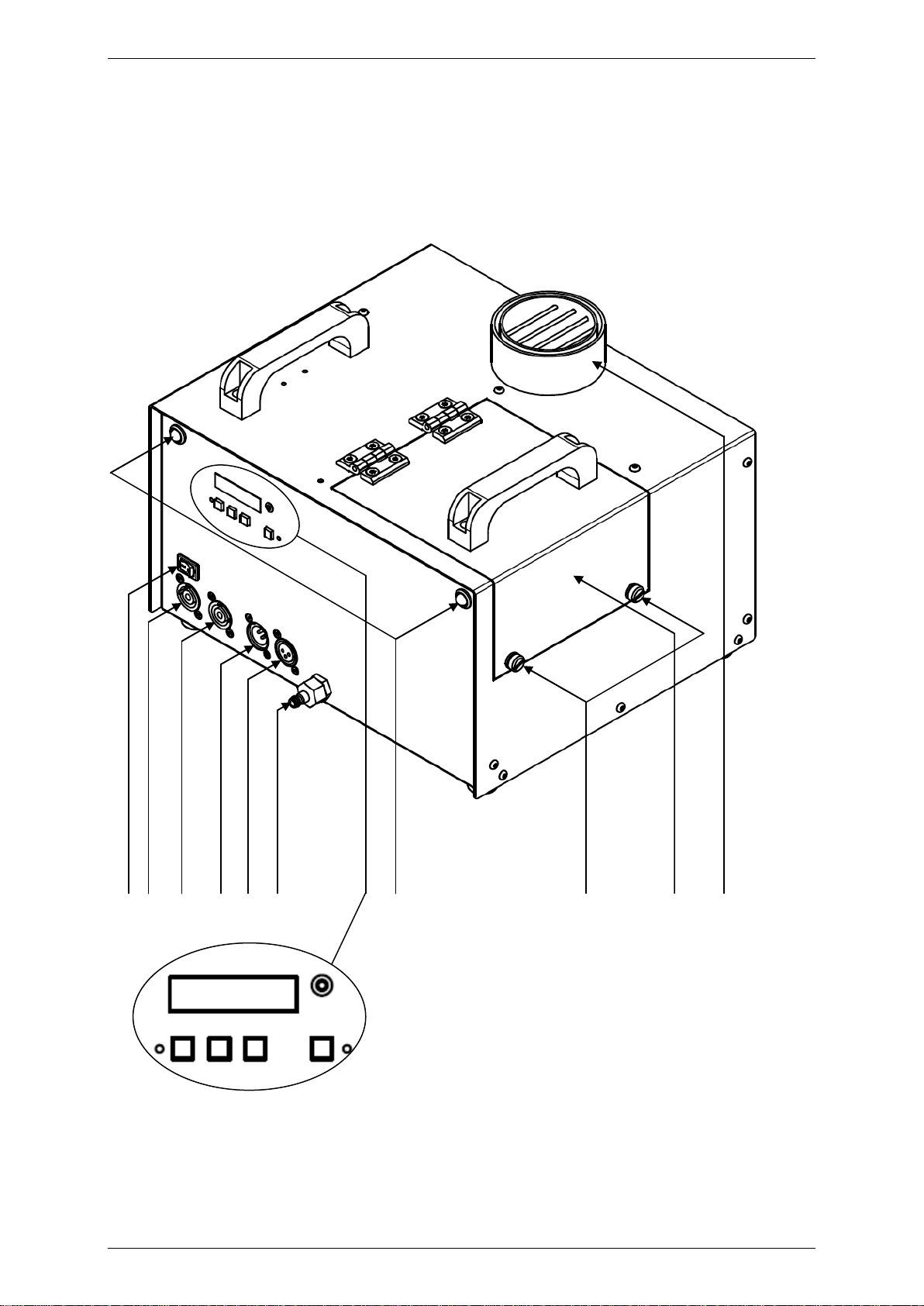

1. Power button
2. Power input
3. Power output
4. DMX input
5. DMX output
6. Gas bottle input
7. Display
8. DMX Led
9. MENU button
10. UP button
11. DOWN button
12. RESET button
13. Warning LED’s
14. Cover fasteners
15. Aerosol can cover
16. Flame tube
1 2 3 4 5 6 7
8
9
10
11
12
13
14
15
16
7. PARTS
Page 11

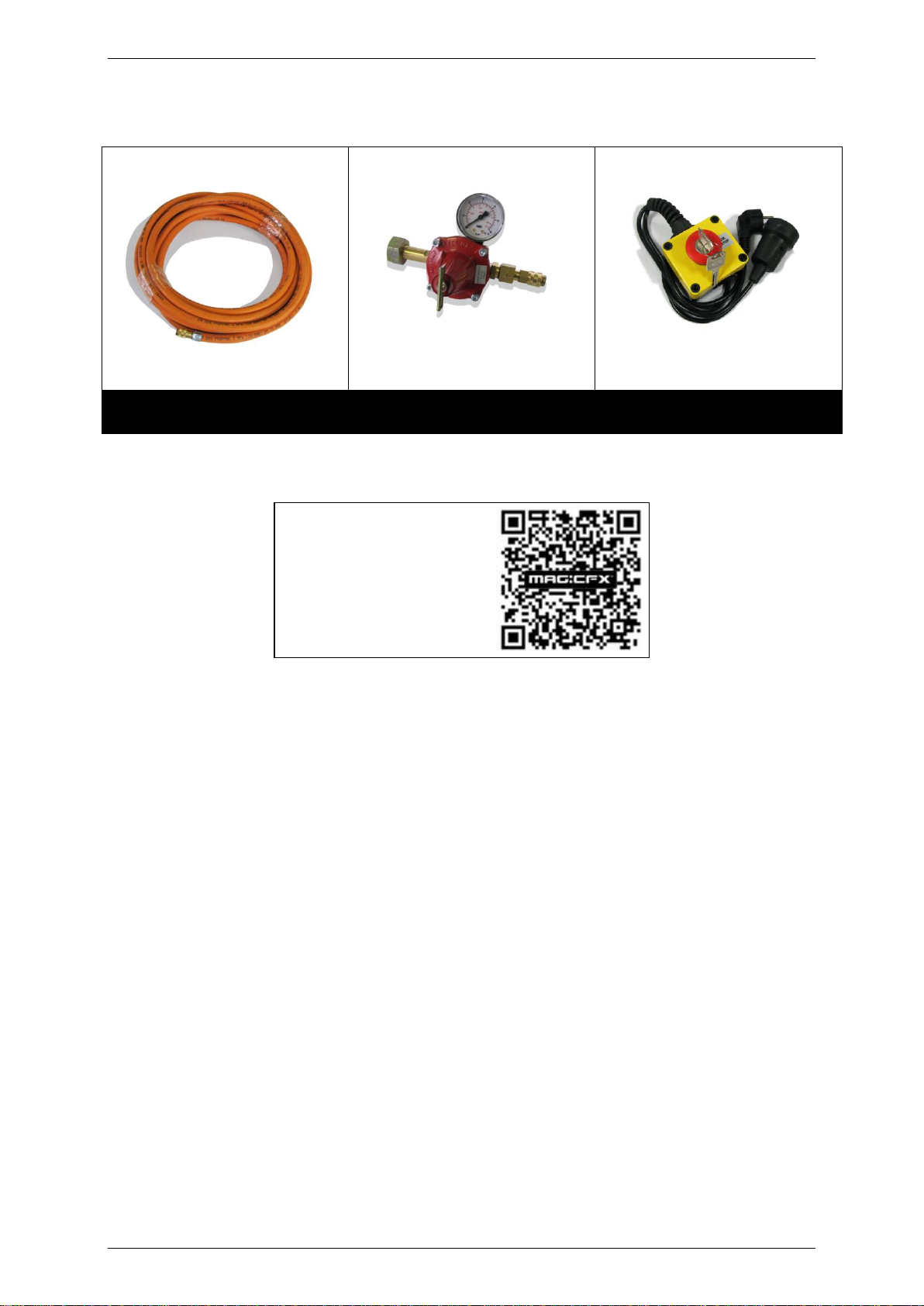

MFX1203 – GAS HOSE
MFX1202 – GAS REDUCER
MFX1204 – EMERGENCY STOP
MAGIC FX B.V.
Industrieweg 16
NL-5281 RW BOXTEL
The Netherlands
Tel: +31(0)411 63 50 13
Fax: +31(0)411 63 50 12
Web: http://www.magicfx.eu
Email: info@magicfx.eu
8. ACCESSORIES
Table 8.1
You can order the above parts from:
Version 1.0
9. PREPARATION FOR USE
Unpack the Stage Flame. Dispose of packaging material without causing harm to the environment.
Check the device for any possible damage. You must report any damage to the device to MAGIX FX.
Page 12
User Documentation MAGICFX® Stage Flame
CAUTION:
This indicates that the equipment may be damaged if procedures are not
carried out in the proper manner.
DANGER WARNING:
The MAGICFX® Stage Flame may only be worked on by authorised
adults.
Connect a 3-pole DMX cable to the Stage
Flame.
Optionally, you can link multiple Stage
Flames together using 3-pole DMX
cables.
3.
Ensure the Power button is set to “off”.
Connect the power cable. The Stage
Flame runs on 230V~ 50/60Hz. You will
need a powerCON plug to be able to
connect the Stage Flame to the power
supply. The Stage Flame is delivered with
a powerCON looping cable. it You can
use the powerCON looping cable to
connect multiple Stage Flame devices up
to the same power source.
2.
Place the Stage Flame on a flat, solid, and
stable surface.
For indoor use with aerosol cans, the
minimum clearance height above the Stage
Flame is six meters. For indoor use with gas
bottles, the minimum clearance height is
seven meters.
For Big Flame mode, the minimum clearance
height is at least ten meters.
1.
10. READYING FOR USE
Prepare the Stage Flame for use as follows:
Page 13
If you are going to use an aerosol can
then open the cover of the Stage Flame.
The Stage Flame indicates that the door is
open and automatically disables itself for
use. In addition, a LED light will turn on
making it possible to see in places that would
otherwise be dark in the Stage Flame.
6.
Set the Stage Flame power button to
“on”.
5.
Connect the other end of the DMX cable
(male plug) to a Professional DMX
Controller.
Ensure that the controller is placed so that
the operator always has a complete view of
all the connected Stage Flames.
Consult the DMX controller manual for usage
and safety instructions.
4.
Version 1.0
Page 14
User Documentation MAGICFX® Stage Flame
If you use a gas bottle, ensure that it is
located on a safe flat surface beyond the
reach of other heat sources.
Fit the reducer onto the gas bottle.
Use the appropriate spanner to connect
the reducer and ensure that no gas can
escape.
Ensure that the gas bottle cannot topple.
This would allow liquid gas to enter the
Stage Flame.
9.
The temperature will rise after the Stage
Flame has been is use for a period of time.
So always let the Stage Flame cool off
before replacing the aerosol can. Always
remember that escaping gas can ignite at
high temperatures.
After you have inserted/replaced the
aerosol can, shut the cover of the Stage
Flame and secure the fasteners on the
side.
8.
The aerosol cans are described elsewhere in
this manual.
Screw the aerosol can into the holder until it
is securely locked in place. Ensure that it is
securely in place.
Only replace an aerosol can during a
show when the Stage Flame is set to
“safe mode”.
Consult the DMX settings to see how the
Stage Flame can be put into “safe mode”.
7.
Page 15
Attach the other quick release connector
of the propane hose to the Stage Flame.
1
2.
Flame height can also be controlled by
adjusting the reducer. The bolt on top of
the reducer should be turned to the
maximum extent to allow for the greatest
flow.
We recommend turning the bolt to the
maximum opening to get the best results.
The reducer must never be used without
a bolt on the reducer. So never unscrew
the bolt completely.
1
1.
Connect a quick release propane hose to
the reducer. All propane hoses in our
selection come standardly equipped with
quick release connectors.
1
0.
Version 1.0
Page 16
User Documentation MAGICFX® Stage Flame
Press MENU again to save your selection.
Now the DMX addresses need to be
entered. First, the “safety” address needs
to be set. You select the channel by using
the UP and DOWN buttons. Press the
MENU button to save the setting.
When using multiple Stage Flames, we
recommend that you use the same “safety”
channel for all of the devices.
1
5.
Press the MENU button so you can
change settings for the Stage Flame.
The Stage Flame has three different
options for creating flames. These
options are dependent on the gas
sources you choose to use.
The three options are:
Option 1 – Aerosol can
Option 2 – Propane cylinder
Option 3 – Big Flame (aerosol can and
gas bottle)
You select the desired option by using
the UP and DOWN buttons.
1
4.
The Stage Flame settings should be
selected only after all the connections are
completed and the gas bottle and/or
aerosol can is installed.
When readying the device, ensure that free
channels are used on the DMX controller
and that these channels are in safe mode.
Safe mode means that those channels are
set to a value of zero when readying the
Stage Flame. Consult the DMX controller
manual for instructions on changing its
settings.
1
3.
Page 17
At this point, you have completed all the
steps to ready the DMX so you must now
save the settings. Press the MENU button
and the message “options saved” will
appear in the window.
If you selected the “Big Flame” option then
you should have also connected both an
aerosol can and a gas bottle.
1
7.
After you have set the “safety” channel,
you can set the “fire” channel. You select
the channel by using the UP and DOWN
buttons. If you have selected the “Big
Flame” option then you must set two
channels in this step. You can set the
“small” flame and the “big” flame.
Press the MENU button to save each
setting.
You may select separate “fire” channels for
each Stage Flame that you have connected.
This allows you to put some variety into your
show.
1
6.
Version 1.0
Page 18
User Documentation MAGICFX® Stage Flame
TIP:
This provides you with suggestions and advice on how to perform tasks
in an easier or more convenient way.
CAUTION:
This indicates that the equipment may be damaged if procedures are not
carried out in the proper manner.
DANGER WARNING:
The MAGICFX® Stage Flame may only be operated by authorised adults.
The Stage Flame may only be operated if all parts are entire and in good
working order and properly connected/installed.

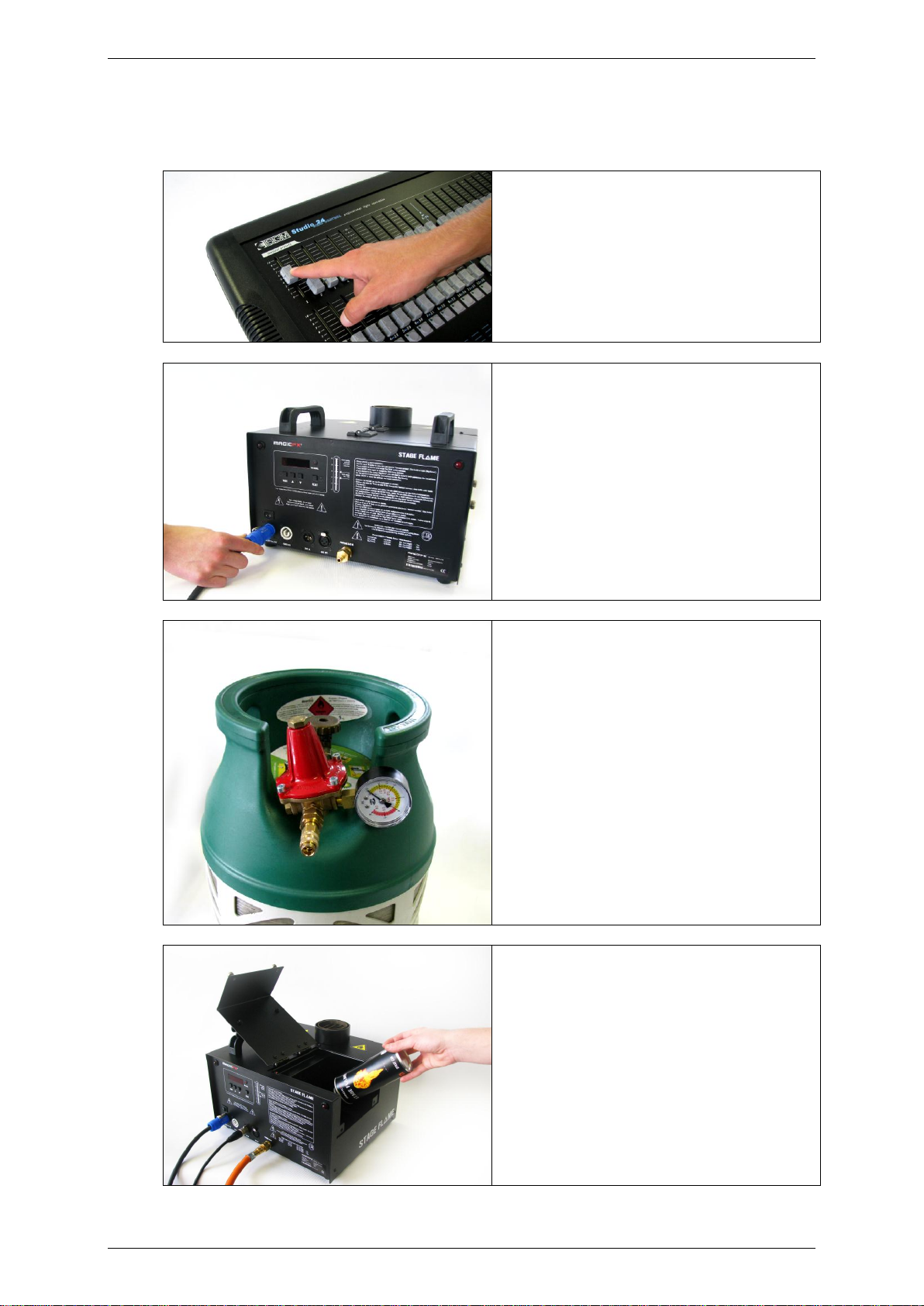

Press the flash button for the selected
“fire” channel on the DMX controller. A
flame should now be emitted from the
Stage Flame.
Before you shoot flames, always check that
there are no persons in the area near the
Stage Flame. Ensure that you have a full
view of the Stage Flame when it is flaming.
Consult the DMX controller manual for
instructions on how to operate it properly.
2.
After you have readied the Stage Flame
and set the DMX addresses properly, you
are clear to operate the Stage Flame.
You previously set a “safety” channel for
the Stage Flame so that the device should
still be in safety mode. You now take it
out of safety mode by setting the channel
to between 40% and 60%.
The Stage Flame now counts down for
three seconds while it checks the system
and activates itself for use.
The LED lighting on the back of the Stage
Flame will start blinking in turn.
1.
11. USAGE
Operate the Stage Flame as follows:
Page 19
After you have used the Stage Flame, you
must set it to safety mode again. You put
the Stage Flame in safety mode by sliding
shut the safety channel or setting it to a
value outside the 40% to 60% range.
The Stage Flame cannot be used when it is
in safety mode.
3.
Version 1.0
Page 20
User Documentation MAGICFX® Stage Flame
Wait fifteen minutes until the Stage Flame
is cooled off before you remove the
aerosol can and pack up the Stage Flame.
4.
If a gas bottle was used then this must be
shut off first before you disconnect the
gas hose.
3.
Turn off the Stage Flame power button
and disconnect the powerCON cable and
DMX plugs.
2.
Ensure that the DMX addresses are set to
safety mode.
1.
12. TURNING OFF
Turn off the Stage Flame as follows:
13. TROUBLESHOOTING
Page 21
Dimensions
and weight
Length:
360mm (14.2”)
Breadth:
310mm (12.2”)
Height:
210mm (8.3”)
Weight:
11.5 Kg (23.4lbs.)
Power
Input:
AC 230V~50-60Hz
Consumption:
100W (idle)
Fuse:
1A 250V 5x20mm
DMX
Input:
3 pin Neutrik XLR Male Socket
Output:
3 pin Neutrik XLR Female Socket
DANGER WARNING:
Never replace parts yourself. Always consult MAGIC FX when needed.
Version 1.0
- Stage Flame still does not work after troubleshooting
Always contact your dealer or the MAGIC FX technical department if you have any doubts or
questions about the operation of or other issues related to the Stage Flame.
14. TECHNICAL SPECIFICATIONS
15. MAINTENANCE
To prolong the life of the Stage Flame for as long as possible, you must regularly clean it and test that
it is working properly.
Regardless of the reason, contact MAGIC FX if the Stage Flame does not work properly
16. GUARANTEE
The MAGIC FX Stage Flame has a 3 year factory guarantee.
- The guarantee is annulled should the Stage Flame be used for purposes other than intended or
for applications that are not listed in the manual.
- The guarantee is annulled should the device be used incorrectly or in a manner contrary to its
instructions.
- The guarantee is annulled if the device is altered without the permission of its supplier.
Page 22
Loading...
