User documentation MAGICFX® CO2 Gun
1. CONGRATULATIONS!
You have bought a great new product from MAGICFX®.
MAGIC FX is a Dutch manufacturer of professional special effects machines and equipment. We have
been experts in special effects since our establishment in 1995. All our products are made under the
brand name MAGICFX® which by now has acquired a great reputation on account of its quality and
reliability. All products are made in accordance with the European Machinery Directive. MAGIC FX
manages the entire production process in-house, from the design stages and prototyping to
production. In short, we cover everything from concept to ready-to-use product.
Moreover, MAGIC FX is Europe's largest supplier of high-quality and fireproof confetti products and
streamers. Thanks to our very large stock levels, we can deliver quickly and at low prices.
MAGICFX® is used by special effects professionals all over the world and our products are distributed
through a dealer network which covers more than 80 countries.
Congratulations and enjoy your purchase!
Page 1
PLEASE NOTE:
We presume that you, your employees and others who use or come
into contact with the machine are familiar with how the machine must
be dealt with. This includes the correct use, maintenance and repair of
the machine as described in this user manual. This also means that the
employees are familiar with the use of machines through training or
experience.
DANGER WARNING:
Only use the CO2 Gun in accordance with the regulations and
instructions in this manual. Consult MAGIC FX in case of doubt.
2. CE MARKING
Disclaimers:
MAGIC FX B.V. excludes liability for unsafe situations, accidents and damage that are the result of:
- Disregard for the warnings or regulations as set out on the CO2 Gun or in this documentation.
- Use for other purposes or under other circumstances than those set out in this documentation.
- Alterations to the CO2 Gun. This also includes the use of replacement parts other than the original
ones.
- Insufficient maintenance.
- Unauthorised removal of safety caps and/or safeguards.
- Incompetent operation of the machine.
MAGIC FX B.V. is not liable for any consequential loss in the event of a CO2 Gun breakdown.
© Copyright 2012
All rights are reserved. Nothing from this manual may be duplicated, or kept in an automated data file,
or made public, or in any form or manner, whether electronically, mechanically, by photocopying, by
incorporation, or in any other manner duplicated without the permission of MAGIC FX B.V.
MAGIC FX at all times retains the right to make alterations without the direct knowledge of the client.
The contents of this user manual can also be changed.
Please contact the technical department of your supplier for extra information with regard to, for
example, maintenance and repair. This user manual has been drawn up with the utmost care. MAGIC
FX cannot be held responsible for any mistakes made in this publication or for any consequences
thereof.
Version 1.0
Page 2
User documentation MAGICFX® CO2 Gun
3. DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
(according to Annex II.1.A of the Machinery Directive)
Concerning the Machinery Directive.
We; MAGIC FX B.V.
Schouwrooij 27
5281 RE Boxtel
The Netherlands
State under personal responsibility:
We are the manufacturer of the product:
MFX1102 - MAGICFX® CO2 Gun
to which this statement relates and which is in accordance with the provisions of the following
Directive(s):
- Pressure Equipment Directive 97/23/EC
Place : Boxtel
Date : 15-10-2012
Name: MAGIC FX
Director: B. Veroude
Page 3
TIP:
Gives you suggestions and advice regarding easier or more
convenient ways to carry out certain tasks.
PLEASE NOTE:
A comment with additional information: alerts you to certain problems.
CAUTION:
The machine can be damaged if you do not follow the procedures
carefully.
DANGER WARNING:
You can get (seriously) hurt if you do not carefully carry out the
procedures.
Version 1.0
4. FOREWORD
This manual describes the MAGICFX® CO2 Gun. The information in this manual is important for the
proper and safe functioning of the CO2 Gun. If you are not familiar with the installation, operation,
preventative maintenance etc. of the CO2 Gun then please read this user manual carefully from
beginning to end. MAGIC FX also insists that all new users (operators, installers, maintenance
workers and cleaners) receive a training course in which this user manual can serve as a starting
point.
MAGIC FX advises that the original of this user manual, including appendices, is kept at a safe and
central place. It is best that another original or copy is kept close to the CO2 Gun at the workplace.
If you are familiar with these matters, then you can use this manual as a work of reference.
The following standard markings are used in this manual for drawing attention to certain subjects or
actions.
Page 4
User documentation MAGICFX® CO2 Gun
CONTENT
1. CONGRATULATIONS! .................................................................................... 1
2. CE MARKING ................................................................................................... 2
3. DECLARATION OF CONFORMITY ................................................................. 3
4. FOREWORD .................................................................................................... 4
5. INTRODUCTION .............................................................................................. 6
5.1 DESCRIPTION AND APPLICATION OF THE CO2 GUN ...................................................... 6
5.2 NECESSARY ACCESSORIES ............................................................................................... 6
6. SAFETY ........................................................................................................... 7
6.1 INTRODUCTION ..................................................................................................................... 7
6.2 GENERAL SAFETY RULES ................................................................................................... 7
6.3 WARNINGS ............................................................................................................................. 8
7. PARTS ............................................................................................................. 9
8. ACCESSORIES .............................................................................................. 10
9. PREPARATIONS ........................................................................................... 10
10. INSTALLATION ............................................................................................. 11
11. USAGE ........................................................................................................... 13
12. SWITCHING OFF ........................................................................................... 14
13. TROUBLESHOOTING ................................................................ ................... 15
14. TECHNISCHE SPECIFICATIES .................................................................... 15
15. MAINTENANCE ............................................................................................. 15
16. GUARANTEE ................................................................................................. 15
Page 5

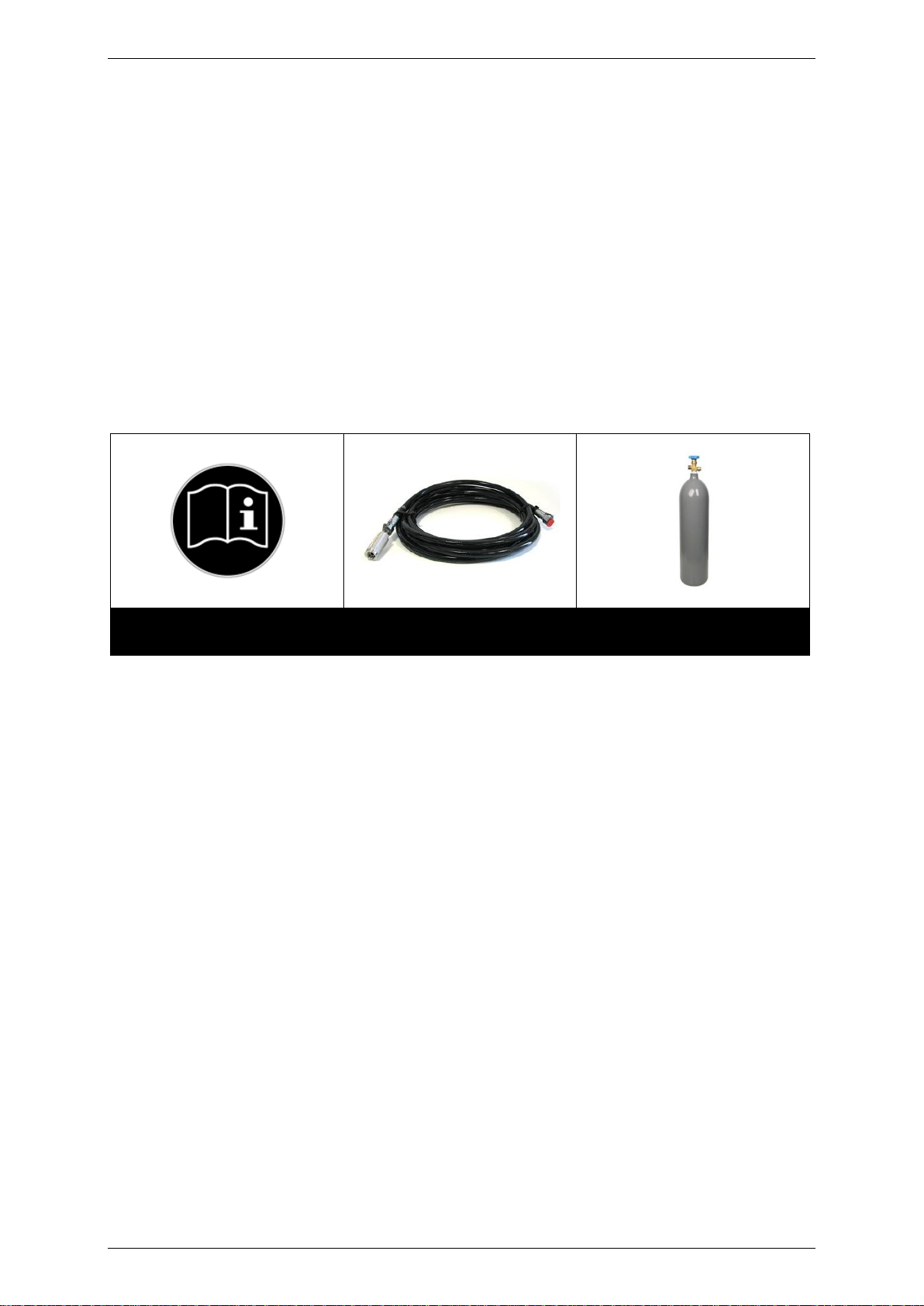

Manual
MFX0308 – High pressure hose 3/8
CO2 bottle (with dip pipe)
Version 1.0
5. INTRODUCTION
5.1 DESCRIPTION AND APPLICATION OF THE CO2 GUN
The MAGIC FX CO2 Gun is a high pressure pistol to which a CO2 bottle can be connected by means
of a high pressure hose.
With the CO2 Gun one can blow smoke plumes of CO2 gas (carbon dioxide) into the air. This creates
a special, surprising and spectacular effect.
The CO2 Gun is not suitable for blowing away objects or for purposes other than those described
above.
Any use other than that described above will exclude your supplier from any liability.
5.2 NECESSARY ACCESSORIES
The following parts belong to the CO2 Gun:
Table 5.1
Page 6
User documentation MAGICFX® CO2 Gun
6. SAFETY
6.1 INTRODUCTION
The CO2 Gun has been designed and constructed in such a manner that it can be used safely. This
applies to the use, the circumstances and the regulations as described in this documentation. Reading
this documentation and following the instructions are therefore necessary for everyone who is
authorised to work with the CO2 Gun.
The CO2 Gun must be placed and used in surroundings that preferably:
- Have a reasonably stable temperature of between 0 and 30ºC.
- Have a relative humidity degree of no more than 75%.
- Are reasonably free of dust, corrosive gases and high concentrations of organic vapours.
- Are not situated in the vicinity of a source of vibration.
6.2 GENERAL SAFETY RULES
- Only use the CO2 Gun if there are no people, animals or other objects in the direction of the
output within the output distance. The shooting direction is the direction in which the output pipe
on the CO2 Gun is pointed. The output distance depends on the humidity in the air.
- Make sure that children, unauthorised people and animals do not obtain access to the CO2 Gun!
- Safety devices may not be removed or disabled.
- All required safety devices must be in good condition and function properly.
- Ensure sufficient lighting of the surroundings.
- Keep the workplace clean.
- Only authorised persons may carry out work with the CO2 Gun.
Page 7
DANGER WARNING:
One must replace texts or signs if these are absent, damaged or
illegible.
Sign and explanation
PIC 323 Low temperatures
In case of low temperatures a low temperature
warning must be issued by means of warning
sign 323.
This is attached to the top of the CO2 Gun.
Sign and explanation
PIC 616 Follow the instructions
The operator must be told that he/she may only
operate the CO2 Gun after reading the user
manual.
A warning is given for this by means of the
command sign of PIC 616. This sign should be
attached to the type sign. See also the photo.
Version 1.0
6.3 WARNINGS
Warning texts have been attached to the CO2 Gun. With regard to these the following rules apply:
- These texts may not be removed or damaged. The operator must regularly check if this is the
case.
- The operator must ensure that the texts are and remain clearly visible and legible.
Page 8
User documentation MAGICFX® CO2 Gun
1 2 3 4 5
1. Barrel
2. Handle
3. Blow handle
4. Safety catch
5. Input
7. PARTS
Page 9
MAGIC FX B.V.
Schouwrooij 27
NL-5281 RE BOXTEL
The Netherlands
T. +31(0)411 63 50 13
F. +31(0)411 63 50 12
W. http://www.magicfx.eu
E. info@magicfx.eu
MFX1116 - T-piece
(1 bottle – 2 CO2 Guns)
MFX1117 - T-piece
(2 bottles – 1 CO2 Gun)
MFX1103 – High pressure
hose 3/8 - 3m
MFX1106 – High pressure
hose 3/8 - 6m
MFX1110 – High pressure
hose 3/8 - 10m
MFX1115 – High pressure
hose 3/8 - 15m
8. ACCESSORIES
Version 1.0
Table 8.1
You can order these parts and accessories from:
9. PREPARATIONS
Unpack the CO2 Gun. Dispose of the packaging material without harming the environment.
Inspect the machine for any damage. If damage is noticed this must be reported to MAGIC FX.
Page 10
User documentation MAGICFX® CO2 Gun
CAUTION:
The machine can be damaged if you do not follow the procedures
carefully.
DANGER WARNING:
The MAGICFX® CO2 Gun may only be installed by adults and
authorised persons.
DANGER WARNING:
MAGIC FX is not liable for working with CO2 gas and CO2 bottles or for
the correct use thereof.
Exclusively use approved CO2 bottles (liquid carbon dioxide with dip
pipe) and consult your gas supplier about the installation, instructions,
guidelines and regulations for the safe use of the CO2 bottles.
2.
Connect a CO2 high pressure hose to the
CO2 Gun.
Place the washer, which is attached to
the steel breakaway cable of the hose,
over the coupling of the CO2 Gun.
1.
Check to make sure that the handle is
locked by means of the safety catch.
If this is not the case, then move the
catch downwards to lock the handle.
10. INSTALLATION
For installing the CO2 Gun work in the following manner:
Page 11
DANGER WARNING:
Place the CO2 Bottle on a stable and even surface and secure it by
means of an approved strap or bottle clamp. Place the bottle in such a
position that the valve opening does not point in the direction of the
public.
Place the CO2 bottle preferably outdoors or in a properly ventilated
space with a CO2 detection system.
The maximum temperature in the surrounding area should be 30ºC!
5.
Open the valve of the gas bottle.
4.
Connect the other end to a CO2 bottle
(with dip pipe).
Turning it by hand will suffice! You should
only use a wrench if the coupling continues
to leak.
3.
Now attach the coupling of the CO2 hose
to the coupling of the CO2 Gun and
secure this with an open-ended spanner.
Version 1.0
Page 12
User documentation MAGICFX® CO2 Gun
TIP:
Gives you suggestions and advice regarding easier or more
convenient ways to carry out certain tasks.
CAUTION:
The machine can be damaged, if you do not follow these procedures
carefully.
DANGER WARNING:
The MAGICFX® CO2 Gun may only be installed by adults and
authorised persons.
The CO2 Gun may only be operated if all parts are completely and
correctly installed/connected.
2.
Squeeze the handle in order to shoot
CO2.
1.
Pull the safety catch upwards to prepare
the CO2 Gun for blowing.
Then hold the CO2 Gun securely with
both hands.
11. USAGE
For using the CO2 Gun take the following steps:
Page 13
4.
Turn the safety catch downward again to
lock the handle.
3.
Unscrew the high pressure hose from the
CO2 Gun and from the CO2 bottle.
2.
Shoot the CO2 Gun one more time to
remove any remaining pressure from the
hose.
1.
Close the valve of the gas bottle.
12. SWITCHING OFF
To switch off the CO2 Gun, take the following steps:
Version 1.0
Page 14
User documentation MAGICFX® CO2 Gun
Measurements
and weight
Length:
570mm (22.4”)
Width:
50mm (1.96”)
Height:
190mm (7.4”)
Weight:
1.5 Kg (3.3lbs.)
CO2
Input:
Liquid CO2
Output:
CO2 Gas
Usage:
0.5 Kg/s (1.1 lbs./s)
Quick Connector:
RU 1 (W21.8x1/14") – 3/8” BSP
DANGER WARNING:
Do not replace parts yourself; always consult MAGIC FX if necessary.
13. TROUBLESHOOTING
- The CO2 Gun is leaking
Check if the coupling of the gas hose is connected properly to the coupling of the CO2 Gun. If it is not
entirely secured then press it firmly.
- Only a small smoke plume is visible when the CO2 gas exits the CO2 Gun.
Visibility can vary due to air humidity. The output will be more visible when there is high absolute air
humidity.
- There is no white smoke plume visible when the CO2 gas exits the CO2 Gun.
You may not have the right carbon dioxide bottle. Connect bottle with liquid carbon dioxide and a dip
pipe to the CO2 Gun.
In some cases the dip pipe may be broken. In that case replace the carbon dioxide cylinder with
another and inform your gas supplier about the bottle with the defective dip pipe.
- The CO2 Gun is still malfunctioning after the troubleshooting
Always first contact your dealer or the technical service of MAGIC FX in case of uncertainties,
questions about the working of the CO2 Gun or other issues with regard to the CO2 Gun.
14. TECHNISCHE SPECIFICATIES
Design and product specifications can be changed without prior notification.
15. MAINTENANCE
To achieve the maximum service life of the CO2 Gun you must regularly clean the CO2 Gun and test
if it is working correctly.
Should the CO2 Gun not work for some reason then please contact MAGIC FX.
16. GUARANTEE
A manufacturer's guarantee of 3 years applies to the MAGIC FX CO2 Gun.
- The guarantee expires if the CO2 Gun is used for improper purposes and for applications which
are not stated in this manual.
- The guarantee also expires if the machine is used incorrectly or in violation of the regulations.
- The guarantee expires if the machine is altered without permission from the supplier.
Page 15
Loading...
