CO2JET II.
CO2 FX
PART01184
rev 01-00
USER AND INSTALLATION MANUAL
ENGLISH
2 MAGICFX® CO2JET II — User and Installation Manual
DISCLAIMER
WARNING
Read this manual carefully before installing and/or using this
product. Failure to read the manual and to follow the printed
instructions may lead to personal injury and/or damage to the
product.
© 2018 MAGICFX
®
All rights reserved.
Nothing from this publication may be copied, reproduced and/or published by
means of printing, photocopying or by any other means, without the prior written
approval of MAGIC FX.
MAGIC FX reserves the right to modify specications stated in this manual.
TRADEMARKS
Any brand names mentioned in this manual are registered trademarks of their
respective owners.
LIABILITY
MAGIC FX accepts no liability for claims from third parties arising from unauthorised
use, use other than that stated in this manual, and use other than in accordance with
the General Conditions registered at the Chamber of Commerce.
Refer further to the General Conditions. These are available on request, free of
charge.
Although considerable care has been taken to ensure a correct and suitably
comprehensive description of all relevant components, the manual may nonetheless
contain errors and inaccuracies.
Should you detect any errors or inaccuracies in the manual, we would be grateful if
you would inform us. This helps us to further improve our documentation.
MAGICFX® CO2JET II — User and Installation Manual 3
TABLE OF CONTENTS
Disclaimer 2
Trademarks 2
Liability 2
Foreword 4
Language 4
Revision table 4
1 Meet the MAGICFX® CO2JET II! 5
1.1 Main parts 5
1.2 Technical data 6
1.3 Productidentication 7
1.4 Accessories 7
2 Shoot safely! 8
2.1 General safety rules 8
2.2 CO2 8
2.3 Indoor use 9
2.4 Rigging 9
2.5 Noise level 9
2.6 Safety symbols 10
2.7 Precautionsforoperation 10
3 Let’s shoot! 11
3.1 Mount on a stage 11
3.2 Mount on a truss 12

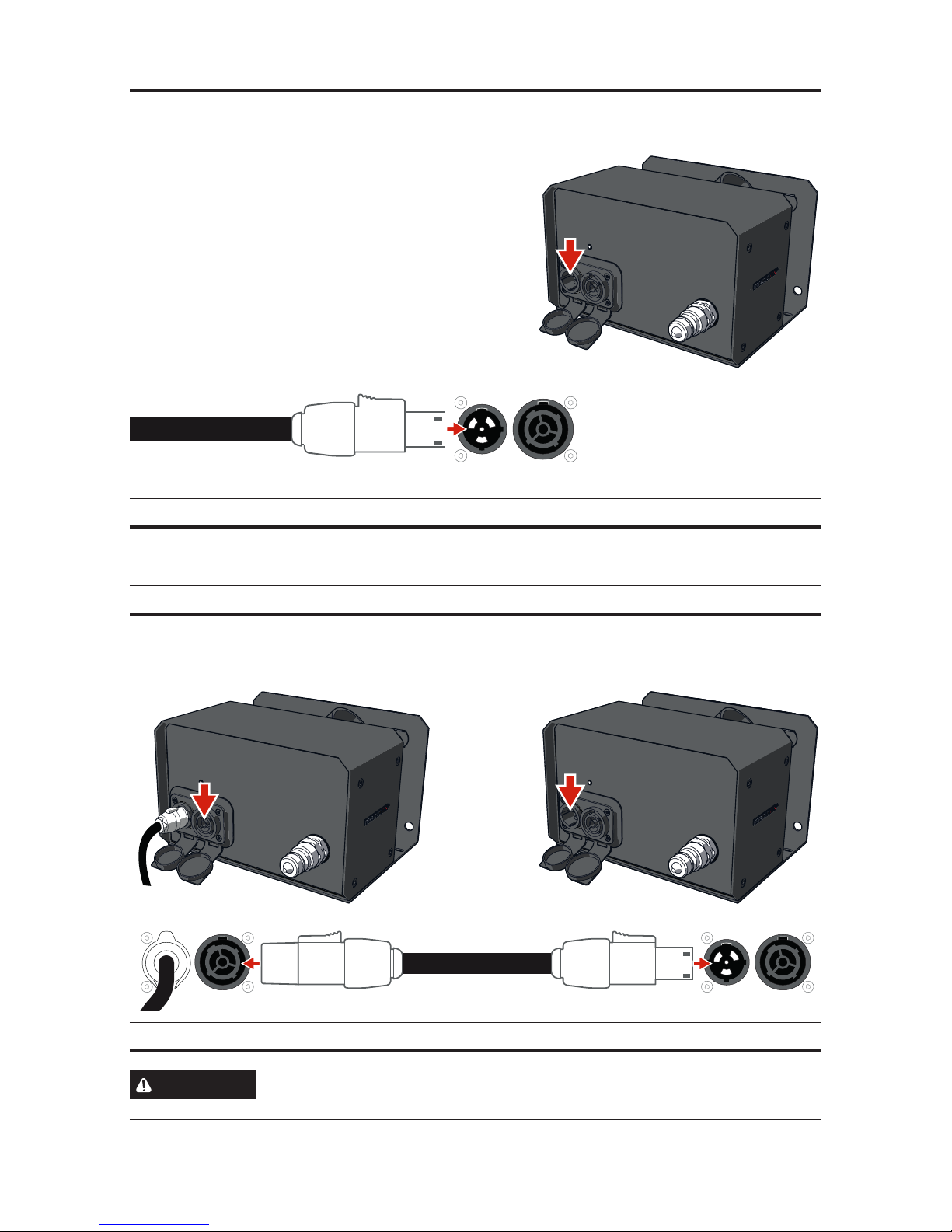

3.3 Connect power 14

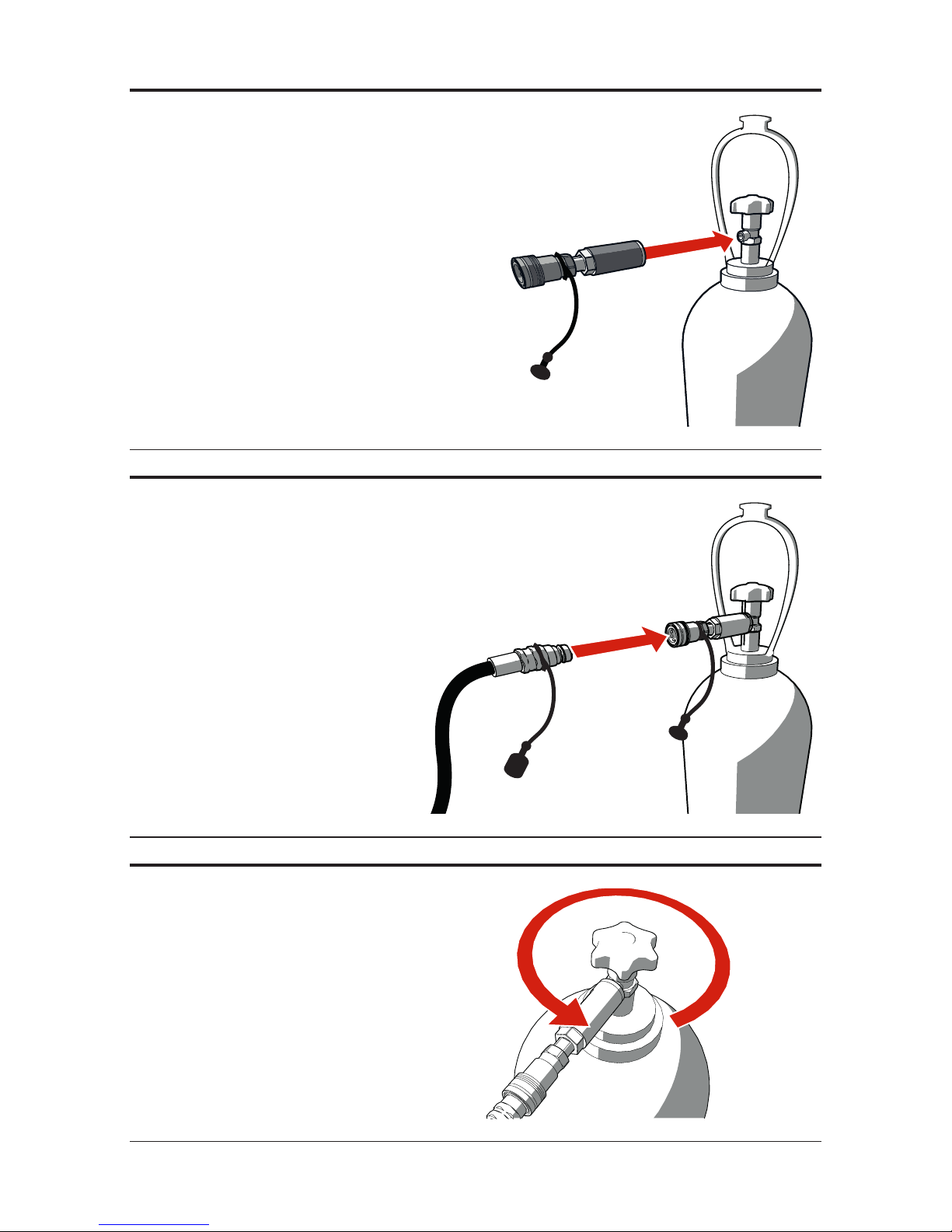

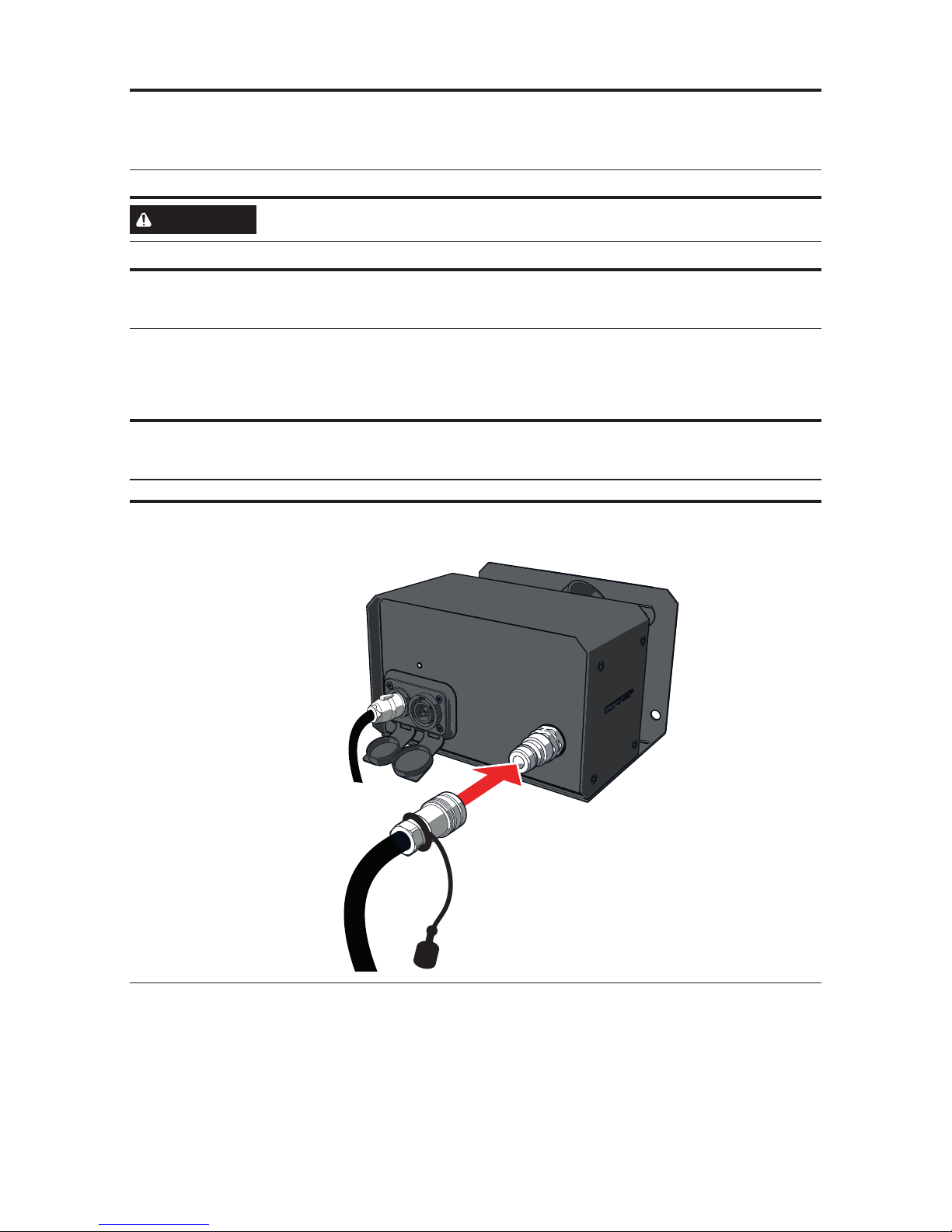

3.4 Connect CO2 16
3.6 Let’s blast! 18

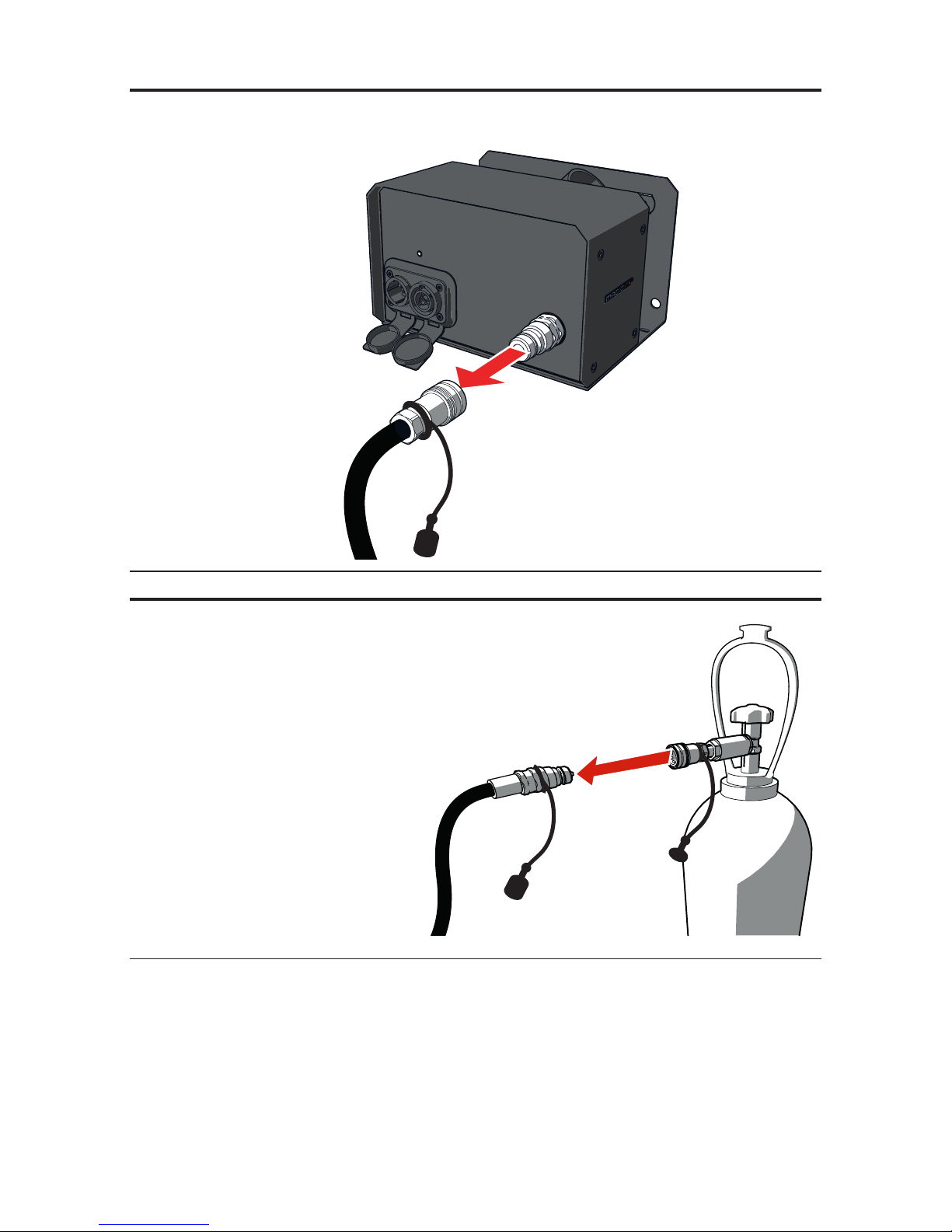

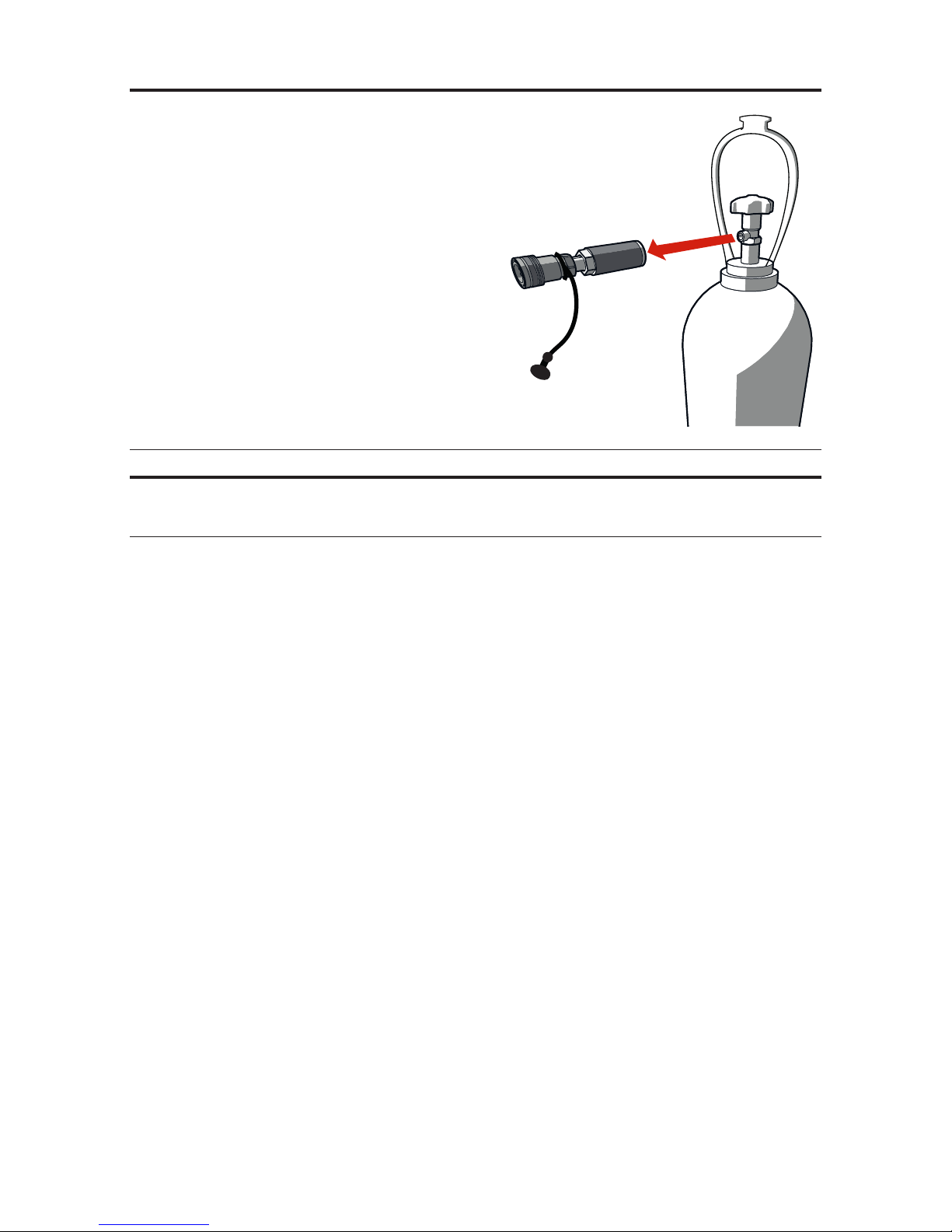

3.7 Cleanup 19
4 Maintenance 22
5 Troubleshooting 22
6 Correct disposal 22
7 ECDeclarationofConformity 23
4 MAGICFX® CO2JET II — User and Installation Manual
FOREWORD
Congratulations! You have bought a great new product from MAGIC FX.
This manual contains all information required for the intended use of the equipment.
Deviation from the described intended use can result in a hazardous situation and/or
property damage.
This manual includes notes and warnings on safe operation of the equipment. These
notes and warnings are accompanied by the following icons. Read them attentively!
DANGER
Indicates a hazardous situation that, if not avoided, will result in
death or serious injury. This signal word is to be limited to the most
extreme situations.
WARNING
Indicates a hazardous situation that, if not avoided, could result
in death or serious injury.
CAUTION
Indicates a hazardous situation that, if not avoided, could result
in minor or moderate injury.
NOTICE
Indicates information considered important, but not hazardrelated (e.g. messages relating to property damage).
LANGUAGE
This document contains the original instructions in English. In case you require other
languages please contact MAGIC FX.
REVISION TABLE
Document nr Revision Date Description Authored by Checked by
PART01184 01-00 1-6-2018 Initial release SdO TvA
MAGICFX® CO2JET II — User and Installation Manual 5
1 MEET THE MAGICFX® CO2JET II!
The MAGICFX® CO2JET II is a special eects machine that blasts CO2 into the air.
The MAGICFX® CO2JET II is equipped with a CO2 powered rotating nozzle. A solenoid
valve controls the supply of liquid CO2 to the nozzle. From the nozzle, the CO2 escapes
through the output pipe. A blast of escaping CO2 is accompanied by a strong hissing
sound and a white plume of fog will be visible from the output pipe. The output pipe
with nozzle can be set in an angle.
The MAGICFX® CO2JET II is equipped with several holes for mounting of the unit to a
stage or to a truss with a truss clamp and for attaching safety cables. Furthermore the
MAGICFX® CO2JET II is suited for simultaneous activation of multiple units by creating
a power link.

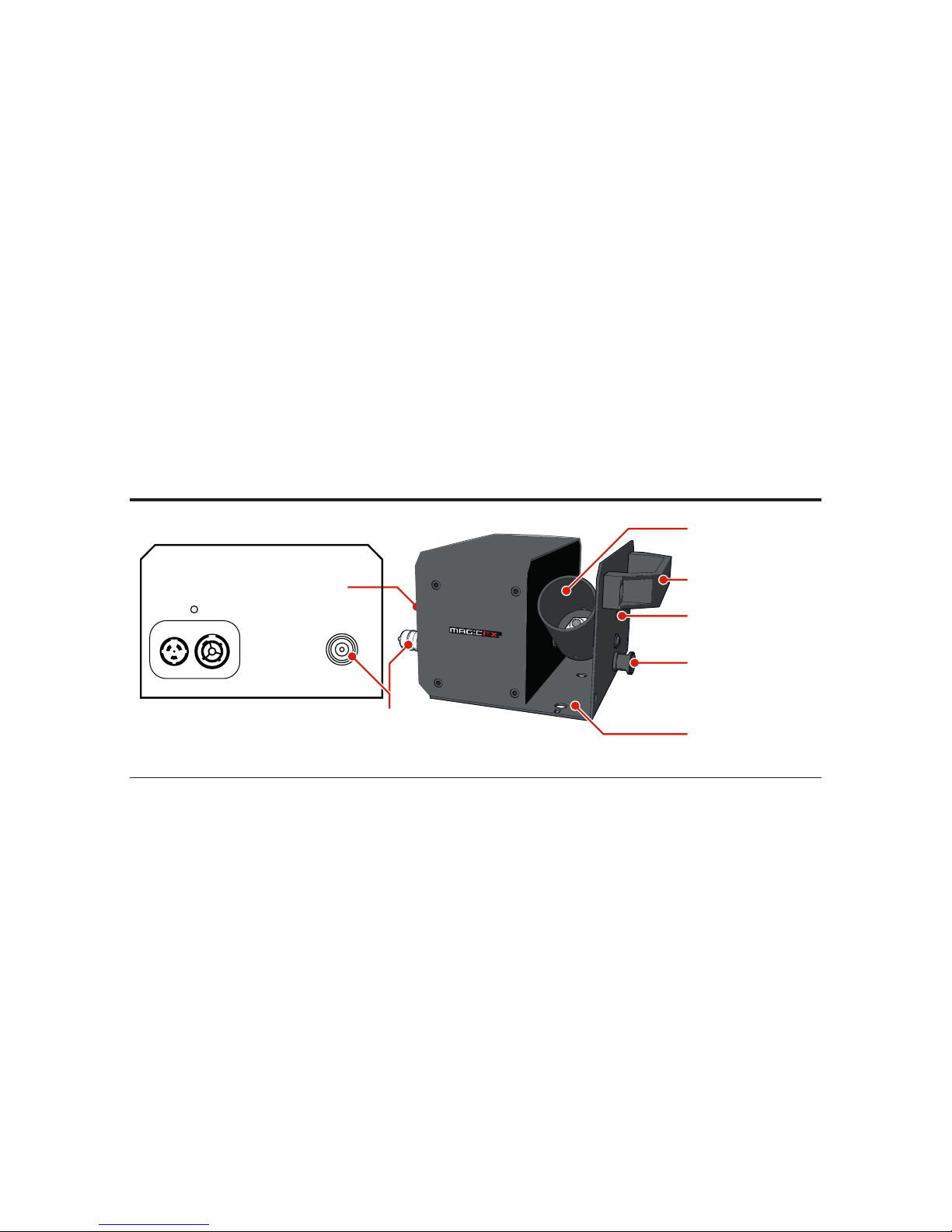

1.1 MAIN PARTS
OUTPUT PIPE
CO
2
INPUT
ANGLE VIEWING
WINDOW
ANGLE KNOB
HANDLE
HOLES FOR
MOUNTING
AND SECURING
POWER IN POWER OUT
BACK SIDE
with power in/out, LED power indicator
and CO
2
input
Main parts
6 MAGICFX® CO2JET II — User and Installation Manual
1.2 TECHNICAL DATA
Product Product Name
MAGICFX® CO2JET II
Product Code
MFX1118
Product Type
CO₂ FX
Main
Dimensions
Length (mm/in.)
232 9,1
Width (mm/in.)
196 7,7
Height (mm/in.)
124,5 4,9
Weight Empty weight (kg/lb.)
3,7 8,2
Package Length (mm/in.)
289 11,4
Width (mm/in.)
289 11,4
Height (mm/in.)
201 7,9
Packaged weight (kg/lb.)
4,2 9,3
Environment Minimum Temperature (ºC/ºF)
-20 -4
Maximum Temperature (ºC/ºF)
70 158
Humidity (Relative)
20% to 90% (non condensing)
Electrical Voltage Input (Vac)
220 - 240 Vac
Voltage Frequency
50 - 60 Hz
Power Consumption (Vac)
20 W
Power Connector (Vac) Neutrik® powerCON TRUE1 (in &
out)
Controlling Control Options
Direct output
Usage Propellant
Liquid CO₂
Propellant Connector
CO₂ Quick Connector 3/8”
Propellant Consumption
0,5 L/s
Technical data
MAGICFX® CO2JET II — User and Installation Manual7
1.3 PRODUCT IDENTIFICATION

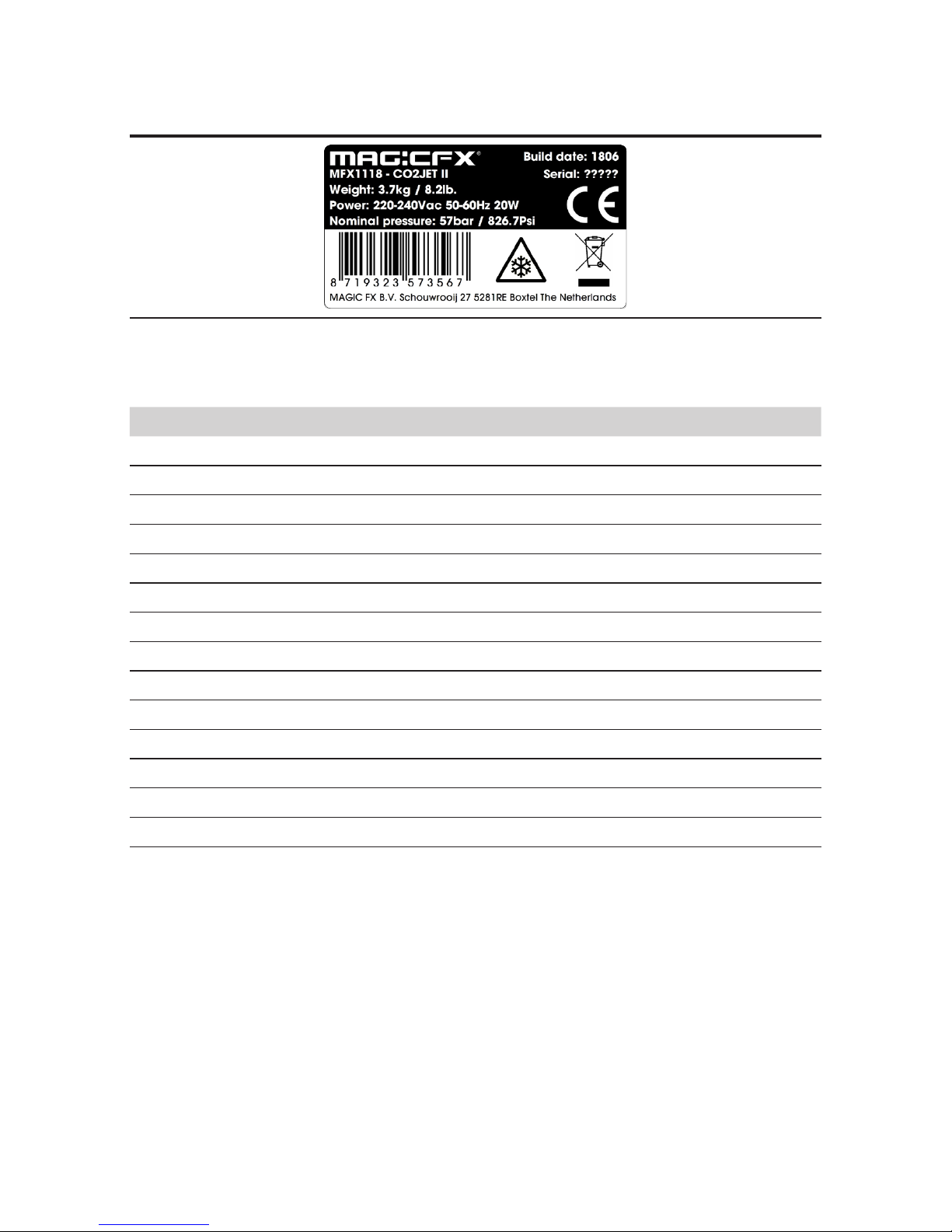

Type plate
1.4 ACCESSORIES
Code Product
MFX0305 MAGICFX® BASEPLATE II
MFX1114 CO₂ High Pressure Hose 3/8 Male - Female, 1.25M
MFX1105 CO₂ High Pressure Hose 3/8 Male - Female, 2M
MFX1106 CO₂ High Pressure Hose 3/8 Male - Female, 3M
MFX1108 CO₂ High Pressure Hose 3/8 Male - Female, 10M
MFX110
9 CO₂ High Pressure Hose 3/8 Male - Female, 15M
MFX1122 CO₂ High Pressure Hose 3/8 Male - Female, 20M
MFX1110 CO₂ 90 Degrees Connector 3/8
MFX1103 CO₂ Bottle to Hose Connector
MFX1115 CO₂ Bottle to Hose Connector 90 Degrees
MFX3103 Twenty Clamp (20kg) M10
SPR00119 Safety Steel
SPR00972 Standard Nozzle
SPR01236 Low Noise Spray Nozzle CO₂
Accessories
Please contact MAGIC FX for additional possibilities.
8 MAGICFX® CO2JET II — User and Installation Manual
2 SHOOT SAFELY!
The MAGICFX® CO2JET II has been designed and constructed in such a manner that
it can be used safely. This applies to the use, the circumstances and the regulations
as described in this documentation. Reading this documentation and following the
instructions are therefore necessary for everyone who is authorised to work with the
MAGICFX® CO2JET II.
The MAGICFX® CO2JET II must be used in surroundings that preferably:
• Have a reasonably stable temperature of between -20 and 70°C.
• Have a relative humidity degree of no more than 90% (non condensing).
• Are reasonably free of dust, corrosive gases and high concentrations of
organic vapours.
• Are not situated in the vicinity of a source of vibration.
2.1 GENERAL SAFETY RULES
• Only authorised persons may carry out work with the MAGICFX® CO2JET II.
• Do not use the MAGICFX® CO2JET II if there are people or animals in the direct
output.
• Make sure that children, unauthorised people and animals do not obtain
access to the MAGICFX® CO2JET II.
• Make sure there are no freestanding objects or objects that can be damaged
by the MAGICFX® CO2JET II within the output distance.
• Do not connect more units to a single electrical circuit than the installed fuse
is able to handle. (Calculate the summed load with the electrical data from
Chapter 1)
• Do not remove any safeguards, safety caps and safety symbols.
• All required safety devices must be in good condition and function properly.
• Ensure sucient lighting of the surroundings.
• Keep the workplace clean.
2.2 CO2
The MAGICFX® CO2JET II uses liquid CO2 as input. The application of CO2 involves
serious risks. Make sure that you are well informed on these risks before installation
and/or operation. Always use approved CO2 cylinders, hoses and connections.
Always consult your CO2 supplier for regulations and instructions on safe installation
and use.
MAGIC FX is not liable for unsafe situations, accidents and damage that are the result
of incorrect working with CO2 and CO2 cylinders.
MAGICFX® CO2JET II — User and Installation Manual 9
WARNING
Inadequate installation and/or operation of a CO2 powered
machine and CO2 cylinders can lead to death or serious injury.
Always follow the instructions from this manual, from your CO2
supplier and from local authorities.
2.3 INDOOR USE
The MAGICFX® CO2JET II is designed for outdoor use and use in well-ventilated indoor
spaces. When used indoors, make sure you take the necessary preparations. These
preparations could include, but are not limited to:
• Consulting your CO2 supplier.
• Calculating the reduction of oxygen for the indoor space.
• Checking the location for spots where CO2 could accumulate and taking
preventive actions.
• Installing CO2 monitoring devices that will warn for hazardous CO2 levels.
DANGER
Do not use the MAGICFX® CO2JET II in poor ventilated conned
spaces. Exposure to high levels of CO2 can cause symptoms like
headache, nausea, loss of consciousness or even death.
2.4 RIGGING
Please follow the European and national guidelines for safe rigging and trussing.
2.5 NOISE LEVEL
The environmental noise level measured at 100 cm (39,37 in) from the product is 90
dB(A). This level of noise is only reached during the short shooting instances.
Therefore hearing protection is not necessary.
WARNING
Do not operate the MAGICFX® CO2JET II close to yourself or to
others for a long period of time. If you experience any hearing
loss or ringing in the ears, you should immediately stop using the
unit.
10 MAGICFX® CO2JET II — User and Installation Manual
2.6 SAFETY SYMBOLS
Symbol Meaning
Read the manual carefully before use!
Safety symbols
2.7 PRECAUTIONS FOR OPERATION
WARNING
Using a damaged or an improper installed machine can lead to
death, serious injury or property damage. Always inspect the
machine thoroughly before operation.
WARNING
A poorly mounted machine will come loose when the machine
blasts CO2. This can lead to death, serious injury and/or property
damage. Always inspect if the machine is mounted rmly and
correctly as according to the instructions in this manual.
WARNING
Missing or obscured safety symbols on the machine can lead to
death or serious injury. Make sure all safety symbols are correctly
in place, see section 2.6.
MAGICFX® CO2JET II — User and Installation Manual 11
3 LET’S SHOOT!
3.1 MOUNT ON A STAGE

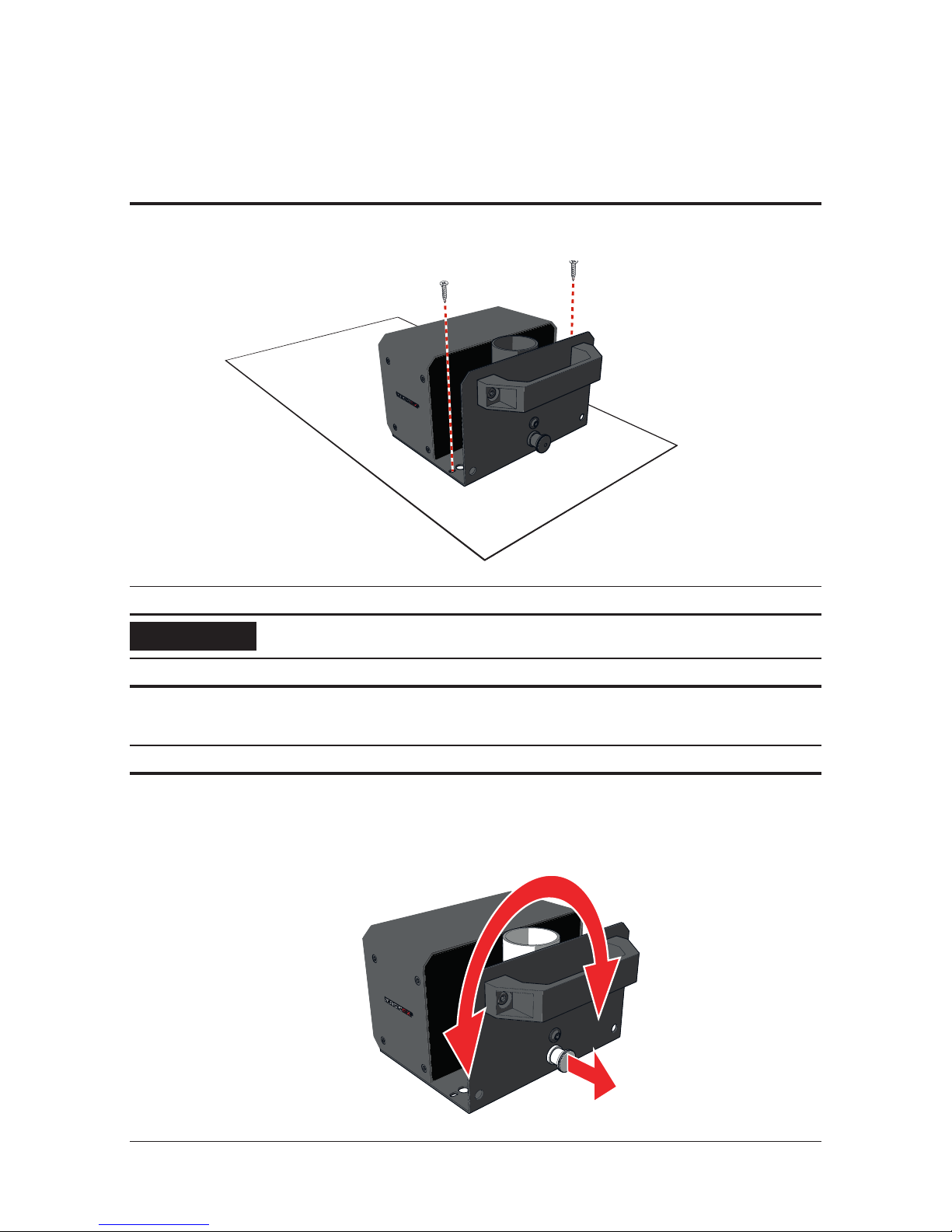

1 Mount the MAGICFX® CO2JET II rmly on a stage.
NOTICE
Optionally use a MAGICFX® BASEPLATE II for stage mounting.
2 Inspect if the MAGICFX® CO2JET II is mounted rmly.
3 Pull the angle knob and set the output pipe to the desired shooting angle.
Release the angle knob to fasten the output pipe. Check if you hear a clicking
sound and whether the output pipe is fastened correctly.
12 MAGICFX® CO2JET II — User and Installation Manual

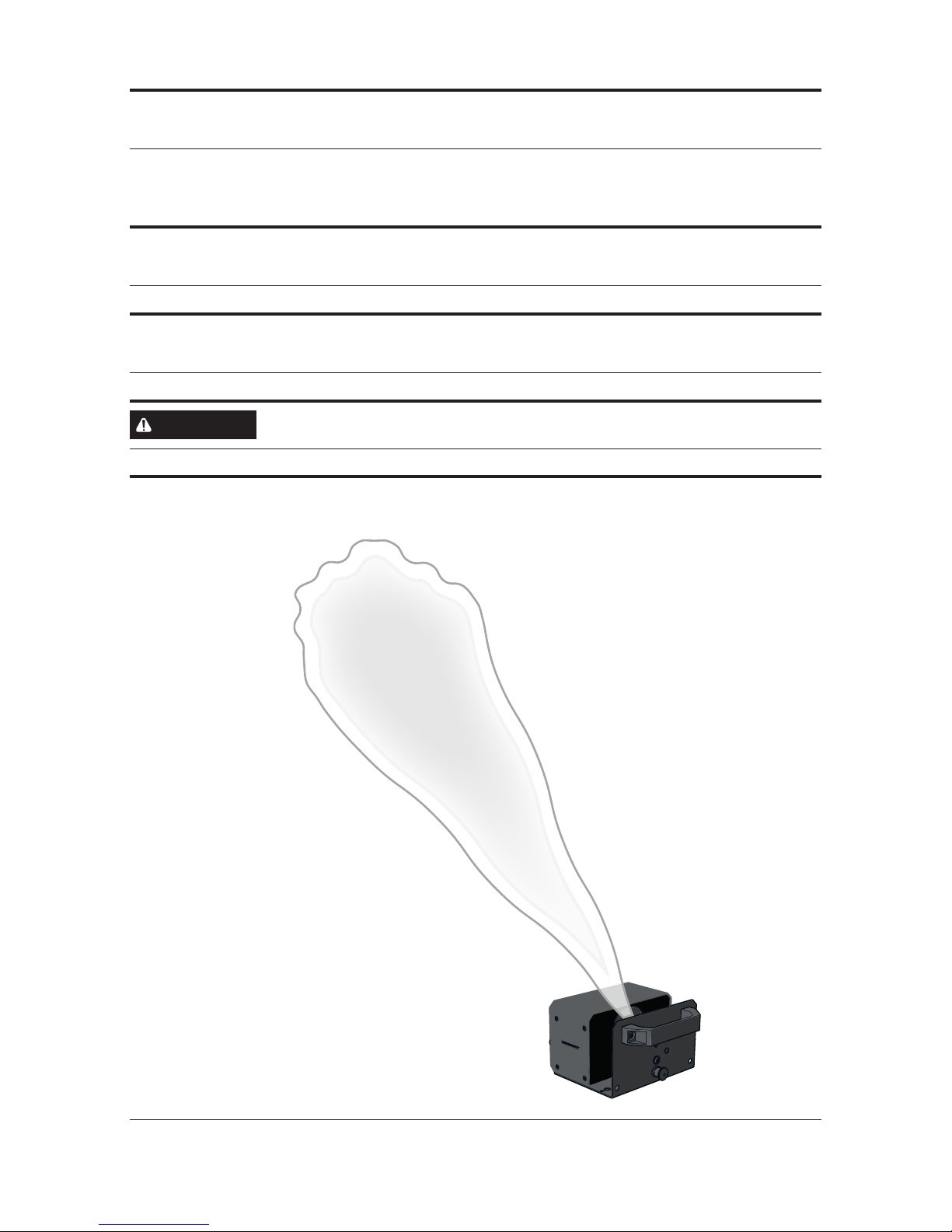

CAUTION
Make sure that the direct output will be free from persons and
animals.
CAUTION
Make sure there are no freestanding objects or objects that can
be damaged by the MAGICFX® CO2JET II within the output
distance.
3.2 MOUNT ON A TRUSS
1 Flip the MAGICFX® CO2JET II
upside down.
2 Screw a M10 twenty clamp for truss mounting (product code MFX3103) into
both threaded holes.
MAGICFX® CO2JET II — User and Installation Manual 13
3 Mount the clamp rmly on a truss.
4 Secure the MAGICFX® CO2JET II onto the truss.
14 MAGICFX® CO2JET II — User and Installation Manual
5 Inspect if the MAGICFX® CO2JET II is mounted rmly and secured correctly.
6 Pull the angle knob and set the output pipe to the desired shooting angle.
CAUTION
Make sure that the direct output will be free from persons and
animals.
CAUTION
Make sure there are no freestanding objects or objects that can
be damaged by the MAGICFX® CO2JET II within the output
distance.
3.3 CONNECT POWER
1 Make sure that the power output on your controller or power switch is disabled.
MAGICFX® CO2JET II — User and Installation Manual 15
2 Connect a power cable to the power input.
PowerCon TRUE1 female
POWER
3 Connect the other end to your controller or power switch.
4 Optionally connect another machine to the power output with a power link
cable.
PowerCon TRUE1 femalePowerCon TRUE1 male
POWER
POWER IN POWER OUT POWER IN POWER OUT
CAUTION
Do not connect more units to a single electrical circuit than the
installed fuse is able to handle. (Calculate the summed load with
the electrical data from Chapter 1)
16 MAGICFX® CO2JET II — User and Installation Manual
5 Switch the power on and check if the LED power indicator lights up. Check if
you hear a clicking sound. If so, then the machine is working correctly.
CAUTION
Make sure that the CO2 is not connected when testing the power.
6 Switch o the power.
3.4 CONNECT CO2
1 Make sure that the power is switched o (LED power indicator is o).
2 Connect the CO2 hose to the CO2 quick connector.
MAGICFX® CO2JET II — User and Installation Manual17
3 Connect a CO₂ bottle-to-
hose connector to a CO2
cylinder.
4 Connect the CO2 hose to the
CO₂ bottle-to-hose
connector on the CO2
cylinder.
5 Open the CO2 cylinder.
18 MAGICFX® CO2JET II — User and Installation Manual
6 In case of multiple machines: Repeat steps 1-5 for each machine.
3.6 LET’S BLAST!
1 Make sure that the direct output is free from persons, animals and objects.
2 When it’s time to shoot, switch the power on.
CAUTION
Do not use the machine if the CO2 valve is not opening and
closing correctly.
3 Enjoy the view!
MAGICFX® CO2JET II — User and Installation Manual 19
4 Switch o the power.
3.7 CLEAN UP
1 Close the CO2 cylinder.
2 Switch the power on to release the remaining pressure.
3 Switch the power o and disconnect the power cable(s).
20 MAGICFX® CO2JET II — User and Installation Manual
4 Disconnect the CO2 hose from the CO2 quick connector.
5 Disconnect the CO2 hose
from the CO₂ bottle-to-hose
connector on the CO2
cylinder.
MAGICFX® CO2JET II — User and Installation Manual 21
6 Remove the CO₂ bottle-to-
hose connector from the
cylinder.
7 Dismount the machine.
22 MAGICFX® CO2JET II — User and Installation Manual
4 MAINTENANCE
To achieve the maximum service life of the MAGICFX® CO2JET II you must regularly
clean the MAGICFX® CO2JET II and test if it is functioning correctly.
Contact MAGIC FX if the MAGICFX® CO2JET II is not functioning correctly.
DANGER
Do not replace parts yourself; always consult MAGIC FX if
necessary.
5 TROUBLESHOOTING
Always contact MAGIC FX if any malfunctions or errors occur that cannot be solved
with the instructions as described in this manual.
6 CORRECT DISPOSAL
This symbol on the product and / or accompanying documents
means that used electrical and electronic products should not be
mixed with general household waste. For proper treatment,
recovery and recycling, please take this product to designated
collection points where it will be accepted free of charge.
Alternatively, in some countries you may be able to return your
products to your local retailer upon purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources and prevent any
potential negative eects on human health and the environment, which could
otherwise arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated
collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
your national legislation.
MAGICFX® CO2JET II — User and Installation Manual 23
7 EC DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
According to Annex III A Low Voltage Directive 2014/35/EU
MAGIC FX B.V. declares as manufacturer and composer of the technical construction file that the product with the
following specifications:
Name machine : MAGICFX® CO2JET II
Type : MFX1118
Voltage : 220 – 240Vac 50-60Hz
Serial number : on product
Year of construction : on product
Is in conformity with the minimal safety regulations as stated in the following directive(s):
• LVD (2014/35/EU) Low Voltage Directive
• EMC (2014/30/EC) ElectroMagnetic Compatibility
• RoHS (2011/65/EU) Restriction of the use of certain Hazardous Substances
• WEEE (2012/19/EU) Waste Electrical & Electronic Equipment
The following harmonized standards were applied:
• NEN-EN-ISO 12100:2010, Safety of machinery - General principles for design - Risk assessment and risk
reduction.
• NEN-EN-IEC 60204:2010, Safety of machinery - Electrical equipment of machines - Part 1: General
requirements.
• NEN-EN-IEC 61000-6-3:2007/A1:2011, Electromagnetic compatibility (EMC) - Part 6-3: Generic standards -
Emission standard for residential, commercial and light-industrial environments.
• NEN-EN-ISO 13732-3:2008, Ergonomics of the thermal environment - Methods for the assessment of
human responses to contact with surfaces - Part 3: Cold surfaces
Original declaration of conformity
Translation of the original declaration of conformity
Name manufacturer : MAGIC FX BV
Address : Schouwrooij 27, 5281 RE BOXTEL
Country : The Netherlands
CEO : B. Veroude
Date : 31-5-2018
Signature :
24 MAGICFX® CO2JET II — User and Installation Manual
WWW.MAGICFX.EU
Loading...
