Please read the following instructions completely before operating this appliance.

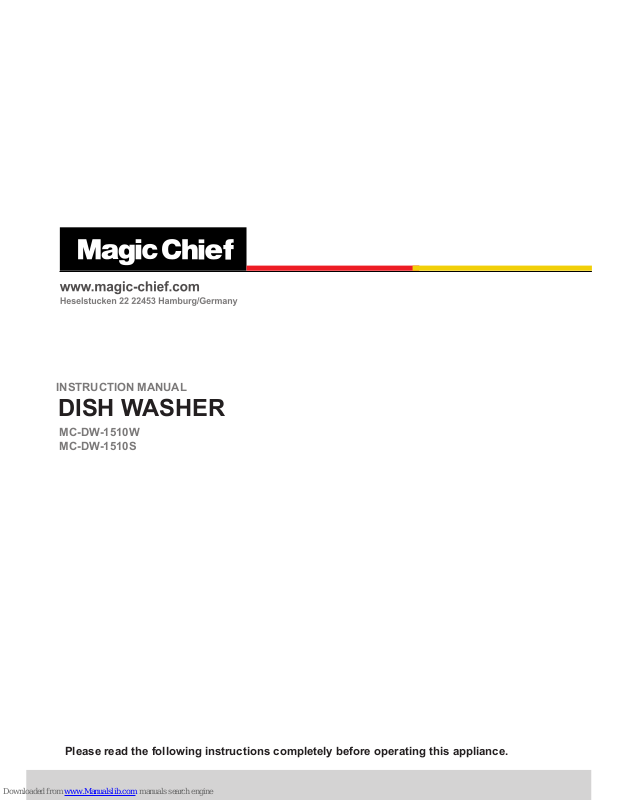

INSTRUCTION MANUAL
DISH WASHER
MC-DW-1510W
MC-DW-1510S
2
14 place settings
half-load function
MC-DW-1510S
MC-DW-1510W
3

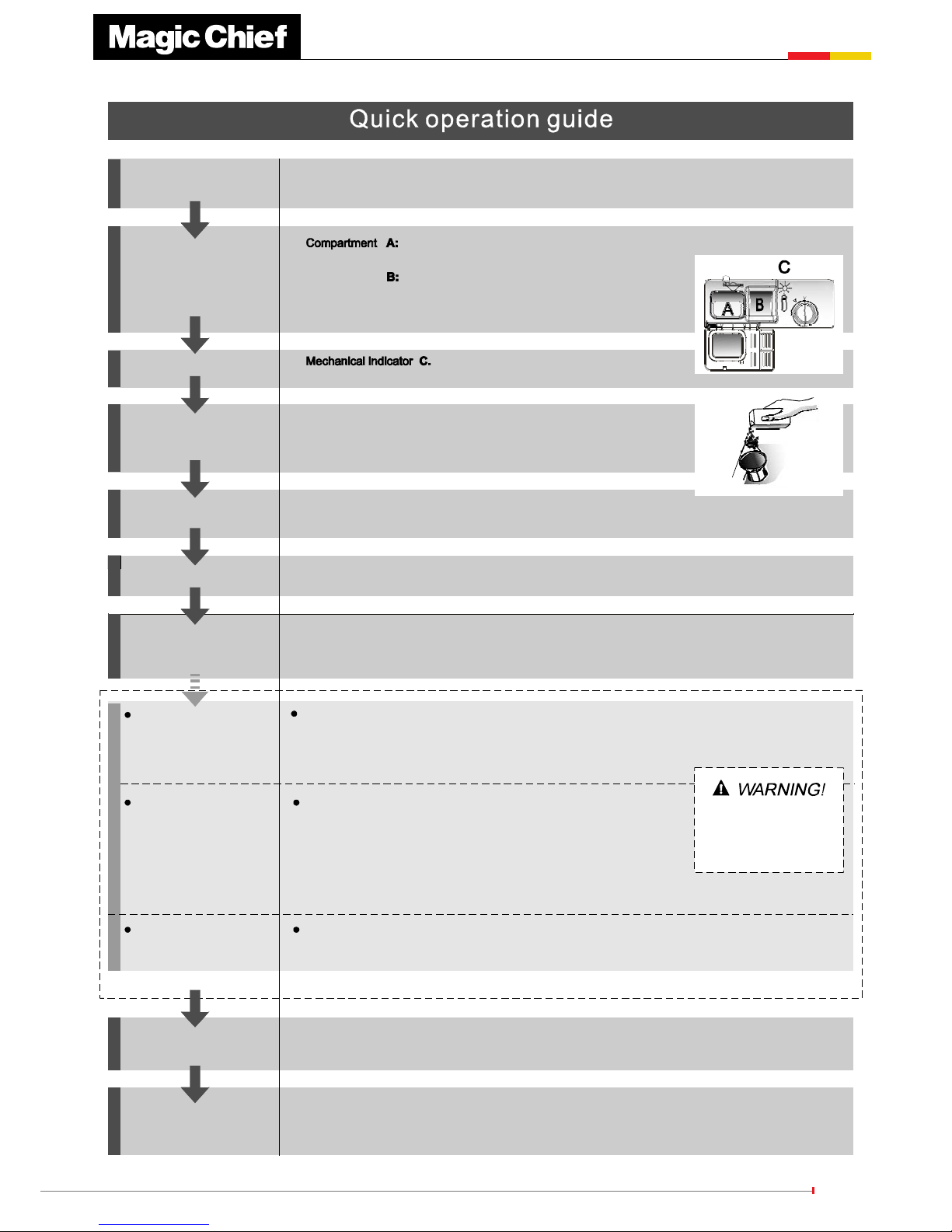

With each wash cycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electr ic indicator on co ntrol pane l (if pro vided).

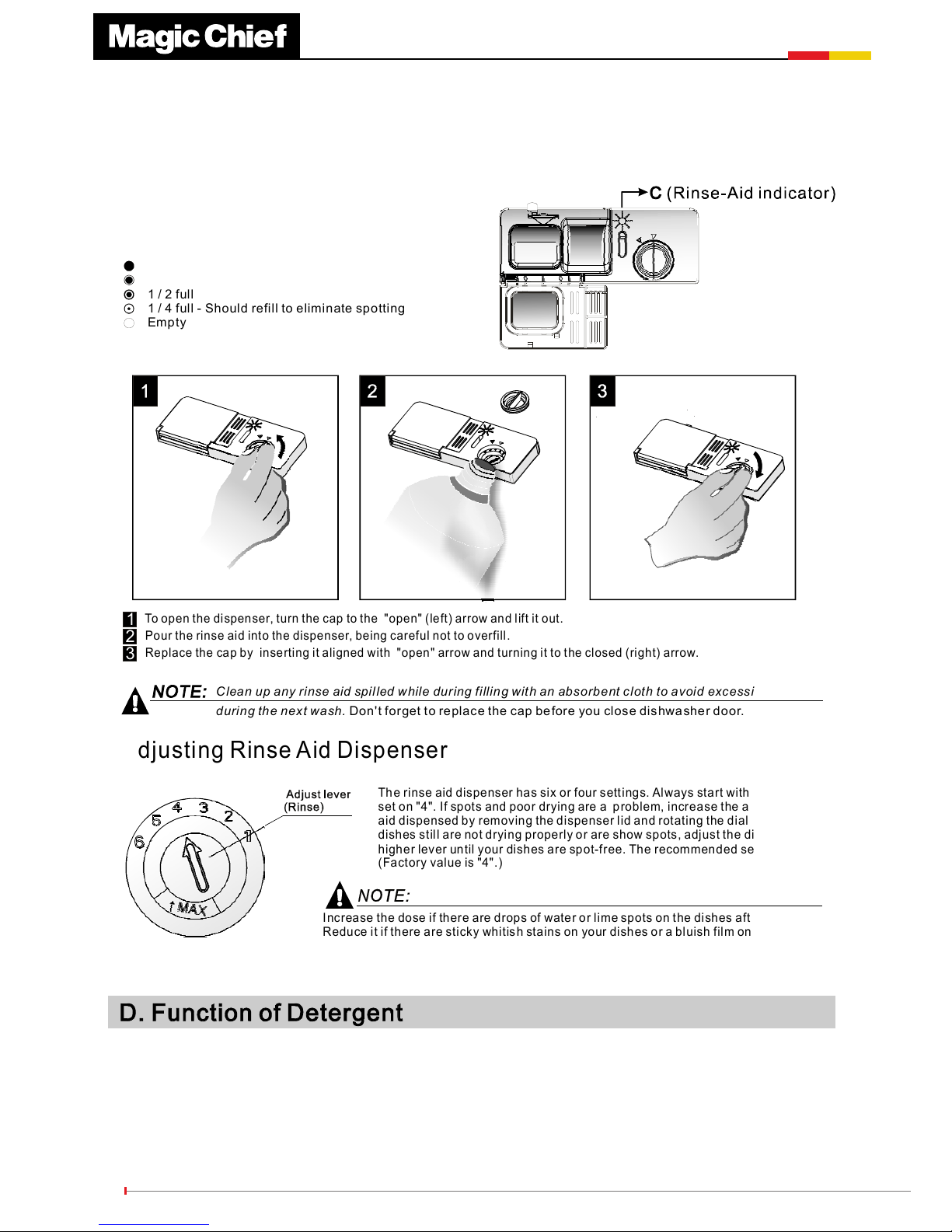

Check the r inse aid level
(On models with water softener system only.)
Electric indicator on contr o l panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
Turn on the water tap and press the . The machine will start working
after about 10 seconds .
Start/Pause Button
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets

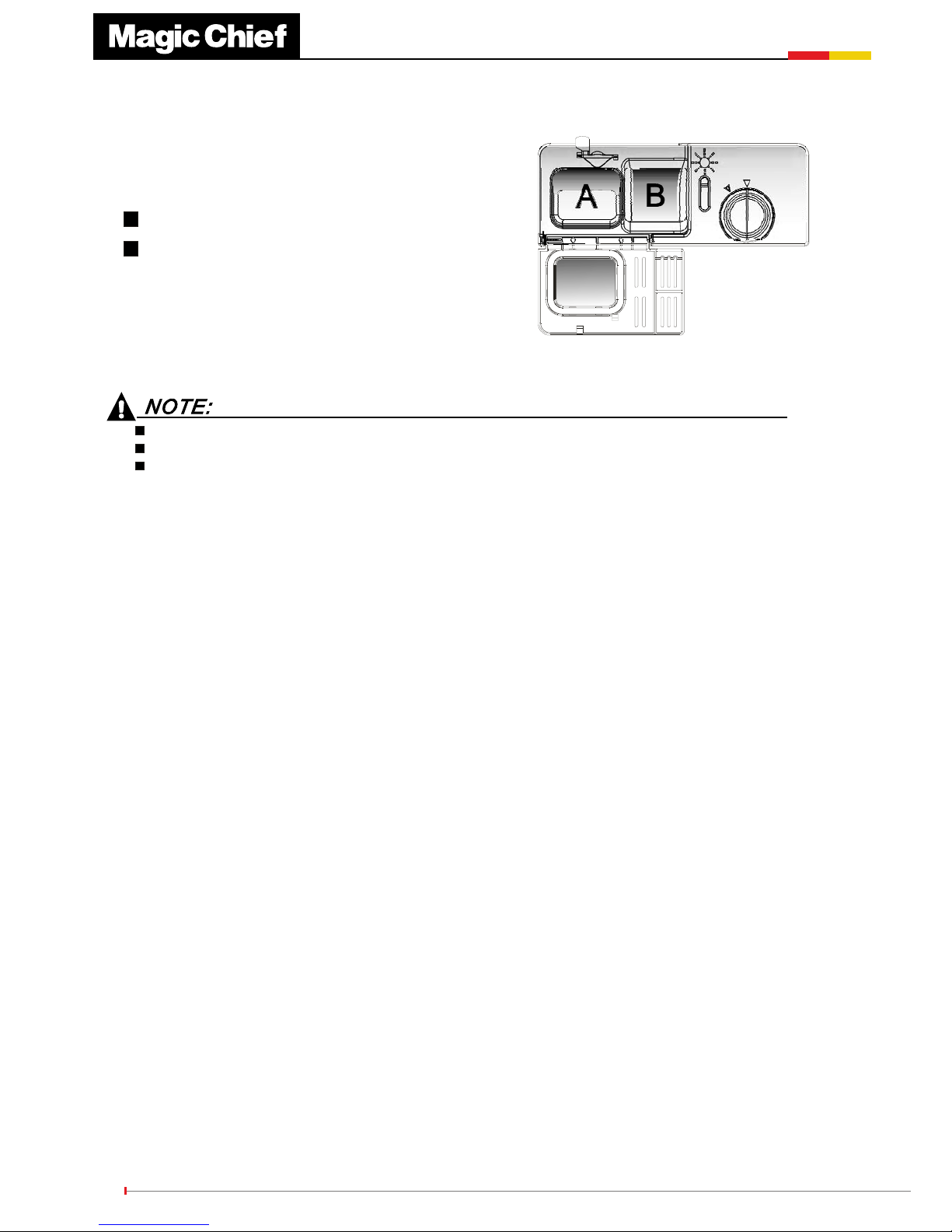

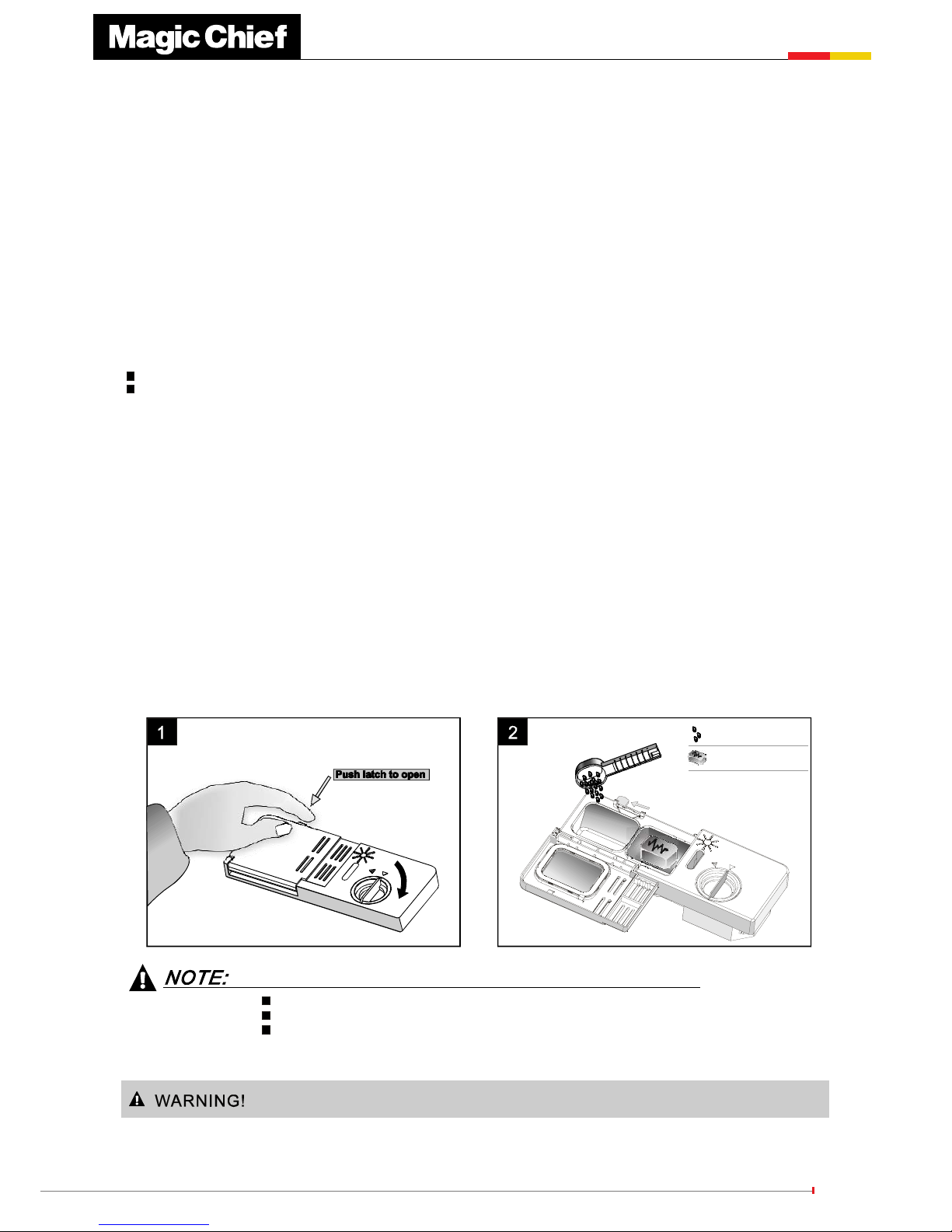

Fill the detergent dispenser
Warning: w ait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will also dry better.Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwashe r.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loadin g instructions.
Close the door,press the Programme Button until the selected programme lights up.
( See the section entitled Operation instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will so und 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appliance is switched
off during a wash cycle.
Open the doo r caref u lly.
Hot steam may escape
when the door is opened!
If the appliance is switch ed off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the ori gina l Power-on sta te ).
Switch on the appliance Press the On/Off butto n to switch on the appliance, Open the door.
For detailed operating method read the corresponding content on the instruction manual.
1. A running cycle can only be modified if it has been running for a short time. O therwise the deterg ent
may have already been released and the water already drained. If this is the case, the deter gent
dispenser must be refilled.
2.
Press the Start/Pause button, press the program button more than 3 seconds,the machine
will be in standby state, then you can change the program to the desired cycle setting
1.Press the Start/Pause Button to stop the washing.
2.Openthedooralittle.
3.After the spray arms stop working, you can open the door
completely.
4.Add forgotten dishes.
5.Close t he door
6.Press the Start/Pause Button, the dishwasher will run
afte r 10 seconds.
4
To review the section on troubleshooting Tips
will help you to solve some common problems
by yourself .
Dear Customer,
Please carefully read this manual before using the
dishwasher, it will h elp y ou to use and maintain the
dishwasher properly.
Pass it on to any sub sequent owner of the appliance.
This manual contains sections on safety Instructions,
Operating Instructions, Installation Instructions and
Trouble shooting Tips, etc.
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
Keep it as a ref er in the late r days.
If you can not solve the problems by yourself ,
please ask for the help of professional technicians.
This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-by clients in hotels, motels and other residential
type envir onm ents;
-bed and breakfast type environments.
Dishwasher Features.................................... ...3
A Water Softener...........................................4、
Attention before or after loading the Dishwasher
Baskets..........................................................9

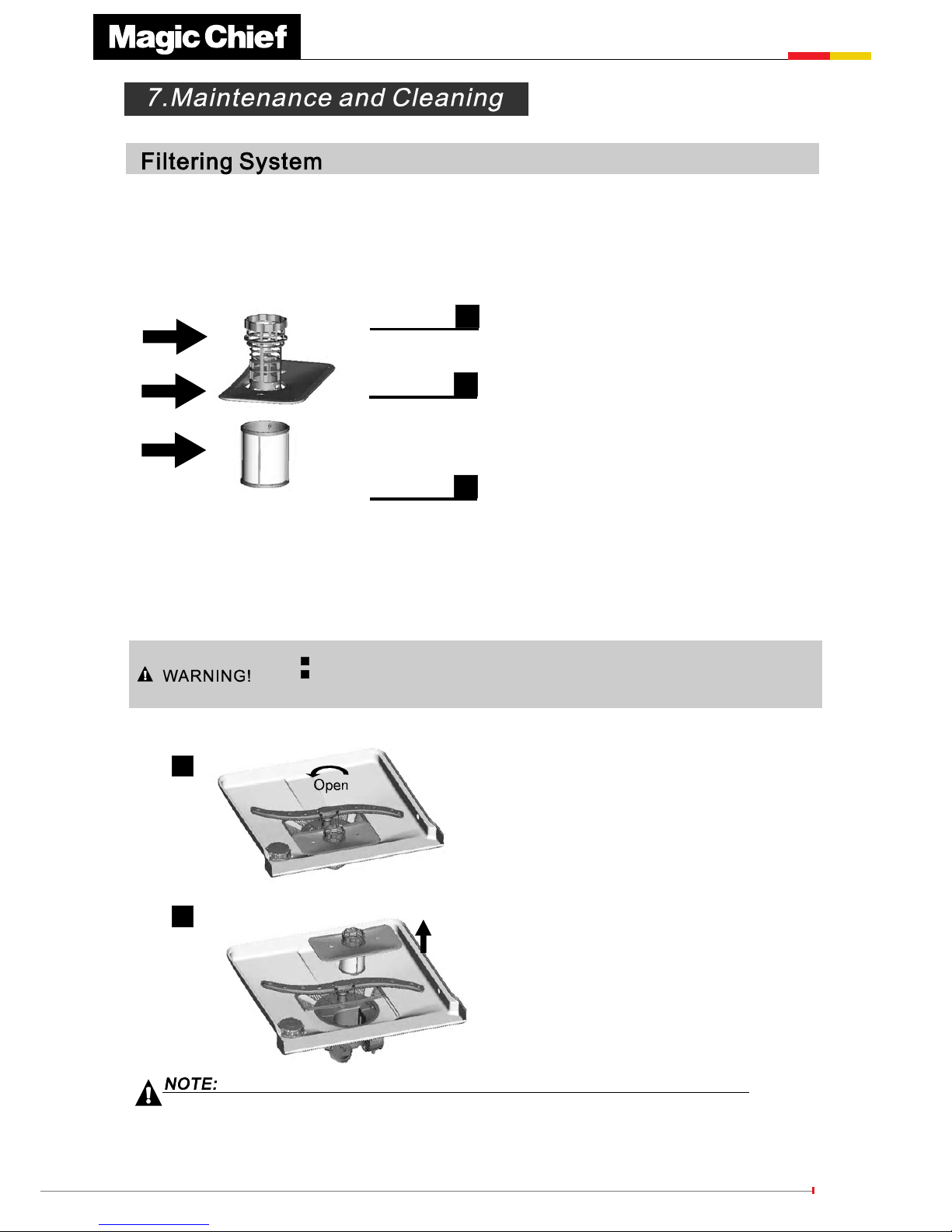

Filtering System.............................................13

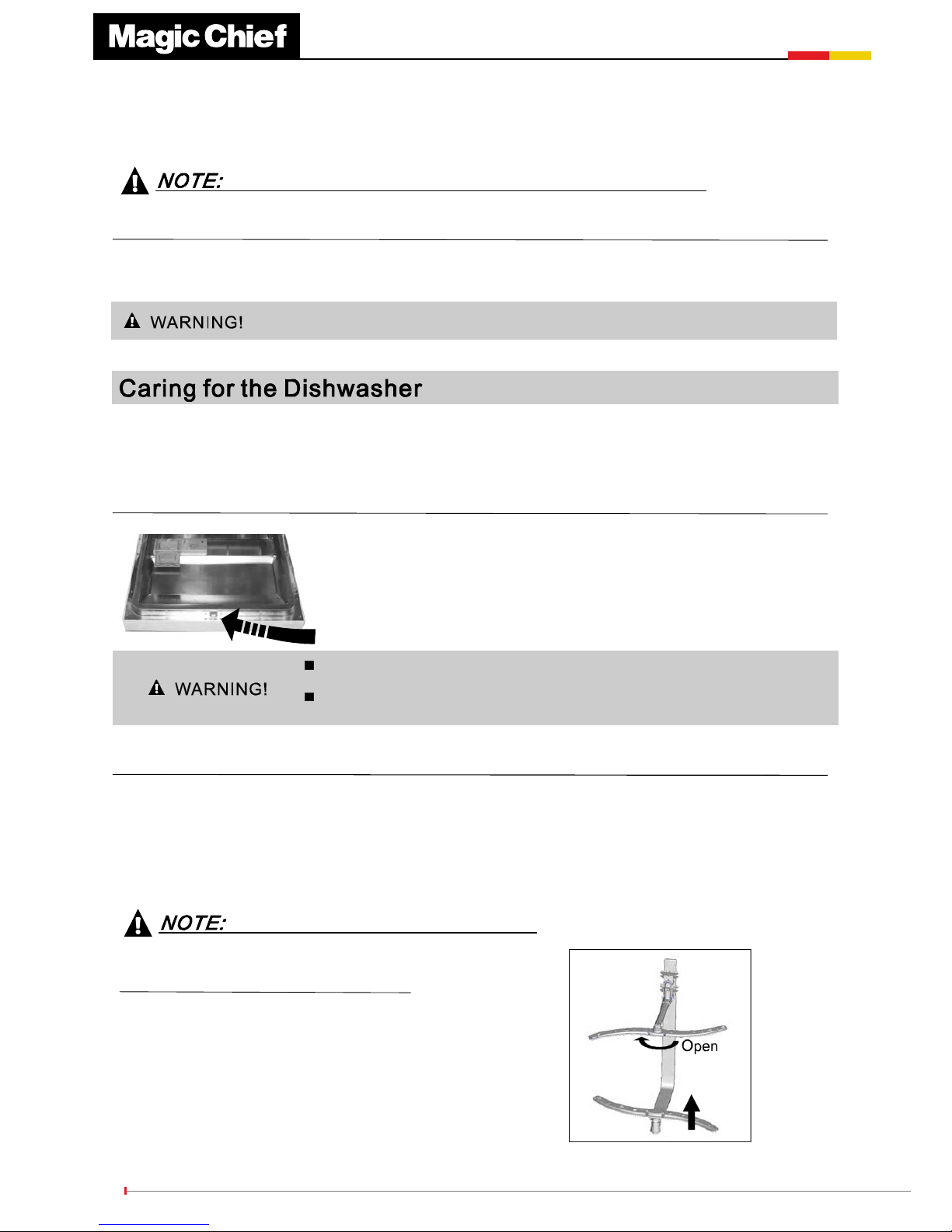

Caring for the Dishwasher..................... .........14.

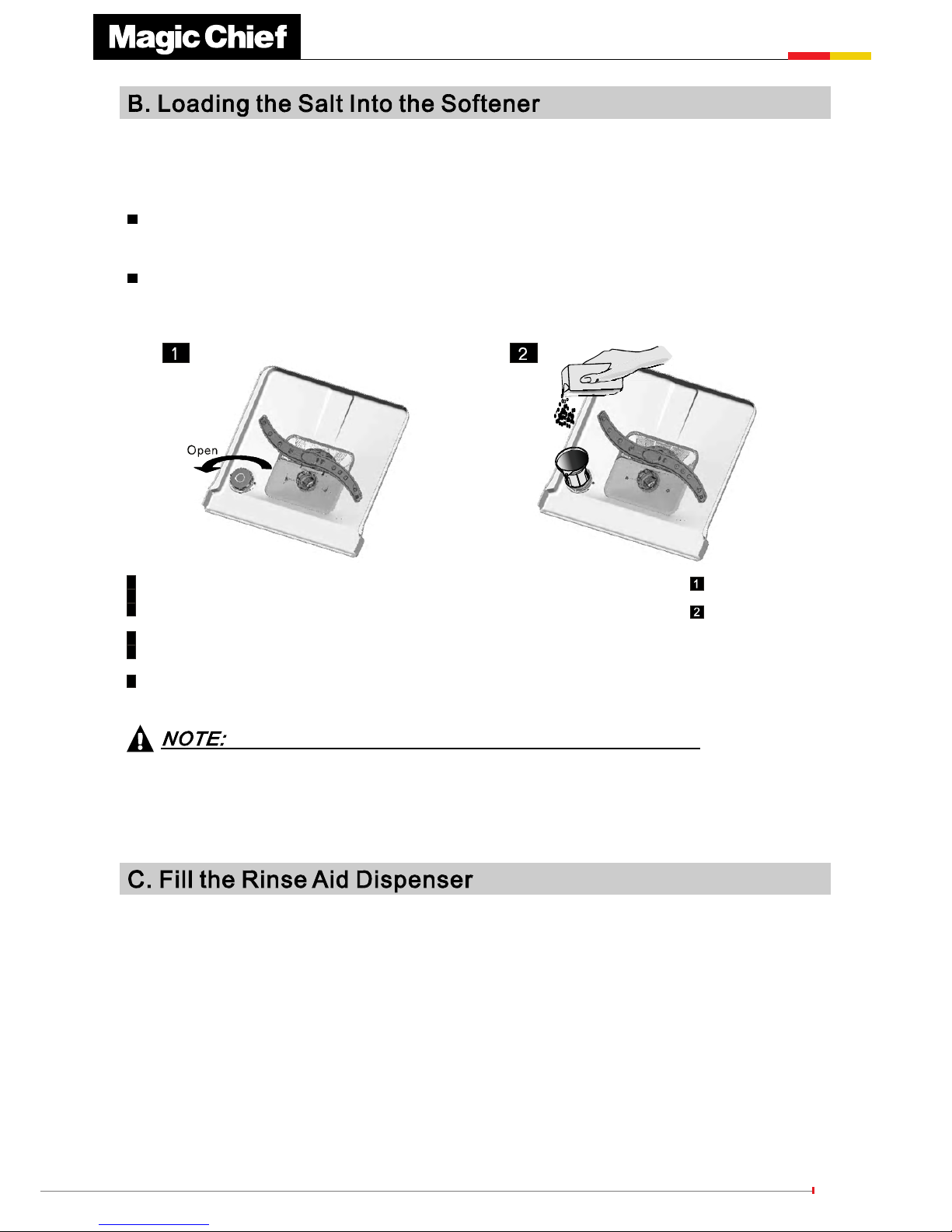

B Loading the Salt into the Softener.......... .......5、
C Fill the Rinse Aid Dispenser.........................5、
D Function of Detergent .................................6
、

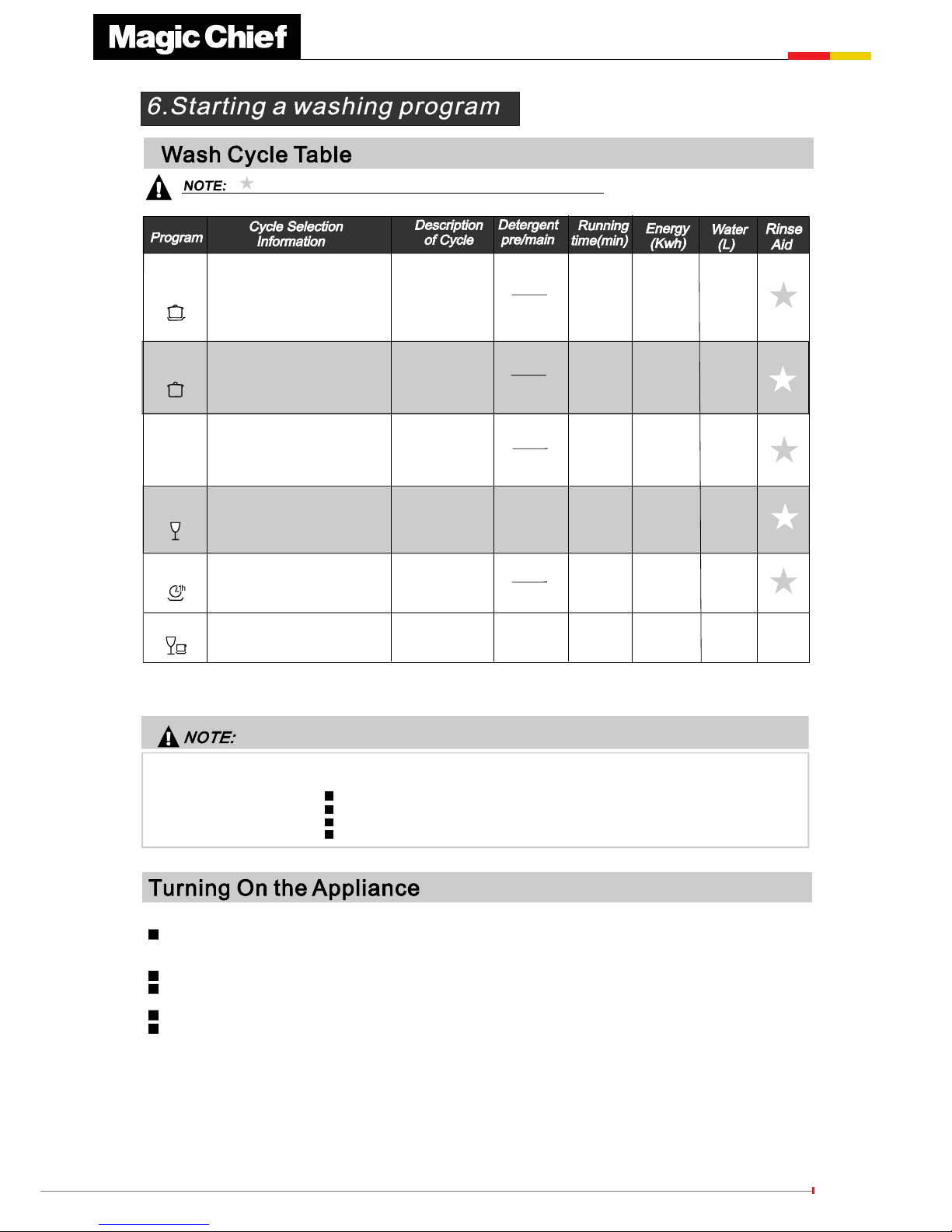

Wash Cycle Table...........................................11
Turning on theAppliance................................12
Change the Programme.............. ................12.. ..
At the end of the Wash Cycle...........................12

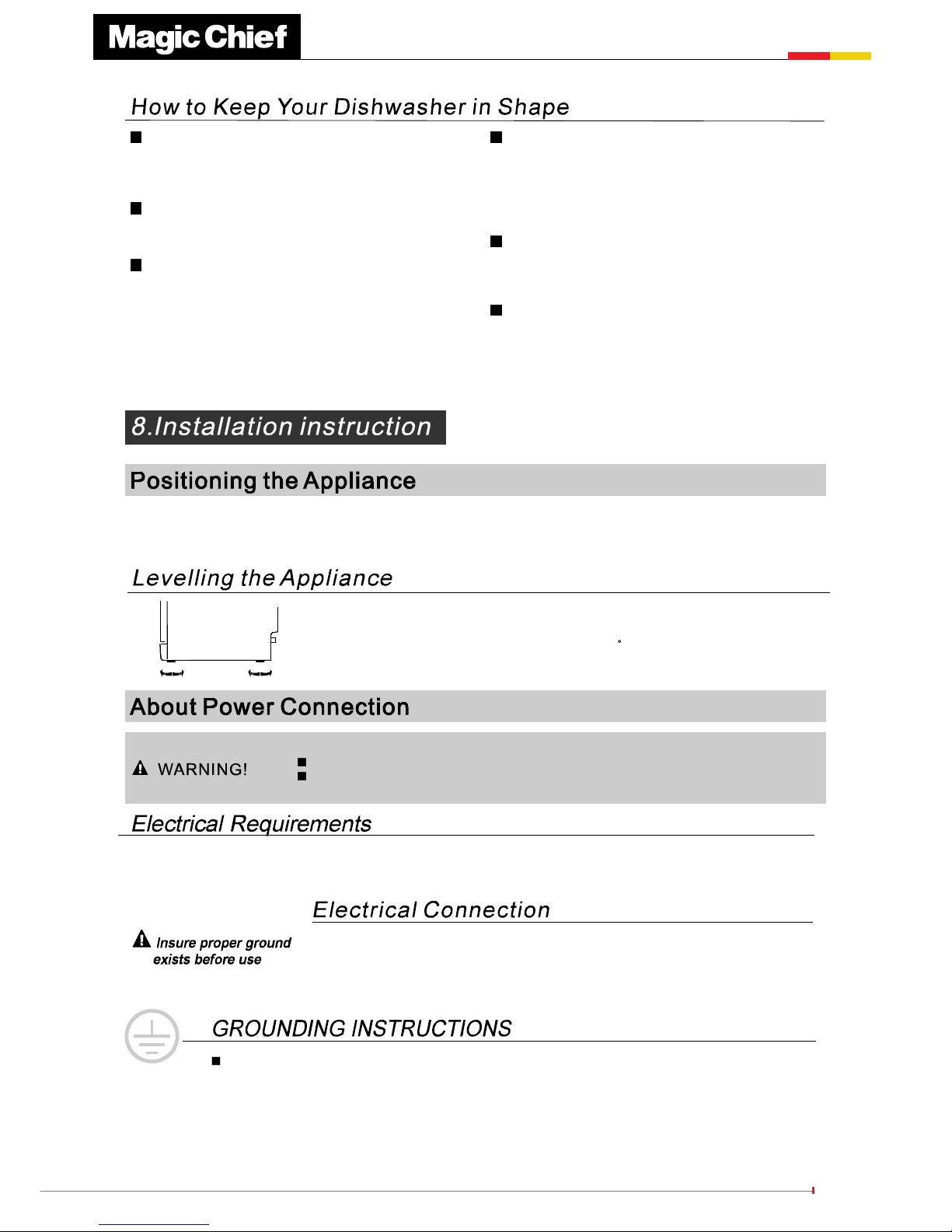

Positioning the Appliance................... ..........15..

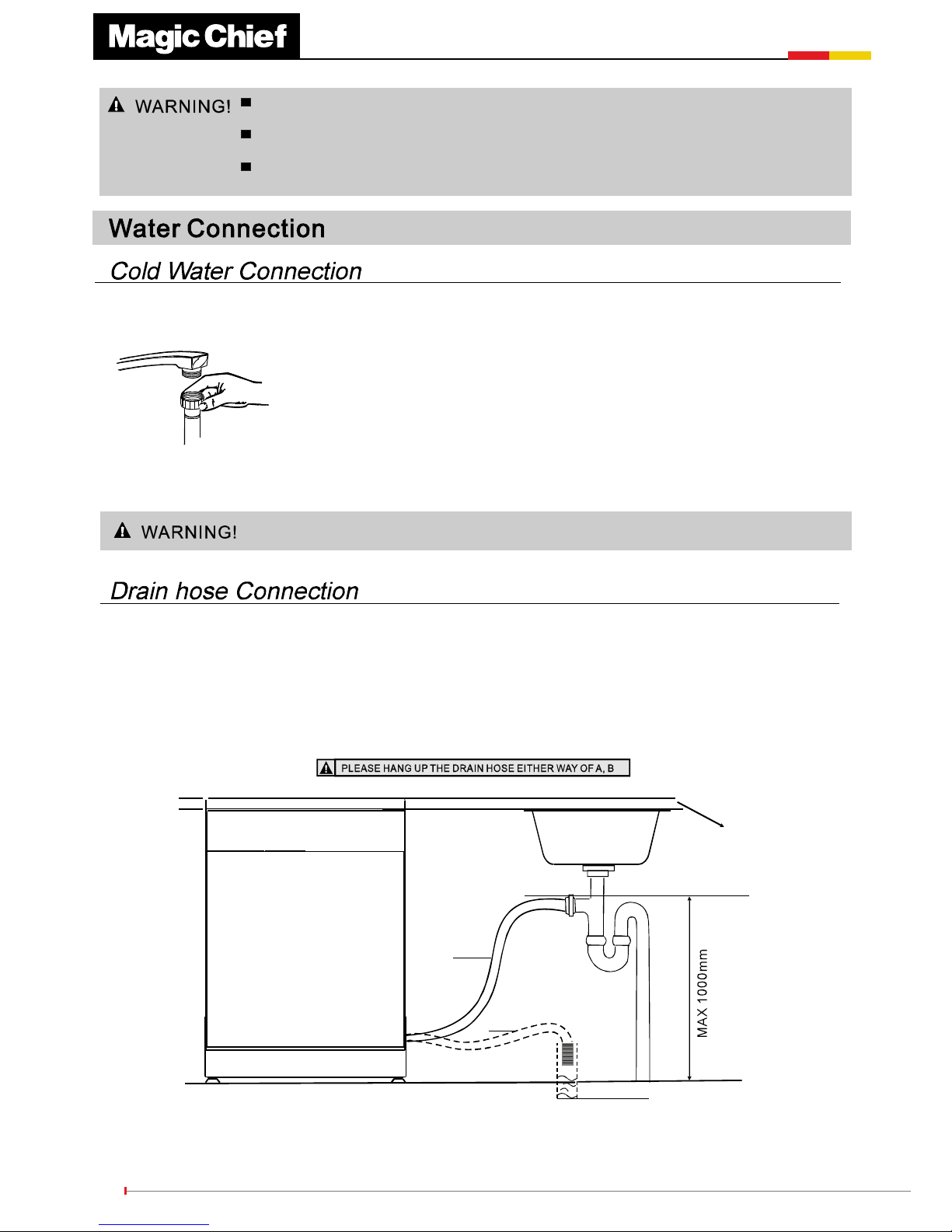

Water Connection.................................. .......16.
About Power Connection........................ .......15.
Start of dishwasher................................ ......17..
Before calling for service........................... .....18.
Error codes.................................... ..............19.

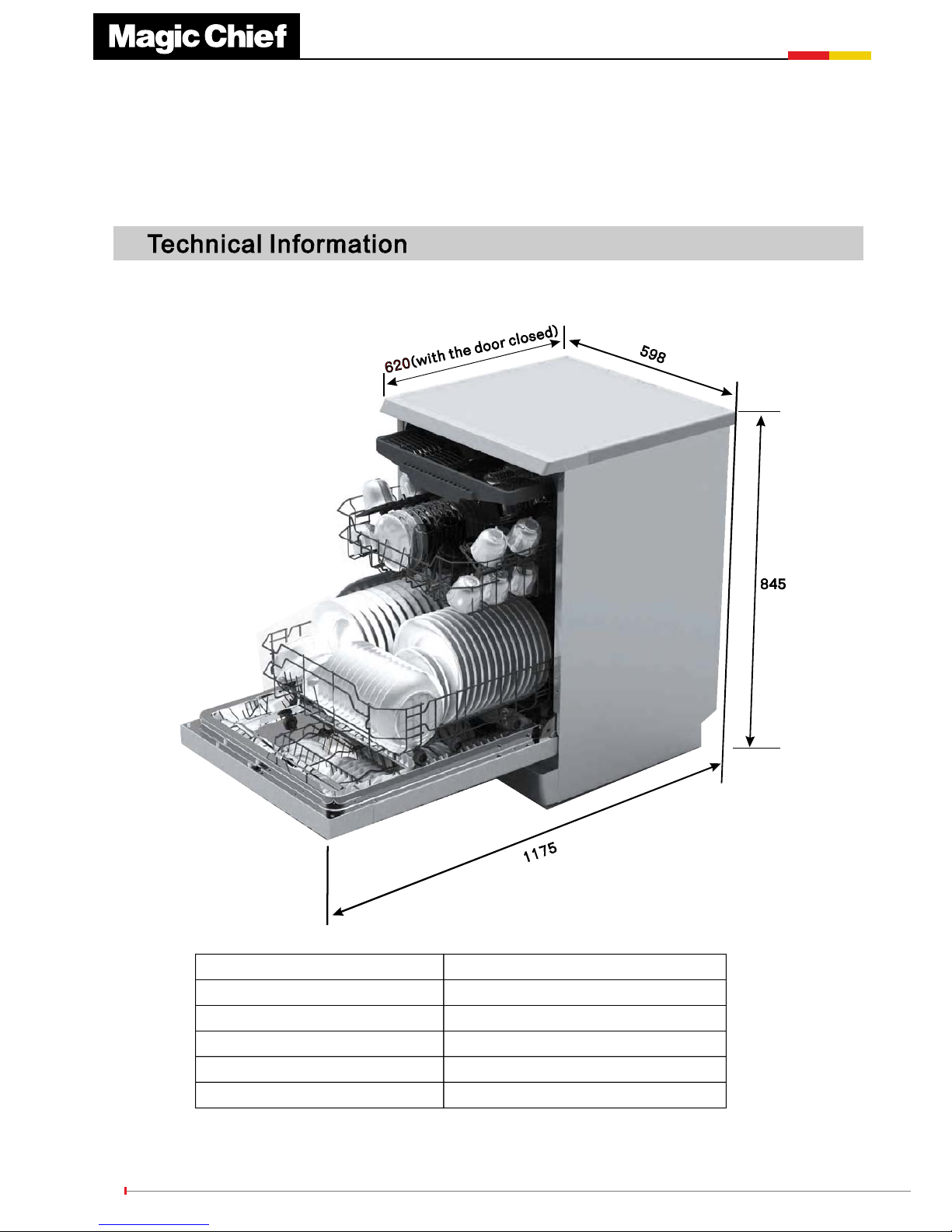

Technical information.............................. .....20..
Control Panel...................................................3

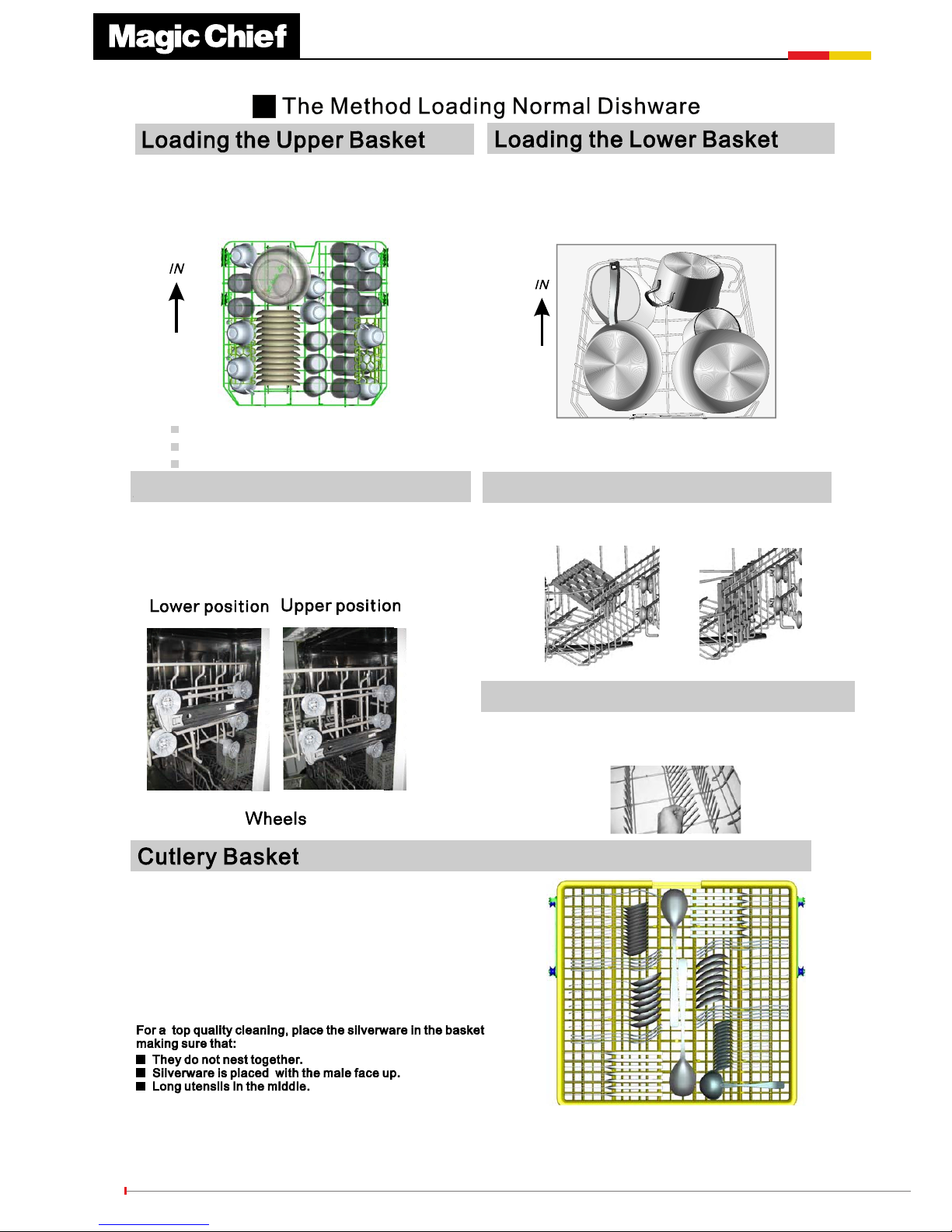

The Method Loading Normal Dishware.............10
5
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipmentgrounding conduct or and a grounding plug.
The plug must be plugged into an appropr iate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Do n ot abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a vis ual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
n
ot so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Neve r use soap, laun dry deterg ent , or h and
washing detergent in your dishwasher. Keep
thes e products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their points down or placed in a
horizontal position.
)
When using your dishwasher, you shou ld
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines with a visual heating
element.)
If the supply cordis damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment is empty
after completion of the wash cycle.
The appliance is to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is 14.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precaut ions listed below:
The door should not be left open,
since this could increase the risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug prov ided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwa sher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
oper ating, there is a risk of wate r squirt ing out .
6
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene,e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Therefore cut
off the power supply cable and mak e the door closing device unusable.
Cardboard pac kaging is ma nuf actured from recycled paper and should be disposed in the
waste paper collect ion for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local
city office and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.
7
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
11
12
Back View
1
2
3
4
5
7
8
9
10

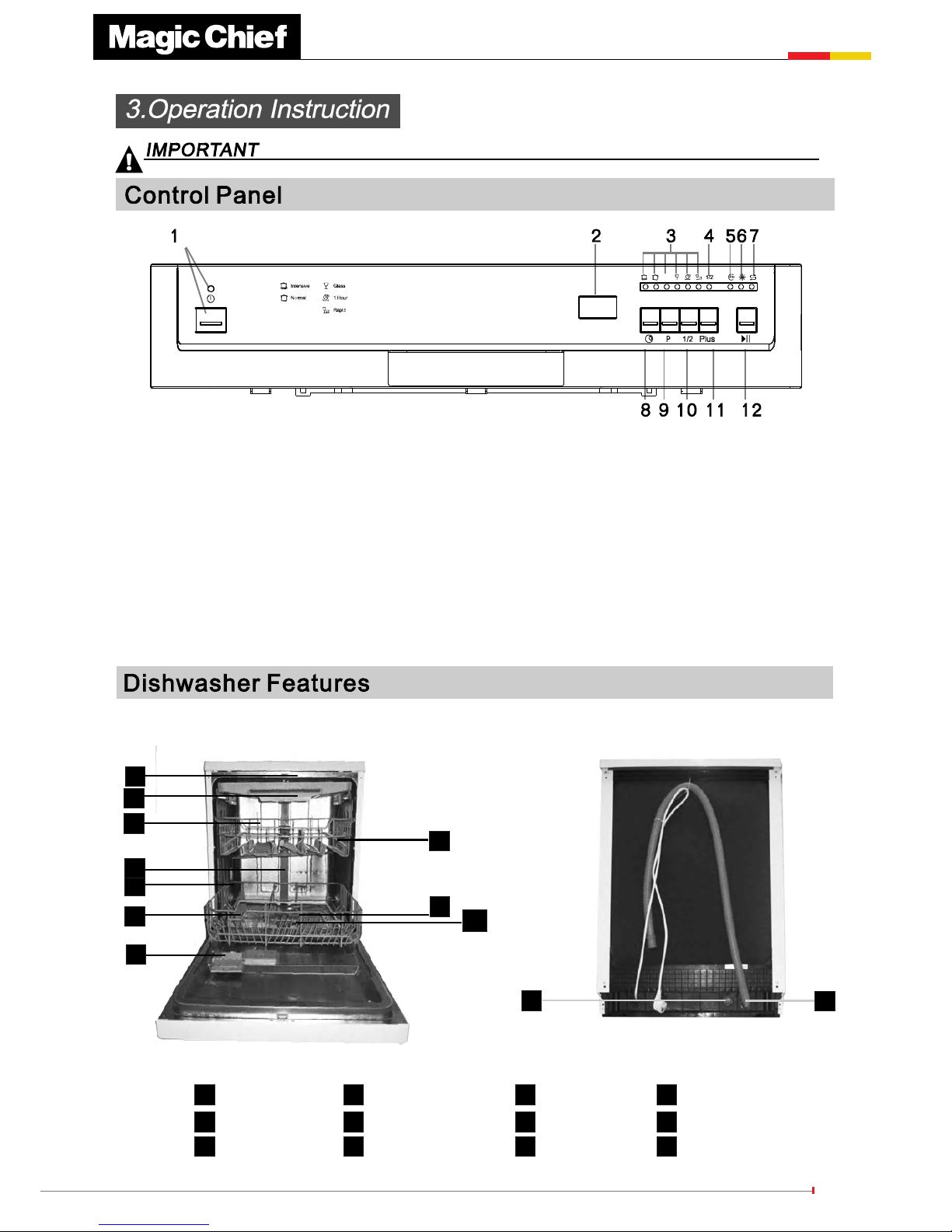

Front view
Lower basket
Salt container
Dispenser
Cup s helf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upper ba sket
Cutlery rack
Top spray arm
1
Inner pipe
5
6
7
8
9
10
12
11
3
2
4
6
12.Start /Pause Button: To start the selected
washing program or pause the washing program
when the machine is working.
1.Power indicator and Button: To turn on/off and show
the power supply.
9. Program Button:To select the washing cycles .
6.Rinse aid warning lights: To be of when dispenser need
to be refilled
8.Delay Button : To Press the button to delay.
2. Display screen : To sho w the remain time,running state,
delay time , error codes etc
5. Plus indicator : To be on when selected the Plus function.
7.Salt warning lights: To be on when the salt container
need to be refilled
3. Program indicators : The selected program will be on .
11. Plus function button:To select the Plus function;
4. Half load indicator : To be on when selected the half load
function.
10.Half load functions Button: To select Half load
function. (With the Half load function you can
only use it when you have only about or less than
6 place setting dish wave, and you will see less
water and energy consumption , can only be used with
Intensive, Normal, ECO,Glass and 60 min .)
eco
ECO
eco
8
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which would have
a detrimental or adverse effect on the operation of the appliance.
The higher the content of these minerals and salts, the harder your water is.
The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority
can advise you on the hardness of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of
the water used. This is intended to optimise and customise the level o f salt consumption.
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will
form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
Contact your local water board for information on the hardness of your water supply.
dH
mmol/l
0~90~5 0~0.94
H1
0
10-20
6-11
1.0-2.0 H2 9
21-30
12-17 2.1-3. 0
H3
12
H4
20
fH
0~6
7-14
15-21
Clarke
WATER HARDNESS
Selector Position
Salt consumption
(gram/cycle)
18-22 31-40 22-28 3.1-4.0
If your model does not have any water softener, you may skip this section.
Clark: British degree
fH: French degree
DH: German degree
dH=1.25 Clarke=1.78 fH=0.178mmol/l
1
41-60
23-34 4.1-6. 0
H5
30
H6
60
29-42
35-45 61-80 43-56 6.1-8.0
The manufactory setting: H4 (EN 50242)
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kg dishwasher salt and then full fill the salt container with water
C. Fill t he rinse aid dispenser
D. Fill i n detergent
1. Close the door ,switch on the appliance;
2. Press the Start/Pause button for more than 5 seconds to start the water softener
set model within 60seconds after the appliance was switched on( The Salt and
Rinse aid warning lights will be on periodically when it get in the set model );
3. Press the Start/Pause button to select the proper set according to
your local environment, the sets will change in the following
sequence: H1->H2->H3->H4->H5->H6;
4. Press the On/Off button or no operation for 5 seconds to end the set up model.
9
1. The salt container must only be refilled when the salt warning light in t he control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (for some Models),you can estimate when to fill
the salt into the softener by the cycles that the dishwasher has run.
2. If thereare spills ofthe salt, a soak or a rapid program should be run to remove the excessive salt.
Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained
in the following:
Attention!
Only use salt spe cifically designed for the use in dishwashers! Every other type of
salt not specifically designed for the use in adishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any damages caused.
Only fill with salt just before starting one of the complete washing programs.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of time, which may cause
corrosi on.
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any o ther substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Full fill the salt container withwater,It isnormal for asmall amount of water to come out of the
salt container.
A After the lower basket has been removed, unscrew and remove the cap from the salt container.
C
D After filling the co ntainer , screw the cap tightly back clockwise.
E The salt warning light will stop being after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing program should be started
program Otherwise the filter system, pump or other important parts of the machine may be damaged
by salty water. This is out of warranty.
(We suggest to use a short
).
B Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
10
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six or four settings.Always start with the dispenser
set on "4". If spots and p oor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if there are drops of wateror lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
1
2
3
As the rinse aid d iminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate spotting
Empty
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the c ontrol panel, you can estimate the amount from the colour
of the optical level indicator C located next to the cap. When the rinse-aid container is full, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let
the rinse aid level fall 1 / 4 full .
during the next wash.
Don't forget to replace the cap before you close dishwasher door.
Clea n up any rinse aid spi lled while during filling with an absorbent clot h to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of th e commerci al qu ality deterge nts are su ita ble for this p urpose.
""
Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Attention!
11
Amount of Detergent to Use
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
Based on their chemical composition, deterge nts can be sp lit in two basi c typ es:
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensu re the complete rem oval of detergent res iduals.
The dispenser must be refilled be fore the star t of e ach wash cycle following the inst ructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. More heavily soiled items need more detergent. Always add the
detergent just before starting the dishwasher, otherwise it could get damp and w ill not
diss olve pro perly.
Concentrated Detergent
Detergent Tablets
Detergent Dispenser
conventional, alkaline detergents with caustic components
low alkaline concentrat ed detergents with natural enzymes
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.
°
Deterg ents
Ther e are 3 sorts of det ergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
Always add the detergent just before starting each wash cycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lid will spring open.
Detergent tablet
Detergent powder
12
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrate d on the right:
The place of main wash cycle detergent placed.
The place of pre-wash cycle detergent placed.
Please observe themanufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You find information about the amount of detergent for the single programme on the last page.
Pleaseaware, that according to the levelsoiling and the specific hardness of water differences are possible.
Pleaseobserve the manufacturer's recommendationson the detergent packaging.
13
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types of glasses can become
dull after a large number of washes
Silver and aluminum parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Are not suitable
Are of limited suitability
Dishesand items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deep base.
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from the detergent manufacturers.
For particular items, select a program with as low a temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.
14
The upper basket is designed to hold more delicate
and li ghter dishwa re such as gl asses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they arenot too dirty).
Position the dishes and cookware so that they w ill
not get moved by the spray of water.
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, se rving dishes and
bowls, as shown in the fi gure below. It is pre fera ble to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Pots, serving bowls, etc, must always be placed top down.
Deep pots shoul d be slanted to allow wate r to flow out.
Please be reminded that:
The Bottom Basket featuresfolding spikes so that larger or more pots and pans can be loaded.
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Adjusting the Upper Basket
The height of the upper basket can be adjusted in order to
create more space for larg e utensils both for the upper
/lower basket. The height of the upper basket can be
adjusted by placing the wheels on different height of the
rails. Long items, serving cutlery, salad servers and knives
should be placed on the shelf so that they do not obstruct
the rotation of the spray arms..
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutl ery should be placed in the cut lery rack sep ara tely
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
causebad performance.
15
Starting a cycle wash
Draw out the lowe r and up per basket, load the dishes and push them back.
It is commended to load the lower basket first, then the uppe r one (see the section entitled
Loading the Dishwasher ).
Pour in the detergent (see the section entitled Salt, Detergent and Rinse Aid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 Hz, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
Close the door, press the ON/OFF Button, and the display will turn on.
Press the program Button , the wash program will be changed as follows direction:
If a program is se lected, the response light will light. Then press the Start/Pause button, the
dishwasher begins to start.
“”
“”
Intensive->Normal->ECO->Glass->1 Hour ;->Rapid
1
2
3
4
5
*EN 50242 : This programme is the test cycle. The information for comparability test
in accordance with EN 50242, as follow s:
Capacit y: 14 setting
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
Pl:0.49w; Po: 0.45 w.
Means: need to fill rinse into the Rinse-Aid Dispenser.
()
12.0
10
15
19
15
11 . 5
1.25
1.04
1.5
0.55
1.15
1.07
160
170
140
120
40
60
(or )3in1
5/30g
(or )3in1
5/30g
(or )3in1
5/30g
(or )3in1
5/30g
20g
20g
Pre-wash(50 )
Pre-wash
Wash (65 )
Rinse
Rinse(55 )
Drying
℃
℃
℃
Wash(60 )
Rinse (60 )
Drying
Pre-wash(50 )℃
℃
℃
Pre-wash( 45 )
Wash (50 )
Rinse
Rinse (60 )
Drying
℃
℃
℃
Wash (40 )
Rinse
Rinse (45 )℃℃
Wash (50 )
Rinse
Drying
Pre-wash
Rinse(60 )℃℃
Rinse
Drying
Pre-w ash
wash(40 )
Rinse(60 )℃℃
For heaviest soiled crockery,
and no rm ally soiled pots
pans dishes etc with dried
on s oiling.
、
、
For nor mally soiled loads,
such as , plates,glasses
and lightly soiled pans.
pots
For lightly soiled loads that
do not need excellent drying
effic i en cy.
For lightly soiled crockery
and glass
A shorter wash for lightly
soiled loads that do not
need drying.
Intensive
(*EN 50242 )
Normal
Rapid
1Hour
Glass
ECO
This is st andard programme, it is
suitable to clean normally soiled
tableware and it is the most efficient
programme in terms o f its com bined
energy and w ater consumption for
that type of tableware.
16
When the working cycle has finished, the buzzer o f the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the O N/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
The running indicator stops blinking, only in this case the programme has ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 mi n utes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
If you open the door , the machine will pause. The program light will
stop blinking and the buzzer will mooing every minute unless you close the door . After
you close the door ,the machine will keep on working after 10 seconds.
during a wash cycle
Premise:
1 A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
2 Press the Start/Pause button , press the program button more than 3 seconds, the machine will be in standby
state, then you can change the program to the desired cycle setting (see the section entitled " Starting a wash
cycle. . ." ).
A forgotten dish can be added any time before the detergent cup opens.
Add f orgotten d ishes.
Close the door
After t he spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
1
4
5
6
Press the Start/Pause Button to stop the washing.
Press the , the dishwasher will run
after 10 seconds .
Start/Pause Button
When you press the Start/Pause button to pause during washing, the will
stop blinki n g and the dishwasher will mooing every minute unless you press the
Start/Pause button to start.
running indicator
Wash th e arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
When following th is procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to open the door when washing, because the hot water may scald you.
If your model has broken remember function, the machine will go on to finish the selected
program .
after the power cut
17
The filter prevents larger remnants of food or other objects from getting inside the pum.
The residues may block the filter, in this case they must be removed.
The filter system cons ists of a coarse filter,a flat (M ain filter)
And a microfilter(Fine filter).
Food and soil particles trapped in this filter are pulverized by a
special jet on t he lower spray arm and washed down to drain.
Larger items, such as pieces of bon es or glass, that c ould block
the drain are trapped in the coarse filter.To remove theitems
caught by the filter, gently squeeze the t ap on the top of this
filter and lift out.
This filter holds soil and food residues in the sump areaand
prevents it from being redeposit on the dishes during wash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filter assembly
The filter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it is a goo d idea to
remove the larger food particles trapped in the filter aft er each was h cycle by rinsing t he sem icircular f ilte r and
cup under running water. To remove the filter device, pull the cup handle in t he upward direction.
removes food particles from the wa sh water, allowing it to be recycled during the cycle.
For
The d ishw ash er must never be used without th e fil ters .
Improper replacement of the filter may reduce the performance level of the appliance
and damage dis hes and utensils.
1
2
Step 1 Turn the filter in anti-clockwise direction,：
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
18
The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appl ia nce polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Again s t Freezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather th e water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up wate r in the sump.
please take frost protection measures on the dishwasher in winter. Every fter washing cycles,
please operate as follows
time a
：
Cleaning the Filter
Cleaning The Door
To clean the coar se fi lter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the f igu res
on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the perform ance of the dishwasher could be decreased.
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electric al components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the Spray Arms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
water chemicalswill clog the spray arm jets and bearings.
- Inspect the filters for blo cking after every time the dishwasher has been used.
- By unscrewing the coarse filter, y o u can remove the filter system. Remove any food remnants and
clean the filters under running water.
Remarks:
The entire filter assembly should be cleaned once a week.
To remove the lower spray arm, pull out the spray arm upward.
To remove the upper spray arm, hold the nut, rotate thearm
clockwise to remove it.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
19
It is recomm end t hat you run a wash cycle with the
dishwasher empty and then remove the plugfrom the
socket, turn off the water supply and leave the door of
the appliance slig htl y ope n. This will help the door
seals to last l onger and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, itcan be
positioned on its back.
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occu rring.
Ensurethe voltage and frequencyof the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug , replace the socket, ratherthan using a adaptors or the like as
they could cause over heating an d burns.
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
Position the appliance in the desired location. The back sho uld rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can
be positioned either to the right or the left sides to facilitate proper installation.
Once the appliance is positioned for levelling, the height of the dishwasher
may be altered via adjustment of the screwing level of the feet. In any case,
the appliance should not be inclined more than 2 .
For personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM TH E PO WER CORD.
Before cleaning or performing maintenance, always
remove the plug from the socket.
To clean the exterior and rubber parts of th e dishwashe r,
do not use solventsor abrasive cleaning products.
Only use a cloth w ith warm so apy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water an a little
vinegar, or a cleaning product made specifically for
dishwashers.
Remove the Plug
No Solvents or Abrasive Cleaning
Moving the Appliance
Seals
After every wash, turn off the water supply to the
appliance and leave the door slightly op en so that
moisture and odours are not trapped inside.
After Every Wash
When not in Use for a LongTime
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a
cord having an equipment-earthing conductor and an earthing plug. The plug mus t be plugged into an
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
20
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the
water run to make sure that the water is clear. This precaution is needed to avoid the
risk of the water inlet to be blocked and damage the appliance.
Please close the hydrant after using
for personal safet y:
DO NOT USE AN EXT ENSION CORD OR AN ADAP TER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD.
EARTHING
CONNECTION
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualifie d electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to
avoi d bending or crimping it. T he top of the hose must be less than 100 0mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ 40mm
B
21
The following things should be checked before starting the dishwasher.
The content of this manual is ve ry helpful to the users.
After installation, please make sure to keep this manual.
1
The dishwasher is level and fixed properly
2
The inlet valve is open
3
There is a leakage at the connections of the conducts
4
The wires are tightly connected
5
The power is switched on
6
The inlet and drain hoses are knotted
7
All packing materials and printings should be taken out from the dishwasher
Extension Hose
If you needa drainhose extension, make sure touse a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water drain hose is not kinked or squashed.
If the sink is 1000 higher from the floor, the exces s water in hoses cannot be drained dire ctly
into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable
container that is held outside and lower than the sink.
How to Drain Excess Water From Hoses
Syphon Connection
The waste connectio n mu st be at a he igh t less than 1000 mm (maximum) from the bottom of the dish.
The water drain hose should be fixed .
22
Fuse blown, or the
cir cuit breaker acted
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Spilled rinse-aid
Always wipe up rinse-aid spills immediately.
Hard water minerals
The affected items are
not corrosion resistant.
The lid of the softer
is loose
A sp ay arm is
knocking against
an item in a basket
r
Items of crockery
are loose in the
wash cabinet
This may be caused
by on-site insta llation
or the cross-section of
the piping.
A prog r amme was n ot
run after dishwa sher
salt was added.
Traces of salt have
gotten into th e wash cycle.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishw asher
detergent for the risk of foaming or suds.
Always run the quick wash programme .
without any crockery in the dishwasher and
without selecting the Turbo function (if present),
after adding dishwas her salt.
Check the lip .Ensure the fix is fine.
Interrupt the program me, and rearrange the items
which are obstructing the sp ay arm.r
Interrupt the programme,
and rearrange the items of crockery.
This has no influence on the dishwasher function.
if in doubt, contact a suitably qualified plumber.
Detergent with
colourant was u sed
Make sure that the detergent is the one without
colourant.
Improper detergent
Make sure the dishwasher is turned on and the door is
closed secur ely.
Check that the water supply is connected properly and
the water is turned on.
Make s ure t o close the door properly and latch it.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on
Water pressure is low
Door of dishwasher
not properly closed.
Kink in drain hose
Filter clogged
Kitchen sink clogged
Check drain hose.
Check coarse the filter
(see se cti on titled )" Cleaning The Filter "
Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink not draining ,you may
need a plumber rather than a serviceman for dishwashers.
Use only the special dishwasher detergent to avoid suds.
If this occurs, open the dishwasher and let suds evaporate.
Add 1 gallon of cold water to the tub. Close and latch the
dishwasher, then select any cycle. Dishwasher will drain
out the water at the first step.Open the door after draining
is stop and check if the suds is disappeared.
Repeat if necessary.
23
The dishes were not
loaded correctly.
See notes in " Loading the Dishwasher Baskets ".
Select a more intensive programme.
See" Wash Cycle Table ."
Use more detergent, or change your detergent.
Rearrange the items so that the sp ay can rotate freely.r
Clean and/or fit the filter combination correctly.
Clean the sp ay arm jets. See "Cleaning the Spray
Arms".
r
Use less detergent if you have soft water and select
a shortest cycle to wash the glassware and to get
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Re-loading the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/refill the rinse-aid
dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once t
he dishes are barely warm to the touch. Empty the low
basket first. This prevents water form dropping off
dishes in the upper basket.
In short program the washing temperature is lower.
This also lowers cleaning performance. Choose
a program with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
The p rogramme was
not powerful enough.
Not enoug h det erge nt
was d ispensed.
Ite ms are blocking
the path of sp ay arms.r
The f ilter com bination
in the base of wash
cabinet is not clean or
is not correctly fitted.
This may cau se
the sp ay arm jets
to get blocked.
r
Combination of soft
water and too much
detergent.
Aluminum utensils
have rubbed against
dishes.
Dishes blo ck
detergent cups.
Improper loading
Too little rinse-aid
Dishes are removed
too soon
Wrong program
has been selec ted
Use of cutlery with
a low-quality coating
Ov erf l ow.
When some malfunctions come on, the appliance will display error codes to warn you:
Longer inlet time.
Faucets is not opened, or water intake i s
restricted,or water pressure is too low.
Some element of dishwasher leaks .
E4
E1
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an over fill or small leak,
the water should be removed before restarting the d ishwasher.
24
Height : 845mm
Width : 598 mm
Depth : 620mm
(with the door closed)
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 14 place settings
25
Loading...
