Magic Chef MCD993W User Manual

0.9 Cu. Ft. Countertop Microwave Oven

User's Manual

Model MCD993W/MCD993B/ MCD993R

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR

MICROWAVE OVEN AND KEEP IT FOR FUTURE REFERENCE.

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 2 2018-01-05 오후 1:24:21

Product Registration

Thank you for purchasing a Magic Chef product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.

2. Registering your product will allow for more efficient warranty service processing when warranty service is required.

3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing a Magic Chef product.

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 3 2018-01-05 오후 1:24:21

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in

harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to

accumulate on sealing surfaces.

properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

TABLE OF CONTENTS

• PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ................... 1

• IMPORTANT SAFETY INSTRUCTIONS .......................................................................................................... 2

• FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT .................................................................................... 3

• GROUNDING INSTRUCTIONS ........................................................................................................................ 3

• INSTALLATION .................................................................................................................................................4

• SPECIFICATIONS ............................................................................................................................................5

• FEATURES DIAGRAM .....................................................................................................................................6

• FEATURES DIAGRAM (continued) ..................................................................................................................7

• OPERATION PROCEDURE ............................................................................................................................. 8

• CONTROLS ......................................................................................................................................................9

SETTING THE CLOCK ..................................................................................................................................9

+30SEC .........................................................................................................................................................9

WEIGHT DEFROSTING .............................................................................................................................. 10

TIME DEFROSTING ....................................................................................................................................10

MICROWAVE COOK ...................................................................................................................................11

COOKING IN TWO STAGES ......................................................................................................................11

AUTO COOK ...............................................................................................................................................12

KITCHEN TIMER ........................................................................................................................................ 13

CHILD SAFETY LOCK ................................................................................................................................13

TO STOP THE OVEN WHILE THE OVEN IS OPERATING ....................................................................... 13

• CARE OF YOUR MICROWAVE OVEN .......................................................................................................... 14

• BEFORE YOU CALL FOR SERVICE .............................................................................................................15

• CARE AND CLEANING ..................................................................................................................................15

• QUESTIONS AND ANSWERS .......................................................................................................................16

• COOKING INSTRUCTIONS ...........................................................................................................................17

• USE YOUR MICROWAVE OVEN SAFELY .................................................................................................... 18

• ARCING ..........................................................................................................................................................18

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 1 2018-01-05 오후 1:24:21

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.

2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found on page 1.

3. This appliance must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 3.

4. Install or locate this appliance only in accordance with the provided installation instructions.

5. Some products such as whole eggs and sealed containers - for example, closed glass jars are able to explode and should not be heated in this oven.

6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

7. As with the appliance, close supervision is necessary when used by children.

8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.

9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment.

10. Do not cover or block any openings on the appliance.

11. Do not store this appliance outdoors. Do not use this product near water — for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. Do not let cord hang over edge of table or counter.

15. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth.

16. To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend appliance

when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

b) Remove wire twist-ties from paper or plastic bags

before placing bag in oven.

c) If materials inside the oven ignite, keep oven door

closed, turn oven off, and disconnect the power

cord, or shut off power at the fuse or circuit breaker panel.

d) Do not use the cavity for storage purposes. Do not

leave paper products, cooking utensils, or food in the cavity when not in use.

17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

a) Do not overheat the liquid. b) Stir the liquid both before and halfway through

heating it.

c) Do not use straight-sided containers with narrow

necks.

d) After heating, allow the container to stand in the

microwave oven for a short time before removing the container.

e) Use extreme care when inserting a spoon or other

utensil into the container.

18. Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapors from such corrosive chemicals may interact with the contact and springs of the safety interlock switches thereby rendering them inoperable.

19. Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven.

20. Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire.

21. Do not operate the oven without the glass tray in place. Be sure it is properly sitting on the rotating base.

SAVE THESE INSTRUCTIONS

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 2 2018-01-05 오후 1:24:21

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT

WARNING:

This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followings.

• Reorient the receiving antenna of radio or television.

• Relocate the Microwave oven with respect to the receiver.

• Move the microwave oven away from the receiver.

• Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

THE MANUFACTURER is not responsible for any radio or TV interference caused by UNAUTHORIZED MODIFICATION to this microwave oven. It is the responsibility of the user to correct such interference.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, the grounding plug reduces the risk of electric shock by providing an escape wire for electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded, and either : (1) If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding

plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

WARNING: Do not cut or remove the third (ground) prong from the power cord under any circumstances.

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 3 2018-01-05 오후 1:24:21

INSTALLATION

1. Examine the oven after unpacking. Check for damage such as a misaligned door, broken door or dent in the cavity. If any damage is visible, DO NOT INSTALL, and notify your dealer immediately.

2. Level, flat location. Install the microwave oven on a level, flat surface.

3. Ventilation. Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause a

failure.

For proper ventilation, allow 3 inches of space between oven top, sides, rear and adjacent surfaces.

4. Away from radio and TV sets. Poor television reception and radio interference may result if the oven is located close to a TV, radio, antenna,

feeder, etc.

Place the oven as far from them as possible.

5. Away from heating appliances and water taps. Keep the oven away from heat, steam or splashing liquids. These things can adversely affect oven wiring and

contacts.

6. Power supply.

• Check your local power source. This microwave oven requires a current of approximately 12.5 amperes, 120Volts, 60Hz grounded outlet.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.

3. If a long cord or extension cord is used:

• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical

rating of the appliance.

• The extension cord must be a grounding type 3-wire cord.

• The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can

be pulled on by children or tripped over unintentionally.

7. The minimum height of free space necessary above the top surface of the oven is about 4 inches.

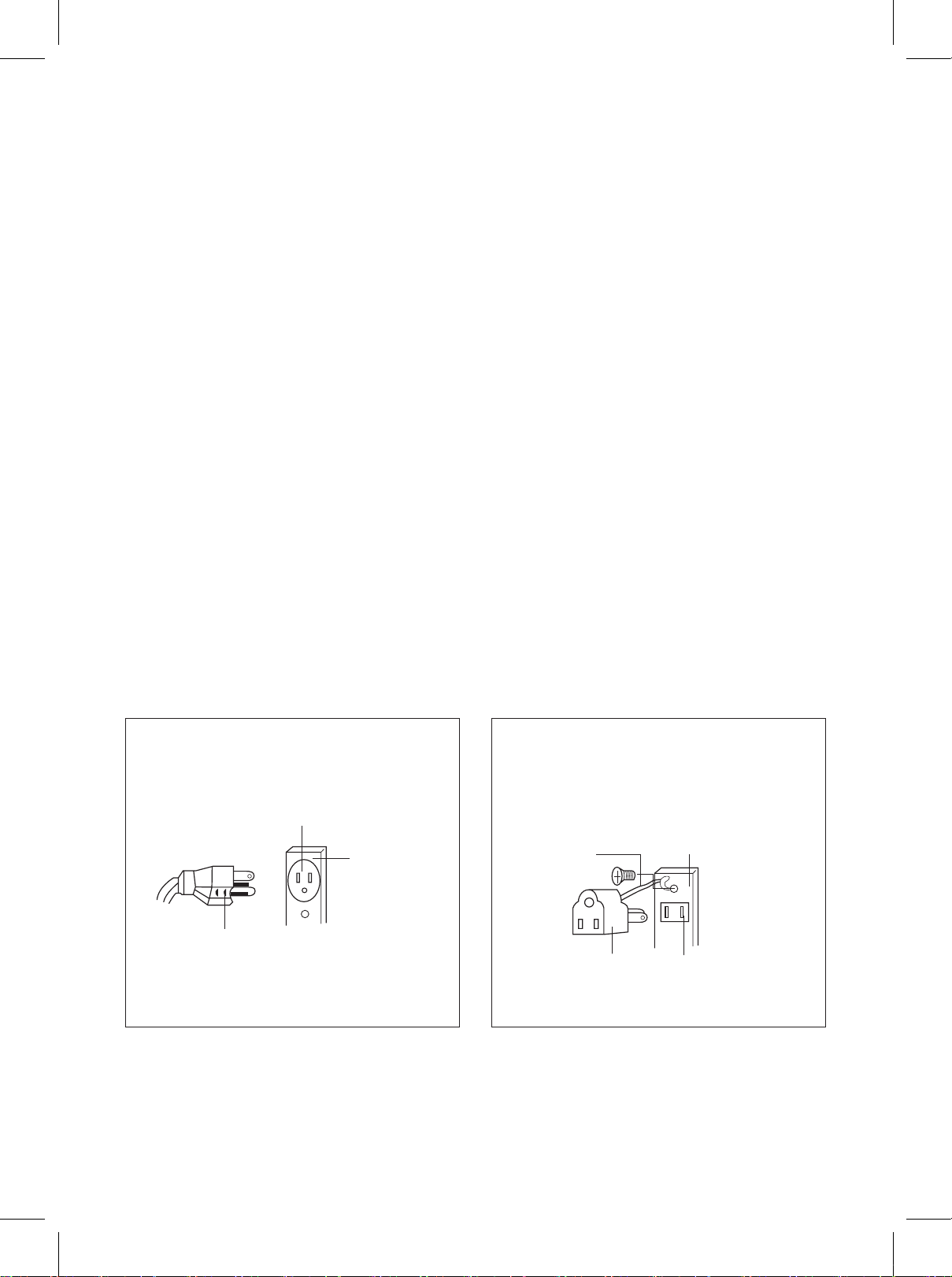

When use 3-pronged plug

3-prong Receptacle

Receptacle Box cover

3-prong plug

“THE CANADIAN ELECTRICAL CODE DOES NOT ALLOW THE USE OF THE GROUNDING ADAPTOR”

When use grounding adaptor, make sure the receptacle box is fully grounded.

Grounding Lead

Grounding Adaptor

Receptacle Box Cover

Receptacle

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 4 2018-01-05 오후 1:24:21

SPECIFICATIONS

POWER SUPPLY 120V AC, 60Hz SINGLE PHASE WITH GROUNDING

INPUT POWER 1350 W

MICROWAVE

OUTSIDE DIMENSIONS (W x H x D) 18.3 × 11 × 14.6 in.

CAVITY DIMENSIONS (W x H x D) 12.4 × 9.3 × 13.6 in.

CAVITY VOLUME 0.9 cu.ft (26 Liters)

NET WEIGHT APPROX. 24.7 lbs.

TIMER 59 min. 99 sec.

POWER SELECTIONS 10 Levels

* Specifications are subject to change without notice.

ENERGY OUTPUT 900 W

FREQUENCY 2,450MHz

18.3 14.6

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 5 2018-01-05 오후 1:24:21

FEATURES DIAGRAM

1 2 3 q 0

958

1 Door latch - When the door is closed, it will

automatically shut off. If the door is opened while the oven is operating, the magnetron will automatically shut off.

2 Door seal - The door seal surfaces prevent

microwaves escaping from the oven cavity.

3 Oven cavity

4 Control panel

5 Coupler - This fits over the shaft in the center of the

oven cavity floor. This is to remain in the oven for all cooking.

6 Roller guide - This must always be used for

cooking together with the glass cooking tray.

7 Glass cooking tray - Made of special heat

resistant glass. The tray must always be in proper position before operating. Do not cook food directly on the tray.

8 Viewing screen - Allows viewing of food.

The screen is designed so that light can pass through, but not the microwave.

9 Waveguide cover - Protects the microwave outlet

from splashes of cooking foods.

0 Safety interlock system

q Oven lamp - Automatically turns on during oven

operating.

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 6 2018-01-05 오후 1:24:21

FEATURES DIAGRAM (continued)

2 5

7 8

1 DISPLAY - Cooking time, power level, indicators

and current time are displayed.

2 AUTO COOK - Used to cook some kind of

popular food easily and automatically.

3 POWER - Used to set power level.

6 CLOCK - Used to set clock.

7 STOP / CLEAR - Used to stop the oven

operation or to delete the cooking data.

8 START / +30 SEC - Used to start the oven and

also used to set a reheat time.

4 TIME SET PAD - Used to set the cooking time

and the current time.

5 DEFROST - Used to defrost foods for weight

and time.

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 7 2018-01-05 오후 1:24:22

9 KITCHEN TIMER - Press and hold number "0"

pad for 3 seconds to set the kitchen timer.

OPERATION PROCEDURE

This section includes useful information about oven operation.

Plug power supply cord into a standard

3-pronged 12 Amp, 120V AC 60Hz power outlet.

After placing the food in a suitable container,

open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking.

Close the door. Make sure that it is firmly closed.

The oven light is on when the microwave oven is

operating.

The oven door can be opened at any time during

operation by pulling the handle of door. The oven will automatically shut off.

Each time a pad is touched, a BEEP will sound to

acknowledge the touch.

The oven automatically cooks on full power

unless set to a lower power level.

The display will show “ : 0” when the oven is

plugged in.

WATTAGE OUTPUT CHART

Time clock returns to the present time when the

cooking time ends.

When the STOP/CLEAR pad is touched during the

oven operation, the oven stops cooking and all information retained. To erase all information(except the present time), touch the STOP/CLEAR pad once more. If the oven door is opened during the oven operation, all information is retained.

If the START pad is touched and the oven does not

operate, check the area between the door and door seal for obstructions and make sure the door is closed securely. The oven will not start cooking until the door is completely closed or the program has been reset.

Make sure the oven is properly installed and plugged into the electrical outlet.

• The power-level is set by touching the POWER LEVEL pad. The chart shows the display, the power level and

the percentage of power.

Touch the POWER LEVEL pad Power level (Display) Approximate Percentage of Power

once P-HI 100%

twice P-90 90%

3 times P-80 80%

4 times P-70 70%

5 times P-60 60%

6 times P-50 50%

7 times P-40 40%

8 times P-30 30%

9 times P-20 20%

10 times P-10 10%

11 times P-00 0%

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 8 2018-01-05 오후 1:24:22

CONTROLS

SETTING THE CLOCK

When the oven is first plugged in, the display will flash “ :0” and a tone will sound. If the AC power ever turns off, the display shows “ :0” when the power comes back on.

1. Touch the CLOCK pad. This is a 12 hour clock system.

2. Touch the CLOCK pad once more. This is a 24 hour clock system.

NOTE : This oven has multiple clock systems. If you want 12 hour clock system, omit this step.

3. Enter the correct time of day by touching the TIME SET pads in sequence.

4. Touch the CLOCK pad. The display stops blinking, and the colon starts blinking. If you selected 12

hour clock system, this digital clock allows you to set from 1:00 to 12:59. If you selected 24 hour clock system, this digital clock allows you to set from 0:00 to 23:59.

NOTE: If you attempt to enter an incorrect time, the time will not be set and a error signal tone will

sound. Touch the CLOCK pad and re-enter the time.

+30 sec

+30 sec allows you to reheat for 30 seconds at full power by simply touching the Start/+30sec. pad. By repeatedly touching the Start/+30sec. pad, you can also extend reheating time to 5 minutes by 30 second increments.

1. Touch the Start/+30sec. pad. When you touch the +30 sec pad, ":30" is displayed. After 1.5 seconds, the oven starts reheating.

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 9 2018-01-05 오후 1:24:22

WEIGHT DEFROSTING

When DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off.

1. Touch the DEFROST pad. This is the weight defrosting mode. The display will show you " 0.0 " .

2. Touch the TIME SET pads for inputing the desired weights. The display will show you what you touched.

NOTE: Your oven can be programmed for 0.4 lb. ~ 3.5lb. in Weight defrosting

mode.

3. Touch the Start/+30sec. pad.

The defrosting time is automatically determined by the weight inputed. When you touch the Start/+30sec. pad, the display counts down the time to show you how much defrosting time is left. The oven beeps during the defrosting cycle to signal that the food needs to be turn over or rearranged. When the defrosting time ends, you will hear 3 beeps.

TIME DEFROSTING

When DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off.

1. Touch the DEFROST pad twice. This is the time defrosting mode.

The display will show you " : 0" .

2. Touch the TIME SET pads for inputing the desired time.

The display will show you what you touched.

NOTE: Your oven can be programmed for 59minutes 99seconds.(59:99).

3. Touch the Start/+30sec. pad.

When you touch the Start/+30sec. pad, the display counts down the time to show you how much defrosting time is left. The oven beeps during the defrosting cycle to signal that the food needs to be turn over or rearranged. When the defrosting time ends, you will hear 3 beeps.

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 10 2018-01-05 오후 1:24:22

MICROWAVE COOK

1. Touch the POWER pad.

(Please refer to the wattage output chart in page 8.) The display will show what you touched. Touch the Power level pad repeatedly to select the power level you want.

NOTE: If step 1 is omitted, the oven will cook at full power.

2. Touch the TIME SET pads for the cooking time.

The display will show what you touched.

NOTE: Your oven can be programmed for 59 minutes 99 seconds.(59:99)

3. Touch the Start/+30sec. pad.

When you touch the Start/+30sec. pad. The display counts down the time to show how much cooking time is left. When the cooking time ends, you will hear 3 beeps.

NOTE : Using lower power levels increases the cooking time which is recommended for foods such

as cheese, milk and slow cooking of meats.

COOKING IN TWO STAGES

All recipes require frozen foods to be defrosted fully before cooking.

1. Touch the DEFROST pad.

(Select the weight defrosting mode or the time defrosting mode.)

2. Touch the TIME SET pads for the defrosting time or weight you want.

The display will show what you touched.

3.Touch the POWER pad.

(Select the desired power level.) The display will show what you touched.

4. Touch the TIME SET pads for the desired cooking time.

The display will show what you touched.

5. Touch the Start/+30sec. pad.

The display counts down the remaining time in defrosting. When the oven beeps, turn over or rearrange foods. When the defrosting ends, oven will beep and start microwave cook. The display counts down the remaining time in microwave cook. When M/W cook ends, you will hear 3 beeps.

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 11 2018-01-05 오후 1:24:22

AUTO COOK

popcorn

1”

popcorn popcorn popcorn

popcornpopcorn

1”

popcorn popcorn

popcornpopcorn

AUTO COOK allows you to cook or reheat many of your favorite foods by repeatedly touching the AUTO COOK pad. When you touch the AUTO COOK pad once, “AC-1” will be displayed. By repeatedly touching this pad, you can select other food category as shown in below.

1. Touch the AUTO COOK pad once for 3.5 oz.of POPCORN.

AC-1 will be displayed.

2. Touch the AUTO COOK pad twice for 4PCS of BREAD. AC-2 will be displayed.

3. Touch the AUTO COOK pad three times for 12 oz. of SOUP. AC-3 will be

displayed.

4. Touch the AUTO COOK pad four times for 3ea of BAKED POTATO. AC-4 will

be displayed.

5. Touch the AUTO COOK pad five times for 8 oz. of FRESH VEGETABLE. AC-5

will be displayed.

6. Touch the AUTO COOK pad six times for 10 oz. of FROZEN VEGETABLE.

AC-6 will be displayed.

Then touch the Start/+30sec. pad. The display will be changed into cooking time

of quantity and the oven starts cooking.

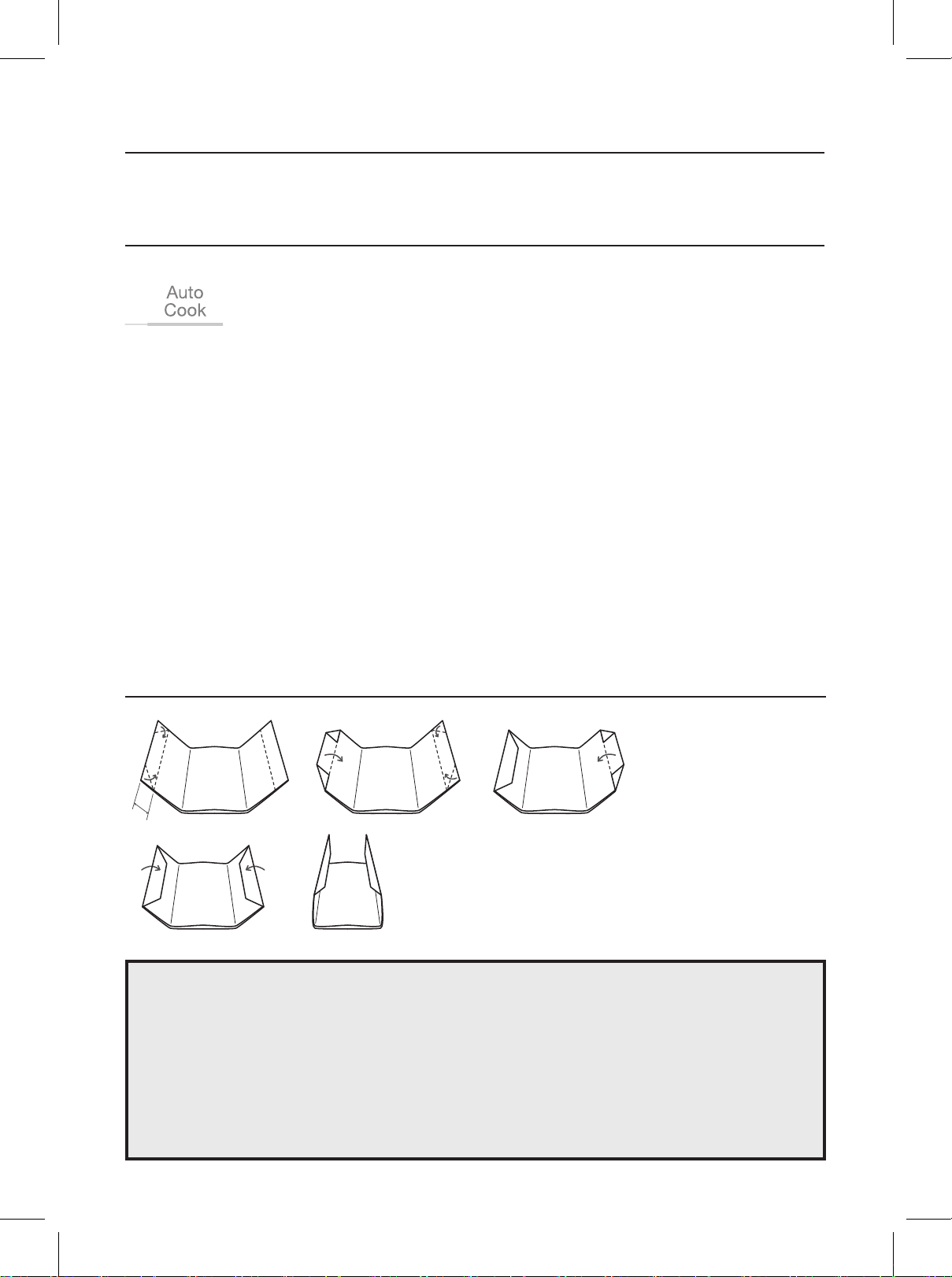

When you use the AC-1, place the popcorn bag carefully so bag does not touch oven walls. The bag may be foleded down as follows.

popcorn

1”

popcorn popcorn

NOTE: 1. Use prepackaged room-temperature microwave popcorn.

2. Place bag in oven according to manufacturer's directions.

3. Pop only one bag at a time.

4. After popping, open bag carefully: popcorn and steam are extremely hot.

5. Do not reheat unpopped kernels or reuse bag.

6. Do not leave oven unattended while popping popcorn.

CAUTION : If prepackaged popcorn is of a different weight than the recommended weight, do not

use the AUTO COOK pad. Follow the manufacturer instruction.

HDUS_MCD993W,MCD993B,MCD993R_KOR9GRBW~(영).indd 12 2018-01-05 오후 1:24:22

+ 30 hidden pages

Magic Chef MCD993W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
