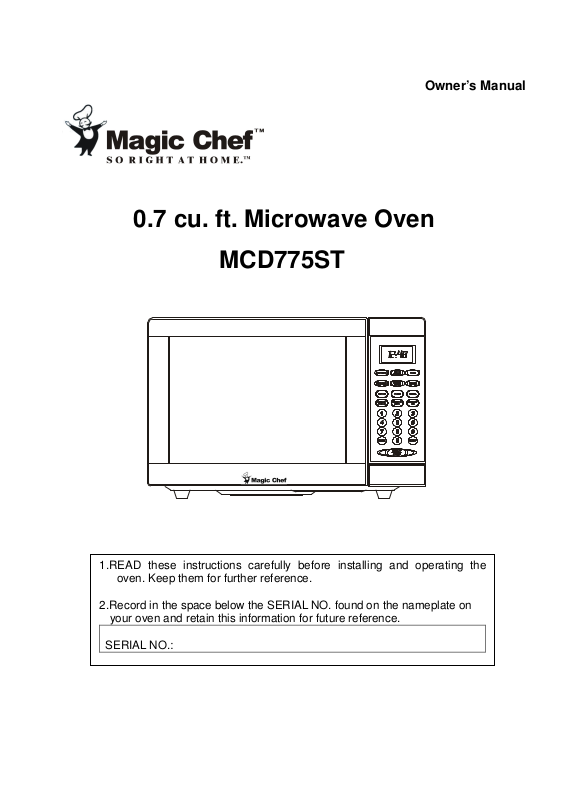

Owner’s Manual
0.7 cu. ft. Microwave Oven
MCD775ST
1.READ these instructions carefully before installing and operating the
oven. Keep them for further reference.
2.Record in the space below the SERIAL NO. found on the nameplate on
your oven and retain this information for future reference.
SERIAL NO.:
CONTENTS
CONTENTS
CONTENTSCONTENTS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY………………….…………………………………….…….…2
IMPORTANT SAFETY INSTRUCTIONS………………………………………….. …3
GROUNDING INSTRUCTIONS.…………………………….…………………….. …4
UTENSILS GUIDE…………………………………………………………………… …5
COOKING TECHNIQUES…………………………………………………………... …7
BEFORE YOU CALL FOR SERVICE……………………….…………………….. …8
SPECIFICATIONS…………………………………………….…………………….. …8
PART NAMES…… .…………………………………………………………………. …8
CONTROL PANEL…………………………………………………………………… …9
OPERATION INSTRUCTIONS…………….……………………………………….…10
ABOUT “QUICK COOK” SETTINGS………………………………………………....13
CLEANINGAND CARE…………………………………………………………………15
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door
operation can result in harmful exposure to microwave energy. It is
important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or
allow food particle or cleaner residue to accumulate on sealed surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door close properly and that there is no damage to the
Door (bent),
Hinges and latches (broken or loosened),
Door seals and sealed surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE
STATEMENT
WARNING :
This equipment generates and uses ISM frequency energy and if not
installed and used properly, that is in strict accordance with the
manufacturer’s instructions, may cause interference to radio and television
reception. It has been type-tested and found to comply with limits for an ISM
Equipment pursuant to part 18 of FCC Rules, which are designed to provide
reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
followings.
• Reorient the receiving antenna of radio or television.
• Relocate the Microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that microwave
oven and receiver are on different branch circuits.
THE MANUFACTURER is not responsible for any radio or TV interference
caused by UNAUTHORIZED MODIFICATION to this microwave oven. It is
the responsibility of the user to correct such interference.
2
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic
safety precautions should be followed,
including the following:
WARNING - To reduce the risk of burns,
electric shock, fire, injury to persons or
exposure to excessive microwave energy:
1. Read all instructions before using the
appliance.
2. Read and follow the specific
“PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY” on page 2.
3. Select a level surface that provides
enough open space for the intake
and/or outlet vents. A minimum
clearance of 3 inches is required
between the oven and any adjacent
5.
Use this appliance only for its
intended
use as described in this manual. Do not
use corrosive chemicals or vapors in
this appliance. This type of oven is
specifically designed to heat, cook or
dry food. It is not designed for industrial
or laboratory use.
6.
As with any appliance, close
supervision is necessary when used by
children.
7.
To reduce the risk of fire in the oven
cavity:
a. Do not overcook food. Carefully
attend appliance if paper, plastic or
other combustible materials are
placed inside the oven to facilitate
wall. One side must be open. Leave a
minimum clearance of 3 inches above
the oven. Do not cover or block any
openings on the appliance. Do not
remove feet from the bottom of the
oven. This
grounded and connected only to
properly grounded outlet. See
“GROUNDING INSTRUCTIONS” on
page 4.
4.
Some products such as whole eggs
and sealed containers, for example,
closed glass jars may explode and
should not be heated in this oven.
3
appliance must be
cooking.
b. Remove wire twist-ties from paper or
plastic bags before placing them in
the oven.
c. If materials inside the oven should
ignite, keep oven door closed, turn
oven off, and disconnect the
power cord or shut off power at
the fuse or circuit breaker panel.
d. Do not use the cavity for storage
purposes. Do not leave paper
products, cooking utensils or food in
the cavity when not in use.
SAVE THESE INSTRUCTION
8.
Microwave heating of beverage can
result in delayed eruptive boiling,
therefore care has to be taken when
handling the container.
9.
Do not deep fry food in the microwave.
It is difficult to control the fat which
could cause a fire hazard.
10.
Pierce foods with heavy skins such as
potatoes, whole squash, apples and
chestnuts before cooking.
11.
The contents of feeding bottles and
baby jars should be stirred or shaken
and the temperature should be
checked efore serving in order to
avoid burns.
12.
Cooking utensils may become hot
because of heat transferred from the
heated food. Potholders may be
working properly or if it has been
damaged or dropped.
16.
Do not immerse cord or plug in water.
Keep cord away from heated surface.
Do not let cord hang over edge of table
or counter.
17.
Use only thermometers which are
specifically designed for use in
microwave ovens.
18.
Do not operate any heating or cooking
appliance beneath this appliance.
19.
Be certain the glass tray and roller
ring are in place when you operate
the oven.
20.
When cleaning surfaces of door and
oven that comes together on closing
the door, use only mild, nonabrasive
needed to handle the utensil.
13.
Do not cover or block any openings
on the appliance.
14.
Do not store or use this appliance
outdoors. Do not use this product near
water, for example, near a kitchen sink,
in a wet basement, or near a swimming
pool, etc.
15.
Do not operate this appliance if it has
a damaged cord or a plug, if it is not
GROUNDING INSTRUCTIONS
GROUNDING INSTRUCTIONS
GROUNDING INSTRUCTIONSGROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces risk of electric shock by providing an escape wire for the electric current.
4
soaps, or detergents applied with a
sponge or soft cloth.
21.
WARNING: It is hazardous for
anyone other than a trained person to
carry out any service or repair
operation which involves the
removal of any cover which gives
protection against exposure to
microwave energy. If there is any
damage, do not operate the oven and
contact MC Appliance Corp. for service.
WARNING: Improper use of the grounding plug can result in a risk of electric shock.
SAVE THESE INSTRUCTIONS
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. It is recommended that
a separate circuit serving only the oven be provided. The oven is equipped with a 3-prong
grounding plug. It must be plugged into a wall receptacle that is properly installed and
grounded.
Extension Cord
If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3
blade grounding plug and a 3-slot receptacle that will accept the plug on the microwave
oven. The marked rating of the extension cord shall be equal to or greater than the
electrical rating of the appliance.
Notes: 1. If you have any questions about the grounding or electrical instructions, consult
a qualified electrician or a service person.
2. Neither MC Appliance Corp nor the dealer can accept any liability for damage to
the oven or personal injury resulting from failure to observe the electrical
connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio or TV, check that the
microwave oven is on a different circuit, relocated the radio or TV as far away from the oven as
feasible or check position and signal of receiving antenna.
UTENSILS GUIDE
UTENSILS GUIDE
UTENSILS GUIDEUTENSILS GUIDE
This section lists which utensils can be used in the microwave, which ones have limited
use for short periods, and which ones should not be used in the microwave.
Recommended
·Microwave browning dish — Use to brown the exterior of small items such as steaks,
chops, or pancakes. Follow the directions provided with your browning dish.
·
Microwaveable plastic wrap — Use to retain steam. Leave a small opening for some
steam to escape and avoid placing it directly on the food.
·Paper towels and napkins — Use for a short-term heating and covering; these absorb
excess moisture and prevent spattering. Do not use recycled paper towels, which may
contain metal and could ignite.
5
SAVE THESE INSTRUCTIONS
·Glass and glass-ceramic bowls and dishes — Use for heating or cooking.
·Paper plates and cups — Use for short-term heating at low temperatures. Do not use
recycled paper, which may contain metal and could ignite.
·Wax paper — Use as a cover to prevent spattering.
·Thermometers — Use only those labeled “Microwave Safe” and follow all directions.
Check the food in several places. Conventional thermometers may be used on
microwave food once the food has been removed from the oven.
Limited Use
·
Aluminum foil — Use narrow strips of foil to prevent overcooking of exposed areas.
Using too much foil can damage your oven, so be careful. You should keep distance of 1
inch (2.54cm) between aluminum foil and cavity.
·Ceramic, porcelain, and stoneware — Use these if they are labeled “Microwave Safe”.
If they are not labeled, test them to make sure they can be used safely.
·Plastic — Use only if labeled “Microwave Safe”. Other plastics can melt.
·Straw, wicker, and wood — Use only for short-term heating, such as warming dinner
rolls for a few seconds; baskets and bowls may be flammable.
Not Recommended
·Glass jars and bottles — Regular glass is too thin to be used in a microwave. It can
shatter and cause damage and injury.
·Paper bags — These are a fire hazard, except for popcorn bags that are designed for
microwave use.
·Styrofoam plates and cups — These can melt and leave an unhealthy residue on food.
·Plastic storage and food containers — Containers such as margarine tubs can melt in
the microwave.
·Metal utensils — These can damage your oven. Remove all metal before cooking.
Note: Should you wish to check if a dish is safe for microwaving, place the empty dish in
the oven and microwave on HIGH for 30 seconds. A dish which becomes very hot
should not be used.
6
SAVE THESE INSTRUCTIONS
COOKING TECHNIQUES
COOKING TECHNIQUES
COOKING TECHNIQUESCOOKING TECHNIQUES
Stirring
Stir foods such as casseroles and
vegetables while cooking to distribute heat
evenly. Food at the outside of the dish
absorbs more energy and heats more
quickly, so stir from the outside to the
center. The oven will turn off when you
open the door to stir your food.
Arrangement
Arrange unevenly shaped foods, such as
chicken pieces or chops, with the thicker,
meatier parts toward the outside of the
turntable where they receive more
microwave energy. To prevent overcooking,
place delicate areas, such as asparagus
tips, toward the center of the turntable.
Shielding
Turning
Turn foods over midway through cooking
to expose all parts to microwave energy.
This is especially important with large
foods such as roasts.
Standing
Foods cooked in the microwave build up
internal heat and continue to cook for a few
minutes after heating stops. Let foods
stand to complete cooking, especially
foods such as cakes and whole vegetables.
Roasts need this time to complete cooking
in the center without overcooking the outer
areas. All liquids, such as soup or hot
chocolate, should be shaken or stirred
when cooking is complete. Let liquids
stand a moment before serving. When
Shield food with narrow strips of aluminum
foil to prevent overcooking. Areas that
need shielding include poultry wing-tips,
the ends of poultry legs, and corners of
square baking dishes. Use only small
amounts of aluminum foil. Larger amounts
can damage your oven.
SAVE THESE INSTRUCTIONS
7
heating baby food, stir well at removal and
test the temperature before serving.
Adding moisture
Microwave energy is attracted to water
molecules. Food that is uneven in moisture
content should be covered or allowed to
stand so that the heat disperse evenly. Add
a small amount of water to dry food to help
it cook.
BEFORE YOU CALL FOR SERVICE
BEFORE YOU CALL FOR SERVICE
BEFORE YOU CALL FOR SERVICEBEFORE YOU CALL FOR SERVICE
If the oven fails to operate:
A) Check to ensure that the oven is
C) Check to ensure that the control panel
plugged in securely. If it is not, remove the
plug from the outlet, wait 10 seconds and
plug it in again securely.
B) Check for a blown circuit fuse or a
tripped main circuit breaker. If these
seem to be operating properly, test the
outlet with another appliance.
IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT MC APPLIANCE
CORPORATION TO OBTAIN SERVICE
TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONSSPECIFICATIONS
Power Consumption:
Output:
Operation Frequency:
Outside Dimensions(H×W×D):
Oven Capacity:
Net Weight:
is programmed correctly and the timer is
set.
D)Check to ensure that the door is
securely closed engaging the door safety
lock system. Otherwise, the microwave
energy will not flow into the oven.
120V~60Hz, 1200W
700W
2450MHz
11 5/8×18 1/16×13 9/16 in.
0.7cu.ft
Approx.
28.4 lbs.
PART NAMES
PART NAMES
PART NAMESPART NAMES
Door Safety Lock System
Oven Window
Oven Air Vent
Shaft
Roller Ring
Glass Tray
Control Panel
8
Door Release Button
CONTROL PANEL
CONTROL PANEL
CONTROL PANELCONTROL PANEL
(Also see following pages for more detail.)
DISPLAY
Cooking time, power, indicators and
present time are displayed.
BAKED POTATO PIZZA
BEVERAGE POPCORN
FROZEN DINNER REHEAT
Allows you to reheat or cook food
automatically without entering power level
or time.
POWER
Use to set power level.
COOK
Cook at one power level for a period of
time, then the oven automatically switch to
another power level for the rest of cooking
time.
DEFROST BY WEIGHT
Touch to set the weight of the food to be
defrosted; the oven automatically sets the
defrosting time and power level.
COOK BY WEIGHT
Touch to enter weight of meat accurately.
The oven automatically sets the cooking
time and power level.
DEFROST BY TIME
Touch to set defrosting time; the oven
automatically divides the defrosting time
into periods of alternating defrost and
9
stand times by cycling on and off.
Touch to set the clock.
TIMER
You can use the TIMER function
independently, even while a cooking
program is going on in the oven.
NUMBER PADS(0-9)
Touch to set times or amounts.
CLOCK
OPERATIO
OPERATION INSTRUCTIONS
OPERATIOOPERATIO
BEEPS DURING OVEN SETTINGS
ONE BEEP: Oven accepts the entry.
TWO BEEPS: Oven does not accept the
entry, check and try again.
SETTING THE CLOCK
1. Touch CLOCK pad.
N INSTRUCTIONS
N INSTRUCTIONSN INSTRUCTIONS
RESET
Clears all previous settings if touched
before cooking starts.
START/STOP
Touch to start or stop cooking.
2. Enter the amount of time you want to
count down by touching the
number pads. Digit time is in minutes
and seconds and set left to right. Set
one digit (a 5 for 5 seconds) or up to
four digits (2405 for 24 minutes, 5
seconds).
2. Use the number pads to enter the
correct time. You must touch at least
three numbers to set the clock(one for
hour and two for minutes).
3. Touch CLOCK pad again.
NOTE:
This is a 12 hour clock. When the oven
is first plugged in or when power
resumes after a power interruption, the
display will show ENTER CLOCK TIME,
if you prefer to not have the clock
displayed, touch RESET pad. You can
check the clock time while cooking is in
progress by touching the CLOCK pad.
SETTING THE OVEN TIMER
1. Touch TIMER pad.
3. Touch START/STOP pad.
NOTE:
·Time countdown can be seen in
display for 3 seconds before clock or
cooking time is returned to display.
·Touch TIMER and then touch RESET
to cancel TIMER during timing
process.
SETTING COOKING TIMES
POWER LEVELS
A. One-stage Cooking
1. Use the number pads to set a cooking
time. You can set a cooking time from
one seconds to 99 minutes and 99
seconds. If you are setting a time greater
than one minute, you must enter
AND
10
numbers for both minutes and seconds.
another cooking function.
For example, to set 20 minutes, enter
2,0,0,0.
2. If you want to set a power level other
than 100% power, touch POWER, then
use the number pads to enter the power
level. You can set the power level
from 1 to 9.
3. Touch START/STOP to start cooking.
USE THESE SINGLE DIGIT TO
REPRESENT POWER LEVELS
Number pad % of Power
9 90%
8 80%
7 70%
6 60%
5 50%
4 40%
3 30%
2 20%
1 10%
B. Two-stage Cooking
Some recipes require different stages of
cooking at different temperatures.
1. SET STAGE 1:
Follow steps 1 and 2 in “One-stage
Cooking”.
DO NOT TOUCH START/STOP PAD.
2. SET STAGE 2:
Touch COOK pad then enter proper
cooking time and (lower) power level.
(Most 2-stage recipes use lower power
for second stage.)
3. Touch START/STOP pad.
NOTE:
After total time has elapsed, 4
beeps sound and END appears in
display. Touch RESET pad or open oven
door to clear END before starting
SETTING “ DEFROST BY TIME”
1. Touch DEFROST BY TIME pad.
2. Enter desired defrosting time by
touching correct number pads. Digital
timer sets minutes and seconds from
left to right so a single digit can be set
(5 for 5 seconds ) or up to 4 digits
(2405 for 24 minutes 5 seconds).
3. Touch START/STOP pad.
NOTE:
·After time has elapsed four beeps
sound and END appears in display.
Touch RESET pad or open door to
clear END before starting another
cooking function.
·After setting DEFROST BY TIME, oven
can be programmed to automatically
switch to one or two-Stage cooking.
A. For defrost by time and one stage
cooking, follow steps above. Before
touching START/STOP pad, touch
COOK pad, enter time and power
level. Then touch START/STOP pad.
B. For defrost by time and two stage
cooking, follow steps above. Before
touching START/STOP pad, enter
two-stage cooking programs.
SETTING “COOK BY WEIGHT”
1. Touch COOK BY WEIGHT pad.
2. Enter the one-digit code by touching
the correct number pad.
3. Enter weight.
11
4. Touch START/STOP PAD.
Touch START/STOP to resume cooking.
NOTE:
·Your microwave oven makes cooking
easy. You set the type and weight of
food, and the oven automatically sets the
cooking time and power level.
“COOK BY WEIGHT ” CODE
DESCRIPTIONS
CODE TYPE MAX WEIGHT
1 Beef 5 lb. 16oz
2 Mutton 5 lb. 16 oz
3 Pork 5 lb. 4 oz
·Meat must be defrosted and at
refrigerated temperature.
·Weight must be in pounds and ounces.
Ounce weights less than 10 must be
preceded by a 0. If label gives weight
in pounds only, change the fraction
of a pound to ounces using the
following chart.
CONVERTING FRACTIONS
OF A POUND TO OUNCES
FRACTIONS
OF A POUND
OUNCES
Less than .03 0
.03 to .09 1
.10 to .15 2
.16 to .21 3
.22 to .27 4
.28 to .34 5
.35 to .40 6
.41 to .46 7
.47 to .53 8
.54 to 59 9
.60 to .65 10
.66 to .71 11
.72 to .78 12
.79 to .84 13
.85 to .90 14
.91 to .97 15
above .97 go to next even
·Turn meat over when oven beep twice.
12
·After total cooking time, 4 beeps sound
and END appears in display. Touch
RESET or open oven door to clear
END before starting another cooking
function. Let meat stand few minutes
before carving.
SETTING “DEFROST BY WEIGHT”
1. Touch DEFROST BY WEIGHT pad.
2. Enter weight.
3. Touch START/STOP pad.
NOTE:
·Weight must be in pounds and ounces.
Ounce weights less than 10 must be
preceded by a 0. If label gives weight
in pounds only, change the fraction
of a pound to ounces using the chart on
this page.
·Turn food over when oven beep twice.
Touch START/STOP pad to resume
defrosting.
·After total defrosting time, 4 beeps
sound and END appears in display.
Touch RESET or open oven door to clear
END before starting another cooking
function.
SETTING “SAFETY LOCK”
The safety lock prevents unsupervised
operation by little children.
To set, press and hold RESET pad for 3
seconds, LOCK indicator lights.
To cancel, press and hold RESET pad
for 3 seconds, LOCK indicator goes off.
2. Open the door.
TO STOP THE OVEN WHILE THE OVEN
IS OPERATING
1. Touch START/STOP pad.
·You can restart the oven by touching
START/STOP pad.
·Touch RESET to erase all instructions.
ABOUT “ QUICK COOK ” SETTINGS
“QUICK COOK” allows you to cook or
reheat food automatically without entering
power level or time. When setting “quick
cook”, check visual guide on pad for
correct setting. Three “quick cook” settings
allow you to cook several amounts of the
same food. These include the “FROZEN
DINNER”, “BAKED POTATO” and
“BEVERAGE”. After you touch these pads,
·You can restart the oven by closing the
door and touching START/STOP pad.
NOTE:
·Oven stops operating when door is
opened.
2~4 MINUTES ACCORDING TO BRAND
OF POPCORN.
2. Touch START/STOP pad.
NOTE:
·To reset POPCORN time: Tap
POPCORN pad twice. ENTER TIME
appears in display. Touch number pads
to enter minutes and seconds. Touch
START/STOP pad. This new cooking
ENTER AMT appears In the display.
In each “quick cook” category, smaller size
food is set by touching pad once. One dot
(·) below picture of smaller-size food
signifies one touch of the pad. The large
size can be set by touching the picture pad
twice. Two dots(··) below the picture of
large size food signifies two touches of the
pad.
SETTING “POPCORN”
1. Touch POPCORN pad.
CODE and 2:50 ( 2 min. 50 sec.)
appears in the display.
POPCORN automatically sets the
cooking time for a 3 to 3 1/2 oz. bag of
microwave popcorn.
NOTE:POPPING TIME CAN VARY FROM
time will remain whenever you touch the
POPCORN pad until you reset it.
SETTING “ BAKED POTATO”
For 3.5 to 5 oz. potatoes:
1. Touch POTATO pad once.
2. Enter number of potatoes by touching
number pads from 1 to 4. Cooking
times for small-medium potatoes are
as follows:
1 potato: 4 min. 20 sec.
2 potatoes: 8 min. 10 sec.
3 potatoes: 12 min. 00 sec.
4 potatoes: 16 min. 00 sec.
3. Touch START/STOP pad.
For the large 6 to 8 oz. potatoes:
1. Tap POTATO pad twice.
13
2. Enter number of potatoes by touching
number pads from 1 to 4. Cooking
number pads from 1 to 4. Cooking
times for large potatoes are as
follows:
1 potato: 6 min. 25 sec.
2 potatoes: 12 min. 00 sec.
3 potatoes: 17 min. 00 sec.
4 potatoes: 22 min. 00 sec.
3. Touch START/STOP pad.
SETTING “PIZZA”
Reheating a slice ( or two thin ones) of
leftover pizza:
1. Touch PIZZA pad once. CODE and
1:20 ( 1 min. 20 sec.) appears.
2. Touch START/STOP pad.
Heating a whole frozen pizza:
1. Tap PIZZA pad twice. CODE and 6:30
times for coffee mugs are as follows:
1 mug: 2 min. 40 sec.
2 mugs: 4 min. 30 sec.
3 mugs: 6 min. 20 sec.
4 mugs: 8 min. 10 sec.
3. Touch START/STOP pad.
SETTING “FROZEN DINNER”
Microwaving one or two small (5-7 oz.)
frozen dinner:
1. Touch FROZEN DINNER pad once.
2. For 1 entree, touch the number pad “1”
For 2 entrees, touch the number pad “2”.
Cooking times for small-size entrees
are as follows:
START/STOP. For 2 entrees, touch the
number pad “2”. Cooking times for
( 6 min. 30 sec.) appears.
2. Touch START/STOP pad.
SETTING “ BEVERAGE ”
For 4 to 6 oz. coffee cups:
1. Touch BEVERAGE pad once.
2. Enter number of cups by touching
number pads from 1 to 4. Cooking
times for coffee cups are as follows:
1 cup : 1 min. 30 sec.
2 cups: 2 min. 50 sec.
3 cups: 4 min. 10 sec.
4 cups: 5 min. 30 sec.
3. Touch START/STOP pad.
For the larger 7 to 9 oz. coffee mugs:
1. Tap BEVERAGE pad twice.
2. Enter number of mugs by touching
small-size entrees are as follows:
1 entree: 5 min. 55 sec.
2 entrees: 11 min. 00 sec.
3. Touch START/STOP pad.
Microwaving one large (8-10 oz.) frozen
dinner :
1. Tap FROZEN DINNER pad twice.
2. For 1 entree, just touch
START/STOP. For 2 entrees, touch the
number pad “2”. Cooking times for
larger entrees are as follows:
1 entree: 12 min. 00 sec.
2 entrees: 20 min. 00 sec.
3. Touch START/STOP pad.
SETTING “ REHEAT”
1. Touch REHEAT pad. CODE and 4:10
(4 min. 10 sec.) appears.
14
2. Touch START/STOP pad.
This setting lets you reheat a dinner
NOTE:
CLEANING AND CARE
CLEANING AND CARE
CLEANING AND CARECLEANING AND CARE
1. Turn off the oven and remove the power
plug from the wall socket before
cleaning.
2. Keep the inside of the oven clean.
When
food splatters or spilled liquids adhere
to oven walls, wipe with a damp cloth.
Mild detergent may be used if the oven
gets very dirty. Avoid the use of spray
and other harsh cleaners as they may
stain, streak or dull the door surface.
3. The outside surfaces should be cleaned
with a damp cloth. To prevent damage
plate of chilled leftovers with good results.
soft cloth. This may occur when the
microwave oven is operated under high
humidity conditions, this is normal.
7. It is occasionally necessary to remove
the glass tray for cleaning. Wash the tray
in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be
cleaned regularly to avoid excessive
noise. Simply wipe the bottom surface
of the oven with mild detergent. The
roller ring may be washed in mild sudsy
water or dishwasher. When removing
the roller ring from cavity floor for
to the operating parts inside the oven,
water should not be allowed to seep
into the ventilation openings.
4. Wipe the window on both sides with a
damp cloth to remove any spills or
spatters.
5. Do not allow the control panel to
become wet. Clean with a soft, damp
cloth. When cleaning the control panel,
leave oven door open to prevent oven
from accidentally turning on.
6. If steam accumulates inside or around
the outside of the oven door, wipe with a
SAVE THESE INSTRUCTIONS
cleaning, be sure to replace in the
proper position.
9. Remove odors from your oven by
combining a cup of water with the juice
and skin of one lemon in a deep
microwaveable bowl, microwave for 5
minutes. Wipe thoroughly and dry with
a soft cloth.
10. When it becomes necessary to
replace the oven light, please consult a
dealer to have it replaced.
15
Microwave Oven Warranty
MC Appliance Corp. warrants each new Microwave Oven to be free from defects in material and workmanship
and agrees to remedy any such defect or to furnish a new part(s) (at the company’s option) for any part(s) of
the unit that has failed during the warranty period. Parts and labor expenses are covered on this unit for a
period of one year after the date of purchase. In addition, MC Appliance Corp. warrants the Magnetron (parts
only) to be free from defects in material and workmanship for a period of 8 years. The consumer is responsible
for all labor and transportation expenses related to the diagnosis and replacement of the magnetron after the
initial one- year warranty has expired. If in the event the unit requires replacement or refund under the terms of
this warranty the consumer is responsible for all transportation expenses to return the unit to our factory prior
to receiving a replacement unit or refund. A copy of the dated sales receipt / invoice is required to receive
warranty service.
This warranty covers appliances in use within the continental United States, Puerto Rico and Hawaii. The
warranty does not cover the following:
Damages due to shipping damage or improper installation.
Damages due to misuse or abuse.
Content losses due to failure of the unit.
Inside components such as door panels, door shelves, racks, light bulbs etc…
Repairs performed by unauthorized service agents.
Service calls that do not involve defects in material and workmanship such as instruction on proper use of the product,
or improper installation.
Replacement or resetting of house fuses or circuit breakers.
Failure of this product if used for other than its intended purpose.
Disposal costs of failed units not returned to our factory.
Any delivery / installation costs incurred as the result of a unit that fails to perform as specified.
The consumer is responsible for a $35.00 delivery charge for all replacement units provided under warranty.
This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to
assume for us any other liability in connection with the sale of this product. Under no circumstances is the
consumer permitted to return this unit to the factory without prior written consent from MC Appliance Corp.
Model Parts Labor Magnetron (Part Only) Type of Service
MCD775ST One- Year One- Year Eight Years Carry In
For Service or Assistance please call 888 775-0202 or visit us on the
16
www.magicchef-ewave.com
Loading...
