1.6 cu. ft. Micr owa ve Oven
MCD1611W / MCD1611B
TABLE OF CONTENTS
1. PRECAUTIONS 2
2. IMPORTANT SAFETY INSTRUCTIONS 3
3. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY 4
4. GROUNDING INSTRUCTIONS 4
5. INSTALLATION 5
6. USE YOUR MICROWAVE OVEN SAFELY 6
7. SPECIFICATIONS 7
8. FEATURES DIAGRAM 8
9. KEYPAD DIAGRAM 9
10. TO STOP THE OVEN WHILE THE OVEN IS OPERATING 10
11. CHILD SAFETY LOCK 10
12. MICROWAVE UTENSILS 11
13. UTENSIL TEST 11
14. OPERATION 12
15. CONTROLS 13
A. SETTING THE CLOCK 13
B. ONE TOUCH COOKING 14
C. SPEEDY COOK 16
D. COOKING IN ONE STAGE 16
E. COOKING IN TWO STAGES 17
F. LESS, MORE 18
G. TIME DEFROSTING 18
H. WEIGHT DEFROSTING 19
I. KITCHEN TIMER MODE 20
16. CARE OF YOUR MICROWAVE OVEN 23
17. WARRANTY
1
PRECAUTI
ONS T O AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result in
harmful exposure to microwave energy. It is important not to defeat or tamper with the safety
interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to
accumulate on the sealing surfaces
(c) Do not operate the oven if it is damaged.
* It is particularly important that the oven door close properly and that there is no damage to the
following:
(I) door (bent),
(II) hinges and latches (broken or loosened),
(III) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
2
3
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive
microwave energy:
11. Read all instructions before using the appliance.
12. Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” found on page 2.
13. This appliance must be grounded. Connect only to
properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found on page 4.
14. Install or locate this appliance only in accor-dance
with the provided installation instructions.
15. Some products such as whole eggs and sealed
containers - for example, closed glass jars-are able
to explode and should not be heated in this oven.
16. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type of
oven is specifically designed to heat, cook, or dry
food. It is not designed for industrial or laboratory
use.
17. As with any appliance, close supervision is
necessary when used by children.
18. Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
19. This appliance should be serviced only by qualified
service personnel.
Contact nearest authorized service facility for
examination, repair or adjustment.
10. Do not cover or block any openings on the
appliance.
11. Do not store this appliance outdoors. Do not use
this product near water — for example, near a
kitchen sink, in a wet basement, or near a
swimming pool, or similar locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14.
Do not let cord hang over edge of table or counter.
15. When cleaning surfaces of door and oven that
comes together on closing the door, use only mild,
non-abrasive soaps or detergents applied with a
sponge or soft cloth.
16. To reduce the risk of fire in the oven cavity:
a) Do not overcook food. Carefully attend appliance when
paper, plastic, or other com-bustible materials are placed
inside the
oven to facilitate cooking.
b) Remove wire twist-ties from paper or plastic bags before
placing bag in oven.
c) If materials inside the oven ignite, keep oven door closed,
turn oven off, and disconnect the power cord, or shut off
power at the fuse or circuit breaker panel.
d) Do not use the cavity for storage purposes. Do not leave
paper products, cooking utensils, or food in the cavity
when not in use.
17. Do not use this microwave oven to heat corrosive
chemicals (for example, sulfides and chlorides).
Vapours from such corrosive chemicals may
interact with the contact and springs of the safety
interlock switches thereby rendering them
inoperable.
18. Keep the waveguide cover clean at all times.
Wipe the oven interior with a soft damp cloth after
each use. If you leave grease or fat anywhere in
the cavity it may overheat, smoke or even catch fire
when next using the oven.
19. Never heat oil or fat for deep frying as you cannot
control the temperature and doing so may lead to
overheating and fire.
20. Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without
appearing to be boiling due to surface tension of
the liquid. Visible bubbling or boiling when the
container is removed from the microwave oven is
not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID. To reduce the risk
of injury to persons:
a) Do not overheat the liquid.
b) Stir the liquid both before and halfway through heating it
c) Do not use straight-sided containers with narrow necks.
d) After heating, allow the container to stand in the
microwave oven for a short time before removing the
container.
e) Use extreme care when inserting a spoon or other utensil
into the container.
SAVE THESE INSTRUCTIONS
4
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE
STATEMENT (U.S.A ONLY)
GROUNDING INSTR UCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding plug reduces the
risk of electric shock by providing an escape wire for electric current. This appliance is equipped with a
cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is
properly installed and grounded.
WARNING:
This equipment generates and uses ISM frequency energy and if not installed and used properly,
that is in strict accordance with the manufacturers instructions, may cause interference to radio
and television reception.
It has been type tested and found to comply with limits for an SM equipment pursuant to part 18 of
FCC rules, which are designed to provide reasonable protection against such interference in a
residential installation.
However, there’s no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following:
• Re-orient the receiving antenna of radio or television.
• Relocate the microwave oven with respect to the receiver. Move the microwave oven away from
the receiver.
• Plug the microwave oven into a different outlet so that the microwave oven and receiver are on
different branch circuits.
THE MANUFACTURER is not responsible for any radio or TV interference caused by
UNAUTHORIZED MODIFICATION to this microwave oven. It is the responsibility of the user to
correct such interference
WARNING:
Improper grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely
understood, or if doubt exists as to whether the appliance is properly grounded, and either:
(1) If it is necessary to use an extension cord, use only an extension cord that has a 3-blade
grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. Tine marked
rating of the extension cord shall be equal to or greater than the electrical rating of the
appliance, or
(2) Do not use an extension cord, if the power supply cord is too short, have a qualified electrician
or serviceman install an outlet near the appliance.
INSTALLATION
1
Examine the oven after unpacking
Check for damage such as a mis-aligned door, broken door or a dent in the cavity. If any damage is
visible, DO NOT INSTALL, and notify your dealer immediately.
2
Level, flat location
Install the microwave oven on a level, flat surface.
3
Ventilation
Do not block air vents. If they are blocked during operation, the oven may overheat and eventually
cause a failure. For proper ventilation, allow 3 inches of space between oven top, sides, rear and
adjacent surfaces
4
Away from radio and TV sets
Poor television reception and radio interference may result if the oven is located close to a TV, radio,
antenna, etc. Place the oven as far from them as possible.
5
Away from heating appliances and water taps
Keep the oven away from heat, steam or splashing liquids. These things can adversely affect oven
wiring and contacts.
6
Power supply
This microwave oven requires a power supply of approximately 15 Amperes, 120 Volts, 60Hz and a
grounded outlet. A short power cord is provided to reduce the risk of the user becoming entangled in
or tripping over a longer cord. Longer cord sets or extension cords are available and may be used if
care is exercised.
If an extension cord is used, the marked electrical rating of the cord should be at least as great as
the electrical rating of the oven. The extension cord must be a grounding type 3-wire cord. The
longer cord should be arranged so it does not drape over the tabletop or counter where children can
pull on it or trip over it.
5
USE YOUR MICR OWAVE OVEN SAFELY
GENERAL USE
Do not attempt to defeat or tamper with safety interlocks.
Do not place any object between the oven front frame and the door or allow residue to build up on the
sealing surfaces. Wipe with mild detergent, rinse and dry. Never use abrasive powders or pads.
Do not subject the oven door strain or weight such as a child hanging on an open door. This could cause
the oven to fall forward resulting in injury to you and damage to the oven.
Do not operate the oven if door sears or seals surfaces are damaged or if door is bent; or if hinges are
loose or broken.
Do not operate the oven empty. This will damage the oven.
Do not attempt to dry clothes, newspapers or other materials in the oven they may catch on fire.
Do not use recycled paper products as they may contain impurities, which may cause sparks or fires.
Do not hit or strike the control panel with hard objects. This can damage the oven.
FOOD
Never use your microwave oven for home canning. The oven is not designed for proper home canning.
Improperly canned food may spoil and be dangerous to consume.
Always use the minimum recipe cooking time. It is better to undercook rather than overcook foods.
Undercooked foods can be returned to the oven for more cooking. If food is overcooked, nothing can be
done.
Heat small quantities of food or foods with low moisture carefully. These can quickly dry out, burn or
catch on fire.
Do not heat eggs in the shell. Pressure may build up and eggs can explode.
Potatoes, apples, egg yolks and sausages are examples of food with non-porous skins. These must be
pierced before heating
6
7
SPECIFICATIONS
* Specifications are subject to change without notice.
POWER SUPPLY 120V AC 60 Hz SINGLE PHASE WITH GROUNDING
POWER CONSUMPTION 1500 W
MICROWAVE OUTPUT POWER 1100 W
FREQUENCY 2450 MHz
OUTSIDE DIMENSIONS (W X H X D) 589 X 339 X 464 mm (23.2X13.3X18.3 in.)
CAVITY DIMENSIONS (W X H X D) 399 X 263 X 426 mm (15.7X10.4X16.8 in.)
NET WEIGHT APPROX. 18.5KG (40.8 lbs.)
TIMER 99 min. 99 sec.
POWER LEVELS 10 LEVELS
589 464
339
88:88
M/W DEF
MCRE
BEVERAGE
FRESH
VEGETABLE
FROZEN
VEGETABLE
LESS
TIMERLOCK lb
POPCORN
FROZEN
PIZZA
DINNER
PLATE
MEAT
POWER
DEFROST
POULTRY FISH
STOP/
CLEAR
START/
SPEEDY COOK
CLOCK
KITCHEN
TIMER
123
456
789
0
AUTO DEFROST
MCD1611W
88:88
M/W DEF
MORE
BEVERAGE
FRESH
VEGETABLE
FROZEN
VEGETABLE
LESS
TIMER LOCK lb
POPCORN
FROZEN
PIZZA
DINNER
PLATE
MEAT
POWER
DEFROST
POULTRY FISH
STOP/
CLEAR
START/
SPEEDY COOK
CLOCK
KITCHEN
TIMER
123
456
789
0
AUTO DEFROST
MCD1611W
8

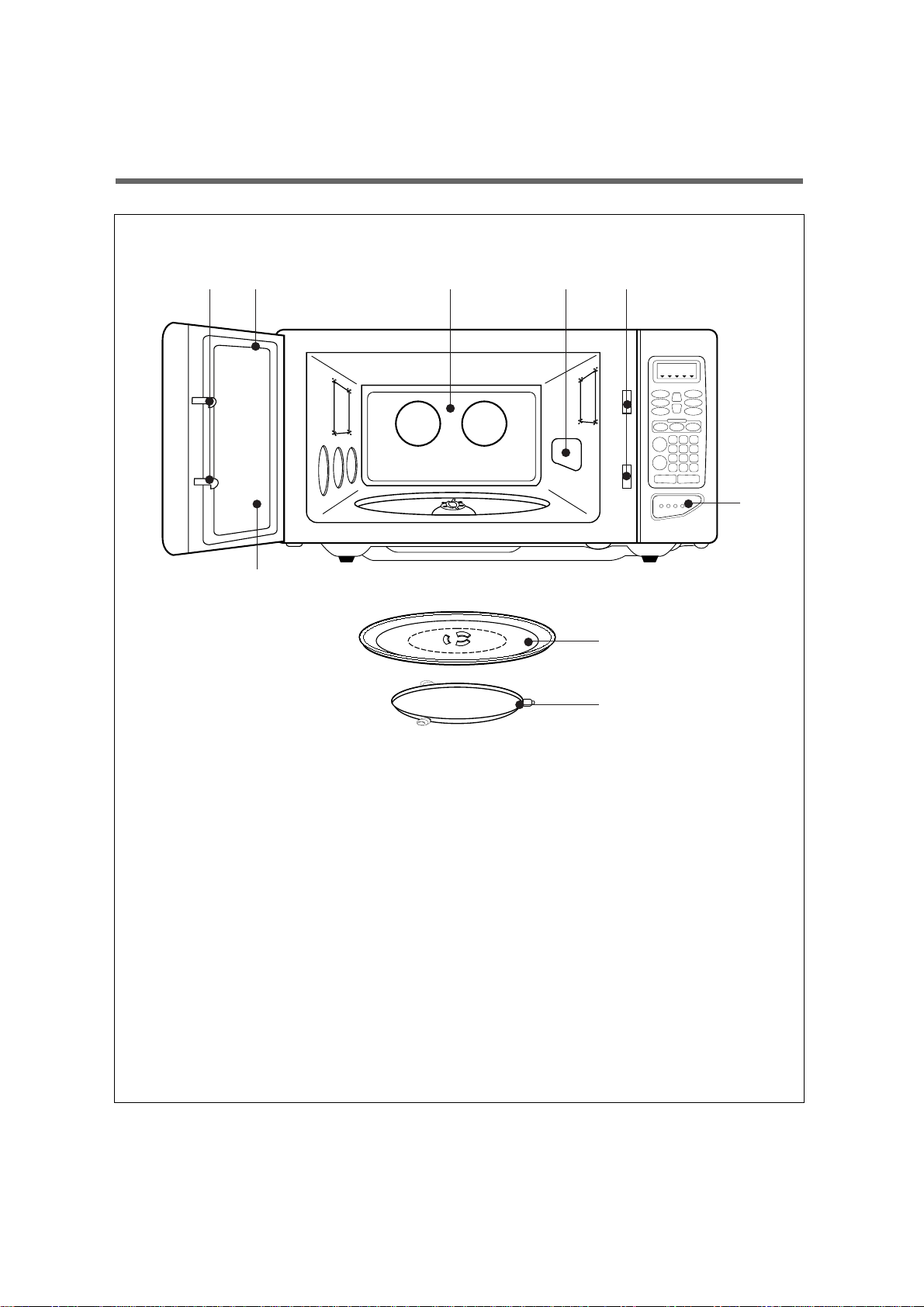

FEATURES DIAGRAM
1. Door latch - When the door is closed it will
automatically lock shut. If the door is
opened while the oven is operating, the
magnetron will automatically shut off.
2. Door seal - The door seal maintains the
microwaves within the oven cavity and
prevents microwave leakage.
3. Oven cavity
4. Spatter shield - Protects the microwave
outlet from splashes of cooking foods
5. Safety interlock system - Prevents the
oven from operating while the door is
opened.
6. Door release button - Pushing this button
stops oven operation and opens the door
7. Glass cooking tray - Made of special heat
resistant glass. The tray must always be in
proper position before operating. Do not
cook food directly on the tray.
8. Roller guide - Supports the glass cooking
tray
9. Door screen - Allows viewing of food. The
Screen is designed so that light can pass
through, but not the microwaves.
12 3 4 5
9
7
8
6
88:88
M/W DEF
MCRE
BEVERAGE
FRESH
VEGETABLE
FROZEN
VEGETABLE
LESS
TIMER LOCK lb
POPCORN
FROZEN
PIZZA
DINNER
PLATE
MEAT
POWER
DEFROST
POULTRY FISH
STOP/
CLEAR
START/
SPEEDY COOK
CLOCK
KITCHEN
TIMER
123
456
789
0
AUTO DEFROST
MCD1611W
9
KEYPAD DIA GRAM
10.Time set pad - Used to set the cooking
time and the present time.
11.Display - Cooking time, power level,
indicators and present time are displayed
here.
12.One touch - Used to cook or reheat
specific quantities of these foods.See
pages 14~15.
13. More- Used to add time to cooking.
14.Less - Used to remove time from cooking.
15.Auto defrost- Used to defrost foods (by
weight)
16.Power - Used to set power level
17.Defrost - Used to defrost foods. (by time)
18. Kitchen Timer- Used as a minute timer,
delay start timer cooking, stand timer after
cooking and defrosting.
19.Clock- Used to set clock.
20.Stop/Clear - Used to stop the oven
operation or to delete the cooking data.
21.Start / Speedy Cook- Used to start the
oven and also used to set a reheat time.
y
u
i
p
q
w
e
r
t
0
o
a
TO ST OP THE OVEN WHILE THE OVEN IS
OPERATING
1. Press STOP/CLEAR pad
• You can restart the oven by touching START pad.
• Touch STOP/CLEAR once more to erase all instructions.
• You must enter in new instructions.
2. Open the door.
• You can restart the oven by closing the door and touching START.
CHILD SAFETY LOCK
The safety lock prevents unwanted oven operation such as by small children.
To set, press and hold
for 3 seconds, LOCK indicator lights.
To cancel, press and hold
for 3 seconds, LOCK indicator goes off.
10
NOTE: Oven stops operating when door is opened.
STOP/
CLEAR
START/
SPEEDY COOK
11
MICROWAVE UTENSILS
Glass, Ceramic and China
Ovenproof glass or ceramic baking dishes are the most used microwave utensils.
Many of these items are readily available in most homes: glass measure custard cups, mixing bowls,
covered casseroles, pie plates and round or square cake dishes. Ovenproof dinnerware is usually safe
to use in the microwave.
Do not heat or cook in glass jars or bottles.
Do not use dishes with silver gold, platinum or other metal trim. Arcing may occur and/or the dish may
break.
Do not use delicate or stemmed glassware. Although the glass may be transparent to microwave
energy, heat from the food may cause the glassware to crack.
Plastics
Plastic dishes, cups, mugs and bowls may be used in the oven for short periods of time. None of these
should be used in the oven for prolonged periods because distortion and melting may occur. Check
manufacturer’s recommendations concerning microwave safety.
Plastic wrap can be used to cover dishes in most recipes if the dish is deep enough to avoid plastic wrap
touching the food. Always vent the wrap by folding back one corner to allow excess steam to escape.
Plastic cooking bags should be slit before cooking so excess steam can escape.
Do not use wire twist ties to close the bag. Wire twist ties can cause arcing which can damage the oven.
Paper
Paper cups, wax paper, napkins, paper towels, and plates may be used for short cooking. Prolonged
time in the over can cause paper to burn. Do not use recycled paper products, such as brown paper
bags. They contain impurities, which may cause arcing and damage the oven
Metal
Metal utensils should not be used in the oven. Metal reflects microwave energy so foods will not cook
evenly.
Metal can cause arcing and damage the oven.
UTENSIL TEST Dishes that do not absorb microwave energy are best for microwave
cooking. Look on the label to verify that particular cups, glasses, plates
are indeed suitable, especially paper goods If you are not sure, try this
utensil test to check
• Put the empty utensil in the microwave oven.
• Put one cup of water in a glass measure next to the empty utensil.
• Heat on HI for 1 minute.
• After 1 minute, the water should be warm but the utensil should not.
If the utensil is warm. It is not suitable for microwave cooking
12
OPERATION
This section includes useful information about oven operation.
1. Plug power supply cord into a standard 3 pronged 15 Amp, 120V AC 60Hz power outlet.
2. Place the food in a suitable container.
3. Open the oven door and put the food on the glass tray. (The glass tray and roller guide must
always be in place during cooking.)
4. Close the door firmly.
WATTAGE OUTPUT CHART
• Pressing the POWER pad sets the power-level. The chart shows the display, the power level and the
percentage of power.
• The oven light is on only when the microwave
oven is operating.
• The oven door can be opened at any time during
operation by touching the door release button on
the control panel. The oven will automatically
shut off.
• Each time a pad is touched, a BEEP will sound
to acknowledge the touch.
• The oven automatically cooks on full power
unless set to a lower power level.
Make sure the oven is properly installed and
plugged into the electrical outlet.
• The Display will show “:0” when the oven is
plugged in.
• Time Clock returns to the present time when the
cooking time ends.
• When the STOP/CLEAR pad is touched during
the oven operation, the oven stops cooking and
all information is retained. To erase all
information (except the present time), touch the
STOP/CLEAR pad once more. If the oven door
is opened during the oven operation, all
information is retained.
• If the START pad is touched and the oven does
not operate, check the area between the door
and door seal for obstructions and make sure
the door is closed securely. The oven will not
start cooking until the door is completely closed
or the program has been reset.
Touch POWER pad Power Level (Display)
Approximate Percentage of Power
Once P-HI 100%
Twice P-90 90%
3 times P-80 80%
4 times P-70 70%
5 times P-60 60%
6 times P-50 50%
7 times P-40 40%
8 times P-30 30%
9 times P-20 20%
10 times P-10 10%
11 times P-00 0%
13
CONTROLS
SETTING THE CLOCK
When the oven is first plugged in, the display will flash and a tone will sound. If the AC power ever goes
off the display shows “:0” when the power comes back on.
1. Touch CLOCK pad.
ONCE for a standard time (12 hour display)
Or
TWICE for military time (24 hour display)
2. Enter the correct time of day by touching the numbers in sequence
3. Touch CLOCK pad. The display stops blinking, and the colon starts
blinking. If you selected the 12-hour clock system,
this digital clock allows you to set from 1:00 to 12:59.
If you selected 24 hour clock system, this digital cock
allows you to set from 0:00 to 23:59.
NOTE: If you attempt to enter an incorrect time, the time will not be set and an error signal tone
will sound. Touch the CLOCK pad and re-enter the time.
CLOCK
CLOCK
1
4
7
2
5
8
0
3
6
9
14
ONE T OUCH COOKING
One touch cook allows you to cook or reheat many of your favorite foods by touching just one pad.
To increase quantity, touch chosen pad until number in display is same as desired quantity to cook.
(except for POPCORN)
POPCORN
1. Touch pad When you touch POPCORN pad once, “3.5” is displayed.
once for a 3.5 oz bag. After the 1.5 seconds, the display shows the cooking time and
the oven starts cooking.
FROZEN PIZZA
1. Touch pad When you touch FROZEN PIZZA pad once, “7” is displayed.
After 1.5 seconds, the display shows the cooking time and the
once for a 7 oz pizza or twice oven starts cooking.
for a 14 oz pizza.
• 7 oz: 7 oz Touch FROZEN PIZZA once.
• 14 oz: 14 oz Touch FROZEN PIZZA twice within 1.5 seconds.
BEVERAGE
1. Touch pad When you touch BEVERAGE pad once, “1” is displayed.
After 1.5 seconds, the display shows the cooking time
once for 1 cup, twice for 2 cups or and the oven starts cooking.
three times for 3 cups.
NOTE: 1. Use prepackaged room-temperature microwave popcorn.
2. Place bag in oven according to manufacturer’s directions.
3. Pop only one bag at a time.
4. After popping, open bag carefully: popcorn and steam are extremely hot.
5. Do not reheat un-popped kernels or reuse bag.
6. Do not leave oven unattended while popping popcorn.
CAUTION: 1. If prepackaged popcorn is of a different weight than the recommended weight do not
use the popcorn pad. Follow the manufacturer instruction.
2. Do not place bag directly on the turntable tray, place bag on microwavable
dish when cooking
NOTE: 1. Use only frozen pizza at a time.
2. Use only frozen pizza made for microwave ovens.
3. If the cheese of frozen pizza does not melt sufficiently, cook a few seconds longer.
4. Some brands of frozen pizza may required more or less cooking time.
* BEVERAGE (200ml/cup) • 1 cup(mug) Touch BEVERAGE once.
• 2 cups(mugs) Touch BEVERAGE twice within 1.5 seconds.
• 3 cups(mugs) Touch BEVERAGE three times within 1.5 seconds.
POPCORN
BEVERAGE
FROZEN
PIZZA
15
ONE T OUCH COOKING (CONTINUED)
DINNER PLATE
1. Touch pad When you touch DINNER PLATE pad once,
“12” is displayed.
once for a 12 oz dinner plate, After 1.5 seconds, the display shows the cooking time and
twice for a 15 oz dinner plate. the oven starts cooking.
FRESH VEGETABLE
1. Touch pad When you touch FRESH VEGETABLE pad
once, “7” is displayed.
once for a 7 oz of fresh vegetable, After 1.5 seconds, the display shows cooking time and
twice for 14 oz of fresh vegetable. the oven starts cooking.
FROZEN VEGETABLE
1.Touch pad When you touch FROZEN VEGETABLE pad once,
“7” is displayed.
once for a 7 oz of frozen vegetable, After 1.5 seconds, the display shows cooking time and
twice for 14 oz of frozen vegetable. the oven starts cooking.
* DINNER PLATE • 12 oz: Touch DINNER PLATE once.
• 15 oz: Touch DINNER PLATE twice within 15 seconds.
* FRESH VEGETABLE • 7 oz: Touch FRESH VEGETABLE once.
• 14 oz: Touch FRESH VEGETABLE twice within 1.5 seconds.
* FROZEN VEGETABLE • 7 oz: Touch FROZEN VEGETABLE
• 14 oz: Touch FROZEN VEGETABLE twice within 1.5 seconds.
DINNER
PLATE
FRESH
VEGETABLE
FROZEN
VEGETABLE
16
SPEEDY COOK
SPEEDY COOK allows you to reheat for 30 seconds at 100% (full power) by simply touching the
SPEEDY COOK pad. By repeatedly touching the SPEEDY COOK pad, you can also extend re-heating
time to 5 minutes by 30 second increments.
1. Touch pad. When you touch SPEEDY COOK, “:30” is displayed.
After 1.5 seconds, the oven starts re-heating.
COOKING IN ONE STAGE
1. Touch pad The M/W indicator lights.
The display will show what you touched.
repeatedly to select desired
power level.
2. Touch the for the cooking time.
3. Touch pad.
When you touch START pad, the M/W indicator starts blinking to show the oven is cooking. The display
counts down the time to show how much cooking time is left When the cooking time ends, you will hear
beeps.
POWER
NOTE: If step 1 is omitted, the oven will cook at full
power.
NOTE: Your oven can be programmed For 99 minutes 99
second. (99:99)
NOTE: Using lower power levels increases the cooking time which is recommended for foods such as
cheese, milk and slow cooking of meats.
1
4
7
2
5
8
0
3
6
9
START/
SPEEDY COOK
START/
SPEEDY COOK
COOKING IN TWO STAGES
All recipes require frozen foods to be defrosted fully before cooking. This oven can be programmed to
automatically defrost foods before cooking.
1. Touch pad. The DEFROST indicator lights and “:0” is displayed and the lb
indicator starts blinking.
2. Touch The display will show the numbers you pressed in the
order you touched.
for the defrosting time you want.
3. Touch The MAN indicator lights and “P-HI” is displayed.
The display will show what you touched.
to select desired power level.
4. Touch The display will show the number you touched.
for desired cooking time.
5. Touch pad.
• When you touch START pad, the DEFROST and M/W indicators come on to confirm the power levels
selected.
• The DEFROST indicator starts blinking to show you that the oven is in DEFROST mode.
• The display counts down the time remaining in DEFROST mode.
• When the oven beeps, turnover, break apart and redistribute the food. At the end of DEFROST mode,
the oven will beep and start M/W cook.
• The DEFROST indicator goes off and the M/W indicator starts blinking. The display counts down the
time remaining in M/W cook.
17
DEFROST
POWER
1
4
7
2
5
8
0
3
6
9
1
4
7
2
5
8
0
3
6
9
START/
SPEEDY COOK
LESS, MORE
• To alter one-touch cooking or cooking time whilst oven is in operation, use LESS or
MORE.(except for defrosting).
• Press LESS/MORE to decrease/increase the one-touch cooking time in multiples of
10 seconds.
• The overall one-touch cooking time can be increased to a maximum of 99 minutes 50
second.
• Press LESS/MORE to decrease & increase the cooking time in multiples of 1 minute.
• The overall cooking time can be increased to a maximum of 99 minutes.
TIME DEFROSTING
When TIME DEFROST is selected the automatic cycle divides the defrosting time into periods of
alternating defrost and stand times by cycling on and off.
1. Touch pad The DEFROST indicator lights and “:0” is displayed
2. Touch The display will show the numbers you pressed in the order
you touched.
for the desired defrosting time.
3. Touch pad.
When you touch START pad, the DEFROST indicator starts blinking to show the oven is in the
DEFROST mode. The display counts down the time to show you how much defrosting time is left in the
DEFROST mode. The oven beeps during the defrosting cycle to signal that the food needs to be turned
or rearranged. When the defrosting time ends, you will hear 3 beeps.
18
DEFROST
NOTE: Your oven can be programmed for 99 minutes 99
seconds (99:99)
1
4
7
2
5
8
0
3
6
9
MORE
LESS
START/
SPEEDY COOK
19
WEIGHT DEFROSTING
WEIGHT DEFROSTING lets you easily defrost food by eliminating guesswork in determining defrosting
time. Follow the steps below for easy defrosting.
MEAT
1. Touch pad The DEFROST & lb indicator light andd “1.0”
is displayed.
repeatedly to select desired The display will show what you touched.
defrosting weight.
2. Touch pad. MEAT DEFROSTING begins.
POULTR Y
1. Touch pad The DEFROST & lb indicator light and “1.5” is displayed.
The display will show what you touched.
repeatedly to select desired
defrosting weight.
2. Touch pad. POULTRY DEFROSTING begins.
FISH
1. Touch pad The DEFROST & lb indicator light and “0.5” is displayed.
The display will show what you touched.
repeatedly to select desired
defrosting weight.
2. Touch pad. FISH DEFROSTING begins.
* WEIGHT DEFROST CHART
The defrosting time is automatically determined by the weight selected.
The lb indicator goes off and the DEFROST indicator blinks and the defrosting time counts down in the
display window. The oven beeps during the defrosting cycle to signal that the food needs to be turned or
rearranged. When the defrosting time ends you will hears beeps.
MEAT
POULTRY
FISH
Touch pad MEAT POULTRY FISH
once l.0 Ib 1.5 Ib 0.5 Ib
twice I.5 lb 2.0 Ib 1.0 lb
3 times 2.0 lb 2.5 lb 1.5 lb
4 times 2.5 lb 3.0 lb 2.0 lb
START/
SPEEDY COOK
START/
SPEEDY COOK
START/
SPEEDY COOK
KITCHEN TIMER MODE
Timer operates as a minute timer which can be set to delay cooking and used as a hold setting after
cooking. However delayed cooking can not be programmed for defrost. Timer operates without
microwave energy.
HOW TO USE AS A MINUTE TIMER
1. Touch pad. The KITCHEN TIMER indicator lights and “:0” is displayed.
2. Press The display will show the numbers you pressed in the order
you touched.
for amount of time you want to
count down.
3. Touch pad. The display counts down the time remaining in KITCHEN
TIMER mode.
When KITCHEN TIMER mode ends, you will hear 3 beeps.
20
KITCHEN
TIMER
1
4
7
2
5
8
0
3
6
9
START/
SPEEDY COOK
HOW T O USE THE KITCHEN TIMER FUNCTION,
TO DELAY THE START OF COOKING
1. Touch pad. The KITCHEN TIMER indicator lights and “:0” is displayed.
2. Press The display will show the numbers you pressed in the order
you touched.
for the amount of time
you want to delay.
3. Touch repeatedly to select the desired power level.
4. Touch
for the desired cooking time.
5. Touch button. The kitchen timer will begin counting down to zero and
cooking will then begin.
21
KITCHEN
TIMER
POWER
1
4
7
2
5
8
0
3
6
9
1
4
7
2
5
8
0
3
6
9
START/
SPEEDY COOK
HOW T O USE KITCHEN TIMER MODE, TO SET A
STANDING TIME
1. Touch pad. The KITCHEN TIMER indicator lights and “:0” displayed.
2. Touch The display will show the numbers you pressed in the order
you touched
to program desired defrosting time
3. Touch pad.
5. Press The display will show the numbers you pressed in the order
you touched
the for the amount of time you
want the food to stand after cooking.
5. Touch pad. Defrosting will start. After defrosting, stand time will count
down
22
KITCHEN
TIMER
DEFROST
NOTE: Your oven can be programmed for 99 minutes 99
seconds. (99:99)
1
4
7
2
5
8
0
3
6
9
1
4
7
2
5
8
0
3
6
9
START/
SPEEDY COOK
23
CARE OF YOUR MICR OWAVE OVEN
1 Turn the oven off before cleaning.
2 Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven walls, wipe
with a damp cloth. Mild detergent maybe used if the oven gets very dirty. The use of harsh detergent
or abrasives is not recommended.
3 The outside oven surface should be cleaned with soap and water, rinsed and dried with a soft cloth.
To prevent damage to the operating parts inside the oven, water should not be allowed to seep into
the ventilation openings
4 If the Control Panel becomes wet, clean with a soft, dry cloth. Do not use harsh detergents or
abrasives on Control Panel.
5 If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This
mayoccur when the microwave oven is operated under high humidity conditions and in no way
indicates malfunction of the unit.
6 It is occasionally necessary to remove the
glass tray for cleaning. Wash the tray in warm
sudsy water or in a dishwasher.
7 The roller guide and oven cavity floor should
be cleaned regularly to avoid excessive noise.
Simply wipe the bottom surface of the oven
with mild detergent water or window cleaner
and dry. The roller guide may be washed in
mild sudsy water.
1. The ROLLER GUIDE and oven floor
should be cleaned frequently to prevent
excessive noise.
2. The ROLLER GUIDE MUST ALWAYS be
used for cooking together with the Glass
Tray.
1. DO NOT operate the oven without the
Glass Tray in place.
2. DO NOT use any other Glass Tray with
this oven.
3. If Glass Tray is hot, ALLOW TO COOL
before cleaning or placing it in water.
4. DO NOT cook directly on the Glass Tray.
Always use a microwavable dish.
ROLLER GUIDE
GLASS TRAY
Glass Tray
Roller Guide
Micr o wa ve Oven Warranty
MC Appliance corp. warrants each new Microwave Oven to be free from defects in material
and workmanship and agrees to remedy any such defect or to furnish a new part(s) (at the
company’s option) for any part(s) of the unit that has failed during the warranty period. Parts
and labor expenses are covered on this unit for a period of one year after the date of
purchase. In addition MC Appliance corp, Inc. warrants the Magnetron (parts only) to be
free from defects in material and workmanship for a period of 8 years. The consumer is
responsible for all labor and transportation expenses related to the diagnosis and
replacement of the Magnetron after the initial one- year warranty expires. If in the event the
unit requires replacement or refund under the terms of this warranty the consumer is
responsible for all transportation expenses to return the unit to our factory prior to receiving
a replacement unit or refund. A copy of the dated sales receipt / invoice is required to
receive warranty service.
This warranty covers appliances in use within the continental United States, Puerto Rico
and Hawaii. The warranty does not cover the following:
• Damages due to shipping damage or improper installation.
• Damages due to misuse or abuse.
• Content losses due to failure of the unit.
• Repairs performed by unauthorized service agents.
• Service calls that do not involve defects in material and workmanship such as instruction on
proper use of the product or improper installation.
• Replacement or resetting of house fuses or circuit breakers.
• Failure of this product if used for other then its intended purpose.
• Disposal cost of failed units not returned to our factory.
• Any delivery / installation costs incurred as the result of a unit that fails to perform as specified.
• Expenses for travel and transportation for product service if your appliance is located in a
remote area where service by an authorized service technician is not available.
• The removal and reinstallation of your appliance if it is installed in an inaccessible location or is
not installed in accordance with published installation instructions.
This warranty is in lieu of all warranties expressed or implied and no representative or
person is authorized to assume for us any other liability in connection with the sale of this
product. Under no circumstances is the consumer permitted to return this unit to the factory
without prior written consent from MC Appliance corp.
Model Parts Labor Magnetron (Part Only) Type of Service
MCD1611W One-Year One-Year Eight Years Carry In
MCD1611B
For Service or Assistance please call 888 775-0202
Or visit us on the web at www.macppliance.com
Loading...
