Magic Chef MCBR350S2 User Manual
3.5 Cu. Ft.
Compact Refrigerator
User's Manual
Model MCBR350W2 / MCBR350B2/ MCBR350S2
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR
REFRIGERATOR AND KEEP IT FOR FUTURE REFERENCE.
Product Registration
Thank you for purchasing a Magic Chef® product. The first step to protect your new product is to complete the product registration on our website:
www.mcappliance.com/register. The benefits of registering your product include the following:
1. Registering your product will allow us to contact you regarding a safety notification or product update.
2. Registering your product will allow for more efficient warranty service processing when warranty service is required.
3. Registering your product could act as your proof of purchase in the event of insurance loss.
Once again, thank you for purchasing a Magic Chef® product.
1
2
TABLE OF CONTENTS
NAMES OF THE PARTS……………………………………………………… 3
SPECIFICATIONS…………………………………………………………….. 3
IMPORTANT SAFETY INSTRUCTIONS………………………….………… 4
INSTALLATION INSTRUCTION
BEFORE USING YOUR REFRIGERATOR ………………………... 5
INSTALLING YOUR REFRIGERATOR ………………………..…… 5
ELECTRICAL CONNECTION………………………………………… 6
OPERATING YOUR REFRIGERATOR
TEMPERATURE CONTROL………………………………………….. 7
ICE TRAY…………………………………………..…………………… 7
THE CHILLER COMPARTMENT……………………………..………. 7
HOW TO DEFROST ……………………………………………..……. 7
HOW TO CHANGE THE INTERIOR LIGHT…...…………………… 8
CH
ANGING THE REVERSIBLE DOOR …...………………………………... 9
CARE AND MAINTENANCE
CLEANING YOUR REFRIGERATOR………………………………… 10
VACATION TIME…………………………………………….…………. 10
MOVING YOUR REFRIGERATOR…………………………………… 10
ENERGY SAVING TIPS…………………………………….………….. 10
TROUBLESHOOTING GUIDE……………………………….………….… 11-12
REFRIGERATOR WARRANTY……………………….…………….………… 13
3

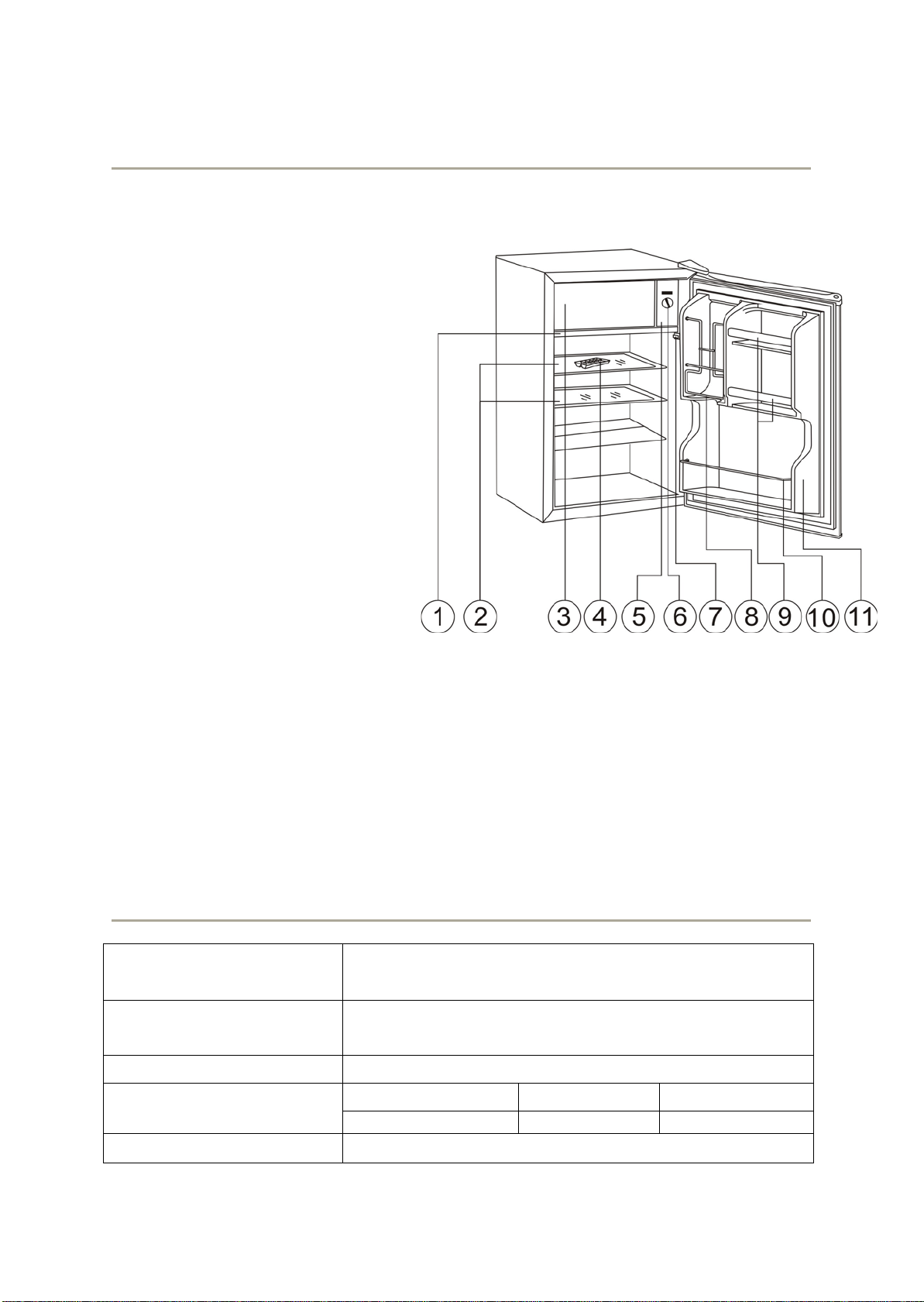

NAMES OF THE PARTS
Product Description
Model No.
Capacity
Net Weight ( lbs)
MODEL NO. MCBR350W2/ MCBR350B2/ MCBR350S2
(1) Drain Pan
(2) Shelf
(3) Freezer Compartment
(4) Ice Tray
(5) Temperature Control Box
(6) Temperature Control Dial
(7) Interior Light Switch
(8) Can Dispenser
(9) Rack
(10) Bottle Rack
(11) Door Liner
WARNING: Never touch the interior of the Freezer Chamber or frozen foods in the
compartment with wet hands as this could result in frost bite.
SPECIFICATIONS
Model # MCBR350W2/MCBR350B2/MCBR350S2
Magic Chef Refrigerator
MCBR350W2 /MCBR350B2 /MCBR350S2
3.5 Cu. Ft.
Unit Dimensions
( inches )
Width Height Depth
18.5” 32.5” 19.4”
50.9 ( lbs )
4
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock, or
injury follow these basic precautions when
using your refrigerator.
1) W
ARNING----Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
2) WARNING----Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
3) WARNING----Do not damage the refrigerant tubing to increase the risk of a leak w
handle, move and use of refrigerator.
4) WARNING----Do not use electrical appliances inside the food storage compartments of
the appliances, unless they are of the type recommended by the manufacturer.
5) WARNING----DANGER: Never allow children to play with, operate, or crawl inside t
refrigerator. Risk of child entrapment. Before you throw away your old refrigerator or
freezer:
• Take off the doors
• Leave the shelves in place so that children may not easily climb inside.
6) The appliance has to be unplugged before carrying out user maintenance on the
appliance.
7) This appliance can be used by children age 8 years and above and persons with
reduced physical sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children should not play with the appliance.
Cleaning and maintenance should not be made by children without supervision.
8) If the component part is damaged, it must be replaced by the manufacturer, its service
agent or similar qualified persons in order to avoid a hazard.
9) Please abandon the refrigerator according to local regulations as the unit contains flam
mable blowing gas and refrigerant.
10) Follow local regulations regarding disposal of the appliance due to flammable refrigerant
and blowing gas. All refrigeration products contain refrigerants, which under t
uidelines of federal law must be removed before disposal. It is the consumer's
g
responsibility to comply with federal and local regulations when disposing of this product.
11) This appliance is intended to be used in household and similar environments; such as:
• staff kitchen ar
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
12) Do not store or use gasoline or any inflammable liquors and liquids inside or in the
icinity of refrigerator.
v
13) Do not use an extension cord with this appliance. If the power cord is too short, have
ualified electrician install an outlet near the appliance. Use of an extension c
q
neg
atively affect the unit”s performance.
eas in shops, offices and other working environments;
hen
he
he
a
an
5
IMPORTANT SAFETY INSTRUCTIONS
follow these basic precautions:
-Save these instructions-
WARNING
To reduce the risk of fire, electrical shock,
or injury when using your refrigerator,
• Read all instructions before using the refrigerator.
• DANGER or WARNING: Risk of child entrapment.
• To avoid the possibility of child entrapment, please take the following precautions
before throwing out the refrigerator.
- Remove all doors from the unit.
- Leave the shelves in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the refrigerator.
• Refrigerants: All refrigeration products contain refrigerants, which under the
guidelines of federal law must be removed before disposal of product. It is the
consumer’s responsibility to comply with federal and local regulations when
disposing of this product.
• Never clean refrigerator parts with flammable fluids. The fumes can create a fire
hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other refrigerator. The fumes can create a fire hazard or an explosion.
INSTALLATION INSTRUCTIONS
Before Using Your Refrigerator
• Remove the exterior and interior packing.
• Before connecting the refrigerator to the power source, let it stand upright for approximately 4
hours. This will reduce the possibility of a malfunction in the cooling system from improper
handling during transportation.
Clean the interior surface with lukewarm water using a s
•
Installing Your Refrigerator
• This appliance is designed to be free standing only, and should not be recessed or built-in.
• Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully
loaded.
• Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper
air ventilation. Adjust the feet to keep the refrigerator level.
• Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the
performance of this appliance. This unit is not designed for use in a garage or any other
outside installation.
• Avoid locating the refrigerator in moist areas.
• Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized service center. This unit is not designed to be installed in an RV or used with an
inverter.
• After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool down for
2~3 hours under before placing food in the refrigerator or freezer compartment.
oft cloth. (Cleaning instruction on page10)
6
Electrical Connection
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized service center.
This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
o not, under any circumstances, cut or remove the third ground prong from the power cord supplied.
D
This refrigerator requires a standard 115/120 Volt A.C. ~/60Hz electrical outlet with three-prong
ground.
T
his refrigerator is not designed to be used with an inverter.
he cord should be secured behind the refrigerator and n ot left exposed or dangling to prevent
T
accidental injury.
N
ever unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight
out from the receptacle.
o not use an extension cord with this appliance. If the power cord is too short, have a qu alified
D
electrician or service technician install an outlet near the appliance. Use of an extension cord can
negatively affect the performance of the unit.
If any problems with the appliance persist, please contact our Customer Service Dept. to consult with
a representative at 888 775-0202 or visit our website to request warranty service at
www.mcappliance.com.
Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended
in this manual. All other servicing should be referred to a qualified technician, so as to minimize the
risk of possible ignition due to incorrect parts or improper service.
7
OPERATING YOUR REFRIGERATOR

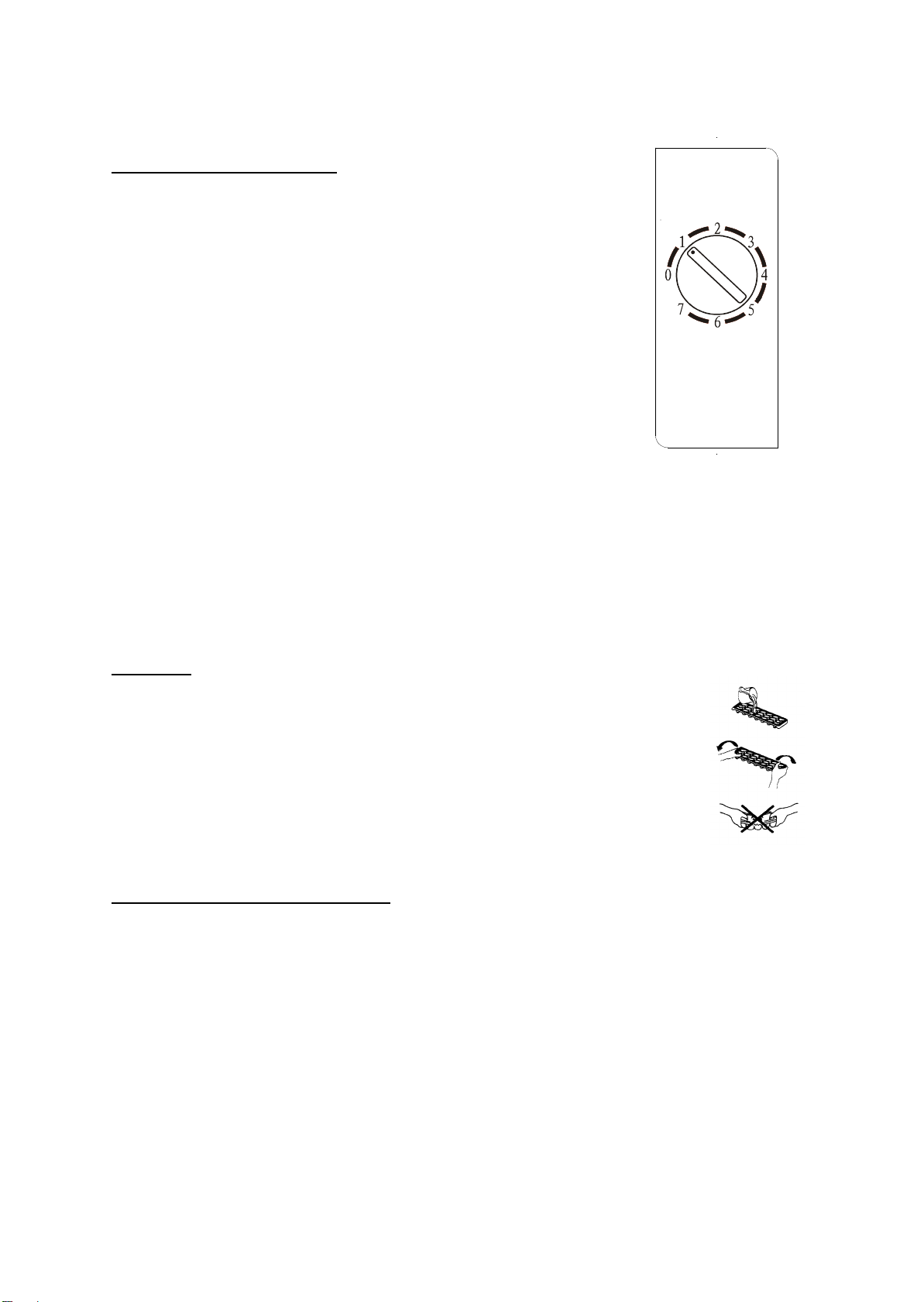

Temperature Control
• Your refrigerator has one control for regulating the temperature. The
emperature control is located on the upper right hand corner of t
t
i
nterior compartment.
• T
he first time you turn the unit on, adjust the temperature control knob
to “7” and run for at least 2 hours before putting foods inside. This will
ensure the cabinet is thoroughly chilled before food is put in.
• The range of the refrigerator temperature control is from position "1"
the cold to "7" the coldest. Adjust the temperature control to the
setting that best suits your needs. The setting of “4” should be
opriate for home or office refrigerator use.
appr
• Turning the temperature control knob to “0” position stops the cooling
cycle but does not shut off the power to the unit.
• NOTE;
• If the unit is unplugged, loses power; you must wait 3 to 5 minutes before restarting the
unit. If you attempt to restart before this time delay, the refrigerator will not start.
• Large amounts of food will lower the cooling efficiency of the appliance.
• Do not place the foods on the air outlet, and leave spaces for airflow.
• If you choose to change the thermostat setting, adjust thermostat control by one
increment at a time. Allow several hours for temperature to stabilize between
adj
ustments.
he
Ice Tray
• R
ecommended temperature control setting for ice making is “7”.
• Fill the ice cube tray (2/3 capacity) with cold water and place the tray on t
bot
tom of the chiller compartment to freeze properly.
• To eject the ice cubes from the tray, place over the ice bucket and t wist
slightly.
• Re-set the temperature control to setting “4”.
The Chiller Compartment
• This compartment is designed for the ice making and s hort-term storage of some commercially
frozen foods.
• The temperature of the chiller compartment may not reach temperature low enough to store
frozen foods safely and works well when the food is already frozen prior to storage.
• Place frozen food into the freezer as quickly as possible after purchase. If there are
on the packet, carefully follow these instructions regarding storage times.
How To Defrost
Defrost the freezer compartment when the ice / frost is approximately ¼” thick. Set the thermostat
dial to “0” to defrost. Remove all contents from the freezer compartment. Leave the freezer door
open to allow accumulated ice / frost to melt. Remove large pieces of ice as needed. Do not use hot
water or other electric heating devices to melt the accumulated ice. After defrosting, remove
accumulated ice / water and wipe the freezer compartment dry with a soft cloth. Restart the unit per
starting instructions.
he
instructions
8
How To Change the interior light
NOTE:All parts removed must be saved to do the reinstallation of the light bulb. Before removing the
light bulb, unplug the appliance from the power supply. Failure to do so could result in electrical shock
or personal injury.
emove the drip tray under chiller compartment
1. R
2. Remove the thermostat control box by unscrewing
3. Unscrew old bulb from the lower hole at the thermostat control box
4. Replace the new bulb of the same voltage and screw size.
5. Re-install the thermostat control box by screwin
nstall the drip tray
6. Re-i
g
Loading...
