Magic Chef MCBR240W1 User Manual

2.4 Cu. Ft.

Please revise the temperature number as below and let us know if
there's anything different from below.

"7" = MAX
"4"= MED
"1"= MIN
"0"= OFF

Please revise the temperature number as below and let us know if
there's anything different from below.

"7" = MAX
"4"= MED
"1"= MIN
"0"= OFF

Please revise the temperature number as below and let us know if
there's anything different from below.

"7" = MAX
"4"= MED
"1"= MIN
"0"= OFF

Please revise the temperature number as below and let us know if
there's anything different from below.

"7" = MAX
"4"= MED
"1"= MIN
"0"= OFF

If there's any change on the Table contents, please revise accordingly.

Compact Refrigerator

User's Manual

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR
REFRIGERATOR AND KEEP IT FOR FUTURE REFERENCE.

Model MCBR240W1 / MCBR240B1 / MCBR240S1 / MCBR240C

Product Registration

Thank you for purchasing a Magic Chef® product. The first step to protect your new product is to complete the product registration on our website:
www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.

2. Registering your product will allow for more efficient warranty service processing when warranty service is required.

3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing a Magic Chef® product.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock, or injury
follow these basic precautions when using your
refrigerator.

1)

WARNING----Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.

2)

WARNING----Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.

3)

WARNING----Do not damage the refrigerant tubing to increase the risk of a leak when
handle, move and use of refrigerator.

4)

WARNING----Do not use electrical appliances inside the food storage compartments of
the appliances, unless they are of the type recommended by the manufacturer.

5)

WARNING----DANGER: Never allow children to play with, operate, or crawl inside the
refrigerator. Risk of child entrapment. Before you throw away your old refrigerator or
freezer:

• Take off the doors

• Leave the shelves in place so that children may not easily climb inside.

6)

The appliance has to be unplugged before carrying out user maintenance on the appli­ance.

7)

This appliance can be used by children age 8 years and above and persons with reduced
physical sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children should not play with the appliance. Cleaning
and maintenance should not be made by children without supervision.

8)

If the component part is damaged, it must be replaced by the manufacturer, its service

agent or similar qualified persons in order to avoid a hazard.

9)

Please abandon the refrigerator according to local regulations as the unit contains flam

mable blowing gas and refrigerant.

10)

Follow local regulations regarding disposal of the appliance due to flammable refrigerant

and blowing gas. All refrigeration products contain refrigerants, which under the guidelines
of federal law must be removed before disposal. It is the consumer's responsibility to
comply with federal and local regulations when disposing of this product.

11)

This appliance is intended to be used in household and similar environments; such as:

• sta kitchen areas in shops, oces and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• catering and similar non-retail applications.

12)

Do not store or use gasoline or any inflammable liquors and liquids inside or in the vicinity

of refrigerator.

13)

Do not use an extension cord with this appliance. If the power cord is too short, have a

qualified electrician install an outlet near the appliance. Use of an extension can

negatively aect the unit”s performance.

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORIZED
SERVICE PERSONNEL TO CARRY OUT SERVICES OR REPAIRS
INVOLVING THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.

TABLE OF CONTENTS

NAMES OF THE PARTS……………………………………………………… 2

SPECIFICATIONS…………………………………………………………….. 3

IMPORTANT SAFETY INSTRUCTIONS…………………………………… 4

INSTALLATION INSTRUCTION

BEFORE USING YOUR REFRIGERATOR……………………..…… 4

INSTALLING YOUR REFRIGERATOR ……………………………… 4

ELECTRICAL CONNECTION………………………………………… 5

OPERATING YOUR REFRIGERATOR

TEMPERATURE CONTROL………………………………………….. 6

MAKING THE ICE CUBES….………………………………….……… 6

HOW TO DEFROST………………..………………………………….. 7

ASSEMBLING LEGS…………………………………………………… 7

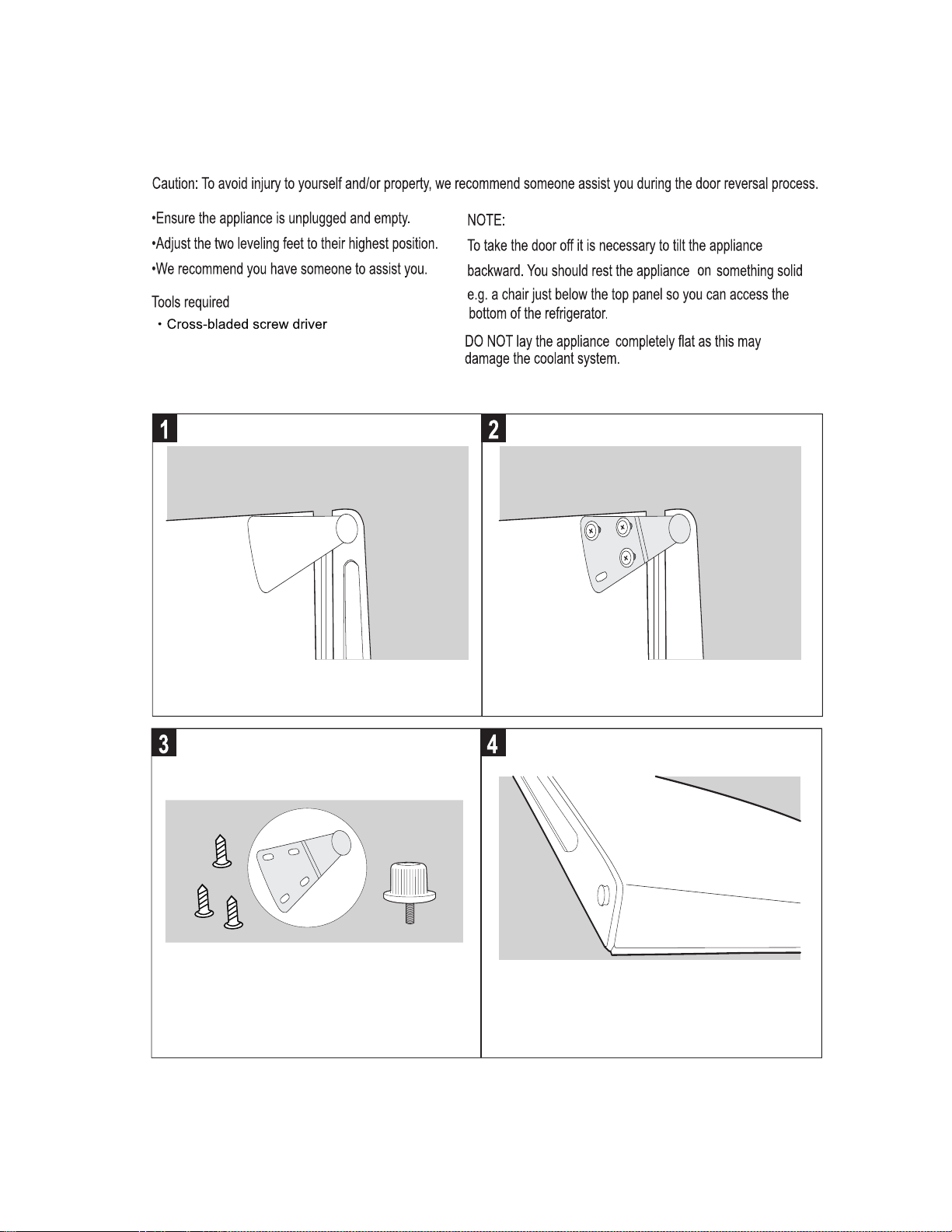

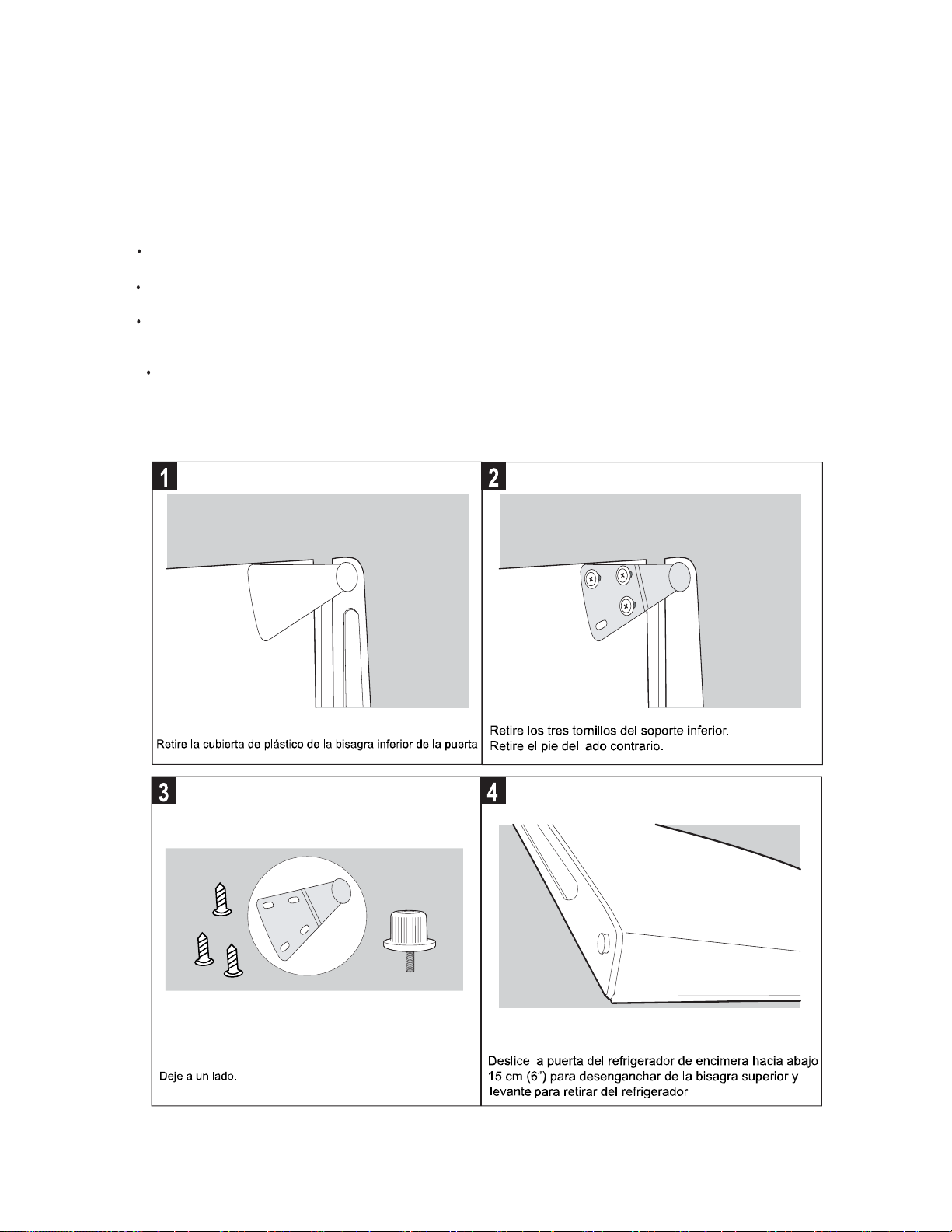

DOOR REVERSAL INSTRUCTION ………………………………………….. 8

CARE AND MAINTENANCE

CLEANING YOUR REFRIGERATOR………………………………… 10

VACATION TIME………………………………………………………. 10

MOVING YOUR REFRIGERATOR…………………………………… 10

ENERGY SAVING TIPS………………………………………………. 10

TROUBLESHOOTING GUIDE………………………………………………. 11

REFRIGERATOR WARRANTY……………………….……………………… 12

1

NAMES OF THE PARTS

1. Small door 2. Pan, drain 3. Steel wire shelf

4. Leveler, leg 5.Thermostat 6. Wire steel bar

Refrigerating chamber

Refrigerating Chamber

The is suitable for storage of a variety of fruits, vegetables, beverages and
other food consumped in the short term.

Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.

Foods are recommended to be sealed up before putting into the refrigerator.

The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

WARNING : Never touch the interior of the Freezer Chamber or frozen foods in the

compartment with wet hands as this could result in frost bite.

2

SPECIFICATIONS – Model # MCBR240W1.B1.S1.C

Product Description

Model No. MCBR240W1.B1.S1.C

Capacity 2.4 Cu. Ft.

Unit Dimensions

( inches )

Net Weight ( lbs) 39.7 ( lbs )

Magic Chef 2.4 cu.ft. Refrigerator

Width Height Depth

17.5” 20.1”24.8”

3

IMPORTANT SAFETY INSTRUCTIONS

aWARNINGa

To reduce the risk of fire, electrical shock,
or injury when using your refrigerator,
follow these basic precautions:

• Read all instructions before using the refrigerator.

• DANGER or WARNING: Risk of child entrapment.

• To avoid the possibility of child entrapment, please take the following precautions

before throwing out the refrigerator.

- Remove all doors from the unit.

- Leave the shelves in place so that children may not easily climb inside.

• Never allow children to operate, play with, or crawl inside the refrigerator.

• Never clean refrigerator parts with flammable fluids. The fumes can create a fire

hazard or explosion.

• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other refrigerator. The fumes can create a fire hazard or an explosion.

-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Refrigerator

• Remove the exterior and interior packing.

• Before connecting the refrigerato r to the power source, let it stand upright f or approximately 4 hours.

This will reduce the possibility of a malfunction in the cooling system from improper handling during
transportation.

• Clean the interior surface with lukewarm water using a soft cloth. (Cleaning instruction on page 9)

Installing Your Refrigerator

• This appliance is designed to be free standing only, and should not be recessed or built-in.

• Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully

loaded.

• Allow 5 inches of space between the back and sides of the refri gerator, which allows the proper air
ventilation. Adjust the feet to keep the refrigerator level.

• Locate the refrigerat or away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
Ambient temperature below 50°F or above 85°F will hinder the performance of this appliance. This
unit is not designed for use in a garage or any other outside installation.

• Avoid locating the refrigerator in moist areas.

• Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not under any

circumstances cut or remove the third (ground) pr ong from the power cord. Any quest ions concernin g
power and/or grounding should be directed toward a certified electrician or an authorized service
center. This unit is not designed to be installed in an RV or used with an inverter.

• After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool down for 2~3
hours under before placing food in the refrigerator or freezer compartment.

4

Electrical Connection

WARNING

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized service center.

This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.

Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.

This refrigerator requires a standard 115V~ / 60Hz electrical outlet with three-prong ground.

This refr

The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental
injury.

Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out
from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified
electrician or service technician install an outlet near the appliance. Use of an extension cord can
negatively affect the performance of the unit.

If any problems with the appliance persist, please contact our Customer Service Dept. to consult with a
representative at 888 775-0202 or visit our website to request warranty service at

www.mcappliance.com.

igerator is not designed to be used with an inverter.

DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By
Trained Service Personnel. Do Not Puncture Refrigerant Tubing

CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair
Manual/Owner’s Guide Before Attempting To Service This Product. All Safety Precautions Must
be Followed

CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With Federal Or
Local Regulations. Flammable Refrigerant Used

CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling
Instructions Carefully. Flammable Refrigerant Used

5

OPERATING YOUR REFRIGERATOR

Temperature Control

•

Your refrigerator has one control for regulating the temperature. The temperature control is
located on the top left hand corner of the refrigerator compartment

•

The first time you turn the unit on, adjust the temperature control knob to “MAX” and run for at least 2
hours before putting foods inside. This will ensure the cabinet is thoroughly chilled before food is put
in.

• The range of the refrigerator temperature control is from position "MIN" the warmest to "MAX" the coldest.
Adjust the temperature control to the setting that best suits your needs. The setting of “MED” should be
appropriate for home or office refrigerator use.

• To turn off the refrigerator, please turn the temperature control knob to “OFF”. Please note that turning
the temperature control knob to “OFF” position stops the cooling cycle, but does not disconnect the

r sup

powe

• NOTE

ply to the refrigerator

• If the unit is unplugged, loses power; you must wait 3 to 5 minutes before restarting the unit.
If you attempt to restart before this time delay, the refrigerator will not start.

• Large amounts of food will lower the cooling efficiency of the appliance.

• Do not place the foods on the air outlet, and leave spaces for airflow.

• If you choose to change the thermostat setting, adjust thermostat control by one increment at

a time. Allow several hours for temperature to stabilize between adjustme

nts.

Making the Ice Cubes

Take out the ice cube tray and fill the tray to 80% capacity with drinkable water. Put the ice cube tray
back into the freezer compartment and close the door.

N

I

M

OFF

MAX

• Turn the temperature control knob to “MAX”.

• Wait for approximately two to five hours.

• Twist the ice cube tray and release the ice cubes.

• Reset the temperature control knob to the normal recommended setting. (“MED”)

D

E

M

6

Assembling Legs

Your refrigerator has two leveling legs which are located in the front bottom corners of your
refrigerator. After properly placing your refrigerator in its final position, you can level your refrigerator.
Leveling legs can be adjusted by turning them clockwise to raise your refrigerator or by turning them
counterclockwise to lower your refrigerator. The refrigerator door will close easier when the leveling
legs are extended.

How to Defrost

Defrost whenever frost on the wall of the freezer compartment becomes 1/8" thick. Never us a sharp or
metallic instrument to remove frost as it may damage the cooling coils. (A punctured cooling coil will
cause serious damage to the product and will void the warranty). We recommend using a plastic scraper.
To defrost, remove foods and ice cube tray from the freezer compartment. Make sure the drip tray is in
place and unplug the unit. Defrosting usually takes a few hours. To defrost faster, keep the door open and
place a bowl of warm water in the refrigerator. After defrosting, empty water from the drip tray and wash
the drip tray in warm water.

7
