Air Fryer Oven Product Guide
(MAF105BKD0)
newair.com Support Email: support@newair.com
Manual v1.1
Magic Chef® Air Fryer Product Guide
Introduction
Before using your air fryer, please read this manual carefully. Incorrect
WEBSITE:
www.newair.com
SUPPORT EMAIL ADDRESS:
support@newair.com
TELEPHONE NUMBER:
1-855-963-9247
This air fryer is used for cooking food, such as meat, fish, side dishes, and vegetables. This appliance is
intended for normal household use only. It is not intended for use in commercial or retail environments.
Furthermore, the air fryer may not be used outdoors, or in tropical climates. This air fryer meets all
relevant standards in relation to CE conformity. In the event of any modification to the air fryer not
approved by the manufacturer, compliance with these standards is no longer guaranteed. The
manufacturer does not accept any liability for any resulting damage or faults in such cases.
Please observe the regulations and laws in the country of use.
operation can result in serious damage or injury.
Need to Contact Us?
Manufactured For:
MC Appliance Corp.
940 N. Central Ave.,
Wood Dale, IL 60191 USA
Magic Chef is a registered trademark of
CNA International, Inc. d/b/a
MC Appliance Corporation.
All rights reserved.
NewAir, LLC
6600 Katella Ave, Cypress, CA 90630
Comments/Questions:
Support@newair.com
2
Magic Chef® Air Fryer Product Guide
Contents
Register Your Product Online ........................................................................................................................ 4
Important Safety Precautions ....................................................................................................................... 5
Getting to Know Your Magic Chef® Air Fryer ................................................................................................ 8
Cooking with the Magic Chef® Air Fryer ..................................................................................................... 12
Caring for Your Air Fryer ............................................................................................................................. 13
Troubleshooting & Common Questions ..................................................................................................... 14
Limited Manufacturer’s Warranty .............................................................................................................. 16
Product Specifications
POWER CONSUMPTION: 1700W
TEMPERATURE RANGE: 150° F - 400° F
PRODUCT DIMENSIONS: 14.00”D x 12.50”W x 15.50”H
POWER SUPPLY: 120V/60Hz
TIMER FUNCTION: 60 minutes
OVEN CAPACITY: 10.5 Quarts
MODEL: MAF105BKD0
3
Magic Chef® Air Fryer Product Guide
Register Your Product Online
Register Your Magic Chef® Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for Magic Chef® promotions and offers
Registering your product information online is safe & secure and takes less than 2 minutes to complete:
newair.com/register
Alternatively, we recommend you attach a copy of your sales receipt below and record the following
information, which is located on the manufacturer’s nameplate on the rear of the unit. You will need
this information if it becomes necessary to contact the manufacturer for a service inquiry.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
4
Magic Chef® Air Fryer Product Guide
Important Safety Precautions
Before using your air fryer for the first time, read the following instructions and pay attention to all
warnings, even if you are familiar with handling electronic devices. Store these operating instructions in
a safe place for future reference. If you decide to sell the air fryer, or pass it on, always include these
instructions. They are an integral part of the product.
WARNING
• NEVER SUBMERGE the unit in water, as it contains electrical components and heating elements.
• TO AVOID ELECTRICAL SHOCK, DO NOT put liquid of any kind into the unit, especially the parts
• If the plug does not fully fit into the outlet, reverse the plug and try again. If it still does not fit,
• DO NOT ATTEMPT to modify the plug in any way.
• MAKE SURE the appliance is plugged into a wall socket. Always make sure that the plug is
• To prevent food contact with the interior upper screen and heat element, DO NOT OVERFILL the
• DO NOT COVER the intake or exhaust air vents while the air fryer is operating. Doing so will
• NEVER POUR oil into the inside of the air fryer, or any accessories. Fire and personal injury could
• While cooking, the internal temperature of the unit reaches several hundred degrees. TO AVOID
• This appliance is NOT INTENDED FOR USE by persons with reduced physical, sensory, or mental
• When cooking, DO NOT PLACE the appliance against a wall or against other appliances. Leave at
• DO NOT place anything on top of the appliance.
• DO NOT USE this unit if the plug, the power cord, or the appliance itself is damaged in any way.
• DO NOT PLACE the unit on stovetop surfaces.
• If the power cord is damaged, YOU MUST HAVE IT REPLACED by the manufacturer. Please
• Keep the appliance and its power cord OUT OF REACH of children when it is in operation or in
Do not rinse the unit under the tap.
containing the electrical components.
contact customer service at support@newair.com, as there may be an issue with your power
cord.
inserted into the wall socket properly.
inside of the unit when cooking.
prevent even cooking and may damage the unit or cause it to overheat.
result.
PERSONAL INJURY, never place hands inside the unit unless it is thoroughly cooled down.
capabilities, or lack of experience and knowledge unless they are UNDER THE SUPERVISION of a
responsible individual or have been given proper instructions on using the appliance. This
appliance is NOT INTENDED FOR USE by children.
least 5” (inches) of free space on the back and sides and above the appliance.
If it is, contact customer service immediately at support@newair.com.
contact customer service immediately at support@newair.com.
cooldown mode.
5
Magic Chef® Air Fryer Product Guide
CAUTION: FIRE HAZARD. Never us the air fryer in the vicinity of
• KEEP THE POWER CORD AWAY from hot surfaces. DO NOT PLUG in the power cord or operate
the unit controls with wet hands.
• NEVER CONNECT this appliance to an external timer switch or separate remote controlled
power system (such as a dimmer switch).
• NEVER USE this appliance with an extension cord of any kind.
• DO NOT OPERATE this appliance on or near combustible materials such as tablecloths or
curtains.
• NEVER use the air fryer oven door as a place to rest hot food or accessories, as they will likely
damage the door.
• DO NOT USE the air fryer for any purpose other than described in this manual.
• NEVER OPERATE the appliance unattended.
• When in operation, the air is released through the exhaust vent. KEEP YOUR HANDS AND FACE
at a safe distance from the exhaust vent. Avoid the exhaust outlet even when inserting or
removing food and/or accessories. Never cover the vents for any reason.
• The unit’s outer surfaces may become hot during use. Any accessories (such as the rotating
mesh basket) WILL BE HOT. Wear oven mitts, or use the “grabber” tool when handling hot
components.
• Should the unit ever emit black smoke, UNPLUG IMMEDIATELY and wait for smoking to stop
before opening the door or removing air fryer contents.
• When the time has run out, cooking will stop but the fan WILL CONTINUE RUNNING for 20 more
seconds in cooldown mode.
• Always operate the appliance on a horizontal surface that is level, stable, and noncombustible.
• This appliance is intended for normal household use only. It is not intended for use in
commercial or retail environments.
• If this air fryer is used improperly or for professional or semi-professional purposes, or if it is not
used according to the instructions in the user manual, the warranty becomes invalid, and we will
not be held liable for damage.
• Always unplug the air fryer after use.
• When you are finished cooking, always let the air fryer cool down for approximately 30 minutes
before handling, cleaning, or storing.
• Make sure the ingredients prepared in this unit come out cooked to a golden-yellow color rather
than dark or brown. It is not recommended that you eat any burnt food.
flammable materials, such as curtains, drapes, etc.
6
Magic Chef® Air Fryer Product Guide
Overheating Protection
Should the inner temperature control system fail, causing the unit to overheat, the overheating
protection system will be activated, and the unit will shut off. Should this happen, unplug the power
cord. Allow time for the air fryer to cool completely before restarting or storing. If this issue persists,
contact customer service at support@newair.com.
Automatic Shut-off
The appliance has a built-in “shut-off” device that will automatically shut down the unit when the timer
reaches zero. You can manually end the cooking process by pressing the power button while the unit is
running. Note that the fan will continue running for another 20 seconds in cooldown mode.
Electric Power
If the electrical circuit is overloaded with other appliances, your air fryer may not operate properly. The
air fryer should be operated on a dedicated electrical circuit.
Electromagnetic fields (EMF)
This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly
and according to the instructions in this user manual, the appliance will be safe to use based on the
scientific evidence available today.
SAVE THESE INSTRUCTIONS - FOR HOUSEHOLD USE ONLY
7
Magic Chef® Air Fryer Product Guide
Getting to Know Your Magic Chef® Air Fryer
2. Rotating basket (sold separately)
5. Rotisserie “grabber” tool (sold sep.)
6. Skewer racks x2 (sold sep.)
9. Cooking/dehydrating racks x3
Air Fryer Parts & Accessories
3. Rotisserie chicken fork (sold sep.)
4. Rotisserie shaft (sold sep.)
7. Skewers x10 (sold sep.)
8. Oil drip tray
2. Rotating Basket (sold separately)
The rotating basket is great for fries and roasted nuts, as it helps cook the food evenly without having to
flip or turn it manually. Use the rotisserie “grabber” tool to remove the rotating basket safely.
3 & 4. Rotisserie Chicken Fork & Rotisserie Shaft (sold separately)
Use the rotisserie fork and shaft for roasts and whole chickens. Force the shaft lengthwise through the
center of the meat. Slide the forks onto the shaft from either end into the meat, then lock them in place
with the set screws. There are indentations on the shaft for the set screws to screw into. You can adjust
the screws closer to the middle of the shaft if needed, but never outward towards the ends of the shaft.
NOTE: Make sure the roast or chicken is not too large to rotate freely within the air fryer. The maximum
size roast will be roughly 4.5 to 5 pounds.
5. Rotisserie “Grabber” Tool (sold separately)
Use the rotisserie “grabber” to remove cooked roasts and chickens that have been prepared using the
rotisserie shaft and/or chicken forks, or anything else that you cannot remove by hand with an oven
mitt. Place the ends of the “grabber” under the rotisserie shaft, then lift the left side, then the right side,
slowly removing the shaft from the rotisserie slot and pulling your food out of the oven.
8
Magic Chef® Air Fryer Product Guide
6 & 7. Skewer Racks & Skewers (sold separately)
The skewers are great for making kabobs of any kind. To assemble, attach the skewer racks to the
rotisserie shaft using the set screws on the racks. There are indentations on the shaft for the set screws
to screw into. You can adjust the screws closer to the middle of the shaft if needed, but never outward
towards the ends of the shaft. Insert the skewers through each of the skewer rack openings, making
sure that the skewer is parallel to the rotisserie shaft.
8. Oil Drip Tray
The oil drip tray will catch any oil or scraps that fall from the cooking food. Once completely cool, the
drip tray can be removed from the air fryer and cleaned. As long as the drip tray is inside the unit during
cooking, it will be much easier to keep the inside of your air fryer clean!
9. Cooking/Dehydrating Racks
These racks serve as your primary cooking trays, but can be used for dehydrating as well. (See below for
dehydrating instructions). These racks allow you to cook multiple trays of food at the same time, and
they help circulate the air well.
Please make sure that your air fryer has been shipped with the necessary components. Any accessory
marked “sold separately” must be purchased separately from the manufacturer. Contact customer
service if you have any questions about purchasing accessories.
IMPORTANT
Check all included parts and accessories carefully before use. If any part is missing or damaged, do not
use the product, but contact customer service immediately at support@newair.com.
WARNING:
Forks, skewers, and other metal parts within this unit are sharp and will get extremely hot during use.
Great care should be taken to avoid personal injury. Wear oven mitts or gloves.
9
Magic Chef® Air Fryer Product Guide

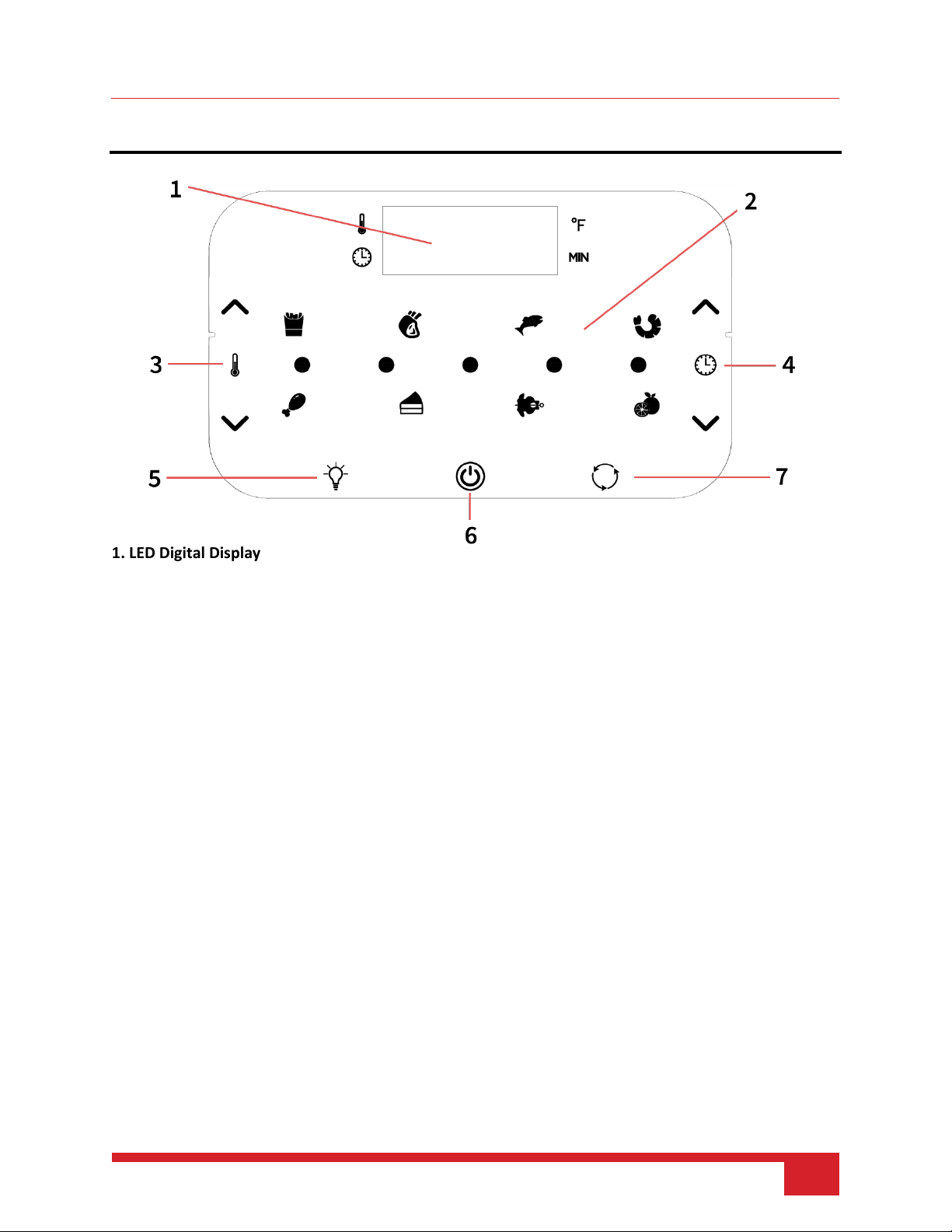

Control Panel
1. LED Digital Display
The digital display shows both the time and temperature settings. During cooking, the display will switch
between set temperature and time remaining. Otherwise, it will display your timer or temperature
options while setting them.
2. Cooking Presets
Selecting any of these will set the time and temperature automatically to a default setting for that
particular food. You may override these presets with the time and temperature settings (3 & 4). It is
important to note that the dehydrating preset will operate differently. In dehydrating mode, the
temperature range is limited between 85 and 175 degrees.
3. Temperature Control
These buttons enable you to raise or lower the cooking temperature in 5 degree increments, from 140
to 400 degrees. You can adjust the temperature setting while the unit is actively cooking. In dehydrating
mode, the temperature range is limited between 85 and 175 degrees.
4. Timer Control
These buttons enable you to raise or lower the cooking time in one minute increments, up to 60
minutes. You can adjust the timer setting while the unit is actively cooking. In dehydrating mode, the
timer can be set between 2 and 24 hours, changed in 30 minute increments.
5. Internal Light
Press this button to turn on the light inside of the unit. While the unit is running, the light should help
you check on the progress of your food. Note: If the door is opened, the light will illuminate either way.
Note also that opening the door pauses the cooking process.
10
Magic Chef® Air Fryer Product Guide
6. Power/Start-Stop Button
Once the unit is plugged in, the power button will light up. Pressing the power button once will light up
the whole panel, allowing you to start cooking and change your settings. Pressing the power button a
second time (without changing any settings) will start the cooking process at the default temperature of
370 degrees and default time of 15 minutes. Pressing the power button at any time during the cooking
process will turn off the display and put the unit in cooldown mode for 20 seconds.
7. Rotisserie Function
Pressing this button will begin rotisserie rotation. Press it again to turn the rotisserie off again.
11
Magic Chef® Air Fryer Product Guide
Cooking with the Air Fryer Oven
Before First Use
1. Read all materials, warning stickers and labels.
2. Remove all packing materials, labels, and stickers.
3. Wash all parts and accessories used in the cooking process with warm soapy water.
NOTE: Only the accessories are dishwasher safe. The air fryer oven and oven door are not
dishwasher safe.
4. Place the air fryer oven on a stable, level surface.
Cooking Tips
1. Flip your food half way through the cooking time for more consistent results. You can set the
timer to half the intended time so you know exactly when to flip the food, or simply open the air
fryer door half way through the total cooking time, and rotate the food before resuming the
cooking process.
2. Add 3 minutes to the cooking time if the unit is cold, to allow for the target temperature to be
reached before the food starts cooking.
3. Note that foods that are smaller in size usually require a slightly shorter cooking time than large
ones. Large quantities of food only require a slightly longer cooking time than smaller quantities.
4. Spraying a bit of oil on your food is suggested for an even crispier end result. Add oil just before
beginning the cooking process.
5. You can treat the air fryer oven just like your air fryer, so your favorite air fryer recipes should
work just as well in this unit!
6. Use pre-made dough to prepare foods with fillings quickly and easily. Pre-made dough also
requires a shorter cooking time than homemade dough.
7. Use a baking tin or air fryer dish when baking a cake or quiche. These are also recommended for
any fragile foods, or foods with fillings.
8. You can use this air fryer oven to reheat foods. We recommend setting the temperature to 300
degrees and checking the food until it’s heated to your liking.
IMPORTANT
During the cooking process, all parts and accessories will become very hot. When removing cooked or
hot food, use oven mitts or the rotisserie “grabber” (sold separately) to avoid burns. Do not set hot parts
directly onto a countertop, only on a stovetop or trivet.
12
Magic Chef® Air Fryer Product Guide
Caring for Your Air Fryer
When this symbol appears on a product, this indicates that the product should not be
Cleaning
Clean your air fryer after each use. All internal parts and accessories (some sold separately) are made of
stainless steel or teflon coated metal, and are all dishwasher safe—but never use abrasive cleaning
materials or utensils on these surfaces. If too much food is stuck to any accessories, soak overnight to
make cleaning with normal soap and water easier.
1. Remove the power cord from the wall socket and be certain the appliance is thoroughly cooled
before cleaning.
2. Wipe the outside of the appliance with a warm moist cloth and mild detergent. Do not soak or
submerge the unit in water or wash in the dishwasher.
3. Clean the inside of the appliance with hot water, a mild detergent, and a non-abrasive sponge.
4. If necessary, remove unwanted food residue from the upper screen (below the heating coil and
fan) with a cleaning brush.
5. Be sure the unit is completely dry before plugging in and using again.
Storage
1. Unplug the appliance and let it cool down thoroughly.
2. Make sure all components are clean and dry.
3. Place the appliance in a clean, dry place when not in use. Cover to prevent dust buildup.
Environmental and Disposal Information
treated as normal waste. All electrical and electronic devices must be disposed of
separately from household waste at designated disposal points. Disposal of electronic
waste in this manner will prevent harm to the environment and human health
hazards. For further information regarding disposal of electronic waste in accordance
with local laws, contact your local authorities, e-waste disposal office, or the company
you bought the appliance from.
Dispose of the packaging in an environmentally compatible manner. Cardboard can be recycled both in
municipal trash and local recycling centers. Films and plastic used for packaging the device can also be
recycled.
13
Magic Chef® Air Fryer Product Guide
Troubleshooting & Common Questions
The air fryer does
• The unit is not plugged in
• Plug power cord into a wall
button
My food is not
• The trays or other accessories
• Use smaller batches for more
cooking
My food is not
• The food wasn’t turned half way
• Turn or stir your food half way
There is white
• There is oil on the food that is
residue from previous cooking
• Use a paper towel to collect
Clean accessories after each use
French fries are not
• The wrong type of potato is being
properly during preparation
• Use only fresh, firm potatoes
dry to remove excess starch
PROBLEM POSSIBLE CAUSE SOLUTION
not work
cooked
cooked evenly
• The unit is on, but you have not
started the cooking process yet
are overloaded
• The temperature is set too low
through the cooking process
socket
• With basket in place, set the
temperature and time, or choose
a preset. Check that the door is
closed, then press the Start-Stop
even frying
• Raise temperature and continue
through the cooking process
smoke coming from
the air fryer
burning off
• Accessories have excess grease
fried evenly
used
• Potatoes were not rinsed
excess grease from food or
accessories.
•
• Cut potatoes into sticks and pat
14
Magic Chef® Air Fryer Product Guide
1. Can I prepare foods other than fried dishes with my air fryer?
You can prepare a variety of dishes, including steaks, pork chops, burgers, and baked goods.
2. Is the air fryer good for making or reheating soups and sauces?
No, liquids should never be prepared in the air fryer.
3. Does the unit need time to heat up?
Pre-heating is needed when you are cooking from a “cold start.” Add 3 minutes to the cooking time
to compensate.
4. Is it possible to shut off the unit at any time?
Yes, just press the Power Button once or open the door.
5. Can I check the food during the cooking process?
Yes, you can press the Start-Stop button at any time to pause the cooking process, or just open the
door.
6. Is the air fryer dishwasher safe?
Only the accessories are dishwasher safe. The unit itself containing the heating coil and electronics
should never be submerged in liquid of any kind or cleaned with anything more than a hot, moist
cloth or nonabrasive sponge with a small amount of mild detergent.
7. What happens if the unit still does not work after I have tried all the troubleshooting suggestions?
Never attempt a home repair, as it will void your warranty, and could cause injury. Contact customer
service at support@newair.com if any issues arise.
15
Magic Chef® Air Fryer Product Guide
Limited Manufacturer’s Warranty
This appliance is covered by a limited manufacturer’s warranty. For one year from the original date of
purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective
in materials and workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms
During the first year, any components of this appliance found to be defective due to materials or
workmanship will be repaired or replaced at the manufacturer’s discretion, and at no charge to the
original purchaser. The purchaser will be responsible for any removal or transportation costs.
Exclusions
The warranty will not apply if the damage is caused by any of the following:
• Power failure
• Damage in transit or when moving the appliance
• Improper power supply, such as low voltage, defective household wiring, or inadequate fuses
• Accident, alteration, misuse, or abuse of the appliance, such as using non-approved accessories,
inadequate air circulation in the room or abnormal operating conditions (extreme
temperatures)
• Use in commercial or industrial applications
• Fire, water, damage, theft, war, riot, hostility, or acts of God, such as hurricanes, floods, etc.
• Use of force or damage caused by external influences
• Partially or completely dismantled appliances
Obtaining Service
When making a warranty claim, please have the original bill of purchase with purchase date available.
The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or
units will be new, remanufactured, or refurbished and are subject to the manufacturer’s discretion. Do
not use an unauthorized person to replace or fix a damaged main cord.
For technical support and warranty service, please email support@newair.com
16
Loading...
