Magic Chef ACS4140BB, ACS4140BW, DF454670, DF454677, MER4326AAA Installation Instructions

INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE

INSTALLATION MANUAL

Electric 30-inch Free-standing,

Slide -in & Drop-in Ranges

PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE

THE MANUAL IS INTENDED TO ASSIST IN THE INITIAL INSTALLATION AND ADJUSTMENTS OF THE RANGE.

SPECIAL WARNING

Only qualified personnel should
install or service this range.

Read “Safety Instructions” in the
Use & Care book before using
range.

Improper installation, adjustment,
alteration, service, maintenance or
use of range can result in serious
injury or property damage.

CLEARANCE DIMENSIONS

For complete information in regard to installation
of free-standing, drop-in and slide-in ranges,
see figures 1 through 4 on pages 2, 3 and 4. For
SAFETY CONSIDERATIONS do not install a
range in any combustible cabinetry which is not
in accord with the installation clearances shown
in figure 1.

CAUTION: Some cabinets and building
materials are not designed to withstand the
heat produced by the normal safe operation
of a listed appliance. Discoloration or
damage, such as delamination, may occur.

Your range may not be equipped with some of the features referred
to in this manual.

8101P371-60

(10-2000-00)

MOBILE HOMES

LOCATING THE RANGE

The installation of a range designed for mobile home
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part
3280 (formerly the Federal Standard for Mobile Home
Construction and Safety, Title 24 HUD, Part 280) or, when
such standard is not applicable, the Standard for
Manufactured Home Installations 1982 (Manufactured
Home Sites, Communities and Set-Ups), ANSI
A225.1-latest edition, or with local codes.

INSTALLATION DRAWINGS

IMPORTANT

PLEASE KEEP FOR THE USE OF THE
LOCAL ELECTRICAL INSPECTOR.

Place range in a well lit area. Do not set range over holes
in the floor or other locations where it may be subject to
strong drafts. Any opening in the wall behind the range
and in the floor under the range should be sealed. Make
sure the flow of combustion or ventilation air is not
obstructed.

“A” = 30 inches minimum clearance between the top of
the cooking surface and the bottom of an unprotected
wood or metal cabinet, or “A” = 24 inches minimum
when bottom of wood or metal cabinet is protected by
not less than 1/4-inch thick flame-retardant millboard
covered with not less than No. 28 MSG sheet steel,

0.015-inch thick stainless steel, 0.024-inch thick
aluminum, or 0.020-inch thick copper.

4

To eliminate the risk of burns or fire by reaching over
heated surface units, cabinet storage space located

1

3

“A”

2

FIGURE 1

above the surface units should be avoided. If cabinet
storage is to be provided, the risk can be reduced by
installing a range hood that projects horizontally a
minimum of 5 inches beyond the bottom of the cabinets.

FIGURE 1

1, 2, 3 - COMBUSTIBLE BUILDING WALLS.

4 - COMBUSTIBLE WALL CABINET.

A free-standing range may be installed adjacent to (0²
from) combustible walls 1, 2 & 3.

A slide-in and drop-in range may be installed adjacent to
(0² from) combustible walls 2 & 3. The rear wall
clearance will be determined by cabinet cut-out depth
shown in illustrations on pages 3 and 4.

-2-

FREE-STANDING

FIGURE 2

SLIDE-IN

*23 1/4²

CUT DEPTH

BEFORE ATTEMPTING
INSTALLATION, ADJUST
RANGE LEVELING LEGS

51/2²
TO ACCOMMODATE
THIS DIMENSION.

10²

36² COUNTER

TOP HEIGHT

30² CABINET

OPENING

CAUTION:

SOME WHITE EUROPEAN STYLE CABINETS ARE EQUIPPED WITH DELICATE WHITE VINYL
DRAWER AND DOOR FRONTS. THE VINYL MAY NOT BE DESIGNED TO WITHSTAND THE
HEAT PRODUCED BY THE NORMAL SAFE OPERATION OF A SELF-CLEAN RANGE.
DISCOLORATION OR DELAMINATION MAY OCCUR. TO AVOID POSSIBLE DAMAGE, WE
RECOMMEND INCREASING THE 30² CABINET OPENING TO 31 1/4² MINIMUM AND USING
HEAT SHIELD KIT-CABKIT V. THE COUNTERTOP CUT-OUT MUST REMAIN 30².

30²

51/2²

23 5/8² MIN.

FLAT

AREA

24² CABINET

DEPTH

NOTE:

ON CABINET TOPS WITH
FORMED FRONT EDGE, SHAVE
RAISED SECTION TO CLEAR TOP.

PROVIDE FOR 120/208,
120/240 VOLT OUTLET
PER APPLICABLE
CORD IN THIS AREA.

25² MINIMUM

COUNTER

TOP DEPTH

FIGURE 3

* When replacing an existing unit, a maximum of 23 1/2² is acceptable. If the cut depth exceeds 23 1/2², use filler kit (K70 Fill).

-3-

DROP-IN

11/4²

24²

CABINET

DEPTH

NOTE:

ON CABINET TOPS WITH
FORMED FRONT EDGE, SHAVE
RAISED SECTION TO CLEAR TOP.

*23 1/4² CUT DEPTH

PROVIDE FOR 120/208, 120/240
VOLT JUNCTION BOX FOR RANGE
CONDUIT BELOW UNIT.

36² COUNTER

TOP HEIGHT

27 1/2²
FROM TOP OF
COUNTER

30²

CABINET

OPENING

NOTE: BEFORE
ATTEMPTING INSTALLATION,
ADJUST RANGE LEVELING
LEGS TO ACCOMMODATE
THIS DIMENSION.

RECOMMEND THE USE OF
31/2² WIDE SLATS ON EACH SIDE.

FIGURE 4

23 5/8² MIN.

FLAT AREA

25² MINIMUM

COUNTER

TOP DEPTH

24²

CABINET

DEPTH

* When replacing an existing unit, a maximum of 23 1/2² is acceptable. If the cut depth exceeds 23 1/2², use filler kit (K70 Fill).

-4-

ANTI-TIP DEVICE INSTALLATION INSTRUCTIONS

WARNING: A risk of range tip-over exists if the appliance

is not installed in accordance with the provided installation
instructions. The proper use of this device minimizes the
risk of TIP-OVER. In using this device the consumer must
still observe the safety precautions as stated in the USE
and CARE MANUAL and avoid using the oven door
and/or lower drawer as a step stool.

Installation instructions are provided for wood and cement
in either floor or wall. Any other type of construction may
require special installation techniques as deemed
necessary to provide adequate fastening of the ANTI-TIP
bracket to the floor or wall. The bracket may be installed
to engage the left or right rear leveling leg.

STEP 1 - Locating The Bracket (See Figure 5)
A. Determine where either the right or left “EDGE” of the

range will be located and mark the floor or wall.

B. Place the BRACKET 15/16² from the marked “EDGE”

toward center of opening and against the back wall,
as shown in figure 5, with orientation hole against
wall.

C. Use the bracket as a template and mark the required

holes, as shown in figure 5 for the type of construction
you will be using.

D. Free-standing and slide-in ranges may be secured to

either floor or wall. Drop-in range may only be

secured to slat in cabinet.

STEP 2 - Anti-Tip Bracket Installation

A. Wood Construction:

1. Floor: Locate the center of the two holes identified
in figure 5 as “HOLES FOR FLOOR”. Drill a 1/8²
pilot hole in the center of each hole (a nail or awl
may be used if a drill is not available). Secure the
ANTI-TIP bracket to the floor with the two screws
provided. Proceed to Step 3.

2. Wall: Locate the center of the two holes identified
in figure 5 as “HOLES FOR WALL”. Drill an
angled 1/8² pilot hole in the center of each hole as
showninfigure6.(Anailorawlmaybeusedifa
drill is not available). Secure the ANTI-TIP bracket
to the wall with the two screws provided as shown
in figure 6. Proceed to STEP 3.

B. Cement or Concrete Construction:

1. Suitable screws for concrete construction can be
obtained at the hardware store. Drill the required
size hole for the hardware obtained into the
concrete at the center of the holes identified in
figure 5 as “HOLES FOR FLOOR”. Secure the
ANTI-TIP bracket to the floor. Proceed to STEP 3.

FIGURE 5

-5-

ANTI-TIP DEVICE INSTALLATION INSTRUCTIONS

STEP 3 - Range Installation

A. Free-standing and slide-in ranges may be installed by

one person. The drop-in requires two persons due to
adjusting leveling legs and making electrical
connection while range is suspended in cut-out.

B. Align the range to its designated location and slide it

back into position. Note: A minimum clearance of 1/4²
is required between the range and the leveling foot
that will engage the ANTI-TIP bracket, see figure 6.

CAUTION: Damage to the range may occur if range
is moved or lifted by grasping the main top or
backguard. (If equipped).

C. All slide-in and drop-in ranges are equipped with a

non lift-up top. All free-standing ranges with a glass
top are non lift-up. Coil tops are lift-up.

D. For SAFETY CONSIDERATIONS as well as optimum

performance adjust the range so that it is level. This
may be checked by placing a spirit level or a large
pan of water on the cooktop or the oven rack. If an
adjustment is required on free-standing, pull the range
forward, tip the range and rotate the leveling feet as
required. Slide-in and drop-in ranges require total
removal from cabinet before an adjustment can be
made.

E. To check the range for proper installation of the

anti-tip bracket: Use a flashlight and look underneath
the bottom of the range to see that one of the rear
leveling legs is engaged in the bracket slot.

F. Proceed with the remainder of the installation

instructions provided with the range.

FIGURE 6

-6-

CONNECTING THE RANGE

ELECTRIC SUPPLY

The range must be installed in accordance with Local and
National Electric Code (NEC) ANSI/NFPA No. 70-latest
edition. See rating plate on front of range for total
connected KW rating.

OUTSIDE WIRING

Your local utility company will tell you whether the present
electric service to your home is adequate. It may be
necessary to increase the size of the wiring to the house
and service switch to take care of the electrical load
demanded by the range. The kilowatt rating for the range
is specified on the name plate on the range.

HOUSE WIRING

Most local Building Regulations and Codes require that all
electrical wiring be done by licensed electricians. All
wiring should conform to Local and National Electrical
Codes. This range requires a single phase three wire
120/240 or a 120/208 volt, 60 Hz, AC circuit. Wiring codes
require a separate circuit be run from the main entrance
panel to the range and that it be equipped with separate
disconnect switch and fuses, either in the main entrance
panel or in a separate switch and fuse box. In some
communities, a solid or flexible continuous armored
conduit must be used from main entrance panel to the
terminal box on the rear of the range. Others will permit
the termination of the range circuit at a polarized three or
four wire plug-in outlet placed at a convenient point near
the back of the range. The range is then connected to this
outlet through an approved range connector (pigtail)
fastened securely to the terminal block with proper strain
relief at the range and a three or four pronged plug at the
opposite end.

RANGE CONNECTIONS

Some models are shipped direct from the factory with
service cords (pigtails) attached. There are no range
connections necessary on these models. Just plug into
the range outlet. On models not provided with a service
cord and models having a conduit, connection to the
power supply is necessary. REMEMBER - mobile homes
and some LOCAL CODES DO NOT PERMIT
GROUNDING THROUGH NEUTRAL. Hence, 4-wire
service MUST be provided for such installations. 3-wire
service may be used when permitted by local code. Use
COPPER WIRE ONLY. Make connections as explained
below and with reference to the appropriate illustration
(see figures 8 and 9). After installation, insure tightness of
all electrical connections and replace all covers.

NOTE: Cord replacement - ONLY a power supply cord
rated at 240 volts minimum, 40 amperes or 50 amperes
power supply cord that is marked for use with nominal 1
3/8² (34.93 mm) diameter connection opening, with closed
loop terminals and marked for use with ranges shall be
used.

Remove terminal block access cover from range back.
(See figure 7). Figure 7 shows the back of a free-standing
range. Slide-in and drop-in ranges have a flat access
cover on the left side of the main wire cover.

-7-

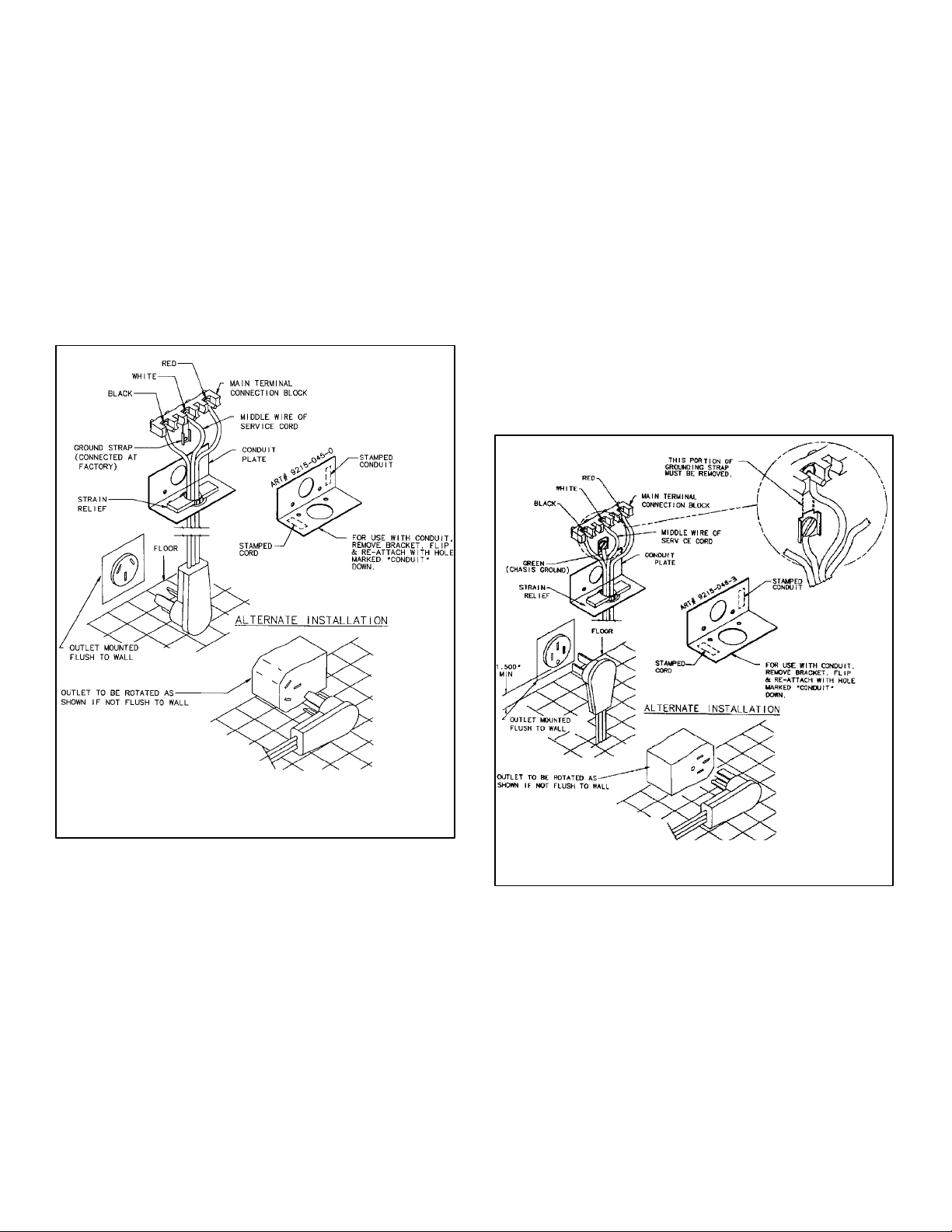

FIGURE 7

FIGURE 8
3-Wire Service Cord or Conduit Installation

1. Insure that the copper ground strap IS CONNECTED
between the middle post of the main terminal
connection block and the range chassis.

2. The middle wire of the service cord or ground lead of
3-wire conduit MUST connect to the neutral (middle)
post of the main terminal block. The other two wires of
the service cord or conduit connect to the outside
posts of the main terminal connection block. Polarity is
unimportant.

3. An appropriate strain relief for service cord or conduit

MUST be attached to the conduit plate.

FIGURE 9
4-Wire Service Cord or Conduit Installation

(Mobile Homes Or As Required By Codes)

1. The copper ground strap connected between the
neutral (middle) post of the main terminal block and the
chassis MUST be cut off as shown in figure 9. Save the
green ground screw to attach the ground from the 4
wire cord. Only a 4 wire cord or conduit should be
used.

2. The ground wire from the service cord or conduit must
connect to the range chassis using the green ground
screw.

3. The white wire of the service cord or conduit must
connect to the neutral (middle) post of the main
terminal block. The other two wires of the service cord
connect to the red and black posts of the main terminal
block, respectively.

4. An appropriate strain relief for service cord or conduit

MUST be attached to the conduit plate.

FIGURE 8

NORMAL - 3 WIRE PLUG

FIGURE 9

4-WIRE PLUG

Conversion From 3-Wire To 4-Wire Service

(Free-Standing or Slide-in Models Only With 3-Wire
Service Cord Attached).

Disconnect range from power. Remove the access cover
on back of range and remove the 3-wire service cord from
the main terminal block. Follow instructions as outlined in
figure 9 to connect the 4-wire service cord.

NOTE: Cord replacement - ONLY a power supply cord
rated at 240 volts minimum, 40 amperes or 50 amperes
power supply cord that is marked for use with nominal 1
3/8² (34.93 mm) diameter connection opening, with
closed loop terminals and marked for use with ranges
shall be used.

-8-
