Magic Chef CWG3600AAB User Manual
GAS WALL OVEN MODELS CWG4100, CWG4600, CWG3100, CWG3600
USER’S GUIDE
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
TABLE OF CONTENTS
Page
For Future Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Consumer Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Electronic Clock and Oven Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
• Explanation of Function Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• Setting the Clock and Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using Your Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12
• Oven Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
• Pilotless Ignition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
• Oven Vent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
• Oven Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
• Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
• Setting the Oven Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
• Preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
• Oven Racks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
• Rack Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
• General Baking Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
• Baking Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• Common Baking Problems and Why They Happen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
• Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
• Broiling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
• Programmed Oven Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17
• Oven or Broiler Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
• Oven Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
• Broiler Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
• Oven Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
• Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
• How to Remove Wall Oven for Servicing or Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
• Cleaning Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
• Continuous Cleaning Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
• Adjusting the Oven Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
• Fault Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
• Before You Call for Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wall Oven Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Page
FOR FUTURE REFERENCE
Congratulations on your choice of a Maytag
oven! As you use your new oven we know you
will appreciate the many features that provide
excellent performance, ease of cleaning,
convenience and dependability.
New features have dramatically changed today’s
cooking appliances and the way we cook. It is
therefore very important to understand how
your new oven operates before you use it. On
the following pages you will find a wealth of
information regarding all aspects of your oven.
By following the instructions carefully, you will
be able to fully enjoy and properly
maintain your Maytag oven and achieve
excellent results with the food you prepare.
Should you have any questions about using your
Maytag oven, call or write us. Be sure to
provide the model and serial numbers of your
oven.
If you have questions, write us (include your
model number and phone number) or call:
Maytag Appliances Sales Company
Attn: CAIR
P.O. Box 2370
Cleveland, TN 37320-2370
1-800-688-9900 (USA)
1-800-688-2002 (CANADA)
1-800-688-2080 (U.S. TTY for deaf,
hearing impaired or speech impaired)
(Mon.-Fri., 8 am-8 pm Eastern Time)
Internet: http://www.maytag.com
SM
Center
Table of Contents For Future Reference Consumer Publications
For future reference we suggest you retain this
manual after recording the model number and
serial number of this wall oven in the spaces
provided. This information can be found on the
data plate located under the broiler oven bottom.

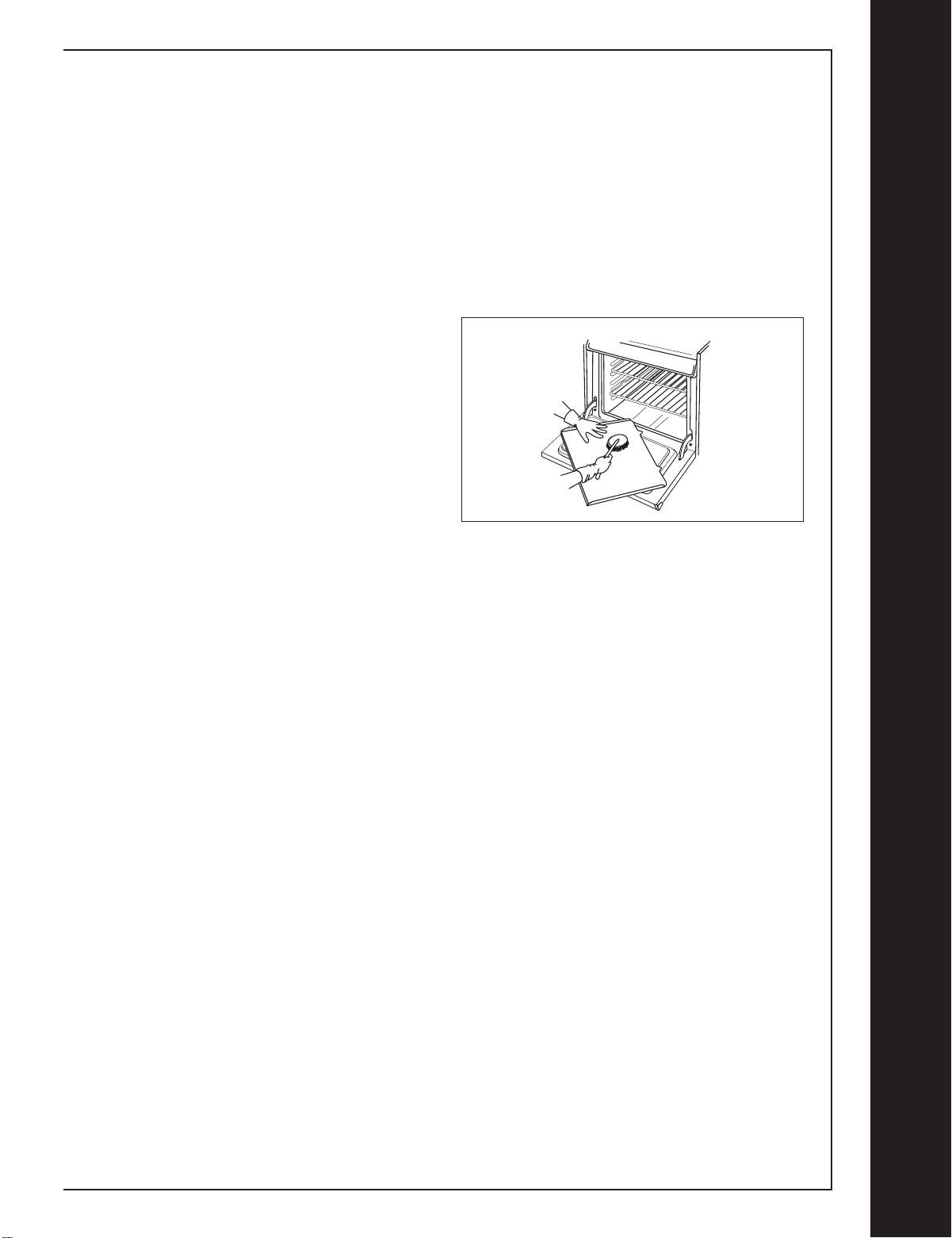

See page 16 for instructions on removing the
broiler bottom.
Model Number
Serial Number
IMPORTANT: Retain proof of purchase
documents for warranty service.
NOTE: In our continuing effort to improve the
quality of our products, it may be necessary to
make changes to the appliance without revising
this book. As an example, the knob on your
appliance may not look like the illustration in
this book.
Be sure you read the IMPORTANT SAFETY
INSTRUCTIONS on pages 2-4 before you start
to use this wall oven.
PAGE 1
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance. The following instructions are based on safety
considerations and must be strictly followed to eliminate the potential risks of fire, electric shock or
personal injury.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or death.
– Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
– Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Installation
Installation of the appliance must conform with local
codes or, if no codes exist, with the current National
Fuel Gas Code. Installation and adjustment of the
appliance must be performed ONLY by a qualified
installer or service technician in accordance with the
Installation Instructions. See accompanying
Installation Instructions.
Gas Type
All models are adjustable for use with NATURAL or
LP (bottled) gas. An appliance adjusted for one type
of gas cannot be used with other type until
adjustments are made by a qualified service
technician.
Gas Odor
If gas odor is detected, cut off the gas supply to the
appliance. Then, call your installer or local gas
company to have the leak checked. Never use a
match or other flame to locate a gas leak.
Servicing
Electrical supply must be disconnected before
servicing appliance.
Do not repair or replace any part of your appliance
unless specifically recommended in this manual. All
other servicing should be referred to a qualified
technician.
INCASE OF FIRE:
1. Turn oven controls off immediately.
2. Smother fire or flame with a dry chemical, or
foam-type extinguisher, or baking soda. Do not
use water on a grease fire.
3. If the fire is in the oven, smother it by closing
the oven door.
Have the installer show you the location of the gas
shut off valve and how to shut it off in an emergency.
Be certain all packing materials are removed from the
oven before operating to prevent fire or smoke
damage should the packing material ignite.
Observe all instructions for minimum clearances to
any combustible surfaces. These should be in
accordance with information on the rating plate and
with national fire laws.
If the appliance is installed near a window, proper
precautions should be taken to prevent the curtains
from blowing over the burners
creating a FIRE HAZARD.
PAGE 2
General
Misuse of appliance doors, such as stepping, leaning
or sitting on the door, may result in possible tipping
of the appliance, breakage of door and serious
injuries.
CAUTION: Do not use an appliance as a step stool
to cabinets above.
Keep area around appliance clear and free from
combustible materials, gasoline, and other flammable
vapors and materials.
In the event of a prolonged power failure, the oven
CANNOT be operated during a power failure.
Never use your oven to warm or heat the room. No
cooking appliance should ever be used as a space
heater. This instruction is based on safety
Important Safety Instructions
considerations to prevent potential hazard to the
consumer as well as damage to the appliance.
Cooking Safety
WARNING
NEVER use appliance door as a step stool or seat
as this may result in possible tipping of the
appliance and serious injuries.
NEVER use this appliance as a space heater to heat
or warm a room. Doing so may result in carbon
monoxide poisoning and overheating of the oven.
NEVER cover any slots, holes or passages in the
oven bottom or cover the entire rack with materials
such as aluminum foil. Doing so blocks air flow
through the oven and may cause carbon monoxide
poisoning. Aluminum foil may also trap heat
causing a fire hazard.
NEVER obstruct the flow of combustion and ventilation air by blocking the oven vent or air intakes.
Doing so restricts air to the burners and may result
in carbon monoxide poisoning.
If flame should go out during cooking, turn burner
If gas has collected and a strong gas odor is
off.
detected, wait 5 minutes for gas odor to disappear
before relighting burner.
Use care when opening oven door. Let hot air or
steam escape before removing or replacing food.
Always place oven racks in the desired positions
while oven is cool. If a rack must be moved while
hot, be careful to avoid contact of pot holders with
oven burner flame.
Use aluminum foil only as instructed. Improper use of
aluminum foil may cause damage to the appliance,
affect cooking results adversely and can also result in
shock and/or fire hazards.
Do not cover broiler inset with foil. Use a broiler pan
that allows grease to drip below the insert, away from
the broiler flame to minimize chance of grease fires.
Prepared Food Warning
Follow the food manufacturer’s instructions.
If a plastic frozen food container and/or its film cover
distorts, warps or is otherwise damaged during
cooking, immediately discard the food and its
container. The food could be contaminated.
Child Safety
Do not leave children alone or unsupervised near the
appliance when it is in use or is still hot.
Children should never be allowed to sit or stand on
any part of the appliance.
Slide oven rack out to add or remove food, using dry,
sturdy pot holders. Always avoid reaching into oven
to place or remove food.
Do not use oven as a storage area for food or cooking
utensils. This instruction is based on safety
considerations to prevent potential hazard to user
and to the appliance.
Use caution when wearing garments made of
flammable material to avoid clothing fires. Loose
fitting or long-hanging-sleeved apparel should not be
worn while cooking. Clothing may ignite or catch
utensil handles.
Use dry, sturdy pot holders. Damp pot holders may
cause burns from steam. Dish towels or other
substitutes should never be used as pot holders
because they can trail across hot burners and ignite or
get caught on appliance parts.
Never heat an unopened container in the oven.
Pressure build up may cause container to burst
resulting in serious personal injury or damage to the
oven.
Children MUST be taught that the appliance and
utensils in or on it can be hot.
Children should be taught that an appliance is not a
toy. They should not be allowed to play with controls
or other parts of the unit.
Let hot utensils cool in a safe place, out of reach of
small children.
Caution: Do not store items of interest to children in
cabinets above an appliance. Children climbing on the
appliance to reach items could be seriously injured.
An appliance should not be used as a step stool to
cabinets above.
Utensil Safety
Use only pans with handles that are easily grasped
and stay cool. Avoid using unstable, warped, easily
tipped or loose handled pans. Do not use pans if their
handles twist and cannot be tightened. Pans that are
too heavy to move when filled with food may also be
hazardous. Use only glass cookware that is
recommended for use in the oven.
PAGE 3
Be sure utensil is large enough to properly contain
food and avoid boilovers.
Grease
Use extreme caution when moving the grease kettle
or disposing of hot grease. Hot grease is flammable.
Avoid letting grease deposits collect around the
appliance, range hood, or vent fan. Do not leave
container of grease around a cooking appliance.
Always let quantities of hot fat used for deep fat
frying cool before attempting to move or handle. In
the event of a grease fire,
Cover pan with a lid to extinguish flame and turn
burner off. Do not douse flame with water. Use a dry
chemical or foam-type extinguisher, if available, or
sprinkle heavily with baking soda.
do not attempt to move pan.
to items which are used infrequently and which are
safely stored in an area subjected to heat from an
appliance. Temperatures in storage areas above the
unit may be unsafe for some items, such as volatile
liquids, cleaners or aerosol spays.
Plastics
Many plastics are vulnerable to heat. Keep plastics
away from parts of the appliance that may become
warm or hot.
Aerosol Sprays
May aerosol-type spray cans are EXPLOSIVE when
exposed to heat and may be highly flammable. Avoid
their use or storage near a hot appliance.
Spills or boilovers which contain grease should be
cleaned up as soon as possible. If they are allowed to
accumulate, they could create a
fire hazard.
Venting
Never block oven vent or air intakes. Do not obstruct
the flow of combustion and ventilation air. Restriction
of air flow to the burner prevents proper performance.
Avoid touching oven vent area while oven is on and
for several minutes after oven is turned off. Some
parts of the vent and surrounding area become hot
enough to cause burns.
Cleaning
Turn off all controls and wait for appliance parts to
cool before touching or cleaning them.
Touching a hot oven light bulb with a damp cloth
could cause the bulb to break. Should the bulb break,
disconnect power to the oven before trying to remove
the bulb to avoid electrical shock.
Clean oven with caution. If a wet sponge or cloth is
used to wipe spills on a hot cooking area, be careful
to avoid steam burns. Some cleaners can produce
noxious fumes if applied to a hot surface.
Storage Above Oven
To eliminate the hazard of reaching over hot surfaces,
cabinet storage should not be provided directly above
a unit. If such storage is provided, it should be limited
Important Safety Notice
and Warning
The California Safe Drinking Water and Toxic
Enforcement Act of 1986 (Proposition 65) requires
the governor of California to publish a list of
substances known to the State of California to cause
cancer or reproductive harm, and requires businesses
to warn customers of the potential exposures to such
substances.
Users of this appliance are hereby warned that the
burning of gas can result in low-level exposure to
some of the listed substances, including benzene,
formaldehyde and soot, due primarily to the
incomplete combustion of natural gas or liquid
petroleum (LP) fuels. Properly adjusted burners will
minimize incomplete combustion. Exposure to these
substances can also be minimized by properly
venting the burners to the outdoors.
Baking Accessories
This appliance has been tested for safe performance
using conventional cookware. Do not use any devices
or accessories that are not specifically recommended
in this manual. Do not use add-on oven convection
systems. The use of devices or accessories that are not
expressly recommended in this manual can
create serious safety hazards, result in
performance problems, and reduce the life
of the components of this appliance.
PAGE 4
SAVE THESE INSTRUCTIONS
ELECTRONIC CLOCK AND OVEN CONTROL
The electronic clock and oven control on your
Maytag wall oven is used for the time-of-day
clock, timer, bake, broil, and programmed
operation functions. A beep will sound each
time a function pad is pressed.
The display on the control will flash when
power is first supplied to the wall oven or if
there is a power failure. Once the time-of-day
clock has been set (see Setting the Clock, page
6), the display will stop flashing.
The oven will automatically turn off if it is
left on for 121 hours.
NOTE:
with a self-diagnostic feature for service use
ONLY. If a fault code (F plus a number, ex.
F1) appears in the display along with a
continuous beeping sound, press the
CANCEL pad. See page 20 if the fault code
reappears in the display.
The electronic control is equipped
Explanation of Function
Timer Pad
The timer can be set from 1 minute to 9 hours,
50 minutes. It will count down by seconds
(when set for 1 minute) or minutes (when set
for 2 minutes or more time). See page 6 for
instructions on setting the timer.
Clock Pad
Use this pad to set the time-of-day clock. For
instructions, see page 6.
You may also press this pad to recall the
current time of day. For example, if the timer is
counting down in the display, press the CLOCK
pad to return the current time to the display. The
timer will continue to count down and a signal
will sound when the time expires.
Cook time / Oven Stop Pads
These pads are used to program the oven to
start and stop automatically, either immediately
or at a later time. For detailed information on
using Programmed Oven Operations, see pages
14 to 15.
Pads
The following pads are found on your Maytag
electronic clock and oven control:
Cancel Pad
Press this pad to cancel all operations except the
time-of-day clock and timer. If you are ever
unsure if you’ve programmed the control correctly, press the CANCEL pad and start over.
▲ and ▼ Pads
Press or press and hold these pads to enter the
time or temperature desired. These pads are also
used to select Hi or Lo broil.
Broil Pad
Use this pad to select broil. Two heat selections
are available for broiling - Hi and Lo. See page
13 for more broiling information.
Oven Temp Pad
This pad is used to select the oven temperature.
The oven temperature is set by pressing this pad
and the ▲ or ▼ pad. Additional baking and
roasting information can be found on pages 7
to 12
Important Safety Instructions Electronic Clock and Oven Control
PAGE 5
SETTING THE CLOCK AND TIMER
Clock
To set the time-of-day clock:
1. Press the CLOCK pad once. The words “Set
Time” will flash in the display.
2. Set the correct time of day using the
▼ pads.
• To change the time by one minute, press
either pad
• To change the time in increments of 10
minutes,
When the power is first supplied to the oven or
if there has been a power failure, the display
will flash. Follow above instructions to set the
clock. The clock time cannot be changed when
the oven is set for a cook or timing operation.
Cancel the operation to set the clock.
Press the CLOCK pad to recall the time of day
when another function is displayed.
once.
press and hold either pad
▲ and
Timer
To set the timer:
1. Press the TIMER pad once. The words “Set
Timer” will flash in the display.
2. Set the desired time using the
▼ pads.
• Press either pad
1 minute (if the Timer is set for up to
1 hour), 5 minutes (if the Timer is set for
over 1 hour), or 10 minutes (if the Timer is
set for over 2 hours).
Press and hold either pad to change the
•
time in 5 minute or 10 minute increments,
depending upon the time set in the display.
The TIMER can be set from 1 minute (0HR:01)
up to 9 hours and 50 minutes (9 HR:50).
The timing operation will start automatically.
Colons will flash in the display to indicate a
timing operation. One long continuous beep
will signal the end of the timing operation and
“End” will briefly appear in the display. The
time of day will automatically reappear in the
display. The TIMER pad does not control the
oven.
once to change the time by
▲ and
To cancel: Press and hold the TIMER pad for 3
seconds. The time of day will reappear after a
slight delay.
PAGE 6
