Magic Chef 9122 Gas, 9112 Gas User Manual

Owner’s Guide

24-inch Gas Wall Oven

with

Time-Of-Day Clock and Timer

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ............... 2-4 MAINTENANCE ........................................................ 11

............................................................................... Oven or broiler door ........................................... 11

CLOCK AND TIMER ................................................. 5 Oven bottom ....................................................... 11

............................................................................... Broiler bottom ..................................................... 11

USING YOUR OVEN ........................................... 6-10 Oven light ............................................................ 11

Oven characteristics ........................................... 6 Electrical connection ...........................................11

Pilotless ignition ................................................. 6

Oven vent ............................................................ 6 CARE AND CLEANING ....................................... 12-14

Oven burner ........................................................ 6 Cleaning chart ................................................ 12-13

Oven temperature control ................................. 6 How to remove oven for cleaning ..................... 14

How to set the oven ........................................... 7 Continuous cleaning oven ................................. 14

Preheating ........................................................... 7

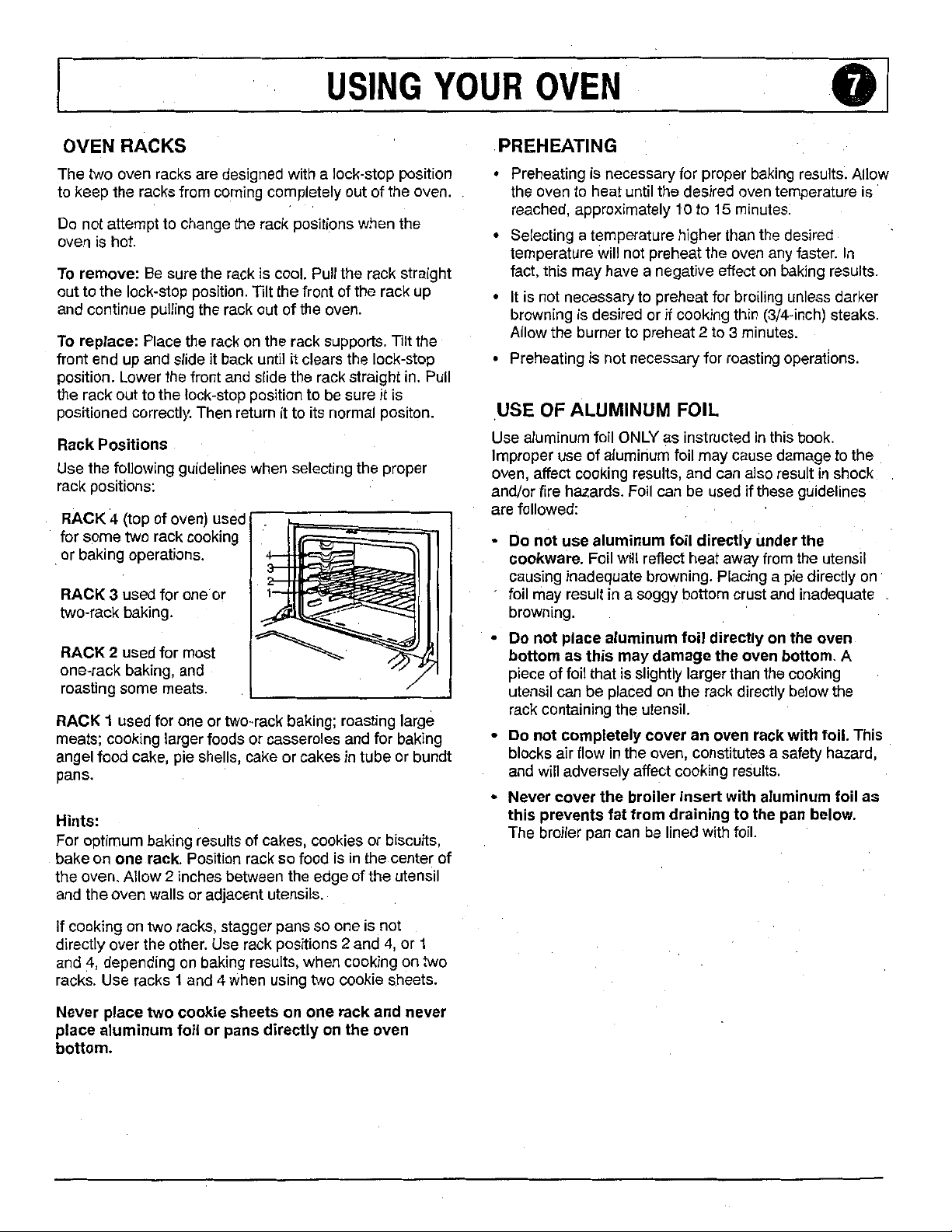

Oven racks .......................................................... 7 SERVICE .................................................................... 15

Use of aluminum foil.......................................... 8 Troubleshooting chart ........................................ 15

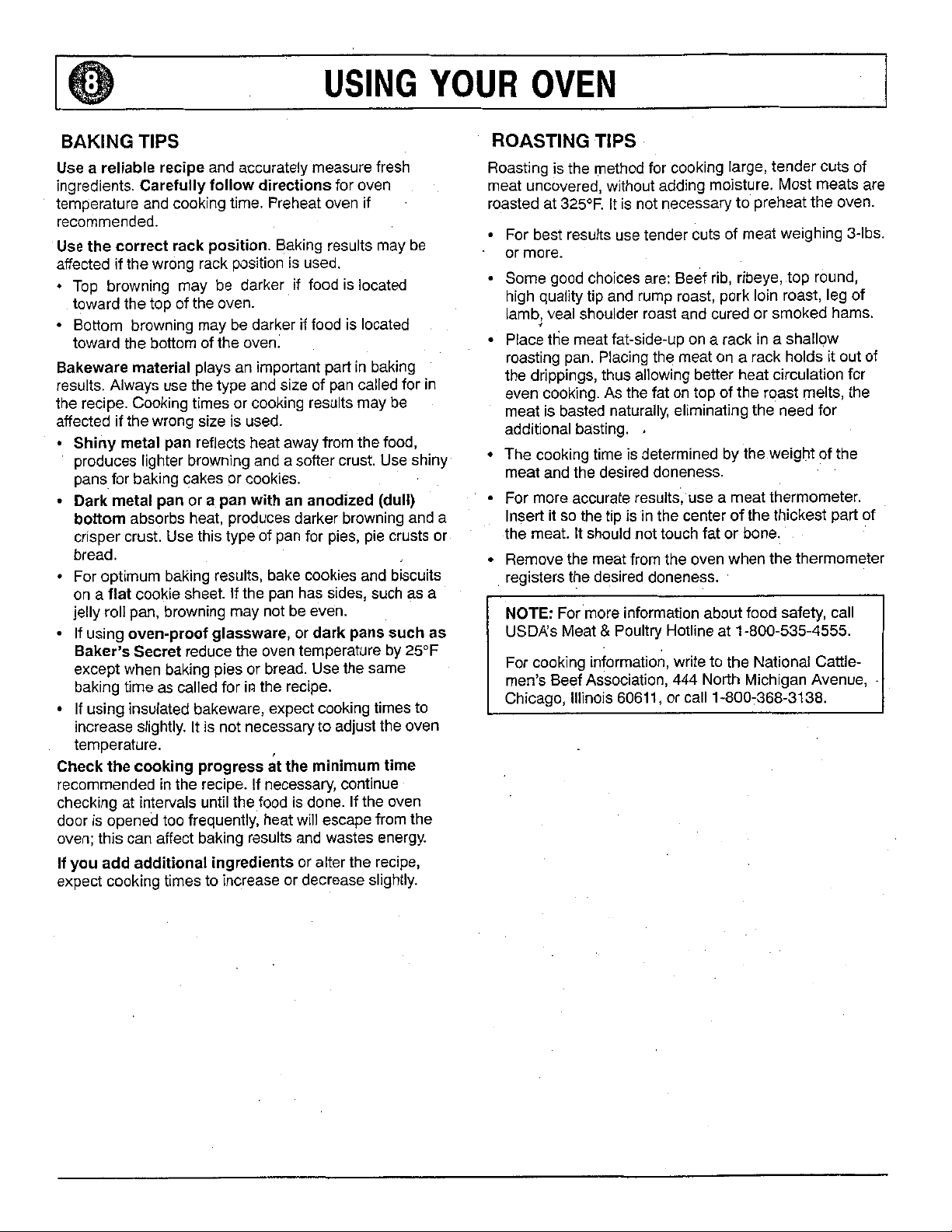

Baking tips .......................................................... 8 How to obtain service ......................................... 15

Roasting tips ....................................................... 8

Common baking problems chart ...................... 9 WARRANTY .............................................................. 16

How to broil ...................................................... 10

The model and serial numbers found on the rating plate which is located under the broiler oven bottom. See page 11 for instructions on removing

INSTALLER Please leave

this manual with this appliance.

CONSUMER To save you

time, energy and money, read and keep this manual for future reference.

the broiler oven bottom.

Model Number: ____________________________________________________

Serial Number: _____________________________________________________

Date of Purchase: ___________________________________________________

Please keep your sales receipt and/or your cancelled check as proof of purchase should warranty service be needed. Store those items with this booklet.

FOR CUSTOMER ASSISTANCE CALL 1-800-688-9900 USA

1-800-688-2002 Canada

8112P334-60

A/08/06

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Thank You

appliance. To help you obtain the maximum in cooking satisfaction, we offer these suggestions.

. . . for purchasing our cooking

☞ Read this manual before using the appliance.

☞ Read all safety and caution instructions.

☞ Review the Troubleshooting Chart on page 15

if service becomes necessary.

☞ Include the model and serial number of your

appliance when requesting service.

• Proof of purchase such as sales receipt will be needed for warranty service.

You can contact us at:

Maytag Appliances Sales Company Attn: CAIRSM Center P.O. Box 2370 Cleveland, TN 37320-2370 1-800-688-9900 USA 1-800-688-2002 Canada

In our continuing effort to improve the quality and performance of our cooking appliances, it may be necessary to make changes to the appliance without revising this manual.

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

– Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

– WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

– Installation and service must be

performed by a qualified installer, service agency or the gas supplier.

IMPORTANT SAFETY INSTRUCTIONS

The following instructions are based on safety considerations and must be strictly followed to eliminate the potential risks of fire, electric shock or personal injury.

Have your appliance installed and properly grounded by a qualified installer according to the installation instructions. Have the installer show you the location of the gas shut off valve and how to shut it off in an emergency.

Always disconnect power to appliance before servicing.

To ensure proper operation and avoid possible injury or damage to unit do not attempt to adjust, repair, service or replace any part of your appliance unless it is specifically recommended in this book. All other servicing should be referred to a qualified installer or servicer.

TO PREVENT FIRE OR SMOKE DAMAGE

Be sure all packing materials are removed from the appliance before operating it.

Keep area around appliance clear and free from combustible materials, gasoline, and other flammable vapors and materials.

Many plastics are vulnerable to heat. Keep plastics away from parts of the appliance that may become warm or hot.

Many aerosol-type spray cans are EXPLOSIVE when exposed to heat and may be highly flammable. Avoid their use or storage near an appliance.

IN CASE OF FIRE

1. Turn off appliance.

CHILD SAFETY

NEVER leave children alone or unsupervised near the appliance when it is in use or is still hot. NEVER allow children to sit or stand on any part of the appliance.

Children must be taught that the appliance and utensils in it can be hot. Let hot utensils cool in a safe place, out of reach of small children. Children should be taught that an appliance is not a toy. Children should not be allowed to play with controls or other parts of the unit.

CAUTION: NEVER store items of interest to children in cabinets above an appliance. Children climbing on the appliance to reach items could be seriously injured.

ABOUT YOUR APPLIANCE

WARNING

NEVER use appliance door as a step stool or seat as this may result in possible tipping of the appliance and serious injuries.

NEVER use this appliance as a space heater to heat or warm a room. Doing so may result in carbon monoxide poisoning and overheating of the oven.

NEVER cover any slots, holes or passages in the oven bottom or cover the entire rack with materials such as aluminum foil. Doing so blocks air flow through the oven and may cause carbon monoxide poisoning. Aluminum foil may also trap heat causing a fire hazard.

2. Use dry chemical or foam-type extinguisher or baking soda to smother fire or flame. Never use water on a grease fire.

3. If fire is in the oven or broiler pan, smother by closing oven door.

NEVER obstruct the flow of combustion and ventilation air by blocking the oven vent or air intakes. Doing so restricts air to the burners and may result in carbon monoxide poisoning.

Do not use the oven as a storage area for food or cooking utensils.

Avoid touching oven vent area while oven is on and for several minutes after oven is turned off. Some parts of the vent and surrounding area become hot enough to cause burns. After oven is turned off, do not touch the oven vent or surrounding areas until they have had sufficient time to cool.

Do not touch a hot oven light bulb with a damp cloth as the bulb could break. Should the bulb break, disconnect power to the appliance before removing bulb to avoid electrical shock.
