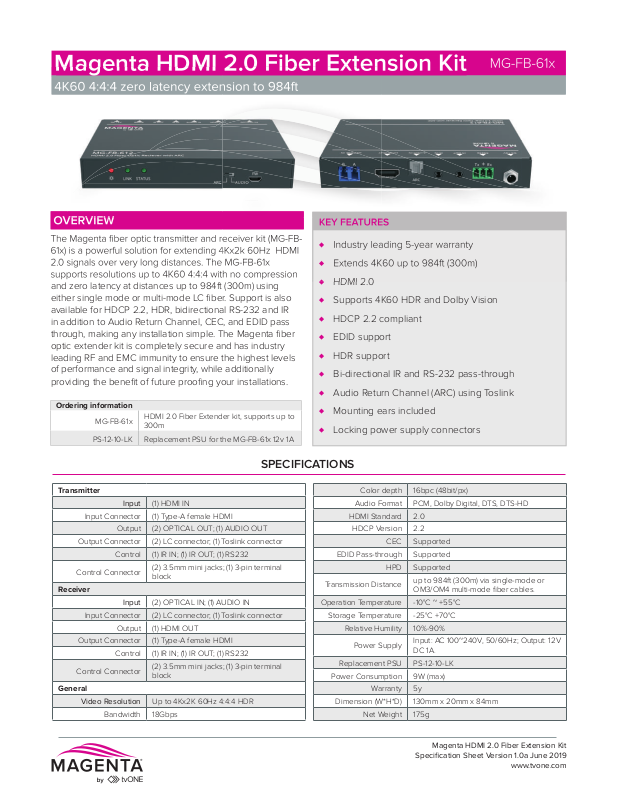

Magenta Research MG-FB-61X Data Sheet
Magenta HDMI 2.0 Fiber Extension Kit
OVERVIEW
4K60 4:4:4 zero latency extension to 984ft
The Magenta fi ber optic transmitter and receiver kit (MG-FB-
supports resolutions up to 4K60 4:4:4 with no compression
4K60 4:4:4 zero latency extension to 984ft
MG-FB-61x
OVERVIEW
The Magenta fi ber optic transmitter and receiver kit (MG-FB-
61x) is a powerful solution for extending 4Kx2k 60Hz HDMI
2.0 signals over very long distances. The MG-FB-61x
supports resolutions up to 4K60 4:4:4 with no compression
and zero latency at distances up to 984ft (300m) using
either single mode or multi-mode LC fi ber. Support is also
available for HDCP 2.2, HDR, bidirectional RS-232 and IR
in addition to Audio Return Channel, CEC, and EDID pass
through, making any installation simple. The Magenta fi ber
optic extender kit is completely secure and has industry
leading RF and EMC immunity to ensure the highest levels
of performance and signal integrity, while additionally
providing the benefi t of future proofi ng your installations.
Ordering information
MG-FB-61x
PS-12-10-LK Replacement PSU for the MG-FB-61x 12v 1A
HDMI 2.0 Fiber Extender kit, supports up to
300m
SPECIFICATIONS
Transmitter
Input (1) HDMI IN
Input Connector (1) Type-A female HDMI
Output (2) OPTICAL OUT; (1) AUDIO OUT
Output Connector (2) LC connector; (1) Toslink connector
Control (1) IR IN; (1) IR OUT; (1) RS232
Control Connector
Receiver
Input Connector (2) LC connector; (1) Toslink connector
Output (1) HDMI OUT
Output Connector (1) Type-A female HDMI
Control (1) IR IN; (1) IR OUT; (1) RS232
Control Connector
General
Video Resolution Up to 4Kx2K 60Hz 4:4:4 HDR
Bandwidth 18Gbps
(2) 3.5mm mini jacks; (1) 3-pin terminal
block
Input (2) OPTICAL IN; (1) AUDIO IN
(2) 3.5mm mini jacks; (1) 3-pin terminal
block
KEY FEATURES
♦ Industry leading 5-year warranty
♦ Extends 4K60 up to 984ft (300m)
♦ HDMI 2.0
♦ Supports 4K60 HDR and Dolby Vision
♦ HDCP 2.2 compliant
♦ EDID support
♦ HDR support
♦ Bi-directional IR and RS-232 pass-through
♦ Audio Return Channel (ARC) using Toslink
♦ Mounting ears included
♦ Locking power supply connectors
Color depth 16bpc (48bit/px)
Audio Format PCM, Dolby Digital, DTS, DTS-HD
HDMI Standard 2.0
HDCP Version 2.2
CEC Supported
EDID Pass-through Supported
HPD Supported
Transmission Distance
Operation Temperature -10°C ~ +55°C
Storage Temperature -25°C +70°C
Relative Humility 10%-90%
Power Supply
Replacement PSU PS-12-10-LK
Power Consumption 9W (max)
Warranty 5y
Dimension (W*H*D) 130mm x 20mm x 84mm
Net Weight 175g
up to 984ft (300m) via single-mode or
OM3/OM4 multi-mode fi ber cables.
Input: AC 100~240V, 50/60Hz; Output: 12V
DC 1A.
®
Magenta HDMI 2.0 Fiber Extension Kit
Specifi cation Sheet Version 1.0a June 2019
www.tvone.com
