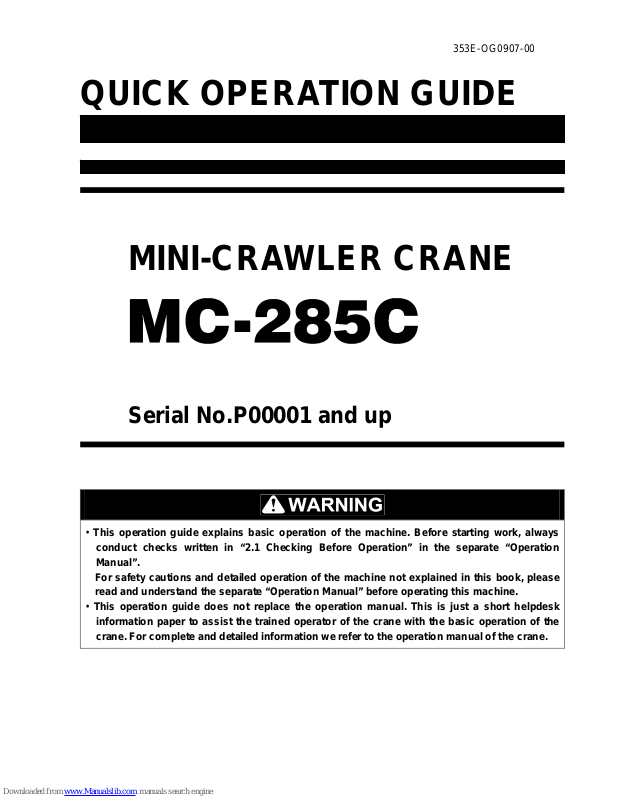

353E-OG0907-00
QUICK OPERATION GUIDE
MINI-CRAWLER CRANE
Serial No.P00001 and up
• This operation guide explains basic operation of the machine. Before starting work, always
conduct checks written in “2.1 Checking Before Operation” in the separate “Operation
Manual”.
For safety cautions and detailed operation of the machine not explained in this book, please
read and understand the separate “Operation Manual” before operating this machine.
• This operation guide does not replace the operation manual. This is just a short helpdesk
information paper to assist the trained operator of the crane with the basic operation of the
crane. For complete and detailed information we refer to the operation manual of the crane.
CONTENTS
ITEM Page
1. TRAVELLING OPERATION UNITS 3
2. CRANE OPERATION UNITS 3
3. ST ARTING AND STOPPING THE E N GINE 4
4. TRA VELLING OPERATION 4
5. OUTRIGGER OPERATION 5
6. CRANE OPERATION 6
7. MOMENT LIMITER (OVERLOAD DETECTOR) 7
8. REMOTE CONTROL 8
8.1 PROCEDURE IN THE OPERATION MODE 9
8.2 OPERATION IN OUTRIGGER MODE 9
8.3 OPERATION IN CRANE MODE 10
8.4 SET-UP AN D CANCEL MICRO SPEED 10
9. ELECTRIC MOTOR SPECIFICATION 10
FOR SAFE USE OF MACHINE
This manual classifies the risks into the following three categories to present the details of the safety
labels in easy-to-understand manner.
This denotes that there is an imminent hazard which will cause serious pe rsonal
injury or death.
The method of hazard circumvention is state d.
This denotes that there is a hazard whic h can cause serious personal injury o r
death.
The method of hazard circumvention is state d.
This denotes that there is a potential hazard which may cause minor or
moderate personal injury or serious damage to this machine.
The method of hazard circumvention is state d.
This manual also provides the following to indicate what must be observed for the sake of the machine and
what will be of help.
This denotes that failure to handle the machine properly may damage the machine
or shorten its life.
This denotes helpful information.
CAUTION
NOTES
1. TRA VELLING OPERATION UNITS
(1) Acceleration lever
(2) Left travelling lever
(3) Right travelling lever
(4) Trav elling lever st and lock lever
(5) Fuel gauge
(6) Hour meter
(7) Engine water temperature monitor
(8) Engine oil pressure monitor
(9) Charge monitor
(10) Main starter switch
(11) Horn switch
(12) Working light switch
(13) Fuse (15A)
(14) Fuse (20A)
(15) Fuse (15A)
(16) Emergency engine stop switch
(17) Engine and electric motor swit ch
(MC285CRM-E only)
2. CRANE OPERA TION UNITS
(1) Acceleration lever
(2) Slewing lever
(3) Boom telescoping lever
(4) Outrigger mode lamp
(5) Load meter
(6) Level
(7) Winch lever
(8) Boom derricking lever
(9) Alarm buzzer
(10) Outrigger control switch
(a) Outrigger [1] control switch
(b) Outrigger [2] control switch
(c) Outrigger [3] control switch
(d) Outrigger [4] control switch
(11) Horn switch
(12) Auxiliary starter switch
(13) Emergency engine stop switch
(14) Hook stowing switch
(15) Emergency stop cancel switch
-3-
3. ST ARTING AND ST OPPING THE ENGINE
[1] ST ARTING THE ENGINE WITH MAIN STARTER SWITCH
1. Push the acceleration lever upward to operate the e ngine at medium speed (lever stroke about midway).
2. Insert the key and turn it left (preheating) f or about four seconds or until the glow lamp light goes out.
3. Turn the key to the right to st art the crane.
[2] STOPPING THE ENGINE WITH MAIN STARTER SWITCH
1. Pull the acceleration lever downward and change th e engine speed to low idli ng.
2. Turn the m ain starter swit ch key to the OFF po sition. The eng ine stops.
[3] ST ARTING THE ENGINE WITH AUXILIAR Y STARTER SWITCH
1. Insert the key into the main starter switch and turn the key to the ON position.
2. Pull back the acceleration lever toward you to operat e the engine at medium spe ed (lever stroke about mid way).
3. Push the auxiliary starter switch up to the STAR T position (upward) unti l the machine st art s. Then release the st arter
switch and it will return to the neutral position.
[4] STOPPING THE ENGINE WITH AUXILIAR Y STARTER SWITCH
1. Push the acceleration lever forward and chan ge the engine spee d to low idling.
2. Push the auxiliary starter switch down to the ST OP posit ion (downward). The engine stops.
3. Turn the m ain starter swit ch key to the OFF position.
4. TRA VELLING OPERATION
[1] ST ARTING/MOVING MACHINE
To start travelling, put the travel lever stand to the TRAVEL position
(upwards).
To move the machine, there are two levers which work independently.
The left lever operates the left rubber track, the right lever operates the right
rubber track.
• To move forward, push both levers to the front.
• To move backward, pull both levers to the back.
[2] CHANGING P ATH OF MACHINE
[3] STOPPING/PARKING MACHINE
Changing the machine direction
while being stopped
Changing path while moving
Forward/Backward
Spin turns
Return the left and right travelling levers to the NEUTRAL position at the same time. The brakes are automatically
applied and the machine will stop.
-4-
5. OUTRIGGER OPERA TION
(1) Outrigger base (6) St ay (Damper ty pe) (10) Inner box
OUTRIGGER COMPONENTS
(2) Outrigger cylinder (7) Outrigger top position pin (11) Outrigger adapter (Foot)
(3) Outrigger rotary (8) Inner box position pin (12) Snap pin
(4) Rotary position pin (9) Outrigger top (13) Snap pin
There are four outriggers installed on the machine. Although the setting
method is described for just one outrigger (out rigger (3), set the ot her three
outriggers in the same way .
[1] OUTRIGGER SET UP OPERA TION
It is forbidden to work with the crane without the o utriggers.
(1) T ASKS T O BE PERFORMED UPON ENGINE ST OP
1. Rotate the outriggers as much a s possible (che ck this with the alignm ent
of the “STA NDARD” decals). Secure with the position pin.
2. Open (lift up) the outriggers as much as possible and secure with the
position pin and snap pin.
3. Pull out the inner box from the outrigger top as much as possible and
secure with the position pin and snap pin.
-5-
(2) T ASKS T O BE PERFORMED AFTER STARTING ENGINE
CAUTION
Before working with the outriggers and the crane, set the travel
lever stand in CRANE position. (push the travel lever stand down)
1. Put the outriggers down ONE by ONE until they all just touch t he ground.
2. Then use the outriggers TWO by T WO to stabili ze the crane.
3. Check the bubble in the level in order to make sure th e crane is in the correct positi on.
4. Make sure the rubber tracks are about 80mm ab ove the ground.
[2] OUTRIGGER STOWING OPERA TION
Reverse the outrigger set up procedure to stow the outrigger .
6. CRANE OPERA TION
[1] OPERA TIONS BEFORE CRANE OPERATIONS
CAUTION
Before working with the outriggers and the crane, set the travel
lever stand in CRANE position. (push the travel lever stand down)
Never let the hook block touch the ground or let the winch rope slacken. This could damage the
winch rope.
Un-stow the hook block :
Lower off the winch rope and raise the b oom, until you can un-stow th e hook.
NOTES
When extending the boom, always Lower the hook block
simultaneously .
[2] CRANE OPERA TIONS
There are 4 possible crane operations :
(2): Slewing (forward: counterclockwise, backward: clockwise)
(3): Boom telescoping (forward: extend, backward: retract)
(7): Hook rasing and lowering
(forward: lowering, backward: raising)
(8): Boom derricking (forward: low ering, backward: rais ing)
-6-
[3] CRANE STOWING OPERA TION
1. Completely retract the boom and slew until the boom is over the center of the crane. Lower the boom to the
maximum (it stops automatically).
2. Attaching the hook block in the hook hanger:
Hoist up the hook block to the over hoist protection. Attach the hook to the hanger and raise the hook block using the
over hoist DETECTOR (see drawing) and simultaneo usly pull the winch leve r towards you.
3. Warning : Be careful with the over hoist detector. The hook block will not stop autom atically, so don’t apply to m uch
tension, but apply enough tension to stop the hook blo ck from moving .
7. MOMENT LIMITER (OVERLOAD DETECTOR)
MOMENT LIMITER FUNCTIONS
[1] PROHIBITED ACTIONS AFTER AUTO STOP
The following crane operations are prohibited af ter th e crane has stopped autom atically due to ov erloading.
These operations may cause overturnin g of the machine or breaka ge of the boom and are v ery dangerous.
• Boom lowering operation • Boom extending operation • Hook raising oper ation
• Crane slewing operation
[2] OVERLOAD WARNING
1. PRE-WARNING:
“Actual load” is 70 to less than 100 % of the “rated tot al load”.
• The LED “70~100” on the moment limiter display light s up.
• The alarm bleeps intermittently.
• The working status lamp changes from green to yello w .
2. LIMIT WARNING:
“Actual load” is 100 % or higher than t he “rated tot al load”.
• The LED “100~” on the moment limiter display light s up.
• The alarm sounds continuously.
• The working status lamp changes from yellow to red.
• The hazardous operation of the crane stop s automatically.
(Hook raising, boom lowering, boom extending)
3. RECOVERY OPERATI ON AFTER AUTO ST OP
If the system stops automatically, promptly perform one of following the recovery operation caused by overloading.
(1) Hook lowering operation
(2) Boom raising operation (never raise th e boom to lift the load from th e ground, always winch the load clear of the
ground before any other operation is pe rformed)
(3) Boom retracting operation
-7-
-8-
(1) Boom angle display
(2) Lifting height display
(3) Boom length display
(4) Boom lifting height upper li mit switch
(5) Over hoist detection LED (Red)
(6) Actual load display
(7) Rated total load display
(8) Boom angle lower limit switch
(9) Working radius displ ay
(10) Working radius upper limit switch
(11) Boom angle upper limit switch
(12) Outrigger extension LED (Orange)
(13) Check switch
(14) Cancel switch
(15) Load capacity LED (Orange)
(16) Fall mode selector & Searcher hook
mode switch
MOMENT LIMITER DISPLAY
8. REMOTE CONTROL
TRANSMITTER
(1) LCD Screen (8) Slewing/No.1 Outrigger Operation Lever
(2) Start/Reset Button (9) Boom Telescoping/No.2 Outrigger Operation Lever
(3) Stop/EMO Button (10) Hook Raising and Lowering/No.3 Outrigger Operatio n Lever
(4) Speed/Mod e Button (1 1) Boom derricking/No.4 Outrig ger Operation Lever
(5) Setting Button (12) Accelerator Lever
(6) Horn Button (13) Grip
(7) Power Switch (14) Connection Cable
8.1 PROCEDURE IN THE OPERA TION MODE
[1] CALL UP CRANE MODE
1. Push the Power button to turn ON the Transmitter .
2. The “Crane mark” is displayed in the LCD scree n for about 2 seconds.
3. The crane is ready for operation.
[2] CALL UP OUTRIGGER MODE
1. Push the Power button to turn ON the Transmitter .
2. The “Crane mark” is displayed in the LCD scree n for about 2 seconds.
3. While the “Crane mark” is displayed, push the speed button for about 2 seconds. The LCD provides the screen for
selecting “CRANE MODE” or “OUT RIGGER MODE”.
4. Use the Hook raising and lowering Lever to shift the cursor (
or ), and push the Setting button when the cursor
points to the “OUTRIGGER”.
8.2 OPERA TION IN OUTRIGGER MODE
The outriggers of the crane are numbered from 1 to 4 and these correspond
to the numbers of each operation lever on the rem ote control.
NOTES
If you want to START any action, always use the operation lever first and only afterwards pull the
accelerator (slowly).
If you want to END any action, first release the accelerator slowly, and then release the operation lever.
1. Put the outriggers down ONE by ONE (by pushing do wn the levers) until they all just touch the ground.
2. Then use the outriggers TWO by T WO to stabili ze the crane.
3. Check the bubble in the level in order to make sure th e crane is in the correct positi on.
4. Make sure the rubber tracks are about 80mm ab ove the ground.
For stowing the outriggers : push the operation l evers up.
-9-
8.3 OPERA TION IN CRANE MODE
Four Crane operation switches are provided. Each controls the following
operation, respectively. (See the figure on the right.)
(1): Slewing (upper: counterclockwise, lower: clockwise)
(2): Boom telescoping (upper: extend, lower: retract)
(3): Hook rasing and lowering (upper: raising, lower: lowering)
(4): Boom derricking (upper: raising, lower: low ering)
8.4 SET-UP AND CANCEL MICRO SPEED
The speed of the crane can also be controlled by the MICRO SPEE D MODE.
Just push the speed/mode button and each push will forward the LCD screen
indication as shown in the diagram to the right.
9. ELECTRIC MOTOR
If electric motor is required, please att a ch a electri c cable and t urn the engin e
and electric motor switch to the “Electric Motor” (upper) position. To start the
electric motor, simply insert the key into the main starter switch and turn on
the engine. (Pre-heating is not necessary.)
All other operations (travelling – outriggers – crane) are the same as
described in previous chapters.
-10-
MAEDA MINI-CRAWLER CRANE MC-285C QUICK OPERATION GUIDE
Document No: 353E-OG0907-00
First edition: July 15, 2009
Issued by Maeda Seisakusyo Co., Ltd.
1095 Onbegawa, Shinonoi
Nagano, Nagano 388-8522,
Japan
No part of this manual can be reproduced in any from without permission
-11-
Loading...
