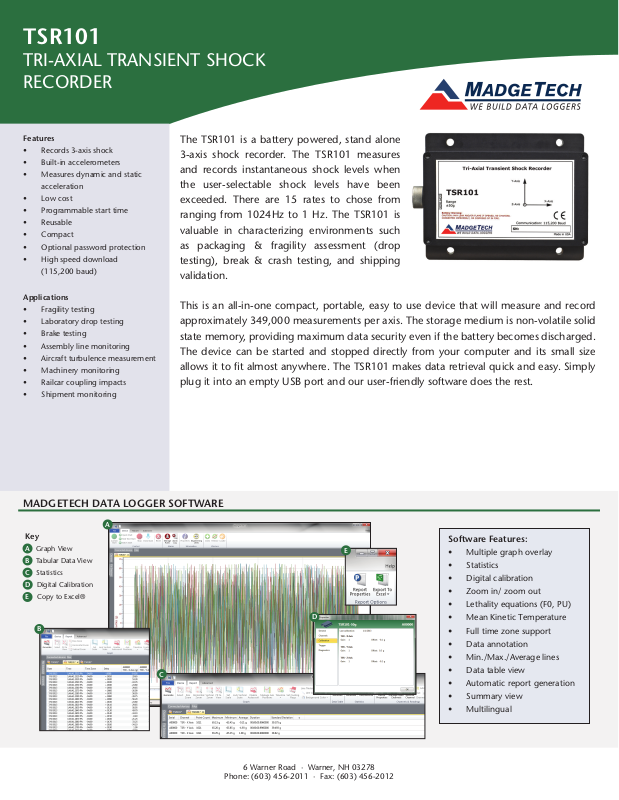

MadgeTech TSR101 Data sheet
TSR101
TRI-AXIAL TRANSIENT SHOCK
RECORDER
Features
• Records 3-axis shock
• Built-in accelerometers
• Measures dynamic and static
acceleration
• Low cost
• Programmable start time
• Reusable
• Compact
• Optional password protection
• High speed download
(115,200 baud)
Applications
• Fragility testing
• Laboratory drop testing
• Brake testing
• Assembly line monitoring
• Aircraft turbulence measurement
• Machinery monitoring
• Railcar coupling impacts
• Shipment monitoring
The TSR101 is a battery powered, stand alone
3-axis shock recorder. The TSR101 measures
and records instantaneous shock levels when
the user-selectable shock levels have been
exceeded. There are 15 rates to chose from
ranging from 1024Hz to 1 Hz. The TSR101 is
valuable in characterizing environments such
as packaging & fragility assessment (drop
testing), break & crash testing, and shipping
validation.
This is an all-in-one compact, portable, easy to use device that will measure and record
approximately 349,000 measurements per axis. The storage medium is non-volatile solid
state memory, providing maximum data security even if the battery becomes discharged.
The device can be started and stopped directly from your computer and its small size
allows it to fit almost anywhere. The TSR101 makes data retrieval quick and easy. Simply
plug it into an empty USB port and our user-friendly software does the rest.
MADGETECH DATA LOGGER SOFTWARE
A
Key
A Graph View
B Tabular Data View
C Statistics
D Digital Calibration
E Copy to Excel®
B
C
E
D
6 Warner Road · Warner, NH 03278
Phone: (603) 456-2011 · Fax: (603) 456-2012
Software Features:
• Multiple graph overlay
• Statistics
• Digital calibration
• Zoom in/ zoom out
• Lethality equations (F0, PU)
• Mean Kinetic Temperature
• Full time zone support
• Data annotation
• Min./Max./Average lines
• Data table view
• Automatic report generation
• Summary view
• Multilingual
TSR101 SPECIFICATIONS*
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. SPECIFIC WARRANTY REMEDY LIMITATIONS
APPLY. CALL 1-603-456-2011 OR GO TO WWW.MADGETECH.COM FOR DETAILS.
Channels: Shock (3 axes)
Accelerometer Type: MEMS Semiconductor
Acceleration Range (g): ±5 ±50 ±100 ±250
Calibrated Accuracy (g): ±0.2 ±1 ±2 ±4
Acceleration Resolution (g): 0.01 0.05 0.1 0.2
Reading Rate Range:
15 options from 0.976ms/1,024Hz to 1
second, selectable in software
User settable trigger levels on X, Y, and/
Trigger Specifics:
or Z axes, and specifies # of samples
after triggers
Pre-Trigger Specifics:
Frequency Response:
Records a pre-trigger of up to 50
readings prior to the trigger point
0Hz to approx. 400Hz (50, 100 g)
(0-512Hz (5 g))
May be used with PC to monitor and
Real Time Recording:
record instantaneous acceleration in
real time (Only at 1 second rate, not
possible during logging)
Start Modes:
Software programmable immediate start
or delay start up to 180 days in advance
An optional password may be
Password Protection:
programmed into the device to restrict
access to configuration options. Data
may be read out without the password
Calibration:
Digital calibration is available to the user through
software
Calibration Date: Automatically recorded within device
Battery Type:
Battery Life:
9V lithium or alkaline battery included;
user replaceable
7 days typical with lithium battery, immediate
start, 1024Hz
Data Format: Date and time stamped gravities (g and mg)
Time Accuracy: ±1 minute/month (at 20 ºC to 30 °C)
Computer Interface: USB (interface cable required), 115,200 baud
Software: XP SP3/Vista/Windows 7/Windows 8
Operating Environment: -20 ºC to +60 ºC, 0 to 95%RH non-condensing
Dimensions: 3.5” x 4.4” x 1.0” (89 mm x 112 mm x 26 mm)
Weight: 12 oz (340 g)
Materials: Anodized aluminum
Approvals: CE
BATTERY WARNING: DISCARD USED BATTERY PROMPTLY. KEEP OUT OF REACH OF CHILDREN.
DO NOT DISPOSE OF IN FIRE, RECHARGE, PUT IN BACKWARDS, DISASSEMBLE, OR MIX WITH
OTHER BATTERY TYPES. MAY EXPLODE, FLAME, OR LEAK AND CAUSE PERSONAL INJURY.
ORDERING INFORMATION
MODEL DESCRIPTION
TSR101-5 ±5g Tri-Axial Shock Recorder
TSR101-50 ±50g Tri-Axial Shock Recorder
TSR101-100 ±100g Tri-Axial Shock Recorder
TSR101-250 ±250g Tri-Axial Shock Recorder
IFC200 Software, manual and USB interface cable
U9VL-J Replacement battery for TSR101
For Quantity Discounts call 603-456-2011 or email sales@madgetech.com
6 Warner Road · Warner, NH 03278
Phone: (603) 456-2011 · Fax: (603) 456-2012
Temperature
ASK ABOUT
OUR OTHER
DATA
LOGGERS
DOC-1156009-00 REV 2 2014.01.23
