MadgeTech TC4000 Data sheet

Features

 N.I.S.T. traceable
 Wide temperature range
 Accepts thermocouple types

J, K, T, E, R, S, B, N

 Real-time operation
 Low cost
 Programmable start time
 Miniature size

 CE compliant

Applications

 Process verification/validation
 Dry ice shipments and storage
 Oven profiling
 HVAC
 Medical/Pharmaceutical
 Oven profiling
 Museum monitoring
 Environmental studies
 Replace costly strip chart recorders
 Implement HACCP programs

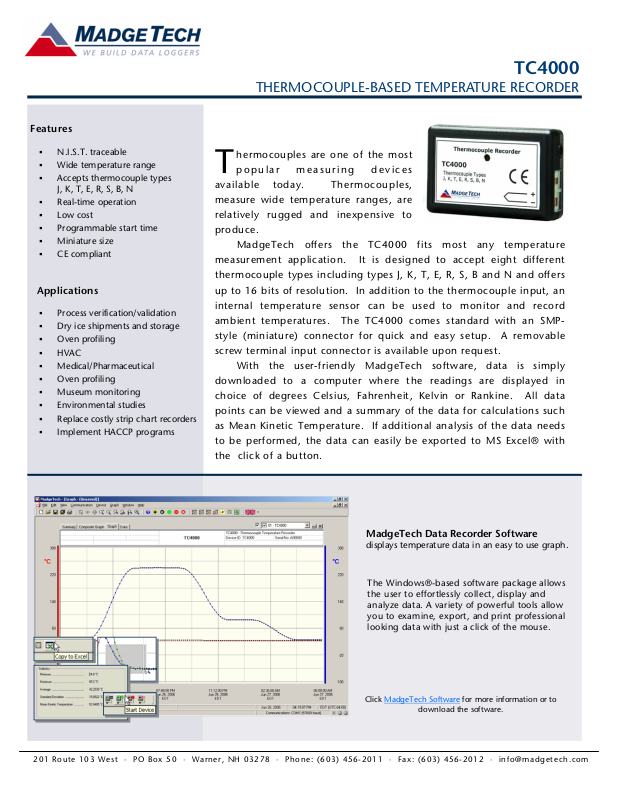

TC4000

THERMOCOUPLE-BASED TEMPERATURE RECORDER

hermocouples are one of the most

T

popular measuring devices

available today. Thermocouples,

measure wide temperature ranges, are

relatively rugged and inexpensive to

produce.

MadgeTech offers the TC4000 fits most any temperature

measurement application. It is designed to accept eight different

thermocouple types including types J, K, T, E, R, S, B and N and offers

up to 16 bits of resolution. In addition to the thermocouple input, an

internal temperature sensor can be used to monitor and record

ambient temperatures. The TC4000 comes standard with an SMP-

style (miniature) connector for quick and easy setup. A removable

screw terminal input connector is available upon request.

With the user-friendly MadgeTech software, data is simply

downloaded to a computer where the readings are displayed in

choice of degrees Celsius, Fahrenheit, Kelvin or Rankine. All data

points can be viewed and a summary of the data for calculations such

as Mean Kinetic Temperature. If additional analysis of the data needs

to be performed, the data can easily be exported to MS Excel® with

the click of a button.

MadgeTech Data Recorder Software

displays temperature data in an easy to use graph.

The Windows®-based software package allows
the user to effortlessly collect, display and
analyze data. A variety of powerful tools allow
you to examine, export, and print professional
looking data with just a click of the mouse.

Click MadgeTech Software for more information or to

201 Route 103 West · PO Box 50 · Warner, NH 03278 · Phone: [phone] · Fax: [phone] · [e-mail]

download the software.

TC4000 SPECIFICATIONS*

Internal Channel

Temperature Range:

Temperature Resolution:

Calibrated Accuracy:

Remote Channel

Thermocouple Types:

Thermocouple connection:

Cold Junction

Compensation:

Maximum Thermocouple

Thermocouple Type: Range (ºC) Resolution Accuracy User Replaceable Battery:

Resistance:

J

K

T

E

R

S

B

N

-40 to +80ºC

0.1ºC

±0.5ºC

J, K, T, E, R, S, B, N

Female subminiature (SMP), fixed or
pluggable screw terminal available

Automatic, based on internal channel

1000Ω, <100Ω recommended

-210 to +760 0.1ºC ±0.5 ºC

-270 to +1370 0.1ºC ±0. 5ºC

-270 to +400 0.1ºC ±0.5 ºC

-270 to +980 0.1ºC ±0.5ºC

-50 to +1760 0.5ºC ±2.0º C

-50 to +1760 0.5ºC ±2.0º C

+50 to +1820 0. 5ºC ±2.0º C

-270 to +1300 0.1ºC ±0.5 ºC

Thermocouple accuracy is specified with a 24 AWG

Real Time Recording:

Reading Interval:

Calibration Date:

Data Format:

Time Accuracy:

Computer Interface:

Operating Environment:

SOFTWARE FEATURES

Multiple Graphs:

Graphical Cursor:

Data Table:

Scaling Options:

Formatting Options:

ORDERING INFORMATION

Simultaneously analyze data from
several units or deployments; easily
switch to a single data series

One click displays readings by time,
value, parameter or sample number

Instantly access tabular view for
detailed dates, times, values, and
annotations

Autoscale function fits data to the
screen, or allows user to manually
enter their own values

Change colors, line styles, plotting
options, show or hide channels quickly

Export Data:

Calibration:

Logger Configuration:

Communications:

Start Time:

Memory:

Calibration:

Power:

Software:

Dimensions:

Weight:

Approvals:

Statistics:

CALL 1-603-456-2011 OR GO TO WWW.MADGETECH.COM FOR DETAILS.

Software programmable start time and date, up to six
months in advance

May be used with PC to monitor and record data in
real time

16,383 readings per channel (32,766 total memory):
software configurable memory wrap

1 reading every 2 seconds to 1 every 12 hours

Digital calibration through software

Automatically recorded within device

3.6V lithium battery included

1 year typical (1 minute reading rate at 25ºC)

Date and time stamped ºC, ºF, K, ºR; µV, mV , V

±1 minute/month (at 20ºC, RS232 port not in use)

PC serial or USB (interface cable required); 2,400
baud

Windows 95/98/ME/NT/2000/XP based software

-40 to +80ºC, 0 to 95%RH non-condensing

1.4" x 2.2" x 0.6” (36mm x 56mm x 16mm)

0.9 oz (25 g)

CE compliant

BATTERY WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD.

DO NOT RECHARGE, DISASSEMBLE, HEAT ABOVE 212ºF,

INCINERATE OR EXPOSE CONTENTS TO WATER.

Calculate averages, min, max, standard
deviation, and mean kinetic temperature
with the touch of a button

Export data in a variety of common formats, or
switch to Excel® with a single click

Automatically calculate and store calibration
parameters

Easy set up and launch of data loggers with
immediate or delayed start, preferred sample
rate, and device ID

Automatically sets up communications port, or
lets user select configuration

*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

SPECIFIC WARRANTY AND REMEDY LIMITATIONS APPLY.

Model Description Price (U.S.)

TC4000-MP

TC4000-ST

TC4000-TB

IFC110

IFC200

LTC-7PN

For Quantity Discounts call 603-456-2011 or email [e-mail]

201 Route 103 West · PO Box 50 · Warner, NH 03278 · Phone: [phone] · Fax: [phone]

Thermocouple Recorder, standard mini plugs $199.00

Thermocouple Recorder, fixed screw terminals $199.00

Thermocouple Recorder, pluggable screw terminals $199.00

Software, manual and RS232 interface cable $99.00

Software, manual and USB interface cable $119.00

N.I.S.T. Calibration Certificate Call for Pricing

NIST

Replacement battery for Temp100 $10.00

ASK ABOUT OUR OTHER

Temperature

Humidity

Pressure

pH

Level

Shock

DATA RECORDERS

Pulse/Event/State

Low Level Current

Low Level Voltage

RF Transmitters

Intrinsically Safe

Spectral Vibration

DOC-1010009-00 REV A 2006.06.29
