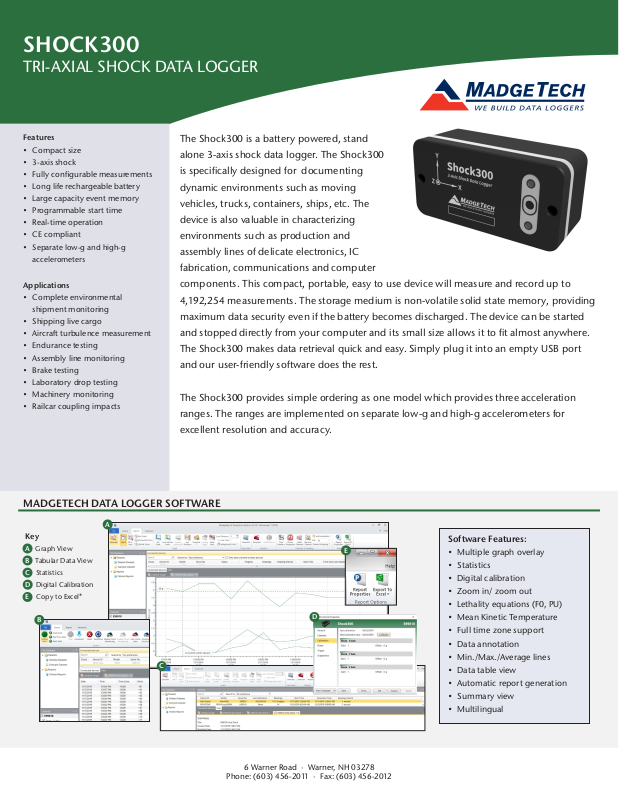

MadgeTech Shock300 Specifications

SHOCK300

TRI-AXIAL SHOCK DATA LOGGER

Features

• Compact size

• 3-axis shock

• Fully configurable measurements

• Long life rechargeable battery

• Large capacity event memory

• Programmable start time

• Real-time operation

• CE compliant

• Separate low-g and high-g
accelerometers

Applications

• Complete environmental
shipment monitoring

• Shipping live cargo

• Aircraft turbulence measurement

• Endurance testing

• Assembly line monitoring

• Brake testing

• Laboratory drop testing

• Machinery monitoring

• Railcar coupling impacts

The Shock300 is a battery powered, stand

alone 3-axis shock data logger. The Shock300

is specifically designed for documenting

dynamic environments such as moving

vehicles, trucks, containers, ships, etc. The

device is also valuable in characterizing

environments such as production and

assembly lines of delicate electronics, IC

fabrication, communications and computer

components. This compact, portable, easy to use device will measure and record up to

4,192,254 measurements. The storage medium is non-volatile solid state memory, providing

maximum data security even if the battery becomes discharged. The device can be started

and stopped directly from your computer and its small size allows it to fit almost anywhere.

The Shock300 makes data retrieval quick and easy. Simply plug it into an empty USB port

and our user-friendly software does the rest.

The Shock300 provides simple ordering as one model which provides three acceleration

ranges. The ranges are implemented on separate low-g and high-g accelerometers for

excellent resolution and accuracy.

MADGETECH DATA LOGGER SOFTWARE

A

Key

A Graph View

B Tabular Data View

C Statistics

D Digital Calibration

E Copy to Excel®

B

C

E

D

6 Warner Road · Warner, NH 03278

Phone: [phone] · Fax: [phone]

Software Features:

• Multiple graph overlay

• Statistics

• Digital calibration

• Zoom in/ zoom out

• Lethality equations (F0, PU)

• Mean Kinetic Temperature

• Full time zone support

• Data annotation

• Min./Max./Average lines

• Data table view

• Automatic report generation

• Summary view

• Multilingual

SHOCK300 SPECIFICATIONS*

* Specifications are subject to change without notice. Specific warranty remedy limitations apply.

Call [phone] or go to madgetech.com for details.

SHOCK

Accelerometer Type: MEMS Semiconductor

Acceleration Range (g): ±15 g ±100 g ±300 g

Acceleration Resolution (g): 0.02 g 0.05 g 0.2 g

Calibrated Accuracy (g): ±0.3 g ±2.0 g ±6.0 g

Sampling Rate: 1000 Hz

Accelerometer Freq. Resp.:

Reading Rate:

BATTERY WARNING: FIRE, EXPLOSION AND SEVERE BURN HAZARD. DO NOT SHORT CIR-

CUIT, CRUSH, PENETRATE, INCINERATE OR DISASSEMBLE. AVOID TEMPERATURES ABOVE
THE MAXIMUM OPERATING TEMPERATURE OF THE PRODUCT. DISPOSE OF PROPERLY.
CHARGE ONLY WITH THE PROVIDED MADGETECH CHARGER, OR FROM OTHER USB POWER
SOURCE VIA THE MADGETECH PROVIDED CABLE.

>1000 Hz (15 g)
>500 Hz (100 g, 300 g)

1024 Hz to 5 minutes for shock, select­able in software.

Memory:

Start Modes:

Real Time Recording:

4,192,254 readings
(1,397,418 per channel, all channels in use)

Software programmable immediate start or delay
start, up to 6 months in advance

May be used with PC to monitor and record
instantaneous measurements in real time

An optional password may be programmed into

Password Protection:

the device to restrict access to configuration
options. Data may be read out with the password.

Calibration: Digital calibration through software

Calibration Date: Automatically recorded within device

Battery Type: Internal Lithium Ion pack, charger included

Battery Life: 90 days typical at 64Hz rate

Data Format: Date and time stamped gravities (g and mg)

IP Rating: IP64

Time Accuracy: 10 seconds/month (at 0 ºC to 50 ºC)

Computer Interface: USB (type C cable required); 1MBaud

Software: Windows XP SP3 or later

Software Compatibility:

Operating Environment:

Standard Software version 4.2.16.0 or later
Secure Software version 4.2.17.0 or later

-20 ºC to +60 ºC,
0 %RH to 95 %RH non-condensing

Dimensions:

3.4 in x 1.7 in x 1.3 in
(86 mm x 43 mm x 33 mm)

Weight: 8 oz (227 g)

Enclosure: Anodized aluminum

CE compliant

Approvals:

EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU

ORDERING INFORMATION

MODEL PART NUMBER DESCRIPTION

SHOCK300 902167-00 ±15 g / ±100 g / ±300 g Tri-Axial Shock Data Logger,

Battery Charger and USB Type C Interface Cable
