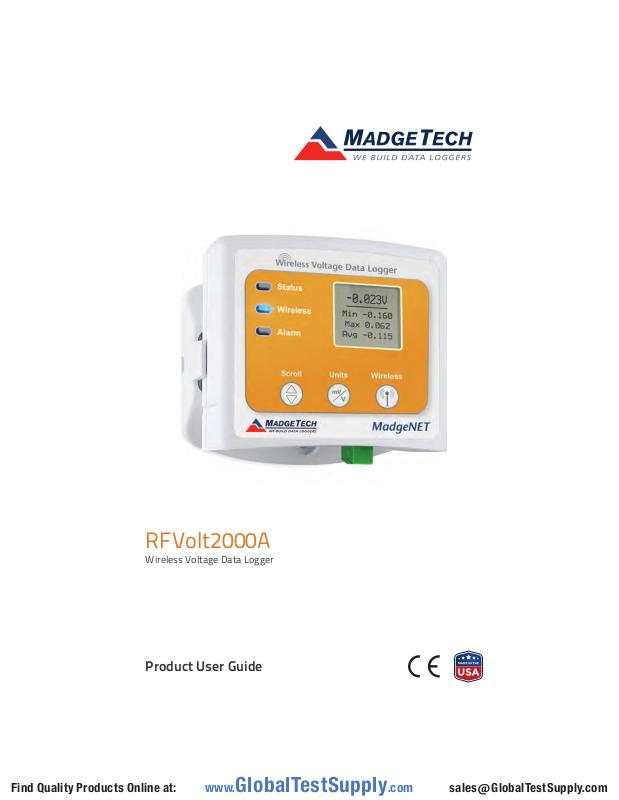

MadgeTech RFVolt2000A-30V User manual

RFVolt2000A
Wireless Voltage Data Logger
Product User Guide
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Product User Guide
Table of Contents
Soware Installation Guide .................................... 5
Channel Programming ............................................ 6
Product Maintenance ............................................... 7
RMA Instructions ...................................................... 7
Troubleshooting ...................................................... 8
2
To view the full MadgeTech product line, visit our website.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RFVolt2000A
Quick Start Steps
Product Operation (Wireless)
1. Install the MadgeTech 4 Soware and USB Drivers onto a Windows PC.
2. Connect the RFC1000 wireless transceiver (sold separately) to the Windows PC with the
provided USB cable.
3. Push and hold the wireless button on the RFVolt2000A for 5 seconds to activate wireless
communication. The display will confirm “Wireless: ON” and the blue LED will blink every 15 seconds.
4. Launch the MadgeTech 4 Soware. All active MadgeTech data loggers that are within range
will automatically appear in the Connected Devices window.
5. Select the data logger within the Connected Devices window and click the Claim icon.
6. Select the start method, reading rate and any other parameters appropriate for the desired
data logging application. Once configured, deploy the data logger by clicking Start.
7. To download data, select the device in the list, click the Stop icon, and then click the
Download icon. A graph will automatically display the data.
Product Operation (Plugged In)
1. Install the MadgeTech 4 Soware and USB Drivers onto a Windows PC.
2. Confirm the data logger is not in wireless mode. If wireless mode is on, press and hold the
Wireless button on the device for 5 seconds.
3. Connect the data logger to the Windows PC with the provided USB cable.
4. Launch the MadgeTech 4 Soware. The RFVolt2000A will appear in the Connected Devices
window indicating the device has been recognized.
5. Select the start method, reading rate and any other parameters appropriate for the
desired data logging application. Once configured, deploy the data logger by clicking the
Start icon.
6. To download data, select the device in the list, click the Stop icon, and then click the
Download icon. A graph will automatically display the data.
3
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Product User Guide
Product Overview
The RFVolt2000A is a wireless voltage data logger, featuring a convenient LCD screen to display current readings, minimum, maximum and average statistics, battery level and more. User programmable alarms can be configured to activate an audible buzzer and LED alarm indicator, notifying the user when the voltage levels are above or below the user set threshold. Email and text alarms can also be configured allowing users to be notified from almost anywhere.
Selection Buttons
The RFVolt2000A is designed with three direct selection buttons:
» Scroll: Allows user to scroll through current readings, average stats and device status
information displayed on the LCD Screen.
» Units: Allows users to change displayed units of measurement to either PSI, % or PPM
» Wireless: Push and hold this button for 5 seconds to activate or deactivate wireless
communication.
Users have the ability to manually reset the statistics within the device to zero without needing to use the MadgeTech 4 Soware. Any data recorded up to that point is recorded and saved. To apply the manual reset, press and hold the scroll key down for three seconds.
LED Indicators
» Status: Green LED blinks every 5 seconds to indicate the device is logging.
» Wireless: Blue LED blinks every 15 seconds to indicate the device is operating in wireless mode.
» Alarm: Red LED blinks every 1 second to indicate an alarm condition is set.
Mounting Instructions
The base securely snap to the backside of the data logger for wall mounting. There are two holes in the base to allow for screws.
4
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RFVolt2000A
Software Installation
MadgeTech 4 Soware
The MadgeTech 4 Soware makes the process of downloading and reviewing data quick and easy, and is free to download from the MadgeTech website.
Installing the MadgeTech 4 Soware
1. Download the MadgeTech 4 Software on a Windows PC.
2. Locate and unzip the downloaded file (typically you can do this by right clicking on the
file and selecting Extract).
3. Open the MTInstaller.exe file.
4. You will be prompted to select a language, then follow the instructions provided in the
MadgeTech 4 Setup Wizard to finish the MadgeTech 4 Software installation.
Installing the USB Interface Driver
USB Interface Drivers can easily be installed on a Windows PC, if they are not already available and running.
1. Download the USB Interface Driver on a Windows PC.
2. Locate and unzip the downloaded file (typically you can do this by right clicking on the
file and selecting Extract).
3. Open the PreInstaller.exe file.
4. Select Install on the dialog box.
For more detailed information, download the MadgeTech Software Manual
MadgeTech Cloud Services
MadgeTech Cloud Services allows users to remotely monitor and manage
groups of data loggers throughout a large facility or multiple locations, from any internet enabled device. Transmit real-time data to the MadgeTech Cloud Services platform via the MadgeTech Data Logger Soware running on a central PC or transmit directly to the MadgeTech Cloud without a PC using the MadgeTech RFC1000 Cloud Relay (sold separately). Sign up for a MadgeTech Cloud Services account.
For more detailed information, download the MadgeTech Cloud Services Manual
5
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Product User Guide
Activating & Deploying the Data Logger
1. Connect the RFC1000 wireless transceiver (sold separately) to the Windows PC with the
provided USB cable.
2. Additional RFC1000’s can be used as repeaters to transmit over greater distances. If
transmitting over a distance greater than 500 feet indoors, 2,000 feet outdoors or there are walls, obstacles or corners that need to be maneuvered around, set up additional RFC1000’s as needed. Plug each one into an electrical outlet in the desired locations.
3. Verify that the data loggers are in wireless transmission mode. Push and hold the Wireless
button on the data logger for 5 seconds to activate or deactivate wireless communication.
4. On the Windows PC, launch the MadgeTech 4 Soware.
5. All active data loggers will be listed in the Device tab within the Connected Devices panel.
6. To claim a data logger, select the desired data logger in the list and click the Claim icon.
7. Once the data logger has been claimed, select a start method in the Device tab.
For steps to claim the data logger and view data using MadgeTech Cloud Services, refer to the MadgeTech Cloud Services Software Manual
Channel Programming
Dierent wireless channels may be used to create multiple networks in one area, or to avoid wireless interference from other devices. Any MadgeTech data logger or RFC1000 wireless transceiver that is on the same network is required to use the same channel. If all of the devices are not on the same channel, the devices will not communicate with one another. MadgeTech wireless data loggers and RFC1000 wireless transceivers are programmed by default on channel 25.
Changing the channel settings of the RFVolt2000A
1. Switch the wireless mode to OFF by holding down the Wireless button on the data logger
for 5 seconds.
2. Using the provided USB cable, plug the data logger into the PC.
3. Open the MadgeTech 4 Soware. Locate and select the data logger in the Connected
Devices panel.
4. In the Device tab, click the Properties icon.
5. Under the Wireless tab, select a desired channel (11 - 25) that will match with the RFC1000.
6. Save all changes.
7. Disconnect the data logger.
8. Return the device to wireless mode by holding down the Wireless button for 5 seconds.
To configuring the channel settings of the RFC1000 wireless transceiver (sold separately), please refer to the RFC1000 Product User Guide that shipped with the product or download it from the MadgeTech website. Continue to page 7 for additional wireless channel information.
6
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RFVolt2000A
CHANNEL NOTE: MadgeTech wireless data loggers and wireless transceivers purchased prior to April 15, 2016 are programmed by default to channel 11. Please refer to the Product User Guide provided with these devices for instructions to change the channel selection if needed.
Product Maintenance
Battery Replacement
Materials: U9VL-J Battery
1. On the bottom of the data logger, open the battery compartment by pulling in on the cover tab.
2. Remove the battery by pulling it from the compartment.
3. Install the new battery, taking note of the polarity.
4. Push the cover closed until it clicks.
Recalibration
» RFVolt2000A-2.5V standard recalibration points: 0 V and 2.5 V.
» RFVolt2000A-15V standard calibration points: 0 V and 15 V.
» RFVolt2000A-30V standard calibration points: 0 V and 25 V.
» RFVolt2000A-160mV standard calibration points: 0 V and 100 mV+/-1 mV.
Recalibration is recommended annually for any MadgeTech data logger. A reminder is
automatically displayed in the soware when the device is due.
RMA Instructions
To send a device back in to MadgeTech for calibration, service or repair, follow the instructions below to create an RMA (Return Merchandise Authorization) on the MadgeTech website:
1. Sign into your account. For new customers, select Create an Account.
2. Once signed in, click on the Make New RMA button.
3. Complete the applicable fields on the form including customer Billing and Shipping
information, even if they are the same. Please see the field explanation below for a more detailed description about questions asked in the Device Information section.
4. When all of the fields are complete, click Generate RMA.
5. Print out the confirmation page that follows containing the RMA number and
MadgeTech’s address for shipping. A Return Merchandise Authorization must be accompanied by a copy of the RMA paperwork and shipping is prepaid by the customer. The RMA number should be clearly marked on the outside of the package.
6. Ship the package via UPS, FedEx, TNT, or DHL to the address listed on the confirmation
page. USPS will not ship MadgeTech data loggers.
7. A notification email will be automatically sent when MadgeTech has received the RMA.
7
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Product User Guide
Troubleshooting
Why is the wireless data logger not appearing in the soware?
If the RFVolt2000A doesn’t appear in the Connected Devices panel, or an error message is received while using the RFVolt2000A, try the following:
» Check that the RFC1000 is properly connected. For more information, see Troubleshooting
wireless transceiver problems (below).
» Ensure that the battery is not discharged. For best voltage accuracy, use a voltage meter
connected to the battery of the device. If possible, try switching the battery with a new 9V lithium.
» Ensure that the MadgeTech 4 Soware is being used, and that no other MadgeTech Soware
(such as MadgeTech 2, or MadgeNET) is open and running in the background. MadgeTech 2 and
MadgeNET are not the compatible with the RFVolt2000A.
» Ensure that the Connected Devices panel is large enough to display devices. This can be verified
by positioning the cursor on the edge of the Connected Devices panel until the resize cursor appears, then dragging the edge of the panel to resize it.
» Ensure that the data logger and RFC1000 are on the same wireless channel. If the devices are
not on the same channel, the devices will not communicate with one another. Please refer to the Channel Programming section for information on changing the device channel.
Troubleshooting wireless transceiver problems
Check that the soware properly recognizes the connected RFC1000 wireless transceiver.
If the wireless data logger is not appearing in the Connected Devices list, it may be that the RFC1000 is not properly connected.
1. In the MadgeTech 4 Soware, click the File button, then click Options.
2. In the Options window, click Communications.
3. The Detected Interfaces box will list all of the available communication interfaces. If the RFC1000
is listed here, then the soware has correctly recognized and is ready to use it.
Check that Windows recognizes the connected RFC1000 wireless transceiver.
If the soware does not recognize the RFC1000, there may be a problem with Windows or the USB drivers.
1. In Windows, click Start, right-click Computer and choose Properties.
2. Select Device Manager in the le hand column.
3. Double-click on Universal Serial Bus Controllers.
4. Look for an entry for Data Logger Interface.
5. If the entry is present, and there are no warning messages or icons, then windows has correctly
recognized the connected RFC1000.
6. If the entry is not present, or has an exclamation point icon next to it, the USB drivers may need to
be installed. USB drivers can be downloaded from the MadgeTech website.
Ensure that the USB end of the RFC1000 is securely connected to the computer.
1. If the cable is connected to the PC, unplug it and wait ten seconds.
2. Reconnect the cable to the PC.
3. Check to make sure that the red LED is lit, indicating a successful connection.
8
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RFVolt2000A
Compliance Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
To satisfy FCC RF Exposure requirements for mobile and base station transmission devices, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during operation. To ensure compliance, operation at closer than this distance is not recommended. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.
Countries approved for use, purchase and distribution:
Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Columbia, Croatia, Cyprus, Czech Republic, Denmark, Ecuador, Estonia, Finland, France, Germany, Greece, Honduras, Hungary, Iceland, Ireland, Israel, Japan, Latvia, Liechtenstein, Lithuania, Luxembourg, Malaysia, Malta, Mexico, New Zealand, Norway, Peru, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, South Korea, Spain, Sweden, Switzerland, Thailand, The Netherlands, Turkey, United Kingdom, United States, Venezuela, Vietnam
9
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Product User Guide
Voltage
Range
Resolution
Calibrated Accuracy
Response Time 150 mS at Sensor
Wireless
• 2.5 V: -3 VDC to +3 VDC
• 15 V: -8 VDC to +24 VDC
• 30 V: -8 VDC to +32 VDC
• 160 mV: -160 mVDC to +160 mVDC
• 0 to 2.5 VDC: 0.1 mVDC
• 0 to 15 VDC: 0.5 mVDC
• 0 to 30 VDC: 1.0 mVDC
• 0 to 160 mVDC: 5 µV
• 2.5 V: ±0.05%FSR at 25 °C (77 °F)
• 15 V: ±0.05%FSR at 25 °C (77 °F)
• 30 V: ±0.05%FSR at 25 °C (77 °F)
• 160 mV: ±0.01%FSR at 25 °C (77 °F)
RF Frequency
Maximum Output Power +0 dBm typical
Wireless Interface RFC1000, RFC1000-CE, RFC1000-IP69K or RFC1000 Cloud Relay
Transmission Distance
BATTERY WARNING: BATTERY MAY LEAK, FLAME OR EXPLODE IF DISASSEMBLED, SHORTED, CHARGED,
CONNECTED TOGETHER, MIXED WITH USED OR OTHER BATTERIES, EXPOSED TO FIRE OR HIGH TEMPERATURE. DISCARD USED BATTERY PROMPTLY. KEEP OUT OF REACH OF CHILDREN.
2.45 GHz IEEE 802.15.4 ultra-low power wireless transceiver with fully bi-directional communication
ISM band 2.405-2.475 GHz
Band
Operation (channels 11 through 25) @ 250 kbps
Unobstructed line of sight (outdoors): 2,000 feet max Typical urban environment (indoors): 500 feet max
10
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
General Specifications
Reading Rate 1 reading every second up to 1 reading every 24 hours
Memory 32,256 readings
LED Functionality
Memory Wrap Around Yes
Start Modes Immediate Start & Delay Start
Calibration Digital calibration through the MadgeTech 4 Soware
Calibration Date Automatically recorded within device
Battery Type Ultralife 9V lithium battery included; user replaceable
Battery Life 5 years typical at 15 minute reading rate
Data Format
Time Accuracy ±1 minute/month
Computer Interface
PC Compatibility MadgeTech 4: Windows 10, 8, 7, Vista, Window XP with SP3
MadgeTech Cloud Services
Compatible
Operating Environment -20 °C to +60 °C (-4 °F to +140 °F); 0 %RH to 95 %RH non-condensing
Dimensions 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
Weight 4.1 oz (116.2 g)
Enclosure Material ABS Plastic
Audible Alarm Functionality 1 beep per second for reading alarm above/below threshold
Approvals US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
• Green LED blinks every 5 seconds to indicate unit is logging
• Blue LED blinks every 15 seconds to indicate unit is in wireless mode
• Red LED blinks every 1 second to indicate alarm condition
• Display: V, mV
• Soware: Date and time stamped
Stand-alone Operation: USB to mini USB Wireless Operation: RFC1000 wireless transceiver
Yes
• User configurable audible, on-screen, email and text (SMS) alarms.
• Alarm Delay: A cumulative alarm delay may be set in which the
Alarm
device will activate the alarm (via LED) only when the device has recorded a user specified time duration of data.
RFVolt2000A
Specifications subject to change. See MadgeTech’s Terms and Conditions
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
11
Need Help?
Product Support & Troubleshooting:
» Refer to the Troubleshooting section of this document. » Visit our Knowledge Base online.
MadgeTech 4 Soware Support:
» Refer to the built-in help section of the MadgeTech 4
Software.
» Download the MadgeTech 4 Software Manual
MadgeTech Cloud Services Support:
» Download the MadgeTech Cloud Services Software Manual
DOC-1269036-00 REV 7 2016.03.08
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Loading...
