MadgeTech QuadTemp, OctTemp Quick Start Guide

Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289

Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289

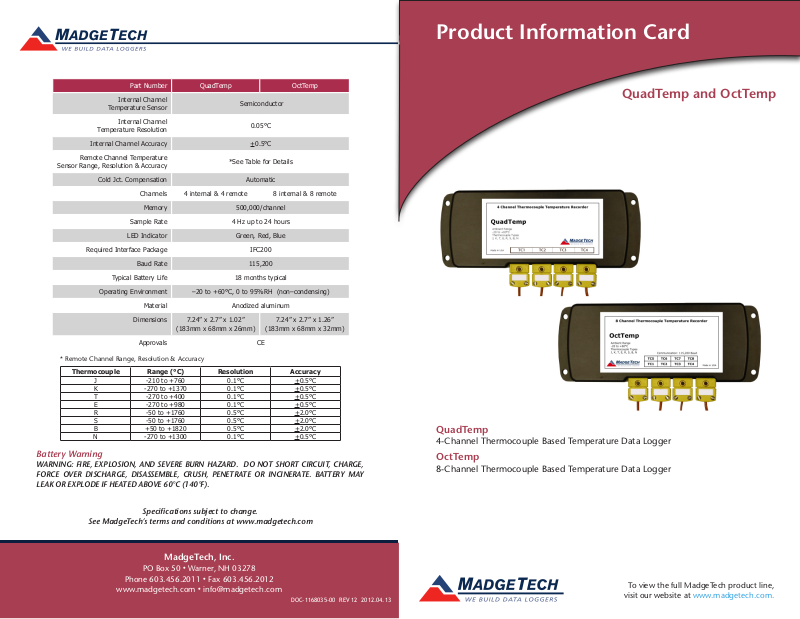

Product Information Card

Part Number QuadTemp OctTemp

Internal Channel

Temperature Sensor

Internal Channel

Temperature Resolution

Internal Channel Accuracy +0.5°C

Remote Channel Temperature

Sensor Range, Resolution & Accuracy

Cold Jct. Compensation Automatic

Channels

Memory 500,000/channel

Sample Rate 4 Hz up to 24 hours

LED Indicator Green, Red, Blue

Required Interface Package IFC200

Baud Rate 115,200

Typical Battery Life 18 months typical

Operating Environment –20 to +60°C, 0 to 95%RH (non–condensing)

Material Anodized aluminum

Dimensions 7.24” x 2.7” x 1.02”

Approvals CE

* Remote Channel Range, Resolution & Accuracy

Thermocouple Range (°C) Resolution Accuracy

J -210 to +760 0.1°C +0.5°C
K -270 to +1370 0.1°C +0.5°C
T -270 to +400 0.1°C +0.5°C

E -270 to +980 0.1°C +0.5°C
R -50 to +1760 0.5°C +2.0°C
S -50 to +1760 0.5°C +2.0°C
B +50 to +1820 0.5°C +2.0°C
N -270 to +1300 0.1°C +0.5°C

4 internal & 4 remote 8 internal & 8 remote

(183mm x 68mm x 26mm)

Semiconductor

0.05°C

*See Table for Details

7.24” x 2.7” x 1.26”

(183mm x 68mm x 32mm)

Battery Warning

WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE,
FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE. BATTERY MAY
LEAK OR EXPLODE IF HEATED ABOVE 60°C (140°F).

QuadTemp and OctTemp

QuadTemp

4-Channel Thermocouple Based Temperature Data Logger

OctTemp

8-Channel Thermocouple Based Temperature Data Logger

See MadgeTech’s terms and conditions at www.madgetech.com

Specifications subject to change.

MadgeTech, Inc.

PO Box 50

Phone [phone]

www.madgetech.com

l

Warner, NH 03278

l

Fax [phone]

l

[e-mail]

DOC-1168035-00 REV 12 2012.04.13

To view the full MadgeTech product line,

visit our website at www.madgetech.com.

QuadTemp and OctTemp

Product Quick Reference Card

Wiring the Data Logger

Wiring Options

The QuadTemp has four SMP connections and the OctTemp has eight. These connections

allow the user to insert subminiature thermocouple plugs into the connectors on the

device. The diagram below shows how to connect
the individual thermocouples for each of the devices.

Warning: Note the polarity instructions. Do not attach wires to the wrong
terminals.

Product Notes

Manual Start

Once armed through the software, to activate the Manual Start, hold the recessed push

button down for 10 seconds. The green LED will begin to blink rapidly for 10 seconds,

which signifies the push-button start has been activated. The green LED will continue to

blink every 5 seconds.

Enable/Disable Channels

By default, all channels are enabled. To disable channels, select Enabled Channels, then

Change. Uncheck boxes are disabled, checked boxes are enabled. Click Save to save the

changes. Disabling channels increases the memory capacity of the enabled channels.

Thermocouple Type

To change the thermocouple type:

- Select the Device Menu, then Identify Device and Read Status.

- Select the Device Detail tab, then Thermocouple Type.

- Click on the Change button in the Thermocouple Type window.

- Select the correct thermocouple type from the drop down list.

- Click on the Save button to store the thermocouple type in the device. Then click OK.

Please note that the same thermocouple type must be used on all of the channels.

LEDs

Once started, the green LED will flash at 5 second intervals to indicate that the device is running.

Set Password

To password protect the device so that others cannot start, stop or reset the device;

- Click Identify Device and Read Status, then select the Device Detail Tab.

- Choose Set Password; enter and confirm the password and click OK

Channel Naming

Up to a 10-character channel name can be programmed into the data logger for each

channel. To program or change a channel name, select Channel Names, then Change.

Type in the channel name(s) and click Save, to save the changes.

Installation Guide

Installing the Interface cable

- IFC200: Insert the device into a USB port. The drivers will install automatically.

Installing the software

Insert the Software CD in the CD-ROM Drive. If the autorun does not appear, locate the

drive on the computer and double click on Autorun.exe. Follow the onscreen instructions.

Connecting the data logger

- Once the software is installed and running, plug the interface cable into the data logger.

- Click the Communication Menu, then Auto Configure Port.

- After a moment, a box will appear stating that a device has been found.

- Click OK. The Device Status box will appear. Click OK.

- At this point, communications have been configured for your logger. These settings can

be found under the Communication Menu.

Note: For additional installation instructions refer to your “Data Logger & Software Operating Manual”.

Device Operation

Starting the data logger

- Click Device Menu then Start Device and choose the desired start method.

- Choose the start parameters by selecting a Reading Rate suitable for your application.

- Enter in any other desired parameters and click Start.

- A box will appear stating the data logger has been started. Click OK.

- Disconnect the data logger from the interface cable and place it in the environment to

measure.

Note: The device will stop recording data when the end of memory is reached or the device is stopped. At this point the
device cannot be restarted until it has been re-armed by the computer.

Downloading data from a data logger

- Connect the data logger to the interface cable.

- Click the Device Menu then Read Device Data. This will offload all recorded data onto

the PC.

Device Maintenance

Battery Replacement

Materials:

3/32” HEX Driver (Allen Key)

Replacement Battery (U9VL-J)

- Remove the cover from the device by unscrewing the two screws.

- Remove the battery from its compartment and unsnap it from the connector.

- Snap the new battery into the terminals and verify it is secure.

- Replace the cover taking care not to pinch the wires. Screw the enclosure back together

securely. Note: Be sure not to over tighten the screws or strip the threads.

Recalibration

The QuadTemp or OctTemp standard calibration is one point at 25°C for the internal

temperature sensor and 0mVs for the thermocouple channels.

Pricing:

Recalibration traceable to NIST $70.00
Recalibration $40.00

Additional Services:

Verification Point $15.00 per point
Channel (1st) $30.00 at 25°C
$45.00 at custom point
Additional Channels $3.00 at 25°C
$4.50 at custom point

Prices and specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com
To send the devices back, visit www.madgetech.com, select Services then RMA Process.
