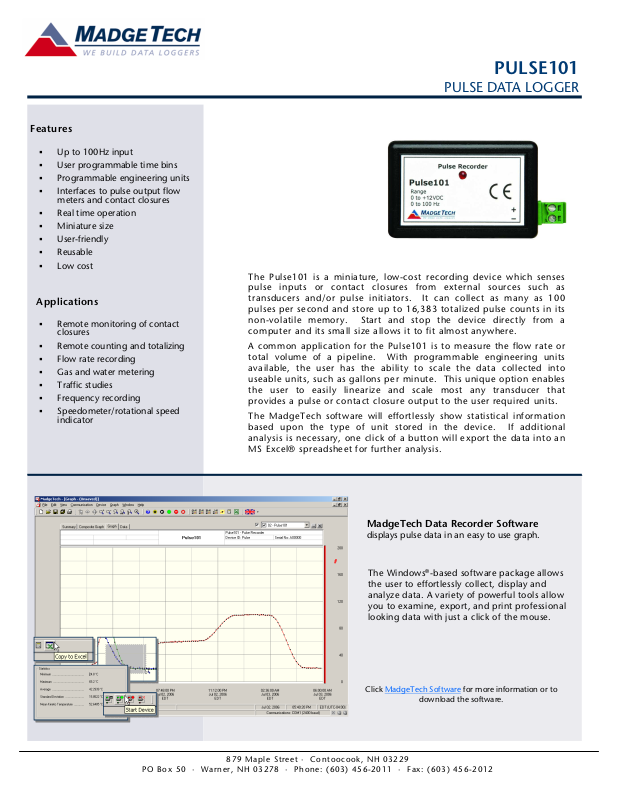

MadgeTech Pulse 101 Data sheet

Features



Up to 100Hz input



User programmable time bins



Programmable engineering units



Interfaces to pulse output flow
meters and contact closures



Real time operation



Miniature size



User-friendly



Reusable



Low cost

Applications



Remote monitoring of contact
closures



Remote counting and totalizing



Flow rate recording



Gas and water metering



Traffic studies



Frequency recording



Speedometer/rotational speed
indicator

PULSE101

PULSE DATA LOGGER

The Pulse1 01 is a mi niature, low-cost recording device which senses
pulse inputs or contact closu res from external sources such as
transducers a nd/or pulse initiat ors. It can collect as many as 100
pulses per second and store up to 16, 383 tot alize d pulse counts in its
non-volatile memory. Start and stop the d evice directly from a
computer and its small size allo ws it to f it al most anywhere.

A co mmon application for th e Pulse101 is to measure the flow rate or
total volume of a pipeline. With program mable engineering units
availab le, the user ha s the ability to scale t he data collected into
useable units, such as gallons per minute. This unique option enables
the user to easily linearize and scale most any transduc er that
provides a pulse or contact closure output to the us er required units.

The MadgeTech software will effortlessly show statistic al in forma tion
based upon the type of unit stored in the device. If additio nal
analysis is necessa ry, one click of a button will export the data into an
MS Excel® sp readsheet for further ana lysis.

MadgeTech Data Recorder Software

displays pulse data in an easy to use graph.

The Windows®-based software package allows
the user to effortlessly collect, display and
analyze data. A variety of powerful tools allow
you to examine, export, and print professional
looking data with just a click of the mouse.

Click MadgeTech Software for more information or to

87 9 Ma ple Street · C onto oc oo k, N H 03 22 9

PO B ox 5 0 · Warner, NH 03 27 8 · Ph one: (603) 456-20 11 · F ax : [phone]

download the software.

PULSE101 SPECIFICATIONS*

Input Connection: R emovab le screw terminal Real Time Recording: May be used wi th PC to mon ito r a nd record

Maximum Pulse Rate: 10 0Hz (10 ms)

Input Range: 0 to 12VDC continuous; (0 to 30VDC peak) Start Modes: Software programm able immedia te sta rt or

Input Low: < 0.4 V

Input High: > 2.7 V Memory: 16,383 readings; software configurable memory wrap

Internal Weak Pull-Up: <500µA Reading Rate: 1 reading eve ry sec ond to 1 eve ry 12 hours

Input Impedance: >1 kΩ Visual Indicator: LED flashes at se lected readi ng rate.

Recommended Duty Cycle

for inputs greater than

12VDC

(over 1 min. interval):

Minimum Pulse Width/

Contact Closure Time:

Engineering Units: Software prog ram mab le. User may

Scale Factor: Softw are programmable. User may

18V: <50%
24V: <25%
30V: <10%

Battery Type: 3.6V lithium bat tery i ncl ude d; use r replaceab le

Battery Life: 1 year typi cal

Data Format: Date and time stamped V , mV, µV, user defined

1 millisecond

Time Accuracy: ±1 minute/month at 20 ºC (RS232 cable not in use)

program any de sired uni ts up to 10

Computer Interface: PC serial o r U SB (in terface cable required);

characters. Va lue is stored in device.

Software: Windows 95/98/ME/NT/2000/XP/Vista based
program any de sired sca ling factor
from ±1.000 0E- 31 to ±9.9999E+ 31.

Operating Environment: -40 to +80ºC, 0 to 95%RH no n-c ond ensing

The fact or is stored in the device.

Dimensions: 1.4” x 2.5” x 0.6” ( 36m m x 64mm x 16mm)

Offset Value: Software Programmable. User may

program any desi red offset value fr om

Materials: ABS plasti c

±1.0000E-31 to ±9.9999E +31. The
factor i s s tored in the device.

Approvals: CE

SOFTWARE FEATURES

Mu ltiple Graphs: Simultaneously analy ze data from

BATTERY WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT RECHARGE,

DISASSEMBLE, HEAT ABOVE 212ºF, INCINERATE OR EXPOSE CONTENTS TO WATER.

Weight: 0.9 oz (24 g)

Stati stics: Calculate average s, min, m ax, standard

several uni ts or dep loyments; easily
switch to a si ngl e data series

data in rea l time .

delay start up to si x m onths in advance.

engineering units .

2,400 ba ud

software

deviatio n, and mean kinetic temperature
with the touch of a button

Graph ical Cursor: One click displa ys rea dings by time,

value, paramet er or sam ple number

Data Tab le: Instantly access tabular vie w for

detailed dates , time s, values, a nd
annotations

Scali ng Options: Autoscale functio n f its da ta to the

Logge r C onf iguratio n: Easy set up and laun ch of data loggers with

screen, or all ows us er to manually
enter their ow n v alues

Forma tti ng Optio ns: Chang e c olors, line styles, plotting

Commu nic ations: Auto matically se ts up communications po rt, or

options, show or hid e channels quickly

OR DERIN G INF ORMATIO N

Model

PULSE 101 Pulse Recorde r $99.00

IFC11 0 Software , manual and RS232 in terface cable $99.00

IFC20 0 Software , manual and USB interface cable $119.00

LTC-7PN Replacement battery for Pulse101 $10.00

Fo r Qu an tity Discounts call 6 03 -4 56 -2 01 1 or e ma il sales@ ma dg et ec h. co m

Description

Price (U.S.)

Expor t D ata: Expo rt data i n a va riety of common formats, or

switch to Excel® with a single cl ick

Calib rat ion: Auto matically ca lculate a nd store calibration

parameters

immediate o r dela yed start, preferred sample
rate, and devi ce ID

lets use r s ele ct con fig uration

*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

SPECIFIC WARRANTY AND REMEDY LIMITATIONS APPLY.

CALL 1-603-456-2011 OR GO TO WWW.MADGETECH.COM FOR DETAILS.

ASK ABO UT OUR OTHER

DATA RECORDE RS

Temperature
Humidity

Pressure
pH

Level
Shock
LCD Display

Pulse/Event/State
Low Level Current

Low Level Voltage
RF Transmitter s

Intrinsi cal ly Saf e
Spectral Vibra tio n

PO B ox 5 0 · Warner, NH 03 27 8 · Ph one: (603) 456-20 11 · F ax : [phone]

87 9 Ma ple Street · C onto oc oo k, N H 03 22 9

DOC-1073009-00 REV D 2009.07.01
